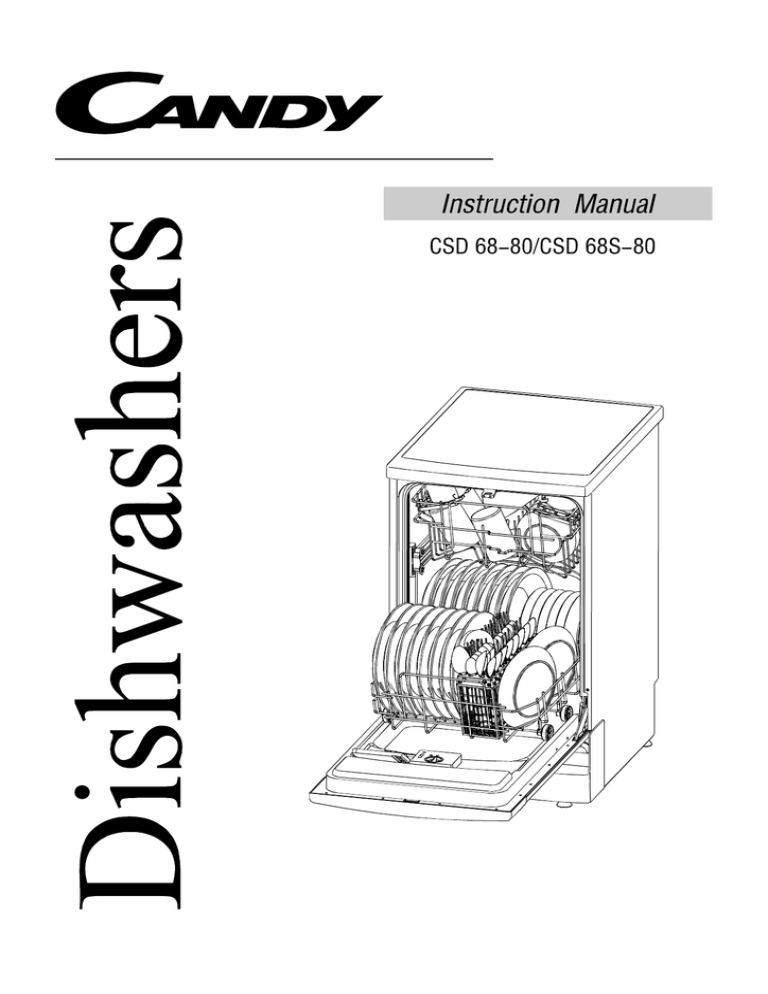

CSD 68-80/CSD 68S-80
This manual contains sections of Safety
Instructions,Operating Instructions,
Installation Instructions and Troubleshooting
Tips etc. Carefully reading it before using the
dishwasher will help you to use and maintain
the dishwasher properly.
To review the section on Troubleshooting Tips
will help you to solve some common problems
by yourself and not need to ask for the help of
professional technicians.
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . 2
Dishwasher Features . . . . . . . . . . . . . . . . . 2
Wash Cycle Table . . . . . . . . . . . . . . . . . . . . 3
Water Softener . . . . . . . . . . . . . . . . . . . . . . 4
Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Rinse Aid . . . . . . . . . . . . . . . . . . . . . . . . . 5, 6
Loading the Dishwasher Rack . . . . . . . . 6,7
Turning On the Appliance . . . . . . . . . . . . . . 7
Filtering System . . . . . . . . . . . . . . . . . . . . . 8
Caring for the Dishwasher . . . . . . . . . . . . . 9
About Electricity connection . . . . . . . . . . 10
About the Unicouple . . . . . . . . . . . . . . . . . 10
Water Connection . . . . . . . . . . . . . . . . . . . 11
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . 11
Before calling for service. . . . . . . . . . 12,13
The manufacturer, following a policy of constant
development and up-dating of the product, may
make modifications without giving prior notice.
Under certain conditions, Hydrogen gas may be produced in a hot-water system that has not been used for
two weeks or more. HYDROGEN GAS IS EXPLOSIVE.
If the hot-water system has not been used for such a period, before using the dishwasher turn on all
hot-water faucets and let the water flow from each for several minutes. This will release any accumulated
hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.
„ This appliance complies with international
safety standards, and is fitted with a plug with
earth connection to ensure compl ete earthing
of the product.
Before connecting the appliance to the mains
supply it is important to ensure:
„ Ensure that your product is properly earthed. In the
absence of adequate earthing you will notice that when
touching the metal parts of your appliance an
electrical dispersion can be felt, due to the presence of
a radio interference suppressor.
That the supply socket is properly earthed.
That your electricity supply is capable of
meeting the consumption requirements
listed on the rating plate of your appliance.
This appliance complies with Directives
89/336/EEC, 73/23/EEC and following changes.
„ Do not abuse, sit on, or stand on the door or dish
„ Do not operate your dishwasher unless all
rack of the dishwasher.
enclosure panels are properly inplace. Open the
door very carefully if the dishwasher is operating,
there is a risk of water squirting out.
„ Do not touch the heating element during or
immediately after use.
„ Do not place any heavy objects of stand on the door
„ Do not wash plastic items unless they are marked
when it is open. The appliance could tip forward.
dishwasher safe or the equivalent. For plastic
items not so marked, check the manufactures
„ When loading items to be washed:
„ Use only detergent and rinse additives designed
for an automatic dishwasher. Never use soap ,
laundry detergent, or hand washing detergent
in your dishwasher. Keep these products out of
„ Keep child away from detergent and rinse aid, keep
1) Locate sharp items so that they are not likely to
damage the door seal;
2) Load sharp knives with the handles up to reduce
the risk of cut-type injuries.
„ When using your dishwasher, you should prevent
plastic item from contacting with heating element.
„ If the supply cord is damaged, it must be replaced
child away from the open door of the dishwasher,
there could still be some detergent left inside.
by the manufacturer or its service agent or a
similarly qualified person in order to avoid a
„ The door should not be left in the open position
since this could present a tripping hazards.
„ Please dispose of packing materials properly.
„ During installation, the power supply must not
be excessively or dangerously bent or flattened.
„ Use the dishwasher only for its intended function.
„ Remove the door to the washing compartment when
„ Do not tamper with controls.
removing an old dishwasher from service or discarding it.
„ The appliance is not intended for use by young
children or infirm persons without supervision.
„ Dishwasher detergents are strongly alkaline,they
can be extremely dangerous if swallowed.Avoid
contact with skin and eyes and keep children away
from the dishwasher when the door is open.
„ Important: when the appliance location is on carpet
floors, attention must be paid so as to ensure that
there is no obstruction to the bottom vents.
„ Young children should be supervised to ensure that
they do not play with the appliance.
„ Check that the detergent receptable is empty after
completion of the wash cycle.
„ Cutlery is washed best if it is placed in the basket with
handles downwards.
knives and other utensils with sharp points must be
loaded in the basket with their points down or placed in a
horizontal position.
To get the best performance from your dishwasher,read all operating instructions before using it for the
first time.
1 2 3 4
1 Pre-rinse light: Blink during pre-rinse.
8 ON/OFF Button: To turn ON/OFF the power supply.
NOTE: this model has a "broken remember" function, which
means that power supply broken down during washi ng
will not reset the current washing program. So you can't
cancel a program by cutting off the power. pls see the
section entitled "change a program".
2 Wash light: blink during w ash.
3 Rinse light: b link during rinse.
4 Drying light: blink during drying.
5 Salt empty light: To come on when the softener needs
to be refilled(Cert ain model only).
6 Door Handle: Pull it to open the door.
9 Power Light : To come on when the ON/OFF Button is Press e d
7 Washing Program Selector: Turn the knob clockw ise to
select wash cycles.
10 Start / Reset Button: Press this button to start or pause the
selected program. When the program start one of the lights
will bl ink.
Upper Basket
Spray Arms
Lower Basket
Water Softener
Main Filter
Detergent Dispenser
Cup Shelf
Silverware Basket
Coarse Filter
Rinse Aid Dispenser
Drain pipe connector
Inlet pipe connector
For the heaviest soiled loads,
such as pots,pans,casserole
dishes and dishes that have
been sitting with dried food
on them for a while.
Pre-rinse (45 ° C)
Wash (70 ° C )
Rinse (75 ° C )
For normally soiled loads,
such as pots , plates,glasses
and lightly soiled pans.
standard daily cycle.
Wash (50 ° C )
Rinse (70 ° C )
For lightl y soi led loads,such
as plates,glasses,bowls and
lightly soiled pans.
Wash (45 ° C )
Rinse (65 ° C )
4/20 gr
Daily wash in only 1 hour.
Suitable for normal soiled
dishes that are to be washed
straight after a meal (max 6 plate
Wash (70 ° C )
Rinse (65 ° C )
20 gr
A shorter wash for lightly soiled
loads (max 4 plate settings).
Wash (50 ° C )
Rinse (55 ° C )
15 gr
To rinse dishes that you
plan to wash later that day.
8/24 gr
4/20 gr
Draw out the lower and upper basket, load the dishes and
push them back. It is recommended that loading the lower
basket first, then the upper one (see the section entitled
" Loading the Dishwasher " ).
Pour in the detergent(see the section entitled,
" Salt, Detergent and Rinse Aid " ).
Premise : A cycle that is underway can onl y be modified if it
With a little force to ensure the door is properly closed.
has only been running for a short time. Otherwise, the detergent
may have already been released, and the appliance may have
already drained the wash water. In this case, the detergent
dispenser must be refilled (see the paragraph entitled " Loading
the Detergent " ).
A click could be heard when the door is closed
Insert the plug into the socket.
The power supply is 220-240VAC 50Hz, the specification
of the socket is 12A 250 VAC, Make sure that the water
supply is turned on to full pressure.
Press the ON/OFF button
Turn the knob located on the right of the control panel in
the clockwise direction until the number or the symbol
for the cycle
Press the Start/Reset button to start the washing.
Please press the Start/Reset button and last more than
three seconds, this will cancel the current programme.
(NOTE: turning off the appliance by pressing the on/off
button can not cancel the curr ent programme, because
this model has a "broken remember" function.)
Turn around the Washing Program Selector to select the
desired programme.
Press the Start/Reset button to start the washing.
NOTE: If you open the door when washing, the machine
will pause. When you close the door and press the
Start/Reset button, the machine will keep on working after
10 seconds.
The four program lights shows the state of the dishwasher:
a)All program lights off-----------------stand by
b)One of the program lights on-----------pause
c)One of the program lights blinking-------run
When the washing is over, you can shut off the sw itch by
pressing on/off button.
If all the lights begin to glimmer, that indicates the machine is out of order, please turn off the main power and water supply
before calling a service.
If your model have not water softener, you may skip this section.
There are two ways to reduce the water hardness: one way is using water softener, the other is using
The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes
and utensils.
The appliances is equipped with a special softener that uses a salt specifically designed to eliminate lime and minerals from the
Always use salt intended for use with dishwashers.
The salt container is located beneath the lower rack and should be filled as follows:
Remove the lower basket and then unscrew and remove the cap from the salt
If you are filling the container for the first time ,fill 2/3 of its volume with water.
Carefully screw the cap back on.
Place the end of the funnel(supplied) into the hole and introduce about 2kg of
salt .It is normal for a small amount of water to come out of the salt containe r
1. The salt container must be refilled when the salt warning li ght comes on. Though the salt container is filled
enough, the indicator light may not black out before the salt fully dissolve.
2. If there are spills of the salt, a soak program could be run to wipe them out.
The dishwasher is designed to allow for adjusting the amount of salt consum ed based on the hardness of the water used.
This is intended to optimize and customize the level of salt consumption so that the salt consumption could be set proceed as
Unscrew the cap from the salt container.
There is a ring on the container with an arrow on it (see Figure to the side), if
necessary, rotate the ring in the anticlockwise directi on from the "-" Setting
toward the "+" sign, based on the hardness of the water being used.It is
recommended that adjustments should be made in accordance with the following
Salt consumption
Auto nomy
Contact your local water board for information on the hardness of your water supply.
The dispenser must be refilled before the start of each wash cycle following the instructions provided i n the" Wash Cycle
Table".Your dishwashers use less detergent and rinse aid than conventional dishwashers. Generally, only one tablespoon of
detergent is needed for a normal wash load. Also, more heavily soiled items need more detergent. Always add the detergent just
before starting dishwasher, otherwise it could get damp and will not dissolve properly.
The amount of detergent needed can vary due to differences in water hardness. To determine the water hardness in your area,
contact your local water utility or area water softening company. The harder the water, the more detergent you may need.
Remember, you should adjust the amount of detergent you use by small amounts until you find the correct amount.
To remove hard water spots, try the following:
Run di shes through a normal wash program.
Remove all metal dishware, such as cutlery, pans, etc.,
from the dishwasher.
Do not add detergent.
Pour two cups of vinegar into a bowl and set the bowl face
up on the lower rack of the dishwasher.
Run the dishes through a normal wash program.
If this doesn't work, try the same process with 1 / 4 cup of
citric acid crystals instead of vinegar.
Use only detergent specifically made for use in dishwashers.
Keep your detergent fresh and dry. Don't put powder detergent
into the dispenser until You're ready to wash dishes.
Dishwasher detergent is corrosive! Take care to keep it out
of reach of children.
The rinse aid is released during the final rinse to prevent water
from forming droplets on your dishes that can leave spots and
streaks. It also improves drying by allowing water to "sheet" off
the dishes.
Your dishwashers are designed to use liquid rinse aids. The
rinse aid dispenser is located inside the door next to the
detergent dispenser. To fill the dispenser, open the cap and
pour the rinse aid into the dispenser until the level indicator
turns completely black. The dispenser holds about 100 ml of
liquid rinse aid.
To open the dispenser, turn the cap to the "open" (left)
arrow and lift it out.
Pour the rinse aid into the dispenser, being careful not to
Replace the cap by inserting it aligned with "open" arrow
and turning it to the closed (right) arrow.
Be careful not to overfill the dispenser, because this could
cause oversudsing. Wipe away any spills with a damp cloth.
Don't forget to replace the cap before you close the dishwasher
If you have soft water, you may not need rinse aid for it may
cause a white film to develop on your dishes.
A measured amount of rinse aid is released during the final rinse. As with detergent, the amount
of rinse aid needed for your dishes depends on the hardness of the water in your area. Too much
rinse aid can result in lather of foaming and cause cloudiness or steaks on your dishes. If the
water in your area is very soft, you may not need rinse aid. If you do,you can dilute the rinse aid
with an equal amount of water.
The rinse aid dispenser has six settings. Always start with the dispenser set on " 1 ". If spots and
poor drying are problems, increase the amount of rinse aid dispensed by removing the dispenser
lid and rotating the dial to "2". If the dishes stil l are not drying properly or are spotted, adjust the
dial to the next higher number until your dishes are spot-free. We suggest you to set on "4" .
(If only four settings we suggest you to set on "2".)
If there is no rinse aid warning light in the control panel, you can judge the amount of rinse aid by the following means. The
black dot on the rinse aid dispenser indicates the amount of rinse aid in the dispenser. As the rinse aid diminishes, the size of
the black dot decreases. You should never let the rinse aid get below 1 / 4 full.
As the rinse aid diminishes, the size of the black dot on the rinse
aid level indi cator changes, as illustrated below.
3 / 4 full
1 / 2 full
1 / 4 full - Should refill to el iminate spotting
The upper rack is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cup and saucers, as well
as plates, small bowls and shallow pans(as long as they are not too dirty).
Position the dishes and cookware so that they do not get moved by the spray of water.
The upper rack can be adjusted for height by putting wheels of different height into the rails.
Small serving bowl
Large serving bowl
We recommend that you place large items which are most difficult to clean into the lower rack: pots, pans, lids,
serving dishes and bowls, as shown in the figure to the right.
It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the
top spray arm.
Pots, serving bowls, etc, must always be placed top down.
Deep pots should be slanted to allow water to flow out.
The bottom rack feature fold down tine rows so that larger or more pots and pans can be loaded.
Oval platter
Dinner plates
Soup plates
Dessert dishes
Silverware basket
Silverware should be placed in the silverware basket with handles at the bottom: If the rack has side baskets, the spoon should
be loaded individually into the appropriate slots, Especially long utensils should be placed in the horizontal position at the
front of the upper rack.
4 5
3 5
3 3
Soup spoons
Dessert spoons
Serving spoon
Gravy ladle
Serving fork
1 3 3 2
1 3 3
6 3 6 2
Do not let any item extend through bottom.
When the working cycle has finished, the buzzer of dishwasher will mooing 8 second ,then stop .
Turn off the appliance using the ON/OFF button, shut off the water supply and open the door of
the dishwasher. Wait a few minutes before unloading the dishwasher to avoid handling the dishes
and utensils while they are still hot and more susceptible to breakage. They will also dry better.
A forgotten dish can be added any time before the detergent cup opens.
Open the door a little to stop the washing.
Add forgotten dishes.
After the spray arms stop working,you can open the door
Close the door, the dishwasher will work after ten second.
It is dangerous to open the door when washing,because the hot water may be scalded to you.
For your convenience, we have placed the drain pump and filtering system within easy reach inside the tub. There are three
components of the filtering system: the main filter, the coarse filter, and the fine filter.
Main filter
Food and soil particles trapped by this filter are pulverized by a special jet on the lower spray
arm and washed down the drain.
Coarse fi lter
Larger items, such as pieces of bone or glass, that could clog the drain are trapped in the
coarse filter. To remove an item caught in this filter, gently squeeze the tabs on top of this
filter and lift it out.
Fine filter
This filter holds soil and food residue in the sump area and prevents it from being
redeposited on the dishes during a cycle.
If your dishwasher is left in an unheated place during the winter, ask a service technician to:
Cut off electrical power to the dishwasher. Remove
fuses or trip circuit breaker.
Reconnect the water inlet pipe to the
water valve.
Turn off the water supply and disconnect the water
inlet pipe from the water valve.
Drain water from the inlet pipe and water valve.
(Use a pan to catch the water.)
Remove the plastic sump cover in the
tub the bottom and use a sponge to
soak up water in rubber boot.
It is necessary to cl ean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings. To remove the
spray arm, screw off the nut to take out the washer on top of the spray arm and remove the arm. Wash the arms in soapy and warm
water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.
Filter assembly
For best performance and results, the filter assembly must be cleaned.
The filter efficiently removes food particles from the wash water, allowing it to be
recirculated during the cycle. For this reason, it is a good idea to remove the larger
food particles trapped in the filter after each wash cycle by rinsing the se micircular
filter and cup under running water. To remove the filter assembly, pull on the cup
handle in the upward direction. The entire filter assembly should be cleaned at least
once a month.
To clean the coarse filter and the fine filter, use a cleaning brush. Then, reassemble
the filter parts as shown in the figures left and reinsert the entire assembly in the
dishwasher, positioning in its seat and pressing downward.
The dishwasher must never be used without the filters. Improper replacement of the
filter may reduce the performance level of the appliance and damage dishes and utensils.
Never run the dishwasher without the filters in place.
To clean the edge around the door, you should use only a soft warm, damp rag. To prevent
penetration of water into the door lock and electrical components, do not use a spray cleaner
of any kind.
Also, never use abrasive cleaners or scouring pads on the outer surfaces because they will
scratch the finish. Some papers towels can also scratch or leave marks on the surface.
Never use a spray cleaner to clean the door panel for it could damage the door l ock and electrical components. It is not allowed
to use the abrasive agent or some paper towel becauseof the risk of scratching or leaving spots on the stainless steel surface.
Something will occasionally move into the filters and the drain pump. If this occurs, the drain
pumps employed in your dishwashers are designed to automatically reverse, ejecting the
item back into the sump area or down the drain. If you have to remove an obstacle from the
drain pump, before you remove the filters, you should turn off the power; Then remove the
small black insert from the sumparea. (You might want to remove any standing water first).
Scoop out the item that is probably in the sump area and causes the obstruction. Remember
to replace the black insert before you put the filters back in.
When you go on holiday, it is recommened that you run a
wash cycle with the dishwasher empty and then remove
the plug from the socket, turn off the water supply and
leave the door of the appliance slightly ajar. This will help
the seals last longer and prevent odors from forming
within the appliance.
After every wash, turn off the water supply to the
appliance and leave the door slightly ajar so that
moisture and odors are not trapped inside.
Before cleaning or performing maintenance, always
remove the plug from the socket. Do not run risks.
If the appliance must be moved, try to keep it in the vertical
position.If absolutely necessary, it can be positioned on
its back.
To clean the exterior and rubber parts of the dishwasher,
do not use solvents or abrasive cleaning products.
Rather, use only a cloth and warm soapy water.
To remove spots or stains from the surface of the
interior, use a cloth dampened with water and a little
white vinegar, or a cleaning product made specifically
for dishwashers.
One of the factors that cause odors to form in the
dishwasher is food that remains trapped in the seals.
Periodic cleaning with a damp sponge will prevent this
from occurring.
Fused electrical supply is required-copper wire only. Time delay fuse or c ircuit breaker recommended and provide separate
circuit serving only this appliance. Outlet should be placed in adjacent cabinet.
Make sure that the plug on the appliance remains accessible after installation.
After making sure that the voltage and the frequency values for the current in the home
correspond to those on the rating plate and that the electrical system is sized for the
maximum voltage on the rating plate, insert the plug into an electrical socket which is
earthed properly. If the electrical socket to which the appliance must be connected is not
appropriate for the plug , replace the socket(installed by a qualified electrician) ,rather than
using a adaptors or the like as they could cause overheating and burns.
The appliance must be connected to the water mains using new hose-sets.
The old hose-sets should not be reused.
Water pressure must be between 0,04 MPa and 1 MPa. If the pressure is below the minimum
consult our Service Department for advice.
If faucet has not threads: attach the faucet adapter to faucet, then tighten every screw
of the adapter. To prevent leaking your should tighten the adapter.
Connector of ModelⅠ
Pull Unicouple and its hoses completely out from storage compartment located at rear of dishwasher
and attach it to the faucet adapter.
Attach the Unicouple connector to the faucet adapter by depressing the collar at the top of the connector.
When Unicouple is all the way up onto the adapter, release the collar. It will then snap Into position to
lock the Unicouple in place. The Unicouple
s small hose carries water from the faucet to the dishwasher.
Its large hose carries drain water to the sink. Be sure Unicouple is pointing toward the sink bowl drain
opening and the sink drain is open for water that will drain from your dishwasher. If your dishwasher
drains into a disposer, operate the disposer until it is completely empty before starting the dishwasher.
Turn water fully on before starting the dishwasher.
A hose that attaches to a sink spray can burst if it is installed on the same water line as the dishwasher. If your sink has one, it is
recommended thet the hose be disconnected and the hole plugged.
Turn off the water.
Release the water pressure by depressing the pressure release button. This relieves water pressure and protects you, and the
room, from severe splashing.
Release Unicouple from faucet by depressing the collar at the top of the Unicouple connector.
Remove the power cord plug from the wall receptacle.
Disconnect Unicouple from faucet adapter.
Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is
fastened tightly in place.
If the water pipes are new or have not been used for an extended period of time, let the water
run to make sure that the water is clear and free of impurities. If this precaution is not taken,
there is a risk that the water inlet can get blocked and damage the appliance.
Con nector of ModelⅡ
The water supply to the appliance can also be connected to the house hot water line
(centralized system, heating system),as long as it does not exceed a temperature of 60 C.
In this case, the wash cycle time will be shortened by about 15 minutes and the wash
efficiency slightly reduced.
The connection must be made to the hot water line following the same procedures as those
for the connection to the cold water line.
Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent
cabinets or wall. The dishwasher is equipped with water supply and drain hoses that can be positioned to the right or the left to
facilitate proper installation.
Once the appliance is positioned,adjust the feet (screwing them in or out) to adjust the
height of the dishwasher, making it level. In any case ,the appliance should not be inclined
more than 2 .
Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending
or crimping it. Use the special plastic support that comes with the appliance. The free end of the hose must be at a height
between 40 and 100cm and must not be immersed in water.
If the sink is 34 or higher from the floor, the excesswater in Unicouple hoses
cannot be drained directly into the sink. It will be necessary to drain excess
water from hoses into a bowl or suitable container that is heldoutside and lower
than the sink.
Fuse blown, or the
circuit breaker acted
Replace fuse or reset circuit breaker. Remove any other
appliances sharing the same circuit with the dishwasher
Power supply is not
turned on
Make sure the dishwasher is turned on and the door is
closed securely.
Make sure the power cord is properly plugged into the
wall socket.
Water pressure is low
Check that the water supply is connected properly and
the water is turned on.
The system is designed to detect an overflow. When it
does, it shuts off the circulation pump and turns on the
drain pump.
Some audible sounds are
Sound from soft food shredding action and detergent cup
Utensils are not secure
in the baskets or something
small has dropped into
the basket
To ensure everything is secured in the dishwasher.
Motor hums
Dishwasher has not been used regularly. If you do not use it
often, remember to set it to fill and pump out every week,
which will help keep the seal moist.
Improper detergent
Use only the special dishwasher detergent to avoid suds.
If this occurs, open the dishwasher and let suds evaporate.
Add 1 gallon of cold water to the tub. Close and latch the
dishwasher, then drain out the water by slowly turning the
Dial until a drain period is reached. Repeat if necessary.
Spilled rinse agent
Always wipe up rinse agent
spills immediately.
Detergent with
colorant was used
Make sure that the detergent is the one without colorant.
Rinse agent dispenser
is empty
Make sure that the rinse agent dispense is filled.
Improper program
Select stronger program
Improper rack loading
Make sure that the action of the detergent dispenser and
spray arms are not blocked by large dishware.
Extremely hard water
Low inlet
Overloading the
Improper loading
Old or damp powder
Empty rinse agent
Incorrect dosage of
To remove spots from glassware:
Take out all metal utensils out of the dishwasher.
Do not add detergent.
Choose the longest cycle.
Start the dishwasher and allow it to run for about
18 to 22 minutes, then it will be in the main wash.
Open the door to pour 2 cups of white vinegar
into the bottom of the dishwasher.
Close the door and let the dishwasher complete
the cycle. If the vinegar does not work: Repeat
as above, except use 1/4 cup (60 ml)of citric acid
crystals instead of vinegar.
Combination of soft
water and too much
Use less detergent if you have soft water and select a
shortest cycle to wash the glassware and to get them clean.
Tea or coffee stains
using a solution of 1/2 cup of bleach and 3 cups warm water
to remove the stains by hand.
You have to wait for 20 minutes after a cycle to let the heating
elements cool down before cleaning interior; otherwise, burns
will happen.
Iron deposits in water
can cause an overall film
You have to call a water softener company for a special filter.
Hard water minerals
To clean the interior, use a damp sponge with dishwasher
detergent and wear rubber gloves. Never use any other cleaner
than dishwasher detergent for the risk of foaming or suds.
Dial is not in the OFF
Turn the Dial to OFF position and slide the door latch to the
Dishes block detergent
Re-loading the dishes properly.
Normal phenomenon
There is some steam coming through the vent by the door
latch during drying and water draining.
Aluminum utensils have
rubbed against dishes
Use a mild abrasive cleaner to eliminate those marks.
This is normal
A small amount of clean water around the outlet on
the tub bottom at the back of the tub keeps the water
seal lubricated.
Overfill dispenser or rinse
aid spills
Be careful not to overfill the rinse aid dispenser.
Spilled rinse aid could cause oversudsing and lead
to overflowing. Wipe away any spills with a damp cloth.
Dishwasher isn' t level
Make sure the dishwasher is level.
Longer inlet time.
Faucets is not opened.
Longer draining time.
The installation position of the drain pipe is too high.
Longer heating time,
but not reaching required temperature
Malfunction of temperature sensor or of heating element.
Too much inlet water. .
Failure of temperature sensor
Short circuit or break of temperature sensor
Failure of temperature sensor
Open circuit or break of temperature sensor
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF
