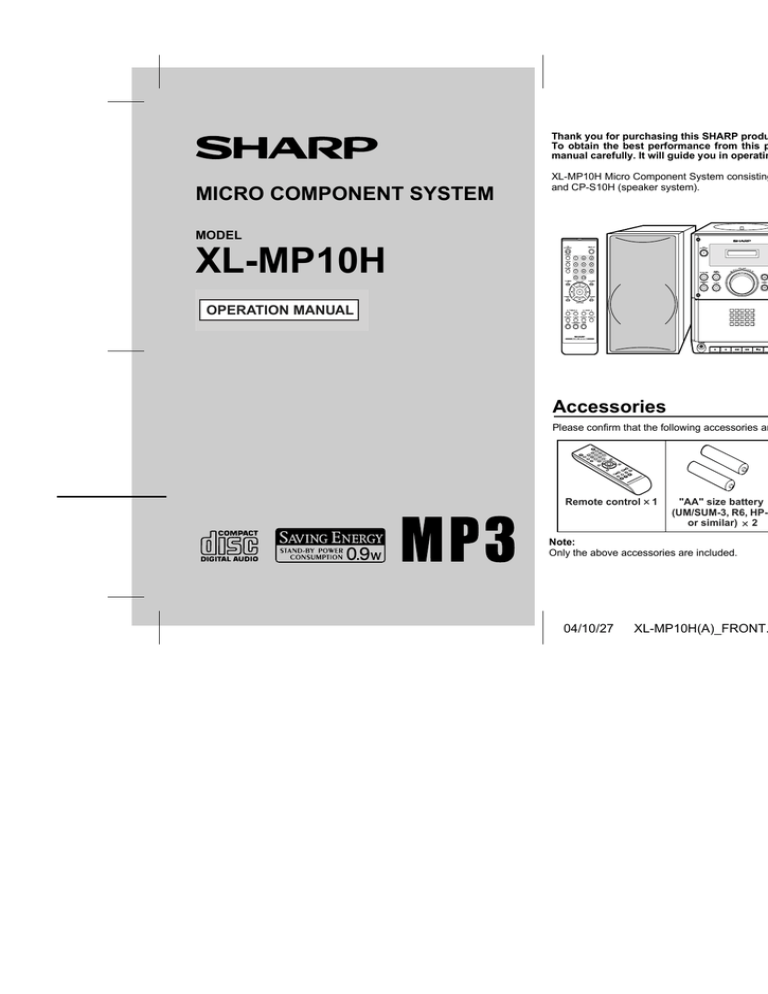

Thank you for purchasing this SHARP produ
To obtain the best performance from this p
manual carefully. It will guide you in operatin
MICRO COMPONENT SYSTEM
XL-MP10H Micro Component System consisting
and CP-S10H (speaker system).
MODEL
XL-MP10H
OPERATION MANUAL
Accessories
Please confirm that the following accessories ar
Remote control
1
"AA" size battery
(UM/SUM-3, R6, HPor similar) 2
Note:
Only the above accessories are included.
04/10/27
XL-MP10H(A)_FRONT.
Important Instruction
XL-MP10H
Special notes
Contents
Warning:
! When the ON/STAND-BY button is set at STAND-BY position,
mains voltage is still present inside the unit. When the ON/
STAND-BY button is set at STAND-BY position, the unit may be
brought into operation by the timer mode or remote control.
! This unit contains no user serviceable parts. Never remove covers unless qualified to do so. This unit contains dangerous voltages, always remove mains plug from the socket before any
service operation and when not in use for a long period.
! To prevent fire or shock hazard, do not expose this appliance to
dripping or splashing. No objects filled with liquids, such as
vases, should be placed on the apparatus.
CAUTION
! This product is classified as a CLASS 1 LASER product.
! Use of controls, adjustments or performance of procedures other than
those specified herein may result in hazardous radiation exposure.
As the laser beam used in this compact disc player is harmful to
the eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only.
" General Information
Laser Diode Properties
Material: GaAIAs
Wavelength: 780 nm
Emission Duration: continuous
Laser Output: max. 0.6 mW
Precautions . . . . . . . . . . . . . . . . . . . . . . . . .
Controls and indicators . . . . . . . . . . . . . . .
" Preparation for Use
System connections . . . . . . . . . . . . . . . . .
Remote control . . . . . . . . . . . . . . . . . . . . . .
" Basic Operation
Sound control . . . . . . . . . . . . . . . . . . . . . . .
Setting the clock . . . . . . . . . . . . . . . . . . . .
" Disc Playback
Listening to a disc . . . . . . . . . . . . . . . . . . .
Advanced disc playback . . . . . . . . . . . . . .
" Radio
Listening to the radio . . . . . . . . . . . . . . . . .
Listening to the memorised station . . . . .
" Tape Playback
Listening to a cassette tape . . . . . . . . . . .
" Tape Recording
Recording on a cassette tape . . . . . . . . . .
" Advanced Features
2
Note for users in Australia:
Copyright may exist in material you wish to record. Copying or
broadcasting such material without permission of the relevant licensees or owners of the copyright is prohibited by law. SHARP is
not in a position to authorise the copying or broadcasting of copyright materials and nothing in this OPERATION MANUAL should be
implied as giving that authority.
For other countries:
Audio-visual material may consist of copyrighted works which must
not be recorded without the authority of the owner of the copyright.
Please refer to the relevant laws in your country.
Timer and sleep operation . . . . . . . . . . . .
" References
Troubleshooting chart . . . . . . . . . . . . . . . .
Maintenance . . . . . . . . . . . . . . . . . . . . . . . .
Specifications . . . . . . . . . . . . . . . . . . . . . . .
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . .
04/10/21
XL-MP10H(A)E1.fm
Precautions
" General
! Please ensure that the equipment is positioned in a well ventilated area and that there is at least 10 cm of free space along the
sides and back. There must also be a minimum of 20 cm of free
space on the top of the unit.
10 cm
10 cm
20 cm
10 cm
! Use the unit on a firm, level surface free from
vibration.
! Keep the unit away from direct sunlight,
strong magnetic fields, excessive dust, humidity and electronic/electrical equipment
(home computers, facsimiles, etc.) which
generate electrical noise.
! Do not place anything on top of the unit.
! Do not expose the unit to moisture, to temperatures higher than
60°C or to extremely low temperatures.
! If your system does not work properly, disconnect the AC power
lead from the wall socket. Plug the AC power lead back in, and
then turn on your system.
! In case of an electrical storm, unplug the
unit for safety.
! Hold the AC power plug by the head when
removing it from the wall socket, as pulling
the lead can damage internal wires.
! Do not remove the outer cover, as this
may result in electric shock. Refer internal service to your local SHARP service
facility.
! The ventilation should not be impeded by
covering the ventilation openings with
items, such as newspapers, tablecloths,
curtains, etc.
! No naked flame sources, such as lighted ca
placed on the apparatus.
! Attention should be drawn to the environment
tery disposal.
! This unit should only be used within the range o
Warnings:
! The voltage used must be the same as that spe
Using this product with a higher voltage other
specified is dangerous and may result in a fire
accident causing damage. SHARP will not be
for any damage resulting from use of this unit w
than that which is specified.
! CD players use a laser pickup which can da
viewed directly. Do not look at the pickup, a
the pickup directly.
" Volume control
The sound level at a given volume setting depend
ciency, location, and various other factors. It is a
exposure to high volume levels. Do not turn the vo
switch on and listen to music at moderate levels.
04/10/21
XL-MP10H(A)E1.fm
