Exile | EX-1 | User manual | Exile EX-1 User manual

Thank you for your purchase. The Exile® LED Battery
Monitor allows you to easily check the status of your
battery.

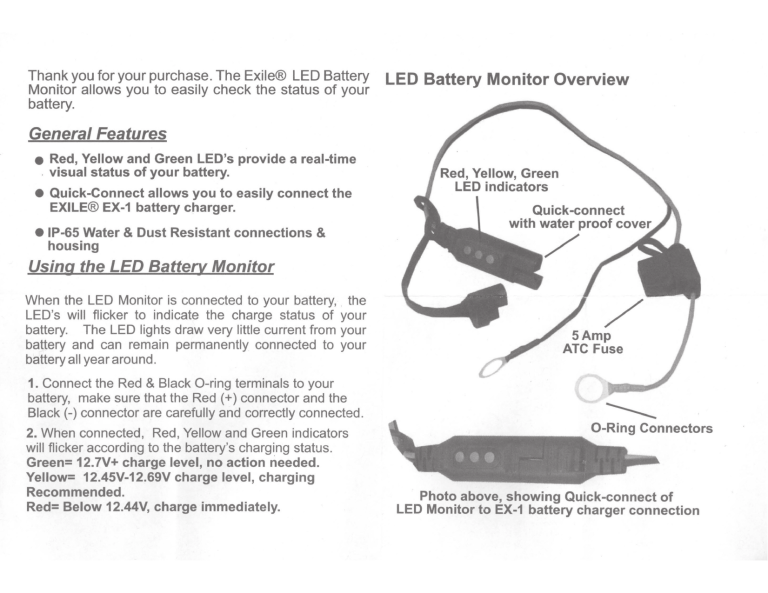

LED Battery Monitor Overview
General Features
e Red, Yellow and Green LED's provide a real-time
. visual status of your battery.
• Quick-Connect allows you to easily connect the
EXILE® EX-1 battery charger.
• IP-65 Water & Dust Resistant connections &
housing
Using the LED Battery Monitor
When the LED Monitor is connected to your battery, . the
LED's will flicker to indicate the charge status of your
battery. The LED lights draw very little current from your
battery and can remain permanently connected to your
battery all year around.
Quick-connect
with water proof cover
/
5Amp
ATC Fuse
1. Connect the Red & Black 0-ring terminals to your
battery, make sure that the Red (+) connector and the
Black (-) connector are carefully and correctly connected.
2. When connected, Red, Yellow and Green indicators
will flicker according to the battery's charging status.
Green= 12.7V+ charge level, no action rieeded.
Yellow= 12.45V-12.69V charge level, charging
Recommended.
Red= Below 12.44V, charge immediately.
0-Ring Connectors
Photo above, showing Quick-connect of
LED Monitor to EX-1 battery charger connection
LED BATTERY MONITOR
MODEL: EM·1 ,
LED INDICADOR DE BATERIA
VOYANT DE BATTERIE
LED BAnERIEANZEIGE -~~~~-·~r
EXILE CHARGERS. COM
IP65
OUTDOOR
RATED
RoHS
COMPLIANT
8
s 6 2 4 1 oo 3 7 3
C Ina
3

×
