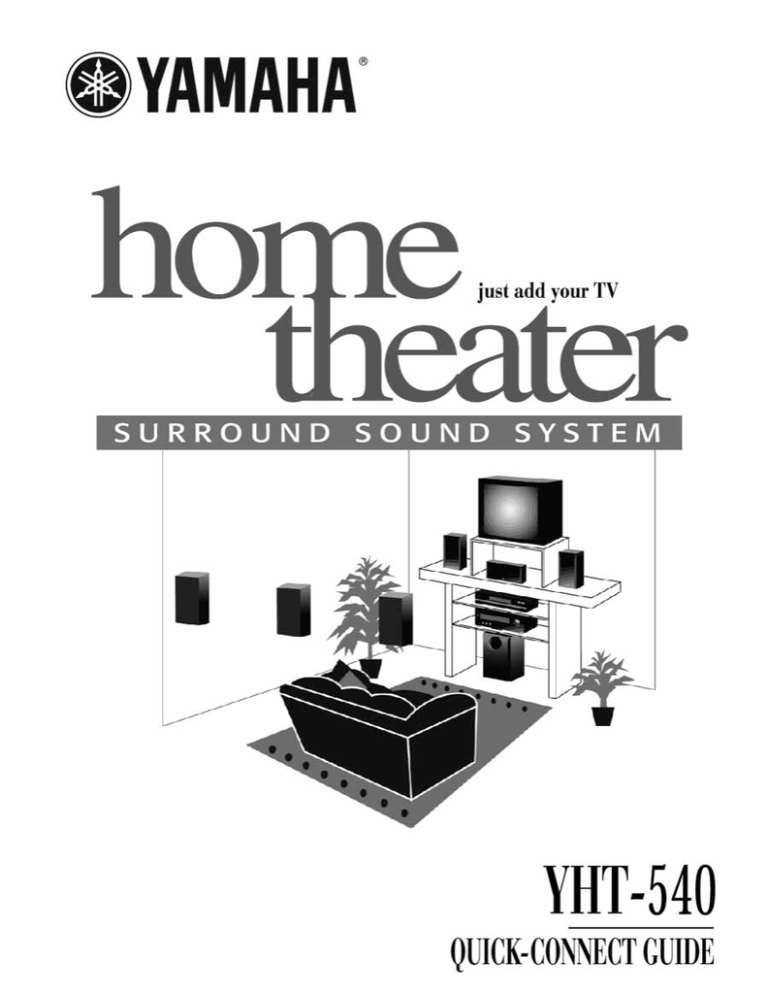

E YAMAHA
nome В
SURROUND SOUND SYSTEM
YHT-04(
QUICK-CONNECT GUIDE
E YAMAHA
INTRODUCTION
YHT-540 Quick-Connect Guine
Yamaha developed the YHT-540 A/V Home Theater
package to turn your home into a theater. In addition to
enhancing the sound of a video source, like your TV,
DVD, or VCR, the YHT-540 also superbly reproduces
audio sources, such as a CD player or a cassette deck.
This Quick-Connect Guide will help you get started.
Study the speaker system plan (below), and then use
the interconnect diagrams (on the following pages) to
connect the receiver and speakers to your system.
Toors Ano Parts
For the video portion, you will need a television or monitor.
Refer to the Yamaha HTR-5640 Owneris Manual , as well as
those that came with your other components, for comp-
lete instructions and cautions. Be sure to turn off all
power while making connections.
Save this Quick-Connect Guide for future reference.
NOTE: Label the end of each speaker wire (ie. left rear, right
front, etc.) before connecting them to the A/V receiver. For wire
runs over 30 feel, use larger 18- or 16-gauge speaker wire.
The YHT-540 Home Theater package consists of
(1) HTR-5640 A/V receiver with (1) remote control,
DV-55650 DVD Player with (1) remote control,
(5) 2-way NS-AP14005 front/rear speakers,
(1) NS-AP1400C 2-way center-channel speaker
(includes factory installed rubber feet), (1) 100' of
bulk speaker wire, (1) 10' RCA audio cable,
(1) YST-SW015 Powered Subwoofer, and related
owner's manuals. You will also need:
Speaker System PLAN
Wire strippers (optional)
Brackets, toggle bolts, molly anchor screws, or sheet
metal screws (for securing NS-AP 1400S speakers to
walls)
NOTE: If you are unsure of how to securely and safely fasten
speakers to a wall, please contact a reliable source about the best
type of hardware for your particular wall's construction.
Secure installation is the purchaser's responsibility.
NS-AP14005
(left side, same height as TV)
L = Left Channel
PN
L NS-AP1400C R
{on top or below TV)
+ 6'~8' apart >
YST-SW015 Subwoofer (on floor
Г ST-SW015 ( )
NS-AP14005
(right side, same height as TV)
R = Right Channel
С = Center Channel
8 = Surround Channel
Couch
RC = Rear Center Channel
$
NS-AP14005 | |
(on stand or wall, at least
gar level or preferably higher)
Listening Area
———— 8-10' apart ———
RC $
[| №-АР14005
(Place in between the rear speakers and preferably at the same
height as the rear speakers.)
| NS-AP14005
(on stand or wall, at least
ear level or preferably higher)
O
E YAMAHA YHT-540 Quick-Connect Guine
Connecting Aupio GOMPONENTS
Yamaha HTR-5640 Receiver (Rear Panel)
NOTE: For your convenience, the Yamaha HTR-5640 receiver is equipped with
two switched AC outlets (100 W max.). If desired, use them to power on connected
components (e.g.,CD player) each time the receiver is turned on. However, do not
. use them for components equipped with clocks (e.g., VCR).
: Cassette Deck,
à CD or MD Recorder
a оо | * Use Playback Or Line Out
o tas na
A Out* L Qut* Rin** L In**
CD Player (changer) ! Out y a L
Es
a Use RCA Audio Cables For Audio Interconnections
RCA Cable Color Codes
White = Left Audio
Red = Right Audio
Connecting Toe YHT-540 Speakers
NS-AP1400S
(Front Right Ch.)
р:
| [oa
Strip "a" off ends of speaker wires.
Push and hold down levers.
NS-AP1400C
(Center Channel)
YHT-540 Quick-Connect Guine
NS-AP1400S
(Front Left Ch.)
6
o &
o
o
o
Stripe
YST-SW015
(Subwoofer Rear)
166055 67 ©;
| |
9
с
000:
0000:
ae
Initial Settings
(on Front Panel
also see page 9)
Stripe
Wire
LA ll | E
d
NS-AP 14005
(Surround Right)
о
A/V Receiver
(Rear Panel)
|=]
a
o
NS-AP1400S
(Rear Center)
LL
NC
NS-AP1400S
(Surround Left)
Yamaha HTR-5640
E YAMAHA YHT-540 Quick-Connect Сите
Connecrine Vineo GasLes For Vineo GomPONENTS
Yamaha HTR-5640 Receiver (Rear Panel)
@
©’
§ IEEE
E
. NOTE: When using a hi-fi stereo VCR, set the Tuner/Line switch
. (on the VCR) to Line position to record from another source
. connected to the Yamaha HTR-5540 receiver.
DVD Player .
TT) Video Out Us
Satellite Receiver O Video Out Hi-Fi Stereo VCR
(or Cable Box) [ o | | EEE or ow
== са) Video Out = Video In (RF Out)
Monitor/TV
Use RCA Video Cables And Jacks For Video interconnections
Optional 75-ohm
Coaxial Cable
cn) г (AEM
RCA Cable Color Codes
Yellow = Video
White = Left Audio
Red = Right Audio
EG YAMAHA YHT-540 Quick-Connect Guipe
Connectine THE YAMAHA DV-S3690 DVD Prayer
Yamaha HTR-5640 Receiver (Rear Panel)
= ЗЫ = y
: RCA Cable Color Codes ä For Video Interconnections
TiS Yellow = Video .
O Rod = ight hue 7 E 0
DO- 5
Optical Cable 3 O:
[Hot Included ®®
ФФ
Yamaha DV-85650 DVD Player (Rear Panel)
YAMAHA
NOTE: Use the optical connection to enoy 5.1 - channel sumound sound
found on DVD dd in he Dolby Digital or DTS Digital Serround format.
Y
“Analog Audio Oui connections are required for playback of CD-Ks and Remove dust cap. Align plug with terminal
Dolby Digital is a trademark of Dolby Laboratories Licensing Corporation. NOTES:
DTS ts à trademark of DTS Technotogy LLC.
* On both ends of the optical cable, align and firmly insert
each plug into ts mating terminal.
* During connection, do not band the optical cable.
O * Keep dust caps and reattach them if terminals are not used.
EG YAMAHA YHT-540 Quick-Connect Guipe
Connectine Aunio CABLES For Vipeo Components
Yamaha HTR-5640 Receiver (Rear Panel)
® NOTE: When using à hi-fi stereo VCR, set the Tuner/Line switch (on the VCR) to Line
. position to record from another source connected to the Yamaha HTR-5540 receiver.
.
L
* RL у Hi-Fi Stereo VCR
° С ===
a © cas
(9) ©- (©) Audio Audio
ts) OE ©) )` Out Lin roy In
Fe
7 Cable Box) (® =<.
AC—€
LD El
Use RCA Audio Cables And Jacks For Audio Interconnections
RCA Cable Color Codes
Yellow = Video
White = Left Audio
Red = Right Audio
€ YAMAHA YHT-540 Quick-Connect Guine
CasLe Hook-Up (Basic Ano Premium CHANNELS)
Yamaha HTR-5640 Receiver (Rear Panel)
OOOO! e:
NOTE: When using a hi-fi stereo VCR, set the Tuner/Line .
switch (on the VCR) to Line position to record from another = =
source connected to the Yamaha HTR-5540 receiver. . .
. =
* .
Lo Е Hi-Fi Stereo VCR ve . RL у
(From Wall Jack) | rrr [eo ©
Audio | | Audio Audio (Audio L Out = ©
OR Lin [IR In R Out
RCA Audio Cables ' =
RCA Audio Cables © | Aca video
— Cables
Y
Premium Cable
(From Wall Jack)
Hi-Fi Stereo VCR
= ANT In [Tuner set to Channel 3 or 4) Video In R L у
le EEE I — iL [eee FH] ey
Box || reer Veen 66-6
(Channel 3 or 4 Audio | | Audio Audio | | Audio L Out ©: ©
Output) Lin | [Rin R Out 29 ©
RCA Audio Cables © o ©
RCA Audio Cables © | Aca video
Cables
RCA Cable Color Codes
Yellow = Video
White = Left Audio
Red = Right Audio
© YAMAHA
YHT-540 Quick-Connect Guine
InmiaL Aosustment OF Tue YST-SWO15 Suswoorer
To achieve the optimum volume balance between the
YST-SW015 Subwoofer and the NS-AP1400S main
speakers, perform the following procedure:
1. Insert the YST-SW015 power plug into a nearby AC outlet.
2. Set the YST-SW015 VOLUME control to 0 (minimum
setting), the AUTO STANDBY switch to HIGH, and
the HIGH CUT switch to LOW,
3. Press the YS T-5W015 POWER button to ON and
power on all other components.
4. Play an audio source and adjust the H TR-5640's
VOLUME control to a desired listening level.
5. Increase the YST-SW015 volume control gradually to
adjust the balance and volume between the YST-5W015
Subwoofer and the NS-AP14005 main speakers.
NOTE: Once the volume is balanced between the
subwoofer and the main speakers, you can adjust the
volume of your whole sound system by using the
HTR-5640"s VOLUME control.
= E NTE oo iS pie AD E
© O0
о
a
Rear panel
| AUTO PHASE
STANDBY
OFF LOW HIGH NORM REV
[Od 6 |
©
Lp To AC Outlet
€ YAMAHA YHT-540 Quick-Connect Guine
Procrammine Tue Universat Remote CONTROL
SETTING UP Components
— Indicator LED Perform the procedure for each component you own.
At the end of each step 5, the remote control's processor
will automatically assign the selected component's
control functions to its own buttons, ready for your use.
Serine Up Your TV
1. Turn on the television set and look up a setup code
for your brand of television (codes are located at the
back of the HTR-5640 Owner's Manual).
2. On the remote control, press button A.
| O o а
Use Keypad 56 60
Setup Codes 9,22
ZO
OT QO
3. Press CODE SET using a ballpoint pen or similar
object. The TRANSMIT indicator LED will flash
twice.
TRANSMIT
sw — © ”
a | Te
4. Using the keypad, enter the four-digit setup code.
The indicator LED will flash twice after your entry.
@ YAMAHA If the LED did not flash twice, repeat steps 3 and 4.
ENTER
TAREA
=
THEATER 1 THEATER 2
Ë
:
Ca
The YH1-540 Home Theater package includes a univer-
sal remote control. It comes pre-programmed with
factory codes to control your HTR-5640 receiver and
most Yamaha audio components. To program other
brands of components (i.e., TV, VCR, etc.) or if your
Yamaha unit does not respond, you will need to
program the remote control with the manufacturer's
codes (listed on the back pages of the HTR-5640
Owner's Manual), NOTE: If you wait more than 30 seconds during step 4, the
process will be canceled. If this happens, start from Step 2.
OO:
O GEG
a: O
NOTE: The universal remote control is designed to control
most major brands of audio and video components, For other
units, use the original remote control supplied with the product. 5, To verify the code works, aim the remote control at
Power On the television set, press the TV POWER button.
The television set should turn off. If it doesn't
1. Load the supplied batteries into the remote control. respond, use another code for the same manufac-
2. Aim the remote control at the receiver, press the turer and repeat steps 3 through 5.
SYSTEM POWER button.
3. The receiver should turn on.
©
YHT-540 Quick-Gonnect Guine
Programming Tre UniversaL REMoTe ControL (ConTINVED)
Serring Up Your Caste Box (or DSS)
1. Turn on the cable box (or DSS) and look up a setup
code for your brand of cable box (or DS5) (codes are
located at the back of the HTR-5640 Owner's Manual).
2. On the remote control, press D-TV /CBL.
| то
22 22 8-0
CODE
О сю ©
©) © OO
fad
. Press CODE SET using a ballpoint pen or similar
object. The TRANSMIT indicator LED will flash
twice.
up
. Using the keypad, enter the four-digit setup code.
The indicator LED will flash twice after your entry.
If the LED did not flash twice, repeat steps 3 and 4.
5. To verify the code works, aim the remote control at
the cable box (or DSS), press D-TV / CBL, and then
press AV POWER. The unit should turn off. If it
doesn't respond, use another code for the same
manufacturer and repeat steps 3 through 5.
о о
WER POA
=
С
a:
Setting Up Your VCR
1. Turn on the VCR and look up a setup code for your
brand of VCR.
2. On the remote control, press VCR 1.
T_T
El Ed
3000
OOO O
du 66
3. Press CODE SET using a ballpoint pen or similar
object. The TRANSMIT indicator LED will flash
twice,
4. Using the keypad, enter the four-digit setup code.
The indicator LED will flash twice after your entry.
If the LED did not flash twice, repeat steps 3 and 4.
5. To verify the code works, aim the remote control at
the VCR, press VCR 1, and then press AV POWER.
The VCR should turn off. If it doesn't respond, use
another code for the same manufacturer and repeat
steps 3 through 5.
SertINE Ur Orwen Components
1. Turn on the component (e.g. CD player, tape deck,
or MD player) and look up a setup code for your
brand of component.
2. On the remote control, press the desired component
button (e.g., CD or MD/CD-R).
3. Press CODE SET using a ballpoint pen or similar
object. The TRANSMIT indicator LED will flash
twice.
4. Using the keypad, enter the four-digit setup code.
The indicator LED will flash twice after your entry.
If the LED did not flash twice, repeat steps 3 and 4.
5. To verify the code works, aim the remote control at the
component, press the appropriate component button,
and then press AV POWER. The unit should turn off.
If it doesn't respond, use another code for the same
manufacturer and repeat steps 3 through 5.
3
= EE [+] E
NOTE: Your component's original remote control must have a
power On/Off function in order for this remote to control your
component's power function.
© YAMAHA
Orerarine THe UNIVERSAL REMOTE CONTROL
YHT-540 Quick-Connect Guine
Overview
The universal remote control will control up to nine
different types of components each of which becomes
active when you press a selection ( except TV which
has priority and TV function buttons are always active).
We can only briefly describe some functions here, and
we encourage you use the HTR-5640 Owner's Manual
to gain additional experience with this powerful unit.
Prayine A VIDEOCASSETTE
1. Aim the remote control at the HTR-5640, press
SYSTEM POWER to turn the receiver on. Press
VCR 1 as the input for the receiver.
2. Aim the remote control at the TV, press the TV
POWER to turn the television on.
3. Aim the remote control at the VCR, press VCR 1 to
select the component, and then press AV POWER
to turn the VCR on. Put a tape in the VCR, press
[ = ] (forward button) to start play.
NOTE: At this point, the VCR controls are assigned to
the remote control, since VCR was the last selected
component.
Pıavıne A DVD
1. Aim the remote control at the the HTR-5640, press
SYSTEM POWER to turn the receiver on.
Press DVD as the input for the receiver.
2. Then press AV POWER to turn the
DVD player on.
NOTE: If the DVD player is plugged into the switched
outlet (on the back of the receiver)and its power AC
was already engaged, the unit will come on each time
the receiver is powered on.
3. Load a DVD into the DVD player.
4. Aim the remote control at the DVD player, and press
[=] (forward button) to start play.
NOTE: The DVD player's controls are now assigned fo
the remote control buttons, since DVD was the last
selected component.
Reserring Tue Remore Gontroc To Factory Goes
You can reset the remote control to factory codes for
all components or a desired component, as follows:
Reserming Cones Fon ALL Components
1. Press any component selector.
2. Press CODE SET using a ballpoint pen or similar
object. The TRANSMIT indicator LED will flash twice.
3. Using the keypad, enter the code "9990",
4. The indicator LED will flash twice to confirm all
codes have been reset to factory values. If the LED
does not flash twice, repeat steps 1 through 3.
Resetting Coes For A Desiren Component
. Press a component selector button that matches the
component you wish to reset to factory codes.
Press CODE SET. The TRANSMIT indicator LED
will flash twice.
. Using the keypad, enter the code "0000".
. The indicator LED will flash twice to confirm all
codes have been reset to factory values. If the LED
does not flash twice, repeat steps 1 through 3.
=
ro
Led
da
Ln
. For your convenience, the following reference chart
lists the factory codes:
Component Component Code
Selector Button
CD CD 0005 Yamaha
MD/CD-R MD 0024 Yamaha
TUNER TUNER 0003 Yamaha
DVD DVD 0098 Yamaha
@ YAMAHA
©2003 YAMAHA ELECTRONICS CORPORATION, USA
6660 Orangethorpe Avenue, Buena Park, CA 90620
PH: (714) 522-9105; FAX: (888) 435-7922
http://www.yamaha.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
