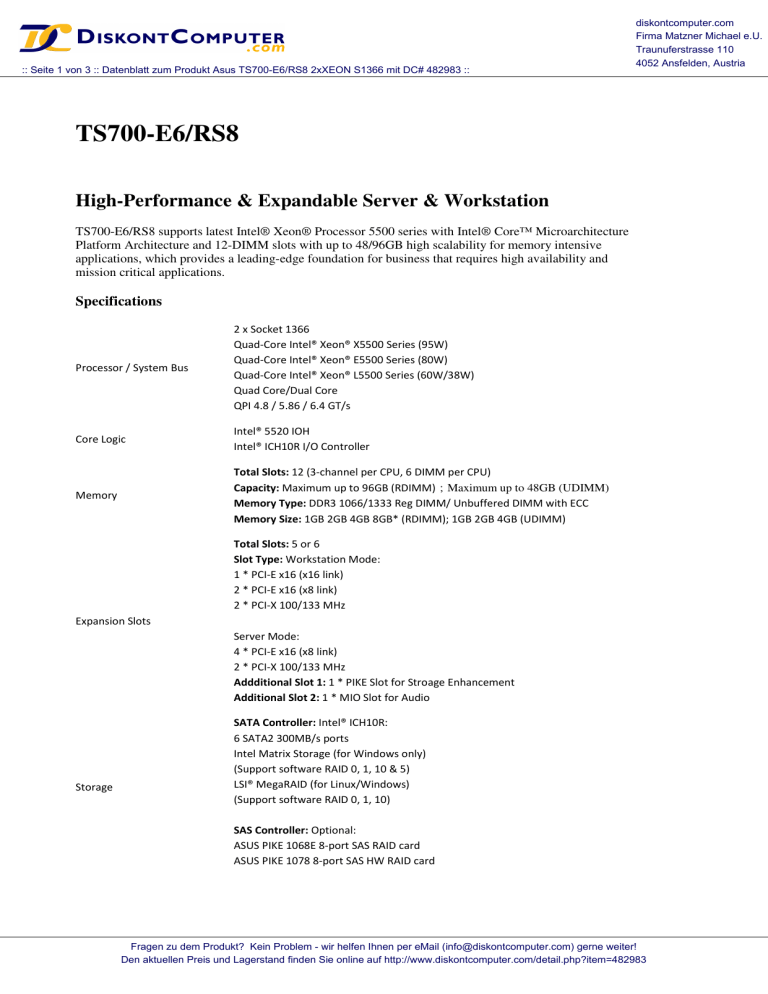

:: Seite 1 von 3 :: Datenblatt zum Produkt Asus TS700-E6/RS8 2xXEON S1366 mit DC# 482983 ::
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
TS700-E6/RS8
High-Performance & Expandable Server & Workstation
TS700-E6/RS8 supports latest Intel® Xeon® Processor 5500 series with Intel® Core™ Microarchitecture
Platform Architecture and 12-DIMM slots with up to 48/96GB high scalability for memory intensive
applications, which provides a leading-edge foundation for business that requires high availability and
mission critical applications.
Specifications
Processor / System Bus
2 x Socket 1366
Quad-Core Intel® Xeon® X5500 Series (95W)
Quad-Core Intel® Xeon® E5500 Series (80W)
Quad-Core Intel® Xeon® L5500 Series (60W/38W)
Quad Core/Dual Core
QPI 4.8 / 5.86 / 6.4 GT/s
Core Logic
Intel® 5520 IOH
Intel® ICH10R I/O Controller
Memory
Total Slots: 12 (3-channel per CPU, 6 DIMM per CPU)
Capacity: Maximum up to 96GB (RDIMM);Maximum up to 48GB (UDIMM)
Memory Type: DDR3 1066/1333 Reg DIMM/ Unbuffered DIMM with ECC
Memory Size: 1GB 2GB 4GB 8GB* (RDIMM); 1GB 2GB 4GB (UDIMM)
Total Slots: 5 or 6
Slot Type: Workstation Mode:
1 * PCI-E x16 (x16 link)
2 * PCI-E x16 (x8 link)
2 * PCI-X 100/133 MHz
Expansion Slots
Server Mode:
4 * PCI-E x16 (x8 link)
2 * PCI-X 100/133 MHz
Addditional Slot 1: 1 * PIKE Slot for Stroage Enhancement
Additional Slot 2: 1 * MIO Slot for Audio
Storage
SATA Controller: Intel® ICH10R:
6 SATA2 300MB/s ports
Intel Matrix Storage (for Windows only)
(Support software RAID 0, 1, 10 & 5)
LSI® MegaRAID (for Linux/Windows)
(Support software RAID 0, 1, 10)
SAS Controller: Optional:
ASUS PIKE 1068E 8-port SAS RAID card
ASUS PIKE 1078 8-port SAS HW RAID card
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail (info@diskontcomputer.com) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=482983
:: Seite 2 von 3 :: Datenblatt zum Produkt Asus TS700-E6/RS8 2xXEON S1366 mit DC# 482983 ::
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
ASUS PIKE 6480 8-port SAS RAID card
HDD Bays
8 x Hot-swap 3.5" HDD Bay (Default support up to 4*SATA2 3.5" HDDs;For
5~8*SATA2/SAS 3.5”HDDs support, ASUS PIKE RAID card is required.)
Networking
LAN: 2 * Intel 82574L + 1 * Mgmt LAN
Graphic
VGA: Aspeed AST2050 8MB
Auxiliary Storage
3 x 5.25" media bays
(Options: No ODD/DVD-ROM/DVD-RW )
On Board I/O
1 x External Serial Port
2 x RJ-45 ports
4 x USB2.0 ports (Front * 2, Rear * 2)
1 x VGA port
1 x PS/2 Keyboard port
1 x PS/2 Mouse port
OS Support
Windows® Server 2008 Enterprise 32/64-bit
Windows® Server 2003 R2 Enterprise (32/64 bit)
RedHat® Enterprise Linux AS5.0 (32/64 bit)
SuSE® Linux Enterprise Server 10 (32/64 bit)
(Subject to change without any notice)
Anti-virus Software
Optional Anti-Virus CD Pack
Management Solution
Software: ASWM2.0
Out of Band Remote Management: Optional ASMB4-iKVM for KVM-over-IP support
Safety
Europe (CE, EN55022 compliance to EU Directive 89/366/EEC)
Europe (TUV)
EMI
US (FCC, CFR47 Part 15, Class B)
Europe (CE, EN55022 & EN55024)
Australia (C-TICK)
Japan (VCCI)
Taiwan (BSMI)
China (CCC)
Dimensions without Packing
445 mm (H) x 217.5 mm (W) x 545 mm (D)
Net Weight Kg (CPU, DRAM and
20 Kg
HDD not included)
Power Supply
620W Redundant Power Supply (1+1)
Environment
Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% (Non condensing)
Accessories
1 x User's Guide
1 x ASUS ASWM2.0 User's Guide
1 x Support CD
1 x Bag of Screws
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail (info@diskontcomputer.com) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=482983
:: Seite 3 von 3 :: Datenblatt zum Produkt Asus TS700-E6/RS8 2xXEON S1366 mit DC# 482983 ::
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
2 x AC Power Cable
Optional Items
•
•
•
Second Redundant Power Supply Module
CPU Heatsink
Rackmount Rail Kit
CA eTrust Anti-virus Software CD
All specifications are subject to change without notice. Please check with your supplier for exact offers.
Products may not be available in all markets.
PCB color and bundled software versions are subject to change without notice.
Brand and product names mentioned are trademarks of their respective companies.
