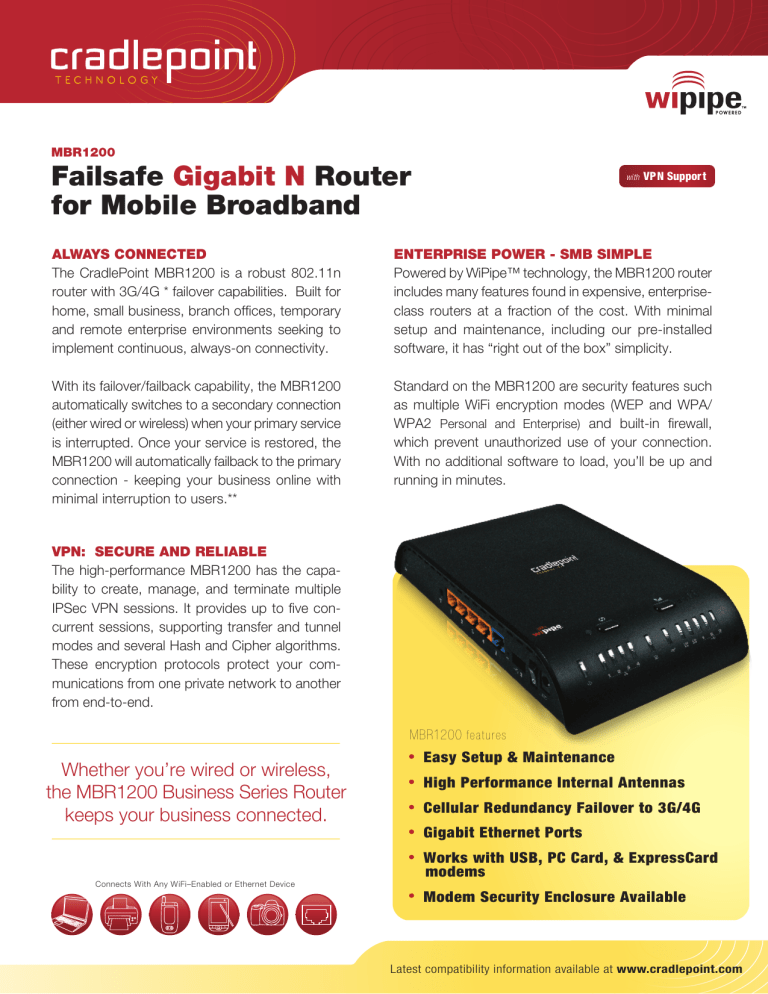

Data Sheet - Cradlepoint

TECHNOLOGY
MBR1200
Failsafe Gigabit N Router
for Mobile Broadband
with
VPN Suppor t
ALWAYS CONNECTED
The CradlePoint MBR1200 is a robust 802.11n
router with 3G/4G * failover capabilities. Built for
home, small business, branch offices, temporary
and remote enterprise environments seeking to
implement continuous, always-on connectivity.
ENTERPRISE POWER - SMB SIMPLE
Powered by WiPipe™ technology, the MBR1200 router
includes many features found in expensive, enterpriseclass routers at a fraction of the cost. With minimal
setup and maintenance, including our pre-installed
software, it has “right out of the box” simplicity.
With its failover/failback capability, the MBR1200
automatically switches to a secondary connection
(either wired or wireless) when your primary service
is interrupted. Once your service is restored, the
MBR1200 will automatically failback to the primary
connection - keeping your business online with
minimal interruption to users.**
Standard on the MBR1200 are security features such
as multiple WiFi encryption modes (WEP and WPA/
WPA2 Personal and Enterprise) and built-in firewall,
which prevent unauthorized use of your connection.
With no additional software to load, you’ll be up and
running in minutes.
VPN: SECURE AND RELIABLE
The high-performance MBR1200 has the capability to create, manage, and terminate multiple
IPSec VPN sessions. It provides up to five concurrent sessions, supporting transfer and tunnel
modes and several Hash and Cipher algorithms.
These encryption protocols protect your communications from one private network to another
from end-to-end.
MBR1200 features
Whether you’re wired or wireless,
the MBR1200 Business Series Router
keeps your business connected.
TEC HNOLOGY
Connects With Any WiFi–Enabled or Ethernet Device
• Easy Setup & Maintenance
• High Performance Internal Antennas
• Cellular Redundancy Failover to 3G/4G
• Gigabit Ethernet Ports
• Works with USB, PC Card, & ExpressCard modems
• Modem Security Enclosure Available
Latest compatibility information available at www.cradlepoint.com
MBR1200
Failsafe Gigabit N Router for Mobile Broadband
SPECIFICATIONS
MODEL NAME: MBR1200 Failsafe Gigabit Broadband N Router
Optional Modem
Security Enclosure
WAN / INTERNET: 3G/4G via Five Modem Ports (3 USB 2.0, 1 ExpressCard, 1 PC Card);
One Ethernet Port (10/100/1000); One LAN Ethernet Port re-configurable to WAN for redundancy
130 mm
LAN: WiFi 802.11 b/g/n, Four Ethernet Ports (10/100/1000)
ANTENNAS: internal WiFi antennas (600 feet range), external antenna ports for optional antennas
providing additional distance and performance.
230 mm
BUTTONS / SWITCHES: WiFi On/Off Switch, WPS Button (WiFi Protected Setup), Modem Signal Strength,
Reset, and Power Switch
LED INDICATORS: Power, Ethernet LAN (1-4), Ethernet WAN, Modem Status (5),
WPS (WiFi Protected Setup), Signal Strength
WPS Button
DIMENSIONS: 9” x 5.1” x 1.57” ( 230mm x 130mm x 40mm )
CERTIFICATIONS: FCC, IC, CE, WiFi Alliance
Modem Signal Strength
OPERATING TEMPERATURE: 0o C to 50o C
Status Indicators
IN THE BOX
MBR1200 Failsafe Gigabit Broadband N Router, Power Adapter (12V, 1.5A), CAT5 Ethernet Cable (5ft),
Mounting Hardware, Quick Start Guide, Accessory Guide
40 mm
Mobile Broadband USB, ExpressCard or PC Card Data Modem with Active Subscription or Supported
MINIMUM
T E C H N O L OPhone
GY
with Active Tethered (Phone-As-Modem) Data Plan
REQUIREMENTS
Management Interface Requires An Internet Browser:
Internet Explorer v6.0, Firefox v2.0, or Safari v1.0 Minimum
DETAILS
WiFi Antenna
Ports
PC Card Slot
4 LAN Ports
WiFi On/Off
2.412 to 2.484 GHz Frequency Band Operation
USB 2.0
Compliant with IEEE 802.3 and 3u Standards
WAN Port
Supports OFDM and CCK Modulation
ExpressCard Slot
USB 2.0
Traffic Control and Virtual Server (max 32 servers) and DMZ
Compatible with 200+ LTE, WiMAX, EVDO, HSPA+ USB and ExpressCard modems
www.cradlepoint.com/modems
Full Integration with WiPipe™ Manager (Optional Managed Services from CradlePoint)
USB 2.0
Power On/Off
Easy Management via HTTP and Remote Management via HTTP and SNMP
VPN INFORMATION
ExpressCard Lock
Reset
Supports Cable/DSL modems with Dynamic IP, Static IP, PPPoE, PPTP, or L2TP Connection Types
LEFT SIDE
Power Port
RIGHT SID E
Create, Manage, and Terminate Up To 5 IPSec VPN Sessions
Supported VPN Implementations:
MBR1x00 to MBR1x00, MBR1x00 to Cisco/Linksys Routers 1, MBR1x00 to Linux Systems 2
Tunnel (default) and Transfer (a.k.a. Transport) Modes
Hash Algorithms (hardware accelerated) - MD5, SHA128, SHA256, SHA384, SHA512
Cipher Algorithms (hardware accelerated) - AES, 3DES, DES
Keying - automatic using IKE 1.0 or Manual
Modem Security Enclosure
Authentication Method: Pre-Shared Key 3
1 Tested against a Cisco 5500 running IKE Microcode: CNlite-MC-IPSEC-Admin-3.03 IPSec Microcode: CNlite-MC-IPSECm-MAIN-2.03
2 Tested with Linux Kernel: 2.6.18 - 2.6.25; IKE (Racoon): 0.7.0 and 0.7.1
3 No Stream Compression, LT2TP or PPTP Support
SECURITY
Modem Security Enclosure
Protect your USB, ExpressCard, and PC Card
modems with a security enclosure
Optional Modem Security Cap ensures your modems stay where you put them.
Firewall features Network Address Translation (NAT) and Stateful Packet Inspection (SPI) which prevents
against DoS attacks.
Car Power Adapter
Take your router on the road with ease
Access Control available in encrypted and open modes, as well as password protected Internet Access
to prevent unauthorized usage.
Provides additional security of Enable/Disable SSID and Internet Access Control
(Services, URL, and MAC Filtering)
Supports multiple concurrent IPSec, L2TP, and PPTP VPN Pass-Through Sessions
Car Power Adapter
External WiFi Antennas
External WiFi Antennas
Significantly extend the range of the MBR1200
with powerful antennas (wall mount kit included)
Supports 64/128-bit WEP, WPA, WPA2 (Personal & Enterprise) Wireless Security Modes
805 W. Franklin Street, Boise, Idaho 83702
(+1) 208.424.5054
www.cradlepoint.com
© 2011 CradlePoint, Inc. All rights reserved. CradlePoint is not responsible for omissions or errors in
typography or photography. CradlePoint, WiPipe™, and the WiPipe logo are trademarks of CradlePoint,
Inc. in the US and other countries. Other trademarks are the property of their respective owners. 11/11
