Paging Horns & Drivers
Altec Commercial
Dealer Version
Rarely does a totally new product line carry a long-standing success
story as legendary as Altec Lansing does. Continuing in the tradition
of Altec Lansing, Altec commercial is the newest addition into the commercial sound marketplace. Every generation of Altec Lansing products are the most finely-tuned and highest quality equipment available
to the audio professional concerned with optimum sound quality. We
at Starin Marketing hope this guide leads to a better understanding of
the Altec commercial product line.
Why Buy Altec Commercial?
Quick Install Speakers
Electronics
Altec Lansing has been the worldwide leader in designing and manufacturing acoustical and electrical products for years. The Altec name
is a strength in the audio marketplace and recent changes in company
ownership have given Altec incredible focus and direction. With hundreds of success stories illustrating a worldwide reputation for excellence, Altec Lansing truly is the Sound Of Experience.
What Advantage Does Altec Offer?
Altec invented many of the technologies that are prevalent in audio
today. For example, Constant Directivity, Line Radiators, and Duplex
technology.
Specialty Speakers
And much more!
Table Of Contents
Paging Projectors.................3
Horns & Drivers...................4
Ceiling Speakers...............5
Quick Install Speakers........7
Full Range Speakers........8
Special App. Speakers.......9
Mixer/Amplifiers...............10
Modular Mixers...............11
Power Amplifiers.............11
Equalizers.................12
Transformers....................13
Contracting Microphones..14
• Instant Credibility. Altec has been an established name in
the sound reinforcement industry for over 30 years.
• Technical Advances. Altec has invented the technologies
that are the main stay in the audio industry.
• Dealer Support. Employing some of the best audio people
in our industry, Altec along with Starin Marketing wants to
assist you in any way possible to help your business flourish.
(219) 929-4127

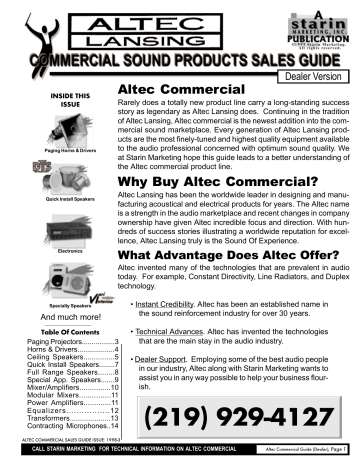

ALTEC COMMERCIAL SALES GUIDE ISSUE: 1998-3
CALL STARIN MARKETING FOR TECHNICAL INFORMATION ON ALTEC COMMERCIAL
Altec Commercial Guide (Dealer), Page 1
Altec Commercial At-A-Glance
Page 13
Page 10, 11, 12
Page 3
Commercial Microphones
Altec has everything you
need from handheld to desktop paging and performance
microphones. Check out
these possible applications:
Electronic Components
Reliable mixer amplifiers
and 70 power amplifiers
round out this category.
Check out these possible
applications:
• Performance Vocals
• General Paging
• In-Wall Paging Stations
• Boundary & Surface Mount
• Ceiling & Suspended
• Podium
• Wireless
• Conferencing
• All Purpose Venue Paging
• Telephone Interconnect
Page 4
Horns & Drivers
Mix and match horns and
drivers to create high performance paging and audio
systems. Check out these
possible applications:
• H.S. Athletic Fields
• Small Stadiums
Page 5, 6, 7
Paging Projectors
Complex or simple, Altec
can handle your paging
needs. Check out these
possible applications:
• Indoor/Outdoor
• Warehouses
• Emergency Evac.
• Parking Lots
Page 14
Speakers
From economy to highperformance, Altec has the
ceiling speaker for your
application!
Audio Transformers
Don't degrade your sound.
Altec transformers are the
best in the business for
audio.
• Board Rooms
• Waiting Areas
• Background Music
• Residential
All transformers designed for 70-volt
applications.
FOR MORE DETAILS ON THESE PRODUCTS SEE THE
FOLLOWING PAGES OR CALL STARIN MARKETING
CALL STARIN MARKETING FOR TECHNICAL INFORMATION ON ALTEC COMMERCIAL
Altec Commercial Guide (Dealer), Page 2
Altec Commercial Paging Projectors
CFID32-8/CFID32T:
Reentrant paging
projector 85ºx85º, 8
ohms, 32 watts.
Reentrant design
provides great
speech intelligibility
in a high ambient noise
environment. Smooth frequency response and low distortion also make the CFID ideal for
background music indoors or out. Uni-Lock
swivel base makes mounting the CFID a snap.
PA430T/PA430: Constant Directivity paging projector 8 ohms, 30 watts, 60°x40°, 70.7V,25V,100V
(PA430T).
• The world's only Constant Directivity paging horn,
the PA430-series gives you even frequency
response from 2kHz to 10kHz across the entire
beam width of the horn, thereby eliminating
'hotspots' and the need to add additional horns
for even coverage.
• Unique mounting apparatus included on the horn
gives you unlimited flexibility in aiming the
PA430. Just mount the horn and point.
• T-Version has multiple wattage taps that are screwdriver adjustable. This flexible horn can be flush
mounted in a wall, attached to a 4 gang electrical
box, strapped to an I-Beam, or mounted directly
on a wall.
CDP-848AT/CDP-850T: Compound Diffraction
Projector 150ºx110º with 25V/70.7V transformer
• The folded construction of the rear horn, coupled
with the smaller dimensions of the front horn, presents a 1000Hz
acoustic crossover.
• This separation of
frequencies provides
a more extended
high frequency
response, resulting
in improved intelligibility.
• Wide coverage
pattern eliminates
the need for multiple
horns for coverage
• CDP-848AT-30 watts,
CDP-850AT-60 watts
PA60M: Marine Version
reentrant paging projector 8
ohms, 60 watts
• White with all stainless steel
hardware, the PA60M is
perfect for voice reinforcement in a marine environment.
• Reentrant design offers
smooth frequency response
in the vocal range.
• 80ºx50º horn pattern offers a
predictable pattern for even
coverage.
IBC8: Talkback reentrant
paging projector, 8 ohms, 30
watts.
• Loudspeaker and microphone in one.
• Designed for use in a high
ambient noise environment.
• Uni-Lock swivel mounting
bracket for easy installation.
• 30 watt low distortion driver
included.
MIS8C: Flange-mount Paging
Horn, 8 ohms, 10 watts.
• Suitable for talk-back
• 100ºx100º
• Indoor/outdoor use
CALL STARIN MARKETING FOR TECHNICAL INFORMATION ON ALTEC COMMERCIAL
Altec Commercial Guide (Dealer), Page 3
Altec Commercial Horns & Drivers
Cobreflex IIB
Cobreflex IIB: Folded Sectorial Horn 80°x60°
Cobreflex III: Folded Sectorial Horn 100°x60°
• Our patented folded design features two separate air
columns in a single assembly virtually eliminating highfrequency phase cancellation problems found in reentrant type horns.
• Extremely wide coverage pattern (Cobre IIB 80°x60°,
Cobre III 100°x60°) is perfect for speedways, athletic
fields, or any large area where public address, paging,
and voice warning is a must.
• Lightweight non-resonant glass fiber design stands up to
years of harsh weather.
• U-Shaped mounting bracket included for ease of installation on almost any surface.
• Uses ID30, ID60, or 7110XC drivers
FC100: Compound Diffraction
Projector 150ºx100º
• Driver mounts in center of the
horn for compound diffraction
operation.
• This separation of frequencies
provides a more extended high
frequency response, resulting in
improved intelligibility.
• Wide coverage pattern eliminates the need for multiple horns
for coverage
• Uses 1828 or 1829 drivers
Cobreflex III
SH: Reentrant paging horn
100°x100°
The exponentially flared
horn, super high efficiency (as
much as 40%) and resulting
low distortion make the SH
the horn of choice for wide
angle, long throw applications.
• Special mounting bracket
included.
• Uses ID30, ID60, 1824S, or
7110XC drivers
ID Series Drivers
• High sensitivity.
• 500-4kHz response
• 30 Watt (ID30C-8) or 60
Watt (ID60C-8)
• Transformer version
available (ID30CT and
ID60CT)
1800 Series Drivers
• Convertible design for use
with compound horns
(FC100)
• 260-8kHz response
• 30 Watt (1828C) or 60
Watt (1829)
• Transformer version
available (1828T and
1829T)
7110XC: Explosion Proof Driver
1824S Siren Driver
• High sensitivity.
• 300-3kHz response
• 75 Watt
• 8 ohms, 30 Watts
• Driver will not cause an explosion when used in a
potentially hazardous environment such as gasoline
storage and loading, coal pulverization, grain mills,
paint shops, or other areas with an atmosphere
that contains explosive gasses.
• Meets and surpasses all UL standards for use in
hazardous environments.
See PS-1 Pressure Seal Connector for use with the
7110XC.
CALL STARIN MARKETING FOR TECHNICAL INFORMATION ON ALTEC COMMERCIAL
Altec Commercial Guide (Dealer), Page 4
Altec Commercial Ceiling Speakers
8 - INCH SPEAKERS
509 FAMILY
Extended LF Ceiling
Speakers
409 FAMILY
Premium Duplex®
Speakers
309 FAMILY
Standard Duplex®
Speakers
209 FAMILY
Utility Ceiling Speakers
109 FAMILY
Economy Ceiling
Speakers
The 509’s are 30 watt,
full-range 2-way
loudspeakers. The “T”
versions are available
in either 5 or 30 watt.
They can also be
purchased with a grill.
Freq. Resp. = 8016,000 Hz; Max SPL =
110dB.
The 409’s are 32 watt,
full-range coaxial
loudspeakers. The “T”
versions are available
from 4 to 32 watts.
They can also be
purchased with a grill.
Freq. Resp. = 8518,000 Hz; Max SPL =
112dB.
The 309’s are 15 watt,
full-range coaxial
loudspeakers. The “T”
versions are available
in either 4 or 8 watt.
They can also be
purchased with a grill.
Freq. Resp. = 8518,000 Hz; Max SPL =
108dB.
The 209’s provide 10
watts of power and are
available in 8 ohms or
with a transformer and
grill. Freq. Resp. = 8015,000Hz; Max SPL
104dB @ 8 ohms /
101dB w/ transformer.
When budget is the
main concern, these
speakers are perfect.
The 109’s provide 5
watts and are rated at 8
ohms. Also available
with a transformer and
grill. Freq. Resp. = 8015,000Hz; Max SPL =
101dB.
6.5 - INCH SPEAKERS
407 FAMILY
Premium Ceiling Speakers
4 - INCH SPEAKERS
405 FAMILY
Premium Ceiling Speakers
These high performance full range speakers are the speakers true professionals
choose. Available in an 8 ohm or transformer configuration. Choose between
two different transformers - 8 or 16 watts.
Freq. Resp = 65 - 15,000 Hz; Max SPL =
105 dB.
307 FAMILY
Utility Ceiling Speakers
Available in two versions, these speakers
provide full range response: 10 watts /8
ohms or 10 watts / 4 watt transformer.
Freq. Resp. = 95-12,000 Hz; Max SPL =
103dB.
CALL STARIN MARKETING FOR TECHNICAL INFORMATION ON ALTEC COMMERCIAL
Because quality is always a concern,
these speakers are not a compromise.
Full Range / High Performance in both
8 ohm and 70/100 volt applications.
Freq. Resp. = 60 - 15,000 Hz; Max SPL
= 102 dB
205 FAMILY
Utility Ceiling Speakers
A great all purpose 4” - available with or
without transformer. Freq. Resp. = 9018,000Hz; Max SPL = 101dB
Altec Commercial Guide (Dealer), Page 5
Altec Commercial Cross Reference
This chart was designed to help you quickly make substitutions and recommendations for old Altec,
Atlas, EV, and University ceiling speakers which will probably be called out for years to come. Every
attempt was made to obtain accurate product specifications but there may be sight performance
differences between the recommended Altec Commercial number and the other brands. Please call
us if your have any doubts in the recommended substitute.
Altec Model
Description
EV Model
University Model
Atlas Model
Old Altec Model
8 Inch Model
509-8A
Wide-range, extended LF
PRO-8A
509-5T
Wide-range, extended LF, 5W
PRO-8AT5
509-30T
Wide-range, extended LF, 30W
PRO-8AT30
409-4T
Premium Duplex® speaker
409-8E
Premium Duplex® speaker
409-8T
Premium Duplex® speaker
409-16T
Premium Duplex® speaker
409-32T
Premium Duplex® speaker
409-ST
Premium Duplex® speaker
EQ818
EQ818-T167
CF-883-T87
309-4T
Standard Duplex® speaker
INC-8AT4
C S 815T
309-8A
Standard Duplex® speaker
INC-8A
C S 815
309-8T
Standard Duplex® speaker
INC-8AT8
CS815T8
209-8A
Standard Ceiling speaker
C S 810
209-4T
Standard Ceiling speaker
CS810T,CS810T-25/70
109-8A
Economy Ceiling Speaker
C S 805
109-4T70
Economy Ceiling Speaker
C S 805T
CP802-T87
C10A-T87
5384A
5382B
C5A-T87
8 Inch w/Baffle
309-8TWB
Versions with white baffel grill
CS815T8WB
309-4TWB
Versions with white baffel grill
CS815TWB
209-4TWB
Versions with white baffel grill
CS810TWB
D161-8
109-4T70WB
Versions with white baffel grill
CS805TWB
G62-8
6.5 Inch
407-8A
Premium Ceiling Speakers
FA136
407-8T
Premium Ceiling Speakers
FA136-T87
407-16T
Premium Ceiling Speakers
307-8A
Utility Ceiling Speakers
C S 610
FA116
307-4T
Utility Ceiling Speakers
CS610T, CS610T-25/70
FA116-T72
4-Inch
405-8H
Premium Ceiling Speakers
405-4T
Premium Ceiling Speakers
FA134
4058HT
FA134-T47
205-8T
Utility Ceiling Speakers
CS410TB
FA114-T87
205-8A
Utility Ceiling Speakers
C S 410
FA114
205-4T
Utility Ceiling Speakers
CS410T, CS410T-25/70
EP309-8T
Quick-Mount package
CSP815-8T
EP309-16T
Quick-Mount package
5385A
5383B
8-Inch Package
8" Strategy
EP309-8T & CBA-8
EP309-16T & CBA-8
6.5-Inch Package
EP407-8T
Quick-Mount package
EP407-16T
Quick-Mount package
CSP610-4T
6" Strategy
EP407-8T & CBA-6
EP407-16T & CBA-6
4-Inch Package
EP405-8T
Quick-Mount package
EP405-16T
Quick-Mount package
EP407-8T
CSP410-4T
4" Strategy
EP405-8T & CBA-4
EP405-16T & CBA-4
Enclosures and Grills for 8"
5184-E
Steel backbox
CB8-1
T95-8
5281-W
5487-X
8" White baffel grill
Tile bridge
GB8R
TB-1
51-8
81-8S
CALL STARIN MARKETING FOR TECHNICAL INFORMATION ON ALTEC COMMERCIAL
Altec Commercial Guide (Dealer), Page 6
Altec EP-Series Quick Mount Ceiling
Speakers
EP309
8" Duplex
EP405
4" High SPL
EP407
6.5" Duplex
Each Quick-Mount package is a complete full-range ceiling speaker system consisting of a mountingring assembly and a speaker-component assembly which includes speaker, transformer, and housing.
Each model complies with UL listing 1480 for general fire signaling and UL listing 2043 for use in airhandling spaces (plenum rating). SAVE VALUABLE INSTALL TIME WITH THESE QUICK INSTALL
SPEAKERS!!
Each model includes:
• Speaker driver
• Transformer (with 4 wattage
taps)*
• Terminal block
• Enclosure (back box)
• Grill
• UL conduit plate
• Mounting bezel
8" Models:
EP309-8T (8W transformer)
EP309-16T (16W transformer)
6.5" Models:
EP407-8T (8W transformer)
EP407-16T (16W transformer)
4" Models:
EP405-8T (8W transformer)
EP405-16T (16W transformer)
Installation Demo
1. Cut hole
and insert
bezel.
2. Run and
attach
speaker wire
(use conduit
knock-out
back plate for
UL)
3. Slide into
bezel, turn
and lock into
place.
* 8W transformer taps at 1,2,4, and 8 watts, 16W
transformer taps at 2, 4, 8, and 16 watts.
CALL STARIN MARKETING FOR TECHNICAL INFORMATION ON ALTEC COMMERCIAL
Altec Commercial Guide (Dealer), Page 7
Altec Commercial Full Range Speakers
DTS-200 Duplex® Full-Range Speaker
Altec Lansing pioneered the use of point source alignment in their large venue speaker systems, and now that
technology is available in a more affordable package. Point source alignment physically aligns the two
drivers in a coax configuration resulting in a very uniform coverage pattern, with increased intelligibility. All of
this in a vented bass enclosure gives you a frequency response down to 80 Hz. Weighing in at only 38
pounds, that’s a lot of sound in a small package. Combine the great sound with the ability to safely hang the
speaker with optional mounting hardware, and you’ve got a speaker that will fit into any application. Available
in black or white. Optional mounting hardware (Mb100, Mb200, Mb300)
Full Range Compact Permanent Install Speakers
The Altec Commercial "S-Series" is a perfect solution when you need sound
reinforcement, but only a small package will do. Perfect for under balconies, cry
rooms, choir monitors, etc.
S40B (or S40W - White)
• 160 Watts
• 5.25" woofer / 1" dome tweeter
• Weather-resistant package
• Optional mounting bracket S40MBB
(or S40MBW - white)
• 30 W transformer versions (S40TB/
S40TW)
S60B (or S60W - White)
• 100 Watts
• 6.5" woofer / 1" dome tweeter
• Optional mounting bracket S60MBB (or
S60MBW - white)
• 60 W transformer versions (S60TB/
S60TW)
CALL STARIN MARKETING FOR TECHNICAL INFORMATION ON ALTEC COMMERCIAL
Altec Commercial Guide (Dealer), Page 8
Altec Commercial Special Application
Speakers
MLC and MLCT: Weatherproof 2-Way Loudspeaker
systems
• 15 Watts.
• Ideal for outdoor applications requiring greater
fidelity than a conventional
paging horn.
• MLCT version includes a
70.7V/25V transformer
• 2 way, folded horn design
provides a frequency
response of 175Hz-6K
• Perfect for marine use, golf
courses, playgrounds, or
picnic areas.
Musicaster 100: Weatherproof
Full Range Speaker System
• 8 ohms, 60 watts
• 12 inch coaxial design provides a high fidelity speaker
system ideal for voice and
music reproduction.
• Completely Weatherproof, the
Musicaster is ideal for
outdoor cafés, theme parks,
auditoriums, etc.
• Available in tan or hunter
green. Mounting bracket
included.
LR Series, Weatherproof Line Radiator
• Good 'problem solver' for areas prone to
feedback with existing horn and driver
combinations
• 5x7 inch elliptical full range speakers in a
weatherproof cabinet
• Great for under balcony reinforcement,
or anywhere you need full range coverage when space is limited.
LR2SAT: 25V/70.7V/100V
• 25 Watts
• 3 "electrically aligned" speakers
LR4SAT: 25V/70.7V/100V
• 50 Watts
• 6 "electrically aligned" speakers
MM2F is a flush
mount design
MM2 is equipped with
a swivel mount
UW30, UW30-100: Underwater
speakers
• 8 ohms, 30 watts.
• The only choice for underwater
speakers. Most schools now
specify the UW30 for synchronized swimming.
• Patented design uses absolutely no metal parts that can
corrode, making the UW30
the choice for aquariums or
saltwater pools as well as
swimming pools.
• One UW30 will cover a pool
30'x30'. Anything larger, or in
a more turbulent environment,
use 2 or more UW30's.
• UW30 includes 50 foot cable,
UW30-100 includes 100 foot
cable.
MM2TC is for ceiling, wall,
or bulkhead mounting
MM2,MM2F, and MM2TC: Submergence-proof Speakers
• 16 ohms
• 25 watts
• Self-Draining design is built to withstand fungus, dust, salt spray, live steam, and gasses.
• Designed to penetrate high ambient noise levels in boiler rooms, mines, railroads, etc.
CALL STARIN MARKETING FOR TECHNICAL INFORMATION ON ALTEC COMMERCIAL
Altec Commercial Guide (Dealer), Page 9
Large EP-Series Ceiling Speakers
The EP925 and EP950 large-format ceiling
loudspeakers are a radical new design that
provides unbeatable performance in high-ceiling
applications (higher than 15'). These speakers
feature Altec's Duplex technology and a unique
horn geometry that creates a square (90 degrees
x 90 degrees) coverage pattern. The included
enclosure features 3 hang points (choose EBK-2
option which provides eyebolts) and a
cosmetically pleasing design. Further more, and
option 2'x2' grill (CG-1) can be purchased for
using in drop-in ceiling applications. It is ideal for
use in hotels, ballrooms, auditoriums, convention
centers and meeting rooms where superb
performance is required.
EP950
• 50 Hz - 15k Hz frequency response
• 99.0 dB sensitivity (1W/1m)
• 400 watts continuous program
• Available in 8-ohm or transformer versions
from 30W to 100W
EP925
• 60 Hz - 20 Hz frequency response
• 97.0 dB sensitivity (1W/1m)
• 400 watts continuous program
• Available in 8-ohm or transformer versions
from 30W to 100W
Altec Commercial Mixer-Amplifiers
The MA/MR Series provides the installer with a complete line of versatile mixer/power amplifier products
with select features for paging and commercial sound applications. The series includes 4 models with 3 power
output configurations from 35 to 100 watts. All models offer identical features with the exception of power output.
The MR-355C also includes a digital tuner featuring 24 station presets that may be programmed by the user.
Each of the models has 5 separate input controls which can be used to adjust the level from 6 input
sources. Input channels 1-3 are Lo-Z microphone inputs; channel 4 is switch selectable to allow either a Lo-Z
mic or auxiliary line level input; channel 5 is for auxiliary line level inputs. Channels 1 and 2 take priority over
channels 3-5, while a transformer balanced telephone paging input takes priority over all inputs.
MR-355C
•
•
•
•
•
•
5 inputs (3 mic, 1mic/line, 1 line)
35 Watts (4W, 8W, 16W, 25V or 70V)
AM/FM tuner with 24 presets & MOH output
Page input from telephone system
Bass & treble EQ
Optional rack kit (RM-3/10)
MA-355B
• 5 inputs (3 mic, 1 mic/line, 1 line)
• 35 Watts (4W, 8W, 16W, 25V or 70V)
• Page input from telephone system
• Bass & treble EQ
• Optional rack kit (RM-3/10)
Altec Commercial Guide (Dealer), Page 10
CALL STARIN MARKETING FOR TECHNICAL INFORMATION ON ALTEC COMMERCIAL
Altec Commercial Mixer-Amplifiers
(Continued)
MA-605B
•
•
•
•
•
5 inputs (3 mic, 1mic/line, 1 line)
60 Watts (4W, 8W, 16W, 25V or 70V)
Page input from telephone system
Bass & treble EQ
Optional rack kit (RM-3/10)
MA-1005B
•
•
•
•
•
5 inputs (3 mic, 1mic/line, 1 line)
100 Watts (4W, 8W, 16W, 25V or 70V)
Page input from telephone system
Bass & treble EQ
Optional rack kit (RM-3/10)
Altec Modular Mixer/Amplifiers
The 1700 series gives the contractor/systems
engineer the ability to custom configure the mixer
for the job.
1700C Mixer-Preamp
The 1700C Mixer/Preamplifier is a six channel
user-configurable mainframe preamplifier. By
selecting from the large array of system
component options, the 1700C can become
anything from a six-in-one-out microphone mixer
to a one-in-six-out distribution preamplifier.
Multiple 1700C mainframes can be linked
together for situations where more then six input/
output ports are required. Built-in features include
a top panel trap-door for easy access into the
unit, compressor/limiter, low and high frequency
shelving equalizers, muting, remote volume
control capability, and a tone generator which
produces four different sounds.
NOTE: The
1700 series comes
without input
modules, they must
be ordered
separately
1700 Series Accessories
1781A Input Module
1781AT Input Module
Mic/Line input module with
Same as the 1781A but
interchangeable input
also features
connectors (XLR, RCA,
transformer isolation
Screw Lug) and provisions for which provides effective
remote control and muting.
electrical isolation.
1707 and 1715 Mixer-Amplifier
Like the 1700C, these models allow the input
channels to be configured and include a 75W
(1707) or 150W (1715) power amplifier in the
mainframe.
1783 Output Module
Connectors
This output module can Use these connectors with any module
1791 - Female XLR
be used to drive other
1792 - Male XLR
audio devices or as a
1793
- Dual RCA
distribution amplifier.
1794
5
Lug
Screw Term
Transformer option: 1786
CALL STARIN MARKETING FOR TECHNICAL INFORMATION ON ALTEC COMMERCIAL
Altec Commercial Guide (Dealer), Page 11
Multi-Zone Paging Mixer Amplifier
The EPS-205 is an all-in-one
multi-zone paging solution.
Features include 3 XLR mic/line
inputs, 3 RCA line inputs,
200W/70V internal amplifier, 5
selectable output zones with
level controls, 24VDC backup
power connections, priority
paging, digital message repeating option, and more!
Optional Accessories:
EPS-205/PS - Complete paging
surface with zone selections and
message triggering
ANRS-90178 - Remote master
volume extension card allows
for remote level control
ANRS-90212 - Alarm/chime
extension card allows for audible tones and chimes.
ANRS-90213 - Voice-messaging extension card allows
for 60-sec message to be saved and trigged at users
request.
Call your Altec rep for moreoptions
Altec Commercial Equalizers
1400 SERIES EQUALIZERS
1412A Stereo 15 Band 2/3 Octave
Equalizer
• Variable Q
• Selectable 6dB or l2dB Boost or Cut
• 43Hz High-Pass Filter
1431A Mono 31 Band 1/3 Octave
Equalizer
• Variable Q
• Selectable 6 dB or 12dB Boost or
Cut
• 43Hz High-Pass Filter
Balanced I/O
1432A Stereo 31 Band 1/3 Octave
Equalizer
• Variable Q
• Selectable 6dB or l2dB Boost or Cut
• 43 Hz High-Pass Filter
CALL STARIN MARKETING FOR TECHNICAL INFORMATION ON ALTEC COMMERCIAL
Altec Commercial Guide (Dealer), Page 12
Altec 70V And 8-W Amplifiers
Flexibility, reliability, and value are terms that
best describe Altec's 1400-series mono power
amplifiers. Employing true complementary
symmetry output circuitry for low noise and
reduced RF susceptibility, these amplifiers are
designed for a long life of operation.
• 75W (1407A), 150W (1415A), or 300W
(1430A)
• Balanced output transformer (screw
terminal taps)
• 15k ohm bridging input transformer (A75/
A150)
• Full amplifier protection
• 4W , 8W , 25 volt and 70.7 volt output
• 300 Hz high-pass filter (1407A/1415A)
EV amplifiers are known for reliability
and supurb sound quality.
Specifications:
9441A
9444B
Power per channel (4 ohms)
100W
300W
Power per channel (8 ohms)
75W
200W
Power Bridged Mono
200W
600W
Cooling
Convection
F an
Input Connector
XLR or 1/4"
XLR or Term
Output Connector
Binding post
Term
1U
3U
Depth
12.8 in
13.0 in
Weight
18 lbs
34 lbs
Rack Spaces
Altec Commercial Audio Transformers
TK60
TM Series
AT100
Audio Transformers
Don't degrade your sound, Altec transformers are the best in the business for audio.
Model
Taps
P o w er
Handling
Insertion
L o ss
Freq. Response
TK60
Transformer kit for Musicaster
60 watts
1.5dB
60Hz-10kHz, ± 1dB
TM5
0.62,1.25,2.5, 5W - 25/70.7/100V
5 watts
1.5dB
60Hz-10kHz, ± 1dB
TM15
1.87,3.75,7.5,15W - 25/70.7/100V
15 watts
1.5dB
60Hz-10kHz, ± 1dB
TM30
3.75,7.5,15,30W - 25/70.7/100V
30 watts
1.5dB
60Hz-10kHz, ± 1dB
TM60
7.5,15,30,60W - 25/70.7/100V
60 watts
1 dB
60Hz-10kHz, ± 1dB
AT100
4,8,16,50,70.7,100W
100 watts
< 1 dB
CALL STARIN MARKETING FOR TECHNICAL INFORMATION ON ALTEC COMMERCIAL
35Hz-15kHz,± 1dB
Altec Commercial Guide (Dealer), Page 13
Microphones
US621L
US600EL
Cardioid version for offaxis noise rejection...for
high ambient noise
environments.
Cardioid version for offaxis noise rejection
...for high ambient noise
environments.
US692
EV N/DYM Series
Suitable for general public
address applications, the
US692 dynamic microphone features high output
while providing smooth
frequency response.
For live performance look no
further than EV's popular
N/DYM series.
The RE90H is a highgrade hanging microphone
suitable for choir and altar
applications. Its very
unique feature is a specially wound cord that
prevents the microphone
from shifting off its installed direction ...a real
life saver!
Dynamic cardioids featuring N/
DYM® magnet structures.
Utilizes 12" goosenecks for
flexible microphone placement. "F" version available
with a threaded flange mount
US622L
US602FL
RE90H
US690
Ideal for paging stations, this mic has a
latching or non-latching
push-to-talk switch on
the base.
This handheld microphone is designed for a
rough environment
where grip-to-talk is
essential
RE90B
This unidirection
tabletop microphone is one of the
best in its class. Great for
conference tables, courtrooms, and theatrical-type
boundary applications.
RE90P
The RE90P is a great allpurpose podium microphone
that provides even sound.
RE90L
The RE90L is the smallest lavalier
microphone available. When you
can't afford for the microphone to
be seen, Altec has the best options
available to you.
As an Altec Commercial Dealer, you have
access to Electro-Voice's entire array of
microphones. Please consult your price sheets
or call Starin Marketing for more information!
CALL STARIN MARKETING FOR TECHNICAL INFORMATION ON ALTEC COMMERCIAL
Altec Commercial Guide (Dealer), Page 14
Download PDF
