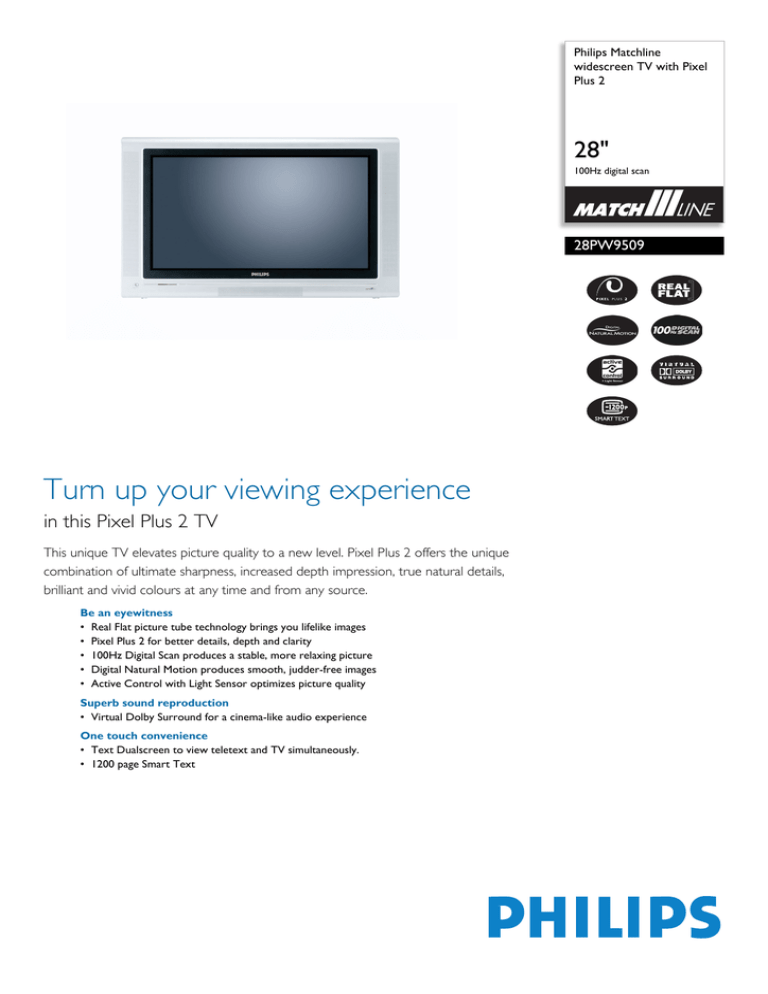

Philips | 28PW9509/05 | Leaflet 28PW9509_05 Released Global (English) High

For preview purpose only
Philips Matchline
widescreen TV with Pixel
Plus 2
28"
100Hz digital scan
28PW9509
Turn up your viewing experience
in this Pixel Plus 2 TV
This unique TV elevates picture quality to a new level. Pixel Plus 2 offers the unique
combination of ultimate sharpness, increased depth impression, true natural details,
brilliant and vivid colours at any time and from any source.
Be an eyewitness
• Real Flat picture tube technology brings you lifelike images
• Pixel Plus 2 for better details, depth and clarity
• 100Hz Digital Scan produces a stable, more relaxing picture
• Digital Natural Motion produces smooth, judder-free images
• Active Control with Light Sensor optimizes picture quality
Superb sound reproduction
• Virtual Dolby Surround for a cinema-like audio experience
One touch convenience
• Text Dualscreen to view teletext and TV simultaneously.
• 1200 page Smart Text
For preview purpose only
28PW9509/05
widescreen TV with Pixel Plus 2
28" 100Hz digital scan
Technical specifications
Picture/Display
•
•
•
•
•
Product highlights
• Picture in Picture: Text dual screen
• Screen Format Adjustments: 6 Widescreen
Modes, Auto Format, Subtitle and Heading Shift
• Clock: Sleep Timer, Smart Clock
• Child Protection: Child Lock
Aspect ratio: 16:9
Diagonal screen size: 28 inch / 70 cm
Visible diagonal screen size: 66 cm
Display screen type: Real Flat picture tube
Picture enhancement: Pixel Plus 2, Digital
Crystal Clear, Scavem, Active Control + Light
sensor, Digital Natural Motion, Dynamic Auto
Focus, Widescreen Plus
• Screen enhancement: Anti-Reflection coated
screen
• Picture processing: 100 Hz Digital Scan
Tuner/Reception/Transmission
Sound
Connectivity
• Sound Enhancement: Digital Signal Processing
• Sound System: Virtual Dolby Surround
Loudspeakers
• Built-in speakers: 2
Convenience
• Ease of Installation: Automatic Channel
Install(ACI), Automatic Tuning System (ATS),
Autostore, Fine Tuning, PLL Digital Tuning, Plug
& Play, Sorting
• Ease of Use: Graphical User Interface, Picture
Freeze, Picture Tilt, Top Controls, Zoom 16x
• Electronic Programme Guide: NexTView 2
• Remote control type: RC4301
• Teletext: 1200 page Hypertext
• Teletext enhancements: Habit Watch, Word
Search
•
•
•
•
•
Tuner bands: Hyperband, S-Channel, UHF, VHF
TV system: NTSC, PAL
Video Playback: NTSC, PAL, SECAM
Aerial Input: 75 ohm coaxial (IEC75)
Number of Preset Channels: 100
•
•
•
•
•
Number of AV connections: 4
Ext 1 Scart: CVBS in/out, RGB
Ext 2 Scart: CVBS in/out, Y/C
Ext 3 Scart: CVBS in/out, RGB
Other connections: Analog audio Left/Right out,
Antenna IEC75
• Front / Side connections: Audio L/R in, CVBS in,
Headphone out, S-video in
Power
• Power consumption: 109 W
• Standby power consumption: < 1W
• Mains power: AC 220 - 240 V +/- 10%
Dimensions
• Product weight: 41.1 kg
• Weight incl. Packaging: 45.5 kg
• Color cabinet: Precision Silver (10888)
•
Real Flat picture tube
The flatter tube provides a wider viewing angle while
minimizing reflections for the best picture possible. The
special alloy invar shadow mask helps maintain sharper
focus and eliminates 'color blooming' compared to
standard tubes.
Pixel Plus 2
Pixel Plus 2 is a digital picture processing technology
that improves the resolution of still and moving pictures.
It does more than adding pixels, it also makes the pixels
better, resulting incredible sharpness and picture depth
every time and from any source. And it does not just
improve the resolution either, because you also benefit
from improved color reproduction, resulting in the finest
color details and superior brilliance.
100Hz Digital Scan
A conventional TV shows a picture by scanning 50 times
per second (50Hz). This frequency can be detected by
the human eye in the form of a flickering picture.
100Hz sets show a picture by scanning 100 times per
second eliminating the field flickering. Philips' digital
scan doubles the rate of line flicker, making it
undetectable. The result is a more stable picture that is
relaxing for your eye.
Digital Natural Motion
Philips invented Digital Natural Motion to eliminate
juddering effects that are visible with moving picture
content. Digital Natural Motion estimates motion in the
picture and corrects juddering movements in both
broadcast and recorded movie material (such as DVD).
The resulting smooth motion reproduction and excellent
sharpness take the viewing experience to a higher level.
Active Control + Light Sensor
Active Control is a unique and intelligent way of
optimizing picture quality by measuring and analyzing
the incoming signal to automatically adjust picture
quality settings. Active Control with Light Sensor uses a
sensor to adjust the picture brightness depending on the
room light conditions.
Virtual Dolby Surround
Virtual Dolby Surround is a processing technology for
enhancing surround sound effects. It which create the
sensation of Dolby Pro Logic without the necessity of
additional rear speakers. You become totally immersed
in your television experience.
Video and teletext dual screen
Video and teletext dual screen provides you with the
capability to show video and teletext pages from the
same channel side by side on one screen.
1200 page Smart Text
The teletext is a common system transmitted by most
broadcasters. 1200 page smart text gives you fast
access to information when changing pages.
Date of issue 2006-08-16
Version: 5.0
12 NC: 8670 000 20416
EAN: 87 10895 81671 7
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
www.philips.com
