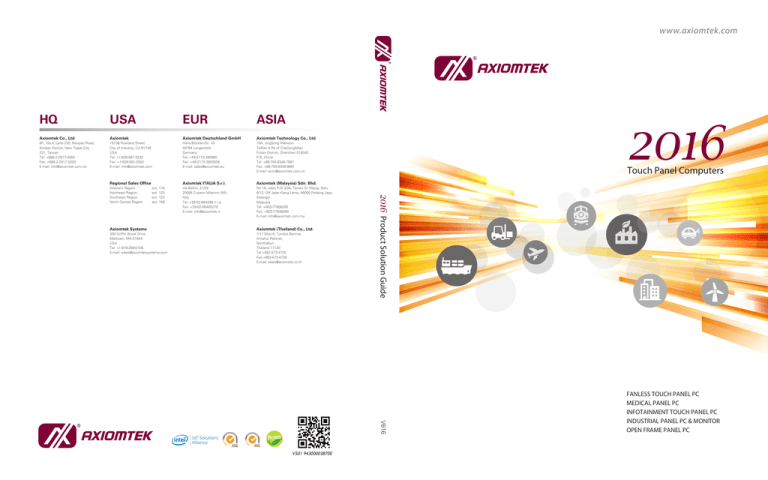

2016

Touch Panel Computers

FANLESS TOUCH PANEL PC

MEDICAL PANEL PC

INFOTAINMENT TOUCH PANEL PC

INDUSTRIAL PANEL PC & MONITOR

OPEN FRAME PANEL PC

Embedded Boards & SoMs

Table of Contents

Touch Panel Computers

Product Line Overview

1

Fanless Touch Panel Computers

Introduction

Selection Guide

2

NEW

NEW

NEW

GOT5153W-834

GOT5153T-845

GOT5152T-834

GOT5152T-832

GOT5123T-845

GOT5120T-834

GOT5120T-832

GOT5100T-834

GOT5100T-832

GOT5103W-845

GOT5840T-834

GOT5840T-832

15.6" WXGA TFT Fanless Touch Panel Computer with

Intel® Celeron® Processor J1900

15" XGA TFT Fanless Touch Panel Computer with

Intel® Celeron® Processor N3060

15" XGA TFT Fanless Touch Panel Computer with

Intel® Atom™ Processor D2550

15" XGA TFT Fanless Touch Panel Computer with

Intel® Atom™ Processor D2550

12.1" SVGA/XGA TFT Fanless Touch Panel Computer with

Intel® Celeron® Processor N3060

12.1" XGA/SVGA TFT Fanless Touch Panel Computer with

Intel® Celeron® Processor J1900

12.1" XGA/SVGA TFT Fanless Touch Panel Computer with

Intel® Atom™ Processor N2600

10.4" XGA/SVGA FTF Fanless Touch Panel Computer with

Intel® Celeron® Processor J1900

10.4" SVGA FTF Fanless Touch Panel Computer with

Intel® Atom™ Processor N2600

10.1" WXGA TFT Fanless Touch Panel Computer with

Intel® Celeron® Processor N3060

8.4" SVGA TFT Fanless Touch Panel Computer with

Intel® Celeron® Processor J1900

8.4" SVGA TFT Fanless Touch Panel Computer with

Intel® Atom™ Processor N2600

Heavy-duty Fanless Touch Panel Computers

Introduction

Selection Guide

GOT3217W-881-PCT 21.5" Full HD TFT Fanless Multi-Touch Panel Computer with

LGA1150 Socket 4th Generation Intel® Core™ i7/i5/i3,

Pentium® & Celeron® Processor (0°C ~ +40°C)

GOT3187W-881-PCT 18.5" WXGA TFT Fanless Multi-Touch Panel Computer with

LGA1150 Socket 4th Generation Intel® Core™ i7/i5/i3, Celeron®

& Pentium® Processor (0°C ~ +40°C)

GOT3187W-834-PCT 18.5" WXGA TFT Multi-Touch Panel Computer with Intel®

Celeron® Processor J1900 (-10°C ~ +50°C)

GOT3187W-832-PCT 18.5" WXGA TFT Fanless Multi-Touch Panel Computer with

Intel® Atom™ Processor D2550 (-10°C ~ +50°C)

503

505

507

509

511

513

495

497

499

501

487

488

491

493

517

518

525

527

529

531

483

Table of Contents

Touch Panel Computers

NEW

NEW

NEW

NEW

NEW

NEW

NEW

NEW

GOT3187W-111-PCT 18.5" WXGA TFT Fanless Multi-Touch Panel Computer with

AMD G Series Processor T56N (-10°C ~ +45°C)

GOT3177T-891-PCT 17" XGA TFT Fanless Multi-Touch Panel Computer with

GOT3177T-834

6th Generation Intel® Core™ Processor and Intel® Q170

(-10°C ~ +40°C)

17" SXGA TFT Flat Front Bezel Touch Panel Computer with

Intel® Celeron® Processor J1900 (-10°C ~ +50°C)

GOT3157W-881-PCT 15.6" WXGA TFT Fanless Multi-Touch Panel Computer with

Intel® Core™ Processor with Intel® H81 (-10°C ~ +40°C)

GOT3157W-834-PCT 15.6" WXGA TFT Fanless Multi-Touch Panel Computer with

Intel® Celeron® Processor J1900 (-10°C ~ +50°C)

GOT3157W-832-PCT 15.6" WXGA TFT Fanless Multi-Touch Panel Computer with

Intel® Atom™ Processor (-10°C ~ +50°C)

GOT3157W-111-PCT 15.6 WXGA TFT Fanless Multi-Touch Panel Computer with

AMD G Series Processor T56N (-10°C ~ +45°C)

GOT3156T-834

GOT3156T-832

GOT3126T-834

GOT3126T-832

GOT3106T-832

GOT3846T-832

GOT-3840TL

GOT817-834

GOT815-834

GOT812LR-834

GOT812LR-832

GOT712-837

GOT710-837

533

535

537

539

541

543

545

15" XGA TFT Fanless Touch Panel Computer with Intel® Atom™

Processor E3827 (-20°C ~ +55°C)

12.1" SVGA TFT Extended Temp. Fanless Touch Panel Computer with Intel® Atom™ Processor E3827 (-20°C +55°C)

547

15" XGA TFT Fanless Touch Panel Computer with Intel® Atom™ 549

Processor (-20°C ~ +55°C)

551

553 12.1" SVGA TFT Extended Temp. Fanless Touch Panel Computer with Intel® Atom™ Processor N2600 (-20°C +55°C)

10.4" SVGA TFT Extend Temp. Fanless Touch Panel Computer with Intel® Atom™ Processor N2600 (-20°C +55°C)

555

557 8.4" SVGA TFT Fanless Touch Panel Computer with Intel®

Atom™ Processor N2600 (-20°C ~ +55°C)

8.4" SVGA TFT Cost-effective Fanless Touch Panel Computer

17" SXGA TFT IP66-rated Stainless Steel Fanless PCT

(or Resistive Touch) Panel Computer with Flat Bezel Design and Intel® Atom™ Processor E3827 (-20°C ~ +55°C)

15" XGA TFT IP66-rated Stainless Steel Fanless PCT

(or Resistive Touch) Panel Computer with Flat Bezel Design

559

561

563 and Intel® Atom™ Processor E3827 (-20°C ~ +55°C)

12.1" XGA TFT IP66-rated Fanless Touch Panel Computer with

Intel® Atom™ Processor E3827 and High Brightness (-20°C ~ +55°C)

12.1" XGA TFT IP66-rated Fanless Touch Panel Computer with

565

567

Intel® Atom™ Processor N2600 and High Brightness (-20°C ~ +55°C)

12.1” XGA EN50155 Railway Fanless Touch Panel PC with 569

Intel® Atom™ Processor E3845 1.91 GHz (-25°C ~ +70°C )

10.4” SVGA EN50155 Railway Fanless Touch Panel PC with

Intel® Atom™ Processor E3845 1.91 GHz (-25°C ~ +70°C )

571

Embedded Boards & SoMs

3

Industrial Panel Computers

Introduction

Selection Guide

NEW

NEW

Slim Series

P1177S-881

P1177S-871

P1157S-881

P1157S-871

17" SXGA TFT 5th Generation Intel® Core™ i7/i5/i3, Celeron® & 579

Pentium® Processor Slim Industrial Touch Panel Computer

17" SXGA TFT 3rd Generation Intel® Core™ i7/i5/i3, Celeron® & 581

Pentium® Processor Slim Industrial Touch Panel Computer

15" XGA TFT 5th Generation Intel® Core™ i7/i5/i3, Celeron® & 583

Pentium® Processor Slim Industrial Panel Computer

15" XGA TFT 3rd Generation Intel® Core™ i7/i5/i3, Celeron® & 585

Pentium® Slim Industrial Panel Computer

NEW

Expandable Series

P1197E-861

P1177E-871

P1177E-842

P1157E-871

P1127E-871

19" SXGA TFT 3rd Generation Intel® Core™ i7/i5/i3, Celeron® & 587

Pentium® Expandable Industrial Panel Computer with

1 PCI or 1 PCIe Slots

17" SXGA TFT 3rd Generation Intel® Core™ i7/i5/i3, Celeron® & 589

Pentium® Expandable Industrial Panel Computer with

2 PCI or 2 PCI Slots

17" SXGA TFT Intel® Celeron® Processor J1900 Expandable

Industrial Panel Computer with 1 PCI Slot

591

15" XGA TFT 3rd Generation Intel® Core™ i7/i5/i3, Celeron® & 593

Pentium® Expandable Industrial Panel Computer with

2 PCIe or 2 PCI Slots

12" XGA TFT 3rd Generation Intel® Core™ i7/i5/i3, Celeron® & 595

Pentium® Expandable Industrial Panel Computer with

2 PCIe or 2 PCI Slots

4

Industrial Touch Panel Monitors

Introduction

Selection Guide

599

600

575

576

NEW

NEW

NEW

NEW

NEW

NEW

NEW

P6211W

P6191

P6192

P6187W

P6171

P6173

P6157W

P6151

P6153

P6121

P6122

P6101

P6105

P6100

21.5" Full HD TFT Widescreen Industrial LCD Monitor

19" SXGA TFT Industrial LCD Monitor

19" SXGA TFT Industrial LCD Monitor

18.5" WXGA TFT Widescreen Industrial LCD Monitor

17" SXGA TFT Industrial LCD Monitor

17" SXGA TFT Industrial LCD Monitor

15.6" WXGA TFT Widescreen Industrial LCD Monitor

15" XGA TFT Industrial LCD Monitor

15" XGA TFT Industrial LCD Monitor

12.1" XGA TFT Industrial LCD Monitor

12.1" SVGA TFT Industrial LCD Monitor

10.4" XGA TFT Industrial LCD Monitor

10.4" XGA TFT Railway Touch Display with EN50100 T1 class

(-25°C ~ +55°C )

10.4" SVGA TFT Industrial LCD Monitor

613

615

617

619

621

623

605

607

609

611

625

627

629

631

Table of Contents

Touch Panel Computers

5

Infotainment Touch Panel Computers

Introduction

Selection Guide

IFO2225-873

IFO2175-873

635

22" WSXGA TFT Fanless Super Slim Touch Panel Computer with 637

Intel® Core™ i7/i5/i3 Processor

17" SXGA TFT Fanless Super Slim Touch Panel Computer with

Intel® Core™ i7/i5/i3 Processor

636

639

6

Healthcare & Medical Solutions

NEW

NEW

Introduction

Selection Guide

Medical Panel Computers

MPC240

MPC225-873

643

644

24" FHD TFT Medical Grade Panel Computer with 4th Generation 647

Intel® Core™ M-series, Celeron® & Pentium® Processor

22" WSXGA TFT Fanless Medical Grade Panel Computer with

Intel® Core™ i7/ i5/ i3 Processor

649

651 MPC175-873

MPC153-834

17" SXGA TFT Fanless Medical Grade Panel Computer with

Intel® Core™ i7/ i5/ i3 Processor

15.6" WXGA TFT Medical Grade Panel Computer with Intel®

Celeron® Processor J1900

653

655 MPC152-832

MPC102-832

MPC103-845

15" XGA TFT Medical Grade Panel Computer with Low Power

Intel® Atom™ Processor D2550

10.4" SVGA Medical Grade Panel Computer with Low Power

Intel® Atom™ Processor N2600

10.1" WXGA TFT Medical Grade Panel Computer with Intel®

Celeron® Processor N3060

657

659

NEW

7

Open Frame Panel Computers

Introduction

Selection Guide

662

663

FDK191-832

FDK172-834

8

Accessories

Accessory List

19" SXGA TFT Open Frame Panel Computer with Intel® Atom™ 665

Processor D2550

17" SXGA TFT Open Frame Panel Computer with Intel® Celeron® 667

Processor J1900

670

Axiomtek Touch Panel Computers for Various Applications

Total Solution

Axiomtek has been working with customers from various industries for years and we fully understand market demands and requirements. Based on our ample experience, we have incorporated valuable features and applied the latest technology into our touch panel computers to help our customers achieve the highest performance possible by providing a range of products catered toward today's highly competitive market.

Infotainment/Kiosk Application - IFO2000/GOT5000 series

The IFO2000 series is best suited for desktop infotainment system with LCD size ranging from 17" to 22". It features an IPX1-rated water-proof design to protect the entire system from outside liquid and an anti-scratch design up to 7H to make it durable for continuous use in public places. The GOT5000 series is extremely light weight, has fanless operation, ultra slim and modern ID features for small-size infotainment application. Having adopt Intel® Atom™ processor N2600/D2550, Intel® Celeron®

J1900 or N3060 processor, this series delivers superior computing capabilities and energy efficiency and minimizes footprint. For human machine interface application, it incorporates resistive-type touchscreen to be accessible even users wear gloves. For anti-scratch application, it supports capacitive-type touchscreen with 90% light transmission which makes the screen clearer.

Harsh Environment Application - GOT800 series

The GOT800 series is specifically designed for harsh operating environments such as: severe outdoor elements (extreme sunny or rainy day); dusty or wet spaces in food factories or kitchens; ships exposed to ocean salt water and many more. This series integrated an IP66-rated housing with sunlight readable technology, wide operating temperature from -20°C to +55°C and an optional 802.11a/b/g/n wireless support.

Rolling Stock Application - GOT700 Series

The GOT700 series is used to keep the train driver informed about the status of the train’s functions. Its design allows it to be deployed in environment with an extended temperature (-25°C ~ 70°C) and it also complies with the EMC, shock and vibration test requirements of European standard EN50155 for railway applications. GOT710-

837 10.4” TFT display has a ruggedized touch panel. IP65 front bezel design and all lockable connectors are perfect choice for Human Machine Interface(HMI) in railway environments. GOT710-837 includes a comprehensive feature set with one CAN Bus, DIO, audio, two Ethernet ports, USB ports and RS-232/422/485.

Industrial Automation Application - GOT3000/P1000/P6000 series

The GOT3000 series delivers solution that is capable of meeting the needs of the industrial automation market. It features wide range operating temperatures of -20°C to

+65°C, low power Intel or AMD processor, anti-vibration design, high brightness display and NEMA 4X compliant front bezel. The P1000 series helps customers reduce time-to-market for the automation industry by featuring extremely light weight panel, flexibility with CPU selection, cost effectiveness, slim/expandable designs, anticorrosion front bezel and vibration resistance up to 1Grms. The P6000 series industrial flat panel monitors comes in 10.4", 12.1", 15", 17" and 19", and features high brightness TFT LCD's, water/dust-proof front panels and light-duty aluminum panels/chassis. This series supports multi-signal interfaces including DVI/VGA/S-Video/Video or HDMI/DP/DVI..

483

* All specifications and photos are subject to change without notice.

0

Overview

Kiosk Information Station - FDK series

Fanless

Touch Panel

Computers

Axiomtek's FDK series is an open frame LCD panel computer with outstanding configuration flexibility to help system integrators with configuring kiosk PCs. To easily fit into any space or to be encased into any chassis, the FDK series comes with open frame and slim design. For versatile applications, several touchscreen options are available to offer different viewer experiences. The brightness adjustment control is hidden from public view but still accessible for easy maintenance. For WiFi & 4G connection, this slim unit incorporates Mini Card slot for expansion capability. The FDK series can be widely deployed for indoor kiosk, HMI automation, and much more applications.

Heavy-duty

Fanless Touch

Panel Computers

Medical/Healthcare Application - MPC series

Industrial

Touch Panel

Computers

Axiomtek's medical touch panel computers (MPC series), are well-suited for applications like medical image processing, medical measuring instrument and mobile nursing cart. The MPC series deliver features such as power efficiency, sleek ID, IP65-rated front panel & IPX1-rated enclosure water/dust-proof design and operating without making any noise. They comply with ISO 13485: 2003, UL60601-1/EN60601-1, CE, and FCC Class B certifications to ensure operation safety.

Industrial Touch panel Monitors

Segment VS. Product Line

Infotainment/

Kiosk

Harsh

Environment

Rolling Stock

Industrial

Automation

Medical/

Healthcare

Infotainment

Touch Panel

Computers

IFO2000 GOT800 GOT700 P1000 MPC

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

GOT5000 GOT3000 P6000

FDK

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

484

Touch Panel

Computers

www.axiomtek.com

Touch Panel Computers

1

Fanless Touch Panel Computers

Axiomtek provides a complete range of industrial panel computers & monitors for automation and infotainment applications. The power-efficient GOT5000 focuses on information display market, which has fanless operation, ultra slim & modern ID and extremely light weight.

Introduction

Selection Guide

NEW

NEW

NEW

GOT5153W-834

GOT5153T-845

GOT5152T-834

GOT5152T-832

GOT5123T-845

GOT5120T-834

GOT5120T-832

GOT5100T-834

GOT5100T-832

GOT5103W-845

GOT5840T-834

GOT5840T-832

15.6" WXGA TFT Fanless Touch Panel Computer with

Intel® Celeron® Processor J1900

15" XGA TFT Fanless Touch Panel Computer with

Intel® Celeron® Processor N3060

15" XGA TFT Fanless Touch Panel Computer with

Intel® Atom™ Processor D2550

15" XGA TFT Fanless Touch Panel Computer with

Intel® Atom™ Processor D2550

12.1" SVGA/XGA TFT Fanless Touch Panel Computer with

Intel® Celeron® Processor N3060

12.1" XGA/SVGA TFT Fanless Touch Panel Computer with

Intel® Celeron® Processor J1900

12.1" XGA/SVGA TFT Fanless Touch Panel Computer with

Intel® Atom™ Processor N2600

10.4" XGA/SVGA FTF Fanless Touch Panel Computer with

Intel® Celeron® Processor J1900

10.4" SVGA FTF Fanless Touch Panel Computer with

Intel® Atom™ Processor N2600

10.1" WXGA TFT Fanless Touch Panel Computer with

Intel® Celeron® Processor N3060

8.4" SVGA TFT Fanless Touch Panel Computer with

Intel® Celeron® Processor J1900

8.4" SVGA TFT Fanless Touch Panel Computer with

Intel® Atom™ Processor N2600

487

488

507

509

511

513

501

503

505

491

493

495

497

499

Industrial Panel Computers

GOT5000 Series for HMI/Kiosk/Infotainment

The GOT5000 series is specifically designed for HMI (human machine interface) applications. Incorporating low power consumption Intel® processor N3060/J1900/D2550/

N2600 and with a ultra slim housing makes this series a cost-effective and state-of-art fanless touch panel computer. It comes in various LCD display sizes ranging from 8.4" to 15.6" and a compact design. The GOT5000 series is a perfect HMI platform for public infotainment system and information display in factory/building automation fields.

This series provides 1/2 mini card slot(s) and a built-in WLAN antenna for wireless network connections. By simply plugging in the wireless LAN card, customers can use

LAN/GPRS/GPS/4G.

Major Features

Industrial automation Varied sizes of 8.4", 10.1”, 10.4", 12“,

15” and 15.6

Cost-effective solution Super lightweight

Rich IO connectivity Wireless connection Wi-Fi/BT/4G IP65 front panel design Flexible mounting ways:

Desktop/Panel/Wall/VESA

487

* All specifications and photos are subject to change without notice.

Fanless Touch Panel Computers

Selection Guide

Features\Models

CPU Level

Chipset

System Memory

Display

I/O

Storage

Expansion Interface

Touchscreen

Operating System

Power Supply

Power Consumption

Watchdog Timer

Dimensions

(W x D x H)

Weight (net/gross)

Operating Temperature

Certificate

Overview

NEW

1

Fanless

Touch Panel

Computers

Page 491

GOT5153W-834

Page 493

GOT5153T-845

Intel® Celeron® processor J1900

(up to 2.42 GHz)

Intel® Celeron® processor N3060

2 cores (up to 2.48 GHz)

Page 495

GOT5152T-834

Page 497

GOT5152T-832

Intel® Celeron® processor J1900

(up to 2.42 GHz)

Intel® Atom™ D2550 @1.86 GHz

SoC Integrated SoC Integrated

1 x 204-pin DDR3L-1333 MHz SO-

DIMM max. up to 8 GB

15.6" TFT, WXGA, 300 nits

1 x 204-pin DDR3L-1600 MHz

SO-DIMM max. up to 8 GB

SoC Integrated

1 x 204-pin DDR3L-1333 MHz SO-

DIMM max. up to 8 GB

15" TFT, XGA, 400 nits

Intel® NM10

1 x 204-pin DDR3 800/1066 MHz

SO-DIMM max. up to 4 GB

15" TFT, XGA, 400 nits

2 x RS-232/422/485 (COM 1/2)

2 x 10/100/1000Mbps Ethernet

2 x USB 2.0

2 x USB 3.0

1 x Audio (Line out)

1 x VGA

15" TFT, XGA, 400 nits

2 x RS-232 (COM 2/3)

1 x RS-232/422/485 (COM 1)

2 x 10/100/1000Mbps Ethernet

2 x USB 2.0

2 x USB 3.0

1 x Audio (Line-out)

1 x HDMI

1 x Switch for power on/off

1 x AT/ATX mode selection switch

3 x RS-232/422/485 (COM 1/2/3)

2 x 10/100/1000Mbps Ethernet

2 x USB 2.0

2 x USB 3.0

1 x Audio(Line out)

1 x VGA

2 x RS-232 (COM 2/3)

1 x RS-232/422/485 (COM 1)

2 x 10/100/1000Mbps Ethernet

4 x USB 2.0

1 x Audio (Line-out)

1 x VGA

1 x 2.5" HDD

1 x CFast™ or mSATA

2 x PCIe Mini Card

Projected capacitive multi-touch

5-wire flat resistive type

Windows® 8.1, WE8S,

Windows® 7, WES 7

1 x 2.5" HDD

1 x mSATA

2 x PCIe Mini Card

Projected capacitive multi-touch

5-wire flat resistive type

Windows 10

Windows® 8.1, WE8S,

Windows® 7, WES 7

1 x 2.5" HDD

1 x CFast™ or mSATA

2 x PCIe Mini Card

5-wire resistive type

Windows® 8.1, WE8S,

Windows® 7, WES 7

1 x 2.5" HDD

1 x CompactFlash™

1 x PCIe Mini Card

5-wire resistive type

Windows® XP, WES

Windows® 7, WES 7

9~36VDC

100~240VAC, 60W adapter

12VDC (default)

9~36VDC (optional)

24VDC (optional)

100~240V, AC-DC 60W power adapter

TBD

255 levels, 0~255 sec.

9~36VDC

100~240VAC, 60W adapter

10~30VDC

100~240VAC, 60W adapter

36W

255 levels, 0~255 sec.

394.2 x 57 x 257.2 mm

(15.53" x 2.25" x 10.13")

3.0 kg (6.61 lb)/4.5 kg (9.92 lb)

0° ~ +45°C (+32°F ~ +113°F)

CE

TBD

TBD

0° ~ +50°C (+32°F ~ +122°F)

CE

36W

255 levels, 0~255 sec.

387.9 x 54.6 x 307.7 mm

(15.27" x 2.14" x 12.11")

3.2 kg (7.05 lb)/5.1 kg (11.24 lb)

0° ~ +50°C (+32°F ~ +122°F)

CE

30W

255 levels, 0~255 sec.

387.9 x 54.6 x 307.7 mm

(15.27" x 2.14" x 12.11")

3.2 kg (7.05 lb)/5.1 kg (11.24 lb)

0° ~ +50°C (+32°F ~ +122°F)

UL60950-1, CE

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

488

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

Fanless Touch Panel Computers

Selection Guide

NEW

Features\Models

CPU Level

Chipset

System Memory

Display

I/O

Storage

Expansion Interface

Touchscreen

Operating System

Power Supply

Power Consumption

Watchdog Timer

Dimensions

(W x D x H)

Weight (net/gross)

Operating Temperature

Certificate

Page 499

GOT5123T-845

Intel® Celeron® processor N3060

2 cores (up to 2.48 GHz)

SoC Integrated

1 x 204-pin DDR3L-1600 MHz

SO-DIMM max. up to 8 GB

12.1" TFT, XGA, 500 nits

12.1" TFT, SVGA, 450 nits

1 x RS-232 (COM 2)

1 x RS-232/422/485 (COM 1)

2 x 10/100/1000Mbps Ethernet

2 x USB 2.0

2 x USB 3.0

1 x Audio (Line-out)

1 x HDMI

1 x Switch for power on/off

1 x AT/ATX mode selection switch

1 x 2.5" HDD

1 x mSATA

2 x PCIe Mini Card

Projected capacitive multi-touch

5-wire flat resistive type

Windows 10

Windows® 8.1, WE8S,

Windows® 7, WES 7

12VDC (default)

9~36VDC (optional)

24VDC (optional)

100~240V, AC-DC 60W power adapter

TBD

Page 501

GOT5120T-834

Intel® Celeron® processor J1900

(up to 2.42 GHz)

SoC Integrated

1 x 204-pin DDR3L-1333 MHz SO-

DIMM max. up to 8 GB

12.1" TFT, XGA, 500 nits

12.1" TFT, SVGA, 450 nits

2 x RS-232/422/485 (COM 1/2)

2 x 10/100/1000Mbps Ethernet

2 x USB 2.0

2 x USB 3.0

1 x Audio (Line out)

1 x VGA

1 x 2.5" HDD

1 x CFast™ or mSATA

2 x PCIe Mini Card

5-wire resistive type

Windows® 8.1, WE8S,

Windows® 7, WES 7

9~36VDC

100~240VAC, 60W adapter

32W

Page 503

GOT5120T-832

Intel® Atom™ N2600 @1.6 GHz

Intel® NM10

1 x 204-pin DDR3 800/1066 MHz

SO-DIMM max. up to 2 GB

12.1" TFT, XGA, 500 nits

12.1" TFT, SVGA, 450 nits

Page 505

GOT5100T-834

Intel® Celeron® processor J1900

(up to 2.42 GHz)

SoC Integrated

1 x 204-pin DDR3L-1333 MHz SO-

DIMM max. up to 8 GB

10.4" TFT, XGA, 350 nits

10.4" TFT, SVGA, 400 nits

1 x RS-232/422/485 (COM 1)

1 x RS-232 (COM 2)

2 x 10/100/1000Mbps Ethernet

4 x USB 2.0

1 x Audio (Lint-out)

1 x VGA

1 x 2.5" HDD

1 x CompactFlash™

1 x PCIe Mini Card

5-wire resistive type

Windows® XP, WES

Windows® 7, WES 7

10~30VDC

100~240VAC, 60W adapter

30W

2 x RS-232/422/485 (COM 1/2)

2 x 10/100/1000Mbps Ethernet

2 x USB 2.0

2 x USB 3.0

1 x Audio (Line out)

1 x 2.5" HDD

1 x CFast™ or mSATA

2 x PCIe Mini Card

5-wire resistive type

Windows® 8.1, WE8S,

Windows® 7, WES 7

9~36VDC

100~240VAC, 60W adapter

32W

255 levels, 0~255 sec.

TBD

TBD

0° ~ +50°C (+32°F ~ +122°F)

CE

255 levels, 0~255 sec.

327.5 x 52.5 x 261.8 mm

(12.9" x 2.07" x 10.3")

2.48 kg (5.46 lb)/3.84 kg (8.46 lb)

0° ~ +50°C (+32°F ~ +122°F)

CE

255 levels, 0~255 sec.

327.5 x 52.5 x 262 mm

(12.9" x 2.07" x 10.3")

2.48 kg (5.46 lb)/3.84 kg (8.46 lb)

0° ~ +50°C (+32°F ~ +122°F)

UL60950-1, CE

255 levels, 0~255 sec.

292.5 x 45.8 x 235.8 mm

(11.52" x 1.80" x 9.28")

1.8 kg (3.96 lb)/3 kg (6.61 lb)

0° ~ +50°C (+32°F ~ +122°F)

CE

489

* All specifications and photos are subject to change without notice.

Features\Models

CPU Level

Chipset

System Memory

Display

I/O

Storage

Expansion Interface

Touchscreen

Operating System

Power Supply

Power Consumption

Watchdog Timer

Dimensions

(W x D x H)

Weight (net/gross)

Operating Temperature

Certificate

Overview

NEW

1

Fanless

Touch Panel

Computers

Page 507

GOT5100T-832

Intel® Atom™ N2600 @1.6 GHz

Intel® NM10

1 x 204-pin DDR3 800/1066 MHz

SO-DIMM max. up to 2 GB

Page 509

GOT5103W-845

Intel® Celeron® processor N3060

2 cores (up to 2.48 GHz)

SoC Integrated

1 x 204-pin DDR3L-1600 MHz

SO-DIMM max. up to 8 GB

Page 511

GOT5840T-834

Intel® Celeron® processor J1900

(up to 2.42 GHz)

SoC Integrated

1 x 204-pin DDR3L-1333 MHz SO-

DIMM max. up to 8 GB

Page 513

GOT5152T-832

Intel® Atom™ D2550 @1.86 GHz

Intel® NM10

1 x 204-pin DDR3 800/1066 MHz

SO-DIMM max. up to 4 GB

10.4" TFT, SVGA, 400 nits 10.1" TFT, WXGA 350nits 8.4" TFT, SVGA, 350 nits 15" TFT, XGA, 400 nits

1 x RS-232/422/485 (COM 1)

1 x RS-232 (COM 2)

2 x 10/100/1000Mbps Ethernet

4 x USB 2.0

1 x Audio (Line-out)

1 x 2.5" HDD

1 x CompactFlash™

1 x PCIe Mini Card

5-wire resistive type

Windows® XP, WES

Windows® 7, WES 7

10~30VDC

100~240VAC, 60W adapter

30W

255 levels, 0~255 sec.

292.5 x 45.8 x 235.8 mm

(11.52" x 1.8" x 9.28")

1.8 kg (3.96 lb)/3 kg (6.61 lb)

0° ~ +50°C (+32°F ~ +122°F)

UL60950-1, CE

1 x RS-232 (COM 2)

1 x RS-232/422/485 (COM 1)

2 x 10/100/1000Mbps Ethernet

2 x USB 2.0 (optional)

2 x USB 3.0

1 x Audio (Line-out)

1 x HDMI

1 x Switch for power on/off

1 x AT/ATX mode selection switch

1 x Half-Slim SATA SSD (optional)

1 x mSATA

2 x PCIe Mini Card

Projected capacitive multi-touch

Windows 10

Windows® 8.1, WE8S,

Windows® 7, WES 7

12VDC (default)

9~36VDC (optional)

24VDC (optional)

100~240V, AC-DC 36W power adapter

40.32W

255 levels, 0~255 sec.

260.8 x 38 x 194.1 mm

(10.27" x 1.50" x 7.65")

TBD

0° ~ +50°C (+32°F ~ +122°F)

CE

2 x RS-232/422/485 (COM 1/2)

2 x 10/100/1000Mbps Ethernet

2 x USB 3.0

1 x Audio (Line out)

1 x CFast™ or mSATA

2 x PCIe Mini Card

5-wire resistive type

Windows® 8.1, WE8S,

Windows® 7, WES 7

9~36VDC

100~240VAC, 60W adapter

25W

255 levels, 0~255 sec.

250.7 x 45.8 x 204.7 mm

(9.87" x 1.80" x 8.06")

1.3 kg (2.87 lb)/2.25 kg (4.96 lb)

0° ~ +50°C (+32°F ~ +122°F)

CE

2 x RS-232 (COM 2/3)

1 x RS-232/422/485 (COM 1)

2 x 10/100/1000Mbps Ethernet

4 x USB 2.0

1 x Audio (Line-out)

1 x VGA

1 x 2.5" HDD

1 x CompactFlash™

1 x PCIe Mini Card

5-wire resistive type

Windows® XP, WES

Windows® 7, WES 7

10~30VDC

100~240VAC, 60W adapter

30W

255 levels, 0~255 sec.

387.9 x 54.6 x 307.7 mm

(15.27" x 2.14" x 12.11")

3.2 kg (7.05 lb)/5.1 kg (11.24 lb)

0° ~ +50°C (+32°F ~ +122°F)

UL60950-1, CE

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

490

GOT5153W-834

15.6" WXGA TFT Fanless Touch Panel

Computer with Intel® Celeron® Processor

J1900 (up to 2.42 GHz)

Features

15.6" WXGA wide screen TFT LCD display with LED backlight

15.6” projected capacitive touch or 5-wire flat resistive touch

Fanless design with Intel® Celeron® processor J1900

4 cores (up to 2.42 GHz)

Supports 2.5” SATA HDD & CFast™ or mSATA

Supports 2 Gigabit LAN, 4 USB, 2 COM ports and speakers

IP65 front bezel and IPX1 full enclosure

Supports optional VESA arm/desktop stand/wall mount

Supports optional RFID or smart card reader

1

2

3

4

5

7 8

17

1. Power LED

2. HDD LED

3. Brightness adjust

4. Display on/off

5. Volume adjust

6

9

10 11 12 13 14 15 16

6. Power switch (ATX)

7. Power input connector (Screw)

8. Power input connector (Phoenix)

9. Speaker

10. USB 2.0 x 2

11. VGA

12. COM 1 (RS-232/422/485)

13. COM 2 (RS-232/422/485)

14. Ethernet x 2

15. USB 3.0 x 2

16. Speaker

17. Audio (Line-out)

CFast™ cover

Fanless Low Power DDR3L AiRD IP65 DualView

Introduction

The GOT5153W-834 is a 15.6" Intel® Celeron® processor fanless touch panel computer.

In response to market demand, this panel computer is a cost effective solution. It adopts a modern, sleek and fanless design and is equipped with a 15.6" TFT LCD as well as

Intel® Celeron® processor J1900 4 cores up to 2.42 GHz (Bay Trail). For wireless network connection, the GOT5153W-834 offers 2 PCIe Mini Card slots. By just plugging in a mini card WLAN card, customers can have instant access to wireless LAN/GPRS/GSM/4G environments. Besides, it provides two types of power input. One is DC power input

(9~36VDC) with terminal block connector, and another is AC power adapter with screw type connector.

Slim & lightweight design

The GOT5153W-834 is slim and lightweight which make it fit for limited space installation.

Built-in internal WLAN antenna

The GOT5153W-834 provides 2 PCIe Mini Card slots and a built-in WLAN antenna for wireless network connections. By simply plugging in the wireless LAN card, customers can use the GOT5153W-834 in wireless LAN/GPRS/GPS/4G environment.

Support front membrane keys

The GOT5153W-834 provides 5 membrane keys in front of system, people can adjust the system display, volume and brightness.

491

Specifications

Front Bezel

LCD Panel

Main System

IP65, NEMA 4 rugged protection, plastic front bezel

Display Type 15.6" WXGA TFT LCD withg LED backlight

Brightness (cd/m 2 ) 300 nits

Resolution

CPU

1366 x 768

Intel® Celeron® processor J1900

4 cores (up to 2.42 GHz)

System Memory

BIOS

Storage

1 x 204-pin DDR3L-1333 MHz

SO-DIMM max. up to 8 GB

AMI UEFI BIOS

1 x 2.5" SATA HDD

1 x CFast™ or mSATA

Watchdog Timer 255 levels, 0~255 sec.

Onboard Graphics Integrated Intel® HD GFX

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector

Expansion Interface

Touchscreen

Power Supply

2 x RS-232/422/485 (default RS-232, COM 1/2)

1 x Switch for power on/off

2 x USB 2.0

2 x USB 3.0

1 x VGA

1 x Audio (Line-out)

2 x 10/100/1000Mbps Ethernet (Intel® i210IT)

1 x Full-size PCI Express Mini Card with mSATA supported

1 x Full-size PCI Express Mini Card with SIM slot

Projected capacitive multi-touch

5-wire flat resistive touch

1. DC version: 9~36VDC with over-current protection fuse

2. AC version: 100-240V AC-DC 60W power adapter

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

394.2 mm (15.53") (W) x 57 mm (2.25") (D) x 257.2 mm

(10.13") (H)

510 mm (20.09") x 190 mm (7.48") x 540 mm (21.26")

3.0 kg (6.61 lb)/ 4.5 kg (9.92 lb)

Operating temperature: 0°C ~ +45°C (32°F ~ +113°F) w/RAM thermal kit

Storage Temperature: 0°C ~ +45°C (32°F ~ +113°F)

Relative humidity: 20% ~ 90% @ 40°C; non-condensing

Operation vibration:

2 G, 10 ~ 500Hz, random for CFast™

Certificate CE

* W.T.: Wide Temperature. All W.T. supported products have to be sorted by Axiomtek.

Dimensions

Ordering Information

GOT5153W-834-PCT-J

GOT5153W-834-FR-J

15.6" WXGA fanless touch panel computer with Intel®

Celeron® processor J1900, projected capactive multi-touch screen, AC-DC 60W power adapter (screw type connector) and EMI class B

15.6" WXGA fanless touch panel computer with Intel®

Celeron® processor J1900, 5-wire flat resistive touch screen, AC-DC 60W power adapter (screw type connector) and EMI class B

GOT5153W-834-PCT-DC 15.6" WXGA fanless touch panel computer with Intel®

Celeron® processor J1900, projected capactive multi-touch screen, and 9~36VDC power input(terminal block connector)

GOT5153W-834-FR-DC 15.6" WXGA fanless touch panel computer with Intel®

Celeron® processor J1900, 5-wire flat resistive touch screen, and 9~36VDC power input(termincal block connector)

Optional EOS Installation

WES7

WE8S

Optional OS Installation

Windows® 7

Windows® 8.1

Overview

1

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Rear view

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

492

GOT5153T-845

15" XGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor N3060 (up to 2.48 GHz)

NEW

Features

15" XGA TFT LCD display with LED backlight

Fanless design with Intel® Celeron® processor N3060

2 cores (up to 2.48 GHz)

Supports 2.5" SATA SSD & mSATA

Supports 2 Gigabit LAN, 4 USB, 3 COM ports and optional

speakers

IP65 front bezel and design

Supports optional panel mount/VESA arm/desktop stand/

wall mount

Supports external AT/ATX mode selection switch

Fanless Low Power DDR3L AiRD IP65 Isolation

Introduction

The GOT5153T-845 is a 15" Intel® Celeron® processor fanless touch panel computer. In response to market demand, this panel computer is a cost-effective solution. It adopts a modern, sleek and fanless design and is equipped with a 15" TFT LCD as well as Intel®

Celeron® processor N3060 2 cores up to 2.48 GHz. For wireless network connection, the GOT5153T-845 offers 2 PCIe Mini Card slots. By just plugging in a mini card WLAN card, customers can have instant access to wireless LAN/GPRS/GSM/4G environments.

Besides, it provides two types of power input. One is DC power input (12V default, 24V or 9~36V optional) with terminal block connector, and another is AC power adapter with screw type connector.

Slim & lightweight design

The GOT5153T-845 is slim and lightweight which make it fit for limited space installation.

Built-in internal WLAN antenna

The GOT5153T-845 provides 2 PCIe Mini Card slots and a built-in WLAN antenna for wireless network connections. By simply plugging in the wireless LAN card, customers can use the GOT5153T-845 in wireless LAN/GPRS/GPS/4G environment.

Support front membrane keys

The GOT5153T-845 provides 5 membrane keys in front of system, people can adjust the system display, volume and brightness.

Specifications

Front Bezel

LCD Panel

Main System

IP65, NEMA 4 rugged protection, plastic front bezel

Display Type 15" XGA TFT LCD withg LED backlight

Brightness (cd/m 2 ) 400 nits

Resolution

CPU

1024 x 768

Intel® Celeron® processor N3060

2 cores (up to 2.48 GHz)

System Memory

BIOS

Storage

1 x 204-pin DDR3L-1600 MHz

SO-DIMM max. up to 8 GB

AMI UEFI BIOS

1 x 2.5" SATA HDD

1 x mSATA

Watchdog Timer 255 levels, 0~255 sec.

Onboard Graphics Integrated Intel® HD GFX

493

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector

Expansion Interface

2 x RS-232 (COM 2/3)

1 x RS-232/422/485 (default RS-232, COM 1)

1 x HDMI

1 x Switch for power on/off

1 x AT/ATX mode selection switch

2 x USB 2.0

2 x USB 3.0

1 x Audio (Line-out)

2 x 10/100/1000Mbps Ethernet (Intel® i211AT)

1 x Full-size PCI Express Mini Card with mSATA supported

1 x Full-size PCI Express Mini Card with SIM slot

Touchscreen

Power Supply

Projected capacitive multi-touch

5-wire flat resistive touch

1. DC version: 12VDC (default) or

2. DC version: 9~36VDC with over current protection fuse

(optional) or

3. DC version: 24VDC over current protection fuse (optional) or

4. AC version: 100~240V AC-DC 60W power adapter

TBD

TBD

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

TBD

Operating temperature: 0° ~ +50°C (+32°F ~ +122°F)

Storage Temperature: 0° ~ +50°C (+32°F ~ +122°F)

Relative humidity: 20% ~ 90% @ 40°C; non-condensing

Operation vibration:

2 G, 10 ~ 500Hz, random for SSD

Certificate CE

* W.T.: Wide Temperature. All W.T. supported products have to be sorted by Axiomtek.

Ordering Information

GOT5153T-845-PCT-J

GOT5153T-845-FR-J

GOT5153T-845-PCT-DC

GOT5153T-845-FR-DC

15" XGA fanless touch panel computer with Intel®

Celeron® processor N3060, projected capactive multi-touch screen, AC-DC 60W power adapter (screw type connector) and EMI class B

15" XGA fanless touch panel computer with Intel®

Celeron® processor N3060, 5-wire flat resistive touch screen, AC-DC 60W power adapter (screw type connector) and EMI class B

15" XGA fanless touch panel computer with Intel®

Celeron® processor N3060, projected capactive multi-touch screen and 12VDC power input (terminal block connector)

15" XGA fanless touch panel computer with Intel®

Celeron® processor N3060, 5-wire flat resistive touch screen and 12VDC power input (terminal block connector)

Optional EOS Installation

WES7 (64-bit)

WE8S (64-bit)

Optional OS Installation

Windows® 7 (64-bit)

Windows® 8.1 (64-bit)

Windows® 10

Overview

1

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

494

GOT5152T-834

15" XGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor J1900 (up to 2.42 GHz)

Features

15" XGA TFT LCD display with LED backlight

Fanless cooling system with Intel® Celeron® processor

J1900 4 cores (up to 2.42 GHz)

Supports WLAN module & internal antenna

Supports 2 Gigabit LAN, 4 USB & 3 COM ports

Easy for expansion: PCIe Mini Cards

Supports optional panel mount, wall mount VESA arm and

desktop stand

Supports RFID (optional)

Plastic and IP65-rated front bezel

2 3

1 4 5 6

1. Power switch (ATX)

2. Terminal block for DC power input or 3. Screw conn. w/ AC power adapter

4. USB 2.0 x 2

5. COM 3 (RS-232/422/485)

7 8 9 10 11

6. VGA

7. COM 1 (RS-232/422/485)

8. COM 2 (RS-232/422/485)

9. Ethernet x 2

10. USB 3.0 x 2

11. Audio (Line-out)

Side view

CFast™ slot with protective cover

Fanless Low Power DualView DDR3L AiRD IP65

Introduction

Axiomtek GOT5152-834 utilizes the fanless technology using Intel® J1900 4 cores (up to

2.42 GHz) CPU. Running Windows or Linux, this panel system provides great performance for many commercial and industrial applications. This slim design incorporates a

15” 400 nits LCD display providing a bright XGA (1024 x 768) touch screen. Wireless communications is supported with a built-in antenna within the bezel, ready for your choice of optional PCIe Mini Card. There are two choices for powering the unit, Class B that includes an external AC to DC power brick with screw-on power connector, or Class

A with no power brick, providing a Phoenix style DC connector (9VDC – 36VDC). Using an all industrial-grade IP-65 rated design, weighing 7 to 11lbs (depending on configuration), this 15" fanless touch panel computer provides an attractive cost, low power, high performance, reliable quality, slim size and low weight, all new for more demanding applications.

Super slim & ultra lightweight design

The GOT5152T-834 is a super slim touch panel computer for space-limited environment with its thickness of 54.6 mm and weight of 3.2 kg only, which make it installed everywhere.

Built-in internal WLAN antenna

The GOT5152T-834 provides 2 PCIe Mini Card slots and a built-in WLAN antenna for wireless network connections. By simply plugging in the wireless LAN cards, customers can use the GOT5152T-834 in a wireless LAN/GPRS/ GSM/4G environments.

Excellent thermal solution: aluminum back chassis

With Axiomtek's patent for plastic plus aluminum mechanism design, the GOT5152T-834 can dissipate the heat easily and keep the system operation stable.

495

Specifications

Front Bezel

LCD Panel

Main System

IP65, NEMA 4 rugged protection, plastic front bezel

Display Type 15" XGA TFT LCD with LED backlight

Brightness (cd/m 2 ) 400 nits

Resolution 1024 x 768

Viewing Angel (H/V) 160°/140°

CPU

System Memory

BIOS

Storage

Intel® Celeron® processor J1900

4 cores (up to 2.42 GHz)

1 x 204-pin DDR3L-1333 MHz

SO-DIMM max. up to 8 GB

AMI UEFI BIOS

1 x 2.5" SATA HDD

1 x CFast™ or mSATA

Watchdog Timer

Onboard Graphics

255 levels, 0~255 sec.

Integrated in Intel® GFX

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector

Expansion Interface

Touchscreen

Power Input

Dimensions

3 x RS-232/422/485 (default RS-232, COM 1/2/3)

1 x VGA

1 x Audio (Line-out)

2 x USB 2.0

2 x USB 3.0

2 x 10/100/1000Mbps Ethernet (Intel® i210IT)

1 x Full-size PCI Express Mini Card with mSATA supported

1 x Full-size PCI Express Mini Card with SIM slot

Resistive type

1. DC version: 9~36VDC with over-current protection fuse

2. AC version: 100-240V AC-DC 60W power adapter

387.9 mm (15.27") (W) x 54.6 mm (2.14") (D) x 307.7 mm (12.11") (H)

Packing Dimensions

Weight (net/gross)

Environment

Certificate

510 mm (20.08") (W) x 105 mm (4.13") (D) x 385 mm (15.16") (H)

3.2 kg (7.05 lb)/5.1 kg (11.24 lb)

Operating temperature:

0° ~ +50°C (+32°F ~ +122°F) (with W.T. DRAM/HDD in airflow condition)

0° ~ +45°C (+32°F ~ +113°F) (with W.T. DRAM/HDD)

Storage Temperature:

0° ~ +50°C (+32°F ~ +122°F) (in airflow condition)

Relative humidity:

20% ~ 90% @ 40°C; non-condensing

Operation vibration:

2G, 5 ~ 500Hz, random for CFast™

CE

* Specification and certifications are based on options and may vary.

** W.T.: Wide Temperature. All W.T. supported products have to be sorted by Axiomtek.

Ordering Information

GOT5152T-834-J

GOT5152T-834-DC

15" XGA fanless touch panel computer with Intel®

Celeron® processor J1900, 5-wire resistive touch screen,

AC-DC 60W power adapter (screw type connector), and EMI class B

15" XGA fanless touch panel computer with Intel®

Celeron® processor J1900, 5-wire resistive touch screen, and 9~36VDC power input(terminal block connector)

* Specification and certifications are based on options and may vary.

Optional EOS Installation

WES 7

WE8S

Optional OS Installation

Windows® 7

Windows® 8.1

Overview

1

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Desktop stand

AC power adapter

(GOT5152T-834-J)

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Dimensions

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

496

GOT5152T-832

15" XGA TFT Fanless Touch Panel Computer with Intel® Atom™ Processor D2550

Features

15" XGA TFT LCD display with LED backlight

Fanless cooling system with Intel® Atom™ processor D2550

2 cores @1.86 GHz

Ultra slim design: thickness 54.6 mm

Super light weight: 3.2 kg

Easy for expansion: PCIe Mini Card

Supports optional panel mount, wall mount, VESA arm and

desktop stand

Supports RFID (optional)

Over-current protection fuse

Plastic and IP65-rated front bezel

2 3

1 4 5 6 7

1. Power switch (ATX)

2. Terminal block for DC power input or 3. Screw conn. w/ AC power adapter

4. USB 2.0 x 2

5. COM 3 (RS-232)

8 9 10 11

6. VGA

7. COM 1 (RS-232/422/485)

8. COM 2 (RS-232)

9. Ethernet x 2

10. USB 2.0 x 2

11. Audio (Line-out)

Side view

CompactFlash

TM protective cover

slot with

Fanless

Low Power DualView DDR3 AiRD IP65

Introduction

Axiomtek’s GOT5152-832 offers the latest fanless technology using Intel® dual core

D2550 1.86GHz CPU. Running Windows or Linux, this system provides great performance for many commercial and industrial applications. This slim design incorporates a

15” 400 nits LCD display providing a bright XGA (1024 x 768) touch screen. Wireless communications is supported with a built-in antenna within the bezel, ready for your choice of optional PCIe Mini Card and Wi-Fi cards. There are two choices for powering the unit, Class B that includes an external AC to DC power brick with screw-on power connector, or Class A with no power brick, providing a Phoenix style DC connector (10VDC

– 30VDC). Using an all industrial-grade IP65 rated design, weighing 7 to 11lbs (depending on configuration), this computer provides an attractive cost, low power, high performance, reliable quality, slim size and low weight, all new for more demanding applications.

Super slim & ultra lightweight design

The GOT5152T-832 is a super slim touch panel computer for space-limited environment with its thickness of 54.6 mm and weight of 3.2 kg only, which make it installed everywhere.

Built-in internal WLAN antenna

The GOT5152T-832 provides a PCIe Mini Card slot and a built-in WLAN antenna for wireless network connections. By simply plugging in the wireless LAN card, customers can use the GOT5152T-832 in a wireless LAN/GPRS/GSM/4G environments.

Excellent thermal solution: aluminum back chassis

With Axiomtek's patent for plastic plus aluminum mechanism design, the GOT5152T-832 can dissipate the heat easily and keep the system operation stable.

Specifications

Front Bezel

LCD Panel

Main System

IP65, NEMA 4 rugged protection, plastic front bezel

Display Type 15" XGA TFT LCD with LED backlight

Brightness (cd/m

2

) 400 nits

Resolution 1024 x 768

Viewing Angel (H/V) 160°/140°

CPU Intel® Atom™ processor D2550

2 cores @1.86 GHz

Chipset

System

Memory

BIOS

Storage

Intel® NM10

1 x 204-pin DDR3 800/1066 MHz

SO-DIMM max. up to 4 GB

AMI UEFI BIOS

Watchdog Timer

Onboard Graphics

1 x 2.5" SATA HDD

1 x CompactFlash™

255 levels, 0~255 sec.

Integrated in Intel® GFX

497

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector

Expansion Interface

Touchscreen

Power Input

2 x RS-232 (COM 2/3)

1 x RS-232/422/485 (default RS-232, COM 1)

1 x VGA

1 x Audio (Line-out)

4 x USB 2.0

2 x 10/100/1000Mbps Ethernet

1 x PCIe Mini Card slot

Resistive type

1. DC version: 10~30VDC with over-current protection fuse

2. AC version: 100-240V AC-DC 60W power adapter

Dimensions

Packing Dimensions

387.9 mm (15.27") (W) x 54.6 mm (2.14") (D) x 307.7 mm (12.11") (H)

510 mm (20.08") (W) x 105 mm (4.13") (D) x 385 mm (15.16") (H)

3.2 kg (7.05 lb)/5.1 kg (11.24 lb) Weight (net/gross)

Environment Operating temperature:

0° ~ +50°C (+32°F ~ +122°F) (with W.T. DRAM/HDD in airflow condition)

0° ~ +45°C (+32°F ~ +113°F) (with W.T. DRAM/HDD)

Storage Temperature:

0° ~ +50°C (+32°F~ +122°F) (in airflow condition)

Relative humidity: 20% ~ 90% @ 40°C; non-condensing

Operation vibration: 2G, 5 ~ 500Hz, random for

CompactFlash™

Certificate UL60950-1, CE

* Specification and certifications are based on options and may vary.

** W.T.: Wide Temperature. All W.T. supported products have to be sorted by Axiomtek.

Ordering Information

GOT5152T-832-J

GOT5152T-832-DC

15" XGA fanless touch panel computer with Intel® Atom™ processor D2550, 5-wire resistive touch screen, AC-DC 60W power adapter (screw type connector) and EMI class B

15" XGA fanless touch panel computer with Intel® Atom™ processor D2550, 5-wire resistive touch screen and

10~30VDC power input(terminal block connector)

* Specification and certifications are based on options and may vary.

Optional EOS Installation

WES

WES 7

Optional OS Installation

Windows® XP

Windows® 7

Overview

1

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Desktop stand

AC power adapter

(GOT5152T-832-J)

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Dimensions

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

498

GOT5123T-845

12.1" XGA/SVGA TFT Fanless Touch Panel

Computer with Intel® Celeron® Processor

N3060 (up to 2.48 GHz)

NEW

Features

12.1" XGA/SVGA TFT LCD display with LED backlight

Fanless design with Intel® Celeron® processor N3060

2 cores (up to 2.48 GHz)

Supports 2.5" SATA SSD & mSATA

Supports 2 Gigabit LAN, 4 USB, 2 COM ports and optional

speakers

IP65 front bezel design

Supports optional Panel mount/VESA arm/desktop stand/

wall mount

Supports external AT/ATX mode selection switch

Fanless Low Power DDR3L AiRD IP65 Isolation

Introduction

The GOT5123T-845 is a 12.1" Intel® Celeron® processor fanless touch panel computer.

In response to market demand, this panel computer is a cost effective solution. It adopts a modern, sleek and fanless design and is equipped with a 12.1" TFT LCD as well as Intel® Celeron® processor N3060 2 cores up to 2.48 GHz. For wireless network connection, the GOT5123T-845 offers 2 PCIe Mini Card slots. By just plugging in a mini card WLAN card, customers can have instant access to wireless LAN/GPRS/GSM/4G environments. Besides, it provides two types of power input. One is DC power input (12V default, 24V or 9~36V optional) with terminal block connector, and another is AC power adapter with screw type connector.

Slim & lightweight design

The GOT5123T-845 is slim and lightweight which make it fit for limited space installation.

Built-in internal WLAN antenna

The GOT5123T-845 provides 2 PCIe Mini Card slots and a built-in WLAN antenna for wireless network connections. By simply plugging in the wireless LAN card, customers can use the GOT5123T-845 in wireless LAN/GPRS/GPS/4G environment.

Support front membrane keys

The GOT5123T-845 provides 5 membrane keys in front of system, people can adjust the system display, volume and brightness.

Specifications

Front Bezel

LCD Panel

Main System

IP65, NEMA 4 rugged protection, plastic front bezel

Display Type 12.1" XGA/SVGA TFT LCD withg LED backlight

Brightness (cd/m 2 ) 500 nits (XGA)

450 nits (SVGA)

Resolution

CPU

1024 x 768 (XGA)

800 x 600 (SVGA)

Intel® Celeron® processor N3060

2 cores (up to 2.48 GHz)

System Memory 1 x 204-pin DDR3L-1600 MHz

SO-DIMM max. up to 8 GB

BIOS

Storage

Watchdog Timer

AMI UEFI BIOS

1 x 2.5" SATA HDD

1 x mSATA

255 levels, 0~255 sec.

Onboard Graphics Integrated Intel® HD GFX

499

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector

Expansion Interface

1 x RS-232 (COM 2)

1 x RS-232-422-485 (default RS-232, COM 1)

1 x HDMI

1 x Switch for power on/off

1 x AT/ATX mode selection switch

2 x USB 2.0

2 x USB 3.0

1 x Audio (Line-out)

2 x 10/100/1000Mbps Ethernet (Intel® i211AT)

1 x Full-size PCI Express Mini Card with mSATA supported

1 x Full-size PCI Express Mini Card with SIM slot

Touchscreen

Power Supply

Projected Capacitive multi-touch

5-wire flat resistive touch

1. DC version: 12VDC (default) or

2. DC version: 9~36VDC with over current protection fuse

(optional) or

3. DC version: 24VDC over current protection fuse(optional) or

4. AC version: 100~240V AC-DC 60W power adapter

TBD

TBD

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

TBD

Operating temperature: 0° ~ +50°C (+32°F ~ +122°F)

Storage Temperature: 0° ~ +50°C (+32°F ~ +122°F)

Relative humidity: 20% ~ 90% @ 40°C; non-condensing

Operation vibration:

2 G, 10 ~ 500Hz, random for SSD

Certificate CE

* W.T.: Wide Temperature. All W.T. supported products have to be sorted by Axiomtek.

Ordering Information

GOT5123T-845-PCT-J

GOT5123T-845-FR-J

GOT5123T-845-PCT-DC

GOT5123T-845-FR-DC

12.1" SVGA fanless touch panel computer with Intel®

Celeron® processor N3060, projected capactive multi-touch screen, AC-DC 60W power adapter (screw type connector) and EMI class B

12.1" SVGA fanless touch panel computer with Intel®

Celeron® processor N3060, 5-wire flat resistive touch screen, AC-DC 60W power adapter (screw type connector) and EMI class B

12.1" SVGA fanless touch panel computer with Intel®

Celeron® processor N3060, projected capactive multi-touch screen, 12VDC power input (terminal block connector)

12.1" SVGA fanless touch panel computer with Intel®

Celeron® processor N3060, 5-wire flat resistive touch screen, 12VDC power input (terminal block connector)

GOT5123T-845-XGA-PCT-J 12.1" XGA fanless touch panel computer with Intel®

Celeron® processor N3060, projected capactive multi-touch screen, AC-DC 60W power adapter (screw type connector) and EMI class B

GOT5123T-845-XGA-FR-J 12.1" XGA fanless touch panel computer with Intel®

Celeron® processor N3060, 5-wire flat resistive touch screen, AC-DC 60W power adapter (screw type connector) and EMI class B

GOT5123T-845-XGA-PCT-DC 12.1" XGA fanless touch panel computer with Intel®

Celeron® processor N3060, projected capactive multi-touch screen and 12VDC power input (terminal block connector)

GOT5123T-845-XGA-FR-DC 12.1" XGA fanless touch panel computer with Intel®

Celeron® processor N3060, 5-wire flat resistive touch screen and 12VDC power input (terminal block connector)

Overview

1

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Optional EOS Installation

WES7 (64-bit)

WE8S (64-bit)

Optional OS Installation

Windows® 7 (64-bit)

Windows® 8.1 (64-bit)

Windows® 10

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

500

GOT5120T-834

12.1" XGA/SVGA TFT Fanless Touch Panel with Intel® Celeron® Processor J1900 (up to 2.42 GHz)

Features

12.1" XGA/SVGA TFT LCD display with LED backlight

Fanless design with Intel® Celeron® processor J1900

4 cores (up to 2.42 GHz)

Supports WLAN module & internal antenna

Supports 2 Gigabit LAN, 4 USB & 2 COM ports

Easy for expansion: PCIe Mini Cards

Supports optional panel mount, wall mount, VESA arm and

desktop stand

Supports speakers (optional)

Plastic and IP65-rated front bezel

2 3

1 4 5 6

1. Power switch (ATX)

2. Terminal block for DC power input or 3. Screw conn. w/ AC power adapter

4. USB 2.0 x 2

5. VGA

7 8 9 10

6. COM 1 (RS-232/422/485)

7. COM 2 (RS-232/422/485)

8. Ethernet x 2

9. USB 3.0 x 2

10. Audio (Line-out)

Side view

Desktop stand

Fanless Low Power DualView DDR3L AiRD IP65

Introduction

The GOT5120T-834 is a 12.1" Intel® Celeron®-based fanless touch panel computer. In response to market demand, this panel computer is a cost effective solution. It adopts a modern, super sleek and fanless design and is equipped with a 12.1" TFT LCD as well as Intel® Celeron® processor J1900 4 cores up to 2.42 GHz. For wireless network connection, the GOT5120T-834 offers 2 PCIe Mini Card slots. By just plugging in the mini card WLAN card, customers can have instant access to wireless LAN/GPRS/GSM/4G environments. Besides, it provides two types of power input. One is DC power input

(9~36VDC) with terminal block connector, and another is AC power adapter with screw type connector.

Super slim & ultra lightweight design

The GOT5120T-834 is a super slim touch panel computer for space-limited environment with its thickness of 52 mm and weight of 2.4 kg only, which make it installed everywhere.

Built-in internal WLAN antenna

The GOT5120T-834 provides 2 PCIe Mini Card slots and a built-in WLAN antenna for wireless network connections. By simply plugging in the wireless LAN card, customers can use the GOT5120T-834 in a wireless LAN/GPRS/GSM/4G environments.

Excellent thermal solution: aluminum back chassis

With Axiomtek's patent for plastic plus aluminum mechanism design, the GOT5120T-834 can dissipate the heat easily and keep the system operation stable.

Specifications

Front Bezel

LCD Panel

Main System

IP65, NEMA 4 rugged protection, plastic front bezel

Display Type 12.1" XGA/SVGA TFT LCD with LED backlight

Brightness (cd/m

2

) 500 nits (XGA)

450 nits (SVGA)

Resolution 1024 x 768 (XGA)

800 x 600 (SVGA)

Viewing Angel (H/V) 160°/140°

CPU

System

Memory

Intel® Celeron® processor J1900

4 cores (up to 2.42 GHz)

1 x 204-pin DDR3L-1333 MHz

SO-DIMM max. up to 8 GB

BIOS

Storage

Watchdog Timer

Onboard Graphics

AMI UEFI BIOS

1 x 2.5" SATA HDD

1 x CFast™ or mSATA

255 levels, 0~255 sec.

Integrated in Intel® GFX

501

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector

Expansion Interface

Touchscreen

Power Input

Dimensions

Packing Dimensions

2 x RS-232/422/485 (default RS-232, COM1/2)

1 x VGA

1 x Audio (Line-out)

2 x USB 2.0

2 x USB 3.0

2 x 10/100/1000Mbps Ethernet (Intel® i210IT)

1 x Full-size PCI Express Mini Card with mSATA supported

1 x Full-size PCI Express Mini Card with SIM slot

Resistive type

1. DC version: 9~36VDC with over-current protection fuse

2. AC version: 100-240V AC-DC 60W power adapter

327.5 mm (12.9") (W) x 52.5 mm (2.07") (D) x 261.8 mm (10.3") (H)

455 mm (17.91") (W) x 105 mm (4.13") (D) x 340 mm (13.39") (H)

Weight (net/gross)

Environment

Certificate

2.48 kg (5.46 lb)/3.84 kg (8.46 lb)

Operating temperature:

0° ~ +50°C (+32°F ~ +122°F) (with W.T. DRAM/HDD in airflow condition)

0° ~ +45°C (+32°F ~ +113°F) (with W.T. DRAM/HDD)

Storage Temperature:

0° ~ +50°C (+32°F ~ +122°F) (in airflow condition)

Relative humidity:

20% ~ 90% @ 40°C; non-condensing

Operation vibration:

2G, 5 ~ 500Hz, random for CFast™

CE

* Specification and certifications are based on options and may vary.

** W.T.: Wide Temperature. All W.T. supported products have to be sorted by Axiomtek.

Ordering Information

GOT5120T-834-J

GOT5120T-834-DC

12.1" SVGA fanless touch panel computer with Intel®

Celeron® processor J1900, 5-wire resistive touch screen,

AC-DC 60W power adapter (screw type connector) and EMI class B

12.1" SVGA fanless touch panel computer with Intel®

Celeron® processor J1900, 5-wire resistive touch screen and 9~36VDC power input(terminal block connector)

GOT5120T-834-XGA-J 12.1" XGA fanless touch panel computer with Intel®

Celeron® processor J1900, 5-wire resistive touch screen,

AC-DC 60W power adapter (screw type connector) and EMI class B

GOT5120T-834-XGA-DC 12.1" XGA fanless touch panel computer with Intel®

Celeron® processor J1900, 5-wire resistive touch screen and 9~36VDC power input(terminal block connector)

* Specification and certifications are based on options and may vary.

Optional EOS Installation

WE8S

WES 7

Optional OS Installation

Windows® 8.1

Windows® 7

Overview

1

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

AC power adapter

(for GOT5120T-834-J)

Dimensions

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

502

GOT5120T-832

12.1" XGA/SVGA TFT Fanless Touch Panel

Computer with Intel® Atom™ Processor

N2600

Features

12.1" XGA/SVGA TFT LCD display with LED backlight

Fanless design with Intel® Atom™ processor N2600 2 cores

@1.6 GHz

Supports WLAN module & internal antenna

Supports 2 Gigabit LAN, 4 USB & 2 COM ports

Easy for expansion: PCIe Mini Card

Supports optional panel mount, wall mount, VESA arm and

desktop stand

Supports RFID (optional)/speaker (optional)

Plastic and IP65-rated front bezel

2 3

1 4 5 6

1. Power switch (ATX)

2. Terminal block for DC power input or 3. Screw conn. w/ AC power adapter

4. USB 2.0 x 2

5. VGA

7 8 9 10

6. COM 1 (RS-232/422/485)

7. COM 2 (RS-232)

8. Ethernet x 2

9. USB 2.0 x 2

10. Audio (Line-out)

Side view

Desktop stand

Fanless Low Power DualView DDR3 AiRD IP65

Introduction

The GOT5120T-832 is a 12.1" Intel® Atom™-based fanless touch panel computer. In response to market demand, this panel computer is a cost effective solution. It adopts a modern, super sleek and fanless design and is equipped with a 12.1" TFT LCD as well as Intel® Atom™ processor N2600 1.6 GHz. For wireless network connection, the

GOT5120T-832 offers a PCIe Mini Card slot. By just plugging in the mini card WLAN card, customers can have instant access to wireless LAN/GPRS/GSM/4G environments.

Besides, it provides two types of power input. One is DC power input (10~30VDC) with terminal block connector, ant another is AC power adapter with screw type connector.

Super slim & ultra lightweight design

The GOT5120T-832 is a super slim touch panel computer for space-limited environment with its thickness of 52 mm and weight of 2.4 kg only, which make it installed everywhere.

Built-in internal WLAN antenna

The GOT5120T-832 provides a PCIe Mini Card slot and a built-in WLAN antenna for wireless network connections. By simply plugging in the wireless LAN card, customers can use the GOT5120T-832 in a wireless LAN/GPRS/ GSM/4G environments.

Excellent thermal solution: aluminum back chassis

With Axiomtek's patent for plastic plus aluminum mechanism design, the GOT5120T-832 can dissipate the heat easily and keep the system operation stable.

Specifications

Front Bezel

LCD Panel

Main System

IP65, NEMA 4 rugged protection, plastic front bezel

Display Type 12.1" XGA/SVGA TFT LCD with LED backlight

Brightness (cd/m

2

) 500 nits (XGA)

450 nits (SVGA)

Resolution 1024 x 768 (XGA)

800 x 600 (SVGA)

Viewing Angel (H/V) 160°/140°

CPU

Chipset

System

Memory

Intel® Atom™ processor N2600

2 cores @1.6 GHz

Intel® NM10

1 x 204-pin DDR3 800/1066 MHz

SO-DIMM max. up to 2 GB

BIOS

Storage

Watchdog Timer

Onboard Graphics

AMI UEFI BIOS

1 x 2.5" SATA HDD

1 x CompactFlash™

255 levels, 0~255 sec.

Integrated in Intel® GFX

503

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector

Expansion Interface

Touchscreen

Power Input

1 x RS-232 (COM 2)

1 x RS-232/422/485 (default RS-232, COM 1)

1 x VGA

1 x Audio (Line-out)

4 x USB 2.0

2 x 10/100/1000Mbps Ethernet

1 x PCIe Mini Card slot

Resistive type

1. DC version: 10~30VDC with over-current protection fuse

2. AC version: 100-240V AC-DC 60W power adapter

Dimensions

Packing Dimensions

327.5 mm (12.9") (W) x 52.5 mm (2.07") (D) x 261.8 mm (10.3") (H)

455 mm (17.91") (W) x 105 mm (4.13") (D) x 340 mm (13.39") (H)

2.48 kg (5.46 lb)/3.84 kg (8.46 lb) Weight (net/gross)

Environment

Certificate

Operating temperature:

0° ~ +50°C (+32°F ~ +122°F) (with W.T. DRAM/HDD in airflow condition)

0° ~ +45°C (+32°F ~ +113°F) (with W.T. DRAM/HDD)

Storage Temperature:

0° ~ +50°C (+32°F ~ +122°F) (in airflow condition)

Relative humidity:

20% ~ 90% @ 40°C; non-condensing

Operation vibration:

2G, 5 ~ 500Hz, random for CompactFlash™

UL60950-1, CE

* Specification and certifications are based on options and may vary.

** W.T.: Wide Temperature. All W.T. supported products have to be sorted by Axiomtek.

Ordering Information

GOT5120T-832-J

GOT5120T-832-DC

12.1" SVGA fanless touch panel computer with Intel®

Atom™ processor N2600, 5-wire resistive touch screen,

AC-DC 60W power adapter (screw type connector) and EMI class B

12.1" SVGA fanless touch panel computer with Intel®

Atom™ processor N2600, 5-wire resistive touch screen and 10~30VDC power input(terminal block connector)

GOT5120T-832-XGA-J 12.1" XGA fanless touch panel computer with Intel® Atom™ processor N2600, 5-wire resistive touch screen AC-DC 60W power adapter (screw type connector), and EMI class B

GOT5120T-832-XGA-DC 12.1" XGA fanless touch panel computer with Intel®

Atom™ processor N2600, 5-wire resistive touch screen and

10~30VDC power input(terminal block connector)

* Specification and certifications are based on options and may vary.

Overview

1

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Optional EOS Installation

WES

WES 7

Optional OS Installation

Windows® XP

Windows® 7

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

AC power adapter

(for GOT5120T-832-J)

Dimensions

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

504

GOT5100T-834

10.4" XGA/SVGA TFT Fanless Touch Panel

Computer with Intel® Celeron® Processor

J1900 (up to 2.42 GHz)

Features

10.4" XGA/SVGA TFT LCD display with LED backlight

Fanless design with Intel® Celeron® processor J1900

4 cores & internal antenna

Supports 2 Gigabit LAN, 4 USB & 2 COM ports

Supports optional panel mount, wall mount, VESA arm and

desktop stand

Plastic and IP65-rated front bezel

Supports RFID (optional)

2 3

1 4 5 6

1. Power switch

2. Terminal block for DC power input or 3. Screw conn. w/ AC power adapter

4. USB 3.0 x 2

5. COM 1 (RS-232/422/485)

7 8 9

6. COM 2 (RS-232/422/485)

7. Ethernet x 2

8. USB 2.0 x 2

9. Audio (Line-out)

Side view

Desktop stand

Fanless

Low Power

DDR3L AiRD

IP65

Introduction

The GOT5100T-834 is a 10.4" Intel® Celeron®-based fanless touch panel computer. In response to market demand, this panel computer is a cost effective solution. It adopts a modern, super sleek and fanless design and is equipped with a 10.4" TFT LCD as well as Intel® Celeron® processor J1900 4 cores up to 2.42 GHz (Bay Trail). For wireless network connection, the GOT5100T-834 offers 2 PCIe Mini Card slots. By just plugging in the mini card WLAN card, customers can have instant access to wireless LAN/GPRS/

GSM/4G environments. Besides, it provides two types of power input. One is DC power input (9~36VDC) with terminal block connector, and another is AC power adapter with screw type connector.

Super slim & ultra lightweight design

The GOT5100T-834 is a super slim touch panel computer for space-limited environment with its thickness of 45.8mm and weight of 1.8 kg only, which make it installed everywhere.

Built-in internal WLAN antenna

The GOT5100T-834 provides 2 PCIe Mini Card slots and a built-in WLAN antenna for wireless network connections. By simply plugging in the wireless LAN card, customers can use the GOT5100T-834 in a wireless LAN/GPRS/GSM/4G environments.

Excellent thermal solution: aluminum back chassis

With Axiomtek's patent for plastic plus aluminum mechanism design, the GOT5100T-834 can dissipate the heat easily and keep the system operation stable.

Specifications

Front Bezel

LCD Panel

Main System

IP65, NEMA 4 rugged protection, plastic front bezel

Display Type 10.4" XGA/SVGA TFT LCD with LED backlight

Brightness (cd/m

2

) 350 nits (XGA)

400 nits (SVGA)

Resolution 1024 x 768 (XGA)

800 x 600 (SVGA)

Viewing Angel (H/V) 140°/120°

CPU

System Memory

Intel® Celeron® processor J1900

4 cores (up to 2.42 GHz)

1 x 204-pin DDR3L-1333 MHz

SO-DIMM max. up to 8 GB

BIOS

Storage

Watchdog Timer

Onboard Graphics

AMI UEFI BIOS

1 x 2.5" SATA HDD

1 x CFast™ or mSATA

255 levels, 0~255 sec.

Integrated in Intel® GFX

505

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector

Expansion Interface

Touchscreen

Power Supply

Dimension

Packing Dimensions

Weight (net/gross)

Environment

Certificate

2 x RS-232/422-485 (default RS-232, COM 1/2)

2 x 10/100/1000Mbps Ethernet (Intel® i210IT)

2 x USB 2.0

2 x USB 3.0

1 x Audio (Line-out)

1 x Full-size PCI Express Mini Card with mSATA

1 x Full-size PCI Express Mini Card with SIM slot

Resistive type

1. DC version: 9~36VDC with over-current protection fuse

2. AC version: 100-240V AC-DC 60W power adapter

292.5 mm (11.52") (W) x 45.8 mm (1.80") (D) x 235.8 mm (9.28") (H)

415 mm (16.34") (W) x 100 mm (3.94") (D) x 315 mm (12.4") (H)

1.8 kg (3.96 lb)/3 kg (6.61 lb)

Operating temperature:

0° ~ +50°C (+32°F ~ +122°F)

(with W.T. DRAM/HDD in airflow condition)

0° ~ +45°C (+32°F ~ +113°F) (with W.T. DRAM/HDD)

Storage Temperature:

0° ~ +50°C (+32°F ~ +122°F) (in airflow condition)

Relative humidity:

20% ~ 90% @ 40°C; non-condensing

Operation vibration:

2G, 5~500Hz, random for CFast™

CE

Dimensions

Ordering Information

GOT5100T-834-J

GOT5100T-834-DC

10.1" SVGA fanless touch panel computer with Intel®

Celeron® processor J1900, 5-wire resistive touch screen,

AC-DC 60W power adapter (screw type connector) and EMI class B

10.1" SVGA fanless touch panel computer with Intel®

Celeron® processor J1900, 5-wire resistive touch screen and 9~36VDC power input(terminal block connector)

GOT5100T-834-XGA-J 10.1" XGA fanless touch panel computer with Intel®

Celeron® processor J1900, 5-wire resistive touch screen,

AC-DC 60W power adapter (screw type connector) and EMI class B

GOT5100T-834-XGA-DC 10.1" XGA fanless touch panel computer with Intel®

Celeron® processor J1900, 5-wire resistive touch screen and 9~36VDC power input(terminal block connector)

* Specification and certifications are based on options and may vary.

Optional EOS Installation

WES 7

WE8S

Optional OS Installation

Windows® 7

Windows® 8.1

Overview

1

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

AC power adapter

(for GOT5100T-834-J)

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

506

GOT5100T-832

10.4" SVGA TFT Fanless Touch Panel

Computer with Intel® Atom™ Processor

N2600

Features

10.4" SVGA TFT LCD display with LED backlight

Fanless design with Intel® Atom™ processor N2600 2 cores

@1.6 GHz

Supports WLAN module & internal antenna

Supports 2 Gigabit LAN, 4 USB 2.0 & 2 COM ports

Supports optional panel mount, wall mount, VESA arm and

desktop stand

Plastic and IP65-rated front bezel

Supports RFID (optional)

2 3

1 4 5 6

1. Power switch

2. Terminal block for DC power input or 3. Screw conn. w/ AC power adapter

4. USB 2.0 x 2

5. COM 1 (RS-232/422/485)

7 8 9

6. COM 2 (RS-232)

7. Ethernet x 2

8. USB 2.0 x 2

9. Audio (Line-out)

Side view

Desktop stand

Fanless

Low Power

DDR3 AiRD

IP65

Introduction

The GOT5100T-832 is a 10.4" Intel® Atom™-based fanless touch panel computer. In response to market demand, this panel computer is a cost effective solution. It adopts a modern, super sleek and fanless design and is equipped with a 10.4" TFT LCD as well as Intel® Atom™ processor N2600 1.6 GHz. For wireless network connection, the

GOT5100T-832 offers a PCIe Mini Card slot. By just plugging in the mini card WLAN card, customers can have instant access to wireless LAN/GPRS/GSM/4G environments.

Besides, it provides two types of power input. One is DC power input (10~30VDC) with terminal block connector, and another is AC power adapter with screw type connector.

Super slim & ultra lightweight design

The GOT5100T-832 is a super slim touch panel computer for space-limited environment with its thickness of 45.8 mm and weight of 1.8 kg only, which make it installed everywhere.

Built-in internal WLAN antenna

The GOT5100T-832 provides a PCIe Mini Card slot and a built-in WLAN antenna for wireless network connections. By simply plugging in the wireless LAN card, customers can use the GOT5100T-832 in a wireless LAN/GPRS/GSM /4G environments.

Excellent thermal solution: aluminum back chassis

With Axiomtek's patent for plastic plus aluminum mechanism design, the GOT5100T-832 can dissipate the heat easily and keep the system operation stable

Specifications

Front Bezel

LCD Panel

Main System

IP65, NEMA 4 rugged protection, plastic front bezel

Display Type 10.4" SVGA TFT LCD

Brightness (cd/m

Resolution

2 ) 400 nits

800 x 600

Viewing Angel (H/V) 140°/120°

CPU Intel® Atom™ processor N2600

2 cores @1.6 GHz

Chipset

System Memory

Intel® NM10 Express

1 x 204-pin DDR3 800/1066 MHz

SO-DIMM up to 2 GB

BIOS

Storage

Watchdog Timer

Onboard Graphics

AMI UEFI BIOS

1 x 2.5" SATA HDD

1 x CompactFlash™

255 levels, 0~255 sec.

Integrated in Intel® GFX

507

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector

Expansion Interface

Touchscreen

Power Supply

Dimension

Packing Dimensions

Weight (net/gross)

Environment

Certificate

1 x RS-232/422/485 (default RS-232, COM 1)

1 x RS-232 (COM 2)

2 x 10/100/1000Mbps Ethernet

4 x USB 2.0

1 x Audio (Line-out)

1 x PCIe Mini Card

Resistive type

1. DC version: 10~30VDC with over-current protection fuse

2. AC version: 100-240V AC-DC 60W power adapter

292.5 mm (11.52") (W) x 45.8 mm (1.80") (D) x 235.8 mm (9.28") (H)

415 mm (16.34") (W) x 100 mm (3.94") (D) x 315 mm (12.4") (H)

1.8 kg (3.96 lb)/3 kg (6.61 lb)

Operating temperature:

0° ~ +50°C (+32°F ~ +122°F)

(with W.T. DRAM/HDD in airflow condition)

0° ~ +45°C (+32°F ~ +113°F) (with W.T. DRAM/HDD)

Storage Temperature:

0° ~ +50°C (+32°F ~ +122°F) (in airflow condition)

Relative humidity:

20% ~ 90% @ 40°C; non-condensing

Operation vibration:

2G, 5~500Hz, random for CompactFlash™

UL60950-1, CE

Dimensions

Ordering Information

GOT5100T-832-J

GOT5100T-832-DC

8.4" SVGA fanless touch panel computer with Intel®

Atom™ processor N2600, 5-wire resistive touch screen

AC-DC 60W power adapter (screw type connector) and EMI class B

8.4" SVGA fanless touch panel computer with Intel®

Atom™ processor N2600, 5-wire resistive touch screen and

10~30VDC power input(terminal block connector)

* Specification and certifications are based on options and may vary.

Optional EOS Installation

WES

WES 7

Optional OS Installation

Windows® XP

Windows® 7

Overview

1

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

AC power adapter

(for GOT5100T-832-J)

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

508

GOT5103W-845

10.1" WXGA TFT Fanless Touch Panel

Computer with Intel® Celeron® Processor

N3060 (up to 2.48 GHz)

NEW

Features

10.1" WXGA wide screen TFT LCD display with LED backlight

Supports 10.1" projected capacitive multi-touch

Fanless design with Intel® Celeron® processor N3060

2 cores (up to 2.48 GHz)

Supports mSATA & Half-slim SATA SSD (optional)

Supports 2 Gigabit LAN, 4 USB, 2 COM ports and optional

2W speakers

IP65 front bezel and IPX1 full enclosure design

Supports optional Panel mount/VESA arm/desktop stand/

wall mount

Supports external AT/ATX mode selection switch

Side view

Fanless Low Power DDR3L AiRD IP65 Isolation

Introduction

The GOT5103W-845 is a 10.1" Intel® Celeron® processor fanless touch panel computer.

In response to market demand, this panel computer is a cost effective solution. It adopts a modern, sleek and fanless design and is equipped with a 10.1" TFT LCD as well as Intel® Celeron® processor N3060 2 cores up to 2.48 GHz. For wireless network connection, the GOT5103W-845 offers 2 PCIe Mini Card slots. By just plugging in a mini card WLAN card, customers can have instant access to wireless LAN/GPRS/GSM/4G environments. Besides, it provides two types of power input. One is DC power input (12V default, 24V or 24V or 9~36V optional) with terminal block connector, and another is AC power adapter with screw type connector.

Slim & lightweight design

The GOT5103W-845 is slim and lightweight which make it fit for limited space installation.

Built-in internal WLAN antenna

The GOT5103W-845 provides 2 PCIe Mini Card slots and optional internal WLAN antennas for wireless network connections. By simply plugging in the wireless LAN card, customers can use the GOT5103W-845 in wireless LAN/GPRS/GPS/4G environment.

Support front membrane keys

The GOT5103W-845 provides 5 membrane keys in front of system, people can adjust the system display, volume and brightness.

509

Specifications

Front Bezel

LCD Panel

Main System

IP65, NEMA 4 rugged protection, plastic front bezel

Display Type 10.1" WXGA TFT LCD withg LED backlight

Brightness (cd/m 2 ) 350 nits

Resolution

CPU

1280 x 800

Intel® Celeron® processor N3060

2 cores (up to 2.48 GHz)

System Memory

BIOS

Storage

1 x 204-pin DDR3L-1600 MHz

SO-DIMM max. up to 8 GB

AMI UEFI BIOS

1 x Half-slim SATA SSD (optional)

1 x mSATA

Watchdog Timer 255 levels, 0~255 sec.

Onboard Graphics Integrated Intel® HD GFX

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector

Expansion Interface

1 x RS-232 (COM 2)

1 x RS-232-422-485 (default RS-232, COM 1)

1 x HDMI

1 x Switch for power on/off

1 x AT/ATX mode selection switch

2 x USB 2.0 (optional)

2 x USB 3.0

1 x Audio (Line-out)

2 x 10/100/1000Mbps Ethernet (Intel® i211AT)

1 x Full-size PCI Express Mini Card with mSATA supported

1 x Full-size PCI Express Mini Card with SIM slot

Projected Capacitive multi-touch Touchscreen

Power Supply 1. DC version: 12VDC (default) or

2. DC version: 9-36VDC with over current protection fuse

(optional) or

3. DC version: 24VDC over current protection fuse(optional) or

4. AC version: 100~240V AC-DC 36W power adapter

260.8 mm (10.27") (W) x 38 mm (1.50" (D) x 194.1 mm (7.65") (H)

TBD

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

TBD

Operating temperature: 0° ~ +50°C (+32°F ~ +122°F)

Storage Temperature: 0° ~ +50°C (+32°F ~ +122°F)

Relative humidity: 20% ~ 90% @ 40°C; non-condensing

Operation vibration:

2 G, 10 ~ 500Hz, random for SSD

Certificate CE

* W.T.: Wide Temperature. All W.T. supported products have to be sorted by Axiomtek.

Ordering Information

GOT5103W-845-PCT-J 10.1" WXGA fanless touch panel computer with Intel®

Celeron® processor N3060, projected capactive multi-touch screen, AC-DC 36W power adapter (screw type connector) and EMI class B

GOT5103W-845-PCT-DC 10.1" WXGA fanless touch panel computer with Intel®

Celeron® processor N3060, projected capactive multi-touch screen and 12VDC power input (terminal block connector)

Optional EOS Installation

WES7 (64-bit)

WE8S (64-bit)

Optional OS Installation

Windows® 7 (64-bit)

Windows® 8.1 (64-bit)

Windows® 10

Overview

1

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Dimensions

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

510

GOT5840T-834

8.4" SVGA TFT Fanless Touch Panel

Computer with Intel® Celeron® Processor

J1900 (up to 2.42 GHz)

Features

8.4" SVGA TFT LCD display with LED backlight

Fanless cooling system with Intel® Celeron® processor

J1900 (up to 2.42 GHz)

Ultra slim and super light design

Supports WLAN module & internal antenna

Easy for expansion: PCIe Mini Cards

Supports 2 Gigabit LAN, 2 USB & 2 COM ports

Supports panel mount, wall mount, VESA arm and

desktop stand

Plastic and IP65-rated front bezel

2 3

1 4 5

1. Power switch (ATX)

2. Terminal block for DC power input or or 3. Screw conn. w/ AC power adapter

4. COM 1 (RS-232/422/485)

5. COM 2 (RS-232/422/485)

6 7 8

6. Ethernet x 2

7. USB 3.0 x 2

8. Audio (Line-out)

Side view

Desktop stand

Fanless

Low Power

DDR3L

AiRD IP65

Introduction

The GOT5840T-834 is a 8.4" Intel® Celeron® based fanless touch panel computer. In response to market demand, this panel computer is a cost effective solution. It adopts a modern, super sleek and fanless design and is equipped with a 8.4" TFT LCD as well as Intel® Celeron® processor J1900 (Bay Trail). For wireless network connection, the

GOT5840T-834 offers 2 mini card slots. By just plugging in the mini card WLAN card, customers can have instant access to wireless LAN/GPRS/GSM/4G environments.

Besides, it provides two types of power input. One is DC power input (9-36VDC) with terminal block connector, and anotheris AC power adapter with screw type connector.

Super slim & ultra lightweight design

The GOT5840T-834 is a super slim touch panel computer for space-limited environment with its thickness of 45 mm and weight of 1.3 kg only, which make it installed everywhere.

Built-in internal WLAN antenna

The GOT5840T-834 provides 2 PCIe Mini Card slots and a built-in WLAN antenna for wireless network connections. By simply plugging in the wireless LAN card, customers can use the GOT5840T-834 in a wireless LAN/GPRS/GSM/4G environments.

Excellent thermo solution: aluminum back chassis

With Axiomtek's patent for plastic plus aluminum mechanism design, the GOT5840T-834 can dissipate the heat easily and keep the system operation stable.

Specifications

Front Bezel

LCD Panel

Main System

IP65, NEMA 4 rugged protection, plastic front bezel

Display Type 8.4" SVGA TFT LCD with LED backlight

Brightness (cd/m

2

)

Resolution

350 nits

800 x 600

Viewing Angel (H/V) 160°/140°

CPU Intel® Celeron® processor J1900

4 cores (up to 2.42 GHz)

System

Memory

BIOS

Storage

Watchdog Timer

Onboard Graphics

1 x 204-pin DDR3L-1333 MHz

SO-DIMM max. up to 8 GB

AMI UEFI BIOS

1 x CFast™ or mSATA

255 levels, 0~255 sec.

Integrated in Intel® GFX

511

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector

Expansion Interface

Touchscreen

Power Input

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

Certificate

2 x RS-232/422/485 (default RS-232, COM 1/2)

2 x USB 3.0

2 x 10/100/1000Mbps Ethernet (Intel® i210IT)

1 x Audio (Line-out)

1 x Full-size PCI Express Mini Card with mSATA

1 x Full-size PCI Express Mini Card with SIM slot

Resistive type

1. DC version: 9~36VDC with over-current protection fuse

2. AC version: 100-240V AC-DC 60W power adapter

250.7 mm (9.87") (W) x 45.8 mm (1.80") (D) x 204.7 mm (8.06") (H)

380 mm (14.96") (W) x 100 mm (3.94") (D) x 280 mm (11.02") (H)

1.3 kg (2.87 lb)/ 2.25 kg (4.96 lb)

Operating temperature:

0° ~ +50°C (+32°F ~ +122°F)

(with W.T. DRAM/HDD in airflow condition)

0° ~ +45°C (+32°F ~ +113°F) (with W.T. DRAM)

Storage Temperature:

0° ~ +50°C (+32°F ~ +122°F) (in airflow condition)

Relative humidity:

20% ~ 90% @ 40°C; non-condensing

Operation vibration:

2G, 5~500Hz, random for CFast™

CE

Dimensions

Ordering Information

GOT5840T-834-J

GOT5840T-834-DC

8.4" SVGA fanless touch panel computer with Intel®

Celeron® processor J1900, 5-wire resistive touch screen,

AC-DC 60W power adapter (screw type connector) and EMI class B

8.4" SVGA fanless touch panel computer with Intel®

Celeron® processor J1900, 5-wire resistive touch screen and 9~36VDC power input(terminal block connector)

* Specification and certifications are based on options and may vary.

Optional EOS Installation

WES 7

WE8S

Optional OS Installation

Windows® 7

Windows® 8.1

Overview

1

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

AC power adapter

(for GOT5840T-834-J)

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

512

GOT5840T-832

8.4" SVGA TFT Fanless Touch Panel

Computer with Intel® Atom™ Processor

N2600

Features

8.4" SVGA TFT LCD with LED backlight

Fanless design with Intel® Atom™ processor N2600 2 cores

@1.6 GHz

Ultra slim design: thickness 45 mm

Super light weight: 1.3 kg

Easy for expansion: PCIe Mini Card

Supports optional panel mount, wall mount, VESA arm and

desktop stand

Over-current protection fuse

Plastic and IP65-rated front bezel

2 3

1 4 5

1. Power switch (ATX)

2. Terminal block for DC power input or or 3. Screw conn. w/ AC power adapter

4. COM 1 (RS-232/422/485)

5. COM 2 (RS-232)

6 7 8

6. Ethernet x 2

7. USB 2.0 x 2

8. Audio (Line-out)

Side view

Desktop stand

Fanless

Low Power

DDR3

AiRD IP65

Introduction

The GOT5840T-832 is a 8.4" Intel® Atom™-based fanless touch panel computer. In response to market demand, this panel computer is a cost effective solution. It adopts a modern, super sleek and fanless design and is equipped with a 8.4" TFT LCD as well as Intel® Atom™ processor N2600 1.6 GHz. For wireless network connection, the

GOT5840T-832 offers a PCIe Mini Card slot. By just plugging in the mini card WLAN card, customers can have instant access to wireless LAN/GPRS/GSM/4G environments.

Besides, it provides two types of power input. One is DC power input (10~30VDC) with terminal block connector, and another is AC power adapter with screw type connector.

Super slim & ultra lightweight design

The GOT5840T-832 is a super slim touch panel computer for space-limited environment with its thickness of 45 mm and weight of 1.3 kg only, which make it installed everywhere.

Built-in internal WLAN antenna

The GOT5840T-832 provides a PCIe Mini Card slot and a built-in WLAN antenna for wireless network connections. By simply plugging in the wireless LAN card, customers can use the GOT5840T-832 in a wireless LAN/GPRS/ GSM/4G environments.

Excellent thermo solution: aluminum back chassis

With Axiomtek's patent for plastic plus aluminum mechanism design, the GOT5840T-832 can dissipate the heat easily and keep the system operation stable.

Specifications

Front Bezel

LCD Panel

Main System

IP65, NEMA 4 rugged protection, plastic front bezel

Display Type 8.4" SVGA TFT LCD with LED backlight

Brightness (cd/m

2

)

Resolution

350 nits

800 x 600

Viewing Angel (H/V) 160°/140°

CPU Intel® Atom™ processor N2600

2 cores @1.6 GHz

Chipset

System

Memory

BIOS

Intel® NM10 Express

1 x 204-pin DDR3 800/1066 MHz

SO-DIMM max. up to 2 GB

AMI UEFI BIOS

Storage

Watchdog Timer

Onboard Graphics

1 x CompactFlash™

255 levels, 0~255 sec.

Integrated in Intel® GFX

513

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector

Expansion Interface

Touchscreen

Power Input

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

Certificate

1 x RS-232 (COM 2)

1 x RS-232/422/485 (default RS-232, COM 1)

2 x USB 2.0

2 x 10/100/1000Mbps Ethernet

1 x Audio (Line-out)

1 x PCIe Mini Card

Resistive type

1. DC version: 10~30VDC with over-current protection fuse

2. AC version: 100-240V AC-DC 60W power adapter

250.7 mm (9.87") (W) x 45.8 mm (1.80") (D) x 204.7 mm (8.06") (H)

380 mm (14.96") (W) x 100 mm (3.94") (D) x 280 mm (11.02") (H)

1.3 kg (2.87 lb)/ 2.25 kg (4.96 lb)

Operating temperature:

0° ~ +50°C (+32°F ~ +122°F)

(with W.T. DRAM/HDD in airflow condition)

0° ~ +45°C (+32°F ~ +113°F) (with W.T. DRAM)

Storage Temperature:

0° ~ +50°C (+32°F ~ +122°F) (in airflow condition)

Relative humidity:

20% ~ 90% @ 40°C; non-condensing

Operation vibration:

2G, 5~500Hz, random for CompactFlash™

UL60950-1, CE

Ordering Information

GOT5840T-832-DC

GOT5840T-832-J

8.4" SVGA Intel® Atom™ N2600 fanless touch panel computer with terminal block connector

8.4" SVGA Intel® Atom™ N2600 fanless touch panel computer with screw type connector & AC-DC

60W power adapter EMI class B

* Specification and certifications are based on options and may vary.

Optional EOS Installation

WES

WES7

Optional OS Installation

Windows® XP

Windows® 7

Dimensions

AC power adapter

(for GOT5840T-832-J)

Overview

1

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

514

2

Heavy-duty Fanless Touch Panel

Computers

Axiomtek’s heavy-duty solution is specially designed for harsh operating environments. The GOT3000 has a wide operating temperature range of -20°C ~

+55°C, IP65-rated seal, excellent thermal resistance and built-in fuse to protect the system from over-current. The GOT800 integrates an IP66-rated Stainless housing with sunlight readable technology and wide operating temperature from -20°C ~

+55°C. It is best suited for dusty or wet spaces in food factories or kitchen, and low-temperature environments in cold storage warehouses. The GOT700 is an

EN50155 certificate touch panel computer solution with alternative keypad and high brightness LCD for rolling stock.

NEW

NEW

NEW

NEW

Introduction

Selection Guide

517

518

GOT3217W-881-PCT 21.5" Full HD TFT Fanless Multi-Touch Panel Computer with

LGA1150 Socket 4th Generation Intel® Core™ i7/i5/i3,

Pentium® & Celeron® Processor (0°C ~ +40°C)

GOT3187W-881-PCT 18.5" WXGA TFT Fanless Multi-Touch Panel Computer with

LGA1150 Socket 4th Generation Intel® Core™ i7/i5/i3, Celeron®

& Pentium® Processor (0°C ~ +40°C)

527

GOT3187W-834-PCT 18.5" WXGA TFT Multi-Touch Panel Computer with Intel®

Celeron® Processor J1900 (-10°C ~ +50°C)

GOT3187W-832-PCT 18.5" WXGA TFT Fanless Multi-Touch Panel Computer with

Intel® Atom™ Processor D2550 (-10°C ~ +50°C)

GOT3187W-111-PCT 18.5" WXGA TFT Fanless Multi-Touch Panel Computer with

AMD G Series Processor T56N (-10°C ~ +45°C)

525

529

531

533

GOT3177T-891-PCT 17" XGA TFT Fanless Multi-Touch Panel Computer with

6th Generation Intel® Core™ Processor and Intel®

Q170 (-10°C ~ +40°C)

535

GOT3177T-834 17" SXGA TFT Flat Front Bezel Touch Panel Computer with

Intel® Celeron® Processor J1900 (-10°C ~ +50°C)

537

GOT3157W-881-PCT 15.6" WXGA TFT Fanless Multi-Touch Panel Computer with 539

Intel® Core™ Processor with Intel® H81 (-10°C ~ +40°C)

541 GOT3157W-834-PCT 15.6" WXGA TFT Fanless Multi-Touch Panel Computer with

Intel® Celeron® Processor J1900 (-10°C ~ +50°C)

GOT3157W-832-PCT 15.6" WXGA TFT Fanless Multi-Touch Panel Computer with

Intel® Atom™ Processor (-10°C ~ +50°C)

543

GOT3157W-111-PCT 15.6 WXGA TFT Fanless Multi-Touch Panel Computer with

AMD G Series Processor T56N (-10°C ~ +45°C)

GOT3156T-834

545

15" XGA TFT Fanless Touch Panel Computer with Intel® Atom™ 547

Processor E3827 (-20°C ~ +55°C)

GOT3156T-832 15" XGA TFT Fanless Touch Panel Computer with Intel® Atom™ 549

Processor (-20°C ~ +55°C)

www.axiomtek.com

Touch Panel Computers

NEW

NEW

NEW

NEW

GOT3126T-834

GOT3126T-832

GOT3106T-832

GOT3846T-832

GOT-3840TL

GOT817-834

GOT815-834

GOT812LR-834

GOT812LR-832

GOT712-837

GOT710-837

12.1" SVGA TFT Extended Temp. Fanless Touch Panel Computer 551 with Intel® Celeron® Processor E3827 (-20°C +55°C)

12.1" SVGA TFT Extended Temp. Fanless Touch Panel Computer 553 with Intel® Atom™ Processor N2600 (-20°C +55°C)

10.4" SVGA TFT Extend Temp. Fanless Touch Panel Computer 555 with Intel® Atom™ Processor N2600 (-20°C +55°C)

557 8.4" SVGA TFT Fanless Touch Panel Computer with Intel®

Atom™ Processor N2600 (-20°C ~ +55°C)

8.4" SVGA TFT Cost-effective Fanless Touch Panel Computer 559

561 17" SXGA TFT IP66-rated Stainless Steel Fanless PCT

(or Resistive Touch) Panel Computer with Flat Bezel Design and Intel® Atom™ Processor E3827 (-20°C ~ +55°C)

15" XGA TFT IP66-rated Stainless Steel Fanless PCT

(or Resistive Touch) Panel Computer with Flat Bezel Design and Intel® Atom™ Processor E3827 (-20°C ~ +55°C)

563

12.1" XGA TFT IP66-rated Fanless Touch Panel Computer with 565

Intel® Atom™ Processor E3827 and High Brightness

(-20°C ~ +55°C)

12.1" XGA TFT IP66-rated Fanless Touch Panel Computer with 567

Intel® Atom™ Processor N2600 and High Brightness

(-20°C ~ +55°C)

12.1” XGA EN50155 Railway Fanless Touch Panel PC with

Intel® Atom™ Processor E3845 1.91 GHz (-25°C ~ +70°C )

569

10.4” SVGA EN50155 Railway Fanless Touch Panel PC with

Intel® Atom™ Processor E3845 1.91 GHz (-25°C ~ +70°C )

571

Heavy-duty Fanless Touch Panel

Computers

GOT3000 Series for Industrial Automation in Wide-temperature Environment

The GOT3000 series is designed for heavy-duty and critical temperature environments such as steel refineries and cotton factories. It has a wide operating temperature range of -20°C ~ +55°C, IP65-rated seal and a built-in fuse to protect the system from over-current. This series also features low power Intel® Atom™ processor D2550/

N2600/Z510/E3827 & Celeron® J1900 to provide excellent system performance and thermal resistance. The anti-vibration design allows the system to work well under 2G in operation mode.

GOT800 Series for Heavy-duty Application

The GOT800 series is specifically designed for harsh operating environments such as dusty or wet spaces in food factories or kitchens, and low-temperature environments in cold storage warehouses. This series integrated an IP66-rated and IP69K-rated housing with sunlight readable technology, wide operating temperature from -20°C to

+55°C and an optional 802.11a/b/g/n wireless support.

GOT700 Series for Rolling-Stock Application

The GOT700 series is used to keep the train driver informed about the status of the train’s functions. Its design allows it to be deployed in environment with an extended temperature (-25°C ~ 70°C) and it also complies with the EMC, shock and vibration test requirements of European standard EN50155 for railway applications. GOT710-837 is equipped with 10.4" TFT ruggedized touch panel computer and all lockable connectors are perfect choice for Human Machine Interface(HMI) in railway environments.

GOT700 series includes a comprehensive feature set with one CAN Bus, DIO, audio, two Ethernet ports, USB ports and RS-232/422/485.

Features:

● Extended operating temperature range

The GOT series adopts the unique technology of extended operating temperature and fanless cooling system for harsh environments.

- GOT700 Series: -25°C ~ +70°C (-13°F ~ +158°F)

- GOT800 Series: -20°C ~ +55°C (-4°F ~ +131°F)

- GOT3000 Series:

Intel® Core™ CPU: 0°C ~ +40°C (+32°F ~ +104°F)

Intel® Celeron® CPU: -10°C ~ +50°C (+14°F ~ +122°F)

Intel® Atom™ CPU: -20°C ~ +55°C (-4°F ~ +131°F)

AMD G Series CPU: -10°C ~ +45°C (+14°F ~ +113°F)

● NEMA 4X compliant design

The GOT series features a stainless and IP65 & IP66 water-proof front bezel, so the enclosure offers total protection against falling water and can be easily cleaned by high pressure water jets.

● High brightness LCD

The GOT series adopts a high brightness LCD which is sunlight readable even under strong sunlight, in locations such as the zoo, parking lot, etc. Powering by LED backlight LCD, this series features power saving and longer MTBF.

Major Features

IP66 waterproof design Rolling-Stock Application Extended temperature supported: -20°C ~ +55°C

55°C

-20°C

517

Outdoor application NEMA 4X compliant Suited for harsh environments

* All specifications and photos are subject to change without notice.

Features\Models

CPU Level

Chipset

System Memory

Display

I/O

Storage

Expansion Interface

Touchscreen

Operating System

Power Supply

Power Consumption

Watchdog Timer

Dimensions

(W x D x H)

Weight (net/gross)

Operating Temperature

Wide Temperature

Certificate

Heavy-duty Fanless Touch Panel

Computers

Selection Guide

NEW

Overview

Page 525

GOT3217W-881-PCT

Intel® Core™ i7/i5/i3,

Celeron® & Pentium®

Intel® H81

1 x 204-pin

DDR3-1333/1600 MHz

SO-DIMM max. up to 8 GB

21.5" TFT, FHD, 250 nits

2 x RS-232/422/485

2 x 10/100/1000 Mbps Ethernet

2 x USB 3.0

2 x USB 2.0

1 x Line out/1 x MIC-in

1 x HDMI

1 x 2.5" HDD

1 x CFast™

1 x mSATA

2 x PCIe Mini Card

Capacitive multi-touch

Windows® 8.1, WE8S,

Windows® 7, WES 7, Linux

19VDC with adapter

112W

255 levels, 0~255 sec.

547.6 x 339.0 x 89.0 mm

(21.56" x 13.35" x 3.50")

7.1 kg (15.65 lb)/9.5 kg (20.94 lb)

0°C ~ +40°C (+32°F ~ +104°F)

N/A

CE

Page 527

GOT3187W-881-PCT

Intel® Core™ i7/i5/i3,

Celeron® & Pentium®

Intel® H81

1 x 204-pin

DDR3-1333/1600 MHz

SO-DIMM max. up to 8 GB

18.5" TFT, WXGA, 300 nits

2 x RS-232/422/485

2 x 10/100/1000 Mbps Ethernet

2 x USB 3.0

2 x USB 2.0

1 x Line out/1 x MIC-in

1 x HDMI

1 x 2.5" HDD

1x CFast™

1 x mSATA

2 x PCIe Mini Card

Capacitive multi-touch

Windows® 8.1, WE8S,

Windows® 7, WES 7, Linux

19VDC with adapter

109W

255 levels, 0~255 sec.

460 x 89.5 x 285 mm

(18.1" x 3.5" x 11.2")

6.3 kg (13.9 lb)/8.7 kg (19.18 lb)

0°C ~ +40°C (+32°F ~ +104°F)

N/A

CE

Page 529

GOT3187W-834-PCT

Intel® Celeron® J1900

4C @2.0 GHz (up to 2.42 GHz)

SoC Integrated

1 x 204-pin

DDR3L-1333/1600 MHz

SO-DIMM max. up to 8 GB

18.5" TFT, WXGA, 300 nits

2 x RS-232/422/485

2 x 10/100/1000 Mbps Ethernet

2 x USB 3.0

2 x USB 2.0

1 x Audio (Line out)

1 x 2.5"" HDD

1 x CFast™ or mSATA

2 x PCIe Mini Card

Capacitive multi-touch

Windows® 8.1, WE8S,

Windows® 7, WES 7

9~36VDC

49W

255 levels, 0~255 sec.

460.8 x 58.5 x 285 mm

(18.11" x 2.3" x 11.22")

5.8 kg (12.8 lb)/8.2 kg (18.1 lb)

-10°C ~ +50°C (+14°F ~ +122°F)

Yes

CE

Fanless

Touch Panel

Computers

2

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

518

Heavy-duty Fanless Touch Panel

Computers

NEW

Features\Models

CPU Level

Chipset

System Memory

Display

I/O

Storage

Expansion Interface

Touchscreen

Operating System

Power Supply

Power Consumption

Watchdog Timer

Dimensions

(W x D x H)

Weight (net/gross)

Operating Temperature

Wide Temperature

Certificate

519

Page 531

GOT3187W-832-PCT

Intel® Atom™ D2550

2C @ 1.86 GHz

Intel® NM10

1 x 204-pin

DDR3-800/1066 MHz

SO-DIMM max. up to 4 GB

Page 533

GOT3187W-111-PCT

AMD G series T56N

2C @ 1.65GHz

AMD A50M FCH

1 x 204-pin

DDR3-1066/1333 MHz

SO-DIMM max. up to 4 GB

Page 535

GOT3177T-891-PCT

Intel® Core™ i7/i5/i3,

Celeron® & Pentium®

Intel® Q170

2 x 260-pin

DDR4-2166 MHz

SO-DIMM max. up to 32 GB

Page 537

GOT3177T-834-FR

Intel® Celeron® J1900

4C @2.0 GHz (up to 2.42 GHz)

SoC Integrated

1 x 204-pin

DDR3L-1333/1600 MHz

SO-DIMM max. up to 8 GB

18.5" TFT, WXGA, 300 nits 18.5" TFT, WXGA, 300 nits 21.5" TFT, SXGA, 350 nits 17" TFT, SXGA, 350 nits

1 x RS-232/422/485 (COM 1)

1 x RS-232 (COM 2)

2 x 10/100/1000 Mbps Ethernet

4 x USB 2.0

1 x Audio (Lint-out)

1 x RS-232/422/485 (COM1)

1 x RS-232 (COM2)

2 x10/100/1000 Mbps Ethernet

1x VGA

4 x USB 2.0

1 x Audio (Lint-out

2 x RS-232/422/485

(default RS-232)

2 x 10/100/1000 Mbps Ethernet

1 x Audio (Line-out)

4 x USB 3.0

1 x HDMI

2 x RS-232/422/485

2 x 10/100/1000 Mbps Ethernet

2 x USB 3.0

2 x USB 2.0

1 x Audio (Line out)

1 x 2.5" HDD

1 x CompactFlash™

1 x 2.5" HDD

1 x CompactFlash™

1 x 2.5" SATA HDD

1 x mSATA

1 x 2.5"" HDD

1 x CFast™ or mSATA

1 x PCIe Mini Card

Capacitive multi-touch

1 x PCIe Mini Card

Capacitive multi-touch

2 x PCIe Mini Card

Capacitive multi-touch

2 x PCIe Mini Card

Flat resistive type

Windows® XP, WES,

Windows® 7, WES 7

10~30VDC

47W

255 levels, 0~255 sec.

460.8 x 58.5 x 285 mm

(18.11" x 2.3" x 11.22")

Windows® XP, XPe,

Windows® 7, WES 7,

Windows® 8, WE8S, Linux

10~30VDC

12VDC with 60W adapter

63W

255 levels, 0~255 sec.

Windows® 10,

Windows® 8.1, WE8S,

Windows® 7, WES 7

19VDC with adapter

TBD

255 levels, 0~255 sec.

Windows® 8.1, WE8S,

Windows® 7, WES 7

9~36VDC

50W

255 levels, 0~255 sec.

398.02 x 59.9 x 330.44 mm

(15.64" x 2.36" x13.01")

460.8 x 58.5 x 285 mm

(18.11" x 2.3" x 11.22")

TBD

5.8 kg (12.8 lb)/8.2 kg (18.1 lb) 5.4 kg (11.9 lb)/7.8 kg (17.2 lb) TBD

-10°C ~ +50°C (+14°F ~ +122°F) -10°C ~ +45°C (+14°F ~ +113°F) 0°C ~ +40°C (+32°F ~ +104°F)

4.8 kg (10.6 lb)/7.1 kg (15.67 lb)

-10°C ~ +50°C (+14°F ~ 122°F)

Yes

CE

Yes

CE

N/A

CE

Yes

CE

* All specifications and photos are subject to change without notice.

Features\Models

CPU Level

Chipset

System Memory

Display

I/O

Storage

Expansion Interface

Touchscreen

Operating System

Power Supply

Power Consumption

Watchdog Timer

Dimensions

(W x D x H)

Weight (net/gross)

Operating Temperature

Wide Temperature

Certificate

Overview

NEW

Page 539

GOT3157W-881-PCT

Intel® Core™ i7/i5/i3,

Celeron® & Pentium®

Intel® H81

1 x 204-pin

DDR3-1333/1600 MHz

SO-DIMM max. up to 8 GB

15.6" TFT, WXGA, 300 nits

Page 541

GOT3157W-834-PCT

Intel® Celeron® J1900

4C @2.0 GHz (up to 2.42 GHz)

SoC Integrated

1 x 204-pin

DDR3L-1333/1600 MHz

SO-DIMM max. up to 8 GB

15.6" TFT, WXGA, 300 nits

Page 543

GOT3157W-832-PCT

Intel® Atom™ D2550

2C @ 1.86 GHz

Intel® NM10

1 x 204-pin

DDR3-800/1066 MHz

SO-DIMM max. up to 4 GB

15.6" TFT, WXGA, 300 nits

Page 545

GOT3157W-111-PCT

AMD G series T56N

2C @ 1.65GHz

AMD A50M FCH

1x 204-pin

DDR3-1066/1333 MHz

SO-DIMM max. up to 4 GB

15.6" TFT, WXGA, 300 nits

2 x RS-232/422/485

2 x 10/100/1000 Mbps Ethernet

2 x USB 3.0

2 x USB 2.0

1 x Line out/1 x MIC-in

1 x HDMI

2 x RS-232/422/485

2 x 10/100/1000 Mbps Ethernet

2 x USB 3.0

2 x USB 2.0

1 x Audio (Line out)

1 x RS-232/422/485 (COM 1)

1 x RS-232 (COM 2)

2 x 10/100/1000 Mbps Ethernet

4 x USB 2.0

1 x Audio (Lint-out)

1 x RS-232/422/485 (COM1)

1 x RS-232 (COM 2)

2 x10/100/1000 Mbps Ethernet

1x VGA

4 x USB 2.0

1 x Audio (Lint-out)

1 x 2.5" HDD

1x CFast™

1 x mSATA

2 x PCIe Mini Card

1 x 2.5" HDD

1 x CFast™ or mSATA

2 x PCIe Mini Card

1 x 2.5" HDD

1 x CompactFlash™

1 x PCIe Mini Card

1 x 2.5" HDD

1 x CompactFlash™

1 x PCIe Mini Card

Capacitive multi-touch Capacitive multi-touch Capacitive multi-touch

Windows® 8.1, WE8S,

Windows® 7, WES 7, Linux

19VDC with 120W adapter

100W

Windows® 8.1, WE8S,

Windows® 7, WES 7

9~36VDC

45W

Windows® XP, WES,

Windows® 7, WES 7

10~30VDC

37W

Capacitive multi-touch

Windows® XP, XPe,

Windows® 7, WES 7,

Windows® 8, WE8S, Linux

10~30VDC

12VDC with 60W adapter

51W

255 levels, 0~255 sec.

396.8 x 89.5 x 247.1 mm

(15.6" x 3.5"x 9.73")

255 levels, 0~255 sec.

396.8 x 59.4 x 247.1 mm

(15.6" x 2.12"x 9.73")

255 levels, 0~255 sec.

396 x 53.9 x 247.1 mm

(15.6" x 2.12" x 9.73")

255 levels, 0~255 sec.

396 x 53.9 x 247.1mm

(15.6" x 2.12" x 9.73")

5.5 kg (12.13 lb)/7.5 kg (16.53 lb) 5.0 kg (11.02 lb)/7.0 kg (15.43 lb) 5.0 kg (11.02 lb)/7.0 kg (15.43 lb) 5.0 kg (11.02 lb)/7.0 kg (15.43 lb)

0°C ~ +40°C (+32°F ~ +104°F) -10°C ~ +50°C (+14°F ~ +122°F) -10°C ~ +50°C (+14°F ~ +122°F) -10°C ~ +45°C (+14°F ~ +113°F)

N/A

CE

Yes

CE

Yes

CE

Yes

CE

Fanless

Touch Panel

Computers

2

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

520

Heavy-duty Fanless Touch Panel

Computers

Selection Guide

NEW

NEW

Features\Models

CPU Level

Chipset

System Memory

Display

I/O

Storage

Expansion Interface

Touchscreen

Operating System

Power Supply

Power Consumption

Watchdog Timer

Dimensions

(W x D x H)

Weight (net/gross)

Operating Temperature

Wide Temperature

Certificate

521

Page 547

GOT3156T-834

Intel® Atom™ E3827

2C @ 1.75 GHz

SoC Integrated

1 x 204-pin

DDR3L-1333/1600 MHz

SO-DIMM max. up to 8 GB

15" TFT, XGA, 400 nits

4 x RS-232/422/485

2 x 10/100/1000 Mbps

2 x USB3.0

2 x USB2.0

1 x Audio(Line out)

1 x VGA

1 x 2.5" HDD

1 x CFast™ or mSATA

Page 549

GOT3156T-832

Intel® Atom™ N2600

2C @ 1.6 GHz

Intel® NM10

1 x 204-pin

DDR3-800/1066 MHz

SO-DIMM max. up to 2 GB

Page 551

GOT3126T-834

Intel® Atom™ E3827

2C @ 1.75 GHz

SoC Integrated

1 x 204-pin

DDR3L-1333/1600 MHz

SO-DIMM max. up to 8 GB

Page 553

GOT3126T-832

Intel® Atom™ N2600

2C @ 1.6 GHz

Intel® NM10

1 x 204-pin

DDR3-800/1066 MHz

SO-DIMM max. up to 2 GB

15" TFT, XGA, 400 nits 12.1" TFT, XGA, 600 nits 12.1" TFT, SVGA, 500 nits

3 x RS-232 (COM 2/3/4)

1 x RS-232/422/485 (COM 1)

2 x 10/100/1000 Mbps Ethernet

4 x USB 2.0

1 x Audio (Line-out)

1 x VGA

3 x RS-232/422/485

2 x 10/100/1000 Mbps Ethernet

2 x USB 3.0

2 x USB 2.0

1 x Audio(Line out)

1 x VGA

2 x RS-232 (COM 2/3)

1 x RS-232/422/485 (COM 1)

2 x 10/100/1000 Mbps Ethernet

4 x USB 2.0

1 x Audio (Line-out)

1 x VGA

1 x 2.5" SATA HDD

1 x CompactFlash™

1 x 2.5"" HDD

1 x CFast™ or mSATA

1 x 2.5" HDD

1 x CompactFlash™

2 x PCIe Mini Card

5-wire resistive type

Windows® 8.1, WE8S,

Windows® 7, WES 7

1 x PCIe Mini Card

5-wire resistive type

Windows® XP, XPe,

Windows® 7, WES 7

2 x PCIe Mini Card

5-wire resistive type

Windows® 8.1, WE8S,

Windows® 7, WES 7

1 x PCIe Mini Card

5-wire resistive type

Windows® XP, XPe,

Windows® 7, WES 7

9~36VDC

40W

10~30VDC

32W

9~36VDC

36W

10~30VDC

36W

255 levels, 0~255 sec.

377.9 x 60.7 x 309.3 mm

(14.89" x 2.39" x 12.17")

255 levels, 0~255 sec.

378 x 60.7 x 309 mm

(14.89" x 2.39" x 12.17")

255 levels, 0~255 sec.

311.5 x 56.9 x 250 mm

(12.21" x 2.23" x 9.8")

255 levels, 0~255 sec.

311.5 x 56.9 x 250 mm

(12.21" x 2.23" x 9.8")

4.2 kg (9.26 lb)/6.8 kg (14.99 lb) 4.2 kg (9.26 lb)/6.8 kg (14.99 lb)

-20°C ~ +55°C (-4°F ~ +131°F) -20°C ~ +55°C (-4°F ~ +131°F)

2.8 kg (6.17 lb)/5 kg (11.02 lb)

-20°C ~ +55°C (-4°F ~ +131°F)

2.8 kg (6.17 lb)/5 kg (11.02 lb)

-20°C ~ +55°C (-4°F ~ +131°F)

Yes

CE

Yes

CE

Yes

CE

Yes

CE

* All specifications and photos are subject to change without notice.

Overview

Features\Models

CPU Level

Chipset

System Memory

Display

I/O

Storage

Expansion Interface

Touchscreen

Operating System

Power Supply

Power Consumption

Watchdog Timer

Dimensions

(W x D x H)

Weight (net/gross)

Operating Temperature

Wide Temperature

Certificate

Page 555

GOT3106T-832

Intel® Atom™ N2600

2C @ 1.6 GHz

Intel® NM10

1 x 204-pin

DDR3-800/1066 MHz

SO-DIMM max. up to 2 GB

10.4" TFT, SVGA, 400 nits

2 x RS-232 (COM 2/3)

1 x RS-232/422/485 (COM 1)

2 x 10/100/1000 Mbps Ethernet

4 x USB 2.0

1 x Audio (Line-out)

1 x VGA

1 x 2.5" SATA HDD

1 x CompactFlash™

Page 557

GOT3846T-832

Intel® Atom™ N2600

2C @ 1.6 GHz

Intel® NM10

1 x 204-pin

DDR3-800/1066 MHz

SO-DIMM max. up to 2 GB

8.4" TFT, SVGA, 450 nits

1 x RS-232/422/485 (COM 1)

3 x RS-232 (COM 2/3/4)

2 x 10/100/1000 Mbps Ethernet

4 x USB 2.0

1 x Audio (Line-out)

1 x VGA

1 x 2.5" HDD

1 x CompactFlash™

1 x PCIe Mini Card 1 x PCIe Mini Card

5-wire resistive type 5-wire resistive type

Windows® XP, XPe, Windows® 7, WES 7 Windows® XP, XPe, Windows® 7, WES 7

10~30VDC 10~30VDC

35W

255 levels, 0~255 sec.

223.55 x 63.09 x 277 mm

(8.76" x 2.47" x 10.86")

2.4 kg (5.29 lb)/3.8 kg (8.38 lb)

-20°C ~ +55°C (-4°F ~ +131°F)

Yes

CE

42W

255 levels, 0~255 sec.

248 x 58.3 x 183 mm

(9.76" x 2.29" x 7.2")

3.4 kg (7.49 lb)/5.8 kg (12.78 lb)

-20°C ~ +55°C (-4°F ~ +131°F)

Yes

CE

Page 559

GOT-3840TL

AMD LX800 500 MHz

AMD LX + CS5536AD + ITE8888G

1 x 200-pin

DDR

SO-DIMM max. up to 1 GB

8.4 TFT, SVGA, 250 nits

2 x RS-232 (COM 2/3)

1 x RS-232/422/485 (COM 1)

2 x 10/100 Mbps Ethernet

2 x USB 2.0

1 x PS/2 keyboard/mouse

1 x Audio (Line-out)

1 x VGA

1 x 2.5" HDD

1 x CompactFlash™

1 x MiniPCI

1 x PC/104

5-wire resistive type

Windows® XP, XPE, WinCE.NET

16~28VDC

48W

255 levels, 0~255 sec.

280 x 69.3 x 200 mm

(11.02" x 2.73" x 7.87")

3.5 kg (7.7 lb)/4.2 kg (9.26 lb)

0°C ~ +50°C (32°F ~ +122°F)

Yes

CE

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

522

Fanless

Touch Panel

Computers

2

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

Heavy-duty Fanless Touch Panel

Computers

Selection Guide

NEW NEW

Features\Models

CPU Level

Chipset

System Memory

Display

I/O

Storage

Expansion Interface

Touchscreen

Operating System

Power Supply

Power Consumption

Watchdog Timer

Front Bezel

Dimensions

(W x D x H)

Weight (net/gross)

Operating Temperature

Wide Temperature

Certificate

Page 561

GOT817-834

Intel® Atom™ E3827 (1.75 GHz)

SoC Intergrated

2 x 204-pin SO-DIMM dual channel DDR3L-1333, max. up to 8 GB

17" TFT, SXGA, 350 nits

Page 563

GOT815-834

Intel® Atom™ E3827 (1.75 GHz)

SoC Intergrated

2 x 204-pin SO-DIMM dual channel DDR3L-1333, max. up to 8 GB

15" TFT XGA, 420 nits

Page 565

GOT812LR-834

Intel® Atom™ E3827 (1.75 GHz)

SoC Intergrated

2 x 204-pin SO-DIMM dual channel DDR3L-1333, max. up to 8 GB

12.1" TFT XGA, 1000 nits

Page 567

GOT812LR-832

Intel® Atom™ N2600 1.6GHz

Intel® NM10

1 x 204-pin DDR3 SO-DIMM max. up 2 GB

2 x RS-232/422/485

(default RS-232)

2 x USB 2.0

1 x 10/100/1000 Mbps Ethernet

2 x RS-232/422/485

(default RS-232)

2 x USB 2.0

1 x 10/100/1000 Mbps Ethernet

2 x RS-232/422/485

(default RS-232)

2 x USB 2.0

1 x 10/100/1000 Mbps Ethernet

1 x 2.5" SSD

1 x CFast™

2 x PCIe Mini Card

5-wire resistive type or

Projected Capacitive touch

Windows® 8.1, WE8S,

Windows® 7, WES 7

!~36VDC

50W

255 levels, 1~255 sec.

1 x 2.5" SSD

1 x CFast™

2 x PCIe Mini Card

5-wire resistive type or

Projected Capacitive touch

Windows® 8.1, WE8S,

Windows® 7, WES 7

9~36VDC

30W

255 levels, 1~255 sec.

1 x 2.5" SSD

1 x CFast™

2 x PCIe Mini Card

2-wire low reflective resistive type

Windows® 8.1, WE8S,

Windows® 7, WES 7

9~36VDC

47W

255 levels, 1~255 sec.

Stainless steel IP66/IP69K rugged protection

415.92 x 54.96 x 348.34 mm

(16.37" x 2.16" x 13.71")

Stainless steel IP66/IP69K rugged protection

382 x 55 x 305 mm

(15.4" x 2.17" x 12.01")

Stainless steel with Full IP66 rugged protection

296 x 240 x 59 mm

(11.65" x 9.45" x 3.74" )

7.04 kg (15.52 lb) /10.3 kg (22.71 lb) 5.2 kg (11.46 lb)/8.4 kg (18.51 lb)

-20°C ~ +55°C (-4°F ~ +131°F)

Yes

CE

-20°C ~ +55°C (-4°F ~ +131°F)

Yes

CE

4.6 kg (10.14 lb)/6.2 kg (13.67 lb)

-20°C ~ +55°C (-4°F ~ +131°F)

Yes

CE

12.1" TFT, XGA, 1000 nits

1 x RS-232/422/485

(default RS-232, COM1)

1 x RS-232(COM2)

1 x 10/100/1000 Mbps Ethernet

2 x USB 2.0

1 x 2.5" SSD

1 x CompactFlash™

1 x PCIe Mini Card

5-wire low reflective resistive type

Windows® 8.1, WE8S,

Windows® 7, WES 7

10~30VDC

30W

255 levels, 0~255 sec.

Stainless steel with Full IP66 rugged protection

296 x 59 x 240 mm

(11.65" x 2.32"x 9.45")

4.5 kg (9.92 lb)/6.5 kg (14.33 lb)

-20°C ~ +55°C (-4°F ~ +131°F)

Yes

CE

523

* All specifications and photos are subject to change without notice.

Rolling-Stock Fanless Touch Panel

Computers

Selection Guide

NEW

NEW

Overview

Features\Models

CPU Level

Chipset

System Memory

Display

I/O

Storage

Expansion Interface

Touchscreen

Operating System

Power Supply

Power Consumption

Watchdog Timer

Front Bezel

Dimensions

(W x D x H)

Weight (net/gross)

Operating Temperature

Wide Temperature

Certificate

Page 569

GOT712-837

Intel® Atom™ E3845 (1.91 GHz)

SoC Intergrated

DDR3 4 GB memory onboard

12.1" XGA, 800 nits

2 x RS-232/422/485 with isolated 1.5KV (M12, A-coded)

2 x RJ-45 for Gigabit LAN with isolated 1.5KV (M12, X-coded)

2 x USB 2.0 (M12, A-coded)

1 x DC for power input with isolated 1.5KV (M12, A-coded)

1 x Audio: Line out, Line in, speaker out (D-sub)

1 x DIO (6 input/2 output) with isolated 1.5KV (D-sub)

1 x CAN bus with isolated 1.5KV (D-sub)

16 GB flash onboard

1 x mSATA

2 x PCIe Mini Card

5-wire resistive type or glass with keyboard

Windows® 8.1, WE8S,

Windows® 7, WES7

16.8V to 30V DC or 77V to 137.5V DC

TBD

255 levels, 1~255 sec.

Aluminum with rugged protection

330 x 64.4 x 245 mm

(13" x 2.53"x 9.65")

TBD

-25°C ~ +70°C (-13°F ~ +158°F)

Yes

EN50155 Railway

EN50121-3-2 Railway EMC

EN61373Railway Shock/Vibration

Page 571

GOT710-837

Intel® Atom™ E3845 (1.91 GHz)

SoC Intergrated

DDR3 4 GB memory onboard

10.4" SVGA, 1000 nits

2 x RS-232/422/485 with isolated 1.5KV (M12, A-coded)

2 x RJ-45 for Gigabit LAN with isolated 1.5KV (M12, X-coded)

2 x USB 2.0 (M12, A-coded)

1 x DC for power input with isolated 1.5KV (M12, A-coded)

1 x Audio: Line out, Line in, speaker out (D-sub)

1 x DIO (6 input/2 output) with isolated 1.5KV (D-sub)

1 x CAN bus with isolated 1.5KV (D-sub)

16 GB flash onboard

1 x mSATA

2 x PCIe Mini Card

5-wire resistive type or glass with keyboard

Windows® 8.1, WE8S,

Windows® 7, WES7

16.8V to 30V DC or 77V to 137.5V DC

107.5W

255 levels, 1~255 sec.

Aluminum with rugged protection

310 x 65 x 216 mm

(12.20" x 2.56"x 8.50")

2.4 kg (5.29 lb)/5 kg (11.02 lb)

-25°C ~ +70°C (-13°F ~ +158°F)

Yes

EN50155 Railway

EN50121-3-2 Railway EMC

EN61373Railway Shock/Vibration

Fanless

Touch Panel

Computers

2

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

524

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

GOT3217W-881-PCT

21.5" Full HD TFT Fanless Multi-Touch

Panel Computer with LGA1150 Socket 4th

Generation Intel® Core™ i7/i5/i3, Pentium®

& Celeron® Processor (0°C ~ +40°C)

Features

21.5" Full HD projected capacitive multi-touch screen

Fanless design with LGA1150 socket 4th generation

Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor

(Haswell)

Supports 2.5” SATA HDD, CFast™ and mSATA

Supports WLAN module & antenna (optional)

Supports 2 Gigabit LAN, 2 USB 3.0, 2 USB 2.0 & 2 COM ports

IP65 flat front bezel and rugged design

Supports panel mount and optional VESA arm/desktop stand/

wall mount

Supports dual PCI Express Mini card slots

13

12

14

Rear view

1. Power Switch (ATX)

2. Power Input connector

3. Audio Line-out

4. Audio MIC-in

5. COM1/2 (RS-232/422/485)

1 2 4

3

5 6 7 8

9

6. HDMI output

7. Dual Gigabit LAN

8. 2 x USB 2.0

9. 2 x USB 3.0

10. CFast™ card slot

11. For 3 x antennas

12. LED Backlight Power On/off

13. Brightness +

14. Brightness -

10

11

Top view

CFast

CFast

TM

DualView Fanless USB 3.0

DDR3 AiRD

IP65

Introduction

The GOT3217W-881-PCT adopts a 21.5-inch TFT Full HD LCD and supports LGA1150 socket 4th generation Intel® Core™ and Celeron® processors. It can run Windows®

7, Windows® 7 Embedded, Windows® 8, Windows® 8 Embedded for a variety of applications. This industrial touch panel PC has abilities below to make it surely a robust and reliable solution.

High Performance Intel ® Core™-based Haswell Processor

The GOT3217W-881-PCT supports LGA1150 socket 4th generation Intel® Core™ and

Celeron® Haswell processors. Users can choose different processor upon request. It also supports up to 8 GB DDR3-1333/1600 MHz memory modules. Rich I/O includes dual PCIe mini card slots, 2.5” HDD drive bay, USB 3.0 port, RS-232/422/485 and HDMI interface.

Reliable and Stable Design

The GOT3217W-881-PCT is a fanless cooling panel system and a best control solution for industrial machinery market. For high capacity storage requirement, the Intel® Haswell panel PC can work under 1.0 G (10 ~ 500Hz, random for CFastTM card) in operation mode with a patent of anti-vibration design. The patent improves the system reliability and sustainability.

21.5-inch Full HD TFT LCD with Projected Capacitive Multi-touch

The IP65 widescreen panel PC supports 250 nits brightness and can display contents in

Full HD resolution. Its viewing angle is up to 178(H)/178(V) for wide angel viewing. With projected capacitive multi-touch screen, users can operate more directly and friendly.

525

Specifications

Front Bezel

LCD Panel

Main System

IP65 front bezel

Display Type 21.5" Full HD TFT LCD

Brightness (cd/m 2 ) 250 nits

Resolution

CPU

Chipset

System Memory

BIOS

Storage

1920 x 1080

LGA1150 socket 4th generation

Intel® Core™ i7/i5/i3, Pentium® &

Celeron® processor (Haswell)

Intel® H81

1 x 204-pin DDR3 1333/1600

SO-DIMM max. up to 8 GB

AMI UEFI BIOS

Watchdog Timer

Onboard

Graphics

1 x 2.5" SATA HDD

1 x CFast™ card and mSATA

255 levels, 0~255 sec.

Integrated Intel® HD Graphics

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector

Expansion Interface

Touchscreen

Power Supply

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

Certificate

2 x RS-232/422/485 (COM1/2)

1 x Switch for power on/off (ATX)

2 x Audio (Line out & MIC-in)

2 x USB 3.0

2 x USB 2.0

1 x HDMI

2 x 10/100/1000Mbps Ethernet

2 x PCIe Mini Card slots

Projected capacitive multi-touch

19VDC with adapter

547.6 mm (21.56") (W) x 89.0 mm (3.50") (D) x 339.0 mm

(13.35") (H)

720 mm (28.34") (W) x 210 mm (8.27") (D) x 550 mm (2.17") (H)

8.1 kg (18.75 lb) / 11.0 kg(24.25 lb)

Operating temperature: 0°C ~ +40°C (+32°F ~ +104°F)

Storage temperature: -20°C ~ +60°C (-4°F ~ +140°F)

Relative humidity: 20% ~ 90% @ 40°C; non-condensing

Operation vibration:

1.0G, 10 ~ 500Hz, random for CFast™ card

CE

Ordering Information

GOT3217W-881-PCT-NP 21.5" FHD TFT fanless touch panel computer support

LGA1150 socket Intel® 4th generation Core™ i7/i5/i3,

Pentium® & Celeron® processor, projected capacitive multi-touch screen and AC-DC 19V power adapter (Power

DIN 4P connector)

Optional EOS Installation

WE8S

WES 7

Optional OS Installation

Windows® 8.1

Windows® 7

Dimensions

Overview

Fanless

Touch Panel

Computers

2

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

526

GOT3187W-881-PCT

18.5" WXGA TFT Fanless Multi-Touch

Panel Computer with LGA1150 Socket 4th

Generation Intel® Core™ i7/i5/i3, Celeron®

& Pentium® Processor (0°C ~ +40°C)

Features

18.5-inch WXGA projected capacitive multi-touch screen

Fanless design with LGA1150 socket 4th generation

Intel® Core™ i7/i5/i3 & Celeron® processor (Haswell)

Supports 2.5” SATA HDD, CFast™ and mSATA

Supports WLAN module & antenna (optional)

Supports 2 Gigabit LAN, 2 USB 3.0, 2 USB 2.0 & 2 COM ports

IP65 front bezel and rugged design

Supports panel mount and optional VESA arm/desktop stand/

wall mount

Supports dual PCI Express Mini card slots

13

12

14

Rear view

1. Power Switch (ATX)

2. Power Input connector

3. Audio Line-out

4. Audio MIC-in

5. COM1/2 (RS-232/422/485)

1 2 4

3

5 6 7 8

9

6. HDMI output

7. Dual Gigabit LAN

8. 2 x USB 2.0

9. 2 x USB 3.0

10. CFast™ card slot

11. For 3 x antennas

12. LED Backlight Power On/off

13. Brightness +

14. Brightness -

CFast

CFast

TM DualView

Fanless USB 3.0

DDR3 AiRD

IP65

Introduction

The GOT3187W-881-PCT adopts an 18.5-inch WXGA LCD and supports LGA1150 socket

4th generation Intel® Core™, Pentium® and Celeron® processors. It can run Windows®

7, Windows® 7 Embedded, Windows® 8, Windows® 8 Embedded for a variety of applications. This industrial touch panel PC has abilities below to make it surely a robust and reliable solution.

High Performance Intel® Core™-based Haswell Processor

The GOT3187W-881-PCT supports LGA1150 socket 4th generation Intel® Core™ and

Celeron® Haswell processors. Users can choose different processor upon request. It also supports up to 8 GB DDR3-1333/1600 MHz memory modules. Rich I/O includes dual PCIe mini card slots, 2.5” HDD drive bay, USB 3.0 port, RS-232/422/485 and HDMI interface.

Reliable and Stable Design

The GOT3187W-881-PCT is a fanless cooling panel system and a best control solution for industrial machinery market. For high capacity storage requirement, the Intel® Haswell panel PC can work under 1.0 G (10 ~ 500Hz, random for CFastTM card) in operation mode with a patent of anti-vibration design. The patent improves the system reliability and sustainability.

18.5-inch WXGA LCD with Projected Capacitive Multi-touch

The 18.5” WXGA IP65 touch panel PC supports 300 nits brightness and can display contents in HD resolution. With projected capacitive multi-touch screen, users can operate more directly and friendly. The hardness of touch glass surface is up to 7h and is better for anti-scratch purpose.

527

10

11

Top view

Specifications

Front Bezel

LCD Panel

Main System

IP65 front bezel

Display Type 18.5" WXGA TFT LCD

Brightness (cd/m 2 ) 300 nits

Resolution

CPU

Chipset

System Memory

1366 x 768

LGA1150 socket 4th generation

Intel® Core™ i7/i5/i3, Pentium® &

Celeron® processor (Haswell)

Intel® H81

BIOS

Storage

Watchdog Timer

Onboard

Graphics

1 x 204-pin DDR3-1333/1600

SO-DIMM max. up to 8 GB

AMI UEFI BIOS

1 x 2.5" SATA HDD

1 x CFast™ card and mSATA

255 levels, 0~255 sec.

Integrated Intel® HD Graphics

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector

Expansion Interface

Touchscreen

Power Supply

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

Certificate

2 x RS-232/422/485 (COM1/2)

1 x Switch for power on/off (ATX)

2 x Audio (Line out & MIC-in)

2 x USB 3.0

2 x USB 2.0

1 x HDMI

2 x 10/100/1000Mbps Ethernet

2 x PCIe Mini Card slot

Projected capacitive multi-touch

19VDC with adapter

460 mm (18.1") (W) x 89.5 mm (3.5") (D) x 285 mm (11.2") (H)

600 mm (23.58") (W) x 195 mm (7.67") (D) x 500 mm (19.68") (H)

6.3 kg (13.9 lb) /8.3 kg (18.29 lb)

Operating temperature: 0°C ~ +40°C (+32°F ~ +104°F)

Storage temperature: -20°C ~ +60°C (-4°F ~ +140°F)

Relative humidity: 20% ~ 90% @ 40°C; non-condensing

Operation vibration:

1.0G, 10 ~ 500Hz, random for CFast™ card

CE

Ordering Information

GOT3187W-881-PCT-NP 18.5" WXGA TFT fanless touch panel computer support

LGA1150 socket Intel® 4th generation Core™ i7/i5/i3,

Pentium® & Celeron® processor, projected capacitive multi-touch screen and AC-DC 19V power adapter (Power

DIN 4P connector)

Optional EOS Installation

WE8S

WES 7

Optional OS Installation

Windows® 8.1

Windows® 7

Dimensions

Ideal for factory automation & self-service kiosk in retail

Overview

Fanless

Touch Panel

Computers

2

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

528

GOT3187W-834-PCT

18.5" WXGA TFT Multi-Touch Panel

Computer with Intel® Celeron® Processor

J1900 (-10°C ~ +50°C)

Features

18.5” WXGA wide screen with modulized design

Multi-Touch 18.5” projected capacitive

Fanless design with Intel® Bay Trail-D Processor J1900

Supports 2.5” SATA HDD & CFast™ or mSATA

Supports 3G, WLAN module & antennas (optional)

Supports 2 Gigabit LAN, 2 USB 3.0, 2 USB 2.0 &

2 COM ports

IP65 aluminum front bezel

Supports panel mount and optional VESA arm/desktop stand/

wall mount

Supports wide temperature range of -10°C ~ +50°C

Adjust RS-232/422/485 setting via BIOS

Modulized design

1 2 3 4

1. Power switch

2. Terminal block for DC power input

3. USB 2.0 x 2

4. COM 1 (RS-232/422/485)

5. COM 2 (RS-232/422/485)

6. Ethernet x 2

5 6 7 8

7. USB 3.0 x 2

8. Audio(Line-out)

9. CFast™ slot

10. Backlight switch

11. Brightness adjustment

10

11

Fanless Low Power Ext. Temp DDR3 AiRD IP65

Introduction

The GOT3187W-834-PCT adopts an 18.5-inch WXGA LCD and supports Intel® Bay Trail-D processor. By supporting a wide range operating temperature from -10°C to +50°C, it can be used in harsh environment. The rugged industrial panel PC supports low power Intel®

Celeron® processor J1900. It also provides two PCIe mini card slots for 3G, wireless network connectivity. This 18.5” multi-touch panel computer is suitable for transportation, heavy-duty industry, smart factory automation, and oil pipe monitoring systems.

Wide Temperature Range Support

The Intel® Bay Trail-based GOT3187W-834-PCT applies unique extended temperature technology with wide temperature range support as we as fanless operation. It also has a compact design for harsh environment.

WALN Antenna Support (optional)

The 18.5” IP65 industrial panel PC, GOT3187W-834-PCT, provides two PCIe mini card slots and WLAN antennas for 3G and wireless network connectivity.

9

Rear view

Specifications

Front Bezel

LCD Panel

Main System

IP65 front bezel

Display Type

Brightness (cd/m 2 ) 300 nits

Resolution

CPU

18.5" WXGA TFT LCD

1366 x 768

Intel® Bay Trail-D Celeron® processor J1900 4C @2.0 GHz (up to

2.42 GHz)

Chipset

System Memory

BIOS

Storage

Watchdog Timer

Onboard

Graphics

SoC Intergrated

1 x 204-pin DDR3L-1333/1600

SO-DIMM SO-DIMM max. up to 8 GB

AMI UEFI BIOS

1 x 2.5" SATA HDD

1 x CFast™ or 1 x mSATA

255 levels, 0~255 sec.

Integrated Intel® HD Graphics

529

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector

Expansion Interface

Touchscreen

Power Supply

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

Certificate

2 x RS-232/422/485 (COM 1/2)

1 x Switch for power on/off (ATX)

1 x Audio (Line-out)

2 x USB 3.0, 2 x USB 2.0

2 x 10/100/1000Mbps Ethernet

1 x Full-size PCI Express Mini Card with mSATA

1 x Full-size PCI Express Mini Card with SIM slot

Projected capacitive multi-touch

1. DC version : 9~36VDC

2. AC version : 12VDC 60W adapter

460.8 mm (18.11") (W) x 58.5 mm (2.3") (D) x 285 mm (11.22") (H)

600 mm (23.58") (W) x 195 mm (7.67") (D) x 500 mm (19.68") (H)

5.8 kg (12.8 lb)/8.2 kg (18.1 lb)

Operating temperature: -10°C ~ +50°C (+14°F ~ +122°F)

Storage Temperature: -20°C ~ +60°C (-4°F ~ +140°F)

Relative humidity: 20% ~ 90% @ 40°C; non-condensing

Operation vibration:

2G, 10 ~ 500Hz, random for CFast™

CE

Dimensions

Ordering Information

GOT3187W-834-PCT-J 18.5" WXGA TFT fanless touch panel computer with

Intel® Celeron® J1900 2.0 GHz (up to 2.42 GHz) quad core processor, projected capacitive multi-touch screen and

AC-DC 12V power adapter (screw type connector)

GOT3187W-834-PCT-DC 18.5" WXGA TFT fanless touch panel computer with

Intel® Celeron® J1900 2.0 GHz (up to 2.42 GHz) quad core processor, projected capacitive multi-touch screen and

9~36VDC terminal block connector

Optional EOS Installation

WE8S

WES 7

Optional OS Installation

Windows® 8.1

Windows® 7

Overview

Fanless

Touch Panel

Computers

2

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Ideal for factory automation & self-service kiosk in retail

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

530

GOT3187W-832-PCT

18.5" WXGA TFT Fanless Multi-Touch Panel

Computer with Intel® Atom™ Processor

D2550 (-10°C ~ +50°C)

Features

18.5” WXGA wide screen with modulized design

Multi-Touch 18.5” projected capacitive

Fanless design with Intel® Atom™ processor D2550 1.86 GHz

Supports 2.5” SATA HDD & CompactFlash™ type II

Supports WLAN module & antenna (optional)

Supports 2 Gigabit LAN, 4 USB 2.0 & 2 COM ports

IP65 front bezel

Supports panel mount and optional VESA arm/desktop stand/

wall mount

Supports wide temperature range of -10°C ~ +50°C

Modulized design

1 2 3 4

1. Power switch

2. Terminal block for DC power input

3. USB 2.0 x 2

4. COM 1 (RS-232/422/485)

5. COM 2 (RS-232)

6. Ethernet x 2

5 6 7 8

7. USB 2.0 x 2

8. Audio(Line-out)

9. CF slot

10. Backlight switch

11. Brightness adjustment

10

11

9

Rear view

Fanless Low Power Ext. Temp DDR3 AiRD IP65

Introduction

The GOT3187W-832-PCT adopts an 18.5-inch WXGA LCD and supports Intel® Atom™, processor D2550 1.86 GHz Bay Trail SoC. By supporting a wide range operating temperature from -10°C to +50°C, it can be used in harsh environment. The 18.5” fanless human machine interface also provides one PCIe mini card slot for wireless network connectivity. The rugged fanless touch panel computer is suitable for transportation, heavy-duty industry, smart factory automation, and oil pipe monitoring systems.

Wide Temperature Range Support (-10°C to +50°C)

The Intel® AtomTM-based touch panel PC, GOT3187W-832-PCT, applies unique extended temperature technology with wide temperature range support as we as fanless operation. It also has a compact design for harsh environment.

WALN Antenna Support (optional)

The 18.5” WXGA industrial panel PC GOT3187W-832-PCT provides one PCIe mini card slot and WLAN antennas for wireless network connectivity.

Specifications

Front Bezel

LCD Panel

Main System

IP65 front bezel

Display Type 18.5" WXGA TFT LCD

Brightness (cd/m 2 ) 300 nits

Resolution

CPU

Chipset

System Memory

BIOS

Storage

1366 x 768

Intel® Atom™ processor D2550

2C @1.86 GHz

Intel® NM10

1 x 204-pin DDR3 max. up to 4 GB

AMI UEFI BIOS

Watchdog Timer

Onboard

Graphics

1 x 2.5" SATA HDD

1 x CompactFlash™

255 levels, 0~255 sec.

Integrated Intel® GFX

531

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector

Expansion Interface

Touchscreen

Power Supply

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

Certificate

1 x RS-232 (COM 1)

1 x RS-232/422/485 (COM 2)

1 x Switch for power on/off (ATX)

1 x Audio (Line-out)

4 x USB 2.0

2 x 10/100/1000Mbps Ethernet

1 x PCIe Mini Card slot

Projected capacitive multi-touch

10-30VDC

460.8 mm (18.11") (W) x 58.5 mm (2.3") (D) x 285 mm (11.22") (H)

600 mm (23.58") (W) x 195 mm (7.67") (D) x 500 mm (19.68") (H)

5.8 kg (12.8 lb)/8.2 kg (18.1 lb)

Operating temperature: -10°C ~ +50°C (+14°F ~ +122°F)

Storage Temperature: -20°C ~ +60°C (-4°F ~ +140°F)

Relative humidity: 20% ~ 90% @ 40°C; non-condensing

Operation vibration:

2G, 10 ~ 500Hz, random for CompactFlash™

CE

Dimensions

Ordering Information

GOT3187W-832-PCT-DC 18.5" WXGA TFT fanless touch panel computer with Intel®

Atom™ D2550 1.86 GHz dual core processor, projected capacitive multi-touch screen and 10~30VDC terminal block connector

Optional EOS Installation

WES (single-touch function)

WES 7E (32-bit, single-touch function)

WES 7P (32-bit, multi-touch function)

Optional OS Installation

Windows® XP (single-touch function)

Windows® 7 (32-bit, multi-touch function)

Overview

Fanless

Touch Panel

Computers

2

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Ideal for factory automation & self-service kiosk in retail

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

532

GOT3187W-111-PCT

18.5" WXGA TFT Fanless Multi-Touch Panel

Computer with AMD G Series Processor

T56N (-10°C ~ +45°C)

Features

18.5” WXGA wide screen with modulized design

Multi-Touch 18.5” projected capacitive

Fanless design with AMD G-series processor T56N 1.65 GHz

Supports 2.5” SATA HDD & CompactFlash™ type II

Supports WLAN module & antenna (optional)

Supports 2 Gigabit LAN, 4 USB 2.0 & 2 COM ports

IP65 front bezel

Supports panel mount and optional VESA arm/desktop stand/

wall mount

Supports wide temperature range of -10°C ~ +45°C

2 3

8

Modulized design

1

4

5 6 7

1. Power switch

2. Terminal block for DC power input or

3. Screw conn. w/ AC power adapter

4. Audio (Line-out)

5. USB 2.0 x 2

6. COM 2 (RS-232)

11

9 10

6. COM 1 (RS-232/422/485)

8. USB 2.0 x 2

9. Ethernet x 2

10. VGA

11 CF slot

12. Backlight switch

13. Brightness adjustment

12

13

Rear view

Fanless Low Power Ext. Temp DDR3 AiRD IP65

Introduction

The GOT3187W-111-PCT adopts an 18.5-inch WXGA LCD and supports AMD G-series processor 56N 1.65 GHz. By supporting a wide range operating temperature from -10°C to +45°C, it can be used in harsh environment. The fanless HMI can work under 2.0 G (10

~ 500Hz, random for CompactFlashTM) in operation mode with a patent of anti-vibration design. It also provides one PCIe mini card slot for 3G, wireless network connectivity. The

18.5” fanless touch panel computer is suitable for transportation, heavy-duty industry, smart factory automation, and oil pipe monitoring systems.

Wide Temperature Range Support (-10°C to +45°C)

The AMD G-series high performance GOT3187W-111-PCT applies unique extended temperature technology with wide temperature range support as we as fanless operation.

It also has a compact design for harsh environment.

18.5-inch WXGA LCD with Projected Capacitive Multi-touch

The 18.5” WXGA touch panel PC supports 300 nits brightness and can display contents in HD resolution. With projected capacitive multi-touch screen, users can operate more directly and friendly. The hardness of touch glass surface is up to 7h and is better for anti-scratch purpose.

WALN Antenna Support (optional)

The 18.5” IP65 fanless industrial panel computer, GOT3187W-111-PCT, provides one PCIe mini card slot and WLAN/3G antennas for wireless network connectivity.

533

Specifications

Front Bezel

LCD Panel

Main System

IP65 front bezel

Display Type 18.5" WXGA TFT LCD

Brightness (cd/m 2 ) 300 nits

Resolution

CPU

Chipset

System Memory

BIOS

Storage

1366 x 768

AMD G-series processor T56N

2C @1.65 GHz

AMD A50M FCH

1 x 204-pin DDR3-1333/1600

SO-DIMM max. up to 4 GB

AMI UEFI BIOS

Watchdog Timer

Onboard

Graphics

1 x 2.5" SATA HDD

1 x CompactFlash™

255 levels, 0~255 sec.

Integrated AMD GFX-Radeon HD6320

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector

Expansion Interface

Touchscreen

Power Supply

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

Certificate

1 x RS-232 (COM 1)

1 x RS-232/422/485 (COM 2)

1 x Switch for power on/off (ATX)

1 x Audio (Line-out)

1 x VGA

4 x USB 2.0

2 x 10/100/1000Mbps Ethernet

1 x PCIe Mini Card slot

Projected capacitive multi-touch

1. DC version : 10~30VDC

2. AC version : 12VDC 60W adapter

460.8 mm (18.11") (W) x 58.5 mm (2.3") (D) x 285 mm (11.22") (H)

600 mm (23.58") (W) x 19.5 mm (7.67") (D) x 500 mm (19.68") (H)

5.8 kg (12.8 lb)/7.8 kg (17.2 lb)

Operating temperature: -10°C ~ +45°C (+14°F ~ +113°F)

Storage Temperature: -20°C ~ +60°C (-4°F ~ +140°F)

Relative humidity: 20% ~ 90% @ 40°C; non-condensing

Operation vibration:

2G, 10 ~ 500Hz, random for CompactFlash™

CE

Dimensions

Ordering Information

GOT3187W-111-PCT-DC 18.5" WXGA TFT fanless touch panel computer with AMD

T56N dual core processor, projected capacitive multi-touch screen and 10~30VDC terminal block connector

GOT3187W-111-PCT-J 18.5" WXGA TFT fanless touch panel computer with AMD

T56N dual core processor, projected capacitive multi-touch screen and AC-DC 12V power adapter (screw type connector)

Optional EOS Installation

WES (single-touch function)

WES 7E (32-bit, single-touch function)

WES 7P (32-bit, multi-touch function)

Optional OS Installation

Windows® XP (single-touch function)

Windows® 7 (32-bit, multi-touch function)

Overview

Fanless

Touch Panel

Computers

2

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Ideal for factory automation & self-service kiosk in retail

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

534

GOT3177T-891

17" SXGA TFT Flat Front Bezel Resistive

Touch Panel Computer with LGA1151socket

6th Generation Intel® Core™ i7/i5/i3,

Pentium® & Celeron® processor

(0°C ~ +40°C)

NEW

Features

17" SXGA TFT flat front bezel resistive touch

Fanless design with LGA1151 socket 6th generation Intel®

Core™ i7/i5/i3, Pentium® & Celeron® processor

(0°C ~ +40°C)

Supports 2.5” SATA HDD, CFast™ and mSATA

Supports WLAN module & antenna (optional)

Supports 2 Gigabit LAN, 4 USB 3.0 & 2 COM ports

IP65 front bezel and rugged design

Supports panel mount and optional VESA arm/desktop stand/

wall mount

Supports dual PCI Express Mini card slots

DualView Fanless USB 3.0

DDR4 AiRD

IP65

Introduction

The GOT3177T-891-PCT adopts a 17-inch TFT SXGA LCD and supports LGA1151 socket 6th generation Intel® Core™ and Celeron® processors. It can run Windows® 7, Windows®

7 Embedded, Windows® 8, Windows® 8 Embedded & Windows 10 for a variety of applications. This industrial touch panel PC has abilities below to make it surely a robust and reliable solution.

High Performance Intel® Core™-based Haswell Processor

The GOT3177W-891-PCT supports LGA1151 socket 6th generation Intel® Core™,

Pentium® and Celeron® processors. Users can choose different processor upon request.

It also supports up to 8 GB DDR4-2166 MHz SO-DIMM memory modules up to 32GB. Rich

I/O includes dual PCIe mini card slots, 2.5” HDD drive bay, USB 3.0 port, RS-232/422/485 and HDMI interface.

Reliable and Stable Design

The GOT3177W-891-PCT is a fanless cooling panel system and a best control solution for industrial machinery market. For high capacity storage requirement, the Intel® Skylake-S panel PC can work under 1.0 G (10 ~ 500Hz, random for CFast™ card) in operation mode with a patent of anti-vibration design. The patent improves the system reliability and sustainability.

17-inch Full SXGA TFT LCD with Projected Capacitive Multi-touch

The IP65 widescreen panel PC supports 350 nits brightness and can display contents in

SXGA resolution. Its viewing angle is up to 178(H)/178(V) for wide angel viewing. With projected capacitive multi-touch screen, users can operate more directly and friendly.

Specifications

Front Bezel

LCD Panel

Main System

IP65 front bezel

Display Type 17" SXGA TFT LCD

Brightness (cd/m

2

) 350 nits

Resolution 1280 x 1024

CPU LGA1151 socket 6th generation

Intel® Core™ i7/i5/i3, Pentium® &

Celeron® processor (Skylake-S)

Chipset

System Memory

BIOS

Storage

Intel® Q170

2 x 260-pin DDR4-2166 SO-DIMM up to 32 GB

AMI UEFI BIOS

Watchdog Timer

Onboard

Graphics

1 x 2.5" SATA HDD

1 x mSATA

255 levels, 0~255 sec.

Integrated Intel® HD Graphics

535

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector

Expansion Interface

Touchscreen

Power Supply

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

Certificate

2 x RS-232/422/485 (default RS-232)

1 x Audio (Line-out)

4 x USB 3.0

2 x 10/100/1000Mbps Ethernet

1 x HDMI

1 x PCIe Mini Card slot (with SIM slot, full size)

1 x PCIe Mini Card slot (supports mSATA optional, full size)

Flat resisitve touch

TBD

TBD

TBD

TBD

Operating temperature: 0°C ~ +40°C (+32°F ~ +104°F)

Storage temperature: -20°C ~ +60°C (-4°F ~ +140°F)

Relative humidity: 20% ~ 90% @ 40°C; non-condensing

Operation vibration:

1.0 G, 10 ~ 500Hz, random for CFast™ card

CE

Ordering Information

GOT3177T-891-PCT-NP 17" SXGA TFT fanless touch panel computer support

LGA1151 socket Intel® 6th generation Core™ i7/i5/i3,

Pentium® & Celeron® processor, projected capactive multi-touch screen and 9~36VDC terminal block connector

Optional EOS Installation

WE8S

WES7

Optional OS Installation

Windows® 10

Windows® 8.1

Overview

Fanless

Touch Panel

Computers

2

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

536

GOT3177T-834

17" SXGA TFT Flat Front Bezel Touch Panel

Computer with Intel® Celeron® Processor

J1900 (-10°C ~ +50°C)

Features

17" SXGA TFT flat resistive touch with modulized design

Fanless design with Intel® Bay Trail-D Celeron® processor

J1900 (up to 2.42 GHz)

Supports 2.5” SATA HDD & CFast™ or mSATA

Supports WLAN/3G module & antenna (optional)

Supports 2 Gigabit LAN, 2 USB 2.0, 2 USB 3.0 and 2 COM

ports

IP65 front bezel

Supports panel mount and optional VESA arm/desktop stand/

wall mount

Supports wide temperature range of -10°C ~ +50°C

2 3

7 9

Modulized design

1 4 5 6 8

1. Power switch

2. Terminal block for DC power input or

3. Screw conn. w/ AC power adapter

4. USB 2.0 x 2

5. COM 1 (RS-232/422/485)

6. COM 2 (RS-232/422/485)

7. Ethernet x 2

8. USB 3.0 x 2

9. Audio (Line-out)

10. CFast™ slot

11. Backlight switch

12. Brightness adjustment

11

12

Fanless Low Power Ext. Temp DDR3 AiRD IP65

Introduction

The GOT3177T-834 adopts a 17-inch SXGA LCD and supports Intel® Bay Trail-D processor. By supporting a wide range operating temperature from -10°C to +50°C, it can be used in harsh environment. The rugged industrial panel PC supports low power

Intel® Celeron® processor J1900. It also provides two PCIe mini card slots for 3G, wireless network connectivity. The 17” flat front bezel touch panel computer is suitable for transportation, heavy-duty industry, smart factory automation, and oil pipe monitoring systems.

Wide Temperature Range Support

The Intel® Bay Trail-based GOT3177T-834 applies unique extended temperature technology with wide temperature range support as we as fanless operation. It also has a compact design for harsh environment.

WALN Antenna Support (optional)

The 17” SXGA IP65 industrial panel PC, GOT3177T-834, provides two PCIe mini card slots and WLAN/3G antennas for wireless network connectivity.

10

Rear view

Specifications

Front Bezel

LCD Panel

Main System

IP65 front bezel

Display Type

Brightness (cd/m 2 ) 350 nits

Resolution

CPU

17" SXGA TFT LCD

1280 x 1024

Intel® Bay Trail-D Celeron® processor J1900 4C @2.0 GHz (up to

2.42 GHz)

Chipset

System Memory

BIOS

Storage

Watchdog Timer

Onboard

Graphics

SoC Intergrated

1 x 204-pin DDR3L-1333/1600

SO-DIMM up to 8 GB

AMI UEFI BIOS

1 x 2.5" SATA HDD

1 x CFast™ or 1 x mSATA

255 levels, 0 ~ 255 sec.

Integrated Intel® HD Graphics

537

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector

Expansion Interface

Touchscreen

Power Supply

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

Certificate

2 x RS-232/422/485 (default RS-232)

1 x Audio (Line-out)

2 x USB 2.0

2 x USB 3.0

2 x 10/100/1000Mbps Ethernet (Intel® i210IT)

1 x PCIe Mini Card slot (with SIM slot, full size)

1 x PCIe Mini Card slot (supports mSATA optional, full size)

Flat resisitve touch

1. DC version : 9~36VDC

2. AC version : 12VDC w/adapter

398.02 mm (15.64") (W) x 59.9 mm (2.36") (D) x 330.44 mm

(13.01") (H)

510 mm (20.08") (W) x 190 mm (7.48") (D) x 540 mm (21.26") (H)

4.8 kg (10.6 lb)/7.1 kg (15.67 lb)

Operating temperature: -10°C ~ +50°C (+14°F ~ +122°F)

Storage Temperature: -20°C ~ +60°C (-4°F ~ +140°F)

Relative humidity: 20% ~ 90% @ 40°C; non-condensing

Operation vibration:

2G, 10 ~ 500Hz, random for CFast™

CE

Ordering Information

GOT3177T-834-FR-DC

GOT3177T-834-FR-J

17" SXGA TFT fanless touch panel computer with Intel®

Celeron® J1900 2.0 GHz (up to 2.42 GHz) quad core processor, 5-wire flat resistive touch screen and 9~36VDC terminal block connector

17" SXGA TFT fanless touch panel computer with Intel®

Celeron® J1900 2.0 GHz (up to 2.42 GHz) quad core processor, 5-wire flat resistive touch screen and AC-DC 12V power adapter (screw type connector)

Optional EOS Installation

WES 7

WE8S

Optional OS Installation

Windows® 8.1

Windows® 7

Overview

Fanless

Touch Panel

Computers

2

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Dimensions

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

538

GOT3157W-881-PCT

15.6" WXGA TFT Fanless Multi-Touch

Panel Computer with LGA1150 Socket

4th Generation Intel® Core™ i7/i5/i3 &

Celeron® Processor (0°C ~ +40°C)

NEW

Features

15.6-inch WXGA projected capacitive multi-touch screen

Fanless design with LGA1150 socket 4th generation

Intel® Core™ i7/i5/i3 & Celeron® processor (Haswell)

Supports 2.5” SATA HDD, CFast™ and mSATA

Supports WLAN module & antenna (optional)

Supports 2 Gigabit LAN, 2 USB 3.0, 2 USB 2.0 & 2 COM ports

IP65 front bezel and rugged design

Supports panel mount and optional VESA arm/desktop stand/

wall mount

Supports dual PCI Express Mini card slots

13

12

14

Rear view

1. Power Switch (ATX)

2. Power Input connector

3. Audio Line-out

4. Audio MIC-in

5. COM1/2 (RS-232/422/485)

1 2 4

3

5 6 7 8

9

6. HDMI output

7. Dual Gigabit LAN

8. 2 x USB 2.0

9. 2 x USB 3.0

10. CFast™ card slot

11. For 3 x antennas

12. LED Backlight Power On/off

13. Brightness +

14. Brightness -

CFast

CFast

TM DualView

Fanless USB 3.0

DDR3 AiRD

IP65

Introduction

The GOT3157W-881-PCT adopts a 15.6-inch WXGA LCD and support LGA1150 socket 4th generation Intel® Core™, Pentium® and Celeron® processors. It can run Windows®

7, Windows® 7 Embedded, Windows® 8, Windows® 8 Embedded for a variety of applications. This 15.6” WXGA industrial touch panel PC has abilities below to make it surely a robust and reliable solution.

High Performance Intel® Core™-based Haswell Processor

The GOT3157W-881-PCT supports LGA1150 socket 4th generation Intel® Core™ and

Celeron® Haswell processors. Users can choose different processor upon request. It also supports up to 8 GB DDR3-1333/1600 MHz memory modules. Rich I/O includes dual PCIe mini card slots, 2.5” HDD drive bay, USB 3.0 port, RS-232/422/485 and HDMI interface.

Reliable and Stable Design

The GOT3157W-881-PCT is a fanless cooling panel system and a best control solution for industrial machinery market. For high capacity storage requirement, the Intel® Haswell panel PC can work under 1.0 G (10 ~ 500Hz, random for CFastTM card) in operation mode with a patent of anti-vibration design. The patent improves the system reliability and sustainability.

15.6-inch WXGA LCD with Projected Capacitive Multi-touch

The 15.6” WXGA Intel® Haswell-based touch panel PC supports 400 nits high brightness and can display contents in HD resolution. With projected capacitive multi-touch screen, users can operate more directly and friendly. The hardness of touch glass surface is up to

7h and is better for anti-scratch purpose.

539

10

11

Top view

Specifications

Front Bezel

LCD Panel

Main System

IP65 front bezel

Display Type 15.6" WXGA TFT LCD

Brightness (cd/m 2 ) 400 nits

Resolution

CPU

Chipset

System Memory

1366 x 768

LGA1150 socket 4th generation

Intel® Core™ i7/i5/i3 & Celeron® processor (Haswell)

Intel® H81

BIOS

Storage

Watchdog Timer

Onboard

Graphics

1 x 204-pin DDR3-1333/1600

SO-DIMM max. up to 8 GB

AMI UEFI BIOS

1 x 2.5" SATA HDD

1 x CFast™ card and mSATA

255 levels, 0~255 sec.

Integrated Intel® HD Graphics

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector

Expansion Interface

Touchscreen

Power Supply

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

Certificate

2 x RS-3232/422/485 (COM1/2)

1 x Switch for power on/off (ATX)

2 x Audio (Line out & MIC-in)

2 x USB 3.0, 2 x USB 2.0

1 x HDMI

2 x 10/100/1000Mbps Ethernet

2 x PCIe Mini Card slot

Projected capacitive multi-touch

19VDC with adapter

396.8 mm (15.6") (W) x 89.5 mm (3.5") (D) x 247.1 mm (9.73") (H)

525 mm (20.67") (W) x 186 mm (7.32") (D) x 470 mm (18.51") (H)

5.5 kg (12.13 lb) / 7.5 kg (16.53 lb)

Operating temperature: 0°C ~ +40°C (+32°F ~ +104°F)

Storage temperature: -20°C ~ +60°C (-4°F ~ +140°F)

Relative humidity: 20% ~ 90% @ 40°C; non-condensing

Operation vibration:

1.0G, 10 ~ 500Hz, random for CFast™ card

CE

Ordering Information

GOT3157W-881-PCT-NP 15.6" WXGA TFT fanless touch panel computer support

LGA1150 socket Intel® 4th generation Core™ i7/i5/i3,

Pentium® & Celeron® processor, projected capacitive multi-touch screen and AC-DC 19V power adapter (Power

DIN 4P connector)

Optional EOS Installation

WE8S

WES 7

Optional OS Installation

Windows® 8.1

Windows® 7

Dimensions

Ideal for factory automation & self-service kiosk in retail

Overview

Fanless

Touch Panel

Computers

2

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

540

GOT3157W-834-PCT

15.6" WXGA TFT Fanless Multi-Touch Panel

Computer with Intel® Celeron® Processor

J1900 (-10°C ~ +50°C)

Features

15.6" WXGA TFT with projected capacitive multi-touch

Fanless design with Intel® Celeron® processor J1900

[email protected] GHz (Bay Trail)

Supports 2.5” SATA HDD & CFast™ or mSATA

Supports WLAN/3G module & antenna (optional)

Supports 2 Gigabit LAN, 2 USB 2.0, 2 USB 3.0 and 2 COM

ports

IP65 front bezel

Supports panel mount and optional VESA arm/desktop

stand/wall mount

Supports wide temperature range of -10°C ~ +50°C

Adjust RS-232/422/485 setting via BIOS

Modulized design

1 2 3 4 5 6 7 8

1. Power switch

2. Terminal block for DC porwer input

3. USB 2.0 x 2

4. COM 1 (RS-232/422/485)

5. COM 2 (RS-232/422/485)

6. Ethernet x 2

7. USB 3.0 x 2

8. Audio(Line-out)

9. CFast™ slot

10. Backlight switch

11. Brightness adjustment

10

11

Fanless Low Power Ext. Temp DDR3 AiRD IP65

Introduction

The GOT3157W-834-PCT adopts a 15.6-inch WXGA LCD and supports Intel® Bay Trail-D processor. By supporting a wide range operating temperature from -10°C to +50°C, it can be used in harsh environment. The rugged industrial panel PC supports low power Intel®

Celeron® processor J1900. It also provides two PCIe mini card slots for 3G, wireless network connectivity. This 15.6” multi-touch panel computer is suitable for transportation, heavy-duty industry, smart factory automation, and oil pipe monitoring systems.

Wide Temperature Range Support

The Intel® Bay Trail-based GOT3157W-834-PCT applies unique extended temperature technology with wide temperature range support as we as fanless operation. It also has a compact design for harsh environment.

WALN Antenna Support (optional)

The 15.6” WXGA IP65 industrial panel PC, GOT3157W-834-PCT, provides two PCIe mini card slots and WLAN antennas for 3G and wireless network connectivity.

9

Rear view

Specifications

Front Bezel

LCD Panel

Main System

IP65 front bezel

Display Type

Brightness (cd/m 2 ) 400 nits

Resolution

CPU

15.6" WXGA TFT LCD

1366 x 768

Intel® Bay Trail-D Celeron® processor J1900 [email protected] 2.0 GHz (up to

2.42 GHz)

Chipset

System Memory

BIOS

Storage

Watchdog Timer

Onboard

Graphics

SoC Intergrated

1 x 204-pin DDR3L-1333/1600

SO-DIMM up to 8 GB

AMI UEFI BIOS

1 x 2.5" SATA HDD

1 x CFast™ or 1 x mSATA

255 levels, 0~255 sec.

Integrated Intel® HD Graphics

541

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector

Expansion Interface

Touchscreen

Power Supply

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

Certificate

2 x RS-232/422/485 (COM 1/2)

1 x Switch for power on/off (ATX)

1 x Audio (Line-out)

2 x USB 3.0, 2 x USB 2.0

2 x 10/100/1000Mbps Ethernet

2 x PCIe Mini Card slots

Projected Capacitive multi-touch

1. DC version : 9~36VDC

2. AC version : 12VDC w/adapter

396 mm (15.6") (W) x 53.9 mm (2.12") (D) x 247.1 mm (9.73") (H)

525 mm (20.67") (W) x 470 mm (18.51") (D) x 186 mm (7.32") (H)

5.0 kg (11.02 lb)/7.0 kg (15.43 lb)

Operating temperature: -10°C ~ +50°C (+14°F ~ +122°F)

Storage Temperature: -20°C ~ +60°C (-4°F ~ +140°F)

Relative humidity: 20% ~ 90% @ 40°C; non-condensing

Operation vibration:

2G, 10 ~ 500Hz, random for CompactFlash™

CE

Ordering Information

GOT3157W-834-PCT-J 15.6" WXGA TFT fanless touch panel computer with

Intel® Celeron® J1900 2.0 GHz (up to 2.42 GHz) quad core processor, projected capacitive multi-touch screen and

AC-DC 12V power adapter (screw type connector)

GOT3157W-834-PCT-DC 15.6" WXGA TFT fanless touch panel computer with

Intel® Celeron® J1900 2.0 GHz (up to 2.42 GHz) quad core processor, projected capacitive multi-touch screen and

9~36VDC terminal block connector

Optional EOS Installation

WES7

WE8S

Optional OS Installation

Windows® 8.1

Windows® 7

Overview

Fanless

Touch Panel

Computers

2

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Dimensions

Ideal for factory automation & self-service kiosk in retail

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

542

GOT3157W-832-PCT

15.6" WXGA TFT Fanless Multi-Touch Panel

Computer with Intel® Atom™ Processor

D2550 (-10°C ~ +50°C)

Features

15.6” WXGA wide screen with modulized design

Multi-Touch 15.6” projected capacitive

Fanless design with Intel® Atom™ processor D2550 1.86 GHz

Supports 2.5” SATA HDD & CompactFlash™ type II

Supports WLAN module & antenna (optional)

Supports 2 Gigabit LAN, 4 USB 2.0 & 2 COM ports

IP65 front bezel

Supports panel mount and optional VESA arm/desktop stand/

wall mount

Supports wide temperature range of -10°C ~ +50°C

Modulized design

1 2 3 4 5 6 7 8

1. Power switch

2. Terminal block for DC porwer input

3. USB 2.0 x 2

4. COM 1 (RS-232)

5. COM 2 (RS-232/422/485)

6. Ethernet x 2

7. USB 2.0 x 2

8. Audio(Line-out)

9. CF slot

10. Backlight switch

11. Brightness adjustment

10

11

9

Rear view

Fanless Low Power Ext. Temp DDR3 AiRD IP65

Introduction

The GOT3157W-832-PCT adopts a 15.6-inch WXGA LCD and supports Intel® Atom™, processor D2550 1.86 GHz Bay Trail SoC. By supporting a wide range operating temperature from -10°C to +50°C, it can be used in harsh environment. The 15.6” fanless human machine interface also provides one PCIe mini card slot for wireless network connectivity. The rugged fanless touch panel computer is suitable for transportation, heavy-duty industry, smart factory automation, and oil pipe monitoring systems.

Wide Temperature Range Support (-10°C to +50°C)

The Intel® AtomTM-based touch panel PC, GOT3157W-832-PCT, applies unique extended temperature technology with wide temperature range support as we as fanless operation. It also has a compact design for harsh environment.

WALN Antenna Support (optional)

The 15.6” WXGA IP65 industrial panel PC, GOT3157W-832-PCT, provides one PCIe mini card slot and WLAN antennas for wireless network connectivity.

Specifications

Front Bezel

LCD Panel

Main System

IP65 front bezel

Display Type 15.6" WXGA TFF LCD

Brightness (cd/m 2 ) 400 nits

Resolution

CPU

Chipset

System Memory

BIOS

Storage

1366 x 768

Intel® Atom™ processor D2550

2C @1.86 GHz

Intel® NM10

1 x 204-pin DDR3-800/1066

SO-DIMM max. up to 4 GB

AMI UEFI BIOS

Watchdog Timer

Onboard

Graphics

1 x 2.5" SATA HDD

1 x CompactFlash™

255 levels, 0~255 sec.

Integrated Intel® GFX

543

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector

Expansion Interface

Touchscreen

Power Supply

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

Certificate

1 x RS-232 (COM 1)

1 x RS-232/422/485 (COM 2)

1 x Switch for power on/off (ATX)

1 x Audio (Line-out)

4 x USB 2.0

2 x 10/100/1000Mbps Ethernet

1 x PCIe Mini Card slot

Projected capacitive multi-touch

10-30VDC

396 mm (15.6") (W) x 53.9 mm (2.12") (D) x 247.1 mm (9.73") (H)

525 mm (20.67") (W) x 186 mm (7.32") (D) x 470 mm (18.51") (H)

5.0 kg (11.02 lb)/7.0 kg (15.43 lb)

Operating temperature: -10°C ~ +50°C (+14°F ~ +122°F)

Storage Temperature: -20°C ~ +60°C (-4°F ~ +140°F)

Relative humidity: 20% ~ 90% @ 40°C; non-condensing

Operation vibration:

2G, 10 ~ 500Hz, random for CompactFlash™

CE

Ordering Information

GOT3157W-832-PCT-DC 15.6" WXGA TFT fanless touch panel computer with Intel®

Atom™ D2550 1.86 GHz dual core processor, projected capacitive multi-touch screen and 10~30VDC terminal block connector

Optional EOS Installation

WES (single-touch function)

WES 7E (32-bit, single-touch function)

WES 7P (32-bit, multi-touch function)

Optional OS Installation

Windows® XP (single-touch function)

Windows® 7 (32-bit, multi-touch function)

Overview

Fanless

Touch Panel

Computers

2

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Dimensions

Ideal for factory automation & self-service kiosk in retail

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

544

GOT3157W-111-PCT

15.6" WXGA TFT Fanless Multi-Touch Panel

Computer with AMD G-series processor

T56N (-10°C ~ +45°C)

NEW

Features

15.6” WXGA wide screen with modulized design

Multi-Touch 15.6" projected capacitive

Fanless design with AMD G-series processor T56N 1.65 GHz

Supports 2.5” SATA HDD & CompactFlash™ type II

Supports WLAN module & antenna (optional)

Supports 2 Gigabit LAN, 4 USB 2.0, 1 VGA & 2 COM ports

IP65 front bezel

Supports panel mount and optional VESA arm/desktop stand/

wall mount

Supports wide temperature range of -10°C ~ +45°C

2 3

8

Modulized design

1

4

5 6 7

1. Power switch

2. Terminal block for DC power input or

3. Screw conn. w/ AC power adapter

4. Audio (Line-out)

5. USB 2.0 x 2

6. COM 2 (RS-232)

11 9 10

6. COM 1 (RS-232/422/485)

8. USB 2.0 x 2

9. Ethernet x 2

10. VGA

11 CF slot

12. Backlight switch

13. Brightness adjustment

12

13

Rear view

Fanless Low Power Ext. Temp DDR3 AiRD IP65

Introduction

The GOT3157W-111-PCT adopts a 15.6-inch WXGA LCD and supports AMD G-series processor 56N 1.65 GHz. By supporting a wide range operating temperature from -10°C to +45°C, it can be used in harsh environment. The fanless HMI can work under 2.0 G (10

~ 500Hz, random for CompactFlash™) in operation mode with a patent of anti-vibration design. It also provides one PCIe mini card slot for 3G, wireless network connectivity. The

15.6” fanless touch panel computer is suitable for transportation, heavy-duty industry, smart factory automation, and oil pipe monitoring systems.

Wide Temperature Range Support (-10°C to +45°C)

The AMD G-series high performance GOT3157W-111-PCT applies unique extended temperature technology with wide temperature range support as we as fanless operation.

It also has a compact design for harsh environment.

WALN Antenna Support (optional)

The 15.6” IP65 fanless industrial panel computer, GOT3157W-111-PCT, provides one PCIe mini card slot and WLAN/3G antennas for wireless network connectivity.

Specifications

Front Bezel

LCD Panel

Main System

IP65 front bezel

Display Type 15.6" WXGA TFT LCD

Brightness (cd/m 2 ) 400 nits

Resolution

CPU

Chipset

System Memory

BIOS

Storage

1366 x 768

AMD G-series processor T56N

2C @1.65 GHz

AMD A50M FCH

1 x 204-pin DDR3-1333/1600

SO-DIMM max. up to 4 GB

AMI UEFI BIOS

Watchdog Timer

Onboard

Graphics

1 x 2.5" SATA HDD

1 x CompactFlash™

255 levels, 0~255 sec.

Integrated AMD GFX-Radeon HD6320

545

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector

Expansion Interface

Touchscreen

Power Supply

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

Certificate

1 x RS-232 (COM 1)

1 x RS-232/422/485 (COM 2)

1 x Switch for power on/off (ATX)

1 x Audio (Line-out)

1 x VGA

4 x USB 2.0

2 x 10/100/1000Mbps Ethernet

1 x PCIe Mini Card slot

Capacitive multi-touch

1. DC version : 10~30VDC

2. AC version : 12VDC w/adapter

396 mm (15.6") (W) x 53.9 mm (2.12") (D) x 247.1 mm (9.73") (H)

525 mm (20.67") (W) x 470 mm (18.51") (D) x 186 mm (7.32") (H)

5.0 kg (11.02 lb)/7.0 kg (15.43 lb)

Operating temperature: -10°C ~ +45°C (+14°F ~ +113°F)

Storage Temperature: -20°C ~ +60°C (-4°F ~ +140°F)

Relative humidity: 20% ~ 90% @ 40°C; non-condensing

Operation vibration:

2G, 10 ~ 500Hz, random for CompactFlash™

CE

Dimensions

Ordering Information

GOT3157W-111-PCT-DC 15.6" WXGA TFT fanless touch panel computer with AMD

T56N dual core processor, projected capacitive multi-touch screen and 10~30VDC terminal block connector

GOT3157W-111-PCT-J 15.6" WXGA TFT fanless touch panel computer with AMD

T56N dual core processor, projected capacitive multi-touch screen and AC-DC 12V power adapter (screw type connector)

Optional EOS Installation

WES (single-touch function)

WES 7E (32-bit, single-touch function)

WES 7P (32-bit, multi-touch function)

Optional OS Installation

Windows® XP (single-touch function)

Windows® 7 (32-bit, multi-touch function)

Overview

Fanless

Touch Panel

Computers

2

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Ideal for factory automation & self-service kiosk in retail

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

546

GOT3156T-834

15" XGA TFT Fanless Touch Panel

Computer with Intel® Atom™ Processor

E3827 (-20°C ~ +55°C)

NEW

Features

15" XGA (1024 x 768) color TFT LCD display

Fanless cooling system with Intel® Atom™ processor E3827

(1.75 GHz) (Bay Trail)

Supports wide temperature range of -20°C ~ +55°C

Supports 2 Gigabit LAN, 2 USB 3.0, 2 USB 2.0 & 4 COM ports

Supports WLAN/3G module and antenna (optional)

Supports dual Express Mini card slots

9~36VDC wide voltage and over current protection

Supports panel mount and optional VESA arm, desktop stand,

wall mount

Supports 2.5” SATA HDD & CFast™ or mSATA

Adjust RS-232/422/485 setting via BIOS

3 11

1 2 4 5 6

1. Power switch (ATX)

2. Power input (Phoenix)

3. COM 4 (RS-232/422/485)

4. COM 3 (RS-232/422/485)

5. USB 2.0 x 2

6. VGA

7 8 9 10

7. COM 1 (RS-232/422/485)

8. COM 2 (RS-232/422/485)

9. Ethernet x 2

10. USB 3.0 x 2

11. Audio (Line-out)

12. CFast™ card slot

12

Side view

Rear view

Fanless

Low Power DualView Ext. Temp

DDR3

CFast

AiRD IP65 USB 3.0

CFast

TM

PCIe Mini

Introduction

The GOT3156T-834 adopts a 15-inch XGA 400 nits LCD and supports Intel® Bay Trail processor. By supporting a wide range operating temperature from -20°C to +55°C, it can be used in harsh environment. The rugged industrial panel PC supports low power

Intel® AtomTM processor E3827. The industrial HMI can work under 1.3 G (10 ~ 500Hz, random for 2.5” HDD) in operation mode with a patent of anti-vibration design. It also provides two PCIe mini card slots for 3G, wireless network connectivity. The 15” fanless touch panel computer is suitable for transportation, heavy-duty industry, smart factory automation, and oil pipe monitoring systems.

Wide Temperature Range Support (-20°C to +55°C)

The Intel® AtomTM-based GOT3156T-834 applies unique extended temperature technology with wide temperature range support as we as fanless operation. It also has a compact design for harsh environment.

WALN Antenna Support (optional)

The 15” XGA IP65 industrial panel PC, GOT3156T-834, provides two PCIe mini card slots and WLAN/3G antennas for wireless network connectivity.

Specifications

Front Bezel

LCD Panel

Main System

IP65, NEMA 4 rugged protection, aluminum front bezel

Display Type 15" XGA TFT LCD

Brightness (cd/m2) 400 nits

Resolution 1024 x 768

CPU

Chipset

System Memory

Intel® Atom™ processor E3827 2C

@1.75 GHz (Bay Trail)

SoC Intergrated

1 x 204-pin DDR3L-1333/1600

SO-DIMM up to 8 GB

BIOS

Storage

Watchdog Timer

Onboard Graphics

AMI UEFI BIOS

1 x 2.5" SATA HDD

1 x CFast™ or 1 x mSATA

255 levels, 0~255 sec.

Integrated Intel® HD Graphics

547

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector 4 x RS232/422/485(COM 1/2/3/4)

1 x VGA

1 x Audio (Line-out)

2 x USB 3.0

2 x USB 2.0

2 x 10/100/1000Mbps Ethernet

2 x PCie Mini Card Expansion Interface

Touchscreen

Power Supply

Dimensions

Resistive type

9~36VDC with power protection

377.9 mm (14.89") (W) x 60.7 mm (2.39") (D) x 309.3 mm

(12.17") (H)

510 mm (20.09") (W) x 186 mm (7.32") (D) x 532 mm (20.95") (H) Packing Dimensions

Weight (net/gross)

Environment

4.2 kg (9.26 lb)/ 6.8 kg (14.99 lb)

Operating temperature:

-20°C ~ +55°C (-4°F ~ +131°F)

Storage Temperature: -30°C ~ +80°C (-22°F ~ +176°F)

Relative humidity:

20% ~ 90% @ 40°C; non-condensing

Operation vibration:

1.3G, 10 ~ 500Hz, random for 2.5" HDD

2 G, 10 ~ 500Hz, random for CFast™

Certificate CE

* W.T.: Wide Temperature. All W.T. supported products have to be sorted by Axiomtek.

Ordering Information

GOT3156T-834 15" XGA TFT fanless touch panel computer with Intel®

Atom™ E3827 1.75 GHz dual core processor, resistive touch screen and 9~36VDC terminal block connector

* Specification and certifications are based on options and may vary.

Optional EOS Installation

WES7

WE8S

Optional OS Installation

Windows® 7

Windows® 8.1

Overview

Fanless

Touch Panel

Computers

2

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Dimensions

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

548

GOT3156T-832

15" XGA TFT Fanless Touch Panel

Computer with Intel® Atom™ Processor

N2600 (-20°C ~ +55°C)

Features

15" XGA (1024 x 768) color TFT LCD display

Fanless cooling system with Intel® Atom™ processor N2600

Supports wide temperature range of -20°C ~ +55°C

Anti-vibration up to 1.3G (HDD, random)

Supports WLAN antenna (IEEE 802.1b/802.11g) (optional)

Easy for expansion: Mini card (USB interface)

Over-current protection-fuse

Supports panel mount and optional VESA arm/desktop stand/

wall mount

3 11

1. Power switch (ATX)

2. Power input (Phoenix)

3. COM 4 (RS-232)

4. COM 3 (RS-232)

5. USB 2.0 x 2

6. VGA

1 2 4 5 6 7 8 9 10

7. COM 1 (RS-232/422/485)

8. COM 2 (RS-232)

9. Ethernet x 2

10. USB 2.0 x 2

11. Audio (Line-out)

Side view

Rear view

Fanless Low Power DualView Ext. Temp DDR3

AiRD IP65

Introduction

The GOT3156T-832 adopts a 15-inch XGA 400 nits TFT LCD and supports Intel® Atom™ processor. By supporting a wide range operating temperature from -20°C to +55°C, it can be used in harsh environment. The rugged 15” industrial panel PC supports low power

Intel® AtomTM processor N2600. The fanless HMI can work under 1.3 G (10 ~ 500Hz, random for 2.5” HDD) in operation mode with a patent of anti-vibration design. It also provides one PCIe mini card slot for 3G, wireless network connectivity. The 12.1” fanless touch panel computer is suitable for transportation, heavy-duty industry, smart factory automation, and oil pipe monitoring systems.

Wide Temperature Range Support (-20°C to +55°C)

The Intel® Atom™-based GOT3126T-832 applies unique extended temperature technology with wide temperature range support as we as fanless operation. It also has a compact design for harsh environment.

WALN Antenna Support (optional)

The 12.1” SVGA high brightness IP65 industrial panel PC, GOT3156T-832, provides one

PCIe mini card slot and WLAN/3G antennas for wireless network connectivity.

Specifications

Front Bezel

LCD Panel

Main System

IP65, NEMA 4 rugged protection, aluminum front bezel

Display Type 15" XGA TFT LCD

Brightness (cd/m2) 400 nits

Resolution

CPU

Chipset

System Memory

1024 x 768

Intel® Atom™ processor N2600

2C @1.6 GHz

Intel® NM10 Express

BIOS

Storage

Watchdog Timer

Onboard Graphics

1 x 204-pin DDR3-800/1066

SO-DIMM max. up to 2 GB

AMI UEFI BIOS

1 x 2.5" SATA HDD

1 x CompactFlash™

255 levels, 0~255 sec.

Integrated in Intel ® GFX

549

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector 3 x RS-232 (COM 2/3/4)

1 x RS-232/422/485 (COM 1)

1 x VGA

1 x Audio (Line-out)

4 x USB 2.0

2 x 10/100/1000Mbps Ethernet

1 x PCIe Mini Card Expansion Interface

Touchscreen

Power Supply

Dimensions

Packing Dimensions

Resistive type

10~30VDC with power protection

378 mm (14.89") (W) x 60.7 mm (2.39") (D) x 309 mm (12.17") (H)

510 mm (20.09") (W) x 186 mm (7.32") (D) x 532 mm (20.95") (H)

Weight (net/gross)

Environment

Certificate

4.2 kg (9.26 lb)/ 6.8 kg (14.99 lb)

Operating temperature:

-20°C ~ +55°C (-4°F ~ +131°F)

Storage Temperature: -30°C ~ +80°C (-22°F ~ +176°F)

Relative humidity:

20% ~ 90% @ 40°C; non-condensing

Operation vibration:

1.3G, 10 ~ 500Hz, random for 2.5" HDD

2G, 10 ~ 500Hz, random for CompactFlash™

CE

* W.T.: Wide Temperature. All W.T. supported products have to be sorted by Axiomtek.

Ordering Information

GOT3156T-832 15" XGA TFT fanless touch panel computer with Intel®

Atom™ N2600 1.6GHz dual core processor, resistive touch screen and 10~30VDC terminal block connector

* Specification and certifications are based on options and may vary.

Optional EOS Installation

WES

WES 7 (32-bit)

Optional OS Installation

Windows® XP

Windows® 7 (32-bit)

Overview

Fanless

Touch Panel

Computers

2

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Dimensions

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

550

GOT3126T-834

12.1" XGA TFT Extended Temp. Fanless

Touch Panel Computer with Intel® Atom™

Processor E3827 (-20°C +55°C)

Features

12.1" XGA (1024 x 768) color TFT LCD display

Fanless cooling system with Intel® Atom™ E3827 1.75 GHz

Supports wide temperature range of -20°C ~ +55°C

Supports 2 Gigabit LAN, 2 USB 3.0, 2 USB 2.0 & 3 COM ports

Supports WLAN/3G module and antenna (optional)

Supports dual Express Mini card slots

9~36VDC wide voltage and over current protection

Supports panel mount and optional VESA arm, desktop stand,

wall mount

Supports 2.5” SATA HDD & CFast™ or mSATA

Adjust RS-232/422/485 setting via BIOS

4

1 2 3 5 6

1. Power switch

2. DC power input

3. USB 2.0 x 2

4. VGA

5. COM 3 (RS-232/422/485)

7 8 9 10

6. COM 1 (RS-232/422/485)

7. COM 2 (RS-232/422/485)

8. Ethernet x 2

9. USB 3.0 x 2

10. Audio (Line-out)

Side view

Rear view

Fanless

Low Power DualView

Ext. Temp DDR3

AiRD IP65

Introduction

The GOT3126T-834 adopts a 12.1-inch XGA 500 nits TFT LCD and supports Intel® Bay

Trail processor. By supporting a wide range operating temperature from -20°C to +55°C, it can be used in harsh environment. The high brightness industrial panel PC supports low power Intel® AtomTM processor E3827. The industrial HMI can work under 1.3 G (10 ~

500Hz, random for 2.5” HDD) in operation mode with a patent of anti-vibration design. It also provides two PCIe mini card slots for 3G, wireless network connectivity. The 12.1” fanless touch panel computer is suitable for transportation, heavy-duty industry, smart factory automation, and oil pipe monitoring systems.

Wide Temperature Range Support (-20°C to +55°C)

The Intel® AtomTM-based GOT3126T-834 applies unique extended temperature technology with wide temperature range support as we as fanless operation. It also has a compact design for harsh environment.

WALN Antenna Support (optional)

The 12.1” XGA IP65 industrial panel PC, GOT3126T-834, provides two PCIe mini card slots and WLAN/3G antennas for wireless network connectivity.

Specifications

Front Bezel

LCD Panel

Main System

IP65, NEMA 4 rugged protection, aluminum front bezel

Display Type 12.1" XGA TFT LCD

Brightness (cd/m 2 )

Resolution

CPU

Chipset

System Memory

BIOS

Storage

500 nits

1024 x 768

Intel® Atom™ processor E3827

2C @1.75 GHz (Bay Trail)

SoC Intergrated

1 x 204-pin DDR3L-1333/1600

SO-DIMM up to 8 GB

AMI UEFI BIOS

1 x 2.5" SATA HDD

1 x CFast™ or 1 x mSATA

Watchdog Timer

Onboard Graphics

255 levels, 0~255 sec.

Integrated Intel® HD Graphic

551

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector 3 x RS-232/422/485 (COM 1/2/3)

1 x VGA

1 x Audio (Line-out)

2 x USB 3.0

2 x USB 2.0

2 x 10/100/1000Mbps Ethernet

2 x PCIe Mini Card slots Expansion Interface

Touchscreen

Power Supply

Dimensions

Packing Dimensions

Weight (net/gross)

Resistive type

9~36V DC with power protection

311.5 mm (12.21”) (W) x 56.9 mm (2.23”) (D) x 250 mm (9.8”) (H)

525 mm (20.67") (W) x 186 mm (7.32") (D) x 470 mm (18.51") (H)

2.8 kg (6.17 lb)/ 5 kg (11.02 lb)

Environment

Certificate

Operating temperature: -20°C ~ +55°C (-4°F ~ +131°F)

(with W.T. DRAM/HDD/CF)

Storage Temperature: -30°C ~ +80°C (-22°F ~ +176°F)

Relative humidity: 20% ~ 90% @ 40°C; non-condensing

Operation vibration:

1.3G, 10 ~ 500Hz, random for 2.5" HDD

2G, 10 ~ 500Hz, random for CompactFlash™

CE

* W.T.: Wide Temperature. All W.T. supported products have to be sorted by Axiomtek.

Ordering Information

GOT3126T-834 12.1" XGA TFT fanless touch panel computer with Intel®

Atom™ E3827 1.75 GHz dual core processor, resistive touch screen and 9~36VDC terminal block connector

* Specification and certifications are based on options and may vary.

Optional EOS Installation

WES7

WE8S

Optional OS Installation

Windows® 8.1

Windows® 7

Overview

Fanless

Touch Panel

Computers

2

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Dimensions

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

552

GOT3126T-832

12.1" SVGA TFT Extended Temp. Fanless

Touch Panel Computer with Intel® Atom™

Processor N2600 (-20°C +55°C)

Features

12.1" SVGA (800 x 600) color TFT LCD display

Fanless cooling system with Intel® Atom™ N2600 1.6 GHz

Supports wide temperature range of -20°C ~ +55°C

Anti-vibration up to 1.3G (HDD, random)

Supports WLAN antenna (optional)

Easy for expansion: PCIe Mini Card

Over-current protection-fuse

Supports panel mount, wall mount, VESA arm, desktop stand

(optional)

4

1 2 3 5

1. Power switch

2. DC power input

3. USB 2.0 x 2

4. VGA

5. COM 3 (RS-232)

6 7

8 9 10

6. COM 1 (RS-232/422/485)

7. COM 2 (RS-232)

8. Ethernet x 2

9. USB 2.0 x 2

10. Audio (Line-out)

Side view

Rear view

Fanless Low Power DualView Ext. Temp DDR3

AiRD

IP65

Introduction

The GOT3126T-832 adopts a 12.1-inch SVGA 500 nits LCD and supports Intel® Atom™ processor. By supporting a wide range operating temperature from -20°C to +55°C, it can be used in harsh environment. The rugged 12.1” industrial panel PC supports low power

Intel® AtomTM processor N2600. The fanless HMI can work under 1.3 G (10 ~ 500Hz, random for 2.5” HDD) in operation mode with a patent of anti-vibration design. It also provides one PCIe mini card slot for 3G, wireless network connectivity. The 15” fanless touch panel computer is suitable for transportation, heavy-duty industry, smart factory automation, and oil pipe monitoring systems.

Wide Temperature Range Support (-20°C to +55°C)

The Intel® Atom™-based GOT3126T-832 applies unique extended temperature technology with wide temperature range support as we as fanless operation. It also has a compact design for harsh environment.

WALN Antenna Support (optional)

The 12.1” SVGA IP65 industrial panel PC, GOT3126T-832, provides one PCIe mini card slot and WLAN/3G antennas for wireless network connectivity.

Specifications

Front Bezel

LCD Panel

Main System

IP65, NEMA 4 rugged protection, aluminum front bezel

Display Type

Brightness (cd/m

2

)

Resolution

12.1" SVGA TFT LCD

500 nits

800 x 600

CPU

Chipset

System Memory

Intel® Atom™ processor N2600

2C @1.6 GHz

Intel® NM10 Express

1 x 204-pin DDR3-800/1066

SO-DIMM max. up to 2 GB

BIOS

Storage

Watchdog Timer

Onboard Graphics

AMI UEFI BIOS

1 x 2.5" SATA HDD

1 x CompactFlash™

255 levels, 0~255 sec.

Integrated in Intel® GFX

553

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector 2 x RS-232 (COM 2/3)

1 x RS-232/422/485 (COM 1)

1 x VGA

1 x Audio (Line-out)

4 x USB 2.0

2 x 10/100/1000Mbps Ethernet

1 x PCIe Mini Card Expansion Interface

Touchscreen

Power Supply

Dimensions

Packing Dimensions

Weight (net/gross)

Resistive type

10~30VDC with power protection

311.5 mm (12.21”) (W) x 56.9 mm (2.23”) (D) x 250 mm (9.8”) (H)

525 mm (20.67") (W) x 186 mm (7.32") (D) x 470 mm (8.51") (H)

2.8 kg (6.17 lb)/ 5 kg (11.02 lb)

Environment

Certificate

Operating temperature: -20°C ~ +55°C (-4°F ~ +131°F)

(with W.T. DRAM/HDD/CF)

Storage Temperature: -30°C ~ +80°C (-22°F ~ +176°F)

Relative humidity: 20% ~ 90% @ 40°C; non-condensing

Operation vibration:

1.3G, 10 ~ 500Hz, random for 2.5" HDD

2G, 10 ~ 500Hz, random for CompactFlash™

CE

* W.T.: Wide Temperature. All W.T. supported products have to be sorted by Axiomtek.

Ordering Information

GOT3126T-832 12.1" SVGA TFT fanless touch panel computer with Intel®

Atom™ N2600 1.6 GHz dual core processor, resistive touch screen and 10~30VDC terminal block connector

* Specification and certifications are based on options and may vary.

Optional EOS Installation

WES

Windows® 7 Embedded (32-bit)

Optional OS Installation

Windows® XP

Windows® 7 (32-bit)

Overview

Fanless

Touch Panel

Computers

2

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Dimensions

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

554

GOT3106T-832

10.4" SVGA TFT Extended Temp. Fanless

Touch Panel Computer with Intel® Atom™

Processor N2600 (-20°C +55°C)

Features

10.4" SVGA (800 x 600) color TFT LCD

Fanless cooling system with Intel® Atom™ N2600 1.6 GHz

Supports wide temperature range of -20°C ~ +55°C

Anti-vibration up to 1.3G (HDD, random)

Supports WLAN antenna

Over-current power protection-fuse

Supports panel mount, wall mount, VESA arm, desktop stand

(optional)

1 4 6 9

2 3 5 7 8 10

1. Power switch (ATX)

2. Power input connector (phoenix)

3. 2 x USB 2.0

4. COM 3 (RS-232)

5. COM 1 (RS-232/422/485)

6. VGA

7. COM 2 (RS-232)

8. 2 x Ethernet (RJ-45)

9. 2 x USB 2.0

10. Audio (Line-out)

Side view

Rear view

Fanless

Low Power DualView Ext. Temp

DDR3

AiRD IP65

Introduction

The GOT3106T-832 adopts a 10.4-inch SVGA 400 nits TFT LCD and supports Intel®

Atom™ processor. By supporting a wide range operating temperature from -20°C to

+55°C, it can be used in harsh environment. The rugged 10.4” industrial panel PC supports low power Intel® AtomTM processor N2600. The fanless HMI can work under

1.3 G (10 ~ 500Hz, random for 2.5” HDD) in operation mode with a patent of anti-vibration design. It also provides one PCIe mini card slot for 3G, wireless network connectivity. The

10.4” fanless touch panel computer is suitable for transportation, heavy-duty industry, smart factory automation, and oil pipe monitoring systems

Wide Temperature Range Support (-20°C to +55°C)

The Intel® Atom™-based GOT3106T-832 applies unique extended temperature technology with wide temperature range support as we as fanless operation. It also has a compact design for harsh environment.

WALN Antenna Support (optional)

The 10.4” SVGA IP65 industrial panel PC, GOT3106T-832, provides one PCIe mini card slot and WLAN/3G antennas for wireless network connectivity.

Specifications

Front Bezel

LCD Panel

Main System

IP65, NEMA 4 rugged protection, aluminum front bezel

Display Type 10.4" SVGA TFT LCD

Brightness (cd/m 2 )

Resolution

CPU

Chipset

System

Memory

BIOS

Storage

400 nits

800 x 600

Intel® Atom™ processor N2600

2C @1.6 GHz

Intel® NM10 Express

1 x 204-pin DDR3-800/1066

SO-DIMM max. up to 2 GB

AMI UEFI BIOS

1 x 2.5" SATA HDD

1 x CompactFlash™

Watchdog Timer

Onboard Graphics

255 levels, 0~255 sec.

Integrated in Intel® GFX

555

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector 2 x RS-232 (COM 2/3)

1 x RS-232/422/485 (COM 1)

1 x VGA

1 x Audio (Line-out)

4 x USB 2.0

2 x 10/100/1000Mbps Ethernet

1 x PCIe Mini Card Expansion Interface

Touchscreen

Power Supply

Dimensions

Packing Dimensions

Weight (net/gross)

Resistive type

10~30VDC with power protection

223.55 mm (8.76") (W) x 63.09 mm (2.47") (D) x 277 mm

(10.86") (H)

380 mm (14.9") (W) x 190 mm (7.45') (D) x 440 mm (17.25") (H)

2.4 kg (5.29 lb)/ 3.8 kg (8.38 lb)

Environment

Certificate

Operating temperature: -20°C ~ +55°C (-4°F ~ +131°F)

(with W.T. DRAM/HDD/CF)

Storage Temperature: -30°C ~ +80°C (-22°F ~ +176°F)

Relative humidity: 20% ~ 90% @ 40°C; non-condensing

Operation vibration:

1.3G, 10 ~ 500Hz, random for 2.5" HDD

2G, 10 ~ 500Hz, random for CompactFlash™

CE

* W.T.: Wide Temperature. All W.T. supported products have to be sorted

by Axiomtek.

Ordering Information

GOT3106T-832 10.4" SVGA TFT fanless touch panel computer with Intel®

Atom™ N2600 1.6 GHz dual core processor, resistive touch screen and 10~30VDC terminal block connector

* Specification and certifications are based on options and may vary.

Optional EOS Installation

WES

Windows® 7 Embedded (32-bit)

Optional OS Installation

Windows® XP

Windows® 7 (32-bit)

Overview

Fanless

Touch Panel

Computers

2

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Dimensions

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

556

GOT3846T-832

8.4" SVGA TFT Fanless Touch Panel

Computer with Intel® Atom™ Processor

(-20°C +55°C)

Features

8.4" SVGA (800 x 600) color TFT LCD display

Fanless design with Intel® Atom™ processor N2600 1.6 GHz

Supports wide temperature range of -20°C ~ +55°C

Aluminum front bezel & chassis

Supports WLAN module & external antenna

Supports 2 Gigabit LAN, 4 USB 2.0 & 4 COM ports

Supports panel mount, wall mount, VESA arm, desktop stand

(optional)

2 5 7 8

1 3 4

1. Power switch

2. DC power input

3. USB 2.0 x 2

4. COM 1 (RS-232/422/485)

5. COM 3 (RS-232)

6 9 10 11

6. COM 2 (RS-232)

7. COM 4 (RS-232)

8. VGA

9. Ethernet x 2

10. USB 2.0 x 2

11. Audio (Line-out)

Side view Rear view

Fanless Low Power DualView Ext. Temp DDR3

AiRD

Introduction

The GOT3846T-832 adopts an 8.4-inch SVGA 450 nits TFT LCD and supports Intel®

Atom™ processor. By supporting a wide range operating temperature from -20°C to

+55°C, it can be used in harsh environment. The rugged 8.4” industrial panel PC supports low power Intel® AtomTM processor N2600. The fanless HMI can work under 1.0 G (10

~ 500Hz, random for 2.5” HDD) in operation mode with a patent of anti-vibration design.

It also provides one PCIe mini card slot for 3G, wireless network connectivity. The 8.4” fanless touch panel computer is suitable for transportation, heavy-duty industry, smart factory automation, and oil pipe monitoring systems.

Wide Temperature Range Support (-20°C to +55°C)

The Intel® AtomTM-based GOT3846T-832 applies unique extended temperature technology with wide temperature range support as we as fanless operation. It also has a compact design for harsh environment.

WALN Antenna Support (optional)

The 8.4” SVGA high brightness IP65 industrial panel PC, GOT3846T-832, provides one

PCIe mini card slot and WLAN/3G antennas for wireless network connectivity.

Specifications

Front Bezel

LCD Panel

Main System

IP65, NEMA 4 rugged protection, aluminum front bezel

Display Type

Brightness (cd/m

2

)

Resolution

8.4" SVGA TFT LCD

450 nits

800 x 600

CPU

Chipset

System

Memory

Intel® Atom™ processor N2600

2C @1.6 GHz

Intel® NM10 Express

1 x 204-pin DDR3-800/1066

SO-DIMM max. up to 2 GB

BIOS

Storage

Watchdog Timer

Onboard Graphics

AMI UEFI BIOS

1 x 2.5" SATA HDD

1 x CompactFlash™ (optional)

255 levels, 0~255 sec.

Integrated Intel® GFX

557

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector

Expansion Interface

Touchscreen

Power Supply

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

3 x RS-232 (COM 2/3/4)

1 x RS-232/422/485 (COM 1)

1 x VGA

1 x Audio (Line-out)

4 x USB 2.0

2 x 10/100/1000Mbps Ethernet

1 x PCIe Mini Card

Resistive type

10~30VDC with power protection

248 mm (9.76") (W) x 58.3 mm (2.29") (D) x 183 mm (7.2") (H)

390 mm (15.35") (W) x 190 mm (7.48") (D) x 430 mm (16.92") (H)

3.4 kg (7.49 lb)/5.8 kg (12.78 lb)

Operating temperature: -20°C ~ +55°C (-4°F ~ +131°F)

(with W.T. DRAM/HDD/CF)

Storage Temperature: -30°C ~ +80°C (-22°F ~ +176°F)

Relative humidity: 10% ~ 95% @ 40°C; non-condensing

Operation vibration:

1G, 5 ~ 500Hz, random for 2.5" HDD

2G, 5 ~ 500Hz, random for CompactFlash™

Certificate CE

* W.T.: Wide Temperature. All W.T. supported products have to be sorted by Axiomtek.

Ordering Information

GOT3846T-832 8.4" SVGA TFT fanless touch panel computer with Intel®

Atom™ N2600 1.6 GHz dual core processor, resistive touch screen and 10~30VDC terminal block connector

* Specification and certifications are based on options and may vary.

Optional EOS Installation

WES

Windows® Embedded Standard 7 (32-bit)

Overview

Fanless

Touch Panel

Computers

2

Heavy-duty

Fanless Touch

Panel Computers

Optional OS Installation

Windows® XP

Windows® 7 (32-bit)

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Dimensions

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

558

GOT-3840TL

8.4" SVGA TFT Cost-effective Fanless Touch

Panel Computer

Features

8.4" SVGA (800 x 600) color TFT LCD display

Fanless cooling system with low power AMD Geode LX800

500 MHz processor

Supports Dual LAN & WLAN antenna

Compact design for space-limited application

Supports anti-vibration up to 1.3 G (HDD, random)

Supports panel mount, wall mount, VESA arm, desktop stand

(optional)

4

Desktop stand

1 2

1. Power switch

2. DC inlet

3. COM 1/2/3

(RS-232/422/485, RS-232)

4. Audio (Line-out)

5. USB 2.0 x 2

3 5 6 7 8 9

6. Ethernet

7. PS/2 K/B+M/S

8. Ethernet

9. VGA

Rear view

Fanless

Low Power

Introduction

DualView

Ext. Temp

AiRD

The GOT-3840TL is a 8.4" fanless touch panel computer. Integrated with 8.4" TFT LCD and

AMD Geode LX800 500 MHz processor, the GOT-3840TL provides customers the most economical solution. With the compact design, the GOT-3840TL is ideal for space-limited environments, such as industrial machinery and transportations. In response to the growing demand for WLAN application, the GOT-3840TL also supports optional WLAN antenna for wireless network connection. The GOT-3840TL can be used extensively for various applications including industrial machinery, processing status monitoring, and more.

Cost-effective solution

Integrated with 250 nits LCD and onboard AMD Geode LX800 500 MHz processor, the

GOT-3840TL provides an economical solution for customers in response to demands for cost-effective product.

WLAN antenna supported (optional) and Dual-LAN

The GOT-3840TL provides a MiniPCI slot and an optional fixed rotational WLAN antenna for wireless network connections. By simply plugging in the WLAN card, customer can operate the GOT-3840TL in a wireless environment. Besides, the GOT-3840TL also supports Dual-LAN function for the growing demands of LAN connection.

Compact design for space-limited application

The GOT-3840TL is specially designed for space-limited applications including industrial machinery, transportation and home automation. This fanless touch computer is designed around the concept of small cut-out dimension. Moreover, the GOT-3840TL adopts sleek appearance and streamlined mechanical layout.

Anti-vibration up to 1.3G

With a special vibration- resistant design patent, the GOT-3840TL can work well under

1.3G (5~500Hz) in operation mode, and equipped with a 2.5 HDD.

559

Specifications

Front Bezel

LCD Panel

Main System

IP65, NEMA 4 rugged protection, aluminum front bezel

Display Type 8.4" SVGA TFT LCD

Brightness (cd/m 2 ) 250 nits

Resolution

CPU

Chipset

System Memory

800 x 600

AMD Geode LX800 500 MHz

AMD LX + CS5536AD + ITE8888G

1 x 200-pin DDR SO-DIMM max. up to 1 GB

BIOS

Storage

Award 4Mbit with RPL/PXE LAN boot

ROM, Smartview and customer

CMOS backup

1 x 2.5" IDE HDD

1 x CompactFlash™

Watchdog Timer 255 levels, 0~255 sec.

Onboard Graphics Integrated in AMD LX chipset

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector

Expansion Interface

Touchscreen

Power Supply

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

Certificate

2 x RS-232 (COM 2/3)

1 x RS-232/422/485 (COM 1)

1 x VGA

1 x Audio (Line-out)

1 x PS/2 keyboard/mouse

2 x USB 2.0

2 x 10/100Mbps Ethernet

1 x MiniPCI slot

1 x PC/104 slot

Resistive type

16~28VDC, 48W, w/ fuse power protection

280 mm (11.02") (W) x 69.3 mm (2.73") (D) x 200 mm (7.87") (H)

380 mm (14.96") (W) x 190 mm (7.48") (D) x 440 mm (17.32") (H)

3.5 kg (7.7 lb)/4.2 kg (9.26 lb)

Operating temperature: 0° ~ +50°C (+32°F ~ +122°F)

Storage Temperature: -20°C ~ +70°C (-4°F ~ +158°F)

Relative humidity: 10% ~ 95% @ 40°C; non-condensing

Operation vibration:

1.3G, 5 ~ 500Hz, random for 2.5"HDD

2G, 5 ~ 500Hz, random for CompactFlash™

CE

Dimensions

Ordering Information

GOT-3840TL 8.4" SVGA TFT cost-effective fanless touch panel computer with AMD Geode LX800 500 MHz processor, resistive touch screen and 16~28VDC terminal block connector

* Specification and certifications are based on options and may vary.

Optional Accessories

82238400800E

82018400060E

50966A23040E

E201840102

E201840101

Wall/VESA kit for GOT-3840TL

Desktop stand kid for GOT-3840TL

Power adapter, 70W, 110~230VAC to 24VDC

Metal cover for 1 PC/104 slot

Metal cover for 2 PC/104 slot

E392203100 802.11 b/g wireless LAN kit

* Specification and certifications are based on options and may vary.

Optional EOS Installation

Window® XP Embedded

Windows® CE.NET

Optional OS Installation

Windows® XP

Overview

Fanless

Touch Panel

Computers

2

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

560

GOT817-834

17" SXGA TFT IP66-rated Stainless Steel

Fanless PCT (or Resistive Touch) Panel

Computer with Flat Bezel Design with

Intel® Atom™ Processor E3827

(-20°C ~ +55°C)

NEW

Features

17" SXGA TFT LCD flat bezel-projected capacitive

(or resistive) touch

Water/dust/corrosion-proof design IP66/IP69K (NEMA4X)

Full stainless steel enclosure with type 316

Wide operating temperature range of -20°C ~ +55°C

Fanless system with Intel® Atom™ processor E3827 1.75 GHz

Wireless network connectivity

Wide range DC 12~36V

Supports suspension and VESA mount

M12 type I/O connectors for harsh environments waterproof, dustproof ventilation valve

1. Backlight switch

2. Brightness adjust

3. Power switch (ATX)

4. DC power connector (A-coded M12

5. COM 1 (RS-232/422/485) (A-coded M12)

6. COM 2 (RS-232/422/485) (A-coded M12)

7. Ethernet (X-coded)

8. USB 2.0 x 2 (A-coded M12)

9. USB 2.0 x 2 (A-coded M12)

4 5 6 7 8 9

Fanless

Low Power

Ext. Temp DDR3

IP66

M12 Connector

IP69K

Introduction

The 17-inch GOT817 is specially designed for food processing applications. Its IP66-rating stainless steel housing protects entire system from damage of water, powder and dust.

It also outfits wide operating temperature range of -20°C ~ +55°C. Thus, this robust unit is best suited for extreme humility, dusty or wet spaces in food factories or kitchens and more harsh applications.

IP66-sealed system

The Axiomtek stainless touch panel PC GOT817-834 adopts a water/dust-proof housing design and five IP66-rated M12 connectors. It passes entire system IP66 test by SGS and verified salt mist test.

Full IP66 and IP69K compliance

Full NEMA4/IP66 rating, M12 I/O connectors and IP69K compliance that ensures the product’s ability to resist ingress of high temperature and high pressure water. The

Axiomtek GOT817-834 was tested by a spray nozzle with high temperature water (80°C) and a flow rate of 14–16 L/min and a nozzle hold with distance 10-15cm away from the device at angles of 0°, 30°, 60° and 90° for 30 seconds. The outstanding 17” stainless touch panel PC is qualified to meet harsh environment applications.

Wide temp. (-20°C ~ +55°C) & anti-vibration (2G) design

The rugged 17” industrial stainless touch panel PC GOT817-834 supports wide temperature range from -20°C to +55°C and a-coded M12 connectors. Besides, the patent of anti-vibration for SSD ensures system reliability and stability for mission-critical environment.

Side view

Specifications

Enclosure

LCD Panel

Main System

Stainless type 316

Display Type

Brightness (cd/m 2 )

Chipset

System Memory

17" SXGA TFT LCD

350 nits

Resolution 1280 x 1024

Viewing Angle (H/V) 170°/160°

CPU Intel® Atom™ processor E3827

1.75 GHz (Bay Trail)

SoC Intergrated

BIOS

1 x 204-pin DDR3L SO-DIMM max. up to 8 GB

AMI with Axiomtek standard features; such as, SmartView,

Ethernet

Boot ROM (RPL & PXE), customer

CMOS backup

Storage

Watchdog Timer

Onboard Graphics

1 x 2.5" SSD

1 x CFast™

255 levels, 1~255 sec.

Integrated in Intel® GFX

1

2

3

561

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector

Expansion Interface

Touchscreen

Power Supply

Dimensions

2 x RS-232/422/485 (default RS-232, A-Coded)

4 x USB 2.0 (A-Coded)

1 x 10/100/1000Mbps Ethernet (X-Coded)

2 x PCIe Mini Card slot

5-wire resistive touch or projected capacitive multi-touch

Power input 12~36VDC

415.92 mm (16.37”) (W) x 54.96 mm (2.16”) (D) x 348.34 mm

(13.71”) (H)

Packing Dimensions

Weight (net/gross)

Environment

250 mm (9.84”) (W) x 585 mm (23.03”) (D) x 615 mm (24.21”) (H)

7.04 kg(15.52 lb)/10.3 kg (22.71 lb)

Operating temperature: -20°C ~ +55°C (-4°F ~ +131°F)

Storage Temperature: -30°C ~ +70°C (-22°F ~ +158°F)

Relative humidity: 10% ~ 95% @ 40°C, non-condensing

Operation vibration:

2G, 5 ~ 500Hz, random for 2.5" SSD

2G, 5 ~ 500Hz, random for CompactFlash™

Certificate CE

* W.T.: Wide Temperature. All W.T. supported products have to be sorted by Axiomtek.

Optional Accessories

594B8122100E

594B8122820E

594B8152710E

50964A23000E

Water-proof COM port cable (1.8 m)

Water-proof USB cable (1.8 m)

Water-proof LAN cable (1.8 m)

72W/24V power adapter with M12 connector

Ordering Information

Sunlight readable type

GOT817-834-C-DC

GOT817-834-C-RF-DC

GOT817-834-R-DC

17" SXGA fanless IP66-rated stainless steel touch panel computer with Intel® Atom™ E3827, projected capacitive touch screen, 9-36VDC power input, flat-bezel design and

Wi-Fi or 3G

17" SXGA fanless IP66-rated stainless steel touch panel computer with Intel® Atom™ E3827, projected capacitive touch screen, 9-36VDC power input, flat-bezel design and

Wi-Fi or 3G

17" SXGA fanless IP66-rated stainless steel touch panel computer with Intel® Atom™ E3827, 5-wire flat resistive touch screen, 9-36VDC power input, flat-bezel design and

Wi-Fi or 3G

GOT817-834-R-RF-DC 17" SXGA fanless IP66-rated stainless steel touch panel computer with Intel® Atom™ E3827, 5-wire flat resistive touch screen, 9-36VDC power input, flat-bezel design and

Wi-Fi or 3G

* Specification and certifications are based on options and may vary.

Optional EOS Installation

WES 7

WE8S

Optional OS Installation

Windows® 7

Windows® 8/8.1

Dimensions

Overview

Fanless

Touch Panel

Computers

2

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

562

GOT815-834

15" XGA TFT IP66-rated Stainless Steel

Fanless PCT (or Resistive Touch) Panel

Computer with Flat Bezel Design with

Intel® Atom™ Processor E3827

(-20°C ~ +55°C)

NEW

Features

15" XGA TFT LCD flat bezel-projected capacitive

(or resistive) touch

Water/dust/corrosion-proof design IP66/IP69K (NEMA4X)

Full stainless steel enclosure with type 316

Wide operating temperature range of -20°C ~ +55°C

Fanless system with Intel® Atom™ processor E3827 1.75 GHz

Wireless network connectivity

Flexible and expandable with variety of M12 type I/O

connections

Wide range DC 9~36V

Supports suspension and VESA mount

M12 type connectors for harsh environments waterproof, dust proof ventilation valve

1. Backlight switch

2. Brightness adjust

3. Power switch (ATX)

4. DC power connector (A-coded)

5. COM 1 (RS-232/422/485) (A-coded)

6. COM 2 (RS-232/422/485) (A-coded)

7. Ethernet (X-coded)

8. USB 2.0 x 2 (A-coded)

9. USB 2.0 x 2 (A-coded)

4 5 6 7 8 9

Fanless

Low Power

Ext. Temp DDR3

IP66

M12 Connector

IP69K

Introduction

The 15-inch GOT815 is specially designed for food processing applications. Its IP66-rating stainless steel housing protects entire system from damage of water, powder and dust.

It also outfits wide operating temperature range of -20°C ~ +55°C. Thus, this robust unit is best suited for extreme humility, dusty or wet spaces in food factories or kitchens and more harsh applications.

IP66-sealed system

The GOT815 adopts a water/dust-proof housing design and five IP66-rated connectors. It passes entire system IP66 test by SGS and verified salt mist test.

Full IP66 and IP69K compliance

Full IP66 rating, M12 I/O connectors and IP69K compliance that ensures the product’s ability to resist ingress of high temperature and high pressure water and was tested by a spray nozzle with high temperature water (80°C) and a flow rate of 14–16 L/min and a nozzle hold with distance 10-15cm away from the device at angles of 0°, 30°, 60° and

90° for 30 seconds, GOT815 is qualified to meet harsh environment applications.

Wide temp. (-20°C ~ +55°C) & anti-vibration (2G) design

The industrial touch panel PC supports wide temperature of -20°C ~ +55°C. Besides, the patent of anti-vibration for SSD ensures system reliability and stability.

Side view

Specifications

Enclosure

LCD Panel

Main System

Stainless type 316

Display Type

Brightness (cd/m 2 )

Chipset

System Memory

15" XGA TFT LCD

420 nits

Resolution 1024 x 768

Viewing Angle (H/V) 160°/160°

CPU Intel® Atom™ processor E3827

1.75 GHz (Bay Trail)

SoC Intergrated

BIOS

1 x 204-pin DDR3L SO-DIMM max. up to 8 GB

AMI with Axiomtek standard features; such as, SmartView,

Ethernet

Boot ROM (RPL & PXE), customer

CMOS backup

Storage

Watchdog Timer

Onboard Graphics

1 x 2.5" SSD

1 x CFast™

255 levels, 1~255 sec.

Integrated in Intel® GFX

1

2

3

563

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector

Expansion Interface

Touchscreen

Power Supply

Dimensions

2 x RS-232/422/485 (default RS-232, A-Coded)

4 x USB 2.0 (A-Coded)

1 x 10/100/1000Mbps Ethernet (X-Coded)

2 x PCIe Mini Card slot

5-wire resistive touch or projected capacitive multi-touch

Power input 9~36VDC

382 mm (15.4") (W) x 55 mm (2.17") (D) x 305 mm (12.01") (H)

Packing Dimensions

Weight (net/gross)

510 mm (20.07") (W) x 186 mm (7.32") (D) x 532 mm (20.94") (H)

5.2kg (11.46lb)/ 8.4kg (18.51lb)

Environment

Certificate

Operating temperature: -20°C ~ +55°C (-4°F ~ +131°F)

Storage Temperature: -30°C ~ +70°C (-22°F ~ +158°F)

Relative humidity: 10% ~ 95% @ 40°C, non-condensing

Operation vibration:

2G, 5 ~ 500Hz, random for 2.5" SSD

2G, 5 ~ 500Hz, random for CompactFlash™

CE

* W.T.: Wide Temperature. All W.T. supported products have to be sorted by Axiomtek.

Optional Accessories

594B8122100E

594B8122820E

594B8152710E

50964A23000E

Water-proof COM port cable (1.8 m)

Water-proof USB cable (1.8 m)

Water-proof LAN cable (1.8 m)

72W/24V power adapter with M12 connector

Ordering Information

Sunlight readable type

GOT815-834-C-DC

GOT815-834-C-RF-DC

GOT815-834-R-DC

15" XGA fanless IP66-rated stainless steel touch panel computer with Intel® Atom™ E3827, projected capacitive touch screen, 9-36VDC power input, flat-bezel design and

Wi-Fi or 3G

15" XGA fanless IP66-rated stainless steel touch panel computer with Intel® Atom™ E3827, projected capacitive touch screen, 9-36VDC power input, flat-bezel design and

Wi-Fi or 3G

15" XGA fanless IP66-rated stainless steel touch panel computer with Intel® Atom™ E3827, 5-wire flat resistive touch screen, 9-36VDC power input, flat-bezel design and

Wi-Fi or 3G

GOT815-834-R-RF-DC 15" XGA fanless IP66-rated stainless steel touch panel computer with Intel® Atom™ E3827, 5-wire flat resistive touch screen, 9-36VDC power input, flat-bezel design and

Wi-Fi or 3G

* Specification and certifications are based on options and may vary.

Optional EOS Installation

WES 7

WE8S

Optional OS Installation

Windows® 7

Windows® 8/8.1

Dimensions

Overview

Fanless

Touch Panel

Computers

2

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

564

GOT812LR-834

12.1" TFT IP66-rated Stainless Steel Fanless

Touch Panel Computer with Intel® Atom™

Processor E3827 and High Brightness

(-20°C ~ +55°C)

Features

Sunlight readable 12.1" high brightness (optional)

Low-reflective color TFT LCD (optional)

Water/dust/corrosion-proof design IP66 (NEMA4X)

Type 316 stainless steel front bezel

Wide operating temperature range of -20°C ~ +55°C

Fanless system with Intel® Atom™ processor E3827 1.75 GHz

Wireless network connectivity

Flexible and expandable with variety of M12 type I/O

connections

Designed and tested according to IEC60945

Supports suspension and VESA mount waterproof, dust proof ventilation valve

4 5 6 7 8

VESA 100

VESA 75

1. Backlight switch

2. Brightness adjust

3. Power switch (ATX)

4. DC power connector

5. COM 1 (RS-232/422/485)

6. COM 2 (RS-232/422/485)

7. Ethernet

8. USB 2.0 x 2

Suspension mount

1

2

3

Fanless Low Power Ext. Temp DDR3

IP66

IEC60945

M12 Connector

Introduction

The GOT812LR-834 is specially designed for heavy-duty & outdoor applications. Its

IP66-rating stainless steel housing protects entire system from outside damage of water, powder and dust. It also outfits sunlight readable technology and wide operating temperature range of -20°C ~ +55°C. Thus, this robust unit is best suited for outdoor environments in extreme sunny or rainy day, dusty or wet spaces in food factories or kitchens and more harsh applications, such as steel factories, transformer stations and vessels.

IP66-sealed system

The 12.1" GOT812 adopts a water/dust-proof housing design and five IP66-rated connectors. It passes entire system IP66 test by SGS and verified salt mist test.

Sunlight readable design (optional)

Its sunlight readable technology with LED tech high brightness 1000 nits color display and low reflective touchscreen allows the screen legible even under strong sunlight for your options.

Wide temp. (-20°C ~ +55°C) & anti-vibration (2G) design

The 12.1" industrial touch panel PC supports wide temperature of -20°C ~ +55°C. Besides, the patent of anti-vibration for SSD ensures system reliability and stability.

Side view

Specifications

Front Bezel

LCD Panel

Main System

Stainless type 316

Display Type

Brightness (cd/m

Resolution

2 )

12.1" XGA TFT LCD (GOT812LR)

12.1" SVGA TFT LCD (GOT812L)

1000 nits (GOT812LR)

500 nits (GOT812L)

1024 x 768 (GOT812LR)

800 x 600 (GOT812L)

Viewing Angle (H/V) 160°/140° (GOT812LR/GOT812L)

CPU Intel® Atom™ processor E3827

1.75 GHz

Chipset

System Memory

BIOS

Storage

SoC Intergrated

1 x 204-pin DDR3L SO-DIMM max. up to 8 GB

AMI with Axiomtek standard features; such as, SmartView,

Ethernet

Boot ROM (RPL & PXE), customer

CMOS backup

1 x 2.5" SSD

1 x CompactFlash™

Watchdog Timer

Onboard Graphics

255 levels, 1~255 sec.

Integrated in Intel® GFX

565

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector

Expansion Interface

Touchscreen

Power Supply

Dimensions

2 x RS-232/422/485 (default RS-232)

2 x USB 2.0

1 x 10/100/1000Mbps Ethernet

2 x PCIe Mini Card slot

5-wire resistive low reflective type

Power input 9-36VDC

304 mm (11.97") (W) x 58.5 mm (2.3") (D) x 248 mm (9.76") (H)

Packing Dimensions

Weight (net/gross)

Environment

380 mm (14.96") (W) x 190 mm (7.48") (D) x 430 mm (16.93") (H)

4.6 kg (10.14lb)/ 6.2kg (13.67lb)

Operating temperature: -20°C ~ +55°C (-4°F ~ +131°F)

Storage Temperature: -30°C ~ +80°C (-22°F ~ +176°F)

Relative humidity: 10% ~ 95% @ 40°C, non-condensing

Operation vibration:

2G, 5 ~ 500Hz, random for 2.5" SSD

2G, 5 ~ 500Hz, random for CompactFlash™

Certificate CE

* W.T.: Wide Temperature. All W.T. supported products have to be sorted by Axiomtek.

Optional Accessories

822B8120070E

822B8120080E

594B8122100E

594B8122820E

594B8122720E

50964A23000E

Dimensions

GOT812 keyboard bracket (w/o keyboard)

GOT812 suspension kit

Water-proof COM port cable (1.8m)

Water-proof USB cable (1.8m)

Water-proof LAN cable (1.8m)

72W/24V power adapter with M12 connector

Ordering Information

GOT812LR-834-DC

GOT812LR-834-RF-DC

12" XGA fanless IP66-rated stainless steel touch panel computer with Intel® Atom™ E3827, sunlight readable

LCD (1000 nits), 5-wire resistive touch screen and 9-36VDC power input

12" XGA fanless IP66-rated stainless steel touch panel computer with Intel® Atom™ E3827, sunlight readable LCD

(1000 nits), 5-wire resistive touch screen, 9-36VDC power input and Wi-Fi or 3G

GOT812L-834-DC

GOT812L-834-RF-DC

12" XGA fanless IP66-rated stainless steel touch panel computer with Intel® Atom™ E3827, general purpose LCD

(500 nits), 5-wire resistive touch screen and 9-36VDC power input

12" XGA fanless IP66-rated stainless steel touch panel computer with Intel® Atom™ E3827, general purpose LCD

(500 nits), 5-wire resistive touch screen, 9-36VDC power input and Wi-Fi or 3G

* Specification and certifications are based on options and may vary.

Overview

Fanless

Touch Panel

Computers

2

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Optional EOS Installation

WES 7

WE8S

Optional OS Installation

Windows® 7

Windows® 8/8.1

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

566

GOT812LR-832

12.1" XGA TFT IP66-rated Stainless Steel

Sunlight Readable Fanless Touch Panel

Computer Intel® Atom™ Processor N2600 and High Brightness (-20°C ~ +55°C)

Features

Sunlight readable 12.1" XGA high brightness (1000 nits)

Low-reflective color TFT LCD

Water/dust/corrosion-proof design IP66 (NEMA4X)

Type 316 stainless steel front bezel

Wide operating temperature range of -20°C ~ +55°C

Fanless system with Intel® Atom™ processor N2600 1.6 GHz

Wireless network connectivity

Flexible and expandable with variety of M12 type I/O

connections

Designed and tested according to IEC60945 and

DNV 2.4 standards

Supports suspension and VESA mount waterproof, dust proof ventilation valve

4 5 6 7 8

VESA 100

VESA 75

1. Backlight switch

2. Brightness adjust

3. Power switch (ATX)

4. DC power connector

5. COM 1 (RS-232/422/485)

6. COM 2 (RS-232)

7. Ethernet

8. USB 2.0 x 2

Suspension mount

1

2

3

Fanless Low Power Ext. Temp DDR3 IP66

Side view

IEC60945

M12 Connector

Introduction

The GOT812LR-832 is specially designed for heavy-duty & outdoor applications. Its

IP66-rating stainless steel housing protects entire system from outside damage of water, powder and dust. It also outfits sunlight readable technology and wide operating temperature range of -20°C ~ +55°C. Thus, this robust unit is best suited for outdoor environments in extreme sunny or rainy day, dusty or wet spaces in food factories or kitchens and more harsh applications, such as steel factories, transformer stations and vessels.

IP66-sealed system

The 12.1-inch GOT812 adopts a water/dust-proof housing design and five IP66-rated connectors. It passes entire system IP66 test by SGS and verified salt mist test.

Sunlight readable design

Its sunlight readable technology with LED tech high brightness 1000 nits color display and low reflective touchscreen allows the screen legible even under strong sunlight.

Wide temp. (-20°C ~ +55°C) & anti-vibration (2G) design

The 12.1" industrial touch panel PC supports wide temperature of -20°C ~ +55°C. Besides, the patent of anti-vibration for SSD ensures system reliability and stability.

Specifications

Front Bezel

LCD Panel

Main System

Stainless type 316

Display Type

Brightness (cd/m 2 )

Chipset

System Memory

12.1" XGA TFT LCD

1000 nits

Resolution 1024 x 768

Viewing Angle (H/V) 160°/140°

CPU Intel® Atom™ processor N2600

1.6 GHz Intel® NM10 Express

Intel® NM10

BIOS

1 x 204-pin DDR3 SO-DIMM max. up to 2 GB

AMI with Axiomtek standard features; such as, SmartView,

Ethernet

Boot ROM (RPL & PXE), customer

CMOS backup

Storage

Watchdog Timer

Onboard Graphics

1 x 2.5" SSD

1 x CompactFlash™

255 levels, 1~255 sec.

Integrated in Intel® GFX

567

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector

Expansion Interface

Touchscreen

Power Supply

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

1x RS-232/422/485 (COM 1 default RS-232)

1x RS-232 (COM 2)

2 x USB 2.0

1 x 10/100/1000Mbps Ethernet

1 x PCIe Mini Card slot

5-wire resistive low reflective type

Power input 10~30VDC

304 mm (11.97") (W) x 58.5 mm (2.3") (D) x 248 mm (9.76") (H)

380 mm (14.96") (W) x 190 mm (7.48") (D) x 430 mm (16.93") (H)

4.5 kg (9.92 lb)/6 kg (14.33 lb)

Operating temperature: -20°C ~ +55°C (-4°F ~ +131°F)

Storage Temperature: -30°C ~ +80°C (-22°F ~ +176°F)

Relative humidity: 10% ~ 95% @ 40°C, non-condensing

Operation vibration:

2G, 5 ~ 500Hz, random for 2.5" SSD

2G, 5 ~ 500Hz, random for CompactFlash™

Certificate CE

* W.T.: Wide Temperature. All W.T. supported products have to be sorted by Axiomtek.

Optional Accessories

822B8120070E

822B8120080E

594B8122100E

594B8122820E

594B8122720E

50964A23000E

GOT812 keyboard bracket (w/o keyboard)

GOT812 suspension kit

Water-proof COM port cable (1.8m)

Water-proof USB cable (1.8m)

Water-proof LAN cable (1.8m)

72W/24V power adapter with M12 connector

Dimensions

Ordering Information

Sunlight readable type

GOT812LR-832-DC 12" XGA fanless IP66-rated stainless steel touch panel computer with Intel® Atom™ N2600, sunlight readable

LCD (1000 nits), 5-wire resistive touch screen and 9-36VDC power input

GOT812LR-832-RF-DC 12" XGA fanless IP66-rated stainless steel touch panel computer with Intel® Atom™ N2600, sunlight readable LCD

(1000 nits), 5-wire resistive touch screen, 9-36VDC power input and Wi-Fi or 3G

* Specification and certifications are based on options and may vary.

Optional EOS Installation

WES

WES 7

Optional OS Installation

Windows® XP

Windows® 7

Overview

Fanless

Touch Panel

Computers

2

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

568

GOT712-837

12.1” XGA EN50155 Railway Fanless Touch

Panel PC with Intel® Atom™ Processor

E3845 1.91 GHz (-25°C ~ +70°C )

NEW

Features

Sunlight readable 12.1" XGA high brightness (1000 nits)

Fanless with Intel® Atom™ processor E3845 1.91 GHz

Alternative keypad control in front bezel

All lockable connectors design

Auto-dimming for detecting the different environment

Wide operating temperature: -25°C ~ +70°C

EN50155 certificated for railway application

1 2 3 4 5 6 7 8 9

VESA 100

VESA 75

1. DC for power input with isolated 1.5KV

2. CAN Bus with isolated 1.5KV

3. Audio (Line out, Line in, speaker out)

4. DIO (6 input/2 output with isolated 1.5KV)

5. USB 2.0 x 2

6. COM 2 (RS-232/422/485 with isolated 1.5KV)

7. COM 1 (RS-232/422/485 with isolated 1.5KV)

8. LAN 2  (Gigabit LAN with isolated 1.5KV)

9. LAN 1 (Gigabit LAN with isolated 1.5KV)

Side view

Fanless

Low Power Ext. Temp DDR3

EN50155

M12 Connector

Introduction

The EN50155 railway touch panel PC, GOT712-837, is equipped with a 12.1-inch XGA

TFT LCD display with high brightness LED backlight (800 nits), which can allow a train operator to easily read any operational status messages, even under direct sunlight.

Design for ease of use and maintenance, this all-in-one 12.1” railway touch panel PC also has an alternative keypad control on the front panel for easy access and cleaning purposes. This feature-rich panel PC has an IP65 rating on the front bezel, M12 connectors and is EN50155 certified.

Wide Temperature Range Support (-25°C to +70°C)

The Intel® Atom™-based railway PC, GOT712-837, applies unique extended temperature technology with wide temperature range support as we as fanless operation. It also has a high brightness display and co

Designed for Railway Application

The Axiomtek GOT712-837 is particularly suitable for demanding HMI applications in the railway sector, including tasks like monitoring and controlling train functions such as speed, temperature, and security, or for fleet management. To ensure the panel

PC's use in a variety of different locations, the 12.1-inch railway panel PC supports various mounting selections for panel mount, wall mount, VESA arm and desktop stand.

Moreover, it is also ready for Windows® 8.1 or 7.

Specifications

Front Bezel

LCD Panel

Main System

IP65, NEMA 4 rugged protection, aluminum front bezel

Display Type 12.1" XGA TFT LCD

Brightness (cd/m 2 )

CPU

Chipset

System Memory

800 nits

Resolution 1024 x 768

Viewing Angle (H/V) 160°/160°

Intel® Atom™ processor E3845

1.91 GHz (Bay Trail)

SoC Intergrated

BIOS

DDR3 4 GB (default) or 8 GB memory onboard

AMI with Axiomtek standard features; such as, SmartView,

Ethernet

Boot ROM (RPL & PXE), customer

CMOS backup

Storage

Watchdog Timer

Onboard Graphics

16 GB flash onboard

1 x mSATA

255 levels, 1 ~ 255 sec.

Integrated in Intel® GFX

569

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector 2 x RS-232/422/485 with isolated 1.5KV (M12, A-coded)

2 x RJ-45 for Gigabit LAN with isolated 1.5KV (M12, X-coded)

2 x USB 2.0 (M12, A-coded)

1 x DC for power input with isolated 1.5KV (M12, A-coded)

1 x Audio: Line out, Line in, speaker out (D-sub)

1 x DIO (6 input/2 output) with isolated 1.5KV (phoenix type)

1 x CAN bus with isolated 1.5KV (D-sub)

2 x PCIe Mini Card slot

Alternative 5-wire resistive touch panel or keyboard

Expansion Interface

Flat Panel

Power Supply

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

Certificate

16.8V to 30V DC or 77V to 137.5V DC

10ms hold up time (S2)

330 mm (13") (W) x 64.4 mm (2.53") (D) x 245 mm (9.65") (H)

TBD

TBD

Operating temperature: -25°C ~ +70°C (-13°F ~ +158°F)

Storage Temperature: -30°C ~ +80°C (-22°F ~ +176°F)

Relative humidity: 10% ~ 95% @ 40°C, non-condensing

EN50155 Railway, EN50121-3-2 Railway EMC, EN61373

Railway Shock/Vibration, EN45545

Compliance with keypad UIC612-01

* W.T.: Wide Temperature. All W.T. supported products have to be sorted by Axiomtek.

Optional Accessories

822B7100060E

822B7100050E

594B8122820E

594B7102100E

594B7102700E

GOT712 3G+GPS Kit

GOT712 Wi-Fi Kit

M12 A-coded USB cable

RS-232 Cable

M12 X-coded USB cable

Ordering Information

24VDC Power Input (14.4V to 40VDC)

GOT712-837-R-E3845-

24VDC

12" XGA fanless EN50155 railway touch panel computer with Intel® Atom™ E3845, sunlight readable CD (1000 nits),

5-wire resistive touch screen and 24VDC power input

110VDC Power Input (66V to 154VDC)

GOT712-837-R-E3845-

110VDC

12" XGA fanless EN50155 railway touch panel computer with Intel® Atom™ E3845, sunlight readable LCD (1000 nits), 5-wire resistive touch screen and 110VDC power input

* Specification and certifications are based on options and may vary.

Optional EOS Installation

WES 7

WE8S

Optional OS Installation

Windows® 7

Windows® 8/8.1

Overview

Fanless

Touch Panel

Computers

2

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Touch without keypad version

Healthcare

& Medical

Solutions

Dimensions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

570

GOT710-837

10.4” SVGA EN50155 Railway Fanless Touch

Panel PC with Intel® Atom™ Processor

E3845 1.91 GHz (-25°C ~ +70°C )

NEW

Features

Sunlight readable 10.4" SVGA high brightness (1000 nits)

Fanless with Intel® Atom™ processor E3845 1.91 GHz

Alternative keypad control in front bezel

All lockable connectors design

Auto-dimming for detecting the different environment

Wide operating temperature: -25°C ~ +70°C

EN50155 certificated for railway application

1 2 3 4 5 6 7 8 9

VESA 100

VESA 75

1. DC for power input with isolated 1.5KV

2. CAN Bus with isolated 1.5KV

3. Audio (Line out, Line in, speaker out)

4. DIO (6 input/2 output with isolated 1.5KV)

5. USB 2.0 x 2

6. COM 2 (RS-232/422/485 with isolated 1.5KV)

7. COM 1 (RS-232/422/485 with isolated 1.5KV)

8. LAN 2  (Gigabit LAN with isolated 1.5KV)

9. LAN 1 (Gigabit LAN with isolated 1.5KV)

Side view

Fanless

Low Power Ext. Temp DDR3

EN50155

M12 Connector

Introduction

The EN50155 railway touch panel PC, GOT710-837, is equipped with a 10.4-inch SGVA

TFT LCD display with high brightness LED backlight (1000 nits), which can allow a train operator to easily read any operational status messages, even under direct sunlight.

Design for ease of use and maintenance, this all-in-one 10.4” railway touch panel PC also has an alternative keypad control on the front panel for easy access and cleaning purposes. This feature-rich panel PC has an IP65 rating, M12 connectors and is EN50155 certified.

Wide Temperature Range Support (-25°C to +70°C)

The Intel® AtomTM-based railway PC, GOT710-837, applies unique extended temperature technology with wide temperature range support as we as fanless operation. It also has a high brightness display and compact design for transport heavyduty environment.

Designed for Railway Application

The Axiomtek GOT710-837 is particularly suitable for demanding HMI applications in the railway sector, including tasks like monitoring and controlling train functions such as speed, temperature, and security, or for fleet management. To ensure the panel

PC's use in a variety of different locations, the 10.4-inch railway panel PC supports various mounting selections for panel mount, wall mount, VESA arm and desktop stand.

Moreover, it is also ready for Windows® 8.1 or 7.

Specifications

Front Bezel

LCD Panel

Main System

IP65, NEMA 4 rugged protection, aluminum front bezel

Display Type 10.4" SVGA TFT LCD

Brightness (cd/m 2 )

CPU

Chipset

System Memory

1000 nits

Resolution 800 x 600

Viewing Angle (H/V) 160°/160°

Intel® Atom™ processor E3845

1.91 GHz (Bay Trail)

SoC Intergrated

BIOS

DDR3 4 GB (default) or 8 GB memory onboard

AMI with Axiomtek standard features; such as, SmartView,

Ethernet

Boot ROM (RPL & PXE), customer

CMOS backup

Storage

Watchdog Timer

Onboard Graphics

16 GB flash onboard

1 x mSATA

255 levels, 1 ~ 255 sec.

Integrated in Intel® GFX

571

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector 2 x RS-232/422/485 with isolated 1.5KV (M12, A-coded)

2 x RJ-45 for Gigabit LAN with isolated 1.5KV (M12, X-coded)

2 x USB 2.0 (M12, A-coded)

1 x DC for power input with isolated 1.5KV (M12, A-coded)

1 x Audio: Line out, Line in, speaker out (D-sub)

1 x DIO (6 input/2 output) with isolated 1.5KV (phoenix type)

1 x CAN bus with isolated 1.5KV (D-sub)

2 x PCIe Mini Card slot

Alternative 5-wire resistive touch panel or keyboard

Expansion Interface

Flat Panel

Power Supply

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

Certificate

16.8V to 30V DC or 77V to 137.5VDC

10ms hold up time (S2)

310 mm (12.20") (W) x 65.05 mm (2.56") (D) x 216 mm (8.50") (H)

382 mm (15.04") (W) x 185 mm (7.28") (D) x 427 mm (16.81") (H)

2.4 kg (5.29 lb) / 5 kg (11.02 lb)

Operating temperature: -25°C ~ +70°C (-13°F ~ +158°F)

Storage Temperature: -30°C ~ +80°C (-22°F ~ +176°F)

Relative humidity: 10% ~ 95% @ 40°C, non-condensing

EN50155 Railway, EN50121-3-2 Railway EMC, EN61373

Railway Shock/Vibration, EN45545

Compliance with keypad UIC612-01

* W.T.: Wide Temperature. All W.T. supported products have to be sorted by Axiomtek.

Optional Accessories

822B7100060E

822B7100050E

594B8122820E

594B7102100E

594B7102700E

GOT710 3G+GPS Kit

GOT710 Wi-Fi Kit

M12 A-coded USB cable

RS-232 Cable

M12 X-coded USB cable

Ordering Information

24VDC Power Input (14.4V to 40VDC)

GOT710-837-R-E3845-

24VDC

GOT710-837-R-E3845-

24VDC w/keypad

10" SVGA fanless EN50155 railway touch panel computer with Intel® Atom™ E3845, sunlight readable LCD (1000 nits), 5-wire resistive touch screen and 24VDC power input

10" SVGA fanless EN50155 railway touch panel computer with Intel® Atom™ E3845, sunlight readable LCD (1000 nits), 5-wire resistive touch screen, 24VDC power input and keypad

GOT710-837-G-E3845-

24VDC w/keypad

10" SVGA fanless EN50155 railway touch panel computer with Intel® Atom™ E3845, sunlight readable LCD (1000 nits), non-touch screen, 24VDC power input and keypad

110VDC Power Input (66V to 154VDC)

GOT710-837-R-E3845-

110VDC

10" SVGA fanless EN50155 railway touch panel computer with Intel® Atom™ E3845, sunlight readable LCD (1000 nits), 5-wire resistive touch screen and 110VDC power input

GOT710-837-R-E3845-

110VDC w/keypad

GOT710-837-G-E3845-

110VDC w/keypad

10" SVGA fanless EN50155 railway touch panel computer with Intel® Atom™ E3845, sunlight readable LCD (1000 nits), 5-wire resistive touch screen, 110VDC power input and keypad

10" SVGA fanless EN50155 railway touch panel computer with Intel® Atom™ E3845, sunlight readable LCD (1000 nits), non-touch screen, 110VDC power input and keypad

* Specification and certifications are based on options and may vary.

Optional EOS Installation

WES 7

WE8S

Optional OS Installation

Windows® 7

Windows® 8/8.1

Overview

Fanless

Touch Panel

Computers

2

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Dimensions

Touch without keypad version

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

572

Touch Panel

Computers

www.axiomtek.com

Touch Panel Computers

3

Industrial Panel Computers

Axiomtek provides a complete range of industrial panel computers for automation applications. The high performance P1000 series focuses on factory and machinery market, which has ideal thermal solution, compact sized, easy maintenance design and light weight. IP65-rated front bezel is specially designed for continuous use in harsh environment. The P1000 series can help customers reduce time-to-market for industry automation.

Introduction

Selection Guide

NEW

NEW

Slim Series

P1177S-881

P1177S-871

P1157S-881

P1157S-871

575

576

17" SXGA TFT 5th Generation Intel® Core™ i7/i5/i3, Celeron® & 579

Pentium® Processor Slim Industrial Touch Panel Computer

17" SXGA TFT 3rd Generation Intel® Core™ i7/i5/i3, Celeron® & 581

Pentium® Processor Slim Industrial Touch Panel Computer

15" XGA TFT 5th Generation Intel® Core™ i7/i5/i3, Celeron® &

Pentium® Processor Slim Industrial Panel Computer

15" XGA TFT 3rd Generation Intel® Core™ i7/i5/i3, Celeron® &

Pentium® Slim Industrial Panel Computer

583

585

NEW

Expandable Series

P1197E-861

P1177E-871

P1177E-842

P1157E-871

P1127E-871

19" SXGA TFT 3rd Generation Intel® Core™ i7/i5/i3, Celeron® & 587

Pentium® Expandable Industrial Panel Computer with

1 PCI or 1 PCIe Slot

17" SXGA TFT 3rd Generation Intel® Core™ i7/i5/i3, Celeron® & 589

Pentium® Expandable Industrial Panel Computer with

2 PCI or 2 PCI Slots

17" SXGA TFT Intel® Celeron® Processor J1900 Expandable

Industrial Panel Computer with 1 PCI Slot

591

15" XGA TFT 3rd Generation Intel® Core™ i7/i5/i3, Celeron® & 593

Pentium® Expandable Industrial Panel Computer with

2 PCIe or 2 PCI Slots

12" XGA TFT 3rd Generation Intel® Core™ i7/i5/i3, Celeron® & 595

Pentium® Expandable Industrial Panel Computer with

2 PCIe or 2 PCI Slots

Industrial Panel Computers & Monitors

P1000 Slim Series with Scalable Performance

The P1000 slim series is designed with cost-effectiveness, flexibility, reduction in time-to-market concepts in mind. Axiomtek has optimized P1000 slim series into compact and super lightweight industrial panel computers. It features an anti-corrosion front bezel made by advanced industrial-grade material and excellent vibration resistance up to 1Grms, and uses aluminum chassis to further enhance high reliability and flexibility. The P1000 slim series has minimized bulk and adds appeal to the industrial computer.

Major Features

Slim Design with rich I/O Robust aluminum with IP65 compliant front bezel design

1

2

Only 3 Screws to remove back cover Ideal thermal design for scalable performance

P1000 Expandable Series with Flexible Integration

The P1000 expandable series is designed for customer that need I/O card expansion and excellent computing power. From entry level to high performance platform,

Axiomtek provides full range and size of P1000 expandable model to implement different application in automation. It features rugged designed housing and front bezel.

Ideal thermal solution can ensure add-on card stability and enhance operation process with great precision. Rich mounting method including panel mount, wall mount,

VESA mount and rack mount can fulfill different application facility without limitation. The P1000 expandable series has great balance between cost and performance.

Major Features

Varied sizes of 12", 15", 17" and 19" Expandable design & Multiple I/O port 5-wire resistive touch screen supported

Flexible mounting ways:

Desktop/Rack/Panel/Wall/VESA

575

* All specifications and photos are subject to change without notice.

Industrial Panel Computers

P1000 Slim Series Selection Guide

Overview

NEW NEW

Features\Models

CPU Level

Chipset

System Memory

Display

I/O

Storage

DVD-RW

Expansion Interface

Touchscreen

Operation System

Power Supply

Power Consumption

Watchdog Timer

Front Bezel

Dimensions

(W x D x H)

Weight (net/gross)

Operating Temperature

Certificate

Page 579

P1177S-881

LGA1150 socket 5th generation

Intel® Core™ i7/i5/i3, Celeron® &

Pentium®

Intel® H81

2 x 204-pin DDR3 SO-DIMM max. up to 16 GB

17" TFT XGA, 250 nits

3 x RS-232/422/485 with 5V & 12V

1 x RS-232 with 5V & 12V

2 x 10/100/1000 Mbps Ethernet

1 x VGA

1 x HDMI

2 x USB 3.0

4 x USB 2.0

1 x Audio (Mic-in/Line-out)

1 x 3.5" or 2 x 2.5" SATA HDD

N/A

N/A

5-wire resistive type

Windows® 8.1, WE8S,

Windows® 7, WES 7

200W, 100 ~ 240VAC

142W

255 levels, 1~255 sec.

Aluminum with IP65/

NEMA 4 rugged protection

410 x 80 x 338 mm

(16.14" x 3.15" x 13.3")

Page 581

P1177S-871

LGA1155 socket 3rd generation

Intel ® Core™ i7/i5/i3, Celeron® &

Pentium®

Intel® Q77

2 x 204-pin DDR3 SO-DIMM max. up to 16 GB

17" TFT SXGA, 350 nits

2 x RS-232

1 x RS-232/422/485 with 5V & 12V

1 x RS-232 with 5V & 12V

2 x 10/100/1000 Mbps Ethernet

1 x DVI-I

1 x HDMI

4 x USB 3.0

2 x USB 2.0

1 x Audio (Mic-in/Line-out)

1 x 3.5" or 2 x 2.5" HDD

N/A

N/A

5-wire resistive type

Windows® XP, XPe,

Windows® 7,

WES 7, Windows® 8, WE8S

270W, 100 ~ 240VAC

178W

255 levels, 1 ~ 255 sec.

Aluminum with IP65/

NEMA 4 rugged protection

410 x 80 x 338 mm

(16.14" x 3.15" x 13.3")

Page 583

P1157S-881

LGA1150 socket 5th generation

Intel® Core™ i7/i5/i3, Celeron® &

Pentium®

Intel® H81

2 x 204-pin DDR3 SO-DIMM max. up to 16 GB

15" TFT XGA, 250 nits

3 x RS-232/422/485 with 5V & 12V

1 x RS-232 with 5V & 12V

2 x 10/100/1000 Mbps Ethernet

1 x VGA

1 x HDMI

2 x USB 3.0

4 x USB 2.0

1 x Audio (Mic-in/Line-out)

1 x 3.5" or 2 x 2.5" SATA HDD

N/A

N/A

5-wire resistive type

Windows® 8.1, WE8S,

Windows® 7, WES 7

200W, 100 ~ 240VAC

142W

255 levels, 1~255 sec.

Aluminum with IP65/

NEMA 4 rugged protection

378 x 72.2 x 309 mm

(14.88" x 2.84" x 12.17")

Page 585

P1157S-871

LGA1155 socket 3rd generation

Intel ® Core™ i7/i5/i3, Celeron® &

Pentium®

Intel® Q77

2 x 204-pin DDR3 SO-DIMM max. up to 16 GB

15" TFT XGA, 350 nits

2 x RS-232

1 x RS-232/422/485 with 5V & 12V

1 x RS-232 with 5V & 12V

2 x 10/100/1000 Mbps Ethernet

1 x DVI-I

1 x HDMI

4 x USB 3.0

2 x USB 2.0

1 x Audio (Mic-in/Line-out)

1 x 3.5" or 2 x 2.5" HDD

N/A

N/A

5-wire resistive type

Windows® XP, XPe,

Windows® 7,

WES 7, Windows® 8, WE8S

270W, 100 ~ 240VAC

165W

255 levels, 1 ~ 255 sec.

Aluminum with IP65/

NEMA 4 rugged protection

378 x 72.2 x309 mm

(14.88" x 2.84" x 12.17")

7 kg (15.43 lb)/ 10.8 kg (23.8 lb) 7 kg (15.43 lb)/ 10.8 kg (23.8 lb) 5.4 kg (11.88 lb)/ 7.8 kg (17.16 lb) 5.2 kg (11.46 lb)/ 7.5 kg (16.53 lb)

0° ~ +45°C (+32°F ~ +113°F)

CE

0° ~ +45°C (+32°F ~ +113°F)

CE

0° ~ +45°C (+32°F ~ +113°F)

CE

0° ~ +45°C (+32°F ~ +113°F)

CE

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

3

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

576

Industrial Panel Computers

P1000 Expandable Series Selection Guide

NEW

Features\Models

CPU Level

Chipset

System Memory

Display

I/O

Storage

DVD-RW

Expansion Interface

Touchscreen

Operation System

Power Supply

Power Consumption

Watchdog Timer

Front Bezel

Dimensions

(W x D x H)

Weight (net/gross)

Operating Temperature

Certificate

Page 587

P1197E-861

LGA1155 socket 3rd generation

Intel® Core™ i7/i5/i3, Celeron® &

Pentium®

Intel ® H61

2 x 204-pin DDR3 SO-DIMM max. up to 16 GB

19" TFT SXGA, 350 nits

3 x RS-232

1 x RS-232/422/485

2 x 10/100/1000 Mbps Ethernet

1 x DVI-D

1 x VGA

6 x USB 2.0 (Back)

2 x USB 2.0 (Front)

1 x PS/2 keyboard/mouse combo

1 x Audio (Mic-in/Line-out)

2 x 2.5" HDD

1 x built-in slim type (optional)

1 x PCIe x4 or 1 x PCI

5-wire resistive type

Windows® XP, XPe, Windows® 7,

WES 7, Windows® 8, WE8S

270W, 100 ~ 240VAC

162W

255 levels, 1 ~ 255 sec.

Aluminum with IP65/

NEMA 4 rugged protection

469 x 94.7 x 380.8 mm

(18.46" x 3.73" x 14.99")

8 kg (17.64 lb)/ 10.4 kg (22.93 lb)

0° ~ +45°C (+32°F ~ +113°F)

CE

Page 589

P1177E-871

LGA1155 socket 3rd generation

Intel ® Core™ i7/i5/i3, Celeron®,

Pentium® & Xeon®

Intel® C216

2 x 204-pin DDR3 SO-DIMM max. up to 16 GB

17" TFT SXGA, 350 nits

2 x RS-232

1 x RS-232/422/485 with 5V & 12V

1 x RS-232 with 5V & 12V

2 x 10/100/1000 Mbps Ethernet

1 x DVI-I

1 x HDMI

4 x USB 3.0

2 x USB 2.0

1 x Audio (Mic-in/Line-out)

1 x 3.5" or 2 x 2.5" HDD

1 x built-in slim type (optional)

2 x PCIe x8 or 2 x PCI

5-wire resistive type

Windows® XP, XPe, Windows® 7,

WES 7, Windows® 8, WE8S

270W, 100 ~ 240VAC

180W

255 levels, 1~255 sec.

Aluminum with IP65/

NEMA 4 rugged protection

410 x 131 x 338 mm

(16.14" x 5.16" x 13.3")

8.2 kg (18.08 lb)/ 12 kg (26.46 lb)

0° ~ +45°C (+32°F ~ +113°F)

CE

Page 591

P1177E-842

Intel® Celeron® processor J1900

(up to 2.42 GHz)

SoC Intergrated

1 x 204-pin DDR3L-1333 SO-DIMM max. up to 8 GB

17" TFT SXGA, 250 nits

2 x RS-232/422/485

1 x RS-232

1 x RS-232 with 5V & 12V

2 x 10/100/1000 Mbps Ethernet

1 x VGA

1 x HDMI

1 x PS2 KB & 1 x PS2 MS

5 x USB 2.0

1 x USB 3.0

1 x Audio (Mic-in/Line-out)

1 x 3.5" or 1 x 2.5" SATA HDD

1 x built-in slim type (optional)

1x PCI

5-wire resistive type

Windows® 8.1, WE8S,

Windows® 7, WES 7

200W, 100 ~ 240VAC

67W

255 levels, 1~255 sec.

Aluminum with IP65/

NEMA 4 rugged protection

410 x 92 x 338 mm

(16.14” x 3.62” x 13.30”)

6.3 kg (13.89 lb) / 10.1 kg (22.26 lb)

0° ~ +45°C (+32°F ~ +113°F)

CE

577

* All specifications and photos are subject to change without notice.

Features\Models

CPU Level

Chipset

System Memory

Display

I/O

Storage

Expansion Interface

Touchscreen

Operation System

Power Supply

Power Consumption

Watchdog Timer

Front Bezel

Dimensions

(W x D x H)

Weight (net/gross)

Operating Temperature

Certificate

Page 593

P1157E-871

LGA1155 socket 3rd generation

Intel® Core™ i7/i5/i3, Celeron®,

Pentium® & Xeon®

Intel® C216

2 x 204-pin DDR3 SO-DIMM max. up to 16 GB

15" TFT XGA, 350 nits

2 x RS-232

1 x RS-232/422/485 with 5V & 12V

1 x RS-232 with 5V & 12V

2 x 10/100/1000 Mbps Ethernet

1 x DVI-I

1 x HDMI

4 x USB 3.0

2 x USB 2.0

1 x Audio (Mic-in/Line-out)

1 x 3.5" or 2 x 2.5" HDD

2 x PCIe x8 or 2 x PCI

5-wire resistive type

Windows® XP, XPe, Windows® 7,

WES 7, Windows® 8, WE8S

200W, 100 ~ 240VAC

167W

255 levels, 1~255 sec.

Aluminum with IP65/

NEMA 4 rugged protection

378 x 125.5 x 309 mm

(14.88" x 4.94" x 12.17")

6.2 kg (13.67 lb)/ 9.6 kg (21.16 lb)

0° ~ +45°C (+32°F ~ +113°F)

CE

Page 595

P1127E-871

LGA1155 socket 3rd generation

Intel® Core™ i7/i5/i3, Celeron®,

Pentium® & Xeon®

Intel® C216

2 x 204-pin DDR3 SO-DIMM max. up to 16 GB

12.1" TFT XGA, 500 nits

1 x RS-232

1 x RS-232/422/485 with 5V & 12V

1 x RS-232 with 5V & 12V

2 x 10/100/1000 Mbps Ethernet

1 x DVI-I

1 x HDMI

4 x USB 3.0

2 x USB 2.0

1 x Audio (Mic-in/Line-out)

1 x 2.5" HDD

2 x PCIe x8 or 2 x PCI

5-wire resisitve type

Windows® XP, WES, Windows® 7,

WES 7, Windows® 8, WE8S

270W, 100 ~ 240VAC

160W

255 levels, 1 ~ 255 sec.

Aluminum with IP65/

NEMA 4 rugged protection

311.5 x 111.85 x 250

(12.26" x 4.4" x 9.84")

5 kg (11.02 lb)/ 7.1 kg (15.65 lb)

0° ~ +45°C (+32°F ~ +113°F)

CE

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

578

Overview

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

3

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

P1177S-881

17" SXGA TFT 5th/4th Generation Intel®

Core™ i7/i5/i3, Celeron® & Pentium®

Processor Slim Industrial Touch Panel

Computer

NEW

Features

17" SXGA TFT LCD display

LGA1150 socket 5th/4th generation Intel® Core™ i7/i5/i3,

Celeron® & Pentium® processor (Broadwell/Haswell)

Intel® H81 chipset

Easy installation: Less screw design for user’s convenience

2 USB 3.0, 4 USB 2.0 and 4 COM ports

Built-in speakers and optional Wi-Fi 802.11 b/g/n module

Robust aluminum with IP65 compliant front bezel design

The best C/P ratio for HMI solution

1 2 3 4 5

6 7 8 9 10

11

1. 1 x RS-232/422/485 with 5V & 12V (COM 1)

2. 1 x RS-232/422/485 with 5V & 12V (COM 3)

3. 1 x RJ45 for Gigabit Ethernet (LAN1)

4. 1 x RJ45 for Gigabit Ethernet (LAN2)

5. 1 x RS-232 with 5V&12V (COM4)

6. 1 x HDMI

7. 1 x RS-232/422/485 with 5V&12V (COM 2)

12 13

8. 1 x VGA

9. 2 x USB 3.0

10. 2 x USB 2.0

14

11. 1 x MIC-in, 1 x Line-out

12. 2 x USB 2.0

13. 1 x AC Plug

14. 1 x switch for power on/off

Side view

DDR3

IP65 DualView

Introduction

The P1177S-881 is a multimedia 17" touch panel PC for kiosk application. It has a fashionable mechanism design and industrial-grade material front bezel which can avoid damage from chemical corrosion. To meet the demands of multimedia application, the P1177S-881 is powered by a high performance LGA1150 socket 5th/4th generation

Intel® Core™ i7/i5/i3, Celeron® & Pentium® processor with the Intel® H81 Express chipset (Broadwell/Haswell). It features four COM ports, two Gigabit Ethernet and up to 16 GB memory of dual-channel DDR3 that delivers high computing capability for high performance-demanding applications. The industrial panel PC is most suitable for kiosk, factory and automation.

Dual Monitor Display

The P1177S-881 supports VGA or HDMI simultaneously that features the use of dual display devices for increasing the area available for programs running on a single computer system. It not only increases larger screen viewing but also improves personal productivity.

Speaker and WLAN Antenna Supported

The P1177S-881 features built-in speakers for kiosk application to display multimedia content program. It also supports WLAN module antenna (optional) for wireless network connectivity.

Friendly Less Screw Design

Removing the back cover to maintain the system in unscrewing 3 screws only that saving your time and increasing our work efficiency many times.

Specifications

Front Bezel

LCD Panel

Main System

Aluminum with IP65/NEMA 4 rugged protection

Display Type 17" SXGA TFT LCD

Brightness

Resolution

250 nits

1280 x 1024 pixels

Viewing Angle

CPU

Chipset

System Memory

170°/160°

LGA1150 socket 5th/4th generation

Intel® Core™ i7/i5/i3, Celeron®

& Pentium® processor (Broadwell/

Haswell)

Intel® H81

2 x 204-pin DDR3 SO-DIMM dual channel max. up to 16 GB

BIOS

Storage

Watchdog Timer

AMI UEFI BIOS with OA 3.0 built

1 x 3.5" or 2 x 2.5" SATA HDD

255 levels, 1~255 sec.

579

* All specifications and photos are subject to change without notice.

Specifications

IO Connector

Expansion Interface

Touchscreen

Power Supply

Dimensions

Packing Dimension

Weight (net/gross)

Environment

Certificate

3 x RS-232/422/485 with 5V & 12V

1 x RS-232 with 5V & 12V

1 x VGA

1 x HDMI

2 x USB 3.0

4 x USB 2.0

2 x 10/100/1000 Mbps Ethernet

1 x Audio (Mic-in/Line-out)

N/A

5-wire resistive type

Light transmission 79%

1 million activations (typical) at a single point

100 ~ 240VAC, 200W

410 mm (16.14") (W) x 80 mm (3.15") (D) x 338 mm (13.3") (H)

610 mm (24.02") (W) x 260 mm (10.24") (D) x 590 mm (23.23")

(H)

6.6kg (14.55lb) / 10.6kg (23.37lb)

Operating Temperature: 0° ~ +45°C (+32°F ~ +113°F)

Storage Temperature: -20°C ~ +65°C (-4°F ~ +149°F)

Relative humidity: 10 ~ 90%@40°C, non-considering

Operating vibration: 1.0 G, 5-500Hz, random

CE

Ordering Information

P1177S-881 17" SXGA slim industrial touch panel computer supports

LGA1150 socket Intel® 4th generation Core™ i7/i5/i3,

Pentium® & Celeron® processor, resistive touch screen and 100~240VAC

* Specification and certifications are based on options and may vary.

Optional Accessories

82211770060E

82211770070E

82011750130E

E202003330

E202003329

82211271000E

VESA & WALL mount kit

Rack mount kit

2 x 2.5" HDD Bracket

VM-101 (VESA ARM clamp type)

VM-105 (VESA ARM wall-mount)

Wireless LAN kit

Optional OS Installation

Windows®7/8.1

Windows® Embedded 7/8

Dimensions

Less screw design

Overview

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

3

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

580

P1177S-871

17" SXGA TFT Intel® Core™ i7/i5/i3,

Celeron® & Pentium® Processor Slim

Industrial Touch Panel Computer

Features

17" SXGA TFT LCD display

LGA1155 socket 3rd & 2nd generation Intel® Core™ i7/i5/i3,

Celeron® & Pentium® processor

Intel® Q77 chipset

Easy installation: Less screw design for user’s convenience

4 USB 3.0, 2 USB 2.0 and 4 COM ports

Built-in speakers and optional Wi-Fi 802.11 b/g/n module

Robust aluminum with IP65 compliant front bezel design

1 2 3 4 5 6 7 8

9 10 11 12

1. COM 1 with 5V & 12V

(RS-232/422/485)

2. DVI-I

3. Ethernet x 2

4. Audio (MIC-in/Line-out)

5. COM 3 with 5V & 12V (RS-232)

6. USB 2.0 x 2

7. AC plug

8. Power switch

9. COM 2 (RS-232)

10. HDMI

11. USB 3.0 x 4

12. COM 4 (RS-232)

Side view

DDR3

IP65 DualView

Introduction

The P1177S-871 is a multi-media 17" touch panel PC for kiosk application. It has a fashionable mechanism design and industrial-grade material front bezel which can avoid damage from chemical corrosion. To meet the demands of multimedia application, the

P1177S-871 is powered by the high performance LGA1155 socket 3rd & 2nd generation

Intel® Core™ i7/i5/i3, Celeron® & Pentium® processor with Intel® Q77 Express chipset. It features four COM ports, two Gigabit Ethernet and up to 16 GB memory of dual-channel DDR3 that delivers high computing capability for high performancedemanding applications. The industrial panel PC is most suitable for kiosk, factory and automation fields.

Dual display

The P1177S-871 supports DVI or HDMI simultaneously that features the use of dual display devices for increasing the area available for programs running on a single computer system. It not only increases larger screen viewing but also improves personal productivity.

Speaker and WLAN Antenna Supported

The P1177S-871 features built-in speakers for kiosk application to display multimedia content program. It also supports WLAN module (optional) antenna for wireless network connectivity.

Friendly Less Screw Design

Removing the back cover to maintain the system in unscrewing 3 screws only that saving your time and increasing our work efficiency many times.

Specifications

Front Bezel

LCD Panel

Main System

Aluminum w/ IP65/NEMA 4 rugged protection

Display Type 17" SXGA TFT LCD

Brightness

Resolution

Viewing Angle

CPU

Chipset

System Memory

BIOS

Storage

Watchdog Timer

350 nits

1280 x 1024 pixels

170°/160°

LGA1155 socket 3rd & 2nd generation Intel® Core™ i7/i5/i3,

Celeron® & Pentium® processor

Intel® Q77

2 x 204-pin DDR3 SO-DIMM dual channel max. up to 16 GB

AMI UEFI BIOS with OA 3.0 built

1 x 3.5" or 2 x 2.5" SATA HDD

255 levels, 1~255 sec.

581

* All specifications and photos are subject to change without notice.

Specifications

IO Connector

Expansion Interface

Touchscreen

Power Supply

Dimensions

Packing Dimension

Weight(net/gross)

Environment

Certificate

2 x RS-232 (COM 2 & COM 4)

1 x RS-232/422/485 with 5V & 12V (COM 1)

1 x RS-232 with 5V & 12V (COM 3)

1 x DVI-I

1 x HDMI

4 x USB 3.0

2 x USB 2.0

2 x 10/100/1000 Mbps Ethernet

1 x Audio (Mic-in/Line-out)

N/A

5-wire resistive type

Light transmission 79%

1 million activations (typical) at a single point

100 ~ 240VAC, 270W

410 mm (16.14") (W) x 80 mm (3.15") (D) x 338 mm (13.3") (H)

610 mm (24.02") (W) x 260 mm (10.24") (D) x 590 mm (23.23")

(H)

7 kg (15.43 lb)/ 10.8 kg (23.8 lb)

Operating Temperature: 0° ~ +45°C (+32°F ~ +113°F)

Storage Temperature: -20°C ~ +60°C (-4°F ~ +140°F)

Relative humidity: 10 ~ 95%@40°C, non-considering

Operating vibration: 1.0G, 5-500Hz, random

CE

Ordering Information

P1177S-871 17" SXGA slim industrial touch panel computer supports

LGA1155 socket Intel® 3rd generation Core™ i7/i5/i3,

Pentium® & Celeron® processor, resistive touch screen and 100~240VAC

* Specification and certifications are based on options and may vary.

Optional Accessories

82211271000E

82011750130E

82211770060E

82211770070E

E202003330

E202003329

Wireless LAN kit

2 x 2.5" HDD Kit

VESA & WALL mount kit

Rack mount kit

VM-101 (VESA ARM clamp type)

VM-105 (VESA ARM wall-mount)

Optional OS Installation

Windows® XP/XPe

Windows® 7/8.1

Windows® Embedded 7/8

Dimensions

Less screw design

Overview

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

3

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

582

P1157S-881

15" XGA TFT 5th/4th Generation Intel®

Core™ i7/i5/i3, Celeron®, Pentium® &

Xeon®Processor Processor Slim Industrial

Touch Panel Computer

NEW

Features

15" XGA TFT LCD display

LGA1150 socket 5th/4th generation Intel® Core™ i7/i5/i3

Celeron® & Pentium® processor (Broadwell/Haswell)

Intel® H81 chipset

Easy installation: a less screw design for user’s convenience

2 USB 3.0, 4 USB 2.0 and 4 COM ports

Built-in speakers and optional Wi-Fi 802.11 b/g/n module

Robust aluminum with IP65 compliant front bezel design

The best C/P ratio for HMI solution

1 2 3 4 5

6 7 8 9 10

11

1. 1 x RS-232/422/485 with 5V & 12V (COM 1)

2. 1 x RS-232/422/485 with 5V & 12V (COM 3)

3. 1 x RJ45 for Gigabit Ethernet (LAN 1)

4. 1 x RJ45 for Gigabit Ethernet (LAN 2)

5. 1 x RS-232 with 5V&12V (COM 4)

6. 1 x HDMI

7. 1 x RS-232/422/485 with 5V&12V (COM 2)

12 13

8. 1 x VGA

9. 2 x USB 3.0

10. 2 x USB 2.0

14

11. 1 x MIC-in, 1 x Line-out

12. 2 x USB 2.0

13. 1 x AC Plug

14. 1 x switch for power on/off

Side view

DDR3

IP65 DualView

Introduction

The P1157S-881 is a multimedia 15" touch panel PC for kiosk application. It has a fashionable mechanism design and industrial-grade material front bezel which can avoid damage from chemical corrosion. To meet the demands of multimedia application, the P1157S-881 is powered by a high performance LGA1150 socket 5th/4th generation

Intel® Core™ i7/i5/i3 Celeron® & Pentium® processor with the Intel® H81 Express chipset (Broadwell/Haswell). It features four COM ports, two Gigabit Ethernet and up to 16 GB memory of dual-channel DDR3 that delivers high computing capability for high performance-demanding applications. The industrial panel PC is most suitable for kiosk, factory and automation.

Dual Monitor Display

The P1157S-881 supports VGA or HDMI simultaneously that features the use of dual display devices for increasing the area available for programs running on a single computer system. It not only increases larger screen viewing but also improves personal productivity.

Speaker and WLAN Antenna Supported

The P1157S-881 features built-in speakers for kiosk application to display multimedia content program. It also supports WLAN module antenna (optional) for wireless network connectivity.

Friendly Less Screw Design

Removing the back cover to maintain the system in unscrewing 3 screws only that saving your time and increasing our work efficiency many times.

Specifications

Front Bezel

LCD Panel

Main System

Aluminum with IP65/NEMA 4 rugged protection

Display Type 15" XGA TFT LCD

Brightness

Resolution

250 nits

1024 x 768 pixels

Viewing Angle

CPU

Chipset

System Memory

160°/140°

LGA1150 socket 5th/4th generation

Intel® Core™ i7/i5/i3 Celeron® &

Pentium® processor (Broadwell/

Haswell)

Intel® H81

2 x 204-pin DDR3 SO-DIMM dual channel max. up to 16 GB

BIOS

Storage

Watchdog Timer

AMI UEFI BIOS with OA 3.0 built

1 x 3.5" or 2 x 2.5" SATA HDD

255 levels, 1~255 sec.

583

* All specifications and photos are subject to change without notice.

Specifications

IO Connector

Expansion Interface

Touchscreen

Power Supply

Dimensions

Packing Dimension

Weight(net/gross)

Environment

Certificate

3 x RS-232/422/485 with 5V & 12V

1 x RS-232 with 5V & 12V

1 x VGA

1 x HDMI

2 x USB 3.0

4 x USB 2.0

2 x 10/100/1000 Mbps Ethernet

1 x Audio (Mic-in/Line-out)

N/A

5-wire resistive type

Light transmission 79%

1 million activations (typical) at a single point

100 ~ 240VAC, 200W

378 mm (14.88") (W) x 72.2 mm (2.84") (D) x 309 mm (12.17") (H)

610 mm (24.02") (W) x 260 mm (10.24") (D) x 590 mm (23.23") (H)

5.4 kg (11.88 lb)/ 7.8 kg (17.16 lb)

Operating Temperature: 0° ~ +45°C (+32°F ~ +113°F)

Storage Temperature: -20°C ~ +65°C (-4°F ~ +149°F)

Relative humidity: 10 ~ 90%@40°C, non-considering

Operating vibration: 1.0 G, 5-500Hz, random

CE

Dimensions

Ordering Information

P1157S-881 15" XGA slim industrial touch panel computer supports

LGA1150 socket Intel® 4th generation Core™ i7/i5/i3,

Pentium® & Celeron® processor, resistive touch screen and 100~240VAC

* Specification and certifications are based on options and may vary.

Optional Accessories

82211570050E

82211570060E

72211571000E

E202003330

E202003329

82211271000E

VESA & WALL mount kit

Rack mount kit

2 x 2.5" HDD Bracket

VM-101 (VESA ARM clamp type)

VM-105 (VESA ARM wall-mount)

Wireless LAN kit

Optional OS Installation

Windows® 7/8.1

Windows® Embedded 7/8

Less screw design

Overview

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

3

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

584

P1157S-871

15" XGA TFT Intel® Core™ i7/i5/i3, Celeron®

& Pentium® Slim Industrial Touch Panel

Computer

Features

15" XGA TFT LCD display

LGA1155 socket 3rd & 2nd generation Intel® Core™ i7/i5/i3,

Celeron® & Pentium® processor

Intel® Q77 chipset

Easy installation: a less screw design for user’s convenience

4 USB 3.0, 2 USB 2.0 and 4 COM ports

Built-in speakers and optional Wi-Fi 802.11 b/g/n module

Robust aluminum with IP65 compliant front bezel design

1 2 3 4 5 6 7 8

9 10 11 12

1. COM 1 with 5V & 12V

(RS-232/422/485)

2. DVI-I

3. Ethernet x 2

4. Audio (MIC-in/Line-out)

5. COM 3 with 5V & 12V (RS-232)

6. USB 2.0 x 2

7. AC plug

8. Power switch

9. COM 2 (RS-232)

10. HDMI

11. USB 3.0 x 4

12. COM 4 (RS-232)

Side view

DDR3

IP65 DualView

Introduction

The P1157S-871 is a multimedia 15" touch panel PC for kiosk application. It has a fashionable mechanism design and industrial-grade material front bezel which can avoid damage from chemical corrosion. To meet the demands of multimedia application, the

P1157S-871 is powered by a high performance LGA1155 socket 3rd & 2nd generation

Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor with the Intel® Q77 Express chipset. It features four COM ports, two Gigabit Ethernet and up to 16 GB memory of dual-channel DDR3 that delivers high computing capability for high performancedemanding applications. The industrial panel PC is most suitable for kiosk, factory and automation.

Dual Monitor Display

The P1157S-871 supports DVI or HDMI simultaneously that features the use of dual display devices for increasing the area available for programs running on a single computer system. It not only increases larger screen viewing but also improves personal productivity.

Speaker and WLAN Antenna Supported

The P1157S-871 features built-in speakers for kiosk application to display multimedia content program. It also supports WLAN module antenna (optional) for wireless network connectivity.

Friendly Less Screw Design

Removing the back cover to maintain the system in unscrewing 3 screws only that saving your time and increasing our work efficiency many times.

Specifications

Front Bezel

LCD Panel

Main System

Aluminum w/ IP65/NEMA 4 rugged protection

Display Type 15" XGA TFT LCD

Brightness

Resolution

350 nits

1024 x 768 pixels

Viewing Angle

CPU

Chipset

System Memory

160°/140°

LGA1155 socket 3rd & 2nd generation Intel® Core™ i7/i5/i3,

Celeron® & Pentium® processor

Intel® Q77

2 x 204-pin DDR3 SO-DIMM dual channel max. up to 16 GB

BIOS

Storage

Watchdog Timer

AMI UEFI BIOS with OA 3.0 built

1 x 3.5" or 2 x 2.5" SATA HDD

255 levels, 1~255 sec.

585

* All specifications and photos are subject to change without notice.

Specifications

IO Connector

Expansion Interface

Touchscreen

Power Supply

Dimensions

Packing Dimension

Weight(net/gross)

Environment

Certificate

2 x RS-232 (COM 2 & COM 4)

1 x RS-232/422/485 with 5V & 12V (COM 1)

1 x RS-232 with 5V & 12V (COM 3)

1 x DVI-I

1 x HDMI

4 x USB 3.0

2 x USB 2.0

2 x 10/100/1000 Mbps Ethernet

1 x Audio (Mic-in/Line-out)

N/A

5-wire resistive type

Light transmission 79%

1 million activations (typical) at a single point

100 ~ 240VAC, 270W

378 mm (14.88") (W) x 72.2 mm (2.84") (D) x 309 mm (12.17") (H)

610 mm (24.02") (W) x 260 mm (10.24") (D) x 590 mm (23.23") (H)

5.2 kg (11.46 lb)/ 7.5 kg (16.53 lb)

Operating Temperature: 0° ~ +45°C (+32°F ~ +113°F)

Storage Temperature: -20°C ~ +65°C (-4°F ~ +149°F)

Relative humidity: 10 ~ 90%@40°C, non-considering

Operating vibration: 1.0 G, 5-500Hz, random

CE

Dimensions

Ordering Information

P1157S-871 15" XGA slim industrial touch panel computer supports

LGA1155 socket Intel® 3rd generation Core™ i7/i5/i3,

Pentium® & Celeron® processor, resistive touch screen and 100~240VAC

* Specification and certifications are based on options and may vary.

Optional Accessories

82211271000E

82211570050E

82211570060E

72211571000E

E202003330

E202003329

Wireless LAN kit

VESA & WALL mount kit

Rack mount kit

2 x 2.5" HDD Bracket

VM-101 (VESA ARM clamp type)

VM-105 (VESA ARM wall-mount)

Optional OS Installation

Windows® XP/XPe

Windows® 7/8.1

Windows® Embedded 7/8

Less screw design

Overview

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

3

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

586

P1197E-861

19" SXGA TFT Intel® Core™ i7/i5/i3,

Celeron® & Pentium® Expandable Industrial

Touch Touch Panel Computer with 1 PCI or 1

PCIe Slot

Features

19" SXGA TFT LCD display

LGA1155 socket 3rd & 2nd generation Intel® Core™ i7/i5/i3,

Celeron® & Pentium® processor

Intel® H61 chipset

Easy installation: Less screw design for user’s convenience

6 USB 2.0 (back), 2 USB 2.0 (front) and 4 COM ports

Flexible expansion interface (PCIe x4 or PCI slot)

Built-in speakers and optional Wi-Fi 802.11 b/g/n module

Robust aluminum with IP65 compliant front bezel design

2 3 4 5 6 7 front USB ports

1 8 9 10 11 12 13 14

1. AC Plug

2. PS2 Keyboard & Mouse combo

3. 1 x RS-232/422/485 (COM1)

4. 1 x VGA

5. Ethernet x2

6. Audio (Mic-in/Line-out)

7. 1 x PCIe x 4 or 1 x PCI

8. 2 x USB 2.0

9. 1 x RS-232 (COM2)

10. 1 x DVI-D

11. 4 x USB 2.0

12. 1 x RS-232 (COM3)

13. 1 x RS-232 (COM4)

14. Power Switch

HDD easy maintenance

DDR3

IP65 DualView

Introduction

The P1197E-861 is a multimedia 19" touch panel PC for kiosk application. It has a fashionable mechanism design and industrial-grade material front bezel which can avoid damage from chemical corrosion. To meet the demands of multimedia application, the

P1197E-861 is powered by a high performance LGA1155 socket 3rd & 2nd generation

Intel® Core™ processor with the Intel® H61 Express chipset. It features four COM ports, two Gigabit Ethernet and up to 16 GB memory of dual-channel DDR3 that delivers high computing capability for high performance-demanding applications. The industrial touch panel PC is most suitable for kiosk, factory and automation.

Expandable for 1 PCIe or 1 PCI

The P1197E-861 has 1 PCIe x4 or 1 PCI slot for expansion purpose. User can easily plug in standard half-size PCI or PCIe card for any requirement.

Speaker and WLAN Antenna Supported

The P1197E-861 features built-in speakers for kiosk application to display multimedia content program. It also supports WLAN module antenna (optional) for wireless network connectivity.

SATA HDD Trays for Easy Maintenance

Without the complicated steps, users can maintain hard drive in 2 steps that make the work more efficiency.

Friendly Less Screw Design

Removing the back cover to maintain the system in unscrewing 3 screws only that saving your time and increasing our work efficiency many times.

Specifications

Front Bezel

LCD Panel

Main System

Aluminum w/ IP65/NEMA 4 rugged protection

Display Type

Brightness

19" SXGA TFT LCD

350 nits

Resolution

Viewing Angle

CPU

1280 x 1024 pixels

170°/160°

Chipset

System Memory

LGA1155 socket 3rd & 2nd generation Intel® Core™ i7/i5/i3,

Celeron® & Pentium® processor

Intel® H61

2 x 204-pin DDR3 SO-DIMM dual channel max. up to 16 GB

BIOS

Storage

Drive

Watchdog Timer

AMI UEFI BIOS with OA 3.0 built

2 x 2.5" SATA HDD

1 x builtin slim DVD-RW (optional)

255 levels, 1~255 sec.

587

* All specifications and photos are subject to change without notice.

Specifications

IO Connector

Expansion Interface

Touchscreen

Power Supply

Dimensions

Packing Dimension

Weight(net/gross)

Environment

Certificate

3 x RS-232 (COM 2-4)

1 x RS-232/422/485 (COM 1)

1 x RS-232 with 5V & 12V (COM 3)

1 x DVI-D

1 x VGA

6 x USB 2.0 (back)

2 x USB 2.0 (front)

2 x 10/100/1000 Mbps Ethernet

1 x Audio (Mic-in/Line-out)

1 x PCIe x4 or 1 x PCI

5-wire resistive type

Light transmission 79%

1 million activations (typical) at a single point

100 ~ 240VAC, 270W

469 mm (18.46") (W) x 94.7 mm (3.73") (D) x 380.8 mm

(14.99") (H)

615 mm (24.21") (W) x 250 mm (9.84") (D) x 585 mm (23.03") (H)

8 kg (17.64 lb)/ 10.4 kg (22.93 lb)

Operating Temperature: 0° ~ +45°C (+32°F ~ +113°F)

Storage Temperature: -20°C ~ +65°C (-4°F ~ +149°F)

Relative humidity: 10 ~ 90% @ 40°C, non-considering

Operating vibration: 1.0G, 5-500Hz, random

CE

Ordering Information

P1197E-861 w/ PCIe

P1197E-861 w/ PCI

19" SXGA expandable industrial touch panel computer supports LGA1155 socket Intel® 3rd & 2nd generation

Core™ i7/i5/i3, Pentium® & Celeron® processor, resistive touch screen and 1 PCIe x4 slot, 100~240VAC

19" SXGA expandable industrial touch panel computer supports LGA1155 socket Intel® 3rd & 2nd generation

Core™ i7/i5/i3, Pentium® & Celeron® processor, resistive touch screen and 1 PCI slot, 100~240VAC

* Specification and certifications are based on options and may vary.

Optional Accessories

82211970060E

82211970070E

82231570160E

E202003330

E202003329

DVD-RW kit

VESA & wall mount kit

Wireless LAN kit

VM-101 (VESA ARM clamp type)

VM-105 (VESA ARM wall-mount)

Optional OS Installation

Windows® XP/XPe

Windows® 7/8.1

Windows® Embedded 7/8

Overview

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

3

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Dimensions

Less screw design

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

588

P1177E-871

17" SXGA TFT Intel® Core™ i7/i5/i3,

Celeron®, Pentium® & Xeon® Processor

Expandable Industrial Touch Panel Computer with 2 PCIe or 2 PCI Slots

Features

17" SXGA TFT LCD display

LGA1155 socket 3rd & 2nd generation Intel® Core™ i7/i5/i3,

Celeron®, Pentium® & Xeon® processor

Intel® C216 chipset

Easy installation: a less screw design for user’s convenience

4 USB 3.0, 2 USB 2.0 and 4 COM ports

Flexible expansion interface (two PCIe x8 or two PCI slots)

Built-in speakers and optional Wi-Fi 802.11 b/g/n module

Robust aluminum with IP65 compliant front bezel design

1 2 3 4 5 6 7

8

1. COM 1 with 5V & 12V

(RS-232/422/485)

2. DVI-I

3. Ethernet x 2

4. Audio (MIC-in/Line-out)

9 10 11 12 13

5. COM 3 with 5V & 12V (RS-232)

6. USB 2.0 x 2

7. PCIe x8 x 2 or PCI x 2

8. COM 2 (RS-232)

9. HDMI

10. USB 3.0 x 4

11. COM 4 (RS-232)

12. AC plug

13. Power switch

Side view

DDR3

IP65 DualView

Introduction

The P1177E-871 is a multimedia 17" touch panel PC for kiosk application. It has a fashionable mechanism design and industrial-grade material front bezel which can avoid damage from chemical corrosion. To meet the demands of multimedia application, the

P1177E-871 is powered by a high performance 3rd & 2nd generation Intel® Core™ i7/ i5/i3, Celeron®, Pentium® & Xeon® processors with the Intel® C216 Express chipset.

It features four COM ports, two Gigabit Ethernet and up to 16 GB memory of dualchannel DDR3 that delivers high computing capability for high performance-demanding applications. The industrial panel PC is most suitable for kiosk, factory and automation.

Dual Monitor Display

The P1177E-871 supports DVI or HDMI simultaneously that features the use of dual display devices for increasing the area available for programs running on a single computer system. It not only increases larger screen viewing but also improves personal productivity.

Expandable for 2 PCIe or 2 PCI

The P1177E-871 has 2 PCIe x8 or 2 PCI ports for expansion purpose. User can easily plug in standard half-size PCI or PCIe card for any requirement.

Speaker and WLAN Antenna Supported

The P1177E-871 features built-in speakers for kiosk application to display multimedia content program. It also supports WLAN module antenna (optional) for wireless network connectivity.

Friendly Less Screw Design

Removing the back cover to maintain the system in unscrewing 3 screws only that saving your time and increasing our work efficiency many times.

589

Specifications

Front Bezel

LCD Panel

Main System

Aluminum w/ IP65/NEMA 4 rugged protection

Display Type 17" SXGA TFT LCD

Brightness

Resolution

350 nits

1280 x 1024 pixels

Viewing Angle

CPU

Chipset

System Memory

BIOS

Storage

Drive

Watchdog Timer

170°/160°

LGA1155 socket 3rd & 2nd generation Intel® Core™ i7/i5/ i3, Celeron®, Pentium® & Xeon® processor

Intel® C216

2 x 204-pin DDR3 SO-DIMM dual channel max. up to 16 GB

AMI UEFI BIOS with OA 3.0 built

1 x 3.5" or 2 x 2.5" SATA HDD

1 x built-in slim DVD-RW (optional)

255 levels, 1~255 sec.

* All specifications and photos are subject to change without notice.

Specifications

IO Connector

Expansion Interface

Touchscreen

Power Supply

Dimensions

Packing Dimension

Weight(net/gross)

Environment

Certificate

2 x RS-232 (COM 2 & COM 4)

1 x RS-232/422/485 with 5V & 12V (COM 1)

1 x RS-232 with 5V & 12V (COM 3)

1 x DVI-I

1 x HDMI

4 x USB 3.0

2 x USB 2.0

2 x 10/100/1000 Mbps Ethernet

1 x Audio (Mic-in/Line-out)

2 x PCIe x8 or 2 x PCI

5-wire resistive type

Light transmission 79%

1 million activations (typical) at a single point

100 ~ 240VAC, 270W

410 mm (16.14") (W) x 131 mm (5.16”) (D) x 338 mm (13.3”) (H)

610 mm (24.02") (W) x 260 mm (10.24") (D) x 590 mm (23.23") (H)

8.2 kg (18.078 lb)/12 kg (26.46 lb)

Operating Temperature: 0° ~ +45°C (+32°F ~ +113°F)

Storage Temperature: -20°C ~ +60°C (-4°F ~ +140°F)

Relative humidity: 10 ~ 90%@40°C, non-considering

Operating vibration: 1.0G, 5-500Hz, random

CE

Ordering Information

P1177E-871 w/ PCIe

P1177E-871 w/ PCI

17" SXGA expandable industrial touch panel computer supports LGA1155 socket Intel® 3rd generation Core™ i7/ i5/i3, Xeon®, Pentium® & Celeron® processor, resistive touch screen and 2 PCIe x8 slot, 100~240VAC

17" SXGA expandable industrial touch panel computer supports LGA1155 socket Intel® 3rd generation Core™ i7/ i5/i3, Xeon®, Pentium® & Celeron® processor, resistive touch screen and 2 PCI slot, 100~240VAC

* Specification and certifications are based on options and may vary.

Optional Accessonies

82211271000E

82011750130E

8211770120E

82211770070E

82211770110E

E202003330

E202003329

Wireless LAN kit

2 x 2.5" HDD kit

VESA & Wall Mount kit

Rack mount kit

P1177E-871 DVD-RW Kit

VM-101 (VESA ARM clamp type)

VM-105 (VESA ARM wall-mount)

Optional OS Installation

Windows® XP/XPe

Windows® 7/8.1

Windows® Embedded 7/8

Overview

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

3

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Expanelable design Less screw design

Dimensions

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

590

P1177E-842

17" SXGA TFT Intel® Celeron® Processor

J1900 Expandable Industrial Touch Panel

Computer with 1 PCI Slot

NEW

Features

17" SXGA TFT LCD display

Intel® Celeron® Quad Core processor J1900 2.0 GHz

(Intel® Bay Trail platform)

One PCI expansion slot

1 USB 3.0, 3 USB 2.0 and 4 COM ports

Built-in speakers and optional Wi-Fi 802.11 b/g/n module

Robust aluminum with IP65 compliant front bezel design

2 4 6 8 10

12

14

1

1. 1 x AC Plug

2. PS/2 Mouse

3. PS/2 Keyboard

4. 1 x RS-232/422/485 (COM1)

5. 1 x RS-232/422/485 (COM2)

6. 1 x VGA

3 5 7 9 11

13

15 16 17

7. 1 x HDMI

8. 1 x RJ-45 for Gigabit Ethernet

9. 1 x USB 3.0, 1 x USB 2.0

10. 1 x RJ-45 for Gigabit Ethernet

11. 2 x USB 2.0

12. 1 x Line-out

13. 1 x Mic-in

14. 1 x PCI Card expansion slot

15. 1 x RS-232 (COM3)

16. 1 x RS-232 (COM4)

17. 1 x Switch for power on/off

Easy Maintenance &

Hardware Installation

DDR3L IP65 DualView

Introduction

The P1177E-842 is a multimedia 17" industrial touch panel PC for kiosk application. It has a fashionable mechanism design and industrial-grade material front bezel which can avoid damage from chemical corrosion. The 17-inch high performance touch panel system is powered by Intel® Celeron® Processor J1900 at 2.0 GHz (Intel® Bay Trail platform). It features four COM ports, two Gigabit Ethernet, one USB 3.0 and three USB 2.0 ports. The optional front bezel can be more flexible for automation application.

Dual Monitor Display

The Axiomtek P1177E-842 supports VGA or HDMI simultaneously that features the use of dual display devices for increasing the area available for programs running on a single computer system. It not only increases larger screen viewing but also improves personal productivity.

Speaker and WLAN Antenna Supported

The Axiomtek 17" IP65/NEMA rugged industrial touch panel PC features built-in speakers for kiosk application to display multimedia content program. It also supports WLAN module antenna (optional) for wireless network connectivity.

Expandable for 1 PCI

The P1177E-842 has 1 PCI slot for expansion purpose. User can easily plug in standard half-size PCI or PCIe card for any requirement.

Specifications

Front Bezel

LCD Panel

Main System

Aluminum with IP65/NEMA 4 rugged protection

Display Type 17" SXGA TFT LCD

Brightness

Resolution

Viewing Angle

CPU

250 nits

1280 x 1024 pixels

170°/160°

System Memory

BIOS

Storage

Watchdog Timer

Intel® Celeron® Processor J1900 at 2.0 GHz (Intel® Bay Trail platform)

1 x 204-pin DDR3L-1333 SO-DIMM max. up to 8 GB

AMI UEFI BIOS with OA 3.0 built

1 x 3.5" or 2.5" SATA HDD

1 x mSATA

255 levels, 1~255 sec.

591

Updated November 27, 2015. * All specifications and photos are subject to change without notice.

Specifications

IO Connector

Expansion Interface

Touchscreen

Power Supply

Dimensions

Packing Dimension

Weight(net/gross)

Environment

Certificate

2 x RS-232/422/485

1 x RS-232

1 x RS-232 with 5V & 12V

2 x 10/100/1000 Mbps Ethernet

1 x VGA

1 x HDMI

1 x PS2 KB & 1 x PS2 MS

1 x USB 3.0, 5 x USB 2.0

1 x Audio (Mic-in/Line-out)

1 x PCI Slot

1 x PCIe Mini Card with SIM Slot

5-wire resistive type

Light transmission 79%

1 million activations (typical) at a single point

100~240 VAC, 200W

410 mm (16.14”) (W) x 92 mm (3.62”) (D) x 338 mm (13.30”) (H)

605 mm (23.82”) (W) x 240 mm (9.45”) (D) x 570 mm (22.44”) (H)

6.3 kg (13.89 lb) / 10.1 kg (22.27 lb)

Operating Temperature: 0° ~ +45°C (+32°F ~ +113°F)

Storage Temperature: -20°C ~ +65°C (-4°F ~ +149°F)

Relative humidity: 10 ~ 90%@40°C, non-considering

Operating vibration: 1.0 G, 5-500Hz, random

CE

Ordering Information

P1177E-842 17" SXGA expandable industrial touch panel computer with

Intel® Celeron® J1900 2.0GHz (up to 2.42 GHz) quad core processor, resistive touch screen, 1 PCI slot and

100~240VAC

* Specification and certifications are based on options and may vary.

Optional Accessories

82211770060E

82211770070E

E202003330

E202003329

82231570160E

VESA & WALL mount kit

Rack mount kit

VM-101 (VESA ARM clamp type)

VM-105 (VESA ARM wall-mount)

Wireless LAN Kit

Optional OS Installation

Windows® 7/8.1

Windows® Embedded 7/8

Overview

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

3

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Less screw design

Dimensions

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

Updated November 27, 2015. * All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

592

P1157E-871

15" XGA TFT Intel® Core™ i7/i5/i3, Celeron®

& Pentium® Expandable Industrial Touch

Panel Computer with 2 PCIe or 2 PCI Slots

Features

15" XGA TFT LCD display

LGA1155 socket 3rd & 2nd generation Intel® Core™ i7/i5/i3,

Celeron® & Pentium® processor

Intel® C216 chipset

Easy installation: Less screw design for user’s convenience

4 USB 3.0, 2 USB 2.0 and 4 COM ports

Flexible expansion interface (two PCIe x8 or two PCI slots)

Built-in speakers and optional Wi-Fi 802.11 b/g/n module

Robust aluminum with IP65 compliant front bezel design

1 2 3 4 5 6 7

8

1. COM 1 with 5V & 12V

(RS-232/422/485)

2. DVI-I

3. Ethernet x 2

4. Audio (MIC-in/Line-out)

9 10 11 12 13

5. COM 3 with 5V & 12V (RS-232)

6. USB 2.0 x 2

7. PCIe x8 x 2 or PCI x 2

8. COM 2 (RS-232)

9. HDMI

10. USB 3.0 x 4

11. COM 4 (RS-232)

12. AC plug

13. Power switch

Side view

DDR3 IP65 DualView

Introduction

The P1157E-871 is a multimedia 15" touch panel PC for kiosk application. It has a fashionable mechanism design and industrial-grade material front bezel which can avoid damage from chemical corrosion. To meet the demands of multimedia application, the

P1157E-871 is powered by a high performance LGA1155 socket 3rd & 2nd generation

Intel® Core™ i7/i5/i3, Pentium® & Celeron® processors with the Intel® C216 Express chipset. It features four COM ports, two Gigabit Ethernet and up to 16 GB memory of dual-channel DDR3 that delivers high computing capability for high performancedemanding applications. The industrial panel PC is most suitable for kiosk, factory and automation.

Dual Monitor Display

The P1157E-871 supports DVI or HDMI simultaneously that features the use of dual display devices for increasing the area available for programs running on a single computer system. It not only increases larger screen viewing but also improves personal productivity.

Expandable for 2 PCIe or 2 PCI

The P1157E-871 has 2 PCIe x8 or 2 PCI slots for expansion purpose. User can easily plug in standard half-size PCI or PCIe card for any requirement.

Speaker and WLAN Antenna Supported

The P1157E-871 features built-in speakers for kiosk application to display multimedia content program. It also supports WLAN module antenna (optional) for wireless network connectivity.

Friendly Less Screw Design

Removing the back cover to maintain the system in unscrewing 3 screws only that saving your time and increasing our work efficiency many times.

593

Specifications

Front Bezel

LCD Panel

Main System

Aluminum w/ IP65/NEMA 4 rugged protection

Display Type 15" XGA TFT LCD

Brightness

Resolution

Viewing Angle

CPU

Chipset

System Memory

350 nits

1024 x 768 pixels

160°/140°

LGA1155 socket 3rd & 2nd generation Intel® Core™ i7/i5/i3,

Celeron® & Pentium® processor

Intel® C216

BIOS

Storage

Drive

Watchdog Timer

2 x 204-pin DDR3 SO-DIMM dual channel max. up to 16 GB

AMI UEFI BIOS with OA 3.0 built

1 x 3.5"or 2 x 2.5" SATA HDD

1 x builtin slim DVD-RW (optional)

255 levels, 1~255 sec.

* All specifications and photos are subject to change without notice.

Specifications

IO Connector

Expansion Interface

Touchscreen

Power Supply

Dimensions

Packing Dimension

Weight(net/gross)

Environment

Certificate

2 x RS-232 (COM 2 & COM 4)

1 x RS-232/422/485 with 5V & 12V (COM 1)

1 x RS-232 with 5V & 12V (COM 3)

1 x DVI-I

1 x HDMI

4 x USB 3.0

2 x USB 2.0

2 x 10/100/1000 Mbps Ethernet

1 x Audio (Mic-in/Line-out)

2 x PCIe x8 or 2 x PCI

5-wire resistive type

Light transmission 79%

1 million activations (typical) at a single point

100 ~ 240VAC, 270W

378 mm (14.88") (W) x 125.5 mm (4.94") (D) x 309 mm (12.17") (H)

610 mm (24.02") (W) x 260 mm (10.24") (D) x 590 mm (23.23") (H)

6.2 kg (13.67 lb)/ 9.6 kg (21.16 lb)

Operating Temperature: 0° ~ +45°C (+32°F ~ +113°F)

Storage Temperature: -20°C ~ +65°C (-4°F ~ +149°F)

Relative humidity: 10 ~ 90%@40°C, non-considering

Operating vibration: 1.0 G, 5-500Hz, random

CE

Dimensions

Ordering Information

P1157E-871 w/ PCIe

P1157E-871 w/ PCI

15" XGA expandable industrial touch panel computer supports LGA1155 socket Intel® 3rd generation Core™ i7/ i5/i3, Xeon®, Pentium® & Celeron® processor, resistive touch screen, 2 PCIe x8 slot and 100~240VAC

15" XGA expandable industrial touch panel computer supports LGA1155 socket Intel® 3rd generation Core™ i7/ i5/i3, Xeon®, Pentium® & Celeron®® processor, resistive touch screen, 2 PCI slot and 100~240VAC

* Specification and certifications are based on options and may vary.

Optional Accessories

82211271000E

8211570100E

8211570060E

72211571000E

82211570070E

E202003330

E202003329

Wireless LAN kit

VESA & WALL mount kit

Rack mount kit

2 x 2.5" HDD Bracket

P1157E-871 DVD-RW kit

VM-101 (VESA ARM clamp type)

VM-105 (VESA ARM wall-mount)

Optional OS Installation

Windows® XP/XPe

Windows® 7/8.1

Windows® Embedded 7/8

Overview

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

3

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Expandible design Less screw design

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

594

P1127E-871

12.1" XGA TFT Intel® Core™ i7/i5/i3,

Celeron® & Pentium® Expandable Industrial

Touch Panel Computer with 2 PCIe or

2 PCI Slots

Features

12.1" XGA TFT LCD display

LGA1155 socket 3rd & 2nd generation Intel® Core™ i7/i5/i3,

Celeron®, Pentium® & Xeon® processor

Intel® C216 chipset

Easy installation: Less screw design for user’s convenience

4 USB 3.0, 2 USB 2.0 and 3 COM ports

Flexible expansion interface (two PCIe or two PCI slots)

Built-in speakers and optional Wi-Fi 802.11 b/g/n module

Robust aluminum with IP65 compliant front bezel design

1 2 3 4 5 6

7 8 9 10 11

1. USB 2.0 x 2

2. COM 3 with 5V & 12V (RS-232)

3. DVI-I

4. Ethernet x 2

5. Audio (Line-out)

6. PCIe x8 x 2 or PCI x 2

7. COM 1 with 5V & 12V (RS-232/422/485)

12 13

8. COM 2 (RS-232)

9. HDMI

10. USB 3.0 x 4

11. Audio (MIC-in)

12. AC plug

13. Switch for power on/off

Side view

DDR3

IP65 DualView

Introduction

The P1127E-871 is a multimedia 12.1" touch panel PC for kiosk application. It has a fashionable mechanism design and industrial-grade material front bezel which can avoid damage from chemical corrosion. To meet the demands of multimedia application, the

P1127E-871 is powered by a high performance 3rd & 2nd generation Intel® Core™ i7/i5/ i3, Celeron®, Pentium® & Xeon® processors with the Intel® C216 chipset. It features three COM ports, two Gigabit Ethernet and up to 16GB memory of dual-channel DDR3 that delivers high computing capability for high performance-demanding applications.

The industrial panel PC is most suitable for kiosk, factory and automation.

Dual Monitor Display

The P1127E-871 supports DVI or HDMI simultaneously that features the use of dual display devices for increasing the area available for programs running on a single computer system. It not only increases larger screen viewing but also improves the productivity.

Expandable for 2 PCIe or 2 PCI

The P1127E-871 has 2 PCIe x8 or 2 PCI slots for expansion purpose. User can easily plug in standard half-size PCI or PCIe card for any requirement.

Speaker and WLAN Antenna Supported

The P1127E-871 features built-in speakers for kiosk application to display multimedia content program. It also supports WLAN module antenna (optional) for wireless network connectivity.

Friendly Less Screw Design

Removing the back cover to maintain the system in unscrewing 3 screws only that saving your time and increasing our work efficiency many times.

595

Specifications

Front Bezel

LCD Panel

Main System

Aluminum w/ IP65/NEMA 4 rugged protection

Display Type 12.1" XGA TFT LCD

Brightness

Resolution

Viewing Angle

CPU

500 nits

1024 x 768 pixels

160°/140°

LGA1155 socket 3rd & 2nd generation Intel® Core™ i7/i5/ i3, Celeron®, Pentium® & Xeon® processor

Chipset

System Memory

BIOS

Storage

Watchdog Timer

Intel® C216

2 x 204-pin DDR3 SO-DIMM max. up to 16 GB

AMI UEFI BIOS with OA 3.0 built

1 x 2.5" SATA HDD

255 levels, 1~255 sec.

* All specifications and photos are subject to change without notice.

Specifications

IO Connector

Expansion Interface

Touchscreen

Power Supply

Dimensions

Packing Dimension

Weight(net/gross)

Environment

Certificate

1 x RS-232 (COM 2)

1 x RS-232/422/485 with 5V & 12V (COM 1)

1 x RS-232 with 5V & 12V (COM 3)

1 x DVI-I

1 x HDMI

4 x USB 3.0

2 x USB 2.0

2 x 10/100/1000 Mbps Ethernet

1 x Audio (Mic-in/Line-out)

2 x PCIe x8 or 2 x PCI

5-wire resistive type

Light transmission 79%

1 million activations (typical) at a single point

100 ~ 240VAC, 270W

311.5 mm (12.26") (W) x 111.85 mm (4.4") (D) x

250 mm (9.84") (H)

510 mm (20.08") (W) x 190 mm (7.48") (D) x

540 mm (21.26") (H)

5 kg (11.02 lb)/7.1 kg (15.65 lb)

Operating Temperature: 0° ~ +45°C (+32°F ~ +113°F)

Storage Temperature: -40°C ~ +80°C (-40°F ~ +176°F)

Relative humidity: 10 ~ 90%@40°C, non-considering

Operating vibration: 1.0G, 5-500Hz, random

CE

Dimensions

Ordering Information

P1127E-871 w/ PCIe

P1127E-871 w/ PCI

12.1" XGA expandable industrial touch panel computer supports LGA1155 socket Intel® 3rd generation Core™ i7/ i5/i3, Xeon®, Pentium® & Celeron® processor, resistive touch screen, 2 PCIe x8 slot and 100~240VAC

12.1" XGA expandable industrial touch panel computer supports LGA1155 socket Intel® 3rd generation Core™ i7/ i5/i3, Xeon®, Pentium® & Celeron® processor, resistive touch screen, 2 PCI slot and 100~240VAC

* Specification and certifications are based on options and may vary.

Optional Accessories

82211271000E

82211270060E

E202003330

E202003329

Wireless LAN kit

VESA & WALL mount kit

VM-101 (VESA ARM clamp type)

VM-105 (VESA ARM wall-mount)

Optional OS Installation

Windows® XP/XPe

Windows® 7/8.1

Windows® Embedded 7/8

Overview

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

3

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Expandible design Less screw design

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

596

Touch Panel

Computers

www.axiomtek.com

Touch Panel Computers

4

Industrial Touch Panel Monitors

Axiomtek P6000 series provides full range size from 10.4” to 21.5” touch panel monitor for each vertical market including automation, infotainment and railway industries. The P6000 series offers plug and play easy setup and maintenance, on-screen control and quick customization of the display per user’s preference. It is an excellent choice for POS, POI, human machine interface, or media-display applications. The P6000 series integrated sunlight readable technology and wide operating temperature.

NEW

NEW

NEW

NEW

NEW

NEW

NEW

P6211W

P6191

P6192

P6187W

P6171

P6173

P6157W

P6151

P6153

P6121

P6122

P6101

P6105

P6100

Introduction

Selection Guide

21.5" Full HD TFT Widescreen Industrial LCD Monitor

19" SXGA TFT Industrial LCD Monitor

19" SXGA TFT Industrial LCD Monitor

18.5" WXGA TFT Widescreen Industrial LCD Monitor

17" SXGA TFT Industrial LCD Monitor

17" SXGA TFT Industrial LCD Monitor

15.6" WXGA TFT Widescreen Industrial LCD Monitor

15" XGA TFT Industrial LCD Monitor

15" XGA TFT Industrial LCD Monitor

12.1" XGA TFT Industrial LCD Monitor

12.1" SVGA TFT Industrial LCD Monitor

10.4" XGA TFT Industrial LCD Monitor

10.4" XGA TFT Railway Touch Display with EN50100 T1 class

(-25°C ~ +55°C )

10.4" SVGA TFT Industrial LCD Monitor

599

600

605

607

609

611

613

615

617

619

621

623

625

627

629

631

Industrial Panel Computers & Monitors

P6000 Series for Automation Application

Axiomtek's P6000 industrial flat panel monitors come in 10.4", 12.1", 15", 15.6", 17", 18.5", 19" & 21.5" and support high brightness TFT LCD. This series has NEMA4/12 (IP65) compliant front panels, and light-duty aluminum panels & chassis. The P6000 series supports multi-signal interfaces including DVI-D,VGA,S-Video,Video or HDMI,DVI-

D,DisplayPort and features screwtype adaptor plug design & 12/24V DC-In. With a compact mechanism design, it is suitable for POI/POS, media-display, transportation and all kinds of heavy-duty industrial applications.

Major Features

Varied sizes of 10.4", 12.1", 10.4",

12.1", 15", 15.6", 17", 18.5", 19" and 21.5"

Light design & various T/S: resistive, capacitive and IR touch

Flexible mounting ways: desktop/rack/panel/wall/VESA

Sunlight readable panel monitor

P6000 Series for Rolling Stock Application

The P6105 is a 10.4 EN50155 touchscreen railway display designed specifically for transportation application. The rugged IP65 display P6105 offers a resistive touchscreen with 500 nits high brightness and has LED backlighting for power saving. It is equipped with a RS-232 touch control interface, and multiple video inputs of DVI-D, HDMI, which offers customers a variety of connection options. The 10.4-inch EN50155 railway touch monitor adopts extended temperature technology and supports a wide temperature range from -25°C ~ +55°C. Its friendly fanless cooling system design and super compact design aimed at rolling stock as well as harsh environments. The railway touchscreen display has an industrial-grade IP65/NEMA 4/12 compliant metal front bezel which resists water spillage and is specifically designed for railway sector. It could work perfectly for displaying information of train functions, fleet management, and many types of heavy transport equipment.

Major Features

55°C

-25°C

Designed for railway application and compliance with EN50155/

EN45545

Supports wide temperature

-25°C ~ +55°C to fulfill harsh environment

Daytime

Adjusting LCD brightness automatically depends on different environment

Night

Mounting way for railway: panel mounting

599

* All specifications and photos are subject to change without notice.

Industrial Touch Panel Monitors

Selection Guide

NEW NEW

Overview

Features\Models

Display Type

Max. Colors

Active Area (mm)

Max. Resolution

Display Mode

Pixel Pitch (mm)

Backlight

Backlight MTBF (hrs)

Viewing Angle (H/V)

Response Time

Contrast Ratio

Brightness (cd/m2)

Display Control

I/O Connectors

Touchscreen

Power Consumption

Power Adapter

Dimensions

(W x D x H)

Weight (net/gross)

Operating Temperature

Mounting

Certificate

Fanless

Touch Panel

Computers

Page 605

P6211W

Flat front bezel

(NEMA 4/12)

21.5" TFT FHD

16.7M

476.64 (H) x 268.11 (V)

1920 x 1080

VGA 640 x 350 (70Hz)

VGA 720 x 400 (70Hz)

VGA 640 x 480 (60/72/75Hz)

SVGA 800 x 600 (60/72/75Hz)

XGA 1024 x 768 (60/70/75Hz)

WXGA 1366 x 768 (60Hz)

FHD 1920 x 1080(60Hz)

0.24(H) × 0.24 (V)

LED

50,000

178°/178°

18ms

3000

250 nits

OSD

1 x VGA

1 x DVI

1 x HDMI

1 x DC power input

1 x RS-232 or USB for touch

Capacitive Multi-touch

TBD

Screw-type external

AC/DC power adapter

TBD

TBD

0° ~ +55°C (+32°F ~ +131°F)

Panel mount

Wall mount

Rack mount

VESA arm

CE

Page 607

P6191

Aluminum front bezel

(NEMA 4/12) & IP65

19" TFT SXGA

16.7M

376.32 (H) x 301.06 (V)

1280 x 1024

VGA 640 x 350 (70Hz)

VGA 720 x 400 (70Hz)

VGA 640 x 480 (60/72/75Hz)

SVGA 800 x 600 (60/72/75Hz)

XGA 1024 x 768 (60/72/75Hz)

SXGA 1280 x 1024 (60/72/75Hz)

0.24(H) × 0.24 (V)

LED

50,000

170°/160°

8ms

50,000

350 nits

OSD

1 x VGA

1 x DVI

1 x HDMI

1 x DC power input

1 x RS-232 or USB for touch

Resistive type

TBD

Screw-type external

AC/DC power adapter

TBD

TBD

0° ~ +55°C (+32°F ~ +131°F)

Panel mount

Wall mount

Rack mount

VESA arm

CE

Page 609

P6192

Metal front bezel

(NEMA 4/12)

19" TFT SXGA

16.7M

376.32 x 301.06

1280 x 1024

VGA 640 x 350 (70Hz)

VGA 720 x 400 (70Hz)

VGA 640 x 480 (60/72/75Hz)

SVGA 800 x 600 (60/72/75Hz)

XGA 1024 x 768 (60/72/75Hz)

SXGA 1280 x 1024 (60/72/75Hz)

Page 611

P6187W

Flat front bezel

(NEMA 4/12)

18.5" TFT WXGA

16.7M

409.8 x 230.4

1366 x 768

VGA 640 x 350 (70Hz)

VGA 720 x 400 (70Hz)

VGA 640 x 480 (60/72/75Hz)

SVGA 800 x 600 (60/72/75Hz)

XGA 1024 x 768 (60/70/75Hz)

WXGA 1366 x 768 (60Hz)

0.294 x 0.294

LED

50,000

170°/160°

5ms

1000 (TYP)

350 nits

OSD

1 x VGA

1 x DVI

1 x S-Video/Video (optional)

1 x DC power input

1 x RS-232 or USB for touch

Resistive type

25W

Screw-type external

AC/DC power adapter

482 x 59.5 x 399 mm

(18.97" x 2.34" x 15.7")

9.46 kg (20.86 lb)/ 13.5 kg (29.76 lb)

0° ~ +55°C (+32°F ~ +131°F)

Panel mount

Wall mount

Rack mount

VESA arm

CE

0.3 x 0.3

LED

50,000

170°/160°

5ms

1000 (TYP)

300 nits

OSD

1 x VGA

1 x DVI

1 x S-Video/Video

1 x DC power input

1 x USB for touch

Capacitive Multi-touch

22W

Screw-type external

AC/DC power adapter

460 x 57 x 285 mm

(18.11" x 2.44" x 11.22")

6.0 kg (12.22 lb)/ 8.0 kg (17.75 lb)

0° ~ +55°C (+32°F ~ +131°F)

Panel mount

Wall mount

VESA arm

CE

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

4

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

600

Industrial Touch Panel Monitors

Selection Guide

Features\Models

Display Type

Max. Colors

Active Area (mm)

Max. Resolution

Display Mode

Pixel Pitch (mm)

Backlight

Backlight MTBF (hrs)

Viewing Angle (H/V)

Response Time

Contrast Ratio

Brightness (cd/m2)

Display Control

I/O Connectors

Touchscreen

Power Consumption

Power Adapter

Dimensions

(W x D x H)

Weight (net/gross)

Operating Temperature

Mounting

Certificate

601

Page 613

P6171

Aluminum front bezel

(NEMA 4/12) & IP65

17" TFT SXGA

16.7M

337.92 x 270.33

1280 x 1024

VGA 640 x 350 (70Hz)

VGA 640 x 480 (60/72/75Hz)

VGA 720 x 400 (70Hz)

SVGA 800 x 600 (60/72/75Hz)

XGA 1024 x 768 (60/72/75Hz)

SXGA 1280 x 1024 (60/72/75Hz)

0.264 x 0.264

LED

30,000

170°/160°

5ms

1000 (TYP)

350 nits

OSD

1 x DVI-D

1 x Displayport

1 x HDMI

1 x DC power input

1 x RS-232 or USB for touch

Resistive type

24W

Screw-type external

AC / DC power adapter

410.31 x 28 x 38.31mm

(16.15" x 1.10" x 13.32")

3.8 kg (8.38 lb)/ 6.56 kg (14.46 lb)

0° ~ +50°C (+32°F ~ +122°F)

Panel mount

Wall mount

Rack mount

VESA arm

CE

Page 615

P6173

Metal front bezel

(NEMA 4/12)

17" TFT SXGA

16.7M

337.92 x 270.33

1280 x 1024

VGA 640 x 350 (70Hz)

VGA 720 x 400 (70Hz)

VGA 640 x 480 (60/72/75Hz)

SVGA 800 x 600 (60/72/75Hz)

XGA 1024 x 768 (60/72/75Hz)

SXGA 1280 x 1024 (60/72/75Hz)

0.264 x 0.264

LED

30,000

170°/160°

5ms

1000 (TYP)

350 nits

OSD

1 x VGA

1 x DVI

1 x S-Video/Video (optional)

1 x DC power input

1 x RS-232 or USB for touch

Resistive type

23W

Screw-type external

AC/DC power adapter

482 x 60 x 360 mm

(19" x 2.36" x 14.2")

5.5 kg (12.12 lb)/ 12.7 kg (28.0 lb)

0° ~ +55°C (+32°F ~ +131°F)

Panel mount

Wall mount

Rack mount

VESA arm

CE

Page 617

P6157W

Flat front bezel

(NEMA 4/12)

15.6" TFT WXGA

16.7M

344.23 x 193.54

1366 x 768

VGA 640 x 350 (70Hz)

VGA 720 x 400 (70Hz)

VGA 640 x 480 (60/72/75Hz)

SVGA 800 x 600 (60/72/75Hz)

XGA 1024 x 768 (60/70/75Hz)

WXGA 1366 x 768 (60Hz)

0.252 x 0.252

LED

50,000

170°/160°

8ms

500 (TYP)

300 nits

OSD

1 x VGA

1 x DVI

1 x S-Video/Video

1 x DC power input

1 x USB for touch

Capacitive Multi-touch

12V, 19W

Screw-type external

AC/DC power adapter

396.8 x 57.6 x 247.1 mm

(15.62" x 2.68" x 9.73")

4.48 kg (9.87 lb)/ 7.88 kg (17.36 lb)

0° ~ +55°C (+32°F ~ +131°F)

Panel mount

Wall mount

VESA arm

CE

* All specifications and photos are subject to change without notice.

NEW

Features\Models

Display Type

Max. Colors

Active Area (mm)

Max. Resolution

Display Mode

Pixel Pitch (mm)

Backlight

Backlight MTBF (hrs)

Viewing Angle (H/V)

Response Time

Contrast Ratio

Brightness (cd/m2)

Display Control

I/O Connectors

Touchscreen

Power Consumption

Power Adapter

Dimensions

(W x D x H)

Weight (net/gross)

Operating Temperature

Mounting

Certificate

Page 619

P6151

Aluminum front bezel

(NEMA 4/12) & IP65

15" TFT XGA

16.7M

304.128 (H) x 228.096 (V)

1024 x 768

VGA 640 x 350 (70Hz)

VGA 640 x 480 (60/72/75Hz)

VGA 720 x 400 (70Hz)

SVGA 800 x 600 (60/72/75Hz)

XGA 1024 x 768 (60/72/75Hz)

0.24(H) × 0.24 (V)

LED

30,000

160°/160°

16ms

800 (TYP)

420 nits

OSD

1 x VGA

1 x DVI

1 x HDMI

1 x DC power input

1 x RS-232 or USB for touch

Resistive type

TBD

Screw-type external

AC/DC power adapter

TBD

TBD

0° ~ +55°C (+32°F ~ +131°F)

Panel mount

Wall mount

Rack mount

VESA arm

CE

Page 621

P6153

Metal front bezel

(NEMA 4/12)

15" TFT XGA

16.2M

307.4 x 231.3

1024 x 768

VGA 640 x 350 (70Hz)

VGA 720 x 400 (70Hz)

VGA 640 x 480 (60/72/75Hz)

SVGA 800 x 600 (60/72/75Hz)

XGA 1024 x 768 (60/70/75Hz)

0.297 x 0.297

LED

30,000

160°/160°

16ms

800 (TYP)

420 nits

OSD

1 x VGA

1 x DVI

1 x S-Video/Video (optional)

1 x DC power input

1 x RS-232 or USB for touch

Resistive type

12V, 11W

Screw-type external

AC/DC power adapter

400 x 55 x 320 mm

(15.75" x 2.16" x 12.6")

4.8 kg (10.58 lb)/ 8.2 kg (18.08 lb)

0° ~ +55°C (+32°F ~ +131°F)

Panel mount

Wall mount

Rack mount

VESA arm

CE

Overview

NEW

Page 623

P6121

Aluminum front bezel

(NEMA 4/12) & IP65

12.1" TFT XGA

16.7M

245.76 (H) x184.32 (V)

1024x768

VGA 640 x 350 (70Hz)

VGA 640 x 480 (60/72/75Hz)

VGA 720 x 400 (70Hz)

SVGA 800 x 600 (60/72/75Hz)

XGA 1024 x 768 (60/72/75Hz)

0.24(H) × 0.24 (V)

LED

30,000

160°/160°

16ms

800 (TYP)

350 nits

OSD

1 x VGA

1 x DVI

1 x HDMI

1 x DC power input

1 x RS-232 or USB for touch

Resistive type

TBD

Screw-type external

AC/DC power adapter

TBD

TBD

0° ~ +55°C (+32°F ~ +131°F)

Panel mount

Wall mount

Rack mount

VESA arm

CE

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

4

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

602

Features\Models

Display Type

Max. Colors

Active Area (mm)

Max. Resolution

Display Mode

Pixel Pitch (mm)

Backlight

Backlight MTBF (hrs)

Viewing Angle (H/V)

Response Time

Contrast Ratio

Brightness (cd/m2)

Display Control

I/O Connectors

Touchscreen

Power Consumption

Power Adapter

Dimensions

(W x D x H)

Weight (net/gross)

Operating Temperature

Mounting

Certificate

Industrial Touch Panel Monitors

Selection Guide

NEW

Page 625

P6122

Metal front bezel

(NEMA 4/12)

12.1" TFT SVGA

16.2M/262K

246 x 184.5

800 x 600

VGA 640 x 480 (60/72Hz)

SVGA 800 x 600 (60/72Hz)

0.3075 x 0.3075

LED

50,000

160°/140°

35ms

700 (TYP)

450 nits

OSD

1 x VGA

1 x DVI

1 x S-Video/Video (optional)

1 x DC power input

1 x RS-232 or USB for touch

Resistive type

12V, 11W

Screw-type external

AC/DC power adapter

340 x 46.5 x 260 mm

(13.5" x 1.8" x 10.2")

3.0 kg (6.61 lb)/ 6.6 kg (14.55 lb)

-10° ~ +55°C (+14°F ~ +131°F)

Panel mount

Wall mount

Rack mount

VESA arm

CE

Page 627

P6101

Aluminum front bezel

(NEMA 4/12) & IP65

10.4" TFT XGA

16.7M

211.2 (H) x 158.4 (V)

1024x768

VGA 640 x 350 (70Hz)

VGA 640 x 480 (60/72/75Hz)

VGA 720 x 400 (70Hz)

SVGA 800 x 600 (60/72/75Hz)

XGA 1024 x 768 (60/72/75Hz)

0.24 × 0.24

LED

30,000

160°/160°

16ms

900 (TYP)

350nits

OSD

1 x VGA

1 x DVI

1 x HDMI

1 x DC power input

1 x RS-232 or USB for touch

Resistive type

TBD

Screw-type external

AC/DC power adapter

TBD

TBD

0° ~ +55°C (+32°F ~ +131°F)

Panel mount

Wall mount

Rack mount

VESA arm

CE

603

* All specifications and photos are subject to change without notice.

Features\Models

Display Type

Max. Colors

Active Area (mm)

Max. Resolution

Display Mode

Pixel Pitch (mm)

Backlight

Backlight MTBF (hrs)

Viewing Angle (H/V)

Response Time

Contrast Ratio

Brightness (cd/m2)

Display Control

I/O Connectors

Touchscreen

Power Consumption

Power Adapter

Dimensions

(W x D x H)

Weight (net/gross)

Operating Temperature

Mounting

Certificate

NEW

Page 629

P6105

Aluminum front bezel

(NEMA 4/12) & IP65

10.4" TFT XGA

16.2M/262K

210.4 x 157.8

1024 x768

VGA 640 x 350 (70Hz)

VGA 640 x 480 (60/72/75Hz)

VGA 720 x 400 (70Hz)

SVGA 800 x 600 (60/72/75Hz)

XGA 1024 x 768 (60/72/75Hz)

0.0685 x 0.2055

LED

50,000

176°/176°

25ms

1000 (TYP)

500 nits

OSD, RS-232 and IR remote

1 x RS-232 for touchscreen version

1 x HDMI

1 x DVI-D

1 x DC power input

1 x RS-232 for remote control

Resistive type

24V, 16W

Screw-type external

372 x 175 x 412 mm

(14.65" x 6.89" x 16.2”)

2.2 kg (4.85 lb) / 3.45 kg (7.61 lb)

-25°C ~ +55°C (-13°F ~ +131°F)

Panel mount

Wall mount

Rack mount

VESA arm

CE, EN50155/EN45545 Compliance

Page 631

P6100

Metal front bezel

(NEMA 4/12)

10.4" TFT SVGA

16.2M/262K

211.2 x 158.4

800 x 600

VGA 640 x 480 (60/72Hz)

SVGA 800 x 600 (60/72Hz)

0.264 x 0.264

LED

30,000

160°/130°

35ms

500 (TYP)

230 nits

OSD

1 x VGA

1 x DVI

1 x S-Video/Video (optional)

1 x DC power input

1 x RS-232 or USB for touch

Resistive type

12V, 9W

Screw-type external

AC/DC power adapter

294.2 x 46.6 x 231.2 mm

(11.58" x 1.83" x 9.1")

2.6 kg (5.73 lb)/ 5.1 kg (11.24 lb)

-10° ~ +60°C (+14°F ~ +140°F)

Panel mount

Wall mount

Rack mount

VESA arm

CE

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

604

Overview

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

4

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

P6211W

21.5" FHDTFT Widescreen Industrial LCD

Monitor

NEW

Features

21.5" TFT 250 nits FHD LCD

NEMA 4/12 (IP65)- compliant panel mounting flat panel

monitor

Supports panel mount, wall mount and VESA mount

Multi-touch 21.5" projective capacitive touch

Supports full range screw-type (locked) AC-in or 24V DC-in

(option)

Supports multi-signal inputs: VGA, HDMI and DVI

Modularized design

Introduction

The P6211W is an slim with flat front bezel design industrial LCD monitor, which adopts

21.5-inch 250 nits Full HD LCD display and supports multi-signal interfaces including

DVI, VGA, S-Video, Video. Featuring NEMA 4/12 & IP65 compliant front bezel, screwtype adaptor plug design, and 12/24V DC-In means it is fit for all kinds of industrial environments. Moreover, the P6211W supports panel mount, wall mount or VESA

FPMPMI (Video Electronics Standards Association Flat Panel Monitor Physical Mounting

Interface) mounting. With the compact mechanism design, users can enjoy free from space constraint. It is especially suitable for POI/POS, excellent HMI and all kinds of heavy-duty industrial fields.

Specifications

Front Bezel

Mounting

LCD Panel

Display Control

Display Mode

NEMA 4/12 (IP65)-compliant, plat front bezel

Supports panel mount, wall mount and VESA mount

FPMPMI mounting (video electronics standards association

Flat Panel monitor physical mounting interface)

Display

Max. Resolution

Max. Colors

Active Area (mm)

21.5" TFT FHD LCD

1920 x 1080

16.7M

476.64 x 268.11

Pixel Pitch (mm)

Response Time

0.24 × 0.24

18ms

Backlight LED

Backlight MTBF 50,000 hrs

Viewing Angle (H/V) 178°/178°

Contrast Ratio

Brightness (cd/m 2 )

3000 (TYP.)

250 nits

OSD (on screen display)

VGA 640 x 350 (70Hz), VGA 640 x 480 (60/72/75Hz),

VGA 720 x 400 (70Hz), SXGA 800 x 600 (60/72/75Hz),

XGA 1024 x 768 (60/72/75Hz), WXGA 1366 x 768 (60Hz),

FHD 1920 x 1080 (60Hz)

605

* All specifications and photos are subject to change without notice.

Specifications

Input Signal

I/O Connectors

Power Adapter

Touchscreen

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

Certificate

VGA

HDMI

DVI (Oly for DVI-D)

Touchscreen: USB interface

1 x USB for touchscreen version

1 x VGA input

1 x HDMI

1 x DVI

1 x Screw-type DC power input

Screw-type external AC/ DC power adapter

Multi touch 21.5" projective capacitive

TBD

TBD

TBD

Operating temperature: 0° ~ +55°C (+32°F ~ +131°F)

Storage temperature: -20°C ~ +60°C (-4°F ~ +140°F)

Relative humidity: 20%~90%@40°C, non-condensing

CE

Ordering Information

P6211W

AC Power

24VDC Power

Panel Mount Monitor

Capacitive (USB)

Glass

Panel Mount Monitor

Capacitive (USB)

Glass

P6211WPC-AC-U-US-EU

P6211WPG-AC-US-EU

P6211WPC-24VDC-U

P6211WPG-24VDC

Overview

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

4

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

606

P6191

19" SXGA TFT Industrial LCD Monitor

NEW

1

3

5

2

4

6

1. Menu

2. SEL+

3. SEL-

4. Exit

5. Power LED

6. Power Switch

Features

19" TFT SXGA LED backlight LCD

NEMA 4/12 (IP65)- compliant panel mounting flat panel

monitor

Supports panel mount, wall mount, rack mount and VESA arm

Resistive touchscreen

Supports full range screw-type (locked) AC-in or 12V/24V

DC-in (option)

Supports multi-signal inputs: DVI-D, VGA and HDMI

Ultra-slim mechanism design

Introduction

The P6191 is an ultra slim industrial LCD monitor, which adopts 19-inch 350 nits SXGA

LED backlight LCD display and supports multi-signal interfaces including DVI, VGA and HDMI. Featuring NEMA 4/12 & IP65 compliant front bezel, screw-type adaptor plug design, and 12/24V DC-In means it is fit for all kinds of industrial environments.

Moreover, the P6191 supports panel mount, wall mount, rack mount or VESA FPMPMI

(Video Electronics Standards Association Flat Panel Monitor Physical Mounting Interface) mounting. With the compact mechanism design, users can enjoy free from space constraint. It is especially suitable for POI/POS, excellent HMI and all kinds of heavy-duty industrial fields.

Specifications

Front Bezel

Mounting

LCD Panel

Display Control

Display Mode

NEMA 4/12 (IP65)-compliant, metal front bezel

Panel mount, wall mount, rack mount or VESA

FPMPMI mounting (video electronics standards association flat panel monitor physical mounting interface)

Display

Max. Resolution

Max. Colors

Active Area (mm)

19" TFT SXGA LED

1280 x 1024

16.7M

376.32 x 301.06

Pixel Pitch (mm)

Response Time

0.24 x 0.24

8ms

Backlight LED backlight

Backlight MTBF 50,000 hrs

Viewing Angle (H/V) 170°/160°

Contrast Ratio

Brightness (cd/m 2 )

1000 (TYP.)

350 nits

OSD (on screen display)

VGA 640 x 350 (70Hz), VGA 640 x 480 (60/72/75Hz),

VGA 720 x 400 (70Hz), SVGA 800 x 600 (60/72/75Hz),

XGA 1024 x 768 (60/72/75Hz),

SXGA 1280 x 1024 (60/72/75Hz)

607

* All specifications and photos are subject to change without notice.

Specifications

Input Signal

I/O Connectors

Power Adapter

Touchscreen

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

Certificate

DVI-D

VGA

HDMI

Touchscreen: Serial RS-232 or USB interface

1 x RS-232 or USB for touchscreen version

1 x DVI-D

1 x VGA

1 x HDMI

1 x Screw-type DC power input

Screw-type external AC / DC power adapter

Thickness Resistive: 3.2 mm

Light Transmission Resistive: 80%

Power Consumption Resistive: +5V @ 100mA

Touch Life Resistive: 35million touches

Controller interface: RS-232 D-type

9pin male connector or USB

TBD

TBD

TBD

Operating temperature: 0° ~ +50°C (+32°F ~ +122°F)

Storage temperature: -20°C ~ +60°C (-4°F ~ +140°F)

Relative humidity: 20%~90%@40°C, non-condensing

CE

Ordering Information

AC Power

12V/24VDC Power

Resistive (RS-232)

Resistive (USB)

Glass

Resistive (RS-232)

Resistive (USB)

Glass

P6191PR-AC-RS-US-EU

P6191PR-AC-U-US-EU

P6191PG-AC-US-EU

P6191PR-DC-RS

P6191PR-DC-U

P6191PG-DC

Overview

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

4

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

608

P6192

19" SXGA TFT Industrial LCD Monitor

1. Exit

2. Menu

3. SEL-

4. SEL+

5. Power LED

6. Power switch

Features

19" TFT 350 nits SXGA LCD

NEMA 4/12 (IP65)- compliant panel mounting flat panel

monitor

Resistive touchscreen

Supports full range screw-type (locked) AC-in or 24V DC-in

(option)

Supports multi-signal inputs: VGA, S-video, Video and DVI-D

Supports panel mount, wall mount, rack mount and VESA arm

1

2 4 6

3 5

7

7. DC power input

8. DVI (Only for DVI-D)

9. VGA

8 9 10

11

12

10. Video

11. S-video

12. T/S port

Side view

Introduction

The P6192 is an slim industrial LCD monitor, which adopts 19-inch 350 nits high brightness SXGA LCD display and supports multi-signal interfaces including DVI, VGA,

S-Video, Video. Featuring NEMA 4/12 & IP65 compliant front bezel, screw-type adaptor plug design, and 12/24V DC-In means it is fit for all kinds of industrial environments.

Moreover, the P6192 supports panel mount, wall mount, rack mount or VESA FPMPMI mounting (Video Electronics Standards Association Flat Panel Monitor Physical Mounting

Interface). With the compact mechanism design, users can enjoy free from space constraint. It is especially suitable for POI/POS, media-display applications and all kinds of heavy-duty industrial fields.

Specifications

Front Bezel

Mounting

LCD Panel

Display Control

Display Mode

NEMA 4/12 (IP65)-compliant, metal front bezel

Panel mount, wall mount, rack mount and VESA arm

FPMPMI mounting (video electronics standards association

Flat Panel monitor physical mounting interface)

Display Type

Max. Resolution

Max. Colors

Active Area (mm)

19" TFT SXGA LCD

1280 x 1024

16.7M

376.32 x 301.06

Pixel Pitch (mm)

Response Time

0.294 x 0.294

5 ms

Backlight

Backlight MTBF

LED

50,000 hrs

Viewing Angle (H/V) 170°/160°

Contrast Ratio 1000 (TYP.)

Brightness (cd/m

2

)

OSD (on screen display)

350 nits

VGA 640 x 350 (70Hz), VGA 640 x 480 (60/72/75Hz),

VGA 720 x 400 (70Hz), SVGA 800 x 600 (60/72/75Hz),

XGA 1024 x 768 (60/72/75Hz),

SXGA 1280 x 1024 (60/72/75Hz)

609

* All specifications and photos are subject to change without notice.

Specifications

Input Signal

I/O Connectors

Power Adapter

Touchscreen

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

Certificate

VGA Video: R.G.B Analog 0.7v Peak-to-Peak

DVI (Only for DVI-D)

Touchscreen: Serial RS-232 or USB

Video (optional)

S-video (optional)

1 x RS-232 or USB for touchscreen version

1 x VGA input

1 x RCA for video (optional)

1 x S-Video for video (optional)

1 x DVI (Only for DVI-D)

1 x Screw type or Phoenix type power input

Screw-type external AC/DC power adapter

Thickness Resistive: 3.2 mm

Light Transmission Resistive: 80%

Power Consumption Resistive: [email protected] 100mA

Touch Life Resistive: 35million touches

Controller interface: RS-232

D-Type 9-pin male connector or USB connector

482 mm (18.97") (W) x 59.5 mm (2.34 ) (D) x 399 mm (15.7") (H)

610 mm (24.02") (W) x 260 mm (10.24") (D) x 590 mm (23.23") (H)

9.46 kg (20.86 lb)/13.5 kg (29.76 lb)

Operating temperature: 0° ~ +55°C (+32°F ~ +131°F)

Storage temperature: -20°C ~ +60°C (-4°F ~ +140°F)

Relative humidity: 20%~90%@40°C, non-condensing

CE

Stand kit

Dimensions

Ordering Information

P6192 (Inputs include: VGA, DVI, RCA, S-Video)

AC Power Panel Mount Monitor

24VDC Power

Resistive (RS-232)

Resistive (USB)

Glass

Panel Mount Monitor

Resistive (RS-232)

Resistive (USB)

Glass

P6192PR-AC-RS-V3-RC-US-EU

P6192PR-AC-U-V3-RC-US-EU

P6192PG-AC-V3-RC-US-EU

P6192PR-24VDC-RS-V3-RC

P6192PR-24VDC-U-V3-RC

P6192PG-24V-DC-V3-RC

P6192L (Input: VGA and DVI only)

AC Power Panel Mount Monitor

24VDC Power

Resistive (RS-232)

Resistive (USB)

Glass

Panel Mount Monitor

Resistive (RS-232)

Resistive (USB)

P6192LPR-AC-RS-V3-RC-US-EU

P6192LPR-AC-U-V3-RC-US-EU

P6192LPG-AC-V3-RC-US-EU

P6192LPR-24V-DC-RS-V3-RC

P6192LPR-24V-DC-U-V3-RC

Glass P6192LPG-24V-DC-V3-RC

* Specification and certifications are based on options and may vary.

Optional Accessories

ARM-VM-101

ARM-VM-105

VESA ARM (clamp type)

VESA ARM (wall mount type)

Wall mounting & desktop stand

Overview

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

4

Industrial Touch panel Monitors

Various mounting ways Panel/ Wall/ VESA Screw-type power input Phoenix-type power input

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

610

P6187W

18.5" WXGA TFT Widescreen Industrial LCD

Monitor

Features

18.5" TFT 300 nits WXGA LCD

NEMA 4/12 (IP65)- compliant panel mounting flat panel

monitor

Supports panel mount, wall mount and VESA mount

Multi-touch 18.5" projective capacitive

Supports full range screw-type (locked) AC-in or 24V DC-in

(option)

Supports multi-signal inputs: VGA, S-video, Video and DVI

7 8

1. Exit

2. Menu

3. SEL-

4. SEL+

5. Power LED

6. Power switch

9 10 11 12

7. DC power input

8. T/S port

9. DVI (Only for DVI-D)

10.VGA

11. Video (CVBS)

12. S-video

3

2

6

5

1

4

Modularized design

Introduction

The P6187W is an slim with flat front bezel design industrial LCD monitor, which adopts

18.5-inch 300 nits WXGA LCD display and supports multi-signal interfaces including

DVI, VGA, S-Video, Video. Featuring NEMA 4/12 & IP65 compliant front bezel, screwtype adaptor plug design, and 12/24V DC-In means it is fit for all kinds of industrial environments. Moreover, the P6187W supports panel mount, wall mount or VESA

FPMPMI (Video Electronics Standards Association Flat Panel Monitor Physical Mounting

Interface) mounting. With the compact mechanism design, users can enjoy free from space constraint. It is especially suitable for POI/POS, excellent HMI and all kinds of heavy-duty industrial fields.

Specifications

Front Bezel

Mounting

LCD Panel

Display Control

Display Mode

NEMA 4/12 (IP65)-compliant, plat front bezel

Supports panel mount, wall mount and VESA mount

FPMPMI mounting (video electronics standards association flat panel monitor physical mounting interface)

Display

Max. Resolution

Max. Colors

Active Area (mm)

18.5" TFT WXGA LCD

1366 x 768

16.7M

409.8 x 230.4

Pixel Pitch (mm)

Response Time

0.3 x 0.3

5ms

Backlight LED

Backlight MTBF 50,000 hrs

Viewing Angle (H/V) 170°/160°

Contrast Ratio

Brightness (cd/m 2 )

1000 (TYP.)

300 nits

OSD (on screen display)

VGA 640 x 350 (70Hz), VGA 640 x 480 (60/72/75Hz),

VGA 720 x 400 (70Hz), SXGA 800 x 600 (60/72/75Hz),

XGA 1024 x 768 (60/72/75Hz), WXGA 1366 x 768 (60Hz)

611

* All specifications and photos are subject to change without notice.

Specifications

Input Signal

I/O Connectors

Power Adapter

Touchscreen

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

Certificate

VGA Video: R.G.B Analog 0.7v Peak-to-Peak

Video

S-video

DVI (Oly for DVI-D)

Touchscreen: USB interface

1 x USB for touchscreen version

1 x VGA input

1 x RCA for video

1 x S-video for video

1 x DVI

1 x Screw-type DC power input

Screw-type external AC/ DC power adapter

Multi-touch 18.5" projective capacitive

460 mm (18.11") (W) x 57 mm (2.44") (D) x 285 mm (11.22") (H)

595 mm (24.43") (W) x 190 mm (7.48") (D) x 490 mm (19.29") (H)

6.0 kg (12.22 lb)/ 8.0 kg (17.75 lb)

Operating temperature: 0° ~ +55°C (+32°F ~ +131°F)

Storage temperature: -20°C ~ +60°C (-4°F ~ +140°F)

Relative humidity: 20%~90%@40°C, non-condensing

CE

Ordering Information

P6187W

AC Power

24VDC Power

Panel Mount Monitor

Capacitive (USB)

Glass

Panel Mount Monitor

Capacitive (USB)

Glass

P6187WPC-AC-U-US-EU

P6187WPG-AC-US-EU

P6187WPC-24VDC-U

P6187WPG-24VDC

Dimensions

Overview

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

4

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

612

P6171

17" SXGA TFT Industrial LCD Monitor

NEW

1

3

5

2

4

6

1. Menu

2. SEL+

3. SEL-

4. Exit

5. Power LED

6. Power Switch

Features

17" TFT SXGA LED backlight LCD

NEMA 4/12 (IP65)- compliant panel mounting flat panel

monitor

Supports panel mount, wall mount, rack mount and VESA arm

Resistive touchscreen

Supports full range screw-type (locked) AC-in or 12V/24V

DC-in (option)

Supports multi-signal inputs: DVI-D, DisplayPort and HDMI

7 8 9 10 11

7. RS-232 or USB for Touch

8. DVI-D

9. HDMI

10. DisplayPort

11. Screw type or

Phoenix type power input

Ultra-slim mechanism design

Introduction

The P6171 is an ultra slim industrial LCD monitor, which adopts 17-inch 350 nits SXGA

LED backlight LCD display and supports multi-signal interfaces including DVI, DisplayPort and HDMI. Featuring NEMA 4/12 & IP65 compliant front bezel, screw-type adaptor plug design, and 12/24V DC-In means it is fit for all kinds of industrial environments.

Moreover, the P6171 supports panel mount, wall mount, rack mount or VESA FPMPMI

(Video Electronics Standards Association Flat Panel Monitor Physical Mounting Interface) mounting. With the compact mechanism design, users can enjoy free from space constraint. It is especially suitable for POI/POS, excellent HMI and all kinds of heavy-duty industrial fields.

Specifications

Front Bezel

Mounting

LCD Panel

Display Control

Display Mode

NEMA 4/12 (IP65)-compliant, metal front bezel

Panel mount, wall mount, rack mount or VESA

FPMPMI mounting (video electronics standards association

Flat Panel monitor physical mounting interface)

Display

Max. Resolution

Max. Colors

Active Area (mm)

17" TFT SXGA LED

1280 x 1024

16.7M

337.92 x 270.33

Pixel Pitch (mm)

Response Time

0.264 x 0.264

5ms

Backlight LED backlight

Backlight MTBF 30,000 hrs

Viewing Angle (H/V) 170°/160°

Contrast Ratio

Brightness (cd/m 2 )

1000 (TYP.)

350 nits

OSD (on screen display)

VGA 640 x 350 (70Hz), VGA 640 x 480 (60/72/75Hz),

VGA 720 x 400 (70Hz), SVGA 800 x 600 (60/72/75Hz),

XGA 1024 x 768 (60/72/75Hz),

SXGA 1280 x 1024 (60/72/75Hz)

613

* All specifications and photos are subject to change without notice.

Specifications

Input Signal

I/O Connectors

Power Adapter

Touchscreen

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

Certificate

DVI-D

DisplayPort

HDMI

Touchscreen: Serial RS-232 or USB interface

1 x RS-232 or USB for touchscreen version

1 x DVI-D

1 x DisplayPort

1 x HDMI

1 x Screw-type DC power input

Screw-type external AC / DC power adapter

Thickness Resistive: 3.2 mm

Light Transmission Resistive: 80%

Power Consumption Resistive: +5V @ 100mA

Touch Life Resistive: 35million touches

Controller interface: RS-232 D-type

9pin male connector or USB

410.31 mm (16.15") (L) x 28 mm (1.10") (H) x 38.31 mm (13.32") (W)

510 mm (20.08") (L) x 532 mm (20.94") (H) x 186 mm (7.32") (W)

3.8 kg (8.38 lb)/ 6.56 kg (14.46 lb)

Operating temperature: 0° ~ +50°C (+32°F ~ +122°F)

Storage temperature: -20°C ~ +60°C (-4°F ~ +140°F)

Relative humidity: 20%~90%@40°C, non-condensing

CE

Ordering Information

AC Power

12V/24VDC Power

Resistive (RS-232)

Resistive (USB)

Glass

Resistive (RS-232)

Resistive (USB)

Glass

P6171DPR-AC-RS-US-EU

P6171DPR-AC-U-US-EU

P6171DPG-AC-US-EU

P6171DPR-DC-RS

P6171DPR-DC-U

P6171DPG-DC

Dimensions

Overview

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

4

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

614

P6173

17" SXGA TFT Industrial LCD Monitor

1

2 4 6

3 5

1. Exit

2. Menu

3. SEL-

4. SEL+

5. Power LED

6. Power switch

Features

17" TFT 350 nits SXGA LCD

NEMA 4/12 (IP65)- compliant panel mounting flat panel

monitor

Supports panel mount, wall mount, rack mount and VESA arm

Resistive touchscreen

Supports full range screw-type (locked) AC-in or 24V DC-in

(option)

Supports multi-signal inputs: VGA, S-video, Video and DVI

7 8

7. DC power input

8. DVI (Only for DVI-D)

9. VGA

9 10

11

12

10. Video (CVBS)

11. S-video

12. T/S port

Side view

Introduction

The P6173 is an slim industrial LCD monitor, which adopts 17-inch 350 nits high brightness SXGA LCD display and supports multi-signal interfaces including DVI, VGA,

S-video, Video. Featuring NEMA 4/12 & IP65 compliant front bezel, screw-type adaptor plug design, and 12/24V DC-In means it is fit for all kinds of industrial environments.

Moreover, the P6173 supports panel mount, wall mount, rack mount or VESA FPMPMI

(Video Electronics Standards Association Flat Panel Monitor Physical Mounting Interface) mounting. With the compact mechanism design, users can enjoy free from space constraint. It is especially suitable for POI/POS, excellent HMI and all kinds of heavy-duty industrial fields.

Specifications

Front Bezel

Mounting

LCD Panel

Display Control

Display Mode

NEMA 4/12 (IP65)-compliant, metal front bezel

Supports panel mount, wall mount, rack mount or VESA arm

FPMPMI mounting (video electronics standards association flat panel monitor physical mounting interface)

Display

Max. Resolution

Max. Colors

Active Area (mm)

Type 17" TFT SXGA LCD

1280 x 1024

16.7M

337.92 x 270.33

Pixel Pitch (mm)

Response Time

0.264 x 0.264

5 ms

Backlight LED

Backlight MTBF 30,000 hrs

Viewing Angle (H/V) 170°/160°

Contrast Ratio

Brightness (cd/m 2 )

1000 (TYP.)

350 nits

OSD (on screen display)

VGA 640 x 350 (70Hz), VGA 640 x 480 (60/72/75Hz),

VGA 720 x 400 (70Hz), SVGA 800 x 600 (60/72/75Hz),

XGA 1024 x 768 (60/72/75Hz),

SXGA 1280 x 1024 (60/72/75Hz)

615

* All specifications and photos are subject to change without notice.

Specifications

Input Signal

I/O Connectors

Power Adapter

Touchscreen

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

Certificate

VGA Video: R.G.B Analog 0.7v Peak-to-Peak

DVI (Only for DVI-D)

Touchscreen: Serial RS-232 or USB

Video (optional)

S-Video (optional)

1 x RS-232 or USB for touchscreen version

1 x VGA input

1 x RCA for video (optional)

1 x S-Video for video (optional)

1 x DVI

1 x Screw-type DC power input

Screw-type external AC / DC power adapter

Thickness Resistive: 3.2 mm

Light Transmission Resistive: 80%

Power Consumption Resistive: +5V @ 100mA

Touch Life Resistive: 35million touches

Controller interface: RS-232 D-type

9-pin male connector or USB

482 mm (19") (W) x 60 mm (2.36") (D) x 360 mm (14.2") (H)

610 mm (24.02") (W) x 260 mm (10.24") (D) x 590 mm

(23.23") (H)

5.5 kg (12.12 lb)/12.7 kg (28 lb)

Operating temperature: 0° ~ +55°C (+32°F ~ +131°F)

Storage temperature: -20°C ~ +60°C (-4°F ~ +140°F)

Relative humidity: 20%~90%@40°C, non-condensing

CE

Ordering Information

P6173

AC Power

24VDC Power

Panel Mount Monitor

Resistive (RS-232)

Resistive (USB)

Glass

Panel Mount Monitor

Resistive (RS-232)

Resistive (USB)

Glass

P6173PR-AC-RS-V3-RC-US-EU

P6173PR-AC-U-V3-RC-US-EU

P6173PG-AC-V3-RC-US-EU

P6173PR-24VDC-RS-V3-RC

P6173PR-24VDC-U-V3-RC

P6173PG-24VDC-V3-RC

P6173L (Input: VGA and DVI only)

AC Power Panel Mount Monitor

Resistive (RS-232)

Resistive (USB)

Glass

24VDC Power Panel Mount Monitor

Resistive (RS-232)

Resistive (USB)

P6173LPR-AC-RS-V3-RC-US-EU

P6173LPR-AC-U-V3-RC-US-EU

P6173LPG-AC-V3-RC-US-EU

P6173LPR-24V-DC-RS-V3-RC

P6173LPR-24V-DC-RS-V3-RC

Glass P6173LPG-24V-DC-V3-RC

* Specification and certifications are based on options and may vary.

Optional Accessories

ARM-VM-101

ARM-VM-105

VESA ARM (clamp type)

VESA ARM (wall mount type)

Wall mounting & desktop stand

Overview

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

4

Industrial Touch panel Monitors

Stand kit

Dimensions

Various mounting ways: panel/ wall/ VESA Screw-type power input Phoenix-type power input

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

616

P6157W

15.6" WXGA TFT Widescreen Industrial LCD

Monitor

Features

15.6" TFT 300 nits WXGA LCD

NEMA 4/12 (IP65)- compliant panel mounting flat panel

monitor

Supports panel mount, wall mount, VESA mount

Multi touch 15.6" projective capacitive

Supports full range screw-type (locked) AC-in or 24V DC-in

(option)

Supports multi-signal inputs: VGA, S-video, Video and DVI-D

7 8

1. Exit

2. Menu

3. SEL-

4. SEL+

5. Power LED

6. Power switch

9 10 11 12

7. DC power input

8. T/S port

9. DVI (Only for DVI-D)

10. VGA

11. Video (CVBS)

12. S-video

3

2

6

5

1

4

Modularized design

Introduction

The P6157W is an slim & compact with flat front bezel design industrial LCD monitor, which adopts 15.6-inch 300 nits WXGA LCD display and supports multi-signal interfaces including DVI, VGA, S-Video, Video. Featuring NEMA4/12 & IP65 compliant front bezel, screw-type adaptor plug design, and 12/24V DC-In means it is fit for all kinds of industrial environments. Moreover, the P6157W supports panel mount, wall mount or VESA

FPMPMI (Video Electronics Standards Association Flat Panel Monitor Physical Mounting

Interface) mounting. With the compact mechanism design, users can enjoy free from space constraint. It is especially suitable for POI/POS, excellent HMI and all kinds of heavy-duty industrial fields.

Specifications

Front Bezel

Mounting

LCD Panel

Display Control

Display Mode

NEMA 4/12 (IP65)-compliant, metal front bezel

Panel mounting, wall mounting, VESA

FPMPMI mounting (video electronics standards association flat panel monitor physical mounting interface)

Display

Max. Resolution

Max. Colors

Active Area (mm)

15.6" TFT WXGA LCD

1366 x 768

16.7M

344.232 x 193.536

Pixel Pitch (mm)

Response Time

0.252 x 0.252

8ms

Backlight LED

Backlight MTBF 50,000 hrs

Viewing Angle (H/V) 170°/160°

Contrast Ratio

Brightness (cd/m 2 )

500 (TYP.)

300 nits

OSD (on screen display)

VGA 640 x 350 (70Hz), VGA 640 x 480 (60/72/75Hz),

VGA 720 x 400 (70Hz), SXGA 800 x 600 (60/72/75Hz),

XGA 1024 x 768 (60/72/75Hz)

WXGA 1366 x 768 (60Hz)

617

* All specifications and photos are subject to change without notice.

Specifications

Input Signal

I/O Connectors

Power Adapter

Touchscreen

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

Certificate

VGA Video: R.G.B Analog 0.7v Peak-to-Peak

Video

S-video

DVI (Only for DVI-D)

Touchscreen: USB interface

1 x USB for touchscreen version

1 x VGA input

1 x RCA for video

1 x S-video for video

1 x DVI

1 x Screw-type DC power input

Screw-type external AC / DC power adapter

Thickness

Multi-touch

2.4 mm

15.6" projective capacitive

396.8 mm (15.62") (W) x 57.7 mm (2.68") (D) x 247.1 mm (9.73") (H)

525 mm (20.67") (W) x 186 mm (7.32") (D) x 470 mm (18.51") (H)

4.48 kg (9.87 lb)/ 7.88 kg (17.36 lb)

Operating temperature: 0° ~ +55°C (+32°F ~ +131°F)

Storage temperature: -20°C ~ +60°C (-4°F ~ +140°F)

Relative humidity: 20%~90%@40°C, non-condensing

CE

Ordering Information

P6157W

AC Power

24VDC Power

Panel Mount Monitor

Capacitive (USB)

Glass

Panel Mount Monitor

Capacitive (USB)

Glass

P6157WPC-AC-U-US-EU

P6157WPG-AC-US-EU

P6157WPC-24VDC-U

P6157WPG-24VDC

Dimensions

Overview

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

4

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

618

P6151

15" XGA TFT Industrial LCD Monitor

NEW

1

3

5

2

4

6

1. Menu

2. SEL+

3. SEL-

4. Exit

5. Power LED

6. Power Switch

Features

15" TFT XGA LED backlight LCD

NEMA 4/12 (IP65)- compliant panel mounting flat panel

monitor

Supports panel mount, wall mount, rack mount and VESA arm

Resistive touchscreen

Supports full range screw-type (locked) AC-in or 12V/24V

DC-in (option)

Supports multi-signal inputs: DVI-D, VGA and HDMI

Ultra-slim mechanism design

Introduction

The P6151 is an ultra slim industrial LCD monitor, which adopts 15-inch 420 nits XGA LED backlight LCD display and supports multi-signal interfaces including DVI, VGA and HDMI.

Featuring NEMA 4/12 & IP65 compliant front bezel, screw-type adaptor plug design, and 12/24V DC-In means it is fit for all kinds of industrial environments. Moreover, the

P6151 supports panel mount, wall mount, rack mount or VESA FPMPMI (Video Electronics

Standards Association Flat Panel Monitor Physical Mounting Interface) mounting.

With the compact mechanism design, users can enjoy free from space constraint. It is especially suitable for POI/POS, excellent HMI and all kinds of heavy-duty industrial fields.

Specifications

Front Bezel

Mounting

LCD Panel

Display Control

Display Mode

NEMA 4/12 (IP65)-compliant, metal front bezel

Panel mount, wall mount, rack mount or VESA

FPMPMI mounting (video electronics standards association flat panel monitor physical mounting interface)

Display

Max. Resolution

Max. Colors

Active Area (mm)

15" TFT XGA LED

1024 x 768

16.7M

304.128 x 228.096

Pixel Pitch (mm)

Response Time

0.297 x 0.297

16ms

Backlight LED backlight

Backlight MTBF 30,000 hrs

Viewing Angle (H/V) 160°/160°

Contrast Ratio

Brightness (cd/m 2 )

800 (TYP.)

420 nits

OSD (on screen display)

VGA 640 x 350 (70Hz), VGA 640 x 480 (60/72/75Hz),

VGA 720 x 400 (70Hz), SVGA 800 x 600 (60/72/75Hz),

XGA 1024 x 768 (60/72/75Hz)

619

* All specifications and photos are subject to change without notice.

Specifications

Input Signal

I/O Connectors

Power Adapter

Touchscreen

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

Certificate

DVI-D

VGA

HDMI

Touchscreen: Serial RS-232 or USB interface

1 x RS-232 or USB for touchscreen version

1 x DVI-D

1 x DisplayPort

1 x HDMI

1 x Screw-type DC power input

Screw-type external AC / DC power adapter

Thickness Resistive: 3.2 mm

Light Transmission Resistive: 80%

Power Consumption Resistive: +5V @ 100mA

Touch Life Resistive: 35million touches

Controller interface: RS-232 D-type

9pin male connector or USB

TBD

TBD

TBD

Operating temperature: 0° ~ +50°C (+32°F ~ +122°F)

Storage temperature: -20°C ~ +60°C (-4°F ~ +140°F)

Relative humidity: 20%~90%@40°C, non-condensing

CE

Ordering Information

AC Power

12V/24VDC Power

Resistive (RS-232)

Resistive (USB)

Glass

Resistive (RS-232)

Resistive (USB)

Glass

P6151PR-AC-RS-US-EU

P6151PR-AC-U-US-EU

P6151PG-AC-US-EU

P6151PR-DC-RS

P6151PR-DC-U

P6151PG-DC

Overview

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

4

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

620

P6153

15" XGA TFT Industrial LCD Monitor

1

2

3

4

5

6

1. Exit

2. Menu

3. SEL-

4. SEL+

5. Power LED

6. Power switch

Features

15" TFT 420 nits high brightness XGA LCD

NEMA 4/12 (IP65)- compliant panel mounting flat panel

monitor

Resistive touchscreen

Supports full range screw-type (locked) AC-in or 24V DC-in

(option)

Supports multi-signal inputs: VGA, S-video, Video and DVI

Supports panel mount, wall mount, rack mount and VESA arm

7 8

7. T/S port

8. DC power input

9. DVI (Only for DVI-D)

9 10

11

12

10. VGA

11. Video (CVBS)

12. S-video

Side view

Introduction

The P6153 is an slim & compact industrial LCD monitor equipped 15-inch 420 nits brightness XGA LCD display and supports multi-signal interfaces including DVI, VGA,

S-Video, Video. Featuring NEMA 4/12 & IP65 compliant front bezel, screw-type adaptor plug design, and 12/24V DC-In means it is fit for all kinds of industrial environments.

Moreover, the P6153 supports panel mount, wall mount, rack mount or VESA FPMPMI

(Video Electronics Standards Association Flat Panel Monitor Physical Mounting Interface) mounting. With the compact mechanism design, users can enjoy free from space constraint. The P6153 is especially suitable for POI/POS, excellent HMI, media-display applications and all kinds of heavy-duty industrial fields.

Specifications

Front Bezel

Mounting

LCD Panel

Display Control

Display Mode

NEMA 4/12 (IP65)-compliant, metal front bezel

Panel mounting, wall mounting rackmount or VESA

FPMPMI mounting (video electronics standards association

Flat Panel monitor physical mounting interface)

Display Type

Max. Resolution

Max. Colors

Active Area (mm)

15" TFT XGA LCD

1024 x 768

16.2M

304.128 x 228.096

Pixel Pitch (mm)

Response Time

0.297 x 0.297

16 ms

Backlight LED

Backlight MTBF 30,000 hrs

Viewing Angle (H/V) 160°/160°

Contrast Ratio

Brightness (cd/m 2 )

800 (TYP.)

420 nits

OSD (on screen display)

VGA 640 x 350/ VGA 640 x 480/ VGA 720 x 400/

SVGA 800 x 600/ XGA 1024 x 768

621

* All specifications and photos are subject to change without notice.

Specifications

Input Signal

I/O Connectors

Power Adapter

Touchscreen

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

Certificate

VGA Video: R.G.B Analog 0.7v Peak-to-Peak

DVI (Only for DVI-D)

Touchscreen: Serial RS-232 or USB Interface

Video (optional)

S-Video (optional)

1 x RS-232 for touchscreen version

1 x VGA input

1 x DVI-D

1 x Screw-type DC power input

1 x RCA for video (optional)

1 x S-Video for video (optional)

Screw-type external AC / DC power adapter

Thickness

Resistive: 3.2 mm

Light Transmission

Resistive: 80%

Power Consumption

Resistive: +5V @ 100mA

Touch Life

Resistive: 35million touches

Controller interface: RS-232 D-type 9-pin male connector or

USB connector

400 mm (15.75") (W) x 55 mm (2.16") (D) x 320 mm (12.6") (H)

510 mm (20.08") (W) x 190 mm (7.48") (D) x 540 mm (21.26") (H)

4.8 kg (10.58 lb)/8.2 kg (18.08 lb)

Operating temperature: -20° ~ +60°C (-4°F ~ +40°F)

Storage temperature: -20°C ~ +70°C (-4°F ~ +158°F)

Relative humidity: 20%~90%@40°C, non-condensing

CE

Ordering Information

P6153

AC Power

24VDC Power

Panel Mount Monitor

Resistive (RS-232)

Resistive (USB)

Glass

Panel Mount Monitor

Resistive (RS-232)

Resistive (USB)

Glass

P6153PR-AC-RS-V3-RC-US-EU

P6153PR-AC-U-V3-RC-US-EU

P6153PG-AC-V3-RC-US-EU

P6153PR-24V-DC-RS-V3-RC

P6153PR-24VDC-U-V3-RC

P6153PG-24VDC-V3-RC

P6153L (Input: VGA and DVI only)

AC Power Panel Mount Monitor

Resistive (RS-232)

Resistive (USB)

24VDC Power

Glass

Panel Mount Monitor

Resistive (RS-232)

Resistive (USB)

P6153LPR-AC-RS-V3-RC-US-EU

P6153LPR-AC-U-V3-RC-US-EU

P6153LPG-AC-V3-RC-US-EU

P6153LPR-24V-DC-RS-V3-RC

P6153LPR-24V-DC-U-V3-RC

Glass P6153LPG-24V-DC-V3-RC

* Specification and certifications are based on options and may vary.

Optional Accessories

ARM-VM-101

ARM-VM-105

VESA ARM (clamp type)

VESA ARM (wall mount type)

Wall mounting & desktop stand

Rack-mount kit

Overview

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

4

Industrial Touch panel Monitors

Stand kit

Dimensions

Screw-type power input Phoenix-type power input

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

622

P6121

12" XGA TFT Industrial LCD Monitor

NEW

1

3

5

2

4

6

1. Menu

2. SEL+

3. SEL-

4. Exit

5. Power LED

6. Power Switch

Features

12" TFT XGA LED backlight LCD

NEMA 4/12 (IP65)- compliant panel mounting flat panel

monitor

Supports panel mount, wall mount, rack mount and VESA arm

Resistive touchscreen

Supports full range screw-type (locked) AC-in or 12V/24V

DC-in (option)

Supports multi-signal inputs: DVI-D, VGA and HDMI

Ultra-slim mechanism design

Introduction

The P6121 is an ultra slim industrial LCD monitor, which adopts 12-inch 400 nits XGA LED backlight LCD display and supports multi-signal interfaces including DVI, VGA and HDMI.

Featuring NEMA 4/12 & IP65 compliant front bezel, screw-type adaptor plug design, and 12/24V DC-In means it is fit for all kinds of industrial environments. Moreover, the

P6121 supports panel mount, wall mount, rack mount or VESA FPMPMI (Video Electronics

Standards Association Flat Panel Monitor Physical Mounting Interface) mounting.

With the compact mechanism design, users can enjoy free from space constraint. It is especially suitable for POI/POS, excellent HMI and all kinds of heavy-duty industrial fields.

Specifications

Front Bezel

Mounting

LCD Panel

Display Control

Display Mode

NEMA 4/12 (IP65)-compliant, metal front bezel

Panel mount, wall mount, rack mount or VESA

FPMPMI mounting (video electronics standards association flat panel monitor physical mounting interface)

Display

Max. Resolution

Max. Colors

Active Area (mm)

12" TFT XGA LED

1024 x 768

16.7M

245.76 x 184.32

Pixel Pitch (mm)

Response Time

0.24 x 0.24

16ms

Backlight LED backlight

Backlight MTBF 30,000 hrs

Viewing Angle (H/V) 160°/160°

Contrast Ratio

Brightness (cd/m 2 )

800 (TYP.)

400 nits

OSD (on screen display)

VGA 640 x 350 (70Hz), VGA 640 x 480 (60/72/75Hz),

VGA 720 x 400 (70Hz), SVGA 800 x 600 (60/72/75Hz),

XGA 1024 x 768 (60/72/75Hz)

623

* All specifications and photos are subject to change without notice.

Specifications

Input Signal

I/O Connectors

Power Adapter

Touchscreen

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

Certificate

DVI-D

VGA

HDMI

Touchscreen: Serial RS-232 or USB interface

1 x RS-232 or USB for touchscreen version

1 x DVI-D

1 x DisplayPort

1 x HDMI

1 x Screw-type DC power input

Screw-type external AC / DC power adapter

Thickness Resistive: 3.2 mm

Light Transmission Resistive: 80%

Power Consumption Resistive: +5V @ 100mA

Touch Life Resistive: 35million touches

Controller interface: RS-232 D-type

9pin male connector or USB

TBD

TBD

TBD

Operating temperature: 0° ~ +50°C (+32°F ~ +122°F)

Storage temperature: -20°C ~ +60°C (-4°F ~ +140°F)

Relative humidity: 20%~90%@40°C, non-condensing

CE

Ordering Information

AC Power

12V/24VDC Power

Resistive (RS-232)

Resistive (USB)

Glass

Resistive (RS-232)

Resistive (USB)

Glass

P6121PR-AC-RS-US-EU

P6121PR-AC-U-US-EU

P6121PG-AC-US-EU

P6121PR-DC-RS

P6121PR-DC-U

P6121PG-DC

Overview

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

4

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

624

46.5mm

P6122

12.1" SVGA TFT Industrial LCD Monitor

1

2

3

4

5

6

1. Exit

2. Menu

3. SEL-

4. SEL+

5. Power LED

6. Power switch

Features

12.1" TFT 450 nits high brightness SVGA LCD

NEMA 4/12 (IP65)- compliant panel mounting flat panel

monitor

Resistive touchscreen

Supports full range screw-type (locked) AC-in or 24V DC-in

(option)

Supports multi-signal inputs: VGA, S-video, Video and DVI-D

Supports panel mount, wall mount and VESA arm

7 8 9 10

11

12

7. T/S port

8. DC power input

9. DVI (Only for DVI-D)

10. VGA

11. Video

12. S-video

Side view

Introduction

The P6122 is an slim & compact industrial LCD monitor equipped 12.1-inch 450 nits high brightness SVGA LCD display and supports multi-signal interfaces including DVI-D,

VGA, S-video, and Video. Featuring NEMA 4/12 & IP65 compliant front bezel, screwtype adaptor plug design, and 12/24V DC-In means it is fit for all kinds of industrial environments. Moreover, the P6122 supports panel mount, wall mount or VESA FPMPMI

(Video Electronics Standards Association Flat Panel Monitor Physical Mounting Interface) mounting. With the compact mechanism design, users can enjoy free from space constraint. In order to provide more flexible configurations, the open frame option is available as well. The P6122 is especially suitable for POI/POS, excellent HMI and all kinds of heavy-duty industrial fields.

Specifications

Front Bezel

Mounting

LCD Panel

Display Control

Display Mode

NEMA 4/12 (IP65)-compliant, metal front bezel

Panel mounting, wall mounting or VESA FPMPMI mounting (video electronics standards association flat panel monitor physical mounting interface)

Display Type

Max. Resolution

Max. Colors

Active Area (mm)

12.1" TFT SVGA LCD

800 x 600

16.2M/262k

246 x 184.5

Pixel Pitch (mm)

Response Time

0.3075 x 0.3075

35ms

Backlight

Backlight MTBF

LED

50,000 hrs

Viewing Angle (H/V) 160°/140°

Contrast Ratio 700 (TYP.)

Brightness (cd/m

2

)

OSD (on screen display)

450 nits

VGA 640 x 480 (60/72Hz)

SVGA 800 x 600 (60/72Hz)

625

* All specifications and photos are subject to change without notice.

Specifications

Input Signal

I/O Connectors

Power Adapter

Touchscreen

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

Certificate

VGA Video: R.G.B Analog 0.7v Peak-to-Peak

DVI (Only for DVI-D)

Touchscreen: Serial RS-232 or USB Interface

Video (optional)

S-video (optional)

1 x RS-232 or USB for touchscreen version

1 x VGA input

1 x DVI-D

1 x Screw-type DC power input

1 x RCA for video (optional)

1 x S-Video for video (optional)

Screw-type external AC / DC power adapter

Thickness

Resistive: 2.2 mm

Light Transmission

Resistive: 80%

Power Consumption

Resistive: +5V @ 100mA

Touch Life

Resistive: 35million touches

Controller interface: RS-232 or USB

D-type 9-pin male connector or USB connector

340 mm (13.3") (W) x 46.5 mm (1.8 ) (D) x 260 mm (10.2") (H)

510 mm (20.08") (W) x 190 mm (7.48") (D) x 540 mm (21.26") (H)

3.0 kg (6.61 lb)/6.6 kg (14.55 lb)

Operating temperature: -10°C ~ +55°C (+14°F ~ +131°F)

Storage temperature: -30°C ~ +80°C (-22°F ~ +176°F)

Relative humidity: 20%~90%@40°C, non-condensing

CE

Ordering Information

P6122

AC Power

24VDC Power

Panel Mount Monitor

Resistive (RS-232)

Resistive (USB)

Glass

Panel Mount Monitor

Resistive (RS-232)

Resistive (USB)

Glass

P6122PR-AC-RS-V3-RC-US-EU

P6122PR-AC-U-V3-RC-US-EU

P6122PG-AC-V3-RC-US-EU

P6122PR-24VDC-RS-V3-RC

P6122PR-24VDC-U-V3-RC

P6122PG-24VDC-V3-RC

P6122L

AC Power

24VDC Power

Panel Mount Monitor

Resistive (RS-232)

Resistive (USB)

Glass

Panel Mount Monitor

Resistive (RS-232)

Resistive (USB)

P6122LPR-AC-RS-V3-RC-US-EU

P6122LPR-AC-U-V3-RC-US-EU

P6122LPG-AC-V3-RC-US-EU

P6122LPR-24V-DC-RS-V3-RC

P6122LPR-24V-DC-U-V3-RC

Glass P6122LPG-24V-DC-V3-RC

* Specification and certifications are based on options and may vary.

Optional Accessories

ARM-VM-101

ARM-VM-105

VESA ARM (clamp type)

VESA ARM (wall mount type)

Wall mounting & desktop stand

Overview

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

4

Industrial Touch panel Monitors

Stand kit

Dimensions

Various mounting ways: panel/ wall/ VESA

Screw-type power input Phoenix-type power input

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

626

P6101

10" XGA TFT Industrial LCD Monitor

NEW

1

3

5

2

4

6

1. Menu

2. SEL+

3. SEL-

4. Exit

5. Power LED

6. Power Switch

Features

10" TFT XGA LED backlight LCD

NEMA 4/12 (IP65)- compliant panel mounting flat panel

monitor

Supports panel mount, wall mount, rack mount and VESA arm

Resistive touchscreen

Supports full range screw-type (locked) AC-in or 12V/24V

DC-in (option)

Supports multi-signal inputs: DVI-D, VGA and HDMI

Ultra-slim mechanism design

Introduction

The P6101 is an ultra slim industrial LCD monitor, which adopts 10-inch 350 nits XGA LED backlight LCD display and supports multi-signal interfaces including DVI, VGA and HDMI.

Featuring NEMA 4/12 & IP65 compliant front bezel, screw-type adaptor plug design, and 12/24V DC-In means it is fit for all kinds of industrial environments. Moreover, the

P6101 supports panel mount, wall mount, rack mount or VESA FPMPMI (Video Electronics

Standards Association Flat Panel Monitor Physical Mounting Interface) mounting.

With the compact mechanism design, users can enjoy free from space constraint. It is especially suitable for POI/POS, excellent HMI and all kinds of heavy-duty industrial fields.

Specifications

Front Bezel

Mounting

LCD Panel

Display Control

Display Mode

NEMA 4/12 (IP65)-compliant, metal front bezel

Panel mount, wall mount, rack mount or VESA

FPMPMI mounting (video electronics standards association flat panel monitor physical mounting interface)

Display

Max. Resolution

Max. Colors

Active Area (mm)

10" TFT XGA LED

1024 x 768

16.7M

211.2 x 158.4

Pixel Pitch (mm)

Response Time

0.2063 x 0.2063

16ms

Backlight LED backlight

Backlight MTBF 30,000 hrs

Viewing Angle (H/V) 160°/160°

Contrast Ratio

Brightness (cd/m 2 )

900 (TYP.)

350 nits

OSD (on screen display)

VGA 640 x 350 (70Hz), VGA 640 x 480 (60/72/75Hz),

VGA 720 x 400 (70Hz), SVGA 800 x 600 (60/72/75Hz),

XGA 1024 x 768 (60/72/75Hz)

627

* All specifications and photos are subject to change without notice.

Specifications

Input Signal

I/O Connectors

Power Adapter

Touchscreen

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

Certificate

DVI-D

VGA

HDMI

Touchscreen: Serial RS-232 or USB interface

1 x RS-232 or USB for touchscreen version

1 x DVI-D

1 x DisplayPort

1 x HDMI

1 x Screw-type DC power input

Screw-type external AC / DC power adapter

Thickness Resistive: 3.2 mm

Light Transmission Resistive: 80%

Power Consumption Resistive: +5V @ 100mA

Touch Life Resistive: 35million touches

Controller interface: RS-232 D-type

9pin male connector or USB

TBD

TBD

TBD

Operating temperature: 0° ~ +50°C (+32°F ~ +122°F)

Storage temperature: -20°C ~ +60°C (-4°F ~ +140°F)

Relative humidity: 20%~90%@40°C, non-condensing

CE

Ordering Information

AC Power

12V/24VDC Power

Resistive (RS-232)

Resistive (USB)

Glass

Resistive (RS-232)

Resistive (USB)

Glass

P6101PR-AC-RS-US-EU

P6101PR-AC-U-US-EU

P6101PG-AC-US-EU

P6101PR-DC-RS

P6101PR-DC-U

P6101PG-DC

Overview

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

4

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

628

P6105

10.4” XGA Railway Touch Display with

EN50155 T1 Class (-25°C ~ +55°C)

NEW

Features

1

3

2

5

4

6

1. Menu

2. SEL+

3. SEL-

4. Exit

5. Power LED

6. Power switch

EN50155 compliance for railway application

10.4" high brightness touchscreen XGA TFT LCD

Wide viewing angle and high brightness 500 nits

Multiple video inputs including DVI-D and HDMI

Supports 5-wire resistive touch

Supports light sensor for auto-dimming (optional)

Front bezel NEMA 4/12 (IP65)-compliant

24VDC or 110VDC power input

Wide temperature range from -25°C ~ +55°C

Supports 5 keys OSD

EN50155 T1 class for railway application

Optional IR remote control

Supports front panel mount and VESA 100, optional

desktop stand

7 8 9 10 11 12

7. DC power input

8. IR remote control (RS-232)

9. T/S Port (RS-232)

10. HDMI

11. DVI-D

12. Line-in

Side view

EN50155

Introduction

The EN50155 railway touch panel computer P6105 adopts a 10.4-inch XGA TFT LCD with

500 nits brightness and a 5-wire resistive touch screeen with IP65 grade aluminum front bezel to provide protection of liquad dmage and user friendly control interface.

Wide Temperature (-25°C ~ +55°C) supported

The Axiomtek 10.4-inch railway touch monitor adopts extended temperature technology with a wide temperature range from -25°C ~ +55°C and fanless cooling system as well as super compact design for transportation & harsh environment.

High brightness 500 nits & wide viewing angle

The railway grade EN50155 touchscreen display P6105 adopts a high brightness 500 nits

10.4-inch LCD with sunlight readable technology. The screen is legible even under strong sunlight and is readable under skies outdoor in parking lots and more. With its wide viewing angle, user won’t miss information on the display.

Anti-vibration for railway

With an anti-vibration design and EN50155 class T1 certification, the Axiomtek rugged

10.4" railway touch panel PC can work perfectly on the train.

Specifications

Front Bezel

LCD Panel

Display Control

Display Mode

NEMA 4/12 (IP65)-compliant, metal front bezel

Display Type 10.4" TFT XGA LCD

Max. Resolution

Max. Colors

Active Area (mm)

1024 x 768

16.2M/262k

210.4 (H) x 157.8 (V)

Pixel Pitch (mm)

Response Time

Backlight

Backlight MTBF

0.0685 (H) x 0.2055 (V)

25ms

LED

50,000 hrs

Viewing Angle (H/V) 176°/176°

Contrast Ratio 1000 (TYP.)

Brightness (cd/m 2 )

OSD (on screen display)

500 nits

VGA 640 x 480 (60/72 Hz)

SVGA 800 x 600 (60/72 Hz)

XGA 1024 x 768 (60/72 Hz)

629

* All specifications and photos are subject to change without notice.

Specifications

Input Signal

I/O Connectors

Power Adapter

Touchscreen

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

Certificate

HDMI

DVI (Only for DVI-D)

Touchscreen: Serial RS-232 Interface

IR remote control

LINE-IN

1 x RS-232 for touchscreen version

1 x HDMI

1 x DVI-D

1 x DC power input

1 x RS-232 for IR remote control

1 x LINE-IN

24VDC or 110VDC power input

Thickness

Resistive: 2.2 mm

Light Transmission

Resistive: 80%

Power Consumption

Resistive: +5V @ 100mA

Touch Life

Resistive: 35million touches

Controller interface: RS-232

D-type 9-pin male connector

310 mm (12.20") (W) x 49 mm (1.94") (D) x 214 mm (8.43") (H)

372 mm (14.65") (W) x 175 mm (6.89") (W) x 412mm (16.2”) (H)

2.2 kg (4.85 lb) /3.45 kg (7.61 lb)

Operating temperature: -25°C ~ +55°C (-13°F ~ +131°F)

Storage temperature: -30°C ~ +80°C (-22°F ~ +176°F)

Relative humidity: 20%~90%@40°C, non-condensing

CE/EN50155

Ordering Information

P6105DPR-24VDC 10.4” XGA railway touch display with EN50155 T1 class

(-25°C ~ +55°C)

* Specification and certifications are based on options and may vary.

Overview

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

4

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Dimensions

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

630

P6100

10.4" SVGA TFT Industrial LCD Monitor

Features

10.4" TFT 230 nits SVGA LCD

NEMA 4/12 (IP65)- compliant panel mounting flat panel

monitor

Resistive touchscreen

Supports full range screw-type (locked) AC-in or 24V DC-in

(option)

Supports multi-signal inputs: VGA, S-video, Video and DVI-D

Supports panel mount, wall mount and VESA arm

1. Exit

2. Menu

3. SEL-

4. SEL+ 5. Power LED

6. Power switch

1

2

3

4

5

6

7 8

7. DC power input

8. T/S port

9. DVI (Only for DVI-D)

9 10 11 12

10. VGA

11. Video (CVBS)

12. S-video

Side view

Introduction

The P6100 is a slim & compact industrial LCD monitor equipped with 10.4-inch 230 nits brightness SVGA LCD display and supports multi-signal interfaces including DVI-D,

VGA, S-Video, and video. Featuring NEMA 4/12 & IP65 compliant front bezel, screwtype adaptor plug design, and 12/24V DC-In means it is fit for all kinds of industrial environments. Moreover, the P6100 supports panel mount, wall mount or VESA FPMPMI

(Video Electronics Standards Association Flat Panel Monitor Physical Mounting Interface) mounting. With the compact mechanism design, users can enjoy free from space constraint. This compact size industrial-grade flat panel monitor is ideal for varied industrial or commercial projects, such as transportation, POI, HMI, and even rugged environments.

Specifications

Front Bezel

Mounting

LCD Panel

Display Control

Display Mode

NEMA 4/12 (IP65)-compliant, metal front bezel

Panel mounting, wall mounting or VESA FPMPMI mounting (video electronics standards association flat panel monitor physical mounting interface)

Display Type

Max. Resolution

Max. Colors

Active Area (mm)

10.4" TFT SVGA LCD

800 x 600

16.2M/262k

211.2 x 158.4

Pixel Pitch (mm)

Response Time

0.264 x 0.264

35ms

Backlight

Backlight MTBF

LED

30,000 hrs

Viewing Angle(H/V) 160°/130°

Contrast Ratio 500 (TYP.)

Brightness (cd/m

2

)

OSD (on screen display)

230 nits

VGA 640 x 480 (60/72Hz)

SVGA 800 x 600 (60/72Hz)

631

* All specifications and photos are subject to change without notice.

Specifications

Input Signal

I/O Connectors

Power Adapter

Touchscreen

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

Certificate

VGA Video: R.G.B Analog 0.7v Peak-to-Peak

DVI (Only for DVI-D)

Touchscreen: Serial RS-232 or USB interface

Video (optional)

S-video (optional)

1 x RS-232 or USB touchscreen version

1 x VGA input

1 x DVI (Only for DVI-D)

1 x Screw-type DC power input

1 x RCA for video (optional)

1 x S-video for video (optional)

Screw-type external AC / DC power adapter

Thickness

Resistive: 2.2 mm

Light Transmission

Resistive: 80%

Power Consumption

Resistive: +5V @ 100mA

Touch Life

Resistive: 35million touches

Controller interface: RS-232 or USB

D-type 9-pin male connector or USB connector

294.2 mm (11.58") (W) x 46.6 mm (1.83") (D) x 231.2 mm (9.1") (H)

380 mm (14.96") (W) x 190 mm (7.48") (D) x 430 mm (16.93") (H)

2.6 kg (5.73 lb)/5.1 kg (11.24 lb)

Operating temperature: -10°C ~ +60°C (+14°F ~ +140°F)

Storage temperature: -30°C ~ +80°C (-22°F ~ +176°F)

Relative humidity: 20%~90%@40°C, non-condensing

CE

Stand kit

Dimensions

Various mounting ways: panel/wall/VESA

Ordering Information

P6100

AC Power

24VDC Power

Panel Mount Monitor

Resistive

Resistive (USB)

Glass

Panel Mount Monitor

Resistive

Resistive (USB)

Glass

P6100PR-AC-RS-V3-RC-US-EU

P6100PR-AC-U-V3-RC-US-EU

P6100PG-AC-V3-RC-US-EU

P6100PR-24VDC-RS-V3-RC

P6100PR-24VDC-U-V3-RC

P6100PG-24VDC-V3-RC

P6100L

AC Power

24VDC Power

Panel Mount Monitor

Resistive (RS-232)

Resistive (USB)

Glass

Panel Mount Monitor

Resistive

Resistive (USB)

P6100LPR-AC-RS-V3-RC-US-EU

P6100LPR-AC-U-V3-RC-US-EU

P6100LPG-AC-V3-RC-US-EU

P6100LPR-24V-DC-RS-V3-RC

P6100LPR-24V-DC-U-V3-RC

Glass P6100LPG-24V-DC-V3-RC

* Specification and certifications are based on options and may vary.

Optional Accessories

ARM-VM-101

ARM-VM-105

VESA ARM (clamp type)

VESA ARM (wall mount type)

Wall mounting & desktop stand

Overview

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

4

Industrial Touch panel Monitors

Phoenix-type power input

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

632

Touch Panel

Computers

5

Infotainment Touch Panel

Computers

www.axiomtek.com

Touch Panel Computers

The IFO2000 series is a fanless touch panel computer for infotainment system.

This user-friendly all-in-one industrial touch panel PC supports the powerful Intel® processors. It has IPX1 compliant chassis and IP65 rated spill- and dust-resistant front panel and is equipped with an industrial grade TFT LCD display. This slimtype infotainment terminal provides an excellent thermal solution with the patented design of the back aluminum chassis to dissipate heat efficiently and enhance system reliability. The IFO2000 seriees is ideally suited for human machine interface platform for applications in hotel/ airport check-in/out, shopping mall, restaurant, self-ordering counters, and building visit control.

Introduction

Selection Guide

IFO2225-873

IFO2175-873

22" TFT Fanless Super Slim Touch Panel Computer with Intel®

Core™ i7/i5/i3 Processor

635

636

637

17" TFT Fanless Super Slim Touch Panel Computer with Intel® 639

Core™ i7/i5/i3 Processor

Industrial Panel Computers & Monitors

IFO2000 Series for Infotainment

The IFO2000 series is specifically designed in mind to be a trustworthy infotainment platform to withstand heavy public usage and harsh conditions. The IPX1-rated enclosure & IP65-rated front bezel water/dust-proof and anti-scratch designs make this system outstanding for public space application, such as hotel/airport check-in/out, and building visit controls. The IFO2000 series is available in 4:3 and 16:10 interactive touchscreen, giving our customers a peace of mind whether they are using new or older version software.

Major Features

IPX1 waterproof design Various mounting options:

Desktop/Wall/VESA

Optional peripherals:

RFID, Bluetooth, Wi-Fi

Building visitor Control

635

* All specifications and photos are subject to change without notice.

Features\Models

CPU Level

Chipset

System Memory

CPU FSB Frequency

Display

I/O

Storage

FDD

DVD-RW

Expansion Interface

Touchscreen

Operating System

Power Supply

Power Consumption

Watchdog Timer

Dimensions

(W x D x H)

Weight (net/gross)

Operating Temperature

Certificate

Fanless Touch Panel Computers

Selection Guide

Overview

Page 637

IFO2175-873

Socket rPGA988B 3rd generation

Intel® Core™ i7/i5/i3 & Celeron® processor, TDP up to 35W

Intel® QM77

2 x 204-pin DDR3 SO-DIMM max. up to 16 GB

N/A

17", SXGA, 350 nits

1 x RS-232/422/485 (COM1)

2 x 10/100/1000Mbps Ethernet

2 x USB 2.0

2 x USB 3.0

1 x Audio (Line-out)

1 x Audio (Mic-in)

1 x DP

2 x 2W speakers

1 x 2.5" SATA HDD

1 x mSATA

N/A

1 x super multi drive (optional)

1 x PCI or 1 x PCIe x4 (optional)

2 x PCIe Mini Card

5-wire resistive Type

Windows® XP, WES

Windows® 7, WES 7,

Windows® 8.1, WE8S

24VDC with AC-DC adapter max. up to 98.64 W

255 levels, 0~255 sec.

438 x 76.5 x 376.4 mm

(17.24" x 3.01" x 14.81")

8.0 kg (17.63 lb)/ 11.9 kg (26.23 lb)

0° ~ +40°C (+32°F ~ +104°F)

CE

Page 639

IFO2225-873

Socket rPGA988B 3rd generation

Intel® Core™ i7/i5/i3 & Celeron® processor, TDP up to 35W

Intel® QM77

2 x 204-pin DDR3 SO-DIMM max. up to 16 GB

N/A

22" TFT, WSXGA, 250 nits

2 x RS-232 (COM 2/3)

1 x RS-232/422/485 (COM1)

2 x 10/100/1000Mbps Ethernet

4 x USB 2.0

2 x USB 3.0

1 x Audio (Line-out)

1 x Audio (Mic-in)

1 x DP

2 x 2W speakers

1 x 2.5" SATA HDD

1 x mSATA

N/A

1 x super multi drive

1 x PCI or 1 x PCIe x4 (optional)

2 x PCIe Mini Card

5-wire resistive Type

Windows® XP, WES

Windows® 7, WES 7,

Windows® 8.1, WE8S

24VDC with AC-DC adapter max. up to 101.04 W

255 levels, 0~255 sec.

573.5 x 75.9 x 398.9 mm

(22.57" x 2.98" x 15.7")

10.58 kg (23.32 lb)/15.16 kg(33.42 lb)

0° ~ +40°C (+32°F ~ +104°F)

CE

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

5

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

636

IFO2225-873

22" WSXGA TFT Fanless Super Slim Touch

Panel Computer with Intel® Core™ i7/i5/i3

& Celeron® Processor

Camera

Features

22" (250 nits) WSXGA TFT LCD

Socket rPGA988B 3rd generation Intel® Core™ i7/i5/i3

(Ivy Bridge) & Celeron® processor

Intel® QM77 chipset

USB 3.0 supported

Water/dust-proof design (front bezel: IP65, full enclosure:

IPX1)

1 PCI or PCIe x4 expansion slot and 2 PCIe Mini Card slots

Optional Bluetooth/Wi-Fi (802.11 a/b/g/n)

Built-in 5 mega pixels camera

Supports optional Wall mount, VESA arm and desktop stand

1

11

7 8 9 10 12

13

14

15

2

4

3

5

16 17 18

6

1. Brightness adjust buttons

2. Volume adjust buttons

3. Power LED

4. MIC

5. Power switch

6. Speaker (R)

7. COM 2 (RS-232)

8. COM 1 (RS-232/422/485)

9. Gigabit LAN x 2

10. USB 2.0 x 2

11. USB 3.0 x 2

12. Audio (Line-out/Mic-in)

19

13. DisplayPort

14. Power connector

15. Power switch

16. PCI or PCIe x 4

17. USB 2.0 x 2

18. COM 3 (RS-232)

19. Speaker (L)

Rear view

Fanless Low Power DualView IPX1 DDR3 IP65

Introduction

The IFO2225-873 is a slim panel computer equipped with a 22-inch 250 nits high brightness WSXGA LCD display that supports an 3rd generation Intel® Core™ i7/i5/i3

& Celeron® processor up to 35 W with Intel® QM77 chipset. The Intel® HD Graphics

4000/2500 engine with DX11 support is built into the chipset to provide fast graphics performance. The panel PC also supports DualView and multiple I/O options including 4

USB 2.0 and 3 RS-232 ports. The built-in 5 mega pixels camera and microphone/speakers can provide a solution for VoIP and remote monitoring. The IFO2225-873 also supports an antenna for wireless (802.11 b/g/n) connection. Its dual Gigabit Ethernet ports provide high speed Ethernet as well as a high reliable redundancy host connection. This robust unit is designed to be work under minimal noise levels, low power consumption, high reliability and while maintaining efficient performance. Its excellent industrial design (ID) and user friendly interface design make it an ideal solution best suited for infotainment, advertising messaging, and other digital signage applications.

Water/dust-proof design for entire system: IPX1

The IPX1-rated water/dust-proof housing protects the entire 22" panel system from outside damage caused by water drip damage while installed at public or enclosed environments. Its unique design improves system stability while saving time and money on maintenance costs and re-installation time.

Specifications

Front Bezel

LCD Panel

Main System

Plastic ABS

Display Type

Brightness (cd/m 2 )

22" WSXGA TFT

250 nits

Resolution 1680 x 1050

Viewing Angle (H/V) 178°/178°

CPU

Chipset

System Memory

BIOS

Storage

Optical Drive

Watchdog Timer

Onboard Graphics

Socket rPGA988B 3rd generation

Intel® Core™ i7/i5/i3 & Celeron® processor, TDP up to 35W

Intel® QM77

2 x 204-pin DDR3 SO-DIMM max. up to 16 GB

AMI UEFI BIOS with OA 3.0 built

1 x 2.5" SATA HDD

1 x mSATA SSD (optional)

1 x Super Multi drive (optional)

255 levels, 0~255 sec.

Intel® HD Graphic

637

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector

Expansion Interface

Speaker

Camera

Touchscreen

Function Key

Power Supply

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

Certificate

2 x RS-232 (COM 2/3)

1 x RS-232/422/485

2 x 10/100/1000Mpbs Ethernet

4 x USB 2.0

2 x USB 3.0

1 x Audio (Line-out)

1 x Audio (Mic-in)

1 x DisplayPort

1 x PCI or 1 x PCIe x4 slot

2 x PCIe Mini Card slot (optional)

2 x 2W

1 x 5M pixels camera

5-wire resistive type

LCD brightness up/down, audio volume up/down, power on/off

External 19VDC or 24VDC with AC/DC power adapter

573.5 mm (22.57") (W) x 75.9 mm (2.98") (D) x 398.9 mm

(15.7") (H)

730 mm (28.74") (W) x 240 mm (9.45") (D) x 650 mm (25.59") (H)

10.58 kg (23.32 lb)/ 15.16 kg (33.42 lb)

Operating temperature: 0°C ~ +40°C (+32°F ~ +104°F)

Storage temperature: 0°C ~ +40°C (+32°F ~ +104°F)

Relative humidity: 20% ~ 90% @ 40°C; non-condensing

CE

Ordering Information

IFO2225-873-NP-DRW 22" WSXGA fanless touch panel computer with 3rd generation Intel® Core™ processor, 5-wire resistive touch screen, super multi drive and AC-DC 120W power adapter

(screw type connector)

IFO2225-873-NP w/o DRW 22" WSXGA fanless touch panel computer with 3rd generation Intel® Core™ processor, 5-wire resistive touch screen and AC-DC 120W power adapter (screw type connector)

* Specification and certifications are based on options and may vary.

**Super Multi drive includes DVD-R, DVD-RW and DVD-RAM.

Optional Accessories

E202003330

E202003329

E222175103

VM-101 VESA ARM (clamp type)

VM-105 VESA ARM (wall mount type)

22" stand kit

Optional OS Installation

Windows® XP

Windows® 7

Windows® 8.1

WE8S

Overview

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

5

Infotainment

Touch Panel

Computers

Dimensions

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

638

IFO2175-873

17" SXGA TFT Fanless Super Slim Touch

Panel Computer with 3rd Generation Intel®

Core™ i7/i5/i3 & Celeron® Processor

Camera

Features

17” (350 nits) SXGA TFT LCD

Socket rPGA988B 3rd generation Intel® Core™ i7/i5/i3

(Ivy Bridge) & Celeron® processor

Intel® QM77 chipset

USB 3.0 supported

Water/dust-proof design (front bezel: IP65, full enclosure:

IPX1)

Optional one PCI or PCIe x4 expansion slot

Optional Bluetooth/Wi-Fi (802.11 b/g/n)

Built-in 5 mega pixels camera

Supports optional wall mount, VESA arm and desktop stand

7

1 2

4

3

5

8 9

10

11

13

12 14 15

6 16

1. Brightness Adjust buttons

2. Volume adjust buttons

3. Power LED

4. MIC

5. Power on/off button

6. Speaker (R)

7. COM 1

(RS-232/422/485)

8. Gigabit LAN x 2

9. USB 2.0 x 2

10. USB 3.0 x 2

11. Audio (Line-out/Mic-in)

12. DisplayPort

13. Power connector

14. Power switch

15. PCI or PCIe slot

16. Speaker (L)

Fanless Low Power DualView IP65 IPX1 DDR3

Introduction

The IFO2175-873 is a slim panel computer equipped with a 17-inch 350 nits high brightness SXGA LCD display that supports an 3rd generation Intel® Core™ i7/i5/i3 &

Celeron® processors up to 35W with Intel® QM77 chipset. The Intel® HD Graphics engine with DX11 support is built into the chipset to provide fast graphics performance.

The panel PC also supports DualView and multiple I/O options including 4 USB and

1 RS-232/422/485 ports. The built-in 5 mega pixels camera and microphone/speakers can provide a solution for VoIP and remote monitoring. The IFO2175-873 also supports an antenna for wireless (802.11 b/g/n) connection. Its dual Gigabit Ethernet ports provide high speed Ethernet as well as a high reliable redundancy host connection. This robust unit is designed to be work under minimal noise levels, low power consumption, high reliability and while maintaining efficient performance. Its excellent industrial design (ID) and user friendly interface design make it an ideal solution best suited for infotainment, advertising messaging, and other digital signage applications.

Water/dust-proof design for entire system: IPX1

The IPX1-rated water/dust-proof housing protects the entire system from outside damage caused by water drip damage while installed at public or enclosed environments. Its unique design improves system stability while saving time and money on maintenance costs and re-installation time.

Specifications

Front Bezel

LCD Panel

Main System

Plastic ABS

Display Type

Brightness (cd/m 2 )

Resolution 1280 x 1024

Viewing Angle (H/V) 178°/178°

CPU

17” SXGA TFT LCD

350 nits

Chipset

System Memory

BIOS

Storage

Socket rPGA988B 3rd generation

Intel® Core™ i7/i5/i3 & Celeron® processor, TDP up to 35W

Intel

®

QM77

2 x 204-pin DDR3 SO-DIMM max. up to 16 GB

AMI UEFI BIOS with OA 3.0 built

1 x 2.5" SATA HDD

1 x mSATA

Optical Drive

Watchdog Timer

Onboard Graphics

1 x Super Multi drive (optional)

255 levels, 0~255 sec.

Intel® HD Graphic

639

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector

Expansion Interface

Speaker

Camera

Touchscreen

Function Key

Power Supply

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

Certificate

1 x RS-232/422/485 (isolated 4KV)

2 x 10/100/1000Mbps Ethernet

2 x USB 2.0 (isolated 4KV)

2 x USB 3.0

1 x Audio (Line-out)

1 x Audio (Mic-in)

1 x DisplayPort

1 x PCI or 1 x PCIe x4 slot (optional)

2 x PCIe Mini Card slot

2 x 2W

1 x 5M pixels camera

5-wire resistive type

LCD brightness up/down, audio volume up/down, power on/off

External 19VDC or 24VDC with AC/DC medical grade power adapter

438 mm (17.24") (W) x 76.5 mm (3.01") (D) x 376.4 mm

(14.81") (H)

610 mm (24.02") (W) x 260 mm (10.24") (D) x 590 mm (23.23") (H)

8.0 kg (17.63 lb)/ 11.9 kg (26.23 lb)

Operating temperature: 0°C ~ +40°C (+32°F ~ +104°F)

Storage temperature: 0°C ~ +40°C (+32°F ~ +104°F)

Relative humidity: 20% ~ 90% @ 40°C; non-condensing

CE

Ordering Information

IFO2175-873-NP-DRW 17" SXGA fanless touch panel computer with 3rd generation

Intel® Core™ processor, 5-wire resistive touch screen, super multi drive and AC-DC 120W power adapter (screw type connector)

IFO2175-873-NP w/o DRW 17" SXGA fanless touch panel computer with 3rd generation

Intel® Core™ processor, 5-wire resistive touch screen and

AC-DC 120W power adapter (screw type connector)

* Specification and certifications are based on options and may vary.

**Super Multi drive includes DVD-R, DVD-RW and DVD-RAM.

Optional Accessories

E202003330

E202003329

E228170100

VM-101 VESA ARM (clamp type)

VM-105 VESA ARM (wall mount type)

17" stand kit

Optional OS Installation

Windows® XP

Windows® 7

Windows® 8.1

WE8S

Overview

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

5

Infotainment

Touch Panel

Computers

Dimensions

438

76.5

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

OPEN I/O COVER VIEW

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

640

Touch Panel

Computers

www.axiomtek.com

6

Touch Panel Computers

6

Healthcare & Medical Solutions

Regarding quality is becoming ever-more stringent in the field of medical products,

Axiomtek has been committed to developing medical touch panel computers (MPC series) that deliver features such as power efficiency, sleek ID, IPX1-rated waterproof design, operating without making any noise, and achieving certifications such as ISO 13485: 2003, UL60601-1/EN60601-1, CE, FCC Class B. Axiomtek’s heathcare

& medical solutions are absolutely your best choice ideal for applications like medical image processing, medical measuring instrument and mobile nursing cart.

NEW

NEW

NEW

Introduction

Selection Guide

Medical Panel Computers

MPC240

MPC225-873

643

644

24" FHD TFT Medical Grade Panel Computer with 4th Generation 647

Intel® Core™ M-series, Celeron® & Pentium® Processor

22" WSXGA TFT Fanless Medical Grade Panel Computer with

Intel® Core™ i7/ i5/ i3 Processor

649

651 MPC175-873

MPC153-834

17" SXGA TFT Fanless Medical Grade Panel Computer with

Intel® Core™ i7/ i5/ i3 Processor

15.6" WXGA TFT Medical Grade Panel Computer with Intel®

Celeron® Processor J1900

653

655 MPC152-832

MPC102-832

MPC103-845

15" XGA TFT Medical Grade Panel Computer with Low Power

Intel® Atom™ Processor D2550

10.4" SVGA Medical Grade Panel Computer with Low Power

Intel® Atom™ Processor N2600

10.1" WXGA TFT Medical Grade Panel Computer with Intel®

Celeron® Processor N3060

657

659

Medical Panel Computers

Axiomtek's MPC series, the fanless medical grade panel computer, is well-suited for applications like medical image processing and medical measuring instrument.

Especially designed for the medical environment, it adopts IP65 front panel and IPX1 entire system spill/dust-proof designs which protect the entire system from outside liquid, preventing system from crashing, yet still offers excellent heat ventilation and fanless operation. Powered by Intel® Core™ i/ Core™2 Duo/ Pentium®/ Celeron®/

Atom™ processor and PCI expansion slot, the MPC series is definitely the best choice for your medical panel computer.

This series complies with ISO 13485: 2003, UL60601-1/EN60601-1, CE, FCC Class B certifications to ensure medical operation safety. it is outfitted with high brightness

TFT LCD display. Additionally, it offers flexible CPU selection with socket type which reduces cost, increases convenience over onboard CPU, and still maintains a fanless operation and long product life cycle. For expansion capability, the platform supports one PCI or PCIe x4 slot for video capture card, data acquisition card and more. The built-in 5M mega pixels camera, microphone and stereo speakers allows medical professionals to execute remote operation. Bluetooth is an available option for wireless connection with medical peripheral devices. Optional W-iFi (802.11 a/b/g/n) allows wireless real-time connection of patient record for assessment. To improve patient treatment accuracy, the optional RFID (radio frequency identification) offers an efficient way to validate patient identification and give proper treatment.

Major Features

IPX1 waterproof design Built-in 5 mega pixels camera Various mounting ways: Desktop/Wall/

VESA/panel mount

Slim design with PCI or PCIe expansion and multiple I/O interface

TFT LCD monitor sizes:

10.1"/10.4"/15"/15.6"/17"/22"/24"

Medical certifications:

ISO 13485: 2003, UL60601-1, EN60601-1,

FCC Class B

643

* All specifications and photos are subject to change without notice.

Medical Panel Computers

Selection Guide

NEW

Features\Models

CPU Level

Chipset

System Memory

Display

I/O

Storage

DVD-RW

Expansion Interface

Touchscreen

Power Supply

Watchdog Timer

Dimensions

(W x D x H)

Weight (net/gross)

Operating Temperature

Certificate

Page 647

MPC240

Socket G3 4th generation Intel®

Core™ i7/i5/i3, Celeron® &

Pentium® mobile processor

Intel® HM86

2 x 204-pin DDR3L 1600 MHz

SO-DIMM max. up to 16 GB

24" FHD, 250 nits

4 x USB 3.0

4 x USB 2.0

1 x line out

1 x mic-in

1 x RJ-45 jack

1 x DC-in jack

1 x HDMI

1 x 2.5" SATA HDD

1 x M2-SATA SSD (M2 Type, 2242)

1 x super multi drive (optional)

1 x PCIe Mini Card

Projected capacitive multi-touch

External AC/DC medical grade power adapter

255 levels, 0~255 sec.

610 x 35.5 x 415 mm

(24.01" x 1.40" x 16.34")

6.2 kg (13.66 lb)/9 kg (19.84 lb)

5°C ~ +40°C (+13°F ~ +104°F)

CE, EN60601-1

Overview

Page 649

MPC225-873

Socket rPGA988B 3rd generation

Intel® Core™ i7/i5/i3 & Celeron® processor,

TDP up to 35W

Intel® QM77

2 x 204-pin DDR3 SO-DIMM max. up to 16 GB

22" TFT, WSXGA, 250 nits

2 x RS-232 (COM 2/3)

1 x RS-232/422/485 (COM1 w/isolated 4KV)

2 x 10/100/1000Mbps Ethernet (isolated 4KV)

2 x USB 2.0 (isolated 4KV)

2 x USB 2.0

2 x USB 3.0

1 x Audio (Line-out)

1 x Audio (Mic-in)

1 x DisplayPort

2 x 2W speakers

1 x 2.5" SATA HDD

1 x mSATA

1 x super multi drive (optional)

1 x PCI or 1 x PCIe x4

2 x PCIe Mini Card

5-wire resistive type

External 24VDC with AC/DC medical grade power adapter

255 levels, 0~255 sec.

573.5 x 75.9 x 398.9 mm

(22.57" x 2.98" x 15.7")

10.58 kg (23.32 lb)/15.16 kg (33.42 lb)

0° ~ +40°C (+32°F ~ +104°F)

CE class B, EN60601-1, UL60601-1, CE class B, EN60601-1,

UL60601-1

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

6

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

644

Features\Models

CPU Level

Chipset

System Memory

Display

I/O

Storage

DVD-RW

Expansion Interface

Touchscreen

Power Supply

Watchdog Timer

Dimensions

(W x D x H)

Weight (net/gross)

Operating Temperature

Certificate

Medical Panel Computers

Selection Guide

NEW

Page 651

MPC175-873

Socket rPGA988B 3rd generation

Intel® Core™ i7/i5/i3 & Celeron® processor,

TDP up to 35W

Intel® QM77

2 x 204-pin DDR3 SO-DIMM max. up to 16 GB

17" TFT, SXGA, 350 nits

1 x RS-232/422/485 (COM 1 w/isolated 4KV)

2 x 10/100/1000Mbps Ethernet (isolated 4KV)

2 x USB 2.0 (isolated 4KV)

2 x USB 3.0

1 x Audio (Line-out)

1 x Audio (Mic-in)

1 x DisplayPort

2 x 2W speakers

1 x 2.5" SATA HDD

1 x mSATA SSD (optional)

1 x super multi drive (optional)

1 x PCI or 1 x PCIe x4 (optional)

2 x PCIe Mini Card

5-wire resistive type

External 24VDC with AC/DC medical grade power adapter

255 levels, 0~255 sec.

438 x 76.5 x 376.4 mm

(17.24" x 3.01" x 14.81")

8.0 kg (17.63 lb)/11.9 kg (26.23 lb)

0° ~ +40°C (+32°F ~ +104°F)

CE class B, EN60601-1, UL60601-1, FCC classB

Page 653

MPC153-834

Intel® Celeron® processor J1900

(up to 2.42 GHz)

SoC Integrated

1 x 204-pin DDR3L-1333 MHz SO-DIMM up to 8 GB

15.6" TFT, WXGA, 300 nits

2 x RS-232/422/485 (COM 1/2)

1 x RS-232/422/485 (COM3 w/isloated 4KV)

2 x 10/100/1000Mbps Ethernet (w/Intel i210IT)

2 x USB 3.0

1 x Audio (Line-out)

1 x Mic in

1 x 2.5" HDD

1 x CFast™ or mSATA

N/A

2 x PCIe Mini Card

Projected capacitive multi-touch

5-wire flat resistive type

9~36VDC

External 100~240VAC, 60W medical grade power adapter

255 levels, 0~255 sec.

394.2 x 57 x 257.2 mm

(15.53" x 2.25" x 10.13")

3.0 kg (6.61 lb)/4.5 kg (9.92 lb)

0° ~ +40°C (+32°F ~ +104°F)

CE, EN60601-1, FCC classB

645

* All specifications and photos are subject to change without notice.

Features\Models

CPU Level

Chipset

System Memory

Display

I/O

Storage

DVD-RW

Expansion Interface

Touchscreen

Power Supply

Watchdog Timer

Dimensions

(W x D x H)

Weight (net/gross)

Operating Temperature

Certificate

Overview

NEW

Page 655

MPC152-832

Intel® Atom™ D2550 @1.86 GHz

Intel® NM10

1 x 204-pin DDR3 800/1066 MHz

SO-DIMM max. up to 4 GB

15" TFT LCD, XGA, 400 nits

1 x RS-232 (COM3 w/isolated 4KV)

1 x RS-232/422/485 (COM1)

2 x 10/100/1000Mbps Ethernet

4 x USB 2.0

1 x Audio Line-out

1 x DisplayPort

Page 657

MPC102-832

Intel® Atom™ N2600 @1.6 GHz

Intel® NM10

1 x 204-pin DDR3 800/1066 MHz

SO-DIMM max. up to 2 GB

10.4" TFT LCD, SVGA, 400 nits

1 x RS-232 (COM3 w/isolated 4KV)

1 x RS-232/422/485 (COM1)

2 x 10/100/1000Mbps Ethernet

2 x USB 2.0

1 x Audio Line-out

1 x DisplayPort

1 x 2.5" SATA HDD

1 x CompactFlash™

N/A

1 x PCIe Mini Card

5-wire resistive type

10~30VDC

External 100~240VAC, 60W medical grade power adapter

255 levels, 0~255 sec.

387.9 x 54.6 x 307.7 mm

(15.27" x 2.14" x 12.11")

3.2 kg (7.05 lb)/4.5 kg (9.91 lb)

0° ~ +40°C (+32°F ~ +104°F)

CE, EN60601-1, UL60601-1, FCC classB

1 x Half-Slim SATA SSD

1 x CompactFlash™

N/A

1 x PCIe Mini Card

5-wire Resistive Type

10~30VDC

External 100~240VAC, 60W medical grade power adapter

255 levels, 0~255 sec.

292.5 x 45.8 x 235.8 mm

(11.52" x 1.8" x 9.28")

1.8 kg (3.96 lb)/3 kg (6.61 lb)

0° ~ +40°C (+32°F ~ +104°F)

CE, EN60601-1, UL60601-1, FCC classB

Page 659

MPC103-845

Intel® Celeron® processor N3060

2 cores (up to 2.48 GHz)

SoC Integrated

1 x 204-pin DDR3L-1600 MHz

SO-DIMM max. up to 8 GB

10.1" TFT LCD, WXGA, 350 nits

1 x RS-232 (w/isolated 4KV)

1 x RS-232-422-485 (default RS-232)

1 x HDMI

1 x Switch for power on/off

1 x AT/ATX mode selection switch

2 x USB 3.0

1 x Audio (Line-out)

2 x 10/100/1000Mbps Ethernet

(Intel® i211AT)

1 x mSATA

N/A

2 x PCIe Mini Card

Projected capacitive multi-touch

External 100~240VAC w/medical grade power adapter

255 levels, 0~255 sec.

260 x 38 x 194.1 mm

(10.27" x 1.50" x 7.65")

TBD

0° ~ +40°C (+32°F ~ +104°F)

CE, EN60601-1, FCC classB

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

6

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

646

MPC240

24" FHD TFT Medical Grade Panel Computer with 4th Generation Intel® Core™ i7/i5/i3,

Celeron® & Pentium® Mobile Processor

NEW

1

Features

24" FHD TFT LCD display with LED backlight

Socket G3 4th generation Intel® Core™ i7/i5/i3, Celeron® &

Pentium® Mobile Processor

EN60601-1 and CE certified

Spill-proof front panel design

Supports 10-point multi-touch screen

Antimicrobial enclosure

Ultra slim and super lightweight design

Supports optional wall mount, VESA mount and

desktop stand

9

2

10

13

12

11

1. Camera

2. Optical disc drive

3. Cable tie slot

4. DC-in jack

5. USB 2.0 x 4

3

6. USB 3.0 x 4

7. RJ-45 port

8. HDMI output port

9. Speakers

10. Power button

4 8

5 6 7

11. Earphone jack

12. Microphone jack

13. Card reader

Side view

EN60601-1

Low Power DualView

DDR3L

Introduction

The MPC240 is an Intel® Core™-based 24-inch medical grade touch panel computer which is well-suited for applications like medical image processing and medical measuring instrument. Especially designed for the medical & healthcare environment, the

10-point touchscreen medical panel PC is front panel spill-proof design which protects the entire system from outside liquid, preventing system from crashing. In response to market demand, this 24" medical panel computer is a cost-effective solution.

Super slim & ultra lightweight design

The Axiomtek MPC240 is a super slim 24-inch touch panel PC for space-limited healthcare environment with its thickness of 35.5 mm and weight of 6.2 kg only, which make it installed everywhere. Besides, it provides medical grade AC power adapter.

Built-in internal WLAN

The stylish MPC240 provides a PCIe Mini Card slot and a built-in WLAN antenna for wireless network connections. By simply plugging in the wireless LAN card, customers can use the 24-inch medical computer in a wireless LAN/GPRS/GSM/4G environment.

Certifications

This 24" multi-touch medical panel platform complies with EN60601 and CE certifications to ensure medical operation safety.

Specifications

Front Bezel

LCD Panel

Main System

Spill-proof

Display Type

Brightness (cd/m

2

Resolution

)

CPU

System Memory

BIOS

Storage

Optical Drive

Watchdog Timer

Onboard Graphics

24" FHD TFT LCD with LED backlight

250 nits

1920 x 1080

Socket G3 4th generation Intel®

Core™ i7/i5/i3, Celeron® &

Pentium® mobile processor

2 x 204-pin DDR3L 1600 MHz

SO-DIMM max. up to 16 GB, 8 GB for each socket

AMI BIOS

1 x 2.5" SATA HDD

1 x M2-SATA SSD (M2 Type, 2242)

1 x Super Multi drive (optional)

255 levels, 0~255 sec.

Integrated in Intel® GFX

647

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector

Expansion Interface

Audio

Camera

Sensor

Touch Screen

Power Supply

Dimensions

Packing Dimensions

Weight(net/gross)

Environment

Certificate

4 x USB 3.0

4 x USB 2.0

1 x line out

1 x mic-in

1 x RJ-45 jack

1 x DC-in jack

1 x HDMI

1 x SDXC card reader slot

1 x Mini Card slot for Wi-Fi

2 x 1.5 KHz speaker/70dB

1 x microphone

1 x 2M pixels webcam

1 x proximity sensor

Projected capacitive multi-touch 10-point

1. 100V-240V, 135W medical grade power adapter

2. Built-in UPS battery (optional)

610 mm (24.01") (W) x 35.5 mm (1.40") (D) x 415 mm (16.34") (H)

780 mm (30.71") (W) x 160 mm (6.30") (D) x 530 mm (20.87") (H)

6.2 kg (13.66 lb)/9 kg (19.84 lb)

Operating temperature: 5°C ~ +40°C (+13°F ~ +104°F)

Storage temperature: -30°C ~ +60°C (-22°F ~ +140°F)

Relative humidity: 10%~90% @ 40°C; non-condensing

CE, EN60601-1

Ordering Information

MPC240 22" FHD medical touch panel computer with Intel®

Core™ processor, projected capactive multi-touch screen,

AC-DC 135W medical grade power adapter (screw type connector), EMI class B and EN60601-1 certified

* Specification and certifications are based on options and may vary.

Optional OS Installation

Windows® 7

Windows® 8.1

Dimensions

610

573.36

533.36(touch pad view area)

Overview

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

6

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

648

MPC225-873

22" TFT Fanless Medical Grade Panel

Computer with Intel® Core™ i7/i5/i3 &

Celeron® Processor

Camera

Features

22" (250 nits) WSXGA TFT LCD

Socket rPGA988B 3rd generation Intel® Core™ i7/i5/i3

(Ivy Bridge) & Celeron® processor

Intel® QM77 chipset

Isolated COM, USB and Ethernet ports

USB 3.0 supported

Water/dust-proof design (front bezel: IP65, full enclosure:

IPX1)

1 PCI or PCIe x4 expansion slot and 2 PCIe Mini Card slots

Optional Bluetooth/Wi-Fi (802.11 a/b/g/n)

Built-in 5 mega pixels camera

Touch screen on/off key for clean usage

UL60601-1, EN60601-1, CE & FCC class B certified

Supports optional wall mount, VESA arm and desktop stand

1

11 13

7 8 9 10 12 14 15

2

4

3

5

16 17 18

6

1. Brightness Adjust buttons

2. Volume adjust buttons

3. Power LED

4. MIC

5. Touch on/off button

6. Speaker (R)

7. COM 2 (RS-232)

8. Isolated COM 1

(RS-232/422/485)

9. Isolated Ethernet x 2

10. Isolated USB x 2

11. USB 3.0 x 2

12. Audio (Line-out/Mic-in)

19

13. DisplayPort

14. Power connector

15. Power switch

16. PCI or PCIe slot

17. USB 2.0 x 2

18. COM 3 (RS-232)

19. Speaker (L)

Slim design

Rear view

IP65

Introduction

IPX1 Fanless

Low Power DualView

DDR3

The MPC225-873 is a 22-inch slim TFT fanless medical grade panel computer, which is well-suited for applications like medical image processing and medical measuring instrument. Especially designed for the medical environment, it adopts IPX1 waterproof design which protects the entire system from outside liquid, preventing system from crashing. The Isolated COM/USB/LAN port design provides electric leakage protection in medical environment. Powered by socket rPGA988B 3rd Generation Intel® Core™ i7/i5/i3 processor and PCI expansion slot, the MPC225-873 is definitely the best choice for your medical computing platform.

This medical panel platform complies with UL60601-1, EN60601-1, CE, FCC Class B certifications to ensure medical operation safety. It is outfitted with 22-inch wide view angle WSXGA TFT LCD display. Additionally, the MPC225-873 offers flexible CPU selection with socket type which reduces cost, increases convenience over onboard

CPU, and still maintains a fanless operation as well as long product life cycle. For expansion capability, the unit supports one PCI or PCIe x4 slot and two mini card slots for video capture card, data acquisition card, Wi-Fi, mSATA and more. The built-in 5 mega pixels camera, microphone and stereo speakers allow medical professionals to execute remote operation. Bluetooth is an available option for wireless connection with medical peripheral devices. Optional Wi-Fi (802.11 a/b/g/n) allows wireless real-time connection of patient record for assessment. To improve patient treatment accuracy, the optional RFID (radio frequency identification) offers an efficient way to validate patient identification and give proper treatment.

Specifications

Front Bezel

LCD Panel

Main System

Plastic ABS

Display Type

Brightness (cd/m 2 )

22" WSXGA TFT

250 nits

Resolution 1680 x 1050

Viewing Angle (H/V) 178°/178°

CPU

Chipset

System Memory

BIOS

Storage

Optical Drive

Watchdog Timer

Onboard Graphics

Socket rPGA988B 3rd generation

Intel® Core™ i7/i5/i3 & Celeron® processor, TDP up to 35W

Intel® QM77

2 x 204-pin DDR3 SO-DIMM max. up to 16 GB

AMI UEFI BIOS with OA 3.0 built

1 x 2.5" SATA HDD

1 x mSATA SSD (optional)

1 x Super Multi drive (optional)

255 levels, 0~255 sec.

Intel® HD Graphic

649

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector

Expansion Interface

Speaker

Camera

Touchscreen

Function Key

Power Supply

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

Certificate

2 x RS-232 (COM 2/3)

1 x RS-232/422/485 (COM 1 w/ isolated 4KV)

2 x 10/100/1000Mbps Ethernet (isolated 4KV)

2 x USB 2.0 (isolated 4KV)

2 x USB 2.0

2 x USB 3.0

1 x Audio (Line-out)

1 x Audio (Mic-in)

1 x DisplayPort

1 x PCI or 1 x PCIe x4 slot (optional)

2 x PCIe Mini Card slot

2 x 2W

1 x 5M pixels camera

5-wire resistive type

LCD brightness up/down, audio volume up/down, touch off/on

External 24VDC with AC/DC medical grade power adapter

573.5 mm (22.57") (W) x 75.9 mm (2.98") (D) x 398.9 mm

(15.7") (H)

730 mm (28.74") (W) x 240 mm (9.45") (D) x 650 mm (25.59") (H)

10.58 kg (23.32 lb)/15.16 kg (33.42 lb)

Operating temperature: 0°C ~ +40°C (+32°F ~ +104°F)

Storage temperature: 0°C ~ +40°C (+32°F ~ +104°F)

Relative humidity: 20% ~ 90% @ 40°C; non-condensing

CE, FCC class B, EN60601-1, UL60601-1

Ordering Information

MPC225-873-UL-NP-DRW 22" WXGA fanless medical touch panel computer with

Intel® Core™ processor, 5-wire reisitive touch screen, super multi drive, AC-DC 150W medical grade power adapter (screw type connector), EMI class B, UL60601-1 and

EN60601-1 certified

MPC225-873-UL-NP w/o

DRW

22" WXGA fanless medical touch panel computer with

Intel® Core™ processor, 5-wire resistive touch screen,

AC-DC 150W medial gradepower adapter (screw type connector), EMI class B, UL60601-1 and EN60601-1 certified

* Specification and certifications are based on options and may vary.

**Super Multi drive includes DVD-R, DVD-RW and DVD-RAM.

Optional Accessories

E202003330

E202003329

E228170100

VM-101 VESA ARM (clamp type)

VM-105 VESA ARM (wall mount type)

22" stand kit

Optional OS Installation

Windows® XP

Windows® 7

WES7

Windows® 8.1

WE8S

Overview

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Dimensions

Infotainment

Touch Panel

Computers

6

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

650

MPC175-873

17” TFT Fanless Medical Grade Panel

Computer with Intel® Core™ i7/i5/i3 &

Celeron® Processor

Camera

Features

17” (350 nits) SXGA TFT LCD

Socket rPGA988B 3rd Generation Intel® Core™ i7/i5/i3

(Ivy Bridge) & Celeron® processor

Intel® QM77 chipset

Isolated COM, USB and Ethernet ports

USB 3.0 supported

Water/dust-proof design (front bezel: IP65, full enclosure:

IPX1)

Optional 1 x PCI or PCIe x4 expansion slot

Optional Bluetooth/Wi-Fi (802.11 a/b/g/n)

Built-in 5 mega pixels camera

Touch screen on/off key for clean usage

UL60601-1/EN60601-1, CE & FCC class B certified

Supports wall mount, VESA arm and desktop stand

1 2

4

3

5

7 8 9

10

11 12 13 14 15

6

1. Brightness Adjust buttons

2. Volume adjust buttons

3. Power LED

4. MIC

5. Touch on/off button

6. Speaker (R)

7. Isolated COM 1

(RS-232/422/485)

8. Isolated Ethernet x 2

9. Isolated USB x 2

10. USB 3.0 x 2

11. Audio (Line-out/Mic-in)

12. DisplayPort

16

13. Power connector

14. Power switch

15. PCI or PCIe slot

16. Speaker (L)

Side view

IP65

Introduction

IPX1 Fanless Low Power DualView DDR3

The MPC175-873 is a 17-inch slim TFT fanless medical grade panel computer, which is well-suited for applications like medical image processing and medical measuring instrument. Especially designed for the medical environment, it adopts IPX1 waterproof design which protects the entire system from outside liquid, preventing system from crashing. Isolated COM/USB/LAN port design provides electric leakage protection in medical environment. Powered by socket rPGA988B 3rd Generation Intel® Core™ i7/i5/i3 processor and PCI expansion slot, the MPC175-873 is definitely the best choice for your medical platform.

This medical panel platform complies with UL60601-1, EN60601-1, CE, FCC Class B certifications to ensure medical operation safety. It is outfitted with 17-inch wide view angle SXGA TFT LCD display. Additionally, the MPC175-873 offers flexible CPU selection with socket type which reduces cost, increases convenience over onboard CPU, and still maintains a fanless operation as well as long product life cycle. For expansion capability, the unit supports optional one PCI or PCIe x4 slot, and two mini card slot for video capture card, data acquisition card, Wi-Fi, mSATA and more. The built-in 5 mega pixels camera, microphone and stereo speakers allow medical professionals to execute remote operation. Bluetooth is an available option for wireless connection with medical peripheral devices. Optional Wi-Fi (802.11 a/b/g/n) allows wireless real-time connection of patient record for assessment. To improve patient treatment accuracy, the optional RFID (radio frequency identification) offers an efficient way to validate patient identification and give proper treatment.

Rear view

Specifications

Front Bezel

LCD Panel

Main System

Plastic ABS

Display Type

Brightness (cd/m 2 )

17" SXGA TFT

350 nits

Resolution 1280 x 1024

Viewing Angle (H/V) 178°/178°

CPU

Chipset

System Memory

BIOS

Storage

Optical Drive

Watchdog Timer

Onboard Graphics

Socket rPGA988B 3rd Generation

Intel® Core™ i7/i5/i3 & Celeron® processor, TDP up to 35W

Intel® QM77

2 x 204-pin DDR3 SO-DIMM max. up to 16 GB

AMI UEFI BIOS with OA 3.0 built

1 x 2.5" SATA HDD

1 x mSATA SSD (optional)

1 x Super Multi drive (optional)

255 levels, 0~255 sec.

Intel® HD Graphic

651

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector

Expansion Interface

Speaker

Camera

Touchscreen

Function Key

Power Supply

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

Certificate

1 x RS-232/422/485 (COM 1 w/ isolated 4KV)

2 x 10/100/1000Mbps Ethernet (isolated 4KV)

2 x USB 2.0 (isolated 4KV)

2 x USB 3.0

1 x Audio (Line-out)

1 x Audio (Mic-in)

1 x DisplayPort

1 x PCI or 1 x PCIe x4 slot (optional)

2 x PCIe Mini Card slot

2 x 2W

1 x 5M pixels camera

5-wire resistive type

LCD brightness up/down, audio volume up/down, touch off/on

External 24VDC with AC/DC medical grade power adapter

438 mm (17.24") (W) x 76.5 mm (3.01") (D) x 376.4 mm

(14.81") (H)

610 mm (24.02") (W) x 260 mm (10.24") (D) x 590 mm (23.23") (H)

8.0 kg (17.63 lb)/ 11.9 kg (26.23 lb)

Operating temperature: 0°C ~ +40°C (+32°F ~ +104°F)

Storage temperature: 0°C ~ +40°C (+32°F ~ +104°F)

Relative humidity: 20% ~ 90% @ 40°C; non-condensing

CE, FCC class B, EN60601-1, UL60601-1

Stand kit

Ordering Information

MPC175-873-NP-DRW

MPC175-873-NP W/O

DRW

17" SXGA fanless medical touch panel computer with Intel®

Core™ processor, 5-wire resistive touch screen, super multi drive, AC-DC 110W medical grade power adapter (screw type connector), EMI class B and EN60601-1 certified

17" SXGA fanless medical touch panel computer with Intel®

Core™ processor, 5-wire resistive touch screen, AC-DC

110W medical grade power adapter (screw type connector),

EMI class B and EN60601-1 certified

MPC175-873-UL-NP DRW 17" SXGA fanless medical touch panel computer with Intel®

Core™ processor, 5-wire resistive touch screen, super multi drive, AC-DC 150W medical grade power adapter (screw type connector), EMI class B, UL60601-1 and EN60601-1 certified

MPC175-873-UL-NP W/O

DRW

17" SXGA fanless medical touch panel computer with Intel®

Core™ processor, 5-wire reisitive touch screen, AC-DC

150W medical grade power adapter (screw type connector),

EMI class B, UL60601-1 and EN60601-1 certified

* Specification and certifications are based on options and may vary.

**Super Multi drive includes DVD-R, DVD-RW and DVD-RAM.

Optional Accessories

E202003330

E202003329

E228170100

VM-101 VESA ARM (clamp type)

VM-105 VESA ARM (wall mount type)

17" stand kit

Optional OS Installation

Windows® XP

Windows® 7

WES7

Windows® 8.1

WE8S

Overview

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

6

Healthcare

& Medical

Solutions

Dimensions

Open

Frame Panel

Computers

438

76.5

Accessories

OPEN I/O COVER VIEW

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

652

MPC153-834

15.6" WXGA TFT Medical Grade Fanless

Touch Panel Computer with Intel® Celeron®

Processor J1900 (up to 2.42 GHz)

NEW

Features

15.6" WXGA TFT LCD display with LED backlight

15.6” projected capacitive touch or 5-wire flat resistive touch

for optional

Fanless design with Intel® Celeron® processor J1900

4 cores (up to 2.42 GHz)

EN 60601-1/CE/FCC class B certified

Supports half-slim SSD & CFast™ or mSATA

Supports antimicrobial plastic enclosure

IP65 front bezel & IPX1 full enclosure

Supports optional VESA arm/desktop stand/wall mount

Supports optional smart card reader

7 8

1

2

3 4 5

14

16

6

9

1. Power LED

2. HDD LED

3. Brightness adjust

4. Display on/off

5. Volume adjust

6. Power switch (ATX)

10 11 12 13

15

7. Power input connector (Screw)

8. Power input connector (Phoenix)

9. Speaker

10. Isolated COM 3

11. COM 1(RS-232/422/485)

12. COM 2(RS-232/422/485)

13. Ethernet x 2

14. USB 3.0 x 2

15. Speaker

16. Audio (Line-out)

Side view

Smart card reader cover

Rear view

CFast™ cover

Fanless

Low Power

DDR3L AiRD

IP65

Isolation

Introduction

The MPC153-834 is a 15.6" Intel® Celeron® based medical grade fanless touch panel computer. In response to market demand, this medical touch panel computer is a cost effective solution. It adopts a modern, sleek and fanless design and is equipped with a

15.6" TFT LCD as well as Intel® Celeron® processor J1900 4 cores up to 2.42 GHz (Bay

Trail). For wireless network connection, the MPC153-834 offers 2 mini card slots. By just plugging in a mini card WLAN card, customers can have instant access to wireless LAN/

GPRS/GSM/4G environments. Besides, it provides two types of power input. One is DC power input (9~36VDC) with terminal block connector, and another is AC medical power adapter with screw type connector.

Slim & lightweight design

The 15.6-inch medical panel PC is slim and lightweight which makes it fit for limited space installation.

Built-in internal WLAN antenna

The MPC153-834 provides 2 mini card slots and a built-in WLAN antenna for wireless network connections. By simply plugging in the wireless LAN card, customers can use the medical computer in wireless LAN/GPRS/GPS/4G environment.

Support front membrane keys

The MPC153-834 provides 5 membrane keys in front of system, people can adjust the system display, volume and brightness.

Certifications

This 15.6-inch fanless medical panel platform complies with EN60601-1, CE, FCC Class B certifications to ensure medical operation safety.

653

Specifications

Front Bezel

LCD Panel

Main System

IP65 front bezel

Display Type 15.6" WXGA TFT LCD display with

LED backlight

Brightness (cd/m 2 ) 300 nits

Resolution

CPU

System Memory

BIOS

Storage

Watchdog Timer

Onboard

Graphics

1366 x 768

Intel® Celeron® processor J1900

4 cores (up to 2.42 GHz)

1 x 204-pin DDR3L-1066/1333

SO-DIMM max. up to 8 GB

AMI UEFI BIOS

1 x Half-Slim SSD

1 x CFast™ or mSATA

255 levels, 0 ~ 255 sec.

Integrated Intel® GFX

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector

Expansion Interface

Touchscreen

Power Supply

2 x RS-232/422/485 (default RS-232 COM 1/2)

1 x RS-232 (COM3 w/ isloated 4KV)

2 x 10/100/1000Mbps Ethernet (Intel® i210IT)

2 x USB 3.0

1 x Audio (Line-out)

1 x Full-size PCI express Mini Card with mSATA supported

1 x Full-size PCI express Mini Card with SIM slot

Projected capacitive multi-touch or

5-wire flat resistive touch

1. AC version: medical grade 100-240V AC-DC 60W power

adapter

2. DC version: 9~36VDC with terminal block

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

394.2 mm (15.53") (W) x 57 mm (2.25") (D) x 257.2 mm

(10.13") (H)

510 mm (20.09") x 190 mm (7.48") x 540 mm (21.26")

3.0 kg (6.61 lb)/4.5 kg (9.92 lb)

Operating temperature: 0°C ~ +40°C (32°F ~ +104°F, w/RAM thermal kit)

Storage temperature: 0°C ~ +40°C (32°F ~ +104°F)

Relative humidity: 20% ~ 90% @ 40°C; non-condensing

Operation vibration: 2G, 10 ~ 500Hz, random for CFast™

Certificate CE, FCC class B, EN606011-1

* W.T.: Wide Temperature. All W.T. supported products have to be sorted by Axiomtek.

* The DC power source to be used with MPC153-834 must be galvanically isolated

according to IEC60601-1 safety of medical devices!

Dimensions

Ordering Information

MPC153-834-PCT-J

MPC153-834-FR-J

MPC153-834-PCT-DC

MPC153-834-FR-DC

15.6" WXGA fanless medical touch panel computer with

Intel® Celeron® processor J1900, projected capactive multi-touch screen, AC-DC 60W power adapter (screw type connector), EMI class B and EN60601-1 certified

15.6" WXGA fanless medical touch panel computer with

Intel® Celeron® processor J1900, 5-wire flat resistive touch screen, AC-DC 60W power adapter (screw type connector), EMI class B and EN60601-1 certified

15.6" WXGA fanless medical touch panel computer with

Intel® Celeron® processor J1900, projected capactive multi-touch screen,10~30VDC power input(terminal block connector) and EN60601-1 certified

15.6" WXGA fanless medical touch panel computer with

Intel® Celeron® processor J1900, 5-wire flat resistive touch screen, 10~30VDC power input(terminal block connector) and EN60601-1 certified

Optional EOS Installation

WES7

WE8S

Optional OS Installation

Windows® 7

Windows® 8.1

Overview

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

6

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

654

MPC152-832

15" TFT Medical Grade Panel Computer with

Low Power Intel® Atom™ Processor D2550

Features

15" XGA TFT LCD display with LED backlight

Fanless cooling system with Intel® Atom™ processor D2550

2 cores @1.86 GHz

UL60601-1, EN60601-1, CE and FCC class B certified

Water /dust-proof design (front bezel: IP65, full enclosure:

IPX1)

One key touch screen on/off button

Ultra slim design: thickness 54.6 mm

Super lightweight: 3.2 kg

Supports optional panel mount, wall mount, VESA mount and

desktop stand

2 3

1 4 5

1. Power switch (ATX)

2. Screw conn. w/ AC power adapter or

3. Terminal block for DC power input

4. USB 2.0 x 2

5. Isolated COM 3 (RS-232)

6. COM 1 (RS-232/422/485)

6 7 8 9 10

7. DisplayPort

8. Ethernet

9. USB 2.0 x 2

10. Audio (Line-out)

11. Touch on/off button

11

Side view

AiRD

EN/UL60601-1

IP65

IPX1 Fanless

Low Power DualView

DDR3

Introduction

The MPC152-832 is a 15" Intel® Atom™-based fanless medical grade touch panel computer which is well-suited for applications like medical image processing and medical measuring instrument. Especially designed for the medical environment, it adopts whole system IPX1 and front IP65 waterproof design which protects the entire system from outside liquid, preventing system from crashing. In response to market demand, this medical panel computer is a cost effective solution. It supports Intel® Atom™ processor

D2550 1.86 GHz.

Super slim & ultra lightweight design

The MPC152-832 is a super slim touch panel computer for space-limited environment with its thickness of 54.6 mm and weight of 3.2 kg only, which make it installed everywhere. Besides, it provides two types of power input. One is medical grade AC medical power adapter with screw type connector, and the other is DC power input

(10~30VDC) with terminal block connector (option).

Built-in internal WLAN

The MPC152-832 provides a PCIe Mini Card slot and a built-in WLAN antenna for wireless network connections. By simply plugging in the wireless LAN card, customers can use the 15-inch medical computer in a wireless LAN/GPRS/ GSM/4G environments.

Certifications

This medical panel platform complies with UL60601-1, EN60601-1, CE, FCC Class B certifications to ensure medical operation safety.

Specifications

Front Bezel

LCD Panel

Main System

IP65, NEMA 4 rugged protection, plastic front bezel

Display Type 15" XGA TFT LCD with LED backlight

Brightness (cd/m

Resolution

2 ) 400 nits

1024 x 768

Viewing Angle (H/V) 160°/140°

CPU Intel® Atom™ processor D2550

2 cores @1.86 GHz

Chipset

System Memory

BIOS

Storage

Watchdog Timer

Onboard Graphics

Intel® NM10

1 x 204-pin DDR3 SO-DIMM max. up to 4 GB

AMI 8 Mbit with RPL/PXE LAN boot

ROM

1 x 2.5" SATA HDD

1 x CompactFlash™

255 levels, 0~255 sec.

Integrated in Intel® GFX

655

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector

Expansion Interface

Touch screen

1 x RS-232 (COM 3 w/isolated 4KV)

1 x RS-232/422/485 (COM 1)

1 x DisplayPort

1 x Audio (Line-out)

4 x USB 2.0

2 x 10/100/1000Mbps Ethernet

1 x PCIe Mini Card slot

Resistive type

One key touch screen on/off button

Power Supply

Dimensions

1. AC version: Medical grade 100-240V AC-DC 60W power

adapter

2. DC version: 10~30VDC with terminal block

387.9 mm (15.27") (W) x 54.6 mm (2.14") (D) x 307.7 mm

(12.11") (H)

Packing Dimensions

Weight(net/gross)

Environment

Certificate

510 mm (20.08") (W) x 105 mm (4.13") (D) x 385 mm (15.16")

(H)

3.2 kg (7.05 lb)/5.1 kg (11.24 lb)

Operating temperature: 0°C ~ +40°C (+32°F ~ +104°F)

Storage Temperature: 0°C ~ +40°C (+32°F ~ +104°F)

Relative humidity: 20% ~ 90% @ 40 ; non-condensing

Operation vibration: 2G, 5 ~ 500Hz, random for

CompactFlash™

CE, FCC class B, UL60601-1, EN60601-1

* The DC power source to be used with MPC152-832 must be galvanically isolated

according to IEC60601-1 safety of medical devices!

Ordering Information

MPC152-832-J

MPC152-832-DC

15" XGA fanless medical touch panel computer with Intel®

Atom™ processor D2550, 5-wire resistive touch screen,

AC-DC 60W medical grade power adapter (screw type connector), EMI class B, UL60601-1 and EN60601-1 certified

15" XGA fanless medical touch panel computer with Intel®

Atom™ processor D2550, 5-wire resistive touch screen,

10~30VDC power input (terminal block connector), UL60601-

1 and EN60601-1 certified

* Specification and certifications are based on options and may vary.

Optional EOS Installation

WES7

WES

Optional OS Installation

Windows® 7

Windows® XP

Overview

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

6

Healthcare

& Medical

Solutions

Dimensions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

656

MPC102-832

10.4" TFT Medical Grade Panel Computer with Low Power Intel® Atom™ Processor

N2600

Features

10.4" SVGA TFT LCD display with LED backlight

Fanless cooling system with Intel® Atom™ processor N2600

1.6 GHz

UL60601-1, EN60601-1, CE and FCC certified

Water/dust-proof design (front bezel: IP65, full enclosure: IPX1)

One key touch screen on/off button

Ultra slim design: thickness 45.8 mm

Super lightweight: 1.8 kg

Supports optional panel mount, wall mount, VESA mount and

desktop stand

2 3

1 4 5 6 7 8 9

1. Power switch (ATX)

2. Screw conn. w/ AC power adapter or

3.Terminal block for DC power input

4.Isolated COM 3 (RS-232)

5. COM 1 (RS-232/422/485)

6. DisplayPort

7. Ethernet

8. USB 2.0 x 2

9. Audio (Line-out)

10. Touch on/off button

10

Side view

AiRD EN/UL60601-1

IP65

IPX1 Fanless

Low Power

DDR3

Introduction

The MPC102-832 is a 10.4" Intel® Atom™-based fanless medical grade touch panel computer which is well-suited for applications like medical image processing and medical measuring instrument. Especially designed for the medical environment, it adopts whole system IPX1 and front IP65 waterproof design which protects the entire system from outside liquid, preventing system from crashing. In response to market demand, this medical panel computer is a cost effective solution. It supports Intel® Atom™ processor

N2600 1.6 GHz.

Super slim & ultra lightweight design

The MPC102-832 is a super slim touch panel computer for space-limited environment with its thickness of 45.8 mm and weight of 1.8 kg only, which make it installed everywhere. Besides, it provides two types of power input. One is medical grade AC medical power adapter with screw type connector, and the other is DC power input

(10~30VDC) with terminal block connector (option).

Built-in internal WLAN antenna

The MPC102-832 provides a PCIe Mini Card slot and a built-in WLAN antenna for wireless network connections. By simply plugging in the wireless LAN card, customers can use the MPC102-832 in a wireless LAN/GPRS/ GSM/4G environments.

Certifications

This 10.4-inch medical panel platform complies with UL60601-1, EN60601-1, CE, FCC

Class B certifications to ensure medical operation safety.

Specifications

Front Bezel

LCD Panel

Main System

IP65, NEMA 4 rugged protection, plastic front bezel

Display Type 10.4" SVGA TFT LCD with LED backlight

Brightness (cd/m

Resolution

2 ) 400 nits

800 x 600

Viewing Angle (H/V) 140°/120°

CPU

Chipset

Intel® Atom™ processor N2600

2C @1.6 GHz

Intel® NM10

System Memory

BIOS

Storage

1 x 204-pin DDR3 SO-DIMM max. up to 2 GB

AMI UEFI BIOS

Watchdog Timer

Onboard Graphics

1 x Half-Slim SATA SSD

1 x CompactFlash™

255 levels, 0~255 sec.

Integrated in Intel® GFX

657

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector

Expansion Interface

Touch screen

Power Supply

Dimensions

1 x RS-232 (COM 3 w/isolated 4KV)

1 x RS-232/422/485 (COM 1)

1 x DisplayPort

1 x Audio (Line-out)

2 x USB 2.0

2 x 10/100/1000Mbps Ethernet

1 x PCIe Mini Card slot

Resistive type

1. AC version: Medical grade 100-240V AC-DC 60W power

adapter

2. DC version: 10~30VDC with terminal block

292.5 mm (11.52") (W) x 45.8 mm (1.80") (D) x 235.8 mm

(9.28") (H)

Packing Dimensions

Weight(net/gross)

Environment

415 mm (16.34") (W) x 100 mm (3.94") (D) x 315 mm (12.4") (H)

1.8 kg (3.96 lb)/3 kg (6.61 lb)

Operating temperature: 0°C ~ +40°C (+32°F ~ +104°F)

Storage Temperature: 0°C ~ +40°C (+32°F ~ +104°F)

Relative humidity: 20%~90% @ 40 ; non-condensing

Operation vibration: 2G, 5 ~ 500Hz, random for

CompactFlash™

Certificate CE, FCC class B, UL60601-1, EN60601-1

* The DC power source to be used with MPC102-832 must be galvanically isolated

according to IEC60601-1 safety of medical devices!

Ordering Information

MPC102-832-J

MPC102-832-DC

15" XGA fanless medical touch panel computer with Intel®

Atom™ processor N2600, 5-wire resistive touch screen,

AC-DC 60W medical grade power adapter (screw type connector), EMI class B, UL60601-1 and EN60601-1 certified

15" XGA fanless medical touch panel computer with Intel®

Atom™ processor N2600, 5-wire resistive touch screen,

10~30VDC power input (terminal block connector), UL60601-

1 and EN60601-1 certified

* Specification and certifications are based on options and may vary.

Optional EOS Installation

WES7

WES

Optional OS Installation

Windows® 7

Windows® XP

Overview

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

6

Healthcare

& Medical

Solutions

Dimensions

Open

Frame Panel

Computers

Accessories

Terminal block for DC version Din-jack for AC version

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

658

MPC103-845

10.1" WXGA TFT Medical Grade Fanless

Touch Panel Computer with Intel® Celeron®

Processor N3060 (up to 2.48 GHz)

NEW

Features

10.1" WXGA wide screen TFT LCD display with LED backlight

Supports 10.1" projected capacitive multi-touch

Fanless design with Intel® Celeron® processor N3060

2 cores (up to 2.48 GHz)

EN 60601-1/CE/FCC class B certified

Supports 2 Gigabit LAN, 2 USB, 2 COM ports and optional

speakers

IP65 front bezel and IPX1 full enclosure design

Supports optional Panel mount/VESA arm/desktop stand/

wall mount

Supports external AT/ATX mode selection switch

Supports antimicrobial plastic enclosure

Fanless

Low Power

DDR3L

AiRD IP65

Isolation

Introduction

The MPC103-845 is a 10.1" Intel® Celeron® based medical grade fanless touch panel computer. In response to market demand, this medical touch panel computer is a cost effective solution. It adopts a modern, sleek and fanless design and is equipped with a 10.1" TFT LCD as well as Intel® Celeron® processor N3060 2 cores up to 2.48 GHz

(Braswell). For wireless network connection, the MPC103-845 offers 2 mini card slots. By just plugging in a mini card WLAN card, customers can have instant access to wireless

LAN/GPRS/GSM/4G environments. Besides, it provides two types of power input. AC medical power adapter with screw type connector, and another is DC power input with terminal block connector.

Slim & lightweight design

The 10.1-inch medical panel PC is slim and lightweight which makes it fit for limited space installation.

Built-in internal WLAN antenna

The MPC103-845 provides 2 mini card slots and a built-in WLAN antenna for wireless network connections. By simply plugging in the wireless LAN card, customers can use the medical computer in wireless LAN/GPRS/GPS/4G environment.

Support front membrane keys

The MPC103-845 provides 5 membrane keys in front of system, people can adjust the system display, volume and brightness.

Certifications

This 10.1-inch fanless medical panel platform complies with EN60601-1, CE, FCC Class B certifications to ensure medical operation safety.

659

Side view

Specifications

Front Bezel

LCD Panel

Main System

IP65, NEMA 4 rugged protection, plastic front bezel

Display Type 10.1" WXGA TFT LCD withg LED backlight

Brightness (cd/m

2

) 350 nits

Resolution 1280 x 800

CPU

System Memory

Intel® Celeron® processor N3060

2 cores (up to 2.48 GHz)

1 x 204-pin DDR3L-1600 MHz

SO-DIMM max. up to 8 GB

AMI UEFI BIOS BIOS

Storage

Watchdog Timer

1 x mSATA

255 levels, 0~255 sec.

Onboard Graphics Integrated Intel® HD GFX

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector

Expansion Interface

1 x RS-232 (w/ isloated 4KV)

1 x RS-232-422-485 (default RS-232)

1 x HDMI

1 x Switch for power on/off

1 x AT/ATX mode selection switch

2 x USB 3.0

1 x Audio (Line-out)

2 x 10/100/1000Mbps Ethernet (Intel® i211AT)

1 x Full-size PCI Express Mini Card with mSATA supported

1 x Full-size PCI Express Mini Card with SIM Slot

Projected Capacitive multi-touch Touchscreen

Power Supply

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

1. DC version: 12VDC (default) or

2. AC version: 100~240V AC-DC w/medical grade power adapter

260.8 mm (10.27") (W) x 38 mm (1.50") (D) x 194.1 mm (7.65") (H)

TBD

TBD

Operating temperature: 0°C ~ +40°C (32°F ~ +104°F, w/RAM thermal kit)

Storage temperature: 0°C ~ +40°C (32°F ~ +104°F)

Relative humidity: 20% ~ 90% @ 40°C; non-condensing

Operation vibration:

2 G, 10 ~ 500Hz, random for mSATA

Certificate CE

* W.T.: Wide Temperature. All W.T. supported products have to be sorted by Axiomtek.

Ordering Information

MPC103-845-PCT-J

MPC103-845-PCT-DC

10.1" TFT WXGA fanless medical grade panel computer with

Intel® Celeron® processor N3060, projected capacitive multi-touch screen, medical adapter. (AC power input) and

EMI class B

10.1" TFT WXGA fanless medical grade panel computer with

Intel® Celeron® processor N3060, projected capacitive mult-touch and DC power input with terminal block connector

Optional EOS Installation

WES7 (64-bit)

WE8S (64-bit)

Optional OS Installation

Windows® 7 (64-bit)

Windows® 8.1 (64-bit)

Windows® 10

Overview

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Dimensions

Infotainment

Touch Panel

Computers

6

Healthcare

& Medical

Solutions

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

660

Touch Panel

Computers

www.axiomtek.com

7

Touch Panel Computers

7

Open Frame Panel Computers

Axiomtek’s FDK series is designed for immediate integration and can be widely deployed in indoor kiosk, HMI automation, and many more applications. It provides exceptional configuration flexibility which can be easily configured in many ways.

The slim ID can fits into any space or encased in any chassis, the FDK series comes with a front panel open frame design, available currently in 17” and 19” LCD sizes.

It features Intel® Atom™ and Celeron® processors making it a power-saving and cost-competitive solution.

Introduction

Selection Guide

FDK191-832

FDK172-834

19" SXGA TFT Open Frame Panel Computer with Intel® Atom™

Processor D2550

662

663

665

17” SXGA TFT Open Frame Panel Computer with Intel® Celeron® 667

Processor J1900

Open Frame Panel Computers

The FDK series is a cost-effective open frame panel computer solution featuring Intel® Atom™ or Celeron® processor onboard and LCD sizes of 17" and 19". In response to demand of using in space-limited application, the FDK series adopts ultra slim design with streamlined mechanical layout ideal for indoor kiosk, HMI automation, and much more. To accommodate a wide array of vertical market applications, the FDK series provides exceptional solution flexibility which can be easily configured in many ways to deliver the best ROI for its customers.

● Flexible front panel open frame design to meet various application requirements

● 17"/19" TFT LCD displays available

● Supports low power Intel® Atom™ processor D2550 1.86 GHz & Celeron® J1900 2.0 GHz

● Optional touchscreen

● VESA/open frame mounting ways

Major Features

663

Open frame design for easy installation Ultra slim design

60mm

Brightness adjustment knob

Easy access CF with protective cover

15"

17"

19"

Changeable front bezel

Various LCD options Various touchscreen options

75mm

VESA/open frame mounting

100mm

Mini card expansion for Wi-Fi & 3G

* All specifications and photos are subject to change without notice.

Open Frame Panel Computers

Selection Guide

NEW

Features\Models

CPU Level

LCD Panel

Chipset

System Memory

CPU FSB Frequency

I/O

Storage

FDD

CD-ROM

Expansion

Touchscreen

Operating System

Power Supply

Power Comsumption

Watchdog Timer

Dimensions

(W x D x H)

Weight (net/gross)

Operating Temperature

Certificate

Page 651

FDK191-832

Intel® Atom™ processor D2550 1.86 GHz

19" SXGA TFT LCD

250 nits

1280 x 1024

Intel® NM10

1 x 204-pin DDR3 800/1066 MHz SO-DIMM max. up to 4 GB

533 MHz

1 x RS-232/422/485 (COM 1)

2 x RS-232 (COM 2/3)

4 x USB 2.0

2 x 10/100/1000Mbps

1 x Audio (Line-out)

1 x VGA

1 x 2.5" SATA HDD

1 x CompactFlash™

N/A

N/A

1 x PCIe Mini Card

5-wire resistive type (optional)

Windows® 7 & Embedded (32-bit)

12/24VDC

36W

255 levels, 0~255 sec.

404.5 x 63.3 x 332 mm

(15.92" x 2.49" x 13.07")

6 kg (13.23 lb)/8.06 kg (17.77 lb)

0° ~ +50°C (+32°F ~ +122°F)

CE

Page 653

FDK172-834

Intel® Celeron® processor J1900 2.0 GHz

17" SXGA TFT LCD

250 nits

1280 x 1024 pixels

SoC integrated

1 x 204-pin DDR3L-1333 MHz SO-DIMM up to 8 GB

N/A

4 x RS-232/422/485 (COM 1/2/3/4)

2 x USB 3.0

2 x USB 2.0

1 x 10/100/1000Mbps

1 x Audio (Line-out)

1 x VGA

1 x 2.5" SATA HDD

1 x CFast or mSATA

N/A

N/A

2 x PCIe Mini Card

5-wire resistive type (optional)

Windows® 8.1, WE8S, Windows® 7, WES 7

9~36VDC

57.60W

255 levels, 0~255 sec.

367 x 65 x 304.5 mm

(14.45" x 2.6" x 11.99")

5.52 kg (12.16 lb)/7.5 kg (16.53 lb)

0° ~ +50°C (+32°F ~ +122°F)

CE

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

664

Overview

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

7

Open

Frame Panel

Computers

Accessories

FDK191-832

19" SXGA TFT Open Frame Panel Computer with Intel® Atom™ Processor D2550

Features

Front panel open frame design

19" SXGA TFT LCD display

Intel® Atom™ processor D2550 1.86 GHz

Touchscreen (optional)

Changeable front bezel

Supports VESA arm and open frame mount

4

1 2 3 5 6 7 8 9 10

1. Power Switch (ATX)

2. 1 x 12VDC Power input connector or

24V DC phoenix connector

3. 2 x USB 2.0

4. 1 x VGA

5. COM 3 (RS-232)

6. COM 1 (RS-232/422/485)

7. COM 2 (RS-232)

8. 2 x ETHERNET (RJ-45)

9. 2 x USB 2.0

10. 1 x Audio (LINE-OUT)

CompactFlash™ slot

Rear view

AiRD

Introduction

The FDK191-832 is an open frame display panel computer with outstanding flexibility, configurable in a variety of ways to deliver best ROI for a variety of applications. It features Intel® Atom™ processor D2550 1.86 GHz with a 19" LCD display with up to

1280 x 1024 resolution, providing a very cost effective low power solution.

Ultra slim design

Designed to integrate into your custom enclosure, this unit offers an open frame slim design architecture for easy fit. The FDK191-832 is ideal for indoor kiosk, HMI automation, signage and other applications. The system is only 65mm deep and provides narrow bezel widths of 13 ~ 15mm for space-saving custom bezels and enclosure applications.

Touchscreen option

A resistive touchscreen option is available for interactive user interface requirements.

Optionally, when ordered without touchscreen you get an even lower cost solution for dynamic signage or informational applications.

Brightness adjustment & PCIe Mini Card slot

The hidden but accessible brightness adjustment on back cover protects against end user access. One PCIe Mini Card slot is standard for I/O expansion such as Wi-Fi, 3G connection, or other 3rd party I/O cards.

Specifications

LCD Panel

Main System

Display Type 19" SXGA TFT LCD

Brightness (cd/m 2 ) 250 nits

Resolution 1280 x 1024

Viewing Angle(H/V) 170°/160°

CPU Intel® Atom™ processor D2550

1.86 GHz with FSB 533 MHz

Chipset

System Memory

BIOS

Storage

Intel® NM10 Express

1 x 204-pin DDR3 800/1066 MHz

SO-DIMM max. up to 4 GB

AMI UEFI BIOS

1 x 2.5" SATA HDD

1 x CompactFlash™

Watchdog Timer 255 levels, 0~255 sec.

Onboard Graphics Integrated GFX

665

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector

Expansion Interface

Touchscreen

Power Supply

Dimensions

1 x RS-232/422/485 (default RS-232 (COM 1)

2 x RS-232 (COM 2/3)

2 x 10/100/1000Mbps Ethernet

4 x USB 2.0

1 x Audio (Line-out)

1 x VGA

1 x VR (brightness adjustment)

1 x PCIe Mini Card

Resistive type (optional)

12/24 VDC

404.5 mm (15.92") (W) x 63.3 mm (2.49") (D) x 332 mm (13.07") (H)

Packing Dimensions

Weight (net/gross)

Environment

510 mm (20.08") (W) x 190 mm (7.48") (D) x 540 mm (21.26") (H)

6kg (13.23lb)/ 8.06 kg (17.77lb)

Operating temperature: 0° ~ +50°C (+32°F ~ +122°F)

Relative humidity: 10~90%@40°C, non-considering

Certificate CE

* Specification and certifications are based on options and may vary.

** W.T.: Wide Temperature. All W.T. supported products have to be sorted by Axiomtek.

Ordering Information

FDK191-832-R-DC

FDK191-832-N-DC

19" SXGA open frame panel computer with Intel® Atom™ processor D2550, 5-wire reisitive touch screen, and 12 or

24VDC power input (terminal block connector)

19" SXGA open frame touch panel computer with Intel®

Atom™ processor D2550, 5-wire reisitive touch screen, and

12 or 24VDC power input (terminal block connector)

50966A23040E Power adapter, 70W, 110-230VAC to 24VDC

* Specification and certifications are based on options and may vary.

Optional OS Installation

Windows® 7

WE8S

Overview

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Rear view

Side view

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Dimensions

Healthcare

& Medical

Solutions

7

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

666

FDK172-834

17" SXGA TFT Open Frame Panel Computer with Intel® Celeron® Processor J1900

Features

Front panel open frame design

Outstanding configuration flexibility delivering best ROI

17" SXGA TFT LCD display

Intel® Celeron® processor J1900 2.0 GHz (Bay Trail-D)

Touchscreen optional

Changeable front bezel

Supports VESA arm and open frame mount

Dual PCIe Mini card slots

Adjust RS-232/422/485 via BIOS

4 9 11

1 2 3 5 6 7 8 10

1. Power Switch (ATX)

2. Terminal block for DC power input or

screw conn. w/AC adapter

3. 2 x USB 2.0

4. COM 3 (RS-232/422/485)

5. COM 4 (RS-232/422/485)

6. COM 1 (RS-232/422/485)

7. COM 2 (RS-232/422/485)

8. 1 x VGA

9. 1 x Ethernet (RJ-45)

10 . 2 x USB 3.0

11 . 1 x Audio (Line-out)

CFast™ slot

Rear view

Introduction

The FDK172-834 is an open frame display panel computer with outstanding flexibility, configurable in a variety of ways to deliver best ROI for a variety of applications. It features Intel® Celeron® processor J1900 2.0 GHz with a 17" LCD display with up to

1280 x 1024 resolution, providing a very cost effective low power solution.

Slim design

Designed to integrate into your custom enclosure, this 17-inch open frame unit offers an open frame slim design architecture for easy fit. The FDK172-834 is ideal for indoor kiosk, HMI automation, signage and other applications. The system is only 65mm deep and provides narrow bezel widths of 13 ~ 15mm for space-saving custom bezels and enclosure applications.

Touchscreen option

A resistive touchscreen option is available for interactive user interface requirements.

Optionally, when ordered without touchscreen you get an even lower cost solution for dynamic signage or informational applications.

RS-232/422/485 adjustment & PCIe Mini Card slot

It is user friendly to adjust RS-232/422/485 setting via BIOS instead of adjusting it via jumper. Dual PCIe Mini Card slots are standard for I/O expansion such as Wi-Fi, 3G connection, or other 3rd party I/O cards.

Specifications

LCD Panel

Main System

Display Type 17" SXGA TFT LCD

Brightness (cd/m 2 ) 250 nits

Resolution 1280 x 1024

Viewing Angle (H/V) 170°/160°

CPU Intel® Bay Trail-D Celeron®

Processor J1900 [email protected]

Chipset

System Memory

BIOS

Storage

SoC integrated

1 x 204-pin DDR3L 1333 and

1600 MT/s SO-DIMM up to 8 GB

AMI UEFI BIOS

1 x 2.5" SATA HDD

1 x CFast™ or 1 x mSATA

Watchdog Timer 255 levels, 0~255 sec.

Onboard Graphics Integrated Intel® GFX

667

* All specifications and photos are subject to change without notice.

Specifications

I/O Connector

Expansion Interface

Touchscreen

Power Supply

Dimensions

Packing Dimensions

Weight (net/gross)

Environment

4 x RS-232/422/485 (default RS-232 (COM 1/2/3/4)

1 x 10/100/1000Mbps Ethernet

2 x USB 3.0

2 x USB 2.0

1 x Audio (Line-out)

1 x VGA

2 x PCIe Mini Card slots

Resistive type (optional)

1. DC version : 12~36VDC with over-current protection fuse

2. AC version : 100-240V AC-DC 60W power adapter

367 mm (14.45") (W) x 65 mm (2.6") (D) x 304.5 mm (11.99") (H) (FDK172-834-N, without touch)

367 mm (14.45") (W) x 69.8 mm (2.74") (D) x 304.5 mm (11.99") (H) (FDK172-834-R, with touch)

510 mm (20.08") (W) x 190 mm (7.48") (D) x 540 mm (21.26") (H)

5.52 kg (12.16 lb)/7.5 kg (16.53 lb)

Operating temperature: 0° ~ +50°C (+32°F ~ +122°F)

Relative humidity: 10% ~ 90% @ 40°C, non-condensing

Certificate CE

* Specification and certifications are based on options and may vary.

** W.T.: Wide Temperature. All W.T. supported products have to be sorted by Axiomtek.

Ordering Information

FDK172-834-R-DC 17" SXGA open frame touch panel computer with Intel®

Celeron® processor J1900, 5-wire resistive touch screen, and 12~36VDC power input (terminal block connector)

FDK172-834-N-DC 17" SXGA open frame touch panel computer with Intel®

Celeron® processor J1900, 5-wire resistive touch screen, and 12~36VDC power input (terminal block connector)

* Specification and certifications are based on options and may vary.

Optional OS Installation

WES7

WE8S

Windows® 8 & Windows® 7

Rear view

Side view

Overview

Fanless

Touch Panel

Computers

Heavy-duty

Fanless Touch

Panel Computers

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Dimensions

Healthcare

& Medical

Solutions

7

Open

Frame Panel

Computers

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

668

Touch Panel

Computers

www.axiomtek.com

8

Touch Panel Computers

8

Accessories

Axiomtek provides a full range of accessory for touch panel computers, such as desktop stand, VESA/rack/wall mount kit, HDD kit and many more.

670 Accessory List

Accessory List

Part Number

Accessory Description

Applied for

E222175103

Dark stand

OFP215, OFP240, IFO2170,

IFO2175, IFO2225

E228170100

Light stand

MPC175, MPC225,

IFO2175, IFO2225

E225840102

Dark stand

GOT-5xxxT-832/834 series

82018400060E

Dark stand

GOT-3840TL

Part Number

Accessory Description

Applied for

82011750110E

Rack mount kit

P6178

72615300820E

Rack mount kit

P6153

82211570060E

Rack mount kit

P1157S, P1157E

82211770070E

Rack mount kit

P1177S, P1177E

Part Number

Accessory Description

Applied for

82238400800E

VESA and wall mount kit

GOT-3840TL

82211270060E

VESA & wall mount kit

P1127E

82211570050E

VESA & wall mount kit

P1157S

82211570100E

VESA & wall mount kit

P1157E

671

* All specifications and photos are subject to change without notice.

Overview

Part Number

Accessory Description

Applied for

Part Number

Accessory Description

Applied for

82061522100E

Wall mount & desktop stand

P6122, P6153, P6158, P6173, P6178

Part Number

Accessory Description

Applied for

82211770060E

VESA & wall mount kit

P1177S

82011750130E

2 x 2.5" HDD kit

P1177S, P1177E

82211770120E

VESA & wall mount kit

P1177E

82231770050E

Wall mount Kit

GOT3000

82211970070E

VESA & wall mount kit

P1197E

Fanless

Touch Panel

Computers

82261900070E

Wall mount & desktop stand

P6192

Heavy-duty

Fanless Touch

Panel Computers

E201840102

1-slot PC/104 cover

GOT-3840TL

E201840101

2-slot PC/104 cover

GOT-3840TL

Industrial

Touch Panel

Computers

Industrial Touch panel Monitors

Infotainment

Touch Panel

Computers

Healthcare

& Medical

Solutions

72211571000E

2 x 2.5" HDD kit

P1157S, P1157E

E983100017

VESA (75&100mm) desktop stand

(Black)

GOT, P1000, P6000 Series

Open

Frame Panel

Computers

8

Accessories

* All specifications and photos are subject to change without notice.

axiomtek.com

© 2016 Axiomtek Co., Ltd. All rights reserved.

672
