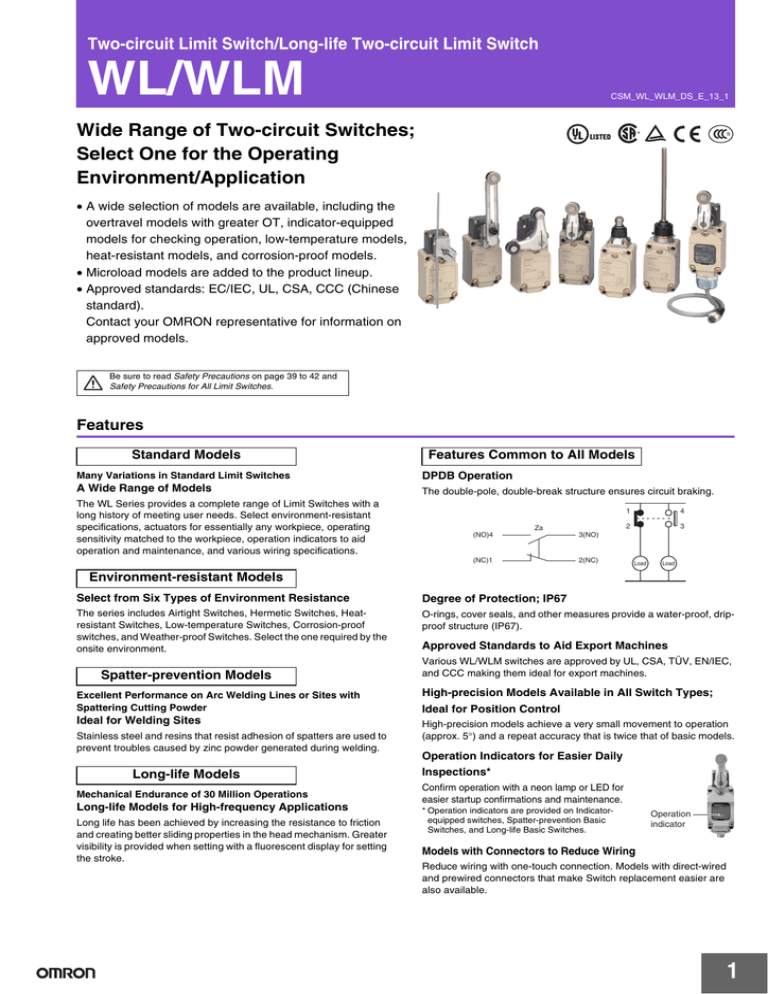

Two-circuit Limit Switch/Long-life Two-circuit Limit Switch

WL/WLM

Wide Range of Two-circuit Switches;

Select One for the Operating

Environment/Application

• A wide selection of models are available, including the overtravel models with greater OT, indicator-equipped models for checking operation, low-temperature models, heat-resistant models, and corrosion-proof models.

• Microload models are added to the product lineup.

• Approved standards: EC/IEC, UL, CSA, CCC (Chinese standard).

Contact your OMRON representative for information on approved models.

Be sure to read Safety Precautions on page 39 to 42 and

Safety Precautions for All Limit Switches.

Features

Standard Models

Many Variations in Standard Limit Switches

A Wide Range of Models

The WL Series provides a complete range of Limit Switches with a long history of meeting user needs. Select environment-resistant specifications, actuators for essentially any workpiece, operating sensitivity matched to the workpiece, operation indicators to aid operation and maintenance, and various wiring specifications.

Environment-resistant Models

Select from Six Types of Environment Resistance

The series includes Airtight Switches, Hermetic Switches, Heatresistant Switches, Low-temperature Switches, Corrosion-proof switches, and Weather-proof Switches. Select the one required by the onsite environment.

Spatter-prevention Models

Excellent Performance on Arc Welding Lines or Sites with

Spattering Cutting Powder

Ideal for Welding Sites

Stainless steel and resins that resist adhesion of spatters are used to prevent troubles caused by zinc powder generated during welding.

Long-life Models

Mechanical Endurance of 30 Million Operations

Long-life Models for High-frequency Applications

Long life has been achieved by increasing the resistance to friction and creating better sliding properties in the head mechanism. Greater visibility is provided when setting with a fluorescent display for setting the stroke.

CSM_WL_WLM_DS_E_1 3 _1

Features Common to All Models

DPDB Operation

The double-pole, double-break structure ensures circuit braking.

Za

1

2

4

3

(NO)4 3(NO)

(NC)1 2(NC)

Load Load

Degree of Protection; IP67

O-rings, cover seals, and other measures provide a water-proof, dripproof structure (IP67).

Approved Standards to Aid Export Machines

Various WL/WLM switches are approved by UL, CSA, TÜV, EN/IEC, and CCC making them ideal for export machines.

High-precision Models Available in All Switch Types;

Ideal for Position Control

High-precision models achieve a very small movement to operation

(approx. 5

°) and a repeat accuracy that is twice that of basic models.

Operation Indicators for Easier Daily

Inspections*

Confirm operation with a neon lamp or LED for easier startup confirmations and maintenance.

* Operation indicators are provided on Indicatorequipped switches, Spatter-prevention Basic

Switches, and Long-life Basic Switches.

Operation indicator

Models with Connectors to Reduce Wiring

Reduce wiring with one-touch connection. Models with direct-wired and prewired connectors that make Switch replacement easier are also available.

1

WL/WLM

Product Configuration

Selection by Purpose

WL Series

WLM Series

Standard

●Standard-load

Switches

WL @

●Microload

Switches

WL01 @

●Basic Switches

WLC @

VDC.

●Overtravel Switches

Selection Points

Effective for switching loads of 0.1 A, 125 VAC/30

❍General-purpose

Switches

WLH @

❍High-sensitivity

Switches

WLG @

❍90° Operation

Switches

WL

@-2

WL

@-2N

Selection Points

Effective if the overall movement is 80

° or 90° when dog angle or deflection is absorbed.

●High-precision

Switches

WLGCA2

Selection Points

Provide twice the repeat accuracy as Basic Switches.

Effective for positioning in machine tools.

●Protective

[email protected]

Selection Points

Effective for protecting the operating status.

Generalpurpose

Operation indicators

Selection Points

Selection Points

Enable selection according to the operating environment: water, oil, chemicals, high/low temperatures, etc.

Selection Points

Effective for welding sites or spattering cutting powder.

●Indicator-equipped Switches: Neon lamps

WL @[email protected]

●Indicator-equipped Switches: Light emitting diodes (LED)

WL @[email protected]

Spatter-prevention

Long-life

·

Effective for confirming workpieces passing by on a conveyor or for confirming operation in dark locations.

·

For standard models, add -LE or -LD.

(Operation indicators cannot be used with some environment-resistant

Sensor I/O connectors

Selection Points

Effective for reducing wiring work, making maintenance easier, and preventing wiring mistakes.

Environment-resistant

Selection Points

With high mechanical durability of 30 million operations, effective for high-frequency operation.

●Direct-wired Switches

WL @[email protected]@

●Pre-wired Switches

WL @[email protected]@

WL @[email protected]@/[email protected]

WL @[email protected]@

●Airtight Switches

WL @-55

●Hermetic Switches

WL @-139

WL @-140

WL @-141

WL @-145

WL @-RP40

WL @-RP60

●Heat-resistant Switches

WL @-TH

●Low-temperature Switches

WL

@-TC

●Corrosion-proof Switches

WL

@-RP

●Weather-proof Switches

WL @-P1

●Basic Switches

[email protected]

●Microload Switches

WL01

@[email protected]

●Overtravel Switches

●High-precision Switches

[email protected]

●Basic Switches

WLMCA2

@

●Overtravel Switches

●High-precision Switches

WLMGCA2 @

❍General-purpose Switches

WLH2-

WLG2-

@S

❍High-sensitivity Switches

@S

❍General-purpose Switches

WLMH2 @

❍High-sensitivity Switches

WLMG2 @

2

WL/WLM

Tables of Models

General-purpose Switches

Heads (Roller levers only)

General purpose

Type

Model

Spatter-prevention Switches

Features

Total travel (TT)

• With a Roller Lever

45

°

45

°

Long-life Switches

Head specifications

One-side operation

Head mounting

Spatter prevention

Model

Basic WLC

@

Possible

*

1

(Except for long-life models.)

Any of

4 directions

WLCA2-

@S

Long-life

Model

WLMCA2

@

Generalpurpose

Overtravel

WLH

@

• Overtravel is large, making setting the dog easier.

• Mounting is compatible with

WLH2.

80

°

80

°

Not possible

* 2

Any of

4 directions

WLH2-

@S

WLH2

@

High-sensitivity

Overtravel

WLG

@

• Operation is highly sensitive with only 10

° pretravel.

• Overtravel is large, making setting the dog easier.

• Mounting is compatible with

WLG2.

80

°

80

°

Not possible

* 2

Any of

4 directions

WLG2-

@S

WLMG2

@

Overtravel,

90

° operation

WL

@-2

• Overtravel is large, making setting the dog easier.

• Mounting is compatible with WLCA2-2.

90

°

90

°

Not possible

* 2

Any of

4 directions

— —

WL

@-2N Possible * 1

Either of

2 directions

High-precision

Maintained

WLGCA2

WLCA32-

@

• Repeat accuracy is twice that basic models.

• Operation is highly sensitive with only 5

° pretravel.

• Ideal for positioning, e.g.,

• When the dog throws the lever, the output is reversed and the reversed output is held even after the dog passed. The original status is returned to only after the dog passed.

45

°

45

°

90

°

Possible

* 1

Any of

4 directions

Any of

4 directions

WLGCA2-

@S

WLMGCA2

@

*1. One-side operation means that three operational directions can be selected electrically, according to the change in direction of the operating plunger. The operating plunger is set for operation on both sides before delivery.

*2. Those models for which one-side operation is impossible can only operate on both sides.

Connectors and Conduits

Wiring type

Direct-wired connector

Pre-wired connector

Conduit (screw terminal)

General-purpose

Model

WL

@-@LDK@

WL

@-@LD-M1@

WL

@-@LD-@GJ@

WL

@-@LD-DK1EJ@

WL

@-@

WL

@-@G1@

WL

@-@G@

WL

@-@Y@

WL

@-@TS@

Connector/conduit specifications

• SC-2F/-4F Connector built-in

• XS2H-series Pre-wired Connector builtin

• G1/2 with no ground terminal

• G1/2 with ground terminal

• Pg13.5 with ground terminal

• M20 with ground terminal

• 1/2 14NPT with ground terminal

Spatter-prevention

Model

WL

@-@S-M1@J-1

WL

@-@S-DGJS03

Long-life

Model

WLM

@-LDK@

WLM

@-LD-M1J

WLM

@-LD-@GJ@

WLM

@-LD

3

WL/WLM

Environment-resistant Switches

Type

Airtight seal

Hermetic seal

(Molded terminals/

Anti-coolant)

Low-temperature

Heat-resistant *

*

Model

WL

WL

WL

WL

Item

@-55

@-139

WL

@-140

WL

@-141

WL

@-145

WL

@-RP40

WL

@-RP60

@-TC

@-TH

Application

For uses in locations subject to cutting oil or water

Can be used at a temperature of –40

°C (operating temperature range: –40 to

40

°C), but cannot withstand icing.

Can be used in temperatures of 120

°C (operating temperature range: 5 to

120

°C).

Environment-resistant

Environment-resistant construction

Uses the W-10FB3-55 Airtight Built-in Switch.

Note: Use the SC Connector for the conduit opening.

Refer to page 25 for information on the environment-resistant construction of Switches with Hermetic Seals.

• Uses a general-purpose built-in switch.

• Silicone rubber is used for rubber parts such as the O-ring, gasket, etc.

• Uses a special built-in switch made from heatresistant resin.

• Silicone rubber is used for rubber parts such as the O-ring, gasket etc.

Applicable models

All models except the lowtemperature and heat-resistant models

Note: Models can be produced using standard actuators.

All models except the lowtemperature and heat-resistant models

Note: Models can be produced using standard actuators. Only the

WLCA2, WLGCA2, or

WLH2 can be produced for the WL

@-141 and

WL

@-145.

All models except airtight seal, hermetic seal, heatresistant, corrosion-proof, and indicator-equipped models

All models except airtight seal, hermetic seal, heatresistant, corrosion-proof, and indicator-equipped, nylon roller (WLCA2-26N), seal roller models, and resin rod (WLNJ-2) models

Corrosion-proof

Weather-proof *

WL

WL

@-RP

@-P1

For use in locations subject to corrosive gases and chemicals.

For use in parking lots and other outdoor locations.

• Diecast parts, such as the switch box, are made of corrosion-proof aluminum.

• Rubber sealing parts are made of fluorine rubber which aids in resisting oil, chemicals and adverse weather conditions.

• Exposed nuts and screws (except the actuator section) are made of stainless steel.

• Moving and rotary parts such as rollers are made of sintered stainless steel or stainless steel.

• The Head, box, and cover are yellow.

• Rubber parts are made from silicone rubber, which has a high-tolerance to deterioration over time and changes in temperature.

• Rollers are made of stainless steel to improve corrosion resistance.

• Exposed nuts and screws are made of stainless steel.

All models except overtravel (90

° operation), fork lever lock (WLCA32-41 to -

43), low-temperature, heatresistant, and indicatorequipped models

Only basic (WLCA2/CA12/

CL), general-purpose overtravel (WLH2/H12/HL) and high-sensitivity overtravel

(WLG2/G12/GL) models

(excluding heat-resistant models).

* Weather Resistance, Cold Resistance, and Heat Resistance

Silicon rubber is used to increase resistance to weather, cold, and heat. Silicon rubber, however, can generate silicon gas. (This can occur at room temperature, but the amount of silicon gas generated increases at higher temperatures.) Silicon gas will react as a result of arc energy and form silicon oxide (SiO

2

). If silicon oxide accumulates on the contacts, contact interference can occur and can interfere with the device. Before using a Switch, test it under actual application conditions

(including the environment and operating frequency) to confirm that no problems will occur in actual.

4

WL/WLM

Selection Guide

With the WL Series, OMRON will combine the switch, Actuator, and wiring method required to build the ideal switch for your application.

The WL Series consists of four basic types: General-purpose, Environment-resistant, Spatter-prevention, and Long-life Switches.

WLCA2 Switches can be used for the most common applications.

According to Operating Environment

Environment

Normal

−10°C

Key specifications

+80

°C

WL @

Models

General-purpose

Switches

Long-life Switches

Water-resistant to IP67.

+5

°C

+120

°C

WLM @

High-temperature

To increase heat resistance, the rubber material (silicon rubber) and the material of the built-in switch have been changed.

−40°C

+40

°C

WL @-TH Heat-resistant

Switches *1

Low-temperature

WL

@-TC

Low-temperature

Switches *1

To increase resistance to cold, silicon rubber and other measures are used.

Outdoors

Chemicals and oil

Rubber parts are made from silicone rubber, which has a high-tolerance to deterioration over time and changes in temperature.

Rollers are made of stainless steel to improve corrosion resistance.

Exposed nuts and screws are made of stainless steel.

Corrosion-proof aluminum diecast has been used for the housing, fluorine rubber has been used for rubber parts, and stainless steel has been used for screws and nuts (except for actuator) to increase resistance to oils, chemicals, and weather.

Water drops and mist Uses an airtight built-in switch.

Constant water drops and mist

Constant water drops or splattering cutting powder

Coolant

WL

WL

@-P1

@-RP

Weather-proof

Switches *1

Corrosion-proof

Switches *1

Cables attached. Uses a general-purpose built-in switch.

The case cover and conduit opening are molded from epoxy resin to increase the seal. The cover cannot be removed.

Cables attached. Uses an airtight built-in switch.

The case cover and box interior are molded from epoxy resin to increase the seal. The cover cannot be removed.

The SC connector can be removed, so it is possible to use flexible conduits for the cable.

Cables attached. Uses an airtight built-in switch.

The cover screws, case cover, box interior, and conduit opening are molded from epoxy resin to increase the seal.

(The cover cannot be removed.)

Cables attached. Uses an airtight built-in switch.

The cover screws, case cover, box interior, conduit opening, box head, and head screws are molded from epoxy resin to increase the seal. (The cover cannot be removed.)

The Head opening is protected from cutting powder.

-141: The Head section is molded from epoxy resin;

Head direction cannot be changed.

-145: The Head section is molded from epoxy resin;

Head can be in any of 4 directions.

WL @-55

WL @-139

Airtight Switches *1

Hermetic, Molded-terminal

Switches *1, *2

WL @-RP40

Hermetic, Molded-terminal

Switches *1, *2

WL

Hermetic, Molded-terminal

Switches *1, *2

WL

@-140

@-141, -145

Hermetic, Molded-terminal

Switches *1, *2

(Only the WLCA2, WLG2, WLGCA2, and WLH2 can be produced.)

Cables attached. Uses an airtight built-in switch.

The case cover, box interior, conduit opening, and head screws are molded from epoxy resin to increase the seal. (The cover cannot be removed.) Rubber parts are made from fluorine rubber to increase resistance to coolant.

WL @-RP60

Hermetic, Molded-terminal

Switches *1, *2

Spattering from welding

To prevent spatter during welding, a heat-resistant resin is used for the indicator cover and screws and rollers are all made from stainless steel.

WL @-S Spatter-prevention

Switches

*1. Not all functions can be combined with environment-resistant switches. Refer to the applicable models on the previous page.

*2. Refer to page 25 for information on the construction of Hermetic Switches.

5

WL/WLM

According to Application Conditions

Conditions Key specifications

Switching standard loads

10 A at 125,250, or 500 VAC

0.8 A at 125 VDC

0.4 A at 250 VDC

Switching microloads

Normal durability

Models

WL @ General-purpose

WL @-S Spatter-prevention

WLM @ Long-life

0.1 A at 125 VAC, resistive load

0.1 A at 30 VDC, resistive load

WL01 @ General-purpose Microload Switches

WL01

@-S Spatter-prevention Microload Switches

Mechanical: 15 million operation min.

(10 million operation min. for overtravel general-purpose or high-sensitivity models or flexible rod models)

WL @ General-purpose

WL @-S Spatter-prevention

Long-life

Mechanical: 30 million operation min. WLM @ Long-life

According to Ease of Installation and Maintenance

Conditions

Daily inspections and maintenance checks

Screw tightening and installation

Key specifications

Switching light-ON between operating/not operating. (Switching not possible for models with molded terminals.)

Neon lamp

125 to 250 VAC

Switching light-ON between operating/not operating. (Switching not possible for models with molded terminals.)

LED

10 to 115 VAC/DC

Screw terminals. No ground terminal.

Conduit size: G1/2

Screw terminals. Ground terminal.

Conduit size: 4 sizes

Direct-wired connector, 2-conductor.

Greatly reduces wiring work.

Water-proof to IP67.

Models

WL

@-LE

General-purpose, Indicator-equipped (Neon Lamp) Switches

WL @-LES

Spatter-prevention, Indicator-equipped (Neon Lamp) Switches

WL @-LD

General-purpose, Indicator-equipped (LED) Switches

WL

@-LDS

Spatter-prevention, Indicator-equipped (LED) Switches

WL @ General-purpose

WLM @ Long-life

One-touch connector attachment

Direct-wired connector, 4-conductor.

Greatly reduces wiring work.

Water-proof to IP67.

Pre-wired connector, 2-conductor.

Greatly reduces wiring work.

Water-proof to IP67.

WL @ General-purpose

WL @[email protected]

WLM @-LDK13

Long-life, Direct-wired Connector Switches

WL @[email protected]

WLM

@-LDK43

Long-life, Direct-wired Connector Switches

WL

@[email protected]

WL @[email protected]

WLM

@-LD-M1J

Connector attachment in control and relay boxes

Pre-wired connector, 4-conductor.

Greatly reduces wiring work.

Water-proof to IP67.

WL @[email protected]@GJO3

WL

@[email protected]@GJSO3

WLM @[email protected]

6

WL/WLM

According to Form of Operation

Detection object Key specifications

TT (total travel) PT (pretravel)

45

°

45

°

15

°

General

Models

WLCA2-

@S Spatter-prevention

80

°

80

°

15

°

Passing dogs [email protected] Spatter-prevention

Passing dogs, high sensitivity

80

°

80

°

10

°

[email protected] Spatter-prevention

90

°

90

°

WLCA2-2

25

°

WLCA2-2N

20

°

Passing dogs

High precision

Dogs and workpieces

(Mounts in any of

4 directions)

Adjustable between dog and lever

Dogs or workpieces with large deflection

45

°

45

°

R38

R50

R63

R25 to 89

25 to 140

350 to 380

427.5

5

°

[email protected] Spatter-prevention Switches

Short lever

One-Horizontal operation possible.

(WLCA @ only)

Head mounts in any of 4 directions.

Medium lever

One-Horizontal operation possible.

(WLCA @ only)

Head mounts in any of 4 directions.

Long lever

One-Horizontal operation possible.

(WLCA @ only)

Head mounts in any of 4 directions.

One-Horizontal operation possible.

(WLCA @ only)

Head mounts in any of 4 directions.

WL @2 Roller Lever Actuators

WL @[email protected] Roller Lever Actuators

WLM @2 Roller Lever Actuators

WL @2-7

WL @2-8

WL @12

Roller Lever Actuators

Roller Lever Actuators

Adjustable Roller Lever Actuators

One-Horizontal operation possible.

(WLCL only)

Head mounts in any of 4 directions.

WL @L Adjustable Rod Lever Actuators

One-Horizontal operation not possible.

Head mounts in any of 4 directions.

WLHAL4

One-Horizontal operation not possible.

Head mounts in any of 4 directions.

WLHAL5

Adjustable Rod Lever Actuator

Rod Spring Lever Actuator

Head mounts in any of 4 directions.

WLCA32-41 Fork Lever Lock Actuator

Head mounts in any of 4 directions.

WLCA32-42 Fork Lever Lock Actuator

Round-trip operation of passing dogs

Cams or workpieces with vertical movement

Head mounts in any of 4 directions.

WLCA32-43 Fork Lever Lock Actuator

Head mounts in any of 4 directions.

WLCA32-44 Fork Lever Lock Actuator

Head mounts in any of 4 directions.

WLD

WLSD

WLD3

Head mounts in any of 4 directions.

WLSD3

Available in sealed models.

(WLD28 @)

WLD2

WLD28

WLSD2

Top Plunger Actuator

Horizontal Plunger Actuator

Top-ball Plunger Actuator

Horizontal-ball Plunger Actuator

Top-roller Plunger Actuator

Sealed Top-roller Plunger Actuator

Horizontal-roller Plunger Actuator

7

Application Examples

Positioning on Production Lines

WL/WLM

High-precision Positioning of Machine Tools

Positioning on Suspended Conveyors Pallet Detection in Arc Welding Lines

Multilevel Car Parking Towers Limit Detection is Transport Systems

8

WL/WLM

Model Number Structure

Model Number Legend

(Not all combinations are possible. Ask your OMRON representative for details.)

General-purpose and Environment-resistant Switches

WL

@ @[email protected] @ @ @ @ @ @ @

(1) (2) (3) (4) (5) (6) (7) (8) (9)(10)

(1) Electrical Rating

Blank Standard load

01

Microload

Note: Dimensions are the same as the standard models.

(3) Environment-resistant Model

Specifications

Blank Standard

RP

Corrosion-proof * 1

P1

Weather-proof * 1

Note: Dimensions are the same as the standard models.

*1. Refer to page 4 for applicable models.

(4) Built-in Switch Type

Blank Standard

55

Hermetically sealed * 1

Note: Dimensions are the same as the standard models.

*1. Refer to page 4 for applicable models.

(5) Temperature Specifications

Blank Standard: –10

°C to +80°C

TH

Heat-resistant: +5

°C to +120°C

* 1

TC

Low-temperature: –40

°C to +40°C

* 1

Note: Dimensions are the same as the standard models.

*1. Refer to page 4 for applicable models.

(7) Conduit Size, Ground Terminal

Specifications * 2

Blank G1/2 without ground terminal

G1

G1/2 with ground terminal

G

Pg13.5 with ground terminal

Y

M20 with ground terminal

TS

1/2-14NPT with ground terminal

Note: Dimensions are the same as the standard models.

*2. Models with ground terminals are approved by

EN/IEC (CE marking).

(6) Hermetic Model Specifications

Blank No cables or molding

139

General-purpose built-in switch with cables attached and molded conduit opening and cover (cover cannot be removed). *

140

141

145

RP40

RP60

Airtight built-in switch with cables attached and molded conduit opening, cover, and box interior cover screws (cover cannot be removed). *

Airtight built-in switch with cables attached and molded conduit opening, cover, head, box interior, cover screws, and head screws (cover cannot be removed, Head direction cannot be changed). The Head opening is created to protect it from cutting powder. *

Airtight built-in switch with cables attached and molded conduit opening, cover, box interior, and cover screws (cover cannot be removed, Head can be mounted in any of 4 directions). The

Head opening is created to protect it from cutting powder. *

Airtight built-in switch with cables attached and molded cover and box interior (cover cannot be removed, Head direction can be changed). SC Connector can be removed, so it is possible to use flexible conduits for the cable. *

Airtight built-in switch with cables attached, fluorine rubber used, and molded conduit opening, cover, and box interior (cover cannot be removed, Head direction cannot be changed). *

* Refer to page 4 for applicable models.

(2) Actuator and Head Specifications

Symbol

CA2

Roller lever: Standard model R38

CA2-7

Roller lever: Standard model R50

CA2-8

Roller lever: Standard model R63

H2

G2

CA2-2

Roller lever: Overtravel, 90

°

CA2-2N

Roller lever: Overtravel, 90

°

GCA2

Actuator type

Roller lever: General-purpose overtravel model, 80

°

Roller lever: High-sensitivity overtravel, 80

°

Roller lever: High-precision R38

Switch without lever

WLRCA2

WLRCA2

WLRCA2

WLRH2

WLRG2

WLRCA2-2

WLRCA2-2N

WLRGCA2

CA12

Adjustable roller lever: Standard WLRCA2

H12

G12

Adjustable roller lever: General-purpose overtravel model, 80

° WLRH2

Adjustable roller lever: High-sensitivity overtravel, 80

°

WLRG2

CA12-2

Adjustable roller lever: Overtravel, 90

°

CA12-2N Adjustable roller lever: Overtravel, 90

°

WLRCA2-2

WLRCA2-2N

CL

Adjustable rod lever: Standard, 25 to 140 mm WLRCL

HL

Adjustable rod lever: General-purpose overtravel model, 80

°, 25 to 140 mm

HAL5

Rod spring lever: General-purpose overtravel model, 80

°

WLRH2

HAL4

Adjustable rod lever: General-purpose overtravel model, 80

°, 350 to 380 mm WLRH2

GL

Adjustable rod lever: High-sensitivity overtravel, 80

°, 25 to 140 mm WLRG2

CL-2

Adjustable rod lever: Overtravel, 90

°, 25 to 140 mm

CL-2N

Adjustable rod lever: Overtravel, 90

°, 25 to 140 mm

WLRCA2-2

WLRCA2-2N

WLRH2

CA32-41 Fork lever lock: Maintained, WL-5A100 WLRCA32

CA32-42 Fork lever lock: Maintained, WL-5A102

CA32-43 Fork lever lock: Maintained, WL-5A104

D

Plunger: Top plunger

WLRCA32

WLRCA32

D2

D28

D3

SD

Plunger: Top-roller plunger

Plunger: Sealed top-roller plunger

Plunger: Top-ball plunger

Plunger: Horizontal plunger

SD2

SD3

Plunger: Horizontal-roller plunger

Plunger: Horizontal-ball plunger

NJ

Flexible rod: Coil spring

NJ-30

Flexible rod: Coil spring, multi-wire

NJ-2

Flexible rod: Coil spring, resin rod

NJ-S2

Flexible rod: Steel wire

(8) Indicator Type

Symbol Element

Blank

No indicator

LE

LD

Voltage Leakage current

Neon lamp 125 to 250 VAC

115 VAC/VDC

LED

Approx. 0.6 to 1.9 mA

Approx. 0.5 mA

10 to 24 VAC/VDC Approx. 0.4 mA

Note: Dimensions are the same for both LE and LD models.

(9) Indicator Wiring

2

3

NC connection: Light-ON when operating

NO connection: Light-ON when not operating

Note: Include the indicator wiring specification only when a (6) hermetic seal and (8) operation indicator have been selected.

(10) Lever Type

Blank

Standard lever

A

Double nut lever

9

WL/WLM

General-purpose Switches

Sensor I/O Connector Switches

WL @ @[email protected] LD @

(1) (2) (3) (4) (5)

Direct-wired Connector Pre-wired Connector

(1) Electrical Rating

Blank

Standard load

01

Microload

Note: Dimensions are the same as the standard models.

(2) Actuator Type

CA2

Roller lever: Standard model

GCA2

Roller lever: High-precision model

H2

G2

D2

D28

Roller lever: General-purpose overtravel model

Roller-lever: High-sensitivity overtravel model

Top-roller plunger

Sealed top-roller plunger

(3) Built-in Switch Type

Blank

Standard

55

Hermetically sealed

Note: Dimensions are the same as the standard models.

(4) Indicator Type

LD

LED, 10 to 115 VAC/DC

(5) Wiring Specifications

K13A

K13

K43A

Direct-wired Connector (2-conductor: AC, NO wiring, connector pins No. 3, 4)

Direct-wired Connector (2-conductor: DC, NO wiring, connector pins No. 3, 4)

Direct-wired Connector (4-conductor: AC)

K43

-M1J *

Direct-wired Connector (4-conductor: DC)

Pre-wired Connector * 2 (2-conductor: DC, NO wiring, connector pins No. 3, 4)

-M1GJ * 1

Pre-wired Connector * 2 (2-conductor: DC, NO wiring, connector pins No. 1, 4)

-M1JB

Pre-wired Connector * 2 (2-conductor: DC, NC wiring, connector pins No. 3, 2)

-AGJ03

Pre-wired Connector * 2 (4-conductor, AC)

-DGJ03 * 1

Pre-wired Connector * 2 (4-conductor, DC)

-DK1EJ03 *

1 Pre-wired Connector * 2 (3-conductor: DC, NO wiring, connector pins No. 2, 3, 4)

*1. Models with pre-wired connectors and DC specifications have EN/IEC approval (CE marking).

*2. With 0.3-m cable attached.

Spatter-prevention Switches

WL

@ @[email protected] @ S @

(1) (2) (3) (4) (5)

(1) Electrical Rating

Blank

Standard load

01

Microload

Note: Dimensions are the same as the standard models.

(2) Actuator Type

CA2

Roller lever: Standard model

GCA2

Roller lever: High-precision model

H2

Roller lever: General-purpose Overtravel model

G2

D28

Roller lever: High-sensitivity Overtravel model

Sealed top-roller plunger

(3) Built-in Switch Type

Blank

Standard

55

Hermetically sealed

Note: Dimensions are the same as the standard models.

(4) Indicator Type

LD

LE

LED, AC/DC

Neon lamp

Note: Dimensions are the same for both LE and LD models.

(5) Wiring Specifications

Blank

-M1J-1 * 1

Screw terminal: G1/2 conduit

Pre-wired Connector * 2

(2-conductor: DC, NO wiring, connector pins No. 3, 4)

-M1GJ-1 * 1

Pre-wired Connector * 2

(2-conductor: DC, NO wiring, connector pins No. 1, 4)

-DGJS03 *

1 Pre-wired Connector * 2 (4-conductor: DC)

*1. Models with pre-wired connectors and DC specifications are approved by

EN/IEC (CE marking) except for LE Models (Neon Lamp Models).

*2. With 0.3-m cable attached.

Long-life Switches

WLM

@ -LD @

(1) (2) (3)

(1) Actuator

CA2

Roller lever: Standard model

GCA2

Roller lever: High-precision model

H2

G2

Roller lever: General-purpose overtravel model

Roller lever: High-sensitivity overtravel model

(2) Indicator Type

LD

LED, 10 to 115 VAC/DC

(3) Wiring Specifications

Blank

Screw terminal: G1/2 conduit

K13A

Direct-wired Connector: 2-conductor, AC

K13

Direct-wired Connector: 2-conductor, DC

K43A

K43

Direct-wired Connector: 4-conductor, AC

Direct-wired Connector: 4-conductor, DC

-M1J

Pre-wired Connector: 2-conductor, DC *

-AGJ03

Pre-wired Connector: 4-conductor, AC *

-DGJ03

Pre-wired Connector: 4-conductor, DC *

* With 0.3-m cable attached.

10

WL/WLM

Ordering Information

General-purpose Switches

Standard Switches

Lever

Actuator

Roller lever R38

Item

Basic

Overtravel

Generalpurpose

Highsensitivity

90

°

operation

High-precision

Model

Standard load WLCA2

Microload

WL01CA2

Standard load WLH2

Microload

WL01H2

Standard load WLG2

Microload

WL01G2

Standard load WLCA2-2

Microload

WL01CA2-2

Standard load WLCA2-2N

Microload

WL01CA2-2N

Standard load WLGCA2

Microload

WL01GCA2

Note: Models are also available with ground terminals.

Roller lever R50

Model

WLCA2-7

WL01CA2-7

Roller lever R63

Model

WLCA2-8

WL01CA2-8

Item

Basic

Overtravel

Actuator Adjustable roller lever

Generalpurpose

Highsensitivity

90

°

operation

Model

Standard load WLCA12

Microload WL01CA12

Standard load WLH12

Microload WL01H12

Standard load WLG12

Microload WL01G12

Standard load WLCA12-2

Microload WL01CA12-2

Standard load WLCA12-2N

Microload WL01CA12-2N

Item

Maintained

Actuator Fork lever lock (with

WL-5A100 plastic roller lever)

Model

Standard load WLCA32-41

Microload WL01CA32-41

Plunger

Item

Top plunger

Actuator

Top plunger

Standard load WLD

Microload WL01D

Model

Item

Side plunger

Actuator

Horizontal plunger

Standard load WLSD

Microload WL01SD

Model

Flexible Rod

Item

Flexible rod

Actuator

Coil spring (spring diameter: 6.5)

Standard load WLNJ

Microload WL01NJ

Model

Adjustable rod lever

25 to 140mm

WLCL

WL01CL

WLHL

WL01HL

WLGL

Model

WL01GL

WLCL-2

WLCL-2N

WL01CL-2N

Fork lever lock (with

WL-5A102 plastic roller lever)

Model

WLCA32-42

Top-roller plunger

WLD2

WL01D2

Model

Horizontal-roller plunger

Model

WLSD2

WL01SD2

Coil spring (spring diameter: 4.8)

Model

WLNJ-30

WL01NJ-30

Top-ball plunger

WLD3

WL01D3

Model

Horizontal-ball plunger

Model

WLSD3

WL01SD3

Coil spring

(resin rod diameter: 8)

Model

WLNJ-2

WL01NJ-2

Adjustable rod lever

350 to 380mm

Model

WLHAL4

Fork lever lock (with

WL-5A104 plastic roller lever)

Model

WLCA32-43

WL01CA32-43

Rod spring lever

Model

WLHAL5

Fork lever lock (with

WL-5A104 plastic roller lever)

Model

WLCA32-44

WL01CA32-44

Sealed top-roller plunger

Model

WLD28

WL01D28

Steel wire (wire diameter: 1)

Model

WLNJ-S2

WL01NJ-S2

11

WL/WLM

General-purpose Switches

Indicator-equipped Switches

Lever

Actuator

Roller lever R38

Item

Basic

Overtravel

Generalpurpose

Highsensitivity

90

°

operation

High-precision

Neon lamp

LED

Neon lamp

LED

Neon lamp

LED

Neon lamp

LED

Neon lamp

LED

Neon lamp

LED

Model

WLCA2-LE

WLCA2-LD

WLH2-LE

WLH2-LD

WLG2-LE

WLG2-LD

WLCA2-2LE

WLCA2-2LD

WLCA2-2NLE

WLCA2-2NLD

WLGCA2-LE

WLGCA2-LD

Item

Basic

Overtravel

Generalpurpose

Highsensitivity

90

°

operation

Neon lamp

LED

Neon lamp

LED

Neon lamp

LED

Neon lamp

LED

Neon lamp

LED

Actuator Adjustable rod lever

25 to 140 mm

Model

WLCL-LE

WLCL-LD

WLHL-LE

WLHL-LD

WLGL-LE

WLGL-LD

WLCL-2LE

WLCL-2LD

WLCL-2NLE

WLCL-2NLD

Item

Maintained

Actuator Fork lever lock (with

WL-5A100 Plastic

Roller Lever)

Model

Neon lamp

LED

WLCA32-41LE

WLCA32-41LD

Plunger

Item

Top plunger

Neon lamp

LED

Actuator

Top plunger

WLD-LE

Model

WLD-LD

Item

Side plunger

Neon lamp

LED

Actuator

Horizontal plunger

Model

WLSD-LE

WLSD-LD

Flexible Rod

Item

Flexible rod

Neon lamp

LED

Actuator

Coil spring (spring diameter: 6.5)

Model

WLNJ-LE

WLNJ-LD

Roller lever R50

Model

WLCA2-7LE

WLCA2-7LD

Adjustable rod lever

350 to 380 mm

Model

WLHAL4-LE

WLHAL4-LD

Fork lever lock (with

WL-5A102 Plastic

Roller Lever)

Model

WLCA32-42LE

Roller lever R63

Model

WLCA2-8LE

WLCA2-8LD

Rod spring lever

Model

WLHAL5-LE

WLHAL5-LD

Fork lever lock (with

WL-5A104 Plastic

Roller Lever)

Model

WLCA32-43LE

WLCA32-43LD

Top-roller plunger

Model

WLD2-LE

WLD2-LD

Horizontal-roller plunger

Model

WLSD2-LE

WLSD2-LD

Top-ball plunger

Model

WLD3-LE

WLD3-LD

Horizontal-ball plunger

Model

WLSD3-LE

WLSD3-LD

Coil spring (spring diameter: 4.8)

Model

WLNJ-30LE

WLNJ-30LD

Coil spring

(resin rod diameter: 8)

Model

WLNJ-2LE

WLNJ-2LD

Adjustable roller lever

Model

WLCA12-LE

WLCA12-LD

WLH12-LE

WLH12-LD

WLG12-LE

WLG12-LD

WLCA12-2LE

WLCA12-2LD

WLCA12-2NLE

WLCA12-2NLD

Sealed top-roller plunger

Model

WLD28-LE

WLD28-LD

Steel wire (wire diameter: 1)

Model

WLNJ-S2LE

WLNJ-S2LD

12

WL/WLM

General-purpose Switches

Sensor I/O Connector Switches

Direct-wired Connectors

Actuator

Roller lever

Top-roller plunger

2-conductor

Item

Basic

Overtravel

General-purpose High-sensitivity

Wiring

DC NO connector pins

No. 3, 4

Built-in switch specification

Standard

Model

WLCA2-LDK13

Model

WLH2-LDK13

Airtight seal WLCA2-55LDK13 WLH2-55LDK13

Model

WLG2-LDK13

WLG2-55LDK13

Standard WLCA2-LDK43 WLH2-LDK43 WLG2-LDK43

4-conductor

DC

Airtight seal WLCA2-55LDK43 WLH2-55LDK43 WLG2-55LDK43

2-conductor

DC NO connector pins

No. 3, 4

Standard WLD2-LDK13

Airtight seal WLD2-55LDK13

Standard WLD2-LDK43

— —

4-conductor

DC

Airtight seal WLD2-55LDK43

— —

High-precision

Model

WLGCA2-LDK13

WLGCA2-55LDK13

WLGCA2-LDK43

WLGCA2-55LDK43

Pre-wired Connectors

Actuator

Roller lever

Top-roller plunger

2-conductor

Item

Basic

Overtravel

General-purpose High-sensitivity

DC

Wiring

Built-in switch specification

Standard

Model

WLCA2-LD-M1J

NO connector pins

No. 3, 4

Airtight seal WLCA2-55LD-M1J connector pins

No. 1, 4

Standard

Airtight seal

WLCA2-LD-M1GJ

WLCA2-55LD-M1GJ

Model

WLH2-LD-M1J

WLH2-LD-M1GJ

Model

WLG2-LD-M1J

WLG2-LD-M1GJ

WLG2-55LD-M1GJ

NC connector pins

No. 3, 2

Standard

Airtight seal WLCA2-55LD-M1JB

WLG2-LD-M1JB

High-precision

Model

WLGCA2-LD-M1J

WLGCA2-55LD-M1J

WLGCA2-LD-M1GJ

WLG2-55LD-M1JB WLGCA2-55LD-M1JB

Standard WLCA2-LD-DGJ03 WLH2-LD-DGJ03 WLG2-LD-DGJ03

4-conductor

DC

Airtight seal WLCA2-55LD-DGJ03

WLG2-55LD-DGJ03 WLGCA2-55LD-DGJ03

3-conductor

2-conductor

DC

DC connector pins

No. 2, 3, 4

Standard WLCA2-LD-DK1EJ03

Airtight seal WLCA2-55LD-DK1EJ03

NO connector pins

No. 3, 4

Standard WLD2-LD-M1J

Airtight seal WLD2-55LD-M1J connector pins

No. 1, 4

Standard

Airtight seal

WLD2-LD-M1GJ

WLD2-55LD-M1GJ

NC connector pins

No. 3, 2

Standard

Airtight seal WLD2-55LD-M1JB

Standard WLD2-LD-DGJ03

4-conductor

DC

3-conductor

DC

Airtight seal

connector pins

No. 2, 3, 4

Standard WLD2-LD-DK1EJ03

Airtight seal WLD2-55LD-DK1EJ03

WLG2-LD-DK1EJ03

WLG2-55LD-DK1EJ03

13

WL/WLM

Environment-resistant Switches

Note: Models are also available with ground terminals.

Actuator

Item

Airtight seal

Heat-resistant

Low-temperature

Corrosion-proof

Weather-proof

-139

Hermetic seal

Molded terminals

-140

-141

Anti-coolant

Basic

No indicator

LED

Indicator

Neon

No indicator

Model

WLCA2-55

WLCA2-55LD

WLCA2-55LE

WLCA2-139

Indicator

NC wiring WLCA2-139LD2

NO wiring WLCA2-139LD3

No indicator WLCA2-140

NC wiring WLCA2-140LD2

Indicator

NO wiring WLCA2-140LD3

No indicator WLCA2-141

NC wiring WLCA2-141LD2

Indicator

NO wiring WLCA2-141LD3

No indicator WLCA2-RP60

NC wiring WLCA2-RP60LD2

Indicator

NO wiring WLCA2-RP60LD3

WLCA2-TH

No indicator

WLCA2-TC

WLCA2-RP

WLCA2-P1

Actuator

Roller lever R38

Item

Airtight seal

Hermetic seal

Molded terminals

Heat-resistant

Low-temperature

Corrosion-proof

-139

-140

-141

Anti-coolant

No indicator

LED

Indicator

Neon

No indicator

90

° (-2 model)

Model

WLCA2-255

WLCA2-255LD

WLCA2-255LE

WLCA2-2139

Indicator

NC wiring WLCA2-2139LD2

NO wiring WLCA2-2139LD3

No indicator

NC wiring

Indicator

NO wiring

No indicator

NC wiring

Indicator

NO wiring

No indicator WLCA2-2RP60

NC wiring WLCA2-2RP60LD2

Indicator

NO wiring WLCA2-2RP60LD3

WLCA2-2TH

No indicator WLCA2-2TC

Overtravel

90

° (-2N model)

Model

WLCA2-2N55

WLCA2-2N55LD

WLCA2-2N55LE

WLCA2-2N139

WLCA2-2N140

WLCA2-2NTH

WLCA2-2NTC

Roller lever R38

General-purpose

Overtravel

High-sensitivity

Model Model

WLH2-55

WLH2-55LD

WLH2-55LE

WLH2-139

WLH2-140

WLG2-55

WLG2-55LD

WLG2-55LE

WLG2-139

WLG2-139LD3

WLG2-140

WLG2-140LD2

WLH2-141

WLH2-141LD3

WLH2-RP60

WLH2-RP60LD3

WLH2-TH

WLH2-TC

WLH2-RP

WLH2-P1

WLG2-140LD3

WLG2-141

WLG2-141LD2

WLG2-141LD3

WLG2-RP60

WLG2-RP60LD2

WLG2-RP60LD3

WLG2-TH

WLG2-TC

WLG2-RP

WLG2-P1

High-precision

Model

WLGCA2-55

WLGCA2-55LD

WLGCA2-55LE

WLGCA2-139

WLGCA2-139LD2

WLGCA2-139LD3

WLGCA2-140

WLGCA2-140LD2

WLGCA2-140LD3

WLGCA2-141

WLGCA2-141LD3

WLGCA2-RP60

WLGCA2-RP60LD2

WLGCA2-RP60LD3

WLGCA2-TH

WLGCA2-TC

WLGCA2-RP

14

WL/WLM

Actuator

Item

Airtight seal

No indicator

LED

Indicator

Neon

Hermetic seal

Molded terminals

Anti-coolant

Heat-resistant

Low-temperature

Corrosion-proof

Weather-proof

-139

-140

-141

No indicator

No indicator

Item

Heat-resistant

Low-temperature

Basic

Model

WLCA12-55

WLCA12-55LD

WLCA12-55LE

WLCA12-139

WLCA12-140

WLCA12-141

WLCA12-RP60

WLCA12-TH

WLCA12-TC

WLCA12-RP

WLCA12-P1

Adjustable roller lever

General-purpose

Model

Overtravel

High-sensitivity

Model

WLH12-TH

WLH12-TC

WLH12-RP

WLH12-P1

WLG12-TH

WLG12-TC

WLG12-RP

WLG12-P1

No indicator

Actuator

Adjustable roller lever

90

° (-2 model)

Model

WLCA12-2TH

WLCA12-2TC

Overtravel

90

° (-2N model)

Model

WLCA12-2NTH

WLCA12-2NTC

Actuator

Item

Airtight seal

No indicator

LED

Indicator

Neon

Hermetic seal

Molded terminals

-139

-140

-141

Anti-coolant

Heat-resistant

Low-temperature

Corrosion-proof

Weather-proof

No indicator

No indicator

Item

Heat-resistant

Low-temperature

Corrosion-proof

Basic

WLCL-55

Model

WLCL-55LD

WLCL-139

WLCL-140

WLCL-RP60

WLCL-TH

WLCL-TC

WLCL-RP

WLCL-P1

Adjustable rod lever 25 to 140 mm

General-purpose

Overtravel

High-sensitivity

Model

Model

WLHL-TH

WLHL-TC

WLHL-RP

WLHL-P1

WLGL-TH

WLGL-TC

WLGL-RP

WLGL-P1

No indicator

Actuator

Adjustable rod lever 25 to 140 mm

90

° (-2 model)

Model

WLCL-2TH

WLCL-2TC

WLCL-2RP

Overtravel

90

° (-2N model)

Model

WLCL-2NTH

WLCL-2NTC

15

WL/WLM

Actuator

Top-roller plunger

Item

Airtight seal

No indicator

Indicator

LED

Neon

Hermetic seal

Molded terminals

-139

-140

Anti-coolant

Heat-resistant

Low-temperature

Corrosion-proof

No indicator

No indicator

Note: The standard cable length for models with airtight seals is 5 m.

Model

WLD2-55

WLD2-55LD

WLD2-55LE

WLD2-139

WLD2-RP60

WLD2-TH

WLD2-TC

WLD2-RP

Actuator

Horizontal-roller plunger

Item

Airtight seal

No indicator

LED

Indicator

Neon

Model

WLSD2-55

WLSD2-55LD

Hermetic seal

Molded terminals

-139

-140

Anti-coolant

Heat-resistant

Low-temperature

Corrosion-proof

No indicator

No indicator

WLSD2-139

WLSD2-140

WLSD2-RP60

WLSD2-TH

WLSD2-TC

WLSD2-RP

Note: The standard cable length for models with airtight seals is 5 m.

Sealed top-roller plunger

Model

WLD28-55

WLD28-55LD

WLD28-55LE

WLD28-139

WLD28-140

WLD28-RP60

WLD28-TH

WLD28-RP

Coil spring (spring diameter: 6.5)

WLNJ-55

Model

WLNJ-55LD

WLNJ-139

WLNJ-140

WLNJ-RP60

WLNJ-TH

WLNJ-TC

WLNJ-RP

Horizontal plunger

Model

WLSD-55

WLSD-55LD

WLSD-139

WLSD-RP60

WLSD-TH

WLSD-TC

WLSD-RP

Coil spring (resin rod diameter: 8)

Model

WLNJ-255

WLNJ-255LD

WLNJ-2140

WLNJ-2RP60

WLNJ-2TC

WLNJ-2RP

16

WL/WLM

Spatter-prevention Switches

Actuator

Roller lever

Sealed top-roller plunger

Double nut lever

Item

Neon lamp operation indicator

Model

Basic WLCA2-LEAS

General-purpose WLH2-LEAS

Overtravel

High-sensitivity

High-precision

WLG2-LEAS

LED operation indicator

Basic

Overtravel

General-purpose

High-sensitivity

High-precision

WLCA2-LDAS

WLH2-LDAS

WLG2-LDAS

Note: Ask your OMRON representative about WL01

@[email protected] Microload Switches.

Long-life Switches

Item

Basic

Model

Allen-head lever

Model

WLCA2-LES

WLH2-LES

WLG2-LES

WLGCA2-LES

WLCA2-LDS

WLH2-LDS

WLG2-LDS

WLGCA2-LDS

LED operation indicator * 1

Overtravel

General-purpose High-sensitivity

Model Model

Model

WLD28-LES

WLD28-LDS

High-precision

Model Actuator

Roller lever, screw terminal

WLMCA2-LD WLMH2-LD WLMG2-LD WLMGCA2-LD

Roller lever, direct-wired connector

2-conductor

4-conductor

AC WLMCA2-LDK13A

DC WLMCA2-LDK13

AC WLMCA2-LDK43A

DC WLMCA2-LDK43

WLMH2-LDK13A

WLMH2-LDK13

WLMH2-LDK43A

WLMH2-LDK43

Roller lever, pre-wired connector * 2

2-conductor DC WLMCA2-LD-M1J

4-conductor DC WLMCA2-LD-DGJ03

WLMH2-LD-M1J

WLMH2-LD-DGJ03

WLMG2-LDK13A

WLMG2-LDK13

WLMG2-LDK43A

WLMG2-LDK43

WLMG2-LD-M1J

WLMGCA2-LDK13A

WLMGCA2-LDK13

WLMGCA2-LDK43A

WLMGCA2-LDK43

WLMGCA2-LD-M1J

WLMG2-LD-DGJ03

*1. The default setting is “light-ON when not operating.”

Turn the lamp holder by 180

° to change the setting to “light-ON when operating”. (Ask your OMRON representative about 2-conductor models.)

*2. With 0.3-m cable attached.

Connecting Cables

Straight Cable

Voltage specification

AC

DC

Number of cond uctors

2

4

2

4

Cable length

2 m

5 m

2 m

5 m

2 m

5 m

2 m

5 m

Model

XS2F-A421-DB0-A

XS2F-A421-GB0-A

XS2F-A421-D90-A

XS2F-A421-G90-A

XS2F-D421-DD0-A

XS2F-D421-GD0-A

XS2F-D421-D80-A

XS2F-D421-G80-A

17

WL/WLM

Individual Parts

Heads

Actuator type

Roller lever

Adjustable roller lever

Adjustable rod lever

Set model Head model (with Actuator)

WLCA2

WLG2

WLH2

WLCA2-2

WLCA2-2N

WLCA12

WLG12

WLH12

WLCA12-2

WL-1H1100

WL-2H1100

WL-2H1100-1

WL-3H1100

WL-6H1100

WL-1H2100

*

WL-2H2100

WL-2H2100-1 *

WL-3H2100

WLCA12-2N

WL-6H2100

WLCL

WL-4H4100

WLGL

WLCL-2

WL-2H4100

WL-3H4100

WLCL-2N

WL-6H4100

Actuator type

Top plunger

Horizontal plunger

Fork lever lock

Coil spring

Set model Head model (with Actuator)

WLD

WL-7H100

WLD2

WLD3

WLD28

WLSD

WLSD2

WL-7H200

WL-7H300

WL-7H400

WL-8H100

WL-8H200

WLSD3

WL-8H300

WLCA32-41

WL-5H5100

WLCA32-42

WL-5H5102

WLCA32-43

WL-5H5104

WLCA32-44

WL-5H5104

WLNJ

WL-9H100

WLNJ-30

WL-9H200

WLNJ-2

WLNJ-S2

WL-9H300

WL-9H400

* The model number of Heads without levers are same as those of Heads with levers without the numbers at the end.

Example: WL-1H1100 becomes WL-1H without the lever.

However, the WLH2 and WLH12 become WL-2H-1 and the WLGCA2 becomes WL-1H-1 for the Heads without levers.

Other Heads are also available. Ask your OMRON representative.

Switches without levers

Switches for roller levers

Switches for adjustable roller levers

Switches for adjustable rod lever

Switches for top plungers

Switches for horizontal plungers

Switches for fork lever locks

Switches for coil springs

Actuator type

Basic R38 WLRCA2

High-precision R38

High-sensitivity overtravel, 80

°

General-purpose overtravel, 80

°

Overtravel, 90

° operation

Overtravel, 90

° operation

Basic

WLRGCA2

WLRG2

WLRH2

WLRCA2-2

WLRCA2-2N

WLRCA2

High-sensitivity overtravel, 80

°

General-purpose overtravel, 80

°

Overtravel, 90

° operation

Overtravel, 90

° operation

WLRG2

WLRH2

WLRCA2-2

WLRCA2-2N

Basic, 25 to 140 mm WLRCL

High-sensitivity overtravel, 80

°, 25 to 140 mm WLRG2

Overtravel, 90

° operation, 25 to 140 mm

WLRCA2-2

Overtravel, 90

° operation, 25 to 140 mm

WLRCA2-2N

Switches without levers

Model

Maintained, WL-5A100

Maintained, WL-5A102

Maintained, WL-5A104

WLRCA32

Covers with Operation Indicators

Cover

Cover only with indicator

Item

Neon lamp

LED

WL-LE

WL-LD

Model

Note: The default setting is "light-ON when not operating."

Turn the lamp holder by 180

° to change the setting to "light-ON when operating."

18

WL/WLM

Spatter-prevention Products

Head (with actuator)

Complete Heads with allen-head levers

Model

Double Nut

Lever

Model

WL-1H1100S

(for [email protected] or

[email protected])

WL-2H1100S

(for [email protected] or

[email protected])

Lever

Allen-head

Lever

Model

WL-1A103S

Roller lever

Double Nut

Lever

Model

WL-1A105S

Roller Lever

Cover with indicator Switches without Levers

Cover with

Indicator

Model

Neon lamp

WL-LES

LED (LED)

WL-LDS

Switches without levers

Model

WLRCA2-LDS

WLRH2-LES

WLRH2-LDS

WLRG2-LDS

WLRGCA2-LES

WL Head Replacement

Heads can be replaced within the same model group. They cannot be replaced between different model groups.

Group No.

1

2

3

4

5

6

7

8

9

10

11

12

13

Set model number

WLCA2

WLCA2-7

WLCA2-8

WLCA12

WLCL

WLH2

WLH12

WLHL

WLHAL4

WLHAL5

WLCA2-2N

WLCA12-2N

WLCL-2N

WLCA2-2

WLCA12-2

WLCL-2

WLG2

WLG12

WLGL

WLCA32-41

WLCA32-42

WLCA32-43

WLCA32-44

WLD

WLD2

WLD3

WLD28

WLSD

WLSD2

WLSD3

WLNJ

WLNJ-30

WLNJ-2

WLNJ-S2

* This Heads are special and must be used. Do not use any other Head.

Head model number (with Actuator)

WL-1H1100

WL-1H1200

WL-1H1300

WL-1H2100

WL-4H4100 *

WL-2H1100-1

WL-2H2100-1

WL-2H4100

WL-2H4106

WL-2H4107

WL-6H1100

WL-6H2100

WL-6H4100

WL-3H1100

WL-3H2100

WL-3H4100

WL-2H1100

WL-2H2100

WL-2H4100

WL-5H5100

WL-5H5102

WL-5H5104

WL-5H5104

WL-7H100

WL-7H200

WL-7H300

WL-7H400 *

WL-8H100

WL-8H200

WL-8H300

WL-9H100

WL-9H200

WL-9H300 *

WL-9H400 *

Specifications

Approved Standards

Agency

UL

CSA

Standard

UL508

CSA C22.2 No.14

TÜV Rheinland

CCC (CQC)

EN60947-5-1

GB14048.5

File No.

E76675

LR45746

J50022353,

J9950023,

J9950959

2004010305128675

Approved models

Contact your OMRON representative for information on approved models.

19

WL/WLM

General-purpose/Weather-proof Switches

Ratings

Standard-load Switches

Item

Model

Basic models, overtravel models (except for highsensitivity models), and high-precision models

High-sensitivity overtravel models

Rated voltage

(V)

125 VAC

250 VAC

500 VAC

8 VDC

14 VDC

30 VDC

125 VDC

250 VDC

125 VAC

250 VAC

125 VDC

250 VDC

Non-inductive load (A) Inductive load (A)

Resistive load

Lamp load

Inductive load

Motor load

NC NO NC NO NC NO NC NO

10

10

10

10

10

6

0.8

0.4

5

5

3

2

1.5

6

6

4

0.2

0.1

1.5

1

0.8

3

3

3

0.2

0.1

10

10

3

10

10

6

0.8

0.4

5

3

1.5

6

6

4

0.2

0.1

2.5

1.5

0.8

0.4

0.2

— — —

Inrush current

NC

NO

30 A max.

(15 A max. * )

20 A max.

(10 A max. * )

* For high-sensitivity overtravel models.

Note: 1. The above figures are for steady-state currents.

2. Inductive loads have a power factor of 0.4 min.

(AC) and a time constant of 7 ms max. (DC).

3. A lamp load has an inrush current of 10 times the steady-state current.

4. A motor load has an inrush current of 6 times the steady-state current.

5. For PC loads, use the microload models.

Minimum applicable load

5 VDC 160 mA

Approved Standard Ratings

UL/CSA

Standard-load Switches: A600, NEMA

Rated voltage

120 VAC

240 VAC

480 VAC

600 VAC

Carry current

10 A

Current (A)

Make Break

60

30

15

12

6

3

1.5

1.2

Volt-amperes (VA)

Make Break

7,200 720

Microload Switches

0.1 A 125 VAC, 0.1 A 30 VDC

TÜV (EN60947-5-1) (Only models with ground terminals are approved.)

WL

Model

@

WL01

WL

@

WL

@-LE

WL01

@-LE

@-LD

WL01

@-LD

Application category and ratings

AC-15: 2 A/250 V

DC-12: 2 A/48 V

AC-14: 0.1 A/125V

DC-12: 0.1 A/48 V

AC-15: 2 A/250 V

AC-14: 0.1 A/125 V

AC-15: 2 A/115 V

DC-12: 2 A/48 V

AC-14: 0.1 A/115 V

DC-12: 0.1 A/48 V

Thermal current (I

10 A

10 A

0.5 A

10 A

the

0.5 A

0.5 A

)

Note: As an example, AC-15: 2 A/250 V means the following:

Application category

Rated operating current (Ie)

Rated operating voltage (Ue)

AC-15

2A

250V

Indicator

Neon lamp

Neon lamp

LED

LED

Indicator-equipped Switches

Model

WL-LE

WL-LD

Item Max. rated voltage (V)

Neon lamp

125 AC

250 AC

LED

115 AC/DC

10 to 24 AC/DC

Leakage current (mA)

Approx. 0.6

Approx. 1.9

Approx. 0.5

Approx. 0.4

Microload Switches

(Refer to these ratings before using the product.)

Rated voltage (V)

AC 125

DC 30

Rated current (A) - Resistive load

0.1

Operation in the following ranges will produce optimum performance.

Recommended load range

5 to 30 VDC

0.5 to 100 mA

30

10

5

5 mW

0.8 W

1

0.1 0.16

1

Recommended load range

5 10 100 Current (mA)

5 VDC 1 mA

Characteristics

Degree of protection

Durability

* 1

Mechanical

Electrical

Operating speed

Operating frequency

Mechanical

Electrical

Rated frequency

Insulation resistance

Contact resistance

IP67

15,000,000 operations min. * 2

750,000 operations min. * 3

1 mm/s to 1 m/s (in case of WLCA2)

120 operations/minute min.

30 operations/minute min.

50/60 Hz

100 M

Ω min. (at 500 VDC)

25 m

Ω max. (initial value for the built-in switch when tested alone) * 6

1,000 VAC (600 VAC), 50/60 Hz for

1 min

Dielectric strength

Between terminals of the same polarity

Between currentcarrying metal part and ground

Between each terminal and non-currentcarrying metal part

Rated insulation voltage (Ui)

Pollution degree (operating environment)

2,200 VAC (1,500 VAC), 50/60 Hz for

1 min/Uimp 2.5 kV

2,200 VAC (1,500 VAC), 50/60 Hz for

1 min/Uimp 2.5 kV

250 V (EN60947-5-1)

3 (EN60947-5-1)

Short-circuit protective device (SCPD)

10 A, fuse type gG or gI (IEC60269)

Conditional short-circuit current

100 A (EN60947-5-1)

Conventional enclosed thermal current (Ithe)

10 A, 0.5 A (EN60947-5-1)

Protection against electric shock Class I

Vibration resistance

Malfunction

Ambient operating humidity

10 to 55 Hz, 1.5-mm double amplitude

Shock resistance

Destruction

Malfunction

1,000 m/s

300 m/s 2

2

min.

min. * 4

Ambient operating temperature

–10

°C to +80°C (with no icing)

* 5

35% to 95% RH

* 4

Weight

Approx. 275 g (in case of WLCA2)

Note: 1. The above figures are initial values.

2. The figures in parentheses for dielectric strength are those for the highsensitivity overtravel models.

*1. The values are calculated at an operating temperature of +5

°C to +35°C and an operating humidity of 40% to 70%RH. Contact your OMRON sales representative for more detailed information on other operating environments.

*2. Durability is 10,000,000 operations min. for general-purpose or highsensitivity overtravel models, and for flexible rod models.

500,000 operations min. for weather-proof models.

*3. Durability is 500,000 operations min. for high-sensitivity models. All microload models are 1,000,000 operations min.

500,000 operations min. for weather-proof models.

*4. Except flexible rod models. The shock resistance (malfunction) for microload models is 200 m/s 2 min.

*5. For low-temperature models this is –40

°C to +40°C (with no icing). For heatresistant models the range is +5

°C to +120°C.

*6. For microload models, the contact resistance is 50 m

Ω max. (initial value for built-in switch).

20

WL/WLM

Spatter-prevention Switches

Ratings

Screw terminals

Model

WL

WL

Item

@-LES

@-LDS

Rated voltage (V)

125 VAC

250 VAC

115 VAC

12 VDC

24 VDC

48 VDC

Non-inductive load (A)

Resistive load

Lamp load

NC NO NC NO NC NO NC NO

10

10

3

2

1.5

1

10

10

5

3

2.5

1.5

10

10

6

3

3

6

4

2

1.5

3

3

1.5

Inductive load (A)

Inductive load

Motor load

10

10

6

3

5

6

4

2

2.5

Note: 1. The above figures are for steady-state currents.

2. Inductive loads have a power factor of 0.4 min. (AC) and a time constant of 7 ms max. (DC).

3. A lamp load has an inrush current of 10 times the steady-state current.

4. A motor load has an inrush current of 6 times the steady-state current.

Inrush current

NC

NO

30 A max.

20 A max.

Operating temperature

–10

°C to +80°C (with no icing)

Operating humidity

35% to 95%RH max.

Approved Standard Ratings

UL/CSA

LE Switches (Neon lamp): A300

Rated voltage

120 VAC

240 VAC

Carry current

10 A

Current (A)

Make Break

60

30

6

3

Volt-amperes (VA)

Make Break

7,200 720

LD Switches (LED)

Rated voltage

115 VAC

115 VDC

Carry current

10 A

0.8 A

CCC (GB14048.5)

WL

WL01

WL

WL

@

@-LE

WL01

@-LE

@-LD

WL01

@

@-LD

Model Application category and ratings

AC-15: 2 A/250 V

DC-12: 2 A/48 V

AC-14: 0.1 A/125V

DC-12: 0.1 A/48 V

AC-15: 2 A/250 V

AC-14: 0.1 A/125 V

AC-15: 2 A/115 V

DC-12: 2 A/48 V

AC-14: 0.1 A/115 V

DC-12: 0.1 A/48 V

Note: As an example, AC-15: 2 A/250 V means the following:

Application category

AC-15

Rated operating current (Ie)

2 A

Rated operating voltage (Ue) 250 V

Characteristics

Degree of protection

Durability

* 1

Mechanical

15,000,000 operations min. * 2

Electrical

IP67

750,000 operations min. * 3

Operating speed

Operating frequency

Mechanical

120 operations/minute min.

Electrical

1 mm/s to 1 m/s (in case of WLCA2)

30 operations/minute min.

Rated frequency

Insulation resistance

Contact resistance

50/60 Hz

100 M

Ω min. (at 500 VDC)

25 m

Ω max. (initial value for the builtin switch when tested alone)

Dielectric strength

Between terminals of the same polarity

Between currentcarrying metal part and ground

1,000 VAC (600 VAC), 50/60 Hz for

1 min

2,200 VAC (1,500 VAC), 50/60 Hz for

1 min/Uimp 2.5 kV

Between each terminal and non-currentcarrying metal part

Rated insulation voltage

(Ui)

Pollution degree

(operating environment)

Short-circuit protective device (SCPD)

Conditional short-circuit current

Conventional enclosed thermal current (Ithe)

Protection against electric shock

2,200 VAC (1,500 VAC), 50/60 Hz for

1 min/Uimp 2.5 kV

250 V (EN60947-5-1)

3 (EN60947-5-1)

10 A, fuse type gG or gI (IEC60269)

100 A (EN60947-5-1)

10 A, 0.5 A (EN60947-5-1)

Class I

Vibration resistance

Malfunction

10 to 55 Hz, 1.5-mm double amplitude

Shock resistance

Destruction

1,000 m/s 2 min.

Malfunction

300 m/s 2 min.

Ambient operating temperature

–10

°C to +80°C (with no icing)

Ambient operating humidity

Weight

35% to 95%RH

Approx. 275 g (in case of WLCA2)

Note: 1. The above figures are initial values.

2. The figures in parentheses for dielectric strength are those for the highsensitivity overtravel models.

*1. The values are calculated at an operating temperature of +5

°C to +35°C and an operating humidity of 40% to 70%RH. Contact your OMRON sales representative for more detailed information on other operating environments.

*2. Durability is 10,000,000 operations min. for general-purpose or highsensitivity overtravel models.

*3. Durability is 500,000 operations min. for high-precision models. All microload models however, are 1,000,000 operations min.

21

WL/WLM

Long-life Switches

Ratings

General Ratings (Refer to these ratings before using the product.)

Screw Terminal Switches

* For high-sensitivity overtravel models.

Direct-wired Connector and Pre-wired Connector Switches

Item

Rated voltage

(V)

115 AC

Non-inductive load (A) Inductive load (A)

Resistive load

Lamp load

Inductive load

Motor load

NC NO NC NO NC NO NC NO

10 3 1.5

10 5 2.5

Model

Basic models, overtravel models, (except for high-sensitivity models), and high-precision models

High-sensitivity overtravel models

Inrush current

NC

NO

12 DC

24 DC

48 DC

115 DC

115 AC

115 DC

10

6

3

0.8

6

4

2

0.2

5 —

0.4 —

30 A max. (15 A max. * )

20 A max. (10 A max. * )

3

3

1.5

0.2

10

6

3

0.8

6

4

2

0.2

Model

Rated voltage

(V)

DC

12 DC

24 DC

48 DC

115 DC

AC 115 AC

Non-inductive load (A)

Resistive load

Lamp load

NC

3

3

3

0.8

3

NO

3

3

3

0.8

3

NC

3

3

3

0.2

3

NO

3

3

3

0.2

1.5

Inductive load

NC

3

3

3

0.8

3

Inductive load (A)

NO

3

3

3

0.8

3

Motor load

NC

3

3

3

0.2

3

NO

3

3

3

0.2

2.5

Note: 1. The above figures are for steady-state currents.

2. Inductive loads have a power factor of 0.4 min. (AC) and a time constant of 7 ms max. (DC).

3. A lamp load has an inrush current of 10 times the steady-state current.

4. A motor load has an inrush current of 6 times the steady-state current.

Characteristics

Degree of protection

IP67

Mechanical

30,000,000 operations min.

Durability *

Electrical

30,000,000 operations min. (10 mA at

24 VDC, resistive load)

750,000 operations min. (10 A at 115

VAC, resistive load), but for high-precision models: 500,000 operations min. (10 A at 115 VAC, resistive load)

Operating speed

Operating frequency

Mechanical

120 operations/minute

Electrical

1 mm/s to 1 m/s (in case of WLCA2)

30 operations/minute

Rated frequency

Insulation resistance

Contact resistance

50/60 Hz

100 M

Ω min. (at 500 VDC)

25 m

Ω max. (initial value for the builtin switch when tested alone)

Between terminals of the same polarity

1,000 VAC (except connector models)

Dielectric strength

(50/60 Hz for 1 min)

Between currentcarrying metal part and ground

Between each terminal and non-currentcarrying metal part

2,200 VAC (1,500 V)

2,200 VAC (1,500 V)

Vibration resistance

Malfunction 10 to 55 Hz, 1.5-mm double amplitude

Shock resistance

Destruction 1,000 m/s 2 min.

Malfunction 300 m/s 2 min.

Ambient operating temperature

Ambient operating humidity

Weight

–10

°C to +80°C (with no icing)

35% to 95%RH

Approx. 275 g (in case of WLCA2)

Note: The figures in parentheses for dielectric strength, are those for overtravel

(high-sensitivity) or connector models.

* The values are calculated at an operating temperature of +5

°C to +35°C, and an operating humidity of 40% to 70%RH. Contact your OMRON sales representative for more detailed information on other operating environments.

Engineering Data

Electrical Durability: cos

φ= 1

(Operating temperature: +5

°C to +35°C, operating humidity: 40% to

70%RH)

1,000

Operating frequency:

30 operations/min cos

φ= 1

500

125 VAC

300

250 VAC

100

480 VAC

50

30

10

0 2 4 6 8 10 12

Switching current (A)

22

WL/WLM

Structure and Nomenclature

Structure

General-purpose Switches: WLCA2

Head-mounting Screws

Head

The Head used in the roller lever type, adjustable rod lever type, or horizontal plunger type (except for 90

° operation models) can be mounted in any of the four directions by removing the screws at the four corners of the Head.

Shaft Section Seal

By fitting an O-ring to the rotary shaft and with an appropriate interference of the screws, high-sealing properties are maintained.

Operational Plunger *2

Bearing

The bearing smooths the plunger movement.

Built-in Switch

Built-in switch with SPST-NO+NC contact form.

Terminal Screws

Four, M4 screws

Separator

The separator has outstanding insulation properties and prevents the generation of any gases which may corrode the internal parts.

Conduit Opening *1

The conduit threads are parallel threads for G½ tube and offer further increased sealing properties when used in conjunction with the SC connector.

Actuator

Roller

The roller is made of self-lubricating sintered stainless steel and boasts high resistance to wear.

Lever

The lever forged of anti-corrosive aluminium alloy features high corrosion resistances and outstanding ruggedness.

With roller lever, adjustable rod and flexible rod models, the actuator position can be set anywhere within 360

°. (The lever cannot be mounted in the opposite direction.)

Roller Lever Setscrew

Set Position Marker Plate

After operation, set the indicator needle on the marker plate so that is in the convex section of the bearing. For the

WLD2, insert the needle so that it is between the two main wires on the plunger.

Requires maintenance

(excessive overtravel)

Proper range

Requires maintenance (insufficient overtravel)

Proper range

Requires maintenance

(excessive overtravel)

Cover Seal

By using a packing seal as the cover seal, an optimum squeeze can be obtained and high sealing properties are assured as well.

Cover

Cover Setscrew

Phillips screws are used to ensure ease of use.

*1. The display for conduit threads has changed from PF½ to G½, according to revisions of JIS B 0202. This is only a change in the display, so the thread size and pitch have not changed. (Conduit threads Pg 13.5 and ½-14NPT are also available.)

*2. By changing the orientation of the operational plunger, any one of the three operational directions (both sides, left, or right) can be selected electrically.

23

WL/WLM

Indicators

Indicator Covers

The indicator covered if outsert molded from diecast aluminum and has outstanding sealing properties.

Indicator Windows

Operation (i.e., light-ON when operating or light-ON when not operating) depends on whether a neon lamp or LED is used.

Light-ON when Operating/Not Operating

Indicators can be switched from light-ON when operating and light-ON when not operating, by simply rotating the indicator holder by 180

°.

(Molded terminals cannot be switched in this way.)

Light-ON when Operating Light-ON when Not Operating

LED at top

Indicator

The indicator is either a neon lamp or an LED. Models with LED indicators have a built-in rectifier stack, so it is not necessary to change the polarity.

Contact Spring

The built-in switch's terminal screws are used to connect the indicator terminal. Since the connection spring

(coil spring) is used for this connection, it will not be necessary to connect the indicator terminal. When a ground terminal is provided however, a lead wire must be used.

Operation

LED at bottom

Internal Circuits

WL-LE

WL-LD

Light-ON when operating * 1

Light-ON when not operating * 2

Power

4

Built-in switch

Za

3

1 2

Load

Internal circuits

4

Power

Internal circuits

Za

3

Load

1

Built-in switch

2

WL-LE

WL-LD

Neon lamp

Contact spring

Resistor

Contact spring

Zener diode

Rectifier stack

Resistor

Rated current diode

Resistor

LED

Note: 1. The indicator cover cannot be replaced on the molded terminals. In all cases the indicator does not light when the load is ON.

2. Leakage current from indicator circuit may cause load's malfunction. Please check the load's OFF current before use the indicator-equipped switch.

*1. Light-ON when operating means that the lamp lights when the Limit Switch contacts (NC) release, or when the actuator rotates or is pushed down.

*2. Light-ON when not operating means the lamp remains lit when the actuator is free, or when the Limit Switch contacts (NO) close when the actuator rotates or is pushed down.

24

Environment-resistant Switches

Mold Specifications for Hermetic Seal Switches

WL

@-139

WL

@-140

Standard built-in switch

Airtight built-in switch

: Molded parts

WL

@-141

Oil seal for protection against cutting powder

X-ring

Airtight built-in switch

WL/WLM

WL

@-145

Oil seal for protection against cutting powder

X-ring

Airtight built-in switch

WL

@-RP40

O-ring

Airtight built-in switch

WL

@-RP60

Airtight built-in switch

* Florine rubber is used for all rubber parts.

Model

WL @-139

WL

@-140

WL @-141

WL

@-145

WL @RP40

WL

@RP60

Cable specifications

Standard 5-m VCT (vinyl cabtire cable) cable attached. Finished diameter: 11.5 mm, 4-conductor.

Standard 5-m VCT cable, with high flexibility and good anti-oil properties attached. Finished diameter: 11.5 mm, 4-conductor.

Spatter-prevention Switches: WLCA2-LEAS

Actuator

Roller, Roller Axis

Using stainless steel prevents spatter from adhering.

Operating Lever

Melamine sinter-painted, it is easy to peel off the spatter.

Double Nut

SUS is used for double nut.

Lamp Cover

· Heat-resistant resin is used for the lamp cover.

· By using spherical surface for the display part, it disperses the direction of spatter.

Screws

SUS is used, preventing spatter from adhering.

Head Cap

Using fluororesin prevents spatter from adhering.

* Spatter means the zinc powder produced when welding.

Adhering spatter to the Limit Switch may cause malfunction of lever or lamp cover.

The lack of gap prevents spatter powder from clogging.

25

WL/WLM

Long-life Switches: WLMGCA2-LD

Release Plunger

Hardening method changed for greater abrasion resistance.

Long-life Model

Standard Model

Sintered alloy

Stainless steel +

Hardening

Set Position Marker Plate

The set position is easy to view.

The stroke is indicated in fluorescent color that is visible from the slit in the rubber cap.

Standard Model Long-life Model

Head

The Head can be mounted in any of the four directions by removing the screws at the four corners of the Head.

Shaft Section Seal

By fitting a double seal consisting of an oil seal and an X-ring to the rotary shaft, even greater sealing properties are achieved.

Standard Model Long-life Model

O-ring

Oil seal

X-ring

Smoother Movement

A grease holder is provided on the shaft to prevent the grease from running out.

Standard Model

Long-life Model

Grease holder

Smooth movement is achieved using olefin grease. (Standard models use molybdenum disulfide grease.)

Bearing

The bearing smooths the plunger movement.

Built-in Switch

Built-in switch with SPST-NO+NC contact form.

Fluorescent paint

Requires maintenance (excessive overtravel)

Proper range

Requires maintenance (insufficient overtravel)

Proper range

Requires maintenance (excessive overtravel)

Head

Mounting

Screws

Actuator

Roller

The roller is made of self-lubricating stainless sintered and boasts high resistance to wear.

Lever

The lever forged of anti-corrosive aluminium alloy features high corrosion resistance and outstanding ruggedness. With roller lever models, the actuator position can be set anywhere within 360

°. (The lever cannot be mounted in the opposite direction.)

Operational Plunger *

Cover Seal

By using a packing seal as the cover seal, an optimum squeeze can be obtained and high sealing properties are assured as well.

Terminal Screws

Four, M4 screws

Cover

Separator

The separator has outstanding insulation properties and prevents the generation of any gases which may corrode the internal parts.

Conduit Opening

In addition to level screws which use G½ tube, direct-wired and pre-wired connectors have been added to the Series.

Cover Mounting Screw

Phillips screws are used to ensure ease of use.

* By changing the direction of the operational plunger, any one of the three operational directions (both sides, left, or right) can be selected.

26

WL/WLM

Contact Forms

Screw Terminal Switches

(NO) 4

(NC) 1

Za

3 (NO)

2 (NC)

Direct-wired Connector Switches

Indicator-equipped (Light-ON when Not Operating)

Switches * 1

AC DC

Internal circuits

Za

Internal circuits

Za

Screw Terminal Switches

Indicator-equipped (Light-ON when Not Operating)

Switches * 1

Internal circuits

Za

(NO) 4 3 (NO)

(NC) 1 2 (NC)

Pre-wired Connector Switches

Indicator-equipped (Light-ON when Not Operating)

Switches * 1

DC

(2-core)

Internal circuits

Za

DC

(3-core, 4-core)

Internal circuits

Za connector pin

2-core

No.

4-core

NO NC

4

4

--

1

NC NO

-3

2 3 connector pin

2-core

No.

4-core

NO NC

4 --

4 1

NC NO

-3

2 3 connector pin

No.

2-core

NO NC

4

4

--

3

NC NO

-3

1

2 connector pin

No.

3-core

4-core

NO NC

4 --

4 1

NC NO

2

2

3

3

Positioning piece * 2

Positioning piece * 2

2 2

NC NC

3 1

NC

NO

3 1

NC

NO

4 4

NO NO

Note: Leakage current from indicator circuit may cause load's malfunction. Please check the load's OFF current before use the indicator-equipped switch.

*1. Light-ON when not operating means the indicator is lit when the actuator is free and is not light when the Switch contacts (NO) close when the actuator rotates or is pushed down.

*2. The position of the positioning piece is not always the same. If using an L-shaped connector causes problems in application, use a straight connector.

27

Dimensions and Operating Characteristics

WL/WLM

(Unit: mm)

General-purpose Models

Standard Models

Basic

Rotating Lever

........ For all models WL @ indicates a standard-load model and [email protected] indicates a microload model.

Roller lever R38

WLCA2

WL01CA2

38R

Four, M3.5

M5 (length: 12)

Allen-head bolt

(125)

14.7

58.7

±0.2

Four, 5.2

dia. holes

+0.2

0

Three, M4

(lengh:13)

5

(4.9)

(15.1)

30.2

±0.2

40 ±0.7

* Stainless sintered roller

JIS B0202 G½

Effective thread:

4 threads min.

Roller lever R63

WLCA2-8

WL01CA2-8

17.5 dia.

× 7 *

17.5 dia.

× 7 *

60 max.

53 ±1.5

41.5

±1.5

40 ±1.5

13.1

25.4

12.7

21.6

±1.2

29.2

35

60 max.

53.2

±0.8

60 max.

53

±1.5

41.5

±1.5

40 ±1.5

25.4

68.7

Four, M6

Depth: 15 min.

Roller lever R50

WLCA2-7

WL01CA2-7

WL01CA12

(137)

14.7

58.7

±0.2

5

50R

(4.9)

(15.1)

30.2

±0.2

40 ±0.7

* Stainless steel roller

Adjustable Roller Lever

WLCA12

17.5 dia.

× 15 *

Four, M3.5

M5 (length: 12)

Allen-head bolt

Four, 5.2

+0.2

0 dia. holes

Three, M4

(length: 13)

JIS B0202 G½

Effective thread:

4 threads min.

17.5 dia.

× 7 *

67.2 max.

58.1

±1.5

36 ±1.5

13.1

25.4

12.7

21.6

±1.2

29.2

35

42 max.

53.2

±0.8

Four, M6

Depth: 15 min.

67 max.

60

±1.5

41.5

±1.5

13.1

25.4

12.7

25.4

68.7

(150)

14.7

63R

Four, M3.5

Four, 5.2

dia. holes

+0.2

0

M5 (length: 12)

Allen-head bolt

13.1

25.4

12.7

25.4

Adjustable range:

25 to 89

14.7

58.7

±0.2

Four, M3.5

M5 (length: 16)

Allen-head bolt

Four, 5.2

+0.2

dia. holes

0

25.4

68.7

Three, M4

(length: 13)

58.7

±0.2

5

(4.9)

Three, M4

(length: 13)

(15.1)

30.2

±0.2

40

±0.7

JIS B0202 G½

Effective thread:

4 threads min.

* Stainless sintered roller

68.7

21.6

±1.2

29.2

35

42 max.

53.2

±0.8

Four, M6

Depth: 15 min.

5

(4.9)

(15.1)

30.2

40

±0.2

±0.7

JIS B0202 G½

Effective thread:

4 threads min.

* Stainless sintered roller

21.6

±1.2

29.2

35

42 max.

65.2

±0.8

Four, M6

Depth: 15 min.

Adjustable Rod Lever (25 to 140 mm)

WLCL

WL01CL

9

Adjustable range:

25 to 140

14.7

3

±0.2

dia.

(length: 160) *

Four, M3.5

M8

×12

Allen-head set screw

M5

× 12

Allen-head bolt

55 max.

46

±1.5

13.1

25.4

12.7

Fork Lever Lock

WLCA32-41 to 44

WL01CA32-41 to 44

(For details see page 42)

90

±3°

Two, 17.5 dia.

(length: 7) *

R38

Four, M3.5

62.5 max.

56.4

±3.5

42.8

±3.5

13.1

25.4

12.7

34.1

25.4

14.7

(125)

M5

× 16

Allen-head bolt

Four, 5.2

dia. holes

+0.2

0

Four, 5.2

dia. holes

+0.2

0

58.7

±0.2

68.7

58.7

±0.2

68.7

Three, M4

(length: 13)

5

(4.9)

Three, M4

(length: 13)

(15.1)

30.2

±0.2

40

±0.7

JIS B0202 G½

Effective thread:

4 threads min.

* Stainless steel rod

21.6

±1.2

29.2

35

42 max.

Four, M6

Depth: 15 min.

Note: Unless otherwise indicated, a tolerance of

±0.4 mm applies to all dimensions.

5

(4.9)

Note: This illustration shows the external dimensions of the WLCA32-41.

JIS B0202 G½

21.6

(15.1)

Effective thread:

4 threads min.

±1.2

29.2

35

Four, M6

Depth: 15 min.

30.2

±0.2

40 ±0.7

* Plastic roller

42 max.

(Models WLCA32-041 to -044 and WL01CA32-

041 to -044 have stainless steel rollers.)

Model

Operating characteristics

WLCA2

WL01CA2

Operating force

Release force

Pretravel

Overtravel

Movement Differential

OF max.

RF min.

PT

OT min.

MD max.

13.34 N

2.23 N

15

° ±5°

30

°

12

°

WLCA2-7

WL01CA2-7

10.2 N

1.67 N

15

° ±5°

30

°

12

°

WLCA2-8

WL01CA2-8

8.04 N

1.34 N

15

° ±5°

30

°

12

°

WLCA12

WL01CA12

13.34 N

2.23 N

15

° ±5°

30

°

12

°

* 1

* 1

WLCL *

30

°

12

°

2

WL01CL

1.39 N

0.27 N

15

° ±5°

* 2

*1. The operating characteristics for WLCA12 and WL01CA12 are measured at the lever length of

38 mm.

*2. The operating characteristics for WLCL and WL01CL are measured at the rod length of 140 mm.

Operating characteristics

Model

Force necessary to reverse the direction of the lever: Max.

Movement until the lever reverses

Movement until switch operation: Min.

Movement after switch operation: Max.

WLCA32-41 to 44

11.77 N

50

° ±5°

55

°

35

°

OF and RF for WLCA12, with a lever length of 89 mm.

WLCA12, WL01CA12

* 1

WL01CA32-41 to 44 * 1

OF

RF

5.68 N

0.95 N

28

WL/WLM

Basic

Plunger

.....................For all models WL

@ indicates a standard-load model and [email protected] indicates a microload model.

Top Plunger

WLD

WL01D

PT

9.2 dia.

1R *

13.1

12.9

Horizontal Plunger

WLSD

WL01SD

25.4

Four, M3.5

PT OP

46.6

±0.8

13.1

12.7

Four, M3.5

WLD2

WL01D2

WL01D3

58.7

±0.2

Top-roller Plunger

PT

Top-ball Plunger

WLD3

5

OP

(4.9)

OP

58.7

±0.2

Four, 5.2

dia. holes

+0.2

0

Three, M4

(length: 13)

5

(4.9)

(15.1)

30.2

±0.2

40 ±0.7

JIS B0202 G½

Effective thread:

4 threads min.

* Stainless sintered roller

68.7

21.6

±1.2

29.2

35

42 max.

Four, M6

Depth: 15 min.

PT

Four, 5.2

dia. holes

+0.2

0

Three, M4

(length: 13)

(15.1)

30.2

±0.2

40

±0.7

JIS B0202 G½

Effective thread:

4 threads min.

* Stainless steel plunger

21.6

±1.2

29.2

35

42 max.

17.5 dia. (length: 4.6) *

Four, M3.5

15.5 dia.

1/2 dia. *

13.1

12.9

13.1

12.9

19.9

68.7

Four, M6

Depth: 15 min.

28

27.5

17.8

(96.2)

58.7

±0.2

Four, 5.2

+0.2

0 dia. holes

1R *1

25 dia. *2

Three, M4

(length: 13)

68.7

5

(4.9)

Horizontal-roller Plunger

WLSD2

25.4

WL01SD2

(15.1)

30.2

±0.2

40 ±0.7

JIS B0202 G½

Effective thread:

4 threads min.

*1. Stainless steel plunger

*2. Cosmetic nuts

Four, M3.5

17.5 dia.

PT

(length: 4.6)*1

21.6

±1.2

29.2

35

42 max.

OP

55.7

±0.8

13.1

12.7

Four, M6

Depth: 15 min.

27.5

17.8

(96.2)

58.7

±0.2

Four, 5.2

+0.2

dia. holes

0

Three, M4

25 dia. *2

(length: 13)

68.7

5

(15.1)

(4.9)

30.2

±0.2

40

±0.7

*1. Stainless sintered roller

JIS B0202 G½

Effective thread:

4 threads min.

21.6

±1.2

29.2

35

Four, M6

Depth: 15 min.

42 max.

*2. Cosmetic nuts

Note: The WLSD21 model, which has the roller rotated by 90

° is also available.

Horizontal-ball Plunger

WLSD3

WL01SD3

25.4

Four, M3.5

PT OP

46.6

±0.8

13.1

12.7

OP

Four, M3.5

27.5

19.9

17.8

68.7

(96.2)

58.7

±0.2

1/2 dia. *1

Four, 5.2

+0.2

dia. holes

0

25 dia. *2

Three, M4

(length: 13)

68.7

58.7

±0.2

Four, 5.2

dia. holes

+0.2

0

Three, M4

(length: 13)

5

(4.9)

(15.1)

30.2

±0.2

40

±0.7

JIS B0202 G½

Effective thread:

4 threads min.

* Stainless steel ball

Sealed Top-roller Plunger

WLD28

WL01D28

PT

11.2 dia. (length: 5) *

Four, M3.5

OP

21.6

±1.2

29.2

35

42 max.

Four, M6

Depth: 15 min.

13.1

12.9

24

5

(4.9)

(15.1)

30.2

±0.2

40 ±0.7

JIS B0202 G½

Effective thread:

4 threads min.

*1. Stainless steel ball

*2. Cosmetic nuts

21.6

±1.2

29.2

35

42 max.

Four, M6

Depth: 15 min.

58.7

±0.2

Four, 5.2

dia. holes

+0.2

0

Three, M4

(length: 13)

68.7

5

(4.9)

(15.1)

30.2

±0.2

40 ±0.7

JIS B0202 G½

Effective thread:

4 threads min.

* Stainless steel roller

21.6

±1.2

29.2

35

42 max.

Four, M6

Depth: 15 min.

Note: Unless otherwise indicated, a tolerance of

±0.4 mm applies to all dimensions.

Model

Operating characteristics

Operating force

Release force

Pretravel

Overtravel

Movement Differential

Operating Position

Total travel Position

OF max.

RF min.

PT max.

OT min.

MD max.

OP

TTP max.

WLD

WL01D

26.67 N

8.92 N

1.7 mm

6.4 mm

1 mm

34

±0.8 mm

29.5 mm

WLD2

WL01D2

26.67 N

8.92 N

1.7 mm

5.6 mm

1 mm

44

±0.8 mm

39.5 mm

WLD3

WL01D3

26.67 N

8.92 N

1.7 mm

4 mm

1 mm

44.5

±0.8 mm

41 mm

WLD28

WL01D28

16.67 N

4.41 N

1.7 mm

5.6 mm

1 mm

44

±0.8 mm

39.5 mm

WLSD2

WL01SD2

40.03 N

8.89 N

2.8 mm

5.6 mm

1 mm

54.2

±0.8 mm

WLSD3

WL01SD3

WLSD

WL01SD

40.03 N

8.89 N

2.8 mm

4 mm

1 mm

54.1

±0.8 mm

40.03 N

8.89 N

2.8 mm

6.4 mm

1 mm

40.6

±0.8 mm

29

WL/WLM

Basic

Flexible Rod

............ For all models WL @ indicates a standard-load model and [email protected] indicates a microload model.

Coil Spring

WLNJ

WL01NJ

140

±2.5

(107)

*3

PT

*1

6.5 dia.

*2

13.1

Coil Spring (Multi-wire)

WLNJ-30

WL01NJ-30

140

±2.5

(107)

*3

PT

*1

4.8 dia.

*2

13.1

32.7

±0.8

58.7

±0.2

Four, 5.2

dia. holes

+0.2

0

Three, M4

(length: 13)

68.7

5

(4.9)

(15.1)

30.2

±0.2

40

±0.7

JIS B0202 G½

Effective thread:

4 threads min.

21.6

±1.2

29.2

35

42 max.

Four, M6

Depth: 15 min.

*1. The coil spring may be operated from any direction except the axial direction (

↓).

*2. Stainless steel coil spring

*3. Optimum operating range of the coil spring is within 1/3 of the entire length from the top end.

32.7

±0.8

58.7

±0.2

Four, 5.2

+0.2

0 dia. holes

Three, M4

(length: 13)

68.7

5

(4.9)

(15.1)

30.2

±0.2

40 ±0.7

JIS B0202 G½

Effective thread:

4 threads min.

21.6

±1.2

29.2

35

Four, M6

Depth: 15 min.

42 max.

*1. The coil spring may be operated from any direction except the axial direction (

↓).

*2. Piano wire coil

*3. Optimum operating range of the coil spring is within 1/3 of the entire length from the top end.

Coil Spring (Resin Rod)

PT

WLNJ-2

WL01NJ-2

*3

*1

140

±2.5

(95.4)

26 dia.

44.6

±0.8

8 dia.

*2

13.1

58.7

±0.2

Four, 5.2

dia. holes

+0.2

0

Three, M4

(length: 13)

68.7

5

(4.9)

(15.1)

30.2

±0.2

40

±0.7

JIS B0202 G½

Effective thread:

4 threads min.

21.6

±1.2

29.2

35

42 max.

Four, M6

Depth: 15 min.

*1. The resin rod may be operated from any direction except the axial direction (

↓).

*2. Polyamide resin rod

*3. Optimum operating range of the resin rod is within 1/3 of the entire length from the top end.

Steel Wire

WLNJ-S2

WL01NJ-S2

193

±2.5

(161)

*3

PT

*1

1 dia.

*2

13.1

32 ±0.8

58.7

±0.2

Four, 5.2

+0.2

dia. holes

0

Three, M4

(length: 13)

68.7

5

(4.9)

(15.1)

30.2

±0.2

40

±0.7

JIS B0202 G½

Effective thread:

4 threads min.

21.6

±1.2

29.2

35

42 max.

Four, M6

Depth: 15 min.

*1. The steel wire may be operated from any direction except the axial direction (

↓).

*2. Stainless steel wire

*3. Optimum operating range of the steel wire is within 1/3 of the entire length from the top end.

Note: Unless otherwise indicated, a tolerance of

±0.4 mm applies to all dimensions.

Model

Operating characteristics

WLNJ *

WL01NJ *

WLNJ30 *

WL01NJ30 *

Operating force

Pretravel

OF max.

PT

1.47 N

20

±10mm

1.47 N

20

±10mm

* These values are taken from the top end of the wire or spring.

WLNJ-2 *

WL01NJ-2 *

1.47 N

40

±20mm

WLNJ-S2 *

WL01NJ-S2 *

0.28 N

40

±20mm

30

WL/WLM

Overtravel

General-purpose/High-sensitivity Models

........... For all models WL @ indicates a standard-load model and [email protected] indicates a microload model.

Roller Lever R38

WLH2

WL01H2

WLG2

WL01G2

17.5 dia. (length: 7) *

60 max.

53 ±1.5

41.5

±1.5

40 ±1.5

13.1

25.4

12.7

38R

Four, M3.5

M5 (length: 12)

Allen-head bolt

25.4

(125)

14.7

58.7

±0.2

Four, 5.2

dia. holes

+0.2

0

Three, M4

(length: 13)

68.7

5

(4.9)

(15.1)

30.2

±0.2

40

±0.7

* Stainless sintered roller

JIS B0202 G½

Effective thread:

4 threads min.

21.6

±1.2

29.2

35

42 max.

53.2

±0.8

Four, M6

Depth: 15 min.

Note: 1. WL @G2 is identical to other models except in the shape of the set position marker plate.

2. The built-in switch for WLH2 is W-10FB3.

3. The built-in switch for WLG2 is W-10FB3-8.

Adjustable Roller Lever

WLH12

WL01H12

WLG12

WL01G12

Adjustable range:

25 to 89

14.7

17.5 dia. (length: 7) *

Four, M3.5

M5 (length: 16)

Allen-head bolt

Four, 5.2

dia. holes

+0.2

0

67 max.

60 ±1.5

41.5

±1.5

13.1

25.4

12.7

25.4

58.7

±0.2

5

(15.1)

(4.9)

30.2

±0.2

40 ±0.7

* Piano wire

Three, M4

(length: 13)

JIS B0202 G½

Effective thread:

4 threads min.

68.7

Rod Spring Lever

WLHAL5

WL01HAL5

5

(4.9)

(15.1)

30.2

±0.2

40

±0.7

JIS B0202 G½

Effective thread:

4 threads min.

21.6

±1.2

29.2

35

42 max.

65.2

±0.8

Four, M6

Depth: 15 min.

* Stainless sintered roller

Note: 1. WL @G12 is identical to other models except in the shape of the set position marker plate.

2. The built-in switch for WLH12 is W-10FB3.

3. The built-in switch for WLG12 is W-10FB3-8.

7.7

2.3 dia. *

428.5

±2

65

M5 (length: 16)

Allen-head bolt

54

±1.5

41.5

±1.5

13 .1

25.4

12.7

11

14.7

25.4

58.7

±0.2

Four, 5.2

dia. holes

+0.2

0

Three, M4

(length: 13)

68.7

21.6

±1.2

2 9.2

3 5

42 max.

Four, M6

Depth: 15 min.

Adjustable Rod Lever

WLHL

WL01HL

WLGL

WL01GL

Adjustable range:

25 to 140

9

14.7

58.7

±0.2

5

(4.9)

(15.1)

30.2

±0.2

40

±0.7

JIS B0202 G½

Effective thread:

4 threads min.

* Stainless sintered roller

21.6

±1.2

29.2

35

42 max.

Four, M6

Depth: 15 min.

Note: 1. WL @GL is identical to other models except in the shape of the set position marker plate.

2. The built-in switch for WLHL is W-10FB3.

3. The built-in switch for WLGL is W-10FB3-8.

Adjustable Rod Lever

WLHAL4

WL01HAL4

3.2 dia. *

Adjustable range:

350 to 380

8

12 .8

M5 (length: 12)

6 5

Allen-head bolt

54.5

±1.5

41.5

±1.5

13 .1

2 5 .4

12 .7

2 5 .4

14 .7

58.7

±0.2

Four, 5.2

dia. holes

+0.2

0

Three, M4

(length: 13)

6 8 .7

5

3

±0.2 dia.

(length: 160) *

Four, M3.5

M8 (length: 12)

Allen-head lock screw

M5 (length: 12)

Allenhead bolt

Four, 5.2

dia. holes

+0.2

0

Three, M4

(length: 13)

(15.1)

(4.9)

30.2

±0.2

40 ±0.7

* Stainless steel rod

55 max.

46

±1.5

41.5

±1.5

13.1

25.4

12.7

25.4

68.7

JIS B0202 G½

Effective thread:

4 threads min.

21.6

±1.2

2 9.2

3 5

42 max.

Four, M6

Depth: 15 mi

Note: Unless otherwise indicated, a tolerance of

±0.4 mm applies to all dimensions.

OF and RF for WLH12 and WL01H12, with a lever length of

89 mm.

OF

RF

WLH12, WLA01H12

4.18 N

0.42 N

WLG12, WL01G12

4.18 N

0.42 N

Operating characteristics

Operating force

Release force

Model

OF max.

RF min.

Pretravel PT

Movement Differential MD max.

WLH2

WL01H2

9.81 N

0.98 N

15

° ±5°

Overtravel OT

55

°

12

°

WLG2

WL01G2

9.81 N

0.98 N

10

° +2

°

–1

°

65

°

7

°

WLH12 * 1

WL01H12 * 1

9.81 N

0.98 N

15

° ±5°

55

°

12

°

WLG12 * 1

WL01G12

9.81 N

0.98 N

10

° +2

°

–1

°

65

°

7

°

* 1

WLHL

WL01HL

2.84 N

0.25 N

15

° ±5°

55

°

12

°

* 1

* 1

WLGL *

2.84 N

0.25 N

10

° +2

°

–1

°

65

°

7

°

2

WL01GL * 2

WLHAL4 *

WL01HAL4

0.98 N

3

0.15 N

15

° ±5°

55

°

12

°

* 3

WLHAL5

WL01HAL5

0.90 N

0.09 N

15

° ±5°

55

°

12

°

Note: With WLHAL4, WL01HAL4, WLHAL5, and WL01HAL5, the actuator's tare is large, so depending on the installation direction, they may not be properly reset.

Always install so that the actuator is facing downwards.

*1. The operating characteristics of WLH12, WL01HL12, WLG12, and WL01G12 are measured at the lever length of 38 mm.

*2. The operating characteristics of WLHL, WL01HL, WLGL, and WL01GL are measured at the rod length of 140 mm.

*3. The operating characteristics of WLHAL4, and WL01HAL4 are measured at the rod length of 380 mm.

31

WL/WLM

Overtravel

Side-installation Models

... For all models WL @ indicates a standard-load model and [email protected] indicates a microload model.

Roller Lever

WLCA2-2N

WL01CA2-2N

(126.5)

16.1

58.7

±0.2

17.5 dia. (length: 7) *

38R

Four, M3.5

Two, M5

(length: 18)

M5 (length: 12)

Allen-head bolt

Four, 5.2

+0.2

dia. holes

0

Two, 5.2

dia. holes

Three, M4

+0.2

0

(length: 13)

60 max.

53 ±1.5

41.5

±1.5

40 ±1.5

22

11 13.1

11.5

(10.8)

64 ±0.2

101.8

5 5

5

Four, M6

Depth: 15 min.

(4.9)

(15.1)

30.2

±0.2

40 ±0.7

* Stainless sintered roller

JIS B0202 G½

Effective thread:

4 threads min.

±0.2

23

21.6

33 ±1.2

35

42 max.

Roller Lever

WLCA2-2

WL01CA2-2

17.5 dia. (length: 7) *

38R

Four, M3.5

M5 (length: 12)

Allen-head bolt

(126.5)

16.1

58.7

±0.2

Four, 5.2

+0.2

0 dia. holes

Three, M4

(length: 13)

5

(4.9)

(15.1)

30.2

±0.2

40

±0.7

* Stainless sintered roller

JIS B0202 G½

Effective thread:

4 threads min.

60 max.

53

±1.5

41.5

±1.5

40

13.1

25.4

12.7

25.4

68.7

21.6

±1.2

29.2

35

42 max.

53.2

±0.8

Four, M6

Depth: 15 min.

Adjustable Roller Lever

WLCA12-2N

17.5 dia. (length: 7) *

WL01CA12-2N

Adjustable range:

25 to 89

16.1

Four, M3.5

Two, M5

(length: 18)

M5 (length: 16)

Allen-head bolt

67 max.

60

±1.5

41.5

±1.5

22

11 13.1

11.5

(10.8)

Four, 5.2

dia. holes

+0.2

0

58.7

±0.2

5

(4.9)

(15.1)

30.2

±0.2

40 ±0.7

Two, 5.2

+0.2

0 dia. holes

Three, M4

(length: 13)

JIS B0202 G½

Effective thread:

4 threads min.

* Stainless sintered roller

±0.2

23

21.6

33 ±1.2

35

42 max.

64

101.8

±0.2

5

5

Four, M6

Depth: 15 min.

Adjustable Roller Lever

WLCA12-2

WL01CA12-2

17.5 dia. (length: 7) *

Four, M3.5

Adjustable range:

25 to 89

16.1

M5 (length: 16)

Allen-head bolt

Four, 5.2

+0.2

0 dia. holes

58.7

±0.2

Three, M4

(length: 13)

5

(4.9)

(15.1)

30.2

±0.2

40 ±0.7

JIS B0202 G½

Effective thread:

4 threads min.

* Stainless sintered roller

67 max.

60

±1.5

41.5

±1.5

13.1

25.4

12.7

25.4

68.7

Adjustable Rod Lever

WLCL-2N

WL01CL-2N

Adjustable range:

25 to 140

9

3

±0.2

dia.

(length: 160) *

M8 (length: 12)

Allen-head lock screw

Four, M3.5

Two, M5 (length: 18)

M5 (length: 12)

Allen-head bolt

55 max.

46

22

±1.5

11 13.1

16.1

58.7

±0.2

Four, 5.2

dia. holes

+0.2

0

Two, 5.2

+0.2

0 dia. holes

Three, M4

(length: 13)

5

(4.9)

(15.1)

30.2

±0.2

40 ±0.7

* Stainless steel rod

JIS B0202 G½

Effective thread:

4 threads min.

±0.2

23

21.6

33

±1.2

35

42 max.

11.5

(10.8)

64

±0.2

101.8

5

5

Four, M6

Depth: 15 min.

Note: Unless otherwise indicated, a tolerance of

±0.4 mm applies to all dimensions.

Adjustable Rod Lever

WLCL-2

WL01CL-2

9

Adjustable range:

25 to 140

M8 (length: 12)

Four, M3.5

Allen-head lock screw

M5 (length: 12)

Allen-head bolt

16.1

3

±0.2

dia.

(length: 160) *

Four, 5.2

+0.2

dia. holes

0

58.7

±0.2

Three, M4

(length: 13)

5

(4.9)

(15.1)

30.2

±0.2

40

±0.7

* Stainless steel rod

JIS B0202 G½

Effective thread:

4 threads min.

21.6

±1.2

29.2

35

42 max.

65.2

±0.8

Four, M6

Depth: 15 min.

55 max.

46

±1.5

41.5

±1.5

13.1

25.4

12.7

25.4

68.7

21.6

±1.2

29.2

Four, M6

Depth: 15 min.

35

42 max.

Model

Operating characteristics

WLCA2-2N

WL01CA2-2N

Operating force OF max.

9.61 N

Release force RF min.

Pretravel PT

Movement Differential MD max.

1.18 N

20

° max.

Overtravel OT

70

°

10

°

WLCA12-2N

70

°

10

°

*

9.61 N

1

WL01CA12-2N

1.18 N

20

° max.

* 1

WLCL-2N * 2

WL01CL-2N

2.84 N

*

0.25 N

20

° max.

70

°

10

°

2

WLCA2-2

WL01CA2-2

8.83 N

0.49 N

25

° ±5°

60

°

16

°

WLCA12-2

60

°

16

°

* 1

WL01CA12-2

8.83 N

0.49 N

25

° ±5°

* 1

*1. The operating characteristics of WLCA12-2N and WL01CA12-2N are measured at the lever length of 38 mm.

*2. The operating characteristics of WLCL-2N and WL01CL-2N are measured at the rod length of 140 mm.

WLCL-2 * 2

WL01CL-2 * 2

2.55 N

0.1 N

25

° ±5°

60

°

16

°

OF and RF for WLCA12-2N and WL01CA12-2N, with a lever length of 89 mm.

OF

RF

WLCA12-2N,

WLA01CA12-2N

4.10 N

0.50 N

32

WL/WLM

High-precision Models

WL

@ are Standard Models and [email protected] are Microload Models.

Roller Lever

WLGCA2

WL01GCA2

17.5 dia. (length: 7) *

60 max.

53

±1.5

41.5

±1.5

40

±1.5

13.1

25.4

12.7

38R

Four, M3.5

M5 (length: 12)

Allen-head bolt

(125)

14.7

Four, 5.2

dia. holes

+0.2

0

58.7

±0.2

Three, M4

(length: 13)

5

(4.9)

(15.1)

30.2

±0.2

40

±0.7

* Stainless sintered roller

JIS B0202 G½

Effective thread:

4 threads min.

25.4

68.7

21.6

±1.2

29.2

Four, M6

Depth: 15 min.

35

42 max.

53.2

±0.8

Note: Unless otherwise indicated, a tolerance of

±0.4 mm applies to all dimensions.

Actuator

Operating characteristics

Operating force OF max.

Release force RF min.

Pretravel PT

Movement Differential MD max.

Standard roller lever actuator

13.34 N

2.23 N

15

° ±5°

30

°

12

°

High-precision roller lever actuator

13.34 N

1.47 N

5

° +2

°

0

°

40

°

3

°

Operating characteristics

Operating force

Release force RF min.

Pretravel PT

Model

OF max.

Movement Differential MD max.

WLGCA2

WL01GCA2

13.34 N

1.47 N

5

° +2

0

°

40

°

3

°

Sensor I/O Connector Switches

Direct-wired Connector/Pre-wired Connector Models

Refer to page 17 for the connecting cable.

Roller Lever Plungers

........WL

@ are Standard Models and [email protected] are Microload Models.

Standard Models (WLCA2), High-precision Models (WLGCA2),

Overtravel General-purpose Models (WLH2), Overtravel High-sensitivity Models (WLG2)

Pre-wired Connector Models Connector Models

17.5 dia. (length: 7) *

60 max.

53

±1.5

41.5

±1.5

40 ±1.5

13.1

25.4

12.7

Four, M3.5

38R

14.7

M5 (length: 12)

Allen-head bolt

Four, 5.2

+0.2

dia. holes

0

58.7

±0.2

Three, M4

(length: 13)

5

12.5

(4.9)

(15.1)

30.2

±0.2

40 ±0.7

* Stainless sintered roller

M12

× 1

JIS B0202 G½

Effective thread:

4 threads min.

25.4

68.7

21.6

±1.2

29.2

35

42 max.

53.2

±0.8

Four, M6

Depth: 15 min.

14.7

58.7

±0.2

5

(20)

300 ±50

38R

17.5 dia. (length: 7) *

Four, M3.5

M5 (length: 12)

Allen-head bolt

Four, 5.2

dia. holes

+0.2

0

Three, M4

(length: 13)

SC-1M

(4.9)

(15.1) XS2H-D421

30.2

±0.2

40

±0.7

* Stainless sintered roller

M12

× 1

Note: 1. Only the dimension of the set position marker plate is different for WLG2 Models.

2. Unless otherwise indicated, a tolerance of

±0.4 mm applies to all dimensions.

3. The models with operation indicators are shown in the above diagrams.

Overdrive generalpurpose actuator

9.81 N

0.98 N

15

° ±5°

55

°

12

°

60 max.

53

±1.5

41.5

±1.5

40

±1.5

13.1

25.4

12.7

25.4

68.7

Four, M6

Depth: 15 min.

21.6

±1.2

29.2

35

42 max.

53.2

±0.8

6 dia.

Overdrive high-sensitivity actuator

9.81 N

0.98 N

10

° +2

°

0

°

65

°

7

°

33

WL/WLM

Top-roller Plunger (WLD2)

Direct-wired Connector Models

PT

17.5 dia. (length: 4.6) *

Four, M3.5 (length: 10)

13.1

12.9

OP

28

Four, 5.2

+0.2

dia. holes

0

58.7

±0.2

Three, M4

(length: 13)

5

12.5

(4.9)

(15.1)

30.2

±0.2

40

±0.7

* Stainless sintered roller

M12

× 1

JIS B0202 G½

Effective thread:

4 threads min.

68.7

21.6

±1.2

29.2

Four, M6

Depth: 15 min.

35

42 max.

Note: 1. Unless otherwise indicated, a tolerance of

±0.4 mm applies to all dimensions.

2. The following diagrams are for a indicator-equipped models.

Actuator

Operating characteristics

Operating force

Release force

OF max.

RF min.

Top-roller plunger

Movement Differential MD max.

Operating Position OP

Total travel Position TTP max.

26.67 N

8.92 N

1.7 mm

5.6 mm

1 mm

44

±0.8mm

39.5 mm

Indicator-equipped Models

Roller Lever

WLCA2-LE/LD

WL01CA2-LE/LD

17.5 dia. (length: 7) *

60 max.

53

±1.5

41.5

±1.5

40 ±1.5

13.1

25.4

12.7

Four, M3.5

38R

25.4

(125)

14.7

58.7

±0.2

M5 (length: 12)

Allen-head bolt

Four, 5.2

+0.2

dia. holes

0

Three, M4

(length: 13)

68.7

5

(4.9)

(15.1)

30.2

40

±0.2

±0.7

JIS B0202 G½

Effective thread:

4 threads min.

* Stainless sintered roller

21.6

±1.2

29.2

35

42 max.

Four, M6

Depth: 15 min.

Note: Unless otherwise indicated, a tolerance of

±0.4 mm applies to all dimensions.

Actuator

Operating characteristics

WLCA2-LE/LD

WL01CA2-LE/LD

Operating force OF max.

13.34 N

Release force RF min.

Pretravel PT

Movement Differential MD max.

2.23 N

15

° ±5°

Overtravel OT

30

°

12

°

Pre-wired Connector Models

PT

17.5 dia. (length: 4.6) *

Four, M3.5 (length: 10)

OP

58.7

±0.2

5

(20)

Four, 5.2

+0.2

0 dia. holes

Three, M4

(length: 13)

SC-1M

300

±50

13.1

12.9

28

68.7

Four, M6

Depth: 15 min.

(4.9)

(15.1)

XS2H-D421

30.2

±0.2

40

±0.7

* Stainless sintered roller

M12

× 1

21.6

±1.2

29.2

35

42 max.

6 dia.

34

WL/WLM

Spatter-prevention Models

Roller Lever (Screw Terminals)

WLCA2-

@S/WL01@-@S

WLH2-

@S/WLG2-@S

WLGCA2-

@S

(125)

14.7

38R

17.5 dia. (length: 7) *

Four, M3.5 head clamping screws

Two, M5 Allen-head nut and arm set screw

Four, 5.2

+0.2

0 dia. holes

Fluororesin cap

60 max.

54 ±1.5

13.1

25.4

12.7

25.4

58.7

±0.2

68.7

Lamp cover

5

(4.9)

(15.1)

30.2

±0.2

40

±0.7

Three, M4

(length: 13)

JIS B0202 G½

Effective thread:

4 threads min.

* Stainless steel roller

21.6

±1.2

29.2

35

42 max.

Four, M6

Depth: 15 min.

Roller Lever (Pre-wired connectors)

WLCA2-

@S-M1J

* /WL01

@-@S-M1J

*

WLH2-

@S-M1J

* /WLG2-

@S-M1J

*

WLGCA2-

@S-M1J

*

* External dimensions are the same even for different core wires.

17.5 dia. (length: 7) *

60 max.

53 ±1.5

41.5

±1.5

40 ±1.5

13.1

38R

Four, M3.5 head clamping screws

Two, M5 Allen-head nut and arm set screw

25.4

12.7

14.7

Four, 5.2

+0.2

0 dia. holes

Fluororesin cap

25.4

58.7

±0.2

Three, M4

(length: 13)

Lamp cover

68.7

5

(20)

Four, M6

Depth: 15 min.

SC-1M

300

+100

−50

(4.9)

(15.1)

30.2

±0.2

40

±0.7

XS2H-D421

* Stainless steel roller

21.6

±1.2

29.2

35

42 max.

53.2

±0.8

6 dia.

Sealed Top-roller Plunger (Screw Terminals)

WLD28-

@S

Sealed Top-roller Plunger (Pre-wired connectors)

WLD28-

@S-M1J

*

* External dimensions are the same even for different core wires.

PT

OP

11.2 dia. (length: 5) *

Four, M3.5

Four, 5.2

dia. holes

+0.2

0

13.1

12.9

24

PT

OP

58.7

±0.2

11.2 dia. (length: 5) *

Rubber cap

(Fluorosilicone)

Four, M3.5 (length: 10)

Mounting bushing

Tightening screws and spring washers

Four, 5.2

dia. holes

+0.2

0

Three, M4

(length: 13)

Lamp cover

13.1

12.9

68.7

58.7

±0.2

68.7

Lamp cover

5

(4.9)

(15.1)

30.2

±0.2

40 ±0.7

Three, M4

(length: 13)

JIS B0202 G½

Effective thread:

4 threads min.

21.6

±1.2

29.2

35

42 max.

Four, M6

Depth: 15 min.

* Stainless steel roller

5

(20)

300

+100

−50

Four, M6

Depth: 15 min.

SC-1M

(4.9)

(15.1)

30.2

±0.2

40

±0.7

* Stainless steel roller

XS2H-D421

21.6

±1.2

29.2

35

42 max.

6 dia.

Note: Unless otherwise indicated, a tolerance of

±0.4 mm applies to all dimensions.

Actuator

Basic

Operating characteristics

Operating force OF max.

13.34 N

Release force RF min.

Pretravel PT

Movement Differential MD max.

2.23 N

15

° ±5°

Overtravel OT

30

°

12

°

Operating Position OP

Total travel Position TTP max.

Roller Lever

Overtravel models

General-purpose

9.81 N

0.98 N

15

° ±5°

55

°

12

°

High-sensitivity

9.81 N

0.98 N

10

° +2

°

–1

°

65

°

7

°

High-precision

13.34 N

1.47 N

5

° +2

°

0

°

40

°

3

°

Sealed Top-roller

Plunger

16.67 N

4.41 N

1.7 mm max.

5.6 mm

1 mm

44

±0.8 mm

39.5 mm

35

WL/WLM

Long-life Models

Rotating Lever Models

Roller Lever (Screw Terminals)

WLM

@-LD

14.7

38R

17.5 dia. (length: 7) *

Four, M3.5

(length: 26.5)

M5 (length: 12)

Allen-head bolt

Four, 5.2

dia. holes

+0.2

0

60 max.

53

±1.5

41.5

±1.5

40 ±1.5

13.1

25.4

12.7

25.4

58.7

±0.2

Rubber cap

Three, M4

(length: 13)

Lamp cover

5

(4.9)

(15.1)

30.2

±0.2

40

±0.7

* Stainless steel roller

JIS B0202 G½

Effective thread:

4 threads min.

68.7

21.6

±1.2

29.2

35

42 max.

53.2

±0.8

Four, M6

Depth: 15 min.

Roller Lever (Direct-wired Connectors)

WLM

@-LD@

14.7

38R

17.5 dia. (length: 7) *

Four, M3.5

(length: 26.5)

M5 (length: 12)

Allen-head bolt

Four, 5.2

+0.2

0 dia. holes

60 max.

53 ±1.5

41.5

±1.5

40

±1.5

13.1

25.4

12.7

25.4

58.7

±0.2

Rubber cap

Three, M4

(length: 13)

5

12.5

Lamp cover

SC-2FD

(4.9)

(15.1)

30.2

±0.2

40 ±0.7

* Stainless steel roller

M12

× 1

JIS B0202 G½

Effective thread:

4 threads min.

68.7

21.6

±1.2

29.2

35

42 max.

53.2

±0.8

Four, M6

Depth: 15 min.

Roller Lever (Pre-wired Connectors)

WLM

@-LD@

14.7

38R

17.5 dia. (length: 7) *

Four, M3.5

(length: 26.5)

M5 (length: 12)

Allen-head bolt

Four, 5.2

dia. holes

+0.2

0

Rubber cap

58.7

±0.2

Three, M4

(length: 13)

Lamp cover

60 max.

53

±1.5

41.5

±1.5

40 ±1.5

13.1

25.4

12.7

25.4

68.7

(20)

5 Four, M6

Depth: 15 min.

XS2H-D421

300

±50

44.7

(4.9)

(15.1)

30.2

±0.2

40

±0.7

* Stainless steel roller

Operating characteristics

Model

Operating force

Release force

OF max.

RF min.

Pretravel PT

Movement Differential MD max.

WLMCA2-LD

@

Basic models

9.81 N

0.98 N

15

° ±5°

30

°

12

°

21.6

±1.2

29.2

35

42 max.

53.2

±0.8

6 dia.

Note: Unless otherwise indicated, a tolerance of

±0.4 mm applies to all dimensions.

WLMH2-LD

@

General-purpose overtravel models

9.81 N

0.98 N

15

° ±5°

55

°

12

°

WLMG2-LD

@

High-sensitivity overtravel models

9.81 N

0.98 N

10

° +2

–1

°

65

°

7

°

WLMGCA2-LD

@

High-precision models

13.34 N

1.47 N

5

° +2

0

°

°

40

°

3

°

36

WL/WLM

Actuators (Levers Only)

Lever:

Only rotating lever models are illustrated.

WL-1A100

Standard Lever

WL-1A115

Resin Roller

17.5 dia. (length: 7) stainless sintered alloy roller

17.9

12.6

17.5 dia. (length: 7) resin roller

7.3-dia.

mounting holes

38 54.8

7.3-dia.

mounting holes

38 54.8

17.9

12.6

WL-1A400

Bearing Roller

17 dia. (length: 6) bearing roller

7.3-dia.

mounting holes

38 54.8

16.9

12.1

16

M5

Allen-head bolt

11.4

WL-1A105

Double Nuts

17.5 dia. (length: 7) stainless sintered alloy roller

17.9

12.6

16

M5

Allen-head bolt

11.4

WL-1A103S

Spatter Prevention

17.5 dia. (length: 7) stainless steel roller

17.9

12.6

7.3-dia.

mounting holes

38 54.8

7.3-dia.

mounting holes

38 ±0.2

54.8

16

M5

Allen-head bolt

11.4

WL-1A200

Lever Length: 50

Roller Width: 15

17.5 dia. (length: 15) stainless steel roller

25.7

16.6

7.3-dia.

mounting holes

50 66.8

16

Two, M5 Allenhead nut and arm set screw

11.4

16

M5

Allen-head bolt

11.4

16

M5

Allen-head bolt

11.4

WL-1A118

Nylon Roller:

Roller Width: 30 mm

17.5 dia. (length: 30)

Nylon roller

40.2

±0.8

23.6

R38

54.8

7.3-dia.

mounting holes 16

M5

Allen-head bolt

11.4

WL-1A300

Lever Length: 63

17.5 dia. (length: 7) stainless sintered alloy roller

17.9

12.6

7.3-dia.

mounting holes

63

±0.3

79.8

16

M5

Allen-head bolt

11.4

WL-2A100

17.5 dia. (length: 7) stainless sintered alloy roller

Adjustable lever: stainless steel

24.9

±0.8

19.7

±0.8

Adjustable range:

25 to 89

WL-2A111

Resin Roller

17.5 dia. (length: 7) resin roller

Adjustable lever: stainless steel

Adjustable range:

25 to 89

105.75

24.9

±0.8

19.7

±0.8

WL-2A107

Double Nuts

17.5 dia. (length: 7) stainless sintered

M5 alloy roller

Adjustable lever: stainless steel

Allen-head bolt

24.9

±0.8

19.7

±0.8

Adjustable range:

28 to 88

23

WL-2A108

Resin Roller

17.5 dia. (length: 7) resin roller

Adjustable lever: stainless steel

24.9

±0.8

M5

Allen-head

19.7

±0.8

bolt

23

Adjustable range:

25 to 140

105.75

105.75

7.3-dia.

mounting holes

M5

Allen-head bolt

7.3-dia.

mounting holes

M5

Allen-head bolt

7.3-dia.

mounting holes

7.3-dia.

mounting holes

12

16

12

16

12

16

Two, M5 Allen-head nut and arm set screw

WL-2A122

17.5 dia. (length: 7) stainless sintered alloy roller

Adjustable lever: stainless steel

M5

Allen-head bolt

24.9

±0.8

19.7

±0.8

23

Adjustable range:

25 to 140

7.3-dia.

mounting holes

155.75

WL-2A106

17.5 dia. (length: 7) stainless sintered alloy roller

Adjustable lever: stainless steel

Adjustable range:

25 to 89

105.75

23

24.9

±0.8

19.7

±0.8

9.1

7.3-dia.

mounting holes

M5

Allen-head bolt

16

20

* Can be installed on the rear side.

6.2

(15.8)

Note: Unless otherwise indicated, a tolerance of

±0.4 mm applies to all dimensions.

WL-2A130

17.5 dia. (length: 7) stainless sintered alloy roller

(112)

(21.8)

(10)

(10)

15.9

20

89.5R

Three, 5.3

dia. holes

+0.2

0

7.3

+0.1

0

-dia.

mounting holes

24.7

±0.8

19.5

±0.8

3

Two, M5

(length: 16)

Allen-head bolt

22.1

6.2

(15.8)

WL-2A104

50 dia. (length: 6)

Nylon roller

Adjustable from 42 to 89

7.3-dia.

mounting holes

12

16

155.75

M5

Allen-head bolt

24.9

±0.8

19.7

±0.8

23

37

WL/WLM

Lever: Only rotating lever models are illustrated.

WL-2A110

50 dia. (length: 15)

Nylon roller

34.5

24.4

WL-2A105

49 dia. rubber roller

Material: NBR

34.2

24.2

6

WL-1A106

50 dia. (length: 6)

Nylon roller

20.1

±0.8

WL-1A110

35 dia. (length: 6)

Nylon roller

20.1

±0.8

Adjustable from 41 to

78.5

7.3-dia.

mounting holes

16

WL-4A100

122

M5

Allen-head bolt

Adjustable from

25 to 140

160

9

3-dia. stainless steel rod

7.3-dia. mounting holes

M5

Allen-head bolt

19

23

11

Adjustable from 41 to

89

38R

M5

Allen-head bolt

16

7.3-dia.

mounting holes

11.5

38R

16

7.3

+0.1

0

-dia.

mounting holes

11.5

7.3-dia.

mounting holes

16

WL-4A201

Adjustable from 270 to

290

M5

Allen-head bolt

9

2-dia. stainless steel for spring

13

7.3-dia. mounting holes

M5

Allen-head bolt

11

WL-3A100

3.2-dia.

stainless steel rod

WL-3A106

Double Nut

3.2-dia.

stainless steel rod

400

Adjustable from 350 to 380

±2

8

Actuator's center of rotation

11

65

7.5

6

±2

7.3-dia. mounting holes

12.8

M5

Allen-head bolt

13.4

25.5 max.

Adjustable from 350 to 380

400

±2

8

11

65 ±2

7.5

6

7.3-dia. mounting holes

12.8

Two, M5 Allenhead nut and arm set screw

13.4

25.5 max.

WL-3A108 WL-3A200 WL-3A203 WL-4A112

680

Adjustable from 650 to 660

3.2-dia.

stainless steel rod

8

±0.4

11

65 ±2

7.5

6

7.3-dia. mounting holes

12.8

M5

Allen-head bolt

13.4

25.5 max.

2.3-dia.

operation rod

50

8 dia.

Cap

417.5

±2

450

±4

12.5 dia. max.

(95)

11

7.5

6

7.3-dia. mounting holes

7.5

M5

Allen-head bolt

13

24.6 max.

432.5

±2

470 ±4

(95)

7.3-dia. mounting holes

Adhesive

2.3-dia.

operation rod

12.5 dia. max.

M5 bolt

11

7.5

6

Allen-head 13

24.6 max.

Adjustable up to 141

160

9

4-dia. stainless steel rod

7.3-dia. mounting holes

M5

Allen-head bolt

19

11

WL-2A129 WL-5A101 WL-5A103 WL-5A105

15.8

Marking

8R

(18.5)

95.3

84

(108)

10

10

11.3

Three, 5.3

dia. holes

+0.2

0

7.3

+0.1

0 dia.

mounting holes

3

Two, 17.5 dia. (length: 7) stainless sintered alloy rollers

6.7

1.3

90

°

7.3

+0.1

0 dia.

38R

54.8

17.7

12.3

Two, 17.5 dia. (length: 7) stainless sintered alloy rollers

17.7

6.7

12.3

1.3

90

°

7.3

+0.1

0 dia.

38R

54.8

Two, 17.5 dia. (length: 7) stainless sintered alloy rollers

17.7

12.3

90

°

7.3

+0.1

0 dia.

38R

54.8

M5 (length: 16)

Allen-head bolt

11

M5 (length: 16)

Allen-head bolt

11

M5 (length: 16)

Allen-head bolt

11

15.9

20

Two,M5

(length: 16)

22.1

Allen-head bolts

WL-5A100 has a plastic roller WL-5A102 has a plastic roller WL-5A104 has a plastic roller

Note: 1. Unless otherwise indicated, a tolerance of

±0.4 mm applies to all dimensions.

2. When using the adjustable roller (rod) lever, make sure that the lever is facing downwards. Use caution, as telegraphing (the Switch turns ON and OFF repeatedly due to inertia) may occur.

38

WL/WLM

Safety Precautions

Refer to Safety Precautions for All Limit Switches.

Precautions for Safe Use

• When a rod or wired-type actuator is used, do not touch the top end of the actuator. Doing so may result in injury.

(Applicable models)

WLHAL5 and WL01HAL5 Rod Spring Levers and WLNJ-S2 and

WL01NJ-S2 Steel-wire Actuators.

• A short-circuit may cause damage to the Switch, so insert a circuit breaker fuse, of 1.5 to 2 times the rated current, in series with the

Switch.

• In order to meet EN approval ratings, use a 10-A fuse that corresponds to IEC60269, either a gI or gG for general-purpose types and spatter-prevention models only.

Precautions for Correct Use

• When wiring terminal screws, use M4 round crimp terminals and tighten screws to the recommended torque. Wiring with bare wires, or incorrect crimp terminals, or not tightening screws to the recommended torque can lead to short-circuits, leakage current, and fire.

• When performing internal wiring there is a chance of short-circuit, leakage current, or fire, so be sure to protect the inside of the

Switch from splashes of oil or water, corrosive gases, and cutting powder.

• Using an inappropriate connector or assembling Switches incorrectly (assembly, tightening torque) can result in malfunction, leakage current, or fire, so be sure to read the instruction manual thoroughly beforehand.

• Even when the connector is assembled and set correctly, the end of the cable and the inside of the Switch may come in contact. This can lead to malfunction, leakage current, or fire, so be sure to protect the end of the cable from splashes of oil or water and corrosive gases.

Operating Environment

• Seal material may deteriorate if a Switch is used outdoor or where subject to special cutting oils, solvents, or chemicals. Always appraise performance under actual application conditions and set suitable maintenance and replacement periods.

• Install Switches where they will not be directly subject to cutting chips, dust, or dirt. The Actuator and Switch must also be protected from the accumulation of cutting chips or sludge.

Not Suitable Suitable

Using Switches for Micro Loads

Contact faults may occur if a Switch for a general-load is used to switch a micro load circuit. Use switches in the ranges shown in the diagram below. However, even when using micro load models within the operating range shown here, if inrush current occurs when the contact is opened or closed, it may increase contact wear and so decrease durability. Therefore, insert a contact protection circuit where necessary. The minimum applicable load is the N-level reference value. This value indicates the malfunction reference level for the reliability level of 60% (

λ

60

).

The equation,

λ

60

= 0.5

× 10

–6 /operations indicates that the estimated malfunction rate is less than 1/2,000,000 operations with a reliability level of 60%.

30

5 mW

0.16 mA

800 mW

26 mA

24

12

5

Unusable range

1 mA

0

0.1

1

Operating range for micro-load models

Operating range for standard models

10

100 mA 160 mA

100 1,000

Current (mA)

• Constantly subjecting a Switch to vibration or shock can result in wear, which can lead to contact interference with contacts, operation failure, reduced durability, and other problems.

Excessive vibration or shock can lead to false contact operation or damage. Install Switches in locations not subject to shock and vibration and in orientations that will not produce resonance.

• The Switches have physical contacts. Using them in environments containing silicon gas will result in the formation of silicon oxide

(SiO

2

) due to arc energy. If silicon oxide accumulates on the contacts, contact interference can occur. If silicon oil, silicon filling agents, silicon cables, or other silicon products are present near the

Switch, suppress arcing with contact protective circuits (surge killers) or remove the source of silicon gas.

39

WL/WLM

Built-in Switch

Do not remove or replace the built-in switch. If the position of the builtin switch moves, it can cause reduced performance, and if the insulation sheet moves (separator), the insulation may become ineffective.

Tightening Torque

• If screws are too loose they can lead to an early malfunction of the

Switch, so ensure that all screws are tightened using the correct torque.

• In particular, when changing the direction of the Head, make sure that all screws are tightened again to the correct torque. Do not allow foreign objects to fall into the Switch.

1.

3.

No.

Type

Appropriate tightening torque

0.78 to 0.88 N·m

6.

5.

4.

2.

1.

2.

Head mounting screw

Cover mounting screw

3.

Allen-head bolt

(for securing the lever)

4.

Terminal screw

5.

Connector

1.18 to 1.37 N·m

4.90 to 5.88 N·m

0.59 to 0.78 N·m

1.77 to 2.16 N·m

Installing the Switch

To install the Switch, make a mounting panel, as shown in the following diagram, and tighten screws using the correct torque.

Mounting

Mounting

WL

Mounting locations

Front Mountig : Four, 5.2

+0.2

0 dia. holes or M5 tapped holes

Rear Mountig : Four, 6.2

+0.2

0 dia. holes

Front Mountig/

Rear Mountig

58.7

±0.15

30.2

±0.15

In case of side mounting for overtravel,90

°

WL

@-@@2N

Two, 5.2

+0.2

0 dia. holes

Side Mountig

64

±0.15

Mounting locations

23 ±0.15

Connectors

Either the easy-to-use Allen-head nut or the SC Connector can be used as connectors. To ensure high-sealing properties, use the SC

Connector. Refer to Limit Switch Connectors for details on SC

Connectors.

Wiring

• Use 1.25-mm

2 lead wires and M4-insulation covered crimp terminals for wiring.

Crimp Terminal External

Dimensions

Wiring Method

Switch Box Section

l

L

F

Ground terminal

D dia.

dz dia. : 4.3

D dia. : 4.5

B dz dia.

NO terminal l : 9.0 (mm)

NC terminal

• The ground terminal is only installed on models with ground terminals.

Rotating Lever Set Position (General-purpose or Spatterprevention Switches Only)

All rotating lever models, except the fork lever lock models, have a set position marker plate. (See page 23.) After operation, set the indicator needle on the marker plate so that is in the convex section of the bearing.

Operation Set Position (Long-life Switches Only)

For all Long-life Switching, there is a set position marker slit on the rubber cap of the head. After operation, set the slit on the rubber cap so that the fluorescent color on the shaft section can be seen.

Terminal Plate

By using a short circuit plate, as shown in the following diagram, the

Switch can be fabricated into a single-polarity double-break switch.

When ordering, specify WL Terminal Plate (product code: WL-

9662F).

9

2.5

+0.2

0

7.1

3R

9 ±0.2

COM

7

16 ±0.15

23 ±0.4

2R

2.1R

3.5

4.2

+0.1

0 t = 0.6 Brass plate

Indicator

Indicator-equipped switch has contacts and indicator in parallel.

When contacts are open, leakage current flows through the indicator circuit and may cause load's malfunction.

Please check the load's OFF current before use the indicatorequipped switch.

40

WL/WLM

Using the Switches

Item Applicable models and Actuators

Changing the Installation Position of the Actuator

By loosening the Allen-head bolt on the actuator lever, the position of the actuator can be set anywhere within the 360

°.

With Indicator-equipped Switches, the actuator lever comes in contact with the top of the indicator cover, so use caution when rotating and setting the lever.

When the lever only moves forwards and backwards, it will not contact the lamp cover (except for long-life models).

Roller Levers:

WLCA2, WL01CA2, WLCA2-2,

WL01CA2-2, WLH2,WL01H2, WLG2,

WL01G2, WLMCA2 @, [email protected],

WLMG2 @, [email protected]

Adjustable Roller Levers:

WLCA12, WL01CA12, WLCA12-2,

WL01CA12-2, WLH12, WL01H12,

WLG12, WL01G12,

Adjustable Rod Levers:

WLCL, WL01CL, WLCL-2, WL01CL-2,

WLHL, WL01HL, WLGL, WL01GL

Changing the Orientation of the Head

By removing the screws in the four corners of the Head, the Head can be set in any of the four directions. Be sure to change the plunger for internal operations at the same time. (The operational plunger does not need to be changed on general-purpose and highsensitivity overtravel models.) The roller plunger can be set in either two positions at 90

°.

WLCA2-2N and WL01CA2-2N can be set only in either the forward or backward direction.

Roller Levers:

WLCA @, [email protected], [email protected],

WL01CA @-2, [email protected], [email protected],

WL01H @, [email protected], [email protected],

WLMCA2 @, [email protected], [email protected],

WLMGCA2 @

Adjustable Rod Levers:

WLCL, WL01CL, WLCL-2, WL01CL-2

Horizontal Plungers:

WLSD @, [email protected]

Top-roller Plungers:

WLD2, WL01D2

Sealed Top-roller Plungers:

WLD28, WL01D28

Does not include -RP60 Series or -141

Series.

Head

Details

Loosen the M5

× 12 bolt, set the actuator's position and then tighten the bolt again.

Loosen the screws.

Head

Loosen the screws.

One-side Operation for General-purpose and High-precision Switches

The output of the Switch will be changed, regardless of which direction the lever is pushed.

The output of the Switch will only be changed when the lever is pushed in one direction.

Operating Operating Not operating Operating Operating Not operating

Operational plunger

Changing the Operating Direction

By removing the Head on models which can operate on one-side only, and then changing the direction of the operational plunger, one of three operating directions can be selected. For overtravel 90

° operation models, one of three operating directions can be selected by loosening the rubber holder using either a coin or a flat-blade screwdriver and changing the direction of the internal rubber section.

The tightening torque for the screws on the Head is 0.78 to 0.88 N•m.

Roller Levers:

WLCA2, WL01CA2, WLGCA2,

WLMGCA2 @

Adjustable Roller Levers:

WLCA12, WL01CA12

Adjustable Rod Levers:

WLCL, WL01CL

Overtravel Models:

WLCA @-2N, [email protected]

Operation in both directions

Clockwise operation Counterclockwise operation

Cam Direction Changing Procedure for Overtravel, 90

° Operation Switches

Loosen the cam holder with a coin or screwdriver. Take out the cam from the Switch.

Change the direction of the cam as required by your intended operation and then reinstall the cam.

Relationship of cam to operation as observed from the rear of Switch

Operation on both sides Operation on one side

Operates Operates

Operates Does not operate

Operation on one side

Does not operate

Operates

Avoid this combination

41

WL/WLM

Item

Installing the Roller on the Inside

By installing the roller lever in the opposite direction, the roller can be installed on the inside. (Set so that operation can be completed within a

180

° level range.)

Applicable models and Actuators

Roller Levers:

WLCA

@, [email protected], [email protected], WL-

CA @-2, [email protected], [email protected],

WLMH2

@, [email protected], [email protected],

WLG @, except for the adjustable roller levers.

Fork Lever Locks:

WLCA32-4

@, [email protected]

Loosen the

Allen-head bolt.

WLCA32-41

Details

WLCA32-43

Selecting the Roller Position

There are four types of fork lever lock for use depending on the roller position.

Fork Lever Locks:

WLCA32-4 @, [email protected]

WLCA32-42 WLCA32-44

Note: An explanation of the operation of fork lever locks is provided after this table.

WLCA12 etc.

Adjusting the Length of the Rod or

Lever

The length of the rod or lever can be adjusted by loosening the Allen-head bolt.

Adjustable Roller Levers:

WLCA12, WL01CA12 etc.

Adjustable Rod Levers:

WLCL, WL01CL, etc.

Loosen this

Allen-head bolt and adjust the length of the lever.

Adjustment range radius:

25 to 89 mm

Loosen this

Allen-head bolt and adjust the length of the rod.

Operation of Fork Lever Locks

The fork lever lock is configured so that the dog pushes the lever to reverse the output and this reversed state is maintained even after the dog continues on. If the dog then pushes the lever from the opposite direction, the lever will return to its original position.

Example

NC terminal: ON NO terminal: ON NO terminal: ON

42

Read and Understand This Catalog

Please read and understand this catalog before purchasing the products. Please consult your OMRON representative if you have any questions or comments.

Warranty and Limitations of Liability

WARRANTY

OMRON's exclusive warranty is that the products are free from defects in materials and workmanship for a period of one year (or other period if specified) from date of sale by OMRON.

OMRON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, REGARDING NON-INFRINGEMENT, MERCHANTABILITY, OR

FITNESS FOR PARTICULAR PURPOSE OF THE PRODUCTS. ANY BUYER OR USER ACKNOWLEDGES THAT THE BUYER OR USER ALONE HAS

DETERMINED THAT THE PRODUCTS WILL SUITABLY MEET THE REQUIREMENTS OF THEIR INTENDED USE. OMRON DISCLAIMS ALL OTHER

WARRANTIES, EXPRESS OR IMPLIED.

LIMITATIONS OF LIABILITY

OMRON SHALL NOT BE RESPONSIBLE FOR SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR COMMERCIAL LOSS

IN ANY WAY CONNECTED WITH THE PRODUCTS, WHETHER SUCH CLAIM IS BASED ON CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT

LIABILITY.

In no event shall the responsibility of OMRON for any act exceed the individual price of the product on which liability is asserted.

IN NO EVENT SHALL OMRON BE RESPONSIBLE FOR WARRANTY, REPAIR, OR OTHER CLAIMS REGARDING THE PRODUCTS UNLESS

OMRON'S ANALYSIS CONFIRMS THAT THE PRODUCTS WERE PROPERLY HANDLED, STORED, INSTALLED, AND MAINTAINED AND NOT

SUBJECT TO CONTAMINATION, ABUSE, MISUSE, OR INAPPROPRIATE MODIFICATION OR REPAIR.

Application Considerations

SUITABILITY FOR USE

OMRON shall not be responsible for conformity with any standards, codes, or regulations that apply to the combination of products in the customer's application or use of the products.

At the customer's request, OMRON will provide applicable third party certification documents identifying ratings and limitations of use that apply to the products. This information by itself is not sufficient for a complete determination of the suitability of the products in combination with the end product, machine, system, or other application or use.

The following are some examples of applications for which particular attention must be given. This is not intended to be an exhaustive list of all possible uses of the products, nor is it intended to imply that the uses listed may be suitable for the products:

 Outdoor use, uses involving potential chemical contamination or electrical interference, or conditions or uses not described in this catalog.

 Nuclear energy control systems, combustion systems, railroad systems, aviation systems, medical equipment, amusement machines, vehicles, safety equipment, and installations subject to separate industry or government regulations.

 Systems, machines, and equipment that could present a risk to life or property.

Please know and observe all prohibitions of use applicable to the products.

NEVER USE THE PRODUCTS FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE OR PROPERTY WITHOUT ENSURING THAT THE

SYSTEM AS A WHOLE HAS BEEN DESIGNED TO ADDRESS THE RISKS, AND THAT THE OMRON PRODUCTS ARE PROPERLY RATED AND

INSTALLED FOR THE INTENDED USE WITHIN THE OVERALL EQUIPMENT OR SYSTEM.

PROGRAMMABLE PRODUCTS

OMRON shall not be responsible for the user's programming of a programmable product, or any consequence thereof.

Disclaimers

CHANGE IN SPECIFICATIONS

Product specifications and accessories may be changed at any time based on improvements and other reasons.

It is our practice to change model numbers when published ratings or features are changed, or when significant construction changes are made.

However, some specifications of the products may be changed without any notice. When in doubt, special model numbers may be assigned to fix or establish key specifications for your application on your request. Please consult with your OMRON representative at any time to confirm actual specifications of purchased products.

DIMENSIONS AND WEIGHTS

Dimensions and weights are nominal and are not to be used for manufacturing purposes, even when tolerances are shown.

PERFORMANCE DATA

Performance data given in this catalog is provided as a guide for the user in determining suitability and does not constitute a warranty. It may represent the result of OMRON’s test conditions, and the users must correlate it to actual application requirements. Actual performance is subject to the OMRON

Warranty and Limitations of Liability.

ERRORS AND OMISSIONS

The information in this document has been carefully checked and is believed to be accurate; however, no responsibility is assumed for clerical, typographical, or proofreading errors, or omissions.

2011.10

In the interest of product improvement, specifications are subject to change without notice.

OMRON Corporation

Industrial Automation Company http://www.ia.omron.com/

(c)Copyright OMRON Corporation 2011 All Right Reserved.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
