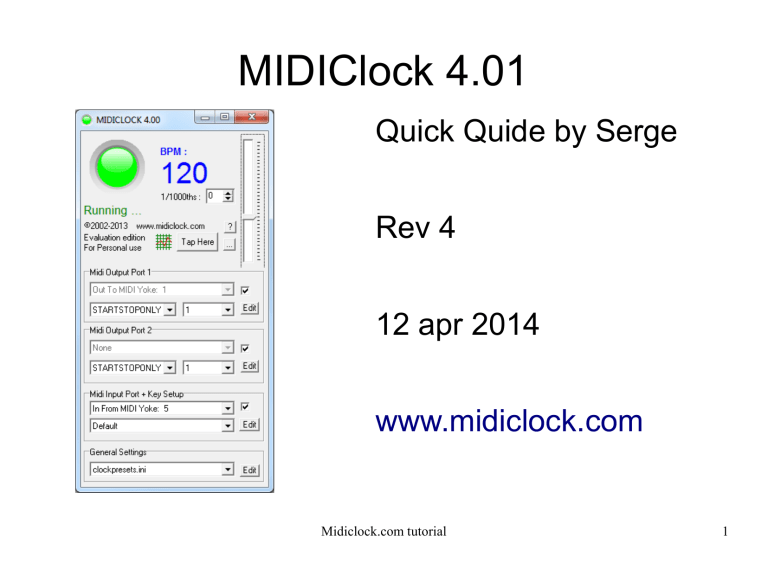

MIDIClock 4.01
Quick Quide by Serge
Rev 4
12 apr 2014
www.midiclock.com
Midiclock.com tutorial
1
Introduction
●
What is MIDIClock ?
●
●
●
●
A program that can be used to synchronize synths, effects,
sequencers, arpeggiators, ...
Its main function is generating a midi beat clock signal on a
midi output device at a selectable bpm rate. Other output
signals are also possible through custom output drivers
The software has no installer, simply unzip to where you
need it. It is portable : it can be run from a removable
disk/stick without installing anything.
The latest trial version of MIDIClock can be downloaded
from midiclock.com.
Midiclock.com tutorial
2
What is the midi clock protocol?
From wikipedia :
●
●
●
MIDI beat clock is a clock signal that is broadcast via MIDI to ensure that several synthesizers
stay in synchronization. It is not MIDI timecode.
Unlike MIDI timecode, MIDI beat clock is sent at a rate that represents the current tempo, at 24
ppqn (pulses per quarter note). It is used to maintain a synchronized tempo for synthesizers that
have BPM-dependent voices and also for arpeggiator synchronization. It does not transmit any
location information (bar number or time code) and so must be used in conjunction with a
positional reference (such as timecode) for complete sync.
MIDI beat clock defines the following real time messages:
●
* clock (decimal 248, hex 0xF8)
●
* start (decimal 250, hex 0xFA)
●
* continue (decimal 251, hex 0xFB)
●
* stop (decimal 252, hex 0xFC)
●
All the above real-time messages are supported by MIDIClock
Midiclock.com tutorial
3
MIDIClock Features :
●
●
●
●
●
●
2 MIDI output drivers supported
Up to 32 midi simultaneous
MIDI input action mappings
with MIDI learn function
Fractional BPM rates from
0.001 BPM to 1000 BPM
Highly customizable through
INI files.
Stable, usable for gigs, studio,
live shows,...
Registration & Support :
midiclock.com/upgrade
Midiclock.com tutorial
4
MIDIClock Shapes
The form size of your midiclock
can be resized to reduce the
claimed screen real estate.
Midiclock.com tutorial
5
Main Screen functionality (1/2)
●
Tempo Chart Visualisation
●
Start /stop the timer
●
Fractional part of the BPM
●
Main BPM rate slider
●
Tap tempo input button
●
Small form factor
●
Device #1 Selection
●
Device #1 Enable/Disable
●
Device #1 Config editing
●
Device #1 Tempo divider
●
Device #1 Output driver
Midiclock.com tutorial
6
Main Screen functionality (2/2)
●
Device #2 Selection
●
Device #2 Output driver
●
Device #2 Enable/Disable
●
Device #2 Tempo divider
●
Device #2 Config editing
●
Input MIDI Device Selection
●
Input MIDI Device
Enable/Disable
●
Input Map Editing
●
Preset patch selection/edit
Midiclock.com tutorial
7
Input Patch Editor
●
●
●
●
●
Midiclock.com tutorial
MIDI command to
action mapping
Click on any line to
edit the mapping
Enable Realtime
MIDI Clock Input
processing : this
makes midiclock
respond to an
incoming midi clock
signal
Save as a new input
driver
Store as current
input driver
8
Editing Input Map #0 (1/2)
●
Status byte
●
Midi channel
●
Parameter 1 of midi message
●
Parameter 2 of midi message
●
●
●
●
●
Filter on selected channel for
incoming data in learning
mode
Apply the mask range when
data comes in, in learning
mode
Automatically update the hex
code in the editor on input Midiclock.com tutorial
●
●
PC Keyboard Learning
function : → shows hex code for
the key pressed
Keyb Auto Enter : enters key
code in fields automatically
MIDI Learning function
--> updates map to incoming midi
date. Use this for quick mapping.
Filter on status byte in learning
mode
9
Editing Input Map #0 (2/2)
●
Midiclock.com tutorial
Action mapped to the defined
input midi code
(for a list of actions see the
special commands decription at
the end of this document)
●
Descriptive comment for this map
●
Press ok to apply the settings
10
Tempo Chart Visualisation
●
●
●
Midiclock.com tutorial
Enable Output BPM rate
display
Enable display of Filtered
Clock Input Values
Enable display of Raw Clock
Input Values
●
Save chart as BMP
●
Enable/Disable chart logging
11
Keyboard Shortcuts
●
CTRL+ALT+S : save current settings to clockpresets.ini.
It creates the file if it does not yet exist.
●
F1/RETURN : Start/Stop timer toggle
●
F2 : Pause timer
●
F3 : Continue/Resume timer
●
F5 : set BPM to Preset #5
●
CTRL+F5 : Store current BPM rate at preset #5
●
F6/F7/F8 : Change BPM to Preset #6/7/8
●
CTRL+F6/F7/F8 : Store BPM at preset #6/7/8
●
SPACE : tap tempo trigger
●
Any custom key can be mapped through the input map !!
Midiclock.com tutorial
12
File Overview
●
●
●
●
●
●
MIDIClock.exe : The application binary. Clicking this application
starts up midiclock.
clockpresets.ini : Startup application presets. These are saved by
pressing CTRL+ALT+S.
MidiclockRegistration.ini (optional) : contains the key for registered
users.
*.mcp files : alternative application preset patches. Same file format
as clockpresets.ini.
outdrv subdirectory : contains output drivers, such as :
●
GMBASSDRUM.ini : a GM bass metronome
●
GMCLICHEROCK1.ini : a typical GM pop-rock drum rhythm
●
G71UT.ini : interfacing to a Zoom G7.1ut effect pedal
indrv subdirectory : contains input drivers
Midiclock.com tutorial
13
Clockpresets.ini layout (1/3)
●
[APPLICATION_PRESETS] ; Section indicating general application presets
●
MAINSCREENPOSITIONTOP=155
; Main screen top pixel position at program startup
●
MAINSCREENPOSITIONLEFT=565
; Main screen left pixel position at program startup
●
DEFAULTSPEED=120
; BPM Rate used at program startup
●
SHOWFLASHING=1
; 0 = disable window color flashing ; 1=enable window flashing at ¼ beat
●
FULLFLASHING=0
; 1 = enable full window flashing ; 0 = disable
●
FLASHINGDURATION=1000
; Color duration (unit = 1/24th of a beat). Set to 1000 for normal use.
●
FLASHINGPERIOD=24
; Cycle period for the flashing, define in 1/24th of a beat units
●
IGNOREMOUSEWHEEL=0
; 1=Disable mouse wheel influence on bpm rate
●
IGNOREKEYBOARDTAP=1
; 1=Ignore keyboard 'SPACE' for tapping and 'RETURN' for start/stop
●
ALWAYSONTOP=0
; 1= keep application window always in front of other applications
●
AUTOSTARTONTAP=0
; 1= automatically start the midi clock signal at beat 1 after tapping beat 4
●
TAPTEMPOTIMEOUT = 5000
; Tap tempo input state reset timeout (in milliseconds)
●
TAPTEMPOCOUNT=2
; number of taps needed to trigger a tempo change (2, 3 or 4)
●
BPMROUNDING=0.001
; rounding step taken into account when determining the BPM rate
●
BPMMINIMUM=0.001
; the minimal BPM rate selectable in the midi clock GUI
●
BPMMAXIMUM=330
; the maximal BPM rate selectable in the midi clock GUI
●
DONTASKSAVESETTINGS=0
; 1= Shows “do you want to save settings”
●
CLOSEMINIMIZESWHENRUNNING=0
; 1 = Closing the application minimizes it when the clock is running
Midiclock.com tutorial
14
Clockpresets.ini layout (2/3)
●
●
●
[MIDIOUTPORT1]
; section containing the midi port #1 application settings
●
MIDIPORTINDEX=1
; Selection Order number of the midi port #1
●
MIDIPORTNAME=Out To MIDI Yoke: 1
; Device name of the midi port #1
●
DEVICETYPE=MidiClock
; Output driver selected for this midi port #1
●
CLOCKDIVIDER=1
; Divider used on the clock signal on port #1
[MIDIOUTPORT2] ; section containing the midi port #2 application settings (same structure)
●
MIDIPORTINDEX=9
; Selection Order number of the midi port #2
●
MIDIPORTNAME=E-MU Xmidi1X1
; Device name of the midi port #2
●
DEVICETYPE=MidiClock
; Output driver selected for this midi port #2
●
CLOCKDIVIDER=1
; Divider used on the clock signal on port #2
[MIDIINPORT1]
; section containing the midi input port application settings
●
MIDIPORTINDEX=2
; Selection Order number of the midi input port
●
MIDIPORTNAME=In From MIDI Yoke: 3
; Device name of the midi input port
●
DEVICETYPE=AKAILPD8_CH10
; Input driver selected for this midi port
Midiclock.com tutorial
15
Clockpresets.ini layout (3/3)
●
[BPM_PRESETS]
; section containing BPM rate preset values.
●
F5BPM=100
; pressing F5 will set the BPM rate to 100
●
F6BPM=120
; pressing F6 will set the BPM rate to 120
●
F7BPM=140
; pressing F7 will set the BPM rate to 140
●
F8BPM=160
; pressing F8 will set the BPM rate to 160
Note : since 4.00, custom keymaps can be set up in the input map editor. The F5/F6/F7/F8 presets are
supported for backwards compatibility
Midiclock.com tutorial
16
Input drivers : General Layout
●
●
[SPECIAL_COMMANDS]
; Powerful decription of remote controlling midi clock by MIDI messages
●
INPUT0=933C40 ; MIDI Message to be parsed. (replace 933C40 with your midi message in hex)
●
ACTION0=150
●
...up to INPUT31 : 32 INPUT/ACTION pairs can be defined.
; Action to be taken when receiving that MIDI message.
INPUT specifier :
●
Speficies the 3 midi bytes in hex (status byte + 2 data bytes) on which midiclock reacts
●
When the status byte is 0x60, the input is a PC keyboard keypress. The 2nd data byte determines the key code.
●
For example the midi message 933C40
●
–
The keyboard plays middle C (note number 60, hexadecimal 3C) on channel 4 (the zero nibble of 94), at
half the full velocity (velocity 64, hexadecimal 40).
–
INPUT0=933C40 ; this would define the above midi message as input signal
–
ACTION0= 150
; the action would be to set the bpm rate to 140 bpm
What about velocity sensitive keyboards ?
–
Use masking : using F0 as data byte 2 will make midiclock trigger on all non zero velocities
–
Example : INPUT0=933CF0 : for every middle C played (note on event), the ACTION0 will be run
●
ACTION0=130
; example : set BPM RATE to 130 when the INPUT0 MIDI Message is received
●
More advanced options and usage for INPUT/ACTION will be described on the next pages.
Midiclock.com tutorial
17
Input drivers : Actions
●
The following target action codes can be executed on incoming midi commands :
●
0
●
1 --> 200 = set this specific BPM value
●
10000 = perform midi byte 2 to tempo transformation (see further on for the input masking options)
●
10000.1 = perform midi byte 1 to tempo transformation (see further on for the input masking options)
●
10001 = start-stop
●
10002 = pause
●
10003 = continue
●
10004 = start
●
10005 = stop
●
10006 = decrease tempo
●
10007 = increase tempo
●
10008 = tempo - 2
●
10009 = tempo + 2
●
10010 = double tempo
●
10011 = halve tempo
●
10016 = tempo – rounding step
●
10017 = tempo + rounding step
●
10101 = beat reset
●
20001 = tap tempo trigger
●
= do nothing
20001.1 = single byte special tap tempo trigger : ignores byte 2 and uses byte 1 only for range limits
Midiclock.com tutorial
(can be used for 'any key' tap tempo)
18
Input drivers : Tempo
Transformation Input Masks (1/3)
●
In case of an action = 10000 --> several midi value to tempo transformation can be selected by input midi data byte 2
●
In case of an action = 10000.1 --> several midi value to tempo transformation can be selected by input midi data byte 1
●
This is useful for mapping a specific controller range or patch onto a tempo range of choice.
●
For byte E0 – EF, a custom transformation can be defined in the input driver. For example, for E0 :
●
●
[CUSTOMRANGE_TRANSFORMS]
●
RANGEMIN_E0=00
●
RANGEMAX_E0=7F
●
RANGEMULTIPLIER_E0=1.5
●
RANGEOFFSET_E0=30
Speficic values can also be overwritten by an explicit map, for example E1 :
●
[CUSTOMRANGE_TRANSFORMS]
●
RANGEMIN_E1=00
●
RANGEMAX_E1=7F
●
RANGEMULTIPLIER_E1=1
●
RANGEOFFSET_E1=0
●
RANGEMAP_E1=CUSTOMRANGE_MAP2
Midiclock.com tutorial
19
Input drivers : Tempo
Transformation Input Masks (2/3)
●
●
This custom map can then be defined in a separate section. You can design your own mapping curve from a spreadsheet this
way.
For example :
●
[CUSTOMRANGE_MAP2]
●
0=60
●
1=60.72
●
2=61.45
●
3=62.19
●
4=62.93
●
5=63.69
●
6=64.45
●
7=65.23
●
8=66.01
●
9=66.8
●
10=67.6
●
11=68.41
●
12=69.23
Midiclock.com tutorial
20
Input drivers : Tempo
Transformation Input Masks (3/3)
●
●
Midiclock will also transform the incoming data byte according to these fixed fomulas :
●
Mask byte 0xF0: From 0x00 to 0x7F --> multiplier = 1.58 and offset = 0
●
Mask byte 0xF1: From 0x00 to 0x7F --> multiplier = 1 and offset = 0
●
Mask byte 0xF2: From 0x00 to 0x7F --> multiplier = 2 and offset = 0
●
Mask byte 0xF3: From 0x00 to 0x7F --> multiplier = 3 and offset = 0
●
Mask byte 0xF4: From 0x00 to 0x7F --> multiplier = 4 and offset = 0
●
Mask byte 0xF5: From 0x00 to 0x7F --> multiplier =1 and offset = 40
●
Mask byte 0xFA: From 0x00 to 0x3F --> multiplier = 2 and offset = 0
●
Mask byte 0xFB: From 0x40 to 0x7F --> multiplier = 2 and offset = 0
●
Mask byte 0xFC: From 0x00 to 0x3F --> multiplier = 2 and offset = 50
●
Mask byte 0xFD: From 0x40 to 0x7F --> multiplier = -2 and offset = 306
●
Mask byte 0xFF: From 0x01 to 0x7F --> multiplier = 2 and offset = 0
These mappings cannot be changed, and are kept in 3.xx releases for backwards compatibility
Midiclock.com tutorial
21
Output drivers : General
●
Midiclock contains a framework for custom MIDI output
protocols. Those are located in the outdrv subdirectory.
●
Midiclock includes a tiny tight sequencer for each output driver.
●
Visual display of the beat position is possible
●
Currently beat editing occurs through ini editing (see next page)
Midiclock.com tutorial
22
Output drivers : Configuration
The subdirectory outdrv contains the selectable output drivers.
I will explain how this works, by explaining some examples :
Sample Midiclock.ini explained.
[DEVICECONFIGURATION]
DEVICETYPE=MidiClock
DEVICE_CLOCKOUTPUT_ENABLE=1
; Name of the device
; send out midiclock commands (F8)
Sample GMBOINKY.ini explained
[DEVICECONFIGURATION]
DEVICETYPE=GM BOINKY
; Name of the device
DEVICE_SYSEXINIT_STRING=
; sysex data to be sent on driver initialisation
DEVICE_CLOCKOUTPUT_ENABLE=0
; 1 = sends out midiclock (F8) bytes, 0 = doesn't send F8
DEVICE_SYSEX_ENABLE=0
; 1 = enables sysex output, 0 = no sysex output
DEVICE_SYSEXRELEASE_STRING=
; sysex data to be sent on driver release
DEVICE_SYSEXTEMPOSET1_STRING=
; sysex data to be sent before the tempo code (on change)
DEVICE_SYSEXTEMPOSET2_STRING=
; sysex data to be sent after the tempo code (on change)
DEVICE_SYSEX_VALOFFSET=40
; offset to be added to the sysex tempo code
DEVICE_TRACKS_ENABLE=1
; 1= enables track sequencing, 0 = disables track sequencing
DEVICE_TRACKS_PROGRAMCHANGE=35
; Default prog change nr. to be sent before starting playback
DEVICE_TRACKS_CHANNEL=0
; Default channel to be used by tracks
DEVICE_CLOCKOUTPUT_NOSTARTATSTART=1 ; 1= send no start byte (FA) when the clock is started
DEVICE_CLOCKOUTPUT_NOSTOPATEND=1
; 1= send no stop byte (FC) when the clock is stopped
Midiclock.com tutorial
23
Output Drivers : Sequences
You can setup some parameters that are enforced on initializing
Beat sequences can be customized.
This currently happens by creating/editing an output driver. the driver :
DEVICE_TRACKS_CHANNEL : default midi channel used (when
You can find examples in the outdrv subdirectory.
not specified)
DEVICE_TRACKS_PROGRAMCHANGE : program nr used for
GMBOINKY.INI is an example of a sequence.
default midi channel
[DEVICECONFIGURATION]
Next up you can add TRACKS
DEVICETYPE=GM BOINKY
DEVICE_SYSEXINIT_STRING=
C2247400=1000100010001000
DEVICE_CLOCKOUTPUT_ENABLE=0
DEVICE_SYSEX_ENABLE=0
So the key is built up like this :
DEVICE_SYSEXRELEASE_STRING=
DEVICE_SYSEXTEMPOSET1_STRING=
track name = C2
DEVICE_SYSEXTEMPOSET2_STRING=
note number = 24
DEVICE_TRACKS_ENABLE=1
note volume = 74
DEVICE_TRACKS_PROGRAMCHANGE=35
track channel = 00
DEVICE_TRACKS_CHANNEL=0
DEVICE_CLOCKOUTPUT_NOSTARTATSTART=1
an optional X can be put behind that, to indicate no note-off
DEVICE_CLOCKOUTPUT_NOSTOPATEND=1
should be sent.
[TRACKS]
C2247400=1000100010001000
the track events are simply
C3307400=0010001000100100
1 = occurrence
C43C7400=0000000000000010
0 = no occurrence
C5487400=0000000000000001
This way you can create a complete sequence
Midiclock.com tutorial
24
Output Drivers : CTRL output
The CTRL OUTPUT feature is intended to allow controlling effect devices by setting a delay value
parameter through a midi controller. (requires midiclock 4.01 or higher)
●
DEVICE_CTRLOUT_ENABLE=1
; 1= enable CTRL driver
●
DEVICE_CTRLOUT_CONVERT_BPM_TO_MS=1
; 1 = convert BPM to millisecond, 0 = don't convert/
●
DEVICE_CTRLOUT_FLOOR_OUTPUT_BYTE=0
; 1 = floor the output byte : floor example 3.9 --> 3
; 0 =rounding will be applied : round example : 3.9 --> 4
●
DEVICE_CTRLOUT_BPM_OFFSET_VALUE=0
; offset added to BPM value, this can be negative, fractional,...
●
DEVICE_CTRLOUT_BPM_MULTIPLIER=1
; multiplier for bpm, this can be fractional, should be > 0.0001
●
DEVICE_CTRLOUT_MS_MULTIPLIER=0.1
; multiplier applied to the millisecond value
●
DEVICE_CTRLOUT_MIDICHANNEL=3
; midi channel used for the control output
●
DEVICE_CTRLOUT_MIDICTRL=5
; controller value used for the output
Note concerning midi channel notation : MIDIClock starts counting from 0, most synths start counting from 1.
So when you set your midi channel to 1 on your synth, you probably use midi channel 0 in MIDIClock
Midiclock.com tutorial
25
Any Questions ??
●
Visit www.midiclock.com for more information...
Midiclock.com tutorial
26
Download PDF
