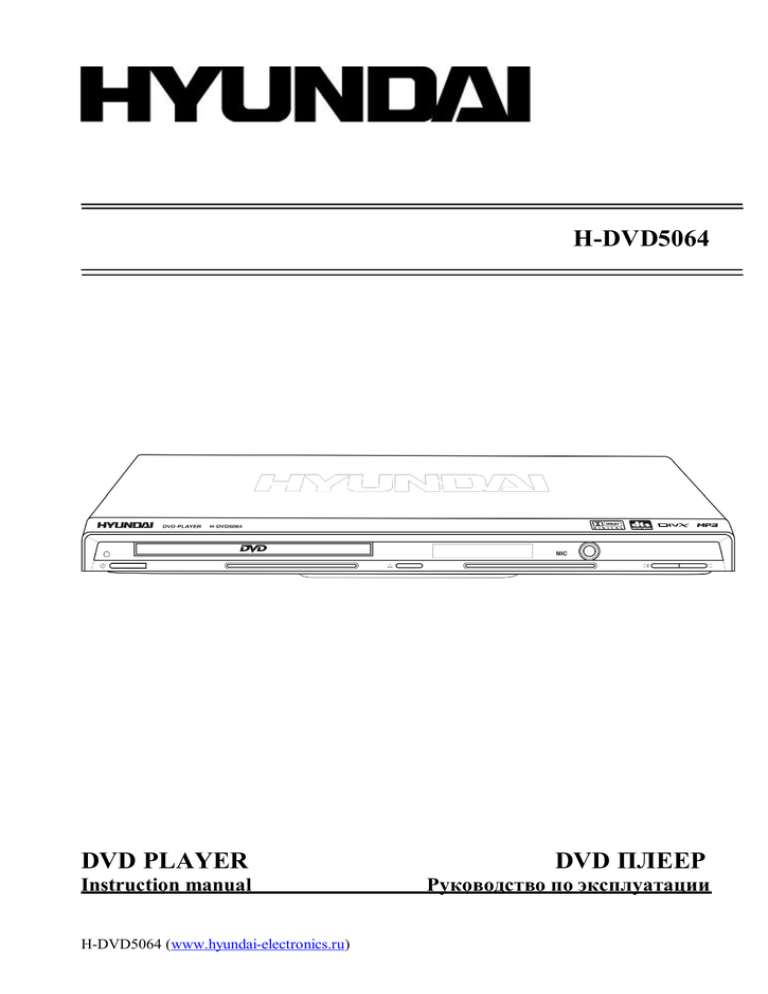

H-DVD5064

DVD PLAYER

Instruction manual

H-DVD5064 ( www.hyundai-electronics.ru

)

DVD

Contents

Contents.............................................................................................................................................2

Important safeguards..........................................................................................................................3

Features .............................................................................................................................................4

Accessories ........................................................................................................................................5

Disc features ......................................................................................................................................7

Handling discs................................................................................................................................8

Disc Terms .....................................................................................................................................9

Controls ...........................................................................................................................................10

Front panel...................................................................................................................................10

Rear panel ....................................................................................................................................10

Remote control (RC) ....................................................................................................................11

Connection.......................................................................................................................................12

Video system connection ..............................................................................................................12

Audio system connection .............................................................................................................13

System setup ....................................................................................................................................14

General setup page .......................................................................................................................14

Audio setup..................................................................................................................................15

Video setup ..................................................................................................................................18

Preference setup ...........................................................................................................................18

Password setup.............................................................................................................................19

Button functions...............................................................................................................................20

Troubleshooting guide......................................................................................................................24

Specification ....................................................................................................................................25

H-DVD5064 ( www.hyundai-electronics.ru

) 2

Important safeguards

The lightning flash is intended to alert the user to the presence of dangerous voltage within the product's enclosure, and touching the inner parts may result in a risk of electric shock to persons.

The exclamatory mark is intended to alert the user to the presence of important operating instructions.

To reduce the risk of electric shock or fire, do not open the cover. Refer servicing to qualified service personnel.

This mark indicates this unit belongs to class 1 laser product. The laser beam may produce radiation harm to the directly touching human body.

Please read through the manual carefully before connection and operation.

Do not open the cover or touch any internal components. This should be done by a professional technician only.

Turn off the power when the unit is not being used. (Unplug the power cord if the unit is not used for a long time).

Don't expose this unit to direct sunlight. Keep away the heating sources or equipments.

Don't expose this unit to the rain or moisture.

Place the unit on a horizontal level. Keep the unit ventilated. Don't block the heat hole. Overheat may cause malfunction.

Clean the cabinet with soft cloth. Detergent or alcohol is forbidden.

This book is only a guide for user’s operation, not a criterion for configuration.

H-DVD5064 ( www.hyundai-electronics.ru

) 3

Features

Thank you for purchasing our product. Please go through this manual carefully before connection and operation. Please keep this manual for future reference.

DVD player HYUNDAI is a new generation home player, which can produce high quality video and audio. Its performance is much better than that of any previous home video playing equipment. As the best signal source of home theatre system, it will give you the uppermost enjoyment!

Supports: DVD-R/-RW, DVD+R/+RW, CD-R/-RW

Compatible with: DVD, MPEG4 (DivX), Super VCD, VCD, CDDA, MP3, WMA, Kodak Picture

CD, JPEG

Built-in Dolby Digital AC-3/Dolby Prologic II/DTS digital out

SCART output

Progressive scan

Video outputs: composite, S-Video, component (YUV)

Audio outputs: coaxial, 5.1/stereo

Karaoke function

Russian and English OSD

Power supply: ~ 100-240 V, 50/60 Hz

H-DVD5064 ( www.hyundai-electronics.ru

) 4

Accessories

Accessories

User manual Remote control A/V Cable DVD Player

Battery Installation

Remove the battery compartment cover on the back of the remote control.

Load the batteries into the battery compartment making sure that the batteries have been inserted with the correct polarities matching the symbols

+/- as indicated inside the battery compartment.

Install the cover back.

Remove the batteries when you do not intend to use it for a long time. Do not mix new and used batteries or different types of batteries. Weak batteries can leak and severely damage the remote control. Dispose of batteries according to your country regulations.

H-DVD5064 ( www.hyundai-electronics.ru

) 5

This unit can play the following types of discs

Symbol Disc types

DVD

MPEG4 (DivX)

SVCD

Video-CD

(VCD)

CDDA

MP3

WMA

Kodak Picture

CD

JPEG

AC-3

Contents

Audio + Video

Audio + Video

Audio + Video

Audio + Video

Audio

Audio

Audio

Digital Photo

Digital photo

Dolby Digital Audio

H-DVD5064 ( www.hyundai-electronics.ru

) 6

Disc features

DVD 5 (single side, single layer)

DVD 9 (single side, double layer)

DVD 10 (double side, single layer)

DVD 18 (double side, double layer)

VCD 1.0/1.1/2.0

Picture CD

Disc information

TYPE

RECORD

FORMAT

CAPACITY

DISC SIZE

HORIZONTAL

RESOLUTION

SUBTITLE

DVD

MPEG 2

Single side

Single layer

4.7 GB = 2 Hr

Double side

Single layer

8.5 GB = 4 Hr

Single side

Single layer

9.4 GB = 4.5 Hr

Double side

Double layer

17 GB = 9 Hr

12 cm / 8 cm

500 lines

Up to 32 kinds

MPEG4

SVCD

MP3

CD-R

CD-RW

VCD

MPEG I

650 M

74 min.

12 cm

240 lines

SVCD

MPEG II

650 M

45 min.

12 cm

350 lines

8

CD

DIGIT

650 M

74 min.

12 cm / 8 cm

LANGUAGE

Up to 8 kinds 2 4

SYMBOL

H-DVD5064 ( www.hyundai-electronics.ru

) 7

Different DVD discs have different combination of features, this is because of the different design created by the order and manufacturer, following symbols indicate some features of DVD discs.

Regional code Hiding subtitle

Dolby digital surround

DTS digital cinema surround

Audio track

Subtitle

Video aspect ratio

Parental lock

Angle

Two-channel stereo

Restriction

Handling discs

When holding discs, please hold it by its edge.

When holding discs, be sure the label side is upwards.

Do not grasp the non-label side of the disc.

Disc storage

Never store disc in the place with high temperature, strong light or humidity.

Put the disc back to the case after playback.

Cleaning

Wipe the discs from time to time using a soft cloth. Always wipe it from the center towards the edge.

Do not use daily used detergent to clean the disc.

Protect discs against any fingerprint, do not stick or write anything on the surface of the disc.

H-DVD5064 ( www.hyundai-electronics.ru

) 8

Disc Terms

Title

Generally, pictures or music compressed on a DVD are divided into several sections is called title.

Chapter

The smaller section unit of picture or music in a DVD under the title, usually one title consists from one or more chapters and each of them is numbered for easy searching. But some discs may not have a recording chapter.

Track

A segment of picture or music on a SVCD, VCD or CD. Each track is numbered for searching.

Scene

Active and stillness picture divided into certain portions is called scene, and every scene will be showed on screen menu with a scene number, that can be easily found while playing. A scene usually is formed with one or several tracks.

PBC function (SVCD, VCD)

If a SVCD or a VCD is played a content menu may be showed on screen, this is what is called “Play back control” viz. PBC function.

Disc type Functions

VCD without PBC function

(1.1 version)

Supports both music and images.

SVCD/VCD with PBC function (2.0 version)

In order to play pictures from VCD the menu indicated on the screen can be used.

H-DVD5064 ( www.hyundai-electronics.ru

) 9

Controls

Front panel

1 2

1. STANDBY button

2. Disc loading clot

3. OPEN/CLOSE button

4. Display screen

Rear panel

MIC

3 4

5. Microphone input

6. PLAY/PAUSE button

7. STOP button

5 6 7

1 2 3 4 5 6

1. SCART output

2. Component video output

3. Stereo L/R audio output

4. Coaxial audio output

5. S-video output

6. Composite video output

7. 5.1 CH audio output

7

H-DVD5064 ( www.hyundai-electronics.ru

) 10

Remote control (RC)

1. STANDBY button;

2. Numeric buttons;

3. FAST FORWARD/REWIND buttons;

4. PLAY/PAUSE button;

5. STOP button;

6. TITLE button;

7. Cursor (LEFT/RIGHT/UP/

DOWN) buttons;

8. AUDIO button;

9. ANGLE button;

10. A-MODE button;

11. STEP button

12. PROG button;

13. S.EFFECT button;

14. EQ button;

15. SETUP button;

16. OPEN/CLOSE button;

17. MUTE button;

18. OSD button;

19. VOLUME+/- button;

20. GOTO button;

21. PREVIOUS/NEXT button;

22. VIRTUAL button;

23. SUBTITLE button;

24. ENTER button;

25. MENU button;

26. V-MODE button;

27. REPEAT button;

28. ZOOM button;

29. A-B button;

30. L/R/ST button;

31. SLOW button.

Remote control operation

Insert two AAA/1.5V batteries into the remote control. The remote control is pointed at remote sensor within 8 meters and within 30 degrees at the left or the right side.

Take the battery out of the control if it is not used for a long time.

H-DVD5064 ( www.hyundai-electronics.ru

) 11

Connection

Precaution: Do not turn on the power of the player before all connections are done correctly.

Note: The diagram may be different from your DVD player; the connections are only for your reference.

Video system connection

Component video input

TV/Monitor video input

Composite video and

S-video input

SCART input

Component video output

Composite video and

S-video output

SCART output

DVD player video output

These video outputs are available in this unit.

Composite video

Use the cable with yellow plug of an AV cable to connect the composite video output of this unit to the video input of a TV/monitor.

Component video

Use a 3-core AV cable to connect the components outputs of this unit to the corresponding inputs of a

TV/monitor.

S-Video

Use an S-Video cable to connect the S-Video output of this unit to the S-Video input of a

TV/monitor.

SCART

Use a 21-pin SCART cable to connect the SCART output of this unit to the TV/monitor SCART input.

Notes: The connection you should make depends on the TV/monitor input terminals. Don’t make all the connections at the same time, otherwise the produced picture will be affected.

H-DVD5064 ( www.hyundai-electronics.ru

) 12

Audio system connection

5.1CH audio input

TV/monitor/amplifier audio input

2CH audio input Digital audio input

5.1CH audio output 2CH audio output Digital audio output

DVD player audio output

There are two types of audio output systems. They are analog audio output system and digital audio output system.

Analog audio output system includes 2-channel stereo output and Dolby AC-3 5.1 channel output.

Digital audio output system includes coaxial output.

Stereo audio

Use a pair of audio cable (white for left, red for right) to connect the stereo audio outputs of this unit to the stereo inputs of a TV or a power amplifier.

5.1 CH audio

Use 3 pairs of audio cables to connect the 5.1 CH audio outputs of this unit to the 5.1 channel inputs of external audio amplifiers or other players.

Coaxial audio

Use a coaxial cable to connect the coaxial output of this unit to the coaxial input of a power amplifier.

H-DVD5064 ( www.hyundai-electronics.ru

) 13

System setup

1. Press SETUP to enter the setup menu. In Setup mode, press SETUP button again to quit the setup page.

2. Use the LEFT/RIGHT buttons to choose the setup page: General setup page, Audio setup page,

Video setup page, Preference page, Password setup page, Exit.

3. Press the DOWN button to enter the setup page selected.

4. Use the UP/DOWN buttons to select the option you want to adjust.

5. Press RIGHT button to enter the adjustment list. Use the UP/DOWN buttons to select the adjustment and press ENTER button to confirm and LEFT button to return to options list.

6. To return to setup page list press the LEFT button in the options list.

Note: The items in gray can't be set up. The setup is memorized and kept after power off.

General setup page

TV DISPLAY

4:3 PanScan: When the unit connects to the normal TV set, the wide-screen image shows on the full screen, but some part is cut off.

4:3 LetterBox: When the unit connects to the normal TV set, the wide-screen image shows and black bars appear on the top and bottom of screen.

16:9: Use this item when the unit is connected with the wide screen TV set.

ANGLE MARK

It will show the angle mark when playing DVD disc with multi-angle view if selecting On.

OSD LANGUAGE

Select on-screen display language: English, Russian.

CLOSED CAPTIONS

This function doesn't work when the disc without caption. If the caption is Off, press SUBTITLE button on the RC to make caption on. The default setup is On.

SCREEN SAVER

If the Screen saver is set On and the unit is switched on without a disc playing for several minutes, a moving picture appears on the screen, and the unit will go to standby mode after 20 minutes. You can press STANDBY button to wake it up.

LAST MEMORY

When this function is on, the unit can memorize the time elapsed from the last time you played the disc. Then at the next playing, it will resume playing from the memorized time.

H-DVD5064 ( www.hyundai-electronics.ru

) 14

Audio setup

Analog audio setup page

DOWNMIX

LT/RT: The audio out is Left and Right channels format even if the original sound is 5.1CH format.

Stereo: The audio out format is stereo even if the original sound is 5.1CH format.

3D surround: The audio out is virtual surround sounds (only for 5.1CH player).

5.1CH: Turn off downmix function. If playing 5.1CH discs or the unit is connected with 5.1 channel amplifier, this item should be selected (only for 5.1CH player).

FRONT, CENTER, REAR, SUBWOOFER SPEAKER

If your speaker system includes the above speakers, you can set these items according the real speaker states. In karaoke On mode, or downmix is not set to Off, these setup don't work.

DIALOG

With Audio output mode, and choose LT/RT stereo then under the Speaker setup page you can select Dialog item and adjust volumes.

While playing 5.1CH disc, can adjust speakers volumes via Dialog.

D.R.C.

Dynamic compress output can lower volumes processing sound effect under the conditions of within speakers max output. The item is divided into On, Off, Auto.

Digital audio setup

H-DVD5064 ( www.hyundai-electronics.ru

) 15

DIGITAL OUTPUT

SPDIF off: no digital signal out (coaxial output off), only analog audio output.

All: digital signal output in the original format recorded in the disc.

PCM only: digital signal output in the decoded PCM form.

LPCM OUTPUT

Select PCM frequency at 48 kHz or 96 kHz

Note: some amplifier don't support 96 kHz sampling and cause coaxial output abnormal.

The initial factory setup is 48 kHz.

Dolby digital setup

DUAL MONO

Stereo: stereo output signal,

L-Mono: left output signal,

R-Mono: right output signal,

Mix-Mono: left and right output average signal.

DYNAMIC

If watching large dynamic scope movie program at night, to select this mode you can reduce the volume to a very low level, at the same time, to keep the fine details sounds. In this case, this doesn't disturb the family and keep the quality sounds.

Channel delay

You can set the speaker distances in the real conditions. Press the UP/DOWN cursor buttons to select the speaker, Press the LEFT/RIGHT cursor buttons to adjust the distance.

Equalizer setup

SOUND MODE (No this setup in 2CH DVD)

Several EQ modes are available. You can select one according to your preference and the disc content.

SELECT BASS BOOST, SUPER BASS OR TREBLE BOOST

On means strengthen the corresponding audio frequency range.

H-DVD5064 ( www.hyundai-electronics.ru

) 16

3D processing (no this setup in 2CH DVD)

In PRO LOGIC On mode, the Reverb mode setup is available. The initial factory setup is Off.

PRO LOGIC II

On means 2CH music switch into 5.1CH music and can by played with multi CHs speakers while in

Off status, no effect, if a disc does not support the function, suggesting to put to the Auto position, when playing with Dolby digital DVD, the function setting must be put on or put in auto.

MODE

Music: All sound arrive stimulatingly, without delay.

Movie: At the surrounding CH plus 10ms delay.

PRO LOGIC mode imitate PRO LOGIC I adopting logic 2

Auto means auto selecting mode according to a disc type.

Only under audio out status, and 5.1CH being chosen can PRO LOGIC be set. While in PRO LOGIC, and choosing On can go into next mode menu.

PANORAMA

On means the front stereo extends to both sides, with a better surrounding sense.

DIMENSION

Similar as front and rear balance control, adjusting gradually the front and rear sound field, there are several musical scale to be chosen.

CENTER WIDTH

Adjusting center CH signal and dividing left/right CH, to let the signal emit from 3 front speakers at different degree

REVERB MODE

You can select the Reverb mode: Normal, Concert, Living room, Hall, Bathroom, Cave, Arena,

Church.

HDCD

You can select the digital filter Off, 1x, 2x.The initial factory setup is Off.

Karaoke setup

Set the microphone ON or OFF and adjust the microphone volume.

H-DVD5064 ( www.hyundai-electronics.ru

) 17

Video setup

VIDEO OUTPUT

OFF: set video output to the composite.

YUV: set video output in analog component video format when connecting to Y/U/V terminals

P-YUV: set progressive YUV signals. Connection same as YUV.

RGB: set video output in Red/Green/Blue format when connecting to SCART terminals.

P-RGB: progressive RGB signals. Connection same as RGB.

Note: If the video setting differs with the physical connection, the TV set may be without picture. In case of no picture, you can RESET the machine, then keep pressing V-MODE key until the picture is

OK again.

COLOR SETTING:

You can set the Sharpness, Brightness, Contrast, Gamma, Hue, Saturation, Luma delay according to your preference.

Preference setup

TV TYPE

This unit is suitable for all kinds of TV systems. You can select one of the PAL, NTSC or Multi.

Multi: the TV system is auto switched according to the disc system.

NTSC: this system is used in USA, Taiwan, Japan etc.

PAL: this system is used in China, Europe, Hong Kong etc.

PBC

To set PBC with On, Off. PBC On means the function is available, Off, no function.

AUDIO, SUBTITLE, DISC MENU LANGUAGE SETUP

These are the initial settings by your preference. If a setting is supported by disc content, it will work.

Otherwise the disc default value works. And these settings can be changed respectively by press the

AUDIO and SUBTITLE buttons when playing.

PARENTAL

The control level is for parental to control playing content and protect your children from violence and erotic. The disc, the level of which is higher than the setting level can not be played.

DEFAULT

Reset to the initial factory setups.

H-DVD5064 ( www.hyundai-electronics.ru

) 18

Password setup

Change the password. The initial factory password is 136900. You can set your own password. If you forget your own password, you can use 136900 as general password.

H-DVD5064 ( www.hyundai-electronics.ru

) 19

Button functions

OPEN/CLOSE

Press OPEN/CLOSE button when power is on, the disc tray is pushed out. Put the disc on the tray with the title faced up. Press OPEN/CLOSE button again to close the disc tray and the unit starts playing automatically. (Auto-play function is not available for MP3 and JPEG discs).

STANDBY

When playing, press STANDBY button to turn off the unit and standby mode will be activated;

Press STANDBY button again, to turn on the unit and it will start playing.

Note: The power is not fully turned off in standby state. If the unit will not be used for a long time, turn off the power.

TITLE

When playing DVD disc, press TITLE button to return to the main title play.

AUDIO

When playing DVD with more than one audio stream, press AUDIO button to select the needed one.

SUBTITLE

When playing the disc with multi-subtitle, press SUBTITLE button continually, the subtitles are changed in a circle, and you can select one.

ANGLE

When playing the disc with multi-angle, press the ANGLE button to change the view angle.

MENU

When playing DVD disc, press MENU button once to return to sub-menu (This function is not supported by all DVD discs). Press MENU again to return to the main menu.

When playing SVCD, VCD2.0 disc, press MENU button and the disc menu will be shown. You can select contents in the menu. After loading the disc, the unit will enter Menu automatically.

Press MENU button, the TV screen shows PBC OFF. In this mode, the menu will not appear, press numeric buttons to select the track directly. VCD1.1, CDDA and MP3 have no PBC menu.

PLAY/PAUSE

Press PLAY/PAUSE button to start playing the disc. During playing the disc, press

PLAY/PAUSE button once to pause.

STOP

When playing DVD, SVCD, VCD, CD disc, press STOP button once, the unit will memorize the previous ending point. Press STOP button for the second time to stop the playing and end memory.

FAST FORWARD

Press this button for quick forward search.

FAST REWIND

Press this button for quick rewind search.

SLOW

H-DVD5064 ( www.hyundai-electronics.ru

) 20

Press SLOW button to activate slow forward function, continually press the button to select different speed of playback.

PREVIOUS

When playing DVD disc, press PREVIOUS button to go to the previous chapter.

When playing SVCD, VCD, CD disc, press PREVIOUS button to go to the previous track.

NEXT

When playing DVD disc, press NEXT button to go to the next chapter.

When playing SVCD, VCD, CD disc, press NEXT button to go to the next track.

PROGRAM

If the disc contains 2 or more tracks, chapters or titles, set up the playing order to your preference.

Press PROG button to enter program menu.

Press numeric buttons to input the number of the track, title or chapter. If the programmed tracks are over ten, press NEXT button to go on programming. Use the cursor buttons to move the cursor to the START. Press ENTER button to start programmed playback.

Note: For MP3 disc, this function is not available.

SETUP

Press SETUP button to enter or exit DVD player’s setup menu.

V-MODE

Press V-MODE button to switch the video output mode.

A-MODE

Press A-MODE button to switch the audio output mode.

L/R/ST

When playing super VCD, VCD, CD disc with multi-channel, press L/R/ST button to select left channel/right channel/stereo/mix audio output.

ENTER

Press ENTER button for confirmation of chosen options.

STEP

When playing DVD, SVCD, VCD disc, press STEP button once, the picture changes to next frame. Press PLAY/PAUSE button to resume normal play.

OSD

Press the OSD button; the relative information of the disc will be displayed on the TV screen.

REPEAT

Press REPEAT button to repeat a title, chapter, track or the whole disc.

When playing DVD disc, press REPEAT button continually, the TV screen shows chapter =>

Title => All => OFF.

When playing SVCD, VCD, CD disc, the turn is following: Track => All => OFF.

When playing MP3 disc, the turn is: Folder => Single => Repeat one => Repeat folder.

A - B

Press A-B button on the start point (A) and the ending point (B) to select the repeat part.

H-DVD5064 ( www.hyundai-electronics.ru

) 21

Press A-B button the third time to cancel A-B repeat and return to normal play.

GOTO

Press GOTO button to select track, disc time and track time to play. You can use numeric buttons to input the goto time.

ZOOM

When playing DVD, SVCD, VCD disc, press ZOOM button to zoom in or zoom out the picture.

In zoom mode, press UP/DOWN/LEFT/RIGHT cursor buttons to move the picture for viewing.

The picture cannot be moved in zoom out mode.

VOLUME

Press VOL +/VOL– buttons to adjust volume level.

MUTE

Press MUTE button, the sound will be turned off and “MUTE” will be displayed on the TV screen. Press MUTE button again, “MUTE OFF” will be displayed and the sound will resume.

S.EFFECT

Press S.EFFECT button to change the surround sound (DSP) effect.

VIRTUAL

When pressing this button the virtual panel will appear on the screen. It will make your work easier while watching the movie.

EQ (This function is optional)

Press EQ button to chose EQ mode.

H-DVD5064 ( www.hyundai-electronics.ru

) 22

KARAOKE

Karaoke disc should be in DVD VCD format. This disc should content music and subtitles.

Karaoke disc should show to the users the fragments and when they should sing song. It is necessary to use one or two microphones (do not come with the unit).

Connect microphones to MIC cutoff points on the front panel of DVD player.

Enter system setup menu on the Karaoke page. Choose the item you want to set up. Press

UP/DOWN cursor buttons to adjust microphone volume in the setup menu.

Press UP/DOWN cursor buttons to adjust the echo level in the setup menu.

Put Karaoke disc into DVD-player and the reproduction will start automatically at once.

MP3 PLAYBACK

MP3 is the third audio compression format of international standard MPEG, which compresses the audio signal at the rate of 12:1. Using MP3 format, one disc can contain more than 600 minutes of music, the timbre of which is similar with that of CD discs.

There are many different formats for storing MP3 songs. Usually, one MP3 disc includes many folders (directories) and every folder includes files (songs).

Use the UP/DOWN directional navigation arrows to select the directory you want and press the

ENTER button to enter it. Press the PLAY/PAUSE button to play the song you selected.

PLAY PICTURE CD

When picture disc menu appears on the TV screen, press cursor buttons to choose the needed folder, then press ENTER button to enter the selected folder.

Select the needed file in the folder and press PLAY/PAUSE button to playback the file.

Press STOP button, 12 small pictures will be shown on the TV screen.

Press cursor buttons to select the desired picture.

Use cursor buttons to select SLIDE SHOW, then press PLAY/PAUSE button to start random playing.

Use cursor buttons to MENU, the press ENTER button to enter button function menu.

Button function menu is as follows:

[PROGRAM]: to change picture transform mode;

[STOP]: entering thumbnail mode;

[NEXT]: next picture;

[PREV]: previous picture;

[PLAY]: to play picture;

[UP]: invert picture;

[DOWN]: mirror image;

Press CONTINUE to go to another item menu

[LEFT]: rotate 90 degrees anticlockwise;

[RIGHT]: rotate 90 degrees clockwise;

[ZOOM]: change zoom mode;

[FAST FORWARD]: zoom in picture;

[FAST REWIND]: zoom out picture;

[UP/DOWN/LEFT/RIGHT]: move zoom center,

Select EXIT MENU to exit.

H-DVD5064 ( www.hyundai-electronics.ru

) 23

Troubleshooting guide

Symptom

No power

No picture

No sound

Distorted picture

Unable to play

Microphone doesn’t work

Remote control does not work

Some operations cannot be done

Cause(s)

The power cord is not connected.

TV video setup is not correct.

Solution

Connect the power cord properly.

Select the suitable setup.

Player video setup is not correct.

Video cable is not connected well.

Audio cable is not connected well.

Select the suitable setup.

Connect the cable properly.

Connect the cable properly.

Turn on power.

Power off for the connected equipment.

Audio setup is not correct.

Select the suitable audio setup.

Dirty disc.

Clean the disc.

In fast forward or fast rewind mode. Sometimes, the tiny distortion

Without disc.

appears. It is normal.

Load the disc.

Disc is bad.

Disc is put upside down.

Clean or replace the disc.

Load the disc properly.

Dirty disc.

Clean the disc.

There is condensate on the laser head. Leave the player in power off mode for 1 hour.

There is menu on TV screen.

Parental control is working.

Microphone is not connected.

Use SETUP button to turn off menu.

Set up PARENTAL OFF or change the setup.

Connect the microphone

Microphone volume level is too low. Adjust the microphone volume level

Remote control is not pointed at the sensor.

Point the remote control at the sensor observing the angle 30

0

.

Remote control is too far from DVD unit.

Batteries are weak.

Operate the remote control within 8 meters.

Replace the batteries.

Disc is recorded incorrectly.

Change the disc.

The wrong buttons have been pressed. Repeat operation again pressing correct buttons.

H-DVD5064 ( www.hyundai-electronics.ru

) 24

Specification

Compatibility

Audio

Video

Connectors

Functions

Front panel

Color

Formats of disks:

DVD, DVD-R/-RW/+R/+RW, CD-R/-RW

Formats of playback: DVD, MPEG4 (DivX), SVCD,

VCD, CDDA, MP3, WMA, Kodak Picture CD, JPEG

Support DVD disks of all zones

Dolby Digital decoder

DTS digital out

Dolby Prologic II

Progressive scan

Support NTSC/PAL

Composite

S-Video

Component (YUV)

SCART

Coaxial

5.1 Stereo

Karaoke

Screen saver

Zoom

3D sound effects

Equalizer

Children lock

Multi-shooting angle

Multilanguage OSD

Power supply

Black

Black

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

~100-240 V, 50/60 Hz Additional

Specifications are subject to change without notice.

H-DVD5064 ( www.hyundai-electronics.ru

) 25

,

....................................................................................................................................26

...............................................................................................................27

........................................................................................................................28

............................................................................................................................29

DVD ...........................................................................................................31

................................................................................................................32

...............................................................................................33

....................................................................................................................34

.........................................................................................................................34

.............................................................................................................................34

( )................................................................................35

..................................................................................................................................36

..................................................................................................36

.....................................................................................................37

........................................................................................................................38

.........................................................................................................38

...........................................................................................................39

...........................................................................................................42

.............................................................................................43

.........................................................................................................43

.............................................................................................................................44

............................................................................................49

.........................................................................................................50

H-DVD5064 ( www.hyundai-electronics.ru

) 26

,

.

.

.

.

,

,

.

DVD

.

.

,

).

.

.

;

(

;

, -

.

,

.

,

.

1

.

.

,

H-DVD5064 ( www.hyundai-electronics.ru

) 27

. ,

, .

DVD

.

HYUNDAI – ,

. DVD

.

.

: DVD-R/-RW, DVD+R/+RW, CD-R/-RW

: DVD, MPEG4 (DivX), Super VCD, VCD, CDDA, MP3, WMA,

Kodak Picture CD, JPEG

Dolby Digital AC-3/Dolby Prologic II/ DTS digital

SCART

:

:

, S-Video,

, 5.1/

(YUV)

: ~ 100-240 , 50/60

H-DVD5064 ( www.hyundai-electronics.ru

) 28

DVD

.

.

,

+ –

.

,

, .

.

.

.

H-DVD5064 ( www.hyundai-electronics.ru

) 29

DVD

MPEG4 (DivX)

SVCD

Video-CD

(VCD)

CDDA

MP3

WMA

Kodak Picture

CD

JPEG

AC-3

:

+

+

+

+

Dolby Digital

H-DVD5064 ( www.hyundai-electronics.ru

) 30

DVD

DVD 5 (

DVD 9 (

DVD 10 (

DVD 18 (

VCD 1.0/1.1/2.0

CD

MPEG4

SVCD

3

CD-R

CD-RW

,

)

)

)

)

4,7 – 2

8,5 – 4

DVD

MPEG 2

,

9,4 – 4,5

,

12/8

17 – 9

,

,

500

32

8

VCD

MPEG I

650

74

12

240

-

2

12

350

8

4

SVCD

MPEG II

650

45

CD

DIGIT

650

74

12/8

-

-

-

H-DVD5064 ( www.hyundai-electronics.ru

) 31

DVD-

:

Dolby digital surround

DTS

,

.

(

.

) .

,

.

.

.

.

.

H-DVD5064 ( www.hyundai-electronics.ru

) 32

,

«

,

».

DVD,

,

.

DVD-

SVCD, VCD CD.

.

.

VCD,

, ,

PBC (SVCD,VCD)

,

.

SVCD VCD

.

.

VCD,

PBC ( 1.1)

SVCD/VCD,

PBC ( 2.0)

.

,

.

.

« »

( ),

VCD

,

.

H-DVD5064 ( www.hyundai-electronics.ru

) 33

1.

2.

3.

4.

1 2

STANDBY

OPEN/CLOSE

3 4

5.

6.

7.

PLAY/PAUSE

STOP

MIC

5 6 7

1 2 3 4 5 6

1.

2.

SCART

3.

4.

5. S-Video

6.

7. 5.1

7

H-DVD5064 ( www.hyundai-electronics.ru

) 34

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

11.

12.

13.

14.

15.

16.

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

STANDBY;

;

FAST FORWARD/REWIND;

PLAY/PAUSE;

STOP;

TITLE;

DOWN);

AUDIO;

(LEFT/RIGHT/UP/

ANGLE;

A-MODE;

STEP

PROG;

S.EFFECT;

EQ;

SETUP;

OPEN/CLOSE;

27.

28.

29.

30.

31.

MUTE;

OSD;

VOL+/- ;

GOTO;

PREVIOUS/NEXT;

VIRTUAL;

SUBTITLE;

ENTER;

MENU;

V-MODE;

REPEAT;

ZOOM;

A-B;

L/R/ST;

SLOW.

( )

30

,

AAA/1.5V

,

.

.

8

.

H-DVD5064 ( www.hyundai-electronics.ru

) 35

:

:

.

S-video

DVD

,

.

SCART

SCART

S-video

AV

.

S-Video

S-Video

SCART

21-

SCART

:

.

SCART

.

S-Video

.

.

.

S-Video

SCART

,

,

H-DVD5064 ( www.hyundai-electronics.ru

) 36

5.1 2-

5.1-

5.1-

.

3

5.1-

.

2-

2-

(

.

,

5.1-

.

.

Dolby AC-3 5.1-

.

)

H-DVD5064 ( www.hyundai-electronics.ru

) 37

1.

2.

3.

4.

5.

6.

ENTER.

:

SETUP,

SETUP.

.

,

,

,

,

,

,

.

.

;

,

.

.

:

,

.

.

.

.

,

,

,

4:3 PS:

4:3 LB:

16:9:

,

,

,

.

,

SUBTITLE

(

,

,

,

,

.

.

.

,

,

.

).

,

.

.

,

STANDBY,

20

.

- .

,

H-DVD5064 ( www.hyundai-electronics.ru

) 38

.

, ,

,

.

:

:

5.1

:

:

Dolby Surround.

:

.

,

,

,

«

»

»

DRC

»

5.1-

.

,

,

.

,

.

,

(

,

.

,

.

).

( ),

«

«

.

.

(

,

)

H-DVD5064 ( www.hyundai-electronics.ru

) 39

SPDIF

SPDIF

SPDIF

:

SPDIF/RAW:

SPDIF/PCM:

LPCM out (LPCM

:

.

)

48

48 .

96 .

(

Dolby Digital

.

.

.

96 ,

),

.

:

.

:

:

:

.

.

.

.

.

.

.

.

.

,

,

H-DVD5064 ( www.hyundai-electronics.ru

) 40

»

, ,

.

.

DVD)

.

DVD)

PROLOGIC

– .

(3D).

PRO LOGIC II

»

Logic II

:

PRO LOGIC:

:

«5.1CH»

:

DVD-

,

,

«

2-

»,

» «

- 10 .

PRO LOGIC.

«PRO Logic II».

5.1-

.

PRO Logic

Dolby Digital,

»

.

, .

.

,

PRO

».

H-DVD5064 ( www.hyundai-electronics.ru

) 41

PANORAMA (

« »

DIMENSION (

CENTER WIDTH (

)

)

3D

,

HDCD

, ,

)

.

.

3

, , .

, 1 2 .

.

:

-

,

.

,

,

,

,

.

YUV:

:

P-YUV:

RGB:

P-RGB:

.

:

Y/U/V

,

.

YUV

.

.

.

RGB .

,

.

V-MODE

,

.

, ,

,

,

Y/U/V.

SCART

RGB.

,

,

H-DVD5064 ( www.hyundai-electronics.ru

) 42

PAL:

PAL, NTSC

:

.

NTSC:

PBC

,

.

,

.

,

.

, , .

, ,

SVCD VCD

PBC.

.

,

.

,

.

.

AUDIO SUBTITLE.

,

. , ,

, .

.

.

136900

.

.

H-DVD5064 ( www.hyundai-electronics.ru

) 43

136900.

,

OPEN/CLOSE

JPEG).

OPEN/CLOSE,

.

OPEN/CLOSE,

. (

STANDBY

;

;

.

MP3

.

.

STANDBY,

STANDBY,

:

.

, .

TITLE ( )

DVD

AUDIO ( )

DVD

AUDIO

SUBTITLE (

.

)

DVD

SUBTITLE

ANGLE ( )

,

DVD

ANGLE

MENU ( )

.

(

DVD

.

SVCD, VCD2.0

.

PBC OFF (

,

CDDA MP3 PBC

PLAY/PAUSE (

.

).

)

,

TITLE

MENU

.

MENU,

.

).

.

.

,

MENU,

PLAY/PAUSE

;

STOP ( )

FAST FORWARD (

DVD, SVCD, VCD, CD

.

.

)

,

STOP

,

STOP

VCD1.1,

.

-

.

;

H-DVD5064 ( www.hyundai-electronics.ru

) 44

FAST REWIND ( )

)

.

SLOW (

PREVIOUS (

NEXT (

.

PROGRAM (

PROGRAM

SLOW,

,

)

DVD

.

.

SVCD, VCD, CD

)

DVD

SVCD, VCD, CD

.

)

10, NEXT

.

,

,

.

.

:

PREVIOUS

NEXT

.

.

PREVIOUS

NEXT

,

.

.

.

PLAY/PAUSE

.

SETUP (

V-MODE (

A-MODE (

L/R/ST (

.

)

SETUP

)

V-MODE

)

-MODE

)

Super-VCD (SVCD), VCD, CD

L/R/ST

.

.

.

.

,

ENTER ( )

ENTER .

STEP ( )

H-DVD5064 ( www.hyundai-electronics.ru

) 45

OSD (

REPEAT (

.

.

:

DVD, SVCD, VCD

.

.

STEP

PLAY/PAUSE

)

=>

OSD,

)

REPEAT

DVD

:

SVCD, VCD, CD

=>

=> =>

=>

.

.

, ,

REPEAT;

=> => =>

.

,

:

GOTO (

ZOOM (

( ).

( ).

.

)

GOTO

)

DVD, SVCD, VCD

.

.

VOLUME (

MUTE (

».

S.EFFECT (

)

VOL +/-

MUTE;

«

S.EFFECT

)

MUTE

.».

)

VIRTUAL

VIRTUAL

.

EQ ( )

EQ,

H-DVD5064 ( www.hyundai-electronics.ru

) 46

)

.

,

.

,

.

(DSP).

.

;

.

ZOOM

.

MP3

600

).

MP3

ENTER,

– DVD VCD,

).

,

MIC,

DVD-

MP3

.

,

.

12 .

,

,

.

.

MP3,

.

.

(

DVD .

,

,

.

.

MP3.

MPEG,

,

PLAY/PAUSE,

PLAY/PAUSE

.

,

STOP;

.

[PROGRAM (

[STOP ( )]:

[NEXT]:

[PREV]:

[PLAY (

[UP]:

[DOWN]:

)]:

[LEFT (

[RIGHT (

[ZOOM (

)]:

)]:

)]:

[FAST FORWARD]:

)]:

;

;

;

;

;

90

90

H-DVD5064 ( www.hyundai-electronics.ru

) 47

:

ENTER,

PLAY/PAUSE

12

.

SLIDE SHOW,

.

MENU, ENTER

.

,

.

;

;

;

;

.

;

;

[FAST REWIND]:

[UP/DOWN/LEFT/RIGHT (

.

;

)]:

.

H-DVD5064 ( www.hyundai-electronics.ru

) 48

.

.

.

.

.

8

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

8 .

.

.

.

.

.

.

.

.

.

.

.

DVD-

.

.

SETUP,

.

.

»

.

.

.

.

30°

.

.

.

H-DVD5064 ( www.hyundai-electronics.ru

) 49

: DVD,

DVD-R/-RW/+R/+RW, CD-R/-RW

: DVD, MPEG4

(DivX), SVCD, VCD, CDDA, MP3, WMA, Kodak

Picture CD, JPEG

DVD

Dolby Digital

DTS Digital

Prologic II

NTSC/PAL

S-Video

SCART

5.1

(YUV)

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

~100-240 , 50/60

.

H-DVD5064 ( www.hyundai-electronics.ru

) 50

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
