MINOLTA-QMS ImageServer User`s guide

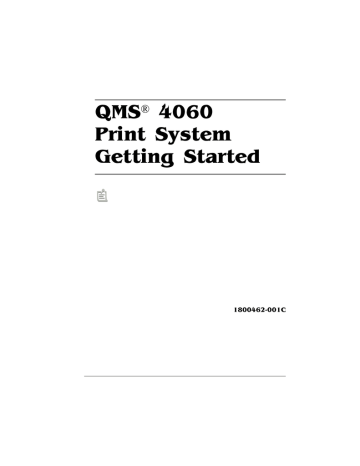

QMS® 4060
Print System
Getting Started
1800462-001C
Trademarks
The following are trademarks or registered trademarks of their respective owners. Other
product names mentioned in this manual may also be trademarks or registered
trademarks of their respective owners. Registered trademarks are registered in the
United States Patent and Trademark Office; some trademarks may also be registered in
other countries. QMS, the QMS logo, Crown, and the Crown seal are registered
trademarks of QMS, Inc. QUIC, CrownNet, CrownCopy, ImageServer, QFORM, and PS
Executive Series are trademarks of QMS, Inc. PostScript is a trademark of Adobe
Systems Incorporated for a page description language and may be registered in certain
jurisdictions. Throughout this manual, “PostScript Level 2” is used to refer to a set of
capabilities defined by Adobe Systems for its PostScript Level 2 page description
language. These capabilities, among others, are implemented in this product through a
QMS-developed emulation that is compatible with Adobe's PostScript Level 2 language.
Adobe, Adobe PhotoShop, Adobe PageMaker/Adobe Systems Incorporated. Intellifont/
Agfa Division, Miles, Inc. 3 Com, 3+Open/3Com Corporation. Aldus, PrePrint/Aldus
Corporation. Apple, AppleShare, AppleTalk, EtherTalk, LaserWriter, LaserPrep,
LocalTalk, Macintosh, TrueType/Apple Computer, Inc. Banyan, VINES/Banyan.
Centronics/Centronics Data Computer Corporation. CompuServe /H & R Block. DEC,
DECnet, LN03, VMS/Digital Equipment Corporation. PhoneNET/Farallon Computing,
Inc. Hewlett-Packard, HP, PCL, HP-GL, HP-UX, LaserJet/Hewlett-Packard Co. IBM PC,
Token-Ring/International Business Machines Corporation. Intel/Intel Corporation. Aldus
FreeHand/Macromedia, Microsoft, MS-DOS, Windows/Microsoft Corporation. Gothic
Medium BBB and Ryumin Light KL/Morisawa and Company, Ltd. Novell and NetWare/
Novell, Inc. QuarkXPress/Quark, Inc. TOPS/Sun Microsystems, Inc. TypeBank/
TypeBank, Ltd. The ENERGY STAR logo/United States Environmental Protection
Agency. The ENERGY STAR emblem does not represent EPA endorsement of any
product or service. UNIX/UNIX Systems Laboratories. Ethernet/Xerox Corporation.
Proprietary Statement
The digitally encoded software included with your Courageous Print System is
Copyrighted © 1998 by QMS, Inc. All Rights Reserved. This software may not be
reproduced, modified, displayed, transferred, or copied in any form or in any manner or
on any media, in whole or in part, without the express written permission of QMS, Inc.
Copyright Notice
This manual is Copyrighted © 1998 by QMS, Inc., One Magnum Pass, Mobile, AL
36618. All Rights Reserved. This manual may not be copied in whole or in part, nor
transferred to any other media or language, without the express written permission of
QMS, Inc.
Contents
1 Introduction
About the Printer .........................................................................1-2
About the Documentation ..........................................................1-3
Manuals on CD-ROMs 1-3
Standard Product Documentation 1-5
Related Documentation 1-8
About This Manual 1-8
Typographic Conventions 1-10
Printer Features .........................................................................1-11
QMS Crown Technology 1-11
Media Flexibility 1-14
PostScript Level 2 Compatibility 1-14
Multiple Resolutions 1-15
State-of-the-Art Controller 1-15
Multi-protocol Support 1-15
Advanced Paper Handling Options 1-16
Advanced Document Handling Capabilities 1-16
Convenient Control Panel Operation 1-17
Four Resident Emulations 1-17
Resident Typefaces, Fonts, and Symbol Sets 1-18
Software Loadable System 1-18
Printer Job Accounting 1-19
Energy Star Compliance 1-19
Toner Savings 1-20
QMS CrownAdmin Utility Software 1-20
Plug and Play Compatibility 1-21
Printer Options 1-21
What's Next? .............................................................................. 1-25
2 Setting Up Your Printer
Introduction .................................................................................. 2-2
Finding a Good Location ............................................................ 2-2
The Printer Must Be Placed... 2-2
Operating Area 2-3
Printer Measurements 2-4
Power Requirements 2-5
Checking Shipment Contents ................................................... 2-6
Registering the Printer ............................................................... 2-7
Unpacking the Printer ................................................................ 2-7
Removing the Box 2-8
Moving the Printer off of the Pallet 2-12
Removing Shipping Restraints 2-16
Getting to Know Your Printer .................................................. 2-20
Installing Consumables ........................................................... 2-22
Check the Starter Kit 2-23
Installing the Fuser 2-24
Installing the Drum Unit 2-27
Installing the Transfer Assembly 2-32
Installing the Ozone Filter 2-35
Powering On the Printer 2-38
Removing the Plastic Developer Cover 2-41
Installing Toner 2-43
Toner Recycling 2-46
ii
QMS 4060 Print System Getting Started
Installing the Developer 2-47
Loading the Paper Trays ..........................................................2-51
Printing a Start-up Page ...........................................................2-58
Enabling/Disabling the Start-up Page 2-59
Installing Options .......................................................................2-59
What's Next? ..............................................................................2-59
3 Connecting to a PC
Introduction ..................................................................................3-2
Connecting to a PC .....................................................................3-2
Making a Parallel Connection ....................................................3-3
What You Need for a Parallel Interface 3-3
Making the Connection ...............................................................3-4
PC Printing Software ..................................................................3-5
Installing a PostScript Printer Driver 3-5
Notes on Installing Printer Description Files 3-6
Printing from the PC ....................................................................3-9
What's Next? ..............................................................................3-10
4 Connecting to an Ethernet
Network
Introduction ..................................................................................4-2
What's Included in CrownNet ....................................................4-3
Alternate Media 4-3
Manuals on the CD-ROM 4-4
Setting up the CrownNet Interface .............................................4-4
Network Connection ...................................................................4-4
Ethernet Network Connection 4-4
Contents
iii
Software Installation .................................................................. 4-6
Configuring the CrownNet Interface ......................................... 4-7
Configuring the Network ............................................................ 4-7
Where To Go From Here ............................................................. 4-8
If You Have Trouble .................................................................... 4-8
What's Next? ................................................................................ 4-8
5 Connecting to a Macintosh
Introduction .................................................................................. 5-2
Connecting to a Macintosh ........................................................ 5-2
Macintosh Printing Software ..................................................... 5-3
Installing Macintosh Utilities 5-3
Installing Macintosh Printer Drivers 5-3
Installing LaserWriter 8.x and the QMS 4060
4.x PPD 5-4
Macintosh Printer Description Files for Quark and Adobe Applications 5-5
If You Have Trouble ..................................................................... 5-6
6 Control Panel
Introduction .................................................................................. 6-2
Control Panel Functions ............................................................ 6-3
Message Window ........................................................................ 6-4
Setting the Message Window Language 6-4
Control Panel Keys ..................................................................... 6-5
Online, Tray, Cancel, Status, and Copy Buttons 6-5
Menu, Select, Previous, and Next Keys 6-8
What's Next? ................................................................................ 6-9
iv
QMS 4060 Print System Getting Started
A QMS Customer Support
Sources of Support ..................................................................... A-2
Your QMS Vendor A-2
Your Application Vendor A-2
Q-FAX A-2
CompuServe A-3
Internet A-3
QMS Customer Response Center (CRC) A-3
QMS World-wide Offices ............................................................ A-5
B Configuration
Menu
Introduction ................................................................................. B-2
Menu Chart Conventions B-2
Installation Menu B-3
Operator Control Menu B-4
Administration Menu B-5
C Installing Options
Large-Capacity Input Feeder ..................................................... C-2
What's in the Kit? C-2
Installation Procedure C-2
2000-Sheet Large-Capacity Output Stacker ........................... C-10
What's in the Kit? C-10
Installation Procedure C-11
3000-Sheet Large-Capacity Output Stacker ........................... C-22
What's in the Kit? C-22
Unpacking the 3000-Sheet LCOS C-22
Hardware Contents C-25
Installation Procedure C-26
Preparing the Printer C-32
Connecting the 3000-Sheet LCOS to the Printer C-41
Connecting Cables and Turning on the LCOS C-43
Contents
v
Using the 3000-Sheet Large-Capacity Output Stacker C-45
Adjusting the Paper Guides C-47
Custom Tray ...............................................................................C-50
Custom Tray Installation C-50
Standard Paper Sizes C-53
Security Key ...............................................................................C-54
What's in the Kit? C-54
Procedure C-55
Index
v
vi
QMS 4060 Print System Getting Started
1
Introduction
In This Chapter . . .
n
“About the Printer” on page 1-2
n
“About the Documentation” on page 1-3
n
“Printer Features” on page 1-11
About the
Printer
About the Printer
The QMS 4060 Print System (base model) is a powerful, but easyto-use 40-page-per-minute monochrome laser printer offering
n
The next-generation Crown operating system
n
High-performance processing
n
Innovative network features
n
Flexible emulations support
n
Toner conservation and energy efficiency
n
An assortment of printer fonts
The printer and some of its options (shown in the diagrams below) are
briefly introduced in the “Printer Features” section of this chapter.
Each option is fully described in the Options manual.
QMS 4060
1-2
QMS 4060 with
Optional LCIF and LCOS
QMS 4060 Print System Getting Started
About the
Documentation
About the Documentation
The documentation provides a window into the many capabilities of
your printer. The more familiar you are with the documentation, the
easier it’ll be for you to achieve the results you want from your printer.
This section gives you an idea of how we’ve organized information
and which documents you’ll probably refer to the most.
Manuals on CD-ROMs
The manuals included on the QMS 4060 Print System Documentation
and QMS Software Utilities CD-ROMs are in Adobe Acrobat PDF format. We’ve also provided the Acrobat Reader and QuickTime programs on both CD-ROMs. The CD-ROM insert provides instructions
on installing them.
About Adobe Acrobat Reader
Adobe Acrobat PDF-formatted manuals give you more flexibility and
convenience than do hardcopy manuals when you have to access
information. Here are some of the advantages PDF-formatted
manuals provide:
n
You can store the PDF manuals in a central location for access by
anyone on the network.
n
You can view and print the manuals on Windows, Macintosh, and
UNIX platforms.
n
You can view the manuals on web browsers using the Acrobat
plug-in.
n
You can view the manuals on-screen in different formats (sideby-side or two-up, one page at a time, scrolling two-up, article
flow, and zooming capability up to 800%).
n
You can conduct full-text searches through all of the manuals.
n
You can watch QuickTime video clips on Windows and Macintosh
platforms that enhance the text and illustrations for a number of
commonly performed procedures. (When installing the Reader,
be sure to select the option to install QuickTime.)
Introduction
1-3
About the
Documentation
n
You can print only the manual pages that you need.
n
The PDF-formatted manuals have been enhanced for on-screen
viewing and navigation. Throughout each manual are numerous
hotlinks to cross-reference points. The table of contents and the
index are fully hotlinked to their respective page references, and
all World Wide Web addresses are linked to their respective
home pages.
We hope you enjoy using the Acrobat software to access the information in your manuals. They’ll never become dog-eared and yellowed
or collect dust on some forgotten shelf with quick on-line access. Your
PDF-formatted manuals will empower you to take full advantage of all
the capabilities of your printer.
Using Adobe Acrobat Reader
When you use Acrobat to view your manuals, keep the following tips
in mind for using some of the navigation features built into Acrobat
and your manuals.
1-4
n
You may view the document in three different styles: page only,
with bookmarks, or with thumbnails. Try each to see which you
like best. Viewing with bookmarks will enable you to use a quick
table of contents to move around the document.
n
The toolbar also gives you quick access to page navigation features. For example, you may click a button to advance (>) or
reverse (<) one page, go to the start (|<) or end (>|) of the document, or use the history button (<<) to go to the previous pages
you viewed. There are other buttons in the toolbar to change view
or magnification of the document.
n
As you browse through the document the open hand tool will
sometimes turn into a pointing hand. You have discovered an
embedded link in the manual. You will find these links in the table
of contents, index, www addresses, and cross references. Click
on the link to jump to a new location.
n
You may discover a movie camera icon on Windows and
Macintosh platforms. Click the icon to play a QuickTime
video clip of the procedure described in the text.
QMS 4060 Print System Getting Started
About the
Documentation
n
Use the Acrobat Reader Online Help for a more complete explanation of these features.
A Note on Media
All QMS manuals are also available in hard copy. In the US, call
1 (800) 523-2696 for purchase information. Elsewhere, refer to
appendix A, “QMS Customer Support.”
In addition, many applications, utilities, and printer drivers on the
QMS Software Utilities CD-ROM are available on alternate media.
Contact your QMS vendor for media availability and purchase information. You can also download many of these files via ftp from our
World Wide Web Server at http:/www.qms.com, our ftp resource at
ftp.qms.com, or CompuServe at go qmsprint. Refer to appendix A,
“QMS Customer Support,” for sales and support locations and telephone numbers.
Standard Product Documentation
You received the following documentation with your product:
&
QMS 4060
Print System
Getting
Started
You’re looking at this manual right
now. The section called “About This
Manual,” later in this chapter, tells
you what’s included in this manual.
» Note: This manual is also in
Adobe Acrobat PDF format on the
4060 Documentation CD-ROM.
4060
Documentation
CD-ROM
Introduction
QMS 4060
This manual guides you through the
Print System day-to-day operation of your printer.
Operation
It includes information on printing
files; adding print media; selecting
input and output bins; duplexing;
collating; replacing print media and
toner; handling, cleaning, and
maintaining your printer; improving
print quality; and troubleshooting
printer problems.
1-5
About the
Documentation
QMS 4060
Refer to this manual as you
Print System configure the printer initially and
Reference
when you change configuration. The
instructions guide you through the
steps for setting custom values for
many printer features, including
printer-host communication. Also, it
provides information on typefaces
and fonts, job accounting, job
recovery, printer memory, printer
options, and other advanced printer
features. The system administrator
should get the most use from this
manual.
4060
Documentation
CD-ROM
QMS 4060
This manual guides you through the
Print System operation and installation of all
Options
options available for your printer. It
includes information optional fonts,
optional interfaces, optional
emulations, installing new software,
large capacity input feeder, output
stacker, custom trays, and the
CrownCopy option.
4060
Documentation
CD-ROM
QMS Crown
Remote
Console
User’s Guide
This manual describes how to use
the Remote Console software to
access printer information and
change printer configuration
settings from anywhere on the
network.
QMS
CrownNet
Setup Guide
Refer to this manual for complete
setup information on the CrownNet
Ethernet and optional CrownNet
Token-Ring interfaces.
Software Utilities
CD-ROM
Software Utilities
CD-ROM
1-6
QMS 4060 Print System Getting Started
About the
Documentation
QMS
CrownNet
System
Administrator’s
Software Utilities
Guide
CD-ROM
QMS Crown
Network
Notes
Software Utilities
CD-ROM
Refer to this manual when
configuring the printer’s CrownNet
Ethernet or optional CrownNet
Token-Ring interface, using the
CrownAdmin 3 software.
Refer to this manual for network
tips. It discusses 3Com 3+Open,
Banyan VINES, LAN Managerbased LANs, Novell NetWare,
TCP/IP, UNIX, DECnet, and VMS. In
most cases, only advanced network
users and system administrators
need this information.
» Note: This manual is provided in
encapsulated PostScript (EPS)
format. Refer to the README file
for information on printing a hard
copy of the manual.
QMS Crown
Document
Option
Commands
Software Utilities
CD-ROM
Introduction
This manual lists and explains all
Document Option Commands
(DOCs), software codes you insert
in documents to enable printer
features that cannot be accessed by
your application or page description
language. The DOCs supported by
your printer are listed in appendix C,
“Document Option Commands,” of
the Reference manual. In most
cases only advanced users or
system administrators need this
information.
1-7
About the
Documentation
Related Documentation
Several other documents are also helpful when using your printer:
PostScript
Reference
Manuals
Other manuals that contain PostScript
information are the PostScript Language
Reference Manual (Adobe Systems,
Inc., Reading, MA: Addison-Wesley,
1990 ISBN-0201-18127-4), and other
PostScript Language Reference Manual
supplements.
Other Reference n Don’t forget that your application
Sources
documentation, your host operating
system documentation, and your network documentation all contain useful printing information.
n Further information on QMS printers
is available through the Internet, and
Q-FAX. See appendix A, “QMS Customer Support,” for details.
About This Manual
This manual contains detailed, illustrated instructions to guide you as
you unpack and set up your printer and connect it to a host (such as
an IBM or compatible PC or an Ethernet network). In addition, it introduces you to the printer’s control panel. This manual is divided as follows. Use the following summary, the table of contents, and the index
to locate the information you may need:
1
2
1-8
Introduction
Presents an overview of the
documentation and of the printer’s
features.
Setting Up
Your Printer
Guides you in selecting a location
for your printer and explains how to
unpack and set up your printer.
QMS 4060 Print System Getting Started
About the
Documentation
3
Connecting to
a PC
Explains how to connect the printer
to an IBM PC or compatible
computer using the parallel port.
Connecting to
an Ethernet
Network
Explains how to connect the printer
to a network using the built-in
Ethernet (CrownNet) port, install
the software, and configure both the
interface and the network.
5
Connecting to a
Macintosh
Explains how to connect the printer
to an Macintosh using the optional
LocalTalk interface.
6
Using the
Control Panel
Introduces the parts of the printer
control panel.
A
QMS Customer
Support
Provides product sales and support
telephone numbers and information
on CompuServe, the Internet, and
Q-FAX.
B
a menu chart that shows
Configuration Menu Provides
the Configuration menu.
C
Installing Options
4
Introduction
Contains the complete installation
instructions for the optional largecapacity input feeder (LCIF) and
both the 2000-sheet and
3000-sheet large-capacity output
stackers (LCOS).
1-9
About the
Documentation
Typographic Conventions
The following typographic conventions are used in this manual:
Text you type, and messages and information
displayed on the screen
Mixed-Case
Courier
Mixed-Case
Variable text you type; replace the italicized
Italic Courier word(s) with information specific to your printer
or computer
UPPERCASE
COURIER
Information displayed in the printer message
window
lowercase bold
PostScript operators and DOS commands
lowercase italic
Variable information in text
UPPERCASE
File and utility names
↵
Press the Enter key (PC) or Return key
(Macintosh)
^
Press and hold down the Ctrl key (PC)
In Adobe Acrobat PDF versions of the manual,
click to play a QuickTime video clip of the
procedure described in the text.
»
Note: Notes contain tips, extra information, or important information
that deserves emphasis or reiteration.
▲ Caution: Cautions present information that you need to know to avoid
equipment damage, process failure, or extreme annoyance.
M WARNING! Warnings indicate the possibility of personal injury if a
specific procedure is not performed exactly as described in the
manual.
ACHTUNG! Bitte halten Sie sich exakt an die im Handbuch
beschriebene Vorgenhensweise, da sonst Verletzungsgefahr
bestehen könnte.
1-10
QMS 4060 Print System Getting Started
Printer
Features
Printer Features
The QMS 4060 Print System provides 40 ppm (pages-per-minute) of
letter/A4 size paper at 300 dpi or 600 dpi resolution. In addition, it
handles a variety of other paper weights and sizes, including 11'' x
17'' (279 x 432 mm).
This overview outlines your printer’s major features and their benefits.
Specific chapters contain more information on each feature. Consult
the index or table of contents for guidance in locating this information.
QMS Crown Technology
QMS Crown is a proprietary multitasking printer operating system,
which allows QMS to adapt advanced printer software to the evolving
printing needs of users in many different environments.
Multitasking
Your printer receives, compiles, processes, and prints multiple documents simultaneously instead of sequentially—true multitasking. The
printer has a variety of resources that it uses to print the page. Memory, emulations, and the laser printer engine (the mechanical parts
that actually put toner on the page) are all resources of the printer.
User Benefit—With multitasking, your jobs are printed more quickly,
and the host is free sooner. This improves printer throughput and
increases your productivity.
Emulation Sensing Processor (ESP) Technology
Most printers can recognize only their native command language.
Your QMS printer, however, has ESP (Emulation Sensing Processor)
technology, which works with most popular commercially available
applications. Using a form of artificial intelligence, ESP technology
analyzes incoming file data and selects the appropriate printer emulation from those installed on the printer, and processes the print job.
Introduction
1-11
Printer
Features
User Benefit—When your printer is in ESP mode, you can easily
print PostScript, HP PCL 5e, HP-GL, or Lineprinter documents without changing printer switch settings or sending software commands
to accommodate different printer languages.
The QMS 4060 Print System prints almost any file sent in a language
ESP technology understands, whether you have one, two, or more
hosts, and whether you are communicating through an Ethernet,
Centronics or bidirectional IEEE 1284 parallel, or a second network
interface. Most users never have to change from ESP mode to
another mode.
Simultaneous Interface Operation (SIO)
Although many other printers have multiple interface ports and automatically designate a “hot port,” only one port actively receives data
at a time. Your printer is unique because SIO allows all of its interface
ports—Ethernet, parallel (Centronics and bidirectional IEEE 1284),
the optional serial interface, and one other optional interface (Serial,
CrownNet for Ethernet and Token-Ring, DECnet-TCP/IP, or LocalTalk)—to be active at the same time. You can have more than one
host computer printing to the printer. Each interface has an input
buffer that receives data while another interface is being used to print.
The standard interfaces let you connect to any Ethernet network or
directly to an IBM PC or compatible. The printer also works in many
other minicomputer, mainframe computer, Macintosh, and network
environments.
User Benefit—You can have more than one computer sending print
jobs to the printer. Each interface has an input buffer (which may be
expanded with additional memory or an optional hard disk) that
receives data while another interface is being used to print.
1-12
QMS 4060 Print System Getting Started
Printer
Features
Compile-Ahead Technology
Pioneered by QMS, compile-ahead technology is the temporary storage of page images in a proprietary compressed data format. It
makes maximum use of the memory resource. While the engine is
busy printing a page, compile-ahead technology uses the available
printer memory to prepare the subsequent pages of the document (or
the next job). These page images are available as soon as the current
page is printed. For example, while the QMS 4060 Print System is
actually printing the third page of a five-page document, pages four,
five, and the next job in the queue are already compiled into the compressed data format.
User Benefit—With compile-ahead technology you spend less time
waiting for documents to print. This increases your productivity.
Compressed Data Formats
Crown printers convert data received by the input buffers into intermediate, compressed blocks until the data is needed for printing. These
compressed blocks of data are designed to be processed rapidly by
the printer, and many more can be stored in memory at one time than
can traditional bitmapped images.
User Benefit—This allows and increases the speed of such printer
features as collation and automatic jam recovery.
Automatic Jam Recovery
Crown technology also provides automatic jam recovery. With many
non-QMS printers, if a media jam occurs, you must remove the
jammed media and then reprint the job. On your printer, if a media
jam occurs, once you clear the jam, the printer reprints the jammed
page and continues with the print job. This is possible because compressed data formats allow more pages to be stored in memory. The
printer remembers the last page printed, pulls the necessary intermediate blocks from memory, and automatically reprints any lost pages.
User Benefit—This saves time and conserves print media.
Introduction
1-13
Printer
Features
Context Switching
This feature allows Crown printers to preserve the “state” of a language or emulation — including downloaded fonts, forms, logos, macros, overlays, and other data —when you switch from one printer
language or emulation to another. Other printers require repeated
downloading of these capabilities each time they are needed, consuming valuable input, processing, and printing time.
User Benefit—This saves time and improves performance.
Media Flexibility
The printer supports print media in 12 different media sizes (A3, A4,
A5, Executive, 11”x17'', Legal, Letter, B5 (JIS), and B4 (JIS) —in both
portrait and landscape orientations from standard trays. The optional
custom paper tray supports print media sizes Statement, B4 (ISO)
and B5 (ISO), as well as all standard sizes supported on the standard
input trays.
User Benefit—You have the option of printing on a variety of media
sizes in both portrait and landscape orientations.
PostScript Level 2 Compatibility
The QMS 4060 Print System provides PostScript Level 2 page
description capabilities via QMS-developed emulations that are compatible with Adobe’s Level 2 language, while providing additional
capabilities. PostScript controls the appearance of text, geometric
shapes, and images at the printer. It can rotate, scale, clip, and orient
graphic objects on all or part of a page. The printer produces solid
blacks and crisp fonts regardless of the point size.
1-14
QMS 4060 Print System Getting Started
Printer
Features
The PostScript Level 2 emulation supports the capabilities of the second generation of Adobe’s PostScript software. PostScript Level 2
features include device-independent color, improved memory and
resource management, built-in data compression/decompression filters to speed up transmission times and save disk space, optimized
graphics and text operators, and patterns and forms support, including pattern and form caching.
Multiple Resolutions
Your printer supports two print resolutions: 300x300 and 600x600.
User Benefit—Two different resolutions allow you to customize the
quality of your output according to its use: 300x300 dots per inch (dpi)
resolution for most everyday office needs, and 600x600 dpi resolution
for PostScript and PCL print jobs that require finer detail, such as good
camera-ready copy or for CAD drawings that demand tighter angles.
State-of-the-Art Controller
The QMS 4060 Print System delivers 40 simplex letter/A4 size ppm
at 300 x 300 or 600x600 dpi resolution using the new NEC 4300 processor operating at a 100 MHz.
Multi-protocol Support
In addition to the Centronics and IEEE 1284 parallel interface, your
printer provides a standard CrownNet for Ethernet interface that
allows you to connect to EtherTalk, LAN Manager/LAN Server, NetWare, and TCP/IP networks. The following optional interfaces are
available:
n
A LocalTalk interface to connect to a single Macintosh or a LocalTalk network
n
A CrownNet Ethernet interface
n
A CrownNet Token-Ring interface
n
A DECnet-TCP/IP Ethernet interface
n
A serial interface
Introduction
1-15
Printer
Features
Check with your QMS vendor for current availability of optional interfaces. See appendix A, “QMS Customer Support,” for locations and
telephone numbers.
You can connect a computer directly to the printer’s parallel interface
or use the Ethernet interface to connect to a wide variety of microcomputers, workstations, minicomputers, and mainframe computers
on four different networks.
User-Benefit—This support increases printer flexibility and allows for
cost and resource sharing across multiple environments.
Advanced Paper Handling Options
Your printer comes standard with three input trays. The optional large
capacity input feeder increases the media capacity to 4,500 sheets.
Upper Tray
Holds approximately 500 sheets of Letter/A4 to
11''x17''/A3 paper.
Middle Tray
Holds approximately 500 sheets of Letter/A4 to
11''x17''/A3 paper.
Lower Tray
Holds approximately 500 sheets of Letter/A4 to
11''x17''/A3 paper.
Optional Custom
Paper Tray
Holds approximately 500 sheets of Letter/A4 to
11''x17''/A3 paper and Statement, B4 (ISO), B5
(ISO).
Optional Large
Capacity Paper
Feeder (LCIF)
Holds approximately 2000 sheets of Letter or
A4 paper.
Advanced Document Handling Capabilities
Your printer offers automatic collation of a complete document, highvolume duplexing, printer-based page layout (n-up and booklet printing), “sessions,” and background printing. “Sessions” allows multiple
documents, including documents from different emulations to be combined in one large document.
1-16
QMS 4060 Print System Getting Started
Printer
Features
User Benefit—Advanced document handling, such as automatic collation for complete document processing increases workflow and
reduces user intervention; n-up and background printing offer flexible
page formatting to allow for short in-house production runs.
Convenient Control Panel Operation
The user-friendly control panel allows you to configure your printer.
The printer uses the control panel to communicate with you by providing messages about its status, including any conditions that require
your attention. These messages can be displayed in a user-selectable language (English, French, German, or Spanish). See chapter 6,
“Control Panel,” in this manual for complete information on using the
control panel.
Four Resident Emulations
Your printer supports printing in HP PCL 5e, HP-GL, Lineprinter, and
PostScript emulations.
User Benefit—Most applications can print directly to the printer.
HP PCL 5e Emulation
The printer emulates the Hewlett-Packard LaserJet 5Si with the same
fonts and symbol sets. This printer is emulated at 300x300 dpi (bitmap and scalable fonts) and 600x600 dpi (scalable fonts only).
HP-GL Emulation
The printer provides HP-GL plotter emulation (7475A, 7550A, and
Draftmaster) at 300x300 and 600x600.
Lineprinter Emulation
The Lineprinter emulation prints simple, unformatted text files at
300x300 and 600x600 dpi. Character sets supported are ASCII,
EBCDIC, PC US ASCII, and PC Multilingual.
Introduction
1-17
Printer
Features
Resident Typefaces, Fonts, and Symbol Sets
Your printer comes with 42 PostScript typefaces from 12 typeface
families (1 OCR-B font is also included for use with the
QMS ImageServer and CGM options). All resident PostScript typeface families have multilingual character sets.
The fonts in all of these typeface families can be scaled from 4 points
upward, rotated to any angle in 1° increments, pattern filled, halftoned, shaded, shadowed, and cropped, depending on your application software.
Your printer has 16 resident PCL 5e type face families in 25 symbol
sets each: 51 resident scalable PCL 5e fonts (including Intellifonts),
many in up to 32 symbol sets: and 40 HP-GL fonts.
See chapter 3, “Professional Printing,” in the Reference for a complete list of the resident fonts.
Software Loadable System
Your printer has a software loadable system, which allows you to
replace or upgrade its system software from a Macintosh or a PC, or
over an Ethernet or Token-Ring network. Further enhancements to
the system software can be easily installed as they become available
from QMS.
»
Note: The software loadable system mentioned in this section does
not modify the code used by the QMS CrownNet interface card.
User Benefit—This protects your capital equipment investment.
1-18
QMS 4060 Print System Getting Started
Printer
Features
Printer Job Accounting
Your QMS printer provides job accounting, which can be used to
extract information such as paper utilization per user, time consumed
servicing print jobs per user, usage of different emulations, connectivity options, frequency of jams, times of peak use, features and options
most commonly used (such as duplexing or finishing options), and
number, complexity, and size of jobs per user. The QMS 4060 printer
controller contains a “real time clock” which automatically stamps the
time and date on your accounting information.
The accounting feature provides the information you need to assess
printer use. The accounting is performed by the printer rather than a
host, and the extracted information can be uploaded to any host by
copying via the FTP get command (if your host supports this command).
This information is useful for billing, report generation, and site
resource planning. For further information see the “Accounting” section in chapter 4, “Printer Configuration,” in the Reference.
User Benefit—You have access to billing and printer management
information for cost sharing and resource allocation.
Energy Star Compliance
The QMS 4060 Print System (base
model) is compliant with US Environmental Protection Agency (EPA) Energy Star
regulations. After a specified length of
inactivity, the printer changes to a lowpower state (the engine remains on, but
the fuser turns off). When a print job is
received, the printer returns to normal
power within 90 seconds.
User Benefit—The EPA Energy Star Computers program promotes
the use of energy-efficient personal computers, monitors, and printers
and the reduction of air pollution caused by power generation.
Introduction
1-19
Printer
Features
Toner Savings
The Conserve Toner option allows you to increase the life of the
printer’s toner. You can set Conserve Toner on a per-job basis or for
all print jobs. In addition the printer can actually recycle the waste
toner through the machine again for increased toner life.
User Benefit—A choice of printing modes allows you to lower printing costs by reducing the amount of toner on the printed page when
printing draft copies of documents and increase the life of your toner
and cost of consumables.
QMS CrownAdmin Utility Software
Provided in CrownAdmin for Macintosh, Windows, SunOS, Solaris,
HP-UX, and AIX formats, the QMS CrownAdmin utility software is a
point-and-click tool that allows you to easily configure QMS printers
and perform network operations on printers connected to Ethernet or
Token-Ring networks. Refer to the CrownNet manuals included on the
Software Utility CD-ROM for more information on this feature. Some
of the things that you can do through CrownAdmin include the following:
n Configure NetWare, EtherTalk, NetBEUI/NetBIOS, and TCP/IP
parameters on the printer’s CrownNet interface.
n Use SNMP (where available) for retrieving and setting up printer
information.
n Define groups of printers with common characteristics so you can
easily make global configuration changes.
n Perform PCONSOLE functions in NetWare environments.
n Download printer system software or fonts.
n Control PostScript files through PostScript Utilities software.
n Format and print files (ASCII and other files).
n Check printer status.
n Use Remote Console.
n Create and edit group configuration templates.
1-20
QMS 4060 Print System Getting Started
Printer
Features
Plug and Play Compatibility
Plug and play is the name of a technology that lets PC hardware and
attached devices work together automatically. This technology is
implemented in your QMS 4060 Print System when using a Microsoft
Windows 95 or Microsoft Windows NT operating system. You simply
connect your printer to your PC (“plug it in”) and begin working (“begin
playing”). Plug and play automatically selects the correct printer driver
for you.
User Benefit—Plug and play reduces the time wasted on technical
problems and increases your productivity.
Printer Options
The QMS 4060 Print System offers many options to expand its capabilities. Contact your QMS vendor for purchase information. See
appendix A, “QMS Customer Support,” for locations and telephone
numbers.
BuzzBox Lite
BuzzBox Lite is an optional printer accessory that warns you with a
buzzer and/or a blinking light any time the printer goes off line. This
means you’re alerted to print job interruptions such as empty paper
trays.
CrownCopy
The CrownCopy option doubles the functionality of the QMS 4060
Print System, allowing it to be a monochrome copier as well as a
printer.
Emulations
Optional emulations, such as LN03 Plus, QUIC II, CGM, and XES/
UDK are contained on floppy disks and must be downloaded to the
printer hard disk.
User Benefit—Extra emulations allow you to print documents created in printer languages other than those resident on the printer.
Introduction
1-21
Printer
Features
Fonts
Optional fonts are available in several different formats.
n
Special PostScript and PCL downloadable fonts may be available
from your QMS vendor. See appendix A, “QMS Customer Support,” for locations and telephone numbers.
n
Kanji fonts Ryumin Light-KL and Gothic BBB Medium licensed to
QMS by Morisawa and Company, Ltd. and the fonts Mincho
Medium, Mincho Heavy, Gothic Bold, and Gothic Heavy licensed
to QMS by TypeBank are supported on the internal hard disk.
n
Kanji fonts Ryumin Light-KL and Gothic BBB Medium licensed to
QMS by Morisawa and Company, Ltd. are available on a SIMM.
These fonts are available with the Kanji SIMM Option Kit and they
can be printed at a variety of point sizes and in different styles
and resolutions.
User Benefit—Optional fonts increase the printer’s functionality and
allow you to create more distinctive documents
Hard Disk Expandability
The QMS 4060 Print System includes an internal IDE hard disk and
is expandable by connecting up to three external SCSI hard disks.
Hard disks provide virtual memory capabilities as well as storage for
downloaded character bitmaps, job spooling, outline fonts, forms, and
other files.
»
Note: See FAQ 7181 for a list of approved hard disks, their manufacturers and part numbers, and the QMS products on which they can be
used. You can access QMS FAQs through the Internet at
http://www.qms.com/support/supportbase/ or through Q-FAX. (See
appendix A, “QMS Customer Support,” to find out how to access
Q-FAX documents). FAQ numbers are subject to change, so you may
want to obtain a directory of Q-FAX documents before requesting a
specific document.
User Benefit—An internal hard disk decreases printing time and
reduces costs of critical on-demand forms applications.
1-22
QMS 4060 Print System Getting Started
Printer
Features
ImageServer
The QMS ImageServer Option is a collection of printer emulations
and printer system code designed to provide an interface between
document imaging applications and QMS Crown print systems. It
enables the QMS 4060 Print System to print images at or near the
rated engine speed and eliminates the need for a PC dedicated to
rasterizing images.
Interfaces
Your QMS 4060 Print System has one I/O slot to support an optional
network, LocalTalk, or serial interface:
n
Network Interfaces
— A second CrownNet Ethernet interface or a Token-Ring interface both allow you to run multiple protocols.
User Benefit—Network interfaces provide flexibility and fast
data transfer in complex network environments.
— A DECnet-TCP/IP interface allows your printer to connect
directly to DECnet or TCP/IP networks.
User Benefit—This network inteface provides functionality
for two of the most common network environments.
n
LocalTalk Interface
— A LocalTalk interface allows your printer to connect directly to
a single Macintosh or to a LocalTalk network.
User Benefit—Any Macintosh not on an Ethernet (EtherTalk)
network can be connected directly to the printer.
n
Serial Interface
— A serial interface allows your printer to connect directly to a
single RS-232C port.
User Benefit—This interface provides additional functionality
by allowing you to connect the printer to a single PC.
Introduction
1-23
Printer
Features
Large-Capacity Input Feeder (LCIF)
This option is for high-volume printing. It includes a large-capacity
input feeder which accommodates 2,000 sheets of paper.
Large-Capacity Output Stackers (LCOS)
These two options are also for high-volume printing. They include
stackers with a capacity to stack 2000 sheets or 3000 sheets of
paper. The stackers have the capability to stack face-up or face-down.
QFORM
QFORM is a forms-printing software utility that allows you to produce
on-demand electronic forms from QMS Crown cut-sheet laser printers
without changing existing lineprinter forms data streams.
User Benefit—Provides and easy migration path for users of legacy
line printers to new laser print systems.
RAM (Random Access Memory)
Your QMS 4060 Print System is configured with 32 MB of interleaved
RAM. It can support up to 128 MB of RAM with additional matched
pairs of SIMMs (single-in-line memory modules).
»
Note: See FAQ 7191 for a list of approved SIMMs, their manufacturers and part numbers, and the QMS products on which they can be
used. You can access QMS FAQs through the Internet at
http://www.qms.com/support/supportbase/ or through Q-FAX. (See
appendix A, “QMS Customer Support,” to find out how to access
Q-FAX documents). FAQ numbers are subject to change, so you may
want to obtain a directory of Q-FAX documents before requesting a
specific document.
User Benefit—Your printer’s memory can be upgraded as your
needs grow.
Security Key
An optional security interface allows you to password-protect the
printer’s configuration menu. An optional security key is plugged into
1-24
QMS 4060 Print System Getting Started
What's Next?
the security interface on the back of the printer to set the password,
and then removed for normal operation.
User Benefit—This feature allows you to restrict access to printer
configuration information to those users with valid passwords, saving
time and money and ensuring that default settings are not changed
inappropriately.
What's Next?
Chapter 2, “Setting Up Your Printer,” explains how to find a good
location for the printer, unpack the printer, install toner and developer,
and setup and load the standard paper trays.
v
Introduction
1-25
2
Setting Up Your
Printer
In This Chapter...
n
“Finding a Good Location,”
n
“Checking Shipment Contents,”
n
“Unpacking the Printer,”
n
“Getting to Know Your Printer,”
n
“Installing Consumables,”
n
“Loading the Paper Trays,”
n
“Printing a Start-up Page,”
n
“Installing Options,”
Introduction
Introduction
This chapter explains how to set up your QMS 4060 Print System for
the first time.
It includes information on finding a good location for the printer,
unpacking and checking the shipment contents, installing toner and
developer, loading the trays, turning the printer on, and printing a
start-up page.
Finding a Good Location
Your QMS 4060 Print System operates in any computing environment
with the following requirements.
The Printer Must Be Placed...
»
2-2
n
Away from cooling and heating sources, extreme temperature
changes, direct sunlight, excessive dust, corrosive chemicals or
vapors, water pipes, refrigerators, any strong electromagnetic
field (such as that created by an air conditioner), and excessive
vibration. Don’t connect it to the same electrical outlet as noisegenerating equipment.
n
In an area with a temperature range of 59° - 95° F/15° - 35°C and
relative humidity range of 40% -60% (optimal).
n
On a hard, level surface capable of supporting the 298lb (135 kg.)
printer.
n
Close to an easily accessible power supply.
n
In a well-ventilated room.
Note: The clearances shown below allow for easy servicing and
maintenance. Under normal operation the rear clearance is required
only to be greater than 6 inches/ 15.25 cm.
QMS 4060 Print System Getting Started
Finding a Good
Location
Operating Area
Base Unit
Top View Showing Printer Clearances
850 mm
33.5"
2140 mm
84.3"
640 mm
25.5"
Printer
650 mm
25.6"
Front
850 mm
33.5"
585 mm
23"
850 mm
33.5"
2285 mm
90"
With LCIF and LCOS
Top View Showing Printer Clearances
850 mm
33.5"
Printer
Front
2140 mm
84.3"
640 mm
25.5"
650 mm
25.6"
850 mm
850 mm
585 mm
33.5" 540 mm
23" 289 mm 33.5"
11.4"
21.25"
3114 mm
122.6"
Setting Up Your Printer
2-3
Finding a Good
Location
Printer Measurements
Base Unit
1038 mm
40.5"
640 mm
25.2"
585 mm
23"
With LCIF and LCOS
1038 mm
40.5"
585 mm
23"
1414 mm
55.66"
2-4
640 mm
25.2"
QMS 4060 Print System Getting Started
Finding a Good
Location
Power Requirements
Your printer requires a properly grounded AC outlet with a power
range of ±10% of the rated line voltage (100-120 V or 200-240 V).
Make sure that the capacity of the electrical outlet is at least 1.2 times
that used by the printer. Noise-generating equipment should not be
connected to the same electrical outlet as the printer. The recommended frequency is 50-60 Hz for 100-120 V systems and 50 Hz for
200-240 V systems.
M WARNING: This product is equipped with a 3-wire grounding type
plug, a plug that has a third (grounding) pin. This plug will only fit into
a grounding-type power outlet. This is a safety feature. If you are
unable to insert the plug into the outlet, contact your electrician to
replace your obsolete outlet. Do not defeat the purpose of the
grounding-type plug.
ACHTUNG! Das Netzanschlub dieses Garäts is eine geprütte
Leitung zu verwenden. Für einen Nennstrom bis 6A ist eine Leitung
nicht leichter als H05VV-F3G 0,75 mm² oder HO5VVH2-F3G 0,75
mm² einzusetzen.
Setting Up Your Printer
2-5
Checking
Shipment
Contents
Checking Shipment Contents
In addition to this manual, your shipment consists of the following
items:
n
QMS 4060 Print System
n
Documentation CD-ROM
—QMS 4060 Print System Getting Started
—QMS 4060 Print System Operation
—QMS 4060 Print System Reference
—QMS 4060 Print System Options
»
n
QMS Software Utilities CD-ROM
n
Consumables Starter Kit (See “Check the Starter Kit,” for contents in kit.)
n
Warranty and registration card
Note: Interface cables aren’t included in the shipment. If you need
cables, contact your QMS vendor or a local computer store. Chapter
3, “Connecting to a PC,” , chapter 4, “Connecting to an Ethernet
Network,” and chapter 5 “Connecting to a Macintosh,” of this manual
specify the type of cable you need.
Make sure that all items are included in your shipment before setting
up your printer. If any items are missing or damaged, contact your
shipping company or your QMS vendor. See appendix A, “QMS Customer Support,” for product sales and support information.
2-6
QMS 4060 Print System Getting Started
Registering the
Printer
Registering the Printer
QMS is committed to developing print systems that offer you flexible,
efficient solutions, so we’re interested in knowing how you plan to use
your printer.
To register by mail, fill out and send in your warranty card. To register
by telephone, in the US call QMS at (334) 633-4300. To register over
the internet contact QMS at http://www.qms.com, or online at
www.qms.com/support/prodreg. In other countries, refer to appendix
A, “QMS Customer Support,” for the appropriate telephone number.
Unpacking the Printer
The packing materials that protect your printer during shipment—
cardboard, polystyrene, tape, and shipping spacers—must be
removed before you can use the printer.
Use the following procedures to completely unpack the printer. To
ensure that your printer was not damaged during shipment, follow all
procedures, including printing the start-up page.
»
Note: Save the packing materials in case you have to move or ship
the printer to a new location. See appendix C in the Operations guide,
“Repacking the Printer,” for procedures on moving or shipping the
printer.
▲ Caution: Remove all packing materials (explained below) before
turning on the printer, or you may damage it.
M WARNING! The printer weighs approximately 287 lbs (130 kg). Do
not attempt to lift or move it by yourself.
ACHTUNG! Der Drucker wiegt ca. 135 kg; bitte versuchen Sie
niemals, das Gert alleine anzuheben oder zu tragen.
Setting Up Your Printer
2-7
Unpacking the
Printer
Removing the Box
1
»
2-8
Turn the plastic lock inserts counterclockwise and pull out
as shown below.
Note: You may need pliers to turn the knobs. There are 16 plastic
lock inserts.
QMS 4060 Print System Getting Started
Unpacking the
Printer
»
2
Remove the box lid.
3
Remove the starter kit from the top of the printer box.
4
Lay the starter kit aside for now.
Note: The starter kit contains supplies needed to set up the
printer for immediate use.
Setting Up Your Printer
2-9
Unpacking the
Printer
5
2-10
Remove the cardboard sleeve from the pallet.
QMS 4060 Print System Getting Started
Unpacking the
Printer
6
Remove the six foam shipping blocks and the plastic cover.
Setting Up Your Printer
2-11
Unpacking the
Printer
Moving the Printer off of the Pallet
2-12
1
Locate wheels and leveling feet on the bottom of the printer.
2
Remove the wrench taped to the pallet.
QMS 4060 Print System Getting Started
Unpacking the
Printer
3
Using the wrench, raise the leveling feet so the printer can
roll freely on the pallet.
▲
Caution: Make sure all four leveling feet are fully raised before
moving the printer.
M
WARNING! The printer is heavy, so two people should roll it off of
the pallet.
ACHTUNG! Der Drucker ist schwer und solte von 2 Personen
getragen werden.
Setting Up Your Printer
2-13
Unpacking the
Printer
4
2-14
Flip over the two small wood spacers and place them in the
groove at the ramp end of the pallet.
QMS 4060 Print System Getting Started
Unpacking the
Printer
5
Gently roll the printer to the edge of the pallet and down the
ramp to the floor.
Setting Up Your Printer
2-15
Unpacking the
Printer
Removing Shipping Restraints
1
Remove all of the shipping tape from the outside of the
printer.
Shipping Tape
2-16
2
Open the front door of the printer by gently pulling the right
side of the front door.
3
Find the two shipping blocks near the center.
QMS 4060 Print System Getting Started
Unpacking the
Printer
4
While holding the transfer assembly guide, remove the
sponge shipping block, then lower the transfer assembly
guide.
Transfer Assembly Guide
Sponge Shipping Block
5
Turn lever b1 to the right to the OPEN position.
Setting Up Your Printer
2-17
Unpacking the
Printer
6
The upper foam shipping block has a string and an orange
label attached. Grasp the orange label and the block and pull
them toward you.
A black rubber shipping restraint attached to the string and the
white foam shipping block will come out at the same time.
Orange Label and Foam Shipping Block
Lever b1
2-18
QMS 4060 Print System Getting Started
Unpacking the
Printer
7
Grasp the orange tab on the magnetic roller protector and
pull toward you.
Magnetic Roller Protector
Orange Tab and
Magnetic Roller
Protector
Setting Up Your Printer
2-19
Getting to
Know Your
Printer
Getting to Know Your Printer
Use these illustrations to get acquainted to the external components
of your QMS 4060 Print System.
Control
Panel
Function
Buttons
Display
Power Indicator
On-Off Switch
Contrast
Control
Ejection Unit
Output Tray
Front
Door
UpperRight
Cover
Upper Tray
Middle Tray
Lower Tray
LowerRight
Cover
Paper Size Indicator
Paper Level
Indicators
2-20
Main Power Switch
QMS 4060 Print System Getting Started
Getting to
Know Your
Printer
Interface Panel
Ozone Filter
LCOS Connection
LCIF Connector
AC Connector
Setting Up Your Printer
2-21
Installing
Consumables
Installing Consumables
In these procedures you will be installing
n
The fuser
n
The drum unit
n
The transfer assembly
n
Developer
n
Toner
n
The ozone filter
▲ Caution: When installing consumables for the first time, you must
follow these procedures in correct order.
»
2-22
Note: After installing consumables for the first time (except for paper)
all subsequent changes of consumables will require you to tell the
printer you have performed the maintenance through the
configuration menu. See chapter 2, “Consumables,” in the Operation
manual.
QMS 4060 Print System Getting Started
Installing
Consumables
Check the Starter Kit
Check the starter kit for these components. Some of the components
are packaged in cardboard boxes for shipment.
You do not have to unpack these components until you’re ready to
install them.
LGR
A3
EXEC
Cleaning Cloths
LTR
A4
B4
LGL
A5
B5
Paper Size Cards
Fuser
Developer
Toner
Keyed Power Cable
Transfer Assembly
Ozone Filter
Cleaning Brush
Getting Started Manual
Drum Unit
4060 Documentation CD-ROM
Software Utilities CD-ROM
Setting Up Your Printer
2-23
Installing
Consumables
Installing the Fuser
1
Find the fuser box in the starter kit, remove the box from the
starter kit and unpack the fuser from the box.
Fuser Box
2
Remove the fuser from its packaging.
Pressure
Release
Lever
2-24
3
Open the front door of the printer.
4
Turn lever b1 to the right to unlock the internal components.
QMS 4060 Print System Getting Started
Installing
Consumables
5
Insert the fuser into the printer by aligning the fuser with the
guides inside the printer.
6
Gently push the fuser all the way to the back of the printer to
make sure that it is properly seated.
Setting Up Your Printer
2-25
Installing
Consumables
2-26
7
Lightly push on the fuser and tighten the thumbscrew by
turning it clockwise to lock the fuser in place.
8
If the fuser does not seat properly
a
Hold the fuser up against the printer using light pressure.
b
Carefully rotate the decurler roller knob clock wise until the
fuser seats flush against the printer.
c
Repeat step 7.
QMS 4060 Print System Getting Started
Installing
Consumables
Installing the Drum Unit
▲ Caution: The drum unit is sensitive to bright light. Do not remove the
drum unit from its protective bag until you are ready to install it. Store
the cartridge in an environment that is not subject to extreme heat or
humidity, salty air, or corrosive gases, such as aerosols.
1
Remove the bag containing the drum unit from the starter kit.
Drum Unit
2
Open the protective aluminum bag by tearing open the top
(there’s a notch on the bag to help you start tearing the bag).
Setting Up Your Printer
2-27
Installing
Consumables
3
»
2-28
Remove the drum unit by grasping the blue handle on top of
the unit.
Note: After removing the drum unit from its protective bag, do not
touch the OPC drum on the unit because it may deteriorate the
drum and reduce print quality. Also, we recommend that you keep
the bag for use if you should have to remove the drum from the
printer.
QMS 4060 Print System Getting Started
Installing
Consumables
4
While holding the drum by the handle, set it on a solid surface and carefully remove the protective cover from the
drum.
5
Make sure lever b1 is turned to the right to the open position.
Setting Up Your Printer
2-29
Installing
Consumables
6
2-30
Use the drum handles on the top and front to insert the drum
unit along the guide rails and gently push it all the way in to
make sure it is seated.
QMS 4060 Print System Getting Started
Installing
Consumables
7
Gently push on the drum unit and turn the thumbscrew
clockwise to lock the drum unit in place.
Setting Up Your Printer
2-31
Installing
Consumables
Installing the Transfer Assembly
1
Remove the transfer assembly from the starter kit and
remove it from its shipping box and cover.
Transfer
Assembly
2-32
2
Make sure lever b1 is turned to the right.
3
Insert the transfer assembly into the transfer assembly
guide.
a
Locate the alignment pin on the end of the transfer assembly.
b
Insert the alignment pin of the transfer assembly into the left
rail of the transfer assembly guide at a slight angle.
QMS 4060 Print System Getting Started
Installing
Consumables
c
Slide the transfer assembly all the way into the transfer
assembly guide until it clicks into place.
Alignment Pin
LTR
4
Lift the transfer assembly guide and lock it back into place.
5
Turn lever b1 to the left to the SET position.
Setting Up Your Printer
2-33
Installing
Consumables
6
Place the cleaning brush from the starter kit in the front door
cleaning brush holder.
You will use this to clean the transfer assembly when doing maintenance.
...........
Cleaning Brush
7
2-34
Close the printer’s front door.
QMS 4060 Print System Getting Started
Installing
Consumables
Installing the Ozone Filter
1
Remove the ozone filter from the starter kit, and take it out of
its packaging.
Ozone
Filter
Setting Up Your Printer
2-35
Installing
Consumables
2
Slide the ozone filter into the ozone filter holder on the rear
of the printer.
▲ Caution: Failure to install the ozone filter could result in poor print
quality and possible damage to internal printer components.
Removing the Paper Tray Shipping Restraints
Before you load paper, you must remove the shipping restraints from
the trays.
2-36
QMS 4060 Print System Getting Started
Installing
Consumables
1
Open the top tray by grasping the handle and pulling out.
......
......
»
2
Gently pull out the cardboard and foam shipping blocks from
the center of the tray.
3
Close the tray.
4
Repeat these steps on the other two trays.
5
Place some letter size paper in one of the trays.
Note: This paper is only for use for starting up the printer. See “Loading the
Paper Trays,” for more information on setting up the paper trays.
Setting Up Your Printer
2-37
Installing
Consumables
Powering On the Printer
»
Note: The power cord for your QMS 4060 is keyed to operate only
with this printer. Other power cords will not fit this printer.
▲ Caution: Make sure that the printer power switch is turned off.
2-38
1
Plug the power cord into the connector on the rear of the
printer on the lower left-side.
2
Plug the opposite end of the power cord in a grounded AC
outlet.
QMS 4060 Print System Getting Started
Installing
Consumables
3
Turn on the printer.
The main power switch is located at the front of the printer on the
bottom-right side. The stand-by switch is located on the front
panel.
ON
......
......
Stand-by
Power
Switch
Main
Power
Switch
»
Note: Under normal circumstances you will use the stand-by
switch to turn the printer on and off. The main power switch can
be used when you need to move the printer, store the printer,
repack the printer, or other circumstances.
Setting Up Your Printer
2-39
Installing
Consumables
After a brief warm-up (less than 2 minutes) the printer will give
you a message on the display message window.
LETTER
LETTER
LEGAL
ENTER DEVELOPER
MENU
Online
Tray
Cancel
Status
Copy
▲ Caution: Before adding developer and toner to the printer you must
follow this procedure to power on the printer. The printer needs this
sequence to properly prepare the developer and toner hoppers.
Failure to power on the printer could result in service problems with
your QMS 4060 Print System.
4
Press the Online button and then the Menu button on the
control panel.
The display message window shows:
CONSUMABLES
DEVELOPER
Offline
2-40
Menu
LETTER
LETTER
LEGAL
Select
Previous
Next
QMS 4060 Print System Getting Started
Installing
Consumables
5
Press the Select button.
The display message window shows
OPEN UPPER RIGHT
DOOR
Offline
6
LETTER
LETTER
LEGAL
Select
Menu
Previous
Next
Continue with the next procedure.
Removing the Plastic Developer Cover
1
Open the front cover of the printer.
2
Turn lever b1 to the right to the OPEN position.
.....
......
3
Lever b1
Open the upper-right door.
Setting Up Your Printer
2-41
Installing
Consumables
2-42
4
Slowly and firmly lift up then pull down and out at an angle to
remove the plastic protective cover.
5
Turn lever b1 left to the SET position.
6
Close the front door of the printer.
QMS 4060 Print System Getting Started
Installing
Consumables
Installing Toner
1
Remove the toner bottle from the starter kit and remove it
from its packaging.
Toner
Bottle
Note: The life of the initial toner bottle is less than 6000 pages.
»
2
Shake the contents of the toner bottle to loosen any toner
that has settled and packed during shipment.
Setting Up Your Printer
2-43
Installing
Consumables
2-44
3
Open the toner fill lid.
4
Line up the guide pins on the bottle with the guide pin slots
on the toner fill opening.
5
Insert and turn the toner bottle clockwise 180° (1/2 turn) to
start filling.
QMS 4060 Print System Getting Started
Installing
Consumables
6
Tap the toner bottle several times to make sure all of the
toner has emptied.
Note: It takes about 30 seconds for the bottle to empty.
»
7
When the bottle is empty, turn the toner bottle 180° (1/2 turn)
counter-clockwise and lift up to remove.
8
Close the toner fill lid.
Setting Up Your Printer
2-45
Installing
Consumables
9
»
Dispose of the toner bottle.
Note: The toner bottle is made of recyclable materials. Dispose
of it in accordance with local regulations.
Toner Recycling
Toner recycling will add 20-30% of life to a toner bottle. You have the
option of recycling waste toner or disposing of it. For optimal print
quality, we do not recommend recycling.
With toner recycling enabled, you may experience lighter print with
occasional small voids. See chapter 2, “Consumables,” in the Operations manual for more information on toner recycling.
The toner recycling control can be enabled or disabled by moving a
plastic slide located directly over the toner collector bottle. If it is
pushed to the right, toner is recycled. If it is pushed to the left, waste
toner collects in the toner collector bottle for disposal.
2-46
QMS 4060 Print System Getting Started
Installing
Consumables
Installing the Developer
1
Remove the developer bottle from the starter kit and remove
it from its packaging.
Developer
Bottle
2
Check the message window. After you opened the upper
right cover earlier it should display
LETTER
LETTER
LEGAL
FILL DEVELOPER
SELECT WHEN DONE
Offline
Menu
Setting Up Your Printer
Select
Previous
Next
2-47
Installing
Consumables
2-48
3
Open the developer fill lid.
4
Line up the guide pins on the bottle with the guide pin slots
on the developer fill opening.
5
Insert and turn the developer bottle clockwise 180° (1/2 turn)
to lock the bottle in place and begin filling.
QMS 4060 Print System Getting Started
Installing
Consumables
6
When the bottle is empty, gently tap it several times to make
sure all of the developer has loaded.
7
Turn the developer bottle 180° counterclockwise and lift it up
to remove it.
Setting Up Your Printer
2-49
Installing
Consumables
8
Close the developer fill lid.
9
Press the Select button on the control panel.
The display message window shows
LETTER
LETTER
LEGAL
INSERT BOTTLE
SELECT WHEN DONE
Offline
Menu
Select
Previous
Next
10 Remove the small cap from the side of the developer bottle.
11 Turn the cap around and place it in the storage position on
the bottle as shown.
2-50
QMS 4060 Print System Getting Started
Loading the
Paper Trays
12 Insert the developer bottle into the storage position.
▲
Caution: In the storage position the developer bottle is used
whenever the developer hopper is purged. Make sure the cap is
removed and the bottle is in the correct position.
13 Close the upper-right cover.
14 Press Select on the control panel.
15 Press the Offline button on the control panel to place the
printer on line.
The printer will begin an automatic cycle to set the toner density.
After about two minutes you should get a start-up page.
Loading the Paper Trays
The QMS 4060 Print System includes three 500-sheet adjustable
paper trays. All three paper trays hold either A3, A4, A5, B4, B5,
Executive, 11"x17”, Legal, or Letter size paper. The printer automati-
Setting Up Your Printer
2-51
Loading the
Paper Trays
cally pulls paper from the tray. Loading paper in the tray involves the
following steps:
»
n
Opening the tray
n
Setting the correct paper size for the tray (if necessary) and paper
size indicator
n
Loading paper in the tray
n
Closing the tray
Note: Ensure that the tray size matches the paper size (for example,
letter paper must be loaded only when the tray is set to letter size).
Since the paper tray sends a paper size signal to the printer
controller, using a wrong size paper will cause jamming or the image
positioned incorrectly on the page.
Setting Up the Paper Size for a Paper Tray
»
Note: All three paper trays are set up for letter-size printing from the
factory. If you need to configure the trays for any other paper size,
then follow this procedure. Otherwise, go ahead to the next section.
1
Open the tray that you wish to change paper size.
2
Locate the blue locking thumbscrews in the paper tray.
Paper Guides
Locking
Thumbscrews
2-52
QMS 4060 Print System Getting Started
Loading the
Paper Trays
3
Turn the thumbscrew counter-clockwise to unlock one of the
paper size guides.
You should be able to lift up and remove the paper size guide
after unlocking it.
4
EN
OP
OSE
CL
LTR
Move the paper size guide to the appropriate slots to align it
with the paper size marker.
You should be able to read the paper size (A3/A4, LTR/LGR,
LEG, EX, B4, B5) in the small alignment holes built into the paper
guide.
OSE
CL
EN
OP
LTR
LGR
LT
R
B4
LGL
B5
A5
Setting Up Your Printer
2-53
Loading the
Paper Trays
5
Turn the dial to clockwise to lock the paper size guide.
OSE
CL
LTR
EN
OP
LT
R
6
Repeat steps 1-5 for the other two paper size guides.
Note: If you are setting up the tray for 11"x17" (ledger), the left
paper guide is stored in a slot near the front section of the tray.
»
7
Set up the tray paper size tabs on the rear of the paper tray.
Use the following chart for reference or the label attached to
the paper tray.
:A5
:B5
:LTR
:LGL
:A4
:B4
:LGR
:EXEC
:A3
- Tab is moved forward
- Tab is moved backward
8
2-54
Adjust the other paper trays, if necessary, using the same
procedures.
QMS 4060 Print System Getting Started
Loading the
Paper Trays
Setting Up the Paper Size Indicator
1
Open the plastic bag in the starter kit containing the papersize cards.
2
Break off the label that indicates the correct paper size for
each tray.
LGR
A3
EXEC
LTR
A4
B4
LGL
A5
B5
LGR
A3
EXE
C
LTR
A4
B4
LG L
A5
B5
3
Pull out each tray and push out the paper-size holder.
4
Place the paper-size lable in the paper-size holder of each
tray.
Setting Up Your Printer
2-55
Loading the
Paper Trays
5
Replace the paper-size holders.
LG L
LGL
Load Paper in the Tray
1
Unwrap the paper and note which side the arrow points to.
Note: Paper is packed in reams of 500 sheets. Do not unpack the
paper above the printer as this might cause particles to fall into
the printer components. Note the arrows on the wrapper. They
show print side of the paper.
»
2
Remove the top and bottom sheets.
The top and bottom sheets sometimes have residual glue buildup
that could cause the printer damage.
3
Place a stack of paper in the tray with the print side facing down.
The print side is usually indicated by an arrow on the paper wrapper.
▲
2-56
Caution: If paper is not loaded with the print side down, the
paper may jam or have excessive curl.
QMS 4060 Print System Getting Started
Loading the
Paper Trays
4
Ensure that the paper stack lies flat and does not exceed the
top limit mark.
Top Limit Mark
▲
Caution: Never mix the types of paper loaded in a tray. This could
result in multiple sheet feeds and other paper handling problems.
5
If the paper doesn’t fit properly in the tray recheck your
paper guides to make sure they are in the proper position.
6
Check the display panel graphic for the correct paper size for
each tray.
LETTER
LETTER
LEGAL
IDLE
Online
Tray
Cancel
Status
7
Close the tray.
8
Repeat this procedure for the other trays.
Setting Up Your Printer
Copy
2-57
Printing a
Start-up Page
Printing a Start-up Page
When you turn on the printer, a start-up page prints. This page gives
you an overview of your QMS 4060 Print System.
The following information prints on the start-up page:
»
n
Printer product name
n
Cumulative number of printed sheets
n
Amount of resident RAM (in megabytes)
n
Number of PostScript typefaces in ROM
n
Default resolution
n
Software version, revision, and release numbers
n
Firmware level number
n
Hard disk attached
n
Paper input sources and sizes
n
Emulation and protocol information of all standard and optional
interfaces
Note: When a font SIMM is installed, the following appears in the
Options section of the start-up page even though you have only one
installed:
%cartridge2%
%cartridge%
.
If the start-up page prints with all the start-up page information, and
the print quality is good, go to chapter 3, “Connecting to a PC,” chapter 4, “Connecting to an Ethernet Network,” or to chapter 5, “Connecting to a Macintosh,” of this manual, depending on your computer
platform.
If a start-up page does not print, see chapter 9, “Troubleshooting
Printer Problems,” of the Operation guide for more information on
printing a start-up page.
2-58
QMS 4060 Print System Getting Started
Installing
Options
Enabling/Disabling the Start-up Page
A start-up page automatically prints when you turn on your print system. However, you can save time, paper, and toner by disabling the
start-up page.
If you need the information included on the start-up page after you
have disabled the page, then you must enable the start-up page and
turn the printer off and then on again.
Two ways to disable (or enable) the start-up page are
1
Use the printer control panel (Administration/Startup
Options/Do Start Page menu).
See “Enabling/Disabling the Start-up Page” in chapter 4, “Printer
Configuration,” of the Reference guide for complete information.
2
Use CrownAdmin to access either remote console or configuration buttons or use the local console port to access the
configuration menu.
Installing Options
All of the options for your printer are documented in the Options manual included on the documentation CD-ROM. If you ordered a largecapacity input feeder (LCIF) and/or a large capacity output stacker
(LCOS), see appendix C, “Installing Options,” in this manual for installation procedures.
What's Next?
v
Now that you’ve set up your printer, go to chapter 3, “Connecting to a
PC,” chapter 4, “Connecting to an Ethernet Network,” or chapter 5,
“Connecting to a Macintosh,” of this manual to connect your printer to
a host computer or a network.
Setting Up Your Printer
2-59
3
Connecting to a
PC
In This Chapter...
n
“Connecting to a PC”
n
“Making a Parallel Connection”
n
“Making the Connection”
n
“PC Printing Software”
n
“Printing from the PC”
Introduction
Introduction
This chapter explains what an interface is, and describes how to connect your printer to a PC via the parallel port.
Connecting to a PC
To connect to a PC you must do the following:
1
Turn the power off on both the printer and the PC.
2
Connect the printer to the PC.
n
If you’re connecting your PC to a network
Connect the printer to the network as described in chapter 4,
“Connecting to an Ethernet Network” and in your PC documentation.
Note: The Ethernet port is standard on your printer’s
controller board.
»
If you’ve purchased an optional network interface for your
printer, see chapter 3, “Optional Interfaces” of the Options
guide for installation instructions.
n
If you’re connecting your PC via an optional interface,
see chapter 3, “Optional Interfaces” in the Options manual.
n
If you’re connecting your PC via the parallel interface
Connect the printer to the PC as described in “Making a Parallel Connection” and in “Making the Connection” .
3
Turn on both the printer and the PC.
4
Install a printer driver.
See “PC Printing Software” .
5
3-2
Now you’re ready to print.
QMS 4060 Print System Getting Started
Making a
Parallel
Connection
Making a Parallel Connection
If you have a new PC and it has not been connected yet, before connecting the printer to the PC, you should follow the manufacturer’s
instructions for setting up the PC and installing (if necessary) any
operating system software, such as DOS and/or Windows.
What You Need for a Parallel Interface
Interface cables are not included with your printer. If you’re replacing
a printer, you may already have the necessary cables. If not, you’ll
need to purchase the cables from your QMS vendor or a local computer store.
To connect your printer to a single PC, you need a parallel cable with
a 36-pin male and a 25-pin male connector.
»
Note: See the “Cable Pinouts” section of appendix B, in the
Reference guide, for cable pinout information.
How to Choose a Parallel Cable
Your printer supports both Centronics parallel, and IEEE 1284 bidirectional parallel communication. The type of parallel cable you use
depends on the type of parallel communication your computer supports (check your computer user’s guide if you’re unsure).
n
If your computer supports IEEE 1284 bidirectional parallel communication, you need an IEEE 1284 bidirectional parallel cable
(IEEE 1284 is indicated on the cable). This cable must be 6.5
feet/2 meters or less in length.
n
If your computer supports only Centronics parallel unidirectional
communication, you may use either a Centronics parallel cable
(unmarked on cable) or an IEEE 1284 bidirectional parallel cable
(IEEE 1284 is indicated on the cable). However, we recommend
an IEEE 1284 cable. The IEEE 1284 cable must be 6.5 feet/2
meters or less in length while the Centronics cable may be longer.
Connecting to a PC
3-3
Making the
Connection
Making the Connection
▲ Caution: If you’re connecting the printer to a single PC via the parallel
interface, turn off both systems first.
Parallel Port
1
2
Connect the PC and the printer using a parallel cable.
a
Connect the 25-pin end of the cable to the PC’s parallel
port.
b
Tighten the screws.
c
Attach the 36-pin end of the cable to the printer’s parallel
port (it’s labeled “PARALLEL”).
d
Close the clips.
Turn on both the printer and the PC.
A start-up page should print. If it doesn’t, see the “Printer Problem
Checklist” in chapter 9, “Troubleshooting Printer Problems” of the
Operation guide.
3
Test communication between the printer and the PC.
You can do this by sending a file from one of your applications, or
you can see “Testing Communication” in chapter 9, “Troubleshooting Printer Problems” of the Operation guide.
3-4
QMS 4060 Print System Getting Started
PC Printing
Software
PC Printing Software
If you're replacing a PostScript printer, you can probably start printing
now with the printing software already in place. Refer to your application documentation for instructions on sending documents to the
printer.
However, if you want to be able to use all your printer's special features (like collation, 300x300 dpi and 600x600 dpi printing), or if
you've never printed to a PostScript printer before, we recommend
you take a few minutes to make sure you have the following printing
software installed:
n
A PostScript printer driver
n
Printer description files (if you use QuarkXPress 3.3, PageMaker,
or Photoshop)
Installing a PostScript Printer Driver
If you're using Windows, we recommend that you install the
QMS-developed Windows driver, which is on the disk called Windows
Drivers (shipped with the printer). See “Installing the QMS Level 2
Windows 3.1/Windows 95 Driver,” below.
If you're using a non-Windows application, read the printing section of the application documentation for information on choosing a
PostScript driver. If the application does not provide a PostScript
driver, contact the application manufacturer to see if one has become
available since you bought the program. Also, PostScript drivers for
some applications are available through CompuServe; see appendix
A, “QMS Customer Support,” for information.
Also, check to see if application notes (tips for printing from specific
applications) are available for your application from Q-FAX, or CompuServe. Appendix A, “QMS Customer Support,” explains how to use
these QMS information services.
Installing the QMS Level 2 Windows 3.1/Windows
95 Driver
Connecting to a PC
3-5
PC Printing
Software
The QMS-developed Level 2 Windows driver supports all of the builtin printer features. Refer to the readme file in the drivers directory on
the Software Utilities CD-ROM for the procedure for installing the
driver.
»
Note: The installation program SETUP.EXE copies the driverrelated files into the \WINDOWS\SYSTEM directory and updates
WIN.INI accordingly. So you don’t have to install the printer via
the control panel.
You can set up the printer driver settings after you have installed the
driver from the printer manager in Windows 3.1 or from the printers
folder in Windows 95. These settings will become the default settings
for all of your applications if you prefer. Select the printer properties,
make you changes to the driver (such as selecting duplex) and save
them by pressing the OK button.
»
Note: The QMS Level 2 Windows driver has the Compress Output
setting enabled by default. This feature decreases the time the file
stays out on the network because the data is compressed at the host,
transferred to the printer, and then decompressed. However, for users
who are not on a network, this feature slows printing via the parallel
port. Disable this feature by accessing the driver settings through the
Printer Manager in Windows 3.1 or the Printers folder in Windows 95.
You can set printer options from your application by choosing Print
Setup from the application’s File menu and then choosing the Options
button. Choose the Help button in any of the driver dialog boxes for
information on driver options.
Notes on Installing Printer Description Files
The QMS Level 2 Windows Driver install program SETUP.EXE copies
PPD and PDF files into separate subdirectories under the specified
installation directory. See the QMS Level 2 Windows Driver online
help for more detailed driver information. You may delete the PPD
and/or PDF files if you don’t use applications that require them.
Applications may require special files, drivers, and/or configurations
to produce correct output on your QMS 4060 Print System. Check
3-6
QMS 4060 Print System Getting Started
PC Printing
Software
your application’s documentation to determine if you need to use one
or more of these files.
Adobe Illustrator
For best output quality and accurate screening, install the QMS-developed Windows driver as described in “Installing the QMS Level 2 Windows 3.1/Windows 95 Driver” . Then do the following to change the
default resolution:
1
In Adobe Illustrator, enable 600 dpi by choosing Document
Setup from the File menu.
Note: Adobe Illustrator 5.5 has a default setting of 300 dpi.
»
2
Click on Use Printer’s Default Screens to enable it.
3
Go to Output Resolution and enter the resolution (300 dpi or
600 dpi).
Adobe Photoshop
For best output quality and accurate screening, install the QMS-developed Windows driver as described in “Installing the QMS Level 2 Windows 3.1/Windows 95 Driver” . Then do the following:
1
From Page Setup dialog box of the Photoshop application,
select Screens.
2
Then click the Use Printer’s Default Screen box to enable it.
PageMaker
We recommend that you install a Windows Printer Description (WPD)
file instead of the QMS Level 2 Windows driver with PageMaker 5.0,
because PageMaker requires a Microsoft 3.56 or higher Windows
driver.
»
Note: Keep in mind that many of the QMS Level 2 Windows driver
features are not available from within PageMaker using the Microsoft
Windows driver.
Connecting to a PC
3-7
PC Printing
Software
WPD files for QMS printer are included in the /WPDS/QMS subdirectory on the Windows driver disk so that support for the QMS 4060 can
be added to any WINDOWS 3.0 PostScript driver.
The WPD files on the Windows drivers disk are for QMS printers and
other PostScript printers. Most available PostScript Drivers for Windows are based on the original Microsoft driver, which allows support
for additional printers to be added by installing WPD files.
See the readme.txt file in the /WPDS/QMS or /WPDS/OTHERS subdirectory on the Windows driver disk for complete WPD installation
and removal instructions.
Aldus Persuasion
This application won’t print EPS (Encapsulated PostScript) images if
the PostScript driver isn’t PSCRIPT.DRV.
CorelDRAW
This application provides a feature to control whether a PostScript
driver is actually treated as a PostScript driver or not. In the CORELPRN.INI file under the [PSDRIVERS] section, specify which driver by
either of the following statements:
QMSPS=1↵ (PostScript driver)
QMSPS=0↵ (Non-PostScript driver)
Microsoft Excel
If your using this application with color cell backgrounds in a sparse
dot pattern, the background may not always print in all resolutions
and/or orientations. Interference between the bit pattern and the PostScript halftoning for color causes this inconsistency. Change the resolution to one that does work for the background and use a darker
shade of back for the pattern color, or enable the All Colors to Black
option from within the Excel Images dialog box.
Other Applications
The scaling factor set in the driver is independent of any scaling factor
set in an application. While the application’s scaling factor is likely to
3-8
QMS 4060 Print System Getting Started
Printing from
the PC
affect the size and placement of image elements, the driver scaling
factor simply scales the resultant image from the center of the page.
QuarkXPress
Follow this procedure to install the PDF:
»
Note: All PDF’s are copied into a PDF subdirectory during the QMS
Level 2 Windows Driver installation process.
1
After you install the QMS driver for Windows, close the
QuarkXPress application on your PC.
2
Copy the QuarkXPress PDF from its installation directory to
the QuarkXPress directory on your PC.
3
Restart QuarkXPress.
4
Check the Page Setup menu to verify that your printer is in
the list of available printers.
See your QuarkXPress documentation for detailed information on
installing PDFs.
Printing from the PC
You're now ready to print from your PC. From this point, you'll probably perform most printing tasks from your application. For specific
information, check the printing section in your application documentation.
For information on print media types and sizes, see chapter 2, “Print
Media” in the Reference guide.
Connecting to a PC
3-9
What's Next?
What's Next?
Now that you’ve connected your printer to a PC, continue with chapter
6, “Control Panel” to learn about the printer’s control panel keys, indicators, and message window.
v
3-10
QMS 4060 Print System Getting Started
4
Connecting to an
Ethernet Network
In This Chapter . . .
n
“What's Included in CrownNet” on page 4-3
n
“Setting up the CrownNet Interface” on page 4-4
n
“Network Connection” on page 4-4
n
“Software Installation” on page 4-6
n
“Configuring the CrownNet Interface” on page 4-7
n
“Configuring the Network” on page 4-7
n
“What's Next?” on page 4-8
Introduction
Introduction
This chapter guides you through setting up the QMS CrownNet network interface. The QMS CrownNet System Administrator’s Guide
discusses the CrownNet interface configuration options and explains
how to use the CrownNet software (CrownAdmin, CrownAdmin 2,
CrownNet Manager, and CrownNet Print Utility for Windows).
The Ethernet port, also referred to as the QMS CrownNet network
interface, is a combination of hardware and host software that allows
your QMS 4060 printer to be connected to an Ethernet network that
supports the following:
4-2
Operating System
Protocol
AppleTalk
LAN Manager/LAN Server
NetWare
UNIX
Windows 3.1/Windows 95/
Windows NT
EtherTalk
NetBIOS/NetBEUI
IPX/SPX
TCP/IP
TCP/IP/NetBIOS/NetBEUI/EtherTalk
QMS 4060 Print System Getting Started
What's
Included in
CrownNet
What's Included in CrownNet
CrownNet consists of the items listed below. Your printer came standard with an Ethernet network interface and these items accompanied your printer.
n
n
QMS Software Utilities CD-ROM with the following software:
-
CrownAdmin for Macintosh
-
CrownAdmin 3 and on-line user’s guide for AIX, HP-UX,
Solaris, SunOS, Windows/Windows 95/Windows NT/Windows for Workgroups, Macintosh, and Crown Printer
Accounting
-
CrownNet Manager for OS/2
-
CrownNet Print Utility for Windows
-
QMS UNIX Host Software
-
Windows NT Print Monitor
-
Windows 95 Print Monitor
QMS Software Utilities CD-ROM with the following PDF manuals
-
QMS CrownNet System Administrator’s Guide
-
QMS CrownNet Setup Guide
-
QMS Crown Remote Console User’s Guide
Alternate Media
QMS provides these software utilities and manuals on other media as
well as on CD-ROM. Contact your QMS vendor for media availability
and purchase information. You can also download them via our World
Wide Web Server at http://www.qms.com, our Bulletin Board at (334)
633-3632, our FTP server at ftp.qms.com, or CompuServe at go
qmsprint.
Connecting to an Ethernet Network
4-3
Setting up the
CrownNet
Interface
Manuals on the CD-ROM
Your QMS CrownNet System Administrator’s Guide and QMS CrownNet Setup Guide are included on the CD-ROM in Adobe Acrobat PDF
format. The Acrobat Reader program is also on the CD-ROM. The
CD-ROM insert provides instructions on installation of the Reader.
Setting up the CrownNet
Interface
Complete instructions for setting up the CrownNet interface using
EtherTalk, Microsoft Windows Network, NetWare, OS/2 LAN Manager/LAN Server, and TCP/IP are included in the CrownNet Setup
Guide on the software utilities CD-ROM.
These instructions are also included in readme files in the appropriated directories on the CD-ROM.
Network Connection
The method you use to connect your printer to the network depends
on the type of connection you’re using to an Ethernet network
(described below).
Ethernet Network Connection
4-4
n
For thin-wire Ethernet (10Base2, BNC connector) see the next
section.
n
For Twisted-pair Ethernet (10BaseT, RJ45 connector) see page
4-6.
QMS 4060 Print System Getting Started
Network
Connection
Thin-Wire Ethernet Connection
Thin-wire Ethernet connections use BNC connectors.
BNC 50 Ohm
Terminator
BNC “T”
Connector
▲ Caution: Unless the BNC “T” connector is already installed on the
thin-wire Ethernet cable, your network’s operation is disrupted during
the connection process.
1
Turn off the printer, and unplug the power cord.
2
If the BNC “T” connector is already installed, go to step 3.
Otherwise, attach one section of thin-wire Ethernet cable to
one end of the BNC “T” connector.
3
Attach another section of thin-wire Ethernet cable or a
50 ohm terminator to the other end of the BNC “T” connector.
4
Attach the BNC “T” connector to the BNC port on the CrownNet interface.
5
Plug in the printer, and turn it on.
Connecting to an Ethernet Network
4-5
Software
Installation
Twisted-Pair Ethernet Connection
Twisted-pair Ethernet connections use RJ45 connectors.
1
Turn off the printer, and unplug the power cord.
2
Connect one end of the twisted-pair Ethernet cable to the
RJ45 port on the CrownNet interface.
3
Connect the other end of the cable to the 10BaseT concentrator.
4
Plug in the printer, and turn it on.
5
Go to “Software Installation” on page 4-6.
Software Installation
Complete installation instructions for AIX, HP-UX, Macintosh, OS/2,
Sun/SPARC Solaris 2.4 and SunOS 4.1x, Windows 3.1, Windows 95,
Windows for Workgroups 3.11, and Windows NT 3.5 are included in
the QMS CrownNet Setup Guide on the QMS Software Utilities CDROM.
These instructions are also provided in readme files in the appropriate directories on the CD-ROM.
4-6
QMS 4060 Print System Getting Started
Configuring the
CrownNet
Interface
Configuring the CrownNet
Interface
Complete instructions for configuring the CrownNet interface using
EtherTalk, Microsoft Windows Network, NetWare, OS/2 LAN Manager/LAN Server, and TCP/IP are included in the QMS CrownNet
Setup Guide on the QMS Software Utilities CD-ROM.
Configuring the Network
Complete instructions for configuring the network for CrownNet
including EtherTalk, Microsoft Windows Network, NetWare, OS/2 LAN
Manager/LAN Server, and TCP/IP are included in the QMS CrownNet
Setup Guide on the QMS Software Utilities CD-ROM.
Connecting to an Ethernet Network
4-7
Where To Go
From Here
Where To Go From Here
In addition to this chapter, the following documentation contains information you may need:
n
CrownAdmin 3 on-line help—Contains detailed information on
using CrownAdmin 3. Choose Contents from the Help menu in
the main CrownAdmin 3 window (or choose any Help button) to
access the on-line user’s guide.
n
CrownNet Print Utility on-line help—Contains detailed information
on using CrownNet Print Utility.
n
QMS CrownNet System Administrator’s Guide—Provides
detailed configuration and utility information.
n
QMS Crown Remote Console User’s Guide —Explains how to
use Remote Console to control printing from a workstation anywhere on the network.
n
Your network documentation—Contains information on printing.
If You Have Trouble
If you have trouble connecting and configuring your Ethernet interface, refer to the“CrownNet Problems” section of chapter 9, of the
Operation guide for troubleshooting tips.
What's Next?
Now that you’ve connected your printer to an Ethernet network, skip
to chapter 6, “Control Panel” to learn about the printer’s control panel
keys, indicators, and message window.
v
4-8
QMS 4060 Print System Getting Started
5
Connecting to a
Macintosh
In This Chapter...
n
“Connecting to a Macintosh”
n
“Macintosh Printing Software”
Introduction
Introduction
This chapter describes how to connect your printer to a Macintosh via
the Ethernet or LocalTalk port.
Connecting to a Macintosh
To connect to a Macintosh you must do the following:
1
Turn the power off on the printer.
2
Connect the printer to the Macintosh.
n
If your Macintosh has an Ethernet connection, connect the
printer to the Macintosh as described in chapter 4, “Connecting to an Ethernet Network” and your Macintosh documentation.
In addition to the Ethernet interface, you have the option of
using one optional interface to connect your printer to a second Ethernet network, a Token-Ring network, a single Macintosh, or a LocalTalk network.
If you’ve purchased an optional interface for your printer, see
the Options manual as well as the documentation provided
with the interface for installation instructions.
n
If your Macintosh doesn’t have an Ethernet connection, you
need to order the optional LocalTalk interface card for this
printer. See chapter 3, “Optional Interfaces” of the Options
manual for information on installing the interface card in the
printer and connecting the printer to a Macintosh.
3
Turn on both the printer and the Macintosh.
4
Install a printer driver.
See “Macintosh Printing Software” .
5
5-2
Now you’re ready to print.
QMS 4060 Print System Getting Started
Macintosh
Printing
Software
Macintosh Printing Software
If you're replacing a PostScript printer, you can probably start printing
now with the printing software already in place. Refer to your application documentation for instructions on sending documents to the
printer.
However, if you want to be able to use all your printer's special features (like collation, 300x300 dpi and 600x600 dpi printing), or if
you've never printed to a PostScript printer before, we recommend
you take a few minutes to make sure you have the following printing
software installed:
n
Macintosh Utilities
n
A PostScript printer driver
n
Application-specific printer files
Installing Macintosh Utilities
The Macintosh Utilities, included on the QMS Software Utilities CDROM we shipped with your printer, is a utility program for controlling
the printer from the Macintosh. For example, you can turn off the
start-up page, rename the printer, download fonts, print font samples,
and manage hard disks. Many of the procedures described in this
manual involve using Macintosh Utilities. Check the main Readme file
in the CD-ROM root directory to find the location on the CD-ROM,
and then use the Readme file directory for installation instructions.
Installing Macintosh Printer Drivers
To be able to use all your printer’s special features, you need to take
a few minutes to load the following software from the Macintosh disks
we shipped with your printer:
If QuickDraw GX is installed on your Macintosh, load the GX
driver for the QMS 4060 Print System.
If QuickDraw GX is not installed on your Macintosh, install the following:
Connecting to a Macintosh
5-3
Macintosh
Printing
Software
n
LaserWriter 8.x and the QMS 4060 PPD file
See “Installing LaserWriter 8.x and the QMS 4060 4.x PPD”
for information.
n
Printer files for Aldus/Adobe PageMaker, Aldus/MacroMedia
FreeHand, Adobe PrePrint, Adobe Separator, or QuarkXPress
See “Macintosh Printer Description Files for Quark and
Adobe Applications” for information.
Installing LaserWriter 8.x and the QMS 4060
4.x PPD
Although the QMS 4060 supports LaserWriter 6, 7, and 8, we recommend using LaserWriter 8. For your convenience, LaserWriter 8 and
the QMS 4060 PPD (a printer description file) are provided with your
printer so you can take advantage of special features.
1
If you haven't already, follow the instructions given above in
“Installing the Macintosh Printer Utilities.”
2
Open the PSExec 3.xx Folder, then the Drivers folder, then
the System Utilities folder to display the LaserWriter 8.x icon
(among other things).
3
Drag the LaserWriter 8.x icon to your current System Folder.
(The system knows where to copy it.)
4
Create a Printer Descriptions folder:
System 8 users—Create a folder called Printer Descriptions
inside the Extensions folder inside the System Folder.
System 7 users—Create a folder called Printer Descriptions
inside the Extensions folder inside the System Folder.
System 6 users—Create a folder called Printer Descriptions
inside the System Folder.
5
5-4
Open the PPDs folder inside the Drivers folder in the PSExec
3.xx Folder.
QMS 4060 Print System Getting Started
Macintosh
Printing
Software
6
Open the Ver 4.x folder inside the PPDs folder.
7
Select the QMS 4060 printer description file in the Ver 4.x
folder and drag it to the Printer Descriptions folder you created in step 4.
8
From the Apple menu, choose Chooser.
9
In the Chooser window, select the LaserWriter 8.x icon and
select the QMS 4060.
10 Choose the Setup button.
This causes the LaserWriter to query the printer and automatically choose the appropriate PPD.
11 Exit the Chooser.
Now, when you go into your application, you can access QMS
printing options by choosing Options in your application's Print
dialog box.
Macintosh Printer Description Files for Quark
and Adobe Applications
If you use any of these applications, install the appropriate printer
description file (PPD, PDX, and/or PDF) as described below:
1
If you haven't already, follow the instructions given above in
“Installing Macintosh Utilities” and in “Installing LaserWriter
8.x and the QMS 4060 4.x PPD” .
2
Install the appropriate printer description file(s) for your
application from the Drivers folder in the PS Exec folder:
n
If you use Adobe Separator, install the PPD file. Your Separator documentation explains where to put it.
n
If you use Adobe PageMaker 5.x, install the version 4.x
PPD in the Printer Descriptions folder.
n
If you use Aldus PageMaker 4.x, install the version 3.0 PPD
and PDX files in the PPDs folder in the Adobe folder in the
System Folder.
Connecting to a Macintosh
5-5
If You Have
Trouble
n
If you use Macromedia FreeHand 4.x, install the version 4.x
PPD in the Printer Descriptions folder.
n
If you use Aldus FreeHand 3.x, install the version 3.0 PPD
and PDX files in the PPDs folder in the Adobe folder in the
System Folder.
n
If you use Adobe PrePrint, install the version 3.0 PPD and
PDX files in the PPDs folder in the Adobe folder in the System Folder.
n
If you use QuarkXPress, install the QMS 4060 PDF in the
QuarkXPress folder in the PDF folder. To select the PDF, go
to Quark's Page Setup dialog box. Under Printer Type, select
the QMS 4060 PDF and select the Use Printer Default
Screen Angles checkbox. Also in Quark’s Page Setup dialog
box, make sure None is selected for the EFI Color profile
option.
If You Have Trouble
If you have trouble connecting and configuring your Macintosh interface, refer to the “Output Problems” section of chapter 9, “Troubleshooting Printer Problems” in the Operation guide for troubleshooting
tips.
v
5-6
QMS 4060 Print System Getting Started
6
Control Panel
In This Chapter . . .
n
“Control Panel Functions,”
n
“Message Window,”
n
“Control Panel Keys,”
Introduction
Introduction
The control panel for your QMS 4060 Print System consists of 5 control buttons and a backlit LCD display with a contrast control. The
LCD display contains graphical and textual information on printer status and control button functions.
LCD Display
Control Buttons
Contrast Control
On-Off Button
The control buttons change function as you take the printer off line or
when you access menu selections. The following sections will help
you identify control panel elements and show you how to operate the
control panel.
6-2
QMS 4060 Print System Getting Started
Control Panel
Functions
Control Panel Functions
This illustration shows the control panel with the elements numbered.
See the list below the illustration for an explanation of the element.
4
5
6
1
2
3
1
This is the printer message window. This provides status messages, error messages, and menu configuration information.
2
This indicates the present function of each control button below
the label.
3
These are the five control buttons.
4
The Disk symbol turns on whenever the printer is accessing the
internal hard disk. Otherwise this symbol will not appear.
5
The Data symbol flashes on and off periodically when the printer
is receiving data from the interfaces. Otherwise, this symbol will
not appear.
6
The printer graphic shows the size media set up for the three
input trays. The currently selected tray is highlighted. If the
optional large-capacity input feeder or the output stacker is
installed, then the graphic shows these units attached. The active
tray or feeder blinks as media is pulled into the printer.
Control Panel
6-3
Message
Window
Message Window
Setting the Message Window Language
Status messages and configuration menus can be displayed in the
message window in English, French, German, or Spanish. If you
need to change the message window language, use the Administration/Miscellaneous/Keypad Language menu.
If you’re not familiar with using the configuration menu, refer to chapter 4, “Printer Configuration,” of the Reference guide for complete
information.
6-4
Menu
Administration/Miscellaneous/Keypad Language
Choices
English, French, German, Spanish
Default
English
Notes
The printer must be restarted for changes to this
menu to take effect. You can either turn the printer off
and then back on after you save the change and exit
from the configuration menu, or you can wait for the
change to take effect the next time you manually turn
on the printer.
QMS 4060 Print System Getting Started
Control Panel
Keys
Control Panel Keys
Online, Tray, Cancel, Status, and Copy
Buttons
The Online, Tray, Status, and Cancel buttons access frequently used
printer options. The Copy function is only available when the CrownCopy option is installed.
The Online button switches the printer from
on line to off line status. Press the button
once to take the printer off line when it is on
line and once to return the printer to on line
when it is off line.
When the printer goes off line, the
communication ports are closed, so no new
data is accepted. The printer continues
printing until it has finished all jobs in
process. Although jobs continue to compile
and print using the data already received, a
job may be interrupted, causing it to wait for
more incoming data before printing
resumes.
If a local or remote console session has
taken the printer off line, pressing the
Online button on the control panel will not
take effect until the local or remote console
session is over.
»
Control Panel
Note: You must take the printer off
line before using all other buttons
except the Status, Cancel, and Copy
buttons if CrownCopy is installed.
6-5
Control Panel
Keys
The Tray button allows you to select the
active paper input source:
n
upper (upper tray)
n
middle (middle tray)
n
lower (lower tray)
n
optional (optional high-capacity
input deck, if installed)
The printer automatically goes off line
when you to use the Tray button. The
Cancel, Status, and Copy buttons change
function to Select, Previous, and Next to
allow you to select a different tray.
Use the Copy button to print a copy via
CrownCopy, if that option is installed. If
CrownCopy is installed, this button gives
you access to the copy menu to configure
CrownCopy and make copies. See the
Options manual for more information on
CrownCopy.
Use the Status button to print a listing of
the current printer settings.
See the “Special Pages,” section of chapter
4, “Printer Configuration,” in the Reference
guide for information on the status page
contents.
You can print a status page whether the
printer is on line or off line.
6-6
QMS 4060 Print System Getting Started
Control Panel
Keys
Press the Cancel button and select the Yes
option to cancel all print jobs with a
printing, interpreting, terminating, or
spooled status, or select the End Job
option to send an end-of-job indicator to
jobs waiting for incoming data. After all jobs
with the above status are canceled or after
the current job is ended, dependent on
your selection, the printer resumes printing
other jobs that are in the queue. (See
chapter 5, “Advanced Printing Features,” of
the Operation guide for complete
information.) You can use this button while
the printer is on line.
»
Control Panel
Note: If you press the Cancel button
by mistake, or if you decide not to
cancel a print job after pressing this
button, press the Menu button to
“cancel” the Cancel button’s
function.
6-7
Control Panel
Keys
Menu, Select, Previous, and Next Keys
The Menu, Select, Previous, and Next buttons are used in printer configuration (explained in detail in chapter 4, “Printer Configuration,” of
the Reference guide). Before you can use any of these buttons, press
the Online button once to take the printer off line.
Offline
fline
enu
6-8
Menu
Select
Previous
Next
The Menu button gives you access to the
configuration menu. First press the Online
button to take the printer off line, and then
Selec press the Menu button to access the
configuration menu. When you’re changing
the printer configuration, press this button
to cancel a change (before pressing the
Select buttons), to return to a previous
menu, or to return to a previous character
when entering character information.
Menu
Select
Prev
Press the Select button to access a menu
or to choose a displayed menu option.
QMS 4060 Print System Getting Started
What's Next?
ect
evious
Previous
Ne
Next
Press the Previous button to return to the
previous selection or option for the current
menu. When changing character
information, use this button to return to the
previous choice for the current input
character.
Press the Next button to advance to the
next selection or option in the current
menu. When changing character
information, use this button to advance to
the next choice for the current input
character.
What's Next?
Now you’re ready to print. For more information on the day-to-day
operation of your printer, refer to the Operation guide. For more technical information, refer to the Reference guide.
v
Control Panel
6-9
A
QMS Customer
Support
In This Appendix . . .
n
“Sources of Support” on page A-2
n
“QMS World-wide Offices” on page A-5
Sources of
Support
Sources of Support
Several sources of help and information are available, depending on
the type of help you need:
Your QMS Vendor
Your local vendor (the one from whom you bought the printer) may be
best equipped to help you. Your vendor has specially trained service
technicians available to answer questions, and the equipment to analyze your printer problems.
Your Application Vendor
Often, “printing” problems have more to do with the application being
used than with the printer. In this case, the application manufacturer
is the best source of help.
Q-FAX
Q-FAX, a QMS information retrieval service, provides application
notes, technical support notes on common printing problems, and
information about printer specifications, options, accessories, consumables, and prices.
In the United States and Canada, call (800) 633-7213 to reach
Q-FAX. In all other countries, call (334) 633-3850. Have your fax number handy when you call (or place the call from your fax machine's
handset).
You can choose to have either a directory (a list of currently available
documents) or a specific document sent to you. The first time you call,
request the directory (press 2 on your phone or fax keypad when
prompted). Then call back to request specific documents. You can
order up to three documents per call.
A-2
QMS 4060 Print System Getting Started
Sources of
Support
CompuServe
Through CompuServe, you ask general (non-technical) questions,
share information with other users, and access printing information
and programs. When you use CompuServe, type go qmsprint↵ to
go directly to the forum where QMS is located. The QMS library section contains application notes, printer drivers, utilities, technical information, and announcement files.
Internet
The QMS server provides access to technical reports, new product
announcements, a trade show schedule, and other general information about QMS.
If you have access to the World Wide Web, you can view the QMS
home page at http://www.qms.com/. The QMS ftp resource is
ftp.qms.com.
QMS Customer Response Center (CRC)
You can contact the QMS Customer Response Center (CRC) in three
different ways:
n
»
Telephone—You can call the CRC at (334) 633-4500 (US)
Monday–Friday, 7:00 am–6:00 pm, Central Time.
Note: If you call for assistance, have the following information
ready so our technicians can help you more quickly:
þ Your phone number, fax number, and shipping address
þ A description of the problem
þ The printer model
þ The type of host computer you’re using
þ The type and version of operating system you’re using
þ The interface you’re using, and, if serial, the protocol (for
example, XON/XOFF)
þ The application and version you’re using
QMS Customer Support
A-3
Sources of
Support
þ The emulation you’re using
þ Your printer firmware version (listed on the status/start-up
pages)
A-4
n
Fax—You can fax questions to the CRC at (334) 633-3716 (US).
Provide the same information as listed above, and indicate
whether you would like a faxed or a phoned reply.
n
Internet—If you have access to the World Wide Web, you can
access the CRC through the QMS home page at
http://www.qms.com/
QMS 4060 Print System Getting Started
QMS Worldwide Offices
QMS World-wide Offices
QMS United States and Latin America
General Contact
1 (334) 633-4300
Fax 1 (334) 633-4866
Email info@qms.com
Internet http://www.qms.com
Information on QMS products, supplies, and accessories, and on the
authorized QMS remarketer or service provider nearest you
1 (800) 523-2696
Customer Response Center (CRC)
Technical Assistance
1 (334) 633-4500
7:00 am–6:00 pm Central Time
Fax 1 (334) 633-3716
Internet http://www.qms.com
Latin America Fax
1 (334) 639-3347
National Service
Service Information, Installation, and Maintenance Pricing
1 (800) 762-8894
On-Site Service and Depot Repair Information
1 (800) 858-1597
7:00 am–7:00 pm Central Time
Spare Parts Ordering and Information
1 (334) 633-4300 x2530
8:00 am–5:00 pm Central Time
QMS Canada
General Contact
1 (514) 333-5940
Fax 1 (514) 333-5949
Supplies and Accessories
1 (800) 268-0343 x223
National Service
On-Site Service and Depot Repair Information
1 (800) 268-4969
8:30 am–7:00 pm Eastern Time
Spare Parts Ordering and Information
1 (905) 206-9234 x238
8:30 am–5:00 pm Eastern Time
QMS Customer Support
A-5
QMS Worldwide Offices
QMS in Japan
General Contact
(+81)-3 3779-9600
Fax (+81)-3 3779-9650
Internet http://www.qmsj.co.jp
QMS in Latin America
General Contact
Cra 43 DD#8-42
Officina 201
Medellin, Colombia
(+57) (4) 312 13 70
Fax (+57) (4) 268 92 97
QMS EMEA
QMS Australia Anitech
Sydney Business & Tech. Centre
52/2 Railway Parade
2141 Lidcombe NSW
Australia
(+61) 2–9901 3235
Fax (+61) 2–9901 3273
QMS Benelux Planetenbaan 60 ‘Corner Plaza’
3606 AK Maarssen
Belgium, NetherThe Netherlands
lands, and all
(+31) 346–551333
unlisted countries
Fax (+31) 346–550170
Internet http://www.qms.nl
QMS France
QMS GmbH
Germany and
Austria
A-6
Vélizy Plus
1 Bis, Rue du Petit Clamart
78142 Vélizy Cedex
France
(+33) 1–410 79 393
Fax (+33) 1–408 30 110
Gustav Heinemann Ring 212
D-81739 Munich
Germany
(+49) 89 63 02 67 0
Fax (+49) 89 63 02 67 67
QMS 4060 Print System Getting Started
QMS Worldwide Offices
QMS Italy
Via della Repubblica 56
43100 Parma
Italy
(+39) 52–1231 998
Fax (+39) 52–1232 902
QMS Nordic
Arenavägen 41, 6th floor
121 77 Johanneshov
Sweden, Finland,
Sweden
Norway, and
(+46) 8–600 01 30
Denmark
Fax (+46) 8–600 01 33
QMS South
Africa
QMS UK
United Kingdom
and Ireland
Saskay House
Unit 24 Sunninghill Business Park
Peltier Road, Sunninghill, Johannesburg
Republic of South Africa
(+27) 11–807 6957
Fax (+27) 11–807 6960
Old Bridge House, The Hythe
Staines, Middlesex TW18 3JF
United Kingdom
(+44) 1784–442255
Fax (+44) 1784–461641
v
QMS Customer Support
A-7
B
Configuration
Menu
In This Appendix . . .
n
“Menu Chart Conventions‚"
n
“Installation Menu‚"
n
“Operator Control Menu‚"
n
“Administration Menu‚"
Introduction
Introduction
You may use this section as a quick reference for understanding and
navigating the menu structure of the QMS 4060 Print System.The following menu charts are provided in this section:
n
Installation Menu
Shows the configurations available when the security key is used
to access the Installation Menu.
n
Operator Control Menu
Shows the operator printer configurations.
n
Administration Menu
Shows the printer administration configurations.
Menu Chart Conventions
The following conventions are used in the menu charts:
B-2
n
Some menu selections are marked with an asterisk (*). These
selections will only appear on your print system if the specified
option is installed.
n
These menu charts show only the top-level menus. See chapter
4, “Printer Configuration‚" of the Reference guide for detailed
information on a menu selections’s options.
QMS 4060 Print System Getting Started
Introduction
Installation Menu
Idle
Installation
Operator Control
Operator Passwrd
(Enter
password)
Use Operator PWD
Off or On
Admin Password
(Enter
password)
Use Admin PWD
Off or On
Administration
*Optional
Configuration Menu
B-3
Introduction
Operator Control Menu
Idle
Operator Control
Copies
Duplex
Offset Stacking*
Administration
001-999
Off, On, or
Tumble
Off or On
Face-Up Order
Normal or Reverse
Collation
Off or On
Orientation
Portrait or
Landscape
Inputbin
Outputbin
Chain Inputbins
Custom Input Bin
Chain Option
Accounting
Consumables
Installation
Upper, Middle,
Lower
or Optional*
Upper, Face-Up Stack*
or Face-Down Stack*
On, Off, or
On Any
Upper, Middle,
Lower
On or Off
Letter
Legal
Executive
11x17
A3
A4
A5
B4
B5
Statement
B4(ISO)
B5(ISO)
Upper, Middle,
Lower
or Optional
Mode
Disk Space
Resetaccounting
or File Segment
Print Statistics
*Optional
B-4
QMS 4060 Print System Getting Started
Introduction
Administration Menu
Idle
Configuration
Administration
Communications
Installation
Timeouts
Serial*
Parallel
Network1*
Network2
ESP Default
Postscript
PCL 5E
HP-GL
LinePrinter
Emulations
TIFF*
CALS*
CGM*
LNO3+*
QUIC*
Special Pages
Calibration Page
Header Page
Header Inputbin
Trailer Page
Trailer Inputbin
Status Page Type
Startup Options
Do Start Page
Do Sys Start
Do Error Handler
Memory
Manual Config
Engine
Developer
Drum Unit
Fuser Unit
Pick Unit 1
Pick Unit 2
Pick Unit 3
LCIF Pick Unit*
Start Period
Consumables
Miscellaneous
Image Alignment
Default paper
Inputbin 1 Name
Inputbin 2 Name
Inputbin 3 Name
Inputbin 5 Name
Outputbin 1 Name
Outputbin 2 Name
Outputbin 3 Name
Page Recovery
Toner Low Act.
Energy Saver
Toner Density
Rotate SImplex
Letterhead
Def. Resolution
Print Quality
Save Defaults
Restore Defaults
Reboot System
New System Image
Capture Printjob
Keypad Language
Clock Operations
Disk Operations
Configuration Menu
Format Disk
Backup Hard Disk
Restore Disk
*Optional
B-5
C
Installing Options
In This Appendix . . .
n
“Large-Capacity Input Feeder” on page C-2
n
“2000-Sheet Large-Capacity Output Stacker” on page C-10
n
“3000-Sheet Large-Capacity Output Stacker” on page C-22
n
“Custom Tray” on page C-50
n
“Security Key” on page C-54
Large-Capacity
Input Feeder
Large-Capacity Input Feeder
The Large-Capacity Input Feeder (LCIF) holds 3000 sheets and
increases the paper input capacity of the printer to 4500 sheets.
There are two models of the LCIF: one model feeds letter-size paper
and the other model feeds A4 size paper.
What's in the Kit?
n
Large-Capacity Input Feeder (LCIF)
n
Interface cable
n
Paper feeder guide support stand
n
Sheet guide and support stand guide
Installation Procedure
M WARNING: The LCIF weighs approximately 44 lb. (20 kg). Do not
attempt to lift or move it by yourself.
ACHTUNG! Der LCIF wiegt ca. 20 kg; bitte versuchen Sie niemals,
das Gerät alleine anzuheben oder zu tragen.
1
C-2
Unpack the paper feeder, the interface cable, and the paper
feeder support stand, from the box.
a
Open the LCIF box.
b
Reach into the box and grasp the sides of the foam shipping
blocks.
c
Carefully lift the LCIF (including the foam shipping blocks) out
of the box and place it on the floor.
d
Remove the foam shipping blocks and plastic cover.
e
Open the LCIF door and remove all packing materials inside.
QMS 4060 Print System Getting Started
Large-Capacity
Input Feeder
f
Remove the sheet guide/support stand guide and support
stand from the box.
g
Save the packing material for possible repacking of the LCIF.
LCIF
Sheet Guide/Support
Stand Guide
Support Stand
Installing Options
C-3
Large-Capacity
Input Feeder
2
Locate the support stand, the support stand guide, and the
sheet guide.
Sheet Guide
Support Stand Guide
Support Stand
3
Open the front door of the printer.
4
Using a Phillips screwdriver, remove the left side paper input
cover by loosening the front screw and removing the rear
screw.
...........
Remove
Screw
Loosen Screw
C-4
QMS 4060 Print System Getting Started
Large-Capacity
Input Feeder
5
Attach the sheet guide to the printer using the screws you
loosened and removed in step 4.
6
Install the support stand guide using the screws
attached.
7
Lift the support stand and place on top of the support stand
guide.
Support Stand Guide
Installing Options
Support Stand
C-5
Large-Capacity
Input Feeder
8
Attach the support stand to the support stand guide.
9
Pull out the support stand slide-rails until they lock in the out
position.
LCIF
Support Stand
10 Set the LCIF on the pins of the slide-rail.
11 Secure the LCIF to the support stand using the two thumbscrews.
C-6
QMS 4060 Print System Getting Started
Large-Capacity
Input Feeder
12 Slide the LCIF into the sheet guide on the printer, until it
locks in place.
13 Adjust the leveling feet on the LCIF support stand so that the
two leveling chains are just touching the floor.
Red Alignment Marks
LTR
LTR
Leveling Chains
LTR
Leveling Feet
14 Make sure the red alignment marks on the LCIF and the
sheet guide line up. If the alignment marks do not line up,
adjust the leveling feet on the support stand.
15 Make sure the power on the printer is turned off.
16 Press the release handle on the top of the LCIF and pull the
LCIF away from the printer.
Installing Options
C-7
Large-Capacity
Input Feeder
17 Connect the interface cable to the connector on the rear
lower left side of the printer.
Interface Cable
18 Slide the LCIF into the sheet guide on the printer, until it
locks in place.
19 Turn on the printer.
C-8
QMS 4060 Print System Getting Started
Large-Capacity
Input Feeder
20 Check the printer display panel for the LCIF graphic. This
lets you know the LCIF is connected properly.
IDLE
LETTER
LETTER
LETTER
Online
Tray
Status
Cancel
LTR
Copy
21 To load paper in the LCIF, open the LCIF door, press the button on top of the LCIF, load paper, and close the door.
LTR
LTR
LTR
LTR
LTR
LTR
22 Press the Tray button on the printer control panel to select
the LCIF for paper feeding.
Use the Previous or Next button to highlight the LCIF on the
graphic and then press Select and Offline.
Installing Options
C-9
2000-Sheet
Large-Capacity
Output Stacker
2000-Sheet Large-Capacity
Output Stacker
The Large-Capacity Output Stacker (LCOS) holds 2000 sheets and
increases the paper output capacity of the printer to 2500 sheets.
What's in the Kit?
n
2000-sheet LCOS
n
Interface Cable
n
Output Stacker Hardware
Stacker Hardware Contents
After unpacking, check for the following LCOS hardware contents:
Power Cord
Paper Guide
Bracket B
Bracket A
M6x12 Screw
4 M4x6
Thumbscrews
M4x10
Screws
Connect Pin
Make sure that all items are included in your shipment before setting
up your LCOS. If any items are missing or damaged, contact your
shipping company or your QMS vendor. See Appendix A, “QMS Customer Support,” for product sales and support information.
C-10
QMS 4060 Print System Getting Started
2000-Sheet
Large-Capacity
Output Stacker
Tools Required
To install the LCOS, you need the following tools:
n
#2 Phillips screwdriver
n
Medium flat-blade screwdriver
Installation Procedure
M WARNING: The LCOS weighs approximately 90.5 lb. (41 kg). Do not
attempt to lift or move it by yourself.
ACHTUNG! Der LCOS wiegt ca. 32 kg; bitte versuchen Sie niemals,
das Gerät alleine anzuheben oder zu tragen.
Installing Options
C-11
2000-Sheet
Large-Capacity
Output Stacker
1
Unpack the output paper stacker from the shipping box.
,,,,,,,,
,,,,,,,,
,,,,,,,,
,,,,,,,,
,,,,,,,,
,,,,,,,,
,,,,,,,,
,,,,,,,,
,,,,,,,,
,,,,,,,,
,,,,,,,,
»
C-12
2
With the help of another person, carefully lift the LCOS from
the box and place it on the floor.
3
Remove the plastic from the LCOS.
Note: Save all packing materials for possible repacking.
QMS 4060 Print System Getting Started
2000-Sheet
Large-Capacity
Output Stacker
4
Loosen the nut holding the Safety Tilt Bar from the back of
the LCOS in the bottom right leg.
5
Remove the Safety Tilt Bar.
6
Turn the bar over and replace it in the reverse direction.
Installing Options
C-13
2000-Sheet
Large-Capacity
Output Stacker
C-14
7
Raise the four leveling bolts on the LCOS.
8
Remove the upper cover from the left side of the printer by
removing two screws.
QMS 4060 Print System Getting Started
2000-Sheet
Large-Capacity
Output Stacker
9
Snap the paper guide into place.
10 Locate bracket B and the connect pin included in the LCOS
box contents.
Installing Options
C-15
2000-Sheet
Large-Capacity
Output Stacker
11 Use a small flat-bladed screwdriver to pop out the two small
panels from the bottom cover.
12 Attach bracket B to the bottom left side of the printer with the
M6x12 screw and fasten the connect pin.
C-16
QMS 4060 Print System Getting Started
2000-Sheet
Large-Capacity
Output Stacker
13 Attach bracket A to the bottom of the LCOS.
Bracket A
14 Position the LCOS so that its positioning hole is aligned with
the connect pin on the printer.
Installing Options
C-17
2000-Sheet
Large-Capacity
Output Stacker
15 Push the output stacker against the printer and fit the connect pin into the larger circular section of the LCOS positioning hole.
Bracket B
Bracket A
16 Push the LCOS toward to the front of the printer to lock the
pins into the positioning holes.
17 Fasten bracket A to bracket B on the printer with the M4x6
hex type screw included with the LCOS contents.
C-18
QMS 4060 Print System Getting Started
2000-Sheet
Large-Capacity
Output Stacker
18 Turn the two front levelers counter-clockwise to tilt the top of
the LCOS securely against the printer.
19 Plug the signal cable form the LCOS into the connector on
the rear bottom-right of the back of the printer.
»
Note: Make sure the main power switch is in the off position.
Installing Options
C-19
2000-Sheet
Large-Capacity
Output Stacker
20 Connect the power cord plug to the AC connector on the
LCOS and the other end to a grounded outlet.
M
WARNING: This product is equipped with a 3-wire grounding
type plug, a plug that has a third (grounding) pin. This plug will
only fit into a grounding-type power outlet. This is a safety feature
and the LCOS can be damaged if the plug is modified to work in a
non-grounded receptacle.
ACHTUNG! Dieses Produkt ist mit einem 3-Phasen Stecker
ausgeruestet. Bitte verwenden Sie unbedingt ein entsprechendes
Gegenstueck, da es sonst zu Beschaedigungen kommen kann.
Fuer den Netzanschluss dieses Geraetes ist ein geprueftes
Kabel zu verwenden. Fuer einen Nennstrom bis 6A ist eine
Leitung nicht leichter als H05VV-F3G 0,75 mm² oder H05VVH2F3G 0,75mm² einzusetzen.
21 Turn on the main power switch on the LCOS, and then turn
on the printer.
ON
OF
F
Power Cord
Signal Cable
C-20
QMS 4060 Print System Getting Started
2000-Sheet
Large-Capacity
Output Stacker
Note: If the message panel displays an error message when you
turn on the power, try turning off the LCOS and printer and
turning on the LCOS again and then the printer.
»
22 Check the printer display panel for the LCOS graphic. This
lets you know the LCOS is connected properly.
IDLE
LETTER
LETTER
LETTER
Online
Tray
Cancel
Status
LTR
Copy
23 Select the LCOS as the output bin through the Operator Control/Outputbin configuration menu.
Installing Options
C-21
3000-Sheet
Large-Capacity
Output Stacker
3000-Sheet Large-Capacity
Output Stacker
The 3000-sheet Large-Capacity Output Stacker (LCOS) holds 3000
sheets and increases the paper output capacity of the printer to 3500
sheets.
What's in the Kit?
n
3000-sheet LCOS
n
Interface cable
n
Output stacker hardware
Unpacking the 3000-Sheet LCOS
1
Remove the accessories box from the outer box.
Accessories box
Outer
box
C-22
QMS 4060 Print System Getting Started
3000-Sheet
Large-Capacity
Output Stacker
2
Remove the power cable.
3
Set the box upright and remove the cardboard positioned on
top of the LCOS.
Note: The legs and casters should be on the bottom of the box.
»
4
Firmly grasp the top and bottom of the LCOS and roll it
slowly out of the box, ensuring that the LCOS doesn’t fall
back as you do so.
2stk.eps
5
»
Remove the packing tape and the plastic from the LCOS.
Note: Save all packing materials in case you ever need to move
or ship the LCOS.
Installing Options
C-23
3000-Sheet
Large-Capacity
Output Stacker
6
Open the LCOS door and remove the tape on the paper
guides inside the LCOS.
Door
C-24
QMS 4060 Print System Getting Started
3000-Sheet
Large-Capacity
Output Stacker
Hardware Contents
After unpacking, check for the following LCOS hardware contents:
Tray
Paper guides
Joining frame
Stopper
Stopper guide
Paper output guide
Make sure that all items are included in your shipment before setting
up your LCOS. If any items are missing or damaged, contact your
shipping company or your QMS vendor. See Appendix A, “QMS Customer Support,” for product sales and support information.
Installing Options
C-25
3000-Sheet
Large-Capacity
Output Stacker
The following table shows the screws and bolts you need to install the
LCOS. These are included with the LCOS accessories.
Screws and Bolts
Examples
Description
Quantity
Screw and
6
washer (M4 x 12)
Screw
M4 x 6
2
Spacer bolts
(A, B, C)
A=1
B=1
C=2
A
B
C
Tools Required
To install the LCOS, you need the following tools:
n
#2 Phillips screwdriver
n
Medium flat-blade screwdriver
Installation Procedure
M WARNING: The 3000-sheet Large-Capacity Output Stacker weighs
over 66 pounds (30 kg). Do not attempt to lift or move it by yourself.
ACHTUNG! Der LCOS wiegt ca. 30 kg; bitte versuchen Sie niemals,
das Gerät alleine anzuheben oder zu tragen.
C-26
QMS 4060 Print System Getting Started
3000-Sheet
Large-Capacity
Output Stacker
After unpacking is complete, use the following procedure to install the
LCOS.
1
Attach the stopper to the lower rear of the LCOS using the
two screws (M4 x 6).
Screws
M4 x 6
Stopper
»
Note: The stopper prevents the LCOS from tipping backward.
Installing Options
C-27
3000-Sheet
Large-Capacity
Output Stacker
2
»
Slip the hooks on the back of the tray over the tray base, and
then attach the tray to the tray base using the six screws
(M4 x 12) and washers.
Note: The tray has six pre-drilled holes for the screws.
Tray
Tray base
Washer
Screw
M4 x 12
Tray
Side view
Tray base
C-28
QMS 4060 Print System Getting Started
3000-Sheet
Large-Capacity
Output Stacker
3
Locate the left paper guide, and slide it through the left slot
of the paper tray.
Paper guide (T, L)
Paper tray slot
The paper guides are labeled T,L for top-left and T,R for top-right.
The shorter arm should be on top, and the flange should point
inward.
Installing Options
C-29
3000-Sheet
Large-Capacity
Output Stacker
4
Locate the paper size markers and the alignment hole that
corresponds to the desired paper size.
Note: Paper size markers appear on both the top and bottom of
the LCOS.
»
Paper size
markers
Alignment
holes
Note: When you first install the LCOS, we recommend that you
set the paper guides as far apart as possible (A3/A4 setting).
There is no need to adjust the guides unless the LCOS
experiences paper stacking problems.
»
5
C-30
Using the paper size markers as a guide, attach the paper
guide to the LCOS with the knurled screws.
QMS 4060 Print System Getting Started
3000-Sheet
Large-Capacity
Output Stacker
6
Repeat steps 3 through 5 for the right paper guide.
Paper guide (T, R)
Paper tray slot
Installing Options
C-31
3000-Sheet
Large-Capacity
Output Stacker
Preparing the Printer
After assembling the LCOS, prepare the QMS 4060 Printer for attachment of the LCOS.
1
Remove the paper output cover from the printer by removing
two screws.
Paper output
cover
Screws
C-32
QMS 4060 Print System Getting Started
3000-Sheet
Large-Capacity
Output Stacker
2
Remove the left screw in the upper cover.
Left screw
3
»
Insert spacer B bolt into the hole in the upper cover where
you just removed the screw
Note: The bolts are labeled. Make sure you use the correct bolt.
Spacer
bolt (B)
Installing Options
C-33
3000-Sheet
Large-Capacity
Output Stacker
4
Remove the right screw in the upper cover.
Right
screw
C-34
QMS 4060 Print System Getting Started
3000-Sheet
Large-Capacity
Output Stacker
5
Insert spacer bolt A into the hole where you just removed the
screw.
Spacer
bolt (A)
Installing Options
C-35
3000-Sheet
Large-Capacity
Output Stacker
6
Snap, the paper guide into place.
Paper
guide
C-36
QMS 4060 Print System Getting Started
3000-Sheet
Large-Capacity
Output Stacker
7
Remove the two screws in the lower cover.
Lower cover
screws (2)
Installing Options
C-37
3000-Sheet
Large-Capacity
Output Stacker
8
»
Insert the two C spacer bolts into the lower cover holes
where you just removed the screws.
Note: The bolts are labeled. Make sure you use the correct bolt.
Spacer
bolts (C)
The spacer bolts are labeled. Make sure you use the correct
bolts.
C-38
QMS 4060 Print System Getting Started
3000-Sheet
Large-Capacity
Output Stacker
9
Use a small flat-bladed screwdriver to pop out the two small
panels from the bottom cover.
Panels
Installing Options
C-39
3000-Sheet
Large-Capacity
Output Stacker
10 Use the two knurled screws (captive) to install the stopper
guide where the square panels were located.
Stopper guide
C-40
QMS 4060 Print System Getting Started
3000-Sheet
Large-Capacity
Output Stacker
11 Use the four knurled screws (captive) on the joining frame to
attach the joining frame to the spacer bolts.
Joining frame
Connecting the 3000-Sheet LCOS to the
Printer
After assembling the LCOS and preparing the printer, you’re ready to
attach the LCOS to the printer.
1
Roll the two units together.
Installing Options
C-41
3000-Sheet
Large-Capacity
Output Stacker
2
Lift the LCOS a little to make sure that the connecting pin on
the stopper guide is aligned with the stopper hole on the
LCOS, and then push the LCOS against the printer.
Side view
Stopper
Stopper guide
Connecting pin
C-42
QMS 4060 Print System Getting Started
3000-Sheet
Large-Capacity
Output Stacker
The two metal pins on the back of the LCOS are connected to the
corresponding holes in the joining frame, and the printer latch is
engaged.
Latch lever
Metal pin
»
Note: To disconnect the LCOS from the printer, pull the latch
lever towards you and move the LCOS away from the printer.
Connecting Cables and Turning on the LCOS
Once the LCOS and printer are attached, you’re ready to connect the
interface cable and power cable.
Installing Options
C-43
3000-Sheet
Large-Capacity
Output Stacker
1
Plug the interface cable from the LCOS into the connector on
the back of the printer near the bottom.
Top
view
Interface connector
Side
view
Interface cable
Power cable socket
2
Plug one end of the power cable into the LCOS and the other
end of the cable into a grounded outlet.
3
Turn on the LCOS power switch.
The power switch is on the lower-front of the LCOS. It takes a few
seconds for the LCOS to perform power-up diagnostics.
4
C-44
Turn on the printer.
QMS 4060 Print System Getting Started
3000-Sheet
Large-Capacity
Output Stacker
5
Check the printer display panel for the LCOS graphic. This
lets you know the LCOS is connected properly.
LETTER
IDLE
Online
6
LETTER
LETTER
Tray
Cancel
Status
LTR
Copy
Select the LCOS as the output bin through the Operator Control/Outputbin configuration menu.
Using the 3000-Sheet Large-Capacity Output
Stacker
This section provides information on how to adjust the paper stopper
and paper guides on the LCOS.
Adjusting the Paper Stopper
After you install the 3,000-sheet LCOS, adjust the paper stopper to fit
the size of paper you’re using.
Installing Options
C-45
3000-Sheet
Large-Capacity
Output Stacker
1
Locate the paper stopper on top of the LCOS and position it
as shown.
Paper
stopper
Paper guide
(left)
Paper guide
(right)
C-46
QMS 4060 Print System Getting Started
3000-Sheet
Large-Capacity
Output Stacker
2
»
Locate the paper size markers on the stopper, and slide the
paper stopper to the desired paper size
Note: If you’re printing on A3 or Ledger paper, you don’t need the
paper stopper. Lift the paper stopper up and out of the way..
Paper size choices are Legal, Executive, B5, and A4/LTR.
Adjusting the Paper Guides
»
Note: We recommend that you set the paper guides as far apart as
possible. There is no need to ajust the guides unless the LCOS
experiences paper stacking problems.
Installing Options
C-47
3000-Sheet
Large-Capacity
Output Stacker
1
Locate the paper guides on the LCOS.
There are two paper guides, one on each side of the LCOS.
Paper guide
(left)
Paper guide
(right)
C-48
QMS 4060 Print System Getting Started
3000-Sheet
Large-Capacity
Output Stacker
2
Release a guide by unscrewing the knurled screws (captive)
that connect the guide to the top and bottom of the LCOS.
LCOS Top
LCOS Bottom
3
Use the paper size markers at the top and bottom of the
LCOS to reposition the guide to the desired paper size.
4
Tighten the knurled screws (captive) to reattach the guide to
the printer.
5
Repeat this procedure for the guide on the other side of the
LCOS.
Make sure that you select the same paper size for each guide.
Installing Options
C-49
Custom Tray
Custom Tray
The custom input tray on your QMS 4060 Print System allows you to
print three more paper sizes—Statement, B4(ISO) and B5(ISO). This
tray also supports all the normal paper sizes supported on the standard trays.
Installation of the tray involves replacing one of the standard input
trays. Follow this procedure to install and set up your custom tray.
Custom Tray Installation
1
C-50
Pull out the standard tray until it stops.
QMS 4060 Print System Getting Started
Custom Tray
2
Lift up and remove the paper tray.
Note: The custom tray can be installed in any of the three
standard tray positions—upper, middle, or lower. The printer can
support up to three custom trays.
»
3
Insert the custom tray at an angle, then lower it and push it
in.
Installing Options
C-51
Custom Tray
C-52
4
Slide the paper guides to fit your media.
5
Place your custom sized media in the custom tray. The
height of the media stack should not exceed the full mark on
the paper guides.
QMS 4060 Print System Getting Started
Custom Tray
6
Set up the tray media size tabs on the rear of the custom tray.
Use the following chart for reference or the label attached to
the paper tray.
:Length 7.16” to 8.5” (182mm to 215.9mm)
:Width 3.93” to 11.69” (100mm to 297mm)
:Length 11.69” to 17” (297mm to 431.8mm)
:Width 3.93” to 11.69” (100mm to 297mm)
:Length 8.5” to 11.69” (215.9mm to 297mm)
:Width 3.93” to 11.69” (100mm to 297mm)
- Tab is moved forward
- Tab is moved backward
7
Access the Operator Control/Custom Input Bins configuration menu to select the paper size for the custom input bin.
Standard Paper Sizes
Your custom tray can also feed standard paper sizes. You must make
sure that your application paper size setup is the same as the paper
that is loaded in the custom tray. Follow the tab setting in this table to
set up the custom tray for standard media sizes.
Tray Tabs
Standard Media Size
Letter, Executive, A4, A5,
Statement
Installing Options
C-53
Security Key
Tray Tabs
Standard Media Size
B4, Legal, 11”X17”, A3,
B4(ISO)
B5, B5(ISO)
Access the Operator Control/Custom Input Bins configuration menu
to select the standard paper size for the custom input bin.
▲ Caution: If you do not set up the paper size in the Operator Control/
Custom Input Bins menu, the printer could select an incorrect paper
size and your image will not be positioned correctly on the page.
Security Key
▲ Caution: Even though both the security and serial options have a DB9 interface, the connectors are keyed and they can’t be interchanged.
Make sure that you install the security key only in the slot marked
SECURITY on the back of the printer.
An optional security key is available to password protect the Operator
Control and the Administration menus. When a security key is
installed, the Installation menu appears in the printer's menu
structure.
What's in the Kit?
n
C-54
A security key (9-pin connector labeled security)
QMS 4060 Print System Getting Started
Security Key
Procedure
The security key port is located on the interface panel of the printer.
To install a security key, use the following procedure:
1
Make sure the printer is off line.
2
Insert the security key into the port.
Security Key Port
3
Press the Online button to put the printer off line.
4
Press the Menu button.
5
Press the Next button until the message window displays
CONFIGURATION
INSTALLATION
Offline
6
Menu
LETTER
LETTER
LEGAL
Select
Previous
Next
Press the Select button.
Installing Options
C-55
Security Key
»
7
Press the Next button to view the following options: Operator Passwrd, Use Operator Pwd, Admin Password, and Use
Admin Pwd.
8
To protect the Operation menu, use the Operator Passwrd
option to select the password, and then Use Operator Pwd to
turn on this option.
9
To protect the Administration menu, use the Admin Password option to select the password, and then Use Admin
Pwd to turn on this option.
Note: Keep in mind that this same password protects the Admin
mode of Remote Console, available through CrownAdmin.
10 Once passwords are activated, press the Menu button to exit
the menu. The following message is displayed
SAVE CHANGES?
*NO
Offline
Menu
LETTER
LETTER
LEGAL
Select
Previous
Next
11 Press the Next button until YES is displayed on the bottom
line of the display window.
12 Press Select and remove the security button from the port.
Once a menu is password protected, you cannot enter the menus
or make changes in it until you enter a valid password. You’ll know
whether or not the menu is password protected when you press
the Select button when trying to enter the menu structure. If the
menu is password protected, ENTER PASSWORD appears on the
message window. Passwords are entered as alphanumeric values. If you enter an invalid password, the message window
flashes INVALID PASSWORD for three seconds, and then returns
C-56
QMS 4060 Print System Getting Started
Security Key
to the parent menu. If you forget the password, your system
administrator can easily recover it by following the installation procedure again. When the correct password is entered, the submenu displays. The password for these two menus may be the
same or different. See “Installation Menu” in chapter 4, “Printer
Configuration‚" in the Reference manual for more information.
»
Note: Password protection does not prevent software commands
from changing functions.
v
Installing Options
C-57
Index
A
C
About
Documentation 1-3
Printer 1-2
This manual 1-8
Accounting
Printer job 1-19
Acrobat 1-10
Adobe
Acrobat 1-10
Illustrator 5-5
Aldus
PageMaker 5-5
Application
Notes, QMS 3-5
PC 3-5
Automatic jam recovery 1-13
Cabling
PC interface 3-3
Cancel key 6-5
CD-ROM
Manuals on 1-5
Compile-ahead processing 1-13
Compressed data formats 1-13
Configuration menu
Menu Chart B-2
Context switching 1-14
Control panel 1-17, 6-3, 6-5
Cancel button 6-5
Cancel key 6-5
Copy button 6-5
Data indicator 6-3
Disk indicator 6-3
Functions 6-3
Keys 6-5
Language 6-4
Menu button 6-8
Menu key 6-8
Message window 6-3, 6-4
Next key 6-8
Online button 6-5
Online/Offline key 6-5
Previous and Next buttons 6-8
Previous key 6-8
Select button 6-8
Select key 6-8
Status button 6-5
Status page key 6-5
Tray button 6-5
Tray select key 6-5
Controller 1-15
Conventions 1-10
Crown technology 1-11
Automatic jam recovery 1-13
Compile-ahead processing 1-13
Compressed data formats 1-13
Context switching 1-14
Emulation sensing processor 1-11
Error recovery 1-13
Simultaneous interface operation 1-12
CrownAdmin 2 on-line help 4-8
CrownNet 4-4
Alternate Media 4-3
Configuring the interface 4-7
Configuring the Network 4-7
Software installation 4-6
What is included 4-3
What’s included 4-3
Custom Tray
Installation C-50
Custom tray
Standard paper sizes C-53
Customer Response Center (CRC),
QMS A-3
Customer support, QMS A-2
D
Disk indicator 6-3
Document handling 1-16
Documentation
About the 1-3
Overview of this manual 1-8
Standard product 1-5
Driver
PC 3-5, 5-3
PostScript emulation 3-5
Windows 3-5
E
Emulation
HP-GL 1-17
Lineprinter 1-17
PCL 5 1-17
PostScript Levels 1 and 2 1-14
Resident 1-17
Emulation sensing processor 1-11
Energy star 1-19
Error recovery 1-13
ESP
Emulation Sensing Processor 1-11
Ethernet
Twisted Pair 4-6
Ethernet port
Troubleshooting 4-8
Ethernet Thin-wire 4-5
F
Features
Controller 1-15
Document handling 1-16
Optional 1-21
Printer 1-11
PS Executive 1-20
RAM 1-24
Resolution 1-15
Fonts 1-18
Data indicator 6-3
I-2
QMS 4060 Print System Getting Started
H
Hot ports 1-12
I
Installation
Check the starter kit 2-23
Connecting to a PC 3-2
Consumables 2-22
Drum unit 2-27
Fuser 2-24
Getting to know your printer 2-20
Installing the developer 2-47
Installing toner 2-43
LCIT C-2
LCOS C-10, C-22
Making the connection 3-4
Ozone filter 2-35
Powing on the printer 2-38
Printer options 2-59
Removing shipping restraints 2-36
Removing the developer cover 2-41
Toner cartridge 2-27
Toner recycling 2-46
Transfer assembly 2-32
Tray 2-51
Installation of software
Adobe Illustrator 3-7
Adobe PageMaker 3-7
Adobe Photoshop 3-7
Aldus PageMaker 3-7
Aldus Persuasion 3-8
CorelDRAW 3-8
Microsoft Excel 3-8
PC printing software 3-5
PostScript printer driver 3-5
Printer description files 3-6
QuarkXPress 3-9
Windows 3.1 driver 3-5
Windows 95 driver 3-5
Installing
Keys C-55
Interfaces
Index
Optional, network 1-23
Standard 1-15
Internet A-3
Internet address 4-3
WWW address 4-3
J
Jam recovery 1-13
K
Key
Security C-55
L
Laser Prep 5-4
LaserWriter 5-4
LCIT
Installation C-2
LCOS
Installation C-10, C-22
Location requirements 2-2
M
Macintosh
Connecting to 5-2
Laser Prep 5-4
LaserWriter 5-4
PDF’s for Quark and Adobe Apps 5-5
Printer drivers,installing 5-3
Printing software 5-3
PrintMonitor 5-4
PS Executive Series Utilities,installing
5-3
System 6 5-4
System 7 5-4
Manual
About 1-8
Contents 1-8
Overview 1-8
Typographic conventions 1-10
Manuals
I-3
On CD_ROM 1-5
Media
Automatic jam recovery 1-13
Flexibility 1-14
Media Tray
Loading 2-51
Memory 1-24
Resident 1-24
Menu key 6-8
Message window 6-3
Setting message window language 6-4
N
Network Connection
Ethernet Twisted-Pair 4-6
Network connection 4-4
Ethernet 4-4
Ethernet Thin-wire 4-5
Next key 6-8
O
Online 6-5
Optional accessories 1-21
Advanced paper handling 1-24
Hard disk expandability 1-22
Keys C-55
Security key C-54, C-55
Options
Custom Tray C-50
Custom tray setup C-53
See printer options
P
Paper
Automatic jam recovery 1-13
Paper Deck
capacity C-2
Paper jams
Automatic jam recovery 1-13
Paper trays
Loading 2-51
I-4
Loading paper 2-56
Setting paper size 2-52
Setting the indicator 2-55
PC
Application 3-5
Driver 3-5, 5-3
Software 3-5
Software, printing 3-5
PDF 5-5
PDF file
Adobe Acrobat 1-10
PDX 5-5
Plug and Play compatibility 1-21
Power cord, connecting 2-38
Power requirements 2-5
PPD file 5-5
Previous key 6-8
Printer
About the 1-2
Features 1-11
Location requirements 2-2
Power requirements 2-5
Printer driver
See driver
Printer option
BuzzBox lite 1-21
Network interface 1-23
Output stacker 1-24
Paper feeder 1-24
Plug and Play 1-21
QFORM 1-24
RAM 1-24
Security key 1-24
Serial interface 1-23
Printer options 1-21
CrownCopy 1-21
Emulations 1-21
Fonts 1-22
Hard disk expandability 1-22
ImageServer 1-23
Printing
Automatic jam recovery 1-13
PrintMonitor 5-4
QMS 4060 Print System Getting Started
PS Executive 1-20
Q
Q-FAX A-2
Q-FAX, QMS 3-5
QMS
Customer Response Center (CRC) A3
Q-FAX 3-5
Registration, printer 2-7
World-wide offices A-5
QuarkXPress 5-5
QuickTime 1-10
R
Registration,printer 2-7
Requirements
Location 2-2
Power 2-5
Resident emulations 1-17
S
Security card C-54
Security key C-54
Installing C-55
Select key 6-8
Service
United States A-4
Set up 4-4
Software installation 4-6
Shipment 2-7
Contents 2-6
Moving off the pallet 2-12
Removing shipping restraints 2-16
Removing the box 2-8
Simultaneous interface operation 1-12
Software
PC 3-5
Software loadable system 1-18
Standard interfaces 1-15
Start-up page
Index
Disabling 2-59
Enabling 2-59
Information 2-58
Printing 2-58
Status page key 6-5
Support, QMS
Customer A-2
Internet A-3
Technical A-3
World-wide A-5
T
Technical support, QMS A-3
Toner
Saving 1-20
Toner cartridge
Installing 2-27
Tray
Loading 2-51
Tray select key 6-5
Troubleshooting
Ethernet port 4-8
Typeface
Resident 1-18
Rotation 1-18
Scaling 1-18
Typographic 1-10
Conventions 1-10
U
Unpacking 2-7
Printer 2-7
V
Video clips 1-10
I-5
W
Web address 4-3
Windows
Driver 3-5
WWW address 4-3
v
I-6
QMS 4060 Print System Getting Started
