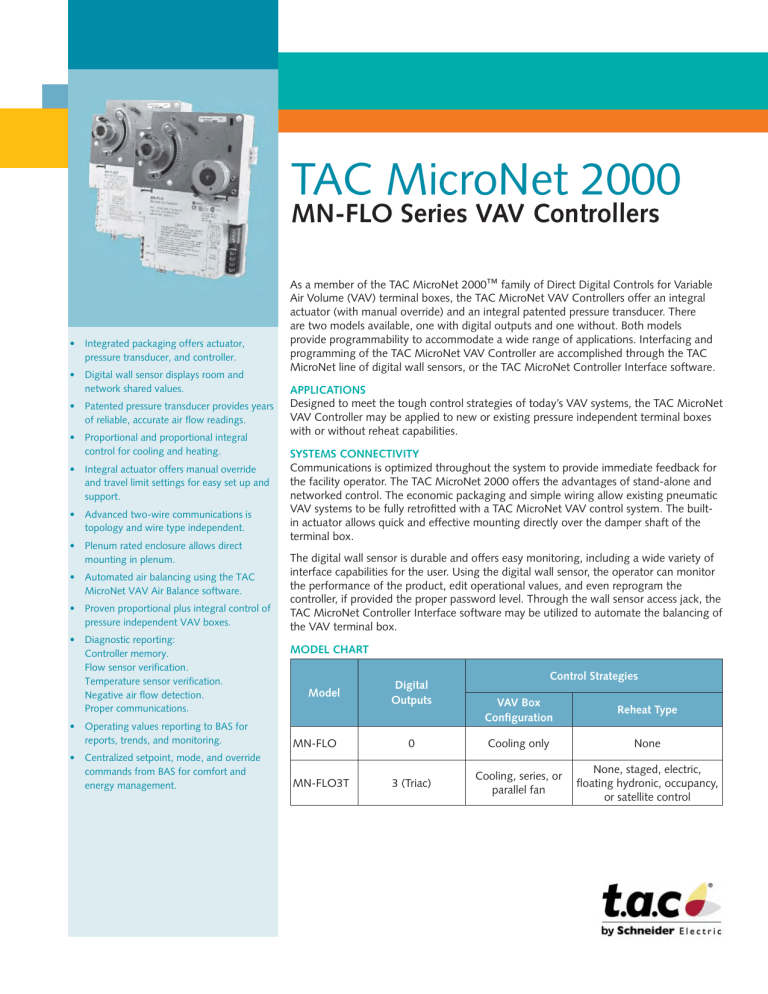

TAC MicroNet 2000
MN-FLO Series VAV Controllers
•
Integrated packaging offers actuator,
pressure transducer, and controller.
•
Digital wall sensor displays room and
network shared values.
•
Patented pressure transducer provides years
of reliable, accurate air flow readings.
•
Proportional and proportional integral
control for cooling and heating.
•
Integral actuator offers manual override
and travel limit settings for easy set up and
support.
•
Advanced two-wire communications is
topology and wire type independent.
•
Plenum rated enclosure allows direct
mounting in plenum.
•
Automated air balancing using the TAC
MicroNet VAV Air Balance software.
•
Proven proportional plus integral control of
pressure independent VAV boxes.
•
Diagnostic reporting:
Controller memory.
Flow sensor verification.
Temperature sensor verification.
Negative air flow detection.
Proper communications.
As a member of the TAC MicroNet 2000™ family of Direct Digital Controls for Variable
Air Volume (VAV) terminal boxes, the TAC MicroNet VAV Controllers offer an integral
actuator (with manual override) and an integral patented pressure transducer. There
are two models available, one with digital outputs and one without. Both models
provide programmability to accommodate a wide range of applications. Interfacing and
programming of the TAC MicroNet VAV Controller are accomplished through the TAC
MicroNet line of digital wall sensors, or the TAC MicroNet Controller Interface software.
APPLICATIONS
Designed to meet the tough control strategies of today’s VAV systems, the TAC MicroNet
VAV Controller may be applied to new or existing pressure independent terminal boxes
with or without reheat capabilities.
SYSTEMS CONNECTIVITY
Communications is optimized throughout the system to provide immediate feedback for
the facility operator. The TAC MicroNet 2000 offers the advantages of stand-alone and
networked control. The economic packaging and simple wiring allow existing pneumatic
VAV systems to be fully retrofitted with a TAC MicroNet VAV control system. The builtin actuator allows quick and effective mounting directly over the damper shaft of the
terminal box.
The digital wall sensor is durable and offers easy monitoring, including a wide variety of
interface capabilities for the user. Using the digital wall sensor, the operator can monitor
the performance of the product, edit operational values, and even reprogram the
controller, if provided the proper password level. Through the wall sensor access jack, the
TAC MicroNet Controller Interface software may be utilized to automate the balancing of
the VAV terminal box.
MODEL CHART
Model
•
Operating values reporting to BAS for
reports, trends, and monitoring.
MN-FLO
•
Centralized setpoint, mode, and override
commands from BAS for comfort and
energy management.
MN-FLO3T
Digital
Outputs
Control Strategies
VAV Box
Configuration
Reheat Type
0
Cooling only
None
3 (Triac)
Cooling, series, or
parallel fan
None, staged, electric,
floating hydronic, occupancy,
or satellite control
Communications
Building Automation System (BAS)
TAC I/A Series®
Via the MN-ASDI TAC MicroNet
Integrator for the ASD Bus.
TAC MicroNet U-Bus™
1000 ft (305 m) between TAC MicroNet
Integrator and most distant TAC
MicroNet Controller. 3000 ft
(914 m) total distance, including all wire
segments. Multiple U-Bus cable end
of lines are allowable and termination
resistors are not required.
TAC MicroNet U-Link™
200 ft (61 m) between controller and
the controlled devices or peripherals.
400 ft (122 m) total distance including
all wire segments.
TAC MicroNet Controller Interface
The TAC MicroNet Controller Interface
software is installed on a DOS-based
personal computer (PC) which allows
communication with all MN-FLOs and
MN-FLO3Ts and the TAC MicroNet
Integrator on a common U-Bus.
Permits reconfiguration, monitoring,
air balance, and editing of all TAC
MicroNet Controller configuration
data via the TAC MicroNet Controller
Interface Module (MN-CIM) which
interfaces between the RS-232 port of
a PC and the TAC MicroNet Sensor’s
communication interface jack.
TAC MicroNet VAV Air
Balance Software
The TAC MicroNet Air Balance software,
MNA-FLO-2, is installed on a DOS-based
PC and communicates to a TAC MicroNet
VAV Controller being air balanced. This
automated program steps through the
required process of air balancing. It
requests user input at the appropriate
stages, performs all calculations in the
background, and drastically iproves the
efficiency of balancing VAV terminal
boxes. The TAC MicroNet VAV Air Balance
software features:
• User friendly displays and menus.
• Operation in English and metric units
• Ability to check actuator rotation and
linkage and to automatically adjust
rotation as needed.
• Ability to adjust the flow calibration
constants, fan speed, reheat min flow,
and parallel fan setpoint.
• Detailed on-line help for using various
commands and suggesting possible fixes
for error conditions.
• Automatic logging of important balance
values such as min, max, and reheat
min flow, calibration values, parallel
fan SP, actuator rotation direction, box
number, and time/date.
• Automatically totals flow from multiple
discharges.
Accessories
Part Number
AM-135
3/8” (9.5 mm) to 1/2” (12.75 mm) shaft adapter
MN-CI
TAC MicroNet Controller Interface software for commissioning, monitoring, trending, and editing of TAC
MicroNet VAV Controllers
MN-CIM.
TAC MicroNet Controller Interface Module for use with the TAC MicroNet Controller Interface and the TAC
MicroNet VAV Air Balance software. Connects the PC to the jack on the TAC MicroNet Sensor which allows
communication with the TAC MicroNet VAV Controller
MN-S Series
TAC MicroNet Digital Wall Sensors
MN-SDT
TAC MicroNet Duct/Immersion Sensor
MNA-FLO-1
TAC MicroNet VAV Enclosure for conduit applications
MNA-FLO-2
TAC MicroNet VAV Air Balance software for automated air balancing of TAC MicroNet VAV Controllers
PC-301
2
Description
Air flow switch for electric reheat interlock
SPECIFICATIONS
MN-FLO, MN-FLO3T
HARDWARE SPECIFICATIONS
VELOCITY PRESSURE INPUT
Dimensions
7-3/4 in. H x 6-1/4 in. W x 2-1/2 in. D
(197 mm x 159 mm x 63 mm).
Operating Range
0.0 to 2.00 in. of W.C. (0.0 to 0.497
kPa).
Enclosure
Conforms to NEMA-1 requirements.
Meets UL94-5V flammability for
plenum application use.
Control Range
0.05 to 2.00 in. of W.C. (0.0125 to
0.498 kPa).
Conduit Knockouts
Not applicable. Order optional TAC
MicroNet Enclosure, MNA-FLO-1, if
wiring to flexible conduit is desired.
Power Supply Input
24 Vac±15%, 50/60 Hz.
Maximum Power Consumption
5 VA for MN-FLO. 5 VA plus DO loads
(41 VA max. at 24 Vac) for MN-FLO3T.
Surge Immunity Compliance
IEC 801.5 and ANSI C62.41 (IEEE-587,
Category A & B).
Transient Compliance
IEC 801.4.
Electrostatic Discharge Compliance
IEC 801.2.
AGENC Y APPROVALS
UL-916
File # E71385 Category PAZX.
CSA
File #LR 3728.
FCC
Class A.
UL-864
File #S5381 Category UUKL.
AMBIENT LIMITS
Operating Temperature
32 to 131 °F (0 to 55 °C).
Accuracy
± 5% at 1.00 in. of W.C. (0.249 kPa)
with Laminar flow at 77 °F (25 °C).
Sensor Type
Self-calibrating flow sensor (differential
pressure).
Indication
Negative velocity pressure indication
provided.
Tubing Connection
Barb fittings for 0.170 in. I.D. FRPE
polyethylene tubing or 1/4 in.
O.D./0.125 in. I.D. tygon tubing (high
and low pressure taps).
Tubing Length
5 ft (1.52 m) maximum each tube.
INPUTS (FROM TAC MICRONET
SENSOR)
Space Temperature
32 to 122 °F (0 to 50 °C).
Duct Temperature
-40 to 250 °F (-40 to 121 °C).
Setpoints
40 to 95 °F (4.4 to 35 °C).
Override Pushbutton (optional)
For stand-alone occupancy control or
remote status monitoring of local status
condition. Field programmable override
timing 60 minutes (default).
ACTUATOR OUTPUTS
Shipping and Storage Temperature
-40 to 160 °F (-40 to 71 °C).
Torque Rating
53 lb-in. (6 N-m).
Humidity
5 to 95% RH, non-condensing.
Stroke
Fully adjustable from 0° to 90°.
Wiring Terminals
Screw terminals
Timing
Approximately 3 minutes at 60 Hz (3.6
minutes at 50 Hz) for 90° rotation at 24
Vac.
Power: AWG #14 to #24.
DOs: AWG #14 to #24.
Communication: AWG #18 to #24.
Manual Override
Pushbutton to allow manual positioning
of the damper.
Damper Linkage
1/2 in. (12.75 mm) or 3/8 in. (9.5 mm)
diameter round shaft extending 7/8 in.
(22.23 mm) minimum from terminal
box. 3/8 in. (9.5 mm) diameter shaft
requires AM-135 adapter kit.
DIGITAL OUTPUTS (MN-FLO3T)
Quantity: 3.
Current Ratings:
DO1 and DO2: 24 VA total (DO1 +
DO2) load at 24 Vac, 50/60 Hz.
DO3: 12 VA at 24 Vac, 50/60 Hz.
PERSONAL COMPUTER
CONFIGURATION REQUIREMENTS
Type
IBM® compatible, desktop or portable.
Processor
80286 or higher.
RAM
512K.
Disk Drives
3-1/2 in. high density floppy. Hard disk
recommended, but not required.
Operating System
MS-DOS® 3.3 or higher.
Ports
RS-232 serial port (COM1 OR COM2)
Monitor
CGA, EGA, MCGA, and VGA
monochrome or color.
Port Adapter
TAC MicroNet Controller Interface
Module (MN-CIM).
Position Indication
Provides a visual indication of position.
3
Internet
Remote
Browser User
Interface
Ethernet, TCP/IP, BACnet, XML, HTTP
UNC-520
Enterprise Server
RS-485 ASD
Communications Bus
Web Browser
ASD Communications Bus
RX
TX
ASD
ASD
ADDRE
SS
ON
BUS
–
+
SHLD
U-Bus
1
2
1
2
1
2
24H
24G
GND
TAC
MicroNet 2000
Integrator
TAC
MicroNet 2000
Integrator
RX
TX
ASD
ASD
ADDRE
SS
ON
BUS
–
+
SHLD
U-Bus
1
2
1
2
1
2
24H
24G
GND
U-Bus
U-Bus
To other Integrators
and BAS Controllers
TAC MICROZONE II®
MZ
2
To other
TAC MicroNet 2000
Controllers
U-Link
TAC MicroNet VAV
Series Controllers
MN-CIM
TAC MicroNet Controller
Interface Module
RS-232
MN-SX
TAC MicroNet Sensors
TAC MicroNet Controller
Interface (Software)
Figure 1 Terminal Connections and Performance Indicators.
Distributed, manufactured, and sold by TAC. I/A Series
trademarks are owned by Invensys Systems, Inc. and are used on this product
under master license from Invensys. Invensys does not manufacture this product
or provide any product warranty or support. For service, support, and warranty
information, contact TAC at 1-888-444-1311.
Copyright © 2008, TAC
All brand names, trademarks and registered trademarks are
the property of their respective owners. Information contained
within this document is subject to change without notice.
All rights reserved.
F-25833-5
