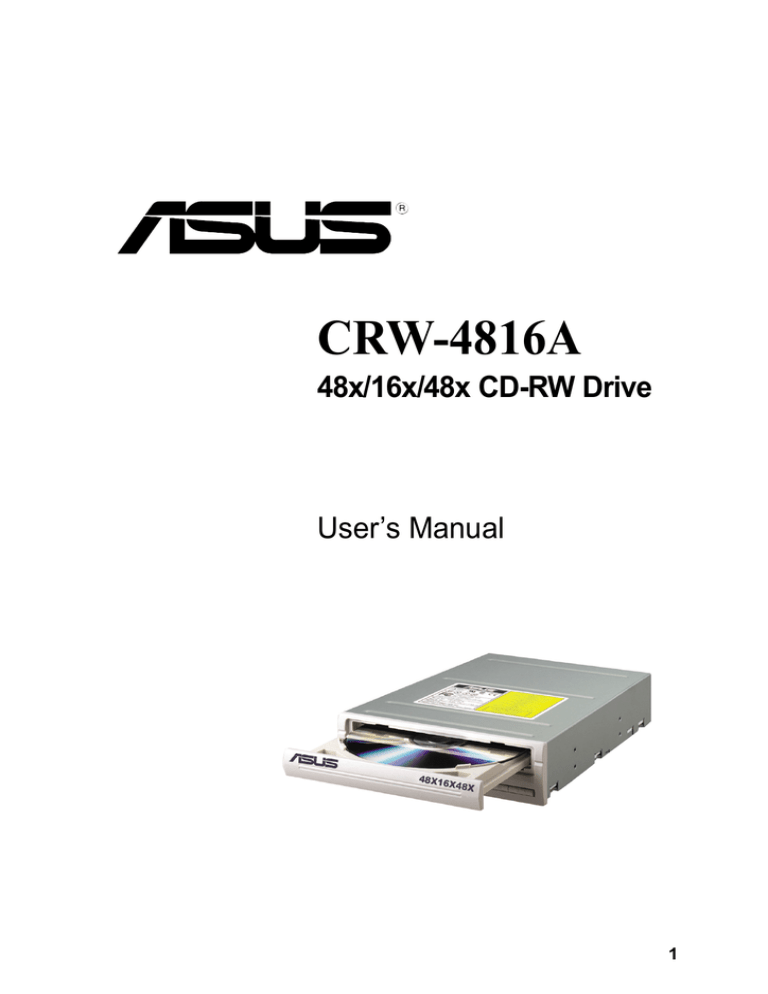

Asus 48x/16x/48x CD-RW Drive CRW-4816A User`s manual

CRW-4816A
48x/16x/48x CD-RW Drive
User’s Manual
1
Copyrights/Disclaimer
Copyright © 2002 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language in any form or by any means, except documentation kept by the purchaser for
backup purposes, without the express written permission of ASUSTeK COMPUTER INC.
(“ASUS”).
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES
OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE
LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES
(INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE
OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR
ERROR IN THIS MANUAL OR PRODUCT.
Product warranty or service will not be extended if: (1) the product is repaired, modified or
altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2)
the serial number of the product is defaced or missing.
The product name and revision number are both printed on the product itself. Manual
revisions are released for each product design represented by the digit before and after the
period of the manual revision number. Manual updates are represented by the third digit in
the manual revision number.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED
FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME
WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS.
ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR
INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS
AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered
trademarks or copyrights of their respective companies, and are used only for identification or
explanation and to the owners’ benefit, without intent to infringe.
Product Name:
Manual Revision:
Release Date:
2
ASUS CRW-4816A
1.01 E1066
Revised June 2002
ASUS CRW-4816A User’s Manual
Contents
Copyrights/Disclaimer ....................................................... 2
FCC/CDC Statements ........................................................ 4
ASUS Contact Information ................................................ 5
Safety Information ............................................................. 6
Installation Notices ....................................................... 6
Using the Device .......................................................... 7
Package Contents .............................................................. 8
Welcome! ............................................................................ 9
Product Introduction ......................................................... 9
Specifications ............................................................... 9
Features ..................................................................... 10
Front Panel ................................................................ 14
Rear Panel ................................................................. 15
Installation ........................................................................ 16
System Requirements ............................................... 16
Setting the Jumper Terminals .................................... 17
Installing the CD-RW Drive ........................................ 18
Connecting the Drive Cables ..................................... 20
Installing the Device Driver ............................................. 21
Installing the CD-RW Software ....................................... 21
CD-RW Drive Basics ........................................................ 22
Placing a Disc into the Drive ...................................... 22
Ejecting a Disc from the Drive ................................... 23
Using the Emergency Eject Pinhole .......................... 24
Using Compact Discs ...................................................... 25
Cleaning a Disc .......................................................... 25
Handling a Disc .......................................................... 25
Technical Information ...................................................... 26
Environmental Specifications ..................................... 26
Electrical and Audio Specifications ............................ 26
ASUS CRW-4816A User’s Manual
3
FCC/CDC Statements
Federal Communications Commission Statement
This device complies with FCC Rules Part 15. Operation is subject to the following
two conditions:
•
•
This device may not cause harmful interference, and
This device must accept any interference received including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with manufacturer’s
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
•
•
•
•
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
WARNING! The use of shielded cables for connection of the
monitor to the graphics card is required to assure compliance with
FCC regulations. Changes or modifications to this unit not
expressly approved by the party responsible for compliance could
void the user’s authority to operate this equipment.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus set out in the Radio Interference Regulations of the
Canadian Department of Communications.
This class B digital apparatus complies with Canadian ICES-003.
4
ASUS CRW-4816A User’s Manual
ASUS Contact Information
ASUSTeK COMPUTER INC. (Asia-Pacific)
Address:
General Tel:
General Fax:
General Email:
150 Li-Te Road, Peitou, Taipei, Taiwan 112
+886-2-2894-3447
+886-2-2894-3449
[email protected]
Technical Support
MB/Optical Drives (Tel):+886-2-2890-7121 (English)
Notebook (Tel):
+886-2-2890-7122 (English)
Desktop/Server (Tel): +886-2-2890-7123 (English)
Support Fax:
+886-2-2890-7698
Support Email:
[email protected]
Web Site:
www.asus.com
Newsgroup:
cscnews.asus.com.tw
ASUS COMPUTER INTERNATIONAL (America)
Address:
General Fax:
General Email:
6737 Mowry Avenue, Mowry Business Center,
Building 2, Newark, CA 94560, USA
+1-510-608-4555
[email protected]
Technical Support
Support Fax:
General Support:
Notebook Support:
Web Site:
Support Email:
+1-510-608-4555
+1-502-995-0883
+1-877-918-ASUS (2787)
www.asus.com
[email protected]
ASUS COMPUTER GmbH (Europe)
Address:
General Fax:
General Email:
Harkortstr. 25, 40880 Ratingen, BRD, Germany
+49-2102-442066
[email protected] (for marketing requests only)
Technical Support
Support Hotline:
Notebook (Tel):
Support Fax:
Support (Email):
Web Site:
MB/Optical Drives: +49-2102-9599-0
+49-2102-9599-10
+49-2102-9599-11
www.asuscom.de/de/support (for online support)
www.asuscom.de
ASUS CRW-4816A User’s Manual
5
Safety Information
Observe the following precautions before installing and using the ASUS
CRW-4816A Drive!
Installation Notices
Do not place this device in an
unstable position, or in one that
vibrates.
Do not place this device in areas
where there is direct sunlight,
high humidity, or damp condition.
Do not use or place this device
near magnetic fields, televisions,
or radios, where there is
interference that may affect the
performance of the drive.
Do not attempt to disassemble or
repair the drive. Opening the drive
may result to exposure to laser
radiation.
6
ASUS CRW-4816A User’s Manual
Safety Information
SAFETY WARNINGS
CAUTION
1. Use of any controls, adjustments, or procedures
other than those specified in this manual may
result to hazardous radiation exposure.
2. To prevent exposure to laser emanations (harmful
to human eye), do not attempt to disassemble the
drive.
Using the Device
•
Do not move the device from a cold to a warm or hot environment.
Drastic change of temperature is harmful to the device.
•
Before moving or uninstalling the drive, remove a disc from it, if any.
•
Prevent liquids or any metal to get into the device. If this situation
occurs, contact your retailer for help.
•
Do not use any evaporating solvents to clean the device. If you
accidentally sprayed any solvent on the device, use a clean cloth to
wipe it. You may also use a neutral cleaner to dilute the solvent to
easily wipe it from the device.
•
Try not to interrupt the supply of power while the device is in reading or
writing mode.
•
Do not place damaged or warped discs inside the device. A warped
disc may break while in use and damage the device.
•
Do not place discs into the device immediately if they came from a cold
environment, specially during cold seasons. Wait until the discs have
reached room temperature.
ASUS CRW-4816A User’s Manual
7
Package Contents
Upon opening your ASUS CRW-4816A drive package, check if all the
following items are present and in good condition. If any of the items is
damaged or missing, contact your retailer immediately.
•
ASUS CRW-4816A internal IDE drive
•
IDE cable
•
Mounting screw package
•
Wire cable
•
Emergency eject pin
•
ASUS High-Speed CD-R blank disc
•
ASUS High-Speed CD-RW blank disc
•
User’s Manual
•
Multi-language Quick Installation Guide
•
Bundled software CD
NOTE: The above items are available in retail boxes only.
8
ASUS CRW-4816A User’s Manual
Welcome!
Thank you for buying the ASUS CRW-4816A Drive!
To ensure proper installation and use of this device, read the instructions
and other important information contained in this manual.
Product Introduction
Specifications
The CRW-4816A has the following specifications.
•
•
•
•
•
•
•
•
•
•
Speeds
48X, 40X, 32X, 24X, 16X, 12X, 8X, 4X writes
16X, 12X, 10X, 8X, 4X, 2X rewrites
48X maximum reads
Interface
ATAPI specification
Technology support FlextraSpeed™ Technology
FlextraLink™ Technology
Double Dynamic Suspension System II (DDSS II)
P-CAV Recording Technology
Data buffer size
2MB
Application discs
12cm or 8cm diameter, 1.2mm thick
CD-Audio, CD-ROM, CD-ROM/XA, CD-I,
Mixed Mode CD-ROM, Photo CD,
CD-Extra, Video CD, CD-Text, DVCD, CD-G,
Karaoke CD, I-trax, Bootable CD
Recording form
Orange Book Part 2, 3
Disc-at-once, Track-at-once
Session-at-once, Packet write,
Overburn, DAO-RAW mode
OS compatibility
MS-Windows 98/98SE/ME/2000/XP/NT
Power supply
DC 5 x (1 +/- 5%)V
DC 12 x (1 +/- 10%)V
Dimensions
41.5 (h) x 149.0 (w) x 197.5 (d) mm
Mass
997 g
NOTE: Refer to the section “Technical Information” on page 25 for
detailed specifications.
ASUS CRW-4816A User’s Manual
9
Features
The ASUS CRW-4816A is a CD-RW drive with 48X-write, 16X-rewrite, and
48X-read capabilities. The drive complies with the AT Attachment Packet
Interface (ATAPI) specification and comes equipped with the latest
innovative technologies in CD recording.
Highlighting the major characteristic of ASUS CD-RW drives, the
CRW-4816A strategically identifies the media quality at the beginning of
the recording so that it can apply the appropriate writing speeds and
ensure effective data storage. Thanks to the FlextraSpeed™ and
FlextraLink™ technologies developed by ASUS.
FlextraSpeed™ increases accuracy and reliability when rewriting across a
broad base of certified media, while FlextraLink™ prevents buffer
underrrun problems to eliminate the creation of unusable discs. The
following sub-sections describe these technologies in detail.
FlextraSpeed™ Technology
The ASUS FlextraSpeed™ technology provides the optimum solution to
ensure quality recording when using discs that require flexible speeds. The
CRW-4816A drive employs this technology that allows automatic recording
speed adjustment based on the recording media.
In addition to the fact that there are low and high quality recording media,
various other factors such as dye layer, temperature, humidity, dust,
fingerprints, etc., affect the recording characteristics of CD-R and CD-RW
discs. Due to these factors, some discs may not be able to stand the highspeed capabilities of the latest CD-RW drives. The FlextraSpeed™
technology solves this problem by automatic assessment of the disc
quality and recording capability. The recording speed is based on these
factors. If you use a high quality recording disc, you can maximize the
recording capability of the drive and get the best quality output. If you use
a low quality disc, the drive speed adjusts to the level that is most
appropriate for the disc, still optimizing the disc recording capability.
The FlextraSpeed™ technology also helps maintain the CD-RW drive
because of the controlled motor rotation speeds and reduced noise
caused by spindle air, thus prolonging the drive motor’s life and ensuring
high-quality recording.
10
ASUS CRW-4816A User’s Manual
FlextraLink™ Technology
The ASUS FlextraLink™ technology provides a seamless combination of
flexibility and ultra-reliable recording quality.
FlextraLink™ incorporates a flexible strategy that prevents buffer underrun
problems caused by an empty data buffer. This CD-RW drive technology
allows continuous monitoring of the data buffer status during the write
process. Once the available data drops to approximately 1% of the total
buffer capacity, the drive stops recording and marks the last write position.
When new data is received from the host, it is loaded to the data buffer,
and the laser is repositioned to link the new data with the data already
written. FlextraLink™ uses minimal system resources so that your PC
remains fully operational throughout the writing process, and available for
other applications.
The diagram below shows the advantage of the FlextraLink™ recording
technology.
FlextraLink™ Technology Solution
Data
Data
Data transfer
slows down
Conventional
Recording
Buffer
Memory
Data transfer slower
than write process
Buffer
Memory
Empty
Write Data
Write process
continues
Data
Write Data
Bad disc results
Buffer
Memory
Data
Data
Data transfer
slows down
Data transfer continues
and fills buffer with
sufficient data for writing
Buffer
Memory
Recording with
FlextraLink™
Technology
Buffer
Memory
Write Data
Write Data
Write process stops;
waits until there is
enough data for writing
ASUS CRW-4816A User’s Manual
Write process continues
until writing is complete
11
Double Dynamic Suspension System (DDSS II)
The DDSS II is an enhanced follow up to the DDSS anti-vibration system
developed by ASUS. The DDSS CD-ROM technology is designed to
reduce the vibration generated from spindle rotation of over 8900 rpm of
40X CD-ROM drives. The DDSS II improves this feature by handling up to
over 10,000 rpm of the new 50X drives. In addition, the DDSS II stabilizes
the pick-up head of the drive in both horizontal and vertical directions,
making tracking and focusing even more precise.
Like the DDSS, the DDSS II vibration absoption structure contains a
“dynamic mass” that can absorb the vibration caused by high revolution of
spindle motor. However, the DDSS II moves the dynamic mass to be
suspended to the chassis, thus providing more stability and accuracy
when accessing data from the disc.
The following diagram illustrates the DDSS/DDSS II design structure.
DDSS / DDSS II Design Structure
12
ASUS CRW-4816A User’s Manual
Partial Constant Angular Velocity (P-CAV) Recording Technology
The Partial Constant Angular Velocity (P-CAV) recording method is a
combination of the Constant Angular Velocity (CAV) and Constant Linear
Velocity (CLV) recording technologies. In CAV recording technology, the
drive maintains a consistent rotation speed which will result in a variable
transfer rate, while in CLV recording technology, the data transfer rate is
kept at a fixed level by changing the rotation speed.
P-CAV recording technology switches from CAV to CLV once the
maximum transfer rate is reached. Unlike Zone Constant Linear Velocity
(Z-CLV) recording, no links are produced in the P-CAV recording process,
resulting in a higher average transfer rate.
The following illustration compares the Partial Constant Angular
Velocity (P-CAV) and Zone Constant Linear Velocity (Z-CLV) recording
technologies.
Partial CAV vs. Zone CLV
P-CAV
Speed
48x
40x
32x
24x
20x
16x
8x
0x
Time
Z-CLV
LEGEND: P-CAV
Z-CLV
ASUS CRW-4816A User’s Manual
13
Front Panel
¤
Recordable
Rewritable
1
2
3
High Speed
48X16X48X
R
W
4
5
6
7
8
1. Headphone jack
This jack allows you to connect a headphone with a stereo mini-plug.
2. Headphone volume dial
This volume dial allows you to control the volume of the headphone
connected to the drive. Turning the dial to the left decreases the
volume, turning to the right increases volume.
3. Disc tray
This tray holds the disc.
4. WRITE indicator (Red LED)
This LED flashes while data is being written on the disc.
5. READ indicator (Green LED)
This LED turns ON when you place a disc on the drive tray, and stays
ON until you remove the disc. The LED flashes while data is being
read from the disc.
6. Emergency eject pinhole
In cases when you cannot eject a disc from the drive using the eject
button due to power failure or software problems, insert a pin or a
paper clip into this hole to manually eject the tray and the disc.
7. PLAY/SKIP button
This button has two functions. If the drive is idle, pressing this button
will start playing an audio disc (if one is currenly loaded in the drive)
from the first track. While in the PLAY mode, pressing this button lets
you skip to the next track on the disc.
8. STOP/EJECT button
This button has two functions. Pressing this button at any time ejects
the disc tray so you can place or remove a disc. While in PLAY mode,
pressing this button stops playing the disc loaded in the drive.
14
ASUS CRW-4816A User’s Manual
Rear Panel
1
2
3
4
5
1. Digital audio connector
This connector is for a digital signal output cable.
2. Analog audio connector
This connector is for an analog signal output cable.
3. Jumper terminals
These pins allow you to select either Master, Slave, or Cable Select
mode for the CD-ROM device.
4. IDE connector
This connector is for a 40-pin IDE cable to connect the drive to the IDE
interface on the motherboard.
5. Power connector
This DC connector is for a 4-pin power cable from the system power
supply.
NOTE: The jumper pins on the leftmost part of the rear panel are
factory test pins. DO NOT cover these pins with jumper blocks.
ASUS CRW-4816A User’s Manual
15
Installation
System Requirements
Before installing and using the CD-RW drive, make sure that your
computer system meets the following requirements.
•
IBM-compatible Pentium 166MHz or higher PC
•
Windows 98/98SE/ME/2000/XP/NT
•
At least 64MB system memory (128MB is recommended)
•
An empty 5.25-inch external drive bay
•
HDD empty storage capacity of 100MB or more
Average seek time: 20ms or less
Transmission rate: 2 MB/s or more
NOTE: Do not use a hard disk that calibrates thermally during
operation.
•
16
Recommended media:
48X CD-R
TDK, Ritek, LeadData, CMC, Prodisc, Sony,
Taiyo Yuden
CD-R
Sony, TDK, Ricoh, Kodak, Mitsubishi
Chemical, Taiyo Yuden, Yamaha, Philips,
Ritek, Prodisc, Princo, Maxell, CMC
CD-RW
Sony, TDK, Ricoh, Yamaha, Mitsubishi
Chemical, Ritek, Prodisc, AMT, CMC
ASUS CRW-4816A User’s Manual
Setting the Jumper Terminals
Configure the the jumpers to set the device to master or slave mode
before physically installing it to your computer chassis. Use jumper blocks
to short the pins to your desired setting.
CAUTION: Make sure to correctly place the jumper blocks over the
pins. Failure to do so may cause irreparable damage to the drive!
Jumper
Terminals
Master Mode
Cover the two pins labeled MASTER to set the CD-RW
drive as a secondary master drive. This is possible only if
your computer supports four IDE devices. The hard disk in
the computer is set as Primary Master.
Slave Mode
Cover the two pins labeled SLAVE to set the CD-RW drive
as a slave device if your computer supports only two IDE
devices.
If your computer supports four IDE devices, this setting
sets your CD-RW drive either as a Primary Slave or a
Secondary Slave.
Cable Select Mode
Cover the two pins labeled CABLE SELECT if your
computer supports a Cable Select (CSEL) signal. You
need an exclusive interface cable for this setting. Refer to
your computer manual for details.
ASUS CRW-4816A User’s Manual
17
Installing the CD-RW Drive
Follow these steps to install the drive into the computer chassis.
NOTE: Refer to your computer manual for specific instructions on
opening the chassis and installing drives.
1. Remove the cover of an empty 5.25-inch external drive bay.
2. Carefully insert the CD-RW drive into the bay and push it inward until it
is flushed to the chassis front panel. The holes on the sides of the drive
should align with the holes on the drive bay.
18
ASUS CRW-4816A User’s Manual
3. Secure the drive with screws that came with the drive package. Use
two screws on each side of the drive.
IMPORTANT: Depending on the space on your chassis, you may
need to connect the drive cables before securing the drive into the
chassis. For cable connections, proceed to the following section,
“Connecting the Drive Cables.”
ASUS CRW-4816A User’s Manual
19
Connecting the Drive Cables
1. Connect the power cable plug to the power connector on the rear
panel.
2. Connect the 40-pin IDE cable plug to the IDE connector, matching the
red pin stripe on the cable with Pin 1 on the connector.
3. If your computer has a sound card or an onboard audio feature,
connect an audio interface cable to the 4-pin analog audio connector
on the rear of the drive. Connect the other end of the audio cable to the
connector on the sound card or on the 4-pin CD connector on the
motherboard.
CAUTION! All the cable plugs are slotted so that they fit in only one
orientation. If a plug does not fit in completely, try reversing it. DO
NOT use too much force when fitting the cable plugs.
Power Cable
4-pin Audio Cable
IDE Cable
NOTE: Replace the computer cover according to your computer
manual.
20
ASUS CRW-4816A User’s Manual
CD-RW Drive Basics
Placing a Disc into the Drive
1. Press the eject button on the front of the drive to eject the tray.
2. When the drive tray ejects out of the drive, place the disc on the tray
with the label (printed) side up.
ASUS CRW-4816A User’s Manual
21
NOTE: If you are using a 12-cm disc, place it on the tray making
sure that it fits the outer circular border. This border helps hold the
disc in place. If you are using an 8-cm disc, place it on the inner
circular border on the tray.
12-cm
Disc
8-cm
Disc
3. Press the drive eject button or lightly push the center of the drive tray
to replace the tray inside the drive.
Ejecting a Disc from the Drive
1. Press the eject button on the front of the drive to eject the tray.
2. Carefully remove the disc from the tray.
3. Press the drive eject button or lightly push the center of the drive tray
to load the tray back into the drive.
22
ASUS CRW-4816A User’s Manual
Using the Emergency Eject Pinhole
The emergency eject pinhole on the front of the drive allows you to
manually eject the drive tray and remove a disc from the drive in the
following instances:
•
•
supply of power to the computer is cut due to electrical power outage
the drive malfunctions
CAUTION! Use the manual method only as a last resort when the
eject button does not work. Make sure that you have turned off your
computer before ejecting the drive tray.
Follow these steps to eject the drive tray using the emergency pinhole.
1. Insert the eject pin that came with the drive package. You may also use
a paper clip or any pointed rod small enough to fit into the emergency
pinhole.
2. Carefully pull the tray out and remove the CD.
CAUTION! Do not force the tray open; wait until the eject pin has
dislodged the tray to avoid breaking the tray panel.
ASUS CRW-4816A User’s Manual
23
Using Compact Discs
Take note of the instructions in this section when using compact discs.
These instructions will help you avoid damaging the discs and your
CD-RW drive.
Cleaning a Disc
Spray the disc with compressed air for about five seconds to get rid of the
dust on a disc.
Handling a Disc
Hold a disc by the edges. Do not touch the disc surface.
24
ASUS CRW-4816A User’s Manual
Technical Information
Environmental Specifications
Temperature
Operation:
Storage:
5°C < to < 45°C
- 20°C to < 60°C
Humidity
Operation:
Storage:
20% to 80% non-condensing
15% to 85% non-condensing
Vibration
Operation:
Storage:
0.3G peak at 5 ~ 500 Hz
2.0G peak at 10 ~ 500 Hz
Impact
Non-operation:
1 oct/min – no damage
Less than 50G –
(at 11ms/half sine wave,
3 shock/each side)
1 oct/min – no damage
91 cm high –
(1 corner, 3 edges, 6 surfaces)
Packaged:
Acoustic
Access mode:
45.5 dB TYP
Read mode:
45 dB TYP
(Microphone located 50cm in front of the drive, 120cm above the drive at 30°
angle.)
Reliability
MTBF:
ODC (Read):
ODC (Write):
Mean Time To Repair (MTTR)
100,000 power on hours
20% of power on time
1% of power on time
30 minutes
* ODC - Operating Duty Cycle
Electrical and Audio Specifications
Power Source
Voltage
Tolerance
Ripple
Rating
+5V DC
+/- 5%
150m Vpp
900mA
I/O Terminal
Power connector
ATAPI terminal
Audio out
4-pin +5V, +12V
40-pin
4-pin (analog)
2-pin (digital)
Audio
No. of channels
Sampling frequency
Quantization
Distortion
S/N ratio
Output: Headphone
Line Out
2 (stereo)
44.1 kHz
16 bits
0.2% max. (at 1 kHz)
70 dB
0.7 V rms (typical)
0.7 V rms (typical)
ASUS CRW-4816A User’s Manual
+12V DC
+/- 10%
300m Vpp
1500mA
25
26
ASUS CRW-4816A User’s Manual
