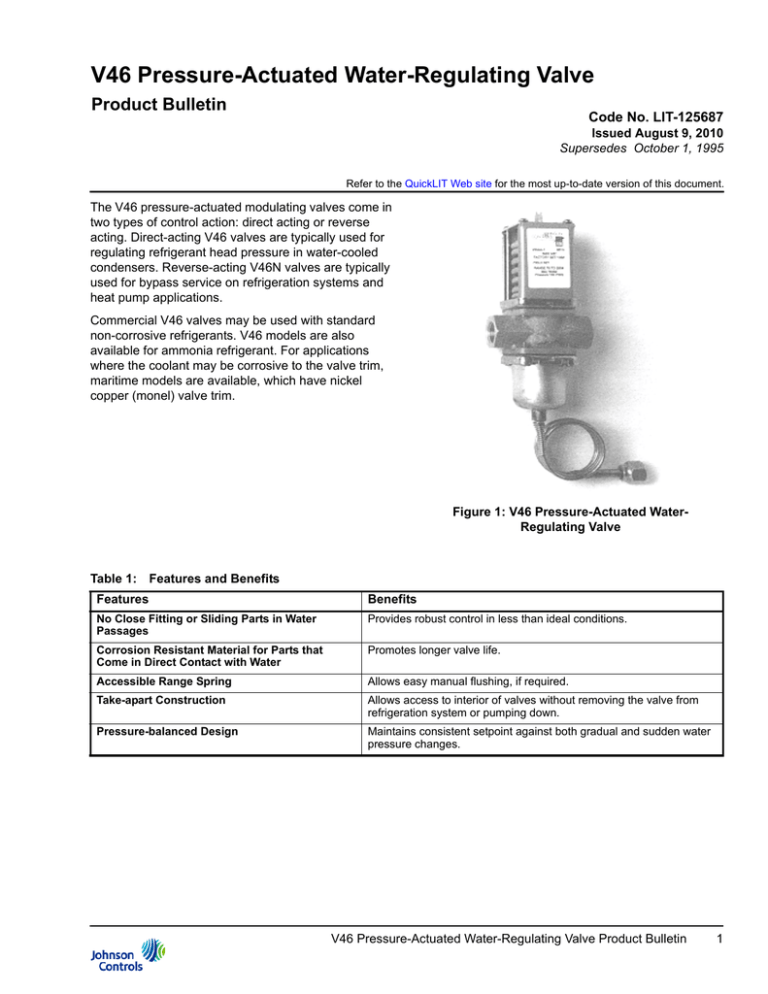

V46 Pressure-Actuated Water-Regulating Valve

Product Bulletin

Code No. LIT-125687

Issued August 9, 2010

Supersedes October 1, 1995

Refer to the QuickLIT Web site for the most up-to-date version of this document.

The V46 pressure-actuated modulating valves come in two types of control action: direct acting or reverse acting. Direct-acting V46 valves are typically used for regulating refrigerant head pressure in water-cooled condensers. Reverse-acting V46N valves are typically used for bypass service on refrigeration systems and heat pump applications.

Commercial V46 valves may be used with standard non-corrosive refrigerants. V46 models are also available for ammonia refrigerant. For applications where the coolant may be corrosive to the valve trim, maritime models are available, which have nickel copper (monel) valve trim.

Table 1: Features and Benefits

Features

No Close Fitting or Sliding Parts in Water

Passages

Corrosion Resistant Material for Parts that

Come in Direct Contact with Water

Accessible Range Spring

Take-apart Construction

Pressure-balanced Design

Figure 1: V46 Pressure-Actuated Water-

Regulating Valve

Benefits

Provides robust control in less than ideal conditions.

Promotes longer valve life.

Allows easy manual flushing, if required.

Allows access to interior of valves without removing the valve from refrigeration system or pumping down.

Maintains consistent setpoint against both gradual and sudden water pressure changes.

V46 Pressure-Actuated Water-Regulating Valve Product Bulletin 1

Application Overview

The V46 direct-acting models open on an increase in pressure. Models A, B, and C are typically used for regulating water-cooled condensers, while the low flow

D model is generally used in ice machines. The reverse-acting V46N valve model closes on an increase in pressure and is typically used for bypass service on refrigeration systems and heat pumps that control water temperature.

Commercial V46 valves are available in 3/8 in. through

2-1/2 in. sizes. Commercial all range models (3/8 through 1-1/2 in.), may be used with standard non-corrosive refrigerants, or ammonia refrigerant applications, depending on the model.

V46 Series valves also come in models designed for

Navy or maritime salt water applications. These valve bodies are constructed of bronze, and any metal parts that come into contact with salt water are constructed of nickel copper (monel), which withstands the corrosive action of salt water.

IMPORTANT: The V46 Pressure-Actuated Water-

Regulating Valve is intended to control water flow under normal operating conditions. Where failure or malfunction of the V46 valve could lead to personal injury or property damage to the controlled equipment or other property, additional precautions must be designed into the control system.

Incorporate and maintain other devices, such as supervisory or alarm systems or safety or limit controls, intended to warn of or protect against failure or malfunction of the V46 valve.

INLET

Figure 2: Threaded Type Direct-Acting Valve

Cross Section

Figure 3: Threaded Type Reverse-Acting Valve

Cross Section

2 V46 Pressure-Actuated Water-Regulating Valve Product Bulletin

Valve Sizing

Follow Steps 1 through 3, and use the information obtained to locate a point on one of the flowcharts

found under V46 Flowcharts

that satisfies all three steps.

1.

Determine maximum water flow required using tables provided by the manufacturer of the condensing unit, or calculate the flow using the following formula:

Figure 4: Flow Equation

Note: If the outlet water temperature is unknown, assume it to be 10

°F below the condensing temperature.

Example: A 9-ton capacity system has an inlet water temperature of 65

°F and an outlet water temperature of 95

°F. The maximum required water flow is:

Figure 5: Example

2.

Determine refrigerant head pressure rise above the valve opening point.

a.

Valve closing point (to assure closure under all conditions) must be the refrigerant pressure equivalent to the highest ambient air temperature the equipment will be subjected to in the off cycle. Read this in psig from a

Saturated Vapor Table for the refrigerant selected.

b.

To determine the valve opening point, add about 7 psig (48 kPa) to the closing point.

c.

From the same table, read the operating head pressure corresponding to the selected condensing temperature.

d.

Subtract the valve opening point from the operating head pressure. This gives the head pressure rise.

3.

Determine water pressure drop across the valve.

This is the pressure actually available to force water through the valve.

a.

Determine minimum water pressure available from city mains or other sources.

b.

From condensing unit manufacturer’s tables, read the pressure drop through condenser corresponding to the required flow.

c.

To the value found in 3b, add the estimated or calculated drop through installed piping.

d.

Subtract the total condenser, piping, and static head (if applicable) pressure drop from the available water pressure found in 3a. This is the available pressure drop across the valve.

4.

Select the proper valve size from the V46 flowcharts by locating a point on a chart that will satisfy the flow, the head pressure rise above opening point, and the pressure drop across the valve.

Example: The required flow for a low-range system is found to be 27 GPM. Condensing pressure is

125 psig, and the maximum ambient temperature is estimated at 86

°F. City water pressure is 40 psig and the manufacturer’s table gives a pressure drop through the condenser and the accompanying piping and valves at 15 psi. Drop through the installed piping is approximately 4 psi.

Step 1: 27 GPM

Step 2: Closing point is pressure of refrigerant corresponding to 86

°F = 93 psig

Opening point = 93+7 = 100 psig

Operating head pressure = 125 psig

Head pressure rise = 125-100 = 25 psi

Step 3: Minimum pressure = 40 psig

Pressure drop through condenser = 15 psi

Combined pressure drop = 15+4 = 19 psi

Pressure drop across valve = 40-19 = 21 psi

Using a flow of 27 GPM, a head pressure rise of 25 psi, and a pressure drop across the valve of 21 psi, the only valve that satisfies all three criteria is a 1-1/4 in. valve.

See the 1-1/4 in. V46 - All Range chart on the next page.

V46 Pressure-Actuated Water-Regulating Valve Product Bulletin 3

V46 Flowcharts

The maximum differential water pressure across a valve is 60 psi.

3/8 in. V46DA - Low Flow

2.5

1.5

0.5

3/4 in. V46 - All Range

Figure 6: 3/8 in. V46 Direct-Acting Low Flow Valve

3/8 in. V46 - All Range

Figure 9: 3/4 in. V46 All Range Valve

1 in. V46 - All Range

Figure 7: 3/8 in. V46 All Range Valve

1/2 in. V46 - All Range

Figure 10: 1 in. V46 All Range Valve

1- 1/4 in. V46 - All Range

Figure 11: 1-1/4 in. V46 All Range Valve

Figure 8: 1/2 in. V46 All Range Valve

4 V46 Pressure-Actuated Water-Regulating Valve Product Bulletin

1-1/2 in. V46 - All Range

2-1/2 in. V46 - High Range

Figure 12: 1-1/2 in. V46 All Range Valve

2 in. V46 - High Range

Figure 15: 2-1/2 in. V46 High Range

Figure 13: 2 in. V46 High Range Valve

2 in. V46 - Low Range

Figure 16: 2-1/2 in. V46 Low Range

Figure 14: 2 in. V46 Low Range Valve

V46 Pressure-Actuated Water-Regulating Valve Product Bulletin 5

Dimensions

(E)

(A)

(B)

(F)

(D)

(C)

(G)

Figure 17: Threaded Type Valves

Table 2: Commercial Service V46 Threaded Connection Dimensions

Dimensions in Inches

Valve Size

3/8 in.

1/2 in.

3/4 in.

1 in.

A

2-5/8

3-1/8 (3-1/4)

1

3-3/8 (3-5/8)

1

4-1/2 (4-7/8)

1

B

6-3/4

7-13/32

7-7/8

10-3/4

3-1/8

3-3/8

3-7/8

5-1/2

C D

1-1/2

1-27/32

2-1/32

2-25/32

1-1/4

1-1/2

1-3/4

2

E

1-1/4 in.

4-7/8 11-1/8 5-3/4 2-5/8 2-3/8

1.

Values in parenthesis are for maritime valves. All other dimensions remain the same.

13/32

13/32

F

13/32

1/2

1/2

G

3-7/32

3-5/8

3-21/32

4-3/4

4-29/32

6 V46 Pressure-Actuated Water-Regulating Valve Product Bulletin

(D)

(A) (E)

(G)

(H)

(C)

(B)

(I)

(F)

Figure 18: Flange Type Valves

Table 3: Commercial Service: V46 Flange Connection Dimensions

Dimensions in Inches

Valve Size

1-1/2 in.

2 in.

A

5-5/16

6-5/8

B

11-1/8

13

C

5-3/4

6-15/32

D

9/16

5/8

E

5

6

F

1-7/8

2-1/4

2-1/2 in.

2-23/32

Valve Size

1-1/2 in.

2 in.

2-1/2 in.

6-3/4 13-1/2

Number of Holes

4

6-3/8 3/4 7

Flange Specifications

Hole Size

5/8

4

4

3/4

3/4

Table 4: Maritime Service: ASME Flange Connection Dimensions

Dimensions

Valve Size

1-1/2 in.

A

5-5/16

B

10-1/2

C

5-5/8

D

9/16

E

5

2 in.

2-1/2 in.

6-3/8

6-3/4

13-1/8

13-1/8

6-1/2

6-1/2

1/2

11/16

6

7

F

1-7/8

2-3/4

2-3/4

G

2-5/8

3-1/2

3-1/2

G

2-5/8

3-1/2

3-1/2

H

1/2

1/2

1-1/32

I

4-29/32

6-1/8

6-3/32

Bolt Circle

3-7/8

4-3/4

5-1/2

H

1/2

5/8

5/8

I

5

6

6

V46 Pressure-Actuated Water-Regulating Valve Product Bulletin 7

Table 4: Maritime Service: ASME Flange Connection Dimensions

Valve Size

1-1/2 in.

Maritime Service: ASME Flange Specifications

Number of Holes Hole Size

4 5/8

2 in.

2-1/2 in.

4

4

3/4

3/4

Bolt Circle

3-7/8

4-3/4

5-1/2

Table 5: Navy BuShips Service: Navy Flange Connection Dimensions

Dimensions in Inches

Valve Size

3/4 in.

A

4-3/16

B

7-3/4

C

4

D

7/16

E

3-13/16

F

1-1/8

1 in.

1-1/4 in.

1-1/2 in.

2 in.

2-1/2 in.

Valve Size

3/4 in.

5-5/16

5-5/16

5-5/16

6-3/8

9

9-11/32

10-7/32

14-1/8

4-1/2

4-11/16

5-3/4

6-13/32

1/2

1/2

1/2

1/2

4-1/4

4-1/2

5-1/16

5-9/16

1-1/4

1-5/8

1-7/8

2-3/4

6-3/8 14-5/16

Number of Holes

4

6-1/2 1/2 6-1/8

Navy Flange Specifications

2-3/4

Hole Size

9/16

1 in.

1-1/4 in.

1-1/2 in.

2 in.

2-1/2 in.

Mounting

!

6

6

4

4

6

CAUTION: Risk of Environmental and

Property Damage.

Coil and secure excess capillary tubing away from contact with sharp or abrasive objects or surfaces. Vibration or sharp or abrasive objects in contact with capillary tubes can cause damage that may result in loss of element charge, which may result in damage to the environment or property.

9/16

9/16

9/16

9/16

9/16

G

2-1/32

2-5/8

2-5/8

2-5/8

3-1/2

3-1/2

H

1/2

1/2

1/2

1/2

7/16

5/8

Bolt Circle

2-11/16

3-1/8

3-3/8

3-15/16

4-7/16

5

I

3-5/16

4

4-5/32

4

7-9/32

7-3/16

Flush water lines to clear any foreign matter that may interfere with valve operation. Mount valves vertically on the inlet side of the condenser with spring housing up. If it is necessary to keep the condenser flooded with coolant, the valve can be mounted on the outlet side. When mounting the valve in a position other than vertical, follow the instructions of the equipment in which the valve will be installed. Make refrigerant head pressure connection to bellows. If additional capillary tubing is required, use 1/4 in. O.D. tubing or larger.

!

CAUTION: Risk of Environmental and

Property Damage.

Avoid sharp bends in the capillary tubes.

Sharp bends can weaken or kink capillary tubes, which may result in refrigerant leaks or restrictions of flow.

8 V46 Pressure-Actuated Water-Regulating Valve Product Bulletin

Adjustment

Valves may be adjusted with standard service valve

wrenches or screwdrivers; see Table 6. All range valve

settings can be changed quickly from low-range refrigerants, such as R134, to high-range refrigerants, such as R22, or from high range refrigerants to lowrange refrigerants. To raise the valve opening point, turn the adjusting screw, located at the top of range

spring housing, counterclockwise. See Table 6

and

Figure 19. Turn the adjusting screw clockwise to lower

the opening point. Exact settings can be made using a pressure gauge in the refrigerant line to determine the throttling point. Put the system under normal operating load and adjust to the desired operating pressure. See

Table 15 for pressure range specifications.

Table 6: Range Adjustment Screw

Valve Size

(in.)

Range Adjusting Screw

3/8, 1/2, 3/4

1, 1-1/4, 1-1/2

1/4 in. square head adjusting screw with a screwdriver slot

5/16 in. square head adjusting screw

2, 2-1/2

1/2 in. square head adjusting screw and a slotted cam

If the compressor operates in high ambient temperatures, head pressures may remain high enough during off cycles to prevent the valve from closing completely. In such instances, the opening point of the valve should be raised just enough to cause the valve to close during compressor standby periods. This will also raise the throttling point.

Manual Flushing

To clear any sediment that might accumulate, valves may be manually flushed. Insert screwdrivers under both sides of the valve spring guide and lift upwards to

flush the valve. See Figure 19. Manual flushing does

not affect valve adjustment.

Figure 19: Manual Flushing

Repair Data

Replacement of the sensing element, internal parts, and the rubber diaphragm can be made. For a replacement valve or replacement parts kit, contact the nearest Johnson Controls/PENN® distributor. For

replacement part kit numbers, see Table 9 through

Table 14. For replacement kit instructions and details

refer to the following bulletins:

• V46, V47, V48, and V49 Sensing Element

Replacement Technical Bulletin, LIT-121700

• V46, V47, 246, and 247 Repair Parts and Service

Instructions Repair Bulletin, LIT-121695

Ordering Information

When ordering water valves, specify the following:

1.

Complete product number.

2.

If product number is not known, answer the following questions and select a valve using

Table 10 through Table 14.

a.

What is the valve size needed? See Valve

Sizing section.

b.

What refrigerant will be used in the system?

See Table 15.

Note: 3/8 in. through 1-1/2 in. valves are supplied with all range construction, allowing a single valve to be used for either low or high range refrigerants.

c.

Is a standard open high, or reverse action

close high valve required? See Table 8.

d.

Is a commercial, maritime, or Navy service valve needed? Maritime and Navy valves have bronze bodies and monel internal parts.

V46 Pressure-Actuated Water-Regulating Valve Product Bulletin 9

3.

Companion flange kit by part number, if required.

See Companion Flanges and Gaskets.

4.

Mounting bracket (3/8 in. and 1/2 in. valve sizes only) if required, and its position on valve. See

Mounting Bracket.

Companion Flanges and Gaskets

Kits are available, at additional cost, for 1-1/2, 2, and

2-1/2 in. flange connection (ASME specifications) valves only. Each flange kit contains two ring gaskets, two cast iron flanges, eight machine bolts, and eight hex nuts.

Ring Gasket for

Cast Iron

Figure 20: Flange Kit

Table 7: Companion Flange Kits

Kit Number Water Valve Size

KIT 14A-612

KIT 14A-613

1-1/2 in.

2 in.

KIT 14A-614

2-1/2 in.

Product Number Selection

For applications that call for valves not listed in

Table 10 through

Table 14, Table 8 can be used to

specify a custom valve. For example, to order a direct-acting, commercial valve with a 1-1/4 in. NPT threaded connection, specify a V46AE. For more information, contact Application Engineering at (414)

274-5535.

Table 8: Type Number Selection Matrix

V46 A

Open on Rise, Commercial

B

Open on Rise, Maritime

C

Open on Rise, Navy

D

Open on Rise, Commercial Low Flow

E

Open on Rise, Commercial with

High Pressure Bellows

F

Open on Rise, Maritime with

High Pressure Bellows

G

Open on Rise, Navy with

High Pressure Bellows

L

Open on Rise, Commercial Low Flow

No-Repair

N

Open on Fall, Commercial

P

Open on Fall, Maritime

Q

Open on Fall, Commercial Low Flow with

High Pressure Bellows

A

3/8 in. NPT Threaded

B

1/2 in. NPT Threaded

C

3/4 in. NPT Threaded

D

1 in. NPT Threaded

E

1-1/4 in. NPT Threaded

F

1-1/2 in. NPT Threaded

G

9/16–18 Threaded

H

3/8 in. Sweat

J

1/2 in. Sweat

K

3/4 in. Sweat

L

1 in. Sweat

M

1-1/4 in. Sweat

N

3/4 in. Flange

P

1 in. Flange

Q

1-1/4 in. Flange

R

1-1/2 in. Flange

S

2 in. Flange

T

2-1/2 in. Flange

10 V46 Pressure-Actuated Water-Regulating Valve Product Bulletin

Table 9: Pressure Connection Styles

Commercial Service: Non-corrosive Refrigerant

Valve Style

No.

Description

45 30 in. (762 mm) copper capillary with 1/4 in. flare nut and valve depressor

5

1

1/4 in. male flare fitting

1-1/2 in. and

Smaller

34

1

30 in. (762 mm) copper capillary with 1/4 in. section for sweat or flare connection

2 in. and

2-1/2 in.

5 1/4 in. male flare fitting

Commercial Service: Ammonia

1/2 in. to

2-1/2 in.

15 1/4 in. female NPT

All Sizes

Navy and Marine Service

34 30 in. (762 mm) copper capillary with 1/4 in. section for sweat or flare connection

1.

Optional, quantity orders only.

Options

Capillary Tubing Length

Standard length is 30 in. on valves 1-1/2 in. and smaller. Optional 48 in. (1,219 mm) capillary can be furnished at additional cost, when specified.

Mounting Bracket

A mounting bracket as illustrated in Figure 21, is

available on 3/8 in. and 1/2 in. valves only when specified. Desired bracket position must also be specified.

Other styles of brackets on 3/8 in. and 1/2 in. valves available on quantity orders. For more information, contact Application Engineering at (414) 274-5535.

C

A

B

Holes (2)

HIGHER

INLET

Dimensions: in. (mm)

Valve Size

3/8

1/2

A

2 (51)

2 (52)

B

1.25 (32)

1.85 (47)

C

1.38 (35)

1.52 (39)

Figure 21: Mounting Bracket for 3/8 in. and 1/2 in. Valves

V46 Pressure-Actuated Water-Regulating Valve Product Bulletin 11

Table 10: Direct-Acting Commercial Type - Non-corrosive Refrigerants

Product Size (in.) Inlet and

Outlet

Service Element

Style

Shipping

Weight lb (kg)

V46AA-1

3/8 NPT Threaded All Range 45

V46DA-2

V46AB-1

V46AC-1

V46AD-1

V46AE-1

V46AR-1

V46AS-1

V46AS-2

V46AT-1

V46AT-2

3/8 NPT Threaded

1/2 NPT Threaded

3/4 NPT Threaded

1 NPT

1-1/4

NPT

1-1/2

NPT

2

2

2-1/2

2-1/2

Threaded

Threaded

4 Hole

ASME Flange

4 Hole

ASME Flange

4 Hole

ASME Flange

4 Hole

ASME Flange

4 Hole

ASME Flange

Extended

All Range

2

All Range

All Range

All Range

All Range

All Range

45

45

45

45

45

45

Low Range 5

High Range 5

Low Range 5

High Range 5

Seat Repair

Kit

Replacement Power

Element

2.3 (1.0)

2.3 (1.0)

3.3 (1.5)

4.3 (2.0)

STT14A-600R SEP91A-600R and

SEC37A-601R

1

STT14A-603R SEP91A-600R and

SEC37A-601R

1

STT15A-602R SEP91A-602R and

SEC37A-602R

1

STT16A-601R SEP91A-601R and

SEC37A-602R

1

9.3 (4.0) STT17A-609R SEP91A-603R and

SEC37A-600R

1

10.0 (4.5) STT17A-610R SEP91A-603R and

SEC37A-600R

1

13.1 (6.0) STT17A-610R SEP91A-603R and

SEC37A-600R

1

25.5

(11.6)

STT18A-600R SEP81A-602R

3

STT18A-600R SEP81A-601R 25.5

(11.6)

29.5

(11.6)

STT18A-601R SEP81A-602R

3

29.5

(11.6)

STT18A-601R SEP81A-601R

1.

Replacement element supplied with 1/4 in. SAE connector. Order SEC37A capillary kit with flare nuts separately, if needed.

Use only on valves specified.

2.

Maximum opening point of 70 to 300 psi (483 to 2,068 kPa), maximum permissible refrigerant pressure of 440 psi (3,034 kPa).

3.

Non-stock item, built to order.

Table 11: Commercial Type - Ammonia

Product Size (in.) Inlet and

Outlet

Service Replacement

Power Element

V46AB-11

1

V46AC-8

1

V46AD-4

1

V46AE-4

1

1/2 NPT

3/4 NPT

1 NPT

Threaded

Threaded

Threaded

1-1/4

NPT

1-1/2

Threaded

V46AR-2

V46AS-3

V46AT-3

1

2

2-1/2

4 Hole

ASME Flange

4 Hole

ASME Flange

4 Hole

ASME Flange

1.

Non-stock item, built to order.

Ammonia

Ammonia

Ammonia

Ammonia

Ammonia

Ammonia

Ammonia

15

15

15

15

Element

Style

Shipping

Weight lb (kg)

3.2 (1.5)

4.2 (1.9)

7.7 (3.5)

9.2 (4.2)

Seat Repair Kit

STT15A-602R

STT16A-601R

STT17A-609R

STT17A-610R

15

15

15

12.3 (5.6) STT17A-610R

25.5

(11.6)

29.5

(11.6)

STT18A-600R

STT18A-601R

SEP70A-603R

1

SEP70A-601R

SEP70A-604R

SEP70A-604R

SEP70A-604R

SEP70A-605R

1

SEP70A-605R

1

12 V46 Pressure-Actuated Water-Regulating Valve Product Bulletin

Table 12: Reverse Acting Commercial Type - Non-corrosive Refrigerants

Product Size (in.) Inlet and

Outlet

Service Element

Style

Shipping

Weight lb (kg)

Seat Repair

Kit

V46NA-1

1

3/8 NPT Threaded All Range 45 2.3 (1.0)

V46NB-1

1

V46NB-2

V46NC-1

1

V46NC-2

V46ND-1

1

V46ND-2

V46NE-1

1

V46NE-2

1

1/2 NPT Threaded

1/2 NPT Threaded

3/4 NPT Threaded

3/4 NPT Threaded

1 NPT

1 NPT

1-1/4

NPT

1-1/4

NPT

Threaded

Threaded

Threaded

Threaded

All Range 45

Low Range 45

All Range 45

Low Range 45

All Range 45

Low Range 45

All Range 45

Low Range 45

3.6 (1.6)

3.6 (1.6)

4.5 (2.0)

4.5 (2.0)

7.5 (3.4)

7.5 (3.4)

8.8 (4.0)

8.8 (4.0)

Replacement Power

Element

STT14A-600R SEP91A-600R and

SEC37A-601R

2

STT15A-602R SEP91A-602R and

SEC37A-602R

2

STT15A-602R SEP91A-602R and

SEC37A-602R

2

STT16A-601R SEP91A-601R and

SEC37A-602R

2

STT16A-601R SEP91A-601R and

SEC37A-602R

2

STT17A-609R SEP91A-603R and

SEC37A-600R

2

STT17A-609R SEP91A-603R and

SEC37A-600R

2

STT17A-610R SEP91A-603R and

SEC37A-600R

2

STT17A-610R SEP91A-603R and

SEC37A-600R

2

1.

Non-stock item, built to order.

2.

Maximum bellows pressure is 320 psig (2,206 kPa). Replacement element supplied with 1/4 in. SAE connector. Order

SEC37A capillary kit with flare nuts separately, if needed. Use only on valves specified.

Table 13: Maritime Type - Non-corrosive Refrigerants

Product Size (in.) Inlet and

Outlet

Service Element

Style

3/8 NPT Threaded All Range 34

Shipping

Weight lb (kg)

2.3 (1.0)

V46BA-2

1

V46BB-2

1

V46BC-2

V46BD-2

V46BE-2

1/2 NPT Threaded

3/4 NPT Threaded

1 NPT Threaded

1-1/4

NPT

Threaded

All Range

All Range

All Range

All Range

34

34

34

34

3.3 (1.5)

Seat Repair Kit Replacement Power

Element

STT14A-601R

STT15A-603R

1

4.3 (2.0)

9.5 (4.3)

STT17A-613R

STT17A-611R

1

10.3 (4.7) STT17A-612R

SEP13A-602R

SEP13A-600R

1

SEP13A-603R

SEP50A-600R

SEP50A-600R

V46BS-4

High Range 34 STT18A-602R

SEP50A-601R

1

V46BT-4

1

2-1/2

ASME Flange

4 Hole

ASME Flange

High Range 34

25.5

(11.6)

29.5

(13.4)

STT18A-602R

SEP50A-601R

1

1.

Non-stock item, built to order.

V46 Pressure-Actuated Water-Regulating Valve Product Bulletin 13

Table 14: Navy Type - Non-corrosive Refrigerants

Product Size (in.) Inlet and

Outlet

Service Element

Style

V46CJ-2

1

1/2 All Range 34

Shipping

Weight lb (kg)

3.6 (1.6)

V46CN-2

1

V46CP-2

1

V46CQ-2

1

V46BR-2

1

V46CR-2

1

V46BS-3

1

V46CS-3

1

V46CS-4

1

V46BT-3

1

V46CT-3

1

V46CT-4

1

3/4

1

1-1/4

1-1/2

1-1/2

2

2

2

2-1/2

2-1/2

2-1/2

Sweat

Connector

4 Hole

Navy Flange

4 Hole

Navy Flange

4 Hole

Navy Flange

6 Hole Navy

Flange

6 Hole Navy

Flange

6 Hole Navy

Flange

6 Hole Navy

Flange

6 Hole Navy

Flange

6 Hole Navy

Flange

6 Hole Navy

Flange

6 Hole Navy

Flange

All Range

All Range

All Range

All Range

All Range

34

34

34

34

34

Low Range 34

Low Range 34

High Range 34

Low Range 34

Low Range 34

High Range 34

7.1 (3.2)

25.5

(11.6)

24.4

(11.1)

24.4

(11.1)

29.5

(13.4)

25.5

(11.6)

25.5

(11.6)

Seat Repair Kit Replacement Power

Element

STT15A-603R

1

STT17A-613R

12.0 (5.4)

STT17A-611R

1

10.3 (4.7) STT17A-612R

13.5 (6.1) STT17A-612R

13.8 (6.3) STT17A-612R

STT18A-602R

STT18A-602R

STT18A-602R

STT18A-602R

STT18A-602R

STT18A-602R

SEP13A-600R

1

SEP13A-603R

SEP50A-600R

SEP50A-600R

SEP50A-600R

SEP50A-600R

SEP50A-601R

1

SEP50A-601R

1

SEP50A-601R

1

SEP50A-601R

1

SEP50A-601R

1

SEP50A-601R

1

1.

Non-stock item, built to order.

Table 15: Pressure Range Specifications

Refrigerant Maximum Opening

Point, psig (kPa)

1

All Range R12, R22,

R134a, R502, R404a, R507

Modulation Start

Point, psig (kPa)

1

V46A, B, C, D V46N

70 to 260 (483 to 1,793) 90 to 280 (621 to 1,931)

40 to 100 (276 to 690)

2

All Range with High

Overpressure

70 to 260 (483 to 1,793) —

3/8 in. Extended All Range

70 to 300 (483 to 2,068) —

2 and 2-1/2 in. Low Range

R12, R134a

2 and 2-1/2 in. High Range

R22, R502, R404a, R507

Ammonia

R717

70 to 170 (483 to 1,172) 100 to 200

160 to 260

(1,103 to 1,793)

100 to 200

(690 to 1,379)

(690 to 1,379)

180 to 280

(1241 to 1,931)

130 to 230

(896 to 1,586)

Maximum Permissible Pressure psig (kPa)

Water

150 (1,034)

150 (1,034)

150 (1,034)

150 (1,034)

150 (1,034)

150 (1,034)

Refrigerant

320 (2,206)

370 (2,551)

440 (3,034)

230 (1,586)

320 (2,206)

320 (2,206)

1.

V46A, B, C direct acting valve ranges indicate the valve opening point. V46N reverse acting valve ranges indicates the modulation start point.

2.

For heat pump applications (3/8 in. through 1-1/2 in. sizes only).

14 V46 Pressure-Actuated Water-Regulating Valve Product Bulletin

Technical Specifications

V46 Pressure-Actuated Water-Regulating Valve

Product

Body Material

V46 Series Pressure Actuated Valve

Commercial: 3/8, 1/2, or 3/4 in. Sizes Have Cast Brass Bodies, Other Commercial Types

Have Cast Iron Bodies with Rust Resisting Finish

Navy and Maritime: Cast Naval Bronze

Extension Sleeve, Disc,

Commercial: Brass; Monel is Available at Additional Cost

Stud, Disc Holder Material

Navy and Maritime: Monel

Valve Seat Material

Valve Disc

Commercial: Aluminum Bronze; Monel is Available at Additional Cost

Navy and Maritime: Monel

Buna-N

Diaphragm

Nylon Reinforced Buna-N

Water Supply Pressure

150 psig (1034 kPa) Maximum

Water Supply Temperature

170

°

F (77

°

C) Maximum

Sensing Element

Non-corrosive Refrigerants: Brass and Phosphor Bronze Bellows in Brass Cup

Navy and Maritime: Monel Bellows in Brass Cup

2 and 2-1/2 in. High Range Service: Monel Bellows in Brass Cup

Ammonia Service: Stainless Steel Bellows in Brass Cup

Pressure Range

Shipping Weight

See Table 15.

See Table 10 through Table 14.

The performance specifications are nominal and conform to acceptable industry standards. For application at conditions beyond these specifications, consult the local Johnson Controls office. Johnson Controls, Inc. shall not be liable for damages resulting from misapplication or misuse of its products.

Published in U.S.A.

Building Efficiency

507 E. Michigan Street, Milwaukee, WI 53202

Metasys® and Johnson Controls® are registered trademarks of Johnson Controls, Inc.

All other marks herein are the marks of their respective owners. © 2010 Johnson Controls, Inc.

V46 Pressure-Actuated Water-Regulating Valve Product Bulletin 15 www.johnsoncontrols.com

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
