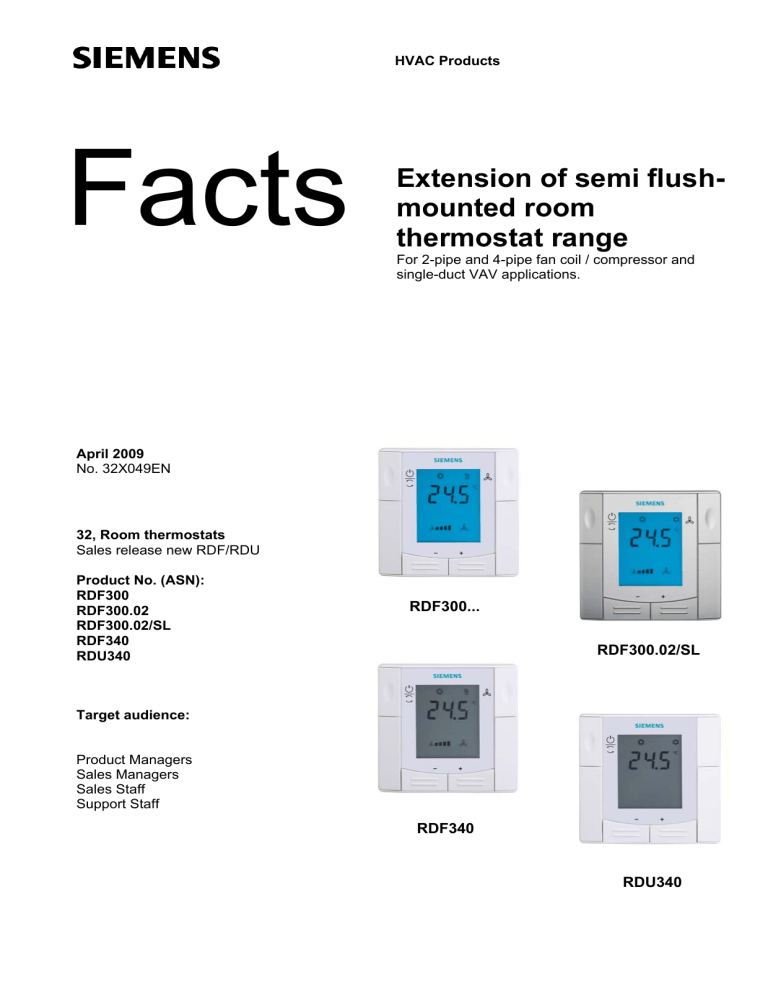

Extension of semi flush- mounted room thermostat range - ifs

HVAC Products
Facts
Extension of semi flushmounted room
thermostat range
For 2-pipe and 4-pipe fan coil / compressor and
single-duct VAV applications.
April 2009
No. 32X049EN
32, Room thermostats
Sales release new RDF/RDU
Product No. (ASN):
RDF300
RDF300.02
RDF300.02/SL
RDF340
RDU340
RDF300...
RDF300.02/SL
Target audience:
Product Managers
Sales Managers
Sales Staff
Support Staff
RDF340
RDU340
Contents
Introduction ............................................................................................................................................. 3
Product range ......................................................................................................................................... 4
Product replacement............................................................................................................................... 5
Sales release .......................................................................................................................................... 5
Documentation........................................................................................................................................ 5
Functions, features and benefits............................................................................................................. 6
Technical data....................................................................................................................................... 12
Peripheral devices and accessories ..................................................................................................... 14
32X049EN - April 2009 – HVAC
Products
2
Extension of semi flush-mounted room temperature
controller range
Introduction
2 years ago, Siemens introduced the first semi flush-mount room temperature controllers RDF310 and
RDF410. Customer feedback is very positive and sales volumes are exceeding expectations resulting in
the development of a range extension, which is now available as room temperature controllers
RDF300…, RDF340 and RDU340.
The new semi flush-mount room temperature controllers RDF (phase 2) come with the same stylish and
slim look & feel of the already introduced semi flush-mount RDF (phase 1), but with additional features
and benefits. These include additional applications and multifunctional inputs. This makes these new
products especially suitable for hotel guest rooms, offices and apartments.
•
•
•
•
•
•
•
•
•
New applications:
Fan coil units
2-pipe or 4-pipe on/off fan coil units / compressors in DX type equipment
2-pipe on/off and electric heater fan coil units / compressors in DX type equipment
2-pipe with 3-position valve fan coil units
VAV / CAV systems
Single-duct
Single-duct and electric heater
New main features:
Single- or 3-speed automatic or manual fan with advanced fan control function
2 multifunctional inputs for external sensor, keycard or contact switch, etc.
Modulating control outputs (DC 0…10 V signal)
Automatic or manual heating / cooling changeover
Temperature limitation for underfloor heating
Minimum and maximum limitation of air flow signal (DC 0…10 V output)
AC 230 V or AC 24 V operating voltage
The semi flush-mount room temperature controllers are designed to fit into an 86 x 86 x 47 mm conduit
box with fixing centers 60.3 mm (reference BS 4662 / IEC 60670). Optional conduit boxes (ARG71) are
also available as accessory items. Another accessory is the plastic mounting bracket (ARG70.3) for
conduit boxes with insufficient depth. The ARG70.3 mounting bracket is mounted between the wall and
the temperature controller to increase the headroom in the box by 10 mm.
Release of the next phase (phase 3) of the semi flush-mount room temperature controller range
extension is scheduled for the 3nd quarter of 2009 and will include variants with time program and
Konnex field bus communication.
32X049EN - April 2009 – HVAC
Products
3
Product range
RDF300… – room temperature controllers for fan coil units and
DX type equipment
RDF300
RDF300.02
RDF300.02/SL
Main features of RDF300:
• Slim, stylish and semi flush-mount design
• Large display
• Applications:
- 2-pipe on/off
- 4-pipe on/off
- 2-pipe on/off with electric heater
- 2-stage heating
- 2-pipe with 3 position control valve
• On/off and modulating PI/P-control
• 2 multifunctional inputs for energy saving and
maintenance options
• Single- or 3-speed fan control (automatic / manual)
• Minimum and maximum setpoint limitation
• Temperature limitation for underfloor heating
• AC 230 V operating voltage
Additional features of RDF300.02..
• Backlit LCD
• Silver color (RDF300.02/SL)
RDF340 – room temperature controller for fan coil units with
DC 0…10 V control valves
Main features:
•
•
•
All features of RDF300
Applications:
- 2-pipe with DC 0…10 V control valve
- 4-pipe with DC 0…10 V control valve
- 2-pipe with DC 0…10 V control valve and
electric heater (with additional converter)
AC 24 V operating voltage
RDU340 – room temperature controller for VAV / CAV systems
Main features:
•
•
•
•
•
•
•
•
Slim, stylish and semi flush-mount design
Large display
Applications:
- Single-duct
- Single-duct with electric heater (on/off)
Modulating PI/P-control with DC 0…10 V output signal
2 multifunctional inputs for energy saving and
maintenance options
Minimum and maximum setpoint limitation
Adjustable minimum and maximum limitation of output
signal DC 0…10 V
AC 24V operating voltage
32X049EN - April 2009 – HVAC
Products
4
Product replacement
The RDF300…, RDF340 and RDU340 room temperature controllers do not replace existing products.
Sales release
The RDF300, RDF300.02, RDF300.02/SL, RDF340 and RDU340 are open for ordering and available
from DC Nuremberg.
Documentation
The data sheets and basic documentation are available :
Products
RDF300… / RDF340…
RDU340
Documentation
Data sheet
Basic documentation
Mounting / Installation instructions
Operating instructions
CE declaration
Environmental product declaration
Data sheet
Basic documentation
Mounting / Installation instructions
Operating instructions
CE declaration
Environmental product declaration
Document no.
N3076
CE1P3076
M3076
CE1B3076
CE1T3076
CE1E3076
N3078
CE1P3078
M3078
CE1B3076
CE1T3076
CE1E3076
The new RDF are easy-to-understand devices that do not require special training. People familiar with
the existing RDF will easily understand the functionality of the new semi flush-mounted room
temperature controllers.
For questions please get in touch with:
George Voulvoutzis, Product Manager in Greece, phone +30 210 6864177, e-mail:
george.voulvoutzis@siemens.com
For questions relating to technical topics about the AcvatixTM range of valves and actuators, please get in
touch with :
Georgios Leonardos, phone +30 210 6864961, e-mail: georgios.leonardos@siemens.com
Konstantinos Lontidis, phone +30 2310 479482, e-mail: konstantinos.lontidis@siemens.com
Kind regards
Siemens A.E.
Industry Sector
Building Technologies Division
HVAC Products
George Voulvoutzis
Product Manager
George Kottaras
Division Regional Head HVP
32X049EN - April 2009 – HVAC
Products
5
Functions, features and benefits
Slim and stylish thanks to semi flush-mounted design
Features / functions
Benefits
The new semi flush-mounted room
temperature controllers offer a very slim,
modern and stylish look.
The ergonomic user interface with a large
display and push buttons make this
controller especially user-friendly.
A variant in silver is available as an option.
Backlit LCD (optional)
Features / functions
Benefits
The backlit LCD with soft blue color
improves readability in dark environments
and at night.
Display of setpoint or current room temperature
Features / functions
Benefits
As an alternative to displaying the current
room temperature, the RDF / RDU can be
configured to display the setpoint only.
This simplifies user operation and
particularly interesting for hotel rooms.
Current
room temperature
Concurrent display of degree C and F
Features / functions
Benefits
The room temperature controller can
display the temperature both in degree
Celsius and Fahrenheit. This is especially
helpful in hotels with guests from overseas.
o
o
Showing the setpoint 24.5 C and 76 F simultaneously
32X049EN - April 2009 – HVAC
Products
6
Numerous applications in one model
Features / functions
Benefits
One model (ASN) offers numerous
applications easily selected via DIP switch.
This reduces the number of ASNs and
simplifies ordering and stocking.
Multifunctional inputs
Features / functions
Benefits
2 multifunctional inputs with freely
assignable functions:
o
o
o
o
o
o
External / return air sensor for
temperature acquisition at an
alternative location
Heating / cooling changeover sensor:
Automatic changeover for more
convenience
Operating mode switchover contact:
A useful function for hotel rooms with
keycard, commercial buildings with
time clock, etc. that helps save energy
when the specific area is not in use.
Dewpoint sensor input:
In connection with a dewpoint sensor
to prevent condensation and to avoid
damage to the building on chilled
ceiling applications.
Electric heater enable contact:
Enabling / disabling of electric heater
from remote for tariff regulation, energy
saving purposes, etc.
Fault input contact:
Digital input to signal faults and
maintenance reminder (e.g. filter
cleaning) to help extend the life of
equipment.
32X049EN - April 2009 – HVAC
Products
7
Single- or 3-speed fan control (automatically or manually)
Features / functions
Benefits
Automatic fan mode allows the room
temperature controller to automatically
vary the fan speed depending on setpoint
and current room temperature, thereby
improving comfort and saving energy.
Manual fan mode allows a constant fan
speed setting (low, medium, high) selected
by users based on their needs.
Clean fan filter reminder
Features / functions
Benefits
When the fan operating hours reach the
preset time, a “FIL” message
appears
on the display.
This reminder helps you carry out regular
maintenance on the fan coil unit.
Setpoint limitation
Features / functions
Benefits
Maximum and minimum setpoint limitation:
The adjustable range of the setpoint can
be limited. This is especially helpful in
public areas where energy consumption is
to be controlled, resulting in lower electrical
costs.
For example, the property manager can
set the minimum setpoint for cooling to
25 oC and the maximum setpoint for
heating to 18 oC in public areas of a
shopping mall or school. This allows for
better management of energy
consumption, thus reducing electrical
costs.
32X049EN - April 2009 – HVAC
Products
8
Temperature limitation for underfloor heating.
Features / functions
Benefits
Function for underfloor heating.
A floor temperature sensor, connected to
the multifunctional input, monitors the floor
temperature.
This function improves comfort and
protects the floor on applications with floor
heating
Keypad lock
Features / functions
Benefits
Keypad is locked.
Can be unlocked by
pressing the
operating mode
for
button
7 seconds
Automatic / manual lock of the keypad
helps prevent unauthorized readjustment
on the room temperature controller.
Adjustable control parameters
Features / functions
Benefits
Many control parameters can be adjusted
to meet individual needs. This gives high
flexibility and enables the controller to
adapt to any type of application.
Minimum output ON time / OFF time (compressor short cycle protection)
Features / functions
Benefits
The room temperature controller can
protect the compressor by limiting the
on/off switching cycle, thereby reducing
wear and tear and increase the lifetime of
the compressor. Simply speaking, we can
set a minimum on/off time via the control
parameters to control the opening and
closing actions if the user adjusts the
setpoint or heating / cooling mode
changeover incorrectly.
32X049EN - April 2009 – HVAC
Products
9
Easy to install
Features / functions
The temperature controller is fast-acting and easy to install: (1) wire, (2) mount and (3)
snap – no bothersome ribbon cable or dangerous opening with mains voltage.
(1)
(2)
(3)
Important: Please verify to ensure the controller fits respective conduit box. The
controller requires at least 53 mm (W) x 68 mm (H) x 46 mm (D) for mounting in the
rectangular conduit box with fixing center 60.3 mm.
32X049EN - April 2009 – HVAC
Products
10
Product overview RDF / RDU
●
●
●
●
●
●
●
●
●
● ●
in the 3nd quate r of 2009)
● ●
● ●
● ●
● ●
● ●
● ●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
● ●
●
●
● ●
● ● ●
●
● ●
● ● ● ●
●
2) A lso available in silver color (RDFxxx.xx/SL) and in the 3nd quater of 2009
Auxiliary control button
●
●
●
Konnex TP1
Electric heater enable
Dewpoint sensor
●
●
●
●
●
●
Alarm input
1-speed fan (relay)
3-speed fan (relay)
DC 0…10 V
3-position (relay)
●
●
Remote temperature sensor
●
On/off (relay)
Backlit LCD
Infrared remote control
7-day time program
Vmax
Vmin
Automatic fan speed
●
●
●
●
Com
Heating / cooling changeover sensor
●
●
●
●
Inputs 1)
Outputs
Operating mode changeover contact (e.g.
window contact or card key reader)
Ne w s tand-alone room te m pe rature controlle rs
RDF300
F 2P/PI ● ● ● ●
●
●
● ●
2)
RDF300.02
F 2P/PI ● ● ● ●
●
●
● ●
RDF340
F
PI
● ● ● ●
●
●
● ●
RDF400.012)
F 2P/2P ● ● ● ●
●
●
● ●
RDU340
V
PI
● ● ● ●
● ●
Ne w com m unicating room te m pe rature controlle rs (com ing
RDF301
F 2P/PI ● ● ● ●
●
●
● ●
RDF301.50
F 2P/PI ● ● ● ●
●
●
● ●
RDU341
V
PI
● ● ● ●
● ●
Exis ting s e m i flus h-m ounte d room te m pe rature controlle rs
RDF310.2
F
2P
● ● ●
●
RDF310.21
F
2P
● ● ●
●
RDF410.21
F
2P
● ● ●
●
1) 2 x multif unctional inputs X1/X2 (sensor or digital input)
Manual fan speed
Automatic heating / cooling changeover
Manual heating / cooling changeover
Aux. functionality
Cooling or heating & electric heating
(e.g. 2 pipe & electric heating)
Heating and cooling changeover
(e.g. 4-pipe main & secondary)
Heating and cooling (e.g. 4-pipe)
Cooling only
Heating only
Control algorithm
Heating or cooling (e.g. 2-pipe)
Procuct no.
(ASN)
Fan coil (F) or VAV (V)
Applications
Pow e r
A C230V
A C230V
A C24V
A C230V
A C24V
●
●
●
●
A C230V
A C230V
A C24V
A C230V
A C230V
A C230V
32X049EN - April 2009 – HVAC
Products
11
Technical data
RDF300 / RDF400:
Operating voltage
Output rating
Heating/cooling
(relay)
3-speed fan
(relay)
RDF340:
Operating voltage
Output rating
Heating/cooling (DC 0..10 V)
3-speed fan
(relay)
RDU340:
Operating voltage
Output rating
Heating/cooling (DC 0..10 V)
Electric reheater
(relay)
Input
Multifunctional X1, X2
Setpoint setting range
Control algorithm
Environmental conditions
Temperature
Relative humidity
Mounting type
Dimension (visible part)
Mounting type
AC 230 V +10/-15%, 50/60 Hz
Max. 5 (2) A
Max. 5 (2) A
AC 24 V +/-20 %, 50/60 Hz
Max. 1 mA
Max. 5 (2) A @ AC 230 V
AC 24 V +/-20 %, 50/60 Hz
DC 0...10 V, max. 1 mA
Max. 5 (2) A @ AC 230 V
NTC cable sensor like QAH11 / switch
5...40 °C in 0.5 °C increments
2P / PI (P)
0...50 °C
<95%
Semi flush-mount, fixing centers 60.3 mm
86mm x 86mm x 14 mm
Semi flush-mount for mounting into recessed
rectangular conduit box with fixing centers 60.3 mm
60.3mm
Dimensions
32X049EN - April 2009 – HVAC
Products
12
ARG71 – conduit box for all RDF semi flush-mounted room
temperature controllers
Main features:
•
•
•
Size: 75 mm x 75 mm x 51 mm with
fixing centers 60.3 mm
For installation of all semi flushmount room temperature controllers
Conformant to BSI standard
BS4662, EN 50086-2-1, IEC/670.
ARG70.3 – plastic mounting bracket to fit RDF semi flush-mount
room temperature controllers to conduit boxes without sufficient
depth
Main features:
•
•
For installation of all semi flushmount room temperature controllers
ARG70.3 is put between the wall
and the room temperature controller,
increasing the headroom in the box
by 10 mm
32X049EN - April 2009 – HVAC
Products
13
Peripheral devices and accessories
The RDF room temperature controllers are suited for use with our standard Siemens peripheral
devices, such as zone and controls valves and accessories.
On/off actuators
3-position actuators
DC 0...10 V actuators
Description
Product no.
Data
sheet
Infrared remote control
IRA210
3059
Cable temperature sensor
QAH11.1
1840
Room temperature sensor
QAA32
1747
Condensation detector /
supply unit
QXA2000 /
AQX2000
1542
Electromotoric on/off actuators
SFA21...
4863
Thermal actuators (for radiator
valves)
Thermal actuators
(for small valves 2.5 mm)
STA21...
4893
STP21...
4878
Electrical actuators, 3-position
(for radiator valves)
Electrical actuators, 3-position
(for small valves 2.5 mm)
Electrical actuators, 3-position
(for small valves 5.5 mm)
Electromotoric actuators, 3position (for valves 5.5 mm)
Electrical actuators,
DC 0...10 V (for radiator valves)
Electrical actuators,
DC 0...10 V (for small valves
2.5 mm)
Electrical actuators,
DC 0...10 V (for small valves
5.5 mm)
Electromotoric actuators,
DC 0..10 V (for valves 5.5 mm)
Thermal actuator, DC 0...10 V
(for small valves and radiator
valves)
SSA31...
4893
SSP31…
4864
SSB31...
4891
SQS35…
4573
SSA61...
4893
SSP61…
4864
SSB61...
4891
SQS65…
4573
STS61
4880
Note: All peripheral devices and accessories must be ordered separately.
When ordering, please indicate product number and name.
32X049EN - April 2009 – HVAC
Products
14
Products coming soon…
RDF400… – programmable room temperature controllers
Main features:
All main features of RDF300 plus
• Backlit LCD
• Infrared remote control receiver
• 8 timers with a 7-day programmable
schedule
Additional features
• Silver color (RDF400.01/SL)
RDF400.01
RDF400.01/SL
RDF301… and RDU341… – KNX-compatible room temperature
controllers
Main features of RDF301:
All main features of RDF300 plus:
• Backlit LCD
• KNX (S-mode, LTE mode)
communication
Main features of RDF301.50:
All main features of RDF301 plus:
• Switches for lighting, blinds and
scene control via KNX
RDF301.50
Main features of RDU341:
All main features of RDU340 plus:
• Backlit LCD
• KNX (S-mode, LTE mode)
communication
32X049EN - April 2009 – HVAC
Products
15
