HP Compaq d230 MT User manual

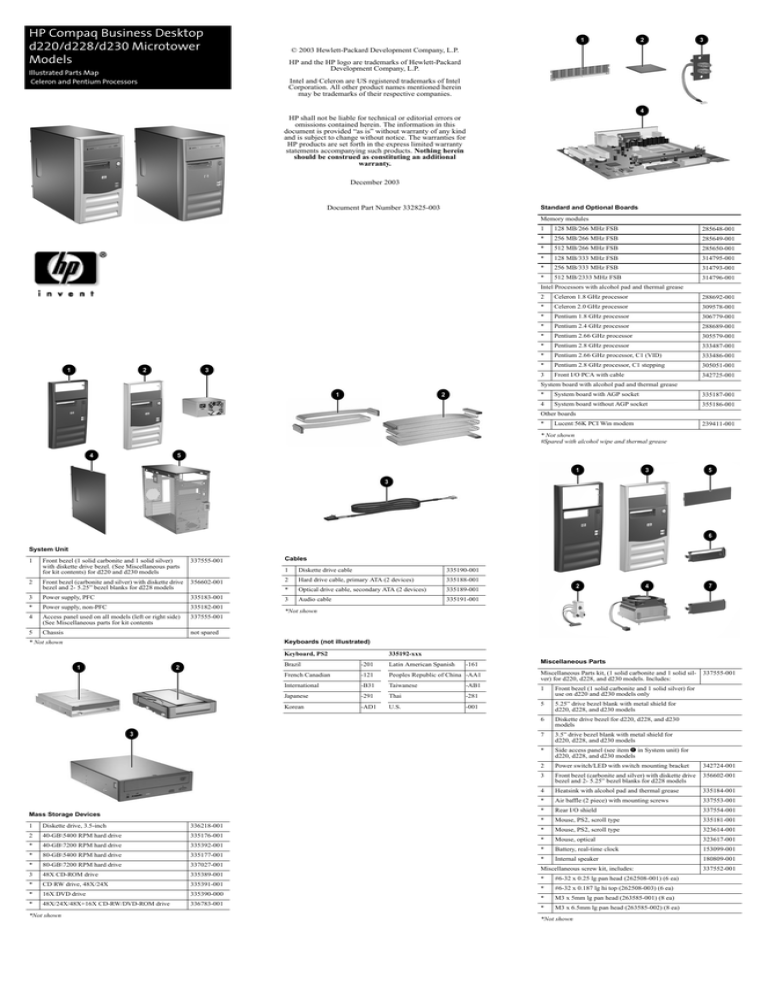

HP Compaq Business Desktop d220/d228/d230 Microtower Models © 2003 Hewlett-Packard Development Company, L.P. HP and the HP logo are trademarks of Hewlett-Packard Development Company, L.P. Illustrated Parts Map Celeron and Pentium Processors Intel and Celeron are US registered trademarks of Intel Corporation. All other product names mentioned herein may be trademarks of their respective companies. HP shall not be liable for technical or editorial errors or omissions contained herein. The information in this document is provided “as is” without warranty of any kind and is subject to change without notice. The warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. December 2003 Document Part Number 332825-003 Standard and Optional Boards Memory modules 1 128 MB/266 MHz FSB 285648-001 * 256 MB/266 MHz FSB 285649-001 * 512 MB/266 MHz FSB 285650-001 * 128 MB/333 MHz FSB 314795-001 * 256 MB/333 MHz FSB 314793-001 * 512 MB/2333 MHz FSB 314796-001 Intel Processors with alcohol pad and thermal grease 2 Celeron 1.8 GHz processor 288692-001 * Celeron 2.0 GHz processor 309578-001 * Pentium 1.8 GHz processor 306779-001 * Pentium 2.4 GHz processor 288689-001 * Pentium 2.66 GHz processor 305579-001 * Pentium 2.8 GHz processor 333487-001 * Pentium 2.66 GHz processor, C1 (VID) 333486-001 * Pentium 2.8 GHz processor, C1 stepping 305051-001 3 Front I/O PCA with cable 342725-001 System board with alcohol pad and thermal grease * System board with AGP socket 335187-001 4 System board without AGP socket 355186-001 Other boards * Lucent 56K PCI Win modem 239411-001 * Not shown #Spared with alcohol wipe and thermal grease System Unit 1 Front bezel (1 solid carbonite and 1 solid silver) with diskette drive bezel. (See Miscellaneous parts for kit contents) for d220 and d230 models 337555-001 2 Front bezel (carbonite and silver) with diskette drive bezel and 2- 5.25” bezel blanks for d228 models 356602-001 3 Power supply, PFC 335183-001 * Power supply, non-PFC 335182-001 4 Access panel used on all models (left or right side) (See Miscellaneous parts for kit contents 337555-001 5 Chassis not spared Cables 1 Diskette drive cable 335190-001 2 Hard drive cable, primary ATA (2 devices) 335188-001 * Optical drive cable, secondary ATA (2 devices) 335189-001 3 Audio cable 335191-001 *Not shown Keyboards (not illustrated) * Not shown Keyboard, PS2 Mass Storage Devices 1 Diskette drive, 3.5-inch 336218-001 2 40-GB\5400 RPM hard drive 335176-001 * 40-GB\7200 RPM hard drive 335392-001 * 80-GB\5400 RPM hard drive 335177-001 * 80-GB\7200 RPM hard drive 337027-001 3 48X CD-ROM drive 335389-001 * CD RW drive, 48X/24X 335391-001 * 16X DVD drive 335390-000 * 48X/24X/48X+16X CD-RW/DVD-ROM drive 336783-001 *Not shown 335192-xxx Brazil -201 Latin American Spanish -161 French Canadian -121 Peoples Republic of China -AA1 International -B31 Taiwanese -AB1 Japanese -291 Thai -281 Korean -AD1 U.S. -001 Miscellaneous Parts Miscellaneous Parts kit, (1 solid carbonite and 1 solid sil- 337555-001 ver) for d220, d228, and d230 models. Includes: 1 Front bezel (1 solid carbonite and 1 solid silver) for use on d220 and d230 models only 5 5.25” drive bezel blank with metal shield for d220, d228, and d230 models 6 Diskette drive bezel for d220, d228, and d230 models 7 3.5” drive bezel blank with metal shield for d220, d228, and d230 models * Side access panel (see item 4 in System unit) for d220, d228, and d230 models 2 Power switch/LED with switch mounting bracket 342724-001 3 Front bezel (carbonite and silver) with diskette drive bezel and 2- 5.25” bezel blanks for d228 models 356602-001 4 Heatsink with alcohol pad and thermal grease 335184-001 * Air baffle (2 piece) with mounting screws 337553-001 * Rear I/O shield 337554-001 * Mouse, PS2, scroll type 335181-001 * Mouse, PS2, scroll type 323614-001 * Mouse, optical 323617-001 * Battery, real-time clock 153099-001 * Internal speaker 180809-001 Miscellaneous screw kit, includes: * #6-32 x 0.25 lg pan head (262508-001) (6 ea) * #6-32 x 0.187 lg hi top (262508-003) (6 ea) * M3 x 5mm lg pan head (263585-001) (8 ea) * M3 x 6.5mm lg pan head (263585-002) (8 ea) *Not shown 337552-001 Clearing CMOS* The computer's configuration (CMOS) may occasionally be corrupted. If it is, it is necessary to clear the CMOS memory using by performing the following procedure: Ä 1. 2. 3. 4. 5. 6. CAUTION: The power cord must be disconnected from the power source before changing the jumper setting. (NOTE: All LEDs on the board should be OFF). Failure to do so may damage the system board Turn off the computer and any external devices, then disconnect the power cord from the power outlet. Remove the access panel. Locate the switch CMOS and press the button, holding it down for 5 seconds. Replace the access panel. Connect the power cord to the power outlet. Turn on the computer, allow it to start. NOTE: Clearing CMOS clears all passwords. Diagnostic LEDs System Board Connectors and Jumpers (position of some untitled components may vary in location) BAT1 Real-time-clock battery J25 Secondary IDE connector CMOS CMOS Reset button J27 Power/LED switch DIMM1 Memory socket 1 J28 Primary IDE connector DIMM2 Memory socket 2 J29 ATX Main power J11 Aux in audio J31 Diskette drive connector J12 CD in audio J35 Chassis fan J13 Wake on LAN JP1# Processor safe mode J17 System fan JP2# Boot Block J20 Front side USB U13 Processor socket J21 CPU fan #See table below AGP socket not shown in this drawing LED Color LED Activity State/Message Power Green On (S0) Computer on Power Green 1 blink every 2 seconds (S1) Normal Suspend Mode Power Green 1 blink every 2 seconds (S3) Suspend to RAM Power Clear Off (S4) Suspend to Disk (if applicable) Power Clear Off (S5) Computer off Power Red/Green Red when flashing ROM; Green 1 blink every second when user can restart Boot block recovery w/Embedded Video Power Red 1 blink every second for 2 seconds CPU thermal shutdown Power Red 1 blink every second for 5 seconds, then 2 second pause. 5 beeps. No memory installed Power Red 1 blink every second for 6 seconds, then 2 second pause. 6 beeps. Graphics card error Power Red 1 blink every second for 7 seconds, then 2 second pause. 7 beeps. System board failure Hard Drive Green Blinking Hard drive activity Computer Setup (F10) Utility Features (not all features may be available) JP1 Status Jumper Setting Notes Status Jumper Setting Normal 1-2 Default Lock 1-2 Safe 2-3 Unlock 2-3 Recovery Notes Open IRQ System Function IRQ System Function 0 Timer Interrupt 8 Real-Time Clock 1 Keyboard 9 Unused 2 Interrupt Controller Cascade 10 Unused, available for PCI 3 Serial Port (COM B) 11 Unused, available for PCI 4 Serial Port (COM A) 12 Mouse 5 Unused, available for PCI 13 Coprocessor 6 Diskette Drive 14 Primary ATA (IDE) Controller 7 Parallel Port (LPT 1) 15 Secondary ATA (IDE) Controller Establishing a Password 2. 3. 4. CPU ID L1 Cache Size L2 Cache Size Memory Bank 0 Memory Bank 1 Total Memory Standard CMOS Setup Set Time Set Date Set Floppy size and capacity Auto Detect Primary IDE Master drive Auto Detect Primary IDE Slave drive Auto Detect Secondary IDE Master drive Auto Detect Secondary IDE Slave drive Advanced CMOS Setup Boot Device Priority Try Other Boot Device POST Delay Time (in seconds) System Keyboard APIC ACPI SCI IRQ Hyper-Threading Technology Internal Graphics Mode Select Power Management Setup ACPI Standby State Reset on AC/Power Loss Resume on Ring Resume on LAN Resume on PME Peripheral Setup OnBoard LAN OnBoard LAN Chip Boot ROM Init. Graphics Adapter Priority USB Controller USB 1.1 Device Legacy Support OnBoard Serial Port OnBoard Parallel Port Hardware Monitor CPU Ratio Selection CPU Warning Temperature CPU Shutdown Temperature System Warning Temperature System Shutdown Temperature CPU Temperature System Temperature CPU FAN Speed Chassis FAN Speed CPU VID Vccp +1.5V +2.5V +3.3V +5.0V +12.0V Password Option Change Supervisor Password Password Status Password Check Default System Hardware Interrupts 1. System Information System S/N Product Name System Chipset Type BIOS Version BIOS Release Date Processor Type Processor Speed JP2 Turn on or restart the computer. If you are in Windows, click Start > Shut Down > Restart the computer. When the F10 Setup message appears in the lower-right corner of the screen, press the F10 key. Press Enter to bypass the title screen, if necessary. If you do not press F10 when prompted, a restart will be necessary. Select Password Option, then select Change Supervisor Password and follow the instructions on the screen. You may also want to establish the Password check at this time. This will allow you to specify when the password will be required. Before exiting, click Save Settings and Exit. Load Default Settings Save Settings and Exit Exit Without Saving Note: See Computer Setup (F10) Utility Guide on the Documentation Library CD. Changing a Password 1. 2. Turn on or restart the computer. If you are in Windows, click Start > Shut Down > Restart the Computer. To change the setup password, run Computer Setup. When the key icon appears, type your current password, a slash (/) or alternate de-limiter character, your new password, another slash (/) or alternate delimiter character, and your new password again as shown: current password/new password/new password. 3. 4. NOTE: Type the new password carefully since the actual characters do not appear on the screen. Press the enter key. The new password will take effect the next time the computer is restarted. Deleting a Password 1. 2. 3. Turn on or restart the computer. If you are in Windows, click Start > Shut Down > Restart the Computer. To delete the setup password, run Computer Setup (F10). When the key icon appears, type your current password followed by a slash (/) or alternate delimiter character as shown. Example: currentpassword/ Press the Enter key.
