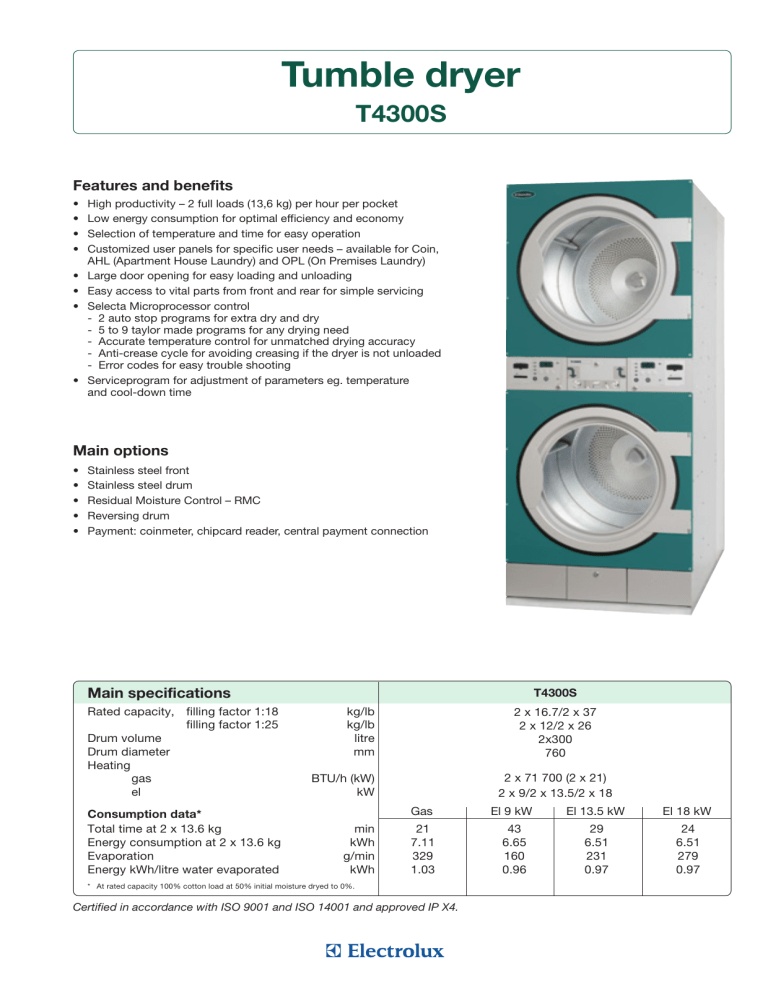

Tumble dryer T4300S Features and benefits • • • • • • • • High productivity – 2 full loads (13,6 kg) per hour per pocket Low energy consumption for optimal efficiency and economy Selection of temperature and time for easy operation Customized user panels for specific user needs – available for Coin, AHL (Apartment House Laundry) and OPL (On Premises Laundry) Large door opening for easy loading and unloading Easy access to vital parts from front and rear for simple servicing Selecta Microprocessor control - 2 auto stop programs for extra dry and dry - 5 to 9 taylor made programs for any drying need - Accurate temperature control for unmatched drying accuracy - Anti-crease cycle for avoiding creasing if the dryer is not unloaded - Error codes for easy trouble shooting Serviceprogram for adjustment of parameters eg. temperature and cool-down time Main options • • • • • Stainless steel front Stainless steel drum Residual Moisture Control – RMC Reversing drum Payment: coinmeter, chipcard reader, central payment connection Main specifications Rated capacity, filling factor 1:18 filling factor 1:25 Drum volume Drum diameter Heating gas el Consumption data* Total time at 2 x 13.6 kg Energy consumption at 2 x 13.6 kg Evaporation Energy kWh/litre water evaporated T4300S kg/lb kg/lb litre mm 2 x 16.7/2 x 37 2 x 12/2 x 26 2x300 760 2 x 71 700 (2 x 21) 2 x 9/2 x 13.5/2 x 18 BTU/h (kW) kW min kWh g/min kWh Gas El 9 kW El 13.5 kW El 18 kW 21 7.11 329 1.03 43 6.65 160 0.96 29 6.51 231 0.97 24 6.51 279 0.97 * At rated capacity 100% cotton load at 50% initial moisture dryed to 0%. Certified in accordance with ISO 9001 and ISO 14001 and approved IP X4. A T4300S Electrical connections Heating Voltage Gas El 120V 1AC 60 Hz 208V-240V 1AC 60 Hz 200V 3AC 50/60 Hz 230V 1AC 50 Hz 400V-440V 3NAC 3AC 50/60 Hz 400V-415V 3NAC 3AC 50 Hz 400V-480V 3NAC 3AC 60 Hz kW(A) kW(A) kW(A) kW(A) kW(A) kW(A) kW(A) 2 x 1 (2 x 15) 2 (15) 2 (10) 2 (10) 2 (10) 2 (10) 2 (10) 230V-240V 3AC 50/60 Hz 400V-415V 3AC 50 Hz 400V-415V 3AC 50 Hz 400V-415V 3AC 50 Hz 400V-480V 3AC 60 Hz 400V-480V 3AC 60 Hz 400V-480V 3AC 60 Hz kW(A) kW(A) kW(A) kW(A) kW(A) kW(A) kW(A) 2 x 10 (2 x 35) 2 x 10 (2 x 16) 2 x 14.5 (2 x 25) 2 x 19 (2 x 35) 2 x 10 (2 x 16) 2 x 14.5 (2 x 25) 2 x 19 (2 x 35) 1 2 C 2 1 W00015 Gas and air connections Front Gas Gas pressure Natural gas Pa mbar Pa mbar ø mm m3/h Max. Pa Propane Air outlet Evacuated air, Pressure drop 1/2" ISO 7/1-R gas/el gas/el B 2000 20 2800-5000 28-50 200 2 x 600 400 H 5 3+4 Sound levels Airborne sound level <70 dB(A) Heat emission D E 15 % of installed power, max Shipping data net, kg crated, kg crated, m3 F 295 315 2.0 G Left side W00016 Dimensions in mm A B C D E F G H I K L M N O 1 2 3 Width Depth Height Door opening ø 580 mm Operating panel Electric connection 790 1110 1940 1270 1210 320 260 925 125 1930 30 105 1840 740 I L 5 3 4 M K 4 Gas connection 5 Air outlet Rear side N 5 3 4 ELECTROLUX LAUNDRY SYSTEMS W00018 Lundtoftegaardsvej 93A, DK-2800 Lyngby, Denmark Telephone: +45 4526 4800. Telefax: +45 4526 4801 Internet: www.electrolux.com/laundrysystems E-mail: [email protected] The Electrolux Group. The world´s No.1 choice. The Electrolux Group is the world´s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world. Art. No. 438918821/03 05.35 O We reserve the right to alter specifications without notice. W00017 * Other voltages available, see installation manual.
