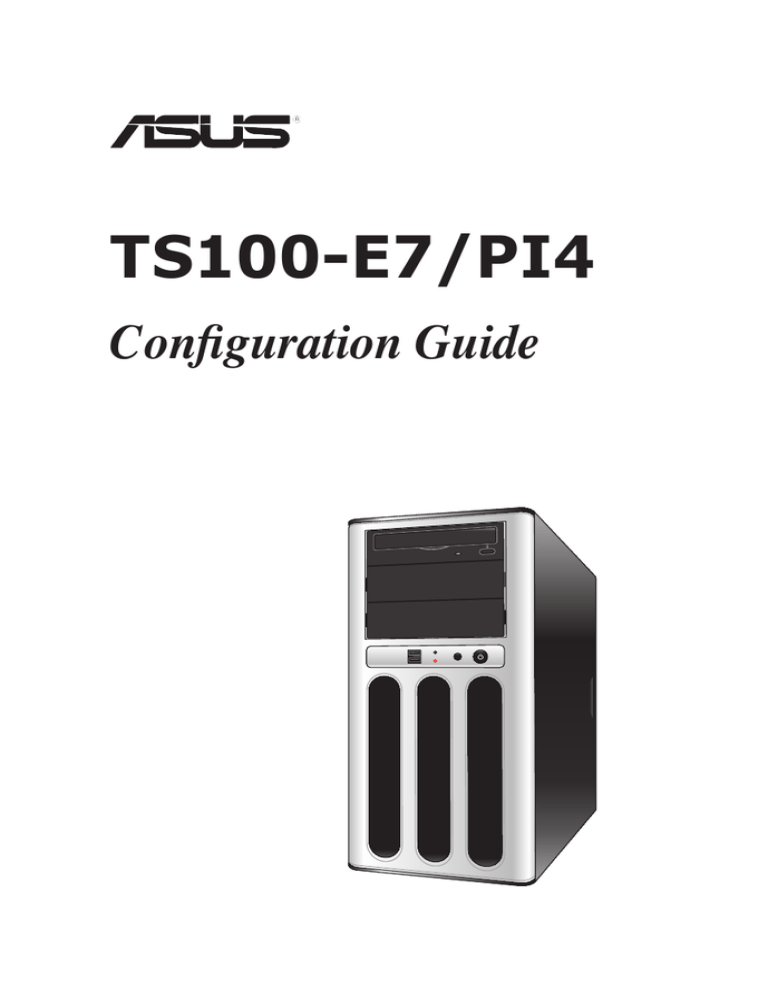

TS100-E7/PI4
Configuration Guide
E6702
First Edition V1
June 2011
Copyright © 2011 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced, transmitted,
transcribed, stored in a retrieval system, or translated into any language in any form or by any means,
except documentation kept by the purchaser for backup purposes, without the express written permission
of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS provides this manual “as is” without warranty of any kind, either express or implied, including but not
limited to the implied warranties or conditions of merchantability or fitness for a particular purpose. In no
event shall ASUS, its directors, officers, employees, or agents be liable for any indirect, special, incidental,
or consequential damages (including damages for loss of profits, loss of business, loss of use or data,
interruption of business and the like), even if ASUS has been advised of the possibility of such damages
arising from any defect or error in this manual or product.
Specifications and information contained in this manual ae furnished for informational use only, and are
subject to change at any time without notice, and should not be construed as a commitment by ASUS.
ASUS assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual,
including the products and software described in it.
Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless
such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the
product is defaced or missing.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identification or explanation and to the
owners’ benefit, without intent to infringe.
ii
Contents
Safety information....................................................................................... iv
Chapter 1:
Product introduction
1.1
Key features................................................................................... 1-2
1.3
Front panel features...................................................................... 1-4
1.2
1.4
1.5
System overview........................................................................... 1-3
Rear panel features....................................................................... 1-5
System specifications.................................................................. 1-6
Chapter 2:
Components
2.1
Upgrading CPU and CPU heatsink.............................................. 2-2
2.3
Upgrading hard disk drives.......................................................... 2-4
2.2
2.4
Upgrading system memory.......................................................... 2-3
OS support list.............................................................................. 2-5
iii
Safety information
Electrical Safety
•
Before installing or removing signal cables, ensure that the power cables for
the system unit and all attached devices are unplugged.
•
To prevent electrical shock hazard, disconnect the power cable from the
electrical outlet before relocating the system.
•
When adding or removing any additional devices to or from the system, contact
a qualified service technician or your dealer. Ensure that the power cables for
the devices are unplugged before the signal cables are connected. If possible,
disconnect all power cables from the existing system before you service.
•
If the power supply is broken, do not try to fix it by yourself. Contact a qualified
service technician or your dealer.
Operation Safety
•
Servicing of this product or units is to be performed by trained service
personnel only.
•
Before operating the server, carefully read all the manuals included with the
server package.
•
Before using the server, ensure all cables are correctly connected and the
power cables are not damaged. If any damage is detected, contact your dealer
as soon as possible.
•
To avoid short circuits, keep paper clips, screws, and staples away from
connectors, slots, sockets and circuitry.
•
Avoid dust, humidity, and temperature extremes. Place the server on a stable
surface.
This product is equipped with a three-wire power cable and plug for the user’s
safety. Use the power cable with a properly grounded electrical outlet to avoid
electrical shock.
Lithium-Ion Battery Warning
CAUTION! Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer. Dispose of used batteries according to the manufacturer’s
instructions.
CD-ROM Drive Safety Warning
CLASS 1 LASER PRODUCT
Heavy System
CAUTION! This server system is heavy. Ask for assistance when moving or
carrying the system.
iv
This chapter describes the key features
of TS100-E7/PI4. It includes the product
overview and general specifications.
Product introduction
Chapter 1
1-
1.1
Key features
The TS100-E7/PI4 is a single-socket pedestal server system based on quad/dualcore Intel® E3-1200/CoreTM i3-2100 series processors and the Intel® C202 PCH
chipset with support for up to 32GB of DDR3 1333Hz unbuffered ECC memory.
Upscaled performance increases processing speeds, while the super-quiet
design makes the TS100-E7/PI4 ideal for professional environments where noise
reduction is important.
The latest Intel® CPUs
The TS100-E7/PI4 is ready for new-generation IntelR® Xeon® 32nm quad/dualcore UP processors, which deliver a significant performance improvement (up to
25%) over previous generation CPUs. Also, with Intel® Turbo Boost Technology 2.0,
the TS100-E7/PI4 provides more efficient, dynamic, and intelligent performance
enhancement on demand.
Ultra-quiet and energy-saving
Strict acoustic testing has shown that the TS100-E7/PI4 performs excellently in
noise control at less than 25.6dBA when idle – even lower than the noise output of
a projector (42dB). It facilitates quiet working environments, and ships with an 80+
power supply to reduce power loss and power consumption, helping consumers
save on energy bills.
Dual Intel® server-class Gigabit LAN
The TS100-E7/PI4 offers more reliable networking and wide- range virtualization,
including VMWare®, Hyper-V and Xen. IPv6 readiness effortlessly resolves
potential IPv4 address shortage problems even before they occur.
Optional ASUS TPM module
With the ASUS TPM module supporting TXT technology, the TS100-E7/PI4 avoids
Trojan and malware incursions, while Hypervisor loads on start-up to provide
hardware-level security against software attacks, protecting data from memory
snooping.
Effortless install
Auto-setup in a few simple steps and the intuitive support CD mean users don’t
need to go through a lengthy process as the install is pre-configured, and all device
drivers arrive fully installed with the latest versions, saving IT staff time and effort.
1-2
Chapter 1: Product introduction
1.2
System overview
3
2
6
1
5
4
Items
Items
1. Central processing unit (CPU)
4. Hard disk drives
2. CPU heatsink and fan
5. VGA card (optional)
3. System memory
6. Front Panel Cover
ASUS TS100-E7/PI4
1-3
1.3
Front panel features
Power LED
HDD access LED
Optical drive
Empty 5.25-inch bays
Power button
Reset button
USB 2.0 ports
1-4
Chapter 1: Product introduction
1.4
Rear panel features
Power connector
PS/2 mouse port
PS/2 keyboard port
USB 2.0 ports
Serial port
300W Single power
supply
Chassis lock
120mm x 25mm
system fan
VGA port
Gigabit LAN port 1
Gigabit LAN port 2
Expansion slots
ASUS TS100-E7/PI4
Chassis intrusion
switch
1-5
1.5
System specifications
Model Name
Processor / System Bus
Core Logic
Memory
Expansion Slots
Total Slots
Capacity
Memory Type
Memory Size
Total PCI/PCI-X/
PCI-E Slots
Slot Type
Storage
HDD Bays
Networking
Graphic
I = internal
A or S = hotswappable
LAN
VGA
6
1x PCI-E G2 x16 slot (x16 link)
1x PCI-E G2 x 8 slot (x4 link)
2x PCI-E G2 x1 slot ( x1 link)
2 x PCI 32/33 5V
Intel® C202:
6 SATA 3Gb/s ports
Intel Rapid Storage (for Windows only)
(Support software RAID 0, 1, 10, 5)
LSI® MegaRAID (for Linux/Windows)
(Support software RAID 0, 1, 10)
4 * Internal 3.5" SATA2 HDD Bays
Auxiliary Storage FDD / CD / DVD
Onboard I/O
TS100-E7/PI4
1* socket LGA1155
Intel® Xeon® E3-1200 Processor Family
Intel® Core™ i3-2100 Processor Family
Intel® C202 Chipset
4 DIMMs(2 Channels)
Maximum up to 32GB
DDR3 1066/1333 ECC UDIMM
1 GB, 2GB, 4GB, 8GB
2 * Intel 82574L
Z9s
3 * 5.25" media bays
(Options: No Device / DVD-RW)
1 * External Serial Port
2 * RJ-45 ports
4* USB 2.0 ports (Front * 2, Rear * 2)
1 * VGA port
1 * PS/2 keyboard port
1 * PS/2 mouse port
(continued on the next page)
1-6
Chapter 1: Product introduction
OS Support
Anti-virus Software
Management
Software
Solution
Dimension (HH x WW x DD)
Net Weight Kg (CPU, DRAM &
HDD not inclu ded)
Power Supply
Power Rating
Environment
Windows® Server 2008 R2
Windows® Server 2008 Enterprise 32/64-bit
Windows® Server 2003 R2 Enterprise 32/64-bit
RedHat® Enterprise Linux AS5.5/6.0 32/64-bit
SuSE® Linux Enterprise Server 10 SP3/11 32/64-bit
(Subject to change without any notice)
Optional Anti-Virus CD Pack
ASUS ASWM Enterprise
436.8mm * 200mm * 478.8mm
15 Kg
300W 80PLUS Single Power Supply
100—240Vac, 8—4A, 50—60Hz, Class I
Operation temperature: 10°C–35°C / Non operation
temperature: -40°C–70°C
Non operation humidity: 20%–90%
( Non-condensing)
*Specifications are subject to change without notice.
ASUS TS100-E7/PI4
1-7
1-8
Chapter 1: Product introduction
This chapter lists the key components
and optional accessories for the server
system.
Components
Chapter 2
1-
2.1
Upgrading CPU and CPU heatsink
The ASUS TS100-E7/PI4 supports Dual-core / Quad-core Intel® LGA1155 Xeon®
E3-1200 series processor.
1
3
6
4
5
2
Order P/N
90-S000U09Y1T
90-S000U09Z1T
90-S000U0A11T
90-S000U0A21T
90-S000U0A31T
90-S000U0A41T
90-S000U0A51T
90-S000U0A61T
90-S000U0A71T
90-S000U0A81T
90-S000U0A91T
90-S000U0BR0T
2-2
Description
Quad Core Intel Xeon E3-1220, 3.10GHz, 8MB L2 (Single pack, w/o cooler)
Dual Core Intel Xeon E3-1220L, 2.20GHz, 3MB L2 (Single pack, w/o cooler)
Quad Core Intel Xeon E3-1225, 3.10GHz, 6MB L2 (Single pack, w/o cooler)
Quad Core Intel Xeon E3-1230, 3.20GHz, 8MB L2 (Single pack, w/o cooler)
Quad Core Intel Xeon E3-1235, 3.20GHz, 8MB L2 (Single pack, w/o cooler)
Quad Core Intel Xeon E3-1240, 3.30GHz, 8MB L2 (Single pack, w/o cooler)
Quad Core Intel Xeon E3-1245, 3.30GHz, 8MB L2 (Single pack, w/o cooler)
Quad Core Intel Xeon E3-1260L, 2.40GHz, 8MB L2 (Single pack, w/o cooler)
Quad Core Intel Xeon E3-1270, 3.40GHz, 8MB L2 (Single pack, w/o cooler)
Quad Core Intel Xeon E3-1275, 3.40GHz, 8MB L2 (Single pack, w/o cooler)
Quad Core Intel Xeon E3-1280, 3.10GHz, 12MB L2 (Single pack, w/o cooler)
Quad Core Intel Xeon E3-1290, 3.10GHz, 12MB L2 (Single pack, w/o cooler)
Chapter 2: Components
2.2
Upgrading system memory
The motherboard comes with four (4) Double Data Rate 3 (DDR3) Dual Inline
Memory Modules (DIMM) sockets.
DIMM_B1
DIMM_B2
DIMM_A1
DIMM_A2
1
2
1
You may install 1 GB, 2 GB, 4 GB, 8GB Unbuffered with ECC DDR3 DIMMs into
the DIMM sockets using the memory configurations in this section.
UDIMM
DIMM Slot DIMM Populated DIMM Type
Speed
Rank per DIMM
Per Channel per Channel
2
1
Unbuffered DDR3 ECC 1066/1333 Single Rank,
Dual Rank
2
2
Unbuffered DDR3 ECC 1066/1333 Single Rank,
Dual Rank
•
Always install DIMMs with the same CAS latency. For optimum
compatibility, it is recommended that you obtain memory modules from the
same vendor.
•
Install the DDR to the A2 or B2 (orange slot) when installing only one
memory module to the motherboard.
Order P/N
90-S000I05M0T
90-S000I0570T
ASUS TS100-E7/PI4
Description
DDR3 1333 ECC UNB 2G 240P SINGLE PACK
DDR3 1333 ECC UNB 4G 240P SINGLE PACK
2-3
2.3
Upgrading hard disk drives
The server system supports four Serial ATA hard disk drives through screw-free
hard disk drive holders.
1
1
2
3
We recommend that you install identical drives of the same model and capacity
for RAID configuration.
2-4
Order P/N
Description
90-S000H65B0T
90-S000H65C0T
90-S000H65D0T
3.5” SATA3 PHARAOH 1T 7200R / 6Gb SINGLE PACK
3.5” SATA3 PHARAOH 750G 7200R / 6Gb SINGLE PACK
3.5” SATA3 PHARAOH 500G 7200R / 6Gb SINGLE PACK
Chapter 2: Components
2.8
Supplier
Microsoft
Red Hat
Novell
CentOS
OS support list
Component name and version
Windows Server 2008 Enterprise Edition SP2
Windows Server 2008 Standard Edition R2
Windows 7
Windows 7
Red Hat Enterprise Linux AS 5.5
Red Hat Enterprise Linux AS 5.5
Red Hat Enterprise Linux AS 6.0
Red Hat Enterprise Linux AS 6.0
SuSE Linux Enterprise Server 11.1
SuSE Linux Enterprise Server 11.1
CentOS 5.5
CentOS 5.5
ASUS TS100-E7/PI4
x86
x64
x86
x64
x86
x64
x86
x64
x86
x64
x86
x64
2-5
2-6
Chapter 2: Components
