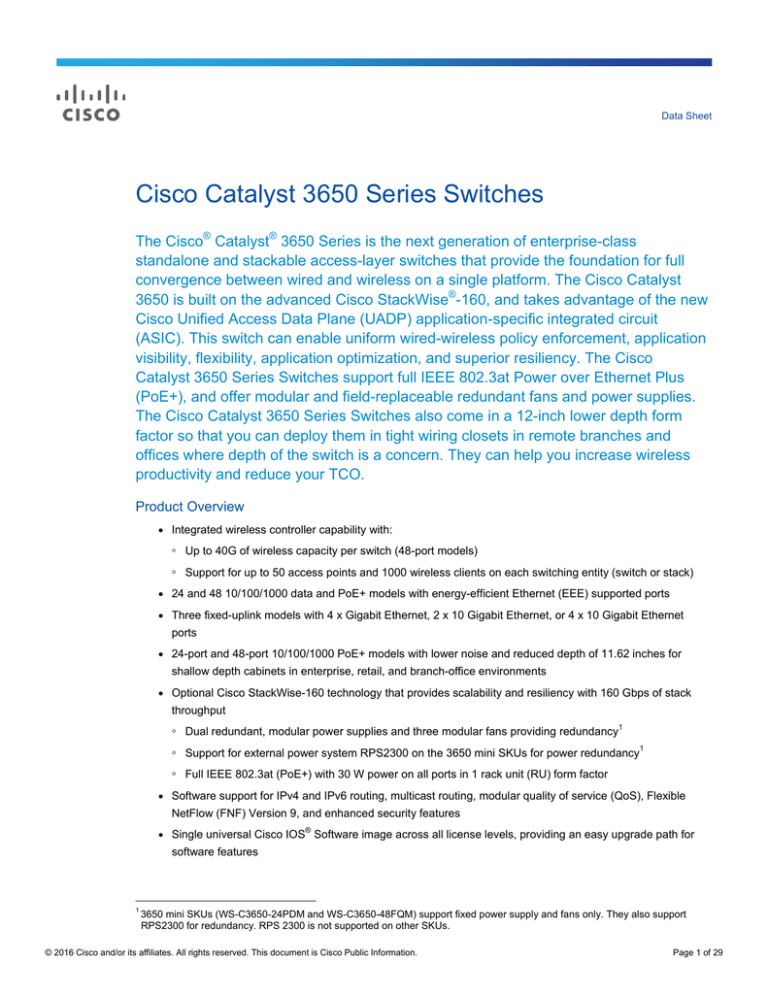

Cisco Catalyst 3650 Series Switches

The Cisco

®

Catalyst

®

3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst

3650 is built on the advanced Cisco StackWise

®

-160, and takes advantage of the new

Cisco Unified Access Data Plane (UADP) application-specific integrated circuit

(ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The Cisco

Catalyst 3650 Series Switches support full IEEE 802.3at Power over Ethernet Plus

(PoE+), and offer modular and field-replaceable redundant fans and power supplies.

The Cisco Catalyst 3650 Series Switches also come in a 12-inch lower depth form factor so that you can deploy them in tight wiring closets in remote branches and offices where depth of the switch is a concern. They can help you increase wireless productivity and reduce your TCO.

Product Overview

Integrated wireless controller capability with:

Up to 40G of wireless capacity per switch (48-port models)

Support for up to 50 access points and 1000 wireless clients on each switching entity (switch or stack)

● 24 and 48 10/100/1000 data and PoE+ models with energy-efficient Ethernet (EEE) supported ports

Three fixed-uplink models with 4 x Gigabit Ethernet, 2 x 10 Gigabit Ethernet, or 4 x 10 Gigabit Ethernet ports

● 24-port and 48-port 10/100/1000 PoE+ models with lower noise and reduced depth of 11.62 inches for shallow depth cabinets in enterprise, retail, and branch-office environments

Optional Cisco StackWise-160 technology that provides scalability and resiliency with 160 Gbps of stack throughput

Dual redundant, modular power supplies and three modular fans providing redundancy

1

Support for external power system RPS2300 on the 3650 mini SKUs for power redundancy

1

Full IEEE 802.3at (PoE+) with 30 W power on all ports in 1 rack unit (RU) form factor

Software support for IPv4 and IPv6 routing, multicast routing, modular quality of service (QoS), Flexible

NetFlow (FNF) Version 9, and enhanced security features

● Single universal Cisco IOS

®

Software image across all license levels, providing an easy upgrade path for software features

1

3650 mini SKUs (WS-C3650-24PDM and WS-C3650-48FQM) support fixed power supply and fans only. They also support

RPS2300 for redundancy. RPS 2300 is not supported on other SKUs.

© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 1 of 29

● Enhanced limited lifetime warranty (E-LLW) with next business day (NBD) advance hardware replacement and 90-day access to Cisco Technical Assistance Center (TAC) support

Switch Models and Configurations

All Cisco Catalyst 3650 Series Switches have fixed, built-in uplink ports and ship with one power supply. Tables 1 through 5 provide further details. Figure 1 is an image of the Cisco Catalyst 3650 Series Switches.

Figure 1. Cisco Catalyst 3650 Series Switches

Table 1 shows the Cisco Catalyst 3650 Series configurations.

Table 1.

Cisco Catalyst 3650 Series Configurations

Models

WS-C3650-24TS

WS-C3650-48TS

WS-C3650-24PS

WS-C3650-48PS

WS-C3650-48FS

WS-C3650-24TD

WS-C3650-48TD

WS-C3650-24PD

WS-C3650-24PDM

WS-C3650-48PD

WS-C3650-48FD

WS-C3650-48TQ

WS-C3650-48PQ

WS-C3650-48FQ

WS-C3650-48FQM

Fixed Uplinks

4 x Gigabit Ethernet with

Small Form-Factor Pluggable

(SFP)

2 x 10 Gigabit Ethernet with

SFP+ or 4 x Gigabit Ethernet with SFP

4 x 10 Gigabit Ethernet with

SFP+ or 4 x Gigabit Ethernet with SFP

Total 10/100/1000 Ethernet Ports Default AC Power Supply Available PoE Power

24 250 WAC -

48

24 PoE+ 640 WAC 390 W

48 PoE+

48 PoE+

24

48

24 PoE+

24 PoE+

48 PoE+

48 PoE+

48

48 PoE+

48 PoE+

48 PoE+

1025 WAC

250 WAC

640 WAC

Fixed 640 WAC

640 WAC

1025 WAC

250 WAC

640 WAC

1025 WAC

Fixed 975 WAC

775 W

390 W

390 W

390 W

775 W

390 W

775 W

775 W

Fixed Uplinks

All Cisco Catalyst 3650 Series Switches have fixed, built-in uplink ports. Customers can choose from three types of uplink ports at the time of the switch purchase:

4 x Gigabit Ethernet with Small Form-Factor Pluggable (SFP)

© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 2 of 29

● 2 x 10 Gigabit Ethernet with SFP+ or 4 x Gigabit Ethernet with SFP

4 x 10 Gigabit Ethernet with SFP+ or 4 x Gigabit Ethernet with SFP

The SFP+ interface supports both 10 Gigabit Ethernet and Gigabit Ethernet ports. Refer to Table 1 for a description of the basic switch models and the corresponding uplink ports. Refer to Table 2 for a description of the various uplink port interface options.

Table 2.

Network Module Configurations

Network Module

4 x Gigabit Ethernet

4 x Gigabit Ethernet/2 x10 Gigabit Ethernet

Network Modules

4 x Gigabit Ethernet/4 x10 Gigabit Ethernet

Network Modules

2

3

1

2

4

0

Interface Options

2

0

10 Gigabit Ethernet SFP+ Ports

0

2

1

3

2

0

4

0

4

Gigabit Ethernet SFP Ports

4

Dual Redundant Modular Power Supplies and External RPS23002

The Cisco Catalyst 3650 mini switches come with fixed dual redundant power supplies (see Figure 2). The switch ships with one power supply by default, and the second power supply can be purchased at the time of ordering the switch or at a later time. If only one power supply is installed, it should always be in power supply bay 1. The switch also ships with three field-replaceable fans.

Figure 2. Redundant Power Supplies

Table 3 shows the different power supplies available in these switches and available PoE power.

Table 3.

Switch Models and Corresponding Default Power Supplies

Models

24-port data switch

48-port data switch

24-port PoE switch

48-port PoE switch

48-port full PoE switch

24-port mini PoE switch

48-port mini PoE switch

Default Power Supply

PWR-C2-250WAC

PWR-C2-640WAC

PWR-C2-1025WAC

Fixed 640 WAC

Fixed 975 WAC

Available PoE Power

-

390 W

775 W

390W

775W

Support Secondary Power Supply

Yes

Yes

Yes

Yes

Yes

No, but supports RPS2300

No, but supports RPS2300

© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 3 of 29

In addition to the power supplies listed in Table 3, a 640 WDC power supply is available at the time of order or as a spare on all switch models. The DC power supply also delivers PoE capabilities for maximum flexibility (refer to

Table 5 for available PoE budget with DC power supplies). Customers can mix and match the AC and DC power supplies in the two available power supply slots. Any of these power supplies can be installed in any of the switches.

2

Table 4.

Available PoE with DC Power Supply

Model

24-port or 48-port PoE Switch

Number of 440WDC Power Supplies

1

2

Total Available PoE Budget

390 W

780 W

Power over Ethernet Plus (PoE+)

The Cisco Catalyst 3650 Series Switches support both PoE (IEEE 802.3af) and PoE+ (IEEE 802.3at standard), which provide up to 30 W of power per port. PoE removes the need for wall power to each PoE-enabled device and eliminates the cost for additional electrical cabling and circuits that would otherwise be necessary in IP phone and WLAN deployments. The Cisco Catalyst 3650 Series Switches can provide a lower TCO for deployments that incorporate Cisco IP phones, Cisco Aironet

®

wireless LAN (WLAN) access points, or any IEEE 802.3at-compliant end device. Table 5 shows the power supply combinations required for different PoE needs.

Table 5.

Minimum Power Supply Requirements for Full PoE and PoE+

24-Port PoE Switch

PoE on All Ports (15.4 W per port) One PWR-C2-640 WAC

48-Port PoE Switch

One PWR-C2-1025WAC or Two PWR-C2-640 WAC

PoE+ on All Ports (30 W per port)

One PWR-C2-1025WAC or Two PWR-C2-640 WAC Two PWR-C2-1025 WAC

Cisco Catalyst 3650 Mini Switches

The Cisco Catalyst 3650 Series adds new mini switches to the existing 3650 family of switches. These switches are less than 12” deep and quieter than the existing 3650 switches, making them perfect to deploy in tight wiring cabinets, racks, or user spaces where depth of the switch is a concern. You can avoid replacing the cabinets or mounting the switch at an angle and as a result reduce downtime to the network. These switches enable the same uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency as the existing 3650 switches. They come in 24- and 48-port 10M/100M/1000M switch SKUs (WS-

C3650-24PDM and WS-C3650-48FQM) and support all the same features as the existing 3650 switches except that they come with fixed fans, fixed power supplies, and support for external RPS2300 for redundancy. These PoE switches support both PoE (IEEE 802.3af) and PoE+ (IEEE 802.3at standard), providing up to 30W of power for 12 ports for a total of 390W on the 24-port model and up to 30W of power for 24 ports for a total of 775W on the 48port model. The 24-port switch has 2x1 Gigabit Ethernet SFP and 2x10 Gigabit Ethernet SFP+ uplinks; the 48-port switch has 4x10 Gigabit Ethernet SFP+ uplinks to support any high-bandwidth application. These switches support stacking and can stack with each other or the existing 3650 switches using the same Cisco StackWise-160 technology. The 3650 mini and 3650 use the same software and thus can be deployed and managed using the same policies, configuration, and so on as the existing 3650 switches. Some use cases for the 3650 mini are the following:

2

The 250 WAC power supply will be supported on the PoE-capable switches in a future release.

© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 4 of 29

Small Offices and Branches

Many small branches and satellite offices where there are few employees do not have larger wiring closets because of space constraints. A typical office like this has smaller cabinets and would need a switch that can serve few employees, provide PoE support, can manage wired-wireless networks, and applies the same consistent policies as a bigger branch or office. Because of its less than 12” depth, lower noise, and support for 10G uplinks along with stacking, advanced security, and wired-wireless convergence, the 3650 mini is the perfect switch for this type of space.

Education

The 3650 mini switch extends access to labs, classrooms, and other training rooms from the central/floor distribution rooms, reducing cost of cabling and providing superior quality of service with enhanced security, wiredwireless convergence, and enterprise network features. Because of its shallow depth and lower noise, these switches are ideally suited for classrooms or confined areas.

Retail

A typical retail outlet needs to serve customers at multiple sales points, each with a POS machine, access points, phone, printer, video display with network, and some PoE powering. These retail outlets connect to the access router that connects them to the outside network and typically need switches that fit in shallow depth cabinets.

Because of the 12” depth of these switches along with advanced security and networking features, they can help retailers efficiently utilize space and save on real estate cost.

Benefits

Converged Wired plus Wireless Access

The Cisco Catalyst 3650 is a standalone and stackable access switching platform that enables wired plus wireless services on a single Cisco IOS XE Software-based platform. With this, Cisco has pioneered a host of rich capabilities such as high availability based on stateful switchover (SSO) on stacking, granular QoS, security, and

Flexible Netflow (FNF) across wired and wireless in a seamless fashion. Also, the wired plus wireless features are bundled into a single Cisco IOS Software image, which reduces the number of software images that users have to qualify/certify before enabling them in their network. The single console port for command-line interface (CLI) management reduces the number of touch points to manage for wired plus wireless services, thereby reducing network complexity, simplifying network operations, and lowering the TCO to manage the infrastructure.

Converged wired plus wireless not only improves wireless bandwidth across the network but also the scale of wireless deployment. Each 48-port Cisco Catalyst 3650 provides 40 Gbps of wireless throughput (20 Gbps on the

24-port model). This wireless capacity increases with the number of members in the stack. This makes sure that the network can scale with current wireless bandwidth requirements, as dictated by IEEE 802.11n-based access points and with future wireless standards such as IEEE 802.11ac. Additionally, the Cisco Catalyst 3650 distributes the wireless controller functions to achieve better scalability. Each Cisco Catalyst 3650 switch/stack can operate as the wireless controller in two modes:

Mobility agent (MA): This is the default mode in which the Cisco Catalyst 3650 switch ships. In this mode the switch is capable of terminating the CAPWAP tunnels from the access points and providing wireless connectivity to wireless clients. Maintaining wireless client databases and configuring and enforcing security and QoS policies for wireless clients and access points can be enforced in this mode. No additional license on top of IP Base is required to operate in the mobility agent mode.

© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 5 of 29

Mobility controller (MC): In this mode, the Cisco Catalyst 3650 switch can perform all the mobility agent tasks in addition to mobility coordination, radio resource management (RRM), and Cisco CleanAir

® coordination within a mobility subdomain. The mobility controller mode can be enabled on the switch CLI.

IP Base license level is required when the Cisco Catalyst 3650 switch is acting as the mobility controller.

A centrally located Cisco 5508 Wireless LAN Controller (WLC 5508), Cisco Wireless Services Module 2

(WiSM2) (when running AireOS Version 7.3), and Wireless LAN Controller 5760 can also perform this role for larger deployments.

With mobility agents located in the wiring closets providing 40 Gbps of wireless per switch (n x 40 Gbps for a stack of n switches) and mobility controllers managing some of the central wireless functions, the converged access-based wireless deployment provides best-in-class scalability for wireless and significantly improved wireless throughput.

Figure 3. Mobility Controller (MC) and Mobility Agent (MA)

© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 6 of 29

Distributed Intelligent Services

Flexible NetFlow (FNF)

Full visibility into the wired plus wireless traffic is achieved because of the access point Control and Provisioning of

Wireless Access Points (CAPWAP) tunnel termination on the switch. This helps identify users and user traffic flows in order to identify potential attackers and take corrective action at the access layer before the attack penetrates further into the network. This is achieved using FNF, which monitors every single flow entering and exiting the switch stack for wired and wireless users. It also helps identify the top wired/wireless talkers and enforce appropriate bandwidth provisioning policies.

QoS

The 3650 switch has advanced wired plus wireless QoS capabilities. It uses the Cisco modular QoS command line interface (MQC). The switch manages wireless bandwidth using unprecedented hierarchical bandwidth management starting at the per-access-point level and drilling further down to per-radio, per-service set identification (SSID), and per-user levels. This helps manage and prioritize available bandwidth between various radios and various SSIDs (enterprise, guest, and so on) within each radio on a percentage basis. The switch is also capable of automatically allocating equal bandwidth among the connected users within a given SSID. This makes sure that all users within a given SSID get a fair share of the available bandwidth while being connected to the network. The UADP ASIC enables the hierarchical bandwidth management and fair sharing of bandwidth, thereby providing hardware-based QoS for optimized performance at line-rate traffic.

In addition to these capabilities, the switch is able to do class of service (CoS) or differentiated services code point

(DSCP) based queuing, policing, shaping, and marking of wired plus wireless traffic. This enables users to create common policies that can be used across wired plus wireless traffic. The 3650 also supports downloadable policy names from the Cisco Identity Services Engine (ISE) when a user successfully authenticates to the network using the ISE.

Security

The Cisco Catalyst 3650 provides a rich set of security features for wired plus wireless users. Features such as

IEEE 802.1x, Dynamic Host Configuration Protocol (DHCP) snooping, IP Source Guard and control plane protection, wireless intrusion prevention systems (WIPSs), and so on enable protection against unauthorized users and attackers. With a variety of wired plus wireless users connecting to the network, the switch supports sessionaware networking, in which each device connected to the network is identified as one session, and unique access control lists (ACLs) and/or QoS policies can be defined and applied using the ISE for each of these sessions, providing better control on the devices connecting to the network.

Resiliency

Cisco StackWise-160 Technology

The Catalyst 3650 supports an optional stacking module that is based on the Cisco StackWise-160 technology.

Cisco StackWise-160 technology is built on the highly successful industry-leading StackWise technology, which is a premium stacking architecture. StackWise-160 has a stack bandwidth of 160 Gbps. StackWise-160 uses Cisco

IOS Software SSO for providing resiliency within the stack. The stack behaves as a single switching unit that is managed by an

“active” switch elected by the member switches. The active switch automatically elects a standby switch within the stack. The active switch creates and updates all the switching/routing/wireless information and constantly synchronizes that information with the standby switch. If the active switch fails, the standby switch assumes the role of the active switch and continues to the keep the stack operational. Access points continue to

© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 7 of 29

remain connected during an active-to-standby switchover. A working stack can accept new members or delete old ones without service interruption. StackWise-160 creates a highly resilient single unified system of up to nine switches, providing simplified management using a single IP address, single Telnet session, single CLI, autoversion checking, auto-upgrading, auto-configuration, and more. StackWise-160 also enables local switching in

Cisco Catalyst 3650 Series Switches. (See Figure 4.)

Figure 4. StackWise-160 Kit with Stack Adapters and Cables

Foundation for Open Network Environment

The heart of the Cisco Catalyst 3650 is the UADP ASIC with programmability for future features and intelligence with investment protection. The new ASIC provides the foundation for converged APIs across wired and wireless,

Cisco Open Network Environment, software-defined networking (SDN) readiness and OnePK SDK through software updates over the product lifetime.

Software Features and Services on Cisco Catalyst 3650 Series Switches

Software services supported on the Cisco Catalyst 3650 Series Switches can be classified into five broad categories:

Ease of operations

Advanced security features

Resiliency

● Application visibility and control

Ease of Operations

The Cisco Catalyst 3650 helps reduce the operating costs through:

Cisco Catalyst Smart Operations

Easy-to-use deployment and control features

Efficient switch operations

Network management tools

Cisco Catalyst Smart Operations

Cisco Catalyst Smart Operations are a comprehensive set of capabilities that simplify LAN deployment, configuration, and troubleshooting. In addition to adaptive, always-on technologies such as StackWise-160, Cisco

Catalyst Smart Operations enable zero-touch installation and replacement of switches, fast upgrade, and ease of troubleshooting with reduced operational cost. Cisco Catalyst Smart Operations are a set of features that includes

Smart Install, Auto Smartports, Smart Configuration and Smart Troubleshooting to enhance operational excellence:

© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 8 of 29

● Cisco Smart Install is a transparent plug-and-play technology to configure the Cisco IOS Software image and switch configuration without user intervention. Smart Install utilizes dynamic IP address allocation and the assistance of other switches to facilitate installation, providing transparent network plug and play.

Cisco Auto Smartports provide automatic configuration as devices connect to the switch port, allowing auto-detection and plug and play of the device onto the network.

● Cisco Smart Troubleshooting is an extensive array of debug diagnostic commands and system health checks within the switch, including Generic Online Diagnostics (GOLD) and Onboard Failure Logging

(OBFL).

Embedded Event Manager (EEM) is a powerful and flexible feature that provides real-time network event detection and onboard automation. Using EEM, customers can adapt the behavior of their network devices to align with their business needs. This feature requires the IP Base feature set.

Easy-to-Use Deployment and Control Features

User experience:

IP service-level agreements (SLAs) enable customers to assure new business-critical IP applications, as well as IP services that utilize data, voice, and video, in an IP network. This feature requires the IP

Services feature set.

DHCP autoconfiguration of multiple switches through a boot server eases switch deployment.

Automatic QoS (AutoQoS) simplifies QoS configuration in voice over IP (VoIP) networks by issuing interface and global switch commands to detect Cisco IP phones, classify traffic, and help enable egress queue configuration.

Autonegotiation on all ports automatically selects half- or full-duplex transmission mode to optimize bandwidth.

Automatic media-dependent interface crossover (MDIX) automatically adjusts transmit and receive pairs if an incorrect cable type (crossover or straight through) is installed.

Simplified configuration and connectivity:

Dynamic Trunking Protocol (DTP) facilitates dynamic trunk configuration across all switch ports.

Port Aggregation Protocol (PAgP) automates the creation of Cisco Fast EtherChannel groups or Gigabit

EtherChannel groups to link to another switch, router, or server.

Link Aggregation Control Protocol (LACP) allows the creation of Ethernet channeling with devices that conform to IEEE 802.3ad. This feature is similar to Cisco EtherChannel technology and PAgP.

Unidirectional Link Detection Protocol (UDLD) and aggressive UDLD allow unidirectional links caused by incorrect fiber-optic wiring or port faults to be detected and disabled on fiber-optic interfaces.

Cisco VLAN Trunking Protocol (VTP) Version 3 supports dynamic VLANs and dynamic trunk configuration across all switches.

Efficient switch operation:

Switching database manager (SDM) templates, VLAN template (specific to LAN Base license level), and advanced template allow the administrator to automatically optimize the ternary content-addressable memory (TCAM) allocation to the desired features based on deployment-specific requirements.

Local proxy Address Resolution Protocol (ARP) works in conjunction with private VLAN edge to minimize broadcasts and maximize available bandwidth.

© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 9 of 29

Stacking master configuration management with Cisco StackWise-160 technology helps make sure that all switches are automatically upgraded when the master switch receives a new software version.

Automatic software version checking and updating help ensure that all stack members have the same software version.

Trivial File Transfer Protocol (TFTP) reduces the cost of administering software upgrades by downloading from a centralized location.

Network Timing Protocol (NTP) provides an accurate and consistent timestamp to all intranet switches.

Multicast:

Optimized multicast for wired plus wireless: Cisco Catalyst 3650 offers greater multicast efficiency by receiving only one multicast stream and replicating it for all connected wired plus wireless devices connected to that switch.

Internet Group Management Protocol (IGMP) v1, v2, v3 snooping for IPv4: multicast listener discovery

(MLD) v1 and v2 snooping provides fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors.

● Monitoring:

Remote Switch Port Analyzer (RSPAN) allows administrators to remotely monitor ports in a Layer 2 switch network from any other switch in the same network.

For enhanced traffic management, monitoring, and analysis, the Embedded Remote Monitoring

(RMON) software agent supports four RMON groups (history, statistics, alarms, and events).

Layer 2 traceroute eases troubleshooting by identifying the physical path that a packet takes from source to destination.

Wireless RF management provides both real-time and historical information about RF interference affecting network performance across controllers using systemwide Cisco CleanAir technology integration.

Efficient Switch Operation

Cisco Catalyst 3650 Series Switches, designed and engineered by Cisco, provide optimum power-saving, EEE, low-power operations for industry best-in-class power management and power consumption capabilities. The Cisco

Catalyst 3650 ports are capable of reduced power modes so that ports not in use can move into a lower power utilization state. Other efficient switch operation features are:

Cisco Discovery Protocol Version 2 allows the Cisco Catalyst 3650 Series Switches to negotiate a more granular power setting when connecting to a Cisco powered device such as IP phones or access points than what is provided by IEEE classification.

● Per-port power consumption command allows customers to specify a maximum power setting on an individual port. Per-port PoE power sensing measures actual power being drawn, enabling more intelligent control of powered devices.

The PoE MIB provides proactive visibility into power usage and allows customers to set different powerlevel thresholds.

Environmentally Responsible

Organizations may choose to turn off access point radios to reduce power consumption during off-peak hours.

The integrated wireless LAN controller avoids the deployment of additional devices in the network.

© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 10 of 29

Network Management Tools

The Cisco Catalyst 3650 Series Switches offer both a superior CLI for detailed configuration and Cisco Prime

™ infrastructure for unified wired plus wireless management. Cisco Prime infrastructure provides day 0 and ongoing provisioning, ongoing monitoring and maintenance, configuration templates, and device and user 360-degree views and serves as the FNF collector for user traffic views using the Cisco Prime Assurance Manager module.

For detailed information about Cisco Prime infrastructure, go to http://www.cisco.com/en/US/products/ps12239/index.html

.

Advanced Security Features

Cisco Catalyst 3650 Series Switches support advanced security features including but not limited to:

Protection against attackers:

Port security secures the access to an access or trunk port based on MAC address. It limits the number of learned MAC addresses to deny MAC address flooding.

DHCP snooping prevents malicious users from spoofing a DHCP server and sending out bogus addresses. This feature is used by other primary security features to prevent a number of other attacks such as ARP poisoning.

Dynamic ARP inspection (DAI) helps ensure user integrity by preventing malicious users from exploiting the insecure nature of ARP.

IP source guard prevents a malicious user from sp oofing or taking over another user’s IP address by creating a binding table between the client’s IP and MAC address, port, and VLAN.

The Unicast Reverse Path Forwarding (RPF) feature helps mitigate problems caused by the introduction of malformed or forged (spoofed) IP source addresses into a network by discarding IP packets that lack a verifiable IP source address.

Bidirectional data support on the SPAN port allows the Cisco intrusion detection system (IDS) to take action when an intruder is detected.

● User authentication:

Flexible authentication that supports multiple authentication mechanisms, including 802.1X, MAC authentication bypass, and web authentication using a single, consistent configuration.

RADIUS change of authorization and downloadable calls for comprehensive policy management capabilities.

Private VLANs restrict traffic between hosts in a common segment by segregating traffic at Layer 2, turning a broadcast segment into a nonbroadcast multiaccess like segment. Private VLAN edge provides security and isolation between switch ports, which helps ensure that users cannot snoop on other users

’ traffic.

Multidomain authentication allows an IP phone and a PC to authenticate on the same switch port while placing them on appropriate voice and data VLAN.

MAC address notification allows administrators to be notified of users added to or removed from the network.

Mobility and security for secure, reliable wireless connectivity and consistent end-user experience.

Increased network availability through proactive blocking of known threats.

© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 11 of 29

IGMP filtering provides multicast authentication by filtering out nonsubscribers and limits the number of concurrent multicast streams available per port.

ACLs:

Cisco security VLAN ACLs on all VLANs prevent unauthorized data flows from being bridged within

VLANs.

Cisco standard and extended IP security router ACLs define security policies on routed interfaces for control-plane and data-plane traffic. IPv6 ACLs can be applied to filter IPv6 traffic.

Port-based ACLs for Layer 2 interfaces allow security policies to be applied on individual switch ports.

Device access:

Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3

(SNMPv3) provide network security by encrypting administrator traffic during Telnet and SNMP sessions.

SSH Protocol, Kerberos, and the cryptographic version of SNMPv3 require a special cryptographic software image because of U.S. export restrictions.

TACACS+ and RADIUS authentication facilitates centralized control of the switch and restricts unauthorized users from altering the configuration.

Multilevel security on console access prevents unauthorized users from altering the switch configuration.

Bridge protocol data unit (BPDU) Guard shuts down Spanning Tree PortFast-enabled interfaces when

BPDUs are received to avoid accidental topology loops.

● Spanning Tree Root Guard (STRG) prevents edge devices not in the network administrator

’s control from becoming Spanning Tree Protocol root nodes.

Wireless end-to-end security offers CAPWAP-compliant DTLS encryption to make sure of encryption between access points and controllers across remote WAN/LAN links.

Resiliency

Borderless networks enable enterprise mobility and business-grade video services. Industry

’s first unified network

(wired plus wireless) location services enable tracking of mobile assets and the users of those assets for both wired plus wireless devices. The true borderless experience is enabled by the following feature sets in the Cisco

Catalyst 3650 Series Switches:

● High availability

High-performance IP routing

● Superior QoS

High Availability

In addition to StackWise-160, the Cisco Catalyst 3650 Series supports high-availability features including but not limited to the following:

Cross-Stack EtherChannel provides the ability to configure Cisco EtherChannel technology across different members of the stack for high resiliency.

● Flexlink provides link redundancy with convergence time less than 100ms.

IEEE 802.1s/w Rapid Spanning Tree Protocol (RSTP) and Multiple Spanning Tree Protocol (MSTP) provide rapid spanning-tree convergence independent of spanning-tree timers and also offer the benefit of Layer 2 load balancing and distributed processing. Stacked units behave as a single spanning-tree node.

© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 12 of 29

● Per-VLAN Rapid Spanning Tree (PVRST+) allows rapid spanning-tree reconvergence on a per-VLAN spanning-tree basis, without requiring the implementation of spanning-tree instances.

Switch-port autorecovery (Err-disable) automatically attempts to reactivate a link that is disabled because of a network error.

High-Performance IP Routing

The Cisco Express Forwarding hardware routing architecture delivers extremely high-performance IP routing in the

Cisco Catalyst 3650 Series Switches:

● IP unicast routing protocols (static, Routing Information Protocol Version 1 [RIPv1], and RIPv2, RIPng,

Enhanced Interior Gateway Routing Protocol [EIGRP] stub) are supported for small-network routing applications with the IP Base feature set. Limited static routing with the LAN Base feature set. Equal-cost routing facilitates Layer 3 load balancing and redundancy across the stack.

Advanced IP unicast routing protocols (Open Shortest Path First [OSPF], EIGRP, Border Gateway Protocol

Version 4 [BGPv4], and Intermediate System-to-Intermediate System Version 4 [IS-ISv4]) are supported for load balancing and constructing scalable LANs. IPv6 routing (OSPFv3, EIGRPv6) is supported in hardware for maximum performance. OSPF for routed access is included in the IP Base image. The IP Services feature set is required for full OSPF, EIGRP, BGPv4, and IS-ISv4.

● Policy-based routing (PBR) allows superior control by facilitating flow redirection regardless of the routing protocol configured. Virtual routing and forwarding (VRF)-Lite enables a service provider to support two or more VPNs, with overlapping IP addresses. The IP Base feature set is required.

Protocol-independent multicast (PIM) for IP multicast routing is supported, including PIM sparse mode

(PIM-SM), PIM dense mode (PIM-DM), PIM sparse-dense mode, and source-specific multicast (SSM).

The IP Services feature set is required.

● IPv6 addressing is supported on interfaces with appropriate show commands for monitoring and troubleshooting.

Superior QoS

The Cisco Catalyst 3650 Series offers Gigabit Ethernet speed with intelligent services that keep traffic flowing smoothly, even at 10 times the normal network speed. Industry-leading mechanisms for cross-stack marking, classification, and scheduling deliver superior performance for data, voice, and video traffic, all at wire speed.

The following are some of the QoS features supported in the Cisco Catalyst 3650 Series Switches:

Granular wireless bandwidth management and fair sharing use Cisco’s proven Cisco IOS Software and

UADP ASIC technology to provide hierarchical bandwidth management at line rate (per access point, per radio, per SSID, per client-based policies). Fair sharing across the users within an SSID makes sure that no single user is starved because of other heavy-hitting users. Fair sharing is automatically enabled for wireless at user level as well as SSID level.

802.1p CoS and DSCP field classification is provided, using marking and reclassification on a per-packet basis by source and destination IP address, MAC address, or Layer 4 Transmission Control Protocol/User

Datagram Protocol (TCP/UDP) port number.

© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 13 of 29

● Shaped round robin (SRR) scheduling helps ensure differential prioritization of packet flows by intelligently servicing the ingress queues and egress queues. Weighted tail drop (WTD) provides congestion avoidance at the ingress and egress queues before a disruption occurs. Strict priority queuing helps ensure that the highest priority packets are serviced ahead of all other traffic.

The Cisco committed information rate (CIR) function provides bandwidth in increments as low as 8 Kbps.

● Rate limiting is provided based on source and destination IP address, source and destination MAC address,

Layer 4 TCP/UDP information, or any combination of these fields, using QoS ACLs (IP ACLs or MAC

ACLs), class maps, and policy maps.

Eight egress queues per port for wired traffic and four egress queues for wireless help enable differentiated management of different traffic types across the stack for wired traffic. Up to 2000 aggregate policers are available per switch.

Application Visibility and Control Using Flexible NetFlow (FNF)

Cisco IOS Software FNF is the next generation in flow visibility technology, allowing optimization of the network infrastructure, reducing operation costs, and improving capacity planning and security incident detection with increased flexibility and scalability. The Cisco Catalyst 3650 provides optimized application visibility with FNF across wired plus wireless. The switch is capable of 48,000 flow entries on 48-port models and 24,000 flow entries on 24-port models across wired and wireless. With UADP ASIC, Cisco Catalyst 3650 delivers next-generation flow technology with unprecedented flexibility and comprehensive visibility extending from Layer 2 (MAC and VLAN) to

Layer 4 (TCP/UDP) flags and so on across wired plus wireless traffic. The Cisco Catalyst 3650 switch is Medianet capable to provide visibility and troubleshooting capabilities across wired plus wireless video traffic. Specific

Medianet features will be enabled in future software updates.

The flow data collected by FNF can be exported to an external collector for analysis and reporting or tracked by the

EEM. The Cisco Catalyst 3650 enables powerful on-box and customizable event correlation and policy actions with

EEM, allowing the switches to trigger customized event alarms or policy actions when the predefined condition is met. With no external appliance required, customers are able to use existing infrastructure to perform traffic monitoring, making traffic analysis economical even on a large IP network.

Details about Cisco FNF are available at http://www.cisco.com/en/US/prod/collateral/iosswrel/ps6537/ps6555/ps6601/ps6965/product_data_sheet0900aecd

804b590b.html

.

The Catalyst 3650 supports Wireshark, the world's foremost network protocol analyzer, and is ideal for proactive debugging, troubleshooting and network performance monitoring. Using Wireshark, a user can capture control and data wired and wireless packets, easily displaying and analyzing them on a screen or a Wireshark GUI. Using

Flexible Netflow and Embedded Event Manager, a Wireshark packet capture can be initiated in events such as

SYN flood attacks or abnormal bandwidth usage by specific users.

High-performance video over wireless integrates Cisco VideoStream technology to optimize the delivery of video applications across the WLAN.

Wired plus wireless IP telephony supports unified communications for improved collaboration through messaging, presence, and conferencing and supports all Cisco Unified Communications wireless IP phones for cost-effective, real-time voice service.

© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 14 of 29

Deployment Options

Campus

In a campus-type deployment, operating the Cisco Catalyst 3650 in the mobility agent mode and centralizing the mobility controller functionality in a WLC 5760, WLC 5508, or WiSM2 helps achieve better scalability and performance. The Cisco Catalyst 3650 provides CAPWAP termination for access points, uniform policy enforcement for wireless clients, better wireless bandwidth, and uniform Cisco IOS Software-based configuration and monitoring for wired plus wireless features. The mobility controller provides central mobility, RRM, and

CleanAir coordination.

Backward compatibility with traditional centralized wireless deployment mode on the WLC 5508, WiSM2, and WLC

5760 helps ensure that customers can migrate to the Cisco Catalyst 3650-based converged access approach in phases, providing a continued controller for existing access points. This migration also provides investment protection on the existing wireless controller infrastructure. A phased adoption of the new Cisco Catalyst 3650 helps ensure that migration to the converged access mode of wireless is seamless. Figure 5 shows the Cisco

Catalyst 3650 in a campus deployment.

Figure 5. Deploying Cisco Catalyst 3650 in a Branch Environment

© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 15 of 29

Branch

3650 is optimized for branch deployments when it operates in mobility controller mode. In this mode, not only can the switch terminate CAPWAP tunnels from the access points and provide client connectivity, it can also manage mobility within the branch. This eliminates the need for a local controller in every branch in addition to the accesslayer switches. Also, complete visibility into the wired plus wireless traffic means that the WAN router can prioritize the right wired plus wireless traffic in and out of the branch. Figure 6 shows the Cisco Catalyst 3650 in a branch deployment.

Figure 6. Deploying Cisco Catalyst 3650 in a Branch Location

© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 16 of 29

Cisco Catalyst 3650 Series Specifications

Switch Performance

Table 6 shows Cisco Catalyst 3650 Series Switches performance specifications.

Table 6.

Cisco Catalyst 3650 Performance Specifications

Performance Numbers for All Switch Models

Switching capacity

Stacking bandwidth

Total number of MAC addresses

Total number of IPv4 routes (ARP plus learned routes)

FNF entries

DRAM

Flash

VLAN IDs

Total switched virtual interfaces (SVIs)

Jumbo frame

Total routed ports per 3650 stack

Wireless

Number of access points per switch/stack

Number of wireless clients per switch/stack

Total number of WLANs per switch

Wireless bandwidth per switch

176 Gbps on 48-port models

88 Gbps on 24-port models

160 Gbps

32,000

24,000

48,000 flow on 48-port models

24,000 flows on 24-port models

4 Gb

2 Gb

4,094

1,000

9198 bytes

208

25

1000

64

Up to 40 Gbps on 48-port models

Up to 20 Gbps on 24-port models

3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040

Supported Aironet access point series

Forwarding Rate of Switch Models

Model

4 x 1 Gigabit Ethernet Uplink-Models

3650-24TS

3650-24PS

3650-48TS

3650-48PS

3650-48FS

2 x 10 Gigabit Ethernet Uplink-Models

3650-24TD

3650-24PD

3650-48TD

3650-48PD

3650-48FD

4 x 10 Gigabit Ethernet Uplink-Models

3650-48TQ

3650-48PQ

3650-48FQ

Forwarding Rate

41.66 Mpps

77.37 Mpps

68.45 Mpps

104.16 Mpps

130.95 Mpps

© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 17 of 29

Dimensions, Weight, Acoustic, Mean Time Between Failure, and Environmental Range

Specifications for Cisco Catalyst 3650 Series Switches

Table 7 shows dimensions, weight, acoustic, mean time between failure (MTBF), and environmental range. Weight includes the chassis assembly as it is shipped: three fans, two Stackwise adapters, and one power supply blank.

The weight also includes the default power supply that is shipped with the unit.

Table 7.

Dimensions, Weight, Acoustic, MTBF, and Environmental Range

Dimensions (H x W x D)

WS-C3650-24T

WS-C3650-24P

WS-C3650-48T

WS-C3650-48P

WS-C3650-48F

Weight

WS-C3650-24T

WS-C3650-24P

WS-C3650-48T

WS-C3650-48P

WS-C3650-48F

STACK-T2-BLANK

C3650-STACK-KIT

MTBF Hours

WS-C3650-24T

WS-C3650-24P

WS-C3650-48T

WS-C3650-48P

WS-C3650-48F

PWR-C2-250WAC

PWR-C2-640WAC

PWR-C2-1025WAC

PWR-C2-640WDC

FAN-T1

Environmental Ranges

With AC Power Supply

Operating Environment and Altitude

Inches

1.73 x 17.5 x 17.625

1.73 x 17.5 x 19.125

Pounds

15.15

16.00

15.90

16.75

17.20

0.1

0.25

661,800

528,280

527,580

383,760

383,760

751,642

693,692

570,259

706,759

16,661,470

Centimeters

4.4 x 44.5 x 44.8

4.4 x 44.5 x 48.6

Kilograms

6.87

7.26

7.21

7.60

7.80

0.05

0.11

Normal operating temperature

*

and altitudes:

-5ºC to +45ºC, up to 5000 feet (1500m)

-5ºC to +40ºC, up to 10,000 feet (3000m)

-5ºC to +35ºC, up to 13,000 feet (4000m)

-5ºC to +30ºC, up to 16,400 feet (5000m)

*

Minimum ambient temperature for cold start is 32°F (0°C).

Short-term

*

exceptional conditions:

-5ºC to +50ºC, up to 5000 feet (1500m)

-5ºC to +45ºC, up to 10,000 feet (3000m)

-5ºC to +40ºC, up to 13,000 feet (4000m)

-5ºC to +35ºC, up to 16,400 feet (5000m)

-5ºC to +45ºC, at sea level with single fan failure

*

Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences.

© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 18 of 29

With DC Power Supply

Operating Environment and Altitude (NEBS)

Normal operating temperature and altitudes:

-5ºC to +45ºC, up to 6000 feet (1800m)

-5ºC to +40ºC, up to 10,000 feet (3000m)

-5ºC to +35ºC, up to 13,000 feet (4000m)

-5ºC to +30ºC, up to 16,400 feet (5000m)

Short-term

*

exceptional conditions:

-5ºC to +55ºC, up to 6000 feet (1800m)

-5ºC to +50ºC, up to 10,000 feet (3000m)

-5ºC to +45ºC, up to 13,000 feet (4000m)

-5ºC to +40ºC, up to 16,400 feet (5000m)

-5ºC to +45ºC, at sealevel with single fan failure

*

Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences.

Relative Humidity

Acoustic Noise

Measured Per ISO 7779 and Declared Per

ISO 9296

Bystander Positions Operating to an

Ambient Temperature of 25°C

Storage Environment

5% to 96%, noncondensing

With AC or DC power supply (with 16 PoE+ ports loaded):

LpA: 45dB typical, 48dB maximum

LwA: 5.5B typical, 5.8B maximum

Typical: Noise emission for a typical configuration

Maximum: Statistical maximum to account for variation in production

Temperature: -40 to 158º F (-40 to 70º C)

Altitude: 16,400 ft (5,000 m)

Vibration

Shock

Operating: 0.41Grms from 3 to 500Hz with spectral break points of 0.0005 G2/Hz at 10Hz and

200Hz 5dB/octave roll off at each end.

Non-operating: 1.12Grms from 3 to 500Hz with spectral break points of 0.0065 G2/Hz at 10Hz and 100Hz 5dB/octave roll off at each end.

Operating: 30G, 2ms half sine

Non-operating: 55G, 10ms trapezoid

Connectors for Cisco Catalyst 3650 Series

Table 8 shows connectors.

Table 8.

Connectors

Connectors and cabling

Power connectors

● 1000BASE-T ports: RJ-45 connectors, 4-pair Cat-5E UTP cabling

● 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Cat-5E UTP cabling

● 100BASE-FX, 1000BASE-SX, -LX/LH, -ZX, -BX10, DWDM and CWDM SFP transceivers: LC fiber connectors

(single-mode or multimode fiber)

● 10GBASE-SR, LR, LRM, CX1 (v02 or higher) SFP+ transceivers: LC fiber connectors (single-mode or multimode fiber)

● Cisco StackWise-160 stacking ports: copper-based Cisco StackWise cabling

● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling

● Management console port: RJ-45-to-DB9 cable for PC connections

● Customers can provide power to a switch by using the internal power. The connectors are located at the back of the switch.

● Internal power supply connector: The internal power supply is an auto-ranging unit. The internal power supply supports input voltages between 100 and 240VAC. Use the supplied AC power cord to connect the AC power connector to an AC power outlet.

© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 19 of 29

Management and Standards Support for Cisco Catalyst 3650 Series Switches

Table 9 shows management and standards support for the Cisco Catalyst 3650 Series.

Table 9.

Description

Management

Management and Standards Support for the Cisco Catalyst 3650 Series

Specification

BRIDGE-MIB

CISCO-AUTH-FRAMEWORK-MIB

CISCO-BGP4-MIB, BGP4-MIB

CISCO-BRIDGE-EXT-MIB

CISCO-BULK-FILE-MIB

CISCO-CABLE-DIAG-MIB

CISCO-CALLHOME-MIB

CISCO-CEF-MIB

CISCO-CIRCUIT-INTERFACE-MIB

CISCO-ENTITY-VENDORTYPE-OID-MIB

CISCO-CONTEXT-MAPPING-MIB

CISCO-DEVICE-LOCATION-MIB

CISCO-DHCP-SNOOPING-MIB

CISCO-EIGRP-MIB

CISCO-EMBEDDED-EVENT-MGR-MIB

CISCO-ENTITY-FRU-CONTROL-MIB

CISCO-ENTITY-SENSOR-MIB

ENTITY-MIB

CISCO-ERR-DISABLE-MIB

CISCO-CONFIG-COPY-MIB

CISCO-FLOW-MONITOR-MIB

CISCO-FTP-CLIENT-MIB

CISCO-HSRP-EXT-MIB

CISCO-HSRP-MIB

CISCO-IETF-ISIS-MIB

CISCO-IF-EXTENSION-MIB

CISCO-IGMP-FILTER-MIB

CISCO-CONFIG-MAN-MIB

CISCO-IP-CBR-METRICS-MIB

CISCO-IPMROUTE-MIB

CISCO-IP-STAT-MIB

CISCO-IP-URPF-MIB

CISCO-L2L3-INTERFACE-CONFIG-MIB

CISCO-LAG-MIB

CISCO-LICENSE-MGMT-MIB

CISCO-MAC-AUTH-BYPASS-MIB

CISCO-MAC-NOTIFICATION-MIB

CISCO-MDI-METRICS-MIB

CISCO-FLASH-MIB

CISCO-OSPF-MIB

CISCO-OSPF-TRAP-MIB

CISCO-PAE-MIB

CISCO-PAGP-MIB

CISCO-PIM-MIB

CISCO-PING-MIB

CISCO-PORT-QOS-MIB

CISCO-PORT-SECURITY-MIB

CISCO-PORT-STORM-CONTROL-MIB

CISCO-POWER-ETHERNET-EXT-MIB

CISCO-SNMP-TARGET-EXT-MIB

CISCO-STACKMAKER-MIB

CISCO-MEMORY-POOL-MIB

CISCO-STP-EXTENSIONS-MIB

CISCO-SYSLOG-MIB

CISCO-TCP-MIB

CISCO-UDLDP-MIB

CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB

CISCO-VLAN-MEMBERSHIP-MIB

CISCO-VTP-MIB

EtherLike-MIB

HC-RMON-MIB

IEEE8021-PAE-MIB

IEEE8023-LAG-MIB

IF-MIB

IGMP-MIB

IGMP-STD-MIB

IP-FORWARD-MIB

IP-MIB

IPMROUTE-STD-MIB

LLDP-EXT-MED-MIB

LLDP-MIB

NOTIFICATION-LOG-MIB

OLD-CISCO-MEMORY-MIB

CISCO-CDP-MIB

POWER-ETHERNET-MIB

RMON2-MIB

RMON-MIB

SNMP-COMMUNITY-MIB

SNMP-FRAMEWORK-MIB

SNMP-MPD-MIB

SNMP-NOTIFICATION-MIB

SNMP-PROXY-MIB

SNMP-TARGET-MIB

SNMP-USM-MIB

SNMPv2-MIB

SNMP-VIEW-BASED-ACM-MIB

TCP-MIB

UDP-MIB

CISCO-IMAGE-MIB

CISCO-STACKWISE-MIB

AIRESPMACE-WIRELESS-MIB

CISCO-LWAPP-IDS-MIB

CISCO-LWAPP-AP-MIB

CISCO-LWAPP-CCX-RM-MIB

CISCO-LWAPP-CLIENT-ROAMING-MIB

CISCO-LWAPP-DOT11-CCX-CLIENT-DIAG-MIB

CISCO-LWAPP-DOT11-CCX-CLIENT-MIB

CISCO-LWAPP-DOT11-CLIENT-CCX-REPORTS-MIB

© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 20 of 29

Description

Standards

Specification

CISCO-PRIVATE-VLAN-MIB

CISCO-PROCESS-MIB

CISCO-PRODUCTS-MIB

CISCO-RF-MIB

CISCO-RTP-METRICS-MIB

CISCO-RTTMON-MIB

CISCO-SMART-INSTALL-MIB

IEEE 802.1s

IEEE 802.1w

IEEE 802.11

IEEE 802.1x

IEEE 802.1x-Rev

IEEE 802.3ad

IEEE 802.3af

IEEE 802.3at

IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports

IEEE 802.1D Spanning Tree Protocol

IEEE 802.1p CoS prioritization

IEEE 802.1Q VLAN

IEEE 802.3 10BASE-T specification

IEEE 802.3u 100BASE-TX specification

IEEE 802.3ab 1000BASE-T specification

IEEE 802.3z 1000BASE-X specification

CISCO-LWAPP-DOT11-CLIENT-MIB

CISCO-LWAPP-DOT11-MIB

CISCO-LWAPP-DOWNLOAD-MIB

CISCO-LWAPP-LINKTEST-MIB

CISCO-LWAPP-MFP-MIB

CISCO-LWAPP-MOBILITY-EXT-MIB

CISCO-LWAPP-QOS-MIB

CISCO-LWAPP-REAP-MIB

CISCO-LWAPP-ROGUE-MIB

CISCO-LWAPP-RRM-MIB

CISCO-LWAPP-SI-MIB

CISCO-LWAPP-TSM-MIB

CISCO-LWAPP-WLAN-MIB

CISCO-LWAPP-WLAN-SECURITY-MIB

RMON I and II standards

SNMPv1, SNMPv2c, and SNMPv3

Power Supply Specifications

Table 10 lists the power specifications for the Cisco Catalyst 3650 Series based on the kind of power supply used.

Table 10.

Power Specifications for Cisco Catalyst 3650 Series

Description Specification

PWR-C2-1025 WAC

Power Supply Rated Maximum

1025W

Total Output BTU (Note: 1000

BTU per hr = 293 W)

3497 BTU/hr, 1025W

Input-Voltage Range and

Frequency

(Note: ±10% of "Input-Voltage

Range”)

115-240VAC,

50-60 Hz

Input Current

Output Ratings

Output Holdup Time

Power-Supply Input

Receptacles

Power Cord Rating

12-6A

12V @ 20.83A

-54V @ 14.6A

10 ms minimum @

102.5VAC

IEC 320-C16

(IEC60320-C16)

13A

PWR-C2-640 WAC

640W

2183 BTU/hr, 640W

100-240VAC,

50-60 Hz

8-4A

12V @ 20.83A

-54V @ 7.36A

16.7 ms minimum @

100VAC

IEC 320-C16

(IEC60320-C16)

13A

© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.

PWR-C2-250 WAC

250W

853 BTU/hr, 250W

100-240VAC,

50-60 Hz

PWR-C2-640 WDC

640W

2188 BTU/hr, 640W

-36VDC to -72VDC

4-2A

12V @ 20.83A

16.7 ms minimum @

100VAC

IEC 320-C13 (IEC60320-

C13)

10A

21 - 10.5 A

12V @ 20.83A

-54V @ 7.36A

> [email protected]

Terminal strip

20A @ 100VDC

Page 21 of 29

Description

Physical Specifications

Operating Temperature

Storage Temperature

Relative Humidity Operating and Non-Operating

Noncondensing

Altitude

MTBF

EMI and EMC Compliance

Safety Compliance

LED Indicators

Specification

(H x W x D): 1.58 X 3.75

X 13.25 in (4.0 x 9.5 x

33.7 cm)

Weight: 3.55 lb

(1.61 kg)

(H x W x D): 1.58 X 3.75

X 11.75 in (4.0 x 9.5 x

29.8 cm)

Weight: 3.1 lb

(1.41 kg)

(H x W x D): 1.58 X 3.75

X 11.75 in (4.0 x 9.5 x

29.8 cm)

Weight: 2.55 lb

(1.16 kg)

For the operating temperature ranges at various altitudes of AC and

DC power supply module powered switches, see Table 1.

-40 to 158°F (-40 to 70°C)

5 to 96% noncondensing

(H x W x D): 1.58 X 3.75

X 11.75 in (4.0 x 9.5 x

29.8 cm)

Weight: 2.75 lb

(1.25 kg)

16,400 ft. (5,000 meters)

Calculated MTBF must be greater than 300,000 using Telcordia SR-332, Method 1, Issue 3. Demonstrated

MTBF is 500,000 hr (with 90% confidence level).

“AC OK”: Input power to the power supply is OK

“PS OK”: Output power from the power supply is OK

For the operating temperature ranges at various altitudes of AC and

DC power supply module powered switches, see Table 1.

-40 to 158°F (-40 to 70°C)

Power Consumption of Standalone Cisco Catalyst 3650 Series Switches

Table 11 shows power consumption of standalone Cisco Catalyst 3650 Series Switches based on Alliance for

Telecommunications Industry Solutions (ATIS) testing using IMIX distribution stream traffic, with input voltage of

115VAC @ 60 Hz, Energy Efficient Ethernet (EEE) enabled, and no PoE loading. The values given are the maximum possible power consumption numbers under the respective test scenarios.

Table 11.

Power Consumptions (in Watts) of Standalone Cisco Catalyst 3650 Series

Model

WS-C3650-24TS

WS-C3650-48TS

WS-C3650-24PS

WS-C3650-48PS

WS-C3650-48FS

WS-C3650-24TD

WS-C3650-48TD

WS-C3650-24PD

WS-C3650-48PD

WS-C3650-48FD

WS-C3650-48TQ

WS-C3650-48PQ

WS-C3650-48FQ

Fixed Uplink Power Consumption (Watts) - (No more than)

0% Traffic

4 x Gigabit Ethernet with Small

Form-Factor

Pluggable (SFP)

43.9

61.1

53.8

2 x 10 Gigabit

Ethernet with SFP+

& 2 x Gigabit

Ethernet with SFP or 4 x Gigabit

Ethernet with SFP

4 x 10 Gigabit

Ethernet with SFP+ or 4 x Gigabit

Ethernet with SFP

81.4

90.8

54.0

73.3

61.1

80.3

88.8

73.0

86.4

96.6

10% Traffic

56.4

85.1

65.3

98.7

108.7

60.8

90.9

68.3

99.1

91.9

106.5

103.4

116.2

93.9

70.1

101.5

109.4

96.7

100% Traffic

57.1

86.4

65.9

99.5

109.4

63.0

107.4

120.5

Weighted Average

55.21

82.85

64.18

97.09

106.98

60.35

89.40

67.75

97.45

105.03

90.47

102.10

114.69

© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 22 of 29

Safety and Compliance

Table 12 lists the safety and compliance information for the Cisco Catalyst 3650 Series.

Table 12.

Safety and Compliance Information for Cisco Catalyst 3650 Series

Description

Safety Certifications

Electromagnetic Emissions

Certifications

Environmental

Noise Specifications

Telco

Specification

UL 60950-1 Second Edition

CAN/CSA-C22.2 No. 60950-1 Second Edition

EN 60950-1 Second Edition

IEC 60950-1 Second Edition

GOST

NOM (obtained by partners and distributors)

47CFR Part 15 (CFR 47) Class A (FCC Part 15 Class A)

AS/NZS CISPR22 Class A

CISPR22 Class A

EN55022 Class A

ICES003 Class A

VCCI Class A

EN61000-3-2

EN61000-3-3

KN22 Class A

KCC

CNS13438 Class A

EN55024

CISPR24

KN24

Reduction of Hazardous Substances (ROHS) 5

Office Product Spec: 48dBA at 25°C (refer to ISO 7779)

Common Language Equipment Identifier (CLEI) Code

Cisco Enhanced Limited Lifetime Hardware Warranty

The Cisco Catalyst 3650 Series Switches come with an E-LLW that includes NBD delivery of replacement hardware where available and 90 days of 8x5 Cisco TAC support.

Your formal warranty statement, including the warranty applicable to Cisco software, appears in the Cisco information packet that accompanies your Cisco product. We encourage you to review carefully the warranty statement shipped with your specific product before use.

Cisco reserves the right to refund the purchase price as its exclusive warranty remedy.

For further information on warranty terms, visit http://www.cisco.com/go/warranty . Table 13 provides information about the E-LLW.

Table 13.

E-LLW Details

Device Covered

Warranty Duration

EoL Policy

Cisco E-LLW

Applies to Cisco Catalyst 3650 Series Switches.

As long as the original customer owns the product.

In the event of discontinuance of product manufacture, Cisco warranty support is limited to 5 years from the announcement of discontinuance.

Hardware Replacement Cisco or its service center will use commercially reasonable efforts to ship a replacement for NBD delivery, where available. Otherwise, a replacement will be shipped within 10 working days after receipt of the RMA request. Actual delivery times might vary depending on customer location.

© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 23 of 29

Effective Date

TAC Support

Cisco.com Access

Cisco E-LLW

Hardware warranty commences from the date of shipment to customer (and in case of resale by a Cisco reseller, not more than 90 days after original shipment by Cisco).

Cisco will provide during business hours, 8 hours per day, 5 days per week basic configuration, diagnosis, and troubleshooting of device-level problems for up to a 90-day period from the date of shipment of the originally purchased Cisco Catalyst 3650 product. This support does not include solution or network-level support beyond the specific device under consideration.

Warranty allows guest access only to Cisco.com.

Licensing for Cisco Catalyst 3650 Series Switches

The three feature sets available with all Cisco Catalyst 3650 Series Switches are:

● LAN Base: Enterprise access layer 2 switching features

IP Base: Enterprise access layer 3 switching features

● IP Services: Advanced enterprise layer 3 switching (IPv4 and IPv6) features

The LAN Base feature set offers enhanced intelligent services that include comprehensive Layer 2 features, with up to 255 VLANs. The IP Base feature set provides entry-level enterprise services in addition to all LAN Base features, with 4094 VLANs. IP Base also includes the support for wireless controller functionality (mobility agent and mobility controller role; additional access point license required for mobility controller role), routed access, smart operations, FNF, and so on. The IP Services feature set provides full enterprise services that include advanced Layer 3 features such as EIGRP, OSPF, BGP, PIM, and IPv6 routing such as OSPFv3 and EIGRPv6. All software feature sets support advanced security and MQC-based QoS.

The Cisco Catalyst 3650 Series Switches with LAN Base feature set can only stack with other Cisco Catalyst 3650

Series LAN Base switches. The same applies to IP Base and IP Services as well. A mixed stack of LAN Base switch with IP Base or IP Services feature set is not supported.

Customers can transparently upgrade the software feature set in the Cisco Catalyst 3650 Series Switches through

Cisco IOS Software CLI using the right to use (RTU)-based software upgrade process. Software activation enables the Cisco IOS Software feature sets. Based on the license’s type, Cisco IOS Software activates the appropriate feature set. License types can be changed, or upgraded, to activate a different feature set.

Access Point License for Cisco Catalyst 3650

An access point license is required for Cisco Catalyst 3650 operating in mobility controller mode. No access point license is required for 3650 operating in mobility agent mode. This functionality is included in the IP Base feature set. Other devices that can act as mobility controller are the WLC 5760, WLC 5508, and WiSM2 wireless controllers. Access point licenses can be transferred only between two 3650 switches or between 3650 and 5760 controller and vice versa.

Software Policy for Cisco Catalyst 3650 Series Switches

Customers with Cisco Catalyst LAN Base and IP Base software feature sets will be provided with maintenance updates and bug fixes designed to maintain the compliance of the software with published specifications, release notes, and industry standards compliance as long as the original end user continues to own or use the product or up to one year from the end-of-sale date for this product, whichever occurs earlier. Customers with licenses for our

IP Services software images require a service support contract such as Cisco SMARTnet

®

Service to download updates. This policy supersedes any previous warranty or software statement and is subject to change without notice.

© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 24 of 29

Cisco and Partner Services for Next-Generation Cisco Catalyst Fixed Switches

Enable the innovative, secure, intelligent edge in the Borderless Network Architecture using personalized services from Cisco and our partners. Through a discovery process that begins with understanding your business objectives, we help you integrate the next-generation Cisco Catalyst fixed switches into your architecture and incorporate network services onto that platform. Sharing knowledge and leading practices, we support your success every step of the way as you deploy, absorb, manage, and scale new technology. Choose from a flexible suite of support services designed to meet your business needs and help you maintain high-quality network performance while controlling operational costs. (See Table 14.)

Table 14.

Technical Services Available for Cisco Catalyst 3650 Switches

Technical Services

Cisco SMARTnet Service

● Around-the-clock, global access to the Cisco TAC

● Unrestricted access to the extensive Cisco.com knowledge base and tools

● Next-business-day, 8x5x4, 24x7x4, and 24x7x2 advance hardware replacement and onsite parts replacement and installation available

● Ongoing operating system software updates within the licensed feature set

● Proactive diagnostics and real-time alerts on Smart Call Home-enabled devices

Cisco Smart Foundation Service

● NBD advance hardware replacement as available

● Business hours access to SMB TAC (access levels vary by region)

● Access to Cisco.com SMB knowledge base

● Online technical resources through Smart Foundation Portal

● Operating system software bug fixes and patches

Cisco SP Base Service

● Around-the-clock, global access to the Cisco TAC

● Registered access to Cisco.com

● NBD, 8x5x4, 24x7x4, and 24x7x2 advance hardware replacement; return to factory option available

2

● Ongoing operating system software updates

1

Cisco Focused Technical Support Services

● Three levels of premium, high-touch services are available:

Cisco High-Touch Operations Management Service

Cisco High-Touch Technical Support Service

Cisco High-Touch Engineering Service

● Valid Cisco SMARTnet or SP Base contracts on all network equipment are required

Notes:

1

Cisco operating system updates include the following: maintenance releases, minor updates, and major updates within the licensed feature set.

2

Advance hardware replacement is available in various service-level combinations. For example, 8x5xNBD indicates that shipment will be initiated during the standard 8-hour business day, 5 days a week (the generally accepted business days within the relevant region), with NBD delivery. Where NBD is not available, same day ship is provided. Restrictions apply; for details, review the appropriate service descriptions.

Ordering Information

Table 15 lists ordering information for the Cisco Catalyst 3650 Series. To place an order, visit the Cisco Ordering homepage at http://www.cisco.com/en/US/ordering/or13/or8/order_customer_help_how_to_order_listing.html

.

© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 25 of 29

Table 15.

Cisco Catalyst 3650 Series Ordering Information

Product Number Product Description

Cisco Catalyst 3650 4x1G Uplink Series

WS-C3650-24TS-L

WS-C3650-48TS-L

Standalone with Optional Stacking 24 10/100/1000 Ethernet and 4x1G Uplink ports, with 250WAC power supply, 1 RU,

LAN Base feature set

Standalone with Optional Stacking 48 10/100/1000 Ethernet and 4x1G Uplink ports, with 250WAC power supply, 1 RU,

LAN Base feature set

WS-C3650-24PS-L

WS-C3650-48PS-L

WS-C3650-48FS-L

WS-C3650-24TS-S

Standalone with Optional Stacking 24 10/100/1000 Ethernet PoE+ and 4x1G Uplink ports, with 640WAC power supply, 1

RU, LAN Base feature set

Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x1G Uplink ports, with 640WAC power supply, 1

RU, LAN Base feature set

Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x1G Uplink ports, with 1025WAC power supply, 1

RU, LAN Base feature set

Standalone with Optional Stacking 24 10/100/1000 Ethernet and 4x1G Uplink ports, with 250WAC power supply, 1 RU, IP

Base feature set

WS-C3650-48TS-S

WS-C3650-24PS-S

WS-C3650-48PS-S

WS-C3650-48FS-S

WS-C3650-24TS-E

WS-C3650-48TS-E

WS-C3650-24PS-E

WS-C3650-48PS-E

Standalone with Optional Stacking 48 10/100/1000 Ethernet and 4x1G Uplink ports, with 250WAC power supply, 1 RU, IP

Base feature set

Standalone with Optional Stacking 24 10/100/1000 Ethernet PoE+ and 4x1G Uplink ports, with 640WAC power supply, 1

RU, IP Base feature set

Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x1G Uplink ports, with 640WAC power supply, 1

RU, IP Base feature set

Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x1G Uplink ports, with 1025WAC power supply, 1

RU, IP Base feature set

Standalone with Optional Stacking 24 10/100/1000 Ethernet and 4x1G Uplink ports, with 250WAC power supply, 1 RU, IP

Services feature set

Standalone with Optional Stacking 48 10/100/1000 Ethernet and 4x1G Uplink ports, with 250WAC power supply, 1 RU, IP

Services feature set

Standalone with Optional Stacking 24 10/100/1000 Ethernet PoE+ and 4x1G Uplink ports, with 640WAC power supply, 1

RU, IP Services feature set

Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x1G Uplink ports, with 640WAC power supply, 1

RU, IP Services feature set

WS-C3650-48FS-E

Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x1G Uplink ports, with 1025WAC power supply, 1

RU, IP Services feature set

Cisco Catalyst 3650 2x10G Uplink Series

WS-C3650-24TD-L

WS-C3650-48TD-L

WS-C3650-24PD-L

Standalone with Optional Stacking 24 10/100/1000 Ethernet and 2x10G Uplink ports, with 250WAC power supply, 1 RU,

LAN Base feature set

Standalone with Optional Stacking 48 10/100/1000 Ethernet and 2x10G Uplink ports, with 250WAC power supply, 1 RU,

LAN Base feature set

Standalone with Optional Stacking 24 10/100/1000 Ethernet PoE+ and 2x10G Uplink ports, with 640WAC power supply, 1

RU, LAN Base feature set

WS-C3650-24PDM-L

Standalone with Optional Stacking 24 10/100/1000 Ethernet PoE+ and 2x10G Uplink ports, with fixed 640WAC power supply, 1 RU, LAN Base feature set

WS-C3650-48PD-L

WS-C3650-48FD-L

Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 2x10G Uplink ports, with 640WAC power supply, 1

RU, LAN Base feature set

Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 2x10G Uplink ports, with 1025WAC power supply,

1 RU, LAN Base feature set

WS-C3650-24TD-S

Standalone with Optional Stacking 24 10/100/1000 Ethernet and 2x10G Uplink ports, with 250WAC power supply, 1 RU,

IP Base feature set

WS-C3650-48TD-S

Standalone with Optional Stacking 48 10/100/1000 Ethernet and 2x10G Uplink ports, with 250WAC power supply, 1 RU,

IP Base feature set

WS-C3650-24PD-S

Standalone with Optional Stacking 24 10/100/1000 Ethernet PoE+ and 2x10G Uplink ports, with 640WAC power supply, 1

RU, IP Base feature set

WS-C3650-24PDM-S Standalone with Optional Stacking 24 10/100/1000 Ethernet PoE+ and 2x10G Uplink ports, with fixed 640WAC power supply, 1 RU, IP Base feature set

WS-C3650-48PD-S

Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 2x10G Uplink ports, with 640WAC power supply, 1

RU, IP Base feature set

© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 26 of 29

Product Number Product Description

WS-C3650-48FD-S

WS-C3650-24TD-E

Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 2x10G Uplink ports, with 1025WAC power supply,

1 RU, IP Base feature set

Standalone with Optional Stacking 24 10/100/1000 Ethernet and 2x10G Uplink ports, with 250WAC power supply, 1 RU,

IP Services feature set

WS-C3650-48TD-E

Standalone with Optional Stacking 48 10/100/1000 Ethernet and 2x10G Uplink ports, with 250WAC power supply, 1 RU,

IP Services feature set

WS-C3650-24PD-E

Standalone with Optional Stacking 24 10/100/1000 Ethernet PoE+ and 2x10G Uplink ports, with 640WAC power supply, 1

RU, IP Services feature set

WS-C3650-24PDM-E Standalone with Optional Stacking 24 10/100/1000 Ethernet PoE+ and 2x10G Uplink ports, with fixed 640WAC power supply, 1 RU, IP Services feature set

WS-C3650-48PD-E

Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 2x10G Uplink ports, with 640WAC power supply, 1

RU, IP Services feature set

WS-C3650-48FD-E

Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 2x10G Uplink ports, with 1025WAC power supply,

1 RU, IP Services feature set

Cisco Catalyst 3650 4x10G Uplink Series

WS-C3650-48TQ-L

Standalone with Optional Stacking 48 10/100/1000 Ethernet and 4x10G Uplink ports, with 250WAC power supply, 1 RU,

LAN Base feature set

WS-C3650-48PQ-L

Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x10G Uplink ports, with 640WAC power supply, 1

RU, LAN Base feature set

WS-C3650-48FQ-L

Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x10G Uplink ports, with 1025WAC power supply,

1 RU, LAN Base feature set

WS-C3650-48FQM-L

Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x10G Uplink ports, with fixed 975WAC power supply, 1 RU, LAN Base feature set

WS-C3650-48TQ-S

Standalone with Optional Stacking 48 10/100/1000 Ethernet and 4x10G Uplink ports, with 250WAC power supply, 1 RU,

IP Base feature set

WS-C3650-48PQ-S

Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x10G Uplink ports, with 640WAC power supply, 1

RU, IP Base feature set

WS-C3650-48FQ-S

Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x10G Uplink ports, with 1025WAC power supply,

1 RU, IP Base feature set

WS-C3650-48FQM-S Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x10G Uplink ports, with fixed 975WAC power supply, 1 RU, IP Base feature set

WS-C3650-48TQ-E

Standalone with Optional Stacking 48 10/100/1000 Ethernet and 4x10G Uplink ports, with 250WAC power supply, 1 RU,

IP Services feature set

WS-C3650-48PQ-E

Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x10G Uplink ports, with 640WAC power supply, 1

RU, IP Services feature set

WS-C3650-48FQ-E

Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x10G Uplink ports, with 1025WAC power supply,

1 RU, IP Services feature set

WS-C3650-48FQM-E Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x10G Uplink ports, with fixed 975WAC power supply, 1 RU, IP Services feature set

Cisco Catalyst 3650 Bundles

WS-C3650-24PWS-S Catalyst 3650 24 Port PoE 4x1G Uplink w/5 AP licenses IPB

WS-C3650-24PWD-S Catalyst 3650 24 Port PoE 2x10G Uplink w/5 AP licenses IPB

WS-C3650-48FWS-S Catalyst 3650 48 Port FPoE 4x1G Uplink w/5 AP licenses IPB

WS-C3650-48FWD-S Catalyst 3650 48 Port FPoE 2x10G Uplink w/5 AP licenses IPB

WS-C3650-48FWQ-S Catalyst 3650 48 Port FPoE 4x10G Uplink w/5 AP licenses IPB

WS-C3650-48PWD-S Catalyst 3650 48 Port PoE 2x10G Uplink w/5 AP licenses IPB

WS-C3650-48PWS-S Catalyst 3650 48 Port PoE 4x1G Uplink w/5 AP licenses IPB

Cisco Catalyst 3650 Series Spare StackWise-160 Module, Cables and Blank

C3650-STACK-KIT=

Cisco Catalyst 3650 Stack Module spare

STACK-T2-50CM=

STACK-T2-1M=

Cisco StackWise-160 50CM Stacking Cable Spare

Cisco StackWise-160 1M Stacking Cable Spare

© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 27 of 29

Product Number Product Description

STACK-T2-3M=

Cisco StackWise-160 3M Stacking Cable Spare

STACK-T2-BLANK=

Cisco Catalyst 3650 Stacking Blank Spare

Cisco Catalyst 3650 Series RTU Feature License and Software Options

C3650-RTU=

Paper SW License for Cisco Catalyst 3650 Switches

C3650-48-L-E

C3650-24-S-E

C3650-24-L-S

C3650-48-L-S

Cisco Catalyst 3650 48-port LAN Base to IP Services Paper RTU License

Cisco Catalyst 3650 24-port IP Base to IP Services Paper RTU License

Cisco Catalyst 3650 24-port LAN Base to IP Base Paper RTU License

Cisco Catalyst 3650 48-port LAN Base to IP Base Paper RTU License

C3650-24-L-E

C3650-48-S-E

L-C3650-RTU=

L-C3650-48-S-E

L-C3650-48-L-S

L-C3650-48-L-E

L-C3650-24-L-S

L-C3650-24-S-E

Cisco Catalyst 3650 24-port LAN Base to IP Services Paper RTU License

Cisco Catalyst 3650 48-port IP Base to IP Services Paper RTU License

Electronic SW License for Cisco Catalyst 3650 Switches

Cisco Catalyst 3650 48-port Switch IP Base to IP Services Electronic RTU License

Cisco Catalyst 3650 48-port Switch LAN Base to IP Base Electronic RTU License

Cisco Catalyst 3650 48-port Switch LAN Base to IP Services Electronic RTU License

Cisco Catalyst 3650 24-port Switch LAN Base to IP Base Electronic RTU License

Cisco Catalyst 3650 24-port Switch IP Base to IP Services Electronic RTU License

L-C3650-24-L-E

Cisco Catalyst 3650 24-port Switch LAN Base to IP Services Electronic RTU License

Access Point Licenses

L-LIC-CT3650-UPG

Primary upgrade license SKU for Cisco 3650 wireless controller (e-delivery)

L-LIC-CTIOS-1A

1 access point adder license for Cisco IOS Software based wireless controller (e-delivery)

LIC-CT3650-UPG

LIC-CTIOS-1A

Primary upgrade license SKU for Cisco 3650 wireless controller (paper license)

1 access point adder license for the Cisco IOS Software based wireless controller (paper license)

Cisco Catalyst 3650 Series Spare Power Supplies and Fan

PWR-C2-250WAC=

250 WAC power supply spare

PWR-C2-640WAC=

640 WAC power supply spare

PWR-C2-1025WAC=

1025 WAC power supply spare

PWR-C2-640WDC=

640 WDC power supply spare

PWR-C2-BLANK=

Power supply blank spare

FAN-T1=

Fan module spare

Cisco Catalyst 3650 Series Spare Power Cords

CAB-TA-NA=

CAB-TA-AP=

AC power cord for Cisco Catalyst 3650 (North America)

AC power cord for Cisco Catalyst 3650 (Australia)

CAB-TA-AR=

CAB-TA-SW=

CAB-TA-UK=

CAB-TA-JP=

CAB-TA-250V-JP=

CAB-TA-EU=

CAB-TA-IT=

CAB-TA-IN=

CAB-TA-CN=

CAB-TA-DN=

CAB-TA-IS=

CAB-C15-CBN=

AC power cord for Cisco Catalyst 3650 (Argentina)

AC power cord for Cisco Catalyst 3650 (Switzerland)

AC power cord for Cisco Catalyst 3650 (United Kingdom)

AC power cord for Cisco Catalyst 3650 (Japan)

Japan 250VAC power cord for Cisco Catalyst 3650 (Japan)

AC power cord for Cisco Catalyst 3650 (Europe)

AC power cord for Cisco Catalyst 3650 (Italy)

AC power cord for Cisco Catalyst 3650 (India)

AC power cord for Cisco Catalyst 3650 (China)

AC power cord for Cisco Catalyst 3650 (Denmark)

AC power cord for Cisco Catalyst 3650 (Israel)

Cabinet jumper power cord, 250 VAC 13A, C14-C15 connectors

© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 28 of 29

Product Number Product Description

CAB-C15-CBN-JP=

Japan Cabinet Jumper Power Cord, 250 VAC 13A, C14-C15

Catalyst 3650 Series Spare Accessory and Rack Mount Kits

ACC-KIT-T1=

RACK-KIT-T1=

4PT-KIT-T1=

Accessory kit for Cisco Catalyst 3650 Series

Rack mount kit for Cisco Catalyst 3650 Series

Extension rails and brackets for four-point mounting for Cisco Catalyst 3650 Series

Optics Compatibility Information

The Cisco Catalyst 3650 Series supports a wide range of optics. Because the list of supported optics is updated on a regular basis, consult the tables available here for the latest SFP compatibility information: http://www.cisco.com/en/US/products/hw/modules/ps5455/products_device_support_tables_list.html

.

Cisco Capital

Financing to Help You Achieve Your Objectives

Cisco Capital can help you acquire the technology you need to achieve your objectives and stay competitive. We can help you reduce CapEx. Accelerate your growth. Optimize your investment dollars and ROI. Cisco Capital financing gives you flexibility in acquiring hardware, software, services, and complementary third-party equipment.

And there’s just one predictable payment. Cisco Capital is available in more than 100 countries.

Learn more .

Printed in USA

© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.

C78-729449-09 01/16

Page 29 of 29

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
