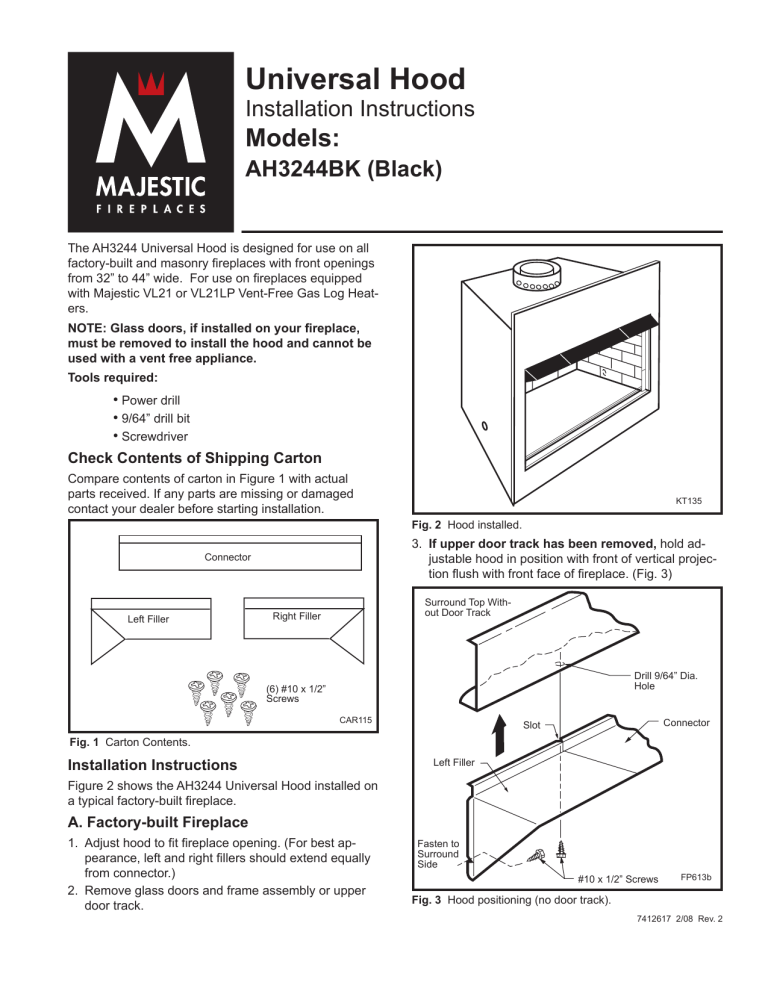

Universal Hood
Installation Instructions
Models:
AH3244BK (Black)
The AH3244 Universal Hood is designed for use on all
factory-built and masonry fireplaces with front openings
from 32” to 44” wide. For use on fireplaces equipped
with Majestic VL21 or VL21LP Vent-Free Gas Log Heaters.
NOTE: Glass doors, if installed on your fireplace,
must be removed to install the hood and cannot be
used with a vent free appliance.
Tools required:
• Power drill
• 9/64” drill bit
• Screwdriver
Check Contents of Shipping Carton
Compare contents of carton in Figure 1 with actual
parts received. If any parts are missing or damaged
contact your dealer before starting installation.
KT135
Fig. 2 Hood installed.
3. If upper door track has been removed, hold adjustable hood in position with front of vertical projection flush with front face of fireplace. (Fig. 3)
Connector
Left Filler
KT135
Ah3244
universal hood
installed
3/15/00 djt
Surround Top Without Door Track
Right Filler
Drill 9/64” Dia.
Hole
(6) #10 x 1/2”
Screws
CAR115
Connector
Slot
Fig. 1 Carton Contents.
Installation Instructions
Left Filler
Figure 2 shows the AH3244 Universal Hood installed on
a typical factory-built fireplace.
CAR115
AH3244
A. Factory-built Fireplace
Universal
Hood (For best ap1. Adjust hood to fit fireplace
opening.
carton
contents
pearance, left and right fillers should extend equally
from connector.) 3/15/00 djt
2. Remove glass doors and frame assembly or upper
door track.
Fasten to
Surround
Side
#10 x 1/2” Screws
FP613b
Fig. 3 Hood positioning (no door track).
7412617 2/08 Rev. 2
FP613b
ah3244
universal hood
3/15/00 djt
4. Drill 9/64” holes thru upper panel, using slots in top
of vertical hood projection for guides. (Fig. 3)
5. Remove any existing screws which interfere with
flush fit of hood to surround top.
6. Attach hood to surround top with #10 x 1/2” self-tapping screws, provided.
7. If upper door track remains, slide vertical projection of hood into door track and drill 9/64” holes thru
track and front panel using slots in top of vertical
hood projection for guides. (Fig. 4) Attach hood with
#10 x 1/2” screws provided.
8. Drill 9/64” holes in surround sides of fireplace and
attach filler sides with #10 x 1/2” screws. (Fig. 3)
Upper Door
Track
Drill 9/64”
Dia. Hole
Connector
Slot
B. Masonry Fireplaces
Hood installation in masonry fireplace is similar to installation in factory-built fireplaces with no door track.
1. Remove glass door assembly if one is fitted to the
fireplace.
2. Adjust hood to fit fireplace opening.
3. Hold hood in position and mark lintel using slots for
guides.
4. Drill 9/64” holes thru lintel at marked locations. (Fig.
5) NOTE: Steel lintel is more difficult to drill than
sheet metal. Two or three screws are sufficient to
hold hood in place.
5. Attach hood to lintel with #10 x 1/2” screws provided.
NOTE: It may be easier to attach hood to lintel with
pop-rivets. In this case, enlarge holes to 1/8” and
attach hood to lintel with 1/8” x 1/2” pop-rivets (not
provided).
6. Drill side attachment holes in brick with masonry
drill and attach hood to brick with suitable masonry
anchors. (Not provided)
CAUTION: If you have a polished brass hood,
remove the protective covering before lighting log
set.
Left Filler
Fasten to
Surround
Side
Slot
#10 x 1/2” Screws
Left Filler
FP613c
Fig. 4 Hood positioning (upper door track remains).
FP613b
ah3244
universal hood
3/15/00 djt
Connector
KT136
#10 x 1/2” Screws
Fig. 5 Hood positioning in masonry fireplace.
KT136
ah3244
universal hood
masonry fireplace
3/15/00 djt
CFM Corporation
2695 Meadowvale Blvd. • Mississauga, Ontario, Canada L5N 8A3
800-668-5323 • www.cfmcorp.com
