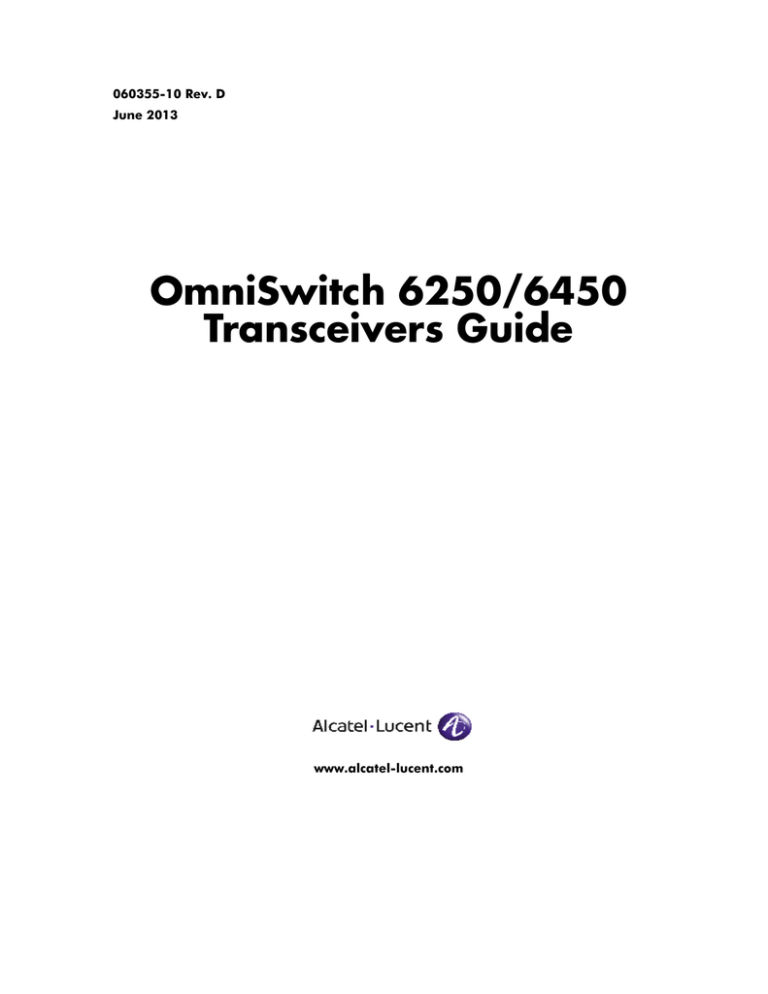

060355-10 Rev. D
June 2013
OmniSwitch 6250/6450
Transceivers Guide
www.alcatel-lucent.com
This user guide contains transceiver specifications and compatibility information for the OmniSwitch 6250/6450 switches. The information described in this guide is subject to change without
notice.
Attention: Use of any transceivers other than those part numbers listed in the Compatibility Matrices is prohibited. Failure to comply with these matrices is not guaranteed for proper performance
and may result in voiding the warranty for the affected platforms.
Copyright © 2013 by Alcatel-Lucent. All rights reserved. This document may not be reproduced in whole
or in part without the express written permission of Alcatel-Lucent.
Alcatel-Lucent® and the Alcatel-Lucent logo are registered trademarks of Alcatel-Lucent. Xylan®,
OmniSwitch®, OmniStack®, and Alcatel-Lucent OmniVista® are registered trademarks of Alcatel-Lucent.
OmniAccess™, Omni Switch/Router™, PolicyView™, RouterView™, SwitchManager™, VoiceView™,
WebView™, X-Cell™, X-Vision™, and the Xylan logo are trademarks of Alcatel-Lucent.
This OmniSwitch product contains components which may be covered by one or more of the following
U.S. Patents:
• U.S. Patent No. 6,339,830
• U.S. Patent No. 6,070,243
• U.S. Patent No. 6,061,368
• U.S. Patent No. 5,394,402
• U.S. Patent No. 6,047,024
• U.S. Patent No. 6,314,106
• U.S. Patent No. 6,542,507
• U.S. Patent No. 6,874,090
26801 West Agoura Road
Calabasas, CA 91301
(818) 880-3500 FAX (818) 880-3505
esd.support@alcatel-lucent.com
US Customer Support—(800) 995-2696
Internet—service.esd@alcatel-lucent.com
ii
OmniSwitch 6250/6450 Transceivers Guide
June 2013
Contents
Contents
About This Guide ........................................................................................................... v
Supported Platforms ........................................................................................................... v
Who Should Read this Manual? ........................................................................................ vi
When Should I Read this Manual? .................................................................................... vi
What is Not in this Manual? .............................................................................................. vi
How is the Information Organized? .................................................................................. vi
Documentation Roadmap ................................................................................................. vii
Related Documentation ...................................................................................................viii
Product Documentation ..................................................................................................... ix
Technical Support ............................................................................................................. ix
Documentation Feedback .................................................................................................. ix
Chapter 1
Small Form-Factor Pluggables (SFPs) ................................................................... 1-1
In This Chapter ................................................................................................................1-1
SFP MSA Specification ..................................................................................................1-2
SFP Transceiver Installation and Removal .....................................................................1-3
Gigabit Ethernet Transceivers .........................................................................................1-5
100 Mbit Ethernet Transceivers ....................................................................................1-11
Dual-Speed Ethernet Transceivers ................................................................................1-15
10-Gigabit SFP+ Transceivers ......................................................................................1-17
Chapter 2
SFP Compatibility Matrix ........................................................................................ 1-20
OmniSwitch 6250 ..........................................................................................................1-20
OmniSwitch 6450 ..........................................................................................................1-22
OmniSwitch 6250/6450 Transceivers Guide
iii
About This Guide
Supported Platforms
About This Guide
This OmniSwitch Transceivers Guide provides specifications and compatibility information on the
supported transceivers for the OmniSwitch 6250 and OmniSwitch 6450.
Supported Platforms
The information in this guide applies to the following products:
• OmniSwitch 6250
• OmniSwitch 6450
OmniSwitch 6250/6450 Transceivers Guide
page v
Who Should Read this Manual?
About This Guide
Who Should Read this Manual?
The audience for this user guide is network administrators and IT support personnel who need to provide
network connectivity using SFP transceivers on an OmniSwitch.
When Should I Read this Manual?
Read this guide as soon as you are ready to integrate your OmniSwitch into your network and you are
ready to provide connectivity using the supported transceivers. You should have already stepped through
the first login procedures and read the brief software overviews in the appropriate OmniSwitch 6250/6450
Getting Started Guide and OmniSwitch 6250/6450 Hardware Guide.
This guide includes information about the supported OmniSwitch transceivers.
• SFP specifications
• SFP compatibility information
What is Not in this Manual?
Procedures for switch management methods, such as CLI, web-based (WebView or OmniVista) or SNMP,
are outside the scope of this guide.
For information on WebView and SNMP switch management methods consult the OmniSwitch 6250/6450
Switch Management Guide. Information on using WebView and OmniVista can be found in the contextsensitive on-line help available with those network management applications.
This guide is designed to provide transceiver specification and compatibility information only and is not
intended as a reference for any CLI commands or configuration information. Refer to the Documentation
Roadmap for a list of available user guides.
How is the Information Organized?
Chapters in this guide are broken down by transceiver type, SFP or XPF. Additional sub-sections are
provided for the various types of transceivers.
Specification Information. Each transceiver has an associated table providing individual specifications
for all supported transceivers.
Compatibility Information. A compatibility chart is provided for each transceiver specifying which
modules or switch the transceiver is supported on.
page vi
OmniSwitch 6250/6450 Transceivers Guide
About This Guide
Documentation Roadmap
Documentation Roadmap
The OmniSwitch user documentation suite was designed to supply you with information at several critical
junctures of the configuration process. The following section outlines a roadmap of the manuals that will
help you at each stage of the configuration process. Under each stage, we point you to the manual or
manuals that will be most helpful to you.
Stage 1: Using the Switch for the First Time
Pertinent Documentation: Getting Started Guides
Release Notes
The Getting Started Guide provides the basic information you need to unpack and identify the components of your shipment. It provides information on unpacking the switch, unlocking access control, setting
the switch’s IP address, and setting up a password. It also includes overview information on fundamental
aspects of the switch, such as hardware LEDs, the software directory structure, CLI conventions, and webbased management.
At this time you should also familiarize yourself with the Release Notes that accompanied your switch.
This document includes important information on feature limitations that are not included in other user
guides.
Stage 2: Gaining Familiarity with Basic Switch Functions
Pertinent Documentation: Hardware Users Guides
Switch Management Guide
OmniSwitch Transceivers Guide
Once you have your switch up and running, you will want to begin investigating basic aspects of its hardware and software. Information about switch hardware is provided in the Hardware Guide. This guide
provide specifications, illustrations, and descriptions of all hardware components, such as chassis, power
supplies, Chassis Management Modules (CMMs), Network Interface (NI) modules, and cooling fans. It
also includes steps for common procedures, such as removing and installing switch components.
The Switch Management Guide is the primary users guide for the basic software features on a single
switch. This guide contains information on the switch directory structure, basic file and directory utilities,
switch access security, SNMP, and web-based management. It is recommended that you read this guide
before connecting your switch to the network.
Stage 3: Integrating the Switch Into a Network
Pertinent Documentation: Network Configuration Guide
When you are ready to connect your switch to the network, you will need to learn how the OmniSwitch
implements fundamental software features, such as 802.1Q, VLANs, Spanning Tree, and network routing
protocols. The Network Configuration Guide contains overview information, procedures, and examples on
how standard networking technologies are configured in the OmniSwitch.
Anytime
The OmniSwitch CLI Reference Guide contains comprehensive information on all CLI commands
supported by the switch. This guide includes syntax, default, usage, example, related CLI command, and
CLI-to-MIB variable mapping information for all CLI commands supported by the switch. This guide can
be consulted anytime during the configuration process to find detailed and specific information on each
CLI command.
OmniSwitch 6250/6450 Transceivers Guide
page vii
Related Documentation
The following are the titles and descriptions of all the related OmniSwitch AOS Release 6 user manuals:
• OmniSwitch 6250 Getting Started Guide
Describes the basic information you need to unpack and identify the components of your OmniSwitch
shipment. Also provides information on the initial configuration of the switch.
• OmniSwitch 6250 Hardware Users Guide
• Detailed technical specifications and procedures for the chassis and components. Also includes
comprehensive information on assembling and managing stacked configurations.
• OmniSwitch 6450 Getting Started Guide
Describes the basic information you need to unpack and identify the components of your OmniSwitch
shipment. Also provides information on the initial configuration of the switch.
• OmniSwitch 6450 Hardware Users Guide
Detailed technical specifications and procedures for the chassis and components. Also includes
comprehensive information on assembling and managing stacked configurations.
• OmniSwitch 6250/6450 CLI Reference Guide
Complete reference to all CLI commands supported on the OmniSwitch Series switches. Includes
syntax definitions, default values, examples, usage guidelines and CLI-to-MIB variable mappings.
• OmniSwitch 6250/6450 Switch Management Guide
Includes procedures for readying an individual switch for integration into a network. Topics include the
software directory architecture, image rollback protections, authenticated switch access, managing
switch files, system configuration, using SNMP, and using web management software (WebView).
• OmniSwitch 6250/6450 Network Configuration Guide
Includes network configuration procedures and descriptive information on all the major software
features and protocols included in the base software package. Chapters cover Layer 2 information
(Ethernet and VLAN configuration), Layer 3 information (routing protocols, such as RIP), security
options (authenticated VLANs), Quality of Service (QoS), and link aggregation.
• OmniSwitch 6250/6450 Transceivers Guide
Includes transceiver specifications and product compatibility information.
• Technical Tips, Field Notices
Includes information published by Alcatel-Lucent’s Customer Support group.
• Release Notes
Includes critical open Problem Reports, feature exceptions, and other important information on the
features supported in the current release and any limitations to their support.
All products are shipped with a Product Documentation Card that provides details for downloading documentation for all OmniSwitch and other Alcatel-Lucent data enterprise products.
All documentation is in PDF format and requires the Adobe Acrobat Reader program for viewing. Acrobat Reader freeware is available at www.adobe.com.
Note. When printing pages from the documentation PDFs, de-select Fit to Page if it is selected in your
print dialog. Otherwise pages may print with slightly smaller margins.
Technical Support
An Alcatel-Lucent service agreement brings your company the assurance of 7x24 no-excuses technical
support. You’ll also receive regular software updates to maintain and maximize your Alcatel-Lucent product’s features and functionality and on-site hardware replacement through our global network of highly
qualified service delivery partners. Additionally, with 24-hour-a-day access to Alcatel-Lucent’s Service
and Support web page, you’ll be able to view and update any case (open or closed) that you have reported
to Alcatel-Lucent’s technical support, open a new case or access helpful release notes, technical bulletins,
and manuals. For more information on Alcatel-Lucent’s Service Programs, see our web page at
service.esd.alcatel-lucent.com, call us at 1-800-995-2696, or email us at esd.support@alcatel-lucent.com.
Documentation Feedback
Alcatel-Lucent values comments on the quality and usefulness of the documentation. To send comments
on the OmniSwitch documentation use the following email address: feedback.osdocs@alcatel-lucent.com.
For document identification it's helpful to include the Document Title, Part Number and Revision (which
can be found on the title page) with any comments.
OmniSwitch 6250/6450 Transceivers Guide
page ix
Documentation Feedback
page x
About This Guide
OmniSwitch 6250/6450 Transceivers Guide
1
Small Form-Factor
Pluggables (SFPs)
OmniSwitch switches use both copper-based and fiber-based optical Small Form Factor Pluggable (SFP)
transceivers. SFPs are fully hot-swappable and are available for both short-reach and long-reach applications. Copper-based and fiber-based optical SFPs can be mixed on the same module.
In This Chapter
This chapter describes the technical specifications for all the OmniSwitch supported SFP transceivers. For
additional details about OmniSwitch modules, see the appropriate OmniSwitch Hardware Guide.
SFP specifications in this chapter include:
• SFP MSA Specifications. See “SFP MSA Specification” on page 1-2
• SFP Transceiver Installation. See “SFP Transceiver Installation and Removal” on page 1-3
• Gigabit Ethernet Transceivers. See “Gigabit Ethernet Transceivers” on page 1-5.
• 100 Mbit Ethernet Transceivers. See “100 Mbit Ethernet Transceivers” on page 1-11.
• Dual-Speed Ethernet Transceivers. See “Dual-Speed Ethernet Transceivers” on page 1-15.
• 10-Gigabit SFP+ Transceivers. See “10-Gigabit SFP+ Transceivers” on page 1-17
For information on installing and managing OmniSwitch hardware, see the appropriate Hardware Users
Guide.
For information on OmniSwitch SFP compatibility, see “SFP Compatibility Matrix” on page 2-20.
OmniSwitch 6250/6450 Transceivers Guide
page 1-1
SFP MSA Specification
Small Form-Factor Pluggables (SFPs)
SFP MSA Specification
The Small Form-Factor Pluggable (SFP) MSA (Multi Source Agreement) is a specification for a common
interface for optical modular transceivers. The SFP connector consists of a 20-pin receptacle and an SFP
housing cage. The connector provides the interface for the hot pluggable SFP module. Each SFP module
contains a serial interface to provide identification information that describes the SFP capabilities, stand
interfaces, manufacturer and other information.
For information on installing SFPs, refer to the documentation included with the transceiver.
This diagram is a representation
only; the physical appearance of the
actual module may vary slightly.
Small Form Factor Pluggable (SFP)
page 1-2
OmniSwitch 6250/6450 Transceivers Guide
Small Form-Factor Pluggables (SFPs)
SFP Transceiver Installation and Removal
SFP Transceiver Installation and Removal
Follow the instructions below for the appropriate SFP type.
ESD Caution: Before handling the module, you must discharge all static electricity on your person to
avoid Electrostatic Discharge (ESD) damage. If using a wrist strap, ensure that the wrist strap touches
your skin. Attach the other end of the strap to the chassis. If your chassis provides a grounding lug, this
can be used. Refer to your Hardware Users Guide for details.
If using a wrist strap, ensure that the wrist strap touches your skin. Attach the other end of the strap to the
chassis. If your chassis provides a grounding lug, this can be used. Refer to your Hardware Users Guide
for details.
Dust Exposure: To reduce the risk of dust exposure and physical damage, be sure to replace the protective rubber cover (provided) when the SFP is not in use.
Eye Safety: SFP transceivers are international Class 1 laser products and are eye-safe devices when operated within the limits of manufacturers’ specifications. Operating SFP transceivers in a manner inconsistent with intended usage and specification may result in hazardous radiation exposure.
Note: After removing a transceiver, wait for a minimum of 5 seconds before re-inserting any transceiver
into the same port. This allows sufficient time for software to detect the removal of the transceiver. Never
force the transceiver in or out of the transceiver slot.
Interface Slot
To remove, you must first open the SFP’s hinged face to approximately ninety
degrees. Then, grasp the hinged face and carefully pull the SFP straight out of
the slot.
When inserting a SFP, be sure that the hinged face is closed. Slide the SFP
straight into the slot until the module clicks firmly into place.
SFP Module
SFP - Hinged
OmniSwitch 6250/6450 Transceivers Guide
page 1-3
SFP Transceiver Installation and Removal
Small Form-Factor Pluggables (SFPs)
To install, align the transceiver with the transceiver slot on the
NI module, as shown. Be sure that the bail wire delatch is in the
up, or closed position. Slide the transceiver straight into the slot
until the module clicks firmly into place.
To remove, you must first pull down on the bail
wire delatch. Grip the wire delatch while it is in this
open position and carefully pull the transceiver
straight out of the slot.
SFP Transceiver
Transceiver Slot
Bail Wire Delatch
(Shown in open “removal” position; when inserting, bail
delatch must be closed.)
Network Interface (NI)
Module
SFP - Bail Wire
To install, align the transceiver with the
transceiver slot on the NI module, as
shown. Carefully slide the transceiver
back until it clicks into place; this is an
indication that the connectors are firmly
seated.
Network Interface (NI) Module
SFP Transceiver
To remove, use the ejector tool (provided
with each switch chassis) to push the transceiver’s ejector button. The ejector button is
located just below the transceiver port; refer
to the diagram for more information. The
transceiver will disengage from the connectors and eject slightly. Once disengaged, use
the clip end of the ejector tool to carefully
pull the transceiver straight out and away
from the NI module.
Transceiver Slot
Ejector
Dust Cover
SFP - Ejector Button
page 1-4
OmniSwitch 6250/6450 Transceivers Guide
Small Form-Factor Pluggables (SFPs)
Gigabit Ethernet Transceivers
Gigabit Ethernet Transceivers
SFP-GIG-SX
Gigabit SFP Optical Transceiver.
Connector Type
LC
Standards Supported
802.3z, SFP MSA
Connections Supported
1000Base-SX
Fiber Type
MMF
Wavelength
850 nm
Optical Power Output
-9.5 to -4 dBm
Receiver Sensitivity
-17 dBm
Transmission Distance
~275 m on 62.5/125µm
~550 m on 50/125µm
Operating Temperature
0 ºC to 70 ºC
Digital Diagnostic Monitoring
Not Supported
SFP-GIG-LX
Gigabit SFP Optical Transceiver.
Connector types
LC
Standards supported
802.3z, SFP MSA
Connections supported
1000Base-LX
Fiber Type
SMF
Wavelength
1310 nm
Optical Power Output
-9.5 to -3 dBm
Receiver Sensitivity
-20 dBm
Transmission Distance
10 km
Operating Temperature
-40 ºC to 85 ºC / 0 ºC to 70 ºC
Digital Diagnostic Monitoring
Not Supported
OmniSwitch 6250/6450 Transceivers Guide
page 1-5
SFP-GIG-LH40
Gigabit SFP Optical Transceiver.
Connector Type
LC
Standards Supported
802.3z, SFP MSA
Connections Supported
1000Base-LH40
Fiber Type
SMF
Wavelength
1310 nm
Optical Power Output
-2 to +3 dBm
Reciever Sensitivity
-22 dBm
Transmission Distance
~40 km
Operating Temperature
0 ºC to 70 ºC
Digital Diagnostic Monitoring
Supported
SFP-GIG-LH70
Gigabit SFP Optical Transceiver.
Connector Type
LC
Standards Supported
802.3z, SFP MSA
Connections Supported
1000Base-LH70
Fiber Type
SMF
Wavelength
1550 nm
Optical Power Output
0 to +5 dBm
Receiver Sensitivity
-22 dBm
Transmission Distance
~70 km
Operating Temperature
0 ºC to 70 ºC
Digital Diagnostic Monitoring
Supported
SFP-GIG-EXTND
Gigabit SFP Optical Transceiver.
Connector Type
LC
Standards Supported
802.3, SFP MSA
Connections Supported
-
Fiber Type
MMF
Wavelength
1310 nm
Saturation Power Output
0 dBm
Transmission Distance
~2 km
Operating Temperature
0 ºC to 70 ºC
Digital Diagnostic Monitoring
Supported
SFP-GIG-T
Gigabit SFP Copper Transceiver.
Connector Type
RJ-45
Standards Supported
802.3z, SFP MSA
Connections supported
10/100/1000Base-T
Cable Type
CAT5, CAT5e, CAT6
Transmission Distance
100 m
Digital Diagnostic Monitoring
Not Supported
OmniSwitch 6250/6450 Transceivers Guide
page 1-7
Gigabit Ethernet Transceivers
Small Form-Factor Pluggables (SFPs)
SFP-GIG-BX-D
Bi-Directional SFP Optical Transceiver.
Connector Type
LC
Standards Supported
802.3ah, SFP MSA
Connections Supported
1000Base-BX10
Fiber Type
SMF
Wavelength
Transmit: 1490 mm
Receive: 1310 nm
Average Power Output
-9 to -3 dBm
Receiver Sensitivity
-19.5 dBm
Transmission Distance
~10 km
Operating Temperature
0 ºC to 70 ºC
Digital Diagnostic Monitoring
Supported
Notes
Designed for use with SFP-GIG-BX-U
SFP-GIG-BX-U
Bi-Directional SFP Optical Transceiver.
Connector Type
LC
Standards Supported
802.3ah, SFP MSA
Connections Supported
1000Base-BX10
Fiber Type
SMF
Wavelength
Transmit: 1310 nm
Receive: 1490 nm
Average Power Output
-9 to -3 dBm
Receiver Sensitivity
-19.5 dBm
Transmission Distance
~10 km
Operating Temperature
0 ºC to 70 ºC
Digital Diagnostic Monitoring
Supported
Notes
Designed for use with SFP-GIG-BX-D
page 1-8
OmniSwitch 6250/6450 Transceivers Guide
Small Form-Factor Pluggables (SFPs)
Gigabit Ethernet Transceivers
SFP-GIG-BX-D20
Bi-Directional SFP Optical Transceiver.
Connector Type
LC
Standards Supported
802.3ah, SFP MSA
Connections Supported
1000Base-BX20
Fiber Type
SMF
Wavelength
Transmit: 1490 mm
Receive: 1310 nm
Average Power Output
-8 to -3 dBm
Receiver Sensitivity
-23 dBm
Transmission Distance
~20 km
Operating Temperature
-5ºC to 70ºC
Digital Diagnostic Monitoring
Supported
Notes
Designed for use with SFP-GIG-BX-U20
SFP-GIG-BX-U20
Bi-Directional SFP Optical Transceiver.
Connector Type
LC
Standards Supported
802.3ah, SFP MSA
Connections Supported
1000Base-BX20
Fiber Type
SMF
Wavelength
Transmit: 1310 nm
Receive: 1490 nm
Average Power Output
-8 to -3 dBm
Receiver Sensitivity
-23 dBm
Transmission Distance
~20 km
Operating Temperature
-5ºC to 70ºC
Digital Diagnostic Monitoring
Supported
Notes
Designed for use with SFP-GIG-BX-D20
OmniSwitch 6250/6450 Transceivers Guide
page 1-9
Gigabit Ethernet Transceivers
Small Form-Factor Pluggables (SFPs)
SFP-GIG-CWD
Coarse Wavelength Division Multiplexing (CWDM) is an optical transceiver supporting single-mode fiber
over various wavelengths. CWDMs are hot-pluggable and are available for long-reach applications.
Connector Type
LC
Standards Supported
802.3z, SFP MSA
Connections Supported
1000Base-LX
Fiber Type
SMF
Wavelength
1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610
Optical Power Output
-2 to +3 dBm
Receiver Sensitivity
-24 dBm
Transmission Distances
~62 km
Operating Temperature
-5 ºC to 70 ºC
Digital Diagnostic Monitoring
Not Supported
page 1-10
OmniSwitch 6250/6450 Transceivers Guide
Small Form-Factor Pluggables (SFPs)
100 Mbit Ethernet Transceivers
100 Mbit Ethernet Transceivers
SFP-100-BX20LT
Bi-Directional SFP Optical Transceiver.
Connector Type
SC
Standards Supported
802.3ah, SFP MSA, ITU-T G.983
Connections Supported
100Base-BX
Fiber Type
SMF
Wavelength
Transmit: 1550 mm
Receive: 1310 nm
Average Power Output
-14 to -8 dBm
Receiver Sensitivity
-32 dBm
Transmission Distance
~20 km
Operating Temperature
0 ºC to 70 ºC
Digital Diagnostic Monitoring
Supported
Notes
Designed for use with SFP-100-BX20NU
SFP-100-BX20NU
Bi-Directional SFP Optical Transceiver.
Connector Type
SC
Standards Supported
802.3ah, SFP MSA, ITU-T G.983
Connections Supported
100Base-BX
Fiber Type
SMF
Wavelength
Transmit: 1310 nm
Receive: 1550 nm
Average Power Output
-14 to -8 dBm
Receiver Sensitivity
-32 dBm
Transmission Distance
~20 km
Operating Temperature
0 ºC to 70 ºC
Digital Diagnostic Monitoring
Supported
Notes
Designed for use with SFP-100-BX20LT
OmniSwitch 6250/6450 Transceivers Guide
page 1-11
SFP-100-BXLC-D
Bi-Directional SFP Optical Transceiver.
Connector Type
LC
Standards Supported
802.3ah, SFP MSA, ITU-T G.983
Connections Supported
100Base-BX
Fiber Type
SMF
Wavelength
Transmit: 1550 mm
Receive: 1310 nm
Average Power Output
-14 to -8 dBm
Receiver Sensitivity
-32 dBm
Transmission Distance
~20 km
Operating Temperature
0 ºC to 70 ºC
Digital Diagnostic Monitoring
Supported
Notes
Designed for use with SFP-100-BXLC-U
SFP-100-BXLC-U
Bi-Directional SFP Optical Transceiver.
Connector Type
LC
Standards Supported
802.3ah, SFP MSA, ITU-T G.983
Connections Supported
100Base-BX
Fiber Type
SMF
Wavelength
Transmit: 1310 nm
Receive: 1550 nm
Average Power Output
-14 to -8 dBm
Receiver Sensitivity
-32 dBm
Transmission Distance
~20 km
Operating Temperature
0 ºC to 70 ºC
Digital Diagnostic Monitoring
Supported
Notes
Designed for use with SFP-100-BXLC-D
SFP-100-LC-MM
SFP Optical Transceiver.
Connector Type
LC
Standards Supported
802.3u, SFP MSA
Connections supported
100Base-FX
Fiber Type
MMF
Wavelength
1310 nm
Optical Power Output
-19 to -14 dBm on 62.5/125µm
-22 to -14 dBm on 50/125µm
Transmission Distance
~2 km on 62.5/125µm
~2 km on 50/125µm
Operating Temperature
0 ºC to 70 ºC
Digital Diagnostic Monitoring
Not Supported
SFP-100-LC-SM15
SFP Optical Transceiver.
Connector Type
LC
Standards Supported
802.3u, SFP MSA
Connections Supported
100Base-FX
Fiber Type
SMF
Wavelength (nm)
1310 nm
Optical Power Output
-15 to -8 dBm
Receiver Sensitivity
-34 dBm
Transmission Distance
~15 km
Operating Temperature
0 ºC to 70 ºC
Digital Diagnostic Monitoring
Not Supported
SFP-100-LC-SM40
SFP Optical Transceiver.
Connector Type
LC
Standards Supported
802.3u, SFP MSA
Connections Supported
100Base-FX
Fiber Type
SMF
Wavelength
1310 nm
Optical Power Output
-15 to -8 dBm
Receiver Sensitivity
-34 dBm
Transmission Distances
~40 km
Operating Temperature
0 ºC to 70 ºC
Digital Diagnostic Monitoring
Not Supported
Dual-Speed Ethernet Transceivers
SFP-DUAL-BX-D
Dual-Speed Bi-Directional SFP Optical Transceiver.
Connector Type
LC
Standards Supported
802.3z, SFP MSA
Connections Supported
1000BASE-BX10-D
Fiber Type
SMF
Wavelength
Transmit: 1550 nm
Receive: 1310 nm
Average Power Output
-9 to -3 dBm
Receiver Sensitivity
-18.7 dBm
Transmission Distance
~ 10 km
Operating Temperature
0 ºC to 70 ºC
Digital Diagnostic Monitoring
Not Supported
SFP-DUAL-BX-U
Dual-Speed Bi-Directional SFP Optical Transceiver.
Connector Type
LC
Standards Supported
802.3z, SFP MSA
Connections Supported
1000BASE-BX10-U
Fiber Type
SMF
Wavelength
Transmit: 1310 nm
Receive: 1550 nm
Average Power Output
-9 to -3 dBm
Receiver Sensitivity
-18.7 dBm
Transmission Distances
~ 10 km
Operating Temperature
0 ºC to 70 ºC
Digital Diagnostic Monitoring
Not Supported
SFP-DUAL-SM10
Dual-Speed SFP Optical Transceiver.
Connector Type
LC
Standards Supported
802.3z, 802.3ah, SFP MSA
Connections Supported
100Base-LX, 1000Base-LX
Fiber Type
SMF
Wavelength
1310 nm
Average Power Output
100Base-LX: -15 to -8 dBm
1000Base-LX: -9.5 to -3 dBm
Receiver Sensitivity
100Base-LX: -28
1000Base-LX: -22
Transmission Distances
10 km
Operating Temperature
0ºC to 70ºC
Digital Diagnostic Monitoring
Not Supported
Notes:
Transceiver may take between 10 and 20 seconds to initialize when first
inserted.
Small Form-Factor Pluggables (SFPs)
10-Gigabit SFP+ Transceivers
10-Gigabit SFP+ Transceivers
SFP-10G-SR
10-Gigabit SFP+ Optical Transceiver.
Connector Type
LC
Standards Supported
802.3 Clause 52
Connections supported
10GBase-SR
Fiber Type
MMF
Wavelength
850 nm
Optical Power Output
-7.3 to -1.3 dBm
Receiver Sensitivity
-11.1 dBm
Transmission Distance
~ 300 m
Operating Temperature
0 ºC to 70ºC
Digital Diagnostic Monitoring
Supported
SFP-10G-LR
10-Gigabit SFP+ Optical Transceiver.
Connector Type
LC
Standards Supported
802.3 Clause 52
Connections supported
10GBase-LR
Fiber Type
SMF
Wavelength
1310 nm
Optical Power Output
-8.2 to 0.5 dBm
Receiver Sensitivity
-12.6 dBm
Transmission Distance
~ 10 km
Operating Temperature
0 ºC to 70ºC
Digital Diagnostic Monitoring
Supported
OmniSwitch 6250/6450 Transceivers Guide
page 1-17
SFP-10G-ER
10-Gigabit SFP+ Optical Transceiver.
Connector Type
LC
Standards Supported
802.3ae
Connections supported
10GBase-E
Fiber Type
SMF
Wavelength
1550 nm
Optical Power Output
-4.7 to 4.0 dBm
Receiver Sensitivity
-14.1 dBm
Transmission Distance
~ 40 km
Operating Temperature
0 ºC to 70 ºC
Digital Diagnostic Monitoring
Supported
SFP-10G-LRM
10-Gigabit SFP+ Optical Transceiver.
Connector Type
LC
Standards Supported
802.3aq
Connections supported
10GBase-LRM
Fiber Type
MMF
Wavelength
1310 nm
Optical Power Output
-6.5 to .5 dBm
Receiver Sensitivity
-6.5 dBm
Transmission Distance
~ 220 m
Operating Temperature
0 ºC to 70ºC
Digital Diagnostic Monitoring
Supported
SFP-10G-C
10-Gigabit SFP+ Copper Transceiver.
Connector Type
Direct Attached
Standards Supported
802.3ae
Cable Length
60cm, 1m, 3m, 7m1
Wire Gauge
24AWG
Bend Radius
1.25 in.
Digital Diagnostic Monitoring
Not Supported
1
Check for availability of lengths.
SFP-10G-GIG-SR
10-Gigabit SFP+ Optical Transceiver.
Connector Type
LC
Standards Supported
802.3-2005
Connections supported
10GBase-SR/SW, 1000Base-SX
Fiber Type
MMF
Wavelength
850 nm
Optical Power Output
-5 to -1 @ 10G
-9.5 to -1dBm @ 1G
Receiver Sensitivity
-11.1 dBm @ 10G
-17 dBm @ 1G
Transmission Distance
OM1: ~33m @ 10G, ~275m @ 1G
OM2: ~82m @ 10G, ~550m @ 1G
OM3: ~300m @ 10G, ~550m @ 1G
Operating Temperature
0 ºC to 70ºC
Maximum Power Consumption
<1.0 Watt
Digital Diagnostic Monitoring
Supported
OmniSwitch 6250
SFP Compatibility Matrix
SFP Compatibility Matrix
OmniSwitch 6250
The following table shows the Ethernet transceiver configurations and the minimum release required for
support on the OmniSwitch 6250:
SFP
OS6250
SFP-GIG-SX
6.6.1
SFP-GIG-LX
6.6.1
SFP-GIG-LH40
6.6.1
SFP-GIG-LH70
6.6.1
SFP-GIG-EXTND
6.6.1
SFP-GIG-T
6.6.1
SFP-GIG-BX-D
6.6.1
SFP-GIG-BX-U
6.6.1
SFP-GIG-BX-D20
Not Supported
SFP-GIG-BX-U20
Not Supported
SFP-GIG-CWD
Not Supported
1
6.6.1
SFP-100-BX20NU1
6.6.1
SFP-100-BX20LT
1
SFP-100-BXLC-D
6.6.1
1
6.6.1
SFP-100-LC-MM1
6.6.1
SFP-100-BXLC-U
SFP-100-LC-SM15
1
6.6.1
SFP-100-LC-SM40
1
6.6.1
SFP-DUAL-BX-D
Not Supported
SFP-DUAL-BX-U
Not Supported
SFP-DUAL-SM10
Not Supported
SFP-10G-SR
Not supported
SFP-10G-LR
Not supported
SFP-10G-ER
Not supported
SFP-10G-LRM
Not supported
SFP-10G-C
Not supported
page 2-20
OmniSwitch 6250/6450 Transceivers Guide
SFP
SFP-10G-GIG-SR
1. Only supported on combo ports @ 100Mbps speed.
OS6250
Not Supported
OmniSwitch 6450
The following table shows the Ethernet transceiver configurations and the minimum release required for
support on the OmniSwitch 6450:
SFP
OS6450
SFP-GIG-SX
6.6.3
SFP-GIG-LX
6.6.3
SFP-GIG-LH40
6.6.3
SFP-GIG-LH70
6.6.3
SFP-GIG-EXTND
6.6.4
SFP-GIG-T1
6.6.3
SFP-GIG-BX-D
6.6.3
SFP-GIG-BX-U
6.6.3
SFP-GIG-BX-D20
6.6.4
SFP-GIG-BX-U20
6.6.4
SFP-GIG-CWD
6.6.3
SFP-100-BX20LT2
6.6.3
2
6.6.3
SFP-100-BXLC-D2
6.6.3
2
6.6.3
2
6.6.3
SFP-100-BX20NU
SFP-100-BXLC-U
SFP-100-LC-MM
SFP-100-LC-SM15
2
6.6.3
SFP-100-LC-SM40
2
6.6.3
SFP-DUAL-BX-D
6.6.3
SFP-DUAL-BX-U
SFP-DUAL-SM10
6.6.3
3
6.6.4
SFP-10G-SR
6.6.3
SFP-10G-LR
6.6.3
SFP-10G-ER
6.6.3
SFP-10G-LRM
6.6.3
SFP-10G-C
SFP-10G-GIG-SR
6.6.3
3
6.6.4
1. 6450-U24 supports 10/100/1000 on user ports and combo ports.
2. Supported on 6450-U24 user ports and combo ports. Not supported on 1G/10G uplink ports or expansion modules.
3. This transceiver is not supported in the initial 6.6.4.R01 GA release but support will be added in the
near future. Please Contact Service & Support for information.
