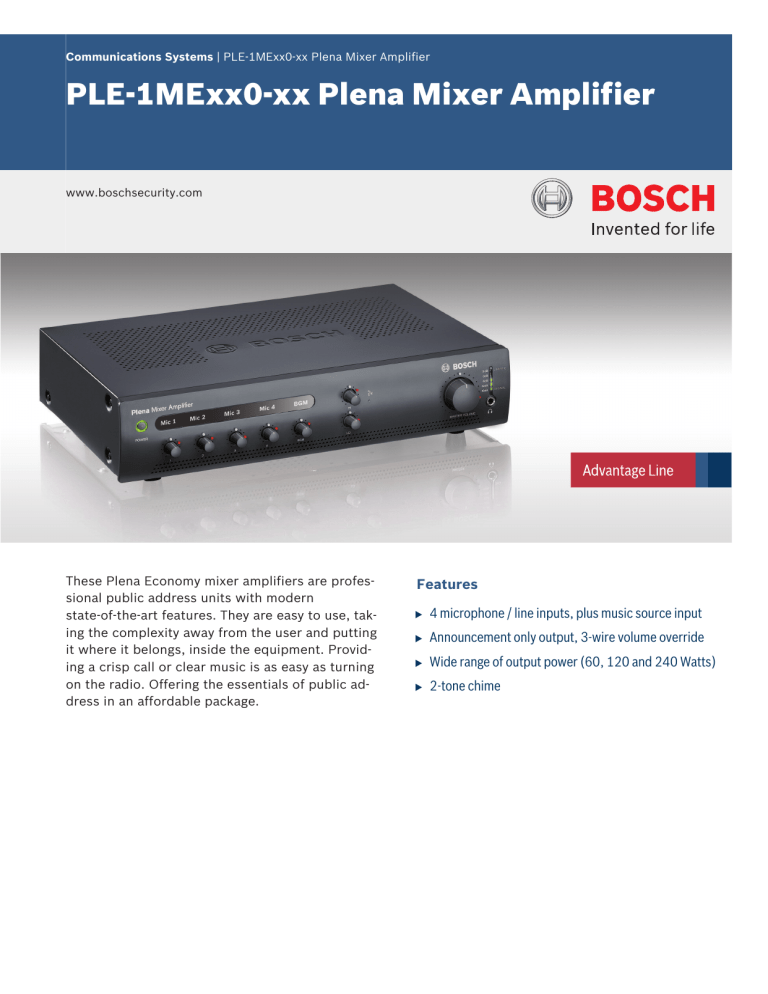

Bosch | PLE-1MEXX0-XX | PLE‑1MExx0‑xx Plena Mixer Amplifier

Communications Systems | PLE‑1MExx0‑xx Plena Mixer Amplifier
PLE‑1MExx0‑xx Plena Mixer Amplifier
www.boschsecurity.com
These Plena Economy mixer amplifiers are professional public address units with modern
state‑of‑the‑art features. They are easy to use, taking the complexity away from the user and putting
it where it belongs, inside the equipment. Providing a crisp call or clear music is as easy as turning
on the radio. Offering the essentials of public address in an affordable package.
Features
u
4 microphone / line inputs, plus music source input
u
Announcement only output, 3‑wire volume override
u
Wide range of output power (60, 120 and 240 Watts)
u
2‑tone chime
2 | PLE‑1MExx0‑xx Plena Mixer Amplifier
Technical specifications
Electrical
Mains power supply
Voltage -EU versions
Voltage -CN versions
Voltage -US versions
Inrush current
PLE‑1ME060‑EU or -CN
Inrush current
PLE‑1ME120‑EU or -CN
Inrush current
PLE‑1ME240‑EU or -CN
Inrush current
PLE‑1ME060‑US
Inrush current
PLE‑1ME120‑US
Inrush current
PLE‑1ME240‑US
Power consumption
PLE‑1ME060‑xx
PLE‑1ME120‑xx
PLE‑1ME240‑xx
Performance
Frequency response
(Line)
Frequency response
(Mic.)
Distortion
Bass Control
Treble Control
Mic./Line input
Input 1 (push-to-talk
contact with priority)
Input 2
Input 3 and 4
Sensitivity
Impedance
Dynamic range
S/N (flat at max volume)
S/N (flat at min volume/
muted)
CMRR (mic.)
Headroom
Speech filter
Phantom power supply
Music input
Connector
Sensitivity
Impedance
S/N (flat at max volume)
S/N (flat at min volume/
muted)
Headroom
Loudspeaker output
Connector
Max / rated
PLE-1ME060‑xx
Max / rated
PLE-1ME120‑xx
Max / rated
PLE-1ME240‑xx
230 VAC ±10%, 50/60 Hz (reduced power at lower
mains voltage)
220 VAC ±10%, 50/60 Hz (reduced power at lower
mains voltage)
120 VAC ±10%, 50/60 Hz (reduced power at lower
mains voltage)
5A
10 A
12 A
10 A
20 A
24 A
200 VA
400 VA
800 VA
Loudspeaker output
4 ohm
Connector
PLE-1ME060-xx
PLE-1ME120-xx
PLE-1ME240-xx
Mechanical
Dimensions (H x W x D)
Mounting
Color
Weight
PLE-1ME060-xx
PLE-1ME120-xx
PLE-1ME240-xx
Environmental
Operating temperature
Storage temperature
Relative humidity
Acoustic noise level of
fan
Screw terminal, floating
15.5 V (60 W)
22 V (120 W)
31 V (240 W)
100 x 430 x 270 mm
(19" wide, 2U high)
Stand-alone, 19" rack
Charcoal
Approx. 6.5 kg
Approx. 8.9 kg
Approx. 10.5 kg
-10 ºC to +45 ºC
-40 ºC to +70 ºC
<95%
<48 dB SPL @ 1 m
(PLE-1ME240-xx)
Certifications and approvals
60 Hz to 20 kHz (+1/‑3 dB @ ‑10 dB ref. rated output)
70 Hz to 20 kHz (+1/‑3 dB @ ‑10 dB ref. rated output)
<1% @ rated output power, 1 kHz
Max. ± 8 dB
Max. ± 8 dB
4x
5‑pin Euro style, balanced, phantom
Safety
EMC emission
EMC immunity
Parts included
3‑pin Euro style, balanced, phantom
TRS Jack (1/4, 6.3mm) balanced
1 mV (mic.); 300 mV (line)
>1 kohm (mic.); >5 kohm (line)
93 dB
>63 dB (mic.); >70 dB (line)
>75 dB
Ordering information
PLE‑1ME060‑EU Plena Mixer Amplifier
PLE‑1ME120‑EU Plena Mixer Amplifier
PLE‑1ME240‑EU Plena Mixer Amplifier
PLE‑1ME060‑US Plena Mixer Amplifier
PLE‑1ME120‑US Plena Mixer Amplifier
PLE‑1ME240‑US Plena Mixer Amplifier
PLE‑1ME060‑CN Plena Mixer Amplifier
PLE‑1ME120‑CN Plena Mixer Amplifier
PLE‑1ME240‑CN Plena Mixer Amplifier
>40 dB (50 Hz to 20 kHz)
>25 dB
-3 dB @ 315 Hz, high-pass, 6 dB/oct
16 V via 1.2 kohm (mic.)
Cinch, stereo converted to mono
200 mV
22 kohm
>75 dB
>80 dB
>25 dB
Screw terminal, floating
90 W / 60 W
180 W / 120 W
360 W / 240 W
Quantity
1
1
1
1
acc. to EN 60065
acc. to EN 55103‑1
acc. to EN 55103‑2
Components
PLE-1MExx0‑xx Plena Mixer Amplifier
Power cord
Manual
Plena Easy Line CD
PLE-1ME060-EU
PLE-1ME120-EU
PLE-1ME240-EU
PLE‑1ME060‑US
PLE‑1ME120‑US
PLE‑1ME240‑US
PLE‑1ME060‑CN
PLE‑1ME120‑CN
PLE‑1ME240‑CN
PLE‑1MExx0‑xx Plena Mixer Amplifier | 3
