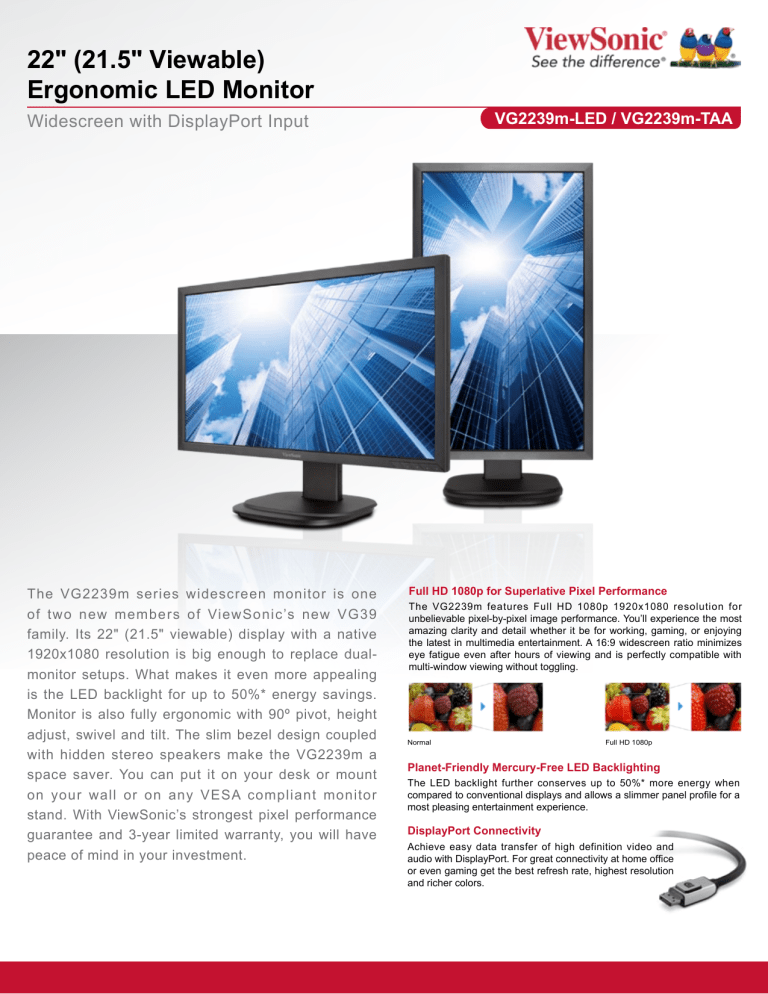

ViewSonic | VG2239m-LED | VG2239m-LED Datasheet Hires (English,US)

22" (21.5" Viewable)
Ergonomic LED Monitor
VG2239m-LED / VG2239m-TAA
Widescreen with DisplayPort Input
The VG2239m series widescreen monitor is one
of two new members of ViewSonic’s new VG39
family. Its 22" (21.5" viewable) display with a native
1920x1080 resolution is big enough to replace dualmonitor setups. What makes it even more appealing
is the LED backlight for up to 50%* energy savings.
Monitor is also fully ergonomic with 90º pivot, height
adjust, swivel and tilt. The slim bezel design coupled
with hidden stereo speakers make the VG2239m a
space saver. You can put it on your desk or mount
on your wall or on any VESA compliant monitor
stand. With ViewSonic’s strongest pixel performance
guarantee and 3-year limited warranty, you will have
peace of mind in your investment.
Full HD 1080p for Superlative Pixel Performance
The VG2239m features Full HD 1080p 1920x1080 resolution for
unbelievable pixel-by-pixel image performance. You’ll experience the most
amazing clarity and detail whether it be for working, gaming, or enjoying
the latest in multimedia entertainment. A 16:9 widescreen ratio minimizes
eye fatigue even after hours of viewing and is perfectly compatible with
multi-window viewing without toggling.
Normal
Full HD 1080p
Planet-Friendly Mercury-Free LED Backlighting
The LED backlight further conserves up to 50%* more energy when
compared to conventional displays and allows a slimmer panel profile for a
most pleasing entertainment experience.
DisplayPort Connectivity
Achieve easy data transfer of high definition video and
audio with DisplayPort. For great connectivity at home office
or even gaming get the best refresh rate, highest resolution
and richer colors.
22" (21.5" Viewable)
Ergonomic LED Monitor
VG2239m-LED / VG2239m-TAA
20,000,000:1 MEGA Dynamic Contrast Ratio
Dynamic contrast ratio detects the brightness of an image, and automatically
adjusts the backlight to maximize the monitor’s color range and contrast.
Dynamic contrast ratio technology enables the accurate reproduction of
images, producing vibrant and rich visual effects.
Normal
Kensington Security Lock
VESA Wall Mount
Dynamic Contrast Ratio
Efficiency & Comfort
The VG2239m is one of the great examples of an ergonomically designed
tool. Based on your height, chair and desk conditions, you can adjust it up and
down for 5.3 inches, swivel it 360°, or tilt it 20° degrees, whatever makes you
more comfortable.
USB x2
AC In
USB
Audio In
Upstream
Height
Swivel
Tilt
DVI-D Headphone
DisplayPort VGA
Pivot
Specifications
LCD PANEL
Type
Display Area
Optimum Resolution
Brightness
Contrast Ratio
Dynamic Contrast Ratio
Viewing Angles
Response Time
Backlight
Backlight Life
Aspect Ratio
Panel Surface
INPUT
AUDIO OUTPUT
Analog
Digital
Sync
Frequency
Speakers
22" (21.5" Viewable) Wide Color TFT Active Matrix LED
18.8" horizontal x 10.6" vertical; 21.5" diagonal
1920x1080
250 cd/m2 (typ)
1000:1 static (typ)
20,000,000:1 dynamic
170º horizontal, 160º vertical
5ms (typ.)
White-light LED
30,000 hours (min)
16:9
Anti-glare, hard-coating (3H)
RGB analog (75 ohms, 0.7 / 1.0 Vp-p)
DVI-D (TMDS, 100 ohms), Display Port
H/V separated (TTL)
Fh = 24 ~ 82 kHz ; Fv = 50 ~ 75 Hz
2 watt (x2)
COMPATIBILITY
PC
Mac®
VGA up to 1920x1080 @ 60Hz (preferred)
Power Mac (up to 1920x1080)
CONNECTOR
Analog
Digital
Audio
Power
15-pin mini D-sub (VGA)
DVI-D (with HDCP), DisplayPort
3.5mm Audio In
3.5mm Headphones
Internal Power Board, 3-pin plug (CEE22)
POWER
Voltage
Consumption
AC 100–240V (universal), +/-10% Wide Range
22W (typ)
Optimize: 18W (typ)
Conserve: 15W (typ)
CONTROLS
Basic
OSD
Power, 1, down, up, 2
Auto Image Adjust, Contrast/Brightness, Input Select (D-SUB,
DVI, DisplayPort), Audio adjust (Volume Mute), Audio Input,
Color Adjust (sRGB, 9300K, 7500K, 6500K, 5000K, User
Color [R, G, B]), Information, Manual Image Adjust (H/V
Position, Horizontal Size, Fine Tune, Sharpness, Dynamic
Contrast, Response Time, Aspect Ratio, Eco-mode), Setup
Menu (Language, Resolution Notice, OSD Position, OSD
Timeout, OSD, Background, Auto Power Off), Memory Recall
ERGONOMICS
Tilt-5-20º
Swivel360º
Height Adjust 5.3" (0-135mm)
Pivot0-90º
OPERATING
CONDITIONS
Temperature
Humidity
DIMENSIONS
(W x H x D)
Physical with stand
Physical without stand
Packaging
WEIGHT
Net with stand
Net without stand
Gross
32–104ºF (0–40ºC)
10–90% (non-condensing)
20.2 x 16.5 x 9.4 in. / 512.4 x 418 x 239.6 mm
20.2 x 12 x 2.2 in. / 512.4 x 304.4 x 56.4 mm
22.9 x 19 x 7.4 in. / 581 x 483 x 187 mm
10.3 lb. / 4.7 kg
7.1 lb. / 3.2 kg
14.8 lb. / 6.7 kg
WALL MOUNTVESA® 100 x 100 mm
REGULATIONS
UL/cUL, FCC-B, ENERGY STAR®, EPEAT(Gold),
Mexico Energy, NOM, WEEE, RoHS, CE, CB
RECYCLE/DISPOSAL
Please dispose of in accordance with local,
state or federal laws.
WARRANTY
Three-year limited warranty on parts, labor and backlight
COUNTRY OF ORIGIN VG2239m-LEDChina
VG2239m-TAAMexico
What's in the box?
VG2239m LED Display, Power Cable, VGA Video Cable, DVI Cable, Audio Cable, USB Cable,
ViewSonic Wizard CD-ROM, Quick Start Guide
ViewSonic Corporation’s QMS & EMS
have been registered to ISO 9001 & ISO
14001, respectively, by TUV NORD.
*Energy savings may vary based on cost, actual usage and other factors. Specifications and availability are subject to change without notice. Selection, offers and programs may vary by country; see your ViewSonic
representative for complete details.Corporate names, trademarks stated herein are the property of their respective companies. Copyright © 2012 ViewSonic Corporation. All rights reserved. [16227-00B-06/12] VG2239m_LED
