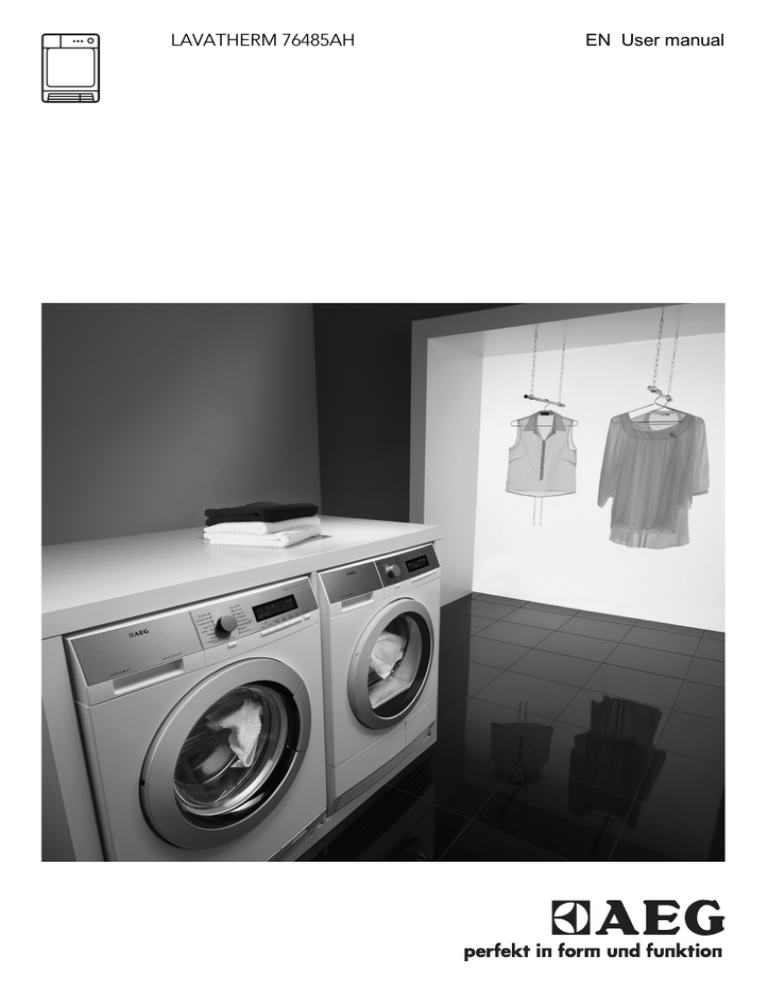

LAVATHERM 76485AH
EN User manual
2
www.aeg.com
CONTENTS
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
PRODUCT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
CONTROL PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
BEFORE FIRST USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
PROGRAMMES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
USING THE APPLIANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
HINTS AND TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
CARE AND CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
TROUBLE SHOOTER AND SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
TECHNICAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you impeccable
performance for many years, with innovative technologies that help make life simpler –
features you might not find on ordinary appliances. Please spend a few minutes reading to get
the very best from it.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.aeg.com
Register your product for better service:
www.aeg.com/productregistration
Buy Accessories, Consumables and Original spare parts for your appliance:
www.aeg.com/shop
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available.
The information can be found on the rating plate. Model, PNC, Serial Number.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
ENGLISH
1.
3
SAFETY INSTRUCTIONS
Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and
use causes injuries and damages. Always
keep the instructions with the appliance
for future reference.
1.1 Children and vulnerable
people safety
WARNING!
Risk of suffocation, injury or permanent disability.
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical,
sensory or mental capabilities or lack
of experience and knowledge if they
have been given supervision or instruction for the operation of the appliance by a person who is responsible
for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep all detergents away from children.
• Keep children and pets away from the
appliance door when it is open.
• Cleaning and user maintenance shall
not be made by children without supervision.
1.2 Installation
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied with the appliance.
• Make sure that the floor where you install the appliance is flat, stable, heat
resistant and clean.
• Do not install or use the appliance
where the temperature is less than 5°C
or higher than 35°C.
• Do not install the appliance behind a
lockable door, a sliding door or a door
with a hinge on the opposite side,
•
•
•
•
•
•
•
•
•
•
where the appliance door can not be
fully opened.
Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
Always move the appliance vertically.
The rear surface of the appliance must
be put against the wall.
Make sure that there is air circulation
between the appliance and the floor.
Make sure the carpet does not obstruct the ventilation openings in the
base of the appliance (if applicable).
Exhaust air must not be discharged into a flue which is used for exhausting
fumes from appliances burning gas or
other fuels. (if applicable)
If the tumble dryer is put on top of a
washing machine, use the stacking kit.
The stacking kit, available from your
authorized vendor, can be used only
with the appliance specified in the instructions, supplied with the accessory. Read it carefully before installation
(Refer to the Installation leaflet).
Ensure you have good ventilation in
the installation room to avoid the back
flow of gases into the room from appliances burning other fuels, including
open fires.
The appliance can be installed as freestanding or below the kitchen counter
with correct space (Refer to the Installation leaflet).
When the appliance is put in its permanent position, check if it is fully level with the aid of a spirit level. If it is
not, adjust the feet until it is.
Electrical connection
WARNING!
Risk of fire and electrical shock.
• The appliance must be earthed.
• Make sure that the electrical information on the rating plate agrees with
the power supply. If not, contact an
electrician.
• Always use a correctly installed shockproof socket.
4
www.aeg.com
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the appliance power supply
cable need to be replaced, this must
be carried out by our Service Centre.
• Connect the mains plug to the mains
socket only at the end of the installation. Make sure that there is access to
the mains plug after the installation.
• Do not pull the mains cable to disconnect the appliance. Always pull the
mains plug.
• Do not touch the mains cable or the
mains plug with wet hands.
• Only for UK and Ireland. The appliance has a 13 amp mains plug. If it is
necessary to change the fuse in the
mains plug, use a 13 amp ASTA (BS
1362) fuse.
•
This appliance complies with the
E.E.C. Directives.
1.3 Use
WARNING!
Risk of fire, explosion, electric
shock or damage to the appliance
• Use this appliance in a household only.
• Do not change the specification of this
appliance.
• The final part of the drying cycle occurs without heat (cool down cycle) to
ensure that the items will not be damaged.
If you stop the appliance before the
end of the drying cycle, immediately
remove and spread out all items, so
that the heat can dissipate.
• If you use fabric softener or similar
products, obey the instructions on the
packaging.
• Do not run the appliance without a filter. Clean the lint filter before or after
each use.
• Wipe away lint that has accumulated
around the appliance.
• Do not dry the damaged items which
contain padding or fillings.
• Do not dry items such as foam rubber
(latex foam), shower caps, waterproof
textiles, rubber backed articles and
clothes or pillows fitted with foam rubber pads..
• Before drying items that have been in
contact with substances such as cooking oil, acetone, alcohol , petrol, kerosene, spot removers, turpentine, waxes and wax removers, wash them in
hot water with an extra amount of detergent.
• Do not dry items in the appliance if industrial chemicals have been used for
cleaning.
• Make sure that no gas lighters or
matches have been left in the pockets
of the clothing.
• Only dry fabrics which are applicable
to dry in the tumble dryer. Follow the
instructions on the fabric label.
• Do not dry not washed items in the
appliance.
• If you have washed your laundry with a
stain remover start an extra rinse cycle
before you start the dryer.
• Do not drink or prepare food with the
condensed water. It can cause health
problems to people and pets.
• Do not sit or stand on the open door.
• Obey the maximum load volume of 8
kg (refer to the “Programme chart”
chapter).
• Do not dry dripping wet clothes in the
tumble dryer.
1.4 Care and Cleaning
WARNING!
Risk of injury or damage to the
appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal objects.
ENGLISH
5
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.
1.5 Internal light
WARNING!
Risk of injury.
Visible LED radiation, do not
look directly into the beam.
Compressor
The type of light bulb or halogen
lamp used for this appliance, is
only for household appliances.
Do not use it for house lighting.
To replace the internal light, contact the Service.
WARNING!
Risk of damage of the appliance.
• The compressor and its system in the
tumble dryer is filled with the special
agent which is free from fluoro-chlorohydrocarbons. This system must stay
tight. The damage of the system can
cause a leakage.
1.6 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
2. PRODUCT DESCRIPTION
1
2
3
4
5
12
6
11
7
10
8
9
1 Water container
5 Primary filter
2 Control panel
6 Sliding button to open the heat ex-
3 Drum light
4 Load door (reversible)
changer door
7 Airflow slots
6
www.aeg.com
8 Adjustable feet
11 Lock knob
9 Heat exchanger door
10 Heat exchanger filters cover
12 Rating plate
3. ACCESSORIES
3.1 Stacking kit
the water container is drained automatically. The water container must stay in
the appliance.
The installed hose must be on the height
from minimum of 50 cm to maximum of
1 m from floor level. The hose cannot be
in loop. Decrease the length of the hose
if necessary.
Read carefully the instructions supplied
with the accessory.
3.3 Pedestal with the drawer
Accessory name: SKP11, STA8, STA9
Available from your authorized vendor.
Stacking kit can be used only with the
washing machines specified in the leaflet. See the leaflet attached.
Read carefully the instructions supplied
with the accessory.
3.2 Draining kit
Accessory name: DK11.
It is available from your authorized vendor (can be attached to some types of
the tumble dryers)
The accessory for through draining of
the condensed water into a basin, siphon, gully, etc. After the installation,
Accessory name: PDSTP10.
It is available from your authorized vendor.
To put the appliance higher at the level
which helps to easy load and remove the
laundry.
The drawer can be used for laundry storage e.g. : towels, cleaning products and
more.
Read carefully the instructions supplied
with the accessory.
ENGLISH
It is available from your authorized vendor (can be attached to some types of
the tumble dryers). Do the check with
the vendor or on the web site if the accessory is compatible with your appliance.
Drying rack accessory let to dry safely in
the tumble dryer:
• sport shoes
• wool
• soft toys
• lingerie
Read carefully the instructions supplied
with the accessory.
3.4 Drying rack
Accessory name: RA5, RA6, RA11, RA12
4. CONTROL PANEL
1
2
3
4
1 The programme dial
5
6
7
8
9
10 11 12
4.1 Display
2 The On/Off push button
3 Programme indicators
4 The Dry Plus push button
5 The Reverse Plus push button
Symbol
Description
default dryness
level
6 The Anticrease push button
7 The Buzzer push button
moderate extra
dryness
8 The Time Drying push button
9 The Delay Start push button
10 The display
maximum extra
dryness
11 The Start/Pause push button
reverse plus
12 The indication lamps: drain the wa-
ter container, clean the primary filter,
clean the heat exchanger filters
7
m/
m
anti-crease time
drying cycle
phase indicator
8
www.aeg.com
Symbol
Description
Symbol
cooling cycle
phase indicator
Description
cycle time indication
crease guard cycle phase indicator
time programme
selection (10 min.
- 2h.)
-
child lock activated
-
delay start
delay start selection (30 min. 20h.)
5. BEFORE FIRST USE
Clean the tumble dryer drum with a
moist cloth or set a short programme
(e.g. 30 minutes time programme) with
the load of moist cloths.
At the beginning of drying cycle (3-5
min.) there could be a slightly higher
sound level. It is because of start of the
compressor that is normal for compressor powered appliances such: refrigerators, freezers .
6. PROGRAMMES
Programmes
Load
1)
Properties
Available
functions
Cottons
Extra Dry
Cupboard
Dry 2)
Iron Dry 2)
Jeans
8 kg
To dry cotton pieces of clothing.
Drying level: extra dry.
all except:
Reverse
Plus and
Time Drying
8 kg
To dry cotton pieces of clothing.
Drying level: cupboard dry.
all except:
Reverse
Plus and
Time Drying
8 kg
To dry cotton pieces of clothing.
Drying level: applicable to iron.
all except:
Reverse
Plus and
Time Drying
8 kg
To dry leisure clothing such as
jeans, sweat-shirts of different
material thicknesses (e.g. at the
neck, cuffs and seams).
all except:
Reverse
Plus and
Time Drying
Fabric
mark
ENGLISH
Programmes
Bed Linen
Duvets
Time Drying
Extra Quick
Mixed
Load
1)
3 kg
Properties
To dry bed linen such as: single
and double sheet, pillowcase,
bedspread.
Available
functions
all except:
Reverse
Plus and
Time Drying
3 kg
To dry single or double duvet
and pillows (with feather, down or
synthetic fillings).
all except:
Reverse
Plus and
Anticrease
and Time
Drying
8 kg
To dry laundry with the time set
by the user. The time value must
be related to the load. To dry
one item or small quantities of
the laundry we recommend to
use short times.
all except:
Dry Plus
and Reverse
Plus
3 kg
To dry cotton and synthetic fabrics, uses low temperature.
all except:
Reverse
Plus and
Time Drying
Synthetics
Extra Dry
3,5 kg
To dry synthetic pieces of clothing. Drying level: extra dry.
all except
Time Drying
Cupboard
Dry 2)
3,5 kg
To dry synthetic pieces of clothing. Drying level: cupboard dry.
all except
Time Drying
Iron Dry
To dry synthetic pieces of cloth3,5 kg ing. Drying level: applicable to
iron.
all except
Time Drying
Easy Iron
To dry easy care fabrics such
shirts and blouses; for minimum
ironing effort. The results can be
all except:
1 kg different for to the different types
Reverse
(or 5 of fabric and its finish. Put fabrics
Plus and
shirts) in the tumble dryer straight. After
Time Drying
the cycle, immediately remove
dried fabrics and put on a cloths
hanger.
Active Wear
2 kg
To dry outdoor pieces of clothing, technical, sports, pile fabrics,
waterproof and breathable jackets, shell jacket teamed with a removable fleece or inner insulation.
all except
Reverse
Plus and
Anticrease
and Time
Drying
9
Fabric
mark
10 www.aeg.com
Programmes
Sports
Load
To dry sportswear, thin and light
fabrics, microfiber, polyester,
which are not ironed.
all except:
Reverse
Plus and
Time Drying
1 kg
To dry silk/lingerie with warm air
and gentle movement.
all except:
Reverse
Plus and
Anticrease
and Time
Drying
1 kg
To refresh the cloths made of
wool . The cloths become soft
and cosy. We recommend to remove the cloths immediately after the programme end.
Buzzer ,
Time Drying
3), Delay
Start )
2 kg
Silk/Lingerie
Wool Refresh
Available
functions
Properties
1)
Fabric
mark
1) maximal weight of dry clothes
2) For test institutes only:
To make a performance test use the standard programmes which are specified in the EN
61121 document. If is necessary to correct the remaining moisture level of the laundry,
adjust the programme with the Dry Plus function .
You must clean the heat exchanger filters after each 3 cycles.
3) Only with the drying rack — see chapter ACCESSORIES
7. USING THE APPLIANCE
7.1 Preparing the laundry
Dry only the laundry applicable
to dry in the tumble dryer. Make
sure if the laundry is applicable
to dry in the tumble dryer. Do
the check of the fabric mark on
the clothes.
Fabric Property
mark
Applicable to dry in the
tumble dryer
Applicable to dry in the
tumble dryer at standard
temperature
Applicable to dry in the
tumble dryer at decreased
temperature
Fabric Property
mark
Not applicable to dry in the
tumble dryer
Correctly prepare the laundry:
• close zips, button up duvet covers and
attach loose ties or ribbons (e.g. ribbons of aprons) - laundry can tangle
• make sure the pockets are empty - remove metal items (paper clips, safety
pins, etc.).
• turn items with 2 fabric layers inside
out (e.g. cotton lined anoraks, the cotton fabric layer must be external).
Dry only:
• cotton and linen with Cottons programmes
• synthetic and mixtures with Synthetic
programmes
ENGLISH
• separately the strong coloured textiles
and the light coloured textiles - colours can bleed
• cotton jersey and knitwear only with
the applicable programmes - items
can shrink
11
7.5 Setting a programme
Do not put more laundry than
the maximum load which is 8kg.
7.2 Loading the laundry
1.
2.
3.
Pull the appliance door
Load loosely the laundry.
Close the appliance door.
CAUTION!
Do not lock the laundry in between the appliance door and
rubber seal.
7.3 Switching on the appliance
Push the On/Off button to activate or to
deactivate the appliance. When the appliance is on, some indications come in
to the view on the display.
7.4 Auto stand-by function
To decrease the energy consumption,
the automatic stand-by function deactivates the appliance:
• if the Start/Pause button was not
pushed in the time of 5 minutes.
• after 5 minutes from the programme
end.
Push the On/Off button to activate the
appliance.
Use the programme dial to set the programme. The possible time to complete
the programme come into view on the
display.
The drying time you see is related to the load of 5 kg for cotton
and jeans programmes. For the
other programmes the drying
time is related to the recommended loads. The drying time of the
cotton and jeans programmes
with the load more than 5 kg is
longer.
7.6 Special functions
Together with the programme you can
set 1 or more special functions.
To activate or deactivate the function
push the applicable push button.
When the function is activated the LED
above the push button or symbol on the
display comes into view.
7.7 The Dry Plus function
This function helps to get the laundry
more dried. There are 3 possible selections:
12 www.aeg.com
- the default selection which is related to the programme.
— the selection to get the laundry
lightly dried.
— the selection to get the laundry
more dried.
3.
7.8 The Reverse Plus function
7.13 Child lock function
To dry more lightly the sensitive and
temperature sensitive textiles (e.g. acrylic, viscose). This function helps also to
decrease the creases on the laundry. For
on the fabric
fabrics with the symbol
label.
The child lock can be set to prevent the
children to play with the appliance. The
child lock function locks all push buttons
and the programme dial (this function
does not lock On/Off button). To activate the child lock function push the Dry
Plus and Reverse Plus buttons at the
come into
same time until the symbol
view on the display. To deactivate push
again the above buttons until the symbol
go out of view.
You can activate the child lock function:
• before you push the Start/Pause button - the appliance cannot start
• after you push the Start/Pause button
- all the push buttons and the programme dial are deactivated
7.9 The Anticrease function
Extends anticrease phase (30 minutes) at
the end of the drying cycle to 90 minutes. This function prevents laundry
from creases. Laundry can be removed
during the anticrease phase.
7.10 The Buzzer function
When the buzzer function is activated
you can hear the buzzer at the:
• cycle end
• anti-crease phase start and end
• cycle interruption
The buzzer function is by default always
on. You can use this function to activate
or deactivate the sound.
7.11 The Time Drying function
Operates only with the Time programme. Lets the user to set special
time of drying programme from minimum 10 min. to maximum of 2 hours (in
10 min. steps).
7.12 The Delay Start function
Let to delay the start of a drying
programme from minimum of 30
minutes to maximum of 20 hours.
Set the drying programme and functions.
2. Push the Delay start button again
and again until the necessary time of
the delay come into the view on the
1.
if the programme
display (e.g.
has to start after 12 hours.)
To activate the Delay start function,
push the Start/Pause button. The
time to start decreases on the display.
7.14 Starting a programme
To activate the programme push the
Start/Pause button. The LED above the
push button changes the colour to red.
7.15 Change a programme
To change a programme, push the On/
Off button to deactivate appliance. Push
the On/Off to activate the appliance and
then set the programme again.
7.16 At the end of programme
When the drying cycle is completed, the
symbol flashes on the display. If the
Buzzer function is on, an acoustic signal
sounds intermittently for one minute.
To remove the laundry:
ENGLISH
1.
Push the On/Off button for 2 seconds to deactivate the appliance.
2. Open the appliance door.
3. Remove the laundry.
4. Close the appliance door.
13
• clean the filter
• drain the water container
(See chapter CARE AND CLEANING.)
After each drying cycle:
8. HINTS AND TIPS
8.1 Ecological hints
• Do not use fabric softener to wash and
then dry. In the tumble dryer laundry
becomes soft automatically.
• Use the condensate as distilled water,
e.g. for steam ironing. If it is necessary
clean the condensate before (e.g. with
a coffee filter) to remove possible
small pieces of fluff.
• Always keep the airflow slots on the
bottom of the appliance clear.
• Use the load volumes which are specified in the programmes chapter.
• Make sure that is good airflow in the
appliance installation position.
• Clean the primary filter after each drying cycle.
• Clean the heat exchanger filters when
the applicable indicator comes into
the view on the control panel.
• Spin good the laundry before drying.
8.2 Water hardness and
conductivity
Water hardness can be different for different locations. Water hardness has an
effect on the water conductivity and the
operation of the conductivity sensor in
the appliance. If you know the value of
the water conductivity you can adjust the
sensor to dry with the better results.
To change the sensor conductivity:
1. Turn the programme dial to available programme.
2. Push at the same time the Dry Plus
and the Anticrease buttons. Hold
down until one of the symbols go into view on the display:
–
low conductivity <300 μS/
cm
–
moderate conductivity
300-600 μS/cm
–
high conductivity >600
μS/cm
3. Push the Start Pause button again
and again until you set necessary
level.
4. To memorise the setting push at the
same time the Dry Plus and the Anticrease buttons.
8.3 Water container full —
indication
By default the indication LED is always
on. It comes into the view at the end of
the cycle or when the water container is
full. When you use an external equipment to drain the container, the LED can
be off.
To activate or deactivate the indication:
1. Turn the programme dial to available programme.
2. Push at the same time the Dry Plus
and Buzzer buttons and hold down
until you see the correct setting:
– the LED is off and the symbol
goes into the view - The
LED is permanently off
– the LED is on and the symbol
goes into the view - The
LED is activated
14 www.aeg.com
9. CARE AND CLEANING
The filter collects the fluff. The
fluff occurs while the cloths are
dried in the tumble dryer.
9.1 Cleaning the primary filter
At the end of each cycle the applicable
indicator (clean the primary filter) is on to
tell you that the primary filter must be
cleaned.
To clean the primary filter:
1
1.
2.
Open the door.
Pull the filter.
3.
Open the filter.
4.
Use a moist hand to clean the filter.
2
ENGLISH
5.
15
If necessary clean the filter with
warm water using a brush.
Close the filter.
Remove fluff from the filter socket.
For this a vacuum cleaner can be
used.
7. Put the filter inside the filter socket.
6.
CAUTION!
Do not operate the tumble dryer
without the primary filter or with
damaged or blocked filter.
Clean the primary filter after each
drying cycle. Clogged filter increases the cycle time and causes higher energy consumption.
If the condensed water container is full,
the programme breaks off automatically
and the drain the condensed water container LED is on. To continue the programme, drain the condensed water
container and press the start button.
To drain the condensed water
container automatically you can
install draining accessory (see
chapter: ACCESSORIES)
9.2 Draining the condensed
water container
Drain the condensed water container after each drying cycle.
To drain the condensed water container:
1.
2.
Pull the condensed water container
and keep it in horizontal position.
Move the plastic connection out and
drain the condensed water container
into a sink or equivalent receptacle.
3. Move plastic connection in and install water container.
WARNING!
Risk of poisoning. The condensed water is not applicable to
drink or to prepare food.
16 www.aeg.com
The condensed water can be
used as distilled water, e.g. for
steam ironing. If necessary filter
the condensed water (e.g. with a
coffee filter) to remove possible
residue and small pieces of fluff.
The frequency to clean the filters is related to the laundry type and its quantity.
If you dry with the maximum load, clean
the filters after each 3 cycles.
9.3 Cleaning the heat
exchanger filters
If the applicable indicator (clean the heat
exchanger filters) is on, the filters must
be cleaned.
To clean the filters:
1.
2.
Open the loading door.
Move the release button on the bottom of the door opening and open
the heat exchanger door.
3.
Turn the blockage to unlock the heat
exchanger cover.
4.
Lower the heat exchanger filters cover.
ENGLISH
17
5.
Lift the primary filter. Hold the heat
exchanger filter and pull it out from
the bottom compartment.
6.
Push the hook to open the filter.
7.
Use a moist hand to clean the filter.
If necessary clean the filter with
warm water using a brush.
Close the filter.
18 www.aeg.com
CAUTION!
Do not operate the tumble dryer
when the heat exchanger filters
are blocked with fluff. This could
cause the damage to the tumble
dryer. This also increases energy
consumption.
Do not use sharp objects to
clean the heat exchanger compartment.
Do not operate the tumble dryer
without the filters.
8.
Clean the small filter from the base
9.
If necessary, one time for each 6
months, remove the fluff from the
heat exchanger compartment. You
can use a vacuum cleaner.
10.
Put the small filter and heat exchanger filter back.
11.
Close the heat exchanger cover.
12.
Lock the blockage until it snaps.
13.
Close the heat exchanger filters
cover.
14.
Close the heat exchanger door.
15.
Put the primary filter.
9.4 Cleaning the drum
WARNING!
Disconnect the appliance before
you clean it.
Use a standard neutral soap detergent
to clean the inner surface of the drum
and drum ribs. Dry the cleaned surfaces
with a soft cloth.
CAUTION!
Do not use abrasive materials or
steel wool to clean the drum.
ENGLISH
9.5 Cleaning the control panel
and housing
Use a standard neutral soap detergent
to clean the control panel and housing.
Use a moist cloth to clean. Dry the
cleaned surfaces with a soft cloth.
19
CAUTION!
Do not use furniture cleaning
agents or cleaning agents which
can cause corrosion to clean the
appliance.
10. TROUBLE SHOOTER AND SERVICE
10.1 Troubleshooting
Problem1)
Possible cause
The tumble dryer is not connected to mains supply.
Remedy
Connect in at mains socket.
Check fuse in fuse box (domestic installation).
The loading door is opened.
Close the loading door.
The tumble
The On/Off button was not
Push the On/Off button.
dryer does
pushed.
not operate.
The Start/Pause button was not
Push the Start/Pause button.
pushed.
Unsatisfactory drying
results.
The door
does not
close.
The appliance is in the standby
mode.
Push the On/Off button.
Incorrect programme selection.
Do the selection of the applicable programme. 2)
The filter is clogged.
Clean the filter. 3)
The Dry Plus function was in
minimum mode.
Change the Dry Plus function
to the moderate or maximum
mode.
The condenser is clogged.
Clean the condenser. 3)
Too high volume of the load.
Obey the maximum load volume.
The airflow grill is clogged.
Clean the airflow grill in the
bottom of the appliance.
Dirt on the inner surface of the
drum.
Clean the inner surface of the
drum.
Too high water hardness.
Set applicable water hardness4).
The filter not locked in the position.
Put the filter in the correct position.
The laundry is locked between
the door and the seal.
Put the load correctly in the
drum.
20 www.aeg.com
Problem1)
Err (Error)
on the display.
Possible cause
You try to change the programme or the function after
the start of the cycle.
Remedy
Turn the tumble dryer off and
on. Make the new selection.
The function you try to activate
Turn the tumble dryer off and
is not applicable with the selecon. Make the new selection.
ted programme.
No drum
light 5)
Defective drum light.
Contact the service centre to
replace the drum light.
Abnormally
elapsing
time on the
display.)
The time to end is calculated
on the basis of the volume and
dampness of the laundry.
The automatic procedure —
this is not the appliance malfunction.
Programme
inactive.
The water container is full.
Drain the water container3) ,
push the Start/Pause button.
Too small laundry volume.
Do the selection of time programme. The time value must
be related to the load. To dry
one item or small quantities of
the laundry we recommend to
use short times.
The laundry is too dry.
Do the selection of time programme or higher drying level
(e.g. Extra Dry )
The filter is clogged.
Clean the filter.
Too high volume of the load.
Obey the maximum load volume.
Drying cycle
too short.
Drying cycle The laundry not spun sufficientSpin correctly the laundry.
too long 6) ly.
Very high room temperature this is not the appliance malfunction.
If possible, lower the room
temperature.
1) If there is an error message on the display (e.g. E51): Turn the tumble dryer off and on.
Make a selection of the new programme. Push the Start/Pause button. Does not
operate? - contact the service centre and give the error code.
2) follow the programme description — see PROGRAMMES chapter
3) see CARE AND CLEANING chapter
4) see section WATER HARDNESS in HINTS AND TIPS chapter
5) Only the tumble dryers with drum light.
6) Note: After maximum 5 hours the drying cycle ends automatically (see Drying cycle
complete section).
ENGLISH
21
11. TECHNICAL INFORMATION
height x width x depth
850 x 600 x 600 mm (maximal 640 mm)
drum volume
118 l
maximum depth with the load door
opened
1090 mm
maximum width with the load door
opened
950 mm
adjustable height
850 mm (+ 15 mm - feet regulation)
the appliance weight
55 kg
maximum load volume
8 kg
voltage
230-240 V
frequency
50 Hz
necessary fuse
13 A
total power
900 W
energy efficiency class
A+
energy consumption kWh/cycle 1)
2,11 kWh
annual energy consumption2)
252 kWh
left—on mode power absorption
0,5 W
off mode power absorption
0,5 W
type of use
Domestic
permitted ambient temperature
+ 5°C to + 35°C
1) 8 kg of cotton, centrifuged at 1000 rpm with reference to EN 61121
2) Energy consumption per year in kWh, based on 160 drying cycles of the standard cotton
programme at full and partial load, and the consumption of the low-power modes.
Actual energy consumption per cycle will depend on how the appliance is used
(REGULATION (EU) No 392/2012).
12. INSTALLATION
12.1 Unpacking
CAUTION!
Before use all parts of the transport
packaging must be removed.
To remove the polystyrene blockages:
1. Open the load door.
2.
Pull plastic hose with the polystyrene
blockages out from the drum.
22 www.aeg.com
12.2 Installation under a
counter
The appliance can be installed as freestanding or below the kitchen counter
with correct space (see picture).
600 mm
> 850 mm
600 mm
It is possible to adjust the height of the
tumble dryer. To do that adjust the feet
(see picture).
15mm
12.3 The load door reversal
The load door can be installed by the
user in the opposite side. It can help to
easily put and remove the laundry or if
there is a limit to install the appliance.
(see separate leaflet).
13. ENVIRONMENT CONCERNS
Recycle the materials with the
symbol . Put the packaging in
applicable containers to recycle it.
Help protect the environment and
human health and to recycle waste
of electrical and electronic
appliances. Do not dispose
appliances marked with the symbol
with the household waste. Return the
product to your local recycling
facility or contact your municipal
office.
ENGLISH
23
136917231-A-172013
www.aeg.com/shop
