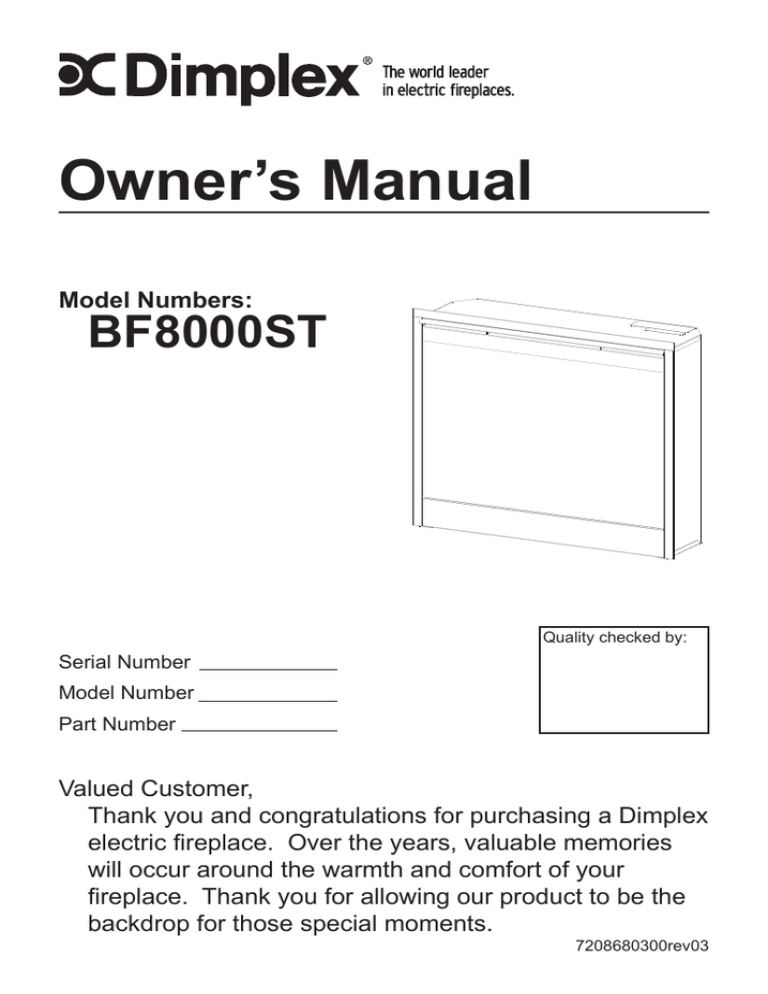

Owner’s Manual
Model Numbers:
BF8000ST
Quality checked by:
Serial Number
Model Number
Part Number
Valued Customer,
Thank you and congratulations for purchasing a Dimplex
electric fireplace. Over the years, valuable memories
will occur around the warmth and comfort of your
fireplace. Thank you for allowing our product to be the
backdrop for those special moments.
7208680300rev03
QUICK REFERENCE GUIDE
1. Prior to the first use of the fireplace verify the
following:
• Are the circuit breakers for the fireplace on?
• Are the light bulbs in your fireplace
loose? (To check, follow the instructions
for replacing the light bulbs under the
maintenance section of this manual)
2. The heater on your fireplace may emit a slight,
harmless odor when first used. This odor is a
normal condition caused by the initial heating of
internal heater parts.
3. The information regarding the model of your
fireplace can be found on a label located behind
the control panel on the front of the fireplace. Refer to page 6 of the manual.
4. If you have any technical questions regarding
the operation of your fireplace, or require
service for your fireplace contact Dimplex North
America customer service at 1-888-DIMPLEX
(1-888-346-7539).
2
CONTENTS
Important Instructions . . . . . . . . . . . . . . . PAGE 4
Model and Serial Number Information. . .PAGE 6
Fireplace Assembly. . . . . . . . . . . . . . . . . PAGE 6
Site Selection and Preparation . . . . . . . . PAGE 7
Fireplace Insert Installation. . . . . . . . . . . PAGE 8
Operation. . . . . . . . . . . . . . . . . . . . . . . . . PAGE 10
Maintenance . . . . . . . . . . . . . . . . . . . . . . PAGE 11
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 14
3
IMPORTANT INSTRUCTIONS
Please Retain This User’s Guide For Future Reference
When using electrical appliances, basic precautions should always be followed
to reduce the risk of fire, electric shock, and injury to persons, including the
following:
1. Read all instructions before using the electric fireplace.
2. This fireplace is hot when in use. To avoid burns, do not let bare skin touch
hot surfaces. The trim around the heater outlet becomes hot during heater
operation.
3. Extreme caution is necessary when any heater is used by or near children
or invalids and whenever the unit is left operating and unattended.
4. Young children should be supervised to ensure that they do not play with
the appliance.
5. The appliance is not intended for use by young children or infirmed persons
without supervision.
6. The appliance must be positioned so that the plug is accessible.
7. Always unplug the electric fireplace when not in use.
8. If the supply cord is damaged, it must be replaced by the manufacturer, or
its service agent, or a qualified person in order to avoid a hazard.
9. Do not operate any unit with a damaged cord or plug, or if the heater has
malfunctioned, or if the electric fireplace has been dropped or damaged in
any manner. Contact Dimplex Technical Service 1-888-346-7539.
10.Do not use outdoors.
11.Never locate fireplace where it may fall into a bathtub or other water
container.
12.Do not install the fireplace directly on carpet or a similar surface which may
restrict air circulation beneath the unit.
13.Do not run the cord under carpeting. Do not cover cord with throw rugs,
runners, or the like. Arrange cord away from traffic area and where it will
not be tripped over.
14.Do not locate the heater immediately below a fixed socket-outlet.
15.To disconnect the fireplace, turn the controls off, then remove the plug from
the outlet.
16.Do not insert or allow foreign objects to enter any ventilation or exhaust
opening as this may cause an electric shock or fire, or damage to the
heater.
17.Although this unit is of zero clearance design, to prevent a possible fire, do
not block air intake or exhaust in any manner. Do not use on soft surfaces,
4
like a bed, where openings may become blocked.
18.All electrical heaters have hot and arcing or sparking parts inside. Do not
use in areas where gasoline, paint, or flammable liquids are used or stored
or where the unit will be exposed to flammable vapors.
19.Do not modify the electric fireplace. Use it only as described in this manual.
Any other use not recommended by the manufacturer may cause fire,
electric shock or injury to persons.
20.Avoid the use of an extension cord. Extension cords may overheat and
cause a risk of fire. If you must use an extension cord, the cord shall be No.
14 AWG minimum size and rated not less then 1875 Watts.
21.Do not burn wood or other materials in the electric fireplace.
22.Do not strike the fireplace glass.
23.Always use a certified electrician should new circuits or outlets be required.
24.Always use properly grounded, fused and polarized outlets.
25.Disconnect all power supply before performing any cleaning, maintenance
or relocation of the unit.
26.When transporting or storing the unit and cord, keep in a dry place, free
from excessive vibration and store so as to avoid damage.
CAUTION
Risk of electric shock
Do not open
No user-serviceable parts inside
SAVE THESE INSTRUCTIONS
! NOTE: Procedures and techniques that are considered important enough to emphasize.
CAUTION: Procedures and techniques which, if not carefully
followed, will result in damage to the equipment.
WARNING: Procedures and techniques which, if not carefully
followed, will expose the user to the risk of fire, serious injury,
illness or death.
5
Model and Serial Number Information
If you have any questions regarding our products please have the
product model number and serial numbers available upon calling
Dimplex customer service or technical support. To locate the model
and serial number labels see below. Record the model number, serial
number on the front cover of this manual for future reference
(figure 1).
Figure 1
Model Number
Serial Number
WARNING: Ensure the power cord is not installed so that it is
pinched or against any sharp edges and ensure that the power cord
is stored or secured to avoid tripping or snagging to reduce the risk
of fire, electric shock or injury to persons. Electrical outlet wiring must comply with local building codes and
other applicable regulations to reduce the risk of fire, electric shock
and injury to persons.
Do not attempt to wire your own new outlets or circuits. To reduce
the risk of fire, electric shock or injury to persons, always use a
licensed electrician.
Fireplace Assembly
The only assembly required is to slide the front glass onto the
fireplace and install hardware to keep it in place.
1. Remove fireplace and glass carefully from the carton, discard
the plastic bag and foam packaging.
6
2. Remove the foam block from within the fireplace (Figure 2).
3. Using side cutters or scissors, cut and remove the two (2) cable
ties as shown in Figure 2 and remove the cardboard that protects
the log set.
4. Remove the right hand side trim by removing four (4) Phillips
screws at the side of the fireplace.
5. Place the Front Glass onto the track of the fireplace (Figure 3) and
slide it along the front until it reaches the far left of the unit.
6. Re-attach the right hand trim piece using the four (4) Philips screws
from step 4.
Figure 2
Figure 3
Foam
Block
Front
Glass
Trim
Cable
Ties
Track
Site Selection and Preparation
This section provides instructions for selecting a location and preparing
the site to install the fireplace into your Dimplex mantel surround.
1. Select a suitable location that is not susceptible to moisture and is
away from drapes, furniture and high traffic.
2. For ease of electrical hook up you may wish to locate the fireplace
near an existing outlet (refer to NOTE 1).
3. Store the fireplace in a safe dry and dust free location.
CAUTION: Clearance for air circulation beneath the fireplace is
provided by two spacers. Do not install fireplace directly on
7
carpet or similar surfaces which may restrict air circulation. If
installing the fireplace in a carpeted area, place a one-piece, solid
flat surface under the fireplace. Ensure that all feet rest securely on
this surface.
! NOTE: The dimensions of the fireplace with the trim are 27 ⅜ inch
(695 mm) wide x 23 ½ inch (596 mm) high x 8 ¾ inch (222 mm)
deep. Dimensions without trim are 26 ¼ inch (663 mm) wide x 22 ⅞
inch (580 mm) high x 8 ¾ inch (222 mm) deep. The fireplace does
not require any additional venting (Figure 4).
Figure 4
22 ⅞”
(580
mm)
27 ⅜”
(695 mm)
26 ¼”
(663 mm)
23 ½”
(596 mm)
8 ¾”
(222 mm)
Fireplace Insert Installation
Install the fireplace assembly into the mantel (refer to mantel assembly
instructions).
! NOTE: A 15 Amp, 120 Volt circuit is required. A dedicated circuit is
preferred but not essential in all cases. A dedicated circuit will be
required if after installation the circuit breaker trips or fuse blows on
a regular basis when the heater is operating. Additional appliances
on the same circuit may exceed the current rating of the circuit
breaker.
! IMPORTANT: If not using a Dimplex mantel, the fireplace must be
installed in an enclosure with the following MINIMUM dimensions
(Figure 5).
8
New Wall
Construction
Figure 5
1. Select a suitable
location that is not
susceptible to moisture
and is away from
drapes, furniture and
23 ⅛”
(587 mm)
high traffic.
2. Place the fireplace in
the desired location to
see how it will look in
26 ¾”
(679 mm)
the room.
9”
(229 mm)
3. Mark the desired
location on the floor.
4. Use studs to frame an opening of 26 ¾ inch (679 mm) wide x 23 ⅛
inch (587 mm) high x 9 inch (229 mm) deep.
Option #1: The power cord can be run from behind the trim and
along the wall to an outlet near the fireplace.
Option #2: A new outlet can be installed inside the framing construction.
Plug the unit into a 15 Amp, 120 Volt outlet. If the cord does not reach,
you may use an extension cord rated for a minimum of 1875 Watts.
Existing Fireplace
1.
2.
3.
4.
Seal all drafts and vents with a non-fibrous insulation material to
prevent any chimney debris from falling onto the fireplace. Do not
install into an existing fireplace that is prone to dampness.
Cap the top of the chimney flue to prevent rain from entering.
Plan your electric power supply.
The power cord can run along the front of the hearth to an outlet
near the fireplace.
CAUTION: Clearance for air circulation beneath the fireplace insert
is provided by two spacers. Do not install the fireplace insert
9
directly on carpet or similar surfaces which may restrict air
circulation. If installing the fireplace in a carpeted area, place a
one-piece, solid, flat surface under the fireplace insert. Ensure that
all three (3) of the insert’s feet rest securely on this surface.
For Bathroom Use
If this unit is installed in a bathroom it must be protected by a GFI
receptacle or circuit. If receptacle is used it must be readily accessible.
To prevent electrical shock this unit is an electrical appliance that is not
watertight and must be installed as to prevent water from entering unit.
This must be installed away from showers, tubs, etc. Never locate
fireplace where it may fall into a bathtub or other water container. High
temperatures may be generated under certain abnormal conditions. Do not partially or fully cover or obstruct the front of this heater.
Operation
Electric Fireplace Manual Controls
The manual controls for the fireplace are behind the access panel
located at the bottom of the fireplace (Figure 6).
Figure 6
A
B
C
D
A. Heat On/Off Switch
Turns heat on or off.
B. Flame Action Control
Turn the flame action control knob to adjust the flame speed to the
desired level.
10
E
C. Interior Light Control
Turn the interior light control knob to increase or decrease the
brightness of the interior light.
D. Heater Thermostat Control
To adjust the temperature to your individual requirements, turn the
thermostat control clockwise all the way to turn on the heater. When
the room reaches the desired temperature, turn the thermostat knob
counter clockwise until you hear a click. Leave in this position to
maintain the room temperature at its setting. For additional heat, turn
clockwise until you hear the click again and the heater will turn on. To
turn the heater off, rotate the knob fully counter clockwise.
E. Main On/Off Switch
The Main On/Off Switch supplies power to all fireplace functions.
Resetting the Temperature Cutoff Switch
This unit is equipped with a thermostat which controls the temperature
of the room by turning the heater on and off. The heater is protected
with a safety device to prevent overheating. Should the heater
overheat, an automatic cut out will turn the heater off and it will not
come back on without being reset. It can be reset by switching the
Main On/Off Switch to off and waiting five (5) minutes before switching
the unit back on.
CAUTION: If you need to continuously reset the heater, unplug the
unit and call Technical Support at 1-888-346-7539. Please have
your model and serial number ready when calling.
Maintenance
WARNING: Disconnect power before attempting any maintenance
or cleaning to reduce the risk of fire, electric shock or damage to
persons.
Light Bulb Replacement
Allow at least five (5) minutes for the light bulbs to cool before touching
them to avoid accidental burning of the skin. The light bulbs need
11
to be replaced when you notice a dark section of the flame or when
the clarity and detail of the log Ember Bed exterior reduces. There
are three (3) bulbs under the Log Set, which generate the flames and
embers, and two (2) bulbs above the log that illuminate the log exterior.
Lower Light Bulb Requirements
Quantity of three (3) clear chandelier or candelabra bulbs with an E-12
(small) socket base, 60 Watt rating. Example: GE 60BC or Philips
60CTC.
Do not exceed 60 Watts per bulb.
Helpful Hints
It is a good idea to replace all light bulbs at one time if they are close to
the end of their rated life. Group replacement will reduce the number
of times you need to open the unit to replace light bulbs. Replacement:
1. Slide fireplace out of mantel.
2. Lay unit on it’s back for safe removal of front glass.
3. Remove four (4) Phillips screws from the right side of Trim.
4. Remove Trim.
5. Slide glass to right side of fireplace to remove (Figure 7).
Figure 7
Lower
Bulbs
Log Set
Figure 8
Upper
Bulbs
Trim
Back
Ledge
Rear
Tab
Front
Glass
Log
Ember Bed
Side Section
Front
Edge
6. Pull the front edge of the plastic Ember Bed or plastic grate up and
forward until the rear tab releases from the ledge located at the
bottom of the mirror (Figure 8).
12
! IMPORTANT: Only handle the Log Set by the Ember Bed.
! NOTE: Log Set fits tightly into firebox, some force may be
necessary to remove.
7. Set Log Set in front of fireplace.
8. Remove flicker rod by sliding flicker rod to the left away from the
flicker motor and lifting out.
9. Remove light bracket for easier access to light bulbs.
10.Unscrew bulbs counter clockwise.
11.Insert new bulbs.
12.Replace the Log Set by inserting the front edge of the fireplace and
push down on the rear edge of the Ember Bed until it snaps into
place (Figure 8).
13.Lay unit on it’s back and slide front glass back into position and
attach trim.
! NOTE: Ensure the Log Set is installed tightly under the back ledge
to prevent light leakage.
Upper Light Bulb Requirements
Quantity of two (2) clear chandelier or candelabra bulbs with an E-12
(small) socket base, 15 Watt rating.
Do not exceed 25 Watts per bulb.
To access the upper light bulb area:
1. Slide fireplace out of mantel.
2. Lay unit on it’s back for safe removal of Front Glass.
3. Remove four (4) Phillips screws from right side of Trim.
4. Remove Trim.
5. Slide glass to the right side of the fireplace to remove (Figure 7).
6. Upper bulbs are located in the upper left and upper right corners of
fireplace.
7. Unscrew bulbs counter clockwise.
8. Insert new bulbs.
13
9. Lay unit on it’s back slide front glass back into position and attach
Trim.
Glass Cleaning
The glass is cleaned in the factory during the assembly operation. During shipment, installation, handling, etc., the clear door may collect
dust particles, these can be removed by dusting lightly with a clean dry
cloth.
To remove fingerprints or other marks, the clear door can be cleaned
with a damp cloth. Fireplace Surface Cleaning
Use a cloth dampened with warm water only to clean painted surfaces
of the electric fireplace. Do not use abrasive cleaners.
Two Year Limited Warranty
Products to which this limited warranty applies
This limited warranty applies to your newly purchased Dimplex electric fireplace. This
limited warranty applies only to purchases made in any province of Canada except for
Yukon Territory, Nunavut, or Northwest Territories or in any of the 50 States of the USA
(and the District of Columbia) except for Hawaii and Alaska. This limited warranty applies
to the original purchaser of the product only and is not transferable.
Products excluded from this limited warranty
Light bulbs are not covered by this limited warranty and are the sole responsibility of the
owner/purchaser. Products purchased in Yukon Territory, Nunavut, Northwest Territories,
Hawaii, or Alaska are not covered by this limited warranty. Products purchased in these
States, provinces, or territories are sold AS IS without warranty or condition of any kind
(including, without limitation, any implied warranties or conditions of merchantability or
fitness for a particular purpose) and the entire risk of as to the quality and performance
of the products is with the purchaser, and in the event of a defect the purchaser assumes
the entire cost of all necessary servicing or repair.
What this limited warranty covers and for how long
Products, other than fireplace surrounds (mantels) and trims, covered by this limited
warranty have been tested and inspected prior to shipment and, subject to the provisions
of this warranty, Dimplex warrants such products to be free from defects in material and
workmanship for a period of 2 years from the date of the first purchase of such products.
Dimplex fireplace surrounds (mantels) and trims covered by this limited warranty
have been tested and inspected prior to shipment and, subject to the provisions of
this warranty, Dimplex warrants such products to be free from defects in material and
workmanship for a period of 1 year from the date of first purchase of such products.
14
The limited 2 year warranty period for products other than fireplace surrounds (mantels)
and trims and the limited 1 year warranty period for fireplace surrounds (mantels) and
trims also applies to any implied warranties that may exist under applicable law. Some
jurisdictions do not allow limitations on how long an implied warranty lasts, so the above
limitation may not apply to the purchaser.
What this limited warranty does not cover
This limited warranty does not apply to products that have been repaired (except by
Dimplex or its authorized service representatives) or otherwise altered. This limited
warranty does further not apply to defects resulting from misuse, abuse, accident,
neglect, incorrect installation, improper maintenance or handling, or operation with an
incorrect power source.
What you must do to get service under this limited warranty
Defects must be brought to the attention of Dimplex Technical Service by contacting
Dimplex at 1-888-DIMPLEX (1-888-346-7539), or 1367 Industrial Road, Cambridge
Ontario, Canada N1R 7G8. Please have proof of purchase, catalogue/model and serial
numbers available when calling. Limited warranty service requires a proof of purchase of
the product.
What Dimplex will do in the event of a defect
In the event a product or part covered by this limited warranty is proven to be defective in
material or workmanship during (i) the 2 year limited warranty period for products other
than fireplace surrounds (mantels) and trims, and (ii) the 1 year limited warranty period
for surrounds (mantels) and trims, you have the following rights:
• Dimplex will in its sole discretion either repair or replace such defective product or
part without charge. If Dimplex is unable to repair or replace such product or part, or
if repair or replacement is not commercially practicable or cannot be timely made,
Dimplex may, in lieu of repair or replacement, choose to refund the purchase price for such product or part.
• Limited warranty service will be performed solely by dealers or service agents of
Dimplex authorized to provide limited warranty services.
• For products other than surrounds (mantels) and trims, this 2 year limited warranty
entitles the purchaser to on-site or in-home warranty services. Accordingly, Dimplex
will be responsible for all labour and transportation associated with repairing or
replacing the product or part except as follows: (i) charges which may be levied for
travel costs incurred to travel to the purchaser’s site where the product is located
if the purchaser’s site is beyond 30 miles (48 km) from the closest service depot of
Dimplex’s dealer or service agent; and (ii) the purchaser is solely responsible for
providing clear access to all serviceable parts of the product.
• For surrounds (mantels) and trims, this 1 year limited warranty does not entitle the
purchaser to on-site or in-house warranty services. The purchaser is responsible for
removal and transportation of the surrounds (mantels) and trims (and any repaired or
replacement product or part) to and from the authorized dealer’s or service agent’s
place of business. On-site or in-home services for surrounds (mantels) and trims
may be performed at the purchaser’s specific request and expense at Dimplex’s then
current rates for such services. Dimplex will not be responsible for, and this limited
15
warranty shall not include, any expense incurred for installation or removal of the
surrounds (mantels) or trims or any part thereof (or any replacement product or part)
including, without limitation, all shipping costs and transportation costs to and from
the authorized dealer’s or service agent’s place of business and all labour costs.
Such costs shall be the purchaser’s responsibility.
What Dimplex and its dealers and service agents are also not responsible for:
IN NO EVENT WILL DIMPLEX, OR ITS DIRECTORS, OFFICERS, OR AGENTS, BE
LIABLE TO THE PURCHASER OR ANY THIRD PARTY. WHETHER IN CONTRACT,
IN TORT, OR ON ANY OTHER BASIS, FOR ANY INDIRECT, SPECIAL, PUNITIVE,
EXEMPLARY, CONSEQUENTIAL, OR INCIDENTAL LOSS, COST, OR DAMAGE
ARISING OUT OF OR IN CONNECTION WITH THE SALE, MAINTENANCE, USE,
OR INABILITY TO USE THE PRODUCT, EVEN IF DIMPLEX OR ITS DIRECTORS,
OFFICERS, OR AGENTS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH LOSSES, COSTS OR DAMAGES, OR IF SUCH LOSSES, COSTS, OR DAMAGES ARE
FORESEEABLE. IN NO EVENT WILL DIMPLEX, OR ITS OFFICERS, DIRECTORS,
OR AGENTS BE LIABLE FOR ANY DIRECT LOSSES, COSTS, OR DAMAGES THAT
EXCEED THE PURCHASE PRICE OF THE PRODUCT.
SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR
EXCLUSION MAY NOT APPLY TO THE PURCHASER.
How State and Provincial law apply
This limited warranty gives you specific legal rights, and you may also have other
rights which vary from jurisdiction to jurisdiction. The provisions of the United Nations
Convention on Contracts for the Sale of Goods shall not apply to this limited warranty or
the sale of products covered by this limited warranty.
Dimplex North America Limited
1367 Industrial Road Cambridge ON
Canada N1R 7G8
© 2009 Dimplex North America Limited
1-888-346-7539 www.dimplex.com
Approved for use in the United States and Canada
Printed in China
16
