Creative Zii EGG Installation manual

Quick Start
1

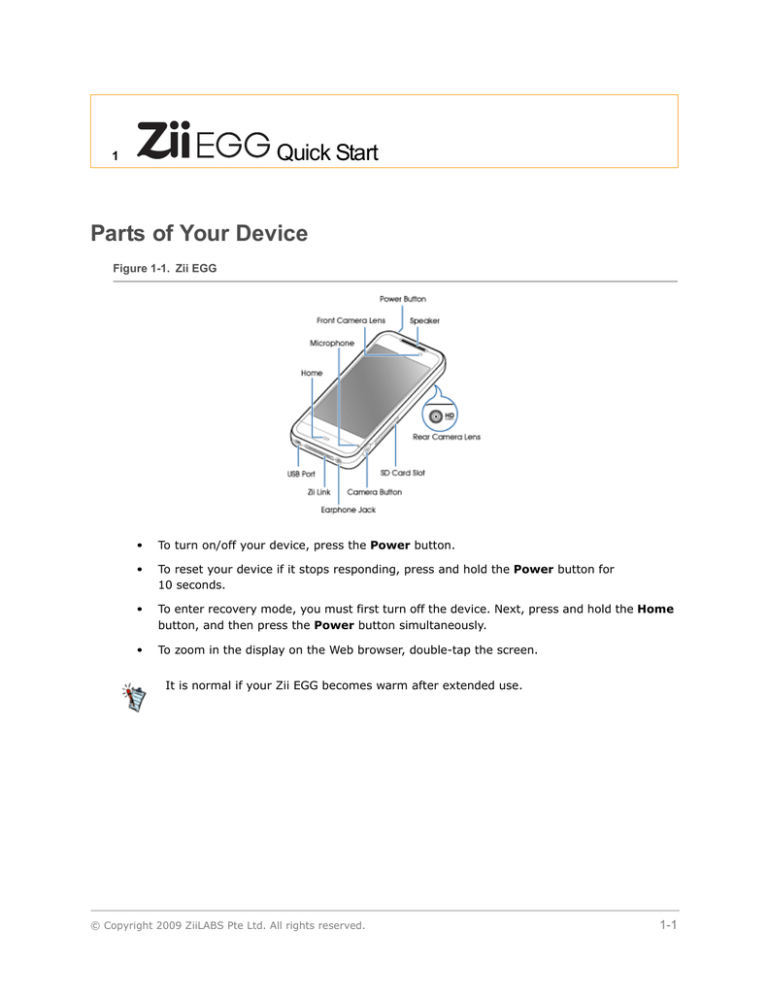

Parts of Your Device
Figure 1-1. Zii EGG
•
To turn on/off your device, press the Power button.
•
To reset your device if it stops responding, press and hold the Power button for
10 seconds.
•
To enter recovery mode, you must first turn off the device. Next, press and hold the Home
button, and then press the Power button simultaneously.
•
To zoom in the display on the Web browser, double-tap the screen.
It is normal if your Zii EGG becomes warm after extended use.
© Copyright 2009 ZiiLABS Pte Ltd. All rights reserved.
1-1
Quick Start
Charging Zii EGG and Transferring Data
•
To charge your device, use either the Zii Universal Adapter, Zii USB Mini Cable, or *Zii USB
Cable (sold separately).
•
To transfer data, connect your device to the computer using the cable, and then start Zii
EGG Explorer on your computer.
Figure 1-2. Zii USB Cable and Zii USB Mini Cable
1-2
© Copyright 2009 ZiiLABS Pte Ltd. All rights reserved.
Quick Start
Using Wi-Fi
Wi-Fi TM (Wireless Fidelity) is a commonly used wireless network that enables connection to the
Internet or other devices that support Wi-Fi. You need to enable Wi-Fi in order to use features such
as accessing e-mail and the Internet, and conducting video conference on your device.
Turning on Wi-Fi
Turn on Wi-Fi to detect the wireless networks available at your location:
1. Touch Settings
2. Select
on the Home menu.
Wi-Fi.
3. Touch
to turn on.
Zii EGG displays a list of the networks that it detected.
Figure 1-3. Turn on Wi-Fi
Connecting to a Network
The first time you attempt to connect to a security-enabled network, you may be prompted to enter
a password. Upon successful verification of the password, Zii EGG connects you to the network and
saves the password so you do not have to re-enter the information during subsequent connection.
© Copyright 2009 ZiiLABS Pte Ltd. All rights reserved.
1-3
2
Safety & Regulatory Information
Regulatory Information
The following sections contain notices for various countries:
CAUTION: This product is intended for use with FCC/CE certified computer equipment. Please
check the equipment operating/installation manual and/or with the equipment manufacturer to verify/confirm if your equipment is suitable prior to the installation or use of the product.
Notice for the USA
Federal Communication Commission (FCC) Interference Statement
FCC Part 15: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
•
•
•
Reorient or relocate the receiving antenna.
•
Consult the dealer or an experienced radio/TV technician for help.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
CAUTION: To comply with the limits of the Class B digital device, pursuant to Part 15 of the FCC
Rules, this device must be installed with computer equipment certified to comply with Class B limits.
All cables used to connect to the computer and peripherals must be shielded and grounded. Operation with non-certified computers or non-shielded cables may results in interference to radio or
television reception.
© Copyright 2009 ZiiLABS Pte Ltd. All rights reserved.
2-1
Safety & Regulatory Information
MODIFICATION: Any changes or modifications not expressly approved by the grantee of this
device could void the user's authority to operate the device.
Federal Communication Commission (FCC) Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
For body operation, IBANSC-FL02 has been tested and meets the FCC RF exposure guidelines when
used directly against the body. Specific Absorption Rate, or SAR is a measurement of radio frequency energy. The FCC permits a maximum SAR value of 1.6 mW/g. The highest SAR value for
this product when used on the body, as described in this user's guide, is 1.26 mW/g.
California Proposition 65 Statement
WARNING: Handling this product may expose you to chemicals known to the State of California to
cause cancer and birth defects or other reproductive harm.
Wash hands after handling.
Explanatory Note: California Safe Drinking Water and Toxic Enforcement Act of 1986 (Proposition
65) requires special product labeling for products containing certain chemicals known to the State
of California to cause cancer, birth defects or other reproductive harm. Creative has chosen to provide a warning based on its knowledge about the presence of one or more listed chemicals without
attempting to evaluate the level of exposure. With Creative's products, the exposure may be below
the Proposition 65 level of concern, or could even be zero. However, out of an abundance of caution, Creative has elected to place the Proposition 65 warning on its products.
Déclaration de la Proposition 65 de la Californie
AVERTISSEMENT: La manipulation de ce produit peut vous exposer à des produits chimiques qui
sont reconnus par l'État de la Californie comme pouvant provoquer le cancer, des anomalies congénitales ou d'autres effets nuisibles à la reproduction.
Veuillez vous laver les mains après l'avoir manipuler.
Note explicative: La Proposition 65 (California Safe Drinking Water and Toxic Enforcement Act of
1986) de la Californie sur les matières dangereuses et l'eau potable exige un étiquetage spécial
pour les produits contenant certains produits chimiques qui sont reconnus par l'État de la Californie
comme pouvant provoquer le cancer, des anomalies congénitales ou d'autres effets nuisibles à la
reproduction. Creative a choisi d'inclure une mise en garde s'appuyant sur sa connaissance de la
présence d'un ou de plusieurs de ces produits chimiques sans essayer d'en évaluer le niveau
d'exposition. Pour les produits de Creative, le niveau d'exposition peut être inférieur au niveau critique établi par la Proposition 65 ou même être nul. Néanmoins, par souci extrême de prudence,
Creative a choisi de placer l'avertissement de la Proposition 65 sur ses produits.
2-2
© Copyright 2009 ZiiLABS Pte Ltd. All rights reserved.
Safety & Regulatory Information
Notice for Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesirable operation.
Son Fonctionnement est soumis aux deux conditions suivantes :
(1) Le matériel ne peut étre source D'interférences et
(2) Doit accepter toutes les interférences reques, Y compris celles pouvant provoquer un fonctionnement indésirable.
CANADIAN CLASS B STATEMENT: This digital device does not exceed the Class B limits for radio
noise emissions from digital apparatus as set out in the interference-causing equipment standard
entitled "Digital Apparatus," ICES-003 of the Department of Communications.
Cet appareil numerique respecte les limites de bruits radioelectriques applicables aux appareils
numeriques de Classe B prescrites dans la norme sur le materiel brouilleur: "Appareils Numeriques," NMB-003 edictee par le ministre des Communications.
MODIFICATION: Any changes or modifications not expressly approved by the grantee of this
device could void the user's authority to operate the device.
Toute modification non approuvée explicitement par le fournisseur de licence de l'appareil peut
entraîner l'annulation du droit de l'utilisateur à utiliser l'appareil.
© Copyright 2009 ZiiLABS Pte Ltd. All rights reserved.
2-3
Safety & Regulatory Information
European Compliance
This product conforms to the following:
EMC Directive 2004/108/EC.
Mains operated products for the European market comply with Low Voltage Directive 2006/95/EC.
Communication / RF wireless products for the European market comply with R&TTE Directive 1999/
5/EC.
CAUTION: To comply with the Europe CE requirement, this device must be installed with CE certified computer equipment which meet with Class B limits.
All cables used to connect this device must be shielded, grounded and no longer than 3m in length.
Operation with non-certified computers or incorrect cables may result in interference to other
devices or undesired effects to the product.
MODIFICATION: Any changes or modifications not expressly approved by Creative Technology
Limited or one of its affiliated companies could void the user's warranty and guarantee rights.
WEEE Directive 2002/96/EC
The use of the WEEE Symbol indicates that this product may not be treated as
household waste. By ensuring this product is disposed of correctly, you will help protect the environment. For more detailed information about the recycling of this product, please contact your local authority, your household waste disposal service
provider or the shop where you purchased the product.
Batteries Directive 2006/66/EC
For Removable Battery This product may contain one or more of the following
removable batteries: Li-ion/polymer, button/coin cells, cylindrical cells. In this case,
the following applies: The crossed-out wheeled bin symbol indicates that the battery
in this product should not be treated as unsorted municipal waste upon reaching its
end of life. Instead it should be taken to separate collection and recycling schemes.
Batteries containing heavy metal content will have a two-letter symbol for the chemical under the crossed-out wheeled bin symbol. 'Cd' stands for cadmium, 'Pb' for
lead, and 'Hg' for mercury. You can help the environment and avoid public health
hazards by recycling the battery at an authorized recycling facility or the place of
purchase. To find the nearest authorized recycle centre contact your local authority.
Instructions for removing the battery can be found in the product user manual. The
instructions should be followed carefully before attempting to remove the battery.
For Integrated Battery This product may contain a Lithium ion/polymer battery that
should only be removed by an authorized recycling centre. By recycling this product
at your local authorized recycling centre or the place of purchase, the battery will be
removed and recycled separately.
2-4
© Copyright 2009 ZiiLABS Pte Ltd. All rights reserved.
Safety & Regulatory Information
Declaration of Conformity
According to LVD Directive (2006/95/EC) and R&TTE Directive (1999/5/EC)
Company Name :
Creative Technology Ltd
Company Address :
31, International Business Park
Creative Resource
Singapore 609921
Declare under our sole responsibility that the product(s):
Product Name :
Zii EGG
Model Number :
NSC-FL02
To which this declaration relates are in conformity with the following standard(s):
R&TTE
:
EN 300 328 V1.7.1: 2006
EMI/EMC
:
EN 55022: 2006 + A1: 2007
EN 55024: 1998 +A1: 2001 + A2: 2003
EN 55013: 2001 + A1: 2003 + A2: 2006
EN 55020: 2007
EN 301 489-1 V1.8.1: 2008
EN 301 489-17 V1.3.2: 2008
EN 301 489-19 V1.2.1: 2002
Safety
:
EN 60950-1: 2001 + A11: 2004
SAR
:
EN 50360: 2001
EN 50361: 2001
EN 62209-1: 2006
Technical documentation for this product(s) is retained at the following address:
Company Name :
Creative Technology Ltd
Company Address :
31, International Business Park
Creative Resource
Singapore 609921
© Copyright 2009 ZiiLABS Pte Ltd. All rights reserved.
2-5
Safety & Regulatory Information
Notice for Australia and New Zealand
This product complies with the requirements of the ACMA Radiocommunications (Electromagnetic
Compatibility) Standard 2008.
Notice for Singapore
IDA Registration No. N1190-09
Notice for Japan
2-6
© Copyright 2009 ZiiLABS Pte Ltd. All rights reserved.
Safety & Regulatory Information
Safety Information
Refer to the following information to use your product safely, and to reduce the chance of electric
shock, short-circuiting, damage, fire, hearing impairment or other hazards. Improper handling
may void the warranty for your product. For more information, read the warranty available with your product.
•
Do not dismantle or attempt to repair your product.
Refer all servicing to authorized repair agents.
•
Do not expose your product to temperatures outside the range of 0°C to 45°C (32°F to
113°F).
•
•
•
•
Do not pierce, crush or set fire to your product.
Keep your product away from strong magnetic objects.
Do not subject your product to excessive force or impact.
Do not expose your product to water or moisture.
If your product is moisture-resistant, take care not to immerse your product in water or
expose it to rain.
Earphones
•
When a conductive apparatus such as earphones, is used in close proximity with a CRT television or CRT monitor, the latter may emit an electrostatic discharge. This electrostatic discharge can be felt as a static shock. While this static shock is usually harmless, it is good
practice to avoid close contact with CRT devices when using earphones.
•
Do not listen to audio on your earbuds or headphones at high volume for prolonged periods
of time as hearing loss may result. For users in the United States, go to www.hei.org for
more information.
•
Do not listen to your audio device at high volume when driving, cycling or crossing the
road, especially in heavy traffic, or in any other traffic condition where such use will hinder
safe travel on the roads. We recommend that consumers be extremely cautious when using
this device on the road.
Embedded Battery
•
Do not attempt to remove the embedded battery.
The product must be disposed of according to local environmental regulations. To replace
the battery, return your product to your regional support office. For product service information, go to support.zii.com.
•
Do not expose to excessive heat such as sunlight, fire or the like.
CAUTION: Risk of explosion if battery is replaced by incorrect types.
Removable Battery
•
The battery must be recycled or disposed of properly. Contact local agencies for recycling
and disposal information.
•
Do not allow metal objects to touch the terminals of your battery.
© Copyright 2009 ZiiLABS Pte Ltd. All rights reserved.
2-7
Safety & Regulatory Information
•
If there is leakage, an offensive odor, discoloration or deformation during charging or use,
remove the battery and do not use it again. Clean your hands well before touching food or
sensitive areas, for example, your eyes.
•
Do not expose to excessive heat such as sunlight, fire or the like.
CAUTION: Risk of explosion if battery is replaced by incorrect types.
2-8
© Copyright 2009 ZiiLABS Pte Ltd. All rights reserved.
Safety & Regulatory Information
Wireless LAN Device
Switch off the device where it is prohibited, or when its use may cause danger or interferrence,
such as when inside an aircraft, in hospitals, or near refuelling stations.
Bluetooth Product
Do not turn on or use your product in an airplane.
© Copyright 2009 ZiiLABS Pte Ltd. All rights reserved.
2-9
Safety & Regulatory Information
Copyright
Information in this document is subject to change without notice and does not represent a commitment on the part of ZiiLABS Pte Ltd.
Copyright © 2009 ZiiLABS Pte Ltd. All rights reserved.
Version 1.70
Quick Start Version 1.00.01
August 2009
© Copyright 2009 ZiiLABS Pte Ltd. All rights reserved.
2-10
