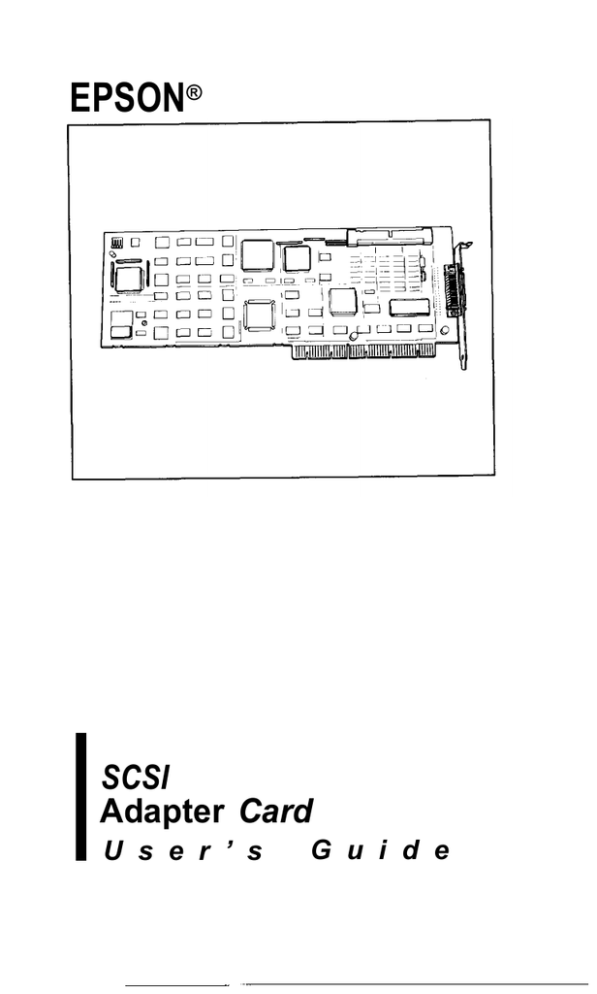

EPSON®
I
SCSI
Adapter Card
U s e r ’ s
G u i d e
FCC COMPLIANCE STATEMENT
FOR AMERICAN USERS
This equipment has been tested and found to comply with the limits for a class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio and television reception. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause interference to radio and television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
❏ Reorient or relocate the receiving antenna
❏ Increase the separation between the equipment and receiver
❏ Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected
❏ Consult the dealer or an experienced radio/TV technician for help.
WARNING
The connection of a non-shielded equipment interface cable to this equipment will
invalidate the FCC Certification of this device and may cause interference levels
that exceed the limits established by the FCC for this equipment. It is the
responsibility of the user to obtain and use a shielded equipment interface cable
with this device. If this equipment has more than one interface connector, do not
leave cables connected to unused interfaces.
Changes or modifications not expressly approved by the manufacturer could void
the user’s authority to operate the equipment.
FOR CANADIAN USERS
This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus as set out in the radio interference regulations of the
Canadian Department of Communications.
Le present appareil numérique n’émet pas de bruits radioélectriques dépassant les
limites applicables aux appareils numériques de Classe B prescrites dans le
règlement sur le brouillage radioélectrique édicté par le Ministére des
Communications du Canada.
EPSON ®
I
SCSI
Adapter Card
U s e r ’ s Guide
IMPORTANT NOTICE
DISCLAIMER OF WARRANTY
Epson America makes no representations or warranties, either express or implied,
by or with respect to anything in this manual, and shall not be liable for any
implied warranties of merchantability and fitness for a particular purpose or for
any indirect, special, or consequential damages. Some states do not allow the
exclusion of incidental or consequential damages, so this exclusion may not apply
to you.
COPYRIGHT NOTICE
All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system, or transmitted, in any form or by any means, electronic,
mechanical, photocopying, recording, or otherwise, without the prior written
permission of Epson America, Inc. No patent liability is assumed with respect to
the use of information contained herein. While every precaution has been taken in
the preparation of this publication, Epson America assumes no responsibility for
errors or omissions. Nor is any liability assumed for damages resulting from the use
of the information contained herein. Further, this publication and features
described herein are subject to change without notice.
TRADEMARKS
Epson is a registered trademark of Seiko Epson Corporation.
General notice: Other product names used herein are for identification purposes
only and may be trademarks of their respective companies.
Copyright © 1991 by Epson America, Inc.
Torrance, California
ii
Y72599101400
I
Contents
Introduction
How to Use This Manual ............................................... 2
The SCSI Package .......................................................... 3
Where to Get Help ........................................................ 4
1
The SCSI lnterface
SCSI ID Numbers ...........................................................
SCSI Terminators.. .........................................................
Removing and Inserting Terminators.. ....................
Parity Checking.. ...........................................................
Single-ended Devices ....................................................
Installing Multiple SCSI Adapter Cards ........................
Turning On SCSI Devices.. ............................................
2
l-2
l-3
l-5
l-5
l-5
1-6
l-6
Setting Up the SCSI Interface
SCSI Adapter Card Components.. .................................
Installing the SCSI Adapter Card ..................................
Installing Your SCSI Devices .........................................
Installing and Connecting an Internal Device .........
Connecting an External Device ................................
2-l
2-3
2-3
2-4
2-11
...
111
3
Configuring Your System
Using the Configuration Program ................................
Copying the Configuration Files ..............................
Modifying the SCSI Parameters ................................
Exiting the Configuration Program ..........................
3-2
3-2
3-3
3-9
Installing Software Drivers for MS- DOS
The ASPI MS-DOS Manager ..........................................
Installing the ASPI MS-DOS Manager.. .....................
Using the DEVICE command ...................................
Using Multiple Epson SCSI Adapter Cards ...............
The ASPI Disk Driver .....................................................
Installing the ASPI Disk Driver .................................
Using the DEVICE command ...................................
The AFDISK Program .....................................................
Installing AFDISK ......................................................
Running the AFDISK Program ..................................
Installing Removable Media .........................................
Error Messages ...............................................................
ASPI4DOS.SYS or ASPIEDOS.SYS Messages.. .............
ASPIDISK.SYS Messages .............................................
Software Considerations ...............................................
5
Installing Software Drivers for OS/2
The ASPI OS/2 Manager ................................................
Installing the ASPI OS/2 Manager ............................
Using the DEVICE command ...................................
The ASPI OS/2 Disk Driver ............................................
iv
4-l
4-2
4-4
4-7
4-7
4-8
4-8
4-9
4-10
4-11
4-13
4-14
4-14
4-17
4-19
5-l
5-2
5-3
5-4
6
7
Installing Software Drivers for Novell NetWare 286/386
ASPI NetWare Manager Diskette ................................... 6-2
Installing Drivers for NetWare 386
Versions 3.0, 3.1, and 3.11 ................................... 6-2
Command Line Options ........................................... 6-4
Using Multiple Disk Drives With NetWare 386 ....... 6-7
NetWare Guidelines .................................................. 6-11
NetWare Ready ......................................................... 6-15
Error Messages ........................................................... 6-15
Installing Drivers for NetWare 286 Version 2.15C.. ..... 6-17
Using the Hard Disk Option ..................................... 6-18
Using Multiple Disk Drives with
NetWare 286 Version 2.15C ................................. 6-22
Error Messages ........................................................... 6-30
SCSI Adapter Options .................................................... 6-32
Installing Software Drivers for UNIX
Installing the UNIX SCSI Manager ...............................
Configuring the SCSI Adapter and Devices ..................
Changing the SCSI Adapter Card Mode ...................
Defining the Primary Host Adapter.. ........................
Using Multiple SCSI Adapters ...................................
Referencing a Second SCSI Adapter Card .................
Adding or Removing a SCSI device ..........................
Using the mkdev hd Utility ......................................
Installation Guidelines.. ................................................
Rewinding a SCSI Tape After Performing Multiple
Write Operations ................................................
Intermixing Read and Write Operations on a
No-rewind Tape Device ......................................
Warning Messages During Heavy Disk Access .........
Errors on SCSI Hard Disk Drives ...............................
Long Delays Accessing a SCSI Device .......................
Accessing Devices on a Standard
Mode SCSI Adapter .............................................
7-3
7-6
7-6
7-6
7-6
7-7
7-8
7-8
7-9
7-10
7-12
7-14
7-14
7-15
7-16
V
Operating Notes ............................................................
Enabling Tag Queuing ..............................................
Tuning Performance for Single Disks .......................
The change_ha Script ................................................
The eisa Command ...................................................
Index
vi
7-16
7-17
7-18
7-19
7-21
I
Introduction
The Epson® SCSI adapter card allows you to install a complete
SCSI subsystem in your EISA Series computer using the industrystandard set of hardware and software specifications known as the
Small Computer System Interface.
The SCSI adapter card is a parallel, multimaster input/output bus
card that provides a standard interface between your EISA Series
computer and any SCSI peripheral devices. Using the SCS1
interface, you can connect additional drives to your EISA Series
computer. You can connect SCSI devices such as hard disk drives,
tape drives, CD-ROM drives, WORM (write once, read many times)
drives, and magneto-optical devices. You can also connect SCSI
communication devices and bar code readers.
The SCSI adapter card and its interface provide the following
features:
❏ Support for up to eight devices; the adapter card counts as one
SCSI device
❏ The ability to easily perform complex, concurrent I/O
operations
❏ Command queuing, which allows SCSI devices to queue
commands for later execution
❏ The ability to connect high performance SCSI devices with
8-bit data transfer rates of up to 1OMB per second
❏ Support of the SCSI-II Fast standard
❏ An EISA burst rate of up to 33MB per second
Introduction 1
❏ Support for the common, single-ended SCSI interface
❏ Device driver support for MS-DOS? OS/2, UNIX,® and Novell®
NetWare® 286/386.
How to Use This Manual
This manual explains how to install and configure your SCSI
adapter card. It also describes attaching optional SCSI devices and
installing drivers for the most common operating systems.
If you are not familiar with the SCSI interface, be sure to read
Chapter 1 for an introduction to SCSI. Follow the instructions in
Chapters 2 and 3 for setting up the SCSI interface and configuring
your computer for use with SCSI. Then see Chapter 4, 5, 6, or 7 to
install the necessary drivers for your operating system.
The following chapter summaries show you where to look for
specific information:
Chapter 1 introduces you to the SCSI interface.
Chapter 2 provides instructions for installing the SCSI adapter
card and your SCSI devices.
Chapter 3 describes how to configure your EISA computer to
operate with the SCSI devices you install.
Chapter 4 describes how to install the drivers for MS-DOS.
Chapter 5 describes how to install the drivers for OS/2.
Chapter 6 describes how to install the drivers for Novell NetWare.
Chapter 7 describes how to install the drivers for UNIX.
You’ll also find an index at the back of the manual.
2
Introduction
The SCSI Package
Along with this User’s Guide, you should find the following items
in your SCSI package:
❏ SCSI adapter card
❏ 50-pin SCSI ribbon cable (with two connectors for internal
devices) and a tie wrap for the tower model
❏ LED cable for an internal SCSI hard disk drive
❏ Five SCSI Adapter diskettes: Configuration Utilities, ASPI
MS-DOS Manager, ASPI OS/2 Manager, ASPI NetWare 286/386
Manager, and UNIX SCSI Managers.
If anything is missing or damaged, contact your dealer.
Be sure to make a backup copy of each diskette before you use it.
See your operating system manual for details.
Caution
Before handling the SCSI adapter card, first touch a grounded metal
object to ground yourself and prevent transmission of static electricity
that may cause damage to the components on the board.
Hold the adapter card only by its edges and the shielding plate. Do not
touch the connectors or components on the board.
Introduction 3
Where to Get Help
If you purchased your Epson product in the United States, Epson
America provides local customer support and service through a
nationwide network of authorized Epson dealers and Service
Centers.
Epson also provides the following support services through the
Epson Consumer Resource Center at (800) 922-8911:
❏
Assistance in locating your nearest Authorized Epson Reseller
or Service Center
❏
Technical assistance with the installation, configuration, and
operation of Epson products
❏
Epson technical information library fax service
❏
Product literature with technical specifications on our current
and new products
❏
Sales of ribbons, supplies, parts, documentation, and
accessories for your Epson product
❏
Customer Relations.
If you purchased your Epson product outside of the United States,
please contact your dealer or the marketing location nearest you
for customer support and service. International marketing
locations are listed on the inside of this manual’s back cover.
4
Introduction
This chapter introduces you to the SCSI interface. If you are
unfamiliar with the SCSI interface, be sure to read this chapter
thoroughly.
This fast, simple interface was pioneered by Shugart and Associates
and was originally called the Shugart Associates System Interface
(SASI). The American National Standards Institute (ANSI) modified
and added to the SASI specifications and renamed it SCSI (Small
Computer System Interface). This interface, called SCSI-I, has
undergone several revisions and is currently defined by ANSI
specification X3.131-1986. The SCSI adapter card also supports the
latest interface, called SCSI-II.
The SCSI adapter card allows you to connect up to eight devices,
including the adapter card, in what is called a daisy-chain
arrangement. All devices connected through the interface are
assigned a SCSI ID number so that they can recognize each other.
When you use multiple SCSI devices, you must pay attention to
the terminators that affect the arrangement of the devices along
the SCSI interface. SCSI ID numbers and terminators are explained
in more detail in the following sections.
The SCSI Interface
l-l
SCSI ID Numbers
Each SCSI device must have a SCSI ID number, from 0 to 7. The
factory set SCSI ID number for the adapter card is 7.
You must assign a unique ID number between 0 and 6 to each
additional SCSI device that you install. The SCSI ID number is
determined by jumper or switch settings on the SCSI device. The
documentation that comes with each SCSI device includes specific
jumper and/or switch instructions.
SCSI ID 0 is reserved for the hard disk from which you start the
system. SCSI ID 1 is reserved for a second hard disk.
Each SCSI ID also has a logical unit number (LUN) associated
with it. This number can be from 0 to 7; however, the LUN for
most devices is fixed at 0.
The address of a SCSI device consists of the Target number and
the LUN. The following table shows the typical SCSI addressing
assignments.
Target:LUN
Device
0:0
First SCSI hard disk drive
l:0
Second SCSI hard disk drive
2:0-7
Any SCSI device
3:0-7
Any SCSI device
4:0-7
Any SCSI device
5:0-7
Any SCSI device
6:0-7
Any SCSI device
7
SCSI adapter card
1-2
The SCSI In terface
SCSI Terminators
For SCSI devices to communicate properly with each other, the
SCSI interface requires special resistor packs known as terminators.
These terminators reduce the echo, standing waves, and
interference along the SCSI interface.
You must be aware of the following important points about
terminators before you connect a new device to the SCSI interface.
o All SCSI devices have terminators. The terminators are
normally installed on the printed circuit board of a SCSI
device. The terminators on the SCSI adapter card are located
on the component side of the card as shown below.
terminators
❏ You must have only two devices with terminators on a SCSI
interface: the first device and the last device. All other SCSI
devices must have their terminators removed.
The SCSI Interface
1-3
❏ If you install only internal devices on the SCSI interface, then
the SCSI adapter card is the last device on the interface. If you
install only external devices on the SCSI interface, then the
SCSI adapter card is the first device on the interface. In either
of these cases, leave the terminators on the SCSI adapter card.
Internal SCSI device
with terminators
SCSI adapter card
with terminators
SCSI adapter card
with terminators
External SCSI device
with terminators
❏ If you install internal and external devices on the SCSI
interface, then the SCSI adapter card is in the middle. In this
case, remove the terminators from the SCSI adapter card.
The first and last devices on the interface must have their
terminators installed, and all other devices must have their
terminators removed.
SCSI hard
disk drive,
terminators
installed
SCSI hard
disk drive,
terminators
removed
SCSI adapter
card,
terminators
removed
SCSI device
(external),
terminators
removed
SCSI device
(external),
terminators
installed
❏ If you attach a device with internal terminators that cannot be
removed, it must be the first or last SCSI device on the
interface.
Note
The order in which you connect devices to the SCSI interface does not
affect the device’s operation speed.
1-4
The SCSI Interface
Removing and Inserting Terminators
To remove a terminator, use long-nose pliers or tweezers. Gently
grasp the terminator and pull it straight up and off the card.
Note
The terminators are fragile so handle them carefully.
To replace a terminator, make sure the pins on the terminator
align with the socket; then press firmly until the terminator is
securely seated. Make sure pin 1 on the terminator (identified by
a dot) aligns with pin 1 of the socket on the circuit board.
Parity Checking
The SCSI adapter card supports odd parity checking. If you enable
parity checking, make sure that all devices you connect to the
SCSI interface are set for odd parity checking. If one or more
devices do not support odd parity checking, disable parity
checking using the System Configuration program.
Single-ended Devices
The SCSI adapter card supports single-ended devices only. Make
sure that all devices you connect to the SCSI interface are
configured as single-ended devices.
Caution
Connecting a differential device to the SCSI interface can severely
damage all single-ended devices on the interface.
The SCSI Interface
l-5
Installing Multiple SCSI Adapter Cards
If you are installing more than one SCSI adapter card in your
system, you must set all the cards to Enhanced mode as described
in Chapter 3.
Also, each adapter card must be set to a different BIOS address
and the interrupt assignments of each each card must not conflict.
The system automatically assigns different addresses to all option
cards when you run your computer’s System Configuration
program, described in Chapter 3.
Turning On SCSI Devices
When you are ready to use your SCSI devices, you must be careful
to turn them on in the proper sequence to allow information to
pass through the SCSI interface.
Turn on all external SCSI devices you plan to use. Wait a few
seconds; then turn on the computer.
1-6
The SCSI Interface
2
I
Setting Up the
SCSI Interface
This chapter describes how to install the SCSI adapter card in
your EISA Series computer, and how to connect optional SCSI
peripheral devices to the SCSI interface.
Follow the instructions in this chapter to:
❏ Examine the components of the SCSI adapter card
❏ Install the SCSI adapter card
❏ Install any SCSI devices-first internal and then external
devices.
Caution
Before handling the SCSI adapter card, first touch a grounded metal
object to ground yourself and prevent transmission of static electricity
that may damage components on the board.
Hold the adapter card only by its edges and the shielding plate. Do not
touch the connectors or components on the board.
SCSI Adapter Card Components
Before installing the card, familiarize yourself with the connectors
and sockets on the SCSI adapter card. Remove the card from the
anti-static bag and place it on top of the bag with the component
side up.
Setting Up the SCSI Interface
2-l
To locate components on the card, refer to the following
illustration:
LED connector
terminators
internal SCSI connector
EISA Series bus connector
The SCSI adapter card contains the following connectors and
sockets:
❏ Internal SCSI connector. Connect internal SCSI devices to the
adapter card using this connector.
❏ External SCSI connector. Connect external SCSI devices to the
adapter card using this connector.
❏ EISA Series bus connector. Connect the SCSI adapter card to an
EISA Series option card slot using this connector.
❏ Terminators. Remove these if the SCSI adapter card is in the
middle of the daisy-chain arrangement of devices. Leave these
terminators installed if the SCSI adapter card is the first or last
device in the arrangement.
❏ LED connector (J2). Connect the LED cable to this socket and
to your computer’s main system board when you install an
internal SCSI hard disk drive.
Note
Jumper J3 controls the terminator power supply and J5 controls the
diagnostic functions of the adapter card. Do not alter these jumper
settings.
2-2
Setting Up the SCSI Interface
Installing the SCSI Adapter Card
You can install the SCSI adapter card in any one of the option
slots available in your EISA Series desktop computer. If you have
the tower model, you can install the card in slots 1 through 6
only; you cannot install a bus-mastering device in slot 7.
If you plan to connect an internal SCSI device to the SCSI
interface, you may want to install the SCSI adapter card in option
slot 1. With the card in this slot, you can easily run the cable from
the internal SCSI connector to the internal SCSI device. If you
install the card in one of the other option slots, the cable may
interfere with another card in your system.
If you plan to connect only external SCSI devices to your
computer, install the card in any option slot (with the exception
of slot 7 on the EISA Series tower model). The external connector
is accessible from the back panel of your computer after you install
the card.
Follow all the instructions for installing an option card in
Chapters 4 and 5 of your EISA Series User’s Guide. Then continue
with the instructions in the next section to install your SCSI
devices.
Installing Your SCSI Devices
Now you are ready to install your SCSI devices and connect them
to the SCSI interface.
Caution
You must connect only single-ended devices to the SCSI interface.
Attempting to connect a differential SCSI device may damage the SCSI
adapter card and the device.
If you are connecting more than one SCSI device, be sure to read the
information in the previous chapter on the SCSI ID number and the
terminators. If you do not follow the guidelines regarding these items,
you can damage your equipment and interfere with the operation of the
SCSI interface and your computer.
Setting Up the SCSI Interface
2-3
First install all internal devices and then all external devices. If you
plan to install only external SCSI devices, you can reinstall the
cover on your computer after you install the SCSI adapter card. See
your computer User’s Guide for instructions.
You must place any device containing a terminator that cannot be
removed at the end of the interface.
Note
Be sure to see the documentation that came with your SCSI device for
any information about jumper settings, pin 1 orientation, the SCSI ID,
and terminators. Pin 1 orientation must be consistent throughout the
SCSI interface.
I Installing and Connecting an Internal Device
To connect an internal SCSI device, use the 50-pin, SCSI ribbon
cable that came with the SCSI adapter card. This cable has two
connectors for internal devices, If you plan to install more than
two internal SCSI devices, you need to purchase a special cable.
See your Epson dealer for details.
To install an internal SCSI device, you must perform these
procedures:
❏ Install the internal device in one of the drive bays inside the
computer.
❏ Attach the 50-pin, SCSI ribbon cable to the SCSI device.
❏ Connect the 50-pin, SCSI ribbon cable to the SCSI adapter
card.
These procedures are described in the sections below.
If you plan to install an internal SCSI hard disk drive in your
computer, see “Installing a SCSI hard disk drive” on page 2-9 for
additional instructions.
2-4
Setting Up the SCSI Interface
installing the SCSI device
Before you install an internal SCSI device in one of your
computer’s drive bays, see the guidelines below.
The EISA Series desktop computer has two horizontal drive bays
and one vertical mounting area to hold drives. The upper
horizontal drive bay normally contains a diskette drive and the
vertical mounting area normally contains a hard disk drive. If you
are installing an internal device in the EISA Series desktop
computer, follow these guidelines:
❏ If your computer does not have a hard disk drive and you are
installing a SCSI hard disk drive, you should install it in the
vertical mounting area.
❏ If you are installing an additional hard disk drive or a tape
drive, you can install it in the lower horizontal drive bay.
The EISA Series tower computer supports up to six internal devices.
It can accommodate four half-height or one full-height and two
half-height drives in the upper drive bays, which you can access
externally. The internal drive bays can accommodate one fullheight or two half-height drives. The upper drive bays normally
contain at least one diskette drive; the internal drive housing
normally contains one or more hard disk drives. If you are
installing an internal device in the EISA Series tower computer,
follow this guideline:
❏ You can install a SCSI device in either location. However, if
you do not need to access a device externally, you should
install it in the internal housing. This leaves the externallyaccessible bays free for devices you need to access.
Follow all the instructions for installing a drive in your EISA Series
User’s Guide.
Note
Make sure you connect a power supply from your computer to each
internal SCSI device you install.
Setting Up the SCSI Interface
2-5
Connecting the SCSI cable to the SCSI device
After installing an internal SCSI device, you must attach the
50-pin, SCSI ribbon cable to it. Follow these steps:
1. Locate the 50-pin, SCSI ribbon cable. Notice pin 1 on the
cable, which is designated by a red stripe.
red stripe
red stripe
-pin 1
SCSI adapter card connector
2. Locate the SCSI connector on the SCSI device. Notice the
location of pin 1 on the connector. See the documentation
that came with the SCSI device for instructions on the proper
orientation of pin 1.
2-6
Setting Up the SCSI Interface
3. Align pin 1 on the ribbon cable with pin 1 on the connector of
the internal SCSI device.
4. Carefully insert the ribbon cable into the connector of the
internal device. Press on the connector until the cable is seated
firmly in the socket.
5. If you have a desktop computer, carefully route any excess
cable away from other internal cables and the main system
board as you reinstall the subassembly. Do not attach the SCSI
cable to the tie wrap (if present). See your EISA Series User’s
Guide for details.
If you have a tower computer, carefully route the cable away
from other internal cables and along the drive housing
support rail. Use the tie wrap that came with the SCSI adapter
card to attach the cable to the support rail.
Setting Up the SCSI Interface
2-7
Connecting the SCSI cable to the SCSI adapter card
Next you must connect the 50-pin, SCSI ribbon cable to the SCSI
adapter card. Follow these steps:
1. Carefully guide the ribbon cable over the processor board that
is connected to main system board in your EISA Series
computer. Keep the ribbon cable away from the ventilation
slots in the computer and away from possible electrical noise
sources or noise-sensitive components.
2. Locate the end of the 50-pin, SCSI ribbon cable. Notice pin 1
on the cable, which is designated by a red stripe.
3. Locate pin 1 on the SCSI adapter card’s internal SCSI
connector. Align pin 1 on the SCSI ribbon cable with pin 1 on
the internal SCSI connector.
4. Carefully insert the ribbon cable into the internal SCSI
connector. Press on both ends of the cable connector until it
is seated firmly in the SCSI connector.
Now you can replace the computer’s cover; see your EISA Series
User’s Guide for details. Make sure the SCSI ribbon cable does not
interfere with the cover or any other components.
2-8
Setting Up the SCSI Interface
Installing a SCSI hard disk drive
If you are installing an internal SCSI hard disk drive and you want
to boot from it, you must change the setting of jumper J3 on the
main system board to disable the built-in IDE hard disk drive
controller. This allows you to use the controller on your SCSI
adapter card. See your EISA Series User’s Guide for instructions on
changing the jumper setting.
Note
You must also use the System Configuration program described in
Chapter 3 to set any IDE hard disk drives as Not installed.
If you have a desktop computer, be sure to set the jumper while
you have the subassembly removed from the computer.
Note
The hard disk drive jumpers described in Chapter 6 of your EISA Series
User’s Guide are for IDE drives only. Your SCSI hard disk drive does not
contain these jumpers.
You also need to install the LED cable that came with your SCSI
adapter card. If you have a desktop computer, be sure to do this
while you have the subassembly removed from the computer.
To install the LED cable, follow these steps:
1. Locate the LED cable that came with the SCSI adapter card.
red wire
Setting Up the SCSI Interface
2-9
2. Attach the cable to socket J2 on the SCSI adapter card. Align
pin 1 on the cable with pin 1 on the socket, indicated by the
number 1. Pin 1 on the cable is indicated by the red wire.
3. Attach the other end of the cable to the alternate hard disk
drive LED connector on the main system board. (See your
computer User’s Guide for the exact location of the
connector.) Align the notched corners of both connectors.
Then push in the cable connector.
\ alternate hard disk drive
LED connector
2-10
Setting Up the SCSI Interface
Connecting an External Device
Install external SCSI devices after you install internal SCSI devices,
and after you have replaced your computer’s cover. Any external
device you connect to your SCSI interface must be single-ended.
The external connector on the SCSI adapter card is a small,
alternative-I, D-shell connector that ensures correct pin 1
orientation on the option card. (The connector is defined as an
alternative-II connector in the SCSI-I standard.)
You can connect up to seven external devices to your SCSI
interface (provided you have no internal SCSI devices installed).
The number of external devices is limited only by the combined
length of the SCSI cables. The total length of the SCSI cables can
be no longer than 18 feet (6 meters).
For example, if the cable connectors to your external SCSI devices
are each three feet long, you could connect up to six external SCSI
devices to your interface.
SCSI card
device 6
device 5
Setting Up the SCSI Interface
2-11
You must use the correct shielded SCSI cable for proper operation.
See your dealer for information regarding SCSI cables.
For complete details on attaching external devices, see the
documentation that came with your SCSI device.
2-12
Setting Up the SCSI Interface
3
I
Configuring
Your System
After installing the SCSI adapter card and your SCSI devices, you
must configure your system to operate with the SCSI interface.
The SCSI adapter card comes with a diskette labeled SCSI Adapter
Configuration Utilities. This diskette contains the configuration
(CFG) files you need to configure your computer.
You can configure your SCSI interface for Standard or Enhanced
mode. The SCSI adapter card is initially configured for Standard
mode.
In Standard mode, you have these features:
❏ Up to seven SCSI hard disk drives connected to your SCSI
adapter card
❏ No drivers necessary for drives less than 1024MB
❏ Automatic system configuration during boot.
Configuring your SCSI interface for Enhanced mode provides the
following features:
❏ Use of multiple SCSI adapter cards
❏ Use of nonstandard BIOS addressing or interrupt settings
❏ 32-bit addressing
❏ Access to all EISA board registers
❏ Single, fast mailbox handling
❏ Contingent allegiance
❏ Tagged queuing.
Configuring Your System
3-l
Using the Configuration Program
Using your computer’s System Configuration program, you copy
the configuration files from the Configuration Utilities diskette
and modify the necessary configuration parameters.
The procedures covered in the following sections are described in
detail in your EISA Series computer User’s Guide. If you have any
questions regarding the System Configuration program, see your
User’s Guide.
Copying the Configuration Files
To copy the configuration files from the SCSI diskette to your
Reference 1 diskette, follow these steps:
1. Insert the Reference 1 diskette in drive A.
2. Turn on any external SCSI devices.
3. Turn on or reset the computer. You see error messages similar
to the following:
Configuration error for slot 1 Please run CONFIGURATION UTILITY
Hard disk controller failure
Press Fl to continue
4. Press Fl.
5. When you see the System Configuration screen, press any key
to continue.
6. If you see an error message regarding CMOS, press Enter to
continue.
7. From the Main Menu, select the Configure computer
option.
8. From the Configure Computer menu, select the Copy
configuration (CFG) files option.
3-2
Configuring Your System
9. Remove the Reference 1 diskette and insert the SCSI Adapter
Configuration Utilities diskette into drive A. Then press Enter.
10. You see a menu listing the configuration files available on the
diskette. Follow the instructions on the screen to copy the
!ADPOOOO.CFG file to your Reference 1 diskette.
11. The program copies the files and then displays the message
Copy procedure complete. Press Enter to return to the
Configure Computer menu.
12. If you need to copy more CFG files from another diskette,
repeat steps 7 through 11 again for the next diskette. You may
be asked to reinsert the Reference 1 diskette.
Modifying the SCSI Parameters
Now you can configure your system. Follow these steps:
1. From the Configure Computer menu, select Configure
computer- advanced method. You see the system
Configuration Overview screen, which displays information
about your computer’s processor board and any option cards
installed.
2. Highlight EISA SCSI Host Adapter and press Enter. The
configuration program displays the following screen:
Configuring Your System
3-3
Normally, you do not need to alter the configuration settings.
The configuration program determines the settings based on
the SCSI devices you have installed.
3. When the settings for the SCSI adapter card are correct, you
can configure SCSI devices that you have connected to the
interface.Move to the SCSI Device Configuration option
and press Enter.
EISA SCSI Host Adapter options
The EISA SCSI Host Adapter screen looks similar to this:
- Epson EISA SCSI Host Adapter
Mass Storage device
Host Adapter Interface Mode...........Standard Mode. IRD 11
Standard Mode Resource Selection
I/O Port Definition..................I/O Port 330H (Standard Model
DMA Channel Definition . . . . . . . . . . . . . ..DMA 5 (Standard Mode)
Host Adapter BIOS.....................BIOS Base Address CCOOOH
Host Adapter SCSI ID..................Device Id 7
S C S I B u s R e s e t a t P o w e r - o n . . . . . . . . . . ..Enable SCSI bus reset
SCSI Device Configuration.............Press <Enter> to set SCSI
Configuration Options
If you need to change a setting, use the arrow keys to move from
one setting to the next and press Enter to make a selection. The
menu settings are described below.
Note
Normally, these settings are correct. You only need to change them if
you have installed an option card in your computer that conflicts with
these selections.
3-4
Configuring Your System
Host Adapter Interface Mode displays this menu:
Enhanced mode is a higher performance interface. Select
Standard mode only when you cannot run in Enhanced mode.
If you select Standard mode, you must also select the interrupt
level for the adapter card. Select the Standard Mode,
IRQ 11 option.
I/O Port Definition displays this menu:
(
(
(
(
(
(
(
)
)
)
)
)
)
)
I/O
I/O
I/O
I/O
I/O
I/O
Port
Port
Port
Port
Port
Port
Disabled
330H (Standard Mode)
230H (Standard Mode)
130H (Standard Mode)
334H (Standard Mode)
234H (Standard Mode)
134H (Standard Mode)
(Enhanced Mode)
To operate in Standard mode, select the I/O Port 330H
address. To operate in Enhanced mode, select Disabled.
DMA Channel Definition displays this menu:
(
(
(
(
(
)
)
)
)
)
DMA 5 (Standard Mode)
DMA 6 (Standard Mode)
DMA 7 (Standard Mode)
DMA 0 (Standard Mode)
Disabled (Enhanced Mode)
To operate in Standard mode, select DMA 5. To operate in
Enhanced mode, select Disabled.
Configuting Your System
3-5
Host Adapter BIOS displays this menu:
(
(
(
(
(
(
(
(
(
(
)
)
)
)
)
)
)
)
)
)
BIOS Base Address CCOOOH
BIOS Base Address DOOOOH
BIOS Base Address D4000H
BIOS Base Address D8000H
BIOS Base Address DCOOOH
BIOS Base Address EOOOOH
BIOS Base Address E4000H
BIOS Base Address E8000H
BIOS Base Address ECOOOH
BIOS disabled
If you installed more than one SCSI adapter card, make sure
each card has a unique BIOS Base Address. The configuration
program normally ensures that the addresses are unique.
Host Adapter SCSI ID displays this menu:
(
(
(
(
(
(
(
(
)
)
)
)
)
)
)
)
Device
Device
Device
Device
Device
Device
Device
Device
Id
Id
Id
Id
7
6
5
4
Id 3
Id 2
Id 1
Id 0
Select Device Id 7 for the SCSI ID.
SCSI Bus Reset at Power-on displays this menu:
( ) Enable SCSI bus reset
( ) Disable
SCSI bus reset
Select Enable SCSI bus reset.
3-6
Configuring Your System
SCSI Configuration Options displays this menu:
( ) Standard mode configuration
( ) Enhanced mode configuration
Be sure to select the mode that you set for the Host Adapter
Interface Mode.
Standard mode configuration options
If you select Standard mode, you see this menu:
Enable Parity Checking
no
Initiate Synch Negotiation no
Enable Disconnection
no
You can set each option to yes or no.
❏ Set Enable Parity Checking to yes to allow the SCSI
adapter card to generate parity on data sent and received on
the SCSI interface.
❏ Set Initiate Synch Negotiation to yes to allow the SCS1
adapter card to attempt to use the faster synchronous protocol
for data transfers on the SCSI interface. When set to no, data
transfers are done asynchronously, unless a SCSI device itself
requests synchronous negotiation.
❏ Set Enable Disconnection to yes to allow a device to go
off-line while it completes a lengthy operation like a seek. This
allows the SCSI adapter to perform other operations on the
SCSI interface while a device. is temporarily disconnected.
If necessary, use Tab or the arrow keys to highlight a field and
press Enter to toggle between no and yes. When the settings are
correct, press Tab to highlight OK and then press Enter.
Configuring Your System
3-7
Enhanced mode configuration options
If you select Enhanced mode, you see this menu:
C o n f i g u r a t i o n
I
SCSI Device ID
#0
#l
S e t t i n g s ]
#2
#3
#4
#5
#6
#7
I
Error if Device Not Found yes yes yes yes yes yes yes yes
HD HD HD HD HD HD HD no
BIOS Support Option
no
no
no
no
no
no
no
no
Send Start Command
Enable Parity Check
yes
yes
yes
yes
yes
yes
yes
yes
I n i t i a t e S y n c h N e g o t i a t i o n y e s y e s y e s y e s y e s y e s y e sy e s
Enable Disconnection
yes
yes
yes
yes
yes
yes
yes
yes
10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0
Maximum Synch Xfer Rate
(MBs per second)
You can set each of the first seven options to yes or no. If
necessary, use Tab or the arrow keys to highlight a field and press
Enter to toggle between no and yes. When the settings are
correct, press Tab to highlight OK and then press Enter.
❏ Set Error if Device Not Found to yes to display an error
message if the BIOS is unable to find the SCSI device during
system startup.
❏ Select BIOS Support Option to allow the adapter to
recognize up to two devices attached to the SCSI bus without
the need for driver software. Only fixed and removable hard
disks are supported under the BIOS, with default for hard disks
only. Select this option to allow removable support or to
remove any disk support for each SCSI address. Note that
support for removable disks does not allow the disk media to
be removed during operation.
❏ Set Send Start Command to yes if you are using a device
that requires a command to start up after power on. Most
devices do not require this.
❏ Set Enable Parity Check to yes to allow the SCSI adapter
card to generate and check for parity on the SCSI data.
❏ Set Initiate Synch Negotiation to yes to allow the SCSI
adapter card to communicate with a device using the faster
synchronous SCSI protocol (supported by most disk drives).
3-8
Configuring Your System
❏
Set Enabl e Disconnection to yes to allow a device to go
off-line while performing an operation. This frees up the SCSI
interface and adapter for other operations.
❏ The Maximum Synch Xfer Rate option allows you to select
the highest data transfer speed that the SCSI adapter card will
attempt with the device. When you press Enter for this option,
you see this menu:
(
(
(
(
(
)
)
)
)
)
10.0 MB/s
6.67 MB/s
5.0 MB/s
4.0 MB/s
3 . 3 3 MB/s
The SCSI adapter card supports rates up to the fast SCSI
maximum of 1OMB per second.
Exiting the Configuration Program
After viewing the SCSI configuration information, verify the
settings for the rest of your system configuration and make any
necessary changes. Then follow these steps to exit the program:
1. Move the cursor into the menu bar.
2. Select System from the menu bar options.
3. Select Exit.
4. Selectthe Save configuration and exit option and press
Enter. You see a confirmation screen.
5. Press Enter again. The computer reboots.
If you just installed a SCSI hard disk drive in your computer and
configured it for your SCSI interface, you can now install the
operating system on the disk. See the chapter that describes the
SCSI drivers for your operating system to see if you need to install
any drivers.
Configuring Your System
3-9
4
I
lnstalling Software
Drivers for MS-DOS
After configuring your system for use with the SCSI adapter, you
may need to install software drivers so that your operating system
recognizes and accesses the SCSI devices.
If you are using MS-DOS and you want to install more than two
SCSI hard disk drives or removable media support, you need to
install the Advanced SCSI Programming Interface (ASPI™) MS-DOS
Manager. MS-DOS uses the ASPI MS-DOS Manager to
communicate with the SCSI adapter card and to access SCSI
devices connected to the adapter card.
You can use the ASPI MS-DOS Manager with the SCSI Adapter
configured for either Standard or Enhanced mode.
If you plan to use a SCSI drive that is not installed under the BIOS
of the SCSI adapter card, you also need to install the ASPI disk
driver and use the AFDISK program to partition the hard disk
drive. The ASPI disk driver and the AFDISK program are described
later in this chapter.
Before you install the ASPI MS-DOS Manager, make sure MS-DOS
is installed on your computer.
The ASPI MS-DOS Manager
The ASPI MS-DOS Manager conforms to the Virtual DMA Services
(VDS) specification. This standard enables a bus-master device,
such as the SCSI adapter card, to obtain the physical address of
software running in the protected mode of a 486 computer. VDS
eliminates the need for a separate buffer improving overall system
performance.
Installing Software Drivers for MS-DOS
4-1
You need to install the ASPI MS-DOS Manager when you want to
do the following:
Install the SCSI adapter card in a system with more than two
hard disk drives
Install a SCSI hard disk drive that has a SCSI ID other than
0 or 1
Install a SCSI hard disk drive with a capacity greater than
1024MB
Install a removable SCSI device, such as a CD-ROM, tape
backup drive, or magneto-optical device
Interface with ASPI modules, such as SY-TOS® devices,
CD-ROM drives, printers, plotters, and scanners
Use MS-DOS programs that run in protected mode, such
as Microsoft® Windows™ 3.0, Windows/386, Quarterdeck
QEMM 386, Qualitas 386MAX
Use programs that write large amounts of data directly to
video memory
Change the configuration of the SCSI adapter card
Increase the performance of your SCSI interface.
When you install the ASPI MS-DOS Manager, the computer routes
Interrupt (Int) 13 calls through the driver rather than through the
BIOS of the SCSI adapter card. This means Int 13 calls are
processed at RAM speed instead of ROM speed, which increases
overall system performance.
Installing the ASPI MS- DOS Manager
The filename of the device driver that installs the ASPI MS-DOS
Manager in Standard mode is ASPI4DOS.SYS. The filename of the
device driver that installs the ASPI MS-DOS Manager in Enhanced
mode is ASPIEDOS.SYS. Both of these files are located on the ASPI
MS-DOS Manager diskette.
4-2
Installing Software Drivers for MS-DOS
The steps for installing the driver and defining the DEVICE
command are exactly the same for both drivers. The only
difference is whether you plan to run in Standard mode or
Enhanced mode. Make sure the driver you install matches the
mode you selected in the System Configuration program.
To install either the ASPMDOS.SYS file or the ASPIEDOS.SYS file,
follow these steps:
1. Insert the ASPI MS-DOS Manager diskette into drive A of your
computer.
2. Copy the file from the diskette in drive A to the root directory
of hard disk drive C. (Type COPY A:ASPI4DOS.SYS C:\ or
COPY A: ASP I EDOS . SY S C : \ and press Enter.)
If you have created a separate directory for device drivers,
copy the file to that directory. Make sure the name of the
directory is included with the PATH command in your
AUTOEXEC.BAT file.
3. Modify your CONFIG.SYS file to include a DEVICE command
to install either the ASPI4DOS.SYS driver or the ASPIEDOS.SYS
driver as described in the next section.
See your MS-DOS manuals for details on modifying your
CONFIG.SYS file.
When you boot the computer with the ASPI MS-DOS Manager
installed, you see a screen similar to the following:
AHA-1740/1744 (enhanced mode) ASPI Manager for DOS
Version 3.0
ASPIEDOS.SYS Installation Successful
WARNING! SHARE should be loaded for large media
MS-DOS Version 4.01
C:\>
Installing Software Drivers for MS-DOS
4-3
If you add the /D command line option (described in the next
section), you see a startup screen similar to the following:
AHA-1740/1744 (enhanced mode) ASPI Manager for DOS
Version 3.0
Host Adapter #:
0
Interrupt Level: 11
Host Adapter SCSI ID: 7
1
Slot Number:
Host Adapter #O-SCSI ID O-LUN 0: MAXTOR LXT-340SY
ASPIEDOS.SYS Installation Successful
WARNING! SHARE should be loaded for large media
MS-DOS Version 4.01
c:\>
I Using the DEVICE command
The ASPI MS-DOS Manager uses the parameters and switches
specified in the DEVICE command to communicate with the SCSI
adapter card. Use the following format for the command:
DEVICE-d:\path\ASPI4DOS.$YS [/Pnnn] [/Dl [/L]
[/W;/WM] [/V;/VM] [/Xnn] [/Nnnl [/Fnnl [/I]
[/NORST]
or
DEVICE=d:\path\ASPIEDOS.SYS [/Sn] [/D]
[/L]
Note
The DE VICE=ASPI4DOS.SYS or DE VICE=ASPIEDOS.SYS command
must precede the DE VICE commands for any other ASPI drivers and
any disk caching drivers, such as SMARTDRV.SYS. You install either
ASPI4DOS.SYS or ASPIEDOS.SYS; do not install both of these drivers.
You can include the following parameters and switches with the
DEVICE command for the ASPI4DOS.SYS or ASPIEDOS.SYS driver.
4-4
Installing Sofiware Drivers for MS-DOS
Parameters:
d:
Identifies the drive designator for the location of the
ASPI4DOS.SYS or ASPIEDOS.SYS file.
path
Identifies the directory path of the ASPI4DOS.SYS or
ASPIEDOS.SYS file. Include this parameter if you stored
the file in a directory other than the root directory.
Switches:
/Pnnn
Specifies the hexadecimal port address of the SCSI
adapter card. (Valid with ASPI4DOS.SYS only.) Valid
addresses are: 130, 134, 230, 234, 330, 334. The default
is /P330, which is the port address of the Epson SCSI
adapter card.
Only change the port address if you install more than
one SCSI adapter card in your system. In this case,
specify a port address other than /P330 for the SCSI
adapter which has a disabled BIOS.
/D
Displays useful information about the SCSI adapter
during system startup.
Enables support for SCSI logical unit numbers (LUNs)
other than zero (l-7). Omit this switch so the driver
recognizes only LUN 0 for each SCSI device.
/W
Enables virtual mode buffering for applications such as
Windows/386 version 2.x. (Valid with ASPI4DOS.SYS
only.) The driver attempts to allocate a 64KB virtual
buffer from extended memory. If no extended memory
is available, the driver allocates 64KB from conventional
memory.
Windows 3.0 does not require virtual mode buffering.
You can specify /W or /WM, described below, but not
both.
/WM
Enables virtual mode buffering using 64KB from
conventional memory. (Valid with ASPI4DOS.SYS only.)
Use /WM if your computer does not have extended
memory. You can specify /W or
/WM, but not both.
InstaIling Software Drivers far MS-DOS
4-5
/V
Enables video buffering for applications that write large
amounts of data directly to video memory. (Valid with
ASPI4DOS.SYS only.) The driver attempts to allocate a
64KB video buffer from extended memory. If no
extended memory is available, the driver allocates 64KB
from conventional memory.
If you use /V with /W or /WM, the driver allocates only
one 64KB buffer for both video and virtual mode
buffering. (You can specify /V or /VM, described below,
but not both.)
/VM
Enables video buffering using 64KB from conventional
memory. (Valid with ASPI4DOS.SYS only.) Use /VM if
your computer does not have extended memory.
If you use /VM with /W or /WM, the driver allocates
only one 64KB buffer for both video and virtual mode
buffering. (You can specify /V or /VM, but not both.)
/Xnn
Sets the Bus Master transfer speed of the SCSI adapter
card. (Valid with ASPI4DOS.SYS only.) This overrides
the default speed set on the card itself. Specify a
hexadecimal value as follows:
00 = 5.OMB/sec
01 = 6.7MB/sec
02 = 8.0MB/sec
03 = lO.OMB/sec
04 = 5.7MB/sec
Normally, the SCSI adapter card is set for 5.OMB/sec.
Specify this switch for Standard mode only.
/Nnnn
Sets the BUS ON time. (Valid with ASPI4DOS.SYS only.)
Valid BUS ON times are between 2 and 15 µsecs. The
default time is 11 µsecs. This is a decimal value. Specify
this switch for Standard mode only.
/Fnn
Sets the BUS OFF time. (Valid with ASPI4DOS.SYS only.)
Valid BUS OFF times are between 1 and 64 µsecs. The
default time is 4 µ.secs. This is a decimal value. Specify
this switch for Standard mode only.
/I
Disables the loading of the embedded interrupt 13
module. (Valid with ASPI4DOS.SYS only.) Use this
option for debugging purposes only.
4-6
Installing Software Drivers for MS-DOS
/NORST
Prevents SCSI devices from being reset during
initialization if the SCSI BIOS is disabled. (Valid with
ASPI4DOS.SYS only.) If you omit this switch, the SCSI
devices are reset during initialization if the SCSI BIOS is
disabled. When the BIOS is enabled, it resets the SCSI
devices during initialization.
/Sn
Sets the slot number where the driver will find your
SCSI adapter. (Valid with ASPIEDOS.SYS only.) If this
option is not used, the driver will scan the slots, starting
with slot 1, and install any adapters it finds.
Using Multiple Epson SCSI Adapter Cards
You can install multiple Epson SCSI adapter cards in your
computer. For each card, you need to install a separate
ASPI4DOS.SYS or ASPIEDOS.SYS device driver.
The ASPI MS-DOS Manager identifies the port address of each SCSI
adapter card. Use the /P switch to identify a unique port address in
Standard mode. This address must match the address you select for
the I/O Port Definition in the System Configuration program. In
Enhanced mode, the port addresses are automatically assigned.
The ASPI Disk Driver
The ASPI disk driver allows you to use a SCSI disk drive that is not
installed under the BIOS of the SCSI adapter card.
You need to install the ASPI disk driver when you are installing a
drive in the SCSI interface and the following conditions exist:
❏ The system already has two hard disk drives installed
❏ The SCSI hard disk drive has a SCSI ID other than 0 or 1
❏ The drive is a removable hard disk.
MS-DOS installs the ASPIDISK.SYS driver only if it finds partitions
on a SCSI hard disk drive that are not installed on the BIOS of the
SCSI adapter card.
Installing Sofiware Drivers for MS-DOS
4-7
I Installing the ASP/ Disk Driver
The filename of the device driver that installs the ASPI disk driver
is ASPIDISK.SYS. This file is located on the ASPI MS-DOS Manager
diskette.
To install the ASPIDISK.SYS file, follow these steps:
1. Insert the ASPI MS-DOS Manager diskette into drive A of your
computer.
2. Copy the ASPIDISK.SYS file from the diskette in drive A
to the root directory of hard disk drive C. (Type
COPY A:ASPIDISK.SYS C:\ and press Enter.)
If you have created a separate directory for device drivers,
copy the file to that directory. Make sure the name of the
directory is included with the PATH command in your
AUTOEXEC.BAT file.
3. Modify your CONFIG.SYS file to include a DEVICE command
to install the ASPIDISK.SYS driver as described in the next
section.
See your MS-DOS manuals for details on modifying your
CONFIG.SYS file.
1 Using the DEVICE command
The ASPI disk driver uses the parameters and switches specified in
the DEVICE command to communicate with the SCSI adapter
card. Use the following format for the command:
DEVICE=d:\path\ASPIDISK.SYS [/D] [/Rnn]
Note
The DEVICE=ASPI4DOS.SYS or DEVICE=ASPIEDOS.SYS command
must precede the DEVICE=ASPIDISK.SYS command.
4-8
Installing Software Drivers for MS-DOS
You can include the following parameters and switches with the
DEVICE command for the ASPIDISK.SYS driver.
Parameters:
d:
Identifies the drive designator for the location of the
ASPIDISK.SYS file.
path
Identifies the directory path of the ASPIDISK.SYS file.
Include this parameter if you stored the ASPIDISKSYS
file in a directory other than the root directory.
Switches:
/D
Displays useful information about the SCSI adapter
during system startup.
/Rnn
Specifies the number of logical drives to reserve for a
removable hard disk; nn can be from 1 to 5. The default
is 1.
MS-DOS ignores this switch if the hard disk is
nonremovable.
The AFDISK Program
Use the AFDISK program to partition a SCSI hard disk that is not
installed under the BIOS of the SCSI adapter card.
AFDISK allows you to add or delete MS-DOS partitions on a SCSI
hard disk and to delete non-DOS partitions. The partitions you
create with AFDISK are compatible with MS-DOS partitions created
with FDISK (MS-DOS version 3.2 or later).
After partitioning a SCSI hard disk with AFDISK, you must install
the partitions using the ASPIDISK.SYS disk driver, as described
above.
Note
The ASPI MS-DOS Manager must already be installed in your
CONFIG.SYS file for AFDISK to run correctly.
Installing Software Drivers for MS-DOS
4-9
I
Installing AFDISK
The following AFDISK files are located on the ASPI MS-DOS
Manager diskette:
File
Function
AFDISK.EXE
SCSI disk partition program
AFDISK.HLP
AFDISK help file
AFDISK.DTA
AFDISK system disk file
To install the AFDISK files, follow these steps:
1. Insert the ASPI MS-DOS Manager diskette into drive A of your
computer.
2. Create a directory for the AFDISK files on your hard disk. (Type
MD AFDISK and press Enter.)
3. Log onto the AFDISK directory. (Type CD AFDISK and press
Enter.)
4. Copy the AFDISK files from the diskette in drive A to the
AFDISK directory.
5. Be sure to add the name of the directory to the PATH
command in your AUTOEXEC.BAT file.
4-10
Ins tall ing Softvare Drivers for MS-DOS
Running the AFDISK Program
To start the AFDISK program, type AFDI SK and press Enter. You
see a SCSI device list, which includes all SCSI hard disk drives
installed in the system, including removable hard disk drives.
You can press Fl at any time to display help information on your
screen.
The HA# field indicates the SCSI ID of the host adapter. If you have
installed only one SCSI adapter card in your computer, this
number is 0. The Target field is the SCSI ID of the SCSI device.
Press ‹ or Œ to highlight the hard disk you want to partition and
press Enter. AFDISK displays the logical drive information and lists
the existing partitions:
Logical Drive Info
64
32
40
512
heads
sectors/track
cylinders
bytes/sector
40 megabytes
1406Ch blocks
Type
Start
End
Megs
Installing Software Drivers for MS-DOS
4-11
Deleting or creating a partition
To delete a partition, press ‹
press Del.
or Πto highlight the partition and
To create a partition, follow these steps:
1. Press ‹ or Œ to highlight the partition and press Ins. AFDISK
displays the Create a DOS Partition window:
Create a DOS Partition
Start Cylinder:
End Cylinder:
0
31
2. The Start Cylinder and End Cylinder values default to
the maximum values available on the disk. Press Enter to
select the default values; or press the arrow keys to move to
each field and then enter the desired cylinder number(s).
When the cylinder numbers are correct, press Esc.
3. AFDISK displays the Create Partition window:
Create Partition? - <Fl> Help
No
Yes
To create the specified partition, press Πto highlight Yes and
then press Enter.
If you decide to change the cylinder numbers, press Enter
when No is highlighted.
4-12
Installing Software Drivers for MS-DOS
To create another partition, press Ins. If you create two
partitions, one 32MB partition and one 8MB partition, the
drive information window looks similar to this:
I
Type
DOS
DOS
Start
End
Megs
0
32
31
39
32
8
5. When you have finished partitioning the hard disk, press Esc
to return to the Select SCSI Device to Partition
window. To partition another drive, select any other valid SCSI
disk drive.
You can partition only SCSI disk drives not supported by the
BIOS with AFDISK. If you select a disk drive that is controlled
by the system BIOS, AFDISK displays an error message. Simply
press Esc to continue.
6.
When you have completed partitioning SCSI drives, press Esc
at the Select SCSI Device to Partition window.
AFDISK displays the Exit AFDISK window. Press 1 to
highlight Yes and then press Enter.
You must reboot the computer before MS-DOS can recognize the
partitions you just created.
Installing Removable Media
ASPI4DOS.SYS or ASPIEDOS.SYS and ASPIDISK.SYS support
removable media. Follow these steps when installing a removable
SCSI device:
1. Set the SCSI ID on the removable device to 2, 3, 4, 5, or 6. See
the drive manual for instructions.
Installing Software Drivers for MS-DOS
4-13
2. Modify your CONFIG.SYS file to include the DEVICE
commands for ASPI4DOS.SYS or ASPIEDOS.SYS and
ASPIDISK.SYS. Be sure to reserve logical partitions (/Rnn) if
necessary.
3. Reboot your computer. MS-DOS will install the ASPI4DOS.SYS
or ASPIEDOS.SYS driver but not the ASPIDISK.SYS driver.
4. Use the AFDISK program to partition the removable hard disk.
5. Reboot your computer. MS-DOS will install the ASPIDISK.SYS
driver.
Error Messages
This section describes the error messages you may see when
you start your computer after installing the ASPI4DOS.SYS or
ASPIEDOS.SYS or ASPIDISK.SYS driver.
ASP14DOS.SYS or ASPIEDOS.SYS Messages
You may see the following error messages after attempting to
install ASPI4DOS.SYS or ASPIEDOS.SYS. The message displays the
name of the driver.
ASPI4DOS.SYS Installation Failed
MS-DOS was unable to load the ASP14DOS.SYS driver and
displays this message after one of the messages below to
indicate that the driver is not installed.
Slot #nn AHA-1740/1744 - Not configured for enhanced
mode
The ASPIEDOS.SYS driver is intended for the SCSI adapter card
when configured for enhanced mode. If the card is configured
for standard mode, ASPIEDOS.SYS will not load unless the /S
switch is specified. The /S switch is used with ASPIEDOS.SYS to
indicate which adapters are configured for enhanced mode.
4-14
Installing Software Drivers for MS-DOS
Slot #nn AHA-1740/1744 is using an old BIOS revision
which could cause some unpredictable results.
Programs such as ADPIDISK.SYS and AFDISK will not
work with this BIOS!!
The SCSI adapter card BIOS being used is an older version, and
should be replaced.
Failed checking for scatter/gather mode
The driver was unable to determine whether the SCSI adapter
card supports scatter/gather mode. Make sure that the adapter
card is securely connected to the option slot, that the jumpers
are set correctly, and that there are no hardware conflicts in
your computer configuration
Failed scanning for SCSI devices
The driver was unable to detect any SCSI devices. Make sure
that all SCSI devices on the SCSI interface are properly
terminated.
Failed to hard reset the host adapter
The driver was unable to reset the SCSI adapter card. Make
sure that the adapter card is securely connected to the option
slot, that the jumpers are set correctly, and that there are no
hardware conflicts within your computer configuration.
Unable to find host adapter in POS registers
MS-DOS was unable to detect the SCSI adapter card. Make sure
that the card is securely connected to the option slot, that the
jumpers are set correctly, and that there are no hardware
conflicts in your computer configuration. Make sure that all
devices on the SCSI interface are properly terminated.
Unable to read configuration from xxxx host adapter
The driver could not read the SCSI adapter card’s
configuration settings. Make sure that the adapter card is
securely connected to the option slot, that the jumpers are set
correctly, and that there are no hardware conflicts in your
computer configuration.
Installing Software Drivers for MS-DOS
4-15
Invalid entry for ‘/F' setting
You entered an invalid BUS OFF time with the /F switch. The
valid BUS OFF settings are 1 through 64; for example, /F5.
Invalid entry for '/N' setting
You entered an invalid BUS ON time with the /N switch. The
valid BUS ON settings are 2 through 15; for example, /N1O.
Invalid entry for ‘/P' setting
You entered an invalid port address with the /P switch. The
valid port settings are 130, 134, 230, 234, 330, and 334; for
example, /P334.
Invalid entry for ‘/X' setting
You entered an invalid speed setting with the /X switch.
The valid speed settings are 00 (hex) through 04 (hex); for
example, /X00.
Unable to initialize host adapter mailboxes
The driver was unable to initialize the mailbox base address for
the SCSI adapter card. Make sure that the adapter card is
securely connected to the option slot, that the jumpers are set
correctly, and that there are no hardware conflicts in your
computer configuration.
Unable to set Bus Master transfer rate
The driver was unable to set the Bus Master DMA transfer rate
for the SCSI adapter card. Make sure that the adapter card is
securely connected to the option slot, that the jumpers are set
correctly, and that there are no hardware conflicts in your
computer configuration.
Unable to set bus on/off timing
The driver was unable to set the bus on/off time for the SCSI
adapter card. Make sure that the adapter card is securely
connected to the option slot, that the jumpers are set
correctly, and that there are no hardware conflicts in your
computer configuration.
4-16
Installing Software Drivers for MS-DOS
ASPIDlSK.SYS Messages
You may see the following error messages after attempting to
install ASPIDISK.SYS:
Command line arguments are incorrect
The DEVICE command line for the ASPIDISK.SYS driver is
incorrect. Make sure that the switches are specified correctly.
Error issuing SCSI inquiry command
ASPIDISK timed out on issuing a SCSI Inquiry command.
Check the SCSI bus termination, SCSI parity, and cabling.
The driver will not load if this message is displayed.
Failed to find any SCSI logical drives to support
The driver was unable to detect any logical drives on the
specified hard disk. Make sure that the hard disk is partitioned
and formatted.
Failed to read, or invalid, boot record
The driver was unable to read the disk parameters of the
specified hard disk. Make sure that the hard disk is partitioned
and formatted, and check the SCSI cable.
Invalid DOS version. DOS must be version 3.21
and above
The current version of MS-DOS is earlier than version 3.2. You
can load the ASPIDISK.SYS driver only on a system running
MS-DOS version 3.2 or later.
Installing Software Drivers for MS-DOS
4-17
No SCSI logical drives to support
ASPIDISK did not find any logical drives to support. The driver
will not load and take up memory if this message appears.
There may be no logical drives to support for several reasons:
❏ There are no attached SCSI disk drives
❏ All SCSI disk drives are under control of the host adapter
BIOS
❏ The SCSI disk drives have not been partitioned yet.
Unable to open ASPI manager!
The ASPIDISK.SYS driver was unable to access the
ASPI4DOS.SYS driver. Make sure that the ASPI4DOS.SYS driver
is specified in your CONFIG.SYS file before the ASPIDISK.SYS
driver.
Unsupported (old-style) ASPI manager found
ASPIDISK v3.0 must be used with ASPI4DOS.SYS v3.0 or
newer. Older ASPI managers are not supported.
WARNING: Maximum number of logical drives
(A: to Z:) reached
The driver detected too many logical drives on the attached
SCSI drives. MS-DOS can support a maximum of 24 logical
hard disk drives (C: to Z:) in the system. You do not lose the
data on the logical drives; however, the data is not available
until a logical drive becomes available.
4-18
Installing Software Drivers for MS-DOS
Software Considerations
Some programs that use virtual mode require a virtual buffer to
run correctly. You can allocate a virtual buffer using the /W or
/WM switch with the DEVICE command for the ASPI4DOS.SYS
driver. Programs that conform to the VDS specification do not
require a virtual buffer. See the following list to determine if a
program requires a separate buffer.
Program
Version
Note
MS Windows 286
all
No buffer required
MS Windows 386
2.x
/W or /WM required
MS Windows*
3.0
or newer
No buffer required
QEMM 386*
by Quarterdeck
5.0
or newer
No buffer required. Driver can be
loaded into high memory except
when loading from a SCSI drive
controlled by the adapter card’s
BIOS.
QEMM 386
by Quarterdeck
previous
to 5.0
/W should be used; at least 64KB
of extended memory should be
left free when QEMM is loaded
(i.e., DEVICE=QEMM.SYS
EXTMEM=64). Do not load
ASPl4DOS.SYS into high memory.
QRAM
by Quarterdeck
all
No buffer required. Driver can be
loaded into high memory.
386MAX*
by Qualitas
4.08
or newer
No buffer required. Driver can be
loaded into high memory except
when loading from a SCSI drive
controlled by the adapter card’s
BIOS.
386MAX
by Qualitas
previous
to 4.08
/W should be used; at least 64KB
of extended memory should be
left free when 386MAX is loaded
(i.e., DEVICE =386MAX.SYS
EXT=64). Do not load
ASPI4DOS.SYS into high memory.
Installing Software Drivers for MS-DOS
4-19
*This program conforms to the VDS specification.
Note
If problems occur loading ASPI4DOS.SYS into high memory, make sure
that the driver is not being loaded into video memory. Consult your
user’s manual for the particular application.
4-20
Installing Software Drivers for MS-DOS
5
Installing Software
Drivers for OS/2
After configuring your system for use with the SCSI interface, you
need to install software drivers so that your operating system
recognizes and accesses the SCSI devices.
If you are using OS/2, version 1.1, you need to install the
Advanced SCSI Programming Interface (ASPI) OS/2 1.1 Manager.
OS/2 uses the ASPI OS/2 Manager to communicate with the SCSI
adapter card and to access additional SCSI devices connected to it.
You need to install the ASPI OS/2 Manager when your version of
OS/2 provides no SCSI support. If your version of OS/2 includes
the SCSI Manager, and you install the ASPI OS/2 Manager, OS/2
accesses the ASPI OS/2 Manager instead of the original OS/2 SCSI
Manager.
The ASPI OS/2 Manager
The filename of the device driver that installs the ASPI OS/2
Manager is ASPI4OS2.SYS. This device driver manages the interface
between the SCSI adapter card and the SCSI devices for OS/2.
The ASPI OS/2 Manager also requires the installation of an ASPI
disk driver, named SCSIOl.SYS. This disk driver supports the disk
drives that you connect to the SCSI interface.
The SCSIOl.SYS disk driver is similar to the OS/2 driver DISKO1.SYS
with additional support for the ASP1 OS/2 Manager.
Note
SCSI01 .SYS supports up to two hard disk drives only.
Installing Software Drivers for OS/2
5-1
Any SCSI device driver can ATTACH to the ASPI OS/2 Manager to
pass requests to the SCSI interface.
Installing the ASPI OS/2 Manager
The ASPI OS/2 Manager files, ASPI40S2.SYS and SCSIO1.SYS, are
located on the ASPI OS/2 Manager diskette.
To install the files, you must reinstall OS/2 on your hard disk.
Follow these steps:
1. Make sure you are using a copy of the OS/2 Install diskette.
The diskette must not be write-protected.
2. Copy the SCSIOl.SYS file from the ASPI OS/2 Manager diskette
to the OS/2 Install diskette, renaming the file DISKOl.SYS.
For example, if the ASPI OS/2 Manager diskette is in drive B
and the OS/2 Install diskette is in drive A, type the following
and press Enter:
COPY B:SCSIOl.SYS A:DISKOl.SYS
3. Install OS/2 on your hard disk as described in your OS/2
documentation, using the program diskette in drive A. Make
sure this is the diskette to which you just copied the new
DISKOl.SYS file.
4. When the installation is complete, copy the ASPI40S2.SYS file
from the ASPI OS/2 Manager diskette to the root directory of
the drive from which you boot the system.
If you have created a separate directory for device drivers, copy
the file to that directory. In this case, be sure to add the device
driver directory to the PATH command in your
AUTOEXEC.BAT file.
5. Modify your CONFIG.SYS file to include a DEVICE command
for the ASPI40S2.SYS driver as described in the next section.
See your OS/2 manuals for details on modifying your
CONFIG.SYS file.
5-2
Installing Software Drivers for OS/2
1 Using the DEVICE command
Use the following format for the DEVICE command:
DEVICE=d:\path\ASPI4OS2.SYS [/D] [/L]
Note
The DEVICE=ASPI4OS2.SYS command must precede the DEVICE
commands for any other SCSI drivers in the CONFIG.SYS file.
You can include the following parameters and switches with the
DEVICE command for the ASPI40S2.SYS driver.
Parameters:
d:
Identifies the drive designator for the location of the
ASPI40S2.SYS file.
path
Identifies the directory path of the ASPI40S2.SYS file.
Include this parameter if you stored the ASPI40S2.SYS
file in a directory other than the root directory.
Switches:
/D
Displays useful information about the SCSI adapter
during system startup.
/L
Enables support for SCSI logical unit numbers (LUNs)
other than zero. The driver can recognize eight SCSI
LUNs on each SCSI device. If you omit this switch, the
driver recognizes only LUN 0 for each SCSI device.
After modifying your CONFIG.SYS file, you must reboot the
system to initialize the driver. You will see a message indicating
that the ASPI OS/2 Manager is installed. The text of the message
varies based on your system configuration and the DEVICE
command line options you specified. If you do not see a message
regarding the ASPI OS/2 Manager, make sure the information in
your CONFIG.SYS file is correct.
Installing Software Drivers for OS/2
5-3
The ASPI OS/2 Disk Driver
The SCSIOl.SYS disk driver is similar to the OS/2 DISKOl.SYS
driver. It also supports the multitasking feature of the SCSI adapter
card.
Keep in mind that SCSIOl.SYS does the following:
❏ It is currently limited to two hard disk drives.
❏ It does not use the ROM BIOS for interrupt 13h requests.
Instead, it emulates interrupt 13h through the multitasking
ASPI OS/2 Manager.
❏ It uses the OS/2 seek optimization routines when queuing disk
requests.
❏ It assumes that all SCSI hard disk drives support the extended
VERIFY command.
❏ It sends SCSI requests through the ASPI OS/2 Manager rather
than through the cache used for requests for standard hard
disk drives.
❏ It supports multitasking between multiple drives and other
devices on the SCSI interface, and makes full use of the low
overhead provided by the SCSI adapter card’s Bus Master DMA
and intelligent I/O processing.
The following functions are not currently implemented:
❏ Support for the high performance disk caching and Fault
Tolerance of the LAN Manager 1.1
❏ The ABORT function of the SCSI Programming Interface.
5-4
Installing Software Drivers for OS/2
6
I
Installing Software
Drivers for Novell
NetWare 286/386
After configuring your system for use with the SCSI interface, you
need to install software drivers so that your operating system
recognizes and accesses the SCSI devices.
If you installed the SCSI adapter card in a Novell NetWare file
server, you need to install the Advanced SCSI Programming
Interface (ASPI) NetWare Manager. NetWare uses the ASPI
NetWare Manager to communicate with the SCSI adapter card
and to access the devices connected to the SCSI interface.
The SCSI adapter card supports these versions of NetWare:
o
NetWare 286 version 2.15C (SFT or Advanced)-Standard
mode only
o
NetWare 386 version 3.0-Standard mode only
o
NetWare 386 version 3.1-Standard and Enhanced modes
o
NetWare 386 version 3.1l-Standard and Enhanced modes.
Note
If you plan to use removable media, use NetWare 386 version 3.1.
Using removable media with NetWare 386 version 3.0 can cause
unexpected results.
Installing Software Drivers for Novell NetWare 286/386
6-1
ASPI Net Ware Manager Diskette
The ASPI NetWare Manager diskette contains the directories and
files listed in the following table.
Directory
Files
NET286.215
ASWNOVL.OBJ and ASWNOVL.DSK install version 3.1
of the NetWare 286 version 2.15C driver
NET386.30
ASW1440.DSK is version 1.0 of the NetWare 386
version 3.0 ASPI NetWare Manager
NET386.31
AHAl540.DSK is version 2.0 of the NetWare 386
version 3.1 SCSI driver for standard mode
AHAl740.DSK is version 1.0 of the NetWare 386
version 3.1 SCSI driver for enhanced mode
ASPITRAN.DSK is version 1.0 of the NetWare 386
version 3.1 ASPI transport layer
NET386.311
AHAl540.DSK is version 2.0 of the NetWare 386
version 3.11 SCSI driver for standard mode
AHAl740.DSK is version 1.0 of the NetWare 386
version 3.11 SCSI driver for enhanced mode
ASPITRAN.DSK is version 1.0 of the NetWare 386
version 3.11 ASPI transport layer
Be sure to make backup copies of your Epson installation diskettes
and use the copies instead of the originals.
Installing Drivers for Net Ware 386
Versions 3.0, 3.1, and 3.11
To install the ASPI NetWare Manager for NetWare 386 versions
3.0, 3.1, or 3.11, use the NetWare SERVER.EXE program. You can
use the ASPI NetWare Manager in both Standard mode and
Enhanced mode. Follow these steps:
1. Insert the NetWare installation diskette into drive A.
6-2
Installing Software Drivers for Novell NetWare 286/386
2. Start the SERVER.EXE program. You are prompted for a file
server name and an IPX internal network number. See your
NetWare 386 documentation for details on using SERVER.
3. At the NetWare 386 prompt (:), use the LOAD command to
install the SCSI driver. For NetWare 386 version 3.0, enter:
LOAD A:\NET386.30\ASW1440.DSK [options]
For NetWare 386 version 3.1, standard mode, enter:
LOAD A:\NET386.31\AHA1540.DSK [options]
For NetWare 386 version 3.1, enhanced mode, enter:
LOAD A:\NET386.31\AHA1740.DSK [options]
For Netware 386 version 3.11, standard mode, enter:
LOAD A:\NET386.311\AHA1540.DSK [options]
For Netware 386 version 3.11, enhanced mode, enter:
LOAD A:\NET386.311\AHA1740.DSK [options]
The options are described in the next section.
SERVER displays a screen similar to this when loading
AHAl740.DSK:
Auto-loading Module ASPITRAN.DSK
AHA-174x ASPI Manager & SCSI Disk Module For
NetWare 386
Version 1.0
(NOTE: Load ASPITRAN.DSK before AHA1740.DSK
in your STARTUP.NCF)
Supported Slot values are 1. 2
Slot: _
Installing Software Drivers for Novell NetWare 286/386
6-3
4. Enter the port address or slot number of the SCSI adapter card.
SERVER does not display the port addresses or slot numbers
assigned to other devices.
You can automatically assign the port address or slot number of
the SCSI adapter card when you enter the LOAD command by
typing one of the following:
LOAD A:\NET386.30\ASW1440.DSK PORT-nnn [options]
LOAD A:\NET386.31\AHA1540.DSK SLOT-n [options]
LOAD A:\NET386.311\AHA174O.DSK SLOT-n [options]
If you have more than one SCSI adapter card installed in your
server, you need to load the driver once for each card. Each driver
must specify a unique port address for the card. See your NetWare
documentation for information on installing other NetWare
Loadable Modules (NLMs).
Command Line Options
You can specify the following options in the LOAD command.
Option
Values
Description
PORT=
330
334
234
230
134
130
Specifies the
hexadecimal)
If you do not
prompts you
mode only.)
SPEED=
00-FF
Sets the Bus Master transfer speed.
Values are hexadecimal 00-FF
port address (in
of the SCSI adapter card.
enter this option, SERVER
for the port. (Standard
00=5.0MB/sec.
01=6.7MB/sec.
02=8.0MB/sec.
03=10.0MB/sec.
04=5.7MB/sec.
Default is 00 (5.OMB/sec.). This option
overrides the speed setting of the SCSI
adapter card. (Standard mode only.)
6-4
Installing Software Drivers for Novell NetWare 286/386
Option
Values
Description
BUS-ON=
2-15
Sets the bus-on time for the SCSI adapter
card. Units are in microseconds. The
default is 11 µsec. (Standard mode only.)
BUS-OFF=
l-64
Sets the bus-off time for the SCSI adapter
card. Units are in microseconds. The
default is 4 µsec. (Standard mode only.)
SLOT=
l-8
Selects the host adapter’s slot location.
If you do not specify the slot number,
you are prompted for one. (Standard
mode only.)
VERBOSE=
Y or N
Displays the SCSI configuration
information during startup.
REMOVABLE=
OFF
ON
Disables support for removable media.
You may want to disable removable disk
support in order to load your own ASPI
Removable Disk Module. The default
setting is off.
FIXED-DISK=
OFF
ON
Disables support for hard disk drives. You
may want to disable hard disk support in
order to load your own ASPI Hard Disk
Module. The default setting is off.
DEV_ENABLE=
00-FF
Enables the driver to register SCSI
devices on an individual basis. Values are
hexadecimal. For example:
DEV_ENABLE=05
enables registering of devices 0 and 2.
You specify the devices you want to
register, which disables the other SCSI
devices.
You may want to disable registering of a
SCSI device in order to load your own
ASPI module.
This option is valid for NetWare 386
version 3.1 or 3.11 only.
Installing Software Drivers for Novell NetWare 286/386
6-5
If you load the SCSI driver AHA1740.DSK using command line
options, you see a screen similar to this:
Loading module AHA1740.DSK
Auto-loading Module ASPITRAN.DSK
AHA-174x ASPI Manager & SCSI Disk Module For
NetWare 386
Version 1.0
(NOTE: Load ASPITRAN.DSK before AHA1740.DSK in
your STARTUP.NCF)
Registered Device
Target ID
TQ?
__-_-____-_-____________________________------------
SCSI
SCSI
SCSI
SCSI
ID 0: No
ID 1: No
ID 2:
Yes
ID 3:
Yes
NetWare Ready P4OS 940-40-94xx
SMO-C501-00
SONY
94601-15
IMPRIMIS
97549T150
HP
EISA Slot #:
4
Interrupt Level:
11
Host Adapter SCSI ID: 7
Shared Interrupts:
Firmware Type:
Firmware Revision:
Enabled
ENHANCED
11-06-90 REV A
The TQ? column indicates whether the driver will be sending
tagged queuing requests to that device. Tagged queuing is a new
feature implemented by some SCSI-II devices.
6-6
Installing Software Drivers for Novell NetWare 286/386
1 Using Multiple Disk Drives With NetWare 386
The SCSI driver and ASPI NetWare Manager for NetWare 386
(versions 3.0, 3.1, and 3.11) support the installation of multiple
SCSI hard disk drives in the file server. Multiple SCSI hard disk
drives allow you to:
❏ Support disk mirroring
❏ Support disk duplexing
❏ Increase the total storage capacity of your system
❏ Install multiple drives per NetWare volume.
The next sections describe disk mirroring and disk duplexing.
Disk mirroring
With two or more hard disk drives installed on your SCSI
interface, you can perform disk mirroring.
When one disk mirrors another disk, it contains the same data as
the original disk. Then, if you have a problem with one disk, you
can continue to work from the other disk without interruption.
This keeps network down-time to a minimum.
SCSI BUS
TERMINATORS
386
_ SCSI ADAPTER CARD
PORT ADDRESS 330H
DISK 0
l
Disks contain same data
DISK 1
TERMINATORS
INSTALLED
Installing Software Drivers for Novell NetWare 286/386
6-7
When preparing your SCSI hard disk drives for mirroring, follow
these guidelines:
❏ Make the NetWare partitions about the same size. You cannot
mirror partitions that vary greatly in size. See the NetWare
installation manual for limitations.
❏ You must connect the SCSI hard disk drives to the same SCSI
adapter card.
Install mirroring after you install the SCSI driver and the ASPI
NetWare Manager. Follow these steps:
1. Insert the ASPI NetWare Manager diskette into drive A.
2. Start the SERVER.EXE program. You are prompted for a file
server name and an IPX internal network number. See your
NetWare 386 documentation for details on using the SERVER
program.
3. At the NetWare 386 prompt (:), use the LOAD command to
install the mirroring file INSTALL.NLM. Type the following:
LOAD INSTALL
4. From the Installation Options menu, select Disk Options.
5. From the Available Disk Options menu, select Partition Tables.
The Available Disk Drives menu lists all the hard disk drives
installed in your file server.
6. Follow the instructions in your NetWare installation manual
to create NetWare partitions on each hard disk drive.
7. After partitioning the drives, return to the Available Disk
Options menu and select Mirroring. The Partitioning
Mirroring Status menu lists the partitions on the drives to be
mirrored.
6-8
Installing Software Drivers for Novell NetWare 286/386
Highlight the partitions you want to mirror, and press Enter.
The INSTALL program displays a menu similar to this:
Partitioning Mirroring Status
Not Mirrored: L o g i c a l P a r t i t i o n # l
Not Mirrored: Logical Partition #2
8. The Mirrored NetWare Partitions menu shows you the
partitions associated with the selected mirror set. In this case,
only the first partition is listed:
I
Mirrored NetWare Partitions
In Sync-NetWare 386 partition 1 on Device #0
(5D000)
Press Ins to add a partition to this set.
9. INSTALL displays the Available Partitions menu:
Available Partitions
NetWare 386 Partition 2 on Device #1
(5DOlO)
To select the partition you want to add to the mirror set,
highlight the partition and press Enter.
10. INSTALL displays the Drive Mirroring Status menu, which now
lists the mirrored partition:
Drive Mirroring Status
Mirrored: Logical Partition #l
The drives are now mirrored. Press Esc until you exit the
INSTALL program.
Installing Software Drivers for Novell NetWare 286/386
6-9
Disk duplexing
With two or more SCSI adapter cards installed in your file server,
each with a hard disk drive attached, you can perform disk
duplexing.
Mirroring and duplexing actually refer to the same process. If the
hard disk drives are attached to the same SCSI adapter card, the
process is called mirroring. If the hard disk drives are attached to
different SCSI adapter cards, the process is called duplexing.
The disk attached to one SCSI adapter card mirrors the disk
attached to the other SCSI adapter. In this case, if you have a
problem with either a disk or a SCSI adapter card, you can
continue to work from the duplexed subsystem without
interruption. This keeps network down-time to an absolute
minimum.
TERMINATORS
INSTALLED
/
-
-
SCSI
DISK 0
SCSI ADAPTER CARD
PORT ADDRESS 330H
386
Disks contain same data
Host adapters at different port
address/lRQDMA
l Driver must be loaded twice
7
SCSI BUS
SCSI ADDRESS CARD
PORT ADDRESS 334H
J
-
SCSI
DISK 0
l
l
‘ \ _ T E R M I N A T O R S
INSTALLED
I
The NetWare operating system refers to both mirroring and
duplexing as mirroring. The INSTALL program displays the
mirroring status of a drive as either Mirrored or Not Mirrored.
Note
If you install different types of SCSI adapter cards, you need to install
the ASPITRAN.DSK driver.
6-10
Installing Software Drivers for Novell NetWare 286/386
When preparing your SCSI adapter cards and hard disk drives for
duplexing, follow these guidelines:
❏ Make the NetWare partitions about the same size. You cannot
mirror partitions that vary greatly in size. See the NetWare
installation manual for limitations.
❏ Connect each hard disk drive to its own SCSI adapter card.
❏ Make sure the interrupt and DMA channels are different for
each SCSI adapter card.
You install duplexing after you install the SCSI driver and the ASPI
NetWare Manager for each SCSI adapter card in the file server.
When you install more than one SCSI adapter card in the file
server, the screen looks similar to this:
Loading module AHA1740.DSK
Auto-loading Module ASPITRAN.DSK
AHA- ASPI Manager & SCSI Disk Driver For
NetWare 386 v3.1
Version 2.0
Loading module AHA1740.DSK
AHA- ASPI Manager & SCSI Disk Driver For
NetWare 386 v3.1
Version 2.0
The NetWare procedure for installing duplexed disk drives is the
same as installing mirrored drives. See the instructions in “Disk
Mirroring” for details.
NetWare Guidelines
This section describes various guidelines to follow when installing
a SCSI adapter card in a NetWare environment.
Ins talling Software Drivers for Novell NetWare 286/386
6-11
Booting from the SCSI drive
To boot your computer from a SCSI hard disk drive, the BIOS on
the SCSI adapter card must be enabled at port 330h, and the SCSI
ID of the drive must be 0.
To boot from a SCSI hard disk drive, set up the drive as follows:
1. Use the MS-DOS FDISK program to create a small DOS
partition (approximately 3MB to 6MB) on your SCSI hard disk
drive. See your MS-DOS manuals for instructions.
2. Use the MS-DOS FORMAT command to format the partition.
See your MS-DOS manuals for instructions.
3. Copy the following files to the root directory of the partition:
SERVER.EXE
INTALL.NLM
AHAl740.DSK (version 3.1 or 3.11)
ASPITRAN.DSK (version 3.1 or 3.11)
4. Modify your MS-DOS AUTOEXEC.BAT file to start the SERVER
program. See your NetWare manuals for instructions on how
to use the SERVER program.
5. Reboot your server. NetWare 386 loads at this point.
6. Enter your file server name and internal IPX number.
7. Load INSTALL.NLM and create your STARTUP.NCF and
AUTOEXEC.NCF files as described below.
Creating STARTUP. NCF and AUTOEXEC. NCF files
The STARTUP.NCF and AUTOEXEC.NCF files allow you to start
the NetWare 386 file server and automatically load drivers, mount
volumes, and prepare for servicing the workstations.
You create these files from the NetWare INSTALL.NLM program as
described below. See your NetWare manuals for details.
1. Load INSTALL.NLM.
6-12
Installing Software Drivers for Novell NetWare 286/386
2. Select System Options.
3. Select Available System Options. You can create the
STARTUP.NCF and AUTOEXEC.NCF files by selecting the
appropriate menu items.
Your STARTUP.NCF file looks similar to this:
load aspitran
load aha1740 port=330
Your AUTOEXEC.NCF file looks similar to this:
file server name MYFILESERVER
ipx internal net 2
mount all
Replace MYFILESERVER with the name of your file server. See your
NetWare installation guide for the IPX INTERNAL NET number.
Note
For STARTUP.NCF to execute properly with NetWare 386 versions 3.1
and 3.11, you mast load the ASPITRAN.DSK file before the
AHA1540. DSK or AHA174O.DSK file.
Formatting SCSI drives
To format a SCSI hard disk drive, you can use the INSTALL.NLM
program for NetWare 386 version 3.1 or 3.11. You can also
perform a low level format of several SCSI drives at once. See your
NetWare manuals for details.
When the INSTALL program prompts you for an interleave value,
enter 0. This value instructs the drive to use its optimal interleave
value.
Using removable media
The AHA1740.DSK driver supports removable media disk drives
including magneto-optical drives. The driver treats removable
media as standard SCSI hard disk drives with a few exceptions.
One exception is the driver only recognizes and registers media
with 512KB per sector.
Installing Software Drivers for Novell NetWare 286/386
6-13
NetWare 386 version 3.1 or 3.11 allows you to mount and
dismount the media, and to lock and unlock the media. Use the
MONITOR.NLM program to view the various options as described
below. See your NetWare manuals for details.
1. Load the MONITOR.NLM program.
2. Select Disk Information. The program displays all System
Disk Drives.
3. Select the removable media device you want to modify. The
program displays the following drive status items:
Menu choice
Default value
1.
2.
3.
4.
5.
6.
(select for list)
hardware level
Not supported
Active
Mounted
Not locked
Volume Segments On Drive:
Read After Write Verify:
Drive Light Status:
Driver Operating Status:
Removable Drive Mount Status:
Removable Drive Lock Status:
Menu choices 1 through 4 are valid for both removable and nonremovable SCSI hard disk drives. Menu choices 5 and 6 are for
removable media only.
To dismount a drive and mount a new drive, follow these steps:
1. Dismount the current drive using menu choice 5. You can
dismount it only if it is not locked. If it is locked, first unlock
it.
2. Remove the drive and insert the new drive.
3. Wait for the drive to spin up, and then select the mount
option (menu choice 5).
4. If the drive supports the lock/unlock feature, lock the drive
using menu choice 6. When a removable drive is locked, you
cannot dismount it.
6-14
Installing Software Drivers for Novell NetWare 286/386
NetWare Ready
Your SCSI adapter card and the AHA1740.DSK driver are fully
compatible with NetWare Ready. This means you can purchase an
Epson SCSI hard disk drive, connect it to your SCSI adapter card,
partition it, and create a volume without any incompatibility
concerns.
You can use NetWare Ready SCSI drives as well as standard SCSI
drives on a single SCSI adapter card. The NetWare drivers register
each drive accordingly.
Error Messages
If any error occurs during initialization, you see an error message
and the driver is not loaded. The format of the NetWare error
messages is:
ERR nnn:message
The nnn error code indicates the type of error as follows:
000 - 099
Indicates the error is not specific to the SCSI
adapter card.
200 - 299
Indicates the error is specific to the AHA-1740 SCSI
adapter card.
The table below lists the possible error codes and messages.
Differences between NetWare version 3.0 and 3.1/3.11 error
messages are noted.
Code Message
000
Failed ParselOParameters call
Failed ParseDriverParameters call
I
Description
A call to the NetWare 386
ParselOParameters routine failed
for some unknown reason. The
command line may contain an
error or you pressed Esc at the
port or slot prompt.
Version 3.1/3.11 message.
Installing Software Drivers for Novell NetWare 286/386
6-15
Code Message
Description
001
Unable to reserve hardware,
possible conflict
The driver failed to reserve the
hardware (DMA and IRQ)
settings of the SCSI adapter
card. Another option card in
your computer may be in
conflict with the SCSI adapter
card.
002
NetWare rejected card Failed AddDiskCard call
The driver failed to register the
SCSI adapter card with NetWare
386. You may not have enough
memory in your file server.
NetWare rejected card Failed AddDiskSystem call
Version 3.1/3.11 message
003
Invalid command line option
entered ➞ option
You entered an invalid option on
the command line. The message
displays the invalid option.
004
invalid command line,
please enter correctly
You entered an invalid
command line. Reenter the
command.
005
Unable to load driver not enough memory?
The computer was unable to
load the driver into memory.
You may not have enough
memory in your file server.
Version 3.1/3.11 only.
200
No host adapter found for
this driver to register
The driver was unable to locate
the SCSI adapter card. Make
sure the card is properly inserted
and configured.
201
Host adapter not configured
for enhanced mode
The SCSI adapter card is
configured for Standard mode
rather than Enhanced mode.
Use the System Configuration
program described in Chapter 3
to configure the SCSI adapter
card for Enhanced mode.
202
Unable to read host adapter
configuration
The driver cannot read the
configuration data for the SCSI
adapter card. Make sure the
SCSI adapter card is properly
inserted and configured.
6-76
Installing Software Drivers for Novell NetWare 286/386
Code Message
Description
203
Invalid ‘slot’ setting, use 1-15.
You entered an invalid slot
number on the command line.
Valid slot numbers are from 1
to 15.
204
Invalid ‘verbose’ setting, use ‘y’
You entered an invalid VERBOSE
value on the command line. Set
the VERBOSE value to Y
(VERBOSE=Y).
205
Invalid ‘removable’ setting,
use ‘off
You entered an invalid
REMOVABLE value on the
command line. Set the
REMOVABLE value to OFF
(REMOVABLE=OFF).
206
Invalid ‘fixed-disk’ setting,
use ‘off’
Installing Drivers for Net Ware 286
Version 2.15C
You can use NetWare 286 with the SCSI adapter card in Standard
mode only.
To install the SCSI driver for NetWare 286 version 2.15C, you
must relink NetWare. Use the NETGEN.EXE program to assign a
file server. NETGEN includes the following four Run Options:
❏ Standard (diskettes)
❏ RAM disk
❏ Hard disk
❏ Network drive.
Installing Software Drivers for Novell NetWare 286/386
6-17
If you use the standard option, you install NetWare from the
NetWare diskettes. If you use one of the other options, you copy
files from the NetWare diskettes onto the appropriate disk.
If you use the standard option, you are prompted to insert the
diskette with the ASPI NetWare Manager during NETGEN. Use the
Load and Select Item option on the Select Disk Drivers menu to
load the ASPI NetWare Manager. Copy the ASWNOVL.OBJ and
ASWNOVL.OBJ files from the NET286.215 subdirectory on the
ASPI NetWare Manager diskette to the root directory of another
diskette. The volume label of the diskette must be DSK_DRV_209.
If you use the RAM disk, hard disk, or network drive option to
install NetWare, create a subdirectory on the drive called
DSK_DRV.209. Copy the ASWNOVL.OBJ and ASWNOVL.OBJ files
from the NET286.215 subdirectory on the ASPI NetWare Manager
diskette to that subdirectory. Use the Load and Select Item option
on the Select Disk Drivers menu to load the ASPI NetWare
Manager.
The hard disk option is fully described in the next section.
Using the Hard Disk Option
This section describes how you set up your file server and load the
ASPI NetWare Manager using the hard disk option. If you are
using one of the other methods of installation, see your NetWare
manuals for details.
Follow these steps:
1. At the system prompt, type NETGEN - N. You see the system
configuration window:
6-18
Installing Software Drivers for Novell NetWare 286/386
2. Highlight Custom Configuration and press Enter. You see
the following menu:
NETGEN Run Options
Standard (floppy disks)
RAM Disk
Hard Disk
Network Drive
3. Highlight Hard Disk and press Enter. You are prompted for
the logical drive letter of the disk that contains any previously
created NetWare subdirectories.
4. Enter the drive letter that contains the NetWare subdirectories
and press Enter. You see this window:
Network Generation Options
I
Select Network Configuration
Exit NETGEN
5. Highlight Select Network Configuration and press Enter.
NETGEN displays the Available Options menu:
Available Options
Set Operating System Options
Select Resource Sets
Select LAN Drivers
Select Disk Drivers
Select “Other" Drivers
Configure Drivers / Resources
Edit Resource List
Edit Resource Sets
Save Selections and Continue
Ins talling Software Drivers for Novell NetWare 286/386
6-19
You can select more than one option from the menu. Be sure
to select the following options:
Option
Purpose
Set Operating System Options
Sets the operation mode for
NetWare 286. See the NetWare
installation guide for the appropriate
selection.
Select LAN Drivers
Selects the type(s) of LAN card(s) to
be installed in the file server.
Select Disk Drivers
Selects the type of controller(s) and
host adapter(s) to be installed in the
file server. Select this option to
install the ASPI NetWare Manager.
Configure Drivers / Resources
Configures the LAN drivers, disk
drivers, and any other drivers
previously selected. This option
appears only if a driver was
previously selected (such as LAN
drivers or disk drivers).
See your NetWare manuals for information on these options.
6. Choose the Select Disk Drivers option. NETGEN displays
these two windows:
I
Selected Disk Drivers
Disk Driver Options
Select Loaded Item
Load and Select Item
6-20
Installing Software Drivers for Novell NetWare 286/386
7. Highlight Load and Select Item and press Enter. NetWare
reads the SCSI drivers from the DSK_DRV.209 subdirectory.
You see this message:
The “Epson AHA-1740 Host Adapter v 3.1" file
was read successfully.
Press ESCAPE to continue.
a. Press Esc. NETGEN displays a list of available disk drivers.
9. Highlight the ASPI NetWare Manager. Then type the number,
0 through 4, that corresponds to the DMA channel number
where you want the driver installed.
10. Select any other drivers you want to install. Then select
Configure Drivers / Resources from the Available
Options menu.
The Configure Drivers / Resources menu looks similar to this:
Configure Drivers / Resources
Choose Disk Driver Configuration
11. Highlight Choose Disk Driver Configuration and press
Enter. (See your NetWare manuals for details on the other
options.)
Installing Software Drivers for Novell NetWare 286/386
6-21
NETGEN displays all unconfigured disk drivers. Select the ASPI
NetWare Manager. NETGEN displays the following list:
Available Disk Configurations
1:
2:
3:
4:
5:
6:
7:
8:
I/O port - 330h, IRQ - 11, DMA - 5
I/O port - 330h. IRQ - 12, DMA - 5
I/O port - 330h. IRQ - 11, DMA - 6
I/O
I/O
I/O
I/O
port
port
port
port
I/O port
-
330h.
334h.
334h.
334h.
334h.
IRQ
IRQ
IRQ
IRQ
IRQ
-
12,
10,
15,
10,
15,
DMA
DMA
DMA
DMA
DMA
-
0
7
7
0
0
(This is a partial list of options.)
Select the option that corresponds to the jumper settings of
your SCSI adapter card.
12. Press Esc to return to the main menu.
13. Highlight Save Selections and Continue and press Enter.
14. To complete the installation, see the NetWare installation
manual for instructions on the following procedures:
❏ Link/Configure NetWare Operating System
❏ Link/Configure File Server Utilities
❏ NetWare Installation.
Using Multiple Disk Drives with NetWare 286
Version 2.15C
With the NetWare 286 SCSI drivers, you can install multiple SCSI
hard disk drives in the file server. Multiple hard disk drive allow
you to:
❏ Support disk mirroring
❏ Support disk duplexing
6-22
Installing Software Drivers for Novell NetWare 286/386
❏ Take advantage of the multitasking capability of the SCSI
adapter card
❏ Add storage capacity to your system.
Note
Disk mirroring and disk duplexing are supported only on the SFT version
of NetWare.
Disk mirroring
With two or more hard disk drives installed on your SCSI
interface, you can perform disk mirroring.
When one disk mirrors another, it contains the same data as the
original disk. Then, if you have a problem with one disk, you can
continue to work from the other disk without interruption. This
keeps network down-time to a minimum.
When preparing your SCSI hard disk drives for mirroring, follow
these guidelines:
❏ Make the NetWare partitions about the same size. You cannot
mirror partitions that vary greatly in size. See the NetWare
installation manual for limitations.
❏ You must connect the SCSI hard disk drives to the same SCSI
cable.
Installing Software Drivers for Novell NetWare 286/386
6-23
The NetWare procedure for installing a mirrored pair of disk drives
is similar to the standard installation. Follow these steps:
1. Perform the standard NetWare installation as described in your
NetWare installation manual.
2. After you link and configure the NetWare Operating System
and the File Server Utilities, select NetWare Installation.
You see a list of available drives with the following menu
items:
Menu item
Description
Drive Name
SCSI hard disk drive
Channel
NetWare channel assigned to the drive
Controller
SCSI ID of the drive
Drive
Logical unit number (LUN) of the controller
Status
Displays mirrored or duplexed status
3. Verify that the drives match those you have installed in your
system. Press Lx. You see this menu:
4. To continue, highlight Drive List is Correct and press
Enter. The following menu appears:
I
Installation Options
Select Default Installation Options
Select Custom Installation Options
Continue Installation
6-24
Installing Software Drivers for Novell NetWare 286/386
I
5. Choose Select Default Installation Options. The
program displays the mirrored drives and the following menu:
Mirror Options
Establish Mirror Pair
Done, Continue Installation
6. To mirror the drives listed on your screen, select Establish
Mirror Pair. The submenu changes to this:
Mirror Options
Un-mirror Existing Mirror Pair
Done. Continue Installation
7. To turn off mirroring, select Un-mirror Existing Mirror
Pair. Then select Done. Continue Installation to
continue.
8. Continue to follow the NetWare instructions to name the file
server, install files, and complete the installation.
Disk duplexing
With two or more SCSI adapter cards installed in your file server,
each with a hard disk drive attached, you can perform disk
duplexing.
Mirroring and duplexing actually refer to the same process. If the
hard disk drives are attached to the same SCSI adapter card, the
process is called mirroring. If the hard disk drives are attached to
different SCSI adapter cards, the process is called duplexing.
Installing Software Drivers for Novell NetWare 286/386
6-25
The disk attached to one SCSI adapter card mirrors the disk
attached to the other SCSI adapter. In this case, if you have a
problem with either a disk or a SCSI adapter card, you can
continue to work from the duplexed subsystem without
interruption. This keeps network down-time to an absolute
minimum.
TERMINATORS
INSTALLED
SCSI
DISK 0
SCSI ADAPTER CARD
PORTADDRESS 330H
286/366
l Disks contain same data
SCSI BUS
SCSI ADDRESS CARD
PORTADDRESS 334H
SCSI
DISK 0
l
Host adapters at different port
address/lRQDMA
l Driver must be loaded twice
T E R M I N A T O R S
INSTALLED
The NetWare operating system refers to both mirroring and
duplexing as mirroring. In the INSTALL program, NetWare
displays the mirroring and/or duplexing status of a drive as either
Mirrored or Not Mirrored.
When preparing your SCSI adapter cards and hard disk drives for
duplexing, follow these guidelines:
❏ Make the NetWare partitions about the same size. You cannot
mirror partitions that vary greatly in size. See the NetWare
installation manual for limitations.
❏ Connect each hard disk drive to its own SCSI adapter card.
❏ Make sure the interrupt and DMA channels are different for
each SCSI adapter card.
6-26
Installing Software Drivers for Novell NetWare 286/386
The procedure for duplexing requires that you load the NetWare
286 driver twice. Follow these steps:
1. Follow the standard installation procedure for loading the
driver. Load the driver from the Selected Disk Drivers
menu.
You may see a message that indicates there is not enough
memory. You must configure the driver.
If you see this message, go to the Configure Drivers /
Resources menu and configure any drivers. Then return to
the Select Disk Drivers menu and load the NetWare 286 driver
into channel 1.
When both drivers are successfully selected, the Selected
D i s k D r i ve r s list displays both drivers.
2. Configure the NetWare 286 driver with the option that
corresponds to the settings of the SCSI adapter card. When
you configure the NetWare 286 driver at channel 1 from the
Configure Drivers / Resources menu, the program displays
only a subset of the total number of configurations. NetWare
does not display any configuration that conflicts with the
driver at channel 0.
3. Select Save Selections and Continue. After linking and
configuring the NetWare Operating System and File Server
Utilities, select NetWare Installation.
See the NetWare installation manual for instructions on
running COMPSURF, which is listed in the Analyze Disk
Surface option.
The rest of the steps for duplexing your disk drives are exactly the
same as for mirroring. See steps 3 through 8 of the disk mirroring
procedure described above (pages 6-24 and 6-25) to complete the
disk duplexing configuration.
InstaIling Sofbvare Drivers for Novell NetWare 286/386
6-27
Multitasking
When you attach more than one disk drive to the SCSI adapter
card, you can increase the performance of your system by
assigning each drive to its own channel. This allows for
multitasking on the SCSI interface.
Note
NetWare 286 can perform only one I/O operation per channel at one
time.
The ASPI NetWare Manager allows you to configure multiple
channels per SCSI adapter by mapping a channel to a drive rather
than to the SCSI adapter.
When preparing your SCSI adapter card and hard disk drives for
multitasking, connect each hard disk drive to the same SCSI cable
and to the same SCSI adapter card.
The NetWare procedure for assigning multiple channels to a SCSI
adapter card is similar to the standard installation. Follow these
steps:
1. Follow the standard installation procedure described in your
NetWare installation manual.
2. Load the NetWare SCSI driver once for each hard disk drive to
map those drives to a channel. The program displays the
Selected Disk Drivers list and this menu:
Disk Driver Options
Select Loaded Item
Load and Select Item
6-28
Installing Software Drivers for Novell NetWare 286/386
3. Configure the driver at channel 0 to the correct I/O port, DMA
channel, and Interrupt channel. When configuring the driver
at channel 1, NetWare displays only a subset of the total
number of configuration options. The menu looks similar to
this:
Available Disk Configurations
19:
20:
21:
22:
23:
29:
30:
31:
For SCSI
For SCSI
For SCSI
For SCSI
For SCSI
I/O port I/O port I/O port -
disk(s) attached
disk(s) attached
disk(s) attached
disk(s) attached
disk(s) attached
334h. IRQ - 10.
334h. IRQ - 15.
334h. IRQ - 10.
to CHO
to CH1
to CH2
to CH3
to CH4
DMA - 7
DMA - 7
DMA - 0
AH-154x/1640 only
AH-154x/1640 only
AH-154x/1640 only
AH-154x/1640 only
AH-154x/1640 only
WRITE VERIFY
WRITE VERIFY
WRITE VERIFY
Use • and • to scroll through the options.
4. Select the option that corresponds to the channel used to
configure the correct DMA channel and Interrupt channel.
5. After configuring all the drivers in the Configure Drivers /
Resources menu, you can verify the current configuration.
The screen looks similar to this:
Selected
Configurations
option 0: IRQ - 3 . I / O B a s e - 300h. no DMA
Network Address: 3
Or
ROM
OS Type: SFT Netware 286 with TTS
Communication
Buffers:
40
Disk Chan. 0: Adaptec AHA-154x/1640 Host Adapter
Option 1: I/O port - 330h. IRQ - 11,
Disk Chan. 1: Adaptec AHA-154x/1640 Host Adapter
Option 19: For SCSI disk(s) attached
ver 3.1
DMA - 5
ver 3.1
to CHO AHA-1540/1640 only
6. When the configuration is correct, press Esc to return to the
main menu. Choose Save Selections and Continue to
complete the NetWare installation.
Installing Software Drivers for Novell NetWare 286/386
6-29
See the NetWare installation manual to complete these steps:
❏ Link/Configure NetWare Operating System
❏ Link/Configure File Server Utilities
❏ NetWare Installation.
Error Messages
You may see one of the following error messages during
installation of the NetWare 286 SCSI driver:
Can't get a byte due to Data port not FULL.
Can't send a byte due to Command/Data port still
FULL.
Configuration data contains no DMA channel.
Configuration data contains no interrupt channel.
Host Adapter is not idle while trying to reset
interrupt.
Host Adapter Not Configured to proper IO port
address.
Host Adapter Not Configured to proper IO
interrupt channel.
Host Adapter Not Configured to proper IO DMA
channel.
INQUIRY command Completed with Error or Time Out.
READ CAPACITY command Completed with Error or
Time out.
Test Unit Ready command Completed with Error or
Time out.
6-30
Installing Software Drivers for Novell NetWare 286/386
These errors may occur for the following reasons:
The hardware settings on the SCSI adapter card do not match
the configuration options selected during NETGEN. Check
your SCSI adapter card.
There is a hardware conflict between the SCSI adapter card and
another option card in the system. Check the port address,
DMA channel, and interrupt channel of other I/O cards in the
system. Some VGA cards and LAN cards use port address 330h,
which is the default for the SCSI adapter card.
The SCSI interface is not properly terminated. Make sure only
the devices on each end of the SCSI interface have
terminators. The terminators on all other SCSI devices should
be removed.
There is a SCSI ID conflict in the SCSI interface. Each device
must have a unique SCSI ID, from 0 to 7. Check the SCSI ID of
each device.
The SCSI adapter card is malfunctioning. Check to see if the
SCSI interface runs under MS-DOS. If so, the problem is with
the NetWare setup and not with the hardware. Check your
NetWare setup and configuration.
The SCSI hard disk drive does not work with the SCSI adapter
card. Again, check to see if the SCSI interface runs under
MS-DOS. If so, the problem is with the NetWare setup and
not with the hardware. Check your NetWare setup and
configuration.
Installing Software Drivers for NoveIl NetWare 286/386
6-31
SCSI Adapter Options
The SCSI adapter card supports the following configurations.
Write verify option #
Port
IRQ
DMA
2
3
4
28
330H
330H
330H
12
11
14
6
6
5
6
29
30
334H
334H
334H
334H
10
15
10
15
7
7
0
0
9
11
12
34
33
35
36
230H
230H
230H
914
14
9
2
6
6
13
14
15
16
37
38
39
40
234H
234H
234H
234H
10
15
10
15
7
7
0
0
19
20
21
22
23
43
44
45
46
47
For SCSI disk(s) attached to ChO
For SCSI disk(s) attached to Chl
For SCSI disk(s) attached to Ch2
For SCSI disk(s) attached to Ch3
For SCSI disk(s) attached to Ch4
Option #
6-32
Installing Software Drivers for Novell NetWare 286/386
I
7
I
Installing Software
Drivers for UNIX
After configuring your system for use with the SCSI adapter, you
need to install software drivers so that your operating system
recognizes and accesses the SCSI devices.
If you are using the UNIX operating system, you may need to
install the UNIX SCSI Manager. You can use this device driver
with SCO® UNIX System V/386 Release 3.2, Version 2.0, and with
SCO Open Desktop@ Release 1.1.
You need to install the UNIX SCSI Manager only if you plan to use
your SCSI adapter card in Enhanced mode. If you plan to use the
SCSI adapter card in Standard mode, the UNIX operating system
provides the necessary support. If you choose to install the UNIX
SCSI Manager when you are using the SCSI adapter in Standard
mode, UNIX will access the UNIX SCSI Manager instead of the
original UNIX driver.
Note
To use the UNIX SCSI Manager, you must have the Link Kit installed
on your system.
Using the UNIX SCSI Manager, you can use your SCSI adapter in
Standard mode or Enhanced mode. In Standard mode, use the ad
driver.
In Enhanced mode, you use the eiad driver and the SCSI adapter
card uses the enhanced capabilities of EISA. Additionally, the eiad
driver implements SCSI-II tagged queuing and scatter-gather
capabilities for increased performance.
Installing Software Drivers for UNIX
7-l
Tagged queuing, which is also called command queuing, is a
SCSI-II feature that allows disk read and write commands to be
queued within a disk drive’s memory. This enables the drive to
sort commands for optimum efficiency.
Scatter-gather is an operating system and hardware feature that
allows several sequential read or write operations to be performed
at the same time, even though the system buffers for those
operations may not be physically contiguous in memory. The net
result is a reduction in disk latency and an increase in throughput.
The UNIX SCSI Manager also provides the following features for
your SCSI interface:
❏
Support for two SCSI adapter cards.
❏
A new command, change-ha, allows you to change the system
files interactively to identify SCSI devices attached to
a different SCSI adapter card. You can use change-ha to
change the SCSI adapter associated with any SCSI device.
❏
A new command, eisa, displays a report on the devices
attached to the SCSI interface.
❏
A new version of the SCSI disk driver Sdsk provides tagged
queuing and scatter-gather capabilities.
❏
A new version of the SCSI tape driver Stp allows simultaneous
access to the tape devices on different SCSI interfaces.
❏
A new version of the CD-ROM driver Scrom allows multiple
processes to access the CD-ROM device.
❏
Enhancements to configuration utilities, such as mkdevhd and
mkdev tape, support the configuration and use of two SCSI
adapter cards.
❏
A new tar binary provides fixes that prevent tar from
inappropriately ignoring files with certain nodes.
7-2
Installing Software Drivers for UNIX
Installing the UNIX SCSI Manager
Before you can install the UNIX SCSI Manager files, you must
install UNIX on your hard disk.
Note
When you install UNIX, the SCSI adapter card must be in Standard
mode. If you change to Enhanced mode when you install the UNIX SCSI
Manager, you must run the System Configuration program again to
change to Enhanced mode.
After installing UNIX, follow these steps:
1. At the root directory, type CUSTOM and press Enter. The Install
program displays the Custom main menu and highlights the
Install option.
2. Press Enter to select Install. You see the new product screen.
3. Choose A New Product from the menu and press Enter. You
see the Choose an option selection.
4. Press Enter to select the Entire Product option. The
program prompts you to insert distribution volume 1.
5. Insert the UNIX SCSI Manager diskette into drive A and press
Enter. The program displays various messages to alert you to
the progress of the installation.
6. If you have not installed Link Kit, you are prompted to do so
now.
If you have installed Link Kit, you see this message:
Updating system configuration...
Installing Software Drivers for UNIX
7-3
7. The program automatically starts the change-ha utility, which
allows you to change the adapter type of any SCSI device. You
see a screen similar to this:
The SCSI configuration file has entries for
the following devices:
Host
Adapter
Type
Devices
Adapter
Number
ad
ad
disk
tape
0
0
ID
LUN
0
0
2
0
Standard mode and eiad for Enhanced mode. The default is ad
for Standard mode.
If you change the Host Adapter Type, the program prompts
you to enter the new host adapter prefix for each device
attached to the interface. Enter ad to select Standard mode or
eiad to select Enhanced mode.
When you have responded to all entries, change-ha displays
the new SCSI configuration. You see this prompt:
Do you wish to change the Host Adapter Type
for any of these entries? (y/n)
8. When the configuration is complete, press N to leave
change-ha. You see this message:
A new kernel must be built to reflect the
changes to the SCSI configuration.
Do you want to do this now? (y/n)
7-4
Installing Software Drivers for UNIX
9. Press Y and Enter to relink the kernel. The program displays
the following messages:
The UNIX Operating System will now be rebuilt.
This will take a few minutes. Please wait.
Root for this system build is /.
The UNIX Kernel has been rebuilt
Do you want this kernel to boot by default?
(y/n)
10. Press Y and Enter. You see these messages:
Backing up /unix to /unix.old
Installing new /unix
The kernel environment includes device node
files and /etc/inittab.
The new kernel may require changes to
/etc/inittab or device nodes.
Do you want the kernel environment rebuilt?
(y/n)
11. Press Y and Enter. You see messages confirming the kernel
linking process followed by this message:
Installation of ASW-1450 is now finished.
12. Press Enter and then press any key to return to the Custom
main menu. You may see this message:
Checking file permissions...
13. From the Custom main menu, select Quit to leave the menu
and then choose Yes to leave Custom.
14. Remove the UNIX SCSI Manager diskette from drive A.
15. Enter shutdown -g0 -y to reboot your system.
Installing Software Drivers for UNIX
7-5
Your new configuration will now be in effect. If necessary, run the
System Configuration program described in Chapter 3 to ensure
that your system setup matches your UNIX SCSI settings.
Configuring the SCSI Adapter
and Devices
This section describes guidelines for you to follow when
configuring your UNIX system with a SCSI adapter card.
I
Changing the SCSI Adapter Card Mode
When you install the UNIX system, the SCSI adapter card must be
in Standard mode. (The card is shipped in Standard mode.) If you
change to Enhanced mode when you install the UNIX SCSI
Manager, you must change your SCSI system configuration to
Enhanced mode also. (See Chapter 3 for details.)
You cannot access any devices that you configure as attached to
the eiad host adapter until you reconfigure the SCSI adapter card
to Enhanced mode.
Defining the Primary Host Adapter
If you boot from a SCSI hard disk drive, the SCSI adapter card to
which you attach the drive is the primary host adapter.
Using Multiple SCSI Adapters
If you install two SCSI adapter cards in your system, the card
installed in the slot with the lowest number is adapter 0. The card
installed in the slot with the higher number is adapter 1.
For example, if you install the first SCSI adapter card in slot 3 of
an EISA desktop computer, it becomes adapter 0. You can then
install the second SCSI adapter card in slot 4; it becomes adapter 1.
Be sure to use the correct numbers when you specify the adapters.
7-6
Installing Software Drivers for UNIX
To add a second SCSI adapter card to your system, follow these
steps:
1. Install the second SCSI adapter card in any available slot that
is a higher number than the slot containing the primary host
adapter.
2. Run the System Configuration program to configure the
secondary SCSI adapter. You must assign a BIOS address for
the secondary adapter that is higher than the BIOS address for
the primary adapter.
The next time you access a device attached to the secondary SCSI
adapter card with a mkdev script (such as mkdev tape), the system
notes the existence of the secondary adapter card. The mkdev
script then prompts you for configuration information as
described in the next section.
Referencing a Second SCSI Adapter Card
The mkdev script prompts you for information when you add a
second SCSI adapter card to your system. Be prepared to supply
the following information the first time you reference the second
adapter card:
❏ Interrupt vector
❏ Start I/O hexadecimal address
❏ Stop I/O hexadecimal address.
The preferred start I/O hexadecimal address for the SCSI adapter
card is 330 for the primary adapter and 230 for a secondary
adapter. The stop I/O hexadecimal address is always the start I/O
hexadecimal address plus 2 (332 for the primary SCSI adapter card
and 232 for a secondary adapter).
Note
The eiad driver dynamically provides the required information to the
kernel from the EISA CMOS storage area.
Installing Software Drivers for UNIX
7-7
Adding or Removing a SCSI device
When you add or remove a SCSI device, you must run the mkdev
command for that device. For example, run mkdev tape if you are
adding a tape drive.
Be prepared to supply the mkdev utility with the following
information:
❏ Host adapter prefix
❏ Host adapter number
❏ Target ID of the host adapter
❏ Logical Unit Number (LUN) of the device.
The host adapter prefix identifies the mode of the SCSI adapter to
which you are attaching a device. The following table lists the host
adapter prefixes:
Prefix
SCSI mode
ad
Standard mode
eiad
I Enhanced mode
I
See the SCO UNIX mkdev manual for more information.
You must reconfigure the kernel whenever you add or remove a
SCSI device. This updates the SCSI configuration file with the
location of the new device. You must rebuild the kernel and
reboot the system to access the new device.
Using the mkdev hd Utility
The UNIX SCSI Manager provides a new parameter, eiad, to the
mkdev hd utility. If you are in Enhanced mode, use the eiad
parameter when adding more hard disk drives to your SCSI
interface. The format for the mkdev hd utility is:
mkdev hd [O-7 scsi-0 ¦
7-8
scsi-1 [O-7] [eiad]]
Installing Software Drivers for UNIX
When you add a secondary hard disk drive, you must invoke
mkdev hd twice. Complete both steps before attempting to add
another hard disk drive.
See your UNIX documentation for more information about using
mkdev hd.
Installation Guidelines
Follow these guidelines when installing the UNIX SCSI Manager:
o
Use the following settings for the SCSI adapter card in
Standard mode.
Host Adapter number
Interrupt
DMA
I/OPort
ad0
11
5
330h
ad 1
12
6
230h
❏
The UNIX SCSI Manager supports a maximum of two SCSI
adapter cards. It supports a maximum of four SCSI hard disk
drives and four SCSI tape drives, whether you have one or two
adapter cards installed.
❏
You cannot use the adfmt command to format the SCSI hard
disk drives.
❏
If you are frequently accessing multiple partitions on one or
more hard disks, you may see warning messages such as:
Region table overflow
File Table overflow
If you see these messages, you must modify certain kernel
parameters. See your UNIX documentation for additional
information.
Installing Software Drivers for UNIX
7-9
❏ You can ignore the following error message:
WARNING:Sdsk unit 2: unrecoverable error:key
000, data block 0
If this message appears with non-zero values for the key fields,
it indicates an error on the hard disk at the given block
number. If you know the name of the file containing the bad
block, you can create a directory in the root directory called
/badtracks and copy the file to that directory. This prevents
any further access to the bad block.
❏ Do not attempt to remove the UNIX SCSI Manager after you
install it. This could damage your operating system.
I
Rewinding a SCSI Tape After Performing Multiple
Write Operations
Each SCSI tape device has multiple device special filenames
associated with it. The tape device reacts differently depending
on which device special filename you are using. If your tape
drive does not automatically rewind the tape after multiple
write operations, you must verify that you are using the correct
device file.
A device special filename has the following form:
prefixStpn
Prefix indicates the type of the device, and n indicates the device
number (0-6) of the device you are accessing. The prefix indicates
the following devices:
nr a no-rewind device
7-10
r
a raw device
X
a control device
Installing Software Drivers for UNIX
To determine the number of the device you are using, view the file
/etc/conf/cf.d/mscsi and note the order of tape device entries in
this file. It lists devices in the order in which they were installed;
the order determines the device number. For example, the first
tape device is number 0, the second device is number 1, the third
device is number 2, and so on. Using the device number for n in
the following command, enter:
1s -1 /dev/*Stpn
This command lists all the device special files for the device
number you are using.
Here is a sample listing:
crw-rw-rw- 1 root root 46, 8
Aug 27 1991 /dev/nrStp0
Aug 27 1991 /dev/rStp0
crw-rw-rw- 1 root root 46, 0
crw-rw-rw- 1 root root 46, 128 Aug 27 1991 /dev/xStp0
The two numbers displayed before the date fields are the major
and minor numbers, respectively. The minor number determines
the type of device: 8 for no-rewind and 0 for raw. nrStp0 is a
mnemonic for a no-rewind device, and rStp0 is a mnemonic for a
raw device, as shown in the table below.
Minor number
Device name
Action
8
nrStpn
no rewind
0
rStpn
rewind
If the device filename you use has the minor number 0, the tape is
rewound automatically after the command completes. The
following command rewinds the tape after the tar(C) command is
finished:
tar cvf /dev/rStpO
On some versions of SC0 UNIX System V/386 Release 3.2,
Version 2.0, the device names are reversed. A device named
/dev/rstpn does not rewind the tape if it has a minor number of 8.
In this case, use the device name /dev/nrstpn to rewind the tape.
Installing Software Drivers for UNIX
7-11
I
Intermixing Read and Write Operations on a
No-rewind Tape Device
Many SCSI cartridge tape drives do not support intermixing read
and write operations on a no-rewind tape device. The QIC-02
standard requires this restriction on appending data. SCSI
cartridge tape drives made by Wangtek, Archive, and Tecmar have
this restriction. Certain versions of the Cipher SCSI cartridge tape
drive and some nine-track SCSI tape drives do not have this
restriction.
On a no-rewind SCSI tape device with this restriction, there are
three states of the SCSI tape drive:
❏ A READ state when the tape is being read
❏ A WRITE state when the tape is being written
❏ A GENERAL state.
The tape cannot be read when the tape drive is in the WRITE state,
and it cannot be written to when the tape drive is in the READ
state. The only way to go from the READ state to the WRITE state
is by passing through the GENERAL state. There are four ways to
enter the GENERAL state:
❏ Completion of diagnostics (you power-cycle the tape drive for
a hard reset)
❏ Completion of rewind, erase, or load commands (you rewind
the tape to the beginning)
❏ Attempting to read past the last block of the tape (you create
an end-of-tape, EOT, condition)
❏ Occurrence of an error reading the tape when in READ or
WRITE state.
The last way to enter the GENERAL state, the occurrence of a read
error, is the easiest way to pass between the READ and WRITE
states. By creating a read error to enter the GENERAL state, you
can work around the restriction on writing data to your tape
directly after you have read data from your tape.
7-12
Installing Software Drivers for UNIX
The following examples show why the restriction on appending
data exists and how to successfully append data.
First, suppose you have a tape loaded in an Archive SCSI tape
drive. You choose to write a number of files on your tape drive
using the tar(C) and tape(C) commands on a no-rewind tape
device, /dev/nrStp0. You enter the following series of commands:
tape -s
tar cbf
tar cbf
tape -s
tar tvf
tar tvf
rewind /dev/nrStp0
20 /dev/nrStp0 first batch of files
20 /dev/nrStp0 second batch of files
rewind /dev/nrStp0
/dev/nrStp0
/dev/nrStp0
After checking the integrity of the first two batches of files with tar
tvf /dev/nrStp0, you decide to write the third batch of files. You
execute the following command:
tar cbf 20 /dev/nrStp0 third batch of files
If you have the UNIX SCSI Manager installed, the SCSI tape driver
reports the following error:
Warning: Stp : Possible SCSI Error:
Warning: Illegal Request:
This error occurs because you forgot to pass through the GENERAL
state to go from the READ to WRITE state.
To successfully append the third batch of files, you must issue a
tar t or tape rfm command to cause a read error. The read error
allows you to enter the GENERAL state before entering the WRITE
state.
If you see the previous error message, you can execute the
following tar commands on the no-rewind device as follows:
tar tvf /dev/nrStp0 (creates an read error. but
no error message)
tar cbf 20 /dev/nrStp0 third batch of files
Installing Software Drivers for UNIX
7-13
The third batch of files is successfully appended to the tape.
Although this restriction has always existed for certain SCSI tape
drives, the default SCSI tape driver for UNIX (without the UNIX
SCSI Manager installed) does not report the error when you
attempt to go directly between READ and WRITE states. The error
still occurs, but it is not reported. To execute the task described in
the previous example without viewing the first two batches of
files, use this example:
tape -s
tar cbf
tar cbf
tape -s
rewind /dev/nrStp0
20 /dev/nrStp0 first batch of files
20 /dev/nrStp0 second batch of files
rewind/dev/nrStp0
You can append additional files to the tape as shown:
tape -s rfm /dev/nrStp0
tape -s rfm /dev/nrStp0
tape -s rfm /dev/nrStp0 (creates a read error,
but no error message)
tar cbf 20 /dev/nrStp0 third batch of files
Warning Messages During Heavy Disk Access
When you are frequently accessing multiple partitions on one or
more hard disks, you may see warning messages such as Region
table overflow and File Table overflow. If you encounter
these or similar messages, you must modify certain kernel
parameters. See your UNIX documentation for additional
information.
Errors on SCSI Hard Disk Drives
The hard disk driver may report the following error message,
which can be safely ignored:
WARNING:Sdsk unit 2: unrecoverable error:
key 0 0 0. data block 0
7-14
Installing Software Drivers for UNIX
Note
If the previous warning message appears with non-zero values for the
key fields, it indicates an error on the hard disk at the given block
number.
If you know the name of the file containing the bad block, you can
create a directory in the root directory called /badtracks and move the
offending file to that directory. Use the mv(C) command to move the
file. This prevents any further access to the bad block.
Long Delays Accessing a SCSI Device
If you experience long delays (greater than four seconds) before
accessing a SCSI device, the problem is likely caused by an
interrupt vector conflict. Interrupt vector conflicts are often
reported at boot time. If you see a conflict at boot time, change
the interrupt vector of one of the conflicting boards. For
instructions, see your EISA Series User’s Guide.
Note
You must execute the System Configuration program to reflect any
changes to hardware interrupt vectors.
Under certain circumstances, interrupt vector conflicts are not
reported at boot time. For instance, because of the way in which
information is stored for the Enhanced mode driver, conflicts with
the SCSI adapter card are not detected at boot time. You can verify
a suspected interrupt vector conflict by using the System
Configuration program to check the IRQ for the SCSI adapter card.
Compare this number with the IRQ values for other hardware to
detect any conflicts.
Also, some 8-bit networking cards have a default interrupt vector
setting of IRQ 2, which is automatically reset to IRQ 9. The System
Configuration program does not reflect this automatic change. If
you are using one of these 8-bit networking cards and you
experience long delays when accessing a SCSI device, make sure
that no other hardware has an interrupt vector of IRQ 9. If
another piece of hardware is using an interrupt vector of IRQ 9,
reconfigure it to use a different, unused interrupt vector.
InstaIling Software Drivers for UNIX
7-15
Accessing Devices on a Standard Mode SCSI Adapter
If you cannot access any device attached to a SCSI adapter card
in Standard Mode, you might have a problem with conflicting
interrupt vectors and start I/O and stop I/O hexadecimal address.
Compare the entries for these values in the /etc/conf/sdevice.d/ad
file with the values displayed by the System Configuration
program to see if the interrupt vector and the start I/O and stop
I/O hexadecimal addresses match. The /etc/conf/sdevice.d/ad file
consists of one or two lines, depending on the number of
SCSI adapters. Here is a sample ad file with one entry:
ad
Y
1
5
1
11
330
332
0
0
The sixth field from the left displays the interrupt vector, which is
11 in this example. The seventh and eighth fields display the start
I/O and stop I/O hexadecimal addresses, respectively. In this
sample entry, the start I/O hexadecimal address is 330, and the
stop I/O hexadecimal address is 332.
The last (or only) entry in /etc/conf/sdevice.d/ad is the entry for
the secondary SCSI adapter (if it is in Standard mode). The values
in the interrupt vector and the start and stop I/O hexadecimal
address fields must match the values displayed by the System
Configuration program. If they do not match, use the System
Configuration program to change the values to match those in
/etc/conf/sdevice.d/ad. If these new values conflict with the values
for the primary host adapter, the UNIX SCSI Manager displays a
warning. You must then change the values for the primary host
adapter as well.
Operating Notes
The UNIX SCSI Manager will implement high-performance
support for a broad range of SCSI peripheral devices without
further intervention. However, when you require the highest
performance, you may want to alter some parameters to improve
performance, depending on the system environment and
applications you are using.
7-16
Installing Software Drivers for UNIX
1 Enabling Tag Queuing
Tag Queuing is a SCSI-II option implemented by several large SCSI
hard disk drives. It allows a series of commands, sent to the drive
by the host adapter, to be executed in an optimal order and not
necessarily in the order in which they were sent. Normally, the
UNIX SCSI Manager disables Tag Queuing by default because some
drives have non-SCSI-conforming Tag Queuing implementations.
To enable Tag Queuing, follow these steps:
1. Type the following and press Enter to change directories to the
/etc/conf/pack.d/Sdsk directory:
cd /etc/conf/pack.d/Sdsk
2. Using the vi editor, type the following and press Enter to edit
the file space.c. in this directory:
vi space.c
3. To search for the string Sdsk_no_tag = 0 and replace it with
Sdsk_no_tag = 1, type the following and press Enter:
:g/tag - O/s//tag - 1
4. Type : wq and press Enter to save the file.
5. To relink the kernel and enable the new capability, type the
following and press Enter:
cd /etc/conf/cf.d
./link-unix
6. Reboot the system to invoke the newly linked kernel.
Installing Software Drivers for UNIX
7-17
I
Tuning Performance for Single Disks
UNIX frequently operates with multiple disks in the system.
In this case, UNIX can use the power of the multitasking/
multithreading capabilities of SCSI adapters. The UNIX SCSI
Manager default parameters are set to take advantage of this.
However, in a case where only a single disk is attached to a system,
perform. the following steps to optimize the setup:
1. To change directories to the /etc/conf/pack.d/Sdsk directory,
type the following and press Enter:
cd /etc/conf/pack.d/Sdsk
2. Using the vi editor, type the following and press Enter to edit
the file space.c. in this directory:
vi space.c
3. To search for the string NUM_OUT = 4 and replace it with
NUM_OUT = 15, type the following and press Enter:
:g/NUM_OUT 4/s//NUM_OUT 15
4. Type : wq and press Enter to save the file.
5. To relink the kernel and enable the new capability, type the
following and press Enter:
cd /etc/conf/cf.d
./link-unix
6. Reboot the system to invoke the newly linked kernel.
7-18
Installing Software Drivers for UNIX
I
The change_ha Script
The information in this section updates the description of the
change-ha script in your UNIX manual.
Name
change-ha
Function
Changes the host adapter
Syntax
/etc/conf/cf.d/change_ha
Description
You must log in as root to execute the script.
The change-ha script has no options.
Files
/etc/con/cf.d/mscsi
/etc/conf/sdevice.df ad
/etc/conf/sdevice.d/eiad
The change-ha script displays a table that shows the SCSI host
adapters to which particular SCSI devices are attached. It also
asks if you want to change the host adapter prefix to identify a
different host adapter with a device. If you change the host
adapter prefix, change-ha writes this new information to the
mscsi file that the system uses for configuration information.
Normally, this script is executed as part of the UNIX SCSI Manager
installation procedure. You can invoke the change-ha script
separately if you need to modify the configuration after
completing the installation. You must relink the kernel after
executing change-ha to effect your changes.
If you configure two host adapters of the same type and then
remove the adapter that has a SCSI ID of 0, change-ha
automatically renumbers the second adapter’s ID from 1 to 0 and
updates the appropriate files in the /etc/conf/sdevice.d directory.
Change-ha supports two host adapters, identified by prefix in the
following table:
Prefix
Adapter board
ad
SCSI host adapter-Standard mode
eiad
SCSI host adapter-Enhanced mode
Installing Software Drivers far UNIX
7-19
The mscsi file also identifies the type of device, the number of
the host adapter (0 or l), the SCSI ID, and the logical unit number
(LUN). To configure a device that is not yet configured on the
system or to change other fields, use the mkdev tape or mkdev hd
commands.
The change-ha script prompts you for information when you add
a second SCSI adapter in Standard Mode. Be prepared to supply
the following information the first time that you reference the
second adapter:
❏ Interrupt vector
❏ Start I/O hexadecimal address
❏ Stop I/O hexadecimal address.
The preferred start I/O hexadecimal address for the SCSI adapter
in Standard Mode is 330 for the primary adapter and 230 for a
secondary adapter. The stop I/O hexadecimal address should
always be the start I/O address plus 2 (332 for the primary adapter
and 232 for the secondary adapter).
Note
Changes made with the change-ha script take effect only after you
relink the kernel, such as during the installation procedure when the
system is rebooted. To relink the kernal from the operating system
command line, change to the /etc/conf/c.d directory and enter
./link_unix.
The change-ha script checks the mscsi file to ensure that the
number of adapters referenced is not greater than two. If the mscsi
file is wrong, change-ha prints an error message. You will need to
edit /etc/conf/cf.d/mscsi before you can continue.
See Also
link_unix (ADM)
mkdev (ADM)
change-ha (ADM)
7-20
Installing Software Drivers for UNlX
The eisa Command
The information in this section updates the description of the eisa
command in your UNIX manual.
Name
eisa
Function
Reports on boards that are installed on the EISA
bus
syntax
/etc/eisa [slots¦h¦H]
Description
You must log in as root to execute the script.
The eisa command provides information about the host adapters
that are installed on the system. By default, eisa reports on the
motherboard and 15 slots (slots 0-15). You can specify a number
of slots for which you want a report. If you specify a higher
number of slots than you have on your computer, the eisa report
for those slots is invalid. If you do not specify slot information,
use H or h to get usage information.
Here is a sample report.
Slot:
EISA ID:
MB
4
6
04 90 FD 09 Epson
04 90 00 00 Epson
04 90 00 00 Epson
Vendor:
Prod#:
Rev#:
EISA Ver
0x000
01
1
0x000
0x000
00
00
Each of these fields is described below:
Slot: This field contains logical number of the slot on the EISA bus
to which the board is attached. The motherboard is always
configured as slot 0, so slot 0 is reported as MB.
EISA ID: This field contains the standard EISA ID. The first four
digits represent the vendor; the next four digits represent the
product number and the revision number for the product.
Installing Software Drivers for UNIX
7-21
Vendor: This is an abbreviation for the vendor of the board. The
sample report shows that the motherboard and the boards in slots
4 and 6 are sold by Epson. Note that this column merely interprets
the vendor information given in the first four digits of the EISA ID
column.
Prod#: This field contains the product number of the individual
board. These numbers are assigned by the vendor and should be
explained in the documentation that accompanies the board.
Rev#: This field contains the hardware revision number for the
board.
EISA Ver: This field contains the EISA version number. Each
motherboard is encoded with a version of the EISA specification to
which it conforms.
Note
The eisa command reports only on EISA boards, not on 8- or 16-bit ISA
(XT/AT) boards.
Eisa diagnostics return a 0 value if successful. A return value of 1
indicates a command line error, a return value of 2 indicates that
the motherboard was not located, and a return value greater than
2 indicates an unspecified error. If the slot number that you
specify is larger than the actual number of slots, the results are
unpredictable; however, the return value is still 0.
7-22
Installing Software Drivers for UNIX
I
Index
IA
Accessing devices, Standard
mode, 7-16
Ad driver, UNIX, 7-1
AFDISK program, 4-9–13
installing, 4-10
running, 4-11–13
AHAl 740.DSK, 6-2
ANSI specification, l-l
ASPI MS-DOS disk driver,
4-7–9
installing, 4-8–9
ASPI MS-DOS Manager, 4-l–7
diskette, 4-2
installing, 4-2–4
ASPI NetWare Manager, 6-l
diskette, 6-2
loading, 6-18–22
ASPI OS/2 disk driver, 5-4
ASPI OS/2 Manager, 5-1–4
diskette, 5-2
installing, 5-2
ASPI4DOS.SYS driver, 4-2–9,
5-1 –4
error messages, 4-14–18
ASPIDISK.SYS driver, 4-7–9
error messages, 4-17–18
ASPIEDOS.SYS driver, 4-2–7
error messages, 4-14–16
ASW1440.DSK, 6-2
AUTOEXEC.NCF file, 6-12–13
B
Booting, SCSI drive, 6-12
Burst rate, Intro-l
C
Cable connectors, 2-l1
Change-ha utility, 7-4, 7-19–20
Command line options, 6-4–5
Command queuing, Intro-l
Components, SCSI adapter card,
2-l–2
Configuration files, copying,
3-2–3
Configuration options,
Enhanced mode, 3-8–9
Standard mode, 3-7
Configuration program,
exiting, 3-9
using, 3-2–9
Configuring,
SCSI adapter and devices,
7-6–9
your system, 3-l–9
Customer support, Intro-4
Index 1
D
Daisy-chain arrangement, l-l
Desktop computer, 2-5, 2-7
DEVICE command,
ASPI disk driver, 4-8-9
MS-DOS Manager, 4-4–7
OS/2, using, 5-3
parameters, 4-5, 4-9, 5-3
switches, 4-5–7, 4-9, 5-3
Device drivers, Intro-2
Diagnostic functions, 2-2
Differential devices, l-5, 2-3
Disk duplexing,
NetWare 286, 6-25–27
NetWare 386, 6-10–11
Disk mirroring,
NetWare 286, 6-23–25
NetWare 386, 6-7–9
DISK01.SYS, 5-l–2, 5-4
Diskettes, Intro-3
ASPI MS-DOS Manager, 4-2
ASPI NetWare Manager, 6-2
ASPI OS/2 Manager, 5-2
Configuration Utilities, 3-1
UNIX SCSI Manager, 7-3
DMA channel definition, 3-5
Drive bays, 2-5
E
Eiad driver, UNIX, 7-l
Eisa command, 7-21–22
EISA SCSI host adapter, 3-3–9
options, 3-4–9
EISA Series bus connector, 2-2
Enhanced mode, 3-l
configuration options, 3-8–9
MS-DOS, 4-2
NetWare, 6-l–4
UNIX, 7-1
Error messages, 4-14–18
NetWare 286, 6-30–31
NetWare 386, 6-15–17
2
Index
External connector, 2-11
External devices, 1-4, 2-11
External SCSI connector, 2-2
F
Formatting, SCSI drives, 6-13
G
Guidelines,
installation, UNIX, 7-9-16
NetWare, 6-11-14
IH
Hard disk drive, see SCSI hard
disk drive
Hard disk option, using,
6-18-22
Host adapter,
BIOS, 3-6
interface mode, 3-5
SCSI ID, 3-6
II
I/O port definition, 3-5
IDE hard disk drives, 2-9
Input/output bus, Intro-l
Installation guidelines,
7-9-16
Installing,
SCSI adapter card, 2-3
SCSI devices, 2-3-12
UNIX SCSI Manager, 7-3-6
Installing, software drivers,
MS-DOS, 4-l–20
NetWare, 6-l–32
OS/2, 5-l–4
UNIX, 7-l–22
Intermixing read and write
operations, 7-12-14
Internal devices, l-4, 2-4
connecting, 2-4–11
installing, 2-4–11
Internal SCSI connector, 2-2,
2-8
L
LED cable, 2-9–11
LED connector, 2-2, 2-10–11
Logical unit number (LUN),
1-2
Long delays accessing, SCSI
device, 7-15
M
Mkdev hd utility, using, 7-8–9
MS-DOS drivers, 4-l–20
Multiple disk drives,
NetWare 286, 6-22–30
NetWare 386, 6-7–11
Multiple SCSI adapter cards,
installing, l-6
referencing, 7-7
using, 4-7, 7-6–7
Multiple write operations,
7-10–11
Multitasking, NetWare 286,
6-28–30
N
NETGEN, 6-18–22
NetWare,
guidelines, 6-11–14
SCSI adapter options, 6-32
NetWare 286,
disk duplexing, 6-25–27
disk mirroring, 6-23–25
error messages, 6-30–31
installing drivers, 6-l7–31
multiple disk drives, 6-22–30
multitasking, 6-28–30
version 2.15C, 6-17–31
NetWare 286/386, 6-1–32
NetWare 386,
disk duplexing, 6-10–11
disk mirroring, 6-7–9
installing drivers, 6-2–17
multiple disk drives, 6-7–11
versions 3.0, 3.1 and 3.11,
6-2–l7
NetWare Ready, 6-15
No-rewind tape device, 7-12–14
Novell NetWare, 6-l–32
0
Odd parity checking, 1-5
Operating notes, UNIX, 7-16-22
P
Parity checking, 1-5
Partition,
creating, 4-12-13
deleting, 4-12-13
Performing multiple write
operations, 7-10-11
Pin 1,
orientation, 2-4, 2-6–8, 2-10
terminators, 1-5
Primary host adapter,
defining, 7-6
Processor board, 2-10
R
Reference 1 diskette, 3-2
Removable media, 6-1
installing, 4-13–14
using, 6-13–14
Resistor packs, 1-3
Rewinding, SCSI tape, 7-10–11
Ribbon cable, Intro-3, 2-4, 2-6–8
Index 3
S
Scatter-gather, UNIX, 7-2
SCO Open Desktop, 7-1
SCO UNIX System V/386, 7-1
SCSI adapter card,
components, 2-l–2
Configuration Utilities, 3-1
installing, 2-3
mode, changing, 7-6
SCSI adapter options,
NetWare, 6-32
SCSI bus reset, 3-6
SCSI cable, connecting, 2-6–8
SCSI cartridge tapes, 7-12
SCSI configuration options, 3-7
SCSI devices,
adding, 7-8
installing, 2-3-12
long delays accessing, 7-15
removing, 7-8
turning on, 1-6
SCSI diskettes, Intro-3, 3-2
SCSI hard disk drive, 1-2
booting, 6-12
errors, 7-14–15
formatting, 4-9–13, 6-13
installing, 2-9–11
partitioning, 4-9–13
SCSI ID, 1-1–2
SCSI interface, 1-1–6
setting up, 2-1–12
SCSI package, Intro-3
SCSI parameters, modifying, 3-3
SCSI terminators, 1-1, 1-3–5
SCSI-I standard, 1-1, 2-11
SCSI-II standard, Intro-l, l-l
scsIo1.SYS, 5-1–2, 5-4
SERVER-EXE program, 6-2–4
Setting up, 2-1-12
Single disks, tuning
performance, 7-18
Single-ended devices, 1-5, 2-3
Single-ended interface, Intro-2
Socket J2, 2-10
4
Index
Software drivers,
MS-DOS, 4-1–20
NetWare, 6-1–32
OS/2, 5-1–4
UNIX, 7-l–22
Standard mode, 3-1, 7-9
configuration options, 3-7
MS-DOS, 4-2
NetWare, 6-1–4
UNIX, 7-1
Startup screen, MS-DOS, 4-4
STARTUP.NCF file, 6-12–13
Support services, Intro-4
System configuration, 3-1–9
TT
Tagged queuing, 7-2, 7-l7
Target number, 1-2
Terminators, 1-1, 1-3–5, 2-2,
2-4
inserting, 1-5
power supply, 2-2
removing, 1-5
Tie wrap, Intro-3, 2-7
Tower computer, 2-5,2-7
Tuning performance, single
disks, 7-18
U
UNIX SCSI Manager, 7-l–22
diskette, 7-3
features, 7-2
installing, 7-3-6
I
V
Virtual DMA Services (VDS),
4-1
W
Warning messages, heavy disk
access, 7-14
