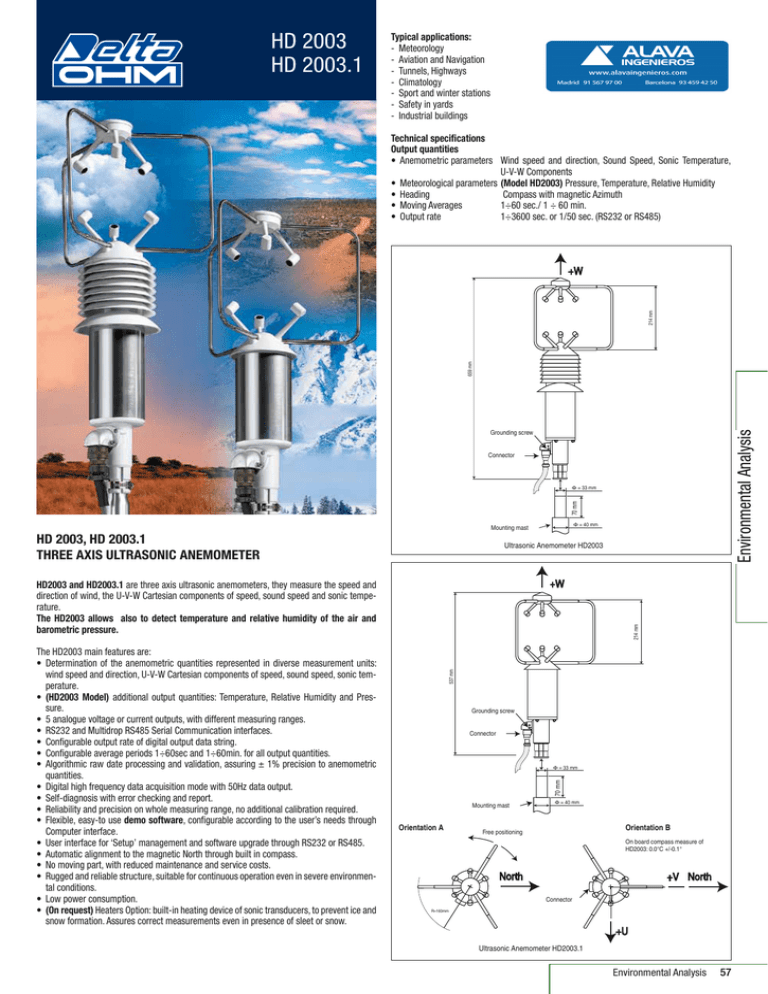

SENSORES DE VIENTO HD 2003

SENSORES DE VIENTO HD 2003
HD 2003
HD 2003.1
Typical applications:
-Meteorology
- Aviation and Navigation
- Tunnels, Highways
-Climatology
- Sport and winter stations
- Safety in yards
- Industrial buildings
Technical specifications
Output quantities
• Anemometric parameters Wind speed and direction, Sound Speed, Sonic Temperature,
U-V-W Components
• Meteorological parameters(Model HD2003) Pressure, Temperature, Relative Humidity
• Heading
Compass with magnetic Azimuth
• Moving Averages
1÷60 sec./ 1 ÷ 60 min.
• Output rate
1÷3600 sec. or 1/50 sec. (RS232 or RS485)
659 mm
214 mm
+W
Environmental Analysis
Grounding screw
Connector
70 mm
Φ = 33 mm
HD 2003, HD 2003.1
THREE AXIS ULTRASONIC ANEMOMETER
Ultrasonic Anemometer HD2003
+W
537 mm
214 mm
HD2003 and HD2003.1 are three axis ultrasonic anemometers, they measure the speed and
direction of wind, the U-V-W Cartesian components of speed, sound speed and sonic temperature.
The HD2003 allows also to detect temperature and relative humidity of the air and
barometric pressure.
Grounding screw
Connector
Φ = 33 mm
70 mm
The HD2003 main features are:
• Determination of the anemometric quantities represented in diverse measurement units:
wind speed and direction, U-V-W Cartesian components of speed, sound speed, sonic temperature.
• (HD2003 Model) additional output quantities: Temperature, Relative Humidity and Pressure.
• 5 analogue voltage or current outputs, with different measuring ranges.
• RS232 and Multidrop RS485 Serial Communication interfaces.
• Configurable output rate of digital output data string.
• Configurable average periods 1÷60sec and 1÷60min. for all output quantities.
• Algorithmic raw date processing and validation, assuring ± 1% precision to anemometric
quantities.
• Digital high frequency data acquisition mode with 50Hz data output.
• Self-diagnosis with error checking and report.
• Reliability and precision on whole measuring range, no additional calibration required.
• Flexible, easy-to use demo software, configurable according to the user’s needs through
Computer interface.
• User interface for ‘Setup’ management and software upgrade through RS232 or RS485.
• Automatic alignment to the magnetic North through built in compass.
• No moving part, with reduced maintenance and service costs.
• Rugged and reliable structure, suitable for continuous operation even in severe environmental conditions.
• Low power consumption.
• (On request) Heaters Option: built-in heating device of sonic transducers, to prevent ice and
snow formation. Assures correct measurements even in presence of sleet or snow.
Φ = 40 mm
Mounting mast
Mounting mast
Orientation A
Φ = 40 mm
Orientation B
Free positioning
On board compass measure of
HD2003: 0.0°C +/-0.1°
Nord
+V Nord
Connector
R=160mm
+U
Ultrasonic Anemometer HD2003.1
Environmental Analysis
57
Output quantities:
Mod. HD2003
Wind speed
Wind direction
Compass
Sonic temperature
Pressure
Humidity
Rain detector
HD 2013.2
External sensors
Solar radiation (LP PHOT or LP PYRA)
Rain detector (HD2013.2)
Rack
Luxmeter LP PHOT
or pyranometer LP PYRA
RS 232
COM
Slave Computer
( 15m. max )
Power supply
12÷30 Vdc
2W
+
6W (With Heaters)
-
+
+
HD978TR4
Output quantities:
Mod. HD2003.1
Wind speed
Wind direction
Compass
Sonic temperature
Rain detector
HD 2013.2
External sensors:
Temperature and
Relative Humidity
HD9009TR
Temperature ( HD9009TR )
Pressure ( HD9408T )
Humidity ( HD9009TR )
Solar radiation ( LP PHOT oppure LP PYRA )
Rain detector (HD2013.2)
Rack
RS 232
COM
Pressure
HD9408T
Slave Computer
( 15m. max )
Power supply
12÷30 Vdc
2W
+
6W (With Heaters)
-
Luxmeter LP PHOT
or Pyranometers LP PYRA
Wind Speed
• Measuring unit • Range
• Resolution
• Accuracy
Wind Direction
• Range
• Resolution
• Accuracy
Sound speed
• Range
• Resolution
• Accuracy
Sonic Temperature
• Range
• Resolution
• Accuracy
Compass
• Range
• Resolution
• Accuracy
Digital Outputs
• Communications
• Baud Rate
• Output Rate
• Measured data
-
m/s, cm/s, km/h, knots, mph
0÷65 m/s (234 km/h)
0.01 m/s
± 1% of reading
Azimuth: 0÷360° Elevation: ± 60°
0. 1°
± 1°
300 ÷ 380 m/s
0.01 m/s
± 1% of reading
-40 + 60°C
0.1 °C
± 1°C
0 ÷ 360°
0.1 °
± 1°
RS-232 full duplex, Multidrop RS-485 half duplex
9600 ÷ 115200 bit/sec.
Normal functioning mode: 1 ÷ 3600 sec
Digital high frequency: 1/50 sec
Digital string of anemometric quantities and compass (Model
HD2003) Pressure, temperature, relative humidity
+
+
HD978TR4
Analog Outputs
• Output number
• Range • Resolution
Mod. HD2003 e HD2003.1
Power supply
• Range
12 ÷ 30 VDC
• Power
<2W (typically 110mA @ 15Vdc)
<6W Models with heaters and environment temperature not
lower than ñ10°C
Rack
Master Computer
Convertitore
RS232 / RS485
COM
RS 232
1
RS 485
.......
2
32 max
Heaters (On request at the time of placing the order)
Heating with automatic temperature control on sonic transducers, to prevent ice and snow
formation.
Temperature, Relative Humidity, and Pressure Sensors (Model 2003)
2W (Ogni unità HD2003 o HD2003.1)
Alimentatore
12÷30 Vdc
5, selectable between all available output quantities
0÷20mA, 4÷20mA, 0÷1V, 0÷5V, 1÷5V, 0÷10V
14 bit max
6W ( Ogni unità HD2003 o HD2003.1 c on Riscaldatori)
+
-
Temperature
Pt100 sensor
Analog output 0÷20mA, 4÷20mA, 0÷1V, 0÷5V, 1÷5V, 0÷10V
Range: -40 + 60°C
Resolution 0.1°C
Accuracy ± 0.2°C, ± 0.15°C of reading
1200m. max
5 Output quantities
Mod. HD2003
Relative Humidity
Capacitive sensor
Analog output ( 0 ÷ 100% RH): 0÷20mA, 4÷20mA, 0÷1V, 0÷5V, 1÷5V, 0÷10V
Range: 0 ÷ 100% RH
Resolution 0.1 % RH
Accuracy ± 2% RH @ 23°C un the range 5÷90%RH, 2.5% in the remaining range.
Wind speed
Wind direction
Temperature
Pressure
Humidity
Rack
Data Logger
5 Analog Output:
0÷20 mA, 4÷20mA
or
0÷1V, 0÷5V, 0÷10V, 1÷5V
Power supply
12÷30 Vdc
2W
6W (With heaters)
+
-
5 Output quantities
Mod. HD2003.1
Wind speed
Wind direction
External sensors:
Temperature and
Relative Humidity
HD9009TR
Temperature (HD90069TR)
Pressure (HD9408T)
Humidity (HD9009TR)
Pressure
HD9408T
5 Analog Output:
0÷20 mA, 4÷20mA
or
0÷1V, 0÷5V, 0÷10V, 1÷5V
2W
6W (With Heaters)
58
Environmental Analysis
Rack
Data Logger
Power supply
12÷30 Vdc
+
-
Pressure
Piezoresistive sensor
Analog output: 0÷20mA, 4÷20mA, 0÷1V, 0÷5V, 1÷5V, 0÷10V
Range 800 ÷ 1100 mbar (On request: 600 ÷ 1100 mbar)
Resolution 0.1mbar
Accuracy ± 0.4mbar @ 20°C
Thermic effects ± 0.8mbar from -40°C up to +60°C
Long-term stability < 0.2% f.s. in 6 months @ 20°C
Order codes:
HD2003: Static anemometer for measuring the speed and direction of wind, air temperature,
relative humidity and barometric pressure. Wind speed and direction, U-V-W Cartesian
Components of speed, sound speed, sonic temperature. Five different analogue voltage or current outputs for different ranges. Communication software for bi-directional
links for net connection of different anemometers, interfaces available RS-232 and RS485. Different measuring units and average periods are available. Ultrasonic transducers heating as optional. 12..30 Vdc power supply, 120mA consumption at 15Vdc. To be
mounted on a mast diam.33mm. Flying connector included.
HD2003R: Transducers heating option for HD 2003 against ice or snow.
HD2003.1: Static anemometer for measuring the speed and direction of wind. Wind speed
and direction, U-V-W Cartesian Components of speed, sound speed, sonic temperature.
Five different analogue voltage or current outputs for different ranges. Communication
software for bi-directional links for net connection of different anemometers, interfaces
available RS-232 and RS-485. Different measuring units and average periods are available. Transducers heating as optional. 12..30 Vdc power supply, 120mA consumption at
15Vdc. To be mounted on a mast diam.33mm. Flying connector included.
HD200.1R: Transducers heating option for HD 2003.1 against ice or snow.
CP2003/5: 26-pole shielded cable diam. 8mm, length 5m. complete with watertight connector
at one side and free at the other end.
CP2003/10: 26-pole shielded cable diam. 8mm, length 10m. complete with watertight connector at one side and free at the other end.
CP2003/C: Watertight 26-pole connector Tyco 62IN- 16A – 16 – 265 – 4 0445
HD2003.77: Clamping for mast ∅ 40mm
HD2003.77C: 2 crossed sleeves for tube ∅ 40mm
HD2003.1.14: Crossed clamping for mast ∅ 40mm with 6 inputs ∅ 16mm
HD2003.2.17: Support rod for sensors ∅ 16mm, length 500mm
HD2003.71K: Mast kit ∅ 40mm, height 2m, in two pieces, ∅ 33mm tapered tip (HD2003.71,
HD2003.72, HD2003.73)
HD2003.74: Clamping with bubble level for ∅ 40mm mast with 3 bracing tie rods
HD2003.75: Flange for ∅ 40mm mast with grounding rod.
HD2003.75K: Accessories kit for bracing the mast, to fix on the ground (HD2003.80,
HD2003.82 - stainless steel strings). 2m fixing diameter.
HD2003.78: Flange plate for ∅ 40mm mast to fasten on the floor
HD2003.78K: Accessories kit for bracing the mast, to fasten on the floor (HD2003.81,
HD2003.82- stainless steel strings). 2m fixing diameter.
HD2003.79K: Fixing kit to mount pyranometers on clamping ∅ 40mm (HD2003.77 –
HD2003.79)
HD2003.83: Transverse mast L=150 cm
HD2003.83.1: Transverse mast L=75 cm
HD2003.85K: Fixing kit with adjustable height to mount pyranometers on ∅ 40mm mast
(HD2003.84 – HD2003.85 – HD2003.79)
HD 2003.1
Connector HD2003
Environmental Analysis
Please specify also at the moment of placing the order:
• Model HD2003: optional range of pressure sensor 600 ÷ 1100 mbar (Factory Default = 800
÷ 1100 mbar)
• Model HD2003: if you need to employ additional output quantities, by external sensors with
analog output 0÷1V. In order to linearize their range on the scale 0÷1V, it is necessary to
specify in this case the number of sensors that you intend to employ (max. two), and their
physical range.
• Model HD2003.1: if you need to employ additional external sensors with analog output
0÷1V. In order to linearize their range on the scale 0÷1V, it is necessary to specify in this
case the number of sensors that you intend to employ (max. five), and their physical range.
HD 2003
HD 2003
HD 2003.1
LP UVA 02
LP PHOT 02
LP PYRA 02
Multipolar cable
5m - 10m and
flying female connector
LP PYRA 03
LP PYRA 05
LP PYRA 07
HD 9007-A1-A2
6x MAX
HD 2003.84
HD 2003.85
HD 2003.79
HD 2013.2
HD 2003.83
HD 2003.83.1
HD 2003.77 C
HD 2013.2.13
HD 2013.2.14
HD 2003.77
HD 2003.74
HD 2003.71
P
N
M
R
a
A
S
Z b
T
B
C
U D
c V
E
L
Y
W
K X
F
j H G
Fixed 26 pole panel
male connector
HD 2003.73
HD 2003.72
HD 2003.82
HD 2003.80
HD 2003.81
HD 2003.78
HD 2003.75
Environmental Analysis
59
