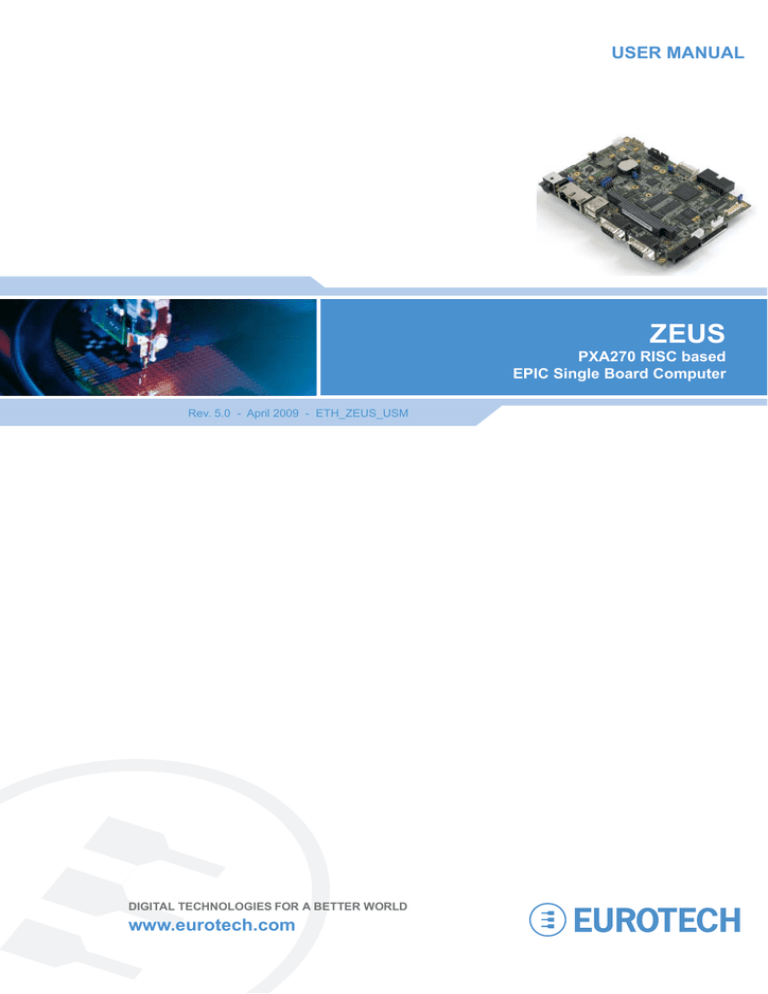

USER MANUAL
ZEUS
PXA270 RISC based
EPIC Single Board Computer
Rev. 5.0 - April 2009 - ETH_ZEUS_USM
DIGITAL TECHNOLOGIES FOR A BETTER WORLD
www.eurotech.com
ZEUS user manual
Disclaimer
The information in this document is subject to change without notice and should not be construed as a commitment
by any Eurotech company. While reasonable precautions have been taken, Eurotech assumes no responsibility for
any error that may appear in this document.
Warranty
This product is supplied with a 3 year limited warranty. The product warranty covers failure of any Eurotech
manufactured product caused by manufacturing defects. The warranty on all third party manufactured products
utilised by Eurotech is limited to 1 year. Eurotech will make all reasonable effort to repair the product or replace it
with an identical variant. Eurotech reserves the right to replace the returned product with an alternative variant or
an equivalent fit, form and functional product. Delivery charges will apply to all returned products. Please check
www.eurotech.com for information about Product Return Forms.
Trademarks
ARM and StrongARM are registered trademarks of ARM Ltd.
Intel and XScale are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United
States and other countries.
CompactFlash is the registered trademark of SanDisk Corp.
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
ZigBee is a registered trademark of the ZigBee Alliance.
All other trademarks recognised..
Revision history
Issue no.
PCB
Date
th
Comments
A
V1 Issue 2
8 July 2006
B
V1 Issue 3
th
14 November 2006 Updated to reflect PCB changes, plus other updates.
C
V1 Issue 4
th
25 April 2007
Updated to reflect PCB changes.
D
V1 Issue 5
st
1 October 2007
Minor text corrections, Eurotech rebranding.
E
V1 Issue 5
17th April 2009
Minor updates and new branding.
© 2009 Eurotech. All rights reserved.
For contact details, see page 125.
First full release of Manual for ZEUS.
Contents
Contents
Introduction...............................................................................................................................5
ZEUS ‘at a glance’........................................................................................................7
ZEUS features ..............................................................................................................9
ZEUS support products ..............................................................................................12
Product handling and environmental compliance .......................................................13
Conventions................................................................................................................14
Getting started ........................................................................................................................15
Using the ZEUS..........................................................................................................15
Detailed hardware description ................................................................................................17
ZEUS block diagram...................................................................................................17
ZEUS address map ....................................................................................................18
PXA270 processor......................................................................................................20
PXA270 GPIO pin assignments .................................................................................22
Interrupt assignments .................................................................................................28
On-Board GPIO expanders pin assignments .............................................................29
Real time clock ...........................................................................................................31
Watchdog timer...........................................................................................................32
Memory.......................................................................................................................32
Wireless support.........................................................................................................34
Expansion interfaces ..................................................................................................36
SDIO...........................................................................................................................36
CompactFlash ............................................................................................................37
PC/104 interface.........................................................................................................38
Flat panel display........................................................................................................40
Audio ..........................................................................................................................45
Touchscreen controller ...............................................................................................46
USB ............................................................................................................................46
Ethernet ......................................................................................................................47
Serial COM ports ........................................................................................................47
CAN bus .....................................................................................................................52
I²C bus ........................................................................................................................53
Quick Capture camera interface.................................................................................54
External General purpose I/O.....................................................................................54
Temperature sensor....................................................................................................55
JTAG and debug access ............................................................................................55
Power and power management..............................................................................................56
Power supplies ...........................................................................................................56
Processor power management...................................................................................58
Peripheral devices power management .....................................................................60
Connectors, LEDs and jumpers..............................................................................................66
Connectors .................................................................................................................68
Jumpers......................................................................................................................85
Status LEDs ................................................................................................................88
Appendix A - Specification ......................................................................................................89
Appendix B - Mechanical diagram ..........................................................................................92
Issue E
3
ZEUS user manual
Appendix C - Reference information...................................................................................... 94
Appendix D - Wireless modem datasheets ............................................................................ 96
Appendix E - ZEUS Modem details ......................................................................................110
Appendix F - ZEUS-FPIF details...........................................................................................114
Appendix G - ZEUS-FPIF-CRT details..................................................................................119
Appendix H - Acronyms and abbreviations .......................................................................... 122
Appendix I - RoHS-6 Compliance - Materials Declaration Form.......................................... 124
Eurotech Group Worldwide Presence.................................................................................. 125
4
Issue E
Introduction
Introduction
The ZEUS is an ultra-low power, high performance, single board computer based on the
PXA270 processor. The PXA270 is an implementation of the Intel XScale micro
architecture, combined with a comprehensive set of integrated peripherals including:
•
Flat panel graphics controller.
•
Interrupt controller.
•
Real time clock.
•
Various serial interfaces.
The ZEUS board is based on the EPIC form factor. Included as standard are:
•
Two Ethernet ports.
•
Two USB host ports.
•
Seven serial ports.
The ZEUS includes a site for a variety of wireless modems and a GPS receiver, and is
designed to create cost effective solutions in asset monitoring, asset tracking, mobile
terminals and network communication controllers. The ZEUS also includes an onboard
vehicle compatible DC/DC power supply to simplify system integration.
The board is available in the standard variants specified in the following table:
Variant
Details
ZEUS-M128-F32-001-R6
Main features (all other features are included unless
otherwise stated):
• Onboard DC/DC PSU.
• Dual Ethernet ports.
• LVDS transmitter.
• CAN bus controller.
• 520MHz processor.
This variant is included in the Development Kits.
ZEUS-M128-F32-002-R6
Main features (all other features are included unless
otherwise stated):
• Dual Ethernet ports.
• LVDS transmitter.
• CAN bus controller.
• 5V only (No DC/DC PSU).
• 520MHz processor.
continued…
Issue E
5
ZEUS user manual
Variant
Details
ZEUS-M64-F32-003-R6
Main features (all other features are included unless
otherwise stated):
• 5V only (No DC/DC PSU).
• No CAN bus, LVDS or secondary Ethernet port.
• 520MHz processor.
ZEUS-M128-F32-004-I-R6*
Main features (all other features are included unless
otherwise stated):
• Industrial temperature range (-40°C to +85°C).
• 5V only (No DC/DC PSU).
• 416MHz processor.
ZEUS-Mx-Fy-zzz-R6
ZEUS-Mx-Fy-zzz-I-R6*
Please note:
• x can be 256, 128 or 64.
• y can be 64 or 32.
• zzz is a variant number based on different
combinations of features.
*
Industrial temperature range: -40°C (-40°F) to +85°C (+185°F). Please contact Eurotech for
availability of industrial temperature options.
The ZEUS board is fully RoHS-6 compliant.
For alternative board configurations, please contact Eurotech Sales (see page 125).
6
Issue E
Introduction
ZEUS ‘at a glance’
10-30V input option
Audio
GPIO
SRAM Camera PXA270 DRAM
Flat panel LCD
Touchscreen
4-wire/5-wire
Flat panel
LCD – LVDS
CAN bus
Flash
Reset switch
Serial
RS422/485
JTAG
User
jumpers
Two serial
RS232/
485/422
10-30V
User
Power input LEDs
Two Two USB
Ethernet host
USB Serial PC/104 Serial
client RS232
RS232
SD/SDIO/
MMC
DRAM
IEEE
802.15.4 /
ZigBee
header
CompactFlash (CF+)
ZEUS
wireless
modem/
GPS port
Issue E
7
ZEUS user manual
5V input option
5V power
input
8
Issue E
Introduction
ZEUS features
Microprocessor
•
PXA270 312/416/520MHz processor (520MHz fitted as standard).
•
32K data cache, 32K instruction cache, 2K mini data cache.
Cache
System memory
Fixed on-board memory:
- 64/128/256 MB SDRAM (32-bit wide SDRAM data bus).
Flash memory
•
Fixed on-board memory - 32/64MB Flash.
•
256 KB of SRAM battery backed on board.
•
18-bit flat panel interface for STN and TFT displays.
•
Optional LVDS interface.
SRAM
Video
Serial ports
•
Four UART fast serial ports - 4x 16550 compatible UARTs (921.6Kbaud):
- OneRS422/485 - software selectable.
- One RS232/422/485 - software selectable.
- Two RS232.
Wireless support
•
GSM/GPRS, iDEN, CDMA modem and GPS using low profile add-on module.
•
IEEE802.15.4 / ZigBee wireless interface using low profile add-on module.
Network support
Issue E
•
Two 10/100Base-T Ethernet controllers (Davicom DM9000A).
•
On-board dual-port RJ45 jack with LEDs.
•
Factory build option for external Power-over-Ethernet (PoE).
9
ZEUS user manual
USB support
•
Two USB 1.1 host controller ports supporting 12MB/s and 1.5MB/s speeds.
•
Alternatively, one host channel may be configured as a USB 1.1 client controller port
supporting 12MB/s and 1.5MB/s speeds.
•
Power switch included on board with 500mA current limit.
•
Two USB A-type connectors for host ports.
•
Header for client port.
Expansion interfaces
•
CompactFlash CF+ socket to support Type I,II form factor CF+ cards.
•
SDIO socket to support MMC/SD/SDIO cards.
•
16-bit PC/104 interface.
Date/time support
•
Real time clock – battery backed on-board (external to PXA270).
Audio and touchscreen
•
Wolfson WM9712L AC’97 compatible CODEC.!
•
Line in, line out, microphone in, stereo amp out.
•
Touchscreen support – 4/5-wire analogue resistive.
Quick Capture camera interface
•
Intel Quick Capture technology.
•
Header connector to a camera image sensor.
•
Multi-master serial bus, header connection.
I2C bus
Configuration EPROM
•
I2C EPROM for storing configuration data.
•
Optional CAN 2.0B protocol controller and optoisolated transceiver.
CAN bus
Watchdog timer
•
External to PXA270, generates reset on timeout. Timeout range 1ms-60s.
General I/O
•
10
16 general purpose I/O (20-pin header).
Issue E
Introduction
Temperature sensor
•
I2C temperature sensor.
•
Front panel user LEDs (3x yellow).
User LEDs
Test support
•
JTAG interface (standard 20-pin ARM header).
•
Reset button.
Reset
Power requirements
•
5V operation (8-pin ATX style connector) or 10-30V input (front panel DC connector).
Mechanical
•
EPIC form factor (115mm x 165mm).
Environmental
•
Operating temperature:
- Commercial: -20°C (-4°F) to +70°C (+158°F) for speed variants up to 520MHz.
- Industrial: -40°C (-40°F) to +85°C (+185°F) for speed variants up to 416MHz.
•
Issue E
RoHS Directive Compliant (2002/95/EC).
11
ZEUS user manual
ZEUS support products
The following products support the ZEUS:
•
ZEUS Modem Board 1, a low profile module attached to the solder side of the ZEUS
main board. It provides the following wireless connectivity options:
- Quad band GSM/GPRS: Sony Ericsson GR64 or Dual band Siemens MC39i
module.
- iDEN: Motorola iO270 module (includes internal GPS receiver).
- GPS: Fastrax iTRAX0312 channel GPS receiver module.
See ZEUS Modem Board 1, page 110, for further details.
•
ZEUS Modem Board 2, a low profile module attached to the solder side of the ZEUS
board. It provides the following wireless connectivity:
- Quad band GSM/GPRS: TELIT GE863-GPS module (includes internal GPS
receiver).
See ZEUS Modem Board 2, page 110, for further details.
•
ZEUS Modem Board 3, a low profile module attached to the solder side of the ZEUS
main board. It provides the following wireless connectivity:
- GSM/GPRS: SierraWireless MC8780/MC8775/MC8755 modules.
- CDMA: SierraWireless MC5720/MC5725 modules.
- GPS: Fastrax iTRAX0312 channel GPS receiver module.
See ZEUS Modem Board 3, page 111, for further details.
•
ZigBee module (ZMx), a direct plug-in option for the ZEUS board that provides
ZigBee (see www.zigbee.org) and IEEE 802.15.4 compatible wireless connectivity.
It provides a fully functioning IEEE802.15.4 / ZigBee controller.
See IEEE802.15.4 / ZigBee module (ZMx), page 35, for further details.
•
ZEUS-FPIF (Flat Panel Interface), a simple board that enables easy connection
between the ZEUS and a variety of LCD flat panel displays.
See ZEUS-FPIF, page 114, for further details.
•
ZEUS-FPIF-CRT, a board that allows the ZEUS to drive a CRT Monitor or an
analogue LCD flat panel. Sync on green and composite sync monitors are not
supported.
See ZEUS-FPIF-CRT, page 119, for further details.
Contact Eurotech Sales, page 125, for further information about any of the above
products.
12
Issue E
Introduction
Product handling and environmental compliance
Anti-static handling
This board contains CMOS devices that could be damaged in the event of static
electricity being discharged through them. At all times, please observe anti-static
precautions when handling the board. This includes storing the board in appropriate antistatic packaging and wearing a wrist strap when handling the board.
Packaging
Please ensure that, should a board need to be returned to Eurotech, it is adequately
packed (preferably in the original packing material).
Electromagnetic compatibility (EMC)
The ZEUS is classified as a component with regard to the European Community EMC
regulations and it is the user’s responsibility to ensure that systems using the board are
compliant with the appropriate EMC standards.
RoHS compliance
The European RoHS Directive (Restriction on the Use of Certain Hazardous Substances
– Directive 2002/95/EC) limits the amount of six specific substances within the
composition of the product. The ZEUS and associated accessory products are available
as RoHS-6 compliant options and are identified by an -R6 suffix in the product order
code. A full RoHS Compliance Materials Declaration Form is included in Appendix I RoHS-6 Compliance - Materials Declaration Form. Further information about RoHS
compliance is available on the Eurotech web site at www.eurotechltd.co.uk/RoHS_and_WEEE.
Issue E
13
ZEUS user manual
Conventions
The following symbols are used in this guide:
Symbol
Explanation
Note - information that requires your attention.
Caution – proceeding with a course of action may damage
your equipment or result in loss of data.
Jumper is fitted.
Jumper is not fitted.
Jumper fitted on pins 1-2.
Jumper fitted on pins 2-3.
Tables
With tables such as that shown below, the white cells show information relevant to the
subject being discussed. Grey cells are not relevant in the current context.
Byte lane
Bit
Most significant byte
15 14 13 12 11 10
Least significant byte
9
8
7
6
5
4
3
Field
-
-
-
-
-
-
-
-
-
-
-
-
-
Reset
X
X
X
X
X
X
X
X
0
0
0
0
0
2
1
RETRIGAUTO_
CLR
0
0
0
R_DIS
0
Relevant
information
14
Issue E
Getting started
Getting started
A ZEUS Quickstart Manual is provided with each Development Kit to enable you to set up
and start using the ZEUS board. Please read the relevant manual and follow the steps
explaining how to set up the board. Once you have completed this task, and your ZEUS
system is working, you can start adding further peripherals enabling development to
begin.
This section explains how to set up and use some of the features of the ZEUS. For more
detailed information on any aspect of the board see the section Detailed hardware
description, page 17.
Using the ZEUS
Using the CompactFlash socket
The ZEUS is fitted with a Type I/II CompactFlash socket mounted on the solder side of
the board. The socket is connected to Slot 0 of the PXA270 PC card interface. It supports
3.3V Type I and II CompactFlash cards, for both memory and I/O. The ZEUS supports
hot swap changeover of the cards and notification of card insertion.
For more details see Expansion interfaces, page 36.
5V CompactFlash cards are not supported.
Using the serial interfaces (RS232/422/485)
The four standard serial port interfaces on the ZEUS are fully 16550 compatible.
Connection to the serial ports is made via two DB9 connectors, a 20-way header and a
simple 5 way header. The pin assignment of the 20 way header has been arranged to
enable 9-way IDC D-Sub plugs to be connected directly to the cable. See the section J19
– Serial ports – COM3/4, page 80, for pin assignments and connector details.
See the section Serial COM ports, page 47, for further details.
Using the audio features
There are four audio interfaces supported on the ZEUS: amp out, line out, line in and
microphone. The line in, line out and amp interfaces support stereo signals and the
microphone provides a mono input. The amplified output is suitable for driving an 8Ω load
with a maximum power output of 250mW per channel.
Connections are routed to J11. See the sections Audio, page 45, and J4 – Audio
connector, page 71, for further details.
Using the USB ports
The standard dual USB type ‘A’ connector is provided on the front panel. See the
sections USB, page 46, and J8 – USB connector, page 73, for further details.
Issue E
15
ZEUS user manual
Using the Ethernet interface
The boot loader configures the Davicom DM9000A 10/100BaseTX Ethernet controller.
Connection is made via a dual RJ45 connector. See the sections Ethernet, page 47, and
J6 – Ethernet connector, page 72, for further details.
Using the PC/104 expansion bus
PC/104 modules can be used with the ZEUS to add extra functionality to the system.
This interface supports 8/16 bit ISA bus style peripherals.
Eurotech has a wide range of PC/104 modules, which are compatible with the ZEUS.
These include modules for digital I/O, analogue I/O and motion control. Please contact
Eurotech Sales (see page 125) if a particular interface you require does not appear to be
available as these modules are in continuous development.
In order to use a PC/104 board with the ZEUS it should be plugged into J12 for 8-bit
cards and J12/J13 for 8/16-bit cards. See the sections ZEUS PC/104 interface details,
page 38, and J12 & J13 – PC/104 connectors, page 76, for further details.
The ISA interface on the ZEUS does not support DMA, shared interrupts and some
access modes. See the section PC/104 interrupts, page 39, for details about PC/104
interrupt use.
The ZEUS provides +5V to a PC/104 add-on board via the J12 and J13 connectors. If a
PC/104 add-on board requires a +12V supply, then +12V must be supplied to the ZEUS
power connector J2 pin 4. If –12V or –5V are required, these must be supplied directly to
the PC/104 add-on board.
Using the ZEUS Modem Modules
The ZEUS Modem modules can be used with the ZEUS to add wireless and GPS
functionality to the system. Various wireless modems are supported to provide packet
data, circuit switched data and voice connectivity on a wireless network. A 12 channel
GPS receiver is also available on the ZEUS Modem module. The ZEUS Modem module
is fitted on the solder side of the ZEUS board (connector J23).
The FFUART serial port of PXA270 is used to communicate with the wireless modem,
and STUART is used to communicate with GPS module. See the sections Wireless
modem and GPS receiver, page 34, and J23 – Wireless modem/GPS module interface,
page 83, for further details.
Using the ZigBee Module
The ZEUS ZigBee module can be used with the ZEUS to provide ZigBee
(www.zigbee.org) and IEEE 802.15.4 compatible wireless connectivity. The BTUART
serial port of PXA270 is used to communicate with the ZigBee module. The ZigBee
module is fitted on the solder side of the ZEUS board (connector J21). For further details,
see sections IEEE802.15.4 / ZigBee module, page 35.
16
Issue E
Detailed hardware description
Detailed hardware description
This section provides a detailed description of the functions provided by the ZEUS. This
information may be required during development after you have started adding extra
peripherals, or are starting to use some of the embedded features.
ZEUS block diagram
The following diagram illustrates the functional organization of the ZEUS EPIC single
board computer:
ZEUS
PXA270
Power
Amp
Clocks
Clock
Generation
AC’97
64/128 MB
SDRAM
RS232
Transceiver
COM 2
TSC
Header
32/64 MB
FLASH
RS232
Transceiver
LVDS
Transmitter
256 KB
SRAM
I2C
RS422/485
Transceiver
Serial
EEPROM
Ethernet
Controller
Transformer
2x
RJ45
USB 1.1 Host
USB 1.1 Client
FFUART
Serial
EEPROM
PC/
104
Buffers
CPLD
CF
Socket
Buffers
5V
PSUs
PSU
GSM/
3G
Module
Daughter Board
BTUART
Header
I2C
I/O
Expander
I/O
Expander
Temp
Sensor
Config
PROM
RTC
JTAG
JTAG
Header
Battery
Reset
IC
Reset
SPI1
CAN
controller
CAN
Transc
eiver
GPIO
MMC/SD/SDIO
Issue E
GPIO
Header
Power
Power
Header
5V
Reset
Button
ZigBee Module
Quick Capture Camera
I2C
PM I2C
DC/
DC
USB
Header
GPS
Module
STUART
Ethernet
Controller
Transformer
2xUSB
Conn.
USB 1.1 Host
Socket
COM 4
LCD
Header
Socket
QUAD
UART
PERIPHERALS / GPIO
COMS
Header
MEMORY CONTROLLER BUS
COM 3
Power
Conn.
10-30V
LVDS
Header
LCD
RS232/422/
485
Transceiver
Header
DB9
COM 1
Header
DB9
Audio
Header
AC'97
Codec
Header
User
LEDs
SDIO
Socket
17
ZEUS user manual
ZEUS address map
PXA270 chip select Physical address
Bus width Description
CS0#
0x00000000 – 0x03FFFFFE
16-bit
Flash memory/Silicon disk
CS1#
0x04000000 – 0x07FFFFFE
16-bit
Ethernet controller 0
CS2#
0x08000000 – 0x0BFFFFFE
16-bit
Ethernet controller 1
CS3#
0x0C000000 – 0x0FFFFFFF
-
Reserved
CS4#
0x10000000 – 0x11FFFFFE
16-bit
Quad UART
0x12000000 – 0x13FFFFFE
16-bit
CPLD registers
CS5#
0x14000000 – 0x17FFFFFE
16-bit
SRAM
-
0x18000000 – 0x1FFFFFFF
-
Reserved
-
0x20000000 – 0x2FFFFFFE
16-bit
CompactFlash
-
0x30000000 – 0x300003FF
8/16-bit
PC/104 I/O space
-
0x30000400 – 0x3BFFFFFF
-
Reserved
-
0x3C000000 – 0x3C1FFFFF
8/16-bit
PC/104 memory space
-
0x3C200000 – 0x3FFFFFFF
-
Reserved
-
0x40000000 – 0x43FFFFFF
32-bit
PXA270 peripherals1
-
0x44000000 – 0x47FFFFFC
32-bit
LCD control registers1
-
0x48000000 – 0x4BFFFFFC
32-bit
Memory controller
registers1
-
0x4C000000 – 0x4FFFFFFC
32-bit
USB host registers1
-
0x50000000 – 0x53FFFFFC
32-bit
Capture interface
registers1
-
0x54000000 – 0x57FFFFFC
32-bit
Reserved
-
0x58000000 – 0x5BFFFFFC
32-bit
Internal memory control1
-
0x5C000000 – 0x5C00FFFC
32-bit
Internal SRAM bank 0
-
0x5C010000 – 0x5C01FFFC
32-bit
Internal SRAM bank 1
-
0x5C020000 – 0x5C02FFFC
32-bit
Internal SRAM bank 2
-
0x5C030000 – 0x5C03FFFC
32-bit
Internal SRAM bank 3
-
0x5C040000 – 0X7FFFFFFF
-
Reserved
SDCS0#
0x80000000 – 0x8FFFFFFF
32-bit
SDRAM (U2/U3)
SDCS1#
0x90000000 – 0x9FFFFFFF
32-bit
SDRAM (U41/U49)
1
Details of the internal registers are in the Intel PXA27x Processor Family Developer’s Manual on the
Development Kit CD.
18
Issue E
Detailed hardware description
UART and CPLD address map
PXA270 chip select Physical address
CS4#
Issue E
Bus width
Description
0x10000000 – 0x107FFFFE
16-bit
UART 1
0x10800000 – 0x10FFFFFE
16-bit
UART 2
0x11000000 – 0x117FFFFE
16-bit
UART 3
0x11800000 – 0x11FFFFFE
16-bit
UART 4
0x12000000
16-bit
REG0 (CPLD Ver/Issue)
0x12800000
16-bit
REG1 (PC104 IRQ
status)
0x13000000
16-bit
REG2 (CF Reset)
0x13800000
16-bit
REG3 (WD Register)
19
ZEUS user manual
PXA270 processor
The ZEUS board is based on a PXA270 processor. The PXA270 processor is an
integrated system-on-a-chip microprocessor for high performance, low power portable
handheld and handset devices. It incorporates the Intel XScale technology with on-the-fly
voltage and frequency scaling and sophisticated power management.
The PXA270 processor complies with the ARM Architecture V5TE instruction set
(excluding floating point instructions) and follows the ARM programmer’s model. The
PXA270 processor also supports Intel Wireless MMX integer instructions in applications
such as those that accelerate audio and video processing.
The features of the PXA270 processor include:
20
•
Intel XScale core.
•
Power management.
•
Internal memory - 256KB of on-chip RAM.
•
Interrupt controller.
•
Operating-system timers.
•
Pulse-width modulation unit (PWM).
•
Real time clock (RTC).
•
General-purpose I/O (GPIO).
•
Memory controller.
•
DMA controller.
•
Serial ports:
•
- 3x UART.
- Fast infrared port.
- I2C bus port.
- AC97 Codec interface.
- I2S Codec Interface.
- USB host controller (2 ports).
- USB client controller.
- 3x synchronous serial ports (SSP).
LCD panel controller.
•
Multimedia card, SD memory card and SDIO card controller.
•
Memory stick host controller.
•
Mobile scalable link (MSL) interface.
•
Keypad interface.
•
Universal subscriber identity module (USIM) interface.
•
Quick Capture camera interface.
•
JTAG interface.
•
356-pin VF-BGA packaging.
Issue E
Detailed hardware description
The design supports 520MHz, 416MHz and 312MHz speed variants of the PXA270
processor. The standard variant of the ZEUS board is fitted with the 520MHz version of
PXA270. The maximum speed available for extended temperature versions of the ZEUS
is 416MHz.
A 13MHz external crystal is used to run the PXA270 processor. All other clocks are
generated internally in the processor.
The PXA270 processor family provides multimedia performance, low power capabilities
and rich peripheral integration. Designed for wireless clients, it incorporates the latest
Intel advances in mobile technology over its predecessor, the PXA255 processor. The
PXA270 processor features scalability by operating from 104MHz up to 520MHz,
providing enough performance for the most demanding control and monitoring
applications.
PXA270 is the first Intel Personal Internet Client Architecture (PCA) processor to include
Intel Wireless MMX technology, enabling high performance, low power multimedia
acceleration with a general-purpose instruction set. Intel Quick Capture technology
provides a flexible and powerful camera interface for capturing digital images and video.
Power consumption is also a critical component. Wireless Intel SpeedStep technology
provides the new capabilities in low power operation.
The processor requires a number of power supply rails. All voltage levels are generated
on-board from either the DC/DC PSU or from the single +5V power input. The ZEUS
uses a specialized Power Management IC to support Intel SpeedStep technology.
The PXA270 processor is a low power device and does not require a heat sink for
operating temperatures up to 85°C (185°F).
Issue E
21
ZEUS user manual
PXA270 GPIO pin assignments
The table below summarizes the use of the 118 PXA270 GPIO pins, their direction,
alternate function and active level.
Key:
AF
Dir
Active
Alternate function.
Pin direction.
Function active level or edge.
For details of pin states during sleep modes and reset see the Pin Usage table in
the Intel PXA27x Processor Family Electrical, Mechanical and Thermal
Specification.
GPIO
No AF Signal name
Dir
0
0
AC97_IRQ
Input
1
0
DS_WAKEUP Input
3
0
PWR_SCL
Output
4
0
PWR_SDA
Bidir.
5
N/A PWR_CAP0
Power
6
N/A PWR_CAP1
Power
7
N/A PWR_CAP2
Power
8
N/A PWR_CAP3
Active Function
Wake-up
source
AC97Interrupt
3
Reset in case of power
failure
3
See section…
Audio, page 45
PXA270 Power
Manager I2C
Power
management IC,
page 57
Dedicated function - To
achieve low power
during sleep
N/A
Power
9
0
UART_INTA
Input
UART 1 Interrupt
3
10
0
UART_INTB
Input
UART 2 Interrupt
3
11
0
UART_INTD
Input
UART 4 Interrupt
3
12
0
UART_INTC
Input
UART 3 Interrupt
3
13
0
USER_LINK1 Input
User configurable Input
3
Serial COM ports,
page 47
JP1 – User
jumpers, page 85
continued…
22
Issue E
Detailed hardware description
GPIO
No AF Signal name
Dir
14
0
ETH0_IRQ#
Input
15
2
ETH_CS1#
Output
Active Function
Ethernet 0 Interrupt
Low
Wake-up
source
3
Chip Select 1 –
Ethernet 0
16
2
PWM0
See
Invert Backlight Brightness
er On/Off or variable if
Output
data PWM
sheet
17
0
ISA_IRQ
Input
18
0
RESERVED
19
0
BKLEN
Output
20
0
ISA_RST#
Input
21
0
LVDS_EN
Output
22
0
USB_PWE2
23
1
24
‘OR’ of PC/104
interrupts
High LCD Backlight Enable
See section…
Ethernet, page 47
Ethernet, page 47
LCD backlight
brightness control,
page 44
3
PC/104 interrupts,
page 39
LCD logic and
backlight power,
page 43
PC104 Reset Indication
(IRQ)
ZEUS PC/104
interface details,
page 38
High
LVDS Transceiver
Enable
LVDS interface,
page 44
Output
High
USB Port 2 Power
Enable
USB, page 46
CIF_MCLK
Output
NA
Camera Interface
Master Clock
1
CIF_FV
Input
NA
Camera Interface
Frame Sync -Vertical
25
1
CIF_LV
Input
NA
Camera Interface Line
Sync - Horizontal
26
2
CIF_PCLK
Input
NA
Camera Interface Pixel
Clock
27
0
PTT
Input
28
1
AC97_BITCLK
Input
29
1
AC97_DIN
Input
NA
AC97 DATA IN
30
2
AC97_DOUT
Output
NA
AC97 DATA OUT
31
2
AC97_SYNC
Output
High Push To Talk
Quick Capture
camera interface,
page 54
ZEUS Modem-1,
page 110
AC97 BIT CLOCK
Audio, page 45
AC97 SYNC
continued…
Issue E
23
ZEUS user manual
GPIO
No AF Signal name
Dir
32
2
MMCLK
Output
33
2
SRAM_CS5# Output
34
1
GSM_FFRXD Input
35
0
CF_CD#
Input
36
1
GSM_FFDCD#
Input
NA
Modem Data Carrier
Detect
37
1
GSM_FFDSR#
Input
NA
Modem Data Sender
Ready
38
1
GSM_FFRI#
Input
NA
Modem Ring Indicator
39
2
GSM_FFTXD
Output
NA
Modem Transmit Data
40
2
GSM_FFDTR#
Output
NA
Modem Data Terminal
Ready
41
2
GSM_FFRTS#
Output
NA
Modem Request To
Send
42
1 ZB_BTRXD
NA
ZigBee Receive Data
43
2
ZB_BTTXD
Output
NA
ZigBee Transmit Data
44
1
ZB_BTCTS#
Input
NA
ZigBee Clear To Send
45
2
ZB_BTRTS#
Output
NA
ZigBee Request To
Send
46
2
GPS_STDRXD
Input
NA GPS Receive Data
47
1
GPS_STDTXD
Output
NA GPS Transmit Data
48
2
CB_POE#
Output
Low
Card Bus Output
Enable
49
2
CB_PWE#
Output
Low
Card Bus Write Enable
50
2
CB_PIOR#
Output
Low
Card Bus I/O Read
51
2
CB_PIOW#
Output
Low
Card Bus I/O Write
Input
Active Function
NA
Wake-up
source
SDIO Clock
SDIO, page 36
Static RAM, page
33
Low Chip Select 5 - SRAM
NA
Wireless modem
and GPS receiver,
page 34
Modem Receive Data
Compact Flash Card
Detect IRQ
See section…
3
CompactFlash,
page 37
Wireless modem
and GPS
receiver, page 34
IEEE802.15.4 /
ZigBee module,
page 35
Wireless modem
and GPS
receiver, page 34
Expansion
interfaces, page
36
continued…
24
Issue E
Detailed hardware description
GPIO
No AF Signal name
Dir
52
Input
0
MMC_WP
Active Function
Low
Input
SDIO Write Protect
Status
53
0
MMC_CD
54
2
CB_PCE2#
Output
Low
Card Bus High Byte
Enable
55
2
CB_PREG#
Output
Low
Card Bus Register
Space Select
56
1
CB_WAIT#
Input
Low
Card Bus WAIT#
57
1
CB_PIOIS16#
Input
Low Card Bus IOIS16#
58
2
LCD_D0
Output
NA
LCD Data Bit 0
59
2
LCD_D1
Output
NA
LCD Data Bit 1
60
2
LCD_D2
Output
NA
LCD Data Bit 2
61
2
LCD_D3
Output
NA
LCD Data Bit 3
62
2
LCD_D4
Output
NA
LCD Data Bit 4
63
2
LCD_D5
Output
NA
LCD Data Bit 5
64
2
LCD_D6
Output
NA
LCD Data Bit 6
65
2
LCD_D7
Output
NA
LCD Data Bit 7
66
2
LCD_D8
Output
NA
LCD Data Bit 8
67
2
LCD_D9
Output
NA
LCD Data Bit 9
68
2
LCD_D10
Output
NA
LCD Data Bit 10
69
2
LCD_D11
Output
NA
LCD Data Bit 11
70
2
LCD_D12
Output
NA
LCD Data Bit 12
71
2
LCD_D13
Output
NA
LCD Data Bit 13
72
2
LCD_D14
Output
NA
LCD Data Bit 14
73
2 LCD_D15
NA
LCD Data Bit 15
74
2
LCD_FCLK
Output
NA
LCD Frame Clock (STN)
/ Vertical Sync (TFT)
75
2
LCD_LCLK
Output
NA
LCD Line Clock (STN) /
Horizontal Sync (TFT)
76
2
LCD_PCLK
Output
NA
LCD Pixel Clock (STN)
/ Clock (TFT)
77
2
LCD_BIAS
Output
NA
Output
Wake-up
source
SDIO Card Detect IRQ
See section…
SDIO, page 36
3
Expansion
interfaces, page
36
Flat panel display,
page 40
LCD Bias (STN) / Data
Enable (TFT)
continued…
Issue E
25
ZEUS user manual
GPIO
No AF Signal name
Dir
78
2
ETH_CS2#
Output
NA
Chip Select 2 - Ethernet
1
Ethernet, page 47
79
1
CB_PSKTSEL Output
NA
Card Bus Socket Select
Expansion
interfaces, page
36
80
2
CPLD_CS4#
Output
Low
81
1
SPI_TXD3
Output
NA
SPI Transmit Data
82
1
SPI_RXD3
Input
NA
SPI Receive Data
83
1
SPI_CS3#
Output
Low
SPI Chip Select
84
1
SPI_CLK3
Output
NA
SPI Clock
85
1
CB_PCE1#
Output
Low
Card Bus Low Byte
Enable
86
2
LCD_D16
Output
NA
LCD Data Bit 16
87
2
LCD_D17
Output
NA
LCD Data Bit 17
88
0
USB_OC1#
Input
Active Function
Wake-up
source
See section…
UART and CPLD
address map,
page 19
Chip Select 4 –
UART/CPLD
CAN bus, page
52
Expansion
interfaces, page
36
Flat panel display,
page 40
USB Port 1 Over
Current Detection
USB, page 46
USB Port 1 Power
High
Enable
89
0
USB_PWE1
Output
90
3
CIF_DD4
Input
91
0
EX_GPIO_IRQ
Input
#
92
1
MMDAT0
Bidir.
NA
SDIO Data 0
93
2
CIF_DD6
Input
NA
Camera Interface Data
6
94
2
CIF_DD5
Input
NA
Camera Interface Data
5
95
1
AC97_RST#
Output
Low
AC97 Reset
Audio, page 45
96
0
OVERTEMP
Input
Temperature Sensor
Overtemp IRQ
Temperature
sensor, page 55
NA
Quick Capture
camera interface,
page 54
Camera Interface Data
4
External GPIO Interrupt
3
External General
purpose I/O, page
54
Expansion
interfaces, page
36
Quick Capture
camera interface,
page 54
continued…
26
Issue E
Detailed hardware description
Issue E
GPIO
No AF Signal name
Dir
97
0
CF_PWEN
Output
98
2
CIF_DD0
99
0
CF_RDY
100
Active Function
Wake-up
source
See section…
High
Compact Flash Power
Enable
CompactFlash,
page 37
Input
NA
Camera Interface Data
0
Quick Capture
camera interface,
page 54
Input
NA
Compact Flash
Ready/Busy Status Flag
CompactFlash,
page 37
3
GSM_FFCTS# Input
NA
Modem Clear To Send
Wireless modem
and GPS receiver,
page 34
101
0
LCD_EN
High
LCD Logic Supply
Enable
Flat panel display,
page 40
102
0
USER_LINK2 Input
NA
User Configurable
103
1
CIF_DD3
Input
NA Camera Interface Data 3
104
1
CIF_DD2
Input
NA
Camera Interface Data
2
105
1
CIF_DD1
Input
NA
Camera Interface Data
1
106
1
CIF_DD9
Input
NA
Camera Interface Data
9
107
1
CIF_DD8
Input
NA
Camera Interface Data
8
108
1
CIF_DD7
Input
NA Camera Interface Data 7
109
1
MMDAT1
Bidir.
NA
SDIO Data 1
110
1
MMDAT2
Bidir.
NA
SDIO Data 2
111
1
MMDAT3
Bidir.
NA
SDIO Data 3
112
1
MMCMD
Bidir.
NA
SDIO Command
113
0
ETH1_IRQ#
Input
Ethernet 1 Interrupt
114
0
USB_OC2#
Input
USB Port 2 Overcurrent
Detection IRQ
USB, page 46
115
0
IG_FAIL
Input
Ignition Fail IRQ
Power supplies,
page 56
116
0
CAN_IRQ#
Input
CAN Bus Interrupt
117
1
I2C _SCL
Output
NA I2C Clock
118
1
I2C _SDA
Bidir.
NA I2C Data
Output
3
JP1 – User
jumpers, page 85
Quick Capture
camera interface,
page 54
Expansion
interfaces, page
36
3
3
Ethernet, page 47
CAN bus, page 52
I²C bus, page 53
27
ZEUS user manual
Interrupt assignments
Internal interrupts
For details on the PXA270 interrupt controller and internal peripheral interrupts please
see the Intel PXA27x Processor Family Developer’s Manual on the Development Kit CD.
External interrupts
The following table lists the PXA270 signal pins used for external interrupts:
28
PXA270 Pin Signal name
Peripheral
Wake-up
GPIO0
AC97_IRQ
Audio
3
GPIO1
GPIO_IRQ#
External GPIO
3
GPIO9
UART_INTA
UART 1
3
GPIO10
UART_INTB
UART 2
3
GPIO11
UART_INTD
UART 4
3
GPIO12
UART_INTC
UART 3
3
GPIO13
USER_LINK1
User defined
3
GPIO14
ETH0_IRQ#
Ethernet 0
3
GPIO17
ISA_IRQ
PC/104
3
GPIO20
ISA_RST#
PC/104
GPIO35
CF_CD#
CompactFlash
3
GPIO53
MMC_CD
SDIO
3
GPIO88
USB_OC1#
USB1
GPIO91
USER_LINK2
User defined
GPIO96
OVERTEMP
Temperature sensor
GPIO99
CF_RDY
CompactFlash
GPIO102
USER_LINK2
User defined
3
GPIO113
ETH1_IRQ#
Ethernet 1
3
GPIO114
USB_OC2#
USB2
GPIO115
IG_FAIL#
PSU (10-30V)
GPIO116
CAN_IRQ#
CAN Bus
3
Active
User defined
User defined
Ready =
Busy =
User defined
3
Issue E
Detailed hardware description
On-Board GPIO expanders pin assignments
Two GPIO expanders (MAX7313) are used to provide additional GPIOs for use with
different on-board peripherals. The GPIO expanders are connected to the I2C bus of
PXA270 and are accessible through I2C bus addresses 0x21 and 0x22.
The following tables summarize the use of the 17 GPIO pins of MAX7313 on ZEUS
board, and indicate their direction and active level.
Expander 1 - I2C Address 0x21
GPIO Signal name
Dir
Active
Function
Power-up
state
See section…
0
U3_RS232EN Output High
UART3 RS232 enable
PU
1
U3_RS422EN Output High
UART3 RS422 enable
PU
2
U3_TERM#
Output Low
UART3 termination
enable
PU
3
USER_LED1
#
Output Low
User LED 1
PU
4
USER_LED2
#
Output Low
User LED 2
PU
5
USER_LED3
#
Output Low
User LED 3
PU
6
USER_LINK3 Input
User jumper 3
Jumper
7
NOT USED
8
GSM_ON
See note
Output 1 below Modem enable
9
GSM_STS
Input
10
GPS_ON
Output High
11
GPS_PSUON Input
12
GPS_BOOT
13
GPS_PPS
NA
COM3 –
RS232/RS485/RS4
22 interface, page
48
User LEDs, page
88
JP1 – User jumpers,
page 85
PU
High
OD
Modem ON/OFF status Low
GPS module enable
PU
NA
Not Used
PU
Input
NA
Not Used
OD
Input
NA
GPS Pulse Per Second -
14
USER_LINK4 Input
NA
User jumper 4
Jumper
15
U4_RS485EN Output High
UART4 RS485 enable
PU
16
U4_TERM#
UART4 termination
enable
PU
Output Low
Wireless modem
and GPS receiver,
page 34
JP1 – User
jumpers, page 85
COM4 –
RS422/485
interface, page 49
Key:
Dir
PU
-
Pin direction
On-board 10K pull-up
Active OD
-
Function active level or edge
Open Drain
Please see the datasheet of the particular module used.
Issue E
29
ZEUS user manual
Expander 2 - I2C Address 0x22
Dir
0
CLK_SHDN#
Output Low
Clock Synthesizer
Shutdown
1
LVDS_FES#
Output Low
LVDS Falling Edge
PU
Strobe
LVDS interface,
page 44
2
CAN_SHDN
Output High
CAN Transceiver
shutdown
PU
CAN bus, page 52
3
U1_RS232_SH
Output
DN#
Low
COM1 RS232
transceiver
shutdown
PU
Low
COM2 RS232
transceiver
shutdown
Function
PU
PU
See section…
Clock generator power
management, page 64
COM Ports power
management, page 65
4
U2_RS232_SH
Output
DN#
5
U3_RS485_SL
Output Low
O#
COM3 RS485
transceiver slew
rate control
PU
COM3 –
RS232/RS485/RS422
interface, page 48
6
U4_RS485_SL
Output Low
O#
COM4 RS485
transceiver slew
rate control
PU
COM4 – RS422/485
interface, page 49
7
NOT USED
8-11
ISS [0-3]
12-15 VER [0-3]
30
Active
Power-up
state
GPIO Signal name
PU
Inputs
NA
PCB Issue Number
Inputs
NA
PCB Version
Number
Issue E
Detailed hardware description
Real time clock
The ZEUS uses an external real time clock (RTC) (Intersil ISL1208) to store the date and
time, and provide power management events. The RTC is connected to the I2C bus of
the PXA270 processor and is accessible through I2C bus address 0x6F. The RTC is
battery backed.
The accuracy of the RTC is based on the operation of the 32.768 KHz watch crystal. The
calibration tolerance is ±20ppm, which provides an accuracy of +/-1 minute per month
when the board is operated at an ambient temperature of +25°C (+77°F). When the
board is operated outside this temperature the accuracy may be degraded by
-0.035ppm/ °C² ±10% typical. The watch crystal’s accuracy will age by ±3ppm max in the
first year, then ±1ppm max in the year after, and logarithmically decrease in subsequent
years.
The Intersil ISL1208 RTC provides the following basic functions:
•
Real time clock/calendar:
- Tracks time in hours, minutes and seconds.
- Day of the week, day, month and year.
•
Single alarm:
- Settable to the second, minute, hour, day of the week, day or month.
- Single event or pulse interrupt mode.
•
2 bytes battery-backed user SRAM.
•
I2C interface.
PXA270 has an internal real time clock, which doesn’t keep time after hardware reset,
and should only be used as a wake-up source from deep-sleep.
Issue E
31
ZEUS user manual
Watchdog timer
The ZEUS uses an external watchdog timer (MAX6369) which can be used to protect
against erroneous software. This is a programmable watchdog timer that can be adjusted
for timeout periods of 1ms, 10ms, 30ms, 100ms, 1s, 10s and 60s. The board is reset
when timeout occurs. The MAX6369 watchdog timer can be programmed using the WD
setup register provided within the CPLD. The register is memory mapped (accessible
through CS5#). The WDT is disabled upon reset, and remains so until enabled by the
software.
The following table shows the WD setup register bit definitions:
Watchdog Register [REG3]
Bits
Description
7:4
Not used.
3
WDI: Watchdog Input. If WDI remains either high or low for the
duration of the watchdog timeout period (tWD), WDT triggers a reset
pulse. The internal watchdog timer clears whenever a reset pulse is
asserted or whenever WDI sees a rising or falling edge.
2:0
WDSET[2:0] – watchdog enable / timeout period setup bits.
Hex Offset Address: 0x13800000
Reset Hex Value:
Access:
0x03
Read/write
For further details, see the Intel PXA27x Processor Family Developer’s Manual on the
Development Kit CD.
Memory
The ZEUS has four types of memory fitted:
•
32 or 64MB resident Flash disk containing:
- Boot loader to boot operating system.
- Operating system.
- Application images.
•
64, 128 or 256MB of SDRAM for system memory.
•
Static RAM, as follows:
- 256KB of SRAM internal to PXA270.
- 256KB of SRAM external to PXA270 (battery backed).
•
32
128 bytes of configuration EEPROM on the I²C bus.
Issue E
Detailed hardware description
Flash memory
The ZEUS supports 32MB or 64MB of Spansion (AMD) MirrorBit Flash memory for the
boot loader, OS and application images. The Flash memory is arranged as 128Mbit x 16bit (32MB device) or as 256Mbit x 16-bit (64MB device).
The Flash memory array is divided into equally sized symmetrical blocks that are
64-Kword in size (128KB) sectors. A 256Mbit device contains 256 blocks, and a 512Mbit
device contains 512 blocks.
Whenever the Flash memory is accessed the ‘Flash’ access LED is illuminated.
SDRAM
There are two standard memory configurations supported by the ZEUS: 64MB or 128MB
of SDRAM located in banks 0 and 1. The SDRAM is configured as 16MB x 32-bit
(64MB), or 32MB x 32-bit (128MB). 64MB configuration is using 2 devices, and 128MB
configuration is using 4 devices, each with 4 internal banks of 4MB x 16-bit. Optional
256MB configuration is using 4 devices, each with 4 internal banks of 8MB x 16-bit.
These are surface mount devices soldered to the board. The size of memory fitted to the
board is detected by software to configure the SDRAM controller accordingly.
The SDRAM memory controller is set to run at frequency of 104MHz.
Static RAM
The PXA270 processor provides 256KB of internal memory-mapped SRAM. The SRAM
is divided into four banks, each consisting of 64KB.
The ZEUS also has an external 256KB SRAM device fitted, arranged as 256Kbit x 8-bits.
Access to the device is on 16-bit boundaries, whereby the least significant byte is the
SRAM data and the 8-bits of the most significant byte are ‘don’t care’ bits. The reason for
this is that the PXA270 is not designed to interface to 8-bit peripherals. This arrangement
is summarized in the following data bus table:
Most significant byte
D15 D14 D13 D12 D11 D10 D9
Don’t Care
Least significant byte
D8
D7
D6
D5
D4
D3
D2
D1
D0
SRAM Data
The external SRAM is non-volatile while the on-board coin cell battery is fitted.
Configuration EEPROM
The configuration EEPROM is interfaced directly to PXA270’s I2C controller. It is a
Microchip 24AA01 1Kbit EEPROM organized as one block of 128 x 8-bit memory.
The configuration EEPROM is addressable at I²C serial bus address 0x50 and is
accessed in fast-mode operation at 400KB/s.
Issue E
33
ZEUS user manual
Wireless support
The ZEUS can support various wireless modems, GPS functionality and an
IEEE802.15.4 / ZigBee wireless sensor network interface. This is achieved using two
optional add-on modules. GPS and cellular functionality are integrated on a single
module (ZEUS Modem-n) while the IEEE802.15.4 / ZigBee port is provided by a separate
module. Other cellular wireless modems such as EVDO, EDGE or satellite modems may
be supported via this interface. Please contact Eurotech Sales (see page 125) for more
information about the available options.
ZigBee Module
Wireless Modem and GPS
Wireless modem and GPS receiver
Various wireless modems are supported to provide packet data, circuit switched data and
voice connectivity on a wireless network. ZEUS also provides complete GPS functionality
including position, velocity and time (PVT). The ZEUS modem module is fitted on the
solder side of the ZEUS board (connector J23).
The wireless modem is driven by the FFUART serial port (within the PXA270), while the
GPS module uses the STUART serial interface (Rx/Tx only). For the connector details,
see the section J23 – Wireless modem/GPS module interface, page 83.
There are also a number of control/status GPIO signals connected to J23. They can be
accessed through a GPIO Expander MAX7313. See the section On-Board GPIO
expanders pin assignments, page 29.
34
Issue E
Detailed hardware description
ZEUS Modem-1 supports the following modules:
•
Sony Ericsson GR64, a quad-band (850/900/1800/1900) version of GR47/48.
Functionally comparable to the Sony Ericsson GR47/GR48 devices, the GR64
offers a broad range of voice and data features. The integrated TCP/IP stack
enables effective use of GPRS. For further details see Sony Ericsson GR64, page
96.
•
Siemens MC35i/39i, a dual-band GSM/GPRS module (EGSM 900/1800MHz). For
further details see Siemens MC35i/39i, page 98.
•
Fastrax iTrax03/8, a 12-channel GPS receiver. iTrax03/8 features low power
consumption, small footprint, 8Mbit internal Flash and does not require battery
backup. For further details see Fastrax iTrax03/8, page 100.
•
Motorola iO270, a wireless modem that provides packet data, circuit data and voice
connectivity on the iDEN 800MHz network. The iO270 include a GPS receiver. For
further details see Motorola iO270, page 102.
For further details about this modem see the section ZEUS Modem-1, page 110.
ZEUS Modem-2 supports the following wireless module with built-in GPS receiver:
•
Telit GE863-GPS module, which supports communication services in quad-band
EGSM 850/900/1800/1900MHz networks. For further details see Telit GE863-GPS,
page 104.
For further details about ZEUS Modem-2, see the section ZEUS Modem-2, page 110.
ZEUS Modem-3 supports the following wireless modules:
•
Sierra Wireless MC8775 PCI Express Mini Card embedded module, which offers
connectivity to all three HSDPA/UMTS frequency bands (850, 1900, 2100 MHz)
and all four EDGE/GPRS bands (850, 900, 1800 and 1900 MHz) used worldwide.
For further details see Sierra Wireless MC8775, page 106.
•
Sierra Wireless MC5720 PCI Express Mini Card embedded module, which offers a
complete wireless data solution over CDMA 1x EVDO networks with typical
download data rates of 400-700 kbps. For further details see Sierra Wireless
MC5720, page 108.
•
Fastrax iTrax03/16, a 12-channel GPS receiver. iTrax03/16 features low power
consumption, small footprint, 16Mbit internal Flash and does not require battery
backup. For further details see Fastrax iTrax03/8, page 100.
For further details about ZEUS Modem-3, see the section ZEUS Modem-3, page 111.
IEEE802.15.4 / ZigBee module (ZMx)
IEEE802.15.4 / ZigBee is the wireless standards-based technology that addresses the
unique needs of remote monitoring and control for sensor level network applications.
ZigBee enables deployment of wireless networks with low cost, low power solutions
sensor devices and offers the ability to run remote sensors for years on inexpensive
primary batteries. For more information, see www.zigbee.org/en/about/.
The ZigBee module is connected to the PXA270 processor using BTUART serial
interface (Rx, Tx, RTS#, CTS#). For the connector details see the section J21 –
IEEE802.15.4 / ZigBee connector, page 82.
Issue E
35
ZEUS user manual
Expansion interfaces
There are three expansion interfaces on the ZEUS: SDIO, PC/104 and CompactFlash.
PC/104 and CompactFlash interfaces are connected to the PC card memory controller of
the PXA270 with the use of some ‘glue logic’ implemented in a CPLD (Xilinx XC9536XL).
There is a CPLD Firmware version/issue register that can be accessed at the address
0x12000000.
CPLD ver/issue register [REG0]
Byte lane
Most significant byte
Least significant byte
Bit
15 14 13 12 11 10 9
8
[7:4]
[3:0]
Field
-
-
-
-
-
-
-
-
VER[3:0]
ISSUE[3:0]
Reset
X
X
X
X
X
X
X
X
Current Version
Current Issue
R/W
-
-
-
-
-
-
-
-
Address
Read Only
0x12000000
SDIO
The SD card socket J22 is interfaced directly to PXA270’s MMC/SD/SDIO controller.
The MMC/SD/SDIO controller supports multimedia card, secure digital and secure digital
I/O communications protocols. The MMC controller supports the MMC system, a low cost
data storage and communications system. The MMC controller in the PXA270 processor
is based on the standards outlined in the MultiMediaCard System Specification Version
3.2. The SD controller supports one SD or SDIO card based on the standards outlined in
the SD Memory Card Specification Version 1.01 and SDIO Card Specification Version
1.0 (Draft 4).
The MMC/SD/SDIO controller features:
•
Data transfer rates up to 19.5Mbit/s for MMC, 1-bit SD and SPI mode data transfers,
and up to 9.75Mbit/s for 1-bit SDIO.
•
Data transfer rates up to 78Mbit/s for 4-bit SD data transfers, and up to 39Mbit/s for
SDIO.
•
Support for all valid MMC and SD/SDIO protocol data transfer modes.
This is a hot swappable 3.3V interface, controlled by the detection of a falling edge on
GPIO53 when an SD card has been inserted, and a rising edge when an SD card is
removed.
SD card write protection is connected to PXA270’s GPIO52, and card detect to GPIO53.
A variety of SDIO cards are available, such as a Bluetooth and IEEE802.11b (WiFi). More
information can be found here: www.sdcard.org/sdio.
36
Issue E
Detailed hardware description
CompactFlash
A CompactFlash extension socket for full I/O mode operation is provided by slot 0 of the
PXA270 PC card controller, and supports type I,II CF+ cards. It appears in PC card
memory space socket 0.
Address
Region name
0x20000000 – 0x23FFFFFF
Socket 0 I/O Space.
0x24000000 – 0x27FFFFFF
Reserved.
0x28000000 – 0x2BFFFFFF
Socket 0 Attribute Memory Space.
0x2C000000 – 0x2FFFFFFF
Socket 0 Common Memory Space.
This is a hot swappable 3.3V interface, controlled by the detection of a falling edge on
GPIO35 of PXA270 when a CompactFlash card has been inserted (CF_CD#). On
detection, set GPIO97 (CF_PWEN) to logic ‘1’ to enable the 3.3V supply to the
CompactFlash connector. The CompactFlash RDY/BSY# signal interrupts on PXA270’s
GPIO99.
Many CF+ cards require a reset once they have been inserted. To reset the
CompactFlash socket independently set the CF_RST bit to ‘1’ in the REG2 register
located at the address 0x13000000. To clear the CompactFlash reset write ‘0’ to the
CF_RST bit.
CF reset register [REG2]
Byte lane
Most significant byte
Least significant byte
Bit
15 14 13 12 11 10
9
8
7
6
5
4
3
2
1
0
Field
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
CF_RST
Reset
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
0
R/W
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
R/W
Address
0x13000000
CF+ is a small form factor card standard. It encompasses CompactFlash (CF) Flash data
storage cards, magnetic disk cards and I/O cards including serial cards, Ethernet cards,
fax/modem cards, digital phone cards, USB, barcode scanners, Bluetooth, IEEE802.11b
(WiFi), wireless digital cell phone cards, and so on. For more details about CF+
standards and the availability of particular CF+ peripherals, see www.compactflash.org.
The CF+ card provides high capacity data storage and I/O functions that electrically
comply with the Personal Computer Memory Card International Association (PCMCIA)
standard.
For connection details for the standard 50 pin CompactFlash connector, see J20 –
CompactFlash connector, page 81.
Issue E
37
ZEUS user manual
PC/104 interface
The ZEUS PC/104 interface is emulated from the PXA270 PC card interface to support
8/16 bit ISA bus style signals. As the interface is an emulation, the ZEUS does not
support some PC/104 features. Please refer to the section Unsupported PC/104 interface
features on page 40 for specific details.
Add-on boards can be stacked via the PC/104 interface to enhance the functionality of
the ZEUS. Eurotech has an extensive range of PC/104 compliant modules and these can
be used to quickly add digital I/O, analogue I/O, serial ports and motion control.
The ISA bus is based on the x86 architecture and is not normally associated with RISC
processors. It is generally necessary to modify standard drivers to support any third party
PC/104 modules.
Any PC/104 add-on board attached to the ZEUS is accessible from the PC card memory
space socket 1. The memory map is shown in the following table:
Address
Region size
Region name
0x30000000 – 0x300003FF
1KByte
PC/104 I/O space, 8/16-bit.
0x30000400 – 0x3BFFFFFF
-
Reserved.
0x3C000000 – 0x3C1FFFFF
16MB
PC/104 memory space,
16-bit (or 8-bit write only).
ZEUS PC/104 interface details
The PC/104 bus signals are compatible with the ISA bus electrical timing definitions.
All signals between the PXA270 and the PC/104 are buffered. When the PC/104 bus is
not in use, all output signals with the exception of the clock signals are set to their
inactive state.
The ZEUS provides +5V to a PC/104 add-on board via the J12 and J13 connectors. If a
PC/104 add-on board requires a +12V supply, then +12V must be supplied to the ZEUS
power connector J2 pin 4. If –12V or –5V are required, these must be supplied directly to
the PC/104 add-on board.
The reset signal applied to the PC/104 bus is combination of the RESET_OUT# pin of
PXA270 and an additional circuit that monitors +5V supply.
Due to the specific power management requirements of the PXA270, there is no reset
generated to PXA270 if the +5V supply is below its limits. If the reset is generated to the
PC/104 bus by the +5V monitoring IC, an interrupt can be asserted to PXA270 on
GPIO20.
38
Issue E
Detailed hardware description
PC/104 interrupts
The PC/104 interrupts are combined together so that any interrupt generated on the
PC/104 interface generates a single interrupt on the GPIO17 pin of the PXA270
processor.
Reading the PC104_IRQ register located at the address 0x12800000 can identify the
PC/104 interrupting source. The registers indicate the status of the interrupt lines at the
time the register is read. The relevant interrupt has its corresponding bit set to ‘1’. The
PXA270 is not designed to interface to 8-bit peripherals, so only the least significant byte
from the word contains the data.
PC/104 interrupt register [REG1]
Byte lane
Bit
Most significant byte
Least significant byte
15 14 13 12 11 10 9 8
Field
-
-
Reset
X X X X X X X X
R/W
-
-
-
-
-
-
-
-
-
-
-
-
7
6
5
4
3
2
1
0
- IRQ12 IRQ11 IRQ10 IRQ7 IRQ6 IRQ5 IRQ4 IRQ3
0
0
0
-
Address
0
0
0
0
0
R/W
0x12800000
Once the PXA270 microprocessor has serviced a PC/104 interrupt, the corresponding bit
in the PC104_IRQ register has to be cleared by writing a ‘1’ to it. Clearing the
corresponding bit in the PC104_IRQ register will bring GPIO17 level to logic ‘0’ and make
the interrupt logic ready for the next PC104 interrupt. When one or more other PC104
IRQs are asserted while the driver is processing PC104 IRQ, the new PC/104 IRQ
source has to wait for the current IRQ to be processed. This situation is shown in the
following diagram:
Delay:
250-375ns
GPIO17
PC104_IRQ3
Driver processing IRQ3
Driver processing IRQ4
due to priority over IRQ6
Driver clears IRQ3 at source
and in PC104_IRQ register
PC104_IRQ6
PC104_IRQ4
There is a delay of 250-375ns between the de-assertion of the GPIO17 IRQ signal and
its new assertion due to the pending PC104 interrupt. This delay is introduced into the
ZEUS hardware implementation to accommodate for the minimum inactive time of GPIO
signals required by a PXA270 processor (154ns).
Issue E
39
ZEUS user manual
Unsupported PC/104 interface features
The ZEUS does not support the following PC/104 bus features:
•
PC/104 IRQ9, IRQ14 and IRQ15 are not available.
•
DMA is not supported. Therefore, AEN signal is set to a constant logical zero.
•
Bus mastering is not supported. Therefore, do not connect any other master add-on
board to the ZEUS PC/104 interface.
•
Shared interrupts are not supported. Do not connect more than one add-on board to
the same interrupt signal line.
•
BALE signal is set to a constant logical one as the address is valid over the entire
bus cycle. Add-on PC/104 boards that implement transparent latch on address lines
LA17-LA23 are compatible with the ZEUS implementation of BALE.
•
The PXA270 PCMCIA memory controller does not support 8-bit memory read
accesses for common memory space.
•
The PXA270 PCMCIA memory controller does not support PC/104 MEMCS#
signalling, so there is no support for dynamic bus sizing.
Flat panel display
The PXA270 processor contains an integrated LCD display controller. It is capable of
supporting both colour and monochrome single- and dual-scan display modules. It
supports active (TFT) and passive (STN) LCD displays up to 800x600 pixels.
The PXA270 can drive displays with a resolution up to 800x600, but as the PXA270 has
a unified memory structure, the bandwidth to the application decreases significantly. If the
application makes significant use of memory, such as when video is on screen, you may
also experience FIFO under-runs causing the frame rates to drop or display image
disruption. Reducing the frame rate to the slowest speed possible gives the maximum
bandwidth to the application. The display quality for an 800x600 resolution LCD is
dependant on the compromises that can be made between the LCD refresh rate and the
application. The PXA270 is optimized for a 640x480 display resolution.
A full explanation of the graphics controller operation can be found in the Intel PXA27x
Processor Family Developer’s Manual included on the Development Kit CD.
The ZEUS-FPIF interface board allows the user to easily wire-up a panel using pin and
crimp style connectors (see page 114). Contact Eurotech Sales (see page 125) for
purchasing information. Alternatively, the display interface is connected to an LVDS
interface (see the section LVDS interface, page 44). This may be useful when driving
displays located more than 300mm (12") from the ZEUS.
The following tables provide a cross-reference between the flat panel data signals and
their function when configured for different displays.
40
Issue E
Detailed hardware description
TFT panel data bit mapping to the ZEUS
The PXA270 can directly interface to 18-bit displays, but from a performance
point of view it is better to use 16-bit only. 18-bit operation requires twice the
bandwidth of 16-bit operation.
The following table shows TFT panel data bit mapping to the ZEUS:
Issue E
Panel data bus bit
18-bit TFT
12-bit TFT
9-bit TFT
FPD 15
R5
R3
R2
FPD 14
R4
R2
R1
FPD 13
R3
R1
R0
FPD 12
R2
R0
-
FPD 11
R1
-
-
GND
R0
-
-
FPD 10
G5
G3
G2
FPD 9
G4
G2
G1
FPD 8
G3
G1
G0
FPD 7
G2
G0
-
FPD 6
G1
-
-
FPD 5
G0
-
-
FPD 4
B5
B3
B2
FPD 3
B4
B2
B1
FPD 2
B3
B1
B0
FPD 1
B2
B0
-
FPD 0
B1
-
-
GND
B0
-
-
41
ZEUS user manual
STN panel data bit mapping to the ZEUS
Panel data bus bit
Dual scan colour STN
Single scan colour STN Dual scan mono STN
FPD 15
DL7(G)
-
-
FPD 14
DL6(R)
-
-
FPD 13
DL5(B)
-
-
FPD 12
DL4(G)
-
-
FPD 11
DL3(R)
-
-
FPD 10
DL2(B)
-
-
FPD 9
DL1(G)
-
-
FPD 8
DL0(R)
-
-
FPD 7
DU7(G)
D7(G)
DL3
FPD 6
DU6(R)
D6(R)
DL2
FPD 5
DU5(B)
D5(B)
DL1
FPD 4
DU4(G)
D4(G)
DL0
FPD 3
DU3(R)
D3(R)
DU3
FPD 2
DU2(B)
D2(B)
DU2
FPD 1
DU1(G)
D1(G)
DU1
FPD 0
DU0(R)
D0(R)
DU0
The table below explains the clock signals required for passive and active type displays:
42
ZEUS
Active display signal (TFT)
Passive display signal (STN)
PCLK
Clock
Pixel Clock
LCLK
Horizontal Sync
Line Clock
FCLK
Vertical Sync
Frame Clock
BIAS
DE (Data Enable)
Bias
Issue E
Detailed hardware description
LCD logic and backlight power
The display signals are +3.3V compatible. The ZEUS contains power control circuitry for
the flat panel logic supply and backlight supply. The flat panel logic is supplied with a
switched 3.3V (default) or 5V supply (for details see the section JP3 – LCD logic supply
selection, page 86). The backlight is supplied with a switched 5V supply for the inverter.
The power switches (TPS2033D) for flat panel logic and backlight have the currentlimiting (1.5A) and thermal protection features which eliminates the need for the fuses.
The PXA270 GPIO101 pin (LCDEN signal) controls the supply voltage to the LCD
display.
LCDEN
(CPU_GPIO101)
Selected LCD function
0
LCD power off (default)
1
LCD power On
The PXA270 GPIO19 pin (BKLEN signal) controls the supply voltage to the backlight
inverter:
BKLEN
(CPU_GPIO19)
Selected backlight function
0
BKLSAFE Power Off (Default)
1
BKLSAFE 5V Power On
The BKLEN signal is also routed to the connector J14. See the section J14 – LCD
connector, page 77, for J14 pin assignment and connector details.
Signals BKLEN and BKLSAFE are also routed to the connector J24. See the section J24
– Backlight power, page 84, for further details.
Typically the power up sequence is as follows (please check the datasheet for the
particular panel in use):
1
Enable display power.
2
Enable flat panel interface.
3
Enable backlight.
Power down is in reverse order.
Issue E
43
ZEUS user manual
LCD backlight brightness control
GPIO16 of the PXA270 processor is used for backlight brightness control (signal PWM0
on the J14 connector). The control of the backlight brightness is dependent upon the type
of backlight inverter used with the display. Some inverters have a ‘DIM’ function, which
uses a logic level to choose between two levels of intensity. If this is the case then
GPIO16 (Alternative Function 0) is used to set this. Other inverters have an input suitable
for a pulse-width modulated signal or analogue voltage control. In this case GPIO16
should be configured as PWM0 (Alternative Function 2).
Signal PWM0 is also routed through a low-pass filter on the ZEUS to enable analogue
voltage control of backlight brightness (signal BRT_CTRL on connector J24 – Backlight
power - see page 84). The voltage range of BRT_CTRL is 0-2.5V.
STN bias voltage
The ZEUS provides a negative and a positive bias voltage for STN type displays (turned
on by the PXA270 GPIO101 pin). The negative and positive bias voltages are factory set
to -22V and +22V respectively. Pin connections for these can be found in the section J14
– LCD connector, page 77. Please contact Eurotech Technical Support (see page 125)
for details of other bias voltages.
Do not exceed 20mA load current.
LVDS interface
There is an optional Low-Voltage Differential Signalling (LVDS) interface available on the
ZEUS. LVDS combines high data rates with low power consumption. The benefits of
LVDS include low-voltage power supply compatibility, low noise generation, high noise
rejection and robust transmission signals.
The National Semiconductor transmitter DS90C363 is used to convert 16-bits of LCD
data signals into three LVDS data streams. A phase-locked transmit clock is transmitted
in parallel with the data streams over a fourth LVDS link. The LVDS signals are routed to
the connector J16. For the connector details see the section J16 – LVDS connector, page
78.
The LVDS transmitter is enabled using the signal LVDS_EN (GPIO21 on PXA270).
Details are shown in the following table:
44
LVDS_EN
(CPU_GPIO 21)
Selected LVDS function
0
LVDS power down (default)
1
LVDS enable
Issue E
Detailed hardware description
The LVDS transmitter can be programmed for rising edge strobe or falling edge strobe
operation through a signal LVDS_FES# (Expander 2 – GPIO1, I2C address 0x22).
Details are shown in the following table:
LVDS_FES#
(EXP2_GPIO1)
Selected LVDS function
0
Falling edge strobe
1
Rising edge strobe (default)
Connector J24 should be used to supply the power and brightness control for the
backlight inverter when the LVDS interface is used. See the section J24 – Backlight
power, page 84, for details.
Audio
A Wolfson WM9712L AC’97 audio CODEC is used to support the audio features of the
ZEUS. Audio inputs supported by the WM9712L are stereo line in and a mono
microphone input.
The WM9712L provides a stereo line out that is amplified by a National Semiconductor
LM4880 250mW per channel power amplifier, suitable for driving an 8Ω load. The
WM9712L AC’97 codec may be turned off if it is not required. See the section Audio
power management, page 63, for details.
Connection to the ZEUS audio features is via header J4.
See the section J4 – Audio connector, page 71, for connector and mating connector
details. The table below shows pin assignments:
Function
Pin
Signal
10
MIC input
Microphone 9
Line in
Line out
Amp out
Issue E
MIC voltage reference output
7
Audio ground reference.
1
Line input left
5
Line input right
3
Audio ground reference
2
Line output left
6
Line output right
4
Audio ground reference
8
Amp output left
11
Amp output right
12
Audio ground reference
Signal levels (max)
Frequency
response (Hz)
1Vrms
20 – 20k
1Vrms
20 – 20k
1Vrms
20 – 20k
1.79V peak
1.26Vrms
20 – 20k
(8Ω load) 223mW
45
ZEUS user manual
Touchscreen controller
The ZEUS supports 4-wire and 5-wire analogue resistive touchscreens using the
controller available within the Wolfson WM9712L audio CODEC. The touchscreen
controller supports the following functions:
•
X co-ordinate measurement.
•
Y co-ordinate measurement.
•
Pen down detection with programmable sensitivity.
•
Touch pressure measurement (4-wire touchscreen only).
The touchscreen can be used as a wake-up source for PXA270 from sleep mode.
The touchscreen interface is broken out on the header J1. For details see J1 –
Touchscreen connector, page 69.
USB
There are two USB host interfaces on the ZEUS. These comply with the Universal Serial
Bus Specification Rev. 1.1, supporting data transfer at full-speed (12Mbit/s) and lowspeed (1.5Mbit/s).
There are four signal lines associated with each USB channel: VBUS, DATA+, DATA-,
GND. The USB host ports are connected to a dual USB connector, type A (J8).
A USB power control switch controls the power and protects against short-circuit
conditions. If the USB voltage is short-circuited, or more than 500mA is drawn from either
supply, the switch turns the power supply off and automatically protects the device and
board. The VBUS power supply is derived from the ZEUS +5V supply. To switch the
VBUS1 and VBUS2 power on, use the PXA270 GPIO89 and GPIO22 respectively (set
them to logic ‘1’).
USB port 2 can be configured as a client port internally within the PXA270 USB
controller, and is connected to 5-pin header J10.
For details of connector pinouts, see the sections J8 – USB connector, page 73, and J10
– USB client header, page 74.
More information about the USB bus and the availability of particular USB peripherals
can be found at www.usb.org.
Host port 2 on J8 and client port on J10 can only be used one at a time. DO NOT
connect both devices at the same time.
46
Issue E
Detailed hardware description
Ethernet
The ZEUS SBC provides two 10/100-BaseTX interfaces with MAC and complies with
both the IEEE802.3u 10/100-BaseTX and the IEEE 802.3x full-duplex flow control
specifications.
Two single 10/100-BaseTX Ethernet controllers, Davicom DM9000A, are used to
implement Ethernet interfaces on ZEUS. DM9000A device provides an embedded PHY
and MAC and connects to 10/100-BaseTX magnetics. DM9000A also supports AUTOMDIX feature. Configuration data and MAC information are stored in an external serial
EEPROM (93LC46).
The DM9000A devices are connected to the PXA270 data bus (16-bit), and are memory
mapped. Connection to the ZEUS Ethernet ports is via dual RJ45 connector, J6, with
speed and link/activity status LEDs. For pin assignment and connector details, see J6 –
Ethernet connector, page 72.
The link/activity LED (yellow) is illuminated when a 10/100-BaseTX link is made, and
when there is Tx/Rx activity. The speed LED (green) is illuminated when 100MB/s speed
is selected.
Serial COM ports
There are seven serial communications ports available on the ZEUS. Three are provided
by the PXA270 and are used for the optional wireless modem, GPS and IEEE802.15.4 /
ZigBee ports.
There are four additional high-speed, 16550 compatible serial UARTs implemented by an
EXAR ST16C554Q Quad UART device. Two of these channels (COM1, COM2) can be
used as standard RS232 serial interfaces, COM3 can be configured as RS232 or
RS485/422, and COM4 can be configured as RS422 or RS485. The table below provides
a summary of the four additional serial ports.
Issue E
Port
Address
IRQ
FIFO depth
RX / TX
COM1
0x10000000 –
0x1000000F
GPIO9
16/16
RS232: Rx, Tx, CTS, RTS, RI, DSR,
DCD, DTR
COM2
0x10800000 –
0x1080000F
GPIO10
16/16
RS232: Rx, Tx, CTS, RTS, RI, DSR,
DCD, DTR
COM3
0x11000000 –
0x1100000F
GPIO12
16/16
RS232: Rx, Tx, CTS, RTS, RI, DSR,
DCD, DTR
or
RS422/485: Rx, Tx
COM4
0x11800010 –
0x1180001F
GPIO11
16/16
RS422/RS485: Rx, Tx
Signals
47
ZEUS user manual
COM1/2 – RS232 interface
Supported on Channel A and B of the external Quad UART, the ports are buffered to
RS232 levels with ±15kV ESD protection, and support full handshaking and modem
control signals. The maximum baud rate is 921.6 Kbaud. COM1 and COM2 ports can be
accessed using DB9 connectors J11 and J15, respectively. For pin assignment and
connector details, see J11 – Serial port – COM1 on page 75 and J15 – Serial port –
COM2 on page 78.
A factory fit option configures COM1 as TTL Level signals to interface to certain
specialized modems. Please contact Eurotech Technical Support (see page 125) for
details.
COM3 – RS232/RS485/RS422 interface
Supported on Channel C of the external Quad UART, COM3 port can be configured by
software as RS232 or RS485/RS422.
The port is buffered to RS232 (or RS485/RS422) levels with ±15kV ESD protection.
RS232 interface supports full handshaking and modem control signals. The maximum
baud rate on this channel is 921.6 Kbaud. COM3 RS232 interface is connected to the
connector J19, and RS485/422 interface is connected to the connector J18. For pin
assignment and connector details, see J18 – Serial port (RS485/422) – COM3 on page
79 and J19 – Serial ports – COM3/4 on page 80.
Three control outputs of I2C GPIO expander (I2C address 0x21) are used to select one
of the operating modes RS232, RS485 or RS422. The selection is implemented by
using two control signals (U3_RS232EN, U3_RS422EN) to enable/disable the associated
transceivers. The control signal combinations are shown in the following table:
U3_RS232EN
(EXP1_GPIO 0)
U3_RS422EN
(EXP1_GPIO 1)
Selected COM3 function
1
X
RS232
0
0
RS485 Full duplex
0
1
RS422 Half duplex
U3_RS232EN and U3_RS422EN are at logic ‘1’ upon
reset.
48
Issue E
Detailed hardware description
The control signal U3_TERM# is used to enable/disable the RS485/422 line termination
and must be enabled if the ZEUS board is at the end of the network. The following table
shows the usage of U3_TERM# signal:
U3_TERM# (EXP1_GPIO 2)
Termination resistors (120Ω)
0
Connected
1
Disconnected
U3_TERM# is at logic ‘1’ upon reset.
The RS485/422 driver (LTC2859) on ZEUS features a logic-selectable reduced slew
mode that softens the driver output edges to control the high frequency EMI emissions
from equipment and data cables. The reduced slew rate mode is entered by taking the
SLO# pin low, where the data rate is limited to about 250kbps. Slew limiting also
mitigates the adverse effects of imperfect transmission line termination caused by stubs
or mismatched cables.
U3_RS485_SLO# (EXP2_GPIO 5)
Slew rate
0
Reduced
1
Normal
COM4 – RS422/485 interface
Supported on Channel D of the external Quad UART, and buffered to RS422/485 levels
with ±15kV ESD protection, this channel provides support for RS422 or RS485 (software
selectable) interfaces. The maximum baud rate on this channel is 921.6 Kbaud. COM4
port is connected to the connector J19.
The GPIO15 pin of the I2C GPIO expander (I2C address 0x21) is used to select RS422 or
RS485 interface mode as shown in the following table:
U4_RS485EN (EXP1_GPIO 15)
Selected COM4 function
0
RS422 Full duplex
1
RS485 Half duplex
U4_RS485EN is at logic ‘1’ upon reset.
Issue E
49
ZEUS user manual
The GPIO16 pin of the I2C GPIO expander (I2C address 0x21) is used to enable/disable
the RS485/422 line termination and must be enabled if the ZEUS board is at the end of
the network. The following table shows the usage of U4_TERM# signal:
U4_TERM# (EXP1_GPIO 16)
Termination resistors (120Ω)
0
Connected
1
Disconnected
U4_TERM# is at logic ‘1’ upon reset.
The RS485/422 driver (LTC2859) on ZEUS features a logic-selectable reduced slew
mode that softens the driver output edges to control the high frequency EMI emissions
from equipment and data cables. The reduced slew rate mode is entered by taking the
SLO# pin low, where the data rate is limited to about 250kbps. Slew limiting also
mitigates the adverse effects of imperfect transmission line termination caused by stubs
or mismatched cables.
U4_RS485_SLO# (EXP2_GPIO 6)
Slew rate
0
Reduced
1
Normal
Further details about the RS422 and RS485 interfaces are provided below.
RS422
The RS422 interface provides full-duplex communication. The signals available are TX+,
TX-, RX+, RX- and ground. The maximum cable length for an RS422 system is 1200m
(4000ft). It supports one transmitter and up to ten receivers.
RS485
This is a half-duplex interface that provides combined TX and RX signals (TX+/RX+ and
TX-/RX-). A ground connection is also required for this interface. The maximum cable
length for this interface is the same as RS422 - 1200m (4000ft), but RS485 supports up
to 32 transmitters and receivers on a single network. Only one transmitter should be
switched on at a time. The ZEUS uses the RTS# signal to control transmission. When
this signal is at logic 1, the driver is switched off and data can be received from other
devices. When the RTS# line is at logic 0, the driver is on. Any data transmitted from the
ZEUS is automatically echoed back to the receiver. This enables the serial
communications software to recognize that all data has been sent, and disable the
transmitter when required.
50
Issue E
Detailed hardware description
Typical RS422 and RS485 connection
RS422 POINT-TO-POINT
Number of Wires
Transmitters Enabled
Receivers Enabled
Duplex Mode
RS485EN
5
always
always
full
LOW
RS422 MULTI-DROP
Number of Wires
Transmitters Enabled
Receivers Enabled
Duplex Mode
RS485EN
5
active RTS#
always
full
LOW
RS485 MULTI-DROP
Number of Wires
Transmitters Enabled
Receivers Enabled
Duplex Mode
RS485EN
3
active RTS#
always
half
HIGH
Only set U3_TERM# (U4_TERM#) at logic low if the ZEUS is at the end of the
network.
Issue E
51
ZEUS user manual
CAN bus
A Microchip MCP2515 CAN 2.0B protocol compatible controller and MCP2551
transceiver are used on the ZEUS to provide Controller Area Network (CAN) bus
connectivity. CAN is a high-integrity serial data communications bus for real-time
applications. It operates at data rates of up to 1 Mbit/s and has excellent error detection
capabilities. A 16MHz clock is supplied to the CAN controller.
The MCP2515 controller connects to the SPI serial interface of the PXA270 processor. A
MCP2551 transceiver is opto-isolated from the rest of the circuit (3.75kV isolation
voltage), but an external isolated 5V supply needs to be provided to supply the
transceiver and the opto-isolators. Alternatively, non-isolated operation is available
through a factory fit option. Contact Eurotech Technical Support (see page 125) for
details.
The CAN bus interface is broken out to the header J17. For connector details see the
section J17 – CAN bus, page 79.
Jumpers JP5, JP6 can be used to connect 62Ω termination resistors when the ZEUS is
at the end of the network. Split termination concept is used on ZEUS (see figure below).
For details see the section JP5 & JP6 – CAN bus termination, page 87.
CAN_H
JP5
62 Ohm
Split
Termination
C
62 Ohm
CAN Transceiver
JP6
CAN_L
52
Issue E
Detailed hardware description
I²C bus
The PXA270 I²C interface is brought out to the COMs connector J19. See the section
J19 – Serial ports – COM3/4, page 80, for connection details.
I²C bus is also used with the Quick Capture interface. See the section Quick Capture
camera interface, page 54.
The following table lists the on-board I²C devices:
Device name
I²C address
External General Purpose I/O
0x20
On-board GPIO Expander 1
0x21
On-board GPIO Expander 2
0x22
Temperature Sensor (LM75A)
0x48
RTC (Intersil ISL1208)
0x6F
Config EPROM
0x50-0x57
The I²C unit supports a fast mode operation of 400KB/s and a standard mode of
100KB/s.
Fast-mode devices are downward compatible and can communicate with standard-mode
devices in a 0 to 100KB/s I²C bus system. As standard-mode devices, however, are not
upward compatible, they should not be incorporated in a fast-mode I²C bus system as
they cannot follow the higher transfer rate and unpredictable states would occur.
The I²C interface does not support the hardware general call, 10-bit addressing,
high-speed mode (3.4Mbit/s) or CBUS compatibility.
You should keep the total bus load below 200pF.
Issue E
53
ZEUS user manual
Quick Capture camera interface
The Quick Capture camera interface is a component of Intel Quick Capture technology
which provides a connection between the PXA270 processor and a camera image
sensor. The Quick Capture interface is designed to work primarily with CMOS-type image
sensors and supports up to 4 Megapixel resolution. However, it may be possible to
connect some CCD-type image sensors to the PXA27x processor (PXA27x processor),
depending on a specific CCD sensor’s interface requirements.
The Quick Capture interface acquires data and control signals from the image sensor,
and performs the appropriate data formatting prior to routing the data to memory, using
direct memory access (DMA). A broad range of interface and signalling options provides
direct connection. The image sensor can provide raw data through a variety of parallel
and serial formats. For sensors that provide pre-processing capabilities, the Quick
Capture interface supports several formats for RGB and YCbCr colour space.
2
The Quick Capture interface signals are connected to the header J9. The I C interface is
available on the same header since most of the camera image sensors require an I2C
control interface. For I2C bus address map on the ZEUS, see the section I²C bus on the
previous page. For connector details, see the section J9 – Camera interface connector,
page 74.
External General purpose I/O
A Maxim MAX7313 I²C I/O Expander provides sixteen general purpose input/output lines
on the header J7. Each I/O port can be individually configured as either an open-drain
current-sinking output rated at 50mA with10K pull-up to 5V, or a logic input with transition
detection. The I/O Expander inputs are 5V tolerant.
The I/O Expander is addressable at I²C serial bus address 0x20 and is accessed in fastmode operation at 400 kbps. On power-up all control registers are reset and the
MAX7313 enters standby mode. Power-up status makes all ports into inputs, so the state
of all 17 ports (P0-P16) is logic high (through 10K pull-up to 5V).
See the section J7 – GPIO connector, page 73, for connector pinout and mating
connector details. The signals on J7 correspond to the pin names of the MAX7313
(P0-P15).
+5V
PXA270
I2C
P16
10K
MAX7313
P(0-15)
J7
Port 16 of the MAX7313 is configured as an interrupt, so that any I/O Expander GPIO pin
configured as an input can cause the PXA270 to be interrupted on GPIO1. These can
also be used as PXA270 wake-up sources from sleep mode.
54
Issue E
Detailed hardware description
Temperature sensor
There is a Philips LM75A temperature sensor on the ZEUS. The LM75A is a temperatureto-digital converter using an on-chip band-gap temperature sensor and sigma-delta A-toD conversion technique. The device is also a thermal detector providing an overtemperature detection output (OVERTEMP signal on GPIO96 of PXA270). The accuracy
of LM75A is ±2 °C (at -25 °C to 100 °C), and ±3 °C (at -55 °C to 125 °C). LM75A is
connected to the I2C bus of PXA270 processor, and is accessible at I2C bus address
0x48.
JTAG and debug access
Debug access to the PXA270 processor is via the JTAG connector J5. A standard ARM
20-pin header is used for the JTAG interface. See J5 – JTAG connector, page 71, for
details.
Jumper JP7 needs to be inserted to enable the JTAG interface for PXA270 debug. See
section JP7 - JTAG Enable, page 88 for details.
The Macraigor Wiggler (see www.macraigor.com/wiggler.htm) and usb2Sprite (see
www.macraigor.com/usb2sprite.htm) probes have been used to debug the PXA270
processor on the ZEUS. There are many other debug tools that can be interfaced to the
ZEUS for access to the JTAG Interface of the PXA270 processor.
In addition to the PXA270, there are two CPLDs (XC9536XL-CS48 and
XC9572XL-CS48) in the JTAG chain on the ZEUS. The BSDL files can be found
on the www.xilinx.com web site.
Issue E
55
ZEUS user manual
Power and power management
Power supplies
The ZEUS is designed to operate from a single +5V±5% (4.75V to +5.25V) input or the
onboard 10V to 30V DC/DC PSU.
DC input voltage (10-30V)
DC input voltage (10-30V) is connected through a front panel locking DC jack J3 (see the
section J3 – Power connector (10-30V), page 70). When operating from the 10 to 30V
input, the 5V connector (J2) is NOT fitted. The input rails are protected from overcurrent,
overvoltage, undervoltage and reverse battery conditions, and include transient
suppression to achieve compatibility with vehicle power supplies. The on-board DC/DC
converter can provide a maximum current of 5A at 5V at a temperature range of 0-70°C
(32-158°F).
For vehicle-based applications, the supervisory circuit monitors the auxiliary ignition
supply input (Vig), and provides feedback of ignition status to the PXA270 (IG_FAIL
signal at GPIO115). If the Vig falls below 9.2V, IG_FAIL becomes logic ‘1’. This can be
used to instigate an orderly shutdown or to store ignition status data.
5V only operation
For 5V only operation, the ATX style connector J2 is used as the main power input for the
ZEUS. In this case, connector J3 and the entire DC/DC PSU circuit is depopulated. The
power connector J2 has a +12V connection too, but it is not required for the ZEUS under
normal operation. It can be used to supply +12V to the PC/104 stack if required. For
details of the 5V power connector see the section J2 – Power connector (5V option),
page 70. Contact Eurotech Sales (see page 125) for details.
If a CompactFlash and an LCD display are used, ensure the total current
requirement on the 3.3V rail does not exceed 900mA. Please check the
datasheets of the devices you are using.
56
Issue E
Power and power management
On-board supplies
There are seven on-board supply voltages derived from the +5V supply. They are listed
in the following table:
Supply rail
Power domains
Voltage
Reset threshold
VCC_BATT
PXA270 Sleep-control
subsystem, oscillators and real
time clock
3.3V or 3.0V
2.25V
VCC_CORE
PXA270 core and other internal
units
0.85V-1.55V
91% of nominal
VCC_PLL
PXA270 Phase-locked loops
1.3V
1.18V
VCC_SRAM
PXA270 Internal SRAM units
1.1V
1V
+3V3
PXA270 I/O, PXA270 internal
units, on-board 3.3V peripherals
3.3V
3.05V
VCC_PER
PC/104, Audio Amp, CAN Bus
transceiver, External GPIO pullups
5V
4.63V (PC/104
only)
VCC_MODEM
Zeus Modem
5V
NA
Reset will be generated if the supplies fall below the thresholds shown in the table.
VCC_CORE, VCC_PLL and VCC_SRAM rails are controlled by PWR_EN signal of the
PXA270. They are switched off when PXA270 is in sleep or deep-sleep mode.
VCC_PER, VCC_MODEM and +3V3 supply rails are controlled by SYS_EN signal of the
PXA270. They are switched off when PXA270 is in deep-sleep mode.
VCC_PER rail is also monitored, and reset will be generated to the PC/104 interface if
the voltage falls below 4.63V. This can also generate an interrupt on pin GPIO20 of the
PXA270.
Power management IC
The Linear Technology device LTC3445 is used to provide the power supply for the
PXA270. It is specifically designed for the PXA27x family of microprocessors.
The LTC3445 contains a high efficiency buck regulator (VCC_CORE), two LDO
regulators (VCC_PLL, VCC_SRAM), a PowerPath controller and an I2C interface. The
buck regulator has a 6-bit programmable output range of 0.85V to 1.55V. The buck
regulator uses either a constant frequency of 1.5MHz, or a spread spectrum switching
frequency. Using the spread spectrum option gives a lower noise regulated output, as
well as low noise at the input. In addition, the regulated output voltage slew rate is
programmable via the Power Management I2C interface of the PXA270.
Issue E
57
ZEUS user manual
Battery backup
An on-board non-rechargeable coin cell battery (CR2032) provides a 3V battery backup
supply for the ISL1208 RTC, external SRAM and the supply supervisor, when there is no
+5V supply to the board. The ZEUS is normally shipped with battery disconnected. See
JP2 – Battery disconnect, page 85, for details.
The table below shows the typical and maximum current load on the backup battery:
Device load on battery
Typical (µA)
Maximum (µA)
SRAM
0.3
3
ISL1208 RTC (with Clock Out Off)
0.4
0.95
Supply Supervisor
0.5
0.5
Total
1.2
1.45
An onboard Schottky diode drops 13mV from VBAT at +25°C (+77°F). At -40°C
(-40°F) this may increase to 170mV and at +85°C (+185°F) it may decrease
below 10mV. The SRAM and ISL1208 minimum voltages are 1.5V and 1.8V
respectively. Reliable operation below these minimum voltages cannot be
guaranteed.
Processor power management
First available in the PXA270 processor, Wireless Intel SpeedStep Technology
dynamically adjusts the power and performance of the processor based on CPU
demand. This can result in a significant decrease in power consumption.
In addition to the capabilities of Intel Dynamic Voltage Management, the Intel XScale
micro architecture of the PXA27x family incorporates three new low power states. These
are deep idle, standby and deep sleep. It is possible to change both voltage and
frequency on the fly by intelligently switching the processor into the various low power
modes. This saves additional power while still providing the necessary performance to
run rich applications.
Wireless Intel SpeedStep technology includes the following features:
58
•
Five reset sources: power-on, hardware, watchdog, GPIO and exit from sleep and
deep-sleep modes (sleep-exit).
•
Multiple clock-speed controls to adjust frequency, including frequency change, turbo
mode, half-turbo mode, fast-bus mode, memory clock, 13M mode, A-bit mode and
AC ’97.
•
Switchable clock source.
•
Functional-unit clock gating.
•
Programmable frequency-change capability.
•
One normal-operation power mode (run mode) and five low power modes to control
power consumption (idle, deep-idle, standby, sleep and deep-sleep modes).
•
Programmable I2C-based external regulator interface to support changing dynamic
core voltage, frequency change and power mode coupling.
Issue E
Power and power management
The PXA270 power consumption depends on the operating voltage and frequency,
peripherals enabled, external switching activity, external loading and other factors. The
tables below contain power consumption information at room temperature for several
operating modes: active, idle and low power. For active power consumption data, no
PXA270 peripherals are enabled except for on-chip UARTs.
Conditions
System bus
Frequency frequency
Active power
Idle power
consumption typ. consumption typ.
VCC_SRAM = 1.1V; VCC_PLL = 1.3V;VCC_MEM,
VCC_BB,
VCC_USIM, VCC_LCD = 1.8V;
VCC_IO, VCC_BATT,VCC_USB=3.0V
520MHz
208MHz
747 mW
222 mW
VCC_CORE = 1.45V
416MHz
208MHz
570 mW
186 mW
VCC_CORE = 1.35V
312MHz
208MHz
390 mW
154 mW
VCC_CORE = 1.25V
312MHz
104MHz
375 mW
109 mW
VCC_CORE = 1.1V
208MHz
208MHz
279 mW
129 mW
VCC_CORE = 1.15V
104MHz
104MHz
116 mW
64 mW
VCC_CORE = 0.9V
13MHz
CCCR[CPDIS]=1 44.2 mW
-
VCC_CORE = 0.85V
PXA270 low power modes
Conditions
Power
VCC_MEM, VCC_BB, VCC_USIM, VCC_LCD = 1.8V
consumption typ. VCC_IO, VCC_BATT, VCC_USB= 3.0V
13MHz idle mode (LCD on)
15.4mW
VCC_CORE, VCC_SRAM, VCC_PLL = 0.85V
13MHz idle mode (LCD off)
8.5mW
VCC_CORE, VCC_SRAM, VCC_PLL = 0.85V
Deep sleep mode
0.1mW
VCC_CORE, VCC_SRAM, VCC_PLL = 0V
Sleep mode
0.16mW
VCC_CORE, VCC_SRAM, VCC_PLL = 0V
Standby mode
1.7mW
VCC_CORE, VCC_SRAM, VCC_PLL = 3.0V
Wake-up sources
The PXA270 offers two sleep modes:
•
Sleep mode offers lower power consumption by switching off most internal units. There
is no activity inside the processor, except for the units programmed to retain their state
in the PSLR register, the real time clock and the clocks and power manager. Because
internal activity has stopped, recovery from sleep mode must occur through an external
or internal real time clock event. External wake-up sources are GPIO<n> edge detects
(they are listed in the section PXA270 GPIO pin assignments, page 22).
•
Deep-sleep mode offers the lowest power consumption by powering most units off.
There is no activity inside the processor, except for the real time clock (RTC) and the
clocks and power manager. Because internal activity has stopped, recovery from deepsleep mode must be through an external event or an RTC event. In deep-sleep mode,
all the PXA270 power supplies (VCC_CORE, VCC_SRAM, VCC_PLL, VCC_IO
excluding VCC_BATT) are powered off for minimized power consumption. On the
ZEUS, the main +3.3V rail supplies the VCC_IO power domain of the PXA270. Since
the +3.3V supply is switched off in deep-sleep mode, all the on-board peripherals are
powered off and it is not possible to use external wake-up sources. In this situation,
recovery from deep-sleep mode must be through an internal RTC event.
For more information on PXA270 power management, see section 3.6 in the Intel
PXA27x Processor Family Developer’s Manual, included on the Development Kit CD.
Issue E
59
ZEUS user manual
Peripheral devices power management
The following table gives the estimated power consumption of on-board peripherals:
Maximum power
consumption
Minimum consumption Operating mode
Quad UART
66mW (20mA at 3.3V)
10mW (3mA at 3.3V) Idle
Ethernet 2x
DM9000A
607mW (2x92mA at 3.3V) 46mW (2x7mA at
3.3V)
Power-down
CAN MCP2515
50mW (10mA at 5V)
0.025mW (5uA at
5V)
Sleep
CAN transceiver 375mW (75mA at 5V)
1.8mW (200uA at
5V)
Standby
AC’97 Codec
WM9712L
80mW
0.001mW
OFF
Boomer Amp
LM4880
30mW (6mA at 5V)
0.025mW (5uA at
5V)
Shut-down
SDRAM x4
2640mW (4x200mA at
3.3V)
26.4mW (4x2mA at
3.3V)
Power-down
Flash
165mW (50mA at 3.3V)
0.015mW (5uA at
3.3V)
Standby
SRAM
72mW (22mA at 3.3V)
0.001mW (3uA at
3.3V)
Standby
RS485
6.6mW (2mA at 3.3V)
5mW (1.5mA at
3.3V)
Disable
CPLD x2
66mW (2x10mA at 3.3V)
20mW (2x3mA at
3.3V)
Idle
0.17mW (55uA at
3V)
Power-down
LVDS transceiver 165mW (50mA at 3.3V)
60
Low power mode
On-board
peripheral
I/O expander x2
1.6mW (2x120uA at 3.3V) 0.02mW (2x3uA at
3.3V)
Idle
RTC
0.4mW (120uA at 3.3V)
0.012mW (4uA at
3.3V)
Idle
Temperature
sensor
3.3mW (1mA at 3.3V)
0.010mW (3.5uA at
3.3V)
Shut-down
Config PROM
3.3mW (1mA at 3.3V)
0.003mW (1uA at
3.3V)
Standby
Total
4.5W
102mW
Issue E
Power and power management
External peripheral devices include CF+ card (1.5W max), two USB devices (5W max),
add-on PC/104 cards (5W max), wireless modem (8.5W peak), LCD and Inverter (4W
max), GPS module (50mW max), ZigBee module (30mW max), SDIO (350mW max) and
Quick Capture camera (50mW max).
The table below gives examples of power drawn by specific external peripheral devices:
Device
Part number
Condition
Power (mW)
64MB Sandisk
CompactFlash
SDCFJ-64
Sleep
1
Writing consistently
220
Socket WiFi 802.11b
SDIO
WL6200-480
Idle (listening)
50
Transmitting
925
64MB FlashDio USB
memory stick
FDU100A
Inserted (no access)
375
Reading consistently
605
NEC 5.5" LCD +
Inverter
NL3224BC35-20
+ 55PW131
LCD and backlight on
3250
LCD on and backlight off
825
GSM/GPRS module
Siemens MC39i
Data mode GPRS 900
2100
Power down mode
0.18
Continuous mode
100
Sleep mode
0.06
Rx
25
Power down
0.1
Active
50
GPS module
ZigBee module
VGA CMOS sensor
module
Fastrax iTRAX03/08
Eurotech ZM1
Dialog DA3520
When PXA270 is placed in deep-sleep mode, the power to all the peripherals
(on-board and external) is switched off by SYS_EN signal of the PXA270.
Issue E
61
ZEUS user manual
CompactFlash power management
The power supply to the CompactFlash interface is controlled via software, and supports
hot swap card insertion and CompactFlash power down states. GPIO97 on the PXA270
(signal CF_PWEN) is used to control the power supply switch. Setting this line to logic ‘0’
switches off the power to the CompactFlash interface. The current-limiting (1A) and
thermal protection features of the power switch eliminate the need for the fuse. The
power supply to the CompactFlash is derived from 3.3V supply.
CPU_ GPIO97 (CF_PWEN)
CF power
0
Power off
1
Power on
Wireless modem power management
The power supply to the wireless modem interface (VCC_MODEM) is controlled by
SYS_EN signal of the PXA270, and is switched off when PXA270 is in deep-sleep mode.
The current-limiting (2A) and thermal protection features of the power switch eliminate
the need for the fuse. VCC_MODEM power supply is derived from the ZEUS +5V supply.
GSM_ON and GPS_ON control signals are provided on the ZEUS Modem connector
(J23). They are controlled by on-board GPIO expander (see On-Board GPIO expanders
pin assignments, page 29). For details on how to use these signals, and other power
management features of the specific wireless and GPS devices, please consult the
datasheet of the device used.
USB power management
A USB power control switch controls the power, and protects against short-circuit and
over-current conditions, on USB host ports.
If the USB voltage VBUSx is short-circuited, or more than 500mA is drawn from any
VBUSx supply, the switch turns off the power supply and protects the device and board
automatically. The VBUSx power supplies are derived from the ZEUS +5V supply.
The following table shows the PXA270 assignments for power enable and over-current
signals:
62
Host 1/2 functions
PXA270 GPIO
Active
USB_PWE1
GPIO89
High
USB_OC1#
GPIO88
Low
USB_PWE2
GPIO22
High
USB_OC2#
GPIO114
Low
Issue E
Power and power management
Ethernet power management
The Ethernet controllers (Davicom DM9000A) incorporate a number of features to
maintain the lowest power consumption.
The device can be put into a power-reduced mode by setting the PHY control register bit
16.4. In power-reduced mode, the device transmits the fast link pulses with minimum
power consumption. It also monitors the media for the presence of a valid signal and, if
detected, the device automatically wakes up and resumes normal operation. The power
consumption in power-reduced mode (without the cable) is 31mA.
The PHY can be put into a sleep mode by setting the PHY control register bit 16.1, which
powers down all the circuits except the oscillator and clock generator circuit.
The PHY can be put into a power-down mode by setting the PHY control register bit 0.11,
which disables all transmit and receive functions but not access to PHY registers. The
power consumption in power-down mode is 63mW. The system clock can be turned off,
by using the SCCR register (bit 0) of DM9000A, to further reduce the power consumption
to 22mW.
For more information about power management, refer to the DM9000A datasheet on the
Development Kit CD.
Audio power management
The audio CODEC (Wolfson WM9712L) supports the standard power down control
register defined by AC’97 standard (26h). In addition, the individual sections of the chip
can be powered down through register 24h. Significant power savings can be achieved
by disabling parts of WM9712L that are not used.
Shutting down all the clocks and digital and analogue sections can reduce WM9712L
consumption down to near zero (1.65μW).
For more information about power management, refer to the WM9712L datasheet on the
Development Kit CD.
LVDS power management
If not used, the DS90C363 LVDS transmitter can be placed in power down mode by
applying a low-level to GPIO21 of PXA270 (signal LVDS_EN). The power consumption in
power down mode is 180μW.
Issue E
CPU_ GPIO21 (LVDS_EN)
LVDS operation status
0
Power down mode
1
Normal operation
63
ZEUS user manual
CAN bus power management
The Microchip MCP2515 CAN bus controller has an internal sleep mode that is used to
minimize the current consumption of the device. The SPI interface remains active for
reading even when the MCP2515 is in sleep mode, allowing access to all registers. To
enter sleep mode, the mode request bits are set in the CANCTRL register
(REQOP<2:0>).
When in internal sleep mode, the wake-up interrupt is still active (if enabled) which
means that upon detecting activity on the bus, it can be used as a wake-up source for
PXA270. When in sleep mode, the MCP2515 stops its internal oscillator. The MCP2515
will wake up when bus activity occurs, or when the PXA270 sets the CANINTF.WAKIF bit
to ‘generate’ a wake-up attempt, via the SPI interface. The power consumption in sleep
mode is near zero (15μW).
The transceiver device (MCP2551) may be placed in sleep mode by applying a high-level
to GPIO2 of Expander 2 (I2C address 0x22, signal CAN_SHDN). In sleep mode, the
transmitter is switched off and the receiver operates at a lower current. The receive pin
on the controller side (RXD) is still functional but will operate at a slower rate. The power
consumption in sleep mode is 1.8mW.
EXP2_GPIO2 (CAN_SHDN)
MCP2551 operation status
0
Normal operation
1
Sleep mode
For more information about power management, refer to the MCP2515 and MCP2551
datasheets contained on the Development Kit CD.
Clock generator power management
Two clock synthesizer IC’s (Cypress CY22381) can be placed in low power mode by
shutting down the clock outputs in case the corresponding interfaces are not used. You
can do this by applying a low-level to the GPIO0 pin on the Expander 2 (I2C address
0x22, signal CLK_SHDOWN#). The following clocks are affected:
•
ST16C554Q UART 14.7456MHz clock.
•
Ethernet PHY 25MHz clock.
•
PC/104 8MHz and 14MHz clocks.
•
CAN bus 16MHz clock.
•
Audio clock 24.576MHz.
This can reduce the power consumption of each clock generator IC down to 66 μW.
64
EXP2_GPIO0 (CLK_SHDOWN#)
Clock operation status
0
Shutdown mode
1
Normal operation
Issue E
Power and power management
COM Ports power management
RS232 transceivers can be placed in low power mode in case they are not used. This
can reduce the power consumption of each RS232 transceiver down to 33 μW. GPIO
pins 3 and 4 of Expander 2 (I2C address 0x22) are used to shut down COM1 and COM2.
GPIO pin 1 of Expander 1 (I2C address 0x21) is used to shut down COM3.
EXP2_GPIO3 (U1_RS232_SHDN#) COM1 RS232 operation status
0
Shutdown mode
1
Normal operation
EXP2_GPIO4 (U2_RS232_SHDN#) COM2 RS232 operation status
0
Shutdown mode
1
Normal operation
EXP1_GPIO1 (U3_RS232_EN)
COM3 RS232 operation status
0
RS232 Shutdown mode
(RS422/485 enabled)
1
Normal operation
Temperature sensor power management
The LM75A device can be set to operate in two modes: normal or shut-down. In normal
operating mode, the temp-to-digital conversion is executed every 100ms and the Temp
register is updated at the end of each conversion. In shut-down mode, the device
becomes idle, data conversion is disabled and the Temp register holds the latest result.
However, the device I2C interface is still active and register write/ read operation can be
performed. The device operating mode is controllable by programming bit B0 of the
configuration register. The temperature conversion is initiated when the device is
powered-up or put back into normal mode from shut-down. The power consumption in
shut-down mode is near zero (11.5μW).
For more information about power management, refer to the LM75A datasheet on the
Development Kit CD.
I/O expander power management
When the serial I2C interface is idle and the PWM intensity control is unused, the
MAX7313 automatically enters standby mode. If the PWM intensity control is used, the
operating current is slightly higher because the internal PWM oscillator is running. The
power consumption in standby mode (with PWM disabled) is near zero (4μW).
Configuration PROM power management
When the serial I2C interface is idle the 24AA01 automatically enters standby mode. The
power consumption in standby mode is near zero (3.3μW).
Issue E
65
ZEUS user manual
Connectors, LEDs and jumpers
The following diagram shows the location of the connectors, LEDs and jumpers on the
ZEUS:
J4
J7
JP2
JP3
J9
J24
J14
JP4
J1
J16
JP5&JP6
J2
J17
J5
J18
JP1
J19
66
J3
D3
J3
D3
J6
J6
J8 J10
J8
J11 J12&13 D10
J11
J15
J15
Issue E
Connectors, LEDs and jumpers
J21
J22
J20
J23
The connectors on the following pages are shown in the same orientation as the
pictures above, unless otherwise stated.
Issue E
67
ZEUS user manual
Connectors
There are 24 connectors on the ZEUS for accessing external devices:
Connector Function
Connector details in section…
J1
Touchscreen controller
J1 – Touchscreen connector, page 69
J2
Power (5V DC)
J2 – Power connector (5V option), page 70
J3
Power (10-30V DC)
J3 – Power connector (10-30V), page 70
(Please note that J3 is not fitted when J2 is fitted.
See the sections J2 – Power connector (5V option),
page 70, and J3 – Power connector (10-30V), page
70, for details.)
J4
Audio
J4 – Audio connector, page 71
J5
JTAG
J5 – JTAG , page 71
J6
10/100BaseTX
Ethernet
J6 – Ethernet connector, page 72
J7
GPIO
J7 – GPIO , page 73
J8
Dual USB host
J8 – USB , page 73
J9
Camera interface
J9 – Camera interface connector, page 74
J10
USB client
J10 – USB client header, page 74
J11
Serial port – COM1
J11 – Serial port – COM1, page 75
J12
64-way PC/104
expansion
J12 & J13 – PC/104 , page 76
J13
40-way PC/104
expansion
J12 & J13 – PC/104 , page 76
J14
LCD panel interface
J14 – LCD , page 77
J15
Serial port – COM2
J15 – Serial port – COM2, page 78
J16
LCD panel LVDS
interface
J16 – LVDS , page 78
J17
CAN bus
J17 – CAN bus, page 79
J18
Serial port
(RS422/485)
J18 – Serial port (RS485/422), page 79
continued…
68
Issue E
Connectors, LEDs and jumpers
Connector Function
Connector details in section…
J19
Serial ports (COM3/4)
J19 – Serial ports – COM3/4, page 80
J20
CF+ interface
J20 – CompactFlash , page 81
J21
IEEE802.15.4 / ZigBee
J21 – IEEE802.15.4 / ZigBee connector, page 82
J22
SDIO
J22 – SDIO socket, page 82
J23
Wireless interface
J23 – Wireless modem/GPS module interface, page
83
J24
Backlight power
J24 – Backlight power, page 84
J1 – Touchscreen connector
Connector: Neltron 2417SJ-5-F4, 5-way, 2mm (0.079") pitch wire-to-board header
Mating connector: Molex 87369-0500 2mm (0.079") pitch crimp housing
Mating crimps: Molex 50212
Issue E
Pin
Signal name
1
TSRY+/TR
2
TSRY-/BL
3
TSRX+/BR
4
TSRX-/TL
5
TSW
5
1
69
ZEUS user manual
J2 – Power connector (5V option)
Connector: Neltron 5566S-08, 8-way, 4.2mm (0.165") pitch mini fit header
Mating connector: Molex 39-01-2085, 8-way, 4.20mm (0.165") pitch mini-fit, receptacle
housing
Mating crimps: Molex 44476-1112
Pin
Signal name
Pin
Signal name
1
GND
5
+5V
2
GND
6
+5V
3
GND
7
+5V
4
+12V
8
NC
5
1
8
4
+12V connection is defined, but is not required for the ZEUS under normal
operation. It can be used to supply +12V to the PC/104 stack if required.
J3 is not fitted when J2 is fitted.
J3 – Power connector (10-30V)
Connector: Kycon KPJX-4S-S, 4-way DC power socket
Mating connector: Kycon KPPX-4P plug
Pin
Signal name
1
PWR_IN
2
IGNITION
3
GND_IN
4
GND_IN
2
4
1
3
As viewed from the front panel
J2 is not fitted when J3 is fitted.
70
Issue E
Connectors, LEDs and jumpers
J4 – Audio connector
Connector: Neltron 2417SJ-12-PHD, 12-way, 2mm header
Mating connector: JST PHDR-12VS
Mating crimps: JST SPHD-002T-P0.5
Pin
Signal name
Pin
Signal name
1
LEFT IN
2
LEFT OUT
3
GND
4
GND
5
RIGHT IN
6
RIGHT OUT
7
GND
8
AMP LEFT OUT
9
MIC VREF OUT
10
MIC IN
11
AMP RIGHT OUT
12
GND
1
11
2
12
J5 – JTAG connector
Connector: Oupiin 2015-2x10-G-D W/ROHS, 20-way, 2.54mm (0.1") header
Mating connector: FCC 71600-020LF
Issue E
Pin
Signal name
Pin
Signal name
1
+3V3
2
NC
3
TRST#
4
GND
5
TDI
6
GND
7
TMS
8
GND
9
TCLK
10
GND
11
NC
12
GND
13
TDO
14
GND
15
SRST#
16
GND
17
NC
18
GND
19
NC
20
GND
20
19
2
1
71
ZEUS user manual
J6 – Ethernet connector
Connector: Dual RJ45 shielded with LEDs, Xmultiple XRJM-S-02-8-8-1
Pin
Signal name
Pin
Signal name
1A
TX0+
1B
TX1+
2A
TX0-
2B
TX1-
3A
RX0+
3B
RX1+
4A
N.C.
4B
N.C.
5A
N.C.
5B
N.C.
6A
RX0-
6B
RX1-
7A
N.C.
7B
N.C.
8A
N.C.
8B
N.C.
9A
LED0_SPEED#
9B
LED1_SPEED#
10A
+3V3
10B
+3V3
11A
LED0_LINK#
11B
LED1_LINK#
12A
+3V3
12B
+3V3
LINK/ACT
ETH0
8A
100
ETH1
1A 8B
1B
As viewed from the front panel
72
Issue E
Connectors, LEDs and jumpers
J7 – GPIO connector
Connector: Molex 87832-2020, 20-way, 2mm (0.079") header
Mating connector: Molex 51110-2051, 2mm (0.079") pitch, milli-grid crimp housing
Mating crimps: Molex 50394
Pin
Signal name
Pin
Signal name
1
+5V
2
+5V
3
P0
4
P1
5
P2
6
P3
7
P4
8
P5
9
P6
10
P7
11
GND
12
GND
13
P8
14
P9
15
P10
16
P11
17
P12
18
P13
19
P14
20
P15
19
1
20
2
J8 – USB connector
Connector: USB type A dual stacked connector
Issue E
Pin
Signal name
Pin
Signal name
1
VBUS1
5
VBUS2
2
D1-
6
D2-
3
D1+
7
D2+
4
GND
8
GND
PORT 2
5
6
7
8
1
2
3
4
PORT 1
As viewed from the front panel
73
ZEUS user manual
J9 – Camera interface connector
Connector: Neltron 2417RJ-20-PHD 'LEAD FREE', 20-way, 2mm (0.079") header
Mating connector: JST PHDR-20VS
Mating crimps: JST SPHD-002T-P0.5
Pin
Signal name
Pin
Signal name
1
+3V3
2
+2V8
3
CIF_MCLK
4
CIF_PCLK
5
CIF_LV
6
CIF_FV
7
CIF_DD0
8
CIF_DD1
9
CIF_DD2
10
CIF_DD3
11
CIF_DD4
12
CIF_DD5
13
CIF_DD6
14
CIF_DD7
15
I2C_SCL
16
I2C_SDA
17
CIF_DD8
18
CIF_DD9
19
GND
20
GND
1
19
2
20
J10 – USB client header
Connector: Oupiin 2011-1x5-G-S W/ROHS, 2.54mm (0.1") header
Mating connector: Molex 22-01-2055 2.54mm (0.1") pitch crimp terminal housing
Mating crimps: Molex 4809
74
Pin
Signal name
1
NC
2
D2-
3
D2+
4
GND
5
GND
1
5
Issue E
Connectors, LEDs and jumpers
J11 – Serial port – COM1
Connector: 9-pin D-type Plug male type
Issue E
Pin
Signal name
1
DCD1
2
RX1
3
TX1
4
DTR1
5
GND
6
DSR1
7
RTS1
8
CTS1
9
RI1
5
1
6
9
As viewed from the connector pins
75
ZEUS user manual
J12 & J13 – PC/104 connectors
Connector:
•
Samtec ESQ-132-12-G-D, 64-way, 2.54mm (0.1") PC/104 compatible connector
(row A & B)
•
Samtec ESQ-120-14-G-D, 40-way, 2.54mm (0.1") PC/104 compatible connector
(row C & D)
J13
Pin
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
Row D
GND
MEMCS16#
IOCS16#
IRQ10
IRQ11
IRQ12
IRQ15
IRQ14
NU (DACK0)
NU (DRQ0)
NU (DACK5)
NU (DRQ5)
NU (DACK6)
NU (DRQ6)
NU (DACK7)
NU (DRQ7)
+5V
NC (Master)
GND
GND
J12
Row C
GND
SBHE#
LA23
LA22
LA21
LA20
LA19
LA18
LA17
MEMR#
MEMW#
D8
D9
D10
D11
D12
D13
D14
D15
KEY
Pin
Row A
Row B
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
IOCHCK#
D7
D6
D5
D4
D3
D2
D1
D0
IOCHRDY
AEN
A19
A18
A17
A16
A15
A14
A13
A12
A11
A10
A9
A8
A7
A6
A5
A4
A3
A2
A1
A0
GND
GND
RSTDRV
+5V
IRQ9
NC
NU (DRQ2)
NC
NC
+12V
KEY
SMEMW#
SMEMR#
IOW#
IOR#
NU (DACK3)
NU (DRQ3)
NU (DACK1)
NU (DRQ1)
NU (REFSH)
8MHz Clk
IRQ7
IRQ6
IRQ5
IRQ4
IRQ3
NU (DACK2)
NU (TC)
BALE
+5V
OSC
GND
GND
NU – Not Used
76
Issue E
Connectors, LEDs and jumpers
J14 – LCD connector
Connector: Oupiin 3214-40GRB, 40-way, 1.27mm (0.05") x 2.54mm (0.1") right angled
boxed header
Mating connector: Oupiin 1203-40GB (available from Eurotech Sales on request - see
page 125 for contact details)
Issue E
Pin
Signal name
Pin
Signal name
1
BKLEN
2
BKLSAFE
3
PWM0
4
LCDSAFE
5
NEGBIAS
6
POSBIAS
7
GND
8
GND
9
FPD1
10
FPD0
11
FPD3
12
FPD2
13
FPD5
14
FPD4
15
GND
16
GND
17
FPD7
18
FPD6
19
FPD9
20
FPD8
21
FPD11
22
FPD10
23
GND
24
GND
25
FPD13
26
FPD12
27
FPD15
28
FPD14
29
FPD17
30
FPD16
31
GND
32
GND
33
BIAS / DE
34
GND
35
FCLK /
VSYNC
36
GND
37
LCLK /
HSYNC
38
GND
39
PCLK /
CLOCK
40
GND
As viewed from the connector pins
77
ZEUS user manual
J15 – Serial port – COM2
Connector: 9-pin D-type plug, male type
Pin
Signal name
1
DCD2
2
RX2
3
TX2
4
DTR2
5
GND
6
DSR2
7
RTS2
8
CTS2
9
RI2
5
1
6
9
J16 – LVDS connector
Connector: Hirose DF13-20DP-1.25V(55), 1.25mm pitch double row straight pin header
Mating connector: Hirose DF13-20DS-1.25C
Mating crimps: Hirose DF13-2630SCFA
78
Pin
Signal name
Pin
Signal name
1
+3V3
2
+3V3
3
GND
4
GND
5
LVDS_D0-
6
LVDS_D0+
7
GND
8
LVDS_D1-
9
LVDS_D1+
10
GND
11
LVDS_D2-
12
LVDS_D2+
13
GND
14
LVDS_CLK-
15
LVDS_CLK+
16
GND
17
NC
18
NC
19
GND
20
MSL
2
20
1
19
Issue E
Connectors, LEDs and jumpers
J17 – CAN bus
Connector: Neltron 2417SJ-5-F4, 5-way, 2mm (0.079") pitch wire-to-board header
Mating connector: Molex 87369-0500 2mm (0.079") pitch crimp housing
Mating crimps: Molex 50212
Pin
Signal name
1
VCC_CAN (+5V)
2
CANH
3
CAN_SCRN
4
CANL
5
GND
1
5
J18 – Serial port (RS485/422) – COM3
Connector: Neltron 2417SJ-5-F4, 5-way, 2mm (0.079") pitch wire-to-board header
Mating connector: Molex 87369-0500 2mm (0.079") pitch crimp housing
Mating crimps: Molex 50212
Issue E
Pin
Signal name
1
TX3- (RS422)
RX3/TX3- (RS485)
2
TX3+ (RS422)
RX3/TX3+ (RS485)
3
RX3- (RS422)
4
RX3+ (RS422)
5
GND
5
1
79
ZEUS user manual
J19 – Serial ports – COM3/4
Connector: Oupiin 3012-20GRB W/ROHS, 20-way, 2.54mm (0.1") dual row IDC boxed
header
Mating connector: FCC 71600-020LF
80
Pin
Signal name
Pin
Signal name
1
I2C_SCL
2
I2C_SDA
3
GND (I²C )
4
3.3V (I²C )
5
TX4+ (RS422)
(TX4+/RX4+
RS485)
6
TX4- (RS422)
(TX4-/RX4RS485)
7
RX4+ (RS422)
8
RX4- (RS422)
9
GND
10
GND
11
DCD3
12
DSR3
13
RX3
14
RTS3
15
TX3
16
CTS3
17
DTR3
18
RI3
19
GND
20
NC
19
20
1
2
As viewed from the connector pins
Issue E
Connectors, LEDs and jumpers
J20 – CompactFlash connector
Connector: 3M N7E50-M516RB-50, 50-way CompactFlash type II connector
Issue E
Pin
Signal name
Pin
Signal name
1
GND
2
D3
3
D4
4
D5
5
D6
6
D7
7
CE1#
8
A10
9
OE#
10
A9
11
A8
12
A7
13
+3.3V
14
A6
15
A5
16
A4
17
A3
18
A2
19
A1
20
A0
21
D0
22
D1
23
D2
24
IOCS16#
25
CD2#
26
CD1#
27
D11
28
D12
29
D13
30
D14
31
D15
32
CE2#
33
GND
34
IORD#
35
IOWR#
36
WE#
37
RDY/BSY
38
+3.3V
39
GND
40
NC
41
RESET#
42
WAIT
43
NC
44
REG#
45
NC
46
NC
47
D8
48
D9
49
D10
50
GND
1
50
81
ZEUS user manual
J21 – IEEE802.15.4 / ZigBee connector
Connector: Harwin M50-4321005, 20-way, 1.27mm dual row socket
Mating connector: M50-4921005, 20-way, 1.27mm dual row header
Pin
Signal name
Pin
Signal name
1
+3V3
2
+3V3
3
GND
4
GND
5
NC
6
RESET#
7
ZB_BTRXD
8
ZB_BTTXD
9
ZB_BTCTS#
10
ZB_BTRTS#
11
NC
12
NC
13
NC
14
NC
15
NC
16
NC
17
NC
18
NC
19
NC
20
NC
2
20
1
19
J22 – SDIO socket
Connector: Molex 67913-0002, 2.50mm (0.098") Pitch SDIO Memory Card Connector,
Reverse-Mount Type
82
Pin
Signal name
1
MMDAT3
2
MMCMD
3
GND
4
+3V3
5
MMCLK
6
GND
7
MMDAT0
8
MMDAT1
9
MMDAT2
10
MMC_WP
11
+3V3
12
MMC_CD
Issue E
Connectors, LEDs and jumpers
J23 – Wireless modem/GPS module interface
Connector: Hirose DF17(4.0)-40DP-0.5V(57), 40-way, 0.5mm pitch header
Mating connector: Hirose DF17(3.0)-40DS-0.5V(51), 40-way, 0.5mm pitch socket
Pin
Signal name
Pin
Signal name
1
VCC_MODEM
2
VCC_MODEM
3
VCC_MODEM
4
VCC_MODEM
5
VCC_MODEM
6
VCC_MODEM
7
VCC_MODEM
8
VCC_MODEM
9
VCC_MODEM
10
VCC_MODEM
11
VCC_MODEM
12
GSM_STS
13
GSM_FFTXD
14
GSM_FFRXD
15
GSM_FFDTR#
16
GSM_FFDSR#
17
GSM_FFRTS#
18
GSM_FFRI#
19
GSM_ON
20
GSM_FFDCD#
21
PTT
22
GSM_FFCTS#
23
GPS_PSUON
24
GPS_BOOT
25
+3V3
26
+3V3
27
GPS_ON
28
GPS_PPS
29
GPS_STDTXD
30
GPS_STDRXD
31
GND
32
GND
33
GND
34
GND
35
GND
36
GND
37
GND
38
GND
39
GND
40
GND
39
40
1
2
If you require a custom wireless modem adapter, please contact the Eurotech
Sales team (see page 125).
Issue E
83
ZEUS user manual
J24 – Backlight power (for flat panel displays)
Connector: Molex 53047-0710, 7-way 1.25mm (0.049") pitch header with friction lock
Mating connector: Molex 51021-0700, 7-way 1.25mm (0.049") housing, female
Mating crimps: Molex 50058
84
Pin
Signal name
1
BKLSAFE
2
BKLSAFE
3
GND
4
GND
5
BKLEN
6
BRT_CTRL
7
GND
1
7
Issue E
Connectors, LEDs and jumpers
Jumpers
There are six user selectable jumpers on the ZEUS. Their use is explained below.
JP1 – User jumpers
Connector: 8-way, 2.54mm (0.1") dual row through-hole header
Pin
Signal name
Pin
Signal name
GPIO
1
GND
2
USER_LINK1
CPU_GPIO 13
3
GND
4
USER_LINK2
CPU_GPIO 102
5
GND
6
USER_LINK3
EXP1_GPIO 6
7
GND
8
USER_LINK4
EXP1_GPIO 14
8
7
2
1
These are four user configurable jumpers connected to GPIO pins of PXA270 and
MAX7313 GPIO Expander 1.
JP1
Description
GPIO read as ‘0’
GPIO read as ‘1’ (Default)
User jumpers 1 and 2 (GPIO 13 and 91) may be connected to
an external momentary push switch and used to wake the
ZEUS from sleep.
JP2 – Battery disconnect
Connector: 2-way, 2.54mm (0.1") through-hole header
Pin
Signal name
1
Battery Plus Terminal
2
Battery Backup switch input
1
2
Normally supplied with jumper removed.
Issue E
85
ZEUS user manual
This jumper is used to disconnect the backup battery to prevent it from draining.
JP2
Description
Battery connected
Battery disconnected (default)
JP3 – LCD logic supply selection
Connector: 3-way, 2.54mm (0.1") single row through-hole header
Pin
Signal name
1
+5V
2
LCD Logic Supply
3
+3V3
3
1
This jumper selects the supply voltage for the LCD logic supply.
JP3
Description
Supply LCD Logic with 5V
3
1
3
1
Supply LCD Logic with 3.3V (Default)
If the LCD requires a 5V supply, please refer to the
LCD datasheet to ensure that the display is
compatible with 3.3V logic.
86
Issue E
Connectors, LEDs and jumpers
JP4 – LVDS MSL selection
Connector: 2-way, 2.54mm (0.1") through-hole header
Pin
Signal name
1
MSL
2
3.3V
1
2
This is an optional LVDS Mode select signal (routed to LVDS connector J16, pin 20).
JP4
Description
MSL set to ‘1’
MSL set to ‘0’ (Default)
JP5 & JP6 – CAN bus termination
Connector: 2-way, 2.54mm (0.1") through-hole header
JP5
JP6
Pin
Signal name
Pin
Signal name
1
CANH
1
Centre tap
2
Centre Tap
2
CANL
JP5 & JP6
JP5
2
1
JP6
1
2
Description
62Ω Termination connected
62Ω Termination disconnected
(default)
Only insert jumpers JP5 and JP6 if the ZEUS is at the end of the network.
Issue E
87
ZEUS user manual
JP7 - JTAG Enable
Connector: 2-way, 2.54mm (0.1") through-hole header
Pin
Signal name
1
VCC (+5V)
2
VCC_JTAG
2
1
This jumper is used to enable debug of PXA270 using JTAG interface.
JP7
Description
JTAG Enable
Normal Operation (Default)
Only insert jumper JP7 for JTAG access to PXA270.
Status LEDs
Flash LED
There is a single status LED (D10) on the ZEUS, which indicates access to the Flash
memory.
User LEDs
There are three user LEDs on the ZEUS front panel (D3). They are connected to the
GPIO pins of the on-board GPIO Expander 1 MAX7313 (I2C bus address 0x21), as
shown in the table below:
88
EXP1_GPIO
Signal name
Active
3
USER_LED1#
Low
4
USER_LED2#
Low
5
USER_LED3#
Low
LED1
LED2
LED3
As viewed from the front panel
Issue E
Appendix A - Specification
Appendix A - Specification
Microprocessor
•
PXA270 312/416/520MHz processor (520MHz as standard option).
•
32K data cache, 32K instruction cache, 2K mini data cache.
Cache
System memory
•
Fixed on-board memory: 64/128MB/256MB SDRAM (32-bit wide SDRAM data bus).
Flash memory
•
Fixed on-board memory: 32/64MB Flash.
•
256KB of SRAM - battery backed on board.
•
256KB of SRAM internal to PXA270.
SRAM
Serial ports
•
Four UART fast serial ports:
-
Four 16550 compatible UARTs (921.6 Kbaud):
One RS422/485 (software selectable).
One RS232/422/485 (software selectable).
Two RS232.
USB support
•
Two USB 1.1 host controller ports.
•
USB 1.1 client controller port (software selectable on port 2).
Network support
•
Two IEEE 802.3u 10/100Base-T Ethernet controllers.
•
Option for external PoE.
Wireless support
Issue E
•
GPS with full PVT functionality on low profile add-on module.
•
GSM/GPRS, iDEN, CDMA modem on low profile add-on module.
•
IEEE802.15.4 / ZigBee radio interface on low profile add-on module.
89
ZEUS user manual
Expansion interfaces
•
Compact Flash CF+ extension socket.
•
SDIO socket to support MMC/SD/SDIO cards.
•
16-bit PC/104 interface.
Date/time support
•
Real time clock – battery backed on-board.
•
Accuracy +/- 1min/month.
•
18-bit flat panel interface for STN and TFT displays.
•
Optional LVDS interface.
Video
Audio and touchscreen
•
AC’97 compatible CODEC.!
•
Touchscreen support – 4/5-wire analogue resistive.
Quick Capture camera interface
•
Intel Quick Capture technology.
•
Multi-master serial bus.
I2C bus
Configuration EPROM
•
I2C EPROM for storing configuration data.
•
Optional CAN 2.0B protocol controller and opto-isolated transceiver.
CAN bus
Watchdog timer
•
External to PXA270, generates reset on timeout. Timeout range 1ms-60s.
General I/O
•
16 general purpose I/O.
Temperature sensor
•
I2C temperature sensor.
•
Front panel user LEDs (3x yellow).
User LEDs
90
Issue E
Appendix A - Specification
Test support
•
JTAG interface (standard 20-pin ARM header).
Power requirements
•
5V +/-5% operation (ATX style connector) or vehicle compatible 10-30V input (front
panel connector).
•
Consumption: 2W typical (no CF, LCD, PC/104, USB devices fitted).
•
Sleep mode: 20mA (100mW) typical.
Mechanical
•
EPIC form factor (115mm x 165mm).
Environmental
•
Operating temperature:
- Commercial: -20°C (-4°F) to +70°C (+158°F).
- Industrial: -40°C (-40°F) to +85°C (+185°F).
Issue E
•
Humidity: 10% to 90% RH (non-condensing).
•
RoHS Directive (2002/95/EC) compliant.
91
ZEUS user manual
Appendix B - Mechanical diagram
All dimensions are shown in mm.
92
Issue E
Appendix B - Mechanical diagram
When mounting the ZEUS use only M3 (metric) or 4-40 (Imperial) screws.
The mounting pad is 6.35mm (0.25") and the hole is 3.175mm (0.125"), so
ensure any washers fitted are smaller than the pad.
Using oversized screws and washers, or tooth locking washers, can cause
short circuits and over-voltage conditions.
We recommend that you use a Loctite screw thread lock or a similar product
over tooth locking washers.
Issue E
93
ZEUS user manual
Appendix C - Reference information
Product information
Product notices, updated drivers, support material, 24hr-online ordering:
www.eurotech-ltd.co.uk
EPIC information
Embedded Platform for Industrial Computing:
www.pc104.org/technology/PDF/EPIC_Spec_2.0.pdf
PC/104 Consortium
PC/104 Specifications - vendor information and available add on products:
www.pc104.org
USB information
Universal Serial Bus (USB) specification and product information:
www.usb.org
SDIO card information
SD Card Association and product information:
www.sdcard.org
www.sdcard.com
CompactFlash information
CompactFlash Association and product information:
www.compactflash.org
ZigBee information
ZigBee Alliance:
www.zigbee.org
Davicom Semiconductor Inc
Davicom DM9000A Ethernet Controller documentation:
www.davicom.com.tw/eng/index.htm
94
Issue E
Appendix C - Reference information
Intel
PXA270 processor documentation:
www.intel.com
Marvell
PXA270 processor documentation:
www.marvell.com
Exar Corporation
Exar XR16C554DCQ Quad UART documentation:
www.exar.com
Wolfson Microelectronics
Wolfson WM9712L AC’97Codec documentation:
www.wolfson.co.uk
Spansion
S29GL-N MirrorBitTM Flash Family documentation:
www.spansion.com
Intersil
RTC ISL1208 documentation:
www.intersil.com
Microchip
CAN Bus Controller/Transceiver MPC2515/MPC2551 documentation and 24AA01
EEPROM documentation:
www.microchip.com
Maxim
GPIO Expander MAX7313 documentation:
www.maxim-ic.com
Philips
Temperature Sensor LM75A documentation:
www.philips.com
Issue E
95
ZEUS user manual
Appendix D - Wireless modem datasheets
Sony Ericsson GR64
96
Issue E
Appendix D - Wireless modem datasheets
Issue E
97
ZEUS user manual
Siemens MC39i
98
Issue E
Appendix D - Wireless modem datasheets
Issue E
99
ZEUS user manual
Fastrax iTrax03/08
100
Issue E
Appendix D - Wireless modem datasheets
Issue E
101
ZEUS user manual
Motorola iO270
102
Issue E
Appendix D - Wireless modem datasheets
Issue E
103
ZEUS user manual
Telit GE863-GPS
104
Issue E
Appendix D - Wireless modem datasheets
Issue E
105
ZEUS user manual
Sierra Wireless MC8775
106
Issue E
Appendix D - Wireless modem datasheets
Issue E
107
ZEUS user manual
Sierra Wireless MC5720
108
Issue E
Appendix D - Wireless modem datasheets
Issue E
109
ZEUS user manual
Appendix E - ZEUS Modem details
ZEUS Modem-1
The following photos show the ZEUS Modem-1 with Fastrax GPS receiver and three
possible options for wireless modem.
J9 – iO270 audio
JP1
SIM select
J4
SIM card
J3
J1
iO270 SONY GR64
ZEUS host
interface
GPS module
J2
Siemens MC39i
ZEUS Modem-2
The following photos show the ZEUS Modem-2 with Telit option for wireless modem.
J4
SIM card
110
ZEUS host
interface
U7
Telit GE683-GPS
Issue E
Appendix E - ZEUS Modem details
ZEUS Modem-3
The following photos show the ZEUS Modem-3 with Fastrax GPS receiver and several
possible options for Sierra Wireless embedded modules.
J2 – Sierra wireless
USB data (see below)
J4 –
SIM card
J1 – Sierra
Wireless module
ZEUS host
interface
GPS module
J2 –Sierra wireless USB data connector
Connector: NELTRON
2417RJ-3-F4, 3-way 2mm header
Mating connector: JST PHR-3, 3-way 2mm housing, female
Mating crimps: JST SPH-002T-P0.5S
Issue E
Pin
Signal name
1
SHIELD
2
DATA-
3
DATA+
111
ZEUS user manual
ZEUS Modem connector details
ZEUS host interface
Module connector: Hirose DF17(3.0)-40DS-0.5V(51), 40-way, 0.5mm pitch socket
Host connector: Hirose DF17(4.0)-40DP-0.5V(57), 40-way, 0.5mm pitch header
Pin
Signal name
Pin
Signal name
1
VCC_MODEM
2
VCC_MODEM
3
VCC_MODEM
4
VCC_MODEM
5
VCC_MODEM
6
VCC_MODEM
7
VCC_MODEM
8
VCC_MODEM
9
VCC_MODEM
10
VCC_MODEM
11
VCC_MODEM
12
GSM_STS
13
GSM_FFTXD1
14
GSM_FFRXD1
15
GSM_FFDTR#1
16
GSM_FFDSR#1
17
GSM_FFRTS#1
18
GSM_FFRI#1
19
GSM_ON
20
GSM_FFDCD#1
21
PTT
22
GSM_FFCTS#1
23
GPS_PSUON
24
GPS_BOOT
25
+3V3
26
+3V3
27
GPS_ON
28
GPS_PPS
29
GPS_STDTXD
30
GPS_STDRXD
31
GND
32
GND
33
GND
34
GND
35
GND
36
GND
37
GND
38
GND
39
GND
40
GND
2
1
40
39
Not used on Zeus Modem-3.
112
Issue E
Appendix E - ZEUS Modem details
The following table shows the functions of control/status pins on the host interface:
EXP1_GPIO
Signal name
Dir
Active
Function
7
PTT
Output
High
Push To Talk. See note 1
8
GSM_ON
Input
See note 2
Modem enable
9
GSM_STS
Output
High
Modem ON/OFF status
10
GPS_ON
Input
High
GPS module enable
11
GPS_PSUON Input
High
Not Used (PU keeps it at logic ‘1’)
12
GPS_BOOT
Input
NA
Not Used (PU keeps it at logic ‘1’)
13
GPS_PPS
Output
NA
GPS Pulse Per Second
Only available with iDEN modules.
Please see the datasheet of the particular module used. GSM_ON is inverted
when used with iDEN modules (GSM_ON=’0’ – iDEN module is on).
J9 –iO270 audio/PTT connector
Connector: NELTRON
2417RJ-8-F4, 8-way 2mm header
Mating connector: JST PHR-8, 8-way 2mm housing, female
Mating crimps: JST SPH-002T-P0.5S
Issue E
Pin
Signal name
1
SPKR-
2
SPKR+
3
3V_OPT
4
VCC
5
GND
6
PTT
7
MIC-
8
MIC+
1
8
As viewed from the connector pins
113
ZEUS user manual
Appendix F - ZEUS-FPIF details
The ZEUS-FPIF allows easy connection between the ZEUS and a variety of TFT or STN
LCD flat panel displays.
J5
J2
JP1
J1
J3
J4
The connectors on the following pages are shown in the same orientation as the
picture above.
Connector
Function
JP1
TFT clock delay selection
J1
ZEUS LCD cable connector
J2
Generic LCD connector
J3
Direct connection to a NEC NL3224BC35-20 5.5inch 320x240 TFT display
J4
Connects to backlight inverter
J5
STN bias voltages
JP1 – TFT clock delay selection
It has been found that some TFT displays require a delay on the clock. If this is required
fit the jumper in position A; if not, fit it in position B.
B
114
A
Issue E
Appendix F - ZEUS-FPIF details
J1 – ZEUS LCD cable connector
Connector: Oupiin 3215-40GSB/SN, 40-way, 1.27mm (0.05") x 2.54mm (0.1") straightboxed header
Mating connector: Oupiin 1203-40GB/SN (available from Eurotech on request)
Issue E
Pin
Signal name
Pin
Signal name
1
BKLEN
2
BKLSAFE
3
PWM0
4
LCDSAFE
5
NEGBIAS
6
POSBIAS
7
GND
8
GND
9
FPD1
10
FPD0
11
FPD3
12
FPD2
13
FPD5
14
FPD4
15
GND
16
GND
17
FPD7
18
FPD6
19
FPD9
20
FPD8
21
FPD11
22
FPD10
23
GND
24
GND
25
FPD13
26
FPD12
27
FPD15
28
FPD14
29
NC
30
NC
31
GND
32
GND
33
BIAS (DE)
34
GND
35
FCLK (VSYNC)
36
GND
37
LCLK (HSYNC)
38
GND
39
PCLK (CLOCK)
40
GND
115
ZEUS user manual
J2 – Generic LCD connector
Connector: Taicom TI34BHS, 34-way, 2.54mm (0.1") x 2.54mm (0.1") straight-boxed
header
Mating connector: Fujitsu FCN-723-B034/2
Mating connector crimps: Fujitsu FCN-723J-AU/Q. (As it is possible to connect a crimp type
connector to J2, a wide range of LCD displays can be connected with a custom cable)
116
Pin
Signal name
Pin
Signal name
1
GND
2
FPD0
3
FPD1
4
FPD2
5
GND
6
FPD3
7
FPD4
8
FPD5
9
FPD6
10
GND
11
FPD7
12
FPD8
13
FPD9
14
FPD10
15
GND
16
GND
17
FPD11
18
FPD12
19
FPD13
20
GND
21
FPD14
22
FPD15
23
GND
24
PCLK (CLOCK)
25
GND
26
LCDSAFE
27
LCDSAFE
28
LCLK (HSYNC)
29
FCLK (VSYNC)
30
GND
31
BKLSAFE
32
BIAS (DE)
33
NC
34
BKLEN
34
2
33
1
Issue E
Appendix F - ZEUS-FPIF details
J3 – Direct connection to a NEC NL3224BC35-20 5.5inch 320x240 TFT display
Connector: Oupiin 2345-33TD2/SN
Mating cable: Eunsung 0.5x33x190xAx0.035x0.3x5x5x10x10
Issue E
Pin
Signal name
Pin
Signal name
1
GND
18
FPD10
2
PCLK (CLOCK)
19
GND
3
LCLK (HSYNC)
20
GND
4
FCLK (VSYNC)
21
FPD0
5
GND
22
FPD1
6
GND
23
FPD2
7
FPD11
24
FPD3
8
FPD12
25
FPD4
9
FPD13
26
GND
10
FPD14
27
LBIAS
11
FPD15
28
LCDSAFE
12
GND
29
LCDSAFE
13
FPD5
30
GND
14
FPD6
31
GND
15
FPD7
32
GND
16
FPD8
33
GND
17
FPD9
1
33
117
ZEUS user manual
J4 – Backlight inverter connector
Connector: FCI 76384-407LF
Mating connector: FCI 65240-007LF
Mating connector crimps: FCI 76357-401LF
Pin
Signal name
1
BKLSAFE
2
BKLSAFE
3
GND
4
GND
5
BKLEN
6
BRT_CTRL
7
GND
J5 – STN Bias connector
Connector: FCI 76384-404LF
Mating connector: FCI 65240-004LF
Mating connector crimps: FCI 76357-401LF
118
Pin
Signal name
1
POSBIAS
2
GND
3
GND
4
NEGBIAS
Issue E
Appendix G - ZEUS-FPIF-CRT details
Appendix G - ZEUS-FPIF-CRT details
The ZEUS-FPIF-CRT allows the ZEUS to drive a CRT Monitor or an analogue LCD flat
panel. Sync on green and composite sync monitors are not supported.
J2
J1
The connectors on the following pages are shown in the same orientation as the
picture above, unless otherwise stated.
Issue E
Connector
Function
J1
ZEUS LCD cable connector
J2
CRT connector
119
ZEUS user manual
J1 – ZEUS LCD cable connector
Connector: Oupiin 3215-40CSB/SN, 40-way, 1.27mm (0.05") x 2.54mm (0.1") straightboxed header
Mating connector: Oupiin 1203-40GB/SN (available from Eurotech on request)
120
Pin
Signal name
Pin
Signal name
40
GND
39
CLOCK
38
GND
37
HSYNC
36
GND
35
VSYNC
34
GND
33
DE
32
GND
31
GND
30
NC
29
NC
28
FPD14
27
FPD15
26
FPD12
25
FPD13
24
GND
23
GND
22
FPD10
21
FPD11
20
FPD8
19
FPD9
18
FPD6
17
FPD7
16
GND
15
GND
14
FPD4
13
FPD5
12
FPD2
11
FPD3
10
FPD0
9
FPD1
8
GND
7
GND
6
NC
5
NC
4
NC
3
NC
2
BKLSAFE
1
NC
Issue E
Appendix G - ZEUS-FPIF-CRT details
J2 – CRT connector
Connector: Oupiin 7916-15FA/SN, 15-way, female, high density, right-angled D-Sub.
Pin
Signal name
Pin
Signal name
Pin
Signal name
1
RED
6
RED GND
11
NC
2
GREEN
7
GREEN GND
12
NC
3
BLUE
8
BLUE GND
13
HSYNC
4
NC
9
5V_VGASAFE
14
VSYNC
5
TTL GND
10
SYNC GND
15
NC
5
1
10
6
15
11
(As viewed from
the connector pins)
Issue E
121
ZEUS user manual
Appendix H - Acronyms and abbreviations
Amp
BTUART
CCCR
CODEC
COM
CPLD
CPU
CMOS
DMA
DUART
EEPROM
EMC
EPIC
EPROM
FFUART
FIFO
Flash
FPIF
GPIO
I²C
IEEE
IO
ISA
JTAG
LED
LCD
LSB
LVDS
MOSFET
NA
NC
NU
OS
PC/104
PCB
PoE
PROM
PWM
RAM
RTC
RX
SBC
122
Amplifier
Bluetooth Universal Asynchronous Receiver / Transmitter
Core Clock Configuration Register
Coder/Decoder
Communication Port
Complex Programmable Logic Device
Central Processing Unit (PXA270)
Complementary Metal Oxide Semiconductor
Direct Memory Access
Dual Universal Asynchronous Receiver / Transmitter
Electrically Erasable and Programmable Read-Only Memory
Electromagnetic Compatibility
Embedded Platform for Industrial Computing
Erasable and Programmable Read-Only Memory
Full Function Universal Asynchronous Receiver / Transmitter
First-In First-Out
A non-volatile memory that is preserved even if the power is lost
Flat Panel Interface
General Purpose Input/Output
(=IIC) Intra Integrated Circuit bus
Institute of Electrical and Electronics Engineers
Input/Output
Industry Standard Architecture, Bus in the IBM-PC
Joint Test Action Group of IEEE
Light Emitting Diode
Liquid Crystal Display
Least Significant Bit
Low Voltage Differential Signalling
Metal-Oxide Semiconductor Field-Effect Transistor
Not Applicable
No Connect
Not Used
Operating System
Offers full architecture, hardware and software compatibility with the
PC ISA bus, but in ultra-compact 96mm x 91mm (3.775" x 3.550")
stackable modules
Printed Circuit Board
Power over Ethernet
Programmable Read-Only Memory
Pulse-Width Modulation
Random Access Memory
Real Time Clock
Receive
Single Board Computer
Issue E
Appendix H - Acronyms and abbreviations
SDIO
SDRAM
SRAM
STN
STUART
SVGA
TFT
TX
UART
USB
VAC
VDC
VGA
WDT
ZEUS-ICE
Issue E
Secure Digital Input/Output
Synchronous Dynamic Random Access Memory
Static Random Access Memory
Super Twisted Nematic, technology of passive matrix liquid crystal
Standard Universal Asynchronous Receiver / Transmitter
Super Video Graphics Adapter, display resolution 800 x 640 pixels
Thin Film Transistor, a type of LCD flat-panel display screen
Transmit
Universal Asynchronous Receiver / Transmitter
Universal Serial Bus
Voltage Alternating Current
Voltage Direct Current
Video Graphics Adapter, display resolution 640 x 480 pixels
Watchdog Timer
ZEUS-Industrial Compact Enclosure
123
ZEUS user manual
Appendix I - RoHS-6 Compliance - Materials
Declaration Form
Confirmation of Environmental Compatibility for Supplied Products
Substance
Maximum concentration
Lead
0.1% by weight in homogeneous materials
Mercury
0.1% by weight in homogeneous materials
Hexavalent chromium
0.1% by weight in homogeneous materials
Polybrominated biphenyls (PBBs)
0.1% by weight in homogeneous materials
Polybrominated diphenyl ethers (PBDEs)
0.1% by weight in homogeneous materials
Cadmium
0.01% by weight in homogeneous materials
The products covered by this certificate include:
Product Name
Eurotech Part Number
ZEUS
ZEUS-Mx-Fy-ZZZ-R6 (all variants)
ZEUS-FPIF
ZEUS-FPIF-R6
ZEUS-FPIF-CRT
ZEUS-FPIF-CRT-R6
ZEUS MODEM -1
ZEUS MODEM-1-R6
ZEUS MODEM-2
ZEUS MODEM-2-R6
ZEUS MODEM -3
ZEUS-MODEM3-R6
Note: All recommended wireless modems are RoHS compliant with exception of the iO270 iDEN
module.
Eurotech has based its material content knowledge on a combination of information provided by third
parties and auditing our suppliers and sub-contractor’s operational activities and arrangements. This
information is archived within the associated Technical Construction File. Eurotech has taken
reasonable steps to provide representative and accurate information, though may not have conducted
destructive testing or chemical analysis on incoming components and materials.
Additionally, packaging used by Eurotech for its products complies with the EU Directive 2004/12/EC in
that the total concentration of the heavy metals cadmium, hexavalent chromium, lead and mercury do
not exceed 100 ppm.
124
Issue E
Eurotech Group Worldwide Presence
AMERICAS
EUROPE
ASIA
North America
Central & Southern Europe
Japan
EUROTECH USA
US toll free +1 800.541.2003
tel. +1 301.490.4007
fax +1 301.490.4582
e-mail: sales.us@eurotech.com
e-mail:
support.us@eurotech.com
www.eurotech-inc.com
EUROTECH Italy
tel. +39 0433.485.411
fax +39 0433.485.499
e-mail: sales-it@eurotech.com
e-mail: support-it@eurotech.com
www.eurotech.com
ADVANET
tel. +81 86.245.2861
fax +81 86.245.2860
e-mail: sales@advanet.co.jp
www.advanet.co.jp
Western Europe
China
PARVUS CORPORATION
US toll-free +1 800.483.3152
tel. +1 801.483.1533
fax +1 801.483.1523
e-mail: sales@parvus.com
e-mail: tsupport@parvus.com
www.parvus.com
EUROTECH UK
tel. +44 (0) 1223.403410
fax +44 (0) 1223.410457
e-mail: sales.uk@eurotech.com
e-mail:
support.uk@eurotech.com
www.eurotech.com
VANTRON
tel. + 86 28.85.12.39.30
fax +86 28.85.12.39.35
e-mail:
sales@vantrontech.com.cn
e-mail: support-cn@eurotech.com
www.vantrontech.com.cn
EUROTECH France
tel. +33 04.72.89.00.90
fax +33 04.78.70.08.24
e-mail: sales-fr@eurotech.com
e-mail: support-fr@eurotech.com
www.eurotech.com
Northern & Eastern Europe
EUROTECH Finland
tel. +358 9.477.888.0
fax +358 9.477.888.99
e-mail: sales-fi@eurotech.com
e-mail: support-fi@eurotech.com
www.eurotech.com
www.eurotech.com
Download PDF
