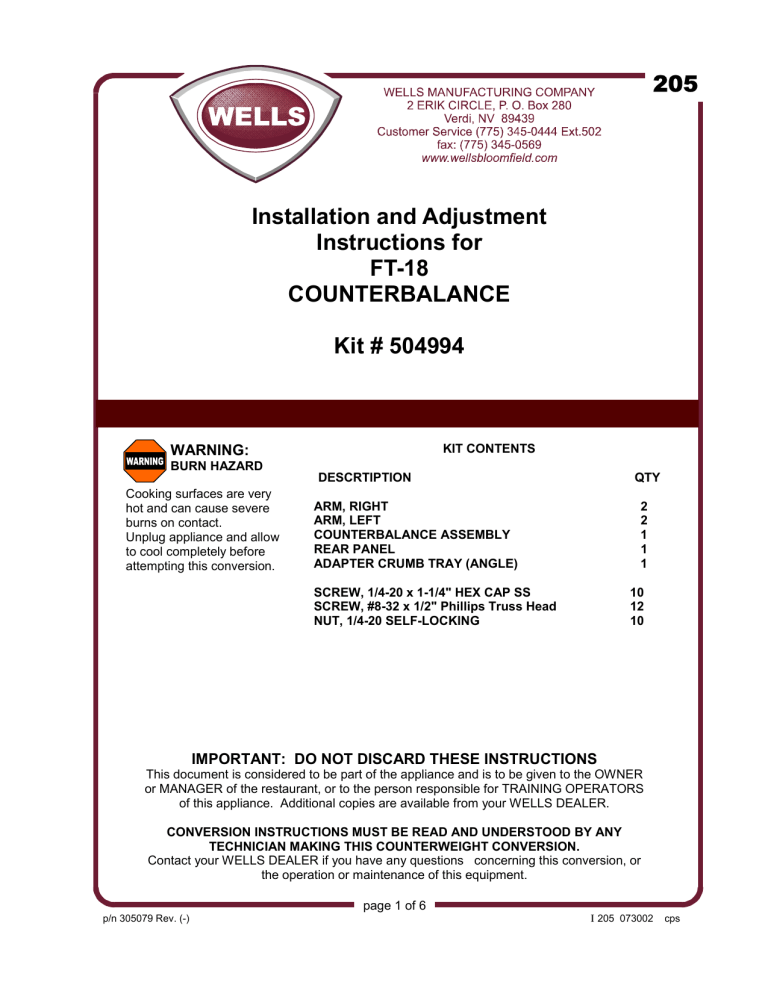

Installation and Adjustment
Instructions for
FT-18
COUNTERBALANCE
Kit # 504994
WARNING:
BURN HAZARD
Cooking surfaces are very
hot and can cause severe
burns on contact.
Unplug appliance and allow
to cool completely before
attempting this conversion.
KIT CONTENTS
DESCRTIPTION
QTY
ARM, RIGHT
ARM, LEFT
COUNTERBALANCE ASSEMBLY
REAR PANEL
ADAPTER CRUMB TRAY (ANGLE)
2
2
1
1
1
SCREW, 1/4-20 x 1-1/4" HEX CAP SS
SCREW, #8-32 x 1/2" Phillips Truss Head
NUT, 1/4-20 SELF-LOCKING
10
12
10
IMPORTANT: DO NOT DISCARD THESE INSTRUCTIONS
This document is considered to be part of the appliance and is to be given to the OWNER
or MANAGER of the restaurant, or to the person responsible for TRAINING OPERATORS
of this appliance. Additional copies are available from your WELLS DEALER.
CONVERSION INSTRUCTIONS MUST BE READ AND UNDERSTOOD BY ANY
TECHNICIAN MAKING THIS COUNTERWEIGHT CONVERSION.
Contact your WELLS DEALER if you have any questions concerning this conversion, or
the operation or maintenance of this equipment.
page 1 of 6
p/n 305079 Rev. (-)
I 205 073002
cps
PRECAUTIONS AND GENERAL INFORMATION
WARNING: ELECTRIC SHOCK HAZARD
This conversion and all servicing requiring access to non-insulated components must
be performed by qualified service personnel. DO NOT open any access panel until
appliance has been disconnected from electric power. Failure to heed this warning
may result in severe electric shock.
CAUTION:
RISK OF
DAMAGE
DO NOT attempt this
conversion until all installation
instructions are read and
followed. Damage to the
appliance can result if these
instructions are not
followed.
This conversion replaces the early-style counterbalance mechanism
with a redesigned counterbalance assembly. This new assembly allows tension adjustment without disassembly.
This manual details the conversion and initial adjustment procedures.
For normal operating procedures refer to Operation Manual FT-18
Finishing Toaster (p/n 305091).
CAUTION:
HOT SURFACE
Exposed surfaces can be hot
to the touch and may cause
burns.
Unplug appliance and allow
to cool completely before
attempting this conversion.
page 2 of 6
COUNTERBALANCE CONVERSION
DISASSEMBLY AND PREPARATION
CAUTION:
1. Disconnect toaster from electrical power. Allow to cool before
proceeding.
Risk of
Damage
DO NOT attempt this
conversion until all installation
instructions are read and
followed. Damage to the
appliance can result if these
instructions are not
followed.
Tools Required:
#1 Phillips Screwdriver
Large Flat-blade Screwdriver
Med. Flat-blade Screwdriver
Razor Blade
IMPORTANT:
Note assembly sequence of
platen pivot. Be sure all
components of the platen
pivot (shaft, bushings,
retainers and retainer screws)
are removed and saved.
2. Remove and save handles, platen pivot assemblies, stabilizer bars
and crumb tray. Be sure handles are separated from platens.
3. Remove and discard rear panel.
4. Remove 8 screws holding counterbalance assembly to chassis.
Remove and discard entire counterbalance assembly.
5. Scrape all remaining silicone sealant from rear areas of chassis.
Thoroughly clean crumb tray shelf.
page 3 of 6
COUNTERBALANCE CONVERSION (continued)
Tools Required:
#1 Phillips Screwdriver
7/16" Nut Driver or Socket
7/16" Box End Wrench
Med. Flat-blade Screwdriver
Food-Grade Silicone Sealant
INSTALL NEW ASSEMBLY
1. Apply a thin bead of food-grade silicone sealant to top rear edge
of crumb tray adapter. Attach crumb tray adapter to front of
counterweight assembly.
2. Apply a heavy bead of silicone to bottom of crumb tray.
3. Assemble counterweight to chassis. Insert hex head screws from
outside with self-locking nuts on the inside. Be sure the back of the
uprights are flush with the back of the chassis before tightening.
Wipe up any excess silicone sealant.
Mount with uprights flush to
chassis
Pivot assembly
4. Assemble arms, handles and stabilizer bars to counterweight.
5. Be sure tension adjusters are backed out. Individually, press arms
down to align with platens, then install platen pivots.
6. Install back panel and insert crumb tray.
7. Check both sides to be sure they raise and lower smoothly.
page 4 of 6
ADJUSTMENT
ADJUST PLATEN TENSION
1. ADJUSTMENT LOCATION
a. Right platen tension adjuster is located on back of the toaster,
on back side of the right upright.
b. Left platen tension adjuster is located on back of the toaster,
on front side of the left upright.
2. TO ADJUST
a. Loosen lock nut.
b. Turn adjust screw until platen raises easily, latches securely
in the upright position, and lowers without undue effort.
c. Tighten lock nut while holding adjust screw.
3. Adjust both upper platens to the same "feel".
page 5 of 6
