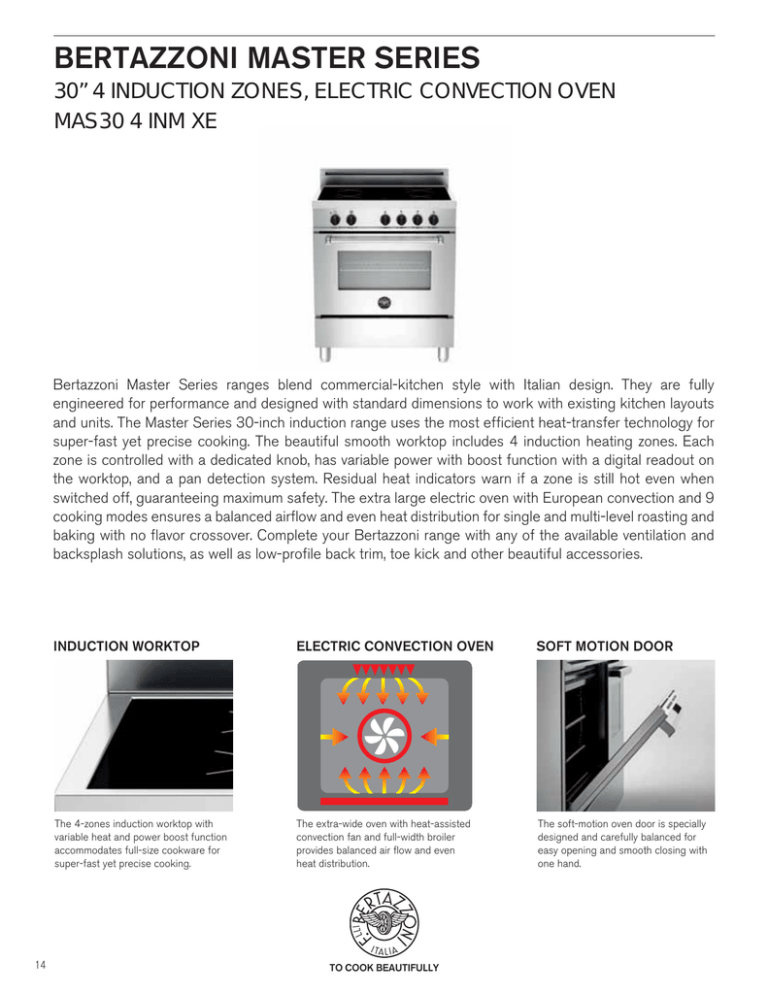

BERTAZZONI MASTER SERIES
30” 4 INDUCTION ZONES, ELECTRIC CONVECTION OVEN
MAS30 4 INM XE
Bertazzoni Master Series ranges blend commercial-kitchen style with Italian design. They are fully
engineered for performance and designed with standard dimensions to work with existing kitchen layouts
and units. The Master Series 30-inch induction range uses the most efficient heat-transfer technology for
super-fast yet precise cooking. The beautiful smooth worktop includes 4 induction heating zones. Each
zone is controlled with a dedicated knob, has variable power with boost function with a digital readout on
the worktop, and a pan detection system. Residual heat indicators warn if a zone is still hot even when
switched off, guaranteeing maximum safety. The extra large electric oven with European convection and 9
cooking modes ensures a balanced airflow and even heat distribution for single and multi-level roasting and
baking with no flavor crossover. Complete your Bertazzoni range with any of the available ventilation and
backsplash solutions, as well as low-profile back trim, toe kick and other beautiful accessories.
14
INDUCTION WORKTOP
ELECTRIC CONVECTION OVEN
SOFT MOTION DOOR
The 4-zones induction worktop with
variable heat and power boost function
accommodates full-size cookware for
super-fast yet precise cooking.
The extra-wide oven with heat-assisted
convection fan and full-width broiler
provides balanced air flow and even
heat distribution.
The soft-motion oven door is specially
designed and carefully balanced for
easy opening and smooth closing with
one hand.
TO COOK BEAUTIFULLY
BERTAZZONI MASTER SERIES
30” 4 INDUCTION ZONES, ELECTRIC CONVECTION OVEN - MAS30 4 INM XE
FEATURES
ACCESSORIES
Induction Zones
4
Worktop
induction
Worktop Controls
knobs
Residual Heat Indicator
yes
Knobs
soft touch
Backguard
standard 4 inches
Front Left
7”-1850 W (Booster 3000 W)
Back Left
7”-1850 W (Booster 3000 W)
Front Right
5” 3/4-1400 W (Booster 2200 W)
Back Right
8” 1/2-2300 W (Booster 3700 W)
Simmer rate
750 Btu/h
Toe kick panel (TKS 30 X), flat island trim (IRF 30 X), side trim (ST 36 X)
Telescopic glide shelves (TGC)
MATCHING VENTILATION SOLUTIONS
Main oven
electric convection with electric
broiler
Main oven functions
bake, traditional bake, upper bake,
broil, large broil, convection broil,
convection, defrost/dehydrate
Bertazzoni offers a variety of matching ventilation solutions for this
range. Please check our website under the ventilation tab for a
complete overview of all choices
25" 3⁄16
29" 13⁄16
4"
35" ⁄ min
37" 1⁄4 max
1" 9⁄16
12
32"
29" 13⁄16
3
Main oven volume
3.6 ft
Inner oven door
full width triple glass
Oven equipment
1 baking tray, 2 heavy gauge wire
shelves, 1 grill trivet for tray
Legs
29" 13⁄16
25" 3⁄16
2" 15⁄16
2" 3⁄8
4"
⁄ "
78
height adjustable stainless steel legs
35" 1⁄2 min
37" 1⁄4 max
3" 1⁄8
1" 1⁄8
3"
7" 5⁄16
TECHNICAL SPECIFICATIONS
Voltage, frequency
120/208 V - 120/240 V, 60Hz
Max Amp Usage, power rating 44 A - 9800 W, 45.5 A - 10500 W
Rating*
Specified Rating of Power Supply
Cord Kit and Circuit Protection
208/240 Volts 120/208 Volts
Amps: 40 A
Certification
CSA
Warranty
2 years parts and labor
3" 1⁄2 min
5" 1⁄4 max
Supply cable
length 59" included
1" 3⁄4
⁄"
58
1" 5⁄16
19" 15⁄16
4"
INSTALLATION INSTRUCTIONS
Bertazzoni recommends to operate the appliance after it has been
installed in a cabinet. The kitchen cabinets shall be made of materials
capable of withstanding temperatures at least 117°F (65°C) above
room temperature in order to avoid possible damage to the cabinets
during oven usage. For further installation instructions refer to the
installation manual.
Disclaimer: while every effort has been made to insure the accuracy of the information contained in
this brochure, Fratelli Bertazzoni reserves the right to change any part of the information at any time
without notice.
*The National Electric Code calculation for Electric Load is less than
the Total Connected Electrical Load listed on the model rating plate.
Fratelli Bertazzoni, Bertazzoni and the winged wheel brand icon are registered trademarks of
Bertazzoni Spa.
bertazzoni.com
15
