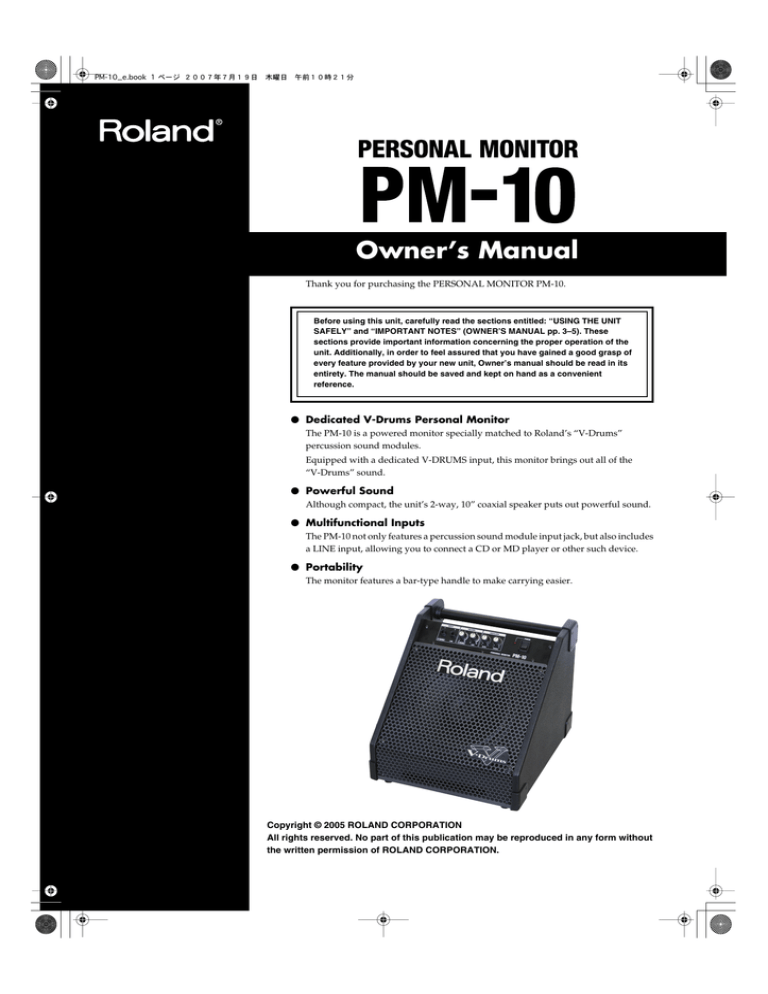

Owner’s Manual
Thank you for purchasing the PERSONAL MONITOR PM-10.
Before using this unit, carefully read the sections entitled: “USING THE UNIT
SAFELY” and “IMPORTANT NOTES” (OWNER’S MANUAL pp. 3–5). These
sections provide important information concerning the proper operation of the
unit. Additionally, in order to feel assured that you have gained a good grasp of
every feature provided by your new unit, Owner’s manual should be read in its
entirety. The manual should be saved and kept on hand as a convenient
reference.201b
● Dedicated V-Drums Personal Monitor
The PM-10 is a powered monitor specially matched to Roland’s “V-Drums”
percussion sound modules.
Equipped with a dedicated V-DRUMS input, this monitor brings out all of the
“V-Drums” sound.
● Powerful Sound
Although compact, the unit’s 2-way, 10” coaxial speaker puts out powerful sound.
● Multifunctional Inputs
The PM-10 not only features a percussion sound module input jack, but also includes
a LINE input, allowing you to connect a CD or MD player or other such device.
● Portability
The monitor features a bar-type handle to make carrying easier.
Copyright © 2005 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form without
the written permission of ROLAND CORPORATION.202
