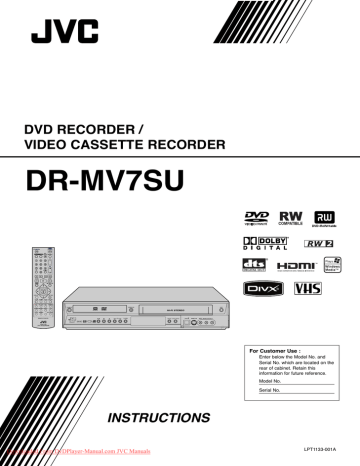

DVD RECORDER /
VIDEO CASSETTE RECORDER
DR-MV7SU
For Customer Use :
Enter below the Model No. and
Serial No. which are located on the
rear of cabinet. Retain this
information for future reference.
Model No.
Serial No.
INSTRUCTIONS
Downloaded From DvDPlayer-Manual.com JVC Manuals
LPT1133-001A
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK
OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
This lightning flash with arrowhead symbol
within an equilateral triangle is intended to
alert the user to the presence of uninsulated dangerous voltage within the product’s
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
CAUTION:
Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the
product and to protect it from over heating.
The openings should be never be blocked by placing
the product on a bed, sofa, rug or other similar surface.This product should not be placed in a built-in
installation such as a bookcase or rack unless proper
ventilation is provided or the manufacturer's instruction have been adhered to.
Downloaded
From DvDPlayer-Manual.com JVC Manuals
2
CAUTION:
This product employs a Laser System.
To ensure proper use of this product, please read this
owner’s manual carefully and retain it for future reference. Should the unit require maintenance, contact
an authorized service center.
Performing controls, adjustments, or carrying out procedures other than those specified herein may result
in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try
to open the enclosure. Visible laser radiation when
open. DO NOT STARE INTO BEAM.
CAUTION: The apparatus should not be exposed to
water (dripping or splashing) and no objects filled
with liquids, such as vases, should be placed on the
apparatus.
CAUTION: VISIBLE AND INVISIBLE CLASS 2M
LASER RADIATION WHEN OPEN. DO NOT VIEW
DIRECTLY WITH OPTICAL INSTRUMENTS.
FCC WARNING: This equipment may generate or
use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly
approved in the instruction manual. The user could
lose the authority to operate this equipment if an
unauthorized change or modification is made.
REGULATORY INFORMATION: FCC Part 15
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference when the product is operated in
a residential installation. This product generates,
uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the
instruction manual, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this product does cause harmful interference to radio or television reception, which can
be determined by turning the product off and on, the
user is encouraged to try to correct the interference
by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the product
and receiver.
•
Connect the product into an outlet on a circuit
different from that to which the receiver is connected.
•
Consult the dealer or an experienced radio/TV
technician for help.
Downloaded From DvDPlayer-Manual.com JVC Manuals
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon
a dedicated circuit;
That is, a single outlet circuit which powers only that
appliance and has no additional outlets or branch circuits. Check the specification page of this owner's
manual to be certain.
Do not overload wall outlets. Overloaded wall outlets,
loose or damaged wall outlets, extension cords,
frayed power cords, or damaged or cracked wire
insulation are dangerous. Any of these conditions
could result in electric shock or fire. Periodically
examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord
replaced with an exact replacement part by an
authorized servicer.
Protect the power cord from physical or mechanical
abuse, such as being twisted, kinked, pinched, closed
in a door, or walked upon. Pay particular attention to
plugs, wall outlets, and the point where the cord exits
the appliance.
To disconnect power from the mains, pull out the
mains cord plug. When installing the product, ensure
that the plug is easily accessible.
3
IMPORTANT SAFETY INSTRUCTIONS
CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS IN THIS OWNER’S
MANUAL. AND THOSE MARKED ON THE PRODUCT. RETAIN THIS BOOKLET FOR FUTURE
REFERENCE.
This product has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in this product will protect you if you observe the following procedures for installation, use, and servicing.
This product does not contain any parts that can be repaired by the user.
DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.
1. Read these instructions. - All these safety and
operating instructions should be read before the
product is operated.
2. Keep these instructions. - The safety, operating
and use instructions should be retained for future
reference.
10. Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the product.
11. Only use attachments/accessories specified
by the manufacturer.
3. Heed all warnings. - All warnings on the product
and in the operating instructions should be adhered
to.
4. Follow all instructions. - All operating and use
instructions should be followed.
5. Do not use this apparatus near water. – For
example: near a bath tub, wash bowl, kitchen sink,
laundry tub, in a wet basement; or near a swimming
pool; and other areas located near water.
6. Clean only with dry cloth. – Unplug this product
from the wall outlet before cleaning. Do not use liquid cleaners.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions. Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the
product and to protect it from over- heating. The
openings should never be blocked by placing the
product on a bed, sofa, rug or other similar surface.
This product should not be placed in a built-in installation such as a bookcase or rack unless proper
ventilation is provided or the manufacturer’s instructions have been adhered to.
8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are
provided for your safety. If the provided plug
does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
Downloaded
From DvDPlayer-Manual.com JVC Manuals
4
12. Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer, or sold
with apparatus. When a cart is used, use caution when moving the cart/product combination to avoid injury from tip-over.
13. Unplug this product during lightning storms or
when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the product
has been damaged in any way, such as powersupply cord or plug is damaged, liquid has
been spilled or objects have fallen into the
product, the product has been exposed to rain
or moisture, does not operate normally, or has
been dropped.
INTRODUCTION
About the
Symbol Display . . . . . . . . . . . . .6
Symbol Used in this Manual . . . . . . . . . . . . . .6
Notes on Discs . . . . . . . . . . . . . . . . . . . . . . . .6
Moisture Condensation . . . . . . . . . . . . . . . . . .6
Recordable and Playable Discs . . . . . . . . . . .7
Recommended recordable DVD discs . . . . . .7
Playable Discs . . . . . . . . . . . . . . . . . . . . . . . . .8
Regional Code . . . . . . . . . . . . . . . . . . . . . . . . .8
Restrictions on video recording . . . . . . . . . . .9
What is ‘CPRM’? . . . . . . . . . . . . . . . . . . . . . . .9
Copyright . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Notice for Progressive Scan Use . . . . . . . . . .9
About the Remote Control . . . . . . . . . . . . . . .9
Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . .10
Remote Control . . . . . . . . . . . . . . . . . . . . . . .11
Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . .12
HOOKUP AND SETTINGS
Connecting an Antenna or Cable TV . . . . . .13
Connections to your TV . . . . . . . . . . . . . .14-15
Connection to an Amplifier . . . . . . . . . . . . . .16
Accessory Audio/Video (A/V)
Connections to Recorder . . . . . . . . . . . . . . .17
Connecting a Digital Camcorder . . . . . . . . . .17
Initial Setup Wizard . . . . . . . . . . . . . . . . . . . .18
Using the Home Menu . . . . . . . . . . . . . . . . . .19
Initial Settings . . . . . . . . . . . . . . . . . . . . . . . .19
General Settings . . . . . . . . . . . . . . . . . . . .20-21
Language Settings . . . . . . . . . . . . . . . . . . . .21
Audio Settings . . . . . . . . . . . . . . . . . . . . . . . .22
Recording Settings . . . . . . . . . . . . . . . . . . . .22
Disc Settings . . . . . . . . . . . . . . . . . . . . . .23-24
Remote Control Function . . . . . . . . . . . . . . .24
General Explanation of On-Screen Display .25
Displaying Information While Watching TV . .25
Displaying Disc Information on-screen . . . . .25
PLAYBACK
Playing a Tape . . . . . . . . . . . . . . . . . . . . . . . .26
Playing a DVD or Video CD . . . . . . . . . . . . . .26
VCR Playback Features . . . . . . . . . . . . . . . . .27
DVD or video CD Playback Features . . . .28-29
Special Playback Options . . . . . . . . . . . . . . .30
Playing a DivX Movie File . . . . . . . . . . . . . . .31
Playing an Audio CD or MP3/WMA files . . . .32
Viewing a JPEG files . . . . . . . . . . . . . . . .33-34
Downloaded From DvDPlayer-Manual.com JVC Manuals
RECORDING
About DVD recording . . . . . . . . . . . . . . . . . .35
Notes for recording . . . . . . . . . . . . . . . . . . . .35
Basic Recording from a TV . . . . . . . . . . . . . .36
Instant Timer Recording . . . . . . . . . . . . . . . .36
Timer Recording . . . . . . . . . . . . . . . . . . . .37-38
Dubbing from DVD to VCR . . . . . . . . . . . . . .39
Dubbing from VCR to DVD . . . . . . . . . . . . . .39
Recording from External Components . . . . .40
Additional Information . . . . . . . . . . . . . . . . .40
Recording from DV Input . . . . . . . . . . . . . . .41
EDITING
Title List and Chapter List Menu Overview .42
VR Mode: Original and Playlist Editing . . . .43
Adding Chapter Markers . . . . . . . . . . . . . . . .43
Changing Title Thumbnails . . . . . . . . . . . . . .43
Making a New Playlist . . . . . . . . . . . . . . . . . .44
Adding Additional Title/Chapters to the
Playlist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Deleting an Original or Playlist Title/
Chapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Deleting a Part . . . . . . . . . . . . . . . . . . . . . . . .45
Naming a Title . . . . . . . . . . . . . . . . . . . . . . . .46
Time Search . . . . . . . . . . . . . . . . . . . . . . . . . .46
Moving a Playlist Chapter . . . . . . . . . . . . . . .47
Hide a Chapter/Title . . . . . . . . . . . . . . . . . . . .47
Protect a Title . . . . . . . . . . . . . . . . . . . . . . . .47
Divide One Titles Into Two . . . . . . . . . . . . . .48
Combining Two Chapters Into One . . . . . . . .48
Overwriting Recording . . . . . . . . . . . . . . . . .49
Viewing Title List menu displayed on other
DVD Recorders or Players . . . . . . . . . . . . . .49
Playing Your Recordings on Other DVD
Players (Finalizing a Disc) . . . . . . . . . . . . . . .49
REFERENCE
Language Code List . . . . . . . . . . . . . . . . . . .50
Area Codes List . . . . . . . . . . . . . . . . . . . . . . .50
Troubleshooting . . . . . . . . . . . . . . . . . . . .51-53
Reset the Recorder . . . . . . . . . . . . . . . . . . .53
Specifications . . . . . . . . . . . . . . . . . . . . . .54-55
WARRANTY (Only in U.S.A.) . . . . . . . . . . . . .56
FOR SERVICING (Only in U.S.A.) . . . . . . . . .60
5
Introduction
To ensure proper use of this product, please read
this owner’s manual carefully and retain for future
reference.
About the
Symbol Display
“
” may appear on your TV display during operation
and indicates that the function is not permitted by this
unit or specific media.
Notes on Discs
Handling Discs
Do not touch the playback side of the disc. Hold the
disc by the edges so that fingerprints do not get on
the surface. Never stick paper or tape on the disc.
Symbol Used in this Manual
Note:
Tip:
Indicates special notes and operating features.
Indicates tips and hints for making the task
easier.
A section whose title has one of the following symbols are applicable only to those discs represented
by the symbol.
DVD ALL All DVD discs listed below.
-RWVR DVD-RW with VR recording mode
-RWVideo DVD-RW with Video recording mode
+RW DVD+RW disc
-R DVD-R disc
+R DVD+R disc
DVD DVD-Video disc
DivX DivX files
VCD Video CDs
ACD Audio CDs
MP3 MP3 files
WMA WMA files
JPEG JPEG files
Storing Discs
After playing, store the disc in its case. Do not
expose the disc to direct sunlight or sources of heat
and never leave it in a parked car exposed to direct
sunlight.
Cleaning Discs
Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing,
clean the disc with a clean cloth. Wipe the disc from
the center out.
Do not use strong solvents such as alcohol, benzine,
thinner, commercially available cleaners, or anti-static
spray intended for older vinyl records.
Moisture Condensation
Never operate this product immediately after moving it from a cold location to a warm location. Leave
it for two or three hours without operating it. If you
use this product in such a situation, it may damage
discs/tapes and internal parts.
Downloaded
From DvDPlayer-Manual.com JVC Manuals
6
INTRODUCTION
Recordable and Playable Discs
DVD-RW (DVD - ReWritable)
DVD-RW discs can be formatted for VR mode recording or Video mode recording.
These Discs can be recorded on repeatedly. Recordings can be erased, then you can record again on the
same Disc.
[VR mode]
Recordings can be extensively edited
Playable only on VR mode compatible players (after finalization)
[Video mode]
Playable on regular DVD players (after finalization)
Limited editing features
DVD-R (DVD - Recordable)
These Discs can be recorded only once. After you finalize a DVD-R, you cannot record on it or edit it.
DVD-R discs can be only formatted to Video mode.
Playable on regular DVD players (after finalization)
Limited editing features
DVD+RW (DVD+ ReWritable)
These Discs can be recorded on repeatedly. Recordings can be erased, then you can record again on the
same Disc.
Playable on DVD+RW compatible players (automatically finalization)
The edited contents are playable on DVD+RW compatible players only after finalization.
Recordings can be edited the title/chapter
DVD+R (DVD + Recordable)
These Discs can be recorded only once. After you finalize a DVD+R, you cannot record on it or edit it any
more.
Playable on DVD+R compatible players (after finalization)
Any edited contents are not be compatible on DVD+R compatible players. (Hide, chapter combine, added
chapter mark, etc.)
Limited title/chapter editing features.
Recommended recordable DVD discs
DVD-R
DVD+R
DVD-RW
DVD+RW
Mitsubishi (8x, 16x)
Mitsubishi (8x, 16x)
Mitsubishi (4x)
Mitsubishi (4x)
SONY (4x)
That’s (8x, 16x)
Ricoh (8x, 16x)
Verbatim (4x)
Verbatim (8x)
Verbatim (8x)
JVC (4x)
Imation (4x)
-
-
Victor (4x)
Maxell (4x)
-
-
Maxell (4x)
Ricoh (4x)
Downloaded From DvDPlayer-Manual.com JVC Manuals
7
Playable Discs
DVD (8 cm / 12 cm disc)
Discs such as movies that can be purchased or rented
Video CD (VCD) (8 cm / 12 cm disc)
VIDEO CDs or CD-Rs/CD-RWs in VIDEO CD/Super VIDEO CD format
Audio CD (8 cm / 12 cm disc)
Music CDs or CD-Rs/CD-RWs in music CD format that can be purchased
CD-R/CD-RW (8 cm / 12 cm disc)
CD-R/CD-RW discs that contain audio titles, MP3, WMA, JPEG or DivX files.
Notes:
• Depending on the conditions of the recording equipment or the CD-R/RW (or DVD±R/RW) disc itself, some
CD-R/RW (or DVD±R/RW) discs cannot be played on the unit.
•
Do not attach any seal or label to either side (the labeled side or the recorded side) of a disc.
•
Do not use irregularly shaped CDs (e.g., heart-shaped or octagonal). Doing so may result in malfunctions.
•
Depending on the recording software & the finalization, some recorded discs (CD-R/RW or DVD±R/RW)
may not be playable.
•
DVD-R/RW, DVD+R/RW and CD-R/RW discs recorded using a personal computer or a DVD or CD
Recorder may not play if the disc is damaged or dirty, or if there is dirt or condensation on the Recorder’s
lens.
•
If you record a disc using a personal computer, even if it is recorded in a compatible format, there are
cases in which it may not play because of the settings of the application software used to create the disc.
(Check with the software publisher for more detailed information.)
•
This recorder requires discs and recordings to meet certain technical standards in order to achieve optimal
playback quality. Pre-recorded DVDs are automatically set to these standards. There are many different
types of recordable disc formats (including CD-R containing MP3 or WMA files) and these require certain
pre-existing conditions (see above) to ensure compatible playback.
•
Customers should note that permission is required in order to download MP3 / WMA files and music from
the Internet. Our company has no right to grant such permission. Permission should always be sought
from the copyright owner.
Regional Code
This unit has a regional code printed on the rear of the unit. This unit can play only DVD discs labeled same as
the rear of the unit or “ALL”.
Notes on Regional Codes
• Most DVD discs have a globe with one or more numbers in it clearly visible on the cover. This number
must match your unit’s regional code or the disc cannot play.
•
If you try to play a DVD with a different regional code from the unit, the message “Incorrect region code.
Can't play back.”
Downloaded
From DvDPlayer-Manual.com JVC Manuals
8
•
You cannot record copy-protected video using this recorder. Copy-protected video includes DVD-Video
discs and some satellite broadcasts. If copy-protected material is encountered during a recording, recording
will pause or stop automatically and an error message will be displayed on-screen.
•
Video that is ‘copy-once only’ can only be recorded using a DVD-RW disc in VR mode with CPRM (see
below).
INTRODUCTION
Restrictions on video recording
What is ‘CPRM’?
CPRM is a copy protection system (with scramble system) only allowing the recording of ‘copy once’ broadcast
programs. CPRM stands for Content Protection for Recordable Media.
This Recorder is CPRM compatible, which means that you can record copy-once broadcast programs, but you
cannot then make a copy of those recordings. CPRM recordings can only be made on DVD-RW discs formatted in VR mode and CPRM recordings can only be played on players that are specifically compatible with
CPRM.
Copyright
•
Recording equipment should be used only for lawful copying and you are advised to check carefully what is
lawful copying in the area in which you are making a copy. Copying of copyright material such as films or
music is unlawful unless permitted by a legal exception or consented to by the rights owner.
•
This product incorporates copyright protection technology that is protected by method claims of certain U.S.
patents and other intellectual property rights owned by Macrovision Corporation and other rights owners.
Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended
for home and other limited viewing uses only, unless otherwise authorized by Macrovision corporation.
Reverse engineering or disassembly is prohibited.
Notice for Progressive Scan Use
CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE
OF 525 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH
THE CONNECTION TO THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING
YOUR TV SET COMPATIBILITY WITH THIS MODEL 525p VCR/DVD RECORDER, PLEASE CONTACT OUR
CUSTOMER SERVICE CENTER.
About the Remote Control
Battery installation
Point the Remote Control at the remote sensor and
press the buttons.
Detach the battery cover on the rear
of the Remote Control, and insert two
(R03/AAA) size batteries with 3 and
# aligned correctly.
Distance: About 23 ft (7 m) from the front of the
remote sensor.
Angle:
About 30° in each direction of the front of
the remote sensor.
Do not mix old and new batteries and never
mix different types of batteries such as standard, alkaline, etc.
Operation Range
Downloaded From DvDPlayer-Manual.com JVC Manuals
9
Front Panel
a
b
c
fgh i j
a
STANDBY/ON (1/`)
Switches the Recorder ON and OFF.
b
Disc Tray (DVD deck)
Insert a disc here.
c
Z OPEN/CLOSE
Opens or closes the disc tray.
d
Cassette Compartment (VCR deck)
Insert a video cassette here.
e
Z EJECT
Ejects the tape in the VCR deck.
f
N / X (PLAY / PAUSE)
Starts playback.
Pause playback or recording temporarily,
press again to exit pause mode.
g
x (STOP)
Stops playback.
h
z (REC)
Starts recording.
Press repeatedly to set the recording time.
i
CH (- / +)
Scans up or down through memorized
channels.
j
DUBBING
Press to copy DVD to VCR (or VCR to DVD).
Lights when the Recorder is dubbing.
k
Display window
Shows the current status of the Recorder.
Lights when a disc is in the DVD deck.
The DVD deck is selected.
Lights when recorder is in playing mode
or flashes when search mode.
Downloaded
10 From DvDPlayer-Manual.com JVC Manuals
d
k
l
e
mn
o p
q
The VCR deck is selected.
Indicates when the recorder is in timer
recording or a timer recording is
programmed.
A VHS tape is inserted in the VCR deck.
The recorder is recording.
Indicates PM time. (AM is not displayed.)
Indicates that TV mode is active.
Indicates total playing time,
elapsed time, remaining time
or current deck status.
l
Remote Sensor
Point the recorder Remote Control here.
m
DVD/VCR
Toggles control between the DVD deck and the
VCR deck.
n
OUTPUT STATUS
Sets the HDMI’s output resolution to 1080i,
720p, 480p or 480i formats for your TV or
Monitor.
Set the Component video output’s resolution to
480p or 480i format for your TV or Monitor.
o
DV IN
Connect the DV output of a digital camcorder.
p
S-VIDEO IN
Connect the S-Video output of an external source
(TV/ Monitor, VCR, Camcorder, etc.).
q
VIDEO /AUDIO (L(mono)/R)
Connect the audio/video output of an external source
(Audio system, TV/ Monitor, VCR, Camcorder, etc.).
Skips 30 seconds forward during
playback.
AV INPUT
a
Changes the input to use for recording
(Tuner, AV1, AV2, or DV IN).
JVC TV Control Buttons
- STANDBY/ON: Turns the TV on
or off.
- AV INPUT: Selects the TV’s
source.
- CH +/–: Selects TV’s channel.
- VOL +/–: Adjusts TV’s volume.
b
b
m/M
c
- DVD: Search backward or forward.
- VCR: Rewinds/Advances the tape
during the STOP mode, for fast
reverse/ forward picture search.
./>
Go to next chapter or track. Returns to
beginning of current chapter or track or
go to previous chapter or track.
PAUSE (X)
d
Pause playback or recording
temporarily.
Press repeatedly for frame-by-frame
playback.
PLAY (N)
Starts playback.
STOP (x)
Stops playback or recording.
c
HOME : Accesses or removes the
HOME menu.
DISC MENU/LIST
a
STANDBY/ON (1/`)
Turns Recorder ON and OFF.
Accesses menu on a DVD disc, Title
List or Playlist menu.
v/V
V)
CH (v
b B v V (left/right/up/down)
Select the Recorder’s function mode to
DVD.
ENTER ( )
Select the Recorder’s function mode to
VCR.
EJECT, OPEN/CLOSE (Z)
- Opens and closes the disc tray.
- Ejects the tape in the VCR deck.
d
AUDIO
Selects an audio language or an audio
channel.
SUBTITLE
Selects a subtitle language.
ZOOM
Enlarges DVD video image.
CHP. ADD
Inserts a chapter marker when playing/
recording.
z REC
Starts recording. Press repeatedly to
set the recording time.
REC MODE
Selects the recording mode:
- DVD : SP, LP, EP or XP.
- VCR : SP or SLP.
TITLE
Displays the disc’s Title menu, if
available.
THUMBNAIL
Selects a thumbnail picture for the
current title for use in the Title List
menu.
PLAY MODE
Selects play mode.
MARKER
Marks any point during playback.
SEARCH
Displays Marker Search menu.
CLEAR
Removes a mark on the Marker
Search menu.
TV/VCR
To view channels selected by the VCR
tuner or by the TV tuner.
DUBBING
Press to copy DVD to VCR (or VCR to
DVD).
OUTPUT STATUS
Sets the output resolution for HDMI
and Component video out.
Selects a channel. Adjusts manually
the tape’s picture onscreen.
DVD
VCR
INTRODUCTION
Remote Control
Selects menu options.
Confirms menu selections.
DISPLAY
Accesses On-Screen Display.
Displays information of current status.
RETURN (O)
Removes the menu.
0-9 numerical buttons
- Selects numbered options in a menu.
- Inputs channel numbers.
Downloaded From DvDPlayer-Manual.com JVC Manuals
11
Rear Panel
a
b cd
e
i
j
k
a
ANT. IN
Connect the antenna to this terminal.
b
S-VIDEO OUT
Connect to a S-Video Input on TV.
c
COMPONENT/PROGRESSIVE SCAN VIDEO
OUT (Y Pb Pr)
Connect to a TV with Y Pb Pr inputs.
d
AUDIO OUT (Left/Right)
Connect to a TV or other equipment with audio
inputs.
e
AV IN 1 (VIDEO IN /AUDIO IN (Left/Right))
Connect the audio/video output of an external
source (Audio system, TV/Monitor, VCR,
Camcorder).
f
f
g
l
g
Cooling fan
h
AC Power Cord
Plug into the power source.
i
RF. OUT
Connect to a TV with RF coaxial inputs.
j
COAXIAL (DIGITAL AUDIO OUT jack)
Connect to digital (coaxial) audio equipment.
k
AV OUT (VIDEO OUT / AUDIO OUT
(Left/Right))
Connect to a TV with video and audio inputs.
l
HDMI OUT
HDMI output providing a high quality interface
for digital audio and video.
OPTICAL (DIGITAL AUDIO OUT jack)
Connect to digital (optical) audio equipment.
Caution
Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause
permanent damage to the unit.
Downloaded
12 From DvDPlayer-Manual.com JVC Manuals
h
Hookup and Settings
Depending on your TV and other equipment
there are various ways you can connect the
recorder. Please refer to the manuals of your
TV, VCR, Stereo System or other devices as
necessary for additional connection information.
a
Antenna
OR
HOOKUP AND
SETTINGS
OR
Antenna
Notes:
•
Make sure the Recorder is connected directly to the TV
and tune the TV to the correct video input channel.
•
Do not connect the Recorder’s AUDIO OUT jack to the
phono in jack (record deck) of your audio system.
Do not connect the Recorder via another VCR. The
DVD image could be distorted by the copy protection
system.
•
The picture and sound of a nearby TV, VCR, or radio
may be distorted during playback. Position the units
away from each other or turn off the unit after removing
the disc.
Rear of Recorder
b
Connecting an Antenna
or Cable TV
a Antenna:
Disconnect the antenna from the rear of the TV and
identify the antenna cable. If it is a round 75 ohm
coaxial cable connect it directly to the jack marked
ANT. IN on your Recorder. If your antenna cable is
flat connect it to a 300-ohm to 75-ohm antenna
adaptor (not supplied) and slip the adaptor over the
ANT. IN jack. Don’t attempt to screw it into to the
Recorder.
b Cable TV:
If your cable connection has no converter or
descrambler, unscrew the cable from your TV and
attach it to the ANT. IN jack on the Recorder.
If a converter is required connect a coaxial cable from
the wall jack to the IN connector on the converter,
and a coaxial cable from the OUT connector on the
converter to the ANT. IN on your Recorder. This cable
hookup permits both TV and Recorder operation.
Downloaded From DvDPlayer-Manual.com JVC Manuals
To view or record a CATV channel
1. Tune the TV to the Recorder output channel (CH
3 or 4).
2. Set the Recorder channel selector to the cable
output channel. (Example: CH3)
3. Select a channel using the cable converter.
Notes:
•
With this connection, you cannot record one program
while viewing another.
•
If you are using a cable box to tune channels, it is not
necessary to do Auto Channel Set.
13
Connections to your TV
Notes:
•
Set the resolution to 480p using OUTPUT STATUS
button for progressive signal.
•
Progressive Scan does not work with the RF,
Audio/Video or S-Video connections.
Connect the RF OUT jack on the Recorder to the
antenna in jack on the TV using the supplied 75-ohm
Coaxial Cable (R).
•
If your TV does not accept the Progressive Scan format,
the picture will appear scrambled.
•
If the resolution is set to 720p or 1080i, the VIDEO OUT,
S-VIDEO OUT and COMPONENT VIDEO OUT connections are not available.
How to set the Recorder’s RF output channel
•
The TV aspect ratio is different in resolution setting.
“16:9” for 720p/1080i resolution and “4:3” for 480p/480i
resolution.
Make one of the following connections, depending on
the capabilities of your TV.
RF coaxial connection
1. When the Recorder is turned off, press and hold
CH (- / +) on the front panel for more than five
seconds. [RF03] or [RF04] appears in the display
window.
2. Press CH (- / +) to change the RF output channel
(RF03 or RF04).
Audio connection
Connect the Left and Right AUDIO OUT jacks on the
Recorder to the audio left/right in jacks on the TV
using the supplied audio cables (A1 or A2).
3. Tune the TV to this channel.
Rear of TV
S-VIDEO
INPUT
Video connection
COMPONENT/PROGRESSIVE SCAN
VIDEO INPUT
Pr
Connect the VIDEO OUT jack on the Recorder to the
video in jack on the TV using the video cable
supplied (V).
S
C
Pb
AUDIO INPUT
R
Y
L
A2
Note:
If you use this connection, set the TV’s source selector to
VIDEO.
Rear of Recorder
S-Video connection
Connect the S-VIDEO OUT jack on the Recorder to
the S-Video in jack on the TV using an optional
S-Video cable (S).
Component Video / Progressive Scan
connection
R
If your television is a high-definition or “digital ready”
television, you may take advantage of the Recorder’s
progressive scan output for higher video resolution.
Connect the COMPONENT/PROGRESSIVE SCAN
VIDEO OUT jacks on the Recorder to the corresponding in jacks on the TV using an optional Y Pb Pr
cable (C).
Downloaded
14 From DvDPlayer-Manual.com JVC Manuals
Rear of TV
V
A1
HDMI connection
If you have a HDMI TV or monitor, you can connect it
to this recorder using a HDMI cable.
1. Connect the HDMI OUT jack on the recorder to
the HDMI jack on a HDMI compatible TV or monitor (H).
HDMI compatible TV
HDMI
H
2. Set the TV’s source to HDMI (refer to TV’s
Owner’s manual).
•
•
•
•
If your TV is NOT capable of handling 96 kHz sampling frequency, set the [Sampling Freq.] option to [48
kHz] on the setup menu (See page 22). When this
choice is made, this unit will automatically convert any
96 kHz signals to 48 kHz so your system can decode
them.
If your TV is not equipped with Dolby Digital and
MPEG decoder, set the [Dolby Digital] and [MPEG]
options to [PCM] on the setup menu (See page 22).
If your TV is not equipped with DTS decoder, set the
[DTS] options to [OFF] on the setup menu (See page
22). To enjoy DTS multi channel surround, you must
connect this recorder to a DTS compatible receiver via
one of this recorder’s digital audio outputs.
The arrow on the cable connector body should face
up for correct alignment with the connector on the
recorder.
(Type A)
•
•
•
•
If there is noise or lines on the screen, please check
the HDMI cable.
If the resolution is set to 720p or 1080i in HDMI mode,
the screen aspect ratio will be changed from 4:3 to
16:9 wide screen. In this case, change the aspect
ratio of your TV.
The output from the AV OUT and S-VIDEO OUT can
not be obtained when the resolution is set to 720p or
1080i.
The picture from the AV OUT and S-VIDEO OUT may
not be obtained correctly when the resolution is set to
480p. In this case, press OUTPUT STATUS repeatedly to set the resolution to 480i.
•
The green flash noise may appear on the screen
when turnning on the TV power, connecting an HDMI
cable or changing input mode. It is a symtom of signal
detecting process, not a malfunction.
•
Changing the resolution when the recorder is
connected with HDMI connector may result in
malfunctions. To solve the problem, turn off the
recorder and then turn it on again or change the
resolution.
HOOKUP AND
SETTINGS
Notes:
About HDMI
HDMI (High Definition Multimedia Interface) supports
both video and audio on a single digital connection
for use with DVD Players, Set-Top Boxes, and other
AV devices.
HDMI was developed to provide the technologies of
HDCP (High Definition Contents Protection). HDCP is
used to protect digital content transmitted and
received.
HDMI has the capability to support standard, enhanced,
or high-definition video plus standard to multi-channel
surround-sound audio, HDMI features include uncompressed digital video, a bandwidth of up to 5 gigabytes
per second, one connector (instead of several cables
and connectors), and communication between the AV
source and AV devices such as DTVs.
HDMI, the HDMI logo and High-Definition Multimedia
Interface are trademarks or registered trademarks of
HDMI licensing LLC.
Additional Information for HDMI
• When you connect a HDMI or DVI compatible
device make sure of the followings:
- Try switching off the HDMI/DVI device and this
recorder. Next, switch on the HDMI/DVI device
and leave it for around 30 seconds, then switch
on this recorder.
- The connected device’s video input is set
correctly for this unit.
- The connected device is compatible with
720(1440)x480i, 720x480p, 1280x720p or
1920x1080i video input.
• Not all HDCP-compatible DVI devices will work
with this recorder.
• The picture will not be displayed properly with
non-HDCP devices.
Tip :
When you use HDMI connection, you can change the
resolution (480i, 480p, 720p, or 1080i) for the HDMI
output using OUTPUT STATUS button.
Downloaded From DvDPlayer-Manual.com JVC Manuals
15
Connection to an Amplifier
Connecting to an amplifier equipped with two
channel analog stereo or Dolby Pro Logic II/Pro
Logic
Rear of Recorder
Connect the Left and Right AUDIO OUT (or AV OUT
AUDIO) jacks on the Recorder to the audio left and
right in jacks on your amplifier, receiver, or stereo
system using the audio cables (A) supplied.
Connecting to an amplifier equipped with two
channel digital stereo (PCM) or to an Audio/Video
receiver equipped with a multi-channel decoder
(Dolby Digital™, MPEG 2, or DTS)
1. Connect one of the Recorder’s DIGITAL AUDIO
OUT jacks (OPTICAL O, COAXIAL X) to the
corresponding in jack on your amplifier. Use an
optional digital (OPTICAL O, COAXIAL X) audio
cable.
2. You will need to activate the Recorder ’s digital
output. (See [Audio Settings] on page 22).
X
O
A
Digital Multi-channel sound
A digital multi-channel connection provides the best
sound quality. For this you need a multi-channel
Audio/Video receiver that supports one or more of the
audio formats supported by your Recorder (MPEG 2,
Dolby Digital and DTS). Check the receiver manual
and the logos on the front of the receiver.
Notes:
COAXIAL
DIGITAL INPUT
L
R
AUDIO INPUT
OPTICAL
DIGITAL INPUT
Amplifier (Receiver)
•
Due to the DTS Licensing agreement, the digital
output will be in DTS digital out when DTS audio stream
is selected.
Manufactured under license from Dolby
Laboratories. “Dolby”, “Pro Logic”, and the
double-D symbol are trademarks of Dolby
Laboratories.
•
If the audio format of the digital output does not match the
capabilities of your receiver, the receiver will produce a
strong, distorted sound or no sound at all.
DTS and DTS Digital Out are trademarks of
Digital Theater Systems, Inc.
•
Six Channel Digital Surround Sound via digital connection can only be obtained if your receiver is equipped
with a Digital Multi-channel decoder.
•
To see the audio format of the current DVD in the onscreen display, press AUDIO.
•
This Recorder does not perform internal (2 channel)
decoding of a DTS sound track. To enjoy DTS multi
channel surround, you must connect this Recorder to a
DTS compatible receiver via one of this Recorder’s digital audio outputs.
Downloaded
16 From DvDPlayer-Manual.com JVC Manuals
Accessory Audio/V ideo (A/V)
Connections to Recorder
Connecting a Digital
Camcorder
Connect the AV IN jacks on the Recorder to the
audio/video out jacks on your accessory component,
using the optional audio/video cables. (Refer to page
40 for [Recording from External Components].)
Use a DV cable (not supplied) to connect the DV
in/out jack of your DV Digital Camcorder to the front
panel DV IN jack of this Recorder.
•
HOOKUP AND
SETTINGS
Note:
If you use the S-VIDEO IN jack on the front panel,
the VIDEO IN jack on the front panel is not available.
Notes:
• This jack is for connection to DV equipment only.
It is not compatible with digital satellite tuners or
D-VHS video decks.
Some camcorder or devices other than camcorder
may not be operated properly with this unit.
DV Digital Camcorder
DV
IN/OUT
Front of Recorder
Rear of Recorder
Front of Recorder
Downloaded From DvDPlayer-Manual.com JVC Manuals
17
Initial Setup W izard
4. Select [Auto] or [Manual] Clock Set option then
press ENTER.
When STANDBY/ON is pressed for the first time to
turn the unit on, the Initial Setup Wizard function sets
the Language, Channels and Clock.
1. Use v / V to select a language for the Setup
menu and information display and then press
ENTER.
Auto
1. Use v / V to choose your Time Zone
manually.
2. Use B to choose the [Daylight Savings]
option. Use v / V to choose Auto, ON, or
OFF.
3. Press ENTER to confirm your setting.
2. Check your antenna connections.
Press B to move next step.
Manual
1. Enter the necessary information for year, date
and time.
b / B (left/right): Moves the cursor to the
previous or next column.
v / V (up/down): Changes the setting at the
current cursor position.
2. Press ENTER to confirm your setting.
5. Press ENTER to complete the Setup Wizard.
3. Press ENTER to begin the channel search.
Note:
You can reset the Initial Setup Wizard from the
[Factory Set] in the setup menu.(see page 21).
Downloaded
18 From DvDPlayer-Manual.com JVC Manuals
From the Home Menu screen you can access all the
Media for playback and recording of the recorder.
1. Press HOME and the Home menu appears.
2. Use b / B to select the desired main option.
3. Use v / V to select the desired Sub option then
press ENTER to confirm your selection.
4. To exit the HOME menu, press HOME.
Setup
•
Start: Displays Setup menu.
Easy Menu
•
Dubbing : Displays [Dubbing] menu.
•
Disc Manager : Displays Disc Setup menu.
•
Rec. Mode : Displays Record Mode setup menu.
•
DV Input : Change to DV Input mode.
HOOKUP AND
SETTINGS
Using the Home Menu
Initial Settings
In this menu system, there are several ways to customize the settings provided. Most menus consist of
three levels to set up the options, but some require
greater depth for the variety of settings.
1. Press HOME and the Home menu appears.
2. Select [Setup] > [Start] and press ENTER.
TV
•
Auto Ch. Scan : Displays [Auto Channel Set]
menu. (See page 20)
•
Ch. Edit : Displays [CH. Add/Del] menu.
(See page 20)
•
Timer Record : Displays [Timer Record] menu.
(See page 37)
Movie
•
VCR: Plays back VHS cassette.
•
DISC:
- Displays TITLE LIST menu for recordable disc
(page 42)
- Displays Movie menu for DivX disc. (page 31)
- Plays back Video Disc or DVD-Video disc
(page 28-30).
Photo (See page 33)
•
DISC: Displays [Photo] menu for disc.
3. Use v / V to select the desired option.
4. While the desired item is selected, press B to
move to the second level.
5. Use v / V to select the second desired option.
6. Press B to move to the third level.
7. Use v / V to select the desired setting then press
ENTER to confirm your selection.
Some items require additional steps.
8. Press RETURN (O) or HOME to exit the Setup
menu.
Note:
Press b to go back to the previous level.
Music (See page 32)
•
DISC: Displays Music (or Audio CD) menu for
disc.
Downloaded From DvDPlayer-Manual.com JVC Manuals
19
General Settings
To Add or Erase Channels
Tuning Band Select
This feature allows you to add to or erase channels
from memory manually.
1. Select the [Tuning Band] option then press B .
1. Select the [CH. Add/Del] option.
2. Use v / V to select the tuning band (TV or
CATV) option then press ENTER.
TV: If you are using a standard antenna to receive
channels.
CATV: If you are using basic cable to receive
channels.
2. Press B to move to the third level.
[Edit] icon is highlighted.
3. Press ENTER and the Channel Edit menu
appears.
4. Use v / V or number buttons to select a channel
then press B.
5. If you want to obtain a clearer picture, tune the
[MFT] option using v / V then press B.
[Add] or [Delete] icon is highlighted.
6. Press ENTER to confirm your setting.
Auto Channel Set
Connect the Recorder to the desired type of antenna
or cable TV system as shown on page 13.
This Recorder is equipped with a frequency synthesized tuner capable of receiving up to 181 channels.
These include VHF channels 2-13, UHF channels 1469 and CATV channels 1-125.
1. Select the [Auto Channel Set] option.
2. Press B to move to the third level.
[Start] icon is highlighted.
3. Press ENTER to begin the channel search.
The tuner will automatically cycle through all
available channels in the area and place them in
the tuner’s memory.
Note:
After the Auto Channel Set proceeding is complete,
make sure the Tuning Band is set appropriately (TV
or CATV) on tuning band, follow steps 1~2 as shown
previous (Tuning Band Select) to choose the correct
Tuning Band (TV or CATV).
7. Repeat steps 4-6 to add or erase additional
channels.
8. Press HOME or RETURN (O) to exit the menu.
Clock Set
Auto
In the Auto option, the Recorder looks for a channel carrying XDS (Extended Data Services) information. XDS updates the clock using the
Coordinated Universal Time.
1. Select the [Clock Set] > [Auto] option.
2. Press ENTER.
3. Use v / V to choose your Time Zone
manually. When Timezone is set to Auto,
the Recorder will use XDS information to
determine the proper setting.
4. Use B to choose the [Daylight Savings]
option.
Use v / V to choose Auto, ON, or OFF.
When it is set to Auto, the Recorder will use
XDS information to determine the proper setting.
5. Press ENTER to confirm your setting.
6. Press HOME to exit the Setup menu.
Notes :
Downloaded
20 From DvDPlayer-Manual.com JVC Manuals
•
The Auto Clock Feature enables the Recorder
to set up the clock when the Recorder is
turned off.
•
The “Auto Clock” function may not be operated properly. This is a performance of the unit,
not a malfunction.
Manual
If your local TV station does not send date and
time information, or sends incorrect information,
you can set the clock manually.
Language Settings
Display Menu
1. Select the [Clock Set] > [Manual] option.
Select a language for the Setup menu and
information display.
2. Press ENTER.
\
HOOKUP AND
SETTINGS
3. Enter the necessary information for year, date
and time.
b / B (left/right): Moves the cursor to the
previous or next column.
v / V (up/down): Changes the setting at the
current cursor position.
4. Press ENTER to confirm your setting.
5. Press HOME to exit the Setup menu.
TV Aspect
4:3 Letter Box:
Select when a standard 4:3 TV is connected.
Displays theatrical images with masking bars
above and below the picture.
4:3 Pan Scan:
Select when a standard 4:3 TV is connected.
Displays pictures cropped to fill your TV screen.
Both sides of the picture are cut off.
16:9 Wide:
Select when a 16:9 wide TV is connected.
Disc Menu / Audio / Subtitle
[Original] : Refers to the original language in
which the disc was recorded.
[Others] : To select another language, press
number buttons to enter the corresponding 4-digit
number according to the language code list in the
reference chapter (see page 50). If you enter the
wrong language code, press CLEAR.
[OFF] (for Disc Subtitle) : Turn off Subtitle.
Power Save Mode
Set Power Save Mode to [ON] to place your
Recorder into an economic power save mode.
Nothing is displayed in the display window when the
unit is turned off.
Factory Set
You can reset the Recorder to its original factory
settings.
1. Select the [Factory Set] option.
2. Press B to select [SET] then press ENTER.
3. Select [OK] and press ENTER.
4. Follow the Initial Setup Wizard on page 18.
Downloaded From DvDPlayer-Manual.com JVC Manuals
21
Audio Settings
Recording Settings
Each DVD disc has a variety of audio output options.
Set the Recorder’s Audio Output according to the
type of audio system you use.
Disc Record Mode
You can set the picture quality for recording;
XP (Excellent quality), SP (Standard quality), LP (Low
quality), EP (Extend quality).
Dolby Digital / DTS / MPEG
[Bitstream]: Select [Bitstream] if you connect the
DVD+VCR’s DIGITAL AUDIO OUT jack to an
amplifier or other equipment with a Dolby Digital,
DTS or MPEG decoder. The TV. HDMI audio cannot be heard from the HDMI connection. In this
case, change the Audio setting to “PCM” to solve
the problem.
[PCM] (for Dolby Digital / MPEG): Select when
connected to a two-channel digital stereo amplifier. DVDs encoded in Dolby Digital or MPEG will
be automatically downmixed to two-channel PCM
audio.
[OFF] (for DTS): If you select [OFF], the DTS
signal is not output through the DIGITAL AUDIO
OUT jack.
Sampling Freq. (Frequency)
If your receiver or amplifier is NOT capable of handling 96 kHz signals, select 48 kHz. When this choice
is made, this unit automatically converts any 96 kHz
signals to 48 kHz so your system can decode them.
If your receiver or amplifier is capable of handling 96
kHz signals, select 96 kHz. When this choice is
made, this unit passes each type of signal through
without any further processing.
Check the documentation for your amplifier to verify
its capabilities.
DRC (Dynamic Range Control)
With the DVD format, you can hear a program’s
soundtrack in the most accurate and realistic presentation possible, thanks to digital audio technology.
However, you may wish to compress the dynamic
range of the audio output (the difference between the
loudest sounds and the quietest ones). This allows
you to listen to a movie at a lower volume without losing clarity of sound. Set DRC to [ON] for this effect.
Downloaded
22 From DvDPlayer-Manual.com JVC Manuals
1. Select the [Disc Record Mode] option then press
B.
2. Use v / V to select a desired Disc Record Mode
(XP, SP, LP or EP).
3. Press ENTER to confirm your selection, then
press HOME to exit the menu.
VCR Record Mode
You can set the picture quality for VCR recording;
SP (Standard Play), SLP (Super Long Play).
DV Record Audio
You need to set this if you have a camcorder using
32kHz/12-bit sound connected to the front panel DV
IN jack. Some digital camcorders have two stereo
tracks for audio. One is recorded at the time of shooting; the other is for overdubbing after shooting.
On the Audio 1 setting, the sound that was recorded
while shooting is used. On the Audio 2 setting, the
overdubbed sound is used.
Auto Chapter
During recording, chapter markers are added automatically at fixed intervals. You can set this interval to
5 minutes or 10 minutes. To turn off automatic chapter marking, select [None].
Notes:
•
Once you have finalized a DVD-R and DVD+R disc, you
cannot edit or record anything else on that disc except
DVD+RW. However, you can record and edit a DVD-RW
disc by choosing [Unfinalize] option.
•
Finalization can take up to 3-4 minutes or more depending on the type of disc, how much is recorded on the
disc, and the number of titles on the disc.
Initialize
If you load a completely blank disc, the recorder will
initialize the disc.
•
DVD-R: The recorder initialize the disc to Video mode.
The recording mode will always be Video mode.
•
DVD-RW/DVD+RW/DVD+R: The Initialize menu will
appears. Select [OK] then press ENTER. DVD-RW disc
is initialized to Video mode.
Tips:
•
If you load a DVD-RW that has already been finalized,
you can ‘Unfinalize’ it by choosing [Unfinalize] from the
Finalize menu. After doing this, you can edit and rerecord onto the disc.
•
You cannot unfinalize a DVD-R, DVD+R and DVD+RW
disc.
•
If [Disc Protect] option is set to [ON], the finalize is not
available. To finalize, set [Disc Protect] option to [OFF].
Also, you can reformat the DVD-RW/+RW
from the Setup menu as below.
HOOKUP AND
SETTINGS
Disc Settings
Disc Label
Use the Disc Label feature to enter a name for the
disc. This name appears when you load the disc and
when you display disc information on-screen.
1. Select the [Initialize] option then press B.
[Start] icon is highlighted.
2. Press ENTER.
•
The Disc label can be up to 32 characters long.
•
For discs formatted on a different Recorder, you
will see only a limited character set.
•
In case of DVD-RW, use b / B to select a
desired Disc Initialize Mode (VR Mode or Video
Mode) then press ENTER.
1. Select the [Disc Label] option then press B.
[Edit] icon is highlighted.
•
In case of DVD+RW use b / B to select [OK],
and press ENTER.
It takes a few moments to format the disc.
2. Press ENTER.
Keyboard menu appears.
To enter characters, see page 46.
Note:
If you want to change the disc format, everything
recorded on the disc will be erased.
Finalize
Finalizing ‘fixes’ the recordings in place so that the
disc can be played on a regular DVD player or computer equipped with a suitable DVD-ROM drive.
Finalizing a Video mode disc creates a menu screen
for navigating the disc. This is accessed by pressing
DISC MENU/LIST or TITLE.
1. Select the [Finalize] option then press B.
2. Press ENTER while [Finalize] is selected.
Finalize menu appears.
Disc Protect
Depending on the type of disc you are using, Disc
Protect allows you to preserve your recordings in a
variety of ways:
•
DVD+RW : Prevents editing, erasing, overwriting
of existing recordings and regular recording.
•
DVD+R/DVD-RW (VR mode): Prevents
editing, erasing and regular recording.
Notes:
•
Disc Protect is not compatible with DVD-RW discs in
Video mode or DVD-R discs.
•
If you need to unlock a disc to make edits, select [OFF].
3. Select [OK] then press ENTER.
The Recorder starts finalizing the disc.
Downloaded From DvDPlayer-Manual.com JVC Manuals
23
PBC
PBC stands for Playback Control and refers to special
menus and navigation features that are available on
some Video CDs.
[ON]: Video CDs are played according to the PBC, if
available.
[OFF]: Video CDs are played the same way as Audio
CDs.
AutoPlay
Remote Control Function
Remote Control A/B/C/D Code
Switching
The remote control is capable of controlling four JVC
video units independently. Each of the units can
respond to one of four codes (A, B, C or D). The
remote control is preset to send C code signals
because your unit is initially set to respond to C
code signals. You can easily modify your unit to
respond to A, B or D code signals.
When you load a DVD with AutoPlay turned on, the
Recorder will bypass the Disc menu and trailers and
start playing the movie automatically.
Set [AutoPlay] to [ON] or [OFF].
DivX Registration Code
DivX
We provide you the DivX® VOD (Video On Demand)
registration code that allows you to rent and purchase
videos using the DivX® VOD service. For more
information, visit www.divx.com/vod.
B/``
STANDBY/ON (1/&)
Number 1-4
1. Select [About DivX(R)] option then press B.
2. Press ENTER while [Enter] is selected and the
registration code will appear.
STOP (x)
3. Use the registration code to purchase or rent the
videos from Divx® VOD service at
www.divx.com/vod. Follow the instructions and
download the video onto a disc for playback on
this unit.
ENTER (
)
Note:
All the downloaded videos from DivX® VOD can only
be played back on this unit.
1. Press STANDBY/ON (1/&) on the unit to turn off
the unit with no video tape inserted.
2. Press the number key “1” for A, “2” for B, “3” for
C or “4” for D while pressing ENTER ( ) down
on the remote control.
3. Press N/`` on the unit for over 5 seconds while
the unit is turned off. The current code appears
on the display window.
4. Press STOP (x) on the remote control, the current code on the display window changes to new
code and blinks for approximately 10 seconds.
5. The new code setup on unit and remote is done.
Note:
If the power is interrupted, the remote control code of this
unit will change to “C”. You should reset the remote control
code, if you want to change the code to A, B or D.
Downloaded
24 From DvDPlayer-Manual.com JVC Manuals
General Explanation of
On-Screen Display
Some DVDs require specific operation or allow only
limited operation during playback. When this occurs,
is displayed, action prohibited or not available.
Displaying Disc Information
on-screen
You can display various information about the disc or
tape loaded on-screen. Some items can be changed
using the menu.
1. Press DISPLAY once to show current status.
Displaying Information While
Watching TV
HOOKUP AND
SETTINGS
Example: DVD-Video disc
While watching TV, press DISPLAY to display/
remove the information displayed on-screen.
e.g., when DVD-RW in VR mode is inserted.
Indicates disc name and format.
Indicates the record mode,
free space, and elapsed time
progress bar.
Indicates channel
number and audio
input signal received
by the tuner.
2. Press DISPLAY once again to show various
playback information.
The items displayed differ depending on the disc
type or playing status.
Indicates output audio signal.
Indicates current date and time.
Indicates operational mode of the recorder.
Changing TV Audio Channel
Some TV programs are broadcast with both a main
and a Secondary Audio Program (SAP). You can
change the TV audio.
Press AUDIO repeatedly to change the TV audio,
according to Broadcast audio signal as shown below.
•
•
•
•
STEREO+SAP Audio Signal
Stereo → SAP → Mono → Stereo
STEREO Audio Signal
Stereo → L → R → Mono → Stereo
SAP Audio Signal
Mono → SAP → Mono
MONO Audio Signal
Mono
The current audio channel is displayed
on-screen.
•
•
If SAP is selected, but there is no SAP channel
being broadcast, you will still hear the main audio
(Mono or Stereo) channel.
If the sound is poor quality when set to Stereo,
you can often improve it by changing to Mono.
Downloaded From DvDPlayer-Manual.com JVC Manuals
3. You can select an item by pressing v / V and
change or select the setting by pressing b / B.
For details about each item, see the pages in
parentheses.
•
•
•
•
•
•
•
[Title]: Current title (or track) number/total
number of titles (or tracks) (page 28)
[Chapter]: Current chapter number/total
number of chapters (page 28)
[Time]: Elapsed playing time (page 30)
[Audio]: Selected audio language (DVD
VIDEO only) or audio channel (page 29)
[Subtitle]: Selected subtitle (page 28)
[Angle]: Selected angle/total number of angles
(page 30)
[Sound]: Selected sound mode (page 30)
Note:
If no button is pressed for 10 seconds, the on-screen display disappears.
25
Playback
Playing a Tape
Playing a DVD or V ideo CD
1. Press VCR to control the VCR deck.
1. Press DVD to control the DVD deck.
2. Insert a pre-recorded video cassette.
2. Press OPEN/CLOSE (Z) to open the disc tray.
Load your chosen disc in the tray, with the
playback side down.
•
If the unit is powered off, it will power on
automatically when the tape is loaded.
•
If the Timer indicator lights on the front panel
display window, press STANDBY/ON once.
3. Press PLAY (N) to start playback.
•
If a tape without a safety tab is inserted the
unit starts playback automatically.
4. Press STOP (x) to stop playback.
•
If the tape reaches the end before you press
STOP (x) the Recorder automatically stops,
rewinds and ejects the tape.
Notes:
•
•
S-VHS Quasi Playback (SQPB)
-
This Recorder can play back S-VHS recorded
tapes.
-
SQPB is an abbreviation for S-VHS Quasi
Playback.
If you insert an unformatted disc during the VCR
playback, the unit will stop the VCR playback and
change to DVD mode automatically, then the disc
initialize menu will appears.
Downloaded
26 From DvDPlayer-Manual.com JVC Manuals
3. Press OPEN/CLOSE (Z) to close the tray.
Playback starts automatically. If playback does
not start, press PLAY (N) or Starts playback
using HOME menu.
4. To stop the playback, press STOP (x).
The unit records the stopped point, depending on
the disc. “Xx” appears on the screen briefly.
Press PLAY (N) to resume playback (from the
scene point). If you press STOP (x) again or
unload the disc (“x” appears on the screen.), the
unit will clear the stopped point.
5. Press OPEN/CLOSE (Z) to remove the disc.
Press OPEN/CLOSE (Z) to close disc tray or
press STANDBY/ON (1/`), the disc tray closes
automatically and unit turns off.
Note:
•
After loading a disc, the black screen may
appears for a moment. It is not a malfunction.
VCR Playback Features
Buttons
Operations
EJECT (Z)
Ejects the tape in the VCR deck.
PAUSE (X)
Pause playback.
Press repeatedly to step forward one frame at a time.
•
m (BACKWARD)
Scan forward.
In Stop mode, fast forwards the tape.
In Pause mode, starts slow motion playback.
•
After 3 minutes in SEARCH mode the Recorder returns to PLAY mode to protect the tape and
video heads
•
After 3 minutes in SLOW MOTION mode the Recorder goes back to PLAY mode to protect the
tape and video heads.
PLAYBACK
M (FORWARD)
After 5 minutes in STILL mode the Recorder stops to protect
the tape and video heads.
Scan backward.
In Stop mode, rewinds the tape.
•
After 3 minutes in SEARCH mode the Recorder returns to PLAY mode to protect the tape and
video heads.
CLEAR
Resets the current tape counter position to 0:00:00. To automatically goto tape counter
position 0:00:00, press RETURN while the tape is in Stop mode.
CH (v+ / V-)
Manually reduces noise on the screen during tape playback. Tracking is set
automatically when a tape is inserted.
AUDIO
Sets tape audio to HIFI, LEFT, RIGHT or NORMAL.
Use b/B buttons to select tape audio you want.
Press repeatedly during playback to skip forward
about 30 seconds (maximum 180 seconds).
Downloaded From DvDPlayer-Manual.com JVC Manuals
27
DVD or Video CD Playback Features
Buttons
Operations
Discs
OPEN / CLOSE (Z)
Opens or closes the disc tray.
All Discs
PAUSE (X)
Pause playback.
All Discs
Press repeatedly to play Frame-by-Frame.
You can also use b / B to step backward and forward
while in Pause mode.
• This function is forward only for Video CD.
DVD ALL
VCD
DVD ALL
ACD
VCD
In Pause mode, press m (BACKWARD) /
M (FORWARD) for slow motion playback (4 steps).
- DVD; 4 steps,
- Video CD; 3 steps
•
This function is forward only for Video CD.
DVD ALL
VCD
Press > or . briefly during playback to select the
next chapter/track or to return to the beginning of the current chapter/track.
Press . twice in quick successions to step back to the
previous chapter.
DVD ALL VCD DivX
ACD MP3 WMA
m (BACKWARD) / M (FORWARD)
During playback, press repeatedly to select the required
scan speed.
- DVD; 5 steps,
- Video CD, DivX, Audio CD; 3 steps
./>
•
To go directly to any chapter during playback, press
DISPLAY twice and use v / V to select the chapter or
track (for Video CD) icon. Input the chapter/track number or use b / B.
• On a Video CD with PBC, you must set PBC to [OFF]
in the Setup menu to use this function (See page 24).
•
On an Audio CD, to go directly to any track, enter the
track number using the numbered buttons (0-9) during
playback.
ZOOM
Enlarge the video image.
(x1 size → x2 size → x4 size → x1 size (normal size))
You can move through the zoomed picture using b B v V
buttons.
TITLE
If the current DVD title has a menu, the title menu appears DVD
on the screen. Otherwise, the disc menu may appears.
DISC MENU/LIST
The disc menu appears on the screen.
DVD
SUBTITLE
During playback, press SUBTITLE then press b / B
repeatedly to select a desired subtitle language.
DVD
Press repeatedly during playback to skip forward
about 30 seconds.
DVD ALL
Downloaded
28 From DvDPlayer-Manual.com JVC Manuals
DVD ALL
DivX
DivX
DVD or Video CD Playback Features (Continued)
Buttons
Operations
PLAY MODE
Select a desired play mode while playback.
AUDIO
Discs
[A-] : Repeats a sequence between A (Start point) and B
(End point) during playback. Press ENTER at your
chosen end point then the repeat sequence begins.
DVD ALL VCD
Karaoke DVD
[CHAPTER] : Repeats the current chapter.
DVD ALL
[TITLE] : Repeats the current title.
DVD ALL
[ALL] : Repeats the all titles/tracks.
VCD ACD -RWVR
[TRACK] : Repeats the current track.
VCD ACD MP3 WMA
[RANDOM] : Random playback
VCD
[Folder] : Repeats all the tracks on a folder of a disc.
MP3 WMA
[OFF] : Does not play repeatedly.
DVD ALL
On a Video CD with PBC, you must set PBC to [OFF]
in the Setup menu to use this function (See page 24).
•
If you press > once during Repeat Chapter (Track)
playback, the repeat playback cancels.
•
By pressing > during Random playback, the
Recorder selects another title (track) and resumes
Random playback.
Press AUDIO then press b / B repeatedly to hear a
different audio language or audio track.
Karaoke DVD
Karaoke DVD
PLAYBACK
•
ACD
DVD
Note:
Some discs feature both Dolby Digital and DTS soundtracks. There is no analog audio output when DTS is
selected. To listen to the DTS soundtrack, connect this
recorder to a DTS decoder via one of the digital outputs.
See page 16 for connection details.
Press AUDIO then press b / B repeatedly during playback
-RWVR -RWVideo
to hear a different audio channel.
+RW
-R
+R
With DVD-RW discs recorded in VR mode that have both
a main and a Bilingual audio channel, you can switch
between Main (L), Bilingual (R), or a mix of both (Main +
Bilingual) by pressing AUDIO.
Downloaded From DvDPlayer-Manual.com JVC Manuals
VCD
29
Special Playback Options
If a menu screen is displayed DVD
VCD
In some cases, the disc menu might appear instead.
DVD
Use the b B v V buttons to select the title/chapter
you want to view, then press ENTER to start. Press
TITLE or DISC MENU/LIST to return to the menu
screen.
VCD
Use the number buttons to select the track you want
to view and press RETURN to return to the menu
screen. Menu settings and operating procedures may
differ. Follow the instructions on each menu screen.
You may also set PBC to [OFF] (See page 24).
Camera Angle DVD
If the disc contains scenes recorded at different
camera angles, you can change to a different camera
angle during playback. Press DISPLAY then select
the Angle icon during playback. Use b / B to select a
desired angle. Note that the number of the current
angle appears on the display.
Tip:
The Camera Angle icon is displayed on the TV screen when
alternate angles are available.
3D Surround DVD ALL
VCD
DivX
To start playing at any chosen time on the disc:
This unit can produce a 3D Surround effect, which
simulates multi-channel audio playback from two
conventional stereo speakers, instead of the five or
more speakers normally required to listen to multichannel audio from a home theater system.
1. Press DISPLAY twice then use v / V to select the
sound icon. Then, use b / B to select [3D SUR.].
1. Press DISPLAY twice during playback. The time
search box shows the elapsed playing time.
2. To turn off the 3D Surround effect, select
[NORMAL].
2. Press v / V to select the time clock icon and
[-:--:--] appears.
Last Scene Memory DVD
Time Search DVD ALL
DivX
3. Input the required start time in hours, minutes,
and seconds from left to right. If you enter the
wrong numbers, press b / B to move the under
bar (_) to the wrong number. Then enter the
correct numbers.
4. Press ENTER to confirm. Playback starts from the
selected time.
Marker Search DVD ALL
VCD
This Recorder memorizes last scene from the last
disc that is viewed. The last scene remains in memory even if you remove the disc from the Recorder or
switch off the Recorder. If you load a disc that has
the scene memorized, the scene is automatically
recalled.
Notes:
•
•
To enter a Marker
Settings are stored in memory for use any time.
This Recorder does not memorize settings of a disc if
you switch off the Recorder before commencing to play
it.
Last Scene Memory function for a previous DVD title is
erased once a different DVD title is played.
You can start playback from up to six memorized
points. To enter a marker, press MARKER at the
desired point on the disc. The Marker icon appears
on the TV screen briefly. Repeat to enter up to six
markers.
•
To Recall or Clear a Marked Scene
You can directly access any point on a video CD
using this function within 95% of progress bar while
playing. This function will not work if any bookmarks
have been set.
1. During disc playback, press SEARCH.
The marker search menu appears on the screen.
2. Use b/B/v/V to select a marker scene that you
want to recall or clear.
3. Press ENTER and playback starts from the
marked scene. Or, Press CLEAR and use b / B
to select [OK] then press ENTER to delete
marked scene from the list.
4. To remove the Marker Search menu,
press RETURN (O).
Downloaded
30 From DvDPlayer-Manual.com JVC Manuals
Finding Locations on a Disc VCD
1. Press SEARCH during playback.
The progress bar appears on the TV screen.
2. Use b / B to find the desired starting position for
playback.
3. Press ENTER to confirm the selected position.
Playback starts from the selected position.
Playing a DivX Movie File
The Recorder can play Divx files. Before playing DivX
files, read “About DivX movie files” on right.
1. Press HOME and the Home menu appears.
2. Select [Movie] > [DISC] and press ENTER.
3. Use v / V to select a folder, and press ENTER
twice.
A list of files in the folder appears.
4. Use v / V to select a file then press PLAY (N).
Playback starts.
You can use variable playback functions. Refer to
pages 28-30.
2. Press v / V to select an option, and press
ENTER.
• [Play] Start playback the selected title.
• [Open] Opens the folder and a list of files in the
folder appears.
• [Dubbing] Dubs the DivX movie to VCR.
(page 39)
About DivX movie files
Available resolution size
under 720x576 (W x H) pixel.
Playable DivX file
“.avi”, “.divx”
PLAYBACK
Playable DivX subtitle
“.smi”, “.srt (SubRip only)”,
“.sub (Micro DVD format only)”,
DivX subtitle except those listed above is not
displayed on the TV screen.
Playable Codec format
“DIV3”, “MP43”, “DIVX”, “XVID”, “DX50”.
5. Press STOP (x) to stop the playback. The Movie
menu appears.
6. Press RETURN (O) to exit.
Notice for displaying the DivX subtitle
If the subtitle does not display properly, please follow
the steps below.
1. Press PAUSE (X) when the subtitle appears.
2. Press and hold SUBTITLE about 3 seconds.
The language code will appear.
3. Press b / B to select another language code until
the subtitle is displayed properly.
4. Press PLAY (N) to continue playback.
Movie menu options
1. Press v / V to select a folder/file on the Movie
menu then press ENTER.
Movie menu options appear.
Downloaded From DvDPlayer-Manual.com JVC Manuals
Playable Audio format
“AC3”, “PCM”, “MP2”, “MP3”, “WMA”.
Sampling frequency: within 8 - 48 kHz (MP3),
within 32 - 48kHz (WMA)
Bit rate: within 8 - 320kbps (MP3),
32 - 192kbps (WMA)
CD-R Format:
ISO 9660 and JOLIET.
DVD±R/RW Format:
ISO 9660 (UDF Bridge format)
Maximum Files/Disc:
Less than 1999 (total number of files and folders)
Notes on DivX format
The file name of the DivX subtitle is limited to
characters.
If there is impossible code to express in the
DivX file, it may be displayed as “_” mark on the
display.
If the number of the screen frame is over
29.97 frames per second, this unit may not
operate normally.
If the video and audio structure of
recorded file is not interleaved, returns to the
menu screen.
If the file is recorded with GMC, the unit
supports only 1-point of the record level.
* GMC?
GMC is the acronym for Global Motion
Compensation. It is an encoding tool specified in
MPEG4 standard. Some MPEG4 encoders, like
DivX or Xvid, have this option.
There are different levels of GMC encoding,
usually called 1-point, 2-point, or 3-point GMC.
31
Playing an Audio CD or
MP3/WMA files
Audio CD and Music menu options
1. Press v / V to select a track/file or folder on the
Audio CD or Music menu then press ENTER.
The Recorder can play Audio CDs and MP3/WMA
files. Before playing MP3/WMA files, read [MP3/WMA
audio file requirement] on right.
1. Press HOME and the Home menu appears.
2. Select [Music] > [DISC] and press ENTER.
The Audio CD or Music menu appears on the TV
screen.
2. Use v / V to select an option, then press ENTER.
• [Play] Start playback the selected track or file.
• [Open] Opens the folder and a list of files in the
folder appears.
• [Random] Start or stop random playback.
Example) Audio CD Menu
3. Use v/V to select a track or file
then press PLAY (N). Playback starts.
You can use variable playback functions. Refer to
pages 28-30.
4. To stop playback at any time, press STOP (x).
5. Press RETURN (O) to exit.
Tips:
•
You can view TV channel or video input source by
pressing RETURN (O). If you want to return to the
Music menu, press DISC MENU/LIST.
•
Press DISPLAY to view ID3-Tag information for the MP3
file. If ID3-Tag information is not present, [MP3 ID3 tag
:None] will appear. If you select a folder, the number of
subfolders and number of MP3/WMA files in the folder
are displayed. Press DISPLAY again to remove the
information screen.
•
On the Music menu, you can display the folders on the
disc. Use v V b B to select the “Folder” icon on the
Music menu then press ENTER twice.
•
•
On CDs, DVDs with mixed content (Audio tracks,
MP3/WMA files, DivX files or JPEG files), you can select
among the Music menu, Movie menu and Photo menu
by pressing TITLE repeatedly.
If you are in a file list and want to return to the Folder
list, use the v/V to highlight
and press ENTER to
return to the previous menu screen.
Random
1. Press v / V to select a file then press ENTER.
The menu options appear.
2. Press v / V to select [Random] option then press
ENTER.
The unit automatically begins random playback
and “RANDOM” appears on the menu screen.
3. To return to normal playback, select [Random]
option again then press ENTER.
Tip:
By pressing ./> during Random playback, the
unit selects another track and resumes Random playback.
MP3/WMA audio file requirement
File extensions
“.mp3”, “.wma”.
Sampling frequency:
within 8 - 48 kHz (MP3), within 32 - 48kHz (WMA)
Bit rate: within:
8 - 320kbps (MP3), 32 - 192kbps (WMA)
CD-R Format:
ISO 9660 and JOLIET.
DVD±R/RW Format:
ISO 9660 (UDF Bridge format)
Maximum Files/Disc:
Less than 1999 (total number of files and folders)
Downloaded
32 From DvDPlayer-Manual.com JVC Manuals
V iewing a JPEG files
This unit can play JPEG files. Before playing JPEG
recordings, read “Photo file requirement” on page 34.
Photo menu options
1. Use v V b B to select a file then press ENTER.
The menu options appear.
1. Press HOME and the Home menu appears.
2. Select [Photo] > [DISC] and press ENTER.
3. Use v V b B to select a file or folder and press
ENTER.
2. Use v / V to select an option then press ENTER
to confirm your selection.
• [Open] Opens the folder and a list of files in the
folder appears.
Example: When you select a file.
3. Use v / V to select [Full Screen] then press
ENTER.
The selected image is displayed in full screen.
• [Full Screen] Shows the selected file as full
screen.
• [Slide Show] Displays Slide Show menu.
PLAYBACK
2. Use v / V to select option and press ENTER.
Still picture
Use PAUSE (X) while showing a picture to pause
mode.
Skip Images
While viewing a picture, press > or . once to
advance to the next file or return to the
previous file.
Press ENTER to appear or disappear this menu.
4. To stop viewing at any time, press STOP (x).
5. Press RETURN (O) to exit.
Rotate Images
Use v / V while viewing a picture to flip the picture
clockwise or counterclockwise.
Notes:
•
If the
icon displays in the Photo menu, it means you
cannot see those JPEG files.
•
You can view TV channel or video input source by
pressing RETURN (O). If you want to return to the
Photo menu, press DISC MENU/LIST.
•
If you are in a file list and want to return to the Folder
list, use the v/V to highlight
and press ENTER to
return to the previous menu screen.
•
On CDs, DVDs Memory Card with mixed content (Audio
tracks, MP3/WMA files, DivX files or JPEG files), you
can select among the Music menu, Movie menu and
Photo menu by pressing TITLE repeatedly.
Downloaded From DvDPlayer-Manual.com JVC Manuals
33
View Slide Shows
Photo file requirement
1. Select [Slide Show] option on the Photo menu.
File extensions
“.jpg”
2. Press ENTER.
Photo size:
Less than 4MB recommended
CD-R Format:
ISO 9660 and JOLIET.
DVD±R/RW Format:
ISO 9660 (UDF Bridge format)
3. Use b / B / v / V to set the options.
[Object] option:
• [Selected] Views slide show only selected
files.
• [All] Views slide show all files.
[Speed] option:
Sets the Slide Show speed to
[Normal], [Slow], or [Fast].
4. Select the [Start] option then press ENTER to
start the Slide Show.
5. Press STOP (x) to stop the Slide Show and
returns to the Photo menu.
Tips:
•
Use the CLEAR button to select all files, or cancel all
marked files.
•
Selecting multiple files
1. Press MARKER.
A check mark appears on the file. Press MARKER
again to cancel the marked file.
2. Repeat step 1 to mark additional file.
Downloaded
34 From DvDPlayer-Manual.com JVC Manuals
Maximum Files/Disc:
Less than 1999 (total number of files and folders)
Notes on JPEG file
Progressive and lossless compression JPEG image
files are not supported.
About DVD recording
Notes for recording
Notes:
• This Recorder cannot record CD-R or CD-RW
discs.
•
The recording times shown are not exact
because the recorder uses variable bit-rate video
compression. This means that the exact recording time will depend on the material being recorded.
•
When recording a TV broadcast, if the reception
is poor or the picture contains interference, the
recording times may be shorter.
•
If you record still pictures or audio only, the
recording time may be longer.
•
The displayed times for recording and time
remaining may not always add up to exactly the
length of the disc.
•
The recording time available may decrease if you
heavily edit a disc.
•
If using a DVD-RW disc, make sure you change
the recording format (Video mode or VR mode)
before you record anything on the disc. See page
23 (Initialize) for how to do this.
•
When using a DVD-R or DVD+R disc, you can
keep recording until the disc is full, or until you
finalize the disc. Before you start a recording
session, check the amount of recording time left
on the disc.
•
When using a DVD-RW disc in Video mode,
recording time available will only increase if you
erase the last title recorded on the disc.
•
The Delete Title option in the Title List (Original)
menu only hides the title, it does not actually
erase the title from the disc and increase the
recording time available (except for the last
recorded title on a DVD-RW disc in Video mode).
•
Overwrite recording is available using DVD+RW
discs.
•
When using a DVD+R/RW, the recorder will execute the Menu-making operation to update the new
title and editing when removing the disc from the
recorder.
•
•
Fingerprints and small scratches on a disc can
affect playback and/or recording performance.
Please take proper care of your discs.
The company does not hold any responsibility to
compensate the contents which should have
been recorded, and any losses or damages (e.g.
losses of business profit, or business intermission) that may arise from malfunction of this
recorder (not recording/editing as intended).
Disc types and recording formats, modes,
and settings
This recorder can play many different kinds of DVD
discs: pre-recorded DVD-Video discs, DVD-RW,
DVD-R, DVD+RW, DVD+R. The disc format for DVDR, DVD+R, DVD+RW discs is always “Video format”—the same as pre-recorded DVD-Video discs.
This means that once finalized, you can play a DVDR, DVD+R, or DVD+RW in a regular DVD player.
The DVD-RW disc format is Video Recording (VR)
format or Video format. You can change Recording
format, if required. (Reinitializing the disc will erase
the contents of the disc.)
The recording mode is closely related to the disc format. If the disc format is Video Recording format,
then the recording mode is VR mode; if the disc format is Video format, then the recording mode is
Video mode (except for DVD-Video, which is not
recordable, and so does not have a recording mode).
These can be changed as required for each recording and determine the picture quality and how much
space the recording will take up on the disc.
RECORDING
Recording
Recording time and picture quality
(4.7GB DVD)
There are four preset recording quality modes:
Downloaded From DvDPlayer-Manual.com JVC Manuals
•
XP (Excelent Quality) – about 1 hour 20 minutes
•
SP (Standard Quality) – about 2 hour
•
LP (Low Quality) – about 4 hour
•
EP (Extend Quality) – about 6 hour
35
Basic Recording from a TV
Instant T imer Recording
Follow the instructions below to record a TV program.
Recording starts immediately and continues until the
disc or tape is full or you stop the recording.
Instant Timer Recording allows you to make a
recording easily of a preset length without using the
program timer.
1. Switch on the Recorder, select the device (VCR
or DVD) for Recording and load a recordable disc
or tape. Also make sure that the TV input is set to
this recorder.
1. Follow steps 1-4 as shown left (Basic Recording
from a TV).
2. Press z REC repeatedly to select the recording
time length. Recording starts after the first press.
DVD: Each subsequent press increases the
recording time by 10 minutes.
2. Set a recording mode as necessary by pressing
REC MODE repeatedly.
VCR: Each subsequent press increases the
recording time by 30 minutes (maximum
540 minutes). Please confirm the VHS tape
has enough remaining time to be recorded
before recording.
DVD: XP, SP, LP, EP.
VCR: SP, SLP.
3. Select the TV channel to record.
4. Use AUDIO to select the audio channel to record.
The table below shows what will be recorded on
the different settings for different types of broadcast. The last column (Monitor Audio) shows what
you’ll hear as it is recording.
TV Broadcast Selected
Audio
MONO
MONO
STEREO
STEREO
Left
Right
MONO
MONO+SAP MONO
SAP
STEREO
STEREO
+SAP
SAP
MONO
Broadcast Audio
L Ch R Ch
MONO MONO
L
R
L
L
R
R
MONO MONO
MONO MONO
SAP
SAP
L
R
SAP
SAP
MONO MONO
Monitor
Audio
MONO
STEREO
Left
Right
MONO
MONO
SAP
STEREO
SAP
MONO
If you set the audio channel to SAP, but there is
no SAP channel is broadcasted, only the main
audio (mono or stereo) will be recorded.
5. Press z REC once to start recording.
The REC indicator lights in the display window.
Checking the Recording Time
Press z REC or DISPLAY once to check the recording time. The recalled setting will automatically return
to the TV screen for a moment.
Also, remaining time of recording is shown in the display window.
To Extend the Recording Time
The recording time can be extended anytime by
pressing z REC.
Each subsequent press increases the recording time
by 10 minutes (DVD) or 30 minutes (VCR).
To Pause the Recording
1. Press PAUSE (X) to pause the recording.
2. When you want to continue recording, press
PAUSE (X) or z REC.
Notes:
6. Press STOP (x) to stop recording.
•
If you press PAUSE (X) during the Instant Timer
Recording, it will be canceled.
Notes:
•
The Recorder will automatically power off when the
Instant Timer Recording ends.
•
If the unit is DVD mode when the VCR Instant timer
recording ends, the unit will not automatically power off.
•
The maximum numbers of DVD titles are show below;
- DVD-R/RW : 99
- DVD+R/RW : 49
•
If the Recorder is powered off during DVD recording, the
recording will not be saved.
Downloaded
36 From DvDPlayer-Manual.com JVC Manuals
Notes:
• You must insert a recordable disc or tape.
The Timer Recording function allows you to record up
to 16 programs within a period of one month.
•
The Timer indicator lights on the front panel
display.
1. Press HOME and the Home menu appears.
2. Select [TV] > [Timer Record] and press ENTER.
•
The Recorder will record the audio according to
the current TV tuner setting (Stereo, Mono or
SAP). Use the AUDIO button to set the audio
before switching the Recorder to Standby mode.
•
The Recorder will automatically power off when
the Timer Recording ends.
•
If the unit is DVD mode when the VCR timer
recording ends, the unit will not automatically
power off.
•
You must press STOP (x) to stop the Timer
Recording.
You cannot use the Timer Programming during
the DVD or VCR recording.
Displays “Duplicate Date” when the Programming
time is overlapped.
Displays “Duplicate Date” when the end time of
any timer program and the start time of next program are the same. The very beginning portion of
the later program may not be recorded. To avoid
this set the end time 1 minute earlier.
The caution message will appears on the TV
screen 1 minute before Timer Recording starts
while dubbing. Press STOP within 5 seconds to
cancel the Timer Recording, otherwise the unit will
start the Timer Recording.
•
3. Select [NEW] and press ENTER.
The Timer Record menu will appear.
•
•
•
•
[Media] – Choose a media (DVD or VCR).
•
[Ch.] – Choose a channel (2-69 or 1-125 for
antenna or cable channels respectively,
excluding skip channels), or one of the external inputs from which to record (AV1 or AV2).
•
[Date] – Choose a date up to 1 month in
advance, or select a daily or weekly program.
•
[Start Time] – Set the recording start time.
•
[End Time] – Set the recording end time.
•
[Mode] – Choose a record mode.
DVD: EP, LP, SP, XP, or AT (Auto)
VCR: SP, SLP, or AT (Auto)
AT(Auto) mode determines how much time is available on the disc or tape and switches record mode,
if necessary, to complete recording the program.
2. Enter the necessary information for your timer
recording(s).
•
b / B (left/right) – Move the cursor left/right.
•
v / V (up/down) – Change the setting at the
current cursor position.
•
Press RETURN (O) to exit the Timer Record
menu.
RECORDING
T imer Recording
Checking Timer Recording Details
Programming can be checked whenever the
Recorder is turned on.
1. Press HOME and the Home menu appears.
2. Select [TV] > [Timer Record] and press ENTER.
3. Use v / V to select a program.
4. Press ENTER to edit the selected program.
Timer Record menu appears.
Canceling a Timer Recording
You can clear a timer setting anytime before the
recording actually starts.
• Use v / V to select a program you want to erase
on the Timer Recorder List menu, then press
CLEAR and select [OK] than press ENTER.
3. Press ENTER to save the program.
4. Press RETURN (O) to exit the Timer Record
List.
5. Press STANDBY/ON (1/`) to turn off the unit.
Downloaded From DvDPlayer-Manual.com JVC Manuals
37
Timer Recording Troubleshooting
Even though the timer is set, the recorder will not
record when:
•
The power has been unplugged or the power
supply has been stopped.
•
There is no disc (or tape) loaded.
•
A non-recordable disc (or tape) is loaded.
•
Disc Protect is set to [ON] in the Disc menu
(see page 23).
•
There are already 99 titles (DVD-RW, DVD-R),
49 titles (DVD+RW, DVD+R) recorded on the
disc.
You cannot enter a timer program when:
•
A recording is already underway.
•
The time you’re trying to set has already
passed.
•
There are already 16 timer programs set.
If two or more timer programs overlap:
•
The earlier program takes priority.
•
When the earlier program finishes, the later
program starts.
•
If two programs are set to start at exactly the
same time, the program entered first takes
priority.
If the disc is damaged, the recording may not
complete successfully. In this case even though the
Check field shows [Rec. OK], it may not be.
To record one TV program while
watching another
1. Press TV/VCR to select the TV mode during
recording. The TV indicator appears.
2. Using the TV, select the channel to be viewed.
Tip (VCR mode only)
Always use PAUSE (X) for best results when making
changes during recording .
For example: To change channels during recording, first
press PAUSE (X) to put the unit in pause mode. Then
select the desired channel on the Recorder, and press
PAUSE (X) again to resume recording.
Downloaded
38 From DvDPlayer-Manual.com JVC Manuals
Dubbing from DVD to VCR
Dubbing from VCR to DVD
You can copy the contents of a DVD to a VHS tape
using the DUBBING button.
You can copy the contents of a VHS tape to a DVD
using the DUBBING button. This allows you to
archive your old VHS tapes to DVD.
1. Insert a blank VHS videotape into the VCR deck.
2. Insert the disc you wish to copy in the DVD deck
and close the disc tray.
1. Insert a blank DVD disc in the DVD deck and
close the disc tray.
3. Find the place on the DVD (or Disc) from which
you want to start dubbing using the PLAY, FF,
REW and PAUSE functions.
For best results, pause playback at the point from
which you want to record.
2. Insert the VHS video tape you wish to copy into
the VCR deck.
4. Set the resolution to 480i using the OUTPUT
STATUS button before dubbing.
• You cannot dub when the resolution is set to
720p/1080i.
• The dubbing cannot be obtained correctly
using 480p resolution.
5. Press the DUBBING button.
The Dubbing menu appears.
3. Find the place on the VHS tape from which you
want to start dubbing using the PLAY, FF, REW
and PAUSE functions. For best results, pause
playback at the point from which you want to
record.
4. Press the DUBBING button.
The Dubbing menu appears.
5. Use v / V / b / B to select the desired Record
Mode: EP, LP, SP or XP.
7. Select [Dubbing] then press ENTER or DUBBING
to start copying.
8. To stop dubbing at any other time,
press STOP (x).
You must stop the dubbing process manually
when the DVD movie ends, or the unit may replay
and record over and over again.
Note:
If the DVD (or Discs) you are attempting to copy is
copy protected, you will not be able to copy the disc.
It is not permitted to copy Macrovision encoded
DVDs (or Discs). [Copy-protected. Cannot record.] is
displayed on the TV screen.
Tip:
If you press PAUSE during Dubbing mode, both the
DVD and VCR decks go into Pause mode and the
DUBBING button blinks on the front panel. While in
Pause mode, you can adjust the DVD playback position using PLAY, REW, FF, PAUSE, etc. The VCR
deck will remain in Pause mode. To resume Dubbing,
press the DUBBING button twice.
Downloaded From DvDPlayer-Manual.com JVC Manuals
RECORDING
6. Use v / V / b / B to select the desired Record
Mode: SP or SLP (3 times SP).
6. Select [Dubbing] then press ENTER or DUBBING
to start copying.
7. To stop dubbing at any other time,
press STOP (x).
Dubbing will stop automatically when the VHS
tape ends.
Note:
If the VHS video tape you are attempting to copy is
copy protected, you will not be able to copy the tape.
It is not permitted to copy Macrovision encoded
tapes.
Tip:
If you press PAUSE during Dubbing mode, both the
DVD and VCR decks go into Pause mode and the
DUBBING button blinks on the front panel. While in
Pause mode, you can adjust the VCR playback position using PLAY, REW, FF, PAUSE, etc. The DVD
deck will remain in Pause mode. To resume Dubbing,
press the DUBBING button twice.
39
Recording from External
Components
Additional Information
You can record from an external component, such as
a camcorder or VCR, connected to any of the
Recorder’s external inputs.
You can play a DVD during the VCR playback or
recording, press DVD to change DVD mode and
perform the DVD playback.
1. Make sure that the component you want to record
from is connected properly to the Recorder. See
page 17.
2. Press AV INPUT repeatedly to select the external
input to record from.
•
AV1: Audio/Video Input mounted on back
panel.
•
AV2: Audio/Video Input mounted on front
panel.
•
DV: DV Input mounted on front panel.
3. Load a recordable disc or tape.
4. Set a recording mode as necessary by pressing
REC MODE repeatedly.
DVD: XP, SP, LP or EP.
VCR: SP or SLP
5. Press z REC once to start recording.
The REC indicator lights in the display window.
6. Press STOP (x) to stop recording.
Notes:
Check that the Audio In settings DV Record Audio
are as you want them. See page 22.
•
•
If your source is copy-protected using
CopyGuard, you will not be able to record it using
this recorder. See Copyright on page 9 for more
details.
•
Recording continues until you press STOP (x) or
the disc is full.
•
To record for a fixed length of time, see [Instant
Timer Recording] on page 36.
Downloaded
40 From DvDPlayer-Manual.com JVC Manuals
Simultaneous Play and Record
Notes:
• You cannot play or record both DVD and VCR at
the same time.
•
You can not change VCR mode during the DVD
recording mode.
•
If you wish VCR playback or record during the
DVD playback, press VCR to change VCR mode
and perform the VCR playback or recording.
Recording from DV Input
1. Make sure your digital camcorder is connected to
the front panel DV IN jack. See page 17.
Before DV dubbing
2. Connect a camcorder to the unit using DV cable.
You can connect a DV-equipped camcorder to this
recorder using a single DV cable for input and output
of audio, video, data and control signals.
This recorder is only compatible with DV-format
(DVC-SD, DV25) camcorders. Digital satellite
tuners and Digital VHS video recorders are not
compatible.
You cannot connect more than one DV camcorder
at a time to this recorder.
You cannot control this recorder from external
equipment connected via the DV IN jack (including
two recorders).
It may not always be possible to control the connected camcorder via the DV IN jack.
Digital camcorders can usually record audio as
stereo 16-bit/48kHz, or twin stereo tracks of 12bit/32kHz. This recorder can only record one stereo
audio track. Set [DV Record Audio] option to Audio
1 or Audio 2 as required (see page 22).
Audio input to the DV IN jack should be 32 or
48kHz (not 44.1kHz).
Picture disturbance on the recording may occur if
the source component pauses playback or plays an
unrecorded section of tape, or if the power fails in
the source component, or the DV cable becomes
disconnected.
3. Set the resolution to 480i using the OUTPUT
STATUS button before dubbing.
You can record from a digital camcorder connected to
the DV IN jack on the front panel of this recorder.
Using the recorder’s remote, you can control both the
camcorder and this recorder.
Before recording, make sure that the audio input for
the DV IN jack is set up (see page 22).
Tips:
• The source signal must be DVC-SD format.
• Some camcorders cannot be controlled using this
recorder’s remote.
• If you connect a second recorder using a DV
cable, you cannot control the second DVD from
this one.
• You cannot control this unit remotely from a component connected to the DV IN jack.
• You cannot record date and time information from
a DV cassette.
Downloaded From DvDPlayer-Manual.com JVC Manuals
You cannot record when the resolution is set
to 720p/1080i.
• The recording cannot be obtained correctly
using 480p resolution.
4. Check that the DV audio input is as you require.
You can choose between Audio 1 (original audio)
and Audio 2 (overdubbed audio).
DV Input is set from the DV Record Audio in
sub-menu of the Setup menu. See [DV Record
Audio] on page 22 for more information.
5. Press AV INPUT repeatedly to select the DV
input.
6. Find the place on the camcorder tape which you
want to start recording.
For best results, pause playback at the point from
which you want to record.
Depending on your camcorder, you can use
this recorder’s remote to control the camcorder
using the STOP, PLAY, BACKWARD, FORWARD and PAUSE functions.
7. Press z REC once to start recording.
Recording is automatically stopped if the
recorder detects no signal.
You can pause or stop the recording by pressing PAUSE (X) or STOP (x).
You cannot control the camcorder from this
Remote Control during recording.
In Video mode, the final frame of the recording
may remain displayed on screen for a while
after recording stops.
RECORDING
Recording from a Digital Camcorder
•
Troubleshooting
If you cannot get a picture and/or audio through the
DV IN jack, check the bullet points:
Make sure the DV cable is properly connected.
Try switching off the connected equipment then
switch back on.
Try switching the audio input.
Note:
Depending on the connected camcorder, you may not
be able to control it using the Remote Control supplied
with this recorder.
41
Editing
T itle List and Chapter List
Menu Overview
1 2
3
4
5
67
Using the Title List menu you can edit video content.
The editing features available in the Title List menu
depend on whether you are editing video on DVD,
and whether you’re editing Original content, or a
Playlist.
There are two ways to edit VR mode DVD-RW discs.
You can directly edit the Original content of the disc,
or you can create and edit a Playlist. The Playlist
doesn’t actually change any of the content on the
disc, but just controls how the content is played back.
1. Press DISC MENU/LIST to display the TITLE
LIST menu.
Playback should be stopped when you do this.
When selecting titles, use the v / V buttons to
display the previous/next page if there are more
than six titles.
If you are editing a VR mode disc, press DISC
MENU/LIST to switch between Original and
Playlist menu.
On the left side of the screen are the menu
options. The main part of the screen shows
thumbnails of the titles (or chapter) on the DVD.
You can change these thumbnails using the
THUMBNAIL button. (see [Changing Title
Thumbnails] on page 43.)
Press DISPLAY to display the information of
selected title on the Title List menu.
After selecting a title or chapter on the Title List
or Chapter List menu, then press ENTER. The
menu options on the left side of the menu. Use
v / V to select a option then press ENTER to
confirm your selection.
2. To exit the TITLE LIST menu, press
RETURN (O) repeatedly.
1. Menu options: To display menu option, select a
title or chapter then press ENTER. The options
displayed differ depending on the disc type.
• [Play] Start playback of the selected title or chapter.
The hidden titles and chapters on the DVD+R/RW
cannot be play back.
• [Search]
- [Chapter] Displays Chapter List of the Title.
- [Time] Search time for you want start point
of the title .
• [Delete] Deletes the title or chapter. (page 45)
• [Move] Moves chapter position on [Chapter List Playlist] menu (page 47).
• [Protect] Protects accidental recording, editing or
deleting of the title.(page 47)
• [Edit] Edits or Deletes a part of the title.
- [Title Name] Edits the title name. (page 46).
- [Delete Part] Deletes a part of the Title (page 45).
- [Divide] Divides a title into two (page 48).
- [Hide (Show)] Hides (or Shows) the selected title or
chapter. (page 47)
• [Playlist Add] Adds the titles or chapter to the Playlist.
(page 44)
• [Dubbing] Dubs the title to VCR.
• [Title] Displays Title List of the chapter.
• [Combine] Combines two chapters into one
(page 48).
• [Full Play] Starts playback of the selected title including the hidden chapters.
2. Current media.
3. Indicates the record mode, free space, and
elapsed time progress bar.
4. Currently selected title.
5. Thumbnail.
6. Shows the selected title number and total number
of titles.
7. Shows the title name, recorded date, and recording length.
Downloaded
42 From DvDPlayer-Manual.com JVC Manuals
VR Mode: Original and
Playlist Editing
Titles, Chapters and Parts
Titles in the disc’s original content contain one or
more chapters. When you insert a disc’s title into the
Playlist, all the chapters within that title also appear.
In other words, chapters in the Playlist behave exactly as chapters on a DVD-Video disc do. Parts are
sections of Original or Playlist titles. From the Original
and Playlist menu you can add or delete parts.
Adding a chapter or title to the Playlist creates a new
title made up of a section (ie., chapter) of an Original
title. Deleting a part removes part of a title from the
Original or Playlist menu.
Notes:
• When editing using the Delete, Add and Move
functions, the start and end frames may not be
exactly as set in the start and end point display.
•
During Playlist playback, you may notice a
momentary pause between edits. This is not a
malfunction.
Is editing a DVD like editing a video tape?
No. When you edit a video tape you need one video
deck to play the original tape and another to record
the edits. With DVD, you edit by making a ‘Playlist’ of
what to play and when to play it. On playback, the
Recorder plays the disc according to the Playlist.
About word ‘Original’ and ‘Playlist’
Adding Chapter Markers
-RWVR
+RW
+R
You can create chapters within a title by inserting
chapter marks at the desired points.
Note:
Chapter markers are inserted at regular intervals
automatically. You can change this interval from the
Initial Setup menu (see [Auto Chapter] on page 22).
During recording or playing back, at the point you
want to start a new chapter, press CHP. ADD.
A chapter marker icon appears on the TV screen.
Changing T itle Thumbnails
-RWVR
+RW
+R
Each title displayed in the Title List menu is represented by a thumbnail picture taken from the start of
that title or chapter.
If you prefer, select a different still picture from within
a title.
Press THUMBNAIL to make the currently displayed
picture the one that appears in the Title List menu.
The still picture that you choose appears in both the
Original or Playlist menu.
Tip:
You can also change the thumbnail picture of the title
on the Chapter List menu. Select a chapter on the
Chapter List menu then press THUMBNAIL. The
thumbnail picture of the title that includes the chapter
is changed.
-RWVR
Downloaded From DvDPlayer-Manual.com JVC Manuals
EDITTING
Throughout this manual, you will often see the words
Original and Playlist to refer to the actual content and
the edited version.
Original: content refers to what’s actually recorded
on the disc.
Playlist: content refers to the edited version of the
disc — how the Original content is to be played.
43
Making a New Playlist
-RWVR
Use this function to add an Original title or chapter to
the Playlist. When you do this, the whole title is put
into the Playlist (you can delete bits you don’t need
later - see [Deleting an Original or Playlist
Title/Chapter] on page 45).
The title appears in the Playlist complete with the
chapter markers that appear in the Original. However,
if you add more chapter markers to the Original later,
these are not automatically copied over into the
Playlist title.
1. Choose a title or chapter on the [TITLE LISTOriginal] menu or [Chapter List-Original] menu to
put into the Playlist, then press ENTER.
The menu options appears on the left side of the
menu.
Adding Additional T itle /
Chapters to the Playlist
-RWVR
You can add an Original title or chapter to add to a
Playlist title even if it is already registered.
1. Choose a title or chapter on the [TITLE LISTOriginal] menu or [Chapter List-Original] menu to
put into the Playlist, then press ENTER.
The menu options appears on the left side of the
screen.
2. Use v / V to select [Playlist Add] from menu
options then press B.
2. Use v / V to select [Playlist Add] option then
press B.
3. Choose a Title List-Playlist that is already registered to insert a title or chapter, then press
ENTER.
3. Select [New Playlist] then press ENTER.
The new title appears in the updated Playlist. All
chapters of the title are added to the Playlist.
4. Repeat steps 1-3 to add additional title or chapter
on the Playlist.
You can view the added chapters on the [Chapter
List-Playlist] menu.
5. Press RETURN (O) to exit, or DISC MENU/LIST
to go back to the [Title List-Original] menu.
Downloaded
44 From DvDPlayer-Manual.com JVC Manuals
Deleting an Original or
Playlist T itle/Chapter
When you erase a title or chapter from the Playlist
menu, you only remove it from the Playlist; the
title/chapter remains in the Original menu.
If you choose to delete a title or chapter from the
Original (title/chapter) menu, the title or chapter is
actually deleted from the disc and the remaining time
available for recording increases. Titles/chapters
deleted from the Original are also removed from the
Playlist.
Deleting a Part
-RWVR
You can delete a part which you do not want in the
title.
1. Use b / B / v / V to choose a title you want to
delete on the Title List menu then press ENTER.
The options appears on the left side of the menu.
2. Select [Edit] > [Delete Part] option then press
ENTER.
[Edit] menu appears on the TV screen.
Example: Edit (Delete Part) (DVD-VR)
Note:
It may not be possible to delete chapters that are less
than 3 seconds long.
1. Use b / B / v / V to choose a chapter or title you
want to delete on the [TITLE LIST] or [Chapter
List] menu then press ENTER.
The menu options appears on the left side of the
screen.
2. Select [Delete] option from the options on the
menu.
Example: Title List (DVD-VR)
3. Starts playback and use pause step, search and
slow-motion to find the starting point.
4. Press ENTER at the starting point of the section
you want to delete.
[End Point] icon is highlighted.
The part is indicated on the Progress Bar.
5. Use pause step, search and slow-motion to find
the ending point.
4. Use b / B to select [OK] then press ENTER.
The selected chapter or title is deleted.
After pressing ENTER, the new, updated menu is
displayed.
5. Repeat steps 1 - 4 to continue to delete from the
menu.
7. If you finish to edit, select [Done] icon then press
ENTER.
The confirm message for deleting will appear.
Use b / B to select [OK] then press ENTER.
The selected part is deleted from the title and Title
List menu appears.
Notes:
6. Press RETURN (O) repeatedly to exit the menu.
•
Notes:
When +RW recording, the deleted title’s name is
changed to [Deleted Title].
It may not be possible to delete parts that are less than
3 seconds long.
•
If you select [Cancel] then press ENTER, the Recorder
will go to previous option and into Pause mode.
•
•
If more than two titles are repeatedly deleted, the
titles are combined into one.
•
When you are deleting a title or chapter, only the
last one on DVD+R/RW increases remaining
recording time.
Downloaded From DvDPlayer-Manual.com JVC Manuals
EDITTING
3. Press ENTER to confirm.
The confirm message for deleting will appear.
6. Press ENTER at the ending point of the section
you want to delete.
You can cancel the selected point, use v / V to
select [Cancel] icon then press ENTER.
45
Naming a T itle
You can name Original and Playlist titles independently.
Notes:
• Names can be up to 32 characters long.
•
For discs formatted on a different recorder, you
will see only a limited character set.
1. Choose the title you want to name on the Title List
menu, then press ENTER.
The menu options appears on the left side of the
menu.
•
When recording on DVD-R, DVD+R or DVD+RW
discs, the entered name is displayed on the DVD
player only after finalization.
2. Use v/V to select [Edit] > [Title Name] option then
press ENTER.
Keyboard menu appears.
T ime Search
You can select start point of the title.
1. Use b / B / v / V to choose a title on the TITLE
LIST menu then press ENTER.
The options appears on the left side of the menu.
2. Select [Search] > [Time] option then press
ENTER.
[Time] menu appears on the TV screen.
3. Enter a name for the title. Use b / B / v / V to
select a character then press ENTER to confirm
your selection.
•
Language : Selects a keyboard type.
•
Space: Inserts a space at the cursor position.
•
Delete: Deletes the character to the left of the
cursor position.
•
•
b / B: Moves the cursor left or right.
OK: Confirms the name you have entered.
•
Cancel: Deletes all characters and exits the
Keyboard menu.
Remote control buttons for entering a name
•
N): Inserts a space at the cursor posiPLAY (N
tion.
•
PAUSE (X): Deletes the character to the right
of the cursor position.
•
. / >: Moves the cursor left or right.
•
STOP (x), CLEAR: Deletes the character to
the left of the cursor position.
•
0-9: Enters the character corresponding to the
selected column.
•
DISC MENU/LIST, DISPLAY: Switches the
keyboard type.
4. Choose [OK] then press ENTER to fix the name
and return to the previous menu screen.
5. Press RETURN (O) repeatedly to exit the menu.
Downloaded
46 From DvDPlayer-Manual.com JVC Manuals
End time
Current picture
Selected point
Seleted time
Start time
3. Use b / B to find the point you want to start.
The point increase 1 minute step.
If you press and hold b / B then the point
increase 5 minute step.
4. Press ENTER to start seleted point.
Moving a Playlist Chapter
-RWVR
Use this function to re-arrange the playing order of
Playlist chapters on the Chapter List-Playlist menu.
Note:
This function is not available if there is only one
chapter.
1. Select a chapter on the Chapter List-Playlist
menu.
2. Press ENTER.
The menu options appears on the left side of the
menu.
3. Use v / V to select [Move] option from Playlist
options then press ENTER.
Tip:
If you select a hidden chapter or title on the TITLE
LIST or Chapter List menu, you can ‘show’ it by
choosing [Show] option on the menu. After doing that,
you are able to see the chapter or title.
Protect a T itle
+RW
+R
-RWVR
Use this function to protect against accidental recording, editing or deleting of the title.
1. Press DISC MENU/LIST to display the [TITLE
LIST] menu.
2. Use v V b B to choose a title you want to protect
then press ENTER.
Options appear on the left side of the screen.
3. Select [Protect] from the options.
Example: Title List (DVD+RW)
4. Use b / B / v / V to choose the place you want to
move the chapter then press ENTER.
After pressing ENTER, the updated menu is
displayed.
+RW
+R
You can skip playing chapters or titles without deleting from the disc.
1. Use v V b B to choose a chapter or title you
want to hide on the [TITLE LIST] or [Chapter List]
menu, then press ENTER.
Options appear on the left side of the screen.
Tip:
If you select a title that has already been protected
on the Title List menu, you can ‘unprotect’ it by
choosing [Unprotect] option from the Title List menu
options. After doing that, you can edit and delete the
title.
EDITTING
Hide a Chapter/T itle
4. Press ENTER to confirm.
The lock mark will appears on the title’s
thumbnail.
2. Select [Edit] > [Hide] option.
Example: Title List (DVD+RW)
3. Press ENTER to confirm.
The chapter’s or title’s thumbnail will dim.
Downloaded From DvDPlayer-Manual.com JVC Manuals
47
Divide One T itle Into Two
+RW
Combining Two Chapters
Into One -RWVR +RW +R
Use this command to split a title up into two new
titles.
Use this function to combine two adjacent chapters
into one.
1. On the Title List menu, select a title you want to
divide then press ENTER.
The menu options appears on the left side of the
screen.
1. On the Chapter List menu, select the second
chapter of the two chapters you want to combine
then press ENTER
The menu options appears on the left side of the
screen.
2. Select [Edit] > [Divide] option.
2. Use v / V to select [Combine] option.
The combine indicator appears between the two
chapters you want to combine.
Example: Title List (DVD+RW)
Example: Title List (DVD+RW)
3. Press ENTER.
[Edit (Divide)] menu appears.
Current picture
The first title’s
thumbnail
The second
title’s thumbnail
4. Use play, pause step, search and slow-motion to
find the point you want to divide the title.
5. Select [Divide] option then press ENTER at the
point.
To reset the point, select [Cancel] option then
press ENTER. Repeat from step 3.
6. Choose [Done] option then press ENTER to fix
the dividing point.
The title is divided into two new titles. It take up to
4 minutes to divide.
Note:
You cannot select dividing point less than 3 seconds.
Downloaded
48 From DvDPlayer-Manual.com JVC Manuals
3. Repeat steps 1 - 2 to continue to combine from
the menu.
4. Press RETURN ( O) repeatedly to exit the
menu.
Notes:
This function cannot operate listed as below;
•
If there is only one chapter within the title.
•
If you select first chapter.
•
If two chapters created by erasing a part from an
original title.
•
If two chapters created from different titles.
•
If two chapters created by moving an order from an
original title.
Overwriting Recording
+RW
2. Press TITLE in Play mode or DVD tuner mode.
Title List menu will appear as shown below.
To overwrite a new video recording on a previously
recorded title, follow these steps. This feature is not
available for DVD+Rs, that always record at the end
of the Disc.
1. Select input source you want to record
(TV channel, AV1-2, DV).
2. Press DISC MENU/LIST to display the TITLE
LIST menu.
3. To play back a title, select the title you want then
press ENTER or PLAY (N).
Tip:
You can remove the Title List menu by pressing
STOP (x).
4. Press z REC to start overwrite recording.
Overwrite recording starts from the start point of
the title.
5. Press STOP (x) to stop the overwrite recording.
The new title is created and updated menu is displayed.
Notes:
• This function is not available for a protected title.
•
If the overwrite is longer than the recording
length of the current title, the next title is overwritten. But if next title is protected, the overwriting stops at the starting point of the title.
•
If the selected title’s recording length is less than
10 seconds, the next title is overwritten. But if the
next title is protected, overwriting stops.
V iewing T itle List menu
displayed on other DVD
Recorders or Players
+RW
+R
You can view the Title List menu displayed on the
other DVD player that is capable of playing DVD+RW
or DVD+R discs.
1. Insert DVD+R or DVD+RW disc recorded already.
Downloaded From DvDPlayer-Manual.com JVC Manuals
Playing Your Recordings on
Other DVD Players
(Finalizing a Disc)
Most regular DVD players can play finalized discs
recorded in Video mode, finalized DVD+R or
DVD+RWs. A small number of players can also play
DVD-RW discs recorded in VR mode, finalized or not.
Check the manual that came with the other player to
check what formats of discs it will play.
Finalizing ‘fixes’ the recordings and editings in place
so that the disc can be played on a regular DVD player or computer equipped with a suitable DVD-ROM
drive.
Finalizing a Video mode disc creates a menu screen
for navigating the disc. The menu can be accessed
by pressing DISC MENU/LIST or TITLE.
To finalize a disc, refer to [Finalize] on page 23.
EDITTING
3. Use v V b B to choose a title you want to
overwrite.
Notes:
• Unfinalized DVD+RW is playable on regular DVD
players.
•
The edited contents of a DVD+RW disc is
compatible on regular DVD players only after
finalization.
•
Any edited contents of the DVD+R disc are not
compatible on regular DVD players.
(Hide, chapter combine, added chapter mark, etc.)
•
How long finalization takes depends on the type
of disc, how much is recorded on the disc, and
the number of titles on the disc.
49
Language Code List
Use this list to input your desired language for the following initial settings: Disc Audio, Disc Subtitle, Disc Menu.
Language
Abkhazian
Afar
Afrikaans
Albanian
Ameharic
Arabic
Armenian
Assamese
Aymara
Azerbaijani
Bashkir
Basque
Bengali; Bangla
Bhutani
Bihari
Breton
Bulgarian
Burmese
Byelorussian
Cambodian
Catalan
Chinese
Corsican
Croatian
Czech
Danish
Dutch
English
Esperanto
Estonian
Faroese
Code
6566
6565
6570
8381
6577
6582
7289
6583
6588
6590
6665
6985
6678
6890
6672
6682
6671
7789
6669
7577
6765
9072
6779
7282
6783
6865
7876
6978
6979
6984
7079
Language
Fiji
Finnish
French
Frisian
Galician
Georgian
German
Greek
Greenlandic
Guarani
Gujarati
Hausa
Hebrew
Hindi
Hungarian
Icelandic
Indonesian
Interlingua
Irish
Italian
Japanese
Javanese
Kannada
Kashmiri
Kazakh
Kirghiz
Korean
Kurdish
Laothian
Latin
Latvian, Lettish
Code
7074
7073
7082
7089
7176
7565
6869
6976
7576
7178
7185
7265
7387
7273
7285
7383
7378
7365
7165
7384
7465
7487
7578
7583
7575
7589
7579
7585
7679
7665
7686
Language
Lingala
Lithuanian
Macedonian
Malagasy
Malay
Malayalam
Maltese
Maori
Marathi
Moldavian
Mongolian
Nauru
Nepali
Norwegian
Oriya
Panjabi
Pashto, Pushto
Persian
Polish
Portuguese
Quechua
Rhaeto-Romance
Rumanian
Russian
Samoan
Sanskrit
Scots Gaelic
Serbian
Serbo-Croatian
Shona
Sindhi
Code
7678
7684
7775
7771
7783
7776
7784
7773
7782
7779
7778
7865
7869
7879
7982
8065
8083
7065
8076
8084
8185
8277
8279
8285
8377
8365
7168
8382
8372
8378
8368
Language
Singhalese
Slovak
Slovenian
Somali
Spanish
Sudanese
Swahili
Swedish
Tagalog
Tajik
Tamil
Tatar
Telugu
Thai
Tibetan
Tigrinya
Tonga
Turkish
Turkmen
Twi
Ukrainian
Urdu
Uzbek
Vietnamese
Volapük
Welsh
Wolof
Xhosa
Yiddish
Yoruba
Zulu
Code
8373
8375
8376
8379
6983
8385
8387
8386
8476
8471
8465
8484
8469
8472
6679
8473
8479
8482
8475
8487
8575
8582
8590
8673
8679
6789
8779
8872
7473
8979
9085
Area Code List
Choose a area code from this list.
Area
Afghanistan
Argentina
Australia
Austria
Belgium
Bhutan
Bolivia
Brazil
Cambodia
Canada
Chile
China
Colombia
Congo
Costa Rica
Croatia
Czech Republic
Denmark
Ecuador
Egypt
El Salvador
Code
AF
AR
AU
AT
BE
BT
BO
BR
KH
CA
CL
CN
CO
CG
CR
HR
CZ
DK
EC
EG
SV
Area
Ethiopia
Fiji
Finland
France
Germany
Great Britain
Greece
Greenland
Islands
Hong Kong
Hungary
India
Indonesia
Israel
Italy
Jamaica
Japan
Kenya
Kuwait
Libya
Luxembourg
Downloaded
50 From DvDPlayer-Manual.com JVC Manuals
Code
ET
FJ
FI
FR
DE
GB
GR
GL
HM
HK
HU
IN
ID
IL
IT
JM
JP
KE
KW
LY
LU
Area
Malaysia
Maldives
Mexico
Monaco
Mongolia
Morocco
Nepal
Netherlands
Netherlands Antilles
New Zealand
Nigeria
Norway
Oman
Pakistan
Panama
Paraguay
Philippines
Poland
Portugal
Romania
Russian Federation
Code
MY
MV
MX
MC
MN
MA
NP
NL
AN
NZ
NG
NO
OM
PK
PA
PY
PH
PL
PT
RO
RU
Area
Saudi Arabia
Senegal
Singapore
Slovak Republic
Slovenia
South Africa
South Korea
Spain
Sri Lanka
Sweden
Switzerland
Taiwan
Thailand
Turkey
Uganda
Ukraine
United States
Uruguay
Uzbekistan
Vietnam
Zimbabwe
Code
SA
SN
SG
SK
SI
ZA
KR
ES
LK
SE
CH
TW
TH
TR
UG
UA
US
UY
UZ
VN
ZW
Troubleshooting
Check the following guide for the possible cause of a problem before contacting service.
Symptom
Cause
Correction
No power.
The power cord is disconnected.
Plug the power cord into the wall outlet securely.
Abnormal or no picture.
The TV is not set to receive Recorder
signal output.
Select the appropriate video input
mode on the TV so the picture from
the Recorder appears on the TV
screen.
The video cable is not connected
securely.
Connect the video cable into the jacks
securely.
Unit output setting and TV resolution
capabilites mismatch.
Check TV capability.
Check mode of connections
(eg. S-Video, Components etc.).
Wrong connection.
Check the connection.
The equipment connected with the
audio cable is not set to receive
Recorder signal output.
Select the correct input mode of the
audio receiver so you can listen to the
sound from the Recorder.
The audio cables are not connected
securely.
Connect the audio cable into the jacks
securely.
The power of the equipment connected
with the audio cable is turned off.
Turn on the equipment connected with
the audio cable.
The AUDIO options are set to the wrong
position.
Set the AUDIO options to the correct
position.
In HDMI mode, audio selection is not
set to PCM.
Change AUDIO setup to PCM mode.
The disc is dirty.
Clean the disc.
The TV channels are not tuned in properly.
Check tuning, carry out tuning again.
Tape heads are dirty.
Clean video heads.
Tape is a rental or was recorded on
another VCR.
Use CH (v/V) for manual tracking
adjustment while tape is playing.
Do not display the
closed caption information.
Did you set the resolution to 480p using
OUTPUT STATUS?
If the resolution is set to 480p, the
closed caption information is not output from the COMPONENT and HDMI
OUT jack.
Picture from external
input is distorted.
The video signal from the external
component is copy-protected.
You cannot connect via the Recorder.
Connect the component directly to
your TV.
Some channels are
skipped over when using
CH (v / V).
The skipped channels were deleted with
the CH. Add/Del feature.
Use the CH. Add/Del feature to
restore channels. See [To Add or
Erase Channels] on page 20.
No sound.
The playback picture is
poor.
Downloaded From DvDPlayer-Manual.com JVC Manuals
REFERENCE
Check unit Resolution setting
according to TV capability and mode
of connection.
51
Cause
Symptom
Correction
No disc is inserted.
No tape is inserted.
Insert a disc or tape. (Check that the
disc or tape indicator in the display
window is lit.)
An unplayable disc is inserted.
Insert a playable disc. (Check the disc
type and Regional code.)
The disc is placed upside down.
Place the disc with the playback side
down.
The disc is not placed within the
guide.
Place the disc on the disc tray correctly
inside the guide.
The disc is dirty.
Clean the disc.
The Rating level is set.
Cancel the Rating function or change
the rating level.
Video tape cannot be
inserted.
Is the cassette compartment empty?
Eject the tape in.
The Remote Control
does not work properly.
There is an obstacle in the path of the
Remote Control and this unit.
Remove the obstacle.
The batteries in the Remote Control
are exhausted.
Replace the batteries with new ones.
The Remote Control is not pointed at
the remote sensor of the Recorder.
Point the Remote Control at the remote
sensor of the Recorder.
The Remote Control is too far from
the Recorder.
Operate the Remote Control within
23ft (7m).
This Remote Control use the same
buttons for VCR and DVD functions
(ex.PLAY).
When using a VCR, first press the VCR
button. When using a DVD, first press
the DVD button.
The remote control’s code does not
match.
If the power has been unplugged or the
power supply has been stopped, the unit
code is changed to C code automatically.
Reset the remote control code of the unit.
Camcorder image is
not shown.
Camcorder is off.
Turn camcorder on and operate
properly.
Camcorder image via
A/V input or DV IN to
Recorder is not shown
on TV screen.
The recorder’s source is incorrect.
Use AV INPUT to select input channel
(AV1, AV2 or DV IN).
Timer recording is not
possible.
Clock in record is not set to correct
time.
Set clock to correct time.
Timer has been programmed
incorrectly.
Reprogram Timer.
Has the power supply been stopped
temporarily?
If the power has been unplugged or the
power supply has been stopped, the Timer
Recording setting is cancelled. Reset the
clock setting and Timer Recording setting.
(If you set the clock setting to Auto, the
clock is set automatically.)
(TIMER Record) indicator light does
not appear after programming timer.
Reprogram Timer and turn off the
Recorder enable timer.
The TV program has copyonce signal.
Use DVD-RW discs formatted in VR
mode.
The Recorder does not
start playback.
Downloaded
52 From DvDPlayer-Manual.com JVC Manuals
Correction
Cause
Picture or sound of
broadcasting channel is
weak or missing.
Antenna or cables are loose.
Tighten connections or replace cable.
Wrong Tuning Band is selected in the
Recorder Setup menu.
Try [Tuning Band Select] options; see
page 20 for details.
Can’t play disc recorded
on this Recorder on
another DVD player.
The disc was recorded in Video mode.
Finalize the disc; see page 23.
Some players will not play even a
finalized disc recorded in Video mode.
No solution.
The disc was recorded in VR mode.
The other player must be RW
compatible in order to play it.
Discs recorded with copy-once material cannot be played on other players.
No solution.
The remaining blank space on the
disc is insufficient.
Use another disc.
The source you are trying to record is
copy-protected.
You cannot record the source.
When setting the recording channel,
the channel is tuned on the TV’s own
tuner.
Select the channel on the Recorder’s
built-in TV tuner.
When recording to a Video mode disc,
programs that are copy-once protected cannot be recorded.
Use a VR mode formatted disc for
copy-once material.
TV is not Stereo-compatible.
No solution.
Broadcast program is not in stereo format.
No solution.
Recorder A/V Out jacks are not
connected to TV A/V In jacks.
Make A/V connections. Stereo is available only via A/V output from Recorder.
Recorder Audio/Video Out is not
selected for viewing at the TV.
Select AUX or A/V source as TV input.
Recorder’s TV audio channel is set to
SAP or MONO.
Set TV audio channel mode to Stereo.
See [Changing TV Audio Channel] on
page 25.
Cannot record or did
not record successfully.
Stereo Audio Record
and/or Playback not
present.
Reset the Recorder
If you observe any of the following symptoms...
• When the Recorder is plugged in, but the
power will not turn on or off.
• When the display window does not working.
• When the Recorder does not operate
normally.
Downloaded From DvDPlayer-Manual.com JVC Manuals
You can reset the Recorder as follows :
• Press and hold the STANDBY/ON button on
the front panel for more than five seconds.
This will force the Recorder to power off.
Press the STANDBY/ON button on the front
panel again to turn the Recorder back on.
• Unplug the power cord and then plug the
power cord again after more than five seconds.
REFERENCE
Symptom
53
Specifications
General
Power requirements
AC 120 V, 60 Hz
Power consumption
Power On : 27 W, Power Off : 0.7 W
Dimensions (approx.)
Mass (approx.)
Operating temperature
Operating humidity
Signal system
430 X 78.5 X 310 mm (16.9 x 3.1 x 12.2 inches) (w x h x d)
5.2 kg (11.44 lbs)
5˚C to 35˚C (41˚F to 95˚F)
5 % to 90 %
NTSC
Recording
Recording format
DVD VideoRecording, DVD-VIDEO
Recordable discs
DVD-ReWritable, DVD-Recordable, DVD+ReWritable,
DVD+Recordable
DVD ; Approx. 1 hour 20 minutes (XP mode), 2 hours (SP mode),
4 hours (LP mode), 6 hours (EP mode)
VCR ; SP: 2 HOURS (T-120), SLP: 6 HOURS (T-120)/8 HOURS (T-160)
Recordable time
Video recording format
Sampling frequency
27MHz
Compression format
MPEG 2
Audio recording format
Sampling frequency
48kHz
Compression format
Dolby Digital
VCR Specifications
Head system
Timer
Tape speed
Tape width
Rewind time
Antenna
VHF output signal
Channel coverage
Frequency range
Signal-to-noise ratio
Four head helical scan azimuth system
12-hour display type with AM, PM
SP: 33.35 mm/sec, LP: 16.67 mm/sec, SLP: 11.12 mm/sec
12.7 mm
About 180±30 seconds (T-120)
75 ohms (VHF/UHF)
Channel 3 or 4 (Switchable)
VHF: 2-13, UHF: 14-69, CATV: 1-125 (4A, A-W, W+1 - W+84, A-5 - A-1)
20Hz to 20kHz
43dB
Dynamic range
88 dB
Channel separation
60 dB
Downloaded
54 From DvDPlayer-Manual.com JVC Manuals
DVD Specifications
Laser system
Semiconductor laser, wavelength 650 nm
Frequency response
DVD (PCM 48 kHz): 8 Hz to 22 kHz, CD: 8 Hz to 20 kHz
Signal-to-noise ratio
More than 95dB
Harmonic distortion
Less than 0.008%
Dynamic range
More than 90 dB
Inputs
ANTENNA IN
Antenna or CATV input, 75 ohms
VIDEO IN (AV1,2)
1.0 Vp-p 75 ohms, sync negative, RCA jack x 2
AUDIO IN (AV1,2)
-6 dBm more than 47 kohms, RCA jack (L, R) x 2
S-VIDEO IN
(Y) 1.0 V (p-p), 75 Ω, negative sync, Mini DIN 4-pin x 1
(C) 0.286 V (p-p) 75 Ω
DV IN
4 pin (IEEE 1394 standard)
Outputs
VIDEO OUT
S-VIDEO OUT
1.0 Vp-p 75 Ω, sync negative, RCA jack x 1
(Y) 1.0 V (p-p), 75 Ω, negative sync, Mini DIN 4-pin x 1
(C) 0.286 V (p-p) 75 Ω
COMPONENT VIDEO OUT
(Y) 1.0 V (p-p), 75 Ω, negative sync, RCA jack x 1
(PROGRESSIVE SCAN)
(Pb)/(Pr) 0.7 V (p-p), 75 Ω, RCA jack x 2
HDMI video/audio output
19 pin (HDMI standard, Type A)
Audio output (digital audio)
0.5 V (p-p), 75 Ω, RCA jack x 1
Audio output (optical audio)
Optical connector x 1
Audio output (analog audio)
2.0 Vrms (1 kHz, -6 dB), 600 Ω, RCA jack (L, R) x 2
RF OUT
Channel 3 or 4 (Switchable)
Accessory:
Audio cable (L, R) . . . . . . . . . . . . . . .1
Remote Control . . . . . . . . . . . . . . . . .1
REFERENCE
Video cable . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
RF 75-ohm Coaxial Cable . . . . . . . . . . . . . . . . .1
Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
