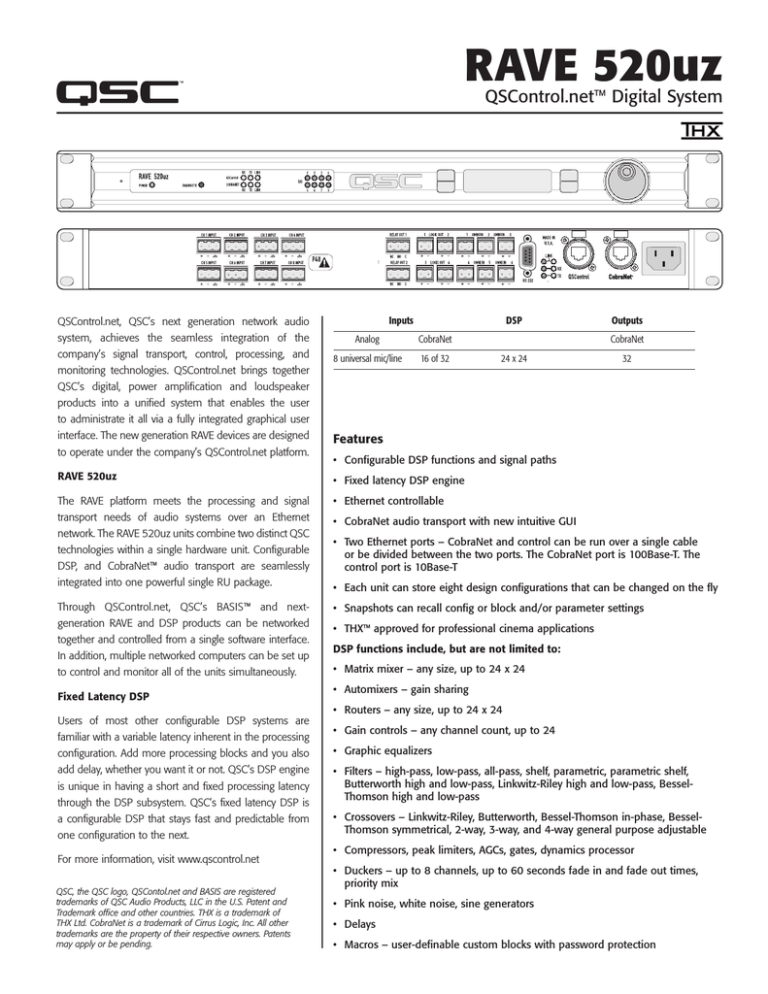

RAVE 520uz
QSControl.net™ Digital System
QSControl.net, QSC’s next generation network audio
system, achieves the seamless integration of the
company’s signal transport, control, processing, and
8 universal mic/line
monitoring technologies. QSControl.net brings together
Analog DSP Outputs
16 of 32
24 x 24
QSC’s digital, power amplification and loudspeaker
products into a unified system that enables the user
to administrate it all via a fully integrated graphical user
interface. The new generation RAVE devices are designed
to operate under the company’s QSControl.net platform.
• Configurable DSP functions and signal paths
RAVE 520uz
• Fixed latency DSP engine
The RAVE platform meets the processing and signal
• Ethernet controllable
transport needs of audio systems over an Ethernet
• CobraNet audio transport with new intuitive GUI
network. The RAVE 520uz units combine two distinct QSC
DSP, and CobraNet™ audio transport are seamlessly
• T wo Ethernet ports – CobraNet and control can be run over a single cable
or be divided between the two ports. The CobraNet port is 100Base-T. The
control port is 10Base-T
integrated into one powerful single RU package.
• Each unit can store eight design configurations that can be changed on the fly
Through QSControl.net, QSC’s BASIS™ and next-
• Snapshots can recall config or block and/or parameter settings
generation RAVE and DSP products can be networked
• THX™ approved for professional cinema applications
technologies within a single hardware unit. Configurable
together and controlled from a single software interface.
In addition, multiple networked computers can be set up
to control and monitor all of the units simultaneously.
Fixed Latency DSP
Users of most other configurable DSP systems are
familiar with a variable latency inherent in the processing
DSP functions include, but are not limited to:
• Matrix mixer – any size, up to 24 x 24
• Automixers – gain sharing
• Routers – any size, up to 24 x 24
• Gain controls – any channel count, up to 24
configuration. Add more processing blocks and you also
• Graphic equalizers
add delay, whether you want it or not. QSC’s DSP engine
• F ilters – high-pass, low-pass, all-pass, shelf, parametric, parametric shelf,
Butterworth high and low-pass, Linkwitz-Riley high and low-pass, BesselThomson high and low-pass
is unique in having a short and fixed processing latency
through the DSP subsystem. QSC’s fixed latency DSP is
a configurable DSP that stays fast and predictable from
one configuration to the next.
For more information, visit www.qscontrol.net
QSC, the QSC logo, QSContol.net and BASIS are registered
trademarks of QSC Audio Products, LLC in the U.S. Patent and
Trademark office and other countries. THX is a trademark of
THX Ltd. CobraNet is a trademark of Cirrus Logic, Inc. All other
trademarks are the property of their respective owners. Patents
may apply or be pending.
• C
rossovers – Linkwitz-Riley, Butterworth, Bessel-Thomson in-phase, BesselThomson symmetrical, 2-way, 3-way, and 4-way general purpose adjustable
• Compressors, peak limiters, AGCs, gates, dynamics processor
• D
uckers – up to 8 channels, up to 60 seconds fade in and fade out times,
priority mix
• Pink noise, white noise, sine generators
• Delays
• Macros – user-definable custom blocks with password protection
RAVE 520uz
Dynamic Range (AES-17, -60 dB method, all sensitivities)
Unweighted > 110 dB A weighted > 113 dB Distortion (20 Hz – 20 kHz, all sensitivities)
Gain = 0 – 30 dB < 0.008% THD+N Gain > 30 dB < 0.05% THD+N Crosstalk (20 Hz – 20 kHz)
Inter-channel (maximum) > 75 dB
Inter-channel (typical) > 90 dB
Intra-channel (maximum) > 85 dB
Intra-channel (typical) > 100 dB
Frequency Response
20 Hz – 20 kHz (maximum) +/- 0.5 dB
20 Hz – 20 kHz (typical) +/- 0.2 dB
Audio Converters 24 bit, 48 kHz
Mute Infinite attenuation
Delay Standard CobraNet™ latency Low latency
RAVE to Network
7.104 ms 4.438 ms
Analog input through full DSP chain to CobraNet output INPUTS/OUTPUTS Program Inputs 8 inputs
Connector type 3-pin “Phoenix style” (a.k.a. “Euro style”) detachable terminal blocks
Type Electrically balanced
Grounding All shield terminals connected to chassis
Pinout 1:+ / 2:- / 3:Chassis Ground
Input Impedance (nominal, Ω) Balanced: 6k81 / Unbalanced: 13k6
Common-mode Rejection 20 Hz – 20 kHz (minimum): > 54 dB / 20 Hz – 20 kHz (typical): > 60 dB
E.I.N. (maximum)
150 Ω, 30 dB: -124.5 dBu / 150 Ω, 60 dB: -125.0 dBu
Input Sensitivities (variable) Vrms: 0.9 mV to 15.46 V / dBu: -62.2 to +26 / dBV: -64.4 to +23.7
Phantom Power (per IEC 1938 [1996]) +48 V (software selectable)
Relay Outputs 2 discrete floating relay switch outputs
Connector Type 3-pin “Phoenix style” (a.k.a. “Euro style”) detachable terminal blocks
Configuration Electromechanical relay
Pinout 1:NC / 2:NO / 3:COM
Switching Capacity (nominal) 1 A, 30 VDC
Logic Outputs 4 discrete outputs
Connector Type 2-pin “Phoenix style” (a.k.a. “Euro style”) detachable terminal blocks
Configuration Single-ended, TTL compatible
Pinout 1:+(Signal) / 2:-(Chassis Ground)
Omni Inputs 6 discrete inputs for TTL logic, voltage control or passive resistance
Connector Type 2-pin “Phoenix style” (a.k.a. “Euro style”) detachable terminal blocks
Configuration Single-ended, ground referenced
Pinout 1:+(Signal) / 2:-(Chassis Ground)
Normal Operating Range Reads signals between 0-5 V nominally
Potentiometer Operation (Ω)
Use 10k for full range
Voltage Tolerance +/- 48 V
Current Output (Ω)
0.5 mA with 10k (for passive resistive controls)
RS-232 Port
Female DB9 connector (setup and diagnostics purposes only)
QSControl Port
Neutrik Ethercon RJ45 ruggedized data connector
CobraNet Port Neutrik Ethercon RJ45 ruggedized data connector
QSControl Status Yellow Link, Tx, Rx, front panel / Green Link, Tx, Rx, rear panel
CobraNet Status Yellow Link, Tx, Rx, front and rear panel
Power Blue, front panel
Diagnostic Red, front panel
LCD Data Display 2 line x 16 character, backlit, front panel
Signal Presence Tri-state (red, green, yellow), front panel
Specifications subject to change without notice.
1675 MacArthur Boulevard • Costa Mesa, CA 92626 • Ph: 800/854-4079 or 714/957-7100 • Fax: 714/754-6174
RAVE 520uz Spec Sheet - 06/18/08
