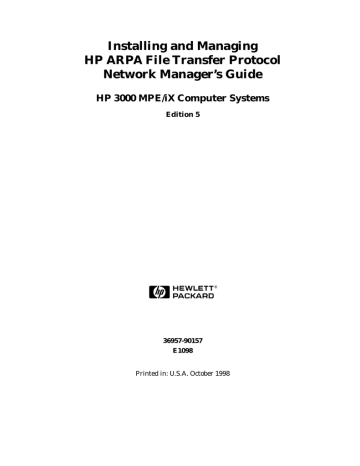

Installing and Managing HP ARPA File Transfer Protocol Network Manager s Guide

Installing and Managing HP ARPA File Transfer Protocol Network Manager s Guide

Installing and Managing

HP ARPA File Transfer Protocol

Network Manager’s Guide

HP 3000 MPE/iX Computer Systems

Edition 5

36957-90157

E1098

Printed in: U.S.A. October 1998

Notice

The information contained in this document is subject to change without notice.

Hewlett-Packard makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability or fitness for a particular purpose. Hewlett-Packard shall not be liable for errors contained herein or for direct, indirect, special, incidental or consequential damages in connection with the furnishing or use of this material.

Hewlett-Packard assumes no responsibility for the use or reliability of its software on equipment that is not furnished by Hewlett-Packard.

This document contains proprietary information which is protected by copyright. All rights reserved. Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws.

Restricted Rights Legend

Use, duplication, or disclosure by the U.S. Government is subject to restrictions as set forth in subparagraph (c) (1) (ii) of the Rights in

Technical Data and Computer Software clause at DFARS 252.227-7013.

Rights for non-DOD U.S. Government Departments and Agencies are as set forth in FAR 52.227-19 (c) (1,2).

Acknowledgments

UNIX is a registered trademark of The Open Group.

Hewlett-Packard Company

3000 Hanover Street

Palo Alto, CA 94304 U.S.A.

© Copyright 1990–1992, 1995 and 1998 by Hewlett-Packard Company

Contents

1. Overview

ARPA Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Telnet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

FTP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

HP ARPA Telnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

HP ARPA File Transfer Protocol. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

FTP User (Client) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

FTP Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Who Should Use this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Planning for FTP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Before Using FTP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2. Verify Installation and Update LAN Configuration

Verifying Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Adding Ethernet Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Convert NMCONFIG to New Release . . . . . . . . . . . . . . . . . . . . . . . . . 21

Enabling Ethernet Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Run NMMGR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Open the Configuration File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Go to NS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Go to Guided . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Select the LAN NI to Modify . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Update the LAN NI Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Additional Updates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Exit from NMMGR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Restarting the Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Changing ARP Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Network Traffic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Store and Forward . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Creating Subnets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Update the IP Protocol Configuration . . . . . . . . . . . . . . . . . . . . . . . . 26

Example: Subnet Mask . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Updating the Network Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Configuring ARPA Domain Name Files . . . . . . . . . . . . . . . . . . . . . . . . 30

To Create or Modify the Resolver File . . . . . . . . . . . . . . . . . . . . . . . . . 31

Keywords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

To Create or Modify the Hosts File . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Additional Domain Name Configuration Files. . . . . . . . . . . . . . . . . . . 36

Network Name Database . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Protocol Name Database . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Service Name Database. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Restarting the Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

3. Starting FTP

Starting INETD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Services File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Protocol File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

3

Contents

4

4. Managing FTP

FTP Users. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

MPE/iX FTP Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Remote FTP Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

FTP User Commands on MPE/iX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

MPE/iX FTP Server Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

FTP Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

5. Troubleshooting

MPE/iX FTP User . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Cannot Connect by Node Name (IP Address OK). . . . . . . . . . . . . . . 66

Cannot Connect by IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Cannot Logon to Remote . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Cannot Transfer Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Remote User. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Cannot Connect to MPE/iX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

User Cannot Log On to MPE/iX. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Cannot Transfer Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

A. Error Messages

FTP User Messages and Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

FTP Server Messages and Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

B. Using the FTP Server

Who Should Use This Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Sample FTP Session: Accessing MPE/iX . . . . . . . . . . . . . . . . . . . . . . . 87

Start FTP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Connect to the Remote MPE/iX System . . . . . . . . . . . . . . . . . . . . . . 88

Log On to MPE/iX. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Check the Session and Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

View Files in the Working Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Transfer a File to Your System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

View Files in a Different Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Transfer a File From Another Group . . . . . . . . . . . . . . . . . . . . . . . . 89

Transfer Multiple Files from MPE/iX to Your System . . . . . . . . . . . 90

Transfer a File from Your System to MPE/iX . . . . . . . . . . . . . . . . . . 90

Use File Building Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

More Information About FTP and MPE/iX . . . . . . . . . . . . . . . . . . . . 91

MPE/iX User Accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Changing Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

File Naming on MPE/iX. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Using Metacharacters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Changing File Building Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Examples. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Supported MPE/iX File Types. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Contents

C. PING/iX Utility

What is PING/iX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

How to Use PING/iX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Using Menu-Driven PING/iX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Enter the IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Enter the Number of Packets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Enter the Number of Bytes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Stopping PING/iX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Sample Session . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Using PING/iX From the Command Line . . . . . . . . . . . . . . . . . . . . . 103

Stopping PING/iX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

PING/iX Error and Information Messages. . . . . . . . . . . . . . . . . . . . . 104

Internal Errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Glossary

Index

5

Contents

6

Figures

Figure 1-1 . FTP Client-Server Model. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Figure 1-2 . FTP Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Figure 2-1 . Sample Resolver Configuration File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Figure 2-2 . Sample Hosts Configuration File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Figure 4-1 . FTP Client-Server Model. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

Figure 4-2 . Network Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

Figure 5-1 . Troubleshooting Tree. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

7

Figures

8

Preface

The HP ARPA File Transfer Protocol product provides the ARPA file transfer protocol (FTP) service to MPE/iX users.

The chapters in this manual are organized as follows:

• Chapter 1, “Overview,” is a brief overview of ARPA Services and what is provided on MPE/iX.

• Chapter 2, “Verify Installation and Update LAN Configuration,” describes how to verify FTP has been installed and the steps for updating the LAN for Ethernet support.

• Chapter 3, “Starting FTP,” describes how to start FTP and test a connection

• Chapter 4, “Managing FTP,” describes FTP users, the FTP commands available for both MPE/iX users and remote users, and an overview of FTP network architecture.

• Chapter 5, “Troubleshooting,” provides a troubleshooting tree to help the network manager resolve FTP problems.

• Appendix A, “Error Messages,” provides a list of possible errors with meaning, cause, and action.

• Appendix B, “Using the FTP Server,” provides information for remote users accessing the MPE/iX FTP server.

• Appendix C, “PING/iX Utility,” describes how to use the PING/iX tool to aid in troubleshooting connection problems.

• Glossary provides terms and definitions for ARPA services and networking.

Changes to This Manual

This manual has been updated to reflect the latest enhancements made to the FTP/iX product.

Related Documentation

The following manuals contain information related to the product described in this manual. You may need information from one or all of the manuals listed here.

9

FTP

Installing and Managing HP ARPA File Transfer Protocol Network

Manager’s Guide

HP ARPA File Transfer Protocol User’s Guide

Telnet

Using the HP OpenView DTC Manager

Link Products

NS 3000/iX Network Planning and Configuration Guide

Using the OpenView DTC Manager

• (For NMMGR): Using the Node Management Services (NMS)

Utilities

General Networking

NS 3000/iX Operations and Maintenance Reference Manual

NS 3000/iX NMMGR Screens Reference Manual

NS 3000/iX Error Messages Reference Manual

MPE/iX

MPE/iX Error Messages Manual Volume I, Volume II, and

Volume III.

MPE/iX Commands Reference Manual Volume I and Volume II.

Network Services

Using NS 3000/iX Network Services

NetIPC 3000/iX Programmer’s Reference Manual

Software Installation

HP 3000 MPE/iX System Software Maintenance Manual

Hardware installation

HP 36923A LAN 3000/iX Link and Terminal LAN Link Hardware

Reference Manual

LAN Cable and Accessories Installation Manual

10

1 Overview

This chapter briefly describes ARPA services and what is provided on MPE/iX.

11

Overview

ARPA Services

Figure 1-1

ARPA Services

The ARPA services are a subset of the networking services originally developed by the University of California at Berkeley for the Advanced

Research Projects Agency (ARPA). ARPA services have become a de facto standard for multivendor network communication.MPE/iX provides the Teletype Network Protocol (Telnet) and File Transfer

Protocol (FTP) ARPA services which enable users to communicate with non-HP and HP systems using these services.

Telnet

The Telnet protocol provides the ARPA standard virtual terminal connection between an HP 3000 and a remote host on the network.

FTP

FTP is an ARPA Service that allows users to transfer files among other networked systems. FTP is the file transfer program that uses the

ARPA standard File Transfer Protocol (FTP). With FTP, you can also perform file management operations.

FTP is based on the client-server model as shown in Figure 1-1. An FTP user on a system (the client) accesses the remote host FTP server to perform FTP tasks.

FTP Client-Server Model

12 Chapter 1

Overview

HP ARPA Telnet

HP ARPA Telnet

The HP ARPA Telnet products can be used with systems supporting the

ARPA Telnet service such as other HP systems, UNIX systems and many non-UNIX systems. For more information on the HP ARPA

Telnet products (HP ARPA Telnet Access, HP ARPA Telnet Express and

HP OpenView DTC Manager), see Using HP OpenView DTC Manager.

Chapter 1 13

Overview

HP ARPA File Transfer Protocol

HP ARPA File Transfer Protocol

The HP ARPA File Transfer Protocol product (FTP) can be used with systems supporting the ARPA FTP service such as other HP systems,

UNIX systems, and non-UNIX systems.

FTP is supported over LAN, Token Ring, FDDI, 100VG-AnyLAN,

100Base-T, X.25, and NS Point-to-Point networks.

FTP User (Client)

The MPE/iX FTP user can perform the following tasks:

• Connect to a remote host system

• Transfer or delete single or multiple files

• Rename single files on the remote system

• List or change remote directories

• Perform ASCII, binary, or bytestream file transfers

• Change file attributes (using

BUILD

parameters) for files transferred to the MPE/iX system

The supported FTP user commands are summarized in Chapter 4,

“Managing FTP,” in this manual. Also see the HP ARPA File Transfer

Protocol User’s Guide for more information.

FTP Server

Remote users accessing the MPE/iX FTP server can perform the following tasks:

• Connect to the MPE/iX FTP services

• Transfer or delete single or multiple files

• Rename single files on the remote MPE/iX system

• List or change remote MPE/iX directories

• Perform ASCII, binary, or bytestream file transfers

• Change file attributes (using

BUILD

parameters) for files transferred to the MPE/iX system

A summary of the supported MPE/iX FTP server commands is included in Chapter 4, “Managing FTP.”

14 Chapter 1

Overview

HP ARPA File Transfer Protocol

Appendix B, “Using the FTP Server,” provides remote non-MPE/iX system users information for accessing the MPE/iX FTP server. This information is also provided in an online text file named

FTPDOC.ARPA.SYS

which can be transferred to remote users using

FTP.

Chapter 1 15

Overview

Who Should Use this Manual

Figure 1-2

Who Should Use this Manual

This manual is intended for the HP 3000 network manager/administrator who is responsible for managing the networking products and resources on the HP 3000. It is expected that the network manager has a thorough knowledge of the HP 3000 system.

Planning for FTP

An overview of the tasks required for installing, configuring, and starting FTP are shown in Figure 1-2.

FTP Overview

Before Using FTP

To install and use FTP, you need the following:

• A supported version of the MPE/iX operating system.

• At least one network link that supports the TCP/IP protocols.

16 Chapter 1

2 Verify Installation and Update

LAN Configuration

This chapter describes how to verify the installation of FTP, and how to update the configuration of the local area network (LAN) link for

Ethernet support.

If you are installing a new MPE/iX system and link or are updating to a new release of MPE/iX, refer to the HP 3000 MPE/iX Installation, and

Update Manual or the HP 3000 MPE/iX System Software Maintenance

Manual.

To configure a new network link, refer to the NS 3000/iX Network

Planning and Configuration Guide, and then return to this manual. If you are providing Ethernet support, remember to update the LAN

Configuration screen Enable Ethernet field to yes (

Y

).

17

Verify Installation and Update LAN Configuration

Verifying Installation

Verifying Installation

At this point, you should have already installed the required hardware, link, and FTP software. Any other products you are installing should also have been done by this time.

To verify that FTP has been installed correctly:

• Run NMMAINT as follows:

:nmmaint,50

NMS Maintenance Utility 32098-20014 B.00.10 (C) Hewlett-Packard Co. 1984

MON, APR 20, 1998, 10:50 PM

Data comm products build version: N.61.08

Subsystem version ID’s:

HP FTP/XL

XL procedure:

XL procedure:

NM program file:

NM program file:

Catalog file:

Catalog file:

HP36957 module versions:

HPFTP_COMMON Version:

HPFTP_UTIL

FTP.ARPA.SYS

Version:

Version:

FTPSRVR.ARPA.SYS

FTPC000.ARPA.SYS

FTPHELP.ARPA.SYS

Version:

Version:

Version:

HP FTP/XL

:

HP36957 overall version = A.00.09

A0009001

A0009001

A0009001

A0009001

A0009001

A0009001

• Verify the capabilities for the group

ARPA.SYS

account. The required group capabilities are: PM, PH, IA, and BA.

• Verify the security of the files in the group

ARPA.SYS

account. Issue a

:LISTF @.arpa.sys,3

.

18 Chapter 2

Verify Installation and Update LAN Configuration

Verifying Installation

Verify that the security fields are set as follows:

FTP

File Name in

ARPA.SYS

FTPXL

FTPSRVR

FTPC000

FTPDOC

FTPHELP

SECURITY Field

READ:ANY

EXECUTE:ANY

READ:ANY

EXECUTE:ANY

READ:ANY

EXECUTE:ANY

READ:ANY

READ:ANY

READ:ANY

Chapter 2 19

Verify Installation and Update LAN Configuration

Adding Ethernet Support

Adding Ethernet Support

To update the LAN configuration for Ethernet support, you need to do the following:

• Update the

NMCONFIG.PUB.SYS

file using NMMGR.

• If you are updating your system from a previous MPE/iX release, you must run NMMGRVER to update your NMCONFIG configuration file.

• If needed, update the network directory with remote system names.

• Restart the network in order to activate the new configuration file.

20 Chapter 2

Verify Installation and Update LAN Configuration

Convert NMCONFIG to New Release

Convert NMCONFIG to New Release

If your are updating your MPE/iX system from a previous release, you must update your NMCONFIG file. Run the utility

NMMGRVER.PUB.SYS

to convert the NMCONFIG file to the new release. NMMGRVER prompts you for the files to convert, and creates a backup file. For instructions on running NMMGRVER, refer to the

NS 3000/iX Operations and Maintenance Manual.

Chapter 2 21

Verify Installation and Update LAN Configuration

Enabling Ethernet Support

Enabling Ethernet Support

Before updating the configuration file, obtain the configured name of the LAN NI, and the local node name. In addition, make sure you have a loopback NI of type

LOOP

configured.

From within the NMMGR program, you can check what the configured

NIs are. After you have opened the

NMCONFIG.PUB.SYS

file, enter the direct path

@NETXPORT.NI

. The Network Interface Configuration screen is displayed. Under the heading Configured Network Interfaces, verify that an NI of type

LAN

and an NI of type

LOOP

have been configured.

Before updating the configuration file, shut down the transport (and the

Network Services if installed). Issue an

NSCONTROL STOP

followed by an

NSCONTROL ABORT

for the Network Services, and

NETCONTROL

STOP

for the transport.

Run NMMGR

NA or NM user capability is required to update the

NMCONFIG.PUB.SYS

configuration file.

At the MPE/iX prompt, type:

:NMMGR

Open the Configuration File

The first screen displayed is the Open Configuration/Directory File screen.

The configuration file name

NMCONFIG.PUB.SYS

is displayed. Press the

[Open Config]

key to proceed with updating the configuration.

Go to NS

At the next screen, Main, make sure that the name of the local node is showing and press the

[NS]

key to go to the Network Services branch.

Go to Guided

From the next screen, the NS Configuration screen, press the

[Guided Config]

key to proceed with guided configuration.

22 Chapter 2

Verify Installation and Update LAN Configuration

Enabling Ethernet Support

Select the LAN NI to Modify

On the next screen, the Network Transport Configuration screen, enter the name of the LAN network interface (NI) in the field labeled NI name, and press the

[Config Network]

key to proceed with guided configuration.

Update the LAN NI Configuration

The LAN Configuration screen is displayed. Use the

[Tab]

key to reach the Enable Ethernet? field and enter

Y

for yes.

Press the

[Save Data]

key to save the Ethernet change.

Press the

[Validate Netxport]

key to validate the transport configuration before exiting from NMMGR.

Additional Updates

Before exiting NMMGR, check the section, “Changing ARP

Parameters” to verify that the default ARP parameters are correct for your installation. In addition, review the paragraphs under “Network

Traffic” and update the IP Protocol Configuration if necessary for your installation.

If you want to provide NS node name for remote systems that do not support probe, see the subsection, “Updating the Network Directory.” To configure ARPA domain names, see the subsection titled “Configuring

ARPA Domain Name Files” in this chapter.

Exit from NMMGR

To exit the NMMGR program, hold down the

[Shift]

key and press the

[Tab]

key which returns you to the command prompt. At the command prompt, enter:

EXIT

, the press the

[Enter]

key.

Restarting the Network

After updating the LAN to support Ethernet, you need to restart the network in order to activate the changed configuration file as described later in this chapter under the heading, “Restarting the Network.”

Chapter 2 23

Verify Installation and Update LAN Configuration

Changing ARP Parameters

Changing ARP Parameters

When you use guided configuration to update the LAN NI for Ethernet support, default parameters are set for the address resolution protocol

(ARP) configuration.

To verify what these are, or to change them, do the following:

1. Obtain the configured LAN NI name (issue a

NETCONTROL STATUS

command).

2. Run

NMMGR.PUB.SYS

.

3. At the Open Configuration/Directory File screen, ensure that the configuration file

NMCONFIG.PUB.SYS

appears as the configuration file name. You want to open the file by pressing the

[Open Config]

key

4. The HP Configuration screen is displayed. At the Command prompt, enter the direct path name as follows and then press the

[Enter]

key:

@NETXPORT.NI.

niname

.PROTOCOL.ARP

where niname is the configured LAN NI name. The Address

Resolution Protocol (ARP) Configuration screen is displayed. The

ARP parameters are:

Retransmission Maximum: The maximum number of times an

ARP request will be sent if no reply arrives.

Range:1 to 10

Default:2

Retransmission Timeout: The time (in seconds) between retransmissions of ARP requests if no reply has arrived.

Range:1 to 10

Default:1

5. If you change any parameters, press the

[Save Data]

key. Next, a. Hold down the

[Shift]

key and press the

[Tab]

key which returns you to the command prompt.

b. At the command prompt, enter: validate

, then press the

[Enter]

key.

c. The Validate screen is displayed. Press the

[Validate Netxport]

key to validate the updated configuration.

6. To exit the NMMGR program, hold down the

[Shift]

key and press the

[Tab]

key which returns you to the command prompt. At the command prompt, enter:

EXIT

, then press the

[Enter]

key.

24 Chapter 2

Verify Installation and Update LAN Configuration

Changing ARP Parameters

7. If you changed any of the parameters, you need to restart the network in order to activate the changed configuration file as described later in this chapter under the heading, “Restarting the

Network.”

Chapter 2 25

Verify Installation and Update LAN Configuration

Network Traffic

Network Traffic

Enabling Ethernet on an MPE/iX system increases the number of broadcast packets the system receives. If your installation has had network traffic problems in the past, or you expect this increase in traffic to affect your network performance, there are two things you can do:

• First, if the node is not a gateway, verify that the store and forward feature has been disabled.

• Second, as part of an overall network plan, examine the MPE/iX subnet feature as a means for managing network traffic.

Store and Forward

Traffic problems may occur if you use the default configuration for store and forward buffers. If the node you are updating is not a gateway node, you can decrease network traffic by disabling store and forward.

Creating Subnets

Subnetting is used to divide one large network into smaller subnetworks (subnets). Subnets are configured using the IP subnet mask as described under “Update the IP Protocol Configuration.”

Update the IP Protocol Configuration

To enter an IP subnet mask for each node in the subnetwork and/or to disable store and forward, do the following:

1. Run

NMMGR.PUB.SYS

.

2. At the Open Configuration/Directory File screen, ensure that the configuration file

NMCONFIG.PUB.SYS

appears as the configuration file name. You want to open the file by pressing the

[Open Config]

key.

3. The Main screen is displayed. At the Command prompt, enter the direct path name as follows and then press the

[Enter]

key:

@NETXPORT.NI.

niname

.PROTOCOL.IP

where niname is the configured LAN NI that supports Ethernet.

4. From the IP Protocol Configuration screen, enter the IP subnet mask you have selected for this subnetwork in the IP Mask field. The subnet mask is specified in the same format as the IP address without the preceding letter (A, B, or C). The 32-bit mask is grouped in octets expressed as decimal integers and is delimited by a period

(.) or a space. (See the paragraph “Example: Subnet Mask” later in this chapter.)

26 Chapter 2

NOTE

Verify Installation and Update LAN Configuration

Network Traffic

5. For a non-gateway node, you should disable store and forward buffers.

Enter zero (0) in the Store & Forward Buffers field.

6. After you have finished updating the IP Protocol Configuration, press the

[Save Data]

key. Next, a. Hold down the

[Shift]

key and press the

[Tab]

key which returns you to the command prompt.

b. At the command prompt, enter: validate

, then press the

[Enter]

key.

c. The Validate screen is displayed. Press the

[Validate Netxport]

key to validate the updated configuration.

7. To exit the NMMGR program, hold down the

[Shift]

key which returns you to the command prompt. At the command prompt, enter:

EXIT

, then press the

[Enter]

key.

8. If you changed any of the parameters, you need to restart the network in order to activate the changed configuration file as described later in this chapter under the heading, “Restarting the

Network.”

Example: Subnet Mask

This example shows a network using class C IP addresses which has been subnetted with the first three bits of the node address (in bold) identifying the subnetwork. The IP address for two of the nodes in the subnetwork are (in decimal and in binary):

192.006.012 041 1100 0000 0000 0110 0000 1100 0010 1001

192.006.012 055 1100 0000 0000 0110 0000 1100 0010 0111 a subnet mask for these two nodes is:

255.255.255 224 1111 1111 1111 1111 1111 1111 1110 0000

The network address and the three bits identifying the subnet bits are set to ones.

For this example, the decimal equivalent (

255.255.255 224

) is entered in the IP Subnet Mask field.

Chapter 2 27

Verify Installation and Update LAN Configuration

Updating the Network Directory

Updating the Network Directory

For your installation, you may decide to provide users with NS node names for remote systems that do not support probe. MPE/iX FTP users can enter an NS node name instead of the IP address to connect to remote systems which have been identified in the network directory. If you are using ARPA domain names, refer to the subsection in this chapter called “Configuring ARPA Domain Names.”

The steps for updating the network directory are:

1. Run

NMMGR.PUB.SYS

.

2. From the Open Configuration/Directory File screen, verify that the network directory file name displayed is

NSDIR.NET.SYS

, then press the

[Open Directory]

key.

3. The Network Directory Main screen is displayed. Press the

[Update Dir]

key to continue.

4. The Network Directory Select Node Name screen is displayed. Enter a new node name at the node name field, and select

Y

or

N

for Global.

The node name must be in the form: nodename.domain.organization

.

Press the

[Add]

key to proceed.

Each field in the node name must be 16 or fewer characters starting with an alphabetic character.

5. The Network Directory Data screen is displayed. Enter the IP address for the remote node you are adding to the network directory, and select the correct type. Select type

1

(IP) for a node that supports

Ethernet using ARP.

For remote nodes that use Ethernet but do not support ARP, enter the IP address and type

5

(LAN/ETHERNET). You must also enter the LAN station address in the field, Additional Address (six hexadecimal bytes, separated by dashes (XX-XX-XX-XX-XX-XX)).

Under the heading Transport services, the field, Checksum for TCP required (

Y

) or optional (

N

) must be set to yes (

Y

) for multivendor communication. This will activate checksumming only for the connection specified. Note that setting checksum to yes in the network directory overrides a value of no set in the Transmission

Protocol Configuration (TCP) Screen (path

@NETXPORT.GPROT.TCP

). HP recommends setting a no TCP checksum in the TCP screen because a value of yes turns on checksum for all connections (creating unnecessary overhead).

6. Press the

[Save Data]

key to save the new node name configuration.

28 Chapter 2

Verify Installation and Update LAN Configuration

Updating the Network Directory

7. To exit the NMMGR program, hold the

[Shift]

key and press the

[Tab]

key which returns you to the command prompt. At the command prompt, enter:

EXIT

, then press the

[Enter]

key.

8. To activate the new network directory, you must restart the network as described in the section, “Restarting the Network” later in this chapter.

Chapter 2 29

Verify Installation and Update LAN Configuration

Configuring ARPA Domain Name Files

Configuring ARPA Domain Name Files

If you are planning to use the domain name resolver for name to IP address resolution, you will need to configure a set of ASCII files on each node that contain needed information. To configure these files, you use any standard editor to modify existing sample files according to the instructions in this chapter.

The following subsections detail:

• How to modify the

RSLVSAMP.NET.SYS

file and save it as

RESLVCNF.NET.SYS

for use as the domain name resolver.

• How to modify the

HOSTSAMP.NET.SYS

file and save it as

HOSTS.NET.SYS

for use as the domain name host file.

• Other files you can configure to make additional information available to the network.

30 Chapter 2

Verify Installation and Update LAN Configuration

To Create or Modify the Resolver File

To Create or Modify the Resolver File

The resolver file (

RESLVCNF.NET.SYS

) is an initialization file for the domain name resolver. It contains information needed by the network to determine how to resolve a domain name to an IP address. This file is read by the resolver routines the first time they are invoked by a process.

To create the resolver file, perform the following steps:

1. Copy the sample file,

RSLVSAMP.NET.SYS

, to

RESLVCNF.NET.SYS

.

2. Modify

RESLVCNF.NET.SYS

using any ASCII editor so that it contains information about the name servers, domain, and search order for your network. The keywords included in the file are described under “Keywords.”

To modify an already existing

RESLVCNF.NET.SYS

file, simply use your editor to update and save the existing file.

Chapter 2 31

Verify Installation and Update LAN Configuration

Keywords

Keywords

Each entry in the resolver file consists of a keyword followed by a value separated by white space. The keyword and its associated value must appear on a single line and the keyword must start the line. Figure 2-1 shows an example of a resolver file. Comment lines start with a pound sign (#).

domain

Enter the local domain name. Most queries for names within this domain can use short names relative to the local domain name. If the host name does not contain a domain part, the root domain is assumed. If more than one instance of the domain keyword is present, the last instance will override.

The domain name is composed of labels, with each label separated by a period. Each label must start with a letter or digit, and have as interior characters only letters, digits, hyphens (-), or underbars (_). A domain name may have any number of labels, but its total length, including periods, is limited to 255 characters.

label [.label] [...] search

Domain names are not case sensitive.

The search entry is optional and indicates the order in which domains should be searched for host name lookup. You should add a search entry if users on this system commonly try to connect to nodes in other domains. The search list is limited to six domains with a total of 256 characters. If more than one instance of the search keyword is present, the last instance will override.

Resolver queries will be attempted using each component of the search path in turn until a match is found. Note that this process may be slow and will generate a lot of network traffic if the servers for the listed domains are not local. Note also that queries will time out if no server is available for one of the domains.

nameserver

Enter the IP address of a name server the resolver should query. The address must be in dot format, with leading zeros omitted and a period between each grouping. See example addresses in Figure 2-1.

32 Chapter 2

NOTE

Figure 2-1

Verify Installation and Update LAN Configuration

Keywords

It is very important that you omit the leading zeros in the network addresses that you enter in the domain name resolver files. If you enter leading zeros here, the domain name resolver will interpret the numbers as octal numbers.

You can list up to three name servers, but you must use a separate keyword entry for each. If there are multiple servers, the resolver will query them in the order listed. If no nameserver entries are present, the default is to use the

HOSTS.NET.SYS

file. If you have no server, do not add any nameserver entries; the resolver will immediately revert to the

HOSTS.NET.SYS

file. Errors in the resolver file will be silently ignored by the resolver routines.

Sample Resolver Configuration File

#resolv.conf file

# domain locl.inet.com

search locl.inet.com inet.com

nameserver 192.255.25.33

nameserver 192.255.354.74

nameserver 192.15.360.75

Note that the IP addresses and domain names used above are for purposes of the example only.

Chapter 2 33

NOTE

Verify Installation and Update LAN Configuration

To Create or Modify the Hosts File

To Create or Modify the Hosts File

The host name data base file,

HOSTS.NET.SYS

, associates internet addresses with official host names and aliases. This allows a user to refer to a host by a symbolic name instead of an internet address.

When using the name server, this file serves only as a backup when the server is not running. In this circumstance, it is a common practice that

HOSTS.NET.SYS

contains a few addresses of machines on the local network.

To create the hosts file, perform the following steps:

1. Copy the sample file,

HOSTSAMP.NET.SYS

, to

HOSTS.NET.SYS

.

2. Modify

HOSTS.NET.SYS

using any ASCII editor so that it contains information about the nodes on your network.

To modify an already existing

HOSTS.NET.SYS

file, simply use your editor to update and save the existing file.

Enter a single line for each host, including the following information:

[internet address] [local host name] [aliases]]

A line cannot start with a space. Items are separated by any number of blanks and/or tab characters. A pound sign (#) indicates the beginning of a comment.

Network addresses are specified in dot format, with leading zeros omitted and a period between each grouping. (See example addresses in

Figure 2-2.)

Host names can contain any printable character other than a white space, newline, or comment character.

It is very important that you omit the leading zeros in the network addresses. If you enter the leading zeros here, the domain name resolver will interpret the numbers as octal numbers.

34 Chapter 2

Sample Hosts Configuration File

Verify Installation and Update LAN Configuration

To Create or Modify the Hosts File

Figure 2-2

# This file contains information regarding the known hosts.

#

# The form for each entry is:

# host IP address local host name host aliases

#

# Note: the entries cannot be preceded by a blank space.

# 172.0.0.1 localhost loopback me myself local

192.41.112.100

192.41.112.114

192.41.112.413

192.41.112.136

192.41.104.4

192.41.104.5

192.41.104.132

192.41.130.16

192.41.130.82 a

192.41.132.161

192.41.132.166

bashful.locl.inet.com

happy.locl.inet.com

queezy.locl.inet.com

sneezy.locl.inet.com

mpmndda.locl.inet.com

mpmndwa.locl.inet.com

mpmtchq.locl.inet.com

mpmndiv.locl.inet.com

abacus.locl.inet.com

camelot.locl.inet.com

bigblue.locl.inet.com

bashful happy queezy sneezy mpmndda moose mpmndwa wabbit mpmtchq foo mpmndiv zephyr abacus spots camelot bigblue

Note that the IP addresses and host names used in this figure are for purposes of example only.

Chapter 2 35

Verify Installation and Update LAN Configuration

Additional Domain Name Configuration Files

Additional Domain Name Configuration

Files

In addition to the resolver file and the host name data base, there are other files available to allow you to configure additional information about your network. Each of these files is provided in sample format in the

NET.SYS

account. Each sample file contains an explanation of the format for the data and a sample entry. The available files and their functions are described here.

36 Chapter 2

Verify Installation and Update LAN Configuration

Network Name Database

Network Name Database

The network name database,

NETWORKS.NET.SYS

, associates IP addresses with official network names and aliases. This allows the user to refer to a network by a symbolic name instead of an internet address.

To configure the network name database, modify the sample file

NETSAMP.NET.SYS

.

Chapter 2 37

Verify Installation and Update LAN Configuration

Protocol Name Database

Protocol Name Database

The protocol name database,

PROTOCOL.NET.SYS

, associates protocol numbers with official protocol name and aliases. This allows the user to refer to a protocol by a symbolic name instead of a number. The protocol number mappings are defined in RFC 1010 Assigned Numbers. To configure the protocol name database, modify the sample file

PROTSAMP.NET.SYS

.

38 Chapter 2

Verify Installation and Update LAN Configuration

Service Name Database

Service Name Database

The service name database,

SERVICES.NET.SYS

, associates official service names and aliases with the port number and protocol the services use. Reserved port numbers 0 through 255 are assigned by

RFC 1010. To configure the service name database, modify the sample file

SERVSAMP.NET.SYS

.

Chapter 2 39

Verify Installation and Update LAN Configuration

Restarting the Network

Restarting the Network

In order to activate the changed configuration file, you need to restart the network.

1. If you have the Network Services (NS 3000/iX) installed, stop them by first issuing

NSCONTROL STOP

followed by

NSCONTROL ABORT

.

2. Next, to stop the transport, issue a

NETCONTROL STOP

.

3. Once the network has been stopped, issue the following

NETCONTROL commands:

NETCONTROL NI=

Loop_niname

;START

to restart the loopback NI

(where Loop_niname is the name of the configured NI of type

LOOP) and,

NETCONTROL NI=

niname

;START

for each configured NI to restart the links.

4. If you have the Network Services installed, restart them with

NSCONTROL START

.

40 Chapter 2

3 Starting FTP

Once you have configured the LAN or updated the configuration for

Ethernet support, the next step is starting INETD.

41

Starting FTP

Starting INETD

Starting INETD

Since FTPSRVR runs under INETD, INETD has to be started now.

Refer to the Configuring and Managing MPE/iX Internet Services

Manual, for specifics into the setup of the INETD (the Internet Super

Daemon) configuration files referenced here.

Here are the entries needed for FTPSRVR to run under INETD. These entries can be added by streaming

FTPCNFJ.ARPA.SYS

or by manually editing each file.

Services File

The

SERVICES.NET.SYS

file must have the following line: ftp 21/tcp tcp 6

It might be commented out (with # symbol). In that case, uncomment it.

Otherwise enter the line using an MPE editor.

Protocol File

The

PROTOCOL.NET.SYS

file must have the following line:

TCP # transmission control protocol

It might be commented out (with # symbol). In that case, uncomment it.

Otherwise enter that line using an MPE editor.

Configuration File

Add the FTP services to

INETDCNF.NET.SYS

. This is done by adding the following line: ftp stream tcp nowait MANAGER.SYS /SYS/ARPA/FTPSRVR ftpsrvr

It might be commented out (with # symbol). In that case, uncomment it.

Otherwise enter that line using an MPE editor.

Starting INETD

Stream the job

JINETD.NET.SYS

:

:stream JINETD.NET.SYS

NOTE

Do not stream

JFTPSTRT.ARPA.SYS

; it is no longer needed. Check startup jobs, UDCs and Command files for any place where JFTPSTRT is streamed and delete or comment out those entries.

42 Chapter 3

Starting FTP

Starting INETD

Optional Configuration

The optional configuration changes for FTPSRVR support anonymous logon.

To support anonymous FTP, certain system administrative tasks have to be done. These are essential for system security.

1. FTPGUEST account and user, named

USER

under the

FTPGUEST account should be created:

:NEWACCT FTPGUEST,USER

If this account and user already exist, proceed to step 2.

2. Assign passwords to

FTPGUEST

account and

USER

:

:ALTACCT FTPGUEST;PASS=ANYPASS

:ALTUSER USER.FTPGUEST;PASS=ANYPASS

3. The capability list for the account

FTPGUEST

should be

AL

,

AM

,

GL

,

IA

,

ND

,

SF

:

:ALTACCT FTPGUEST;CAP=AL,AM,GL,IA,ND,SF

4. The capability list for the group

PUB

under

FTPGUEST

should be

IA

:

:ALTUSER PUB.FTPGUEST;CAP=IA

5. The capability list for the user

USER

under

FTPGUEST

should be

IA

,

SF

,

ND

:

:ALTGROUP USER.FTPGUEST;CAP=IA,SF,ND

NOTE

The configuration of an anonymous logon is not required and can be implemented or not, on a system by system basis, by simply not building the “FTPGUEST” account on systems where an anonymous logon is not required.

Chapter 3 43

Starting FTP

Providing Access to the FTP Server Only

Providing Access to the FTP Server Only

For security reasons, you can prevent MPE/iX users from running the

FTP user program by locking the file named

FTP.ARPA.SYS

with the

MPE/iX command

ALTSEC

.

44 Chapter 3

Starting FTP

Providing Access to the MPE/iX FTP User Only

Providing Access to the MPE/iX FTP User

Only

To prevent remote users from accessing the MPE/iX FTP server:

• don’t run INETD (if only FTPSRVR is running under INETD)

• otherwise, comment out the line ftp stream tcp nowait MANAGER.SYS /SYS/ARPA/FTPSRVR ftpsrvr by placing the # symbol in the first column in the file

INETDCNF.NET.SYS

and restart INETD as

:INETD.NET; info=“-c”

To restrict only a particular host/network from accessing the MPE/iX

FTP server, add a line in

INETDSEC

file, in the form of:

<service name> <allow/deny> <host/network addresses, host/network names>

For example, to disallow the host

192.23.4.3

from accessing the FTP server, add the following line: ftp deny 192.23.4.3

For more information regarding

INETDSEC.NET.SYS

, refer to the

Configuring and Managing MPE/iX Internet Services manual, section

“inetd Security File”.

Chapter 3 45

Starting FTP

Changing Logging

Changing Logging

The INETD’s log file will log any error which results in the FTPSRVR getting aborted.

46 Chapter 3

Starting FTP

Testing the FTP User Interface and Server

Testing the FTP User Interface and Server

Once you have FTP installed and running, you can test FTP in loopback mode and to a remote system.

Test in Loopback Mode

You can test FTP in loopback mode by establishing an FTP session on your local node as in the following sample session. In loopback, you are accessing and seeing responses from the MPE/iX FTP server.

Run FTP

Enter the following at the MPE/iX prompt:

FTP.ARPA.SYS

Connect and Log On in Loopback

Connect to your local node by entering the local node name. For example: ftp> OPEN localnode

Enter a user account on your system, then the passwords when prompted: ftp> Name (username) USERNAME.MYACCT

331 Password required for USERNAME.MYACCT [userpass] [,acctpass] [,grouppass]

Password: (

enter password

)

230 USER LOGGED ON

View Local Files

List the files in the current group: ftp> DIR

200 PORT command ok.

150 File LISTF opened; data connection will be opened

ACCOUNT = MYACCT GROUP = MYGROUP

FILENAME CODE

NSCREEN1

NSCREEN2

-----------LOGICAL RECORD-----------

SIZE TYP EOF LIMIT

256B

80B

FA

FA

800

500

10000

14000

NSPROGX PROG

PROGRAMX

1934W

256W

VB

FB

4551

700

226 Transfer complete nnn bytes received in n.nn seconds (n.nn Kbytes/sec)

9480

1350 ftp>

Chapter 3 47

Starting FTP

Testing the FTP User Interface and Server

Transfer a File

Choose a file to transfer from you account, back to the same account with a different target name: ftp> GET NSCREEN2 TESTFILE

Check to see that the file transfer was successful by issuing an FTP

LS

command: ftp> LS

200 PORT command ok.

NSCREEN1

NSCREEN2

NSPROGX

TESTFILE

226 Transfer complete nnn bytes sent in n.nn seconds: (n.nn Kbytes/sec) ftp>

Exit From FTP

End the session by entering the FTP command

QUIT: ftp> QUIT

.

Test to a Remote System

You can follow the same steps to test FTP from MPE/iX to a remote system by using the remote system IP address (or its mode name) in the

OPEN

command. Responses and displays from the remote system FTP server are implementation dependent.

48 Chapter 3

4 Managing FTP

This chapter provides you with information for managing FTP:

• Describes what FTP users need to access remote systems or the

MPE/iX FTP server with FTP,

• Summarizes the HP ARPA File Transfer Protocol features (user and server commands), and

• Describes MPE/iX FTP architecture.

49

Managing FTP

FTP Users

FTP Users

On MPE/iX, there are two groups of FTP users: MPE/iX FTP users accessing remote systems with FTP user commands, and remote system FTP users accessing the FTP server on MPE/iX.

50 Chapter 4

Managing FTP

MPE/iX FTP Users

MPE/iX FTP Users

MPE/iX FTP users need the ARPA domain names, IP addresses, or NS node names and logon accounts for remote systems they can access with

FTP user commands.

To allow users to use alias names, you can identify remote systems in the network directory as NS node names. Standard ARPA domain names are supported. Another method for providing alias names is suggesting users create MPE/iX CI variables containing the IP addresses for frequently accessed systems or using UDCs or command files (see “Using FTP” in the HP ARPA File Transfer Protocol User’s

Guide for examples.)

Chapter 4 51

Managing FTP

Remote FTP Users

Remote FTP Users

Remote FTP users accessing the FTP server will need the:

• Node name or IP address of the MPE/iX system,

• User logon account and passwords,

• MPE/iX file system information.

For users unfamiliar with the MPE/iX file system, see Appendix B,

“Using the FTP Server.” This information is also provided in an online text file:

FTPDOC.ARPA.SYS

which can be transferred to remote users using FTP.

52 Chapter 4

NOTE

Managing FTP

FTP User Commands on MPE/iX

FTP User Commands on MPE/iX

The following quick reference provides the syntax and usage of the FTP user commands, listed in alphabetic order.

To stop a file transfer or directory listing in progress, you can

[CTRL-Y]

.

You are prompted to exit FTP, cancel the transfer, or continue. From the

FTP prompt you can exit by entering

QUIT

or pressing the

[Break]

key.

:mpecommand

From within an FTP session you can execute an

MPE/iX command or program by entering a colon (:) followed by the command or program name. After the command is executed, or the program is exited, you are returned to your FTP session.

?

A synonym for the

HELP

command.

APPEND

localfile

[

remotefile

]

[

;buildparms

]

Store data from localfile on the local system into remotefile on the remote system. If remotefile is not specified, localfile will be used as the remotefile name as well. If the remote file exists, the data will be appended to it; otherwise, the file will be created.

If the remote file does not exist, this command behaves the same as

PUT

, and any specified build parameters (buildparms) will be used. But if the file already exists, any buildparms will be ignored.

ASCII

BINARY

BYE

Sets the FTP file transfer type to

ASCII

. This is the default when you first enter the FTP program.

Sets the FTP file transfer type to binary.

A synonym for the

QUIT

command.

BYTESTREAM

(BYTE)

CASE

Sets the FTP file transfer type to binary.

When using the

MPUT

command, turns on or off the feature to force resulting filenames to lower case. When case is off, resulting file names are all upper case. The default is off.

CD

remotedirectory

Changes the working directory on the remote host to the directory specified.

CLOSE

Closes the remote connection but remains in the FTP program.

Chapter 4 53

NOTE

Managing FTP

FTP User Commands on MPE/iX

DEBUG

Turns on or off the terminal screen display of the commands and parameters that are sent to the remote host. The default is off.

DELETE

remotefilename

Deletes the remote file specified. A directory path may be included with remotefilename.

DIR

[

remotedirectory

[

localfile

]]

Writes the requested remotedirectory listing to the terminal, or to a local file if specified. If remotedirectory is not specified, the current remote working directory contents are listed.

DISCONNECT

A synonym for the

CLOSE

command.

EXIT

A synonym for the

QUIT

command.

EXITONERROR

Turns on or off the feature to exit an FTP session when an error is detected. The last error and message are saved in system variables (enter

SHOWVAR [email protected]

to display). Useful for batch jobs using FTP commands.

The default is off.

FORM

[NONPRINT]

Sets the FTP file transfer form to the specified format.

The only supported form is

NONPRINT

. Entering

FORM without a parameter displays the supported format.

GET

remotefile

[

localfile

]

[

;buildparms

]

[

;move

]

Transfers the remote file specified to a local file. Build parameters may be used to change how the file is stored on MPE/iX. If a local file name is not specified, the file is saved with the same name as the remote file name

(assuming a legal file name).

The move

option requests that the specified source file be physically moved from the source location to the specified target location.

This is available for

MGET

,

PUT

and

MPUT

as well.

The removal of the original source file may be guarded by file system security.

HASH

Toggles the state of the hash function within the ftp client. When the hash function is enabled, the “#”

(hash) symbol will print to stdlist for every 1024 characters transferred during data transfer requests.

54 Chapter 4

Managing FTP

FTP User Commands on MPE/iX

HELP

[

ftpcommand

]

Displays a list of the valid FTP user commands. If an

FTP user command is specified with

HELP

, a brief description of the command is displayed. You can also use the

HELP

command for information on specific FTP messages and errors, and the supported build parameters ( buildparms

).

LCD

localdirectory

Changes the working directory on the local machine to the directory specified.

LS [

remotedirectory

[

localfile

]]

Displays the contents of a remote directory, one file per line. If a localfile name is specified, the listing will be saved to the file specified. If remotedirectory is not specified, the current remote working directory contents are listed.

MDELETE

remotefiles

Delete multiple files on the remote system.

MGET

remotefiles

[

;buildparms

]

[

;move

]

Retrieve multiple files from the remote system. Build parameters can be specified and apply to all files in the transfer. The resulting local files will have the same name as the remote files. Note that MPE/iX file names are exclusively upper case.

MKDIR

remotedirectory

Creates a directory on the remote machine.

MODE

[STREAM]

Sets the FTP file transfer mode to the specified mode.

The only supported mode is

STREAM

. Entering

MODE without a parameter displays the supported format.

MODTIME

remotefile

Returns the last modification time and date of the remote file.

MPUT

localfiles

[

;buildparms

]

[

;move

]

Transfer multiple files using wildcard characters in the

localfiles parameter.

Optionally, build parameters can be specified if the remote system is an MPE/iX system. The build parameters affect each file in the transfer. Non-MPE/iX

FTP servers will not interpret the build parameters as

Chapter 4 55

Managing FTP

FTP User Commands on MPE/iX

intended. The resulting file names are in upper case letters unless you use the

CASE

command to force the resulting file names to all lower case letters.

OPEN

remotehostname Opens a connection to the remote host specified. Must be either an ARPA domain name, IP address, or an NS node name.

PROMPT

Toggle interactive prompting. Interactive prompting is used during multiple file transfers to allow the user to selectively retrieve or restore files, and during multiple file deletes to selectively delete. If prompting is turned off, the default for

MGET

and

MPUT

is to transfer all files, and the default for

MDELETE

is to delete all files.

PUT

localfile

[

remotefile

]

[

;move

]

PWD

QUIT

Transfers a local file to a file on the remote system. If the remote file name is not specified, the file is saved with the local file name (assuming a legal file name).

Optionally, build parameters can be specified if the remote system is an MPE/iX system.

Displays the name of the remote working directory on the terminal.

Closes the connection to the remote system and exits from FTP.

QUOTE

string

Sends server commands to the remote host. Used for troubleshooting.

RECV

remotefile

[

localfile

]

[

;buildparms

]

A synonym for the

GET

command.

REMOTEHELP

[

servercommand

]

Displays the remote host FTP server commands supported. If a server command is specified with the

REMOTEHELP

command, a brief description of the command is displayed. (Implementation dependent).

RENAME

remotefile newname

Renames a remote file.

REPLACE

Toggles the internal replace flag and the value of the environment variable

FTPREPLACE

to either TRUE ( on

) or FALSE ( off

). This flag specifies the file placement policy during subsequent file transfers.

on sets the internal replace flag and the value of the

FTPREPLACE

CI environment variable to TRUE (this is

56 Chapter 4

Managing FTP

FTP User Commands on MPE/iX

RESET

RMDIR

remotedirectory

Deletes a directory from the remote machine.

RUNIQUE

Toggle receive-unique mode. In receive-unique mode, all files stored on the local machine will be guaranteed to be created with a unique file name.

SEND

localfile

[

remotefile

SITE

]

string

A synonym for the

PUT

command.

Asks remote server to perform a site-specific command.

Type

REMOTEHELP SITE

for a list of commands supported by the remote server.

SIZE

remotefile Returns the size in bytes of the remote file.

STATUS

Display the status of the connection, the data type, whether each of verbose, debug, exit-on-error, prompting, lowercase, store-unique, receive-unique, tracing is on or off, plus the connection timeout value.

STRUCT

[FILE] off the default state). In this case, all file transfers will unconditionally replace the target file.

sets the internal replace flag and the value of the environment variable to

FALSE. In this state, all file transfers will be conditional predicated on user response to replace the target file if it previously existed.

Clear reply queue. This command resynchronises command/reply sequencing with the remote FTP server. Resynchronisation may be necessary following a violation of the FTP protocol by the remote server.

SUNIQUE

SYSTEM

Sets the FTP file transfer structure to the specified structure. The only supported structure is FILE.

Entering

STRUCT

without a parameter displays the supported structure type.

Toggle store-unique mode. In store-unique mode, all files stored on the remote machine will be guaranteed to be created with a unique file name.

Displays the remote system type.

TIMEOUT

[

num-secs

]

The connection timeout value indicates how long to wait for a message from the remote FTP server before giving up. The allowable range is 0 to 3000. A value from 1 to 3000 indicates a timeout value in seconds. A

Chapter 4 57

Managing FTP

FTP User Commands on MPE/iX

TRACE value of 0 means no timeout (that is, wait forever). If

num-secs is not specified, the current timeout value will be displayed. Otherwise, this command sets the connection timeout to num-secs seconds.

If command is specified, toggle tracing.

TYPE

[

transfertype

]

Sets the FTP file transfer type to the specified type. If a transfer type is not included, the current file transfer type is displayed. The supported transfer types are

ASCII

and

BINARY

. The default is

ASCII

.

USER

username Used to enter a logon name in order to establish a session on the remote host. A connection to the remote host must already have been established using

OPEN

.

VERBOSE

Turns on or off the display of responses from the remote host. The default is on.

58 Chapter 4

Managing FTP

MPE/iX FTP Server Commands

MPE/iX FTP Server Commands

The quick reference provides a list of the FTP user commands a remote

FTP user accessing MPE/iX can use. The corresponding MPE/iX FTP server commands are in parentheses.

User command

(SERVER command)

DESCRIPTION

ASCII

(TYPE A)

Sets the FTP file transfer type to ASCII. This is the default when you first enter FTP.

BINARY

(TYPE I)

Sets the FTP file transfer type to binary.

BYTESTREAM

(TYPE L)

Sets the FTP file transfer type to bytestream.

CD

remotedirectory

(CWD | XCWD) Changes the working directory on the remote host to

the directory specified.

CLOSE

(QUIT) Closes the remote connection but remains in the FTP

program.

DELETE

remotefilename

(DELE)

Deletes the remote file specified. A directory path may be included with the remotefilename.

DIR

[

remotedirectory

]

[

localfile

]

(LIST)

Writes the requested remote directory listing to the terminal, or to a local file if specified. If remotedirectory is not included, the current remote working directory contents are listed.

FORM [NONPRINT]

(FORM)

Sets the FTP file transfer form to the specified format.

The only supported form is

NONPRINT

.

GET

remotefile

[

localfile

]

(RETR)

Transfers the remote file specified to a local file. If a local file name is not specified, the file is saved with the same name as the remote file name (assuming a legal file name).

Chapter 4 59

Managing FTP

MPE/iX FTP Server Commands

LS

[

remotedirectory

]

[

localfile

]

(NLST) Displays the contents of a remote directory, one file

per line. If a localfile name is specified, the listing will be saved to the file specified. If remotedirectory is not included, the current remote working directory contents are listed.

MDELETE

remotefiles

(NLST,DELE) The remote system expands the wildcard characters in

remotefiles and deletes the set of files on the remote

MPE/iX host.

MGET

remotefiles

(NLST,RETR) The remote system expands the wildcard characters in

remotefiles and retrieves the set of files from the remote host.

MKDIR

remotedirectory

(MKD | XMKD) Creates a directory on the remote machine.

MODE [STREAM]

(MODE)

Sets the FTP file transfer mode to the specified mode.

The only supported mode is

STREAM

.

MODTIME

remotefile

(MDTM)

Returns the last modification time and date of the remote file.

MPUT

localfiles

(NLST,STOR) The local system expands the wildcard characters in

localfiles and transfers the set of files from the local host to the remote MPE/iX system.

OPEN

remotehostname Opens a connection to the remote host specified.

PUT

localfile

[

remotefile

]

[;

buildparms

]

(STOR)

PWD

(PWD)

Transfers a local file to a file on the remote MPE/iX system. Build parameters may be used to change how the file is stored on MPE/iX. If the remote file name is not specified, the file is saved with the local file name provided the local file name is a valid name on the remote MPE/iX system.

Displays the name of the remote working directory on the terminal. On MPE/iX, the session information is returned as well.

60 Chapter 4

Managing FTP

MPE/iX FTP Server Commands

QUIT

(QUIT)

Closes the connection to the remote system and exits from FTP.

REMOTEHELP

[

servercommand

]

(HELP)

Displays the remote host (MPE/iX) FTP server commands supported. If a server command is specified with the

REMOTEHELP

command, a brief description of the command is displayed.

RENAME

remotefile newname

(RNFR,RNTO) Renames a remote file.

RMDIR

remotedirectory

(RMD|XRMD) Deletes a directory from the remote machine.

SITE <sp> HELP

| MPE/iX

| BUILDPARMS

file-name

| USER_LABELS

filename

[

number

]

| STREAM

file-name

| TIMEOUT

num-secs

(SITE)

Remote system

HELP

MPE/iX

Returns a help line.

Sets an internal flag indicating that the local system is an MPE/iX machine.

BUILDPARMS

Gives the build parameters of the specified file.

USERLABELS

Gives the user label listing of the specified file.

STREAM

Streams a give job-file.

TIMEOUT

Sets the server time-out to the specified value.

SIZE

remotefile

(SIZE)

Returns the size in bytes of the remote file.

SRUCT [FILE]

(STRU)

Sets the FTP file transfer structure to the specified structure. The only supported structure is

FILE

.

SYSTEM

(SYST) Displays the remote system type.

TYPE [

transfertype

]

(TYPE)

Sets the FTP file transfer type to the specified type. The supported transfer types are

ASCII

and

BINARY

.

Chapter 4 61

Managing FTP

MPE/iX FTP Server Commands

USER

sess,user.acct,group

(USER)

Used to enter a logon name in order to establish a session on the remote host. A connection to the remote host must already have been established using

OPEN

.

Passwords may be included in the logon string as follows: sess,user/userpass.acct/acctpass,group/grp pass

Note: Passwords can only be entered once. If you enter passwords with the logon string, do not re-enter them at the password prompt, just press the

[Return]

key. If you enter passwords as part of the logon string, they are displayed in the message text of the password prompt.

62 Chapter 4

Managing FTP

FTP Architecture

Figure 4-1

FTP Architecture

This section describes the FTP architecture and the overall network architecture for a system that includes FTP.

Figure 4-1 shows the FTP client-server model. The FTP commands and replies are the messages and errors you can receive as described in

Appendix A, “Error Messages.”

Over the data connection, files and directory information are transferred. Data is transferred in a defined format. Once the data has been received, it is converted to the file system supported by the receiving system.

FTP Client-Server Model

Figure 4-2 shows the network architecture for an installation including

FTP over TCP/IP Ethernet/802.3 LAN and an X.25 wide area network.

The MPE/iX FTP implementation consists of the FTP monitor process which returns errors in the jobstream output (see Appendix A, “Error

Messages,” for possible errors returned).

To troubleshoot network problems, you can refer to Figure 4-2 to determine logging and tracing required. See the

NETCONTROL

command in the NS 3000/iX Operations and Maintenance Manual for information on starting, stopping, status, and tracing the lower level protocols and NIs.

Chapter 4 63

Figure 4-2

Managing FTP

FTP Architecture

Network Architecture

64 Chapter 4

5 Troubleshooting

Figure 5-1

This chapter describes possible problems you may encounter and methods you can use to troubleshoot them.

Refer to the diagram in Figure 5-1 and the information on the following pages to isolate the problem and resolve it.

Troubleshooting Tree

65

Troubleshooting

MPE/iX FTP User

MPE/iX FTP User

Cannot Connect by Node Name (IP Address OK)

An MPE/iX FTP user cannot connect by NS node name, but can connect using the remote system IP address:

• If the node name is configured in the network directory, check to see that it is configured correctly. If it is not, configure the node name.

• For remote nodes that support probe or probe proxy, and are not configured in the network directory, examine the network configuration.

Cannot Connect by IP Address

Check that the user entered the correct IP address. The correct format for an IP address is: nnn.nnn.nnn.nnn where nnn is a number from 000 to 255, inclusive. For example, an IP address could be:

192.1.20.125

. Note that preceding zeros are not used.

Next, check the following:

• Is the network up and running on the system?

• Run PING/iX to the remote host system. PING/iX can be run as follows (see Appendix C, “PING/iX Utility,” for more information):

:Run ping.net.sys;info="inpaddress [,packets]

[,bytes]"

• Specify the remote IP address, number of packets you want to send, and bytes of data per packet. Use

[CTRL-Y]

to stop PING/iX.

• If PING works, is the FTP server up and running on the remote host system?

• If PING does not work, is the network link active on the remote host system?

Cannot Logon to Remote

First turn verbose and debug on.

• If an MPE/iX user cannot log on to the remote system, verify the logon account and passwords are correct.

• Try to log on to the remote system with the user’s account and password(s).

66 Chapter 5

Troubleshooting

MPE/iX FTP User

Cannot Transfer Files

For FTP file transfer problems, first turn verbose and debug on.

• Use the

LS

or

DIR

command to verify the file name spelling.

• Check how the file names are entered. Some systems support both upper and lower case file names. Some systems support characters in file names that are not supported on MPE/iX.

• Supported file types for MPE/iX: must be binary, bytestream, or

ASCII, fixed or variable records.

• Check the default file transfer type being used. Enter: ftp> TYPE

• Check the size of records, and file types supported on the remote host and MPE/iX. For MPE/iX specific information, refer to the HP ARPA

File Transfer Protocol Users Guide.

Chapter 5 67

Troubleshooting

Remote User

Remote User

A remote user accessing the MPE/iX FTP server may encounter the following problems.

Cannot Connect to MPE/iX

The remote user cannot connect to the MPE/iX FTP server.

• Run the PING utility from the remote host to MPE/iX.

• If PING is successful, Check the INETD process on MPE/iX.

• Issue the

SHOWJOB

command and verify that the INETD job is executing (EXEC).

• If the INETD is running, check whether the entry for FTP is in the configuration file (INETDCNF). If yes, check the associated SPOOL file for errors.

• If using FTP from MPE/iX works, try FTP on MPE/iX in loopback mode (see the example in Chapter 3, “Starting FTP,”). If loopback does not work, check that the LOOP type NI is active by issuing

NETCONTROL NI=

niname

;STATUS

, and check the FTP logfile

FTPLOG.ARPA.SYS

for errors.

• If FTP in loopback mode on MPE/iX works, check that the network interfaces (NIs) are active. From the MPE/iX system, issue a

NETCONTROL NI=

niname

;STATUS

for each configured NI. The configured LAN NI, type LOOP NI, and any X.25 NIs configured must be active.

User Cannot Log On to MPE/iX

If a user cannot log on to MPE/iX, first turn verbose and debug on.

• Did the user enter a valid logon account for MPE/iX?

• If user tried to log on from a system that supports prompting, try to log on using the FTP

USER

command: ftp> USER session,user.account,group

• Check that passwords are entered correctly. Passwords must be entered as follows:

At the password prompt: userpass,acctpass,grouppass or, as part of the logon string: ftp> USER sess,user/userpass.acct/acctpass,group/grouppass

68 Chapter 5

NOTE

Troubleshooting

Remote User

Passwords can only be entered once. For example, if the user enters the account password in the

USER

command string, do not re-enter it at the password prompt.

• Try to log on from MPE/iX (

HELLO

user.account,group)

• Check that the LOOP type NI is active by issuing

NETCONTROL

NI=

niname

;STATUS

.

• Check the privileges on the FTP system files: issue a

:listf

@.arpa.sys,3

. For each file, the output under SECURITY should be as follows:

FTP

File Name in

ARPA.SYS

FTPXL

FTPSRVR

SECURITY Field

READ:ANY

EXECUTE:ANY

READ:ANY

EXECUTE:ANY

READ:ANY

EXECUTE:ANY

READ:ANY

READ:ANY

READ:ANY

FTPC000

FTPDOC

FTPHELP

Cannot Transfer Files

For remote users, first check that verbose and debug are on.

• Supported file types: must be binary, bytestream, or ASCII, fixed or variable records.

• Check The default file transfer type being used. Enter: ftp> TYPE

• Check the size of records, and file types supported on the remote host and MPE/iX. For MPE/iX specific information, refer to the HP ARPA

File Transfer Protocol User’s Guide.

• Check how file names are entered: some systems support both upper and lower case file names. Some systems support characters in file names that are not supported on MPE/iX.

Chapter 5 69

Troubleshooting

Remote User

70 Chapter 5

A Error Messages

This appendix contains messages and errors that may be received by

FTP users on MPE/iX, and remote users accessing the FTP server.

71

Error Messages

FTP User Messages and Errors

FTPERR 3

FTPERR 5

FTPERR 6

FTPERR 8

FTPERR 9

FTPERR 10

FTP User Messages and Errors

These error and warning messages may be returned to FTP users on

MPE/iX while using the FTP user program.

In the following list of messages and errors, the exclamation point (!) represents a variable value.

MESSAGE: Error in loading keywords from FTP catalog. (FTPERR 3)

CAUSE:

The User-FTP program encountered an error while trying to load the FTP command keywords onto its program stack from the FTP catalog. This probably indicates an internal FTP error.

ACTION:

Check the permissions on the file

FTPC000.ARPA.SYS

. The security for

READ

must be set to

ANY

. If the permissions are correct, note the circumstances and contact your Hewlett-Packard representative for assistance.

MESSAGE: Command must be less than or equal to 255 characters.

(FTPERR 5)

CAUSE:

The user entered an FTP command which exceeded 255 characters.

ACTION:

Try entering the command using fewer characters.

MESSAGE: ?Invalid command. (FTPERR 6)

CAUSE:

An invalid or unknown command was issued to the User-FTP program.

ACTION:

Check the command for spelling. Use the help command for a list of supported HP ARPA FTP commands.

MESSAGE: Not connected. (FTPERR 8)

CAUSE:

An FTP command was entered which requires a host connection and no connection was established.

ACTION:

Open a host connection using the

OPEN

command and try the command again.

MESSAGE: Cannot connect to host: ! (FTPERR 9)

CAUSE:

FTP was unable to open a host connection. Typically this FTP error is accompanied by a socket error which provides more information.

ACTION:

Check the spelling of the host name or IP address. Otherwise, seek the assistance of your Node Manager.

MESSAGE: Invalid Command Syntax. (FTPERR 10)

CAUSE:

An FTP command was entered with invalid parameter syntax.

72 Appendix A

FTPERR 11

FTPERR 13

FTPERR 14

FTPWARN 15

FTPERR 16

FTPERR 17

FTPWARN 18

Error Messages

FTP User Messages and Errors

ACTION:

Check the syntax of the desired command.

MESSAGE: Invalid reply code from remote server (FTPERR 11)

CAUSE:

An erroneous reply code was returned from the remote server for some FTP command.

ACTION:

Enable debug and verbose and try the operation again.

MESSAGE: Data Transfer Request Failed. (FTPERR 13)

CAUSE:

An error was detected during a data transfer. This error is accompanied by another error which indicates the problem.

ACTION:

Use the accompanying error to resolve the problem.

MESSAGE: Target File Could Not Be Opened. (FTPERR 14)

CAUSE:

The MPE/iX target file could not be opened. This error is typically accompanied by a file system error.

ACTION:

Use the accompanying file system error to resolve the problem.

MESSAGE: Some records were truncated during transfer.

(FTPWARN 15)

CAUSE:

A data transfer to MPE/iX resulted in some records being truncated in the target file.

ACTION:

It may be necessary to increase the maximum record size using build parameters. Review the HP ARPA FTP User’s Guide for more information on this subject.

MESSAGE: End Of File encountered on target file during transfer.

Target file not saved. Increase file limit and try again. (FTPERR 16)

CAUSE:

A data transfer to an MPE/iX target file did not have enough records to hold the data from the source file.

ACTION:

It may be necessary to increase the maximum number of records in the target file by using build parameters. Review the

HP ARPA File Transfer Protocol User’s Guide for more information on this subject.

MESSAGE: End Of File encountered on target file during transfer.

Data not appended to target file. Copy target file to a new file with a large limit and append to the new file. (FTPERR 16)

CAUSE:

A data transfer (in APPEnd mode) to an MPE/iX target file, did not have enough records to hold the extra data from the source file.

ACTION:

Copy the target file to a new file with a larger limit and append to the new file.

MESSAGE: We only support stream mode, sorry. (FTPWARN 18)

CAUSE:

The FTP

MODE

command was entered.

Appendix A 73

FTPWARN 19

FTPWARN 20

FTPINFO 21

FTPINFO 22

FTPINFO 23

FTPINFO 24

FTPINFO 25

FTPINFO 26

FTPWARN 27

Error Messages

FTP User Messages and Errors

ACTION:

None.

MESSAGE: We only support file structure, sorry. (FTPWARN 19)

CAUSE:

The FTP

STRUCT

command was entered.

ACTION:

None.

MESSAGE: We only support non-print format, sorry. (FTPWARN 20)

CAUSE:

The FTP

FORM

command was entered.

ACTION:

None.

MESSAGE: Verbose mode off. (FTPINFO 21)

CAUSE:

The FTP

VERBOSE

command was entered when verbose was enabled.

ACTION:

None.

MESSAGE: Verbose mode on. (FTPINFO 22)

CAUSE:

The FTP

VERBOSE

command was entered when verbose was disabled.

ACTION:

None.

MESSAGE: Debugging off (debug=0). (FTPINFO 23)

CAUSE:

The FTP

DEBUG

command was entered when debug was enabled.

ACTION:

None.

MESSAGE: Debugging on (debug=1). (FTPINFO 24)

CAUSE:

The FTP

DEBUG

command was entered when debug was disabled.

ACTION:

None.

MESSAGE: Using ascii mode to transfer files. (FTPINFO 25)

CAUSE:

The FTP

TYPE

command was entered without any parameters while in ASCII mode.

ACTION:

None.

MESSAGE: Using binary mode to transfer files. (FTPINFO 26)

CAUSE:

The FTP

TYPE

command was entered without any parameters while in binary mode.

ACTION:

None.

MESSAGE: Already connected to !; user “user” or “close” first.

(FTPWARN 27)

CAUSE:

The user entered the FTP

OPEN

command during an opened session.

74 Appendix A

FTPERR 28

FTPERR 29

FTPERR 30

FTPERR 31

FTPERR 32

FTPERR 33

Error Messages

FTP User Messages and Errors

ACTION:

Enter the

USER

command to logon, or the

CLOSE

command before opening another connection.

MESSAGE: FTP Unknown Error Detected. Subsystem = !,

Information = ! (FTPERR 28)

CAUSE:

An unknown error was detected from some underlying subsystem.

ACTION:

Seek the assistance of your Hewlett-Packard representative for assistance.

MESSAGE: (We only support MPEXL Fixed and Variable record format, sorry. FTPERR 29)

CAUSE:

The user specified a

BUILD

command parameter for record type that was not Fixed or Variable.

ACTION:

Only fixed and variable record format is supported. Refer to the HP ARPA File Transfer Protocol User’s Guide for assistance.

MESSAGE: We only support MPEXL Standard files, sorry.

(FTPERR 30)

CAUSE:

The user specified a build parameter for a file type that is not of type Standard (STD).

ACTION:

Only the STD file type is supported. Refer to the HP ARPA

File Transfer Protocol User’s Guide for assistance.

MESSAGE: We don’t allow MPEXL file equates, sorry. (FTPERR 31)

CAUSE:

The user attempted to use a file equate during a file transfer.

ACTION:

File equates are not yet supported. Try the transfer again without using file equates.

MESSAGE: Remote server receive timeout. Closing connection.

(FTPERR 32)

CAUSE:

The FTP user did not receive a required reply from an FTP server in the allocated time window.

ACTION:

Close the connection and quit before trying again. Try to ping the remote system using

PING.NET.SYS

. If this does not succeed, no

FTP connection can be established. Follow the troubleshooting instructions in the Installing and Managing HP ARPA File Transfer

Protocol Network Manager’s Guide.

MESSAGE: ExitOnError mode on. (FTPERR 33)

CAUSE:

The

EXITONERROR

command was entered while the exit-on-error feature was disabled.

ACTION:

None.

Appendix A 75

FTPERR 34

FTPERR 35

FTPWARN 36

FTPWARN 37

FTPERR 38

FTPERR 39

FTPINFO 40

Error Messages

FTP User Messages and Errors

MESSAGE: ExitOnError mode off. (FTPERR 34)

CAUSE:

The

EXITONERROR

command was entered while the exit-on-error feature was enabled.

ACTION:

None.

MESSAGE: Invalid IP address. (FTPERR 35)

CAUSE:

An invalid IP address was used while trying to open a connection.

ACTION:

Refer to the HP ARPA File Transfer Protocol User’s Guide for assistance.

MESSAGE: Performing an ASCII transfer to a binary file.

(FTPWARN 36)

CAUSE:

An ASCII data transfer occurred to an MPE/iX binary file.

ACTION:

If the intent was to transfer binary data, then use the

BINARY

command to change transfer mode to binary. If the intent was to transfer ASCII data, then specify an MPE/iX ASCII file using the appropriate MPE/iX

BUILD

parameter. Refer to the HP ARPA File

Transfer Protocol User’s Guide for further assistance.

MESSAGE: Performing an binary transfer to a ASCII file.

(FTPWARN 37)

CAUSE:

An ASCII data transfer occurred to an MPE/iX binary file.

ACTION:

If intent was to transfer ASCII data, then use the

ASCII

command to change transfer mode to ASCII. If the intent was to transfer binary data, then specify an MPE/iX binary file using the appropriate MPE/iX

BUILD

parameter. Refer to the HP ARPA File

Transfer Protocol User’s Guide for further assistance.

MESSAGE: Error opening data connection. (FTPERR 38)

CAUSE:

Internal Error. An I/O completion was received for an unknown file number during the attempted establishment of a data connection.

ACTION:

Note the circumstances and seek the assistance of your

Hewlett-Packard representative.

MESSAGE: ?Ambiguous command. (FTPERR 39)

CAUSE:

A non-unique command string was entered at the ftp> prompt.

ACTION:

Check the command spelling and try again.

MESSAGE: Connected to !. (FTPINFO 40)

CAUSE:

A connection request to a remote FTP server was accepted.

ACTION:

None.

76 Appendix A

FTPINFO 41

FTPINFO 42

FTPINFO 43

FTPINFO 44

FTPERR 45

FTPERR 46

FTPERR 47

FTPERR 48

Error Messages

FTP User Messages and Errors

MESSAGE: Interactive mode on. (FTPINFO 41)

CAUSE:

The

PROMPT

command was issued while prompting was disabled.

ACTION:

None.

MESSAGE: Interactive mode on. (FTPINFO 42)

CAUSE:

The

PROMPT

command was issued while prompting was enabled.

ACTION:

None.

MESSAGE: Interactive mode on. (FTPINFO 43)

CAUSE:

The

CASE

command was issued while “Forcing Lower Case” was disabled.

ACTION:

None.

MESSAGE: Lower case off. (FTPINFO 44)

CAUSE:

The

CASE

command was issued while “Forcing Lower Case” was enabled.

ACTION:

None.

MESSAGE: File accessed exclusively. (FTPERR 45)

CAUSE:

The file is already being accessed exclusively by the system or by another user.

ACTION:

If the file is being accessed by the system, there is nothing you can do. If the file is being accessed by another user, try again later.

MESSAGE: File name too long. (FTPERR 46)

CAUSE:

The filename specified is longer than the maximum allowed by

MPE/XL:

“FILENAME/LOCKWORD.GROUPNAM.ACCTNAME”

. This error is typically caused by trying to copy a file from a machine running an operating system which allows longer file names. For example,

“GET

/user/local/lib/.../

remotefile

ACTION:

Specify a target file name. The correct syntax for the above example would be

“GET /user/local/lib.../

remotefile localfile

.

MESSAGE: Indirect file not found.

CAUSE:

The indirect file name specified in the

mput

command was not found:

“mput ^filename”

.

ACTION:

Make sure the indirect file exists.

MESSAGE: Could not change directory to “!”.

CAUSE:

The directory specified does not exist or is not accessible.

ACTION:

Check to see if the directory exists and if so, what its access rights are.

Appendix A 77

FTPINFO 49

FTPINFO 50

FTPINFO 51

FTPINFO 52

FTPINFO 53

FTPINFO 54

FTPINFO 55

FTPINFO 56

Error Messages

FTP User Messages and Errors

MESSAGE: Connection time-out value set to ! seconds.

CAUSE:

User entered

"TIMEOUT [num-secs]"

ACTION:

If num-secs was specified, the connection time-out value was set. Otherwise, the current value was simply displayed.

Note: a value of 0 indicates no time-outs.

MESSAGE: Store unique mode on.

CAUSE:

The FTP

sunique

command was entered when store-unique was disabled.

ACTION:

Subsequent

put

commands will guarantee that the file will be created with a unique name on the remote machine.

MESSAGE: Store unique mode off.

CAUSE:

The FTP

sunique

command was entered when store-unique was enabled.

ACTION:

None.

MESSAGE: Receive unique mode on.

CAUSE:

The FTP

runique

command was entered when receive-unique was disabled.

ACTION:

Subsequent

get

commands will guarantee that the file will be created with a unique name on the local machine.

MESSAGE: Receive unique mode off.

CAUSE:

The FTP

runique

command was entered when receive-unique was enabled.

ACTION:

None.

MESSAGE: Command tracing on.

CAUSE:

The FTP

trace

command was entered when command tracing was disabled.

ACTION:

When an FTP connection to a remote system is established,

TCP tracing will be turned on. If a connection already exists, tracing will be turned on now.

MESSAGE: Command tracing off.

CAUSE:

The FTP

trace

command was entered when command tracing was enabled.

ACTION:

If an FTP connection exists to a remote system and tracing is enabled, it will be turned off.

MESSAGE: Data tracing on.

CAUSE:

The FTP

trace

command was entered when data tracing was disabled.

78 Appendix A

FTPINFO 57

FTPINFO 58

FTPINFO 59

FTPINFO 60

FTPINFO 61

FTPERR 63

Error Messages

FTP User Messages and Errors

ACTION:

When a connection for a data transfer is established, TCP tracing will be turned on.

MESSAGE: Data tracing off.

CAUSE:

The FTP

trace

command was entered when data tracing was enabled.

ACTION:

None.

MESSAGE: Command tracing file name is !.

CAUSE:

Command tracing was turned on and a connection to a remote system was established.

ACTION:

Use this file for debugging purposes.

MESSAGE: Data tracing file name is !.

CAUSE:

Data tracing was turned on and a data transfer connection was established.

ACTION:

Use this file for debugging purposes.

MESSAGE: Using byte-stream mode to transfer files.

CAUSE:

The FTP

type

command was entered without any parameters while in byte-stream mode.

ACTION:

None.

MESSAGE: Unique file name cannot be created.

CAUSE:

Either the file name was so long that appending (.1) surpassed the maximum legal file name length, or every appendage from (.1 up to

.99) was tried and no unique name could be found.

ACTION:

Try a different, possibly shorter, file name.

MESSAGE: Append mode not valid with record or file type.

CAUSE:

Attempt to transfer a non-standard MPE file in append mode.

ACTION:

Do not transfer non-standard MPE files in append mode.

Appendix A 79

125

150

200

Error Messages

FTP Server Messages and Errors

FTP Server Messages and Errors

FTP users accessing the MPE/iX as an FTP server may receive the messages and/or errors as listed, which are based on the Military

Standard, FTP, MIL-STD-1780.

The type of reply is based on the first digit of the number:

Number Type

1

2

nn nn

Positive preliminary reply

Positive completion reply

3

nn

4

nn

Positive intermediate reply

Transient negative reply which user may wish to retry

5

nn

Number

x0

n

Permanent negative reply

The second digit in the message number represents the following function groupings (where the first digit x is from 1 to 5 as described above):

Type

Syntax errors

x1 x2 x3

n n n

Replies to requests for information (status, help)

Replies referring to the control and data connections

Replies for logon process and accounting procedures

Unspecified

x4

n

x5

n

Status of the server file system

In the following list of messages and errors, the exclamation point (!) represents a variable value.

MESSAGE: 125 Data connection already open; transfer starting

CAUSE:

Data connection has been opened, data transfer has started.

ACTION:

None.

MESSAGE: 150 File ! opened; data connection will be opened

CAUSE:

The file requested for a

GET

,

LS

, or

DIR

has been opened.

ACTION:

None.

MESSAGE: 200 ! command ok.

CAUSE:

The command was accepted by the server.

ACTION:

None.

80 Appendix A

215

220

221

226

226

200

202

213

230

Error Messages

FTP Server Messages and Errors

MESSAGE: 200 Type set to !.

CAUSE:

A

TYPE

command was received and accepted.

ACTION:

None.

MESSAGE: 202 Command not implemented at this site.

CAUSE:

The MPE/iX FTP server received a command that is not implemented.

ACTION:

This command cannot be used.

MESSAGE: “1”: !.

CAUSE:

A file status (

SIZE | MDTM

) command was received and accepted. This first parameter is the filename. The second contains detailed information that differs depending on the command.

ACTION:

MESSAGE: MPE/iX system type.

CAUSE:

The server received a

SYST

command.

ACTION:

None.

MESSAGE: 220 HP ARPA File Transfer Protocol Server [!] (C)

Hewlett-Packard Co. 1990

CAUSE:

The server has been started and is ready for user commands.

ACTION:

Enter FTP commands.

MESSAGE: 221 Server is closing command connection

CAUSE:

The server received a

QUIT

command and is shutting down.

ACTION:

None.

MESSAGE: 226 Transfer complete.

CAUSE:

A file transfer for a

GET

,

PUT

,

LS

or

DIR

has completed.

ACTION:

None.

MESSAGE: 226 Transfer complete. Some records were truncated during transfer.

CAUSE:

A data transfer to MPE/iX resulted in some records being truncated in the target file.

ACTION:

It may be necessary to increase the maximum record size using build parameters. Review the HP ARPA FTP User’s Guide for more information on this subject.

MESSAGE: 230 User logged on

CAUSE:

A

USER

command was received and accepted. The logon has succeeded.

Appendix A 81

250

257

257

331

350

426

500

501

Error Messages

FTP Server Messages and Errors

ACTION:

None.

MESSAGE: 250 File transfer completed.

CAUSE:

A file transfer for a

GET

,

PUT

,

LS

or

DIR

has completed.

ACTION:

None.

MESSAGE: ! is the current directory. “!” is the current session.

CAUSE:

A

PWD

command was received and accepted.

ACTION:

None.

MESSAGE: ! successful, “!” created.

CAUSE:

A directory creation (

MKD/XMKD

) has completed.

ACTION:

MESSAGE: 331 Password required for !.

[userpass][,acctpass][,grouppass]

CAUSE:

A

USER

command has been received, the server is waiting for the password.

ACTION:

Enter the passwords required.

MESSAGE: 350 File exists, ready for destination name.]

CAUSE:

An RNFR (rename from) command has been received, the server is waiting for a RNTO (rename to). This is part of the user

RENAME

command.

ACTION:

None.

MESSAGE: 426 Data transfer aborted

CAUSE:

The data connection could not be opened or there was a network error during the file transfer.

ACTION:

Try the transfer again. If this doesn’t work, try exiting FTP and connecting again, then transferring the file. If that doesn’t work, check for a networking problem (resources, connection establishment, etc.) on both systems.

MESSAGE: 500 Unknown command

CAUSE:

The MPE/iX FTP server received an unrecognized command.

ACTION:

This command cannot be used.

MESSAGE: 501 Syntax error in parameter !

CAUSE:

One of the parameters in the command was not correct. The !

will contain the parameter in question.

ACTION:

Check the parameter and try again.

82 Appendix A

530

550

553

502

503

504

530

Error Messages

FTP Server Messages and Errors

MESSAGE: 502 Command not implemented by this server.

CAUSE:

The MPE/iX FTP server received an unrecognized command.

ACTION:

This command cannot be used.

MESSAGE: 503 Illegal sequence of commands

CAUSE:

The server was sent a series of commands that were in the wrong order (example: RNTO before RNFR).

ACTION:

Check the commands and send them in the correct order.

MESSAGE: 504 Command not implemented for parameter !

CAUSE:

A parameter was specified that is not supported. For example

TYPE EBCDIC is NOT supported by the MPE/iX FTP server.

ACTION:

Specify a parameter which is supported.

MESSAGE: 530 User log on unsuccessful

CAUSE:

The server received a user account and/or password which were not valid.

ACTION:

Specify the correct user account and password. If the user is sure that they are correct, notify the network manager and have him/her refer to the Installing and Managing HP ARPA File Transfer

Protocol Network Manager’s Guide.

MESSAGE: 530 Please login with USER and PASS.

CAUSE:

The user entered a command without being logged on to the

FTP server.

ACTION:

Log on with the

USER

command, then enter the command again.

MESSAGE: 550 File request not taken: !

CAUSE:

An MPE/iX File System error was received. The parameter will contain the text of the specific File System error.

ACTION:

Refer to the MPE/iX Error Messages Manual.

MESSAGE: 553 Illegal file name

CAUSE:

The file name specified was not a valid MPE/iX file name.

ACTION:

Use the correct file name format: either filename or

filename

.group.account

where each file name part is up to eight alphanumeric characters, beginning with an alphabetic character.

Appendix A 83

Error Messages

FTP Server Messages and Errors

84 Appendix A

B Using the FTP Server

This appendix provides information for remote users accessing the

MPE/iX FTP server.

85

Using the FTP Server

Who Should Use This Appendix

Who Should Use This Appendix

This appendix contains information for non-MPE/iX system users accessing the MPE/iX FTP server.

This information is also provided in an online text file:

FTPDOC.ARPA.SYS

which can be transferred to remote users using

FTP.

86 Appendix B

Using the FTP Server

Sample FTP Session: Accessing MPE/iX

Sample FTP Session: Accessing MPE/iX

The purpose of this sample session is to provide help for a remote user accessing the MPE/iX FTP server. More detailed information about FTP behavior follows the sample.

In order to follow the same steps as the sample of your system, you must obtain the following from your network administrator:

• Internet Protocol (IP) address of the MPE/iX system

• MPE/iX logon account and the passwords

• Names of the groups in the logon account containing the files you want to access.

Appendix B 87

Using the FTP Server

Start FTP

Start FTP

Start FTP from your system.

Connect to the Remote MPE/iX System

To open a connection to MPE/iX use the

OPEN

command followed by the internet protocol (IP) address for the MPE/iX system. For example: ftp> OPEN 192.50.43.21

220 MPE/iX File Transfer Protocol Server [A00020001] (C) Hewlett-Packard Co. 1990

Log On to MPE/iX

Supply the MPE/iX logon account and password when prompted, or use the

USER

command. For example: ftp> USER sess1,user,myacct,mygroup

331 Password required for SESS1,USER.MYACCT,MYGROUP [userpass]

[,accountpass][,grouppass]

Password: userpass,acctpass,grouppass (

enter passwords

)

230 User logon on.

Check the Session and Group

Check the session and group you are accessing. This example shows the user logged on with the working group,

MYGROUP

.

ftp> PWD

257 “MYACCT/MYGROUP” is the current directory.

257 “SESS1,USER.MYACCT,MYGROUP” is the current session.

View Files in the Working Group

Examine the files in the working group using the FTP

DIR

command: ftp> DIR *

200 PORT command ok.

150 File LISTF opened; data connection will be opened

ACCOUNT = MYACCT GROUP = MYGROUP

FILENAME CODE

NSCREEN1

NSCREEN2

-----------LOGICAL RECORD-----------

SIZE TYP EOF LIMIT

256B

80B

FA

FA

800

500

10000

14000

NSPROGX PROG

PROGRAMX

226 Transfer complete

1934W

256W

VB

FB

4551

700

9480

1350

88 Appendix B

Using the FTP Server

Start FTP

nnn bytes received in n.nn seconds (n.nn Kbytes/sec) ftp>

Transfer a File to Your System

Transfer a remote MPE/iX file to your system using the

GET

command: ftp> GET nscreen1

200 PORT command ok.

150 File NSCREEN1 opened; data connection will be opened

226 Transfer complete nnn bytes received in n.nn seconds (n.nn Kbytes/sec) ftp>

The file will be saved as nscreen1 on you system.

View Files in a Different Group

Examine the files in another group using the

LS

command with the group name: ftp> LS @.group1

200 PORT command ok.

150 file LISTF opened; data connection will be opened<R> AFILE.GROUP1

TSCREEN.GROUP1

TSCREEN2.GROUP1

NSPROG1.GROUP1

NSPROG2.GROUP1

NSPROG3.GROUP1

NSPROGRAM.GROUP1

226 Transfer complete nnn bytes sent in n.nn seconds: (n.nn Kbytes/sec) ftp>

Note that this display is different than using the

LS

command with no group name which displays only file names.

Transfer a File From Another Group

Transfer a binary file from MPE/iX to your system from other than the current working group: ftp> BINARY

200 Type set to I.

ftp> GET NPROGRAM.GROUP1

The MPE/iX file will be saved as

NPROGRAM.GROUP1

on your system.

Appendix B 89

Using the FTP Server

Start FTP

Transfer Multiple Files from MPE/iX to Your

System

To transfer multiple files from MPE/iX to your system use the

MGET

command: ftp> MGET @

All files in the working group will be transferred and have the same names as on MPE/iX (up to 8 alphanumeric characters, all capitals).

Transfer multiple files from other than the working group on MPE/iX to your system.

ftp> MGET [email protected]

The resulting file names are:

NSPROG1.GROUP1

NSPROG2.GROUP1

NPROGRAM.GROUP1

Transfer a File from Your System to MPE/iX

Transfer a local file to the MPE/iX working group using the

PUT

command: ftp> PUT yfile iXFILE

Use File Building Parameters

Transfer a local file to other than the MPE/iX working group, using

MPE/iX file building parameters: ftp> PUT file2 newfile.group1;rec=-78, ,f,ascii

Transfer multiple ASCII files to MPE/iX using the

MPUT

command: ftp> ASCII

200 Type set to A.

ftp> MPUT A*

If your system supports prompting, you are prompted whether or not

(yes or no) to transfer each file in the selected group of files.

Check that the files transferred: ftp> DIR *

200 PORT command ok.

150 File LISTF opened; data connection will be opened

ACCOUNT = MYACCT GROUP = MYGROUP

FILENAME CODE

AFILE

AFILE123

-----------LOGICAL RECORD-----------

SIZE TYP EOF LIMIT

80B

80B

FA

FA

800

800

104800

104800

90 Appendix B

Using the FTP Server

Start FTP

AFILE1234

AFILENAM

80B

80B

FA

FA

800

800

104800

104800

AFILEXX

226 Transfer complete

80B FA 800 104800 nnn bytes received in n.nn seconds (n.nn Kbytes/sec) ftp>

If the file names are longer than eight characters, the file transfer fails.

Note that all files were saved with the default FTP ASCII file attributes: records of fixed length and 80 bytes.

More Information About FTP and MPE/iX

This section describes in more detail MPE/iX logon syntax and file system behavior when using FTP.

MPE/iX User Accounts

MPE/iX user logon accounts are in the form: ftp> USER

sessname,username.acctname,groupname

The sessionname parameter (sessname) is optional. Passwords may be required for all three parts of the user account:

userpass,accountpass,grouppass

You can enter the user logon account and passwords together as follows: ftp> USER session1,username/userpass.acctname/acctpass,groupname/grouppass

Press the return key when prompted for passwords.

The following example shows: no session, and a password for the account only: ftp> USER myname.myacct/acctpass

331 Password required for MYNAME.MYACCT/ACCTPASS [userpass]

[,accountpass][,grouppass]

Password:

230 USER LOGON ON.

(

press return

) ftp> pwd

257 “MYACCT/MYPUB” is the current directory.

257 “,MYNAME.MYACCT,PUB” is the current session.

NOTE

Each password can only be entered once. For example, if you enter the account password as part of the

USER

string, you cannot re-enter it at the password prompt.

If you enter passwords as part of the logon string, they are displayed in the message text of the password prompt.

Appendix B 91

Using the FTP Server

Start FTP

Groups

An MPE/iX user account can contain many groups, each containing files. A group is comparable to a directory, but only to one level. Unlike

UNIX systems, the MPE/iX file system is not hierarchical.

The MPE/iX account manager can assign a default group for a user account. For example, the user account

MYNAME.ARPACCT

is assigned a default group PUB (with no group password). The user logon is as follows: ftp> USER MYNAME/userpw.ARPACCT/acctpw

331 Password required for MYNAME/USERPW.ARPACCT/ACCTPW [userpass]

[,accountpass][,grouppass]

Password: (

press return

)

230 USER LOGON ON.

ftp> PWD

257 “MYACCT/MYGROUP” is the current directory.

257 “,MYNAME.ARPACCT,PUB” is the current session.

Changing Groups

To change groups you CD as follows: ftp> PWD

257 “MYACCT/MYGROUP1” is the current directory

257 “,MYNAME.MYACCT, GROUP1” is the current session ftp>cd ../GROUP2

250 CWD file action successful ftp> PWD

257 “MYACCT/GROUP2” is the current directory

257 “,MYNAME.MYACCT, GROUP1” is the current session

92 Appendix B

Using the FTP Server

File Naming on MPE/iX

File Naming on MPE/iX

The MPE/iX file system is not case sensitive: file1 is the same file as

FILE1.

A fully-qualified MPE/iX filename is in the form:

filename. groupname. account

Each part, (filename, groupname, and account) is 1–8 alphanumeric characters, beginning with an alphabetic character. To avoid file naming problems, always explicitly specify resulting filenames in correct MPE/iX format.

Appendix B 93

Using the FTP Server

Using Metacharacters

Using Metacharacters

Be aware if you use metacharacters (wildcards) and specify a group and/or account with

MGET

. The resulting filenames will be fully qualified MPE/iX file names (filename.groupname.account), a maximum of

26 characters, including periods. If your system supports fewer characters than MPE/iX, the filenames may be truncated. Use the

LS

command to verify the set of files you are transferring.

Both

*

and

@

can be used as wildcard characters with the

LS

and

DIR

commands.

94 Appendix B

Using the FTP Server

Changing File Building Parameters

Changing File Building Parameters

When transferring files from your system to MPE/iX, you can use file building parameters following the

PUT

command string: ftp> PUT localfile remotefile, buildparms

The supported build parameters are:

;REC=[-

recsizebytes

] [,

blkfactor

[,[{F}][,{BINARY}]]]]

{V} {ASCII

{B}

[;DEV=

device

]

[;CODE=

filecode

]

[;DISC=[

numrec

] [, [

numextents

] [, [

initialloc

]]]

The parameter REC= can also be specified in words (two bytes per word) using a positive integer value. The default blkfactor size is one.

For more information about the build command, see the MPE/iX

Commands Reference Manual.

The default MPE/iX file-transfer specifications for the

PUT

command in the form of file-building parameters are:

ASCII:REC=80,,F,ASCII,DISC=204800

Binary:REC=-252,,v,BINARY;DISC=204800

Bytestream:REC=,,B;DISC=16384000

Examples

The following example shows how to transfer a file to MPE/iX with a record size of 150 bytes: ftp> PUT filex files2;REC=-150,,V,ASCII

In the following example, using only

CODE=PROG

defaults to a file of fixed binary, with records of 128 words (which are the

BUILD

command

REC=

defaults).

ftp> PUT filex file2;CODE=PROG

Appendix B 95

Using the FTP Server

Supported MPE/iX File Types

Supported MPE/iX File Types

The following types of MPE/iX files can be transferred to a remote host using FTP.

Standard MPE files, with fixed, variable, or bytestream format, and either binary or ASCII data types.

In addition, the latest enhancemnets enable the transfer of the following types of non-standard types between two HP 3000 machines.

Both the FTP server and the client must be running the latest version.

1. Circular files

2. Message files

3. RIO files

4. CM KSAM files

5. NM KSAM files

6. HPSPOOL files

Of these, SPOOL files are transferred as fixed ASCII files. The above non-standard file transfers are not possible between an MPE and an non-MPE system. However, SPOOL files can be transferred as fixed

ASCII files from an MPE to a non-MPE system.

The following MPE/iX file type cannot be transferred with FTP.

• HFS (Hierarchical File System) directories

In addition, undefined (U) record format files cannot be transferred.

96 Appendix B

C PING/iX Utility

This appendix describes the PING/iX utility and is organized as follows:

• What is PING/iX

• How to Use PING/iX

• PING/iX Error and Information Messages

97

PING/iX Utility

What is PING/iX

What is PING/iX

PING/iX is an interactive utility that can be used to confirm the reachability of a remote node that supports the internet protocol (IP). It can also be used to estimate round trip times before proceeding with lengthy transactions.

PING/iX sends Internet Control Message Protocol (ICMP) Echo

Requests to the remote node once a second, and monitors the echo replies that arrive.

If you choose to send four or more bytes of data with the Echo Requests,

PING/iX displays the round trip times in milliseconds. Since the echo is performed at layer 3 of the ISO OSI model, PING/iX cannot be used to find out if a particular application is available on the remote node, or to estimate application-level round trip times.

98 Appendix C

NOTE

PING/iX Utility

How to Use PING/iX

How to Use PING/iX

To use PING/iX, you need the internet protocol (IP) address of the remote node. If you do not wish to use the default values, you can optionally specify the number of packets to send, and number of data bytes per packet. The defaults are 64 bytes per packet, with an infinite number of packets. Use

[CTRL-Y]

to stop sending packets.

You must have NA and NM capabilities to use PING/iX.

PING/iX can be run from a menu by entering:

:RUN PING.NET.SYS

or, from the command line using an INFO string in the form:

:RUN PING.NET.SYS;INFO= “

ipaddress

[,

packets

] [,

bytes

]”

Examples of both the menu-driven and the command-line interface are provided in the following sections.

If you have active PING/iX processes while bringing up or shutting down the network, the processes will exit to the menu display and IP address prompt after printing error messages. It is highly recommended that you run PING/iX after bringing up the networks, and have no active PING/iX processes when you shut the network down.

Appendix C 99

PING/iX Utility

Using Menu-Driven PING/iX

Using Menu-Driven PING/iX

When you run PING/iX without parameters, the display shows the input parameters available. For example, enter:

:RUN PING.NET.SYS

The following menu is displayed:

------- PING/iX (ICMP Echo Requestor) : Version B0300003 -------

Information on Input Parameters:

(CONTROL-Y at any point to exit to main level)

IP address — In decimal form; (.e.g.,) 15.13.131.55;

RETURN to quit program

# packets data bytes

Between 1 and 65544; RETURN for the

default of infinite packets, and CONTROL-Y

to stop sending.

Between 0 and 2048; should be 4 or more to

get round trip times; RETURN for the default of 64 bytes.

IP address [RETURN to quit program.] ?

Enter the IP Address

This is a required parameter. Enter the IP address of the remote node in decimal notation at the IP address prompt. For example:

IP address [RETURN to quit program.] ? 15.13.131.55

Enter the Number of Packets

This is an optional parameter. Once a valid IP address has been entered, you are prompted for the number of packets. For example, 20 packets has been entered below:

# of packets [1 to 65534] ? 20

The number of packets entered must be between 1 and 65534. The default is to send a continuous stream of packets which can be selected by pressing the

[Return]

key at the prompt. If you use the default (a continuous stream), you must enter

[CTRL-Y]

to stop sending packets.

Enter the Number of Bytes

This is an optional parameter. Once a valid number has been entered for the number of packets to be sent, you are prompted for the number of bytes to be sent per packet. For example, 1000 has been selected:

# of bytes of data [0 to 2048] ? 1000

100 Appendix C

PING/iX Utility

Using Menu-Driven PING/iX

The number of data bytes entered must be between 0 and 2048. The default is to send 64 bytes of data with each packet, which can be selected by pressing the

[Return]

key at the prompt.

If four or more bytes of data is sent, the round trip time for each request-reply is displayed.

Stopping PING/iX

From the menu displaying the IP address prompt, you can exit from

PING/iX by pressing the

[Return]

key. Note that you cannot use the

[Break]

key to exit.

You can exit to the menu display by entering

[CTRL-Y]

at any point while entering parameters. You can also enter

[CTRL-Y]

to stop sending packets.

If you choose to send a continuous stream of packets, you must use

[CTRL-Y]

to stop sending packets.

PING/iX times out after two minutes if it does not get any response to its requests. This can occur if there is a problem with the local node or the remote node.

If you do not want to wait for the two minute limit to be reached, you can enter

[CTRL-Y]

to exit to the menu display and IP address prompt, then press the

[Return]

key to exit from PING/iX.

Sample Session

The following example illustrates using menu-driven PING/iX.

:RUN PING.NET.SYS

------- PING/iX (ICMP Echo Requestor) : Version B0300003 -------

Information on Input Parameters:

(CONTROL-Y at any point to exit to main level)

IP address — In decimal form; (.e.g.,) 15.13.131.55;

RETURN to quit program

# packets — Between 1 and 65544; RETURN for the

default of infinite packets, and CONTROL-Y

to stop sending.

data bytes — Between 0 and 2048; should be 4 or more to

get round trip times; RETURN for the default of 64 bytes.

IP address [RETURN to quit program.] ? 15.13.131.59

------------------------------------------------------

Remote IP address in hex : $0F0D833B

-----------------------------------------------------

# of packets [1 to 65534]

# of bytes of data [0 to 2048]

?

?

10

10

Appendix C 101

PING/iX Utility

Using Menu-Driven PING/iX

--PING/iX $0F0D833B : 10 byte packet(s), 10 packet(s)--

10 byte(s) from $0F0D833B : icmp_seq =

10 byte(s) from $0F0D833B : icmp_seq =

10 byte(s) from $0F0D833B : icmp_seq =

10 byte(s) from $0F0D833B : icmp_seq =

10 byte(s) from $0F0D833B : icmp_seq =

10 byte(s) from $0F0D833B : icmp_seq =

10 byte(s) from $0F0D833B : icmp_seq =

10 byte(s) from $0F0D833B : icmp_seq =

10 byte(s) from $0F0D833B : icmp_seq =

10 byte(s) from $0F0D833B : icmp_seq =

1, time =

2, time =

3, time =

4, time =

5, time =

6, time =

7, time =

8, time =

9, time =

10, time =

23 ms

23 ms

23 ms

23 ms

23 ms

23 ms

23 ms

23 ms

23 ms

23 ms

--- $0F0D833B PING Statistics ---

10 packet(s) transmitted, 10 packet(s) received, 0 % packet loss round trip (ms) min/avg/max = 22/24/35

102 Appendix C

PING/iX Utility

Using PING/iX From the Command Line

Using PING/iX From the Command Line

You can run PING/iX from the command line by using an INFO string.

The INFO string must contain the IP address of the remote node, and optionally, the number of packets and number of bytes:

:RUN PING.NET.SYS;INFO=" ipaddress [,packets] [,bytes]"

Within the INFO string, commas are required to separate parameters.

The number of packets and bytes that can be sent are the same as using the menu-driven option. The default number of packets is a continuous stream, and the default number of bytes is 64.

Stopping PING/iX

You can enter

[CTRL-Y]

at any time to exit from PING/iX. If you send a continuous stream of packets, you must enter

[CTRL-Y]

to stop sending packets. The program exits without displaying the menu.

Example

This example shows an INFO string containing the IP address, and specifying five packets. The number of data bytes defaults to 64. The statistics displayed by PING/iX are also included.

:run ping.net.sys;info=" 15.13.131.59,5"

------ PING/iX (ICMP Echo Requestor) : Version B0300003 ------

PARAMETERS INPUT:

---------------------------------------------------------------

Remote IP address in hex

Number of packets

Number of data bytes

:$0F0D833B

:5

:Default of 64 bytes

--- PING $0F0D833B : 64 bytes packet(s), 5 packet(s) ---

64 bytes(s) from $0F0D833B : icmp_seq =

64 bytes(s) from $0F0D833B : icmp_seq =

64 bytes(s) from $0F0D833B : icmp_seq =

64 bytes(s) from $0F0D833B : icmp_seq =

64 bytes(s) from $0F0D833B : icmp_seq =

1, time = 26 ms

2, time = 24 ms

3, time = 23 ms

4, time = 23 ms

5, time = 24 ms

--- $0F0D833B PIN Statistics ---

5 packet(s) transmitted, 5 packet(s) received, 0 % packet loss round trip (ms) min/avg/max = 22/24/26

END OF PROGRAM

Appendix C 103

PING/iX Utility

PING/iX Error and Information Messages

PING/iX Error and Information Messages

In addition to the normal reply message details and statistics, PING/iX can display informational and/or error messages which are described below.

MESSAGE: Receive timeout occurred. Shutting Down. . .

CAUSE:

The PING/iX process has not received any response to its requests for two minutes. So it shuts itself down, assuming that the local or the remote side is inactive.

ACTION:

This could indicate that the remote node is unreachable. Also check if the local node is congested or hung causing the local ICMP

Server not to respond. (The local ICMP Server interacts with PING/iX to send ICMP Echo Requests to the remote, and passes incoming replies to the right PING/iX process.)

MESSAGE: Cannot contact local ICMP Server. Shutting down. . .

CAUSE:

PING/iX cannot contact the above mentioned local ICMP

Server.

ACTION:

Check if the Transport is active. If not, start the transport.

MESSAGE: Server not accepting requests, as it is busy. Please try later.

CAUSE:

Only 15 PING/iX processes can be active at any time. That is, only 15 users can run PING/iX at the same time. Additional users trying to run PING/iX will get this error message.

ACTION:

Wait, and try later. One of the other PING/iX processes might have completed, allowing you to run the program.

MESSAGE: Cannot resolve path to remote. Path Error, Parm_Value.

Refer PATH RESULT CODES table in NS 3000/iX Error Messages

Manual.

CAUSE:

A suitable path out of the local node to reach the remote node could not be found.

ACTION:

Look up the table mentioned in the message, under the

Parm_Value code, and take the action recommended therein.

MESSAGE: Arithmetic trap Parm. Program Quitting

CAUSE:

This is an internal error.

ACTION:

Submit an SR with the Parm value, a description of what you were trying to do, and any other error messages printed on the terminal. To submit an SR, see the NS 3000/iX Operations and

Maintenance Manual.

104 Appendix C

PING/iX Utility

Internal Errors

Internal Errors

The following messages are all internal errors, and should not happen under normal circumstances. In each case, submit an SR (see the

NS 3000/iX Operations and Maintenance Manual).

• Error opening $STDIN. Program quitting.

• Error opening $STDLIST. Program quitting.

• Cannot create port. Program quitting.

• Internal Error in server. Shutting Down...

• Buffer Error in server. Shutting Down...

Appendix C 105

PING/iX Utility

Internal Errors

106 Appendix C

Glossary

A

address A numerical identifier

defined and used by a particular protocol and associated software to distinguish one node from another.

address resolution In NS

networks, the mapping of node names to IP addresses and the mapping of IP addresses to subnet addresses. See also: probe

protocol, ARP.

ARP Address resolution

protocol. ARP provides IP to LAN station address resolution for

Ethernet nodes on a LAN.

ARPA Advanced Research

Projects Agency.

ASCII American Standards

Committee on Information

Interchange. A standard used by computers for interpreting binary numbers as characters.

B

binary mode Data transfer

scheme in which no special character processing is performed. All characters are considered to be data and are passed through with no control actions being taken.

byte A sequence of eight

consecutive bits operated on as a unit.

C

control connection The

communication path between the

FTP User PI and the Server PI used to exchange commands and replies. This connection follows the TELNET Protocol guidelines.

D

data connection A full duplex

connection over which data is transferred in a specified mode and type. The path may be between a server-DTP and a user-DTP, or between two server

DTPs.

directory See working directory.

DTP The data transfer process

that establishes and manages the data connection.

E

environment A session that is

established on a remote node.

Ethernet A Local Area Network

system that uses baseband transmission at 10 Mbps over coaxial cable. Ethernet is a trademark of Xerox Corporation.

F

file equation Assignment

statement used to associate a file with a specific device or type of device during execution of a program.

Glossary 107

Glossary

file system The part of the

operating system that handles access to input/output devices, data blocking, buffering, data transfers, and deblocking.

flow control A means of

regulating the rate at which data transfer takes place between devices to protect against data overruns.

H

host computer The primary or

controlling computer on a network. The computer on which the network control software resides. For HP purposes, it may also be used to distinguish the

MPE/iX system (host) from the

DTC.

I

IEEE 802.3 A standard for a

broadcast local area network published by the Institute for

Electrical and Electronics

Engineers (IEEE). This standard is used for both the ThinLAN and

ThickLAN implementations of the LAN

Internet Protocol (IP) A

protocol used to provide routing between different local networks in an internetwork, as well as among nodes in the same local network. See also IP address.

intrinsic System routine

accessible by user programs which provides an interface to operating system resources and functions. Intrinsics perform common tasks such as file access and device control.

IP address Internet Protocol

address. An address used by the

Internet Protocol to perform internet routing. A complete IP address comprises a network portion and a node portion. The network portion of the IP address identifies a network, and the node portion identifies a node within the network.

L

loopback The routing of

messages from a node back to itself.

N

network address This can be

either 1) the network portion of an IP address as opposed to the node portion, or 2) when referring to X.25 networks, it is a node’s

X.25 address.

network directory A file

containing information required for one node to communicate with other nodes in 1) an internetwork,

2) an X.25 network, or 3) a network that contains non-HP nodes. The active network directory on a node must be named

NSDIR.NET.SYS

.

NMDUMP A utility used to

format log and trace files.

108 Glossary

Glossary

NMMAINT A utility that lists

the software module version numbers for all HP AdvanceNet products, including NS 3000/iX. It detects missing or invalid software modules

NMMGR Node Management

Services Configuration Manager.

A software subsystem that enables you to configure DTC connectivity and network access parameters for an HP 3000

Series 900 computer.

node A computer that is part of a

network. The DTC is also considered to be a node and has its own address.

node address The node portion

of an IP address.

Node Management Services

Configuration Manager See

NMMGR.

node name A character string

that uniquely identifies each system in a network or internetwork. Each node name in a network or internetwork must be unique; however, a single node can be identified by more than one node name.

NS 3000/iX Link Software and

hardware that provides the connection between nodes on a network. Some of the NS 3000/iX links available are the ThinLAN

3000/iX Link and its ThickLAN option, the DTC/X.25 iX Network

Link, and the NS Point-to-Point

3000/iX Link.

NS 3000/iX Network Services

Software applications that can be used to access data, initiate processes, and exchange information among nodes in a network. The services are RPM,

VT, RFA, RDBA, and NFT.

NSDIR.NET.SYS Name of the

active network directory file. See

also network directory.

P

privileged mode A capability

assigned to accounts, groups, or users allowing unrestricted memory access, access to privileged CPU instructions, and the ability to call privileged procedures.

probe protocol An HP protocol

used by NS 3000/iX IEEE 802.3

networks to obtain information about other nodes on the network.

It provides name to IP address resolution, and IP to IEEE 802.3

address resolution.

probe proxy server A node on

an IEEE 802.3 network that possesses a network directory. A probe proxy server can provide a node with information about other nodes on the same or other networks of an internetwork.

protocol A set of rules that

enables two or more data processing entities to exchange information. In networks, protocols are the rules and conventions that govern each layer of network architecture.

Glossary 109

Glossary

They define what functions are to be performed and how messages are to be exchanged.

PI Protocol interpreter. In the

FTP client-server model, describes the processing of FTP commands and replies over the control connection between the user and server.

R

remote node A node on an

internetwork other than the node you are currently using or referencing.

V

Virtual Terminal A network

service that allows a user to establish interactive sessions on a node.

W

working directory While using

FTP, the directory on the remote system currently being accessed.

Terminology used on UNIX and

MS DOS systems. On MPE/iX, a comparable structure is group

X.25 address The X.25 address

provided by the network administration if you are connected to a Public Data

Network (PDN).

X.25 address key An X.25

address key is a label that maps a node's IP address to its X.25

address and its associated X.25

parameters.

110 Glossary

Index

Symbols

?

user commands

,

53

A

address resolution protocol anonymous FTP

,

43

ARP

,

24

,

24 changing parameters

,

23 retransmission maximum

,

24 retransmission timeout

,

24

ARPA services

,

12

ASCII user command

,

53

B

BINARY user command

,

53

BYE user command

,

53

C

CASE user command

,

53

CD server command

,

59 user command

,

53 client-server model

,

12

CLOSE user command

,

53 creating subnets

,

26

D

DEBUG user command

,

54

DELE server command

,

59

,

60

DELETE user command

,

54

DIR user command

,

54

DISCONNECT user command

,

54

E

error messages

,

71

FTP server

,

80

FTP user

,

72

PING/iX

,

104

Ethernet Support

,

20

EXIT user command

,

54

F

FORM

Index

server command

,

59 user command

FTP

,

12 passwords, MPE/iX start

,

88

FTP server

,

85

,

54

File Transfer Protocol

,

14

,

62

FTP server commands

CD

,

59

DELE

FORM

,

59

,

60

,

59

HELP

LIST

,

61

,

59

MKDIR

,

60

,

60 MODE

MODTIME

,

60

NLST

,

60

PWD

,

60

QUIT

,

59

,

61

RETR

,

59

,

60

RMDIR

RNFR

,

61

,

61

RNTO

,

61

SITE

,

61

SIZE

,

61

STOR

,

60

STRUC

,

61

SYSTEM

,

61

TYPE

,

59

,

61

USER

,

62

FTP user commands

?

,

53

ASCII

,

53

BINARY

,

53

BYE

,

53

CASE

,

53

CD

,

53

CLOSE

,

53

DEBUG

,

54

DELETE

,

54

DIR

,

54

DISCONNECT

,

54

EXIT

,

54

FORM

GET

,

54

,

54

HELP

,

55

LCD

LS

,

55

,

55

MDELETE

,

55

MGET

MKDIR

,

55

,

55

MODE

,

55

MODTIME

,

55

MPUT

,

56

OPEN

,

56

PROMPT

PWD

,

56

,

56 quick reference

,

53

QUIT

,

56

QUOTE

,

56

RECV

,

56

REMOTEHELP

,

56

RENAME

,

56

SEND

,

57

SIZE

,

57

STRUCT

,

57

SYSTEM

,

57

TYPE

,

58

USER

,

58

VERBOSE

,

58

G

GET user command

,

54

H

HELP server command

,

61 user command

,

55 hosts file create

,

34 modify

,

34

HP ARPA File Transfer Protocol

,

14

HP ARPA Telnet

,

13

K

keywords domain

,

32

,

32 nameserver search

,

32

,

32

L

LCD user command

,

55

LIST server command

,

59

LS user command

,

55

M

MDELETE user command

,

55 metacharacters

,

94

MGET user command

,

55

MKDIR user comman

,

60 user command

,

55

MODE server command

,

60 user command

,

55

111

Index

MODTIME user command

,

55

,

60

MPE/iX FTP user

,

66

MPUT user command

,

56

N

network directory updating

,

28 network traffic

,

26

NLST server command

,

60

NMCONFIG updating

,

22

NMMAINT

,

18

NSCONTROL

,

22

O

OPEN user command

,

56

P

PING/iX

,

98 error messages

,

104 sample session

Planning for FTP

,

101

,

16

PROMPT user command

,

56

PWD server command

,

60 user command

,

56

Q

QUIT server command

,

59

,

61 user command

,

56

QUOTE user command

,

56

R

RECV user command

,

56 remote user

,

68

REMOTEHELP user command

,

56

RENAME user command

,

56 resolver file create

,

31 modify

,

31 restarting the network

,

40

RETR server command

,

59

,

60

RMDIR user command

,

61

112

RNFR server command

,

61

RNTO server command

,

61

S

security required for ARPA.SYS

,

18

SEND user command

,

57

SITE user command

,

61

SIZE user command

,

57

,

61 start FTP

,

88 starting FTP

,

41

STOR server command

,

60 store and forward

,

26

STRU server command

,

61

STRUCT user command

,

57

SYSTEM user command

,

57

,

61

T

Telnet

,

12

,

13 testing

,

47

TYPE server command

,

59

,

61 user command

,

58

U

update the IP protocol configuration

,

26

USER server command

,

62 user command

,

58 user

MPE/iX FTP

,

66 remote

,

68

V

VERBOSE user command

,

58 verifying installation

,

18

Index

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
