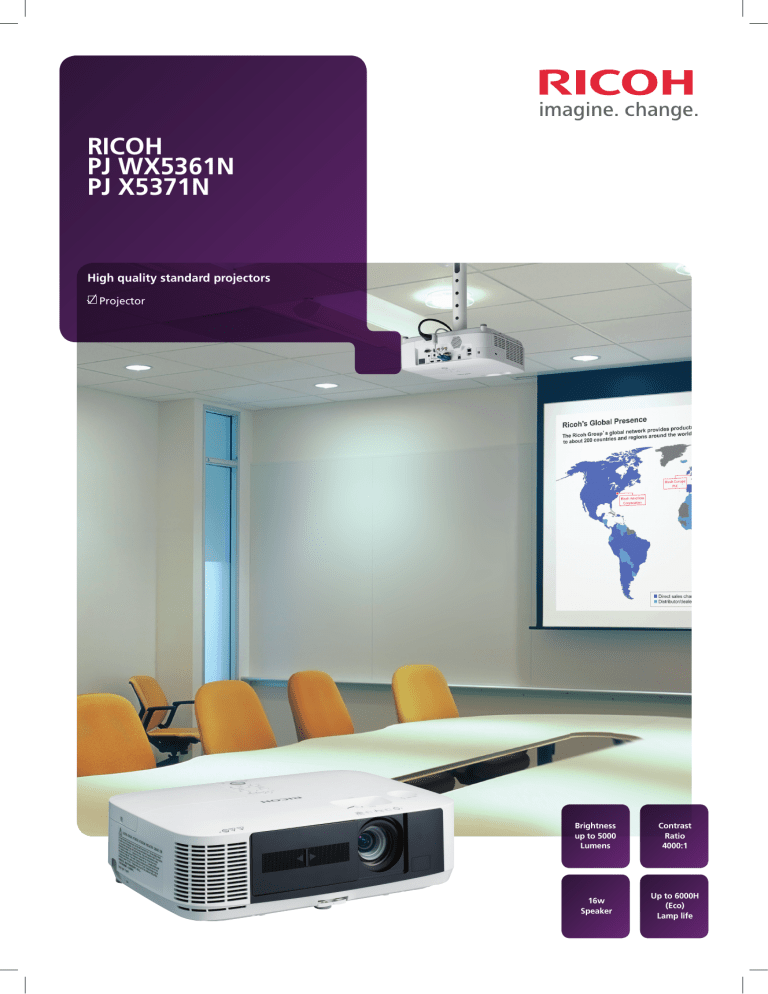

PJ WX5361N
PJ X5371N
High quality standard projectors
up to 5000
Up to 6000H
Lamp life
In the office and classroom or exhibition and showroom,
the perfect fit for a wide range of environments
Boost the brightness of your presentations and displays with Ricoh’s PJ WX5361N/PJ X5371N
projectors. Outstanding brightness with 4,500 lumen for PJ WX5361N and 5,000 lumen for PJ X5371N
supported by a high-spec 16W speaker ensures top quality images and superior audio. Extensive wired
or wireless network connectivity and helpful on-screen prompts ensure that even novices can start
projecting immediately. These projectors are easy to install virtually anywhere, and integrate fully with
Ricoh’s total office solutions.
• High quality, power and brightness
• Project onto screens up to 300 inches in size
• Vertical and horizontal keystone correction rectifies image distortion
• High magnification zoom lens and lens shift for installation flexibility
• Two eco modes extend lamp life and reduce environmental impact
Enhance your image
The high-output 16W speaker provides audio that is easy to hear even in
large conference rooms and classrooms. The keystone distortion that occurs
when projecting images can be easily corrected. Projector positioning is
easy thanks to horizontal and vertical distortion adjustments that match
the projector placement angle. The 1.7x zoom lens allows you to change
the projection distance, and the lens shift function enables you to move the
image up and down without moving the projector.
Ready to network
An extensive selection of input/output terminals including the network,
HDMI, VGA and USB and widens the scope of use. By connecting the
projector to a variety of devices, you can further expand usage possibilities,
such as projecting from your iPad/iPhone via Ricoh smart presenter*, or from
your laptop via Ricoh Quick Projection**.
Easy to install and operate
By just connecting the projector and a PC via a USB cable, you can project
without having to make any difficult settings. You can also perform
operations such as input signals switching, AV mute, and freeze from the
PC. When there is no input signal to the projector, guidance is displayed on
screen so you know where to connect the cable. The lens cover and AV mute
function are linked so you can temporarily turn off the image and audio
by closing the lens cover during projection. Placement of the exhaust vent
on the front means the hot air emitted by the projector will not hit people
sitting to the rear and side.
Low energy consumption
Auto Eco Mode automatically raises and lowers light intensity to reduce
power consumption by up to 18%. You can further cut power consumption
by selecting Eco1/Eco2 on the menu.
* Ricoh Smart Presenter can be downloaded from App Store for free.
** Ricoh Quick Projection can be obtained from Ricoh download page.
RICOH PJ WX5361N / PJ X5371N
Main Specifications
PJ WX5361N
Projection System
Aspect ratio
Colour reproducibility
Contrast ratio
Projected screen size
Projection distance
Lamp Life
Input signal
USB memory compatible file format
Wired LAN
Wireless LAN (option)
Primary features
Network features
Supported OS
Network Utility
utility / JPEG
conversion tool
Built-in speaker
Dimensions (W x D x H)
Power source
PJ X5371
WXGA (1,280x800 pixels)
0.59 in
4,500 lumen
XGA (1,024x768 pixels)
0.63 in
5,000 lumen
1,070,000,000 colours
25” to 300”
0.7m to 14.6m (from rear of unit to projection surface)
High-pressure mercury lamp
Standard: 3,500 hours (270 W)
Eco mode 1: 4,000 hours (214 W)
Eco mode 2: 6,000 hours (163 W)
Still image: JPEG, BMP, GIF, PNG
Video: MPEG2, WMV, MP4
Mini D-sub 15 pin x2, HDMI x2, USB Type A x2, USB Type Bx1, S-Video-pin mini D1N-4 pin x1, RCA pin jack x2, 3.5
stereo mini jack x2, Mini D-Sub 9 pin x1 (RS232C)
Type-A x 2 (USB 2.0 High-Speed)
RJ-45 x 1 (10BASE-T/100BASE-TX)
LAN IEEE 802.11 b/g/n compliant
Mute (Blank), Freeze, Re-size (Magnify), Auto keystone, Password protection, Blackboard mode, Key lock, User
logo, NCE (Natural Colour Enhancer), Eco mode, Carbon meter, Closed captioning, Simple DICOM, Presentation
Timer, Power timer, Mouse controller, Auto-Eco Mode, 2 Eco Modes (Eco 1: 80% brightness, Eco 2: 60% brightness), Front exhaust, 4-point keystone correction, Lens shift
Network projection, Multi-screen (1 PC to 4 projectors), Projection server function, Projector management, PJ Link,
Crestron Roomview, Alert Mail, HTTP server function
Windows XP SP3 or later
Windows Vista SP2 or later (32/64 bit)
Windows 7 (32/64 bit)
Windows 8 (32/64 bit)
Mac OS X (10.6 - 10.8)
Windows XP SP3 or later (32/64 bit)
Windows Vista SP2 or later (32/64 bit)
Windows 7 (32/64 bit)
Windows 8 Pro (32/64 bit)
Windows Server 2008/2008R2 (32/64 bit)
16 W mono
398 x 276 x 127 mm
4.3 kg
100 - 240 V, 50/60 Hz
Standard: 357 W
Eco Mode 1: 292 W
Eco Mode 2: 248 W
Stand-by mode: 10 W
5°C - 40°C
20% - 80%
Temperature: -10°C - 50°C
Main-unit, Power cable, RGB cable, CD-ROM with utility software and manual in 16 languages, Quick Reference
manual in paper, Remote control with batteries
Ricoh Australia Pty. Ltd. 8 Rodborough Road, Frenchs Forest, NSW 2086. Phone: 1800 181 002 Fax: 02 8977 1100 Web:
Ricoh New Zealand Pty. 60 Stanley Street, Parnell, Auckland New Zealand. Phone: 0800 2 Ricoh (0800 2 74264) Fax: 09 915 1401 Web:
Printed on a Ricoh. Product code: B960191
