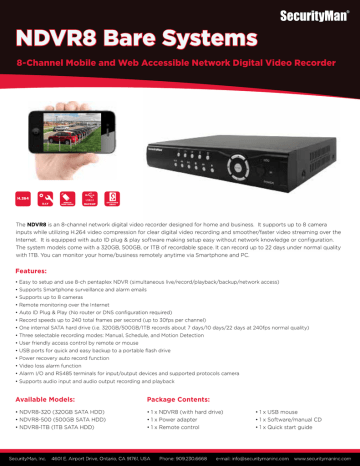

NDVR8 Bare Systems
NDVR8 Bare Systems
8-Channel Mobile and Web Accessible Network Digital Video Recorder
H.264
D.I.Y
REMO TE
MONI TORING
BACKUP
SATA HARD
DRIV E
The NDVR8 is an 8-channel network digital video recorder designed for home and business. It supports up to 8 camera
inputs while utilizing H.264 video compression for clear digital video recording and smoother/faster video streaming over the
Internet. It is equipped with auto ID plug & play software making setup easy without network knowledge or configuration.
The system models come with a 320GB, 500GB, or 1TB of recordable space. It can record up to 22 days under normal quality
with 1TB. You can monitor your home/business remotely anytime via Smartphone and PC.
Features:
• Easy to setup and use 8-ch pentaplex NDVR (simultaneous live/record/playback/backup/network access)
• Supports Smartphone surveillance and alarm emails
• Supports up to 8 cameras
• Remote monitoring over the Internet
• Auto ID Plug & Play (No router or DNS configuration required)
• Record speeds up to 240 total frames per second (up to 30fps per channel)
• One internal SATA hard drive (i.e. 320GB/500GB/1TB records about 7 days/10 days/22 days at 240fps normal quality)
• Three selectable recording modes: Manual, Schedule, and Motion Detection
• User friendly access control by remote or mouse
• USB ports for quick and easy backup to a portable flash drive
• Power recovery auto record function
• Video loss alarm function
• Alarm I/O and RS485 terminals for input/output devices and supported protocols camera
• Supports audio input and audio output recording and playback
Available Models:
Package Contents:
• NDVR8-320 (320GB SATA HDD)
• NDVR8-500 (500GB SATA HDD)
• NDVR8-1TB (1TB SATA HDD)
• 1 x NDVR8 (with hard drive)
• 1 x Power adapter
• 1 x Remote control
• 1 x USB mouse
• 1 x Software/manual CD
• 1 x Quick start guide
NDVR8 Bare Systems
8-Channel Mobile and Web Accessible Network Digital Video Recorder
Specifications of NDVR8:
Item
Operating System
Compression
240fps (30fps/ch, NTSC) CIF, 60fps (7.5fps/ch) D1 200fps (25fps/ch, PAL) CIF, 50fps (6.25fps/ch) D1
NTSC: CIF(352x240) /D1(720x480)
Live display resolution
Video output
Video standard
Recording mode
Playback
Storage and Backup
HDD
Backup
Network
NIC
Protocol
Internet viewing
Mobile surveillance
Interface
USB
NTSC: D1(720x480) / PAL: D1(720x576)
8ch BNC
1ch BNC, 1ch VGA
NTSC/PAL adjustable
Manual, schedule or motion detection recording
Search by time, events, channels, or files
320GB, 500GB, or 1TB (Supports up to 2TB max)
USB backup device, Local HDD backup, Remote access
RJ45 10/100/1000Mbps
TCP-IP/DHCP/DDNS/PPPoE
Client software, IE, Mozilla Firefox, and Google Chrome
iPhone, Win Mobile, WinCE, Symbian, Android, and BlackBerry
2X USB 2.0 for USB mouse and other USB backup device
4 RCA inputs
Audio output
1 RCA output
PTZ
Others
PAL: CIF(352x288) / D1(720x576)
Audio input
Alarm I/O
Control
H.264
Record and playback
Video input
Record
Embedded Linux
Total recording speed
Resolution
Video
8CH NDVR8-320/500/1TB
Remote
4 Alarm inputs & 1 Alarm output
RS485
Yes (2xAA 1.5v batteries included)
Mouse
Yes (USB mouse included)
Panel
Yes
Network
Yes
Power
Dimensions(LxWxH)
AC 100-240V 50-60Hz 1.0A/ DC 12V 2.0A
12.4” x 8.8” x 2.1”
Working condition
Humidity 20%-95%, temperature -10~50°C (14-122°F)
Weight (net/gross)
10.1lbs (w/ HDD)/13.1lbs
