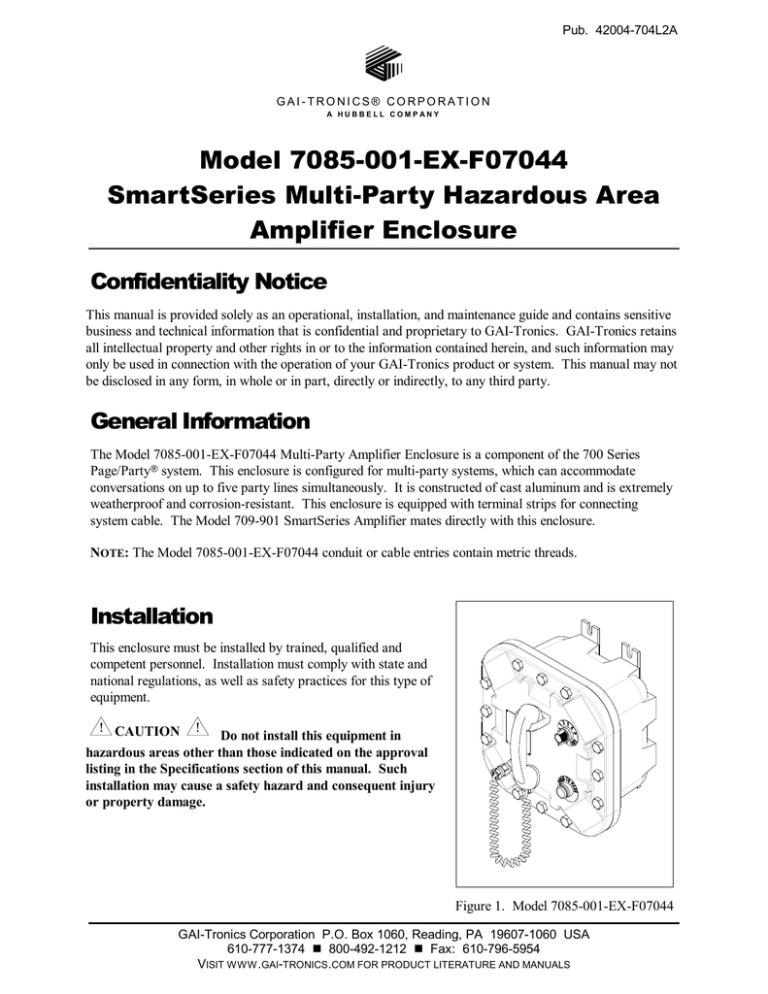

General Information
The Model 7085-001-EX-F07044 Multi-Party Amplifier Enclosure is a component of the 700 Series
Page/Party< system. This enclosure is configured for multi-party systems, which can accommodate
conversations on up to five party lines simultaneously. It is constructed of cast aluminum and is extremely
weatherproof and corrosion-resistant. This enclosure is equipped with terminal strips for connecting
system cable. The Model 709-901 SmartSeries Amplifier mates directly with this enclosure.
NOTE: The Model 7085-001-EX-F07044 conduit or cable entries contain metric threads.
Installation
This enclosure must be installed by trained, qualified and
competent personnel. Installation must comply with state and
national regulations, as well as safety practices for this type of
equipment.
CAUTION
Do not install this equipment in
hazardous areas other than those indicated on the approval
listing in the Specifications section of this manual. Such
installation may cause a safety hazard and consequent injury
or property damage.
Figure 1. Model 7085-001-EX-F07044
GAI-Tronics Corporation P.O. Box 1060, Reading, PA 19607-1060 USA
610-777-1374 „ 800-492-1212 „ Fax: 610-796-5954
VISIT WWW .GAI-TRONICS.COM FOR PRODUCT LITERATURE AND MANUALS
Pub. 42004-704L2A
Model 7085-001-EX-F07044 SmartSeries Multi-Party Hazardous Area Amplifier Enclosure Page: 2 of 11
The mounting location must be flat and provide proper clearance, rigidity and strength to support the
enclosure and all contained devices. The enclosure is equipped with factory-installed hinges. The enclosure
should be mounted with hinges on the left.
WARNING
Do not mount the enclosure with hinges on the top or bottom side.
Securely fasten the enclosure to the mounting location, using 1/2-inch diameter steel mounting bolts and
washers, or washer head bolts.
WARNING
Do not disconnect equipment while energized.
Insure proper grounding to protective earthing.
Inspect and clean the machined flange flame joint surfaces of both the cover and box. Surfaces must be
smooth, free of nicks, scratches, dirt or any foreign particle build-up that would prevent a proper seal.
Surfaces must seat fully against each other to provide a proper explosion-proof joint. Clean surfaces by
wiping with a clean lint-free cloth.
Apply a light coat of Killark “LUBG” lubricant to flange surfaces and close the cover. Install and tighten
all cover bolts to 30 ft.-lbs. Make certain no cover bolts are omitted. Use only those bolts supplied with
the enclosure.
When installing an add-on station, consult the appropriate system layout diagrams. These figures, when
used in conjunction with the station installation information and cable layout guide, should provide all the
information necessary to install additional Page/Party< stations.
Enclosure Placement
All GAI-Tronics Page/Party® units are wired in parallel. Good system layout design minimizes the cable
required for each installation. GAI-Tronics multi-conductor cable, designed especially for this application,
is recommended. For the number, size, and color-coding of conductors refer to the appropriate system
connection diagrams.
System layout and power cable length are very important when installing Page/Party< equipment.
Although it varies for different systems, the general guideline is that the total power cable length should not
exceed one mile (5280 feet) for 120 V ac systems. The total cable length is the most important
consideration while cable length between the stations is generally not a factor.
\\s_eng\gtcproddocs\standard ioms - current release\42004 instr. manuals\42004-704l2a.doc
11/07
Pub. 42004-704L2A
Model 7085-001-EX-F07044 SmartSeries Multi-Party Hazardous Area Amplifier Enclosure Page: 3 of 11
Hardware Configuration
External
The multi-party enclosure contains a handset with an approved gland, push-to-page operator, a party line
selector switch, and applicable approval labeling. The handset rests on a cradle, which has a magnetic reed
switch located behind it to signal an off-hook condition. The enclosure itself has 12 cover mounting bolts
located around the perimeter, and a set of aluminum hinges located on the left side. See Figure 2.
GAI-TRONICS CORPOR ATIO N
P.O. BOX 10 60 READING, PA 19607
N O U SE R SE RV ICE ABLE PAR TS INS D
I E.
R EFE R S ERV ICIN G TO QU ALIFIED PER SONN EL ONLY.
GA I-TR ON ICS SE RVIC E CE NTER S
In US A: 1-800-492-1212
Outside U SA :1- 610- 777- 1374
Figure 2. Model 7085-001-EX-F07044 Outline Drawing
\\s_eng\gtcproddocs\standard ioms - current release\42004 instr. manuals\42004-704l2a.doc
11/07
Pub. 42004-704L2A
Model 7085-001-EX-F07044 SmartSeries Multi-Party Hazardous Area Amplifier Enclosure Page: 4 of 11
Internal
The multi-party enclosure contains two terminal blocks, an interior mounting plate, an amplifier bridging
plate, and a connector for the mating Model 709-901 Amplifier. The amplifier bridging plate is hinged on
one side and attached on the opposite side with two #10-32 screws. For system cable installation, the
screws to this plate must be removed and the bridging plate swung open 90º. Upon installation of the
wiring cable, the amplifier bridging plate can be rotated closed and reattached with the two #10-32 screws.
This plate will then serve as a protection for the amplifier and the switches from the system cable when the
unit is completely closed. Refer to Figure 3.
The party line selector switch can be disconnected from the amplifier bridging plate by means of the 12-pin
connector. Upon installation of system cable, after the amplifier bridging plate has been reattached, plug
the 12-pin connector back into its receptacle.
NOTE: The front door can be swung approximately 120º before the plug must be disconnected.
Figure 3. Model 7085-001-EX-F07044 Amplifier Enclosure - Interior View
\\s_eng\gtcproddocs\standard ioms - current release\42004 instr. manuals\42004-704l2a.doc
11/07
Pub. 42004-704L2A
Model 7085-001-EX-F07044 SmartSeries Multi-Party Hazardous Area Amplifier Enclosure Page: 5 of 11
Mounting
NOTE: The mounting surface must be able to support the weight of the aluminum enclosure. See the
Specification section for the weight and dimensions of the unit.
The enclosure comes standard with mounting feet capable of being rotated 90º. This allows for top and
bottom mounting feet or side-to-side mounting feet. The enclosure ships with the mounting feet in the topto-bottom configuration, for ease of installation. Refer to Figure 4 for both sets of dimensions.
Figure 4. Model 7085-001-EX-F07044 Enclosure Mounting Details
The enclosure must be securely fastened with 1/2-inch diameter steel mounting bolts located on all four
mounting feet. Stainless steel hardware is recommended in outdoor applications.
NOTE: Refer to the Killark Installation, Operation, and Maintenance Data Sheet enclosed with the unit for
additional information.
\\s_eng\gtcproddocs\standard ioms - current release\42004 instr. manuals\42004-704l2a.doc
11/07
Pub. 42004-704L2A
Model 7085-001-EX-F07044 SmartSeries Multi-Party Hazardous Area Amplifier Enclosure Page: 6 of 11
Cable Entries
Refer to Figure 5 for the EX cable gland entries. Ensure any unused openings are sealed with proper
fittings per local standards.
Figure 5. Model 7085-001-EX-F07044 Cable Gland Entries
\\s_eng\gtcproddocs\standard ioms - current release\42004 instr. manuals\42004-704l2a.doc
11/07
Pub. 42004-704L2A
Model 7085-001-EX-F07044 SmartSeries Multi-Party Hazardous Area Amplifier Enclosure Page: 7 of 11
Wiring
Attach the conduit or cable glands to the enclosure. Feed the wiring through these and bring it into the
enclosure. Attach the wires to the terminal blocks located behind the amplifier bridging plate. Follow the
wire colors carefully because the colors correspond to GAI-Tronics cable. The wires must be spade-lugged
and connected carefully and completely to the terminal block. An improper termination may result in
diminished station performance. See Figure 6.
CAUTION
For safe operation, connect terminal 3 of TB1 to system ground.
Local Muting
Figure 6 illustrates local speaker muting when stations are completely assembled and paging operation
occurs. Normally, when the station button is pressed, the paging speaker connected to that station is
silenced (muted) to prevent acoustic feedback to the handset microphone. However, while the handset is in
use for party line conversations, the paging speaker is “live” to enable paging calls from other stations.
To disable the mute feature, follow these instructions:
1. Locate the lugged violet wire attached to terminal point 7 (mute) on the terminal block within the
enclosure.
2. Transfer the lugged violet wire to terminal point 8 (Page L1).
After any muting changes are made, unpack the station amplifier and install.
Mutual Muting
In the event that feedback occurs within an area and repositioning of the system speakers does not help,
mutual muting may be used to correct this problem.
Use the following steps to mutually mute adjacent amplifiers/handsets within a zone.
1. Ensure that the purple lugged wire is connected to terminal 7 of TB1.
2. Connect terminal TB1-7 of the handset station to TB1-7 of the station within the zone that is causing
feedback. This is done by using the spare system wire (orange conductor) from within the system
cable that runs between the stations.
\\s_eng\gtcproddocs\standard ioms - current release\42004 instr. manuals\42004-704l2a.doc
11/07
Pub. 42004-704L2A
Model 7085-001-EX-F07044 SmartSeries Multi-Party Hazardous Area Amplifier Enclosure Page: 8 of 11
Figure 6. Wiring Diagram
Operation
Refer to GAI-Tronics Pub. 42004-699L2 for Model 709-901 Handset/Speaker Amplifier for detailed
operational instructions.
\\s_eng\gtcproddocs\standard ioms - current release\42004 instr. manuals\42004-704l2a.doc
11/07
Pub. 42004-704L2A
Model 7085-001-EX-F07044 SmartSeries Multi-Party Hazardous Area Amplifier Enclosure Page: 9 of 11
Maintenance
Regular inspection and a good preventive maintenance program will increase the reliability of your
GAI-Tronics station. The GAI-Tronics Field Service Department can formulate a service contract suited
to your facility’s specific need for preventive maintenance.
In addition, the following procedure can be used to keep Page/Party® systems operating effectively.
WARNING
Before performing any of the following preventive maintenance steps, remove
all power from the station.
CAUTION
To reduce the risk of ignition of hazardous atmospheres, disconnect the equipment from the supply
circuit before making any adjustments to the amplifier's handset level.
1. Remove the amplifier from the enclosure.
2. Visually check the interior of the enclosure for signs of contamination such as dust, condensation or
process liquid.
3. Using the No. 10440-002 Maintenance Cable, plug the amplifier into the connector in the enclosure.
Check, and if necessary, adjust the amplifier to maximize performance.
4. Reinstall the amplifier in the enclosure. Ensure that all gaskets and hardware are in place. Failure to
install the gaskets, which also act as spacers, can result in damage to the connectors on the amplifiers
and inside the enclosures and can cause system faults.
Inspect and clean the machined flange flame joint surfaces of both the cover and box. Surfaces must be
smooth, free of nicks, scratches, dirt or any foreign particle build-up that would prevent a proper seal.
Surfaces must seat fully against each other to provide a proper explosion-proof joint. Clean surfaces by
wiping with a clean lint-free cloth.
Apply a light coat of Killark “LUBG” lubricant to flange surfaces and close the cover. Install and tighten
all cover bolts to 30 ft-lbs. Make certain no cover bolts are omitted. Use only those bolts supplied with the
enclosure.
It may become necessary to re-terminate some or all of the enclosures in a system. If so, strip the wires
back to clean copper and connect only one wire to each connector to allow for easier future
troubleshooting.
NOTE: Refer to the Killark Installation, Operation, and Maintenance Data Sheet enclosed with the unit for
additional information.
\\s_eng\gtcproddocs\standard ioms - current release\42004 instr. manuals\42004-704l2a.doc
11/07
Pub. 42004-704L2A
Model 7085-001-EX-F07044 SmartSeries Multi-Party Hazardous Area Amplifier EnclosurePage: 10 of 11
Troubleshooting
The following table lists some hints to aid technicians in troubleshooting.
Problem
Solution
Feedback occurs
only during
page.
1. If a speaker is close to the station, try using the muting feature in the amplifier
enclosure at the terminal blocks. Connect the violet wire at TB1-8 to TB1-7.
Refer to the wiring diagram.
2. Ensure that speakers attached to other stations located nearby are not pointed in
your direction. If changing the orientation of the other speakers has no effect,
mutual muting may be required. Mutual muting silences all the speakers within
proximity to the affected stations during a page from any one of the mutually
muted stations.
Connect the orange wire (spare) to the TB1-7 of all the stations to be mutually
muted. Note: If too many stations are selected, paging coverage can be
adversely affected.
3. Check line terminations at the line balance assembly. Line balance assembly
connections are critical.
Crosstalk
occurs.
One or more system cable pairs may be improperly terminated. Visually inspect the
system cable connections for accidental crossing of the cable pairs or grounds.
\\s_eng\gtcproddocs\standard ioms - current release\42004 instr. manuals\42004-704l2a.doc
11/07
Pub. 42004-704L2A
Model 7085-001-EX-F07044 SmartSeries Multi-Party Hazardous Area Amplifier EnclosurePage: 11 of 11
Specifications
Construction/finish................................................................................. Cast aluminum/gray polyurethane
Mounting................................................................ Wall or column, four 1/2-inch mounting feet with slots
Connections ...............................................................................Internal screw-type barrier terminal blocks
Dimensions........................................ 15.25 H × 15.25 W × 12.375 D inches (387.4 × 387.4 × 314.3 mm)
Temperature range (operating and storage)........................................... (-4º F to +140º F) -20º C to +60º C
Shipping weight ............................................................................................................. 75 lbs. (34.02 kg)
Enclosure............................................................................................................................. IP66/Type 4X
Approvals
ATEX Certified ...............................................................................................ll 2 G Ex d [ib] IIB + H2 T6
Applicable standards......................................................... EN 50014:1997, A1+A2:1999, EN50020:2002,
EN 60079-0:2006 and EN 60079-1:2004
CE Mark ...........................................................Complies with Low Voltage Directive 73/23/EEC, and the
EMC Directive 89/336/EEC amended by the Directive 93/68/EEC.
Certificate No. DEMKO 05 ATEX 0526157X
Notified Body Id No. 0539
UL International DEMKO A/S
Lyskear 8
DK-2730 Herlev
Denmark
Replacement Parts
Model No.
Description
10108-012
ATEX Certified Handset Assembly with 6-foot PVC Cord (with cable gland)
13205-006
Receiver, Handset (150-ohm)
61504-111
Reed Switch Assembly with plug and spacer
61504-112
Push-Button Cable Assembly
12511-001
Dynamic Transmitter and cap
13204-002
Receiver Cap
61512-030
Party Line Selector Switch with plug cable assembly
NOTE: The replacement equipment must be installed by trained, qualified and competent personnel.
Installation must comply with state and national regulations, as well as safety practices for this type of
equipment.
\\s_eng\gtcproddocs\standard ioms - current release\42004 instr. manuals\42004-704l2a.doc
11/07
Warranty
Equipment.
GAI-Tronics warrants for a period of one (1) year from the date of shipment, that any
GAI-Tronics equipment supplied hereunder shall be free of defects in material and workmanship, shall
comply with the then-current product specifications and product literature, and if applicable, shall be fit
for the purpose specified in the agreed-upon quotation or proposal document. If (a) Seller’s goods prove
to be defective in workmanship and/or material under normal and proper usage, or unfit for the purpose
specified and agreed upon, and (b) Buyer’s claim is made within the warranty period set forth above,
Buyer may return such goods to GAI-Tronics’ nearest depot repair facility, freight prepaid, at which time
they will be repaired or replaced, at Seller’s option, without charge to Buyer. Repair or replacement shall
be Buyer’s sole and exclusive remedy. The warranty period on any repaired or replacement equipment
shall be the greater of the ninety (90) day repair warranty or one (1) year from the date the original
equipment was shipped. In no event shall GAI-Tronics warranty obligations with respect to equipment
exceed 100% of the total cost of the equipment supplied hereunder. Buyer may also be entitled to the
manufacturer’s warranty on any third-party goods supplied by GAI-Tronics hereunder. The applicability
of any such third-party warranty will be determined by GAI-Tronics.
Services.
Any services GAI-Tronics provides hereunder, whether directly or through subcontractors,
shall be performed in accordance with the standard of care with which such services are normally
provided in the industry. If the services fail to meet the applicable industry standard, GAI-Tronics will
re-perform such services at no cost to buyer to correct said deficiency to Company's satisfaction provided
any and all issues are identified prior to the demobilization of the Contractor’s personnel from the work
site. Re-performance of services shall be Buyer’s sole and exclusive remedy, and in no event shall GAITronics warranty obligations with respect to services exceed 100% of the total cost of the services
provided hereunder.
Warranty Periods.
Every claim by Buyer alleging a defect in the goods and/or services provided
hereunder shall be deemed waived unless such claim is made in writing within the applicable warranty
periods as set forth above. Provided, however, that if the defect complained of is latent and not
discoverable within the above warranty periods, every claim arising on account of such latent defect shall
be deemed waived unless it is made in writing within a reasonable time after such latent defect is or
should have been discovered by Buyer.
Limitations / Exclusions.
The warranties herein shall not apply to, and GAI-Tronics shall not be
responsible for, any damage to the goods or failure of the services supplied hereunder, to the extent
caused by Buyer’s neglect, failure to follow operational and maintenance procedures provided with the
equipment, or the use of technicians not specifically authorized by GAI-Tronics to maintain or service the
equipment. THE WARRANTIES AND REMEDIES CONTAINED HEREIN ARE IN LIEU OF AND
EXCLUDE ALL OTHER WARRANTIES AND REMEDIES, WHETHER EXPRESS OR IMPLIED BY
OPERATION OF LAW OR OTHERWISE, INCLUDING ANY WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
Return Policy
If the equipment requires service, contact your Regional Service Center for a return authorization number
(RA#). Equipment should be shipped prepaid to GAI-Tronics with a return authorization number and a
purchase order number. If the equipment is under warranty, repairs or a replacement will be made in
accordance with the warranty policy set forth above. Please include a written explanation of all defects to
assist our technicians in their troubleshooting efforts.
Call 800-492-1212 (inside the USA) or 610-777-1374 (outside the USA) for help identifying the
Regional Service Center closest to you.
(Rev. 10/06)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
