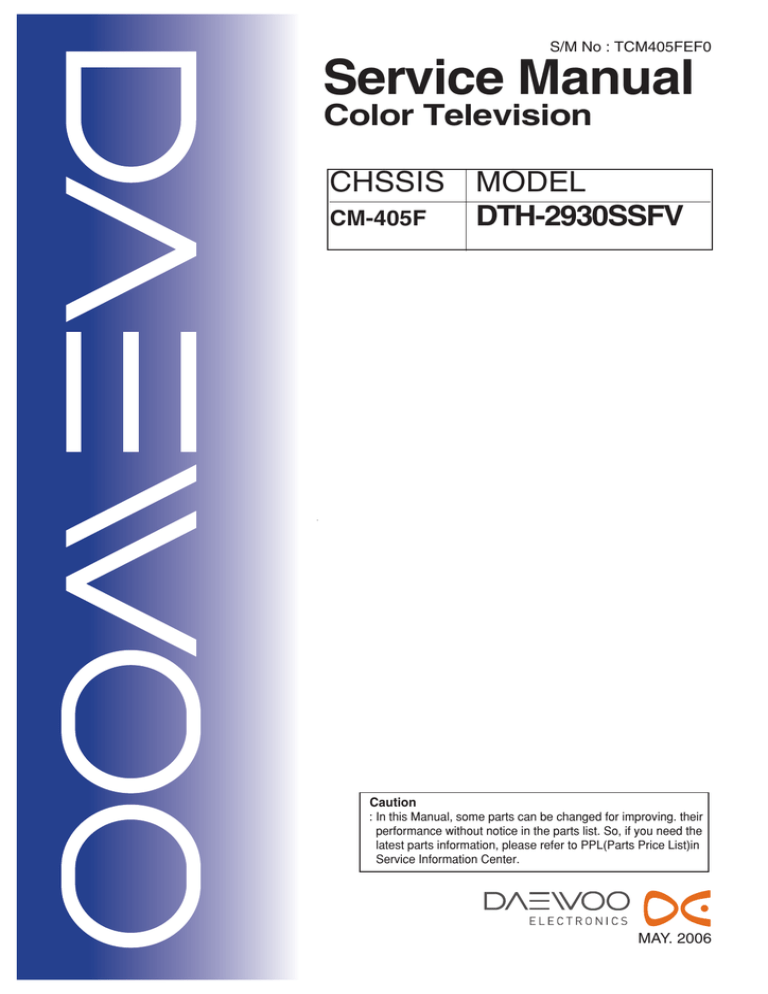

Daewoo DTH-2930SSFV Service manual

S/M No : TCM405FEF0
Service Manual
Color Television
CHSSIS
CM-405F
MODEL
DTH-2930SSFV
Caution
: In this Manual, some parts can be changed for improving. their
performance without notice in the parts list. So, if you need the
latest parts information, please refer to PPL(Parts Price List)in
Service Information Center.
MAY. 2006
TABLE OF CONTENTS
SAFETY PRECAUTIONS
SPECIFICATIONS
CIRCUIT BLOCK DIAGRAM
ALIGNMENT INSTRUCTIONS
YOUR REMOTE CONTROL
SERVICE MODE ADJUSTMENT
ASSEMBLY ADJUSTMENT
2
5
6
7
7
8
10
APPENDIX(Appendix is provide only by internet[http://svc.dwe.co.kr])
IC DESCRIPTION
UOC III SERIES
TDA8358J VERTICAL AMPLIFIER
TDA6107AJF
24WC16-16 KB EEPROM
LA42072N-E AUDIO AMPLIFIER
STR-W6735/56
WAVEFORMS
TROUBLE SHOOTING GUIDE
NO POWER
NO PICTURE
NO SOUND
CH DON’T MEMORY or SKIP
NO COLOR
NO VERTICAL DEFLECTION
REMOTE CONTROL DOESNOT OPERATE
ELECTRICAL PARTS LIST
PRINTED CIRCUIT BOARD
SCHEMATIC DIAGRAM
EXPLODE VIEW
-1-
14
14
22
24
25
26
27
28
30
30
31
32
33
34
34
35
36
48
50
52
SAFETY PRECAUTIONS
CAUTION : DO NOT ATTEMPT TO MODIFY THIS PRODUCT IN ANY WAY.
NEVER PERFORM CUSTOMIZED INSTALLATIONS WITHOUT MANUFACTURER'S APPROVAL. UNAUTHORIZED MODIFICATIONS WILL NOT ONLY VOID
THE WARRANTY, BUT MAY LEAD TO YOUR BEING LIABLE FOR ANT RESULTING PROPERTY DAMAGE OR USER INJURY.
SERVICE WORK SHOULD BE PERFORMED ONLY AFTER YOU ARE THOROUGHLY FAMILIAR WITH ALL OF THE FOLLOWING SAFETY CHECKS AND
SERVICING GUIDELINES. TO DO OTHERWISE, INCREASES THE RISK OF
POTENTIAL HAZARDS AND INJURY TO THE USER.
WHILE SERVICING, USE AN ISOLATION TRANSFORMER FOR PROTECTION
FROM A.C. LINE SHOCK.
SAFETY CHECKS
AFTER THE ORIGINAL SERVICE PROBLEM HAS BEEN CORRECTED, A CHECK
SHOULD BE MADE OF THE FOLLOWING:
SUBJECT:FIRE & SHOCK HAZARD
1. BE SURE THAT ALL COMPONENTS ARE POSITIONED IN SUCH A WAY AS
TO AVOID POSSIBILITY OF ADJACENT COMPONENT SHORTS. THIS IS
ESPECIALLY IMPORTANT ON THOSE MODULES WHICH ARE TRANSPORTED TO AND FROM THE REPAIR SHOP.
2. NEVER RELEASE A REPAIR UNLESS ALL PROTECTIVE DEVICES SUCH AS
INSULATORS, BARRIERS, COVERS, SHIELDS, STRAIN RELIEFS, POWER
SUPPLY CORDS, AND OTHER HARDWARE HAVE BEEN REINSTALLED PER
ORIGINAL DESIGN. BE SURE, THAT THE SAFETY PURPOSE OF THE
POLARIZED LINE PLUG HAS NOT BEEN DEFEATED.
3. SOLDERING MUST BE INSPECTED TO DISCOVER POSSIBLE COLD SOLDER JOINTS, SOLDER SPLASHES OF SHARP SOLDER POINTS. BE CERTAIN TO REMOVE ALL LOOSE FOREIGN PARTICLES.
4. CHECK FOR PHYSICAL EVIDENCE OF DAMAGE OR DETERIORATION TO
PARTS AND COMPONENTS, FOR FRAYED LEADS, DAMAGED INSULATION
(INCLUDING A.C. CORD), AND REPLACE IF NECESSARY. FOLLOW ORIGINAL LAYOUT, LEAD LENGTH AND DRESS.
5. NO LEAD OR COMPONENT SHOULD TOUCH A RECEIVING TUBE OR A
RESISTOR RATED AT 1 WATT OR MORE. LEAD TENSION AROUND PROTRUDING METAL SURFACES MUST BE AVOIDED.
6. ALL CRITICAL COMPONENTS SUCH AS FUSES, FLAMEPROOF RESISTOR,
CAPACITORS, ETC. MUST BE REPLACED WITH EXACT FACTORY TYPES.
DO NOT USE REPLACEMENT COMPONENTS OTHER THAN THOSE SPECIFIED OR MAKE UNRECOMMENDED CIRCUIT MODIFICATIONS.
7. AFTER RE-ASSEMBLY OF THE STE ALWAYS PERFORM AN A.C. LEAKAGE
TEST ON ALL EXPOSED METALLIC PARTS OF THE CABINET. (THE CHANNEL SELECTOR KNOB, ANTENNA TERMINALS, HANDLE AND SCREWS) TO
BE SURE THE SET IS SAFE TO OPERATE WITHOUT DANGER OF ELECTRICAL SHOCK. DO NOT USE A LINE ISOLATION TRANSFORMER DURING THIS
TEST USE AN A.C. VOLTMETER, HAVING 5000 OHMS PER VOLT OR MORE
SENSITIVITY, IN THE FOLLOWING MANNER : CONNECT A 1500 OHM 10
WATT RESISTOR, PARALLELED BY A .15 MFD. 150V A.C. TYPE CAPACITOR BETWEEN A KNOWN GOOD EARTH GROUND (WATER POPE, CONDUIT, ETC.) AND THE EXPOSED METALLIC PARTS, ONE AT A TIME.
MEASURE THE A.C. VOLTAGE ACROSS THE COMBINATION OF 1500 OHM
RESISTOR AND .15 MFD CAPACITOR. REVERSE THE A.C. PLUG AND
REPEAT A.C. VOLTAGE MEASUREMENTS FOR EACH EXPOSED METALLIC
PART. VOLTAGE MEASURED MUST NOT EXCEED .75 VOLTS R.M.S THIS
CORRESPONDS TO 0.5 MILLIAMP A.C. NAY VALUE EXCEEDING THIS LIMIT
CONSTITUTES A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED
IMMEDIATELY.
A.C. VOLTMETER
0.15 uF
GOOD EARTH GROUND
SUCH AS THE WATER
PIPE, CONDUIT, ETC.
1500
OHM
10WATT
PLACE THIS PROBE
ON EACH EXPOSED
METAL PART
SUBJECT : GRAPHIC SYMBOLS
THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL,
WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO
ALERT THE SERVICE PERSONNEL TO THE PRES-ENCE
OF UNINSULATED “DANGEROUS VOLTAGE”
THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK.
THE EXCLAMATION POINT WITHIN AN EQUILATERAL
TRIANGLE IS INTENDED TO ALERT THE SERVICE
PERSONNEL TO THE PRESENCE OF IMPORTANT
SAFETY INFORMATION ON SERVICE LITERATURE.
SUBJECT : X-RADIATION
1. BE SURE PROCEDURES AND INSTRUCTIONS TO ALL SERVICE PERSONNEL COVER THE SUBJECT OF X-RADIATION. THE ONLY POTENTIAL
SOURCE OF X-RAYS IN CURRENT T.V. RECEIVERS IS THE PICTURE TUBE.
HOWEVER, THIS TUBE DOES NOT EMIT X-RAYS WHEN THE HIGH VOLTAGE IS AT THE FACTORY SPECIFIED LEVEL. THE PROPER VALUE IS GIVEN
IN THE APPLICABLE SCHEMATIC. OPERATION AT HIGHER VOLT-AGES MAY
CAUSE A FAILURE OF THE PICTURE TUBE OR HIGH VOLTAGE SUPPLY
AND UNDER CERTAIN CIRCUMSTANCES, AMY PRODUCE RADIA-TION IN
EXCESS OF DESIRABLE LEVELS.
2. ONLY FACTORY SPECIFIED C.R.T ANODE CONNECTORS MUST BE
USED.DEGAUSSING SHIELDS ALSO SERVE AS X-RAY SHIELD IN COLOR
SETS. ALWAYS RE-INSTALL THEM.
3. IT IS ESSENTIAL THAT SERVICE PERSONNEL HAVE AVAILABLE AN ACCURATE AND RELIABLE HIGH VOLTAGE METER. THE CALIBRATION OF THE
METER SHOULD BE CHECKED PERIODICALLY AGAINST A REFERENCE
STANDARD. SUCH AS THE ONE AVAILABLE AT YOUR DISTRIBUTOR.
4. WHEN THE HIGH VOLTAGE CIRCUITRY IS OPERATING PROPERLY THERE
IS NO POSSIBILITY OF AN X-RADIATION PROBLEM. EVERY TIME A COLOR
CHASSIS IS SERVICED, THE BRIGHTNESS SHOULD BE RUN UP AND DOWN
WHILE MONITORING THE HIGH VOLTAGE WITH A METER TO BE CERTAIN
THAT THE HIGH VOLTAGE DOES NOT EXCEED THE SPECIFIED VALUE AND
THAT IT IS REGULATING CORRECTLY. WE SUGGEST THAT YOU AND YOUR
SERVICE ORGANIZATION REVIEW TEST PROCEDURES SO THAT VOLTAGE
REGULATION IS ALWAYS CHECKED AS A STANDARD SERVICING
PROCEDURE, AND THAT THE HIGH VOLTAGE READING BE RECORDED ON
EACH CUSTOMER’S INVOICE.
5. WHEN TROUBLESHOOTING AND MAKING TEST MEASUREMENTS IN A
PRODUCT WITH A PROBLEM OF EXCESSIVE HIGH VOLTAGE, AVOID BEING
UNNECESSARILY CLOSE TO THE PICTURE TUBE AND THE HIGH VOLTAGE
SUPPLY. DO NOT OPERATE THE PRODUCT LONGER THAN IS NECESSARY
TO LOCATE THE CAUSE OF EXCESSIVE VOLTAGE.
6. REFER TO HV, B+ AND SHUTDOWN ADJUSTMENT PROCEDURES
DESCRIBED IN THE APPROPRIATE SCHEMATIC AND DIAGRAMS (WHERE
USED).
SUBJECT : IMPLOSION
1. ALL DIRECT VIEWED PICTURE TUBES ARE EQUIPPED WITH AN INTEGRA
IMPLOSION PROTECTION SYSTEM. BUT CARE SHOULD BE TAKEN TO
AVOID DAMAGE DURING INSTALLATION. AVOID SCRATCHING THE TUBE.
OF SCRATCHED REPLACE IT.
2. USE ONLY RECOMMENDED FACTORY REPLACEMENT TUBES.
SUBJECT : TIPS ON PROPER INSTALLATION
1. NEVER INSTALL ANY PRODUCT IN A CLOSED-IN RECESS, CUBBYHOLE OR
CLOSELY FITTING SHELF SPACE, OVER OR CLOSE TO HEAT DUCT, OR IN
THE PATH OF HEATED AIR FLOW.
2. AVOID CONDITIONS OF HIGH HUMIDITY SUCH AS: OUTDOOR PATIO
INSTALLATIONS WHERE DEW IS A FACTOR, NEAR STEAM RADIATORS
WHERE STEAM LEAKAGE IS A FACTOR, ETC.
3. AVOID PLACEMENT WHERE DRAPERIES MAY OBSTRUCT REAR VENTING.
THE CUSTOMER SHOULD ALSO AVOID THE USE OF DECORATIVE
SCARVES OR OTHER COVERINGS WHICH MIGHT OBSTRUCT VENTILATION.
4. WALL AND SHELF MOUNTED INSTALLATIONS USING A COMMERCIAL
MOUNTING KIT, MUST FOLLOW THE FACTORY APPROVED MOUNTING
INSTRUCTIONS. A PRODUCT MOUNTED TO A SHELF OR PLATFORM MUST
RETAIN ITS ORIGINAL FEET (OR THE EQUIVALENT THICKNESS IN SPACERS)TO PROVIDE ADEQUATE AIR FLOW ACROSS THE BOTTOM, BOLTS OR
SCREWS USED FOR FASTENERS MUST NOT TOUCH ANY PARTS OR
WIRING. PERFORM LEAKAGE TEST ON CUSTOMIZED INSTALLATIONS.
5. CAUTION CUSTOMERS AGAINST THE MOUNTING OF A PRODUCT ON
SLOPING SHELF OR A TILTED POSITION, UNLESS THE PRODUCT IS
PROPERLY SECURED.
6. A PRODUCT ON A ROLL-ABOUT CART SHOULD BE STABLE ON ITS MOUNTING TO THE CART. CAUTION THE CUSTOMER ON THE HAZARDS OF TRYING TO ROLL A CART WITH SMALL CASTERS ACROSS THRESHOLDS OR
DEEP PILE CARPETS.
7. CAUTION CUSTOMERS AGAINST THE USE OF A CART OR STAND WHICH
HAS NOT BEEN LISTED BY UNDERWRITERS LABORATORIES. INC. FOR
USE WITH THEIR SPECIFIC MODEL OF TELEVISION RECEIVER OR
GENERICALLY APPROVED FOR USE WITH T.V.S OF THE SAME OR LARGER
SCREEN SIZE.
8. CAUTION CUSTOMERS AGAINST THE USE OF EXTENSION CORDS,
EXPLAIN THAT A FOREST OF EXTENSIONS SPROUTING FROM A SINGLE
OUTLET CAN LEAD TO DISASTROUS CONSEQUENCES TO HOME AND
FAMILY.
-2-
SAFETY PRECAUTIONS
CAUTION : Do not attempt to modify this product in any way. Unauthorized modifications will not only void the warranty, but may lead to your
being liable for any resulting property damage or user injury.
Service work should be performed only after you are thoroughly familiar
with all of the following safety checks and servicing guide-lines. To do
otherwise, increases the risk of potential hazards and injury to the user.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to alert
the service personnel to the presence of uninsulated “dangerous voltage” that may be of sufficienty magnitude to constitute a risk of electric
shock.
SAFETY CHECKS
The exclamation point within an equilateral triangle is intended to alert the service personnel
to the presence of important safety information
in service literature.
After the original service problem has been corrected, a check should be
made of the following:
SUBJECT : FIRE & SHOCK HAZARD
1. Be sure that all components are positioned in such a way as to avoid
possibility of adjacent component shorts. This is especially important on
those chassis which are transported to and from the repair shop.
2. Never release a repair unless all protective devices such as insula-tors,
barriers, covers, shields, strain reliefs, and other hardware have been
reinstalled per original design.
3. Soldering must be inspected to discover possible cold solder joints,
frayed leads, damaged insulation (including A.C. cord), solder splashes
or sharp solder points. Be certain to remove all loose for-eign particals.
4. Check for physical evidence of damage or deterioration to parts and
components, and replace if necessary follow original layout, lead length
and dress.
5. No leads or components should touch a receiving tube or a resistor
rated at 1 watt or more. Lead tension around protruding metal sur-faces
must be avoided.
6. All critical components such as fuses, flameproof resistors, capaci-tors,
etc. must be replaced with exact factory types. Do not use replacement
components other than those specified or make unrecommended circuit
modifications.
7. After re-assembly of the set always perform an A.C. leakage test on all
exposed metallic parts of the cabinet, (the channel selector knob,
antenna terminals, handle and screws) to be sure the set is safe to
operate without danger of electrical shock. Do not use a line isolation
transformer during this test. Use an A.C. voltmeter, having 5000 ohms
per volt or more sensitivity, in the following manner : connect a 1500
ohm 10 watt resistor, paralleled by a 15 mfd. 150V A.C. type capacitor
between a known good earth ground (9water pipe, conduit, etc.) and
the exposed metallic parts, one at a time. Measure the A.C. voltage
across the combination of 1500 ohm resistor and 0.15 MFD capacitor.
Reverse the A.C. plug and repeat A.C. voltage measurements for each
exposed metallic part. Voltage measured must not exceed 0.75 volts
R.M.S. This corresponds to 0.5 milliamp A.C. Any value exceeding this
limit constitutes a potential shock hazard and must be corrected immediately.
A.C. VOLTMETER
Fuse symbol is printed on pcb adjacent to the
fuse, with “RISK OF FIRE REPLACE FUSE AS
MARKED”. The symbol is explained in the service manual with the following wording or equivalent.
CAUTION : FOR CONTINUED PROTECTION AGAINST FIRE
HAZARD, REPLACE ONLY WITH SAME TYPE (5A, 250V)” and
ATTENTION: AFIN D’ASSU UNE PROTECTION PERMANENTE
CONTRE LES RISQUES D’INCENDIE, REMPLACER UNIQUE-MENT
PAR UN FUSIBLE DE MEME TYPE ET DE “5A, 250V”.
SUBJECT : X-RADIATION
1. Be sure procedures and instructions to all service personnel cover
the subject of X-rays in current T.V. receivers is the picture tube.
However, this tube does not emit X-rays when the high voltage is at
the factory specified level. The proper value is given in the applicable schematic. Operation at higher voltages may cause a failure
of the picture tube or high voltage supply and, under certain circumstances, may produce radiation in excess of desirable levels.
2. Only factory specified C.R.T. anode connectors must be used.
Degaussing shields also serve as X-ray shield in color sets. Always
re-install them.
3. It is essential that the serviceman has available an accurate and
reliable high voltage meter. The calibration of the meter should be
checked perio - dically against a reference standard. Such as the
one available at your distributor.
4. When the high voltage circuitry is operating properly there is no
possibility of an X-radiation problem. Every time a color chassis is
serviced, the brightness should be run up and down while monitoring the high voltage with a meter to be certain that the high voltage
does not exceed the specified value and that it is regulating correctly. We suggest that you and your service organization review
test procedures so that voltage regulation is always checked as a
standard servicing procedure. And that the high voltage reading be
recorded on each customer’s invoice.
5. When troubleshooting and making test measurements in a receiver
with a problem of excessive high voltage, avoid being unnecessarily
close to the picture tub eand the high voltage compartment. Do not
operate the chassis longer than is necessary to locate the cause of
excessive voltage.
6. Refer to HV, B+and Shutdown adjustment procedures described in
the appropriate schematic and diagrams(where used).
0.15 uF
GOOD EARTH GROUND
SUCH AS THE WATER
PIPE, CONDUIT, ETC.
1500
OHM
10WATT
PLACE THIS PROBE
ON EACH EXPOSED
METAL PART
-3-
SAFETY PRECAUTIONS
SUBJECT : IMPLOSION
1. All direct viewed picture tubes are equipped with an integral implosion protection system, but care should be taken to avoid damage
during installation. Avoid scratching the tube. If scratched, replace it.
2. Use only recommended factory replacement tubes.
SUBJECT : TIPS ON PROPER INSTALLATION
1. Never install any receiver in closed-in recess, cubbyhole or closely
fitting shelf space over, or close to heat duct, or in the path of
heated air flow.
2. Avoid conditions of high humidity such as : Outdoor patio installations where dew is a factor. Near steam radiators where steam
leakage is a factor, etc.
3. Avoid placement where draperies may obstruct rear venting. The
customer should also avoid the use of decorative scarves or other
coverings which might obstruct ventilation.
4. Wall and shelf mounted installations using a commercial mounting
kit, must follow the factory approved mounting instructions. A
receiver mounted to a shelf or platform must retain its original
feet(or the equivalent thickness in spacers) to provide adequate are
flow across the bottom, bolts or screws used for fasteners must not
touch and parts or wiring. Perform leakage test on cus-tomized
installations.
5. Caution customers against the mounting of a receiver on sloping
shelf or a tilted position, unless the receiver is properly secured.
6. A receiver on a roll-about cart should be stable on its mounting to
the cart. Caution the customer on the hazards of trying to roll a cart
with small casters across thresholds or deep pile carpets.
7. Caution customers against the use of a cart or stand which has not
been listed by underwriters laboratories, inc. For use with their
specific model of television receiver or generically approved for use
with T.V.’s of the same or larger screen size.
-4-
SPECIFICTION
Model
Item
CHASSIS
TV Standard
Power Input
Power Consumption
Tuning System
Tuning Ranges
Sound Output
Speaker
Antenna Input Impedance
Auxiliary Input Terminal
Auxiliary Output Terminal
Intermediate Frequencies
Remote Control
Special Function
DTH-2930SSFV
CM-405F
NTSC-M, PAL-M, PAL-N
AC 110-220V, 50/60Hz
110W
Frequency Synthesizer(FS) Tuning System
TV
VHF(L) : CH2 - CH6
UHF(H) : CH7 - CH13
UHF : CH14 - CH69
CATV VHF(L) : 5A, A,B,A-5-A-1,CH2-CH6
VHF(H) : C-W+11,CH7 - CH13
UHF : W+12-W+84”
6W + 6W
8 ohm 12W x 2EA
75 ohm Unbalanced
Side : Video, Audio(L,R) - AV2
Rear : Video, Audio(L,R) - AV1
S-Video
Y, Cb, Cr, Audio(L,R) - CVI
Rear : Video, Audio(L,R) - MONITOR OUT
Picture IF Carrier Frequency : 45.75MHz
Sound IF Carrier Frequency : 41.25MHz
Color Sub-Carrier Frequency :
NTSC-M : 3.579545 Mhz
PAL-N : 3.582056 Mhz
PAL-M : 3.575611 Mhz
R-48C04/R-48C12(AAA)
1) Closed Caption
2) Channel Label
-5-
AC 120/220V
50/60Hz
250V
D801
-6-
+65V
+139.5V
+195V
+139.5V
CIRCUIT BLOCK DIAGRAM
ALIGNMENT INSTRUCTION
R-48C12
Your Remote Control(R-48C04)
1.POWER
Use this button to turn your TV on or off.
1.POWER
Use this button to turn your TV on or off.
2.MUTE
Use to turn the TV’s sound on and off.
2.MUTE
Use to turn the TV’s sound on and off.
3.WCHV
3.WCHV
Use these buttons to change channels on your TV, or select items
in the menu system.
Use these buttons to change channels on your TV, or select items
in the menu system.
4.CVOLB
4.CVOLB
Use these buttons to change your TV's volume, to activate selections in the menu system, or to change audio and video settings.
Use these buttons to change your TV's volume, to activate selections in the menu system, or to change audio and video settings.
5.MENU
5.MENU
Use this button to turn the TV’s menu system on and off.
Use this button to turn the TV’s menu system on and off.
6.DISPLAY
6.DISPLAY
Use this button to display the present status.
Use this button to display the present status.
7.INPUT
7.SOURCE
Use this button to select the TV’s signal source.
Use this button to select the TV’s signal source.
8.VIDEO
Use this button to display video adjustment
items.
8.VIDEO
Use this button to display video adjustment
items.
9.0-9
9.0-9
Use these buttons to change channels.
Use these buttons to change channels.
10. SLEEP
Use this button to program the TV to turn off after a certain time.
10. SLEEP
Use this button to program the TV to turn off after a certain time.
11. PREVIOUS
11. RETURN+
Use this button to return to the previous channel you were
watching.
Use this button to return to the previous channel you were
watching.
-7-
ALIGNMENT INSTRUCTION
1. SERVICE MODE ADJUSTMENTS
Follow the steps below whenever service adjustment is required.
See Table- A and Table- B to determine if service adjustments are required.
1) How to enter the service mode using the user remote control.
- Turn the set on.
- Direct the remote control to the reception window of TV.
- Push buttons of remote control in sequence as follows.
1 → MUTE → DISPLAY → MUTE
- Then, the screen will appear as follows.
SERVICE 72
SERVICE 02
SERVICE 03
SERVICE 04
SERVICE 05
SERVICE 06
SERVICE 07
SERVICE 08
SERVICE 09
SERVICE 10
SERVICE 11
SERVICE 12
V W SELECT C B ADJUST L EXIT
- Using the channel up or channel down button, select the item you wish to adjust.
(The color of selected item turns into the blue.)
- Press the volume up or down button to enter in the service mode you wish to adjust.
2) How to memorize the adjusted values in the service mode.
- Don’t have to press any button the state which the screen is displaying each of
service menus after all adjustments are completed each of all service menu.
Table-A : Adjust the values of service mode when a part is replaced.
PART
REPLACED
I701
(U-COM)
ADJUSTMENT
NECESSARY UNNECESSARY
O
I702
(EEPROM)
O
CRT
O
NOTES
Data is stored in I702.
Initial setting values are written from I701.
ADJUSTING ITEMS
S6 : Geometry adjustmrnt
S8 : White balance
S9 : Subbrightness
Adjust items related to picture tube only.
(White Balance adjustment)
CRT OPTION (Screen Option adjustment)
-8-
ALIGNMENT INSTRUCTION
-9-
ALIGNMENT INSTRUCTION
2. ASSEMBLY ADJUSTMENTS
1) SCREEN ADJUSTMENT (S2)
Enter the service mode and select service adjustment S2.
You can see the one horizontal line on the screen.
Adjust the Screen Control Volume (located on FBT) so that the horizontal line
onscreen may be disappeared.
Press S2 button to exit in the screen adjustment mode.
2) FOCUS ADJUSTMENT
Turn in a local station and adjust the Focus Control knob (located on FBT) for best
picture details at high light condition.
3) AGC ADJUSTMENT
Adjust the antenna signal level at 60 dBuV
Tune a colour bar pattern.
Find the "AGC" item in service mode.
(it’s two way to entering the "AGC" item in service mode)
- Enter the service mode and select service adjustment S5 and select AUTO-AGC.
- Enter the service mode and select service adjustment S3.
Wait until AGC level stabilise to the optimum value.
Alternatively,
Enter the service mode and select service adjustment S5 and select AGC LEVEL.
Use "Vol Up/Dwn" keys to adjust manually to the desired Tuner Take Over Point.
4) GEOMETRIC ADJUSTMENTS (S6)
Select service adjustment S6
You can see the OSD as shown in below.
V.SLOPE
V.CENTER
V.SIZE
25
38
44
EW TRAPEZ
CORNER TOP
CORNER BOTTOM
28
43
38
H.CENTER
47
50Hz. HC
5
H.SIZE
51
50Hz.HS
1
V.LINEARITY
34
50Hz.VC
0
S_CORRECT
30
50Hz.VS
0
H.PARALLEL
31
HBL
1
H.BOW
PARABOLA
32
36
WBF
WBR
0
10
SELECT
ADJUST
EXIT
-10-
ALIGNMENT INSTRUCTION
4-2) Vertical Position Adjustment.
- Select V.SLOPE item, adjust V.SLOPE data value till the horizontal line in the centre of the
video signal is just at the position where the blanking stars.
- Select V.CENTER item, adjust V.CENTER data value to center the raster properly on the screen.
4-3) Vertical Size Adjustment
- Select V.SIZE item, adjust V.SIZE data value to proper vertical size as follows.
4-4) Horizontal Position Adjustment
- Select H.CENTER item, adjust H.CENTER data value to obtain proper horizontal centering of
the internal cross pattern at the left and right of the screen.
4-5) Horizontal Size adjustment
- Select H.SIZE item, adjust H.SIZE value to proper horizontal size.
-11-
ALIGNMENT INSTRUCTION
4-4). EAST / WEST Adjustment
Adjust the H.PARALLEL, H.SIZE, H-BOW, PARABOLA, EW TRAPEZ, CORNER TOP,
CORNER BOTTOM to compensate for geometrical distortion.
H.PARALLEL
H.SIZE
PARABOLA
CORNER TOP, CORNER BOTTOM
EW TRAPEZ
-12-
ALIGNMENT INSTRUCTION
-13-
IC DESCRIPTION
1. UOC III SERIES
1-1. UOC III BLOCK DIAGRAM
-14-
-1527
28
29
30
VCC8V 43
AGC2SIF/SWO/AVL/ 44
SSIF/REFIN/REFOUT
VP2 45
AUDOUTSL 37
AUDOUTSR 38
GND2 39
PLLIF 40
SIFAGC/DVBAGC 41
DVBO//IFVO/FMRO 42
AGCOUT 35
AUDIOIN5L 36
31
GNDIF 32
DVBIN1/SIFIN1 33
DVBIN2/SIFIN2 34
DECBG
VIFIN1
VIFIN2
VSC
IREF
P3.2/ADC2 14
P3.3/ADC3 15
VDDA1(3.3V) 16
GNDA1 17
XTALIN 18
XTALOUT 19
VSSA1 20
DECDIG 21
VP1 22
PH2LF 23
PH1LF 24
GND1 25
SECPLL 26
VSSC 1
P0.5/INT0//P1.2 2
VDDC(1.8)/RESET 3
P1.0/INT1 4
P1.1/T0 5
P1.3/T1 6
P1.6/SCL1 7
P1.7/SDA 8
VDDP(3.3) 9
P2.0/TPMW//P0.4 10
P2.1/PWM0//P0.1 11
P3.0/ADC0 12
P3.1/ADC1 13
RO
BLKIN
GNDA2
VDDA2(3.3V.)
BO
GO
53 AUDIOIN3L//P1.4/P2.4
52 CVBS2/Y2
51 AUDIOIN2R//P0.0
50 AUDIOIN2L//P0.2
49 CVBS4
48 AUDIOIN4R//P2.3
47 AUDIOIN4L//P2.2
46 SVO/IFOUT/CVBSI
54 AUDIOIN3R//P1.5/P2.5
58 AUDOUTLSR
57 AUDOUTLSL
56 C2/3
55 CVBS3/Y3
61 CVBSO/PIP
60 AUDOUTHPR
59 AUDOUTHPL
74 YOUT
73 YSYNC
72 CVBSX
71 VDDcomb
70 VSScomb
69 VGUARD/SWIO
68 VDRB
67 VDRA
66 AVL/EWD
65 EHTO
64 HOUT
63 FBISO/CSY
62 SVM
75 INSSW3
81 BCLIN
80 VP3
79 GND3
78 B/PB-3
77 G/Y-3
76 R/PR-3
87
86
85
84
83
82
90 VDDA(1.8V)
89 VREFAD
88 VDDA3(3.3V)
IC DESCRIPTION
HERCULES FULL-STEREO (SSDIP90)
(standard version)
IC DESCRIPTION
STANDARD
VERSION
FULL-STEREO/
MONO+ AV STEREO SSDIP90
SYMBOL
DESCRIPTION
VSSP2
1
ground
VSSC4
1
ground
VDDC4
3
digital supply to SDACs (1.8V)
VDDA3(3.3V)
16
supply (3.3 V)
VREF_POS_LSL
16
positive reference voltage SDAC (3.3 V)
VREF_NEG_LSL+HPL
17
negative reference voltage SDAC (0 V)
VREF_POS_LSR+HPR
16
positive reference voltage SDAC (3.3 V)
VREF_NEG_HPL+HPR
17
negative reference voltage SDAC (0 V)
VREF_POS_HPR
16
positive reference voltage SDAC (3.3 V)
XTALIN
18
crystal oscillator input
XTALOUT
19
crystal oscillator output
VSSA1
20
ground
VGUARD/SWIO
69
V-guard input / I/O switch (e.g. 4 mA current
sinking capability for direct drive of LEDs)
DECDIG
21
decoupling digital supply
VP1
22
1st supply voltage TV-processor (+5 V)
PH2LF
23
phase-2 lter
PH1LF
24
phase-1 lter
GND1
25
ground 1 for TV-processor
SECPLL
26
SECAM PLL decoupling
DECBG
27
bandgap decoupling
EWD/AVL (1)
66
East-West drive output or AVL capacitor
VDRB
68
vertical drive B output
VDRA
67
vertical drive A output
VIFIN1
28
IF input 1
-16-
IC DESCRIPTION
STANDARD
VERSION
FULL-STEREO/
MONO+ AV STEREO SSDIP90
SYMBOL
DESCRIPTION
VIFIN2
29
IF input 2
VSC
30
vertical sawtooth capacitor
IREF
31
reference current input
GNDIF
32
ground connection for IF ampli er
33
SIF input 1 / DVB input 1
SIFIN1/DVBIN1 (2)
SIFIN2/DVBIN2
(2)
34
SIF input 2 / DVB input 2
AGCOUT
35
tuner AGC output
EHTO
65
EHT/overvoltage protection input
AVL/SWO/SSIF/
REFO/REFIN (2)
44
Automatic Volume Levelling / switch output /
sound IF input / subcarrier reference output /
external reference signal input for I signal mixer
for DVB operation
AUDIOIN5
-
AUDIOIN5L
36/-
audio 5 input
AUDIOIN5R
-
AUDOUTSL
37
audio output for SCART/CINCH (left signal)
AUDOUTSR
38
audio output for SCART/CINCH (right signal)
DECSDEM
-/72
decoupling sound demodulator
QSSO/AMOUT/AUDEEM (2)
-/36
QSS intercarrier output / AM output /
deemphasis (front-end audio out)
audio-5 input (left signal)
audio-5 input (right signal)
GND2
39
ground 2 for TV processor
PLLIF
40
IF-PLL loop lter
41
AGC sound IF / internal-external AGC for DVB
applications
42
Digital Video Broadcast output / IF video output /
FM radio output
-
Digital Video Broadcast output / FM radio output
SIFAGC/DVBAGC
(2)
DVBO/IFVO/FMRO (2)
DVBO/FMRO (2)
VCC8V
43
8 Volt supply for audio switches
-17-
IC DESCRIPTION
STANDARD
VERSION
DESCRIPTION
44/-
VP2
IFVO/SVO/CVBSI
FULL-STEREO/
AGC2SIF
MONO+ AV STEREO SSDIP90
SYMBOL
(2)
AGC capacitor second sound IF
45
2nd supply voltage TV processor (+5 V)
46
IF video output / selected CVBS output / CVBS
input
AUDIOIN4
-
audio 4 input
AUDIOIN4L
47
audio-4 input (left signal)
AUDIOIN4R
48
audio-4 input (right signal)
CVBS4/Y4
49
CVBS4/Y4 input
C4
-
chroma-4 input
AUDIOIN2
-
audio 2 input
AUDIOIN2L
50
audio 2 input (left signal)
AUDIOIN2R
51
audio 2 input (right signal)
CVBS2/Y2
52
CVBS2/Y2 input
AUDIOIN3
audio 3 input
AUDIOIN3L
53
audio 3 input (left signal)
AUDIOIN3R
54
audio 3 input (right signal)
CVBS3/Y3
55
CVBS3/Y3 input
C2/C3
56
chroma-2/3 input
AUDOUTLSL
57
audio output for audio power ampli er (left
signal)
AUDOUTLSR
58
audio output for audio power ampli er (r ight
signal)
AUDOUT/AMOUT/FMOUT
audio output / AM output / FM output, volume
controlled
-
AUDOUTHPL
59
audio output for headphone channel (left signal)
AUDOUTHPR
60
audio output for headphone channel (right
signal)
CVBSO/PIP
61
CVBS / PIP output
-18-
IC DESCRIPTION
STANDARD
VERSION
FULL-STEREO/
MONO+ AV STEREO SSDIP90
SYMBOL
DESCRIPTION
SVM
62
scan velocity modulation output
FBISO/CSY
63
ybac k input/sandcastle output or composite H/V
timing output
HOUT
64
horizontal output
VSScomb
70
ground connection for comb lter
VDDcomb
71
supply voltage for comb lter (5 V)
VIN (R/PRIN2/CX)
-
V-input for YUV interface (2nd R input / PR input
or CX input)
UIN (B/PBIN2)
-
U-input for YUV interface (2nd B input / PB input)
YIN (G/YIN2/CVBS-YX)
72/-
Y-input for YUV interface (2nd G input / Y input
or CVBS/YX input))
YSYNC
73
Y-input for sync separator
YOUT
74
Y-output (for YUV interface)
UOUT (INSSW2)
-
U-output for YUV interface (2nd RGB / YPBPR
insertion input)
VOUT (SWO1)
-
V-output for YUV interface (general purpose
switch output)
INSSW3
75
3rd RGB / YPBPR insertion input
R/PRIN3
76
3rd R input / PR input
G/YIN3
77
3rd G input / Y input
B/PBIN3
78
3rd B input / PB input
GND3
79
ground 3 for TV-processor
VP3
80
3rd supply for TV processor
BCLIN
81
beam current limiter input
BLKIN
82
black current input
RO
83
Red output
GO
84
Green output
BO
85
Blue output
-19-
IC DESCRIPTION
STANDARD
VERSION
FULL-STEREO/
MONO+ AV STEREO SSDIP90
SYMBOL
DESCRIPTION
VDDA1
86
analog supply for TCG m-Controller and digital
supply for TV-processor (+3.3 V)
VREFAD_NEG
87
negative reference voltage (0 V)
VREFAD_POS
88
positive reference voltage (3.3 V)
VREFAD
89
reference voltage for audio ADCs (3.3/2 V)
GNDA
87
ground
VDDA(1.8V)
90
analogue supply for audio ADCs (1.8 V)
VDDA2(3.3)
88
supply voltage SDAC (3.3 V)
VSSadc
1
ground for on-chip temperature sensor
VDDadc(1.8)
90
supply voltage video ADC
INT0/P0.5
2
external interrupt 0 or port 0.5 (4 mA current
sinking capability for direct drive of LEDs)
P1.0/INT1
4
port 1.0 or external interrupt 1
P1.1/T0
5
port 1.1 or Counter/Timer 0 input
VDDC2
3
digital supply to core (1.8 V)
VSSC2
1
ground
P0.4/I2SWS
-
port 0.4 or I2S word select
P0.4
-
port 0.4
P0.3/I2SCLK
-
port 0.3 or I2S clock
P0.3
-
port 0.3
P0.2/I2SDO2
port 0.2 or I2S digital output 2
50
P0.2
-
port 0.2
P0.1/I2SDO1
-
port 0.1 or I2S digital output 1
P0.1
-
port 0.1
P0.0/I2SDI1/O
port 0.0 or I2S digital input 1 or I2S digital output
51
P0.0
-
port 0.0
P1.3/T1
6
port 1.3 or Counter/Timer 1 input
-20-
IC DESCRIPTION
STANDARD
VERSION
FULL-STEREO/
MONO+ AV STEREO SSDIP90
SYMBOL
DESCRIPTION
P1.6/SCL
7
port 1.6 or I2C-bus clock line
P1.7/SDA
8
port 1.7 or I2C-bus data line
VDDP(3.3V)
9
supply to periphery and on-chip voltage
regulator (3.3 V)
P2.0/TPWM
10
port 2.0 or Tuning PWM output
P2.1/PWM0
11
port 2.1 or PWM0 output
P2.2/PWM1
47
port 2.2 or PWM1 output
P2.3/PWM2
48
port 2.3 or PWM2 output
P3.0/ADC0
12
port 3.0 or ADC0 input
P3.1/ADC1
13
port 3.1 or ADC1 input
VDDC1
3
digital supply to core (+1.8 V)
DECV1V8
3
decoupling 1.8 V supply
P3.2/ADC2
14
port 3.2 or ADC2 input
P3.3/ADC3
15
port 3.3 or ADC3 input
VSSC/P
1
digital ground for m-Controller core and periphery
P2.4/PWM3
53
port 2.4 or PWM3 output
P2.5/PWM4
54
port 2.5 or PWM4 output
VDDC3
3
digital supply to core (1.8V)
VSSC3
1
ground
P1.2/INT2
2
port 1.2 or external interrupt 2
P1.4/RX
53
port 1.4 or UART bus
P1.5/TX
54
port 1.5 or UART bus
-21-
IC DESCRIPTION
2.
-22-
IC DESCRIPTION
-23-
IC DESCRIPTION
3.
-24-
IC DESCRIPTION
4.
-25-
IC DESCRIPTION
-26-
IC DESCRIPTION
6. STR-W6756
FUNCTIONS OF EACH TERMINAL
TERMINAL
No.
1
3
SYMBOLS DESCRIPTIONS
D
S/GND
4
Vcc
5
SS/OLP
6
FB
7
OCP/BD
DRAIN TERMINAL
SOURCE/GND
FUNCTIONS
MOSFET DRAIN
MOSFET SOURCE / GND
INPUT OF POWER SUPPLY
SET UP TERMINAL
FOR CONTROL CIRCUIT
DELAY AT OVERLOAD / OVERLOAD PROTECTION
SOFT START SET UP
AND SOFT START
TERMINAL
OPERATION TIME SET UP
CONSTANT VOLTAGE
CONTROL SIGNAL INPUT,
FEEDBACK TERMINAL
BURST(INTERMITTENT)
MODE OSCILLATION
OVERCURRENT
OVERCURRENT DETECTION
PROTECTION INPUT /
SIGNAL INPUT / BOTTOM
BOTTOM DETECTION
DECTION SIGNAL INPUT
TERMINAL
BLOCK DIAGRAM
-27-
WAVEFORMS
Appendix
WAVEFORMS
1).I801 PIN1
2).T402(FBT) HOR.OUT
3).T402(FBT) 190V(D406)
4).I701 PIN73 HOUT
5).I701 PIN76 V+.OUT
6).I701 PIN76 V-.OUT
-28-
WAVEFORMS
Appendix
7).I701 PIN75 EW OUT
8).I701 PIN46 MONITOR OUT
9).I701 (X-TAL)
10).I301 PIN4 V.OUT
11).I901 PIN R.IN
12).I901 PIN R.OUT
-29-
TROUBLESHOOTING GUIDE
Appendix
1. NO POWER
-30-
TROUBLESHOOTING GUIDE
Appendix
2. NO PICTURE
NG : Go To The Figure (A)
OK : Go To The Figure (B)
Check The Waveform of TU101 IF PIN
(A)
TU101
TUNER
33V
5V
CHECK
THE
VOLTAGE
IF
CHECK
CLOCK,DATA
Z101
SAW FILTER
FILTER
CHECK THE
VOLTAGE
SCL/SD
5V
#22,43,45,63,80
#7,8
I701
CHECK THE
CRYSTAL
3.3V
#9,16,86,88
#18,19
X701
24.576MHz
(B)
CHECK THE
HOUT
#73
CHECK THE
RGB OUT
#83,84,85
I701
5V
#22,43,45,63,80
3.3V
#9,16,86,88
CHECK THE
HEATER
VOLTAGE
D405
D406
CHECK THE
VOLTAGE
CHECK THE
190V LINE
-31-
T402
FBT
TROUBLESHOOTING GUIDE
Appendix
3. NO SOUND
NG : Go To The Figure (C)
OK : Go To The Figure (D)
Check The Output Signal of I701 #57,58
(C)
TU101
TUNER
33V
5V
CHECK
THE
VOLTAGE
IF
CHECK
CLOCK,DATA
Z101
SAW FILTER
FILTER
SCL/SD
SIF
#33
#7,8
I701
#22,43,45,63,80
#9,16,86,88
#18,1
CHECK THE
CRYSTAL
X701
24.576MHz
5V
3.3V
CHECK THE
VOLTAGE
(D)
5V
#5
13V
#7
I601
LA42072N
#8,9,11,12
CHECK THE
VOLTAGE
AUDIO INPUT
CHECK THE
INPUT SIGNAL
#2,4
#6
MUTE
-32-
AUDIO OUTPUT
CHECK THE
OUTPUT
SIGNAL
CHECK THE
MUTE
SIGNAL(H:ON)
TROUBLESHOOTING GUIDE
Appendix
4. CH DON’T MEMORY or SKIP
NG : Loss of Signal or Weak Signal
OK : Go To The Figure (E)
Check The Iutput Signal Conditions
(E)
TU101
TUNER
33V
CHECK
CLOCK,DATA
5V
CHECK
THE
VOLTAGE
IF
Z101
SAW FILTER
FILTER
I702
EEPROM
#8
SIF
#5,6
STB
VIF
SCL/SD
#28,29
#33
CHECK THE
VOLTAGE
#7,8
I701
#22,43,45,63,80
#18,19
CHECK THE
CRYSTAL
#9,16,86,88
X701
24.576MHz
-33-
5V
3.3V
CHECK THE
VOLTAGE
TROUBLESHOOTING GUIDE
Appendix
5. NO COLOR
CHECK THE
VOLTAGE
CHECK THE
RGB OUT
#83,84,85
5V
#22,43,45,63,80
I701
CHECK THE
CRYSTAL
3.3V
#9,16,86,88
#18,19
X701
24.576MHz
6. NO VERTICAL DEFLECTION
I701
CHECK THE
VERTICAL
SIGNAL
VERTICAL
#76,77
CHECK THE
CRYSTAL
#18,19
X701
24.576MHz
#1,2
I301
TDA8358J
CHECK THE Vout
SIGNAL
#4
VERTICAL DY
#3
13V
#9
45V
CHECK THE
VOLTAGE
-34-
TROUBLESHOOTING GUIDE
Appendix
-35-
ELECTRICAL PARTS LIST
Caution
: In this Manual, some parts can be changed for improving. their performance without notice in the parts list. So, if
you need the latest parts information, please refer to PPL(Parts Price List)in Service Information
Center(http://svc.dwe.co.kr)
**This BOM is based on DTH-2930SSFV
NO
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
LOC
PARTS CODE
PARTS NAME
PARTS DESCRIPTION
ZZ100
ZZ110
ZZ120
M211
M781
M782
ZZ131
ZZ132
ZZ140
M201C
M201E
V901
ZZ200
M191
M191A
M201
M481
M481A
M561
M781
ZZ201
PA601
SP601
SP602
JA02
M111
M684
P201A
10
20
A001
CC608
CCS07
RC636
RCS33
ZZ290
C118
C401
C406
C407
48B5748C04
PTACPWK009
PTBCSHK016
4852163100
4857817630
4857817612
48519A4210
58G0000143
PTCACAK142
4856215404
4856816300
4859643460
PTFMSJK016
4851948400
7178301011
4852083500
4854864100
4856716000
4855617400
4857818703
PTSPPWK129
4850704S32
4858310810
4858310810
4859105450
4851114003
4856812001
4850705N21
2TM14006LB
2TM10006LB
4859802917
CCZB1H102K
CCZB1H102K
RD-AZ224JRD-AZ224JPTMPMSK142
CMXL1J154J
CEYD1H689W
CMYF2G394J
CMYH3C722J
TRANSMITTER REMOCON
ACCESSORY AS
COVER BACK AS
COVER BACK
CLOTH BLACK
CLOTH BLACK
CRT GROUND NET
COIL DEGAUSSING
CABINET AS
WASHER RUBBER
CLAMP WIRE
CRT
MASK FRONT AS
BUTTON CTRL
SCREW TAPPTITE
MASK FRONT
BUTTON POWER
SPRING
MARK BRAND
CLOTH BLACK
SPEAKER AS
CONNECTOR
SPEAKER
SPEAKER
JACK PIN BOARD
PANEL AV ASSY
TIE CABLE
CONNECTOR
TAPE MASKING
TAPE MASKING
PCB JACK
C CERA
C CERA
R CARBON FILM
R CARBON FILM
PCB MAIN MANUAL AS
C MYLAR
C ELECTRO
C MYLAR
C MYLAR
-36-
R-48C04 (AAA)
DTQ-29U4SC
DTQ-29U1SC
FR HIPS GY 29U1
FELT 400X20X0.7
FELT 250X20X0.7
2901H-1015-2P
DC-29S1
DTQ-29U1SCV
CR T4.0
NYLON 6 (V0)
A68ELA021X103 (CHN)
DTQ-29U1SC
4955100+5549200 29U1
TT2 WAS 3X10 MFZN
FR HIPS GY 29U1
FR HIPS GY 29U1
SWPA PIE0.5
CU AU+ABS BK
FELT 300X15XT1.0
DTQ-29U1V
YH025-04+YRT205+ULW=900
SP-58126F01
SP-58126F01
YSC03P-4120-9S
2326802+5934301
NYLON66 DA100
YH025-05+YBNH250+USW=400
3M #232 6.0X2000M
3M #232-MAP-C 6.2X2000M
79.05X27.3(197X246/14)C1B
50V B 1000PF K (AXIAL)
50V B 1000PF K (AXIAL)
1/6 220K OHM J
1/6 220K OHM J
DTQ-29U1SCV
63V MEU 0.15MF J
50V RHD 6.8MF (16X35.5)
400V MPP 0.39MF J
1.6KV BUP 7200PF J
REMARK
ELECTRICAL PARTS LIST
NO
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
LOC
PARTS CODE
PARTS NAME
PARTS DESCRIPTION
C408
C409
C801
C802
C806
C819
CS803
CS804
D402
D403
D801
D802
D803
D804
D809
D813
DL701
I301
00001
0000A
0000B
I601
00001
0000A
0000B
I701
I702
I801
00001
0000A
0000B
I802
I803
00001
0000A
0000B
I805
IF01
JP501
JP502
JP503
L401
L402
L801
L807
CMYH3C702J
CMYE2G273J
CL1UC3474M
CL1UC3474M
CEYD2D331D
CEYF1E332V
CH1BFE222M
CH1BFE222M
DDGP30L—DRGP30J—D1N5406G—
D1N5406G—
D1N5406G—
D1N5406G—
DRGP30J—DSR306E20DLH2PR5MH3
PTA2SW8227
1TDA8358J4857028227
7174301011
PTI2SW8200
1LA42072N4857028200
7174300811
1DA12001PQ
124LC16B1B
PTB2SW4401
1STRW67354857024401
7174300811
1LTV817C—
PTUASW6900
1LD1117V33
4857026900
7174300811
1K78R05—1346VF6—4859111550
4859106440
4859107050
58C7070085
58H0000033
5PDLF3055L
58C0000090
C MYLAR
C MYLAR
C LINE ACROSS
C LINE ACROSS
C ELECTRO
C ELECTRO
C CERA AC
C CERA AC
DIODE
DIODE
DIODE
DIODE
DIODE
DIODE
DIODE
DIODE
LED HOLDER AS
HEAT SINK ASS`Y
IC VERTICAL
HEAT SINK
SCREW TAPPTITE
HEAT SINK ASS’Y
IC AUDIO AMP
HEAT SINK
SCREW TAPPTITE
IC MICOM FLASH
IC MEMORY
HEAT SINK ASS`Y
IC POWER
HEAT SINK
SCREW TAPPTITE
IC PHOTO COUPLER
HEAT SINK ASS’Y AS
IC REGULATOR
HEAT SINK
SCREW TAPPTITE
IC REGULATOR
IC PREAMP
JACK PIN BOARD
JACK S-VHS
JACK PIN BOARD
COIL CHOKE
COIL H-LINEARITY
FILTER LINE
COIL CHOKE
-37-
1.6KV BUP 7000PF J
400V PU 0.027MF J
0.47MF 1J(UCVSNDF/SV)+Q/O
0.47MF 1J(UCVSNDF/SV)+Q/O
200V FHS 330MF (22X30)
25V RSS 3300MF (16X31.5)
U/C/V AC400V 2200PF
U/C/V AC400V 2200PF
DGP30L
RGP30J DO-201AD 600V 3A
IN5406G
IN5406G
IN5406G
IN5406G
RGP30J DO-201AD 600V 3A
SR306E20
LH-2P-R-5M-H3
1TDA8358J- + 7174301011
TDA8358J
AL EX BK
TT2 RND 3X10 MFZN
1LA42072N- + 7174300811
LA42072N
AL EX BK
TT2 RND 3X8 MFZN
TDA12001PQ
24LC16B1B
1STRW6735- + 7174300811
STR-W6735
AL EX
TT2 RND 3X8 MFZN
LTV-817C
1LD1117V33 + 7174300811
LD1117AV33 3.3V 2% TO-220
AL EX
TT2 RND 3X8 MFZN
KIA78R05API
346VF6
YPJ501B
PH-SJ-9503
PH-JB-9601 (PH06P-4120-C)
TLN-3062A
TRL-2532
DLF-3055L
L-45S
REMARK
ELECTRICAL PARTS LIST
NO
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
LOC
PARTS CODE
PARTS NAME
PARTS DESCRIPTION
M681
M682
M683
PA906
PW801
Q401
Q402
00001
0000A
0000B
R617
R801
R837
RY801
SW707
T401
T402
T801
TU101
X701
Y801
Z101
Z801
C404
C410
C411
C412
C417
C419
C613
C804
C805
C807
C814
C815
C816
C817
C818
C820
C835
C842
C852
P601
P705
P902
4853747800
4853747800
4853747800
4850708S03
4859907810
TKTC3229—
PTH2SW7609
T2SD2578—
4857027609
7174301011
RF02Y338KRX10T109JS
RM02Y158JDDB3R0M140
5S50101035
5TD0000018
50H0000287
50M4445B74859726730
5XJ24R576E
5SC0101339
5PTSB6221C
DSVC471D14
CEXA2D229E
CMXB2G472J
CEXF2E100V
CCXB3D681K
CEXF1E102V
CEXF2A470V
CEXF1E102V
CH1BEE472M
CH1BEE472M
CBXB3D102K
CCXB3D221K
CBXB3D471K
CEXF2C101C
CEXF2A470V
CBXB3D471K
CEXF2C101C
CEXF1C102V
CBXB3D471K
CEXF1E102V
485923172S
485923172S
485923172S
RETA PCB
RETA PCB
RETA PCB
CONNECTOR
CORD POWER AS
TR
HEAT SINK ASS`Y
TR HORI
HEAT SINK
SCREW TAPPTITE
R FUSIBLE
R CEMENT
R METAL FLAT
POSISTOR
SW TACT
TRANS DRIVE
FBT
TRANS SMPS
TUNER VARACTOR
CRYSTAL QUARTZ
SW RELAY
FILTER SAW
VARISTOR
C ELECTRO
C MYLAR
C ELECTRO
C CERA
C ELECTRO
C ELECTRO
C ELECTRO
C CERA AC
C CERA AC
C CERA SEMI
C CERA
C CERA SEMI
C ELECTRO
C ELECTRO
C CERA SEMI
C ELECTRO
C ELECTRO
C CERA SEMI
C ELECTRO
CONN WAFER
CONN WAFER
CONN WAFER
-38-
NYLON 66
NYLON 66
NYLON 66
YH025-08+YST025+ULW=500
ME301P+TER=2100
KTC3229
T2SD2578— + 7174301011
2SD2578
AL EX
TT2 RND 3X10 MFZN
2W 0.33 OHM K
10W 1 OHM J TRIPOD SMALL
2W 0.15 OHM J
ECPBD3R0M140
KPT-1112 1C-1P
THD-120
BSC29-0172D
TSM-4445B7
TAEC-H012F(A)
HC-49/S 24.576MHZ 30PPM
SDT-S-105LMR
TSB6221C
SVC471D14A (BULK)
200V RUL 2.2MF (10X16) TP
400V EU 4700PF J (TP)
250V RSS 10MF (10X20) TP
2KV B 680PF K (TAPPING)
25V RSS 1000MF (13X20) TP
100V RSS 47MF (10X16) TP
25V RSS 1000MF (13X20) TP
U/C/V 2.5KV 4700PF TP
U/C/V 2.5KV 4700PF TP
2KV BL(N) 1000PF K (T)
2KV B 220PF K (TAPPING)
2KV BL(N) 470PF K (T)
160V RUS 100MF (16X25) TP
100V RSS 47MF (10X16) TP
2KV BL(N) 470PF K (T)
160V RUS 100MF (16X25) TP
16V RSS 1000MF (10X20) TP
2KV BL(N) 470PF K (T)
25V RSS 1000MF (13X20) TP
YW025-04 (STICK)
YW025-04 (STICK)
YW025-04 (STICK)
REMARK
ELECTRICAL PARTS LIST
NO
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
LOC
PARTS CODE
PARTS NAME
PA907
R106
R305
R401
R402
R407
R408
R409
R411
R414
R416
R417
R802
R829
R836
C101
C102
C103
C104
C105
C106
C112
C114
C115
C116
C117
C119
C122
C123
C124
C125
C127
C128
C130
C131
C201
C202
C204
C301
C305
C306
C307
C308
C402
C403
485923182S
RS02Z512JS
RS02Z129JS
RS02Z100JS
RS02Z121JS
RS02Z223JS
RS02Z102JS
RS01Z103JRS01Z229JRF01Z828JA
RF01Z338KRS01Z229JRS02Z913JS
RS02Z309JS
RS02Z109JS
CCXF1H103Z
CEXF1H100V
CCXF1H103Z
CEXF1C221V
CCXF1H103Z
CEXF1H229V
CMXM2A682J
CEXF1H109V
CMXL1J224J
CCXF1H223Z
CEXF1H100V
CCXF1H103Z
CEXF1H229V
CEXF1H229V
CMXM2A473J
CEXF1H229V
CEXF1C101V
CEXF1H229V
CEXF1C101V
CCXB1H102K
CMXL1J104J
CEXF1H100V
CEXF1C101V
CMXM2A473J
CMXM2A104J
CMXL1J104J
CCXF1H473Z
CCXF1H473Z
CMXM2A104J
CCXB2H102K
CONN WAFER
R M-OXIDE FILM
R M-OXIDE FILM
R M-OXIDE FILM
R M-OXIDE FILM
R M-OXIDE FILM
R M-OXIDE FILM
R M-OXIDE FILM
R M-OXIDE FILM
R FUSIBLE
R FUSIBLE
R M-OXIDE FILM
R M-OXIDE FILM
R M-OXIDE FILM
R M-OXIDE FILM
C CERA
C ELECTRO
C CERA
C ELECTRO
C CERA
C ELECTRO
C MYLAR
C ELECTRO
C MYLAR
C CERA
C ELECTRO
C CERA
C ELECTRO
C ELECTRO
C MYLAR
C ELECTRO
C ELECTRO
C ELECTRO
C ELECTRO
C CERA
C MYLAR
C ELECTRO
C ELECTRO
C MYLAR
C MYLAR
C MYLAR
C CERA
C CERA
C MYLAR
C CERA
PARTS DESCRIPTION
YW025-05 (STICK)
2W 5.1K OHM J SMALL
2W 1.2 OHM J SMALL
2W 10 OHM J SMALL
2W 120 OHM J SMALL
2W 22K OHM J SMALL
2W 1K OHM J SMALL
1W 10K OHM J (TAPPING)
1W 2.2 OHM J (TAPPING)
1W 0.82 OHM J A CURVE
1W 0.33 OHM K (TAPPING)
1W 2.2 OHM J (TAPPING)
2W 91K OHM J SMALL
2W 3 OHM J SMALL
2W 1 OHM J SMALL
50V F 0.01MF Z (TAPPING)
50V RSS 10MF (5X11) TP
50V F 0.01MF Z (TAPPING)
16V RSS 220MF (8X11.5) TP
50V F 0.01MF Z (TAPPING)
50V RSS 2.2MF (5X11) TP
100V 6800PF J (TP)
50V RSS 1MF (5X11) TP
63V MEU 0.22MF J (TP)
50V F 0.022MF Z (TAPPING)
50V RSS 10MF (5X11) TP
50V F 0.01MF Z (TAPPING)
50V RSS 2.2MF (5X11) TP
50V RSS 2.2MF (5X11) TP
100V 0.047MF J (TP)
50V RSS 2.2MF (5X11) TP
16V RSS 100MF (6.3X11) TP
50V RSS 2.2MF (5X11) TP
16V RSS 100MF (6.3X11) TP
50V B 1000PF K (TAPPING)
63V MEU 0.1MF J
50V RSS 10MF (5X11) TP
16V RSS 100MF (6.3X11) TP
100V 0.047MF J (TP)
100V 0.1MF J (TP)
63V MEU 0.1MF J
50V F 0.047MF Z (TAPPING)
50V F 0.047MF Z (TAPPING)
100V 0.1MF J (TP)
500V B 1000PF K (TAPPING)
-39-
REMARK
ELECTRICAL PARTS LIST
NO
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
LOC
PARTS CODE
PARTS NAME
C405
C413
C414
C416
C418
C420
C422
C423
C601
C602
C603
C604
C605
C606
C607
C608
C609
C610
C614
C619
C620
C622
C623
C624
C625
C626
C627
C628
C629
C701
C704
C705
C707
C713
C716
C721
C722
C723
C724
C725
C726
C727
C729
C730
C731
CCXB2H561K
CEXF1H470V
CCXB2H102K
CCXB2H102K
CCXB2H102K
CCXB2H102K
CMXM2A473J
CMXM2A104J
CEXF1E470V
CMXL1J224J
CMXL1J224J
CEXF1H100V
CMXM2A682J
CMXM2A682J
CMXM2A104J
CMXM2A104J
CMXM2A104J
CMXM2A104J
CEXF1C470V
CMXM2A103J
CMXL1J104J
CEXF1H478V
CEXF1H478V
CMXL1J104J
CMXL1J104J
CMXL1J104J
CMXL1J104J
CEXF1H478V
CEXF1H478V
CEXF1C101V
CEXF1E470V
CMXM2A104J
CEXF1C101V
CEXF1C470V
CEXF1C101V
CEXF1C101V
CMXL1J224J
CEXF1H229V
CXCH1H809D
CXCH1H809D
CMXL1J104J
CEXF1C101V
CEXF1H479V
CEXF1C101V
CEXF1E470V
C CERA
C ELECTRO
C CERA
C CERA
C CERA
C CERA
C MYLAR
C MYLAR
C ELECTRO
C MYLAR
C MYLAR
C ELECTRO
C MYLAR
C MYLAR
C MYLAR
C MYLAR
C MYLAR
C MYLAR
C ELECTRO
C MYLAR
C MYLAR
C ELECTRO
C ELECTRO
C MYLAR
C MYLAR
C MYLAR
C MYLAR
C ELECTRO
C ELECTRO
C ELECTRO
C ELECTRO
C MYLAR
C ELECTRO
C ELECTRO
C ELECTRO
C ELECTRO
C MYLAR
C ELECTRO
C CERA
C CERA
C MYLAR
C ELECTRO
C ELECTRO
C ELECTRO
C ELECTRO
PARTS DESCRIPTION
500V B 560PF K (TAPPING)
50V RSS 47MF (6.3X11) TP
500V B 1000PF K (TAPPING)
500V B 1000PF K (TAPPING)
500V B 1000PF K (TAPPING)
500V B 1000PF K (TAPPING)
100V 0.047MF J (TP)
100V 0.1MF J (TP)
25V RSS 47MF (5X11) TP
63V MEU 0.22MF J (TP)
63V MEU 0.22MF J (TP)
50V RSS 10MF (5X11) TP
100V 6800PF J (TP)
100V 6800PF J (TP)
100V 0.1MF J (TP)
100V 0.1MF J (TP)
100V 0.1MF J (TP)
100V 0.1MF J (TP)
16V RSS 47MF (5X11) TP
100V 0.01MF J (TP)
63V MEU 0.1MF J
50V RSS 0.47MF (5X11) TP
50V RSS 0.47MF (5X11) TP
63V MEU 0.1MF J
63V MEU 0.1MF J
63V MEU 0.1MF J
63V MEU 0.1MF J
50V RSS 0.47MF (5X11) TP
50V RSS 0.47MF (5X11) TP
16V RSS 100MF (6.3X11) TP
25V RSS 47MF (5X11) TP
100V 0.1MF J (TP)
16V RSS 100MF (6.3X11) TP
16V RSS 47MF (5X11) TP
16V RSS 100MF (6.3X11) TP
16V RSS 100MF (6.3X11) TP
63V MEU 0.22MF J (TP)
50V RSS 2.2MF (5X11) TP
50V CH 8PF D (TAPPING)
50V CH 8PF D (TAPPING)
63V MEU 0.1MF J
16V RSS 100MF (6.3X11) TP
50V RSS 4.7MF (5X11) TP
16V RSS 100MF (6.3X11) TP
25V RSS 47MF (5X11) TP
-40-
REMARK
ELECTRICAL PARTS LIST
NO
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
LOC
PARTS CODE
PARTS NAME
PARTS DESCRIPTION
C732
C734
C735
C737
C740
C809
C810
C811
C812
C813
C821
C824
C826
C827
C828
C834
C836
C837
CA07
CA08
CV12
F801
I804
L808
Q101
Q201
Q602
Q704
Q705
Q706
Q707
Q708
Q801
Q804
Q805
QV01
QV02
R302
R403
SW701
SW702
SW703
SW704
SW705
SW706
CMXL1J224J
CMXL1J224J
CEXF1C101V
CBXF1H104Z
CEXF1C101V
CEXF1H109V
CCXF1H223Z
CMXM2A104J
CCXB1H821K
CCXB1H471K
CEXF1H479V
CMXL1J154J
CEXF1E221V
CEXF1C331V
CEXF1H479V
CMXL1J104J
CEXF1E221V
CEXF1H470V
CCXB1H102K
CCXB1H102K
CEXF1C470V
5FWPS5022L
1K1A431B—
58C0000142
TKTC3198YTKTA1266YTKTA1266YTKTC3198YTKTA1270YTKTC3198YTKTA1270YTKTC3198YTKTC3203YTKTC3198YTKTC3198YTKTC3198YTKTA1266YRN02B181JS
RN01B472JS
5S50101090
5S50101090
5S50101090
5S50101090
5S50101090
5S50101090
C MYLAR
C MYLAR
C ELECTRO
C CERA SEMI
C ELECTRO
C ELECTRO
C CERA
C MYLAR
C CERA
C CERA
C ELECTRO
C MYLAR
C ELECTRO
C ELECTRO
C ELECTRO
C MYLAR
C ELECTRO
C ELECTRO
C CERA
C CERA
C ELECTRO
FUSE
IC REGULATOR(SHUNT)
COIL CHOKE
TR
TR
TR
TR
TR
TR
TR
TR
TR
TR
TR
TR
TR
R METAL FILM
R METAL FILM
SW TACT
SW TACT
SW TACT
SW TACT
SW TACT
SW TACT
-41-
63V MEU 0.22MF J (TP)
63V MEU 0.22MF J (TP)
16V RSS 100MF (6.3X11) TP
50V F 0.1MF Z (TAPPING)
16V RSS 100MF (6.3X11) TP
50V RSS 1MF (5X11) TP
50V F 0.022MF Z (TAPPING)
100V 0.1MF J (TP)
50V B 820PF K (TAPPING)
50V B 470PF K (TAPPING)
50V RSS 4.7MF (5X11) TP
63V MEU 0.15MF J
25V RSS 220MF (8X11.5) TP
16V RSS 330MF (8X11.5) TP
50V RSS 4.7MF (5X11) TP
63V MEU 0.1MF J
25V RSS 220MF (8X11.5) TP
50V RSS 47MF (6.3X11) TP
50V B 1000PF K (TAPPING)
50V B 1000PF K (TAPPING)
16V RSS 47MF (5X11) TP
WIDE TL 250V 5A CASE
KIA431B 2.495V 0.5% TO-92
ELC 0809 940K
KTC3198Y
KTA1266Y (TP)
KTA1266Y (TP)
KTC3198Y
KTA1270Y (TP)
KTC3198Y
KTA1270Y (TP)
KTC3198Y
KTC3203-Y
KTC3198Y
KTC3198Y
KTC3198Y
KTA1266Y (TP)
2W 180 OHM J SMALL
1W 4.7K OHM J SMALL
THVH472GCA
THVH472GCA
THVH472GCA
THVH472GCA
THVH472GCA
THVH472GCA
REMARK
ELECTRICAL PARTS LIST
NO
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
LOC
PARTS CODE
PARTS NAME
A001
C107
C108
C109
C110
C111
C126
C129
C203
C205
C206
C612
C702
C703
C706
C712
C714
C715
C717
C719
C720
C728
C733
C736
C738
C739
CA03
CA04
CA05
CA06
CV13
CV14
CV15
D101
D301
D401
D404
D405
D406
D407
D408
D602
D701
D702
D703
4859818691
CZSL1H470J
CZSL1H470J
CCZF1H103Z
CCZB1H222K
CCZB1H222K
CBZF1H104Z
CBZF1H104Z
CBZF1H104Z
CBZF1H104Z
CCZB1H472K
CBZF1H104Z
CBZF1H104Z
CBZF1H104Z
CBZF1H104Z
CCZB1H561K
CBZF1H104Z
CBZF1H104Z
CCZB1H102K
CCZB1H102K
CBZF1H104Z
CCZF1H103Z
CBZF1H104Z
CCZB1H102K
CCZB1H102K
CCZB1H102K
CCZB1H102K
CCZB1H102K
CCZB1H102K
CCZB1H102K
CBZF1H104Z
CBZF1H104Z
CBZF1H104Z
DUZ33B——
D1N4937G—
D1N4937G—
DUZ9R1BM—
D1N4937G—
D1N4937G—
DRGP15J—DRGP15J—D1N4148—DUZ3R9B—D1N4148—D1N4148—-
PCB MAIN
C CERA
C CERA
C CERA
C CERA
C CERA
C CERA SEMI
C CERA SEMI
C CERA SEMI
C CERA SEMI
C CERA
C CERA SEMI
C CERA SEMI
C CERA SEMI
C CERA SEMI
C CERA
C CERA SEMI
C CERA SEMI
C CERA
C CERA
C CERA SEMI
C CERA
C CERA SEMI
C CERA
C CERA
C CERA
C CERA
C CERA
C CERA
C CERA
C CERA SEMI
C CERA SEMI
C CERA SEMI
DIODE ZENER
DIODE
DIODE
DIODE ZENER
DIODE
DIODE
DIODE
DIODE
DIODE
DIODE ZENER
DIODE
DIODE
PARTS DESCRIPTION
330X246 D1B
50V SL 47PF J (AXIAL)
50V SL 47PF J (AXIAL)
50V F 0.01MF Z
50V B 2200PF K AXIAL
50V B 2200PF K AXIAL
50V F 0.1MF Z
50V F 0.1MF Z
50V F 0.1MF Z
50V F 0.1MF Z
HIKB 50V 4700PF K AXIAL
50V F 0.1MF Z
50V F 0.1MF Z
50V F 0.1MF Z
50V F 0.1MF Z
50V B 560PF K
50V F 0.1MF Z
50V F 0.1MF Z
50V B 1000PF K (AXIAL)
50V B 1000PF K (AXIAL)
50V F 0.1MF Z
50V F 0.01MF Z
50V F 0.1MF Z
50V B 1000PF K (AXIAL)
50V B 1000PF K (AXIAL)
50V B 1000PF K (AXIAL)
50V B 1000PF K (AXIAL)
50V B 1000PF K (AXIAL)
50V B 1000PF K (AXIAL)
50V B 1000PF K (AXIAL)
50V F 0.1MF Z
50V F 0.1MF Z
50V F 0.1MF Z
UZ-33B
1N4937G (TAPPING)
1N4937G (TAPPING)
UZ-9.1BM
1N4937G (TAPPING)
1N4937G (TAPPING)
RGP15J DO-204AC 600V 1.5A
RGP15J DO-204AC 600V 1.5A
1N4148 (TAPPING)
UZ-3.9B
1N4148 (TAPPING)
1N4148 (TAPPING)
-42-
REMARK
ELECTRICAL PARTS LIST
NO
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
LOC
PARTS CODE
PARTS NAME
D706
D805
D806
D807
D808
D810
D812
D814
D815
DV02
DV03
DV05
DV06
L101
L103
L104
L201
L301
L302
L403
L701
L702
L703
L704
L705
L706
L707
L709
L714
L803
L804
L805
L806
R101
R102
R103
R104
R105
R107
R108
R111
R112
R113
R114
R119
DUZ3R3B—D1N4937G—
D1N4937G—
D1N4937G—
DMTZJ6R2CD1N4937G—
DRGP15J—DUZ4R3B—D1N4148—DMTZJ5R6BDMTZJ5R6BDMTZJ5R6BDMTZJ5R6B5CPZ470K04
5CPZ479K02
5CPZ479K04
5CPZ479K02
5MC0000100
5MC0000100
5MC0000100
5CPZ479K04
5CPZ479K02
5CPZ479K02
5CPZ479K02
5CPZ479K02
5CPZ479K02
5CPZ479K04
5CPZ479K02
5CPZ479K02
5MC0000100
5MC0000100
5MC0000100
5MC0000100
RD-AZ101JRD-AZ101JRD-AZ472JRD-AZ100JRD-AZ473JRD-AZ103JRD-AZ472JRD-AZ181JRD-AZ101JRD-AZ101JRD-AZ102JRD-AZ393J-
DIODE ZENER
DIODE
DIODE
DIODE
DIODE ZENER
DIODE
DIODE
DIODE ZENER
DIODE
DIODE ZENER
DIODE ZENER
DIODE ZENER
DIODE ZENER
COIL PEAKING
COIL PEAKING
COIL PEAKING
COIL PEAKING
COIL BEAD
COIL BEAD
COIL BEAD
COIL PEAKING
COIL PEAKING
COIL PEAKING
COIL PEAKING
COIL PEAKING
COIL PEAKING
COIL PEAKING
COIL PEAKING
COIL PEAKING
COIL BEAD
COIL BEAD
COIL BEAD
COIL BEAD
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
PARTS DESCRIPTION
UZ-3.3B
1N4937G (TAPPING)
1N4937G (TAPPING)
1N4937G (TAPPING)
MTZJ 6.2C
1N4937G (TAPPING)
RGP15J DO-204AC 600V 1.5A
UZ-4R3B
1N4148 (TAPPING)
MTZJ 5.6B
MTZJ 5.6B
MTZJ 5.6B
MTZJ 5.6B
47UH 10.5MM K (LAL04TB)
4.7UH K (AXIAL 3.5MM)
4.7UH K (AXIAL 10.5MM)
4.7UH K (AXIAL 3.5MM)
HC-3550
HC-3550
HC-3550
4.7UH K (AXIAL 10.5MM)
4.7UH K (AXIAL 3.5MM)
4.7UH K (AXIAL 3.5MM)
4.7UH K (AXIAL 3.5MM)
4.7UH K (AXIAL 3.5MM)
4.7UH K (AXIAL 3.5MM)
4.7UH K (AXIAL 10.5MM)
4.7UH K (AXIAL 3.5MM)
4.7UH K (AXIAL 3.5MM)
HC-3550
HC-3550
HC-3550
HC-3550
1/6 100 OHM J
1/6 100 OHM J
1/6 4.7K OHM J
1/6 10 OHM J
1/6 47K OHM J
1/6 10K OHM J
1/6 4.7K OHM J
1/6 180 OHM J
1/6 100 OHM J
1/6 100 OHM J
1/6 1K OHM J
1/6 39K OHM J
-43-
REMARK
ELECTRICAL PARTS LIST
NO
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
LOC
PARTS CODE
PARTS NAME
R121
R201
R203
R204
R213
R301
R303
R304
R306
R307
R308
R310
R311
R312
R313
R314
R404
R405
R406
R410
R412
R413
R418
R601
R602
R604
R605
R606
R607
R609
R610
R612
R613
R614
R615
R616
R620
R622
R623
R624
R625
R626
R627
R628
R629
RD-AZ183JRD-AZ224JRN-AZ1801F
RD-4Z222JRD-AZ750JRD-4Z159JRD-AZ272JRD-AZ823JRD-AZ103JRN-AZ2201F
RD-4Z514JRD-AZ104JRD-4Z563JRN-AZ2201F
85801065GY
85801065GY
RD-AZ122JRD-AZ471JRD-4Z220JRN-AZ9101F
RN-AZ1202F
RD-4Z470JRD-4Z102JRD-AZ622JRD-AZ102JRD-AZ392JRD-AZ102JRD-AZ392JRD-AZ103JRD-AZ202JRD-AZ223JRD-AZ153JRD-4Z229JRD-4Z229JRD-4Z229JRD-4Z229JRD-AZ101JRD-AZ101JRD-AZ103JRD-AZ103JRD-AZ103JRD-AZ103JRD-AZ103JRD-AZ103JRD-AZ103J-
R CARBON FILM
R CARBON FILM
R METAL FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R METAL FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R METAL FILM
WIRE COPPER
WIRE COPPER
R CARBON FILM
R CARBON FILM
R CARBON FILM
R METAL FILM
R METAL FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
PARTS DESCRIPTION
1/6 18K OHM J
1/6 220K OHM J
1/6 1.8K OHM F
1/4 2.2K OHM J
1/6 75 OHM J
1/4 1.5 OHM J
1/6 2.7K OHM J
1/6 82K OHM J
1/6 10K OHM J
1/6 2.2K OHM F
1/4 510K OHM J
1/6 100K OHM J
1/4 56K OHM J
1/6 2.2K OHM F
AWG22 1/0.65 TIN COATING
AWG22 1/0.65 TIN COATING
1/6 1.2K OHM J
1/6 470 OHM J
1/4 22 OHM J
1/6 9.1K OHM F
1/6 12K OHM F
1/4 47 OHM J
1/4 1K OHM J
1/6 6.2K OHM J
1/6 1K OHM J
1/6 3.9K OHM J
1/6 1K OHM J
1/6 3.9K OHM J
1/6 10K OHM J
1/6 2K OHM J
1/6 22K OHM J
1/6 15K OHM J
1/4 2.2 OHM J
1/4 2.2 OHM J
1/4 2.2 OHM J
1/4 2.2 OHM J
1/6 100 OHM J
1/6 100 OHM J
1/6 10K OHM J
1/6 10K OHM J
1/6 10K OHM J
1/6 10K OHM J
1/6 10K OHM J
1/6 10K OHM J
1/6 10K OHM J
-44-
REMARK
ELECTRICAL PARTS LIST
NO
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
LOC
PARTS CODE
PARTS NAME
R630
R632
R633
R634
R635
R636
R701
R702
R703
R704
R705
R707
R708
R709
R710
R712
R713
R714
R719
R720
R722
R723
R725
R726
R727
R729
R730
R732
R733
R735
R736
R742
R743
R744
R745
R746
R747
R748
R769
R770
R772
R773
R774
R775
R776
RD-AZ103JRD-AZ103JRD-AZ103JRD-AZ103JRD-AZ103JRD-AZ472JRD-AZ101JRD-AZ101JRD-AZ101J85801065GY
RD-AZ102JRN-AZ5600F
RD-AZ101JRD-AZ823JRD-AZ563JRD-4Z222JRD-AZ470JRD-AZ123JRD-AZ101JRD-AZ101JRD-AZ100JRD-AZ122JRD-AZ513JRD-AZ101JRD-AZ102JRD-AZ101JRD-AZ101JRD-AZ101JRD-AZ472JRD-AZ102JRD-AZ472JRD-AZ181JRD-AZ151JRD-AZ181JRD-AZ241JRD-AZ331JRD-AZ471JRD-AZ222JRD-AZ102JRD-AZ223JRD-4Z473JRD-AZ472JRD-4Z473JRD-AZ472JRD-AZ332J-
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
WIRE COPPER
R CARBON FILM
R METAL FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
PARTS DESCRIPTION
1/6 10K OHM J
1/6 10K OHM J
1/6 10K OHM J
1/6 10K OHM J
1/6 10K OHM J
1/6 4.7K OHM J
1/6 100 OHM J
1/6 100 OHM J
1/6 100 OHM J
AWG22 1/0.65 TIN COATING
1/6 1K OHM J
1/6 560 OHM F
1/6 100 OHM J
1/6 82K OHM J
1/6 56K OHM J
1/4 2.2K OHM J
1/6 47 OHM J
1/6 12K OHM J
1/6 100 OHM J
1/6 100 OHM J
1/6 10 OHM J
1/6 1.2K OHM J
1/6 51K OHM J
1/6 100 OHM J
1/6 1K OHM J
1/6 100 OHM J
1/6 100 OHM J
1/6 100 OHM J
1/6 4.7K OHM J
1/6 1K OHM J
1/6 4.7K OHM J
1/6 180 OHM J
1/6 150 OHM J
1/6 180 OHM J
1/6 240 OHM J
1/6 330 OHM J
1/6 470 OHM J
1/6 2.2K OHM J
1/6 1K OHM J
1/6 22K OHM J
1/4 47K OHM J
1/6 4.7K OHM J
1/4 47K OHM J
1/6 4.7K OHM J
1/6 3.3K OHM J
-45-
REMARK
ELECTRICAL PARTS LIST
NO
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
LOC
PARTS CODE
PARTS NAME
R777
R778
R779
R780
R803
R804
R805
R806
R807
R808
R809
R819
R820
R823
R824
R826
R827
R830
R832
R833
R834
R835
R873
RA03
RA04
RA05
RA06
RA07
RA08
RS801
RS821
RV01J
RV02
RV03
RV04
RV05
RV06
RV09
RV10
RV11
RV12
RV13
RV14
RV15
RV16
RD-AZ332JRD-AZ101JRD-AZ101JRN-AZ5600F
RD-4Z479JRD-4Z152JRD-4Z100JRD-4Z331JRD-4Z102J85801065GY
RD-AZ102JRN-4Z1003F
RN-4Z1502F
RD-AZ152JRD-AZ333JRN-AZ2201F
RD-AZ511JRD-AZ472JRD-AZ752JRD-AZ103JRD-AZ103JRD-AZ103JRD-AZ391JRD-AZ224JRD-AZ224JRD-AZ224JRD-AZ224JRD-AZ224JRD-AZ224JRC-2Z225KP
RC-2Z225KP
RD-AZ750JRD-AZ750JRD-AZ101JRD-AZ750JRD-AZ750JRD-AZ750JRD-AZ101JRD-AZ101JRD-AZ750JRD-4Z220JRD-AZ222JRD-AZ102JRD-AZ101JRD-AZ101J-
R CARBON FILM
R CARBON FILM
R CARBON FILM
R METAL FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
WIRE COPPER
R CARBON FILM
R METAL FILM
R METAL FILM
R CARBON FILM
R CARBON FILM
R METAL FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON COMP
R CARBON COMP
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
PARTS DESCRIPTION
1/6 3.3K OHM J
1/6 100 OHM J
1/6 100 OHM J
1/6 560 OHM F
1/4 4.7 OHM J
1/4 1.5K OHM J
1/4 10 OHM J
1/4 330 OHM J
1/4 1K OHM J
AWG22 1/0.65 TIN COATING
1/6 1K OHM J
1/4 100K OHM F
1/4 15K OHM F
1/6 1.5K OHM J
1/6 33K OHM J
1/6 2.2K OHM F
1/6 510 OHM J
1/6 4.7K OHM J
1/6 7.5K OHM J
1/6 10K OHM J
1/6 10K OHM J
1/6 10K OHM J
1/6 390 OHM J
1/6 220K OHM J
1/6 220K OHM J
1/6 220K OHM J
1/6 220K OHM J
1/6 220K OHM J
1/6 220K OHM J
1/2 2.2M OHM K
1/2 2.2M OHM K
1/6 75 OHM J
1/6 75 OHM J
1/6 100 OHM J
1/6 75 OHM J
1/6 75 OHM J
1/6 75 OHM J
1/6 100 OHM J
1/6 100 OHM J
1/6 75 OHM J
1/4 22 OHM J
1/6 2.2K OHM J
1/6 1K OHM J
1/6 100 OHM J
1/6 100 OHM J
-46-
REMARK
ELECTRICAL PARTS LIST
NO
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
LOC
PARTS CODE
PARTS NAME
PARTS DESCRIPTION
RV17
ZA03
ZA04
ZA05
ZA07
ZA08
ZZ300
I901
00001
0000A
0000B
P903
PA902
SCT1
C904
C905
C926
P906
R911
R914
C902
C903
C922
C923
C924
C925
A001
D905
D906
D907
D908
J901
J902
R901
R902
R903
R905
R906
R907
R908
R909
R910
R912
R913
RD-AZ750J85801065GY
85801065GY
85801065GY
85801065GY
85801065GY
PTCPMSK142
PTE3SW1100
1TDA6107AJ
4857031100
7174300811
4859238620
4850704S04
4859303530
CEXF2E479V
CEXF2E479V
CBXB3D102K
485923512S
RS02Z151JS
RF01Z109JCCXB1H561K
CMXL2E104K
4SG0DX0001
4SG0DX0001
4SG0DX0001
4SG0DX0001
4859830213
D1N4004S—
D1N4004S—
D1N4004S—
DLT2A05G—
85801065GY
85801065GY
RD-AZ511JRD-AZ511JRD-AZ511JRD-4Z101JRD-4Z101JRD-4Z101JRC-2Z102KRC-2Z102KRC-2Z102KRC-2Z105KP
RD-2Z102J-
R CARBON FILM
WIRE COPPER
WIRE COPPER
WIRE COPPER
WIRE COPPER
WIRE COPPER
PCB CRT MANUAL AS
HEAT SINK ASS’Y
IC VIDEO
HEAT SINK
SCREW TAPPTITE
CONN WAFER
CONNECTOR
SOCKET CRT
C ELECTRO
C ELECTRO
C CERA SEMI
CONN WAFER
R M-OXIDE FILM
R FUSIBLE
C CERA
C MYLAR
SPARK GAP
SPARK GAP
SPARK GAP
SPARK GAP
PCB CRT
DIODE
DIODE
DIODE
DIODE
WIRE COPPER
WIRE COPPER
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON FILM
R CARBON COMP
R CARBON COMP
R CARBON COMP
R CARBON COMP
R CARBON FILM
-47-
1/6 75 OHM J
AWG22 1/0.65 TIN COATING
AWG22 1/0.65 TIN COATING
AWG22 1/0.65 TIN COATING
AWG22 1/0.65 TIN COATING
AWG22 1/0.65 TIN COATING
DTQ-29U1SCV
1TDA6107AJ + 7174300811
TDA6107AJF
A1050P-H24 T2.0
TT2 RND 3X8 MFZN
YPW500-02
YH025-04+YST025+ULW=400
PCS629-03C
250V RSS 4.7MF (10X16)TP
250V RSS 4.7MF (10X16)TP
2KV BL(N) 1000PF K (T)
YW025-08 (STICK)
2W 150 0HM J SMALL
1W 1 OHM J (TAPPING)
50V B 560PF K (TAPPING)
250V MEU 0.1MF K
SSG-102-A1(1.0KV) TAP
SSG-102-A1(1.0KV) TAP
SSG-102-A1(1.0KV) TAP
SSG-102-A1(1.0KV) TAP
108X61.5(246X246) D1B
1N4004S
1N4004S
1N4004S
LT2A05G (TP)
AWG22 1/0.65 TIN COATING
AWG22 1/0.65 TIN COATING
1/6 510 OHM J
1/6 510 OHM J
1/6 510 OHM J
1/4 100 OHM J
1/4 100 OHM J
1/4 100 OHM J
1/2 1K OHM K
1/2 1K OHM K
1/2 1K OHM K
1/2 1M OHM K
1/2 1K OHM J
REMARK
-48-
-49-
-50-
-51-
-52-
DAEWOO ELECTRONICS CORP.
686, AHYEON-DONG, MAPO-GU,
SEOUL, KOREA.
C.P.O. BOX 8003 SEOUL KOREA
PRINTED DATE : MAY. 2006
