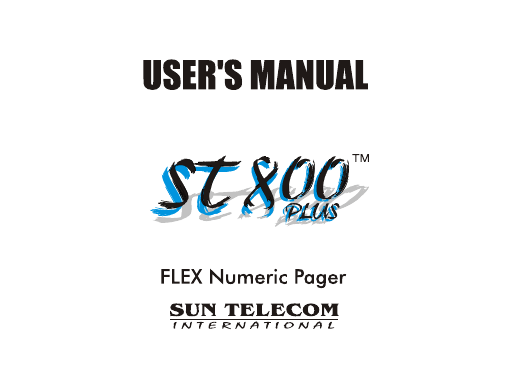

ST800 Plus User Manual PDF

Add to my manuals
24 Pages

advertisement

ST800 Plus User Manual PDF | Manualzz

1. FEATURES

2. BUTTONS

3. ICONS AND DESCRIPTIONS

4. TURNING PAGER ON

5. TURNING PAGER OFF

6. RECEIVING AND READING MESSAGES

7. LOCKING AND UNLOCKING MESSAGES

8. MEMORY

9. LOW BATTERY INDICATOR

10. CHANGING THE BATTERY

11. DUPLICATE MESSAGES

12. DELETING INDIVIDUAL MESSAGES

13. DELETING ALL MESSAGES

14. CHANGING ALERT STATUS

15. ALARM

16. TIME AND DATE

17. LIGHT

18. SET VIBRATION/AUDIBLE ALERT

1 5

1 6

1 7

1 8

1 2

1 2

1 3

1 4

1 9

2 0

8

9

1 0

1 1

6

7

4

5

30 message memories

14 locked messages

Date & time display

Message full indication

Vibrate / Chirp / Silent

Selective erase

Unread message indicator

Reflective backlighting

Time display when power off

Power Up Logo(Option)

User selectable 8 melodies alert

& 4 beep tone

Receiving time stamping

Alarm

Erase all

Duplicate message indication

Memory retention when power off

Low battery alarm

Source Display(Option)

Function button

FUNCTION BUTTON

Turn pager on

Enter Function mode

Complete setting process in each function

LAMP BUTTON

Turn the light On or Off

Escape to the standby screen, which shows

time, date, alarm status, and alert status.

Press twice to escape to the stand by screen.

Lamp button

READ BUTTON

Read button

Read messages

Select seting and features in Function mode

Turn pager On

: Alert (Beep) On

: Alert (Melody) On

: Alert (Vibrate) On

: Alarm On

: Duplicate Message

: New Unreaded message

: Change Battery

: Message Lock : Message longer than 12 Char

< Power off mode>

< Stand by screen>

Press and hold the Read button or Function button for 2seconds while pager is in the Off mode.

Time and date will appear on the bottom center of the screen.

Upon inserting a battery, pager will vibrate and beep briefly as it enters the normal reception mode.

If there are new unread messages, the icon and the number of unread messages will displayed on the screen.

And if all the messages are read, the number of messages in memory will displayed.

Press the Function button to enter the Function mode.

Press the Function button four times until "

POWER

OFF?" is displayed on the screen.

Press Read button to enter Pager Off mode.

When a message is received, the selected Alert will be activated.

Press the Read button to stop the Alert and to read messages.

The following information will be displayed in the order of the newest to the oldest message:

Message number, time stamp and message.

Reading messages with 13 Characters or more messages with 13 or more characters will display

" " at the top right corner of the screen.

Press the Read button to read the rest of the message.

A maximum of 14 messages can be locked.

Select a message to be locked and press the Function button.

When " LOCK?" is displayed, press the Read button to lock the message. The Lock icon will be displayed, and the message will be locked.

To unlock messages, select the message to be unlocked and then press the Function button to display "

UNLOCK?" on the screen.

Press the Read button.

Locked messages will remain in memory even during low battery power, and while the battery is being changed.

Press the Lamp button twice to escape to the standby screen.

Pager has the memory capacity to store 30 numeric messages, with a maximum of 20 characters per message.

MEMORY

9. LOW BATTERY INDICATOR

When the battery capacity falls below the operational level, the Low Battery icon will be displayed and the voltage alarm tone will be activated.

10. CHANGING THE BATTERY

When changing the battery, you will need to lock all messages you want to save or they will be lost. (Refer to #7 Locking and Unlocking Messages.)

When the battery is removed, you will lose the seconds of time that it takes you to replace the new AAA Battery.

Warning! Replace battery in Non-Hazardous location only.

Use only Duracell MN2400 & Energizer E92.

LOW BATTERY INDICATOR/CHANGING THE BATTERY

Duplicate Message Indicator will be displayed on the screen when the pager receives a message that is identical to a message in memory.

To Delete Individual Messages:

After reading messages, enter into Function mode by pressing the Function button two times until "DELETE?" is displayed on the screen.

Press Read button,message is deleted and another message is displayed.

To Delete a Locked Message:

It is necessary to convert the locked message into unlocked condition before the message can be deleted.

Deletion of All Messages:

Press the Function button to enter the Function mode.

To display "DELETE ALL?" sign, press Function Button three times.

On

"DELETE ALL?" sign, press Read button to delete all message except locked messages and Unread messages.

Press the Function button to enter the Function mode.

Press the Function button five times until

"SET

ALERT?" is displayed on the screen.

Press the Read button until the desired Alert is selected.

Press the Function button to complete the process.

Press the Function button to enter the Function mode.

Press the Function button six times until

"

SET

ALARM?" is displayed on the screen.

Press Read button to enter into Alarm-setting mode.

To choose and set desired condition, press Read button to toggle (Ex. YES NO).

To move to each field (hour, minute, am/pm), press the

Function button.

-

Press the Function button to enter the Function mode.

Press the Function button seven times until "DATE TIME?" indicator is displayed on the screen and press Read button.

Press the Read button to change the month, then press the

Function button to move to the next field.

Lamp button

Press button to turn the light on.

Press button again to turn the light off.

18. SET VIBRATION/ AUDIBLE ALERT

You can select Vibration or Audible alert mode. At the stand-by screen, press the FUNTION button to enter into the funtion menu mode.

Press the Read button to select the audible or vibration mode.

S E T V I B R A T I O N / A U D I B L E A L E R T

Neither your Wireless Provider nor Sun Telecom International is responsible for data that may be damaged or lost at any time, including, without limitation data lost or damaged during the servicing of Sun Telecom International s hardware. In as much as the wireless data service provided, we cannot guarantee or warrant that the wireless data service will always be available or will always function properly. For this and other reasons, the wireless data service should not be relied upon for the transmission of data relating to emergency or lifethreatening or mission critical situations, and Sun Telecom International disclaims any liability on its behalf and on behalf of its Wireless Providers for events or damages resulting from such reliance or the failure of the wireless data service to per form or to be available for your use of the wireless data service, including, without limitation, the lack of service coverage in the area in which YOU wish to use the wireless solution!. To the extent the third party providing the wireless data service provides any warranties or guarantees that may be passed on to YOU, such warranties and/or guarantees are automatically passed on to

YOU without any further effort on your part or on the part of Sun Telecom International.

Neither Sun Telecom International nor your wireless provider shall in any way be liable to you for any damages you suffer or incur (including, but not limited to, general, special, consequential or incidental damages including damages for loss of business profits, business interruption, loss of business information and the like and personal injury or wrongful death damages) arising from or in connection with the use or performance of our product, even if Sun Telecom International or your wireless solution provider are aware of the possibility of such damages. This limitation is intended to apply and does apply without regard to whether such damages are claimed, asserted or brought in an action or claim sounding in tort or contract, or on the warranty, or under any other law or form of action.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits of a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception (which can be determined by turning the equipment off and on), the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient/Relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Substitution of components may impair intrinsic safety.
