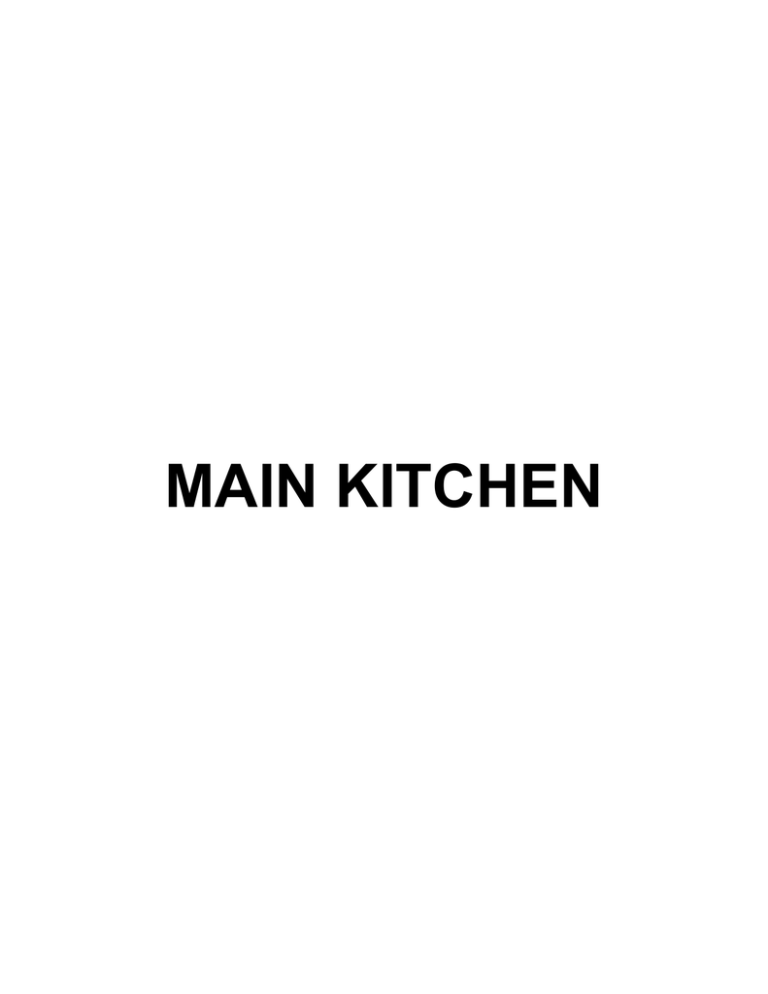

MAIN KITCHEN
Wolf 60" Dual Fuel Range: Wolf Dual Fuel Ranges
Page 1 of 4
60" Dual Fuel Range
Overview
Wolf Dual Fuel Ranges offer a wide variety of top configurations and standard dual
stacked surface burners. The optional steel griddle, infrared charbroiler and French Top
give you the freedom to customize your Dual Fuel Range. The large electric ovens
feature the Wolf dual convection system that delivers even temperature and airflow
throughout.
Model Options
DF606DG - 6 burners, Double Griddle
DF606F - 6 burners, French Top
DF606CG - 6 burners, Charbroiler. Griddle
DF604CF - 4 burners, Charbroiler, French Top
DF604GF - 4 burners, Griddle, French Top
http://www.wolfappliance.com/DualFuelRanges/DF60DualFuelRange
3/24/2011
Wolf 60" Dual Fuel Range: Wolf Dual Fuel Ranges
Page 2 of 4
Features
Technical Features
Design Features
Shipping Weight (lbs): 875-950
Natural or LP gas rangetop with large capacity
dual convection electric oven
CSA certified for US and Canada
Triple pane oven door window and dual
halogen lighting
Star-K Kosher certified as Sabbath and
holiday-compliant
Choose black knobs, or let everyone know it's
a Wolf with our distinctive red knobs
Classic stainless steel exterior finish
Platinum bezels surround all knobs – chrome
or brass bezels optional
Dual-stacked sealed 9,200 Btu / hr (2.7 kWh)
and 15,000 Btu/ hr (4.4 kWh) burners, all with
simmer capabilities and automatic reignition at
all settings
Other Features
Melt feature on one 9,200 Btu / hr (2.7 kWh)
burner
Porcelain coated cast iron continuous top
grates
Fits existing 60-3/8" (1534) opening
Pivoting hidden touch control panel
Melt feature on one 9,200 Btu / hr (2.7 kWh)
burner
Cobalt blue porcelain oven interiors
Two and five year residential warranty –
exclusions apply-see Warranty Terms link
Self-cleaning ovens
Ten cooking modes—bake, roast, broil,
convection bake, convection roast, convection
broil, convection, bake stone (accessory
required), dehydrate (accessory required) and
proof
Self-cleaning ovens
Coaxial temperature displaying oven selector
knob
Proof mode
Temperature probe feature
Hidden bake element and recessed broil
element
Spring/damper door system for each oven
door
Frequently Asked Questions - Planning
How much do Sub-Zero/Wolf products cost?
Where can I purchase Sub-Zero and Wolf products?
Where can I find Sub-Zero/Wolf product specifications?
What are dual-stacked sealed burners?
How does a Wolf Dual Fuel range set itself apart from conventional ranges?
What are dual-stacked sealed burners?
What accessories are included with this range?
What are the benefits of convection?
What is dual convection?
How precisely can the burners be adjusted?
http://www.wolfappliance.com/DualFuelRanges/DF60DualFuelRange
3/24/2011
Wolf Dual Fuel Ranges
53
wolfappliance.com/specs
Dual Fuel Ranges. Discover a new world of cooking—the best of two worlds, actually—with a Wolf dual fuel range.
Topside, gas cooking in all its glory, with the fine control of dual-stacked, sealed burners and options that include the
remarkable French top. Below, that marvel of culinary technology, the Wolf convection electric oven. Its two fans and four
heating elements let you select from 10 cooking modes so you can choose the one precisely suited to the dish you’re
preparing. Ovens are self-cleaning. With a variety of range widths to choose from, kitchens large and small become
gateways to the exciting new world of dual fuel cooking. All models are constructed of stainless steel and can be ordered
in natural or LP gas.
KEY FEATURES
CONFIGURATIONS
30" (762)
48" (1219)
60" (1527)
DF304
DF486C
DF606DG
36" (914)
DF486G
DF606F
DF366
DF484CG
DF606CG
DF364C
DF484DG
DF604CF
DF364G
DF484F
DF604GF
• Dual-stacked, sealed burners for precise control and
easy cleanup.
• Patented digital oven control knob.
• Dual convection: two fans for even heat distribution.
• Ten cooking modes, including the bake stone and
dehydration kits for precise, easy-to-use control.
• Flame recognition and automatic reignition for safety
and ease of use.
• Full-extension bottom rack for easier access to foods.
• Spring and damper door hinge for quiet, effortless
opening and closing.
Wolf Dual Fuel Ranges
54
Dual Fuel Ranges
30" (762) RANGE
36" (914) RANGE
48" (1219) RANGE
36 7/8"
36 7/8"
36 7/8"
(937)
HEIGHT TO
COOKING
SURFACE*
(937)
HEIGHT TO
COOKING
SURFACE*
(937)
HEIGHT TO
COOKING
SURFACE*
29 7/8" (759)
47 7/8" (1216)
357/8" (911)
29 1/2" (749)
27 1/2" (699)
9 1/4"
(235)
60" (1527) RANGE
55 7/8"
(1419)
20"
RISER
60 1/8" (1527)
36 7/8"
35 7/8"
(937)
HEIGHT TO
COOKING
SURFACE*
(911)
24 1/8" (613)
45 7/8"
25" (635)
(1165)
10"
RISER
26 1/8" (664)
40 7/8"
(1035)
5"
RISER
47" (1194)
*LEGS AND CASTERS ALLOW FOR
HEIGHT ADJUSTMENT UP TO 39" (991)
SIDE VIEW—ALL RANGES
Wolf Dual Fuel Ranges
55
wolfappliance.com/specs
Planning Information
Available in four widths, Wolf dual fuel ranges are
designed to fit a 30" (762), 36" (914), 48" (1219) or 601/4"
(1530) opening.
ELECTRICAL REQUIREMENTS
IMPORTANT NOTE: When installing against a combustible
surface, a minimum 10" (254) riser is required for a 36"
(914) dual fuel range with charbroiler or griddle and all
48" (1219) and 60" (1524) models. Follow all minimum clearances to combustible surfaces shown in the installation
illustrations on the following pages.
It is recommended that you use a Wolf pro ventilation
hood or hood liner with the dual fuel range. If the range is
to be installed without ventilation, a 36" (914) minimum
clearance, 44" (1118) for charbroiler, from countertop to
combustible materials above the range is required. Refer
to page 101 for pro ventilation.
Oven Specifications
INTERIOR CAPACITY
CU FT (L)
18" (457) Oven
30" (762) Oven
36" (914) Oven
2.5 (71)
4.5 (127)
5.4 (153)
INTERIOR DIMENSIONS
18" (457) Oven
30" (762) Oven
36" (914) Oven
Burner Rating
SURFACE BURNERS
Large
(1) Small
OPTIONAL FEATURES
Infrared Charbroiler
Infrared Griddle
Double Griddle
French Top
W
H
D
14" (356)
25" (635)
30" (762)
16 1/2" (419)
16 1/2" (419)
16 1/2" (419)
19" (483)
19" (483)
19" (483)
Btu (kW)
Btu (kW)
HIGH
SIMMER
15,000 (4.4)
9,200 (2.7)
950 (.3)
325 (.1)
NATURAL
LP
16,000 (4.7)
15,000 (4.4)
30,000 (8.8)
15,000 (4.4)
16,000 (4.7)
13,000 (3.8)
26,000 (7.6)
15,000 (4.4)
Wolf dual fuel ranges have a terminal block that allows for
a 3-wire or 4-wire installation. A separate, grounded
240/208 V AC, 60 Hz electrical supply is required with its
own circuit breaker. Single oven ranges require a 30 amp
service, and a 50 amp service is required for ranges with
double ovens. Total amps are 21 for single oven ranges
and 42.5 for double oven ranges.
GAS SUPPLY REQUIREMENTS
A gas supply line of 3/4" (19) rigid pipe must be provided to
the range. If local codes permit, a certified, 3' (.9 m) long,
1/2" (13) or 3/4" (19) ID flexible metal appliance connector is
recommended to connect the range to the gas supply line.
Wolf dual fuel ranges are designed to operate on natural
gas at 5" (12.5 mb) WC pressure or LP gas at 10" (25 mb)
WC pressure. The minimum line pressure is 7" (17.5 mb)
WC for natural gas and 11" (27.4 mb) WC for LP gas. The
maximum gas supply pressure to the regulator should
never exceed 14" (34.9 mb) WC, .5 psi (3.5 kPa).
Wolf natural gas ranges will function up to an altitude
of 10,250' (3124 m) without any adjustment. LP gas ranges
will function up to 8,600' (2621 m) without adjustment. If
the installation exceeds these elevations, contact your
authorized Wolf dealer for a high altitude conversion kit.
Wolf Dual Fuel Ranges
59
wolfappliance.com/specs
60" (1527) Dual Fuel Range
INSTALLATION
SIDE
CABINET
13" (330)
30" (762) TO 36" (914)
max
TO BOTTOM OF
VENTILATION HOOD**
18" (457) min
6" (152) TO
COMBUSTIBLE*
6" (152) TO
COMBUSTIBLE*
60 1/4" (1530)
OPENING WIDTH
36" (914)
FLOOR TO
COUNTERTOP
36 7/8"
(937) TO
COOKING
SURFACE
31" (787)
10" (254)
GAS
31/4" (83)
13" (330)
ELECTRICAL
*Minimum clearance from rough opening to combustible materials up to 18" (457) above countertop.
**36" (914) minimum clearance, 44" (1118) for charbroiler, from countertop to combustible materials without ventilation hood.
NOTE: For island installations, 12" (305) minimum clearance from back of range to combustible rear wall above countertop.
LOCATION OF GAS AND
ELECTRICAL EXTENDS
ON FLOOR
3"
(76)
Wolf Pro Hood Liners: Wolf Ventilation
Page 1 of 2
Pro Hood Liners
Overview
Whether you prefer French country or modernist, the Wolf Pro Hood Liners allow you to
incorporate superior ventilation within your kitchen design. All you have to do is decide
what it will look like. Sometimes referred to as power packs, these liners bring all of the
controls, lighting and convenience of our Pro ventilation line for those applications with
a custom exterior treatment.
Model Options
PL342212
PL402212
PL462212
PL522212
PL582212
http://www.wolfappliance.com/Ventilation/ProHoodLiners
3/24/2011
Wolf Pro Hood Liners: Wolf Ventilation
Page 2 of 2
Features
Technical Features
Design Features
Shipping Weight (lbs): 39-65
Stainless steel enclosed liner with seamed
construction
Electrical Requirements: 115 V AC, 60 Hz, 15amp circuit
Recessed easy-access controls
Infinite-speed blower control
Other Features
Heat sentry feature automatically turns unit on
when heat is sensed and automatically adjusts
blower speed
Two and five year residential warrantyexclusions apply, see warranty terms
Halogen lighting with two settings
Removable, dishwasher-safe, restaurantgrade stainless steel baffle filters
Pro hood liners are recommended for use with
all Wolf cooking appliances.
Frequently Asked Questions - Planning
How much do Sub-Zero/Wolf products cost?
Where can I purchase Sub-Zero and Wolf products?
Where can I find Sub-Zero/Wolf product specifications?
Options & Accessories
Internal, in-line and remote blowers
© 2011 Sub-Zero, Inc. and Wolf Appliance, Inc. All rights reserved
http://www.wolfappliance.com/Ventilation/ProHoodLiners
Follow us on
3/24/2011
Wolf Pro Ventilation
101
wolfappliance.com/specs
Pro Ventilation Hoods. Professional heritage shines through in Wolf professional-style ventilation. Exteriors are
heavy-duty, welded stainless steel, so finely hand-finished that they appear seamless. Pro wall-mount and island hoods are
available in a variety of widths. Stainless steel baffle filters and halogen lighting extend the professional look and back it up
with pro-level performance. All pro ventilation hoods are crafted of stainless steel. A hood liner is also available for custom
applications.
KEY FEATURES
PRO HOODS
• Internal, in-line or remote blower options.
• Recessed easy-access controls.
• Infinite-speed ventilator control.
• Heat sentry to automatically turn unit on when heat is
sensed and to adjust blower speed.
Low-Profile
24" (610) Deep
27" (686) Deep
WALL HOOD
WALL HOOD
WALL HOOD
Wall Chimney
Island Hood
Hood Liner
• Easy-to-clean stainless steel baffle filters.
• Heat lamp receptacles on 27" (686) deep models
(bulbs not included).
WALL HOOD
Wolf Pro Ventilation
103
wolfappliance.com/specs
Pro Hoods
WALL CHIMNEY HOODS
13 1/2"
WIDTH MINUS 18" (457)
(343)
18" (457)
OVERALL
HEIGHT
4" (102)
24" (610)
OVERALL DEPTH
36" (914), 42" (1067), 48" (1219)
AND 54" (1372) WIDTHS
ISLAND HOODS
WIDTH MINUS 18" (457)
13"
(330)
18" (457)
OVERALL
HEIGHT
4" (102)
34" (864)
OVERALL DEPTH
36" (914), 42" (1067), 54" (1372)
AND 66" (1676) WIDTHS
HOOD LINERS
WIDTH MINUS 6" (152)
3"
22 3/4"
3"
(76)
(578)
(76)
1 3/8" (35)
12"
(305)
12" (305)
4" (102)
34 3/8" (873), 40 3/8" (1026), 46 3/8" (1178)
52 3/8" (1330) AND 58 3/8" (1483) WIDTHS
22 1/2" (572)
Wolf Pro Ventilation
104
Planning Information
Pro ventilation hoods and liners are recommended for use
with all Wolf cooking appliances. Wall hoods should be at
least as wide as the cooking surface, and island hoods
should be larger than the cooking surface by 3" (76) on
each side.
IMPORTANT NOTE: For optimal performance in wall hood
applications, a pro 27" (686) deep wall hood is recommended for use with ranges and rangetops that contain a
charbroiler or griddle.
All pro ventilation hoods and liners are shipped without the
blower assembly. Internal, in-line and remote blowers are
available through your authorized Wolf dealer. The blower
will vary in size and is dictated by the cooking unit, the
volume of air that needs to be moved and the length of the
duct run. Refer to ventilation recommendations on pages
109–110.
Pro hoods have a 10" (254) round duct. Low-profile hoods
have an adjustable discharge. All other pro hoods are
vertical discharge. For the 24" (610) and 27" (686) deep wall
hoods, a horizontal discharge kit is available through your
authorized Wolf dealer.
Consult a qualified HVAC professional for specific installation and ducting applications.
Optional stainless steel duct covers in a variety of heights
are available for all pro wall and island hoods through
your authorized Wolf dealer. For local dealer information,
visit the find a showroom section of our website,
wolfappliance.com.
ELECTRICAL REQUIREMENTS
Wolf pro ventilation hoods and liners require a separate,
grounded 120 V AC, 60 Hz power supply. The service
should have its own 15 amp circuit breaker.
RECIRCULATING INSTALLATION
Low-profile, 24" (610) and 27" (686) deep wall hoods with
an internal blower (600 CFM or less), 30" (762) and 36"
(914) widths only, can be used in a non-ducted application
with a recirculating filter. In this installation, kitchen air is
purified through filters and returned as clean air into the
room. A recirculation kit available through your authorized
Wolf dealer is required.
CUSTOM HOOD APPLICATIONS
Wolf pro hood liners are for use in custom hood applications. The decorative hood can be created out of wood,
plaster, tile or metal. The shape of the hood is not critical.
The hood and liner must fit together at the bottom edge in
both width and depth. The height of the liner does not
have to match the height of the decorative hood.
Wolf Pro Ventilation
107
wolfappliance.com/specs
Island Hood
INSTALLATION
LOCATION OF ELECTRICAL
THROUGH TOP OF HOOD
18" (457)
HEIGHT
OF HOOD
34" (864)
DEPTH OF HOOD
WIDTH OF HOOD
30" (762) TO
36" (914)
TO COUNTERTOP
Hood Liner
INSTALLATION
LOCATION OF ELECTRICAL
DECORATIVE HOOD
HOOD LINER
6"
(152)
E
5"
(127)
12" (305)
HEIGHT OF LINER
WIDTH OF LINER
30" (762) TO 36" (914)
TO COUNTERTOP*
221/2" (572)
DEPTH OF LINER
Sub-Zero BI-36R All Refrigerator: Sub-Zero Built-In Refrigeration
Page 1 of 3
BI-36R All Refrigerator
Overview
Newly redesigned, the Sub-Zero BI-36R all refrigerator is for you. The 23.3 cubic-foot
interior is easy to organize with adjustable glass shelves, door shelves and other
compartments. Keep food fresher longer with the new air purification system that
scrubs the air of bacteria, mold, and viruses.
Model Options
BI-36R/S - Classic Stainless
BI-36R/O - Overlay
http://www.subzero.com/BuiltInRefrigeration/BI-36RRefrigerator
3/23/2011
Sub-Zero BI-36R All Refrigerator: Sub-Zero Built-In Refrigeration
Page 2 of 3
Features
Technical Features
Design Features
Meets strict Department of energy
requirements – uses less energy than a 100watt light bulb
All refrigerator
Framed, overlay, flush inset and classic
stainless steel design options
Annual Energy Usage: 404 kWh/$43 (Based
on 10.65 cents per kilowatt hour)
Air purification system
UL approved for US and Canada
Evenly-distributed bright interior lighting
Flip-up grille allows unit to be completely built
in and serviced from the front
Adjustable, spill-proof glass shelves
UL approved for US and Canada
Star-K Kosher certified as Sabbath and
holiday-compliant
Crisper and deli drawers form a special lowtemperature zone
Model BI-36R/S is Energy Star qualified
Informational freshness cards inside unit
Other Features
Two, five and twelve-year residential warranty
- exclusions apply - see warranty terms
Frequently Asked Questions - Planning
How much do Sub-Zero/Wolf products cost?
Where can I purchase Sub-Zero and Wolf products?
Where can I find Sub-Zero/Wolf product specifications?
What is standard grille height that arrives with a built in product?
Can the door on my Sub-Zero stop at 90 degrees?
What is the difference between overlay and flush inset?
What is the temperature range of a Sub-Zero?
Sub-Zero Air Purification
Cartridge
http://www.subzero.com/BuiltInRefrigeration/BI-36RRefrigerator
3/23/2011
Sub-Zero BI-36F All Freezer: Sub-Zero Built-In Refrigeration
Page 1 of 3
BI-36F All Freezer
Overview
Newly redesigned, our largest capacity freezer, the Sub-Zero BI-36F all freezer offers a
cavernous 22.8 cubic feet that you can organize with the three adjustable wire shelves
and five adjustable door shelves.
Model Options
BI-36F/S - Classic Stainless
BI-36F/O - Overlay
http://www.subzero.com/BuiltInRefrigeration/BI-36FFreezer
3/23/2011
Sub-Zero BI-36F All Freezer: Sub-Zero Built-In Refrigeration
Page 2 of 3
Features
Technical Features
Design Features
Meets strict Department of energy
requirements – uses less energy than a 100watt light bulb
All freezer
Annual Energy Usage: 735 kWh/$78 (Based
on 10.65 cents per kilowatt hour)
UL approved for US and Canada
Flip-up grille allows unit to be completely built
in and serviced from the front
Framed, overlay, flush inset and classic
stainless steel design options
Flush inset design installation option allows
unit to sit flush with surrounding cabinetry
Water filtration system
Evenly-distributed bright interior lighting
UL approved for US and Canada
Adjustable wire shelves
Star-K Kosher certified as Sabbath and
holiday-compliant
Energy Star qualified
Max ice feature produces ice 40% faster for a
24-hour period
Other Features
Automatic ice maker
Two, five and twelve-year residential warranty
- exclusions apply - see warranty terms
Frequently Asked Questions - Planning
How much do Sub-Zero/Wolf products cost?
Where can I purchase Sub-Zero and Wolf products?
Where can I find Sub-Zero/Wolf product specifications?
What is standard grille height that arrives with a built in product?
Can the door on my Sub-Zero stop at 90 degrees?
What is the difference between overlay and flush inset?
What is the temperature range of a Sub-Zero?
http://www.subzero.com/BuiltInRefrigeration/BI-36FFreezer
3/23/2011
Built-In Refrigeration
3
subzero.com/specs
Built-In Refrigeration. For the built-in line, Sub-Zero designers and engineers took a fresh look at everything, inside
and out. Exterior refinements include redesigned grilles and lower-profile hinges. Inside, new technology in food preservation makes the built-in line nothing short of revolutionary.
BUILT-IN MODELS
36"
36"
36"
(914)
(914)
(914)
84"
84"
(2134)
(2134)
BI-36R
BI-36RG
BI-36F
30"
30"
36"
36"
(762)
(762)
(914)
(914)
BI-30U
BI-30UG
BI-36U
36"
42"
42"
48"
48"
(914)
(1067)
(1067)
(1219)
(1219)
BI-36UG
84"
(2134)
BI-36S
BI-42S
BI-42SD
BI-48S
BI-48SD
KEY FEATURES
• Four distinct design approaches: framed, overlay,
flush inset and stainless steel.
• Handle options coordinate with handles of Wolf
cooking products.
• Dual refrigeration; two compressors preserve food’s
goodness in two sealed compartments.
• Energy efficient; many models are ENERGY
qualified.
STAR®
• Advanced water filtration and air purification systems.
• Crisper and deli drawers form a lower-temperature
zone for produce and meats.
• Flip-up grille provides easy access for quick routine
maintenance.
• All models are Star-K certified.
Built-In Refrigeration
6
Built-In Models
All Refrigerator / All Freezer Models
SPECIFICATIONS
OVERALL DIMENSIONS
Interior Capacity
R cu ft (L)
F cu ft (L)
36" (914)
24" (610)
ALL REFRIGERATOR / ALL FREEZER MODELS
BI-36R
BI-36RG
BI-36F
23.4 (663)
23.2 (657)
22.8 (646)
OVER-AND-UNDER MODELS
BI-30U
BI-30UG
BI-36U
BI-36UG
13.0 (368)
13.0 (368)
16.2 (459)
16.1 (456)
4.1 (116)
4.1 (116)
5.3 (150)
5.3 ( 150)
84"
(2134)
73 3/4"
SIDE-BY-SIDE MODELS
BI-36S
BI-42S
BI-42SD
BI-48S
BI-48SD
(1873)
12.2 (346)
16.1 (456)
16.0 (453)
18.8 (532)
18.7 (530)
Shipping Weight
8.0 (227)
8.0 (227)
8.1 (230)
9.5 (269)
9.7 (265)
lbs (kg)
ALL REFRIGERATOR / ALL FREEZER MODELS
BI-36R
BI-36RG
BI-36F
420 (191)
430 (195)
406 (184)
HEIGHT DIMENSIONS ± 1/2" (13)
4" (102)
23 7/8" (606)
OVER-AND-UNDER MODELS
BI-30U
BI-30UG
BI-36U
BI-36UG
462 (210)
476 (216)
515 (234)
529 (240)
23 7/8"
(606)
17"
(432)
SIDE-BY-SIDE MODELS
BI-36S
BI-42S
BI-42SD
BI-48S
BI-48SD
538 (244)
582 (264)
608 (276)
630 (286)
656 (298)
37 1/4"
(946)
2 3/8" (60)
MODELS BI-36R, BI-36RG AND BI-36F
Shipping weights and overall dimensions are based on
stainless steel models. For flush inset applications, add
1/2" (13) to door clearance dimensions.
Built-In Refrigeration
10
Built-In Models
IMPORTANT NOTE: If an 83" (2108) grille height is specified,
the opening height must be decreased by 7/8" (22). If an 88"
(2235) grille height is specified, the opening height increases
by 4" (102).
STANDARD INSTALLATION
TOP VIEW
24" (610)
OPENING
DEPTH
24" (610)
OPENING DEPTH
If two units are installed side by side, refer to pages 30–31 for
dual standard installations.
83 3/4"
A
(2127)
OPENING
HEIGHT
OPENING WIDTH
SIDE VIEW
Opening Width
FRONT VIEW
A
BI-36R, BI-36RG and BI-36F
35 1/2" (902)
BI-30U and BI-30UG
29 1/2" (746)
BI-36U and BI-36UG
35 1/2" (902)
BI-36S
35 1/2" (902)
BI-42S and BI-42SD
411/2" (1054)
BI-48S and BI-48SD
47 1/2" (1206)
Built-In Refrigeration
11
subzero.com/specs
Planning Information
ELECTRICAL REQUIREMENTS
PLUMBING REQUIREMENTS
For all built-in models, the electrical supply should be
located within the shaded area shown in the illustration.
Follow the National Electrical Code and local codes and
ordinances when installing the receptacle. A separate
circuit servicing only this appliance is required. A ground
fault circuit interrupter (GFCI) is not recommended and
may cause interruption of operation.
All built-in models with an automatic ice maker have a
water filtration system. The water supply line should be
located within the shaded area shown in the illustrations.
The water supply line should be connected to the house
supply with an easily accessible shut-off valve between
the supply and the unit. Do not use self-piercing valves.
A saddle valve kit is available through your authorized
Sub-Zero dealer. The water line must not interfere with
installation of the anti-tip brackets.
Electrical Requirements
Power Supply
115 V AC, 60 Hz
Circuit Breaker
15 amp
Receptacle
3-prong grounding-type
IMPORTANT NOTE: A reverse osmosis system can be
used provided there is constant water pressure of 35 psi
(2.4 bar) to 120 psi (8.3 bar) supplied to the unit at all times.
In this application, the water filtration system must be set
to bypass mode. This is achieved by removing the water
filter cartridge. Refer to the built-in installation guide
packed with the unit for detailed instructions.
FRONT VIEW
Plumbing Requirements
7"
(178)
E
6"
(152)
1/4"
Water Supply Line
Water Pressure
OD copper line
35–120 psi (2.4–8.3 bar)
Excess Water Line for Connection
36" (914)
75 1/2"
(1918)
FROM
FLOOR
BACK WALL
Location of electrical supply.
18" (457)
1/2"
(13)
6"
(152)
18" (457)
6"
(152)
3" (76)
FLOOR
FRONT VIEW
Location of water supply—
rear.
TOP VIEW
Location of water supply—
bottom.
Built-In Refrigeration
19
subzero.com/specs
Overlay Panels
The illustrations provide a cross section view of the threepanel assembly, showing placement of the trim and a rear
view of the three-panel assembly with critical dimensions,
standard for all built-in models.
IMPORTANT NOTE: When installing two units in a side-byside application, refer to pages 30–31 for dual standard
installations. Be aware that rough opening dimensions are
different for this application.
Do not exceed overlay panel dimensions, as this could
cause damage to panels and the Sub-Zero unit.
SPACER
PANEL
OVERLAY PANEL
Overlay grille panels for the panel grille match the design
of the overlay door panels. Dimensions for the grille panel
are listed in the overlay panel specifications on the following pages.
IMPORTANT NOTE: On glass door models, the edges of
the overlay, spacer and backer panels of the window
cut-out will need to be finished, as they will be exposed.
OVERLAY
PANEL
SPACER PANEL
BACKER PANEL
BACKER
PANEL
TRIM
5/16" (8) min
1/8"
(3)
3/4"
(19)
typical
.10" (3) 1/4" (6)
Panel assembly cross section. Panel assembly rear view.
Built-In Refrigeration
20
Overlay Panels
H
H
H
H
A
H
A
A
A
H
H
A
A
H
A
H
H
B
W
BI-36R / BI-36F
W
W
BI-30U / BI-36U
BI-36RG
Models BI-36R, BI-36RG and BI-36F
REFRIGERATOR / FREEZER
Overlay Panel
Spacer Panel
Backer Panel
GRILLE
Overlay Panel
Spacer Panel
Backer Panel
BI-36RG
H
36" (914)
35 1/8" (892)
35 3/4" (908)
69 3/4" (1772)
68 15/16" (1751)
69 9/16" (1767)
W
H
36" (914)
35 1/8" (892)
35 3/4" (908)
9 1/4" (235)*
8 5/16" (211)
8 15/16" (227)
W
H
25 1/2" (648)
54 1/8" (1375)
A
B
Cut-Out Location
5 1/4" (133)
10 3/8" (264)
REFRIGERATOR
Overlay Panel
Spacer Panel
Backer Panel
FREEZER
Overlay Panel
Spacer Panel
Backer Panel
GRILLE
Overlay Panel
Spacer Panel
Backer Panel
BI-36UG
Window Cut-Out
Models BI-30U and BI-30UG
Overlay Panel
Spacer Panel
Backer Panel
FREEZER
Overlay Panel
Spacer Panel
Backer Panel
GRILLE
Overlay Panel
Spacer Panel
Backer Panel
BI-30UG
Window Cut-Out
W
H
36" (914)
35 1/8" (892)
35 3/4" (908)
50 1/8" (1273)
49 5/16" (1253)
49 15/16" (1268)
W
H
36" (914)
35 1/8" (892)
35 3/4" (908)
19" (483)
18 1/16" (459)
18 11/16" (475)
W
H
36" (914)
35 1/8" (892)
35 3/4" (908)
9 1/4" (235)*
8 5/16" (211)
8 15/16" (227)
W
H
25 1/2" (648)
39 5/8" (1006)
A
W
H
30" (762)
29 1/8" (740)
29 3/4" (756)
50 1/8" (1273)
49 5/16" (1253)
49 15/16" (1268)
W
H
30" (762)
29 1/8" (740)
29 3/4" (756)
19" (483)
18 1/16" (459)
18 11/16" (475)
W
H
30" (762)
29 1/8" (740)
29 3/4" (756)
9 1/4" (235)*
8 5/16" (211)
8 15/16" (227)
W
H
19 1/2" (495)
39 5/8" (1006)
A
Cut-Out Location
BI-30UG / BI-36UG
Models BI-36U and BI-36UG
W
Window Cut-Out
REFRIGERATOR
W
5 1/4" (133)
Cut-Out Location
5 1/4" (133)
*Panel height may be increased by 1/2" (13) to hide upper main
frame. For more information, refer to the built-in panel configurator at subzero.com/trade/panels.
Grille panel dimensions listed are for a standard 84" (2134)
finished height. For an 83" (2108) finished height, subtract
1" (25) from grille panel height dimensions. For an 88" (2235)
finished height, add 4" (102) to height dimensions. An 83"
(2108) or 88" (2235) panel grille must be ordered to accept an
83" (2108) or 88" (2235) custom panel.
Built-In Refrigeration
29
subzero.com/specs
Side Panels
Side panels can be used with every design application.
When planning for side panels with the installation of a
built-in model, you need to be aware of the space configuration to achieve a pleasing fit. Depending on the exact
panel you are using with your unit, the height of the panel
may vary.
IMPORTANT NOTE: The use of side panels may change
the width of your rough opening.
The side panel will need to be a minimum of 24" (610) deep
and 1/2" (13) thick. Refer to the illustrations below for side
panel dimensions. Routing will be necessary so that the
side panel fits flush against the side of the unit.
24" (610)
FRONT
OF SIDE
PANEL
1" (25)
1 7/8" (48)
1/8" (3)
1/2" (13)
ROUT TO 1/8" (3)
1 7/8"(48)
84"
1" (25)
MAIN
FRAME
(2134)
Routing detail.
4 1/4" (108)
ROUT TO
3/16" (5)
(OVER-AND-UNDER
MODELS)
5 3/4"
(146)
20 1/2"
(521)
4" (102)
OPTIONAL
TOE KICK
CUT-OUT
2 5/8"
(67)
Side panel dimensions.
SIDE PANEL
ROUTING
IMPORTANT NOTE: If you have a model BI-30U, BI-30UG,
BI-36U or BI-36UG, extra routing will be necessary to
prevent the panel from hitting the refrigerator lower hinge
plate.
When installing a built-in unit with a custom side panel, an
accessory kit is required. Stainless steel and white enamel
side panels are also available through your authorized
Sub-Zero dealer.
Built-In Refrigeration
31
subzero.com/specs
Dual Installation
STANDARD INSTALLATION
TOP VIEW
24" (610)
OPENING
DEPTH
24" (610)
OPENING DEPTH
83 3/4"
A
(2127)
OPENING
HEIGHT
OPENING WIDTH
SIDE VIEW
Opening Widths
FRONT VIEW
A
Two 30" (762) Models
59 3/4" (1518)
30" (762) and 36" (914) Models
65 3/4" (1670)
Two 36" (914) Models
71 3/4" (1822)
IMPORTANT NOTE: A dual installation kit will be required
for this installation.
Built-In Refrigeration
36
Dual Installation Kit
INSTALLATION WITH DUAL WIDE GRILLE
INSTALLATION WITH INDIVIDUAL GRILLES
This kit will replace the existing grilles that ship with the
units and span the entire width of both units. The kit
includes a 1/4" (6) center trim strip (required for proper
installation of the dual wide grille), heater, dual kickplate
and mounting hardware. Dual wide grilles are available for
all built-in models and design applications. The overlay
dual installation kit with grille will accept overlay and dual
flush inset panels. For dual wide grille panel dimensions,
refer to the panel specifications below for your design
application. Grille panel dimensions listed are for a
standard 84" (2134) finished height.
This kit is available for those who choose to utilize the
individual grilles that ship with each unit. The kit includes a
1/4" (6) filler strip (which fills the reveal between the units
and grilles), heater and mounting hardware. This dual
installation kit is not required if a custom filler strip is used.
The filler strip should be a minimum of 2" (51) wide. Refer
to the full-scale template on page 42 for more information.
Dual Wide Grille—Overlay
TWO 30" (762) MODELS
Overlay Panel
Spacer Panel
Backer Panel
30" (762) AND 36" (914) MODELS
Overlay Panel
Spacer Panel
Backer Panel
TWO 36" (914) MODELS
Overlay Panel
Spacer Panel
Backer Panel
W
H
60 1/4" (1530)
59 3/8" (1508)
60" (1524)
9 1/4" (235)
8 5/16" (211)
8 15/16" (227)
W
H
66 1/4" (1683)
65 3/8" (1661)
66" (1676)
9 1/4" (235)
8 5/16" (211)
8 15/16" (227)
W
H
72 1/4" (1835)
71 3/8" (1813)
72" (1829)
9 1/4" (235)
8 5/16" (211)
8 15/16" (227)
Dual Wide Grille—Flush Inset
TWO 30" (762) MODELS
Flush Inset Panel
Spacer Panel
Backer Panel
30" (762) AND 36" (914) MODELS
Flush Inset Panel
Spacer Panel
Backer Panel
TWO 36" (914) MODELS
Flush Inset Panel
Spacer Panel
Backer Panel
W
H
61 1/4" (1556)
59 3/8" (1508)
60" (1524)
9 1/4" (235)
8 5/16" (211)
8 15/16" (227)
W
H
67 1/4" (1708)
65 3/8" (1661)
66" (1676)
9 1/4" (235)
8 5/16" (211)
8 15/16" (227)
W
H
73 1/4" (1861)
71 3/8" (1813)
72" (1829)
9 1/4" (235)
8 5/16" (211)
8 15/16" (227)
Built-In Refrigeration
39
subzero.com/specs
Overlay Panel Thickness
FULL-SCALE TEMPLATE
Overlay and flush inset panels must be a minimum of 5/8"
(16) thick to support mounting the handle. Panel thickness
does not include backer and spacer panel. Mount handle
close to the opening edge of the door.
DEPTH OF TUBULAR
AND PRO HANDLES
1"
2"
3"
(25)
(51)
(76)
11/4" (32) PANEL
1" (25) PANEL
3/4" (19) PANEL
.10" (3) SPACER PANEL
1/4" (6) BACKER PANEL
DOOR
PANEL THICKNESS
OVERLAY AND FLUSH INSET APPLICATIONS
Built-In Refrigeration
40
Overlay Application
FULL-SCALE TEMPLATE
237/8" (606)
TO REAR OF UNIT
OVERALL WIDTH OF UNIT
0" (0)
1/4" (6)
1/2" (13)
3/4" (19)
1" (25)
11/4" (32)
11/2" (38)
13/4" (44)
2" (51)
21/4" (57)
21/2" (63)
23/4" (70)
3" (76)
31/4" (83)
31/2" (89)
1" (25) THICK
PANEL
3/4" (19) THICK
OVERLAY PANEL
(TYPICAL)
1/4" (6) BACKER
PANEL
0"
1" (25)
DOOR OPENING 90°
TOP VIEW
SCALE
Built-In Refrigeration
41
subzero.com/specs
Flush Inset Application
FULL-SCALE TEMPLATE
24" (610)
TO BACK WALL
For panels thicker than 3/4" (19),
a 90° door stop may be required
to prevent interference with
adjacent cabinets.
1 1/4" (32)
2 3/16" (56)
ASSUMES
3/4" (19)
FLUSH INSET
PANEL
THICKNESS
1" (25) THICK
PANEL
3/4" (19) THICK
FLUSH INSET PANEL
(TYPICAL)
1/4" (6) BACKER
PANEL
0"
1" (25)
DOOR OPENING 110°
TOP VIEW
SCALE
Built-In Refrigeration
42
FILLER STRIP
11/4" (32)
APPROX PROFILE OF
STAINLESS STEEL WRAPPED
DOOR AND HANDLE
DOOR
OPEN 110°
Dual Installation—Standard
FULL-SCALE TEMPLATE
Typical framed, overlay or stainless steel
dual installation with filler strip at
maximum 110° door opening. Depending
on panel thickness, a 90° door stop may
be required.
0"
1" (25)
STANDARD
TOP VIEW
SCALE
DOOR
CLOSED
(G2472SCVI)
Product and Cut-out Dimensions
G2000 Series Dishwashers
Fully Integrated Models
cal
lectri
E
&
r
Wate nection
Con tion
Loca
33 1/4" - 35 3/4"
22 7/1
6" mi
n.
C
8"
23 5/
16"
23 9/
33 1/4" - 35 3/4"
27 1/8" - 31 7/8"
22 7/
16"
D
W
E
Location Codes
C - Cutout (2 1/4" x 4") for water, drain
and electric pass-through. Adjust
according to water and drain location.
D - 5 foot flexible drain hose connects
lower center rear.
E - 5 foot - 120 Volt - 15 Amp 3-wire
molded plug power supply connects
lower left rear.
W - 5 foot "Double Waterproof" flexible
water intake hose connects lower
center rear.
Notes
• All installations must be done in
accordance with local codes
1 3/8"
5 1/8
"
- 8 5/8
"
1 3/8
"
4 1/2
"
NOTE: Drawing is not to scale.
SPECIFICATION SHEETS 010106
Front Panel Information
G2000 Fully Integrated Models
Custom Panel Installations
Some Miele dishwashers do not come equipped with a front panel. These dishwashers are designed to accept a
custom door panel supplied by the cabinet maker. Miele has a unique panel integration system which allows the
dishwasher to align with the surrounding cabinets.
Panel size is determined in the following manner:
Width:
23 7/16" in all cases
Thickness:
3/4" in all cases
Panel Height = HTC - TKH
HTC = Height to the underside of countertop
TKH = Toe-kick height
HTC
Miele
Fully
Integrated
Dishwasher
Panel Height
Height: Determined using the following calculation:
Note:
TKH
Control panel is along the top edge of the unit. It
is not visible when the unit is closed.
A handle MUST be located on the front panel in
order to open the unit
Maximum panel height:
Minimum panel height:
31 7/8"
27 3/16"
Maximum panel weight:
21 Pounds
GFVi Installations
Miele offers pre-fabricated stainless steel panels for all fully integrated units. These panels are designed for various
toe-kick heights and offer a choice of handle options.
NOTE: Drawing is not to scale.
SPECIFICATION SHEETS 010106
Installation Information
G2000 Dishwashers
Height to underside of countertop
1
1
3
33 /4 33 /2 33 /4
34
34 1/4 34 1/2 34 3/4
35
35 1/4 35 1/2 35 3/4
1 1/2
2
2 1/2
3
3 1/2
Toekick height
4
4 1/2
5
5 1/2
6
6 1/2
7
7 1/2
8
8 1/2
9
Acceptable combinations
Typical American installation
Water Connection
Connect via 3/4" hose bib
Option A
12345678
12345678
12345678
12345678
12345678
12345678
12345678
12345678
12345678
12345678
12345678
12345678
12345678
12345678
12345678
12345678
12345678
12345678
12345678
12345678
12345678
12345678
12345678
12345678
Connect via 3/4" adapter with 3/8" compression fitting
Dimension (B)
Dimension (A)
Option B
Waterproof System Box Dimensions
Width (A):
Height (B):
Thickness:
3 1/4"
3 1/2"
1 3/4"
Cutout:
2 1/4" x 4"
NOTE: Waterproof system box should ONLY be
installed in a vertical manner to prevent build-up of
water within box and possible leakage.
Waterproof System
Temperature:
Pressure:
Drain hose:
110° - 130° F
4.5 - 145 PSI
7/8" ID - 5 feet long
NOTE: Drawing is not to scale.
SPECIFICATION SHEETS 010106
(CVA4062SS)
Product and Cut-out Dimensions
Built-in Coffee System
22 1/1
6" mi
n.
O
/32"
21 29
/8"
17 7/16"
23 3
32" /
1
3
21
OTES
See N
E
17 15/16"
17 1/ 2" - 17 3/ 4"
CVA4062
18 5/
16"
23 7/
16"
25/32
"
Location Codes
EO-
5 foot - 120 Volt - 15 Amp 3-wire
molded plug connects left upper rear.
Standard NEMA 5-15 outlet.
Location must be accessible.
Notes
• Width with optional EBA Trim Kits:
EBA5470MC
26" - 26 1/4"
EBA5476MC
28 3/8" - 28 1/2"
• All installations must be done in
accordance with local codes.
NOTE: Drawing is not to scale.
SPECIFICATION SHEETS 081110 OJS
Wolf Microwave: Wolf Microwave
Page 1 of 2
Microwave
Overview
What sort of microwave oven can you expect from a cooking company? This is the only
microwave that deserves the Wolf name. It’s fast – 1200 watts on high. Roomy – a full
2.0 cu. ft. (56 L) and it is a true cooking instrument with a vast range of advanced
features including sensor cooking controlled from an interactive display.
Model Options
MW24
http://www.wolfappliance.com/Microwaves/MW24Microwave
3/23/2011
Wolf Microwave: Wolf Microwave
Page 2 of 2
Features
Technical Features
Design Features
Shipping Weight: 50 lbs
Built-in or free-standing microwave oven with
2.0 cu ft capacity and 1200 watts of power
Overall Width with Trim: 29 7/8"
Overall Height with Trim: 18 1/4"
Removable 16" turntable and turntable support
Classic stainless steel trim finish
Sensor cooking
Easy-to-operate control panel and
programmable power options
Other Features
Interactive display—99 minutes, 99 seconds
Warming feature
Multi-language—English, French and Spanish
Menu label and recipe guide
Safety door latches—oven will not operate
unless the door is securely closed
Oven light comes on when oven is operating
or door is open
Tight door seals with one-touch door open pad
Frequently Asked Questions - Planning
Where can I purchase Sub-Zero and Wolf products?
How much do Sub-Zero/Wolf products cost?
Where can I find Sub-Zero/Wolf product specifications?
What sets the Wolf microwave apart from other microwaves?
What is sensor cooking?
What accessories are available for my Wolf microwave?
What kind of electrical lines do I need to install this microwave?
Options & Accessories
27" and 30" Stainless Steel Trim Options
© 2011 Sub-Zero, Inc. and Wolf Appliance, Inc. All rights reserved
Follow us on
http://www.wolfappliance.com/Microwaves/MW24Microwave
3/23/2011
Wolf Microwave Ovens
16
Microwave Ovens. As true cooking instruments, Wolf microwave ovens have features that make fast meals better
meals. Wolf offers both a roomy, powerful standard microwave and a convection model that can microwave, broil and
cook in three convection modes. Stainless steel trim kits are available through your authorized Wolf dealer to match
L series and E series ovens. Drawer microwave models can be conveniently located undercounter, in a corner or below a
Wolf E series oven. They are designed to match the trim style of E series ovens and can be installed in a standard or flush
inset application.
DRAWER MICROWAVES
MWD24-2U/S
MWD30-2U/S
MWD30-2F/S
24" (610) UNFRAMED
30" (762) UNFRAMED
30" (762) FRAMED
CONVECTION MICROWAVE
MWC24
MWC24
L SERIES TRIM
E SERIES TRIM
MODEL MWD30-2U/S
STANDARD MICROWAVE
KEY FEATURES
• Large-capacity interior.
• Built-in or freestanding option for design versatility
(except drawer models).
• Sensor cooking to monitor and adjust settings.
• Warming feature for gentle heating.
MW24
MW24
L SERIES TRIM
E SERIES TRIM
Wolf Microwave Ovens
18
Convection Microwave
L SERIES TRIM
E SERIES TRIM
24 3/4" (629)
FREESTANDING WIDTH
24 3/4" (629)
FREESTANDING WIDTH
19" (483)
14 7/8"
19 7/8"
14 7/8"
19 7/8"
(378)
FREESTANDING
HEIGHT
(505)
TRIM
HEIGHT
19" (483)
(378)
FREESTANDING
HEIGHT
(505)
TRIM
HEIGHT
26 7/8" (683) FOR 27" TRIM
29 7/8" (759) FOR 30" TRIM
29 7/8" (759) FOR 30" TRIM
35 5/8" (905) FOR 36" TRIM
Standard Microwave
E SERIES TRIM
L SERIES TRIM
24" (610)
FREESTANDING WIDTH
18 1/4"
(464)
TRIM
HEIGHT
29 7/8" (759)
30" (762) TRIM WIDTH
24" (610)
FREESTANDING WIDTH
19" (483)
13 3/8"
19" (483)
18 1/4"
(340)
FREESTANDING
HEIGHT
(464)
TRIM
HEIGHT
26 7/8" (683) FOR 27" TRIM
29 7/8" (759) FOR 30" TRIM
13 3/8"
(340)
FREESTANDING
HEIGHT
Wolf Microwave Ovens
19
wolfappliance.com/specs
Planning Information
Wolf drawer microwave ovens can be installed in a
standard or flush inset application. A flush inset installation requires the microwave to be recessed into the
cabinet. Refer to the illustrations on the following pages
for minimum cabinet dimensions for your specific installation. The cabinet must be able to support 125 lbs (57 kg).
In standard applications, the drawer microwave trim will
overlap stiles and rails and will match the overlaps of
E series ovens. Refer to the chart for overlap dimensions.
Wolf convection and standard microwave ovens can be
used freestanding or built-in with optional trim kit available
through your authorized Wolf dealer. For local dealer information, visit the find a showroom section of our website,
wolfappliance.com.
In a freestanding application, allow 2" (51) of airflow space
on the top, rear and both sides. Built-in opening dimensions accommodate air flow space.
In built-in applications, convection and standard
microwaves with trim kit will overlap stiles and rails and
will match the overlaps of L series and E series ovens.
Refer to the chart for overlap dimensions.
Microwave Trim Overlap
DRAWER MICROWAVE
Top Overlap
Bottom Overlap
Side Overlap
27" (686) E SERIES TRIM
Top Overlap
Bottom Overlap
Side Overlap
30" (762) L AND E SERIES TRIM
Top Overlap
Bottom Overlap
Side Overlap
36" (914) L SERIES TRIM
Top Overlap
Bottom Overlap
Side Overlap
24" MODEL
3/8"
(10)
1/8" (3)
1" (25)
CONVECTION
1/4"
(6)
3/4" (19)
13/16" (21)
CONVECTION
1/4"
30" MODELS
3/8"
(10)
(3)
3/4" (19)
1/8"
STANDARD
9/16"
11/16"
(14)
(17)
13/16" (21)
STANDARD
7/16"
13/16"
(6)
13/16" (21)
1 3/16" (30)
(11)
(21)
1 3/16" (30)
CONVECTION
STANDARD
3/16"
(5)
13/16" (21)
1 1/4" (32)
NA
NA
NA
Interior Specifications
INTERIOR CAPACITY
CU FT (L)
Drawer Microwave
Convection Microwave
Standard Microwave
1.0 (28)
1.5 (42)
2.0 (57)
INTERIOR DIMENSIONS
Drawer Microwave
Convection Microwave
Standard Microwave
W
H
D
17 3/8" (441) 5 7/8" (149) 17 1/8" (435)
16 1/8" (410) 9 5/8" (244) 16 1/8" (410)
17 3/8" (441) 10 1/2" (267) 18 5/8" (473)
ELECTRICAL REQUIREMENTS
Wolf microwave ovens require a separate, grounded
120 V AC, 60 Hz power supply. The service should have its
own 15 amp circuit breaker. A grounded 3-prong receptacle should be located within reach of the power cord.
Wolf Microwave Ovens
22
Convection Microwave
BUILT-IN INSTALLATION WITH TRIM
OPENING WIDTH
18 7/8" (479)
OPENING
HEIGHT
36" (914)
FLOOR TO
COUNTERTOP
251/4" (641) FOR 27" TRIM
271/2" (699) FOR 30" TRIM
33 3/8" (854) FOR 36" TRIM
E
20 1/8" (511) min
OPENING DEPTH
SIDE VIEW
FRONT VIEW
Dashed line represents profile of unit.
Standard Microwave
BUILT-IN INSTALLATION WITH TRIM
OPENING WIDTH
251/4" (641) FOR 27" TRIM
271/2" (699) FOR 30" TRIM
17" (432)
OPENING
HEIGHT
36" (914)
FLOOR TO
COUNTERTOP
E
20" (508) min
OPENING DEPTH
SIDE VIEW
Dashed line represents profile of unit.
FRONT VIEW
Sub-Zero UC-15I Ice Maker: Sub-Zero Undercounter Refrigeration
Page 1 of 3
UC-15I Ice Maker
Overview
Sub-Zero undercounter units simplify life at home by bringing refrigeration anywhere it’s
needed. In the kitchen, a high-volume ice machine is a must for entertaining. The
Model UC-15I ice maker has a storage capacity of up to 25 pounds of ice.
Model Options
UC-15I(P)
UC-15I(P)O
http://www.subzero.com/UndercounterRefrigeration/UC-15I-Ice-Maker
3/24/2011
Sub-Zero UC-15I Ice Maker: Sub-Zero Undercounter Refrigeration
Page 2 of 3
Features
Design Features
Other Features
Can be fitted with a custom overlay or
stainless steel door front panel.
LED Bin Light
Classic stainless steel door panel with tubular
or pro handles available as sales accessories.
Delay Start
Clean Cycle
24" depth design for a complete integrated
look.
Water Filter
Solid core door with gasket and door closer.
Exceptional Warranty
Ice Scoop
Models UC-15I and UC-15IO have a gravity
drain, while Models UC-15IP and UC-15IPO
have a built-in pump to allow greater
installation flexibility.
Automatic ice machine provides high-quality,
clear ice.
Ice storage bin capacity of up to 25 lbs.
Automatic defrost.
Reversible door swing.
Front venting with removable kickplate allows
unit to be serviced from the front.
UL approved for US and Canada.
Frequently Asked Questions - Planning
Where can I find Sub-Zero/Wolf product specifications?
Can the door swing be reversed on the UC-15I ice maker?
How much ice will the UC-15I ice maker hold?
Sub-Zero UC-15I Ice Maker
Filter
Options & Accessories
Classic stainless steel door front panels with tubular or pro handles
Stainless steel tubular or pro handles
http://www.subzero.com/UndercounterRefrigeration/UC-15I-Ice-Maker
3/24/2011
Undercounter Refrigeration
85
subzero.com/specs
Undercounter Refrigeration. Sub-Zero undercounter refrigeration is a helpful addition to a master suite, bar, home
office or media room. In the kitchen, a high-volume ice machine is a must for entertaining. The design flexibility of these
compact yet roomy units makes them all the more welcome in any room or outdoor kitchen. They’re ready to be fitted with
a custom cabinet panel or can be ordered with a stainless steel panel.
UNDERCOUNTER MODELS
23 7/8"
23 7/8"
(606)
23 7/8"
23 7/8"
(606)
34"
34"
34"
34"
(864)
(864)
(864)
(864)
UC-24R
UC-24BG
UC-24C(I)
15"
33 5/8"
(854)
UC-24RO
15"
(381)
(606)
(606)
(381)
33 5/8"
(854)
UC-15I(P)
UC-15I(P)O
KEY FEATURES
• Overlay and stainless steel design applications.
• Handle options coordinate with handles of Wolf
cooking products.
• Models UC-24RO and UC-15I(P)O are UL approved
for outdoor use.
• Energy efficient; many models are ENERGY STAR®
qualified.
• All models are Star-K certified.
Undercounter Refrigeration
86
Overall Dimensions
UNDERCOUNTER MODELS
23 7/8" (606)
14 3/4" (375)
24" (610)
23" (584)
34"
33 5/8"
(864)
(854)
4" (102)
4" (102)
18"
(457)
25 3/8"
(645)
6"
(152)
2 3/8" (60)
MODELS UC-24R, UC-24BG, UC-24C(I) AND UC-24RO
MODELS UC-15I(P) and UC-15I(P)O
Model UC-15I overall dimensions do not include panel or
handle.
Specifications
Capacity / Weight
INTERIOR CAPACITY
UC-24R, UC-24BG and UC-24RO
UC-24C(I)
R CU FT (L)
5.7 (161)
3.6 (102)
ICE STORAGE CAPACITY
UC-15I(P) and UC-15I(P)O
F CU FT (L)
1.1 (31)
LBS (KG)
26 (12)
SHIPPING WEIGHT
LBS (KG)
UC-24R, UC-24BG, UC-24C(I) and UC-24RO
UC-15I(P) and UC-15I(P)O
130 (59)
100 (45)
Undercounter Refrigeration
87
subzero.com/specs
Opening Dimensions
Planning Information
UNDERCOUNTER MODELS
ELECTRICAL REQUIREMENTS
For ice machine models, it is recommended that electrical
supply be placed in an adjacent cabinet. For all other
undercounter models, locate the electrical supply within
the shaded area shown in the illustration below. Follow
the National Electrical Code and local codes and ordinances when installing the receptacle. A separate circuit,
servicing only this appliance, is required.
TOP VIEW
24" (610)
OPENING
DEPTH
IMPORTANT NOTE: Models UC-24RO and UC-15I(P)O are
designed and safe for use in outdoor applications. When
installed outdoors, a ground fault circuit interrupter (GFCI)
is required to reduce the risk of electrical shock. A GFCI is
not recommended for use with other undercounter models
and may cause interruption of operation.
24" (610)
OPENING DEPTH
341/2" (876)
A
OPENING
HEIGHT
OPENING WIDTH
Electrical Requirements
Power Supply
115 V AC, 60 Hz
Circuit Breaker
15 amp
Receptacle
SIDE VIEW
Opening Width
UC-24R, UC-24BG, UC-24C(I) and UC-24RO
UC-15I(P) and UC-15I(P)O
3-prong grounding-type
FRONT VIEW
A
24" (610)
15 1/4" (387)
LEFT SIDE
OF OPENING
2" (51)
15 1/2"
(394)
3" (76)
FRONT VIEW
Location of electrical supply.
Undercounter Refrigeration
88
Planning Information
Drain Pump
PLUMBING REQUIREMENTS
ICE MACHINE MODELS
For model UC-24C(I) and ice machine models, the water
supply line should be located within the shaded area
shown in the illustrations below. The water supply line
should be connected to the house supply with an easily
accessible shut-off valve between the supply and the unit.
Do not use self-piercing valves. A saddle valve kit is available through your authorized Sub-Zero dealer.
Undercounter ice machine models can be ordered with or
without a pump. Models without a drain pump will drain
water from the unit by gravity. A drain must be installed.
The ice maker operates on constant water pressure
between 20 psi (1.4 bar) and 100 psi (6.9 bar).
IMPORTANT NOTE: In some cases, a reverse osmosis
water filter system may not be able to maintain the
minimum pressure consistently.
Plumbing Requirements
1/4"
Water Supply Line
Water Pressure
OD copper line
20–100 psi (1.4–6.9 bar)
Excess Water Line for Connection
SHADED AREA
EXTENDS 1/2" (13)
FROM BACK WALL
26" (660) min
8"
1/2"
(13)
(203)
LOCATION OF
WATER LINE
2" (51)
15 1/2"
(394)
3" (76)
FRONT VIEW
Model UC-24C(I).
TOP VIEW
Ice machine models.
The drain and inlet water tubes must be plumbed before
connecting to the ice machine. For the gravity drain, all
horizontal runs of drain lines must have a 1/4" (6) per 12"
(305) fall. An air gap will likely be required between the unit
and drain receptacle. A stand pipe with a trap below it
would be acceptable for the drain receptacle.
IMPORTANT NOTE: Poor drainage will cause excessive ice
melting in the ice bin.
Undercounter Refrigeration
89
subzero.com/specs
Overlay Panel
Door Clearance
MODELS UC-24R, UC-24C(I) AND UC-15I(P)
MODELS UC-24R, UC-24BG AND UC-24C(I)
The overlay design allows for a decorative panel to cover
the door trim for a seamless appearance that will complement surrounding cabinetry. You may also choose to
match the handle hardware of surrounding cabinetry.
Refer to the charts for panel specifications.
Undercounter models can be installed flush with surrounding cabinetry. Depending on the thickness of the overlay
door panel, it may be necessary to install the unit so that it
extends 1/4" (6) beyond the front surface of surrounding
cabinetry. This will prevent interference between the door
panel and adjoining cabinetry at the maximum 145° door
swing. Refer to the full-scale template on page 83 of the
wine storage section.
MODEL UC-24BG
For model UC-24BG, the overlay door panel will consist of
only a frame and will affix directly to the door with screws
through a series of predrilled holes.
The glass area of the door is designed to be exposed to
air circulation. Decorative overlays on the glass should be
kept to a minimum. Do not install a solid panel on the
glass door unit: this may cause moisture to form behind
the panel. Refer to the charts for panel specifications.
IMPORTANT NOTE: The width of rails and stiles can be
increased but should not exceed cabinet manufacturers’
standard widths or the overall panel dimensions. The back
sides of rails and stiles that will be visible through the
glass door will need to be finished along with the inside
edges of the frame.
Panel Dimensions
UC-24R AND UC-24C(I)
Overlay Panel
UC-24BG
Overlay Panel
Rails and Stiles (min)
UC-15I(P)
Overlay Panel
W
H
23 3/4" (603)
30 1/16" (764)
W
H
23 3/4" (603)
2 1/4" (57)
30 1/16" (764)
W
H
15" (381)
30 3/8" (772)
Panel Requirements
MAX PANEL WEIGHT
UC-24R and UC-24C(I)
UC-24BG
UC-15I(P)
20 lbs (9 kg)
10 lbs (5 kg)
15 lbs (7 kg)
MIN PANEL THICKNESS
Overlay Panels
5/8"
(16)
KitchenAid® Fully Integrated Console Built-In Architect® Series II
KUCS03FTPA
Panel Ready
OTHER AVAILABLE COLORS
Stainless Steel
Model: KUCS03FTSS
DIMENSIONS
KEY FEATURES
Height
33 7/8 Inches
Depth
24 Inches
Width
15 Inches
Dimensions shown are for planning purposes
only. For complete information, see Installation
Instructions packaged with product.
ELECTRICAL
15 or 20 Amps. 60 Hz. 115 V.
Before purchasing this appliance, read
important information about its estimated
annual energy consumption or energy
efficiency rating that is available from your
dealer.
Solid Pack(TM) Control produces a 5:1 compaction ratio - reducing trash by up to 80%
Odor management system includes a charcoal filter, odor-control fan, and air freshener to help trap and
remove odors
Whisper Quiet® Plus Sound Insulation System helps minimize operating noise so it doesn't interrupt your
lifestyle
Side release bin allows you to empty the bin from the side, reducing strain and spills
Bag retainer buttons hold the compactor bag in place
All-welded steel construction with zinc-coated interior prevents misalignment and helps minimize vibration
Drawer opener pedal allows you to start or open the compactor when your hands are full
®
Compactor
PRODUCT MODEL NUMBERS
KUCS02FR
KUCV02FR
OVERALL DIMENSIONS
KUCS03FS
KUCS03FT
Electrical: 115-volt, 60-Hz, AC-only, 15- or
20-amp grounded circuit is required. A separate
circuit is recommended.
341⁄8"
(86.7 cm)
15"
(38.1 cm)
CABINET OPENING DIMENSIONS
24"
(61 cm)
CLEARANCE DIMENSIONS
3" min.
(7.6 cm)
1. Leave 6" (15.2 cm) of clearance
space to the right side of the
compactor in order to remove the
compactor bags.
2. Leave 23" (58.4 cm) of clearance in
front of the compactor in order to
fully open or remove the compactor
drawer.
A
34 " min.
(87 cm)
24" min.
(61 cm)
18" min.
(45.7 cm)
15 " min.
(38.7 cm)
1. Grounded electrical outlet
must be a minimum of 3"
(7.6 cm) away from
surrounding cabinets or
nearby walls as shown. It
can be placed either to the
left or the right side of the
product.
B
A
CUSTOM PANELS
Without Trim Kit
29 ³⁄₈"
(74.6 cm)
15"
(38.1 cm)
Panel should be a minimum of
1/2" (13 mm) thick.
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Ref. 9872215
05-04-07
Sub-Zero 700BR Refrigerator Drawers: Sub-Zero Integrated Refrigeration
Page 1 of 3
700BR Refrigerator Drawers
Overview
The Sub-Zero 700BR Refrigerator Drawers offer you nearly infinite possibilities. Two
drawers give you over five cubic feet of storage that you can integrate into any room in
your home.
Model Options
700BR
http://www.subzero.com/IntegratedRefrigeration/700BRDrawers
3/23/2011
Sub-Zero 700BR Refrigerator Drawers: Sub-Zero Integrated Refrigeration
Page 2 of 3
Features
Technical Features
Design Features
Meets strict Department of Energy
requirements
Base unit with refrigerator storage drawers
UL approved for US and Canada
Refrigerator Capacity: 5.3 cu ft (150 L)
Electrical Requirements: 115 V AC, 60 Hz, 15amp circuit
Integrated design for "point-of-use
refrigeration" anywhere in the home
Electronic controls are up front and easy to
use
Flat to the ceiling bright lighting in drawers
Annual Energy Usage: 253 kWh/$27 (Based
on 10.65 cents per kilowatt hour)
Alarm will let you know with an audible
beeping if a drawer is left open
Shipping Weight: 190 lbs (86 kg)
Each storage drawer has a removable divider
Star-K Kosher certified as Sabbath and
holiday-compliant
Removable crisper cover with a clear view
window
Other Features
Two, five and twelve-year residential warranty
- exclusions apply - see warranty terms
Frequently Asked Questions - Planning
How much do Sub-Zero/Wolf products cost?
Where can I purchase Sub-Zero and Wolf products?
Where can I find Sub-Zero/Wolf product specifications?
What is the temperature range of a Sub-Zero?
Options & Accessories
Drawer front panels with tubular or pro handles
Dual installation kit
Dozen egg container with lid
http://www.subzero.com/IntegratedRefrigeration/700BRDrawers
3/23/2011
Integrated Refrigeration
51
subzero.com/specs
Integrated Refrigeration. With custom front panels and hardware, Sub-Zero invented integrated columns, tall and
drawer models that disappear into the decor. Integrated units fit flush with other cabinets, making integrated refrigeration
as practical and beautiful in the master suite, bar or theatre room as in the kitchen.
INTEGRATED MODELS
27"
27"
(686)
(686)
81"
81"
(2057)
(2057)
IC-27R
27"
27"
27"
(686)
(686)
(686)
80"
80"
80"
(2032)
(2032)
(2032)
IC-27FI
700TR
36"
36"
36"
(914)
(914)
(914)
700TFI
700TCI
80"
80"
80"
27"
27"
27"
(2032)
(2032)
(2032)
(686)
(686)
(686)
736TR
736TFI
736TCI
341/2"
341/2"
341/2"
(876)
(876)
(876)
700BR
700BF(I)
700BC(I)
KEY FEATURES
• Custom front panels and hardware allow for infinite
design options.
• Energy efficient; many models are ENERGY STAR®
qualified.
• Point-of-use refrigeration that can be placed anywhere
• Drawer models are Star-K certified—column and tall
models are Star-K compliant with harness kit.
in the home.
• Dual refrigeration; two compressors preserve food’s
goodness in self-contained compartments.
Integrated Refrigeration
54
Overall Dimensions
Capacity and Weight
DRAWER MODELS
Interior Capacity
R cu ft (L)
F cu ft (L)
COLUMN MODELS
27" (686)
3/8"
(10)
24" (610)
IC-27R
IC-27FI
16.2 (459)
16.3 (462)
27" (686) TALL MODELS
1/2"
(13)
700TR
700TFI
700TCI
13 1/4"
(337)
34 1/2"
15.5 (439)
10.2 (289)
15.3 (433)
5.1 (144)
(876)
36" (914) TALL MODELS
10 1/4"
(260)
736TR
736TFI
736TCI
20 3/8"
(518)
9 3/4" (248)
HEIGHT DIMENSIONS ± 1/2" (13)
4"
(102)
20.9 (592)
13.3 (377)
27" (686) DRAWER MODELS
700BR
700BF(I)
700BC(I)
5.3 (150)
2.9 (82)
Shipping Weight
24"
(610)
(495)
25 7/8" (657)
DIMENSIONS WILL VARY WITH PANEL THICKNESS
MODELS 700BR, 700BF(I) AND 700BC(I)
5.1 (144)
2.1 (59)
lbs (kg)
IC-27R, IC-27FI, 700TR, 700TFI and 700TCI
360 (163)
736TR, 736TFI and 736TCI
480 (218)
700BR, 700BF(I) and 700BC(I)
191/2"
21.5 (609)
7.1 (201)
190 (86)
Integrated Refrigeration
55
subzero.com/specs
Opening Dimensions
IMPORTANT NOTE: The depth of each integrated model is
24" (610) from the front of the unit to its back. Your design
may necessitate moving the unit back or cabinets forward to
achieve a flush fit. This will require a minimum rough opening
depth of 25" (635).
INTEGRATED MODELS
TOP VIEW
25" (635)
OPENING
DEPTH
25" (635)
OPENING DEPTH
SIDE VIEW
Opening Dimensions
B
A
OPENING
HEIGHT
OPENING WIDTH
FRONT VIEW
A
B
IC-27R and IC-27FI
27" (686)
81" (2057)
700TR, 700TFI, 700TCI
27" (686)
80" (2032)
736TR, 736TFI, 736TCI
36" (914)
80" (2032)
700BR, 700BF(I), 700BC(I)
27" (686)
34 1/2" (876)
Integrated Refrigeration
56
Electrical Requirements
The electrical supply should be located within the shaded
area shown in the illustrations. Follow the National
Electrical Code and local codes and ordinances when
installing the receptacle. A separate circuit, servicing only
this appliance, is required. A ground fault circuit interrupter (GFCI) is not recommended and may cause interruption of operation.
IMPORTANT NOTE: It is critical that the electrical outlet be
located within the shaded area shown so it does not interfere with installation of the anti-tip bracket. It must be
flush with the back wall and positioned with the grounding
prong to the right of the thinner blades.
LEFT SIDE
OF OPENING
LEFT SIDE
OF OPENING
21/2"
(64)
1/4"
(6)
21/2"
(64)
13" (330)
FLOOR
FRONT VIEW
27" (686) models.
17 1/2" (445)
4 1/2"
4 1/2"
(114)
(114)
1/4"
(6)
FLOOR
FRONT VIEW
36" (914) models.
Electrical Requirements
Power Supply
Circuit Breaker
Receptacle
115 V AC, 60 Hz
15 amp
3-prong grounding-type
Integrated Refrigeration
57
subzero.com/specs
Plumbing Requirements
For integrated models with an automatic ice maker, the
water supply line should be located through the floor or
back wall, within the shaded area shown in the illustrations. The water supply line should be connected to the
house supply with an easily accessible shut-off valve
between the supply and the unit. Do not use self-piercing
valves. A saddle valve kit is available through your authorized Sub-Zero dealer.
IMPORTANT NOTE: It is critical that the water line be
located within the shaded area shown so it does not interfere with installation of the anti-tip bracket.
13 1/2"
(343)
BACK
WALL
6"
11/2"
(152)
21/2" (64)
(38)
21/2" (64)
13 1/2"
(343)
3" (76)
11/2" (38)
3/4"
FRONT VIEW (19)
FLOOR
TOP VIEW
36" (914) models.
An in-line filter is required when water conditions have a
high sediment content. The ice maker operates on
constant water pressure between 20 psi (1.4 bar) and
100 psi (6.9 bar).
IMPORTANT NOTE: In some cases, a reverse osmosis
water filter system may not be able to maintain the
minimum pressure consistently.
Excess Water Line for Connection
9"
6"
11/2"
(152)
21/2" (64)
(38)
21/2" (64)
9"
(229)
3" (76)
11/2" (38)
3/4"
FRONT VIEW (19)
FLOOR
27" (686) models.
TOP VIEW
Water Supply Line
Water Pressure
(229)
BACK
WALL
Plumbing Requirements
1/4"
OD copper line
20–100 psi (1.4–6.9 bar)
27" (686)
Integrated Refrigeration
58
Cabinetry Applications
FRAMELESS CABINETRY
26 3/4" (679)
PANEL WIDTH
26 3/4" (679)
PANEL WIDTH
1/8"
(3)
35 3/4" (908)
PANEL WIDTH
1/8"
(3)
1/8"
(3)
76 7/8"
45 3/8"
45 3/8"
(1953)
(1153)
(1153)
807/8"
79 7/8"
79 7/8"
(2054)
(2029)
(2029)
1/8"
(3)
1/8"
(3)
13 9/16"
13 9/16"
(345)
(345)
1/8"
(3)
4" (102)
1/8"
(3)
16 11/16"
16 11/16"
(424)
(424)
4" (102)
4" (102)
27" (686)
FINISHED OPENING
27" (686)
FINISHED OPENING
COLUMN MODELS
36" (914)
FINISHED OPENING
27" (686) TALL MODELS
36" (914) TALL MODELS
Typical Panel Dimensions
COLUMN MODELS
Door
27" (686) TALL MODELS
Door
Top Drawer
Bottom Drawer
36" (914) TALL MODELS
Door
Top Drawer
Bottom Drawer
DRAWER MODELS
Top Drawer
Bottom Drawer
W
H
26 3/4" (679)
76 7/8" (1953)
W
H
26 3/4" (679)
26 3/4" (679)
26 3/4" (679)
45 3/8" (1153)
13 9/16" (345)
16 11/16" (424)
W
H
35 3/4" (908)
35 3/4" (908)
35 3/4" (908)
45 3/8" (1153)
13 9/16" (345)
16 11/16" (424)
W
H
26 3/4" (679)
26 3/4" (679)
13 9/16" (345)
16 11/16" (424)
Panel dimensions are based on a 1/8" (3) reveal. A reveal of up
to 1/4" (6) is possible with adjustments to panel dimensions.
26 3/4" (679)
PANEL WIDTH
1/8"
(3)
13 9/16"
(345)
1/8"
(3)
34 1/2"
(876)
16 11/16"
(424)
4" (102)
27" (686)
FINISHED OPENING
DRAWER MODELS
Integrated Refrigeration
59
subzero.com/specs
Cabinetry Applications
DOOR PANEL HEIGHT
TOE KICK CLEARANCE
The height of the door panel can extend beyond the
typical panel height, provided you do not exceed the panel
weight limit. The illustration below shows how the panel
may be extended and what you need to consider to finish
the area behind the door panel.
The toe kick clearance can vary with the height of the
panel. You must keep a minimum space of 4" (102) clear
below the bottom edge of the panel for proper venting. In
addition, any decorative base molding must be removable
and cannot exceed 4" (102) in height.
IMPORTANT NOTE: The decorative valance used to finish
the area behind the door panel must stay behind the front
plane of the finished molding.
25" (635) TO WALL
INTEGRATED UNIT
(SIDE VIEW)
11/2"
(38)
DECORATIVE VALANCE
CANNOT EXTEND BEYOND
THE FRONT OF THE MOLDING
1/8" (3)
DOOR
PANEL
OVERALL
HEIGHT
DECORATIVE VALANCE
HEIGHT
OF PANEL
KICKPLATE/GRILLE
CAN BE ADJUSTED
FORWARD
KICKPLATE/GRILLE
1/8" (3)
BASE MOLDING
MUST BE
REMOVABLE—
4" (102) MAX
HEIGHT
REMOVABLE MOLDING
MINIMUM
HEIGHT
HINGE
4" (102) TO 9" (229)
TYPICAL
HEIGHT
OF DOOR
PANEL
25" (635) TO WALL
FROM FLOOR
INTEGRATED UNIT
(SIDE VIEW)
2 5/8" (67) TO 4" (102)
UPPER VALANCE
KICKPLATE / GRILLE AREA
COLUMN AND TALL MODELS
ALL INTEGRATED MODELS
Integrated Refrigeration
60
Cabinetry Applications
Integrated refrigeration is compatible with virtually any
style and look of cabinetry. These models can be used
with framed as well as frameless cabinetry. Because of the
precise application and the look you may want to achieve,
keep the following considerations in mind:
The thickness of the front panels can vary. A minimum
5/8" (16) thick panel is required, but the thickness can be
increased provided the panel weight limit is not exceeded.
IMPORTANT NOTE: The depth of each integrated model is
24" (610) from the front of the unit to its back. You must
allow for the thickness of the panel you are applying when
planning for the finished rough opening depth if you want
the front panel to be flush with surrounding cabinetry. You
may have to move the unit back into drywall or bring the
cabinets forward to achieve a flush fit.
Reveals between panels can vary. A reveal of 1/8" (3) is
typical, but reveals can be increased to up to 1/4" (6).
As reveals between cabinetry and the unit decrease,
the potential exists for severe finger pinching while the
door is closing.
When 3/4" (19) or thicker panels are used with a reveal of
less than 1/4" (6), door panels may cause damage to the
unit when the door is opened to the maximum 105°.
Use the built-in 90° door stop.
IMPORTANT NOTE: The inside edges of the rough opening
as well as the sides and a portion of the backside of the
decorative panels will need to be finished, as they will be
exposed when the doors are open.
D-style handles are recommended. For the cabinet door,
handles must be located near the edge of the panel
opposite the hinge, centered top to bottom. Locate
handles in the top center area of the drawer panels.
Illustrations on the following pages show typical applications of frameless and framed cabinetry. Also refer to the
full-scale illustration at the end of this section for specifics
on door openings.
Panel Requirements
COLUMN MODELS
MAX WEIGHT
Door Panel
65 lbs (29 kg)
TALL AND DRAWER MODELS
MAX WEIGHT
27" (686) Door Panel
27" (686) Drawer Panel
36" (914) Door Panel
36" (914) Drawer Panel
40 lbs (18 kg)
12 lbs (5 kg)
53 lbs (24 kg)
16 lbs (7 kg)
PANEL THICKNESS
All Panels
MINIMUM
5/8"
(16)
Integrated Refrigeration
61
subzero.com/specs
Cabinetry Applications
Dual Installations
The illustrations below show typical applications of framed
and frameless cabinetry. Refer to the full-scale templates
at the end of this section for specifics on door openings.
Two integrated units may be placed side by side in a dual
installation. Depending on the models specified, opening
widths will be 54" (1372), 63" (1600) or 72" (1829). Panel
width dimensions will vary slightly from single installations.
Refer to the chart below for typical panel dimensions. The
dimensions are based on a 1/8" (3) reveal. A reveal of up to
1/4" (6) is possible with adjustments to panel dimensions.
INTEGRATED
UNIT
CABINET
CABINET
INTEGRATED
UNIT
Typical Panel Dimensions
COLUMN MODELS
Door
27" (686) MODELS
PANEL
DOOR
1/8" (3)
REVEAL
FINISHED
OPENING
Framed—full overlay.
PANEL
DOOR
1/8" (3)
REVEAL
FINISHED
OPENING
Framed—standard overlay.
UNIT
CABINET
CABINET
INTEGRATED
UNIT
Door
Top Drawer
Bottom Drawer
36" (914) MODELS
Door
Top Drawer
Bottom Drawer
W
H
26 13/16" (681)
76 7/8" (1953)
W
H
26 13/16" (681)
26 13/16" (681)
26 13/16" (681)
45 3/8" (1153)
13 9/16" (345)
16 11/16" (424)
W
H
35 13/16" (910)
35 13/16" (910)
35 13/16" (910)
45 3/8" (1153)
13 9/16" (345)
16 11/16" (424)
A dual installation kit is required for installations with 2"
(51) or less space between the units. Dual installation kits
are available through your authorized Sub-Zero dealer.
DOOR
PANEL
PANEL
DOOR
1/8" (3)
REVEAL
FINISHED
OPENING
Framed—beaded inset.
1/8" (3)
REVEAL
FINISHED
OPENING
Frameless cabinetry.
IMPORTANT NOTE: If a 27" (686) unit is installed next to
a 36" (914) tall unit, the decorative front panels will align,
however, the face frames will not. This is only apparent
when both doors are open at the same time. Due to a
more robust hinge on 36" (914) units, the face frame was
reconfigured to maintain a consistent overall panel height.
Refer to the illustration below.
736TCI
Face frame alignment.
LAUNDRY ROOM
OPTION 1
(W4842WH)
Product Dimensions
Washing Machines
W4802, W4842
E
W
D
39" + 7/8"
27"
30"
IMPORTANT INFORMATION
Please note that these units are right
hinged only and cannot be reversed
Location Codes
D - 5 foot flexible drain hose connects upper left rear.
E - 120 Volt - 15 Amp 5 foot 3 -wire molded plug power supply
connects upper right rear (NEMA 5-15)
W - 5 foot separate flexible hot and cold water intake hoses connect
upper left rear.
Notes
• All installations must be done in accordance with local codes
• Remove transport struts in rear of machine before installation.
NOTE: Drawing is not to scale.
SPECIFICATION SHEETS 150410
Product Dimensions
Washing Machines
W4802, W4842
Rear View
SideView
WLAN
Port
D
W
E
30"
Shipping Struts
Location Codes
D - 5 foot flexible drain hose connects upper left rear.
E - 120 Volt - 15 Amp 5 foot 3 -wire molded plug power supply
connects upper right rear (NEMA 5-15)
W - 5 foot separate flexible hot and cold water intake hoses connect
upper left rear.
Notes
• All installations must be done in accordance with local codes
• Remove transport struts in rear of machine before installation.
NOTE: Drawing is not to scale.
SPECIFICATION SHEETS 150410
(T9802WH)
Product Dimensions
Electric Tumble Dryer
T9802
E
39" + 7/8"
27"
30"
V
IMPORTANT INFORMATION
Please note that these units are left
hinged only and cannot be reversed
Location Codes
E - 240 Volt - 30 Amp - 5 foot 4 -wire molded plug power supply
connects upper right rear (NEMA 14-30)
V - 4" Vent connects lower left rear, left or rigth sides
Notes
• All installations must be done in accordance with local codes
• 3 Prong adapter is available for older outlets
NOTE: Drawing is not to scale.
SPECIFICATION SHEETS 150410
Product Dimensions
Electric Tumble Dryer
T9802
Rear View
SideView
E
30"
WLAN
Port
Vent location
(rear)
Vent location
(both sides)
2 5/8" - 3 1/4"
2 5/8" - 3 1/4"
5 5/8"
4 5/8"
Location Codes
E - 240 Volt - 30 Amp - 5 foot 4 -wire molded plug power supply
connects upper right rear (NEMA 14-30)
V - 4" Vent connects lower left rear
Notes
• All installations must be done in accordance with local codes
• 3 Prong adapter is available for older outlets
NOTE: Drawing is not to scale.
SPECIFICATION SHEETS 150410
Product Dimensions
24 1/
4"
Notes
• All installations must be done in accordance with local codes
12"
Laundry Stand
WTS430
27"
NOTE: Drawing is not to scale.
SPECIFICATION SHEETS 150410
OPTION 2
Whirlpool® ENERGY STAR® Qualified Duet® Steam 4.5 cu. ft.
I.E.C. Equivalent* Front Load Washer
WFW9750WL
Lunar Silver
OTHER AVAILABLE COLORS
Cranberry Red
Model: WFW9750WR
White
Model: WFW9750WW
DIMENSIONS
KEY FEATURES
Height
38 Inches
Depth
32 9/16 Inches
Width
27 Inches
Dimensions shown are for planning purposes
only. For complete information, see Installation
Instructions packaged with product.
ELECTRICAL
60 Hz. 120 V.
Before purchasing this appliance, read
important information about its estimated
annual energy consumption or energy
efficiency rating that is available from your
dealer.
Rated a "Recommended Buy" by a leading consumer magazine
ENERGY STAR® Qualified
CEE Tier III Qualified
4.5 cu. ft. Stainless Steel Wash Basket
1,400 RPM Maximum Spin Speed
Direct Inject Wash System
Smooth Spin Technology
Quiet Wash Plus Noise Reduction System
FanFresh(TM) Option
NightQuiet(TM) Option
NSF® Certified Sanitary Cycles
6th Sense(TM) Technology
Oxi Dispense Option
Internal Water Heater
14 Automatic Cycles
Clean Washer Cycle with Affresh®
Deep Clean Steam Option
Front-Loading Automatic Washer
PRODUCT MODEL NUMBERS
WFW9750W
OVERALL DIMENSIONS
Washer dimensions
Custom undercounter installation-washer only
27"
(686 mm)
52 / "
(1335 mm)
12
Electrical: A 120 volt, 60 Hz., AC only, 15- or 20-amp,
fused electrical supply is required. A time-delay fuse
or circuit breaker is recommended. It is recommended
that a separate circuit serving only this appliance
be provided.
39" min.
(990 mm)
381/4"
(970 mm)
1"
(25 mm)
Drain System Options
Standpipe drain system - wall or floor (views A & B)
The standpipe drain requires a minimum diameter
standpipe of 2" (50 mm). The minimum carry-away
capacity can be no less than 17 gal. (64 L) per minute.
The top of the standpipe must be at least 30" (762 mm)
high and no higher than 96" (2.4 m) from the bottom
of the washer.
For closet installation, with a door, the minimum ventilation openings in the top
and bottom of the door are required. Louvered doors with equivalent air ventilation
openings are acceptable.
76"
(1930 mm)
24 in.2 *
(155 cm2)
1"
(25 mm)
6"* (152 mm)
3"
(76 mm)
34" min. 48 in.2 *
(864 mm) (310 cm2)
B
1"
(25 mm)
321/2"
(820 mm)
30" min.
(762 mm)
A
27"
(686 mm)
3"
(76 mm)
4"
(800 mm) (102 mm)
311/2"
Laundry tub drain system (view C)
The laundry tub needs a minimum 20 gal. (76 L)
capacity. The top of the laundry tub must be
at least 30" (762 mm) above the floor.
18" min
(457 mm)
1"
(25 mm)
5½"**
(140 mm)
1"
(25 mm)
27"
(686 mm)
1"
(25 mm)
Floor drain system (view D)
The floor drain system requires a siphon break that
may be purchased separately. See “Tools and Parts.”
The siphon break must be a minimum of 28" (711 mm)
from the bottom of the washer. Additional hoses might
be needed.
1"
(25 mm)
27"
(686 mm)
1"
(25 mm)
4"
31½"
1"
(25 mm) (800 mm) (102 mm)
* required spacing
30" min.
(762 mm)
C
For cabinet installation, with a door, the minimum ventilation openings in the top
are required.
28" min.
(710 mm)
(711
7"
(178 mm)
7"
(178 mm)
D
9"
(229 mm)
1"
27"
311/2"
(25 mm)
4"
1"
(102 mm) (800 mm) (25 mm) (686 mm)
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Ref. 461970255001
09/2009
Whirlpool® Duet® Resource Saver® 7.5 cu. ft. Electric Dryer with
Quick Refresh Steam Cycle
WED9750WL
Lunar Silver
OTHER AVAILABLE COLORS
Red
Model: WED9750WR
White
Model: WED9750WW
DIMENSIONS
KEY FEATURES
Height
38 Inches
Depth
32 9/16 Inches
Width
27 Inches
Dimensions shown are for planning purposes
only. For complete information, see Installation
Instructions packaged with product.
7.5 Cu. Ft. Capacity
AccelerCare(TM) Drying System
Quick Refresh Steam Cycle
Enhanced Touch-Up Steam Cycle
Wrinkle Shield(TM) Plus Option (up to 140 Minutes)
Quiet Dry Plus Noise Reduction System
Direct Water Installation Method
5 Temperature Settings
Heavy Duty Cycle
Bulky Items Cycle
NSF Certified Sanitize Cycle
Casual Cycle
Normal Cycle
Delicate Cycle
Quick Dry Cycle
Timed Drying
Damp Dry Cycle
LED Display
Reversible Door
Extra-Large Front-Mounted Lint Screen
Estimated Time Remaining Display
Adjustable End-of-Cycle Signal
Interior Drum Light
Optional Stack Kit 8541503 Sold Separately
Optional Laundry Tower WVP9000S Sold Separately
Optional 10" or 15" Pedestals Sold Separately
Optional Laundry Worksurface Sold Separately
Eco Normal Cycle - Duet
Duet Steam and Non-Steam Electronic Electric Dryer
PRODUCT MODEL NUMBERS
WED9600T, WED9450W,
WED9470W, WED9550W,
WED9750W
OVERALL DIMENSIONS
Dryer dimensions
Electrical: This dryer requires a 3 or 4 wire, single
phase, 120/240 volt, 60 Hz., AC only electrical supply
(or 3 or 4 wire, 120/208 volt electrical supply, if specified on the serial/rating plate) on a separate 30-amp
circuit, fused on both sides of the line. A time-delay
fuse or circuit breaker is recommended. Connect to
an individual branch circuit. Do not have a fuse in the
neutral or grounding circuit.
Exhaust venting: Exhaust your dryer to the outside.
4" (102 mm) diameter vent is required. Rigid or flexible
metal exhaust vent must be used. Do not use plastic
or metal foil vet. Exhaust hood must be at least
12" (305 mm) from the ground or any object that
may be in the path of the exhaust.
C
Hood styles: A & B are recommended.
B
38"
(965 mm)
*STEAM - 329/16"
(827 mm)
†
NON-STEAM - 311/2"
(800 mm)
Water (Steam models only): The dryer must be
connected to the cold water faucet using new inlet
hoses. Do not use old hoses. Do not overtighten.
Damage to the coupling can result.
STEAM - 529/16" Custom undercounter installation-dryer only
(1335 mm)
NON-STEAM - 511/2"
(1308 mm)
38"
(965 mm)
27"
(686 mm)
For closet installation, with a door, the minimum ventilation openings in the top
and bottom of the door are required. Louvered doors with equivalent air ventilation
openings are acceptable.
6"
(152 mm)
3"
(76 mm)
48 in.2 *
(310 cm2)
4"
(102 mm)
1"*
27"
1"*
(25 mm)
(686 mm)
(25 mm)
† Most installations require a minimum
5" (127 mm) clearance behind the dryer for
the exhaust vent with elbow. See Installation
Instructions, “Venting Requirements.”
14" max.
(356 mm)
18" max.
(457 mm)
A
4"
(102 mm)
4"
(102 mm)
2½"
(64 mm)
24 in.2 *
(155 cm2)
A. Louvered hood
B. Box hood
C. Angled hood (acceptable)
Vent system chart:
NOTE: Side and bottom exhaust installations have
a 90° turn inside the dryer. To determine maximum
exhaust length, add one 90° turn to the chart.
Type of
vent
Box or
Louvered
hoods
Angled
hoods
0
Rigid metal
64 ft (20 m)
58 ft (17.7 m)
1
Rigid metal
54 ft (16.5 m)
48 ft (14.6 m)
2
Rigid metal
44 ft (13.4 m)
38 ft (11.6 m)
3
Rigid metal
35 ft (10.7 m)
29 ft (8.8 m)
4
Rigid metal
27 ft (8.2 m)
21 ft (6.4 m)
Number of
o
90 turns
or elbows
37/16"
(87 mm)
1"
(25 mm)
14"
(356 mm)
Back View
3"
(76 mm)
STEAM - 51/2"**
STEAM - 329/16"
(140 mm)
(827 mm)
NON-STEAM - 311/2" NON-STEAM - 5"**
(127 mm)
(800 mm)
The vent system chart provides venting requirments
that will help to achieve the best drying performance.
76"
(1930 mm)
1"
(25 mm)
1"
27"
(686 mm) (25 mm)
For cabinet installation, with a door, the minimum ventilation openings in the top
are required.
7"*
7"*
(178 mm)
(178 mm)
14"* max.
(356 mm)
18"* max.
(457 mm)
33/8"
(86 mm)
1"
(25 mm)
75/8"
(194 mm)
Side View
9"*
(229 mm)
1"*
1"*
27"
(25 mm) (686 mm) (25 mm)
5"
STEAM - 329/16"
(127 mm)
(827 mm)
NON-STEAM - 311/2"
(800 mm)
*Required spacing **For side or bottom venting, 0" (0 mm) spacing is allowed.
Select the route that will provide the straightest and most direct path outdoors.
Plan the installation to use the fewest number of elbows and turns.
Use the fewest 90° turns possible.Do not use vent runs longer than specified in vent
length chart. Determine the number of elbows you will need.
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Ref. W10255468C
04/2010
Laundry 123® 15.5" Laundry Pedestal with Storage Drawer
XHP1550WL
Lunar Silver
OTHER AVAILABLE COLORS
Cranberry Red
Model: XHP1550WR
KEY FEATURES
Raises Your Washer and Dryer to a More Comfortable Height for Loading and Unloading
Minimizes Bending and Stooping at Doors
Pedestal Drawer Offers a Convenient Area to Store Laundry Essentials
Optional Pedestal Drawers Available in White
®
®
®
®
®
15.5" (39.4 cm) Washer/Dryer Pedestal
Installation Instructions
Piédestal de 15,5" (39,4 cm) pour
laveuse/sécheuse
Instructions d’installation
Table of Contents/Table des matières..............................................2/7
235⁄8"
(60 cm)
27"
(68,6 cm)
15 1⁄2"
(33 cm)
225⁄8"
(57,5 cm)
2 5⁄8"
(6,7 cm)
W10198562A
W10205335A SP
BUTLERS PANTRY
(G2472SCVI)
Product and Cut-out Dimensions
G2000 Series Dishwashers
Fully Integrated Models
cal
lectri
E
&
r
Wate nection
Con tion
Loca
33 1/4" - 35 3/4"
22 7/1
6" mi
n.
C
8"
23 5/
16"
23 9/
33 1/4" - 35 3/4"
27 1/8" - 31 7/8"
22 7/
16"
D
W
E
Location Codes
C - Cutout (2 1/4" x 4") for water, drain
and electric pass-through. Adjust
according to water and drain location.
D - 5 foot flexible drain hose connects
lower center rear.
E - 5 foot - 120 Volt - 15 Amp 3-wire
molded plug power supply connects
lower left rear.
W - 5 foot "Double Waterproof" flexible
water intake hose connects lower
center rear.
Notes
• All installations must be done in
accordance with local codes
1 3/8"
5 1/8
"
- 8 5/8
"
1 3/8
"
4 1/2
"
NOTE: Drawing is not to scale.
SPECIFICATION SHEETS 010106
Front Panel Information
G2000 Fully Integrated Models
Custom Panel Installations
Some Miele dishwashers do not come equipped with a front panel. These dishwashers are designed to accept a
custom door panel supplied by the cabinet maker. Miele has a unique panel integration system which allows the
dishwasher to align with the surrounding cabinets.
Panel size is determined in the following manner:
Width:
23 7/16" in all cases
Thickness:
3/4" in all cases
Panel Height = HTC - TKH
HTC = Height to the underside of countertop
TKH = Toe-kick height
HTC
Miele
Fully
Integrated
Dishwasher
Panel Height
Height: Determined using the following calculation:
Note:
TKH
Control panel is along the top edge of the unit. It
is not visible when the unit is closed.
A handle MUST be located on the front panel in
order to open the unit
Maximum panel height:
Minimum panel height:
31 7/8"
27 3/16"
Maximum panel weight:
21 Pounds
GFVi Installations
Miele offers pre-fabricated stainless steel panels for all fully integrated units. These panels are designed for various
toe-kick heights and offer a choice of handle options.
NOTE: Drawing is not to scale.
SPECIFICATION SHEETS 010106
Installation Information
G2000 Dishwashers
Height to underside of countertop
1
1
3
33 /4 33 /2 33 /4
34
34 1/4 34 1/2 34 3/4
35
35 1/4 35 1/2 35 3/4
1 1/2
2
2 1/2
3
3 1/2
Toekick height
4
4 1/2
5
5 1/2
6
6 1/2
7
7 1/2
8
8 1/2
9
Acceptable combinations
Typical American installation
Water Connection
Connect via 3/4" hose bib
Option A
12345678
12345678
12345678
12345678
12345678
12345678
12345678
12345678
12345678
12345678
12345678
12345678
12345678
12345678
12345678
12345678
12345678
12345678
12345678
12345678
12345678
12345678
12345678
12345678
Connect via 3/4" adapter with 3/8" compression fitting
Dimension (B)
Dimension (A)
Option B
Waterproof System Box Dimensions
Width (A):
Height (B):
Thickness:
3 1/4"
3 1/2"
1 3/4"
Cutout:
2 1/4" x 4"
NOTE: Waterproof system box should ONLY be
installed in a vertical manner to prevent build-up of
water within box and possible leakage.
Waterproof System
Temperature:
Pressure:
Drain hose:
110° - 130° F
4.5 - 145 PSI
7/8" ID - 5 feet long
NOTE: Drawing is not to scale.
SPECIFICATION SHEETS 010106
WET BAR
Sub-Zero UC-24BG Beverage Center: Sub-Zero Undercounter Refrigeration
Page 1 of 3
UC-24BG Beverage Center
Overview
The Sub-Zero UC-24BG Beverage Center simplifies life at home by bringing
refrigeration anywhere it's needed. Fresh greens in the kitchen island. Soda and
snacks in the media room. Chilled wine and mineral water in the master suite. Imagine
how this innovative built-in refrigerator can serve you.
Model Options
UC-24BG/O - Overlay
UC-24BG/S - Classic Stainless
http://www.subzero.com/UndercounterRefrigeration/UC24BGUndercounter
3/23/2011
Sub-Zero UC-24BG Beverage Center: Sub-Zero Undercounter Refrigeration
Page 2 of 3
Features
Technical Features
Design Features
Capacity: 5.7 cu ft (161 L)
All refrigerator beverage center with wine
storage to accommodate 16 (750 ml) bottles
Electrical Requirements: 115 V AC, 60 Hz, 15amp circuit
Annual Energy Usage: 427 kWh/$45 (Based
on 10.65 cents per kilowatt hour)
Shipping weight: Overlay 130 lbs (59 kg);
Classic stainless 135 lbs (61 kg)
Easy-access electronic controls with LCD
display visible through the glass door
Roller-glide wine storage shelves faced with
natural cherry wood have a three-quarter
extension for easy access
UL approved for US and Canada
Adjustable spill-proof cantilever glass shelf and
spill-proof glass floor
Star-K Kosher certified as Sabbath and
holiday-compliant
Clear utility bin for storage of smaller items
Double-pane, full-view glass door and accent
lighting matches appearance of Wine Storage
Model 424
Overlay or stainless steel design application
with standard full-view glass door
Other Features
High altitude glass door model can be special
ordered
Two, five and twelve year residential
warranty—exclusions apply, see warranty
terms
Frequently Asked Questions - Planning
How much do Sub-Zero/Wolf products cost?
Where can I purchase Sub-Zero and Wolf products?
Where can I find Sub-Zero/Wolf product specifications?
What is the temperature range of a Sub-Zero?
Options & Accessories
Glass door available in classic stainless steel with tubular or pro handles
High Altitude Glass Door
Tubular and pro handles in classic stainless steel
UL approved door lock kit
http://www.subzero.com/UndercounterRefrigeration/UC24BGUndercounter
3/23/2011
Undercounter Refrigeration
85
subzero.com/specs
Undercounter Refrigeration. Sub-Zero undercounter refrigeration is a helpful addition to a master suite, bar, home
office or media room. In the kitchen, a high-volume ice machine is a must for entertaining. The design flexibility of these
compact yet roomy units makes them all the more welcome in any room or outdoor kitchen. They’re ready to be fitted with
a custom cabinet panel or can be ordered with a stainless steel panel.
UNDERCOUNTER MODELS
23 7/8"
23 7/8"
(606)
23 7/8"
23 7/8"
(606)
34"
34"
34"
34"
(864)
(864)
(864)
(864)
UC-24R
UC-24BG
UC-24C(I)
15"
33 5/8"
(854)
UC-24RO
15"
(381)
(606)
(606)
(381)
33 5/8"
(854)
UC-15I(P)
UC-15I(P)O
KEY FEATURES
• Overlay and stainless steel design applications.
• Handle options coordinate with handles of Wolf
cooking products.
• Models UC-24RO and UC-15I(P)O are UL approved
for outdoor use.
• Energy efficient; many models are ENERGY STAR®
qualified.
• All models are Star-K certified.
Undercounter Refrigeration
86
Overall Dimensions
UNDERCOUNTER MODELS
23 7/8" (606)
14 3/4" (375)
24" (610)
23" (584)
34"
33 5/8"
(864)
(854)
4" (102)
4" (102)
18"
(457)
25 3/8"
(645)
6"
(152)
2 3/8" (60)
MODELS UC-24R, UC-24BG, UC-24C(I) AND UC-24RO
MODELS UC-15I(P) and UC-15I(P)O
Model UC-15I overall dimensions do not include panel or
handle.
Specifications
Capacity / Weight
INTERIOR CAPACITY
UC-24R, UC-24BG and UC-24RO
UC-24C(I)
R CU FT (L)
5.7 (161)
3.6 (102)
ICE STORAGE CAPACITY
UC-15I(P) and UC-15I(P)O
F CU FT (L)
1.1 (31)
LBS (KG)
26 (12)
SHIPPING WEIGHT
LBS (KG)
UC-24R, UC-24BG, UC-24C(I) and UC-24RO
UC-15I(P) and UC-15I(P)O
130 (59)
100 (45)
Undercounter Refrigeration
87
subzero.com/specs
Opening Dimensions
Planning Information
UNDERCOUNTER MODELS
ELECTRICAL REQUIREMENTS
For ice machine models, it is recommended that electrical
supply be placed in an adjacent cabinet. For all other
undercounter models, locate the electrical supply within
the shaded area shown in the illustration below. Follow
the National Electrical Code and local codes and ordinances when installing the receptacle. A separate circuit,
servicing only this appliance, is required.
TOP VIEW
24" (610)
OPENING
DEPTH
IMPORTANT NOTE: Models UC-24RO and UC-15I(P)O are
designed and safe for use in outdoor applications. When
installed outdoors, a ground fault circuit interrupter (GFCI)
is required to reduce the risk of electrical shock. A GFCI is
not recommended for use with other undercounter models
and may cause interruption of operation.
24" (610)
OPENING DEPTH
341/2" (876)
A
OPENING
HEIGHT
OPENING WIDTH
Electrical Requirements
Power Supply
115 V AC, 60 Hz
Circuit Breaker
15 amp
Receptacle
SIDE VIEW
Opening Width
UC-24R, UC-24BG, UC-24C(I) and UC-24RO
UC-15I(P) and UC-15I(P)O
3-prong grounding-type
FRONT VIEW
A
24" (610)
15 1/4" (387)
LEFT SIDE
OF OPENING
2" (51)
15 1/2"
(394)
3" (76)
FRONT VIEW
Location of electrical supply.
Undercounter Refrigeration
89
subzero.com/specs
Overlay Panel
Door Clearance
MODELS UC-24R, UC-24C(I) AND UC-15I(P)
MODELS UC-24R, UC-24BG AND UC-24C(I)
The overlay design allows for a decorative panel to cover
the door trim for a seamless appearance that will complement surrounding cabinetry. You may also choose to
match the handle hardware of surrounding cabinetry.
Refer to the charts for panel specifications.
Undercounter models can be installed flush with surrounding cabinetry. Depending on the thickness of the overlay
door panel, it may be necessary to install the unit so that it
extends 1/4" (6) beyond the front surface of surrounding
cabinetry. This will prevent interference between the door
panel and adjoining cabinetry at the maximum 145° door
swing. Refer to the full-scale template on page 83 of the
wine storage section.
MODEL UC-24BG
For model UC-24BG, the overlay door panel will consist of
only a frame and will affix directly to the door with screws
through a series of predrilled holes.
The glass area of the door is designed to be exposed to
air circulation. Decorative overlays on the glass should be
kept to a minimum. Do not install a solid panel on the
glass door unit: this may cause moisture to form behind
the panel. Refer to the charts for panel specifications.
IMPORTANT NOTE: The width of rails and stiles can be
increased but should not exceed cabinet manufacturers’
standard widths or the overall panel dimensions. The back
sides of rails and stiles that will be visible through the
glass door will need to be finished along with the inside
edges of the frame.
Panel Dimensions
UC-24R AND UC-24C(I)
Overlay Panel
UC-24BG
Overlay Panel
Rails and Stiles (min)
UC-15I(P)
Overlay Panel
W
H
23 3/4" (603)
30 1/16" (764)
W
H
23 3/4" (603)
2 1/4" (57)
30 1/16" (764)
W
H
15" (381)
30 3/8" (772)
Panel Requirements
MAX PANEL WEIGHT
UC-24R and UC-24C(I)
UC-24BG
UC-15I(P)
20 lbs (9 kg)
10 lbs (5 kg)
15 lbs (7 kg)
MIN PANEL THICKNESS
Overlay Panels
5/8"
(16)
Undercounter Refrigeration
90
Accessories
Door Frame Profile
These optional accessories are available through your
authorized Sub-Zero dealer. For local dealer information,
visit the find a showroom section of our website,
subzero.com.
FULL-SCALE TEMPLATE
The full-scale template shows the door frame profile for
model UC-24BG and the relationship to the overlay panel
(rails and stiles).
• Stainless steel front panel with tubular or pro handle.
• Stainless steel tubular and pro handles to match the
style of Wolf ovens and ranges.
• UL approved door lock.
STANDARD HANDLES
Glass
Refer to the chart below for standard handle lengths and
the stud spacing of tubular and pro handles used on
undercounter models.
Door Panel Profile
Standard Handles
Length
Stud Spacing
24 3/16" (614)
21" (533)
16 1/4" (413)
19 3/4" (502)
CL
UNDERCOUNTER MODELS
Tubular Handle
Pro Handle
1" (25)
1" (25)
2 1/4" (57) Rail / Stile
DOOR FRAME PROFILE
MODEL UC-24BG
Undercounter Refrigeration
91
subzero.com/specs
Wine Shelf Wood Facing
FULL-SCALE TEMPLATE
For models UC-24BG and UC-24C(I), follow dimensions in
the full-scale template below if you choose to replace the
natural cherrywood facing of the wine shelves with wood
more complementary to your design and surrounding
cabinetry.
5/8"
(16)
Maximum Thickness
7/64"
(3)
11/2" (38)
27/32"
(21)
5/64"
(2)
19 1/2" (495)
23/64"
(9)
9/16" (14)
FRONT VIEW
SIDE VIEW
WINE SHELF WOOD FACING
MODELS UC-24BG AND UC-24C(I)
The information and images in this guide are the copyright property of Sub-Zero, Inc. Neither this guide nor any information or images contained herein may be
copied or used in whole or in part without the express written permission of Sub-Zero, Inc. ©Sub-Zero, Inc. all rights reserved.
Wolf, Wolf & Design, Wolf Gourmet, W & Design and the color red as applied to knobs are registered trademarks and service marks of Wolf Appliance, Inc.
Sub-Zero, Sub-Zero & Design, Dual Refrigeration, Constant Care and The Living Kitchen are registered trademarks and service marks of Sub-Zero, Inc.
(collectively, the “Company Marks.”) All other trademarks or registered trademarks are property of their respective owners in the United States and other countries.
(W3033WH)
Product Dimensions
Large Capacity Washing Machine
Angled control
W3033 / W3035
E
21 1/
2"
2"
23 1/
W
D
33 3/8" - 34 1/8"
22 1/
2"
3 3/4"
- 4 1/2
"
2"
Location Codes
D - 5 foot flexible drain hose connects
upper left rear.
E - 120 Volt, 15 Amp 5 foot molded plug
power supply connects upper left rear
(NEMA 5-15 Configuration).
W - 5 foot separate flexible hot and cold
water intake hoses connect upper left
rear.
Notes
• All installations must be done in accordance with local codes
• See "Cut-out Dimensions" sheet for undercounter or built-in space requirements
• Remove transport struts in rear of machine before installation.
NOTE: Drawing is not to scale.
SPECIFICATION SHEETS 010107
Cut-out Dimensions
Built-in Installations
Large Capacity Laundry Products
32 3/8" - 35 1/4"
See N
otes
C
ric
Elect
&
r
e
t
n
Wa
ectio
Conn tion
Loca
al
24"
Location Codes
C - Cutout for Electric and Vent or Drain
pass-through. Adjust according to duct
or drain location.
Notes
• Typically requires removal of unit's lid. Out of box unit height dimension without
lid is 32 5/16" - 32 11/16".
NOTE: Drawing is not to scale.
SPECIFICATION SHEETS 010107
(T8003WH)
Product Dimensions
Large Capacity Vented Dryer
Angled control
T8003 / T8005
E
21 1/
2"
2"
23 1/
V
33 3/8" - 34 1/8"
22 1/
2"
3 3/4"
- 4 1/2
"
2"
Location Codes
E - 208/240 Volt, 30 Amp 5 foot molded
plug power supply connects upper right
rear (NEMA 14-30 Configuration).
V- Venting location may be adjusted to
lower right or left side or lower left rear
(see separate sheet).
Notes
• All installations must be done in accordance with local codes
• See "Cut-out Dimensions" sheet for undercounter or built-in space requirements
NOTE: Drawing is not to scale.
SPECIFICATION SHEETS 150607
Cut-out Dimensions
Built-in Installations
Large Capacity Laundry Products
32 3/8" - 35 1/4"
See N
otes
C
rical
Elect
&
r
e
t
n
Wa
ectio
Conn tion
Loca
24"
Location Codes
C - Cutout for Electric and Vent/Drain
pass-through. Adjust according to duct
or drain location.
Notes
• Needed depth will vary by model number:
T8002-T8013C:
24" minimum
T8019C:
25" minimum
• Typically requires removal of unit's lid. Out of box unit height dimension without
lid is 32 5/16" - 32 11/16".
NOTE: Drawing is not to scale.
SPECIFICATION SHEETS 150607
Vent Locations
Vented dryers
T8002, T8003, T8005
Vent Locations
4 3/4"
3 7/8"
3 1/2" - 4 1/4"
Right Side View
Rear View
3 1/2" - 4 1/4"
3 1/2" - 4 1/4"
Left Side View
4 3/4"
Corresponding Dryer Height with NO lid: 32 1/8" - 32 7/8"
Corresponding Dryer Height with lid: 33 3/8" - 34 1/8"
Vent Duct Calculations
Maximum Duct Lengths
4" diameter
4 3/16" diameter
4 3/4" diameter
5" diameter
65 feet
98 feet
140 feet
196 feet
DO NOT use vinyl ducting
with Miele appliances.
Type of Bend or duct
Effective Radius
Flexible duct 90°
4 - 12 inches
Flexible duct 90°
12 - 20 inches
Flexible duct 45°
4 - 20 inches
Smooth duct 90° or 45°
4 - 8 inches
Elbow 90°
Sharp bend
Concertina bend
8 inch
Segmented bend
8 inch
Louvered wall or window vent (#03780400)
Wall vent kit with flap (#00087184)
Window vent kit with flap (#00087185)
Exhaust connection - left
Exhaust connection - right
Flat duct (#01221330)
Subtract
1 3/4 feet
1 1/4 feet
1 1/4 feet
1 1/4 feet
8 1/4 feet
2 3/4 feet
2 feet
12 1/2 feet
5 feet
5 feet
20 feet
33 feet
59 feet
Vent Locations
Stacked Washer & Dryer
Example Combination
Vent Locations
36 3/8" - 37 1/8"
Stacking Kit
Right Side View
3 7/8"
4 3/4"
Stacking Kit
Stacking Kit
36 3/8" - 37 1/8"
4 3/4"
Rear View
Corresponding Total Height with lid: 66 3/8" - 67 1/8"
36 3/8" - 37 1/8"
Left Side View
BILLIARDS BAR
Sub-Zero UC-15I Ice Maker: Sub-Zero Undercounter Refrigeration
Page 1 of 3
UC-15I Ice Maker
Overview
Sub-Zero undercounter units simplify life at home by bringing refrigeration anywhere it’s
needed. In the kitchen, a high-volume ice machine is a must for entertaining. The
Model UC-15I ice maker has a storage capacity of up to 25 pounds of ice.
Model Options
UC-15I(P)
UC-15I(P)O
http://www.subzero.com/UndercounterRefrigeration/UC-15I-Ice-Maker
3/24/2011
Sub-Zero UC-15I Ice Maker: Sub-Zero Undercounter Refrigeration
Page 2 of 3
Features
Design Features
Other Features
Can be fitted with a custom overlay or
stainless steel door front panel.
LED Bin Light
Classic stainless steel door panel with tubular
or pro handles available as sales accessories.
Delay Start
Clean Cycle
24" depth design for a complete integrated
look.
Water Filter
Solid core door with gasket and door closer.
Exceptional Warranty
Ice Scoop
Models UC-15I and UC-15IO have a gravity
drain, while Models UC-15IP and UC-15IPO
have a built-in pump to allow greater
installation flexibility.
Automatic ice machine provides high-quality,
clear ice.
Ice storage bin capacity of up to 25 lbs.
Automatic defrost.
Reversible door swing.
Front venting with removable kickplate allows
unit to be serviced from the front.
UL approved for US and Canada.
Frequently Asked Questions - Planning
Where can I find Sub-Zero/Wolf product specifications?
Can the door swing be reversed on the UC-15I ice maker?
How much ice will the UC-15I ice maker hold?
Sub-Zero UC-15I Ice Maker
Filter
Options & Accessories
Classic stainless steel door front panels with tubular or pro handles
Stainless steel tubular or pro handles
http://www.subzero.com/UndercounterRefrigeration/UC-15I-Ice-Maker
3/24/2011
Undercounter Refrigeration
85
subzero.com/specs
Undercounter Refrigeration. Sub-Zero undercounter refrigeration is a helpful addition to a master suite, bar, home
office or media room. In the kitchen, a high-volume ice machine is a must for entertaining. The design flexibility of these
compact yet roomy units makes them all the more welcome in any room or outdoor kitchen. They’re ready to be fitted with
a custom cabinet panel or can be ordered with a stainless steel panel.
UNDERCOUNTER MODELS
23 7/8"
23 7/8"
(606)
23 7/8"
23 7/8"
(606)
34"
34"
34"
34"
(864)
(864)
(864)
(864)
UC-24R
UC-24BG
UC-24C(I)
15"
33 5/8"
(854)
UC-24RO
15"
(381)
(606)
(606)
(381)
33 5/8"
(854)
UC-15I(P)
UC-15I(P)O
KEY FEATURES
• Overlay and stainless steel design applications.
• Handle options coordinate with handles of Wolf
cooking products.
• Models UC-24RO and UC-15I(P)O are UL approved
for outdoor use.
• Energy efficient; many models are ENERGY STAR®
qualified.
• All models are Star-K certified.
Undercounter Refrigeration
86
Overall Dimensions
UNDERCOUNTER MODELS
23 7/8" (606)
14 3/4" (375)
24" (610)
23" (584)
34"
33 5/8"
(864)
(854)
4" (102)
4" (102)
18"
(457)
25 3/8"
(645)
6"
(152)
2 3/8" (60)
MODELS UC-24R, UC-24BG, UC-24C(I) AND UC-24RO
MODELS UC-15I(P) and UC-15I(P)O
Model UC-15I overall dimensions do not include panel or
handle.
Specifications
Capacity / Weight
INTERIOR CAPACITY
UC-24R, UC-24BG and UC-24RO
UC-24C(I)
R CU FT (L)
5.7 (161)
3.6 (102)
ICE STORAGE CAPACITY
UC-15I(P) and UC-15I(P)O
F CU FT (L)
1.1 (31)
LBS (KG)
26 (12)
SHIPPING WEIGHT
LBS (KG)
UC-24R, UC-24BG, UC-24C(I) and UC-24RO
UC-15I(P) and UC-15I(P)O
130 (59)
100 (45)
Undercounter Refrigeration
87
subzero.com/specs
Opening Dimensions
Planning Information
UNDERCOUNTER MODELS
ELECTRICAL REQUIREMENTS
For ice machine models, it is recommended that electrical
supply be placed in an adjacent cabinet. For all other
undercounter models, locate the electrical supply within
the shaded area shown in the illustration below. Follow
the National Electrical Code and local codes and ordinances when installing the receptacle. A separate circuit,
servicing only this appliance, is required.
TOP VIEW
24" (610)
OPENING
DEPTH
IMPORTANT NOTE: Models UC-24RO and UC-15I(P)O are
designed and safe for use in outdoor applications. When
installed outdoors, a ground fault circuit interrupter (GFCI)
is required to reduce the risk of electrical shock. A GFCI is
not recommended for use with other undercounter models
and may cause interruption of operation.
24" (610)
OPENING DEPTH
341/2" (876)
A
OPENING
HEIGHT
OPENING WIDTH
Electrical Requirements
Power Supply
115 V AC, 60 Hz
Circuit Breaker
15 amp
Receptacle
SIDE VIEW
Opening Width
UC-24R, UC-24BG, UC-24C(I) and UC-24RO
UC-15I(P) and UC-15I(P)O
3-prong grounding-type
FRONT VIEW
A
24" (610)
15 1/4" (387)
LEFT SIDE
OF OPENING
2" (51)
15 1/2"
(394)
3" (76)
FRONT VIEW
Location of electrical supply.
Undercounter Refrigeration
88
Planning Information
Drain Pump
PLUMBING REQUIREMENTS
ICE MACHINE MODELS
For model UC-24C(I) and ice machine models, the water
supply line should be located within the shaded area
shown in the illustrations below. The water supply line
should be connected to the house supply with an easily
accessible shut-off valve between the supply and the unit.
Do not use self-piercing valves. A saddle valve kit is available through your authorized Sub-Zero dealer.
Undercounter ice machine models can be ordered with or
without a pump. Models without a drain pump will drain
water from the unit by gravity. A drain must be installed.
The ice maker operates on constant water pressure
between 20 psi (1.4 bar) and 100 psi (6.9 bar).
IMPORTANT NOTE: In some cases, a reverse osmosis
water filter system may not be able to maintain the
minimum pressure consistently.
Plumbing Requirements
1/4"
Water Supply Line
Water Pressure
OD copper line
20–100 psi (1.4–6.9 bar)
Excess Water Line for Connection
SHADED AREA
EXTENDS 1/2" (13)
FROM BACK WALL
26" (660) min
8"
1/2"
(13)
(203)
LOCATION OF
WATER LINE
2" (51)
15 1/2"
(394)
3" (76)
FRONT VIEW
Model UC-24C(I).
TOP VIEW
Ice machine models.
The drain and inlet water tubes must be plumbed before
connecting to the ice machine. For the gravity drain, all
horizontal runs of drain lines must have a 1/4" (6) per 12"
(305) fall. An air gap will likely be required between the unit
and drain receptacle. A stand pipe with a trap below it
would be acceptable for the drain receptacle.
IMPORTANT NOTE: Poor drainage will cause excessive ice
melting in the ice bin.
Undercounter Refrigeration
89
subzero.com/specs
Overlay Panel
Door Clearance
MODELS UC-24R, UC-24C(I) AND UC-15I(P)
MODELS UC-24R, UC-24BG AND UC-24C(I)
The overlay design allows for a decorative panel to cover
the door trim for a seamless appearance that will complement surrounding cabinetry. You may also choose to
match the handle hardware of surrounding cabinetry.
Refer to the charts for panel specifications.
Undercounter models can be installed flush with surrounding cabinetry. Depending on the thickness of the overlay
door panel, it may be necessary to install the unit so that it
extends 1/4" (6) beyond the front surface of surrounding
cabinetry. This will prevent interference between the door
panel and adjoining cabinetry at the maximum 145° door
swing. Refer to the full-scale template on page 83 of the
wine storage section.
MODEL UC-24BG
For model UC-24BG, the overlay door panel will consist of
only a frame and will affix directly to the door with screws
through a series of predrilled holes.
The glass area of the door is designed to be exposed to
air circulation. Decorative overlays on the glass should be
kept to a minimum. Do not install a solid panel on the
glass door unit: this may cause moisture to form behind
the panel. Refer to the charts for panel specifications.
IMPORTANT NOTE: The width of rails and stiles can be
increased but should not exceed cabinet manufacturers’
standard widths or the overall panel dimensions. The back
sides of rails and stiles that will be visible through the
glass door will need to be finished along with the inside
edges of the frame.
Panel Dimensions
UC-24R AND UC-24C(I)
Overlay Panel
UC-24BG
Overlay Panel
Rails and Stiles (min)
UC-15I(P)
Overlay Panel
W
H
23 3/4" (603)
30 1/16" (764)
W
H
23 3/4" (603)
2 1/4" (57)
30 1/16" (764)
W
H
15" (381)
30 3/8" (772)
Panel Requirements
MAX PANEL WEIGHT
UC-24R and UC-24C(I)
UC-24BG
UC-15I(P)
20 lbs (9 kg)
10 lbs (5 kg)
15 lbs (7 kg)
MIN PANEL THICKNESS
Overlay Panels
5/8"
(16)
Sub-Zero UC-24BG Beverage Center: Sub-Zero Undercounter Refrigeration
Page 1 of 3
UC-24BG Beverage Center
Overview
The Sub-Zero UC-24BG Beverage Center simplifies life at home by bringing
refrigeration anywhere it's needed. Fresh greens in the kitchen island. Soda and
snacks in the media room. Chilled wine and mineral water in the master suite. Imagine
how this innovative built-in refrigerator can serve you.
Model Options
UC-24BG/O - Overlay
UC-24BG/S - Classic Stainless
http://www.subzero.com/UndercounterRefrigeration/UC24BGUndercounter
3/23/2011
Sub-Zero UC-24BG Beverage Center: Sub-Zero Undercounter Refrigeration
Page 2 of 3
Features
Technical Features
Design Features
Capacity: 5.7 cu ft (161 L)
All refrigerator beverage center with wine
storage to accommodate 16 (750 ml) bottles
Electrical Requirements: 115 V AC, 60 Hz, 15amp circuit
Annual Energy Usage: 427 kWh/$45 (Based
on 10.65 cents per kilowatt hour)
Shipping weight: Overlay 130 lbs (59 kg);
Classic stainless 135 lbs (61 kg)
Easy-access electronic controls with LCD
display visible through the glass door
Roller-glide wine storage shelves faced with
natural cherry wood have a three-quarter
extension for easy access
UL approved for US and Canada
Adjustable spill-proof cantilever glass shelf and
spill-proof glass floor
Star-K Kosher certified as Sabbath and
holiday-compliant
Clear utility bin for storage of smaller items
Double-pane, full-view glass door and accent
lighting matches appearance of Wine Storage
Model 424
Overlay or stainless steel design application
with standard full-view glass door
Other Features
High altitude glass door model can be special
ordered
Two, five and twelve year residential
warranty—exclusions apply, see warranty
terms
Frequently Asked Questions - Planning
How much do Sub-Zero/Wolf products cost?
Where can I purchase Sub-Zero and Wolf products?
Where can I find Sub-Zero/Wolf product specifications?
What is the temperature range of a Sub-Zero?
Options & Accessories
Glass door available in classic stainless steel with tubular or pro handles
High Altitude Glass Door
Tubular and pro handles in classic stainless steel
UL approved door lock kit
http://www.subzero.com/UndercounterRefrigeration/UC24BGUndercounter
3/23/2011
Undercounter Refrigeration
85
subzero.com/specs
Undercounter Refrigeration. Sub-Zero undercounter refrigeration is a helpful addition to a master suite, bar, home
office or media room. In the kitchen, a high-volume ice machine is a must for entertaining. The design flexibility of these
compact yet roomy units makes them all the more welcome in any room or outdoor kitchen. They’re ready to be fitted with
a custom cabinet panel or can be ordered with a stainless steel panel.
UNDERCOUNTER MODELS
23 7/8"
23 7/8"
(606)
23 7/8"
23 7/8"
(606)
34"
34"
34"
34"
(864)
(864)
(864)
(864)
UC-24R
UC-24BG
UC-24C(I)
15"
33 5/8"
(854)
UC-24RO
15"
(381)
(606)
(606)
(381)
33 5/8"
(854)
UC-15I(P)
UC-15I(P)O
KEY FEATURES
• Overlay and stainless steel design applications.
• Handle options coordinate with handles of Wolf
cooking products.
• Models UC-24RO and UC-15I(P)O are UL approved
for outdoor use.
• Energy efficient; many models are ENERGY STAR®
qualified.
• All models are Star-K certified.
Undercounter Refrigeration
86
Overall Dimensions
UNDERCOUNTER MODELS
23 7/8" (606)
14 3/4" (375)
24" (610)
23" (584)
34"
33 5/8"
(864)
(854)
4" (102)
4" (102)
18"
(457)
25 3/8"
(645)
6"
(152)
2 3/8" (60)
MODELS UC-24R, UC-24BG, UC-24C(I) AND UC-24RO
MODELS UC-15I(P) and UC-15I(P)O
Model UC-15I overall dimensions do not include panel or
handle.
Specifications
Capacity / Weight
INTERIOR CAPACITY
UC-24R, UC-24BG and UC-24RO
UC-24C(I)
R CU FT (L)
5.7 (161)
3.6 (102)
ICE STORAGE CAPACITY
UC-15I(P) and UC-15I(P)O
F CU FT (L)
1.1 (31)
LBS (KG)
26 (12)
SHIPPING WEIGHT
LBS (KG)
UC-24R, UC-24BG, UC-24C(I) and UC-24RO
UC-15I(P) and UC-15I(P)O
130 (59)
100 (45)
Undercounter Refrigeration
87
subzero.com/specs
Opening Dimensions
Planning Information
UNDERCOUNTER MODELS
ELECTRICAL REQUIREMENTS
For ice machine models, it is recommended that electrical
supply be placed in an adjacent cabinet. For all other
undercounter models, locate the electrical supply within
the shaded area shown in the illustration below. Follow
the National Electrical Code and local codes and ordinances when installing the receptacle. A separate circuit,
servicing only this appliance, is required.
TOP VIEW
24" (610)
OPENING
DEPTH
IMPORTANT NOTE: Models UC-24RO and UC-15I(P)O are
designed and safe for use in outdoor applications. When
installed outdoors, a ground fault circuit interrupter (GFCI)
is required to reduce the risk of electrical shock. A GFCI is
not recommended for use with other undercounter models
and may cause interruption of operation.
24" (610)
OPENING DEPTH
341/2" (876)
A
OPENING
HEIGHT
OPENING WIDTH
Electrical Requirements
Power Supply
115 V AC, 60 Hz
Circuit Breaker
15 amp
Receptacle
SIDE VIEW
Opening Width
UC-24R, UC-24BG, UC-24C(I) and UC-24RO
UC-15I(P) and UC-15I(P)O
3-prong grounding-type
FRONT VIEW
A
24" (610)
15 1/4" (387)
LEFT SIDE
OF OPENING
2" (51)
15 1/2"
(394)
3" (76)
FRONT VIEW
Location of electrical supply.
Undercounter Refrigeration
89
subzero.com/specs
Overlay Panel
Door Clearance
MODELS UC-24R, UC-24C(I) AND UC-15I(P)
MODELS UC-24R, UC-24BG AND UC-24C(I)
The overlay design allows for a decorative panel to cover
the door trim for a seamless appearance that will complement surrounding cabinetry. You may also choose to
match the handle hardware of surrounding cabinetry.
Refer to the charts for panel specifications.
Undercounter models can be installed flush with surrounding cabinetry. Depending on the thickness of the overlay
door panel, it may be necessary to install the unit so that it
extends 1/4" (6) beyond the front surface of surrounding
cabinetry. This will prevent interference between the door
panel and adjoining cabinetry at the maximum 145° door
swing. Refer to the full-scale template on page 83 of the
wine storage section.
MODEL UC-24BG
For model UC-24BG, the overlay door panel will consist of
only a frame and will affix directly to the door with screws
through a series of predrilled holes.
The glass area of the door is designed to be exposed to
air circulation. Decorative overlays on the glass should be
kept to a minimum. Do not install a solid panel on the
glass door unit: this may cause moisture to form behind
the panel. Refer to the charts for panel specifications.
IMPORTANT NOTE: The width of rails and stiles can be
increased but should not exceed cabinet manufacturers’
standard widths or the overall panel dimensions. The back
sides of rails and stiles that will be visible through the
glass door will need to be finished along with the inside
edges of the frame.
Panel Dimensions
UC-24R AND UC-24C(I)
Overlay Panel
UC-24BG
Overlay Panel
Rails and Stiles (min)
UC-15I(P)
Overlay Panel
W
H
23 3/4" (603)
30 1/16" (764)
W
H
23 3/4" (603)
2 1/4" (57)
30 1/16" (764)
W
H
15" (381)
30 3/8" (772)
Panel Requirements
MAX PANEL WEIGHT
UC-24R and UC-24C(I)
UC-24BG
UC-15I(P)
20 lbs (9 kg)
10 lbs (5 kg)
15 lbs (7 kg)
MIN PANEL THICKNESS
Overlay Panels
5/8"
(16)
Undercounter Refrigeration
90
Accessories
Door Frame Profile
These optional accessories are available through your
authorized Sub-Zero dealer. For local dealer information,
visit the find a showroom section of our website,
subzero.com.
FULL-SCALE TEMPLATE
The full-scale template shows the door frame profile for
model UC-24BG and the relationship to the overlay panel
(rails and stiles).
• Stainless steel front panel with tubular or pro handle.
• Stainless steel tubular and pro handles to match the
style of Wolf ovens and ranges.
• UL approved door lock.
STANDARD HANDLES
Glass
Refer to the chart below for standard handle lengths and
the stud spacing of tubular and pro handles used on
undercounter models.
Door Panel Profile
Standard Handles
Length
Stud Spacing
24 3/16" (614)
21" (533)
16 1/4" (413)
19 3/4" (502)
CL
UNDERCOUNTER MODELS
Tubular Handle
Pro Handle
1" (25)
1" (25)
2 1/4" (57) Rail / Stile
DOOR FRAME PROFILE
MODEL UC-24BG
Undercounter Refrigeration
91
subzero.com/specs
Wine Shelf Wood Facing
FULL-SCALE TEMPLATE
For models UC-24BG and UC-24C(I), follow dimensions in
the full-scale template below if you choose to replace the
natural cherrywood facing of the wine shelves with wood
more complementary to your design and surrounding
cabinetry.
5/8"
(16)
Maximum Thickness
7/64"
(3)
11/2" (38)
27/32"
(21)
5/64"
(2)
19 1/2" (495)
23/64"
(9)
9/16" (14)
FRONT VIEW
SIDE VIEW
WINE SHELF WOOD FACING
MODELS UC-24BG AND UC-24C(I)
The information and images in this guide are the copyright property of Sub-Zero, Inc. Neither this guide nor any information or images contained herein may be
copied or used in whole or in part without the express written permission of Sub-Zero, Inc. ©Sub-Zero, Inc. all rights reserved.
Wolf, Wolf & Design, Wolf Gourmet, W & Design and the color red as applied to knobs are registered trademarks and service marks of Wolf Appliance, Inc.
Sub-Zero, Sub-Zero & Design, Dual Refrigeration, Constant Care and The Living Kitchen are registered trademarks and service marks of Sub-Zero, Inc.
(collectively, the “Company Marks.”) All other trademarks or registered trademarks are property of their respective owners in the United States and other countries.
CASITA
Sub-Zero UC-24C Refrigerator/Freezer: Sub-Zero Undercounter Refrigeration
Page 1 of 2
UC-24C Refrigerator/Freezer
Overview
The UC-24C(I) refrigerator/freezer simplifies life at home by bringing refrigeration
anywhere it’s needed. Fresh greens in the kitchen island. Ice, soda and snacks in the
media room. Chilled mineral water in the master suite. The combination Sub-Zero UC24C(I) refrigerator/freezer features a wine storage shelf and can be ordered with or
without an automatic ice maker.
Model Options
UC-24C
UC-24CI
http://www.subzero.com/UndercounterRefrigeration/UC24CUndercounter
3/23/2011
Sub-Zero UC-24C Refrigerator/Freezer: Sub-Zero Undercounter Refrigeration
Page 2 of 2
Features
Technical Features
Design Features
Refrigerator Capacity: 3.6 cu ft (102 L)
Combination unit provides refrigeration and
freezer storage
Freezer Capacity: 1.1 cu ft (31 L)
Wine Storage Capacity: Up to 8 (750 ml)
bottles
Electrical Requirements: 115 V AC, 60 Hz, 15amp circuit
Annual Energy Usage: 437 kWh/$47 (Based
on 10.65 cents per kilowatt hour)
Shipping Weight (lbs): 130
Easy-access electronic controls with LCD
display
Adjustable, spill-proof cantilever glass shelves
Roller-glide wine storage shelf faced with
natural cherry wood has a three-quarter
extension for easy access
Automatic ice maker with clear ice bucket
UL approved for US and Canada
Two-litre bottle storage in the bottom door
shelf
Star-K Kosher certified as Sabbath and
holiday-compliant
This unit can be ordered with (Model UC-24CI)
or without (Model UC-24C) an icemaker
Frequently Asked Questions - Planning
How much do Sub-Zero/Wolf products cost?
Where can I purchase Sub-Zero and Wolf products?
Where can I find Sub-Zero/Wolf product specifications?
What is the temperature range of a Sub-Zero?
Options & Accessories
Door front panels in classic stainless with tubular or pro handles
Tubular and pro handles in classic stainless steel
UL-approved door lock
© 2011 Sub-Zero, Inc. and Wolf Appliance, Inc. All rights reserved
Follow us on
http://www.subzero.com/UndercounterRefrigeration/UC24CUndercounter
3/23/2011
Undercounter Refrigeration
85
subzero.com/specs
Undercounter Refrigeration. Sub-Zero undercounter refrigeration is a helpful addition to a master suite, bar, home
office or media room. In the kitchen, a high-volume ice machine is a must for entertaining. The design flexibility of these
compact yet roomy units makes them all the more welcome in any room or outdoor kitchen. They’re ready to be fitted with
a custom cabinet panel or can be ordered with a stainless steel panel.
UNDERCOUNTER MODELS
23 7/8"
23 7/8"
(606)
23 7/8"
23 7/8"
(606)
34"
34"
34"
34"
(864)
(864)
(864)
(864)
UC-24R
UC-24BG
UC-24C(I)
15"
33 5/8"
(854)
UC-24RO
15"
(381)
(606)
(606)
(381)
33 5/8"
(854)
UC-15I(P)
UC-15I(P)O
KEY FEATURES
• Overlay and stainless steel design applications.
• Handle options coordinate with handles of Wolf
cooking products.
• Models UC-24RO and UC-15I(P)O are UL approved
for outdoor use.
• Energy efficient; many models are ENERGY STAR®
qualified.
• All models are Star-K certified.
Undercounter Refrigeration
86
Overall Dimensions
UNDERCOUNTER MODELS
23 7/8" (606)
14 3/4" (375)
24" (610)
23" (584)
34"
33 5/8"
(864)
(854)
4" (102)
4" (102)
18"
(457)
25 3/8"
(645)
6"
(152)
2 3/8" (60)
MODELS UC-24R, UC-24BG, UC-24C(I) AND UC-24RO
MODELS UC-15I(P) and UC-15I(P)O
Model UC-15I overall dimensions do not include panel or
handle.
Specifications
Capacity / Weight
INTERIOR CAPACITY
UC-24R, UC-24BG and UC-24RO
UC-24C(I)
R CU FT (L)
5.7 (161)
3.6 (102)
ICE STORAGE CAPACITY
UC-15I(P) and UC-15I(P)O
F CU FT (L)
1.1 (31)
LBS (KG)
26 (12)
SHIPPING WEIGHT
LBS (KG)
UC-24R, UC-24BG, UC-24C(I) and UC-24RO
UC-15I(P) and UC-15I(P)O
130 (59)
100 (45)
Undercounter Refrigeration
87
subzero.com/specs
Opening Dimensions
Planning Information
UNDERCOUNTER MODELS
ELECTRICAL REQUIREMENTS
For ice machine models, it is recommended that electrical
supply be placed in an adjacent cabinet. For all other
undercounter models, locate the electrical supply within
the shaded area shown in the illustration below. Follow
the National Electrical Code and local codes and ordinances when installing the receptacle. A separate circuit,
servicing only this appliance, is required.
TOP VIEW
24" (610)
OPENING
DEPTH
IMPORTANT NOTE: Models UC-24RO and UC-15I(P)O are
designed and safe for use in outdoor applications. When
installed outdoors, a ground fault circuit interrupter (GFCI)
is required to reduce the risk of electrical shock. A GFCI is
not recommended for use with other undercounter models
and may cause interruption of operation.
24" (610)
OPENING DEPTH
341/2" (876)
A
OPENING
HEIGHT
OPENING WIDTH
Electrical Requirements
Power Supply
115 V AC, 60 Hz
Circuit Breaker
15 amp
Receptacle
SIDE VIEW
Opening Width
UC-24R, UC-24BG, UC-24C(I) and UC-24RO
UC-15I(P) and UC-15I(P)O
3-prong grounding-type
FRONT VIEW
A
24" (610)
15 1/4" (387)
LEFT SIDE
OF OPENING
2" (51)
15 1/2"
(394)
3" (76)
FRONT VIEW
Location of electrical supply.
Undercounter Refrigeration
88
Planning Information
Drain Pump
PLUMBING REQUIREMENTS
ICE MACHINE MODELS
For model UC-24C(I) and ice machine models, the water
supply line should be located within the shaded area
shown in the illustrations below. The water supply line
should be connected to the house supply with an easily
accessible shut-off valve between the supply and the unit.
Do not use self-piercing valves. A saddle valve kit is available through your authorized Sub-Zero dealer.
Undercounter ice machine models can be ordered with or
without a pump. Models without a drain pump will drain
water from the unit by gravity. A drain must be installed.
The ice maker operates on constant water pressure
between 20 psi (1.4 bar) and 100 psi (6.9 bar).
IMPORTANT NOTE: In some cases, a reverse osmosis
water filter system may not be able to maintain the
minimum pressure consistently.
Plumbing Requirements
1/4"
Water Supply Line
Water Pressure
OD copper line
20–100 psi (1.4–6.9 bar)
Excess Water Line for Connection
SHADED AREA
EXTENDS 1/2" (13)
FROM BACK WALL
26" (660) min
8"
1/2"
(13)
(203)
LOCATION OF
WATER LINE
2" (51)
15 1/2"
(394)
3" (76)
FRONT VIEW
Model UC-24C(I).
TOP VIEW
Ice machine models.
The drain and inlet water tubes must be plumbed before
connecting to the ice machine. For the gravity drain, all
horizontal runs of drain lines must have a 1/4" (6) per 12"
(305) fall. An air gap will likely be required between the unit
and drain receptacle. A stand pipe with a trap below it
would be acceptable for the drain receptacle.
IMPORTANT NOTE: Poor drainage will cause excessive ice
melting in the ice bin.
Undercounter Refrigeration
89
subzero.com/specs
Overlay Panel
Door Clearance
MODELS UC-24R, UC-24C(I) AND UC-15I(P)
MODELS UC-24R, UC-24BG AND UC-24C(I)
The overlay design allows for a decorative panel to cover
the door trim for a seamless appearance that will complement surrounding cabinetry. You may also choose to
match the handle hardware of surrounding cabinetry.
Refer to the charts for panel specifications.
Undercounter models can be installed flush with surrounding cabinetry. Depending on the thickness of the overlay
door panel, it may be necessary to install the unit so that it
extends 1/4" (6) beyond the front surface of surrounding
cabinetry. This will prevent interference between the door
panel and adjoining cabinetry at the maximum 145° door
swing. Refer to the full-scale template on page 83 of the
wine storage section.
MODEL UC-24BG
For model UC-24BG, the overlay door panel will consist of
only a frame and will affix directly to the door with screws
through a series of predrilled holes.
The glass area of the door is designed to be exposed to
air circulation. Decorative overlays on the glass should be
kept to a minimum. Do not install a solid panel on the
glass door unit: this may cause moisture to form behind
the panel. Refer to the charts for panel specifications.
IMPORTANT NOTE: The width of rails and stiles can be
increased but should not exceed cabinet manufacturers’
standard widths or the overall panel dimensions. The back
sides of rails and stiles that will be visible through the
glass door will need to be finished along with the inside
edges of the frame.
Panel Dimensions
UC-24R AND UC-24C(I)
Overlay Panel
UC-24BG
Overlay Panel
Rails and Stiles (min)
UC-15I(P)
Overlay Panel
W
H
23 3/4" (603)
30 1/16" (764)
W
H
23 3/4" (603)
2 1/4" (57)
30 1/16" (764)
W
H
15" (381)
30 3/8" (772)
Panel Requirements
MAX PANEL WEIGHT
UC-24R and UC-24C(I)
UC-24BG
UC-15I(P)
20 lbs (9 kg)
10 lbs (5 kg)
15 lbs (7 kg)
MIN PANEL THICKNESS
Overlay Panels
5/8"
(16)
Undercounter Refrigeration
91
subzero.com/specs
Wine Shelf Wood Facing
FULL-SCALE TEMPLATE
For models UC-24BG and UC-24C(I), follow dimensions in
the full-scale template below if you choose to replace the
natural cherrywood facing of the wine shelves with wood
more complementary to your design and surrounding
cabinetry.
5/8"
(16)
Maximum Thickness
7/64"
(3)
11/2" (38)
27/32"
(21)
5/64"
(2)
19 1/2" (495)
23/64"
(9)
9/16" (14)
FRONT VIEW
SIDE VIEW
WINE SHELF WOOD FACING
MODELS UC-24BG AND UC-24C(I)
The information and images in this guide are the copyright property of Sub-Zero, Inc. Neither this guide nor any information or images contained herein may be
copied or used in whole or in part without the express written permission of Sub-Zero, Inc. ©Sub-Zero, Inc. all rights reserved.
Wolf, Wolf & Design, Wolf Gourmet, W & Design and the color red as applied to knobs are registered trademarks and service marks of Wolf Appliance, Inc.
Sub-Zero, Sub-Zero & Design, Dual Refrigeration, Constant Care and The Living Kitchen are registered trademarks and service marks of Sub-Zero, Inc.
(collectively, the “Company Marks.”) All other trademarks or registered trademarks are property of their respective owners in the United States and other countries.
Wolf Microwave: Wolf Microwave
Page 1 of 2
Microwave
Overview
What sort of microwave oven can you expect from a cooking company? This is the only
microwave that deserves the Wolf name. It’s fast – 1200 watts on high. Roomy – a full
2.0 cu. ft. (56 L) and it is a true cooking instrument with a vast range of advanced
features including sensor cooking controlled from an interactive display.
Model Options
MW24
http://www.wolfappliance.com/Microwaves/MW24Microwave
3/23/2011
Wolf Microwave: Wolf Microwave
Page 2 of 2
Features
Technical Features
Design Features
Shipping Weight: 50 lbs
Built-in or free-standing microwave oven with
2.0 cu ft capacity and 1200 watts of power
Overall Width with Trim: 29 7/8"
Overall Height with Trim: 18 1/4"
Removable 16" turntable and turntable support
Classic stainless steel trim finish
Sensor cooking
Easy-to-operate control panel and
programmable power options
Other Features
Interactive display—99 minutes, 99 seconds
Warming feature
Multi-language—English, French and Spanish
Menu label and recipe guide
Safety door latches—oven will not operate
unless the door is securely closed
Oven light comes on when oven is operating
or door is open
Tight door seals with one-touch door open pad
Frequently Asked Questions - Planning
Where can I purchase Sub-Zero and Wolf products?
How much do Sub-Zero/Wolf products cost?
Where can I find Sub-Zero/Wolf product specifications?
What sets the Wolf microwave apart from other microwaves?
What is sensor cooking?
What accessories are available for my Wolf microwave?
What kind of electrical lines do I need to install this microwave?
Options & Accessories
27" and 30" Stainless Steel Trim Options
© 2011 Sub-Zero, Inc. and Wolf Appliance, Inc. All rights reserved
Follow us on
http://www.wolfappliance.com/Microwaves/MW24Microwave
3/23/2011
Wolf Microwave Ovens
16
Microwave Ovens. As true cooking instruments, Wolf microwave ovens have features that make fast meals better
meals. Wolf offers both a roomy, powerful standard microwave and a convection model that can microwave, broil and
cook in three convection modes. Stainless steel trim kits are available through your authorized Wolf dealer to match
L series and E series ovens. Drawer microwave models can be conveniently located undercounter, in a corner or below a
Wolf E series oven. They are designed to match the trim style of E series ovens and can be installed in a standard or flush
inset application.
DRAWER MICROWAVES
MWD24-2U/S
MWD30-2U/S
MWD30-2F/S
24" (610) UNFRAMED
30" (762) UNFRAMED
30" (762) FRAMED
CONVECTION MICROWAVE
MWC24
MWC24
L SERIES TRIM
E SERIES TRIM
MODEL MWD30-2U/S
STANDARD MICROWAVE
KEY FEATURES
• Large-capacity interior.
• Built-in or freestanding option for design versatility
(except drawer models).
• Sensor cooking to monitor and adjust settings.
• Warming feature for gentle heating.
MW24
MW24
L SERIES TRIM
E SERIES TRIM
Wolf Microwave Ovens
18
Convection Microwave
L SERIES TRIM
E SERIES TRIM
24 3/4" (629)
FREESTANDING WIDTH
24 3/4" (629)
FREESTANDING WIDTH
19" (483)
14 7/8"
19 7/8"
14 7/8"
19 7/8"
(378)
FREESTANDING
HEIGHT
(505)
TRIM
HEIGHT
19" (483)
(378)
FREESTANDING
HEIGHT
(505)
TRIM
HEIGHT
26 7/8" (683) FOR 27" TRIM
29 7/8" (759) FOR 30" TRIM
29 7/8" (759) FOR 30" TRIM
35 5/8" (905) FOR 36" TRIM
Standard Microwave
E SERIES TRIM
L SERIES TRIM
24" (610)
FREESTANDING WIDTH
18 1/4"
(464)
TRIM
HEIGHT
29 7/8" (759)
30" (762) TRIM WIDTH
24" (610)
FREESTANDING WIDTH
19" (483)
13 3/8"
19" (483)
18 1/4"
(340)
FREESTANDING
HEIGHT
(464)
TRIM
HEIGHT
26 7/8" (683) FOR 27" TRIM
29 7/8" (759) FOR 30" TRIM
13 3/8"
(340)
FREESTANDING
HEIGHT
Wolf Microwave Ovens
19
wolfappliance.com/specs
Planning Information
Wolf drawer microwave ovens can be installed in a
standard or flush inset application. A flush inset installation requires the microwave to be recessed into the
cabinet. Refer to the illustrations on the following pages
for minimum cabinet dimensions for your specific installation. The cabinet must be able to support 125 lbs (57 kg).
In standard applications, the drawer microwave trim will
overlap stiles and rails and will match the overlaps of
E series ovens. Refer to the chart for overlap dimensions.
Wolf convection and standard microwave ovens can be
used freestanding or built-in with optional trim kit available
through your authorized Wolf dealer. For local dealer information, visit the find a showroom section of our website,
wolfappliance.com.
In a freestanding application, allow 2" (51) of airflow space
on the top, rear and both sides. Built-in opening dimensions accommodate air flow space.
In built-in applications, convection and standard
microwaves with trim kit will overlap stiles and rails and
will match the overlaps of L series and E series ovens.
Refer to the chart for overlap dimensions.
Microwave Trim Overlap
DRAWER MICROWAVE
Top Overlap
Bottom Overlap
Side Overlap
27" (686) E SERIES TRIM
Top Overlap
Bottom Overlap
Side Overlap
30" (762) L AND E SERIES TRIM
Top Overlap
Bottom Overlap
Side Overlap
36" (914) L SERIES TRIM
Top Overlap
Bottom Overlap
Side Overlap
24" MODEL
3/8"
(10)
1/8" (3)
1" (25)
CONVECTION
1/4"
(6)
3/4" (19)
13/16" (21)
CONVECTION
1/4"
30" MODELS
3/8"
(10)
(3)
3/4" (19)
1/8"
STANDARD
9/16"
11/16"
(14)
(17)
13/16" (21)
STANDARD
7/16"
13/16"
(6)
13/16" (21)
1 3/16" (30)
(11)
(21)
1 3/16" (30)
CONVECTION
STANDARD
3/16"
(5)
13/16" (21)
1 1/4" (32)
NA
NA
NA
Interior Specifications
INTERIOR CAPACITY
CU FT (L)
Drawer Microwave
Convection Microwave
Standard Microwave
1.0 (28)
1.5 (42)
2.0 (57)
INTERIOR DIMENSIONS
Drawer Microwave
Convection Microwave
Standard Microwave
W
H
D
17 3/8" (441) 5 7/8" (149) 17 1/8" (435)
16 1/8" (410) 9 5/8" (244) 16 1/8" (410)
17 3/8" (441) 10 1/2" (267) 18 5/8" (473)
ELECTRICAL REQUIREMENTS
Wolf microwave ovens require a separate, grounded
120 V AC, 60 Hz power supply. The service should have its
own 15 amp circuit breaker. A grounded 3-prong receptacle should be located within reach of the power cord.
Wolf Microwave Ovens
22
Convection Microwave
BUILT-IN INSTALLATION WITH TRIM
OPENING WIDTH
18 7/8" (479)
OPENING
HEIGHT
36" (914)
FLOOR TO
COUNTERTOP
251/4" (641) FOR 27" TRIM
271/2" (699) FOR 30" TRIM
33 3/8" (854) FOR 36" TRIM
E
20 1/8" (511) min
OPENING DEPTH
SIDE VIEW
FRONT VIEW
Dashed line represents profile of unit.
Standard Microwave
BUILT-IN INSTALLATION WITH TRIM
OPENING WIDTH
251/4" (641) FOR 27" TRIM
271/2" (699) FOR 30" TRIM
17" (432)
OPENING
HEIGHT
36" (914)
FLOOR TO
COUNTERTOP
E
20" (508) min
OPENING DEPTH
SIDE VIEW
Dashed line represents profile of unit.
FRONT VIEW
POOL/CABANA
Page 1 of 3
41" Ultra-Premium T-Series Grill with
TruSear Infrared Burner- VGIQ
Outdoor Series
Solid Viking Construction
• NEW! Canopy has been designed for seamless fit and finish
◦ No seams visible from front
• NEW! Cosmetic Updates
◦ Knobs are now cast metal for improved durability
◦ All bezels changed and match new indoor range line
◦ Laser-Etched graphics on control panels
• Built from thick sheets of rugged, heavy-duty stainless steel
• Double wall construction insulates hood to help keep heat inside and provides for a cooler
sidewall
◦ Hood is slightly slanted to prevent water from accumulating on top of the grill and
provides a sleek style that is synonymous with Viking name
• No exposed rotisserie slot to take away from strength of sidewall or allow the escape of
precious heat
• All models can be built into any type of enclosure without the need of an insulated jacket - a
Viking exclusive
• Portable carts are available for all models (sold separately)
• Stainless steel landing ledge with solid, welded, seamless finish
• No assembly required
Commercial-Type Cooking Power
• 25,000 BTU stainless steel grill burners produce intense searing heat across entire grilling
surface
• Extra-deep sealed burner box keeps heat contained in burner area, allowing easier temperature
maintenance
• 15,000 BTU Gourmet-Glo™ infrared rear burner, a heavy-duty rotisserie motor, stainless steel
1/2" rotisserie rod, and two rotisserie forks
◦ The infrared burner is a reliable, electronically ignited one-piece design
◦ The rotisserie rod is mounted on a ball-bearing rod support that provides smooth rotating
action, and the rod is fully enclosed within the grill, a Viking exclusive
◦ The rotisserie motor assembly is supported by a rigid mount and is easily attached and
removed from the grill for hassle-free cooking and storage
◦ No counter balance required due to heavy-duty rotisserie system
• Removable smoker box accommodates wood chips or large wood chunks
◦ Hinged smoker box design allows easy operation when adding smoker chips
◦ 12,500 BTU burner underneath can be adjusted for maximum smoking performance
• The smoker box can be replaced with grilling grate for use of entire grill surface
• Push-button electronic ignition powered by a 9-volt battery provides a positive, consistent, and
continuous spark for easy grill lighting
http://www.vikingrange.com/consumer/products/print_friendly/product_print.jsp?id=prod1... 3/24/2011
Page 2 of 3
• Stainless steel flavor-generator plates catch drippings, generate smoke, minimize flare-ups, and
allow for better heat control
◦ Perforated design allows heat to spread quickly and evenly across entire surface
◦ Burner flames are visible through perforations, allowing user to visually monitor heat
output and adjust to the desired level
• Chrome-plated warming rack - reinforced by stainless steel rack supports - can easily be
adjusted to three different positions, allowing use of additional accessory racks
• Thermometer located on canopy provides approximate grilling temperatures
• TruSear™¿ Infrared Burner
◦ Located in far left grill burner position
◦ Constructed of heavy-duty inconel stainless steel
◦ 30,000 BTU high, 17,500 BTU low
◦ Intense searing heat caramelizes the outside of food locking in the food¿s natural juices
and flavors
◦ Drippings from food are vaporized from intense heat of TruSear burner, generating
flavor and preventing flare-ups
◦ Reduced cooking times due to short preheat time and intense infrared heat
◦ Versatile - cooks everything from thick steaks and chops to seafood and vegetables
Easy Maintenance and Cleanup
• Grease management system consists of full-width removable stainless steel drip tray with
individual removable trays within the main tray
◦ The exclusive "trays within a tray" design channels liquids to the precise drip tray
location, providing easy cleanup because the liquids are contained
◦ Stainless steel ball-bearing rollers provide smooth opening of the drip tray, while roller
stops prevent tray from falling out
• Extra heavy-duty cooking grids are porcelain-coated to prevent food from easily sticking to
them; the virtual non-stick surface creates optimal cooking areas, while also creating an easyto-clean surface
• Burners are equipped with stainless steel drip guards to combat burner clog and to aid grease
management by channeling the liquids to the drip tray, which assists in flare-up control
Carts and Cabinetry
• Stainless steel cart rolls easily on inboard locking casters and 10" rubber wheels, allowing unit
to fit flush against wall
◦ Includes two 16" wide by 24" deep fold-down side shelves
◦ Front door for LP tank access
• Grills, Carts, and Cabinetry are all sold separately.
• Grill compatible with the following cabinetry: VQBO4121, VQWO4120
Exclusive Finishes
• Available in Stainless Steel (SS)
• Grill carts available in Stainless Steel (SS)
◦ All parts designed for maintenance-free normal use
Warranty Highlights*
• One-year full covers all outdoor products - in-home repairs
• Five-year limited - burner assemblies, infrared rotisserie burner(s), and porcelain grill grates
http://www.vikingrange.com/consumer/products/print_friendly/product_print.jsp?id=prod1... 3/24/2011
OUTDOOR—COOKING
41”W. Ultra-Premium T-Series/E-Series Gas Grill
Standard Features & Accessories
All models include
o Burner flames are visible through
perforations, allowing user to visually
monitor heat output and adjust to
desired level
• Chrome-plated warming rack –
reinforced by heavy-duty rack supports –
can easily be adjusted to three different
positions, allowing use of additional
accessory racks
• Rotisseries standard on all UltraPremium models; rotisserie system
consists of a 15,000 BTU GourmetGlo™ infrared rear burner, heavy-duty
rotisserie motor, stainless steel 1/2”
rotisserie rods, and two rotisserie forks
o Infrared burner is a reliable,
electronically ignited one-piece
design
o Rotisserie rod is mounted on a ballbearing rod support that provides
smooth rotating action; rod is fully
enclosed within grill, a Viking
exclusive feature
o Rotisserie motor assembly is
supported by a rigid mount and is
easily attached and removed from
the grill for hassle-free cooking and
storage
o No counter balance required due to
heavy-duty rotisserie system
• Removable smoker box
accommodates wood chips or large
wood chunks
o Hinged design allows easy operation
when adding smoker chips
• Commercial styling and construction
o Built from thick sheets of rugged,
heavy-duty stainless steel
o Double wall construction insulates
hood to help keep heat inside and
provides for a cooler sidewall
o Hood is slightly slanted to prevent
water from accumulating on top of
grill, and provides a sleek style that is
synonymous with the Viking name
o No exposed rotisserie slot to take
away from strength of sidewall or
allow heat to escape
o All models can be built into any type
of enclosure without the need of an
insulated jacket – a Viking exclusive
o Stainless steel landing ledge with
solid, welded, seamless finish
o No assembly required
• Canopy has been designed for seamless
fit and finish
• Knobs are cast metal for durability and
all bezels match indoor range line
• All outdoor control panel graphics are
permanently laser-etched at the factory
• Extra-deep sealed burner box keeps
heat contained in burner area, allowing
easier temperature maintenance
• Stainless steel flavor-generator plates
catch drippings, generate smoke,
minimize flare-ups, and allow for better
heat control
o Perforated design allows heat to
spread quickly and evenly across
entire surface
o 12,500 BTU burner underneath can
be adjusted for maximum smoking
performance
o Smoker box can be replaced with
grilling grate for use of entire grill
surface
• Numerical thermometer gives precise
temperatures for grilling, smoking, and
warming
• Easy maintenance and cleanup
o Extra heavy-duty cooking grids are
porcelain-coated to prevent food from
easily sticking; virtual non-stick surface
creates optimal cooking areas, while
also creating an easy-to-clean surface
o Burners are equipped with stainless
steel drip guards to combat burner
clog and aid grease management by
channeling liquids to the drip tray,
assisting in flare-up control
o Grease Control™ system consists of
full-width removable stainless steel
drip tray, and individual removable
trays within main tray
• Exclusive “trays within a tray”
design channels liquids to the
precise drip tray location,
providing easy cleanup because
liquids are contained
• Stainless steel ball-bearing rollers
provide smooth opening of drip
tray, while roller stops prevent tray
from falling out
Model Options
VGBQ410-3RE1*
E-Series
Three-Burner All-Grill
VGBQ412-2RE1*
E-Series
Two-Burner Grill
w/Side Burners
VGIQ410-3RT/E1*
T-Series/E-Series
Three-Burner All-Grill
(inc. TruSear™ Burner)
FINISH DETAILS FOR ALL MODELS
• Stainless Steel (SS)
o Porcelain-coated cooking grids (and
“V” grates on the 412 model’s side
burners), and black knobs.
• Brass Trim Option (BR)—nameplate,
handle/brackets, and knob bezels.
Brass components have a durable
protective coating for maintenancefree normal use.
VGIQ412-2RT1*
T-Series Two-Burner Grill
w/Side Burners
(inc. TruSear™ Burner)/
VGIQ411-2RE1*
E-Series Two-Burner Grill
(inc. TruSear™ Side Burner)
*T-Series & E-Series models look the same, with the exception of the canopy light switch in the upper right corner of the E-Series control panel.
(See photo of 30”W. E-Series grill for example.)
ORDERING INSTRUCTIONS
You must specify fuel type (“N” or “L”) following model number (VGBQ4103RT1NSS).
If ordering optional brass trim, specify code at end (VGBQ4103RT1NSSBR).
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM
•
1-888-VIKING1
REVISED 8/18/09
© 2 0 0 9 V R C — INFORMATION SUBJECT TO CHANGE
OUTDOOR—COOKING
41”W. Ultra-Premium T-Series/E-Series Gas Grill
Dimensions & Specifications
Please see
Installation Notes &
Accessories
PRODUCT DIMENSIONS
for important
information,
including fuel
conversion kits,
carts, and side
burners.
VGBQ410-3RE1*
E-Series
Three-Burner All-Grill
VGBQ412-2RE1*
E-Series
Two-Burner Grill
w/Side Burners
VGIQ410-3RT/E1*
T-Series /E-Series
Three-Burner All-Grill
(inc. TruSear™ Burner)
VGBQ T-Series
grills are Star-K
certified for use on
the Jewish Sabbath
or Jewish holidays.
(VGIQ grills are not
Star-K certified.)
41
VGIQ412-2RT1*
T-Series Two-Burner Grill
w/Side Burners
(inc. TruSear™ Burner)/
VGIQ411-2RE1*
E-Series Two-Burner Grill
(inc. TruSear™ Side Burner)
-
(10 3/16
4.6 ”
cm
)
26
-
(68 7/8”
.3 c
m)
41
-
(10 3/16
4.6 ”
cm
)
VGBQ410-3RE1
Overall width
Overall height—hood closed
With hood fully open
Overall depth—from front of knobs
Approx. ship wt. lbs. (kg)
380 (172.5)
VGBQ412-2RE1
(83
VGIQ410-3RT/E1
41-3/16” (104.6 cm)
26-7/8” (68.3 cm)
33-3/16” (84.3 cm)
32-3/4” (83.2 cm)
350 (158.9)
380 (172.5)
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM
4”
- 3/
32.2 cm)
•
1-888-VIKING1
VGIQ412-2RT1/411-2RE1
350 (158.9)
REVISED 8/18/09
© 2 0 0 9 V R C — INFORMATION SUBJECT TO CHANGE
OUTDOOR—COOKING
41”W. Ultra-Premium T-Series/E-Series Gas Grill
Dimensions & Specifications
CLEARANCE DIMENSIONS & HOOD SWING
22
-1
(58 5/16
.3 c ”
m)
41
-
(10 3/16
4.6 ”
cm
)
(20 8”
.3 c
m)*
16
-
(42 5/8”
.2 c
m)
5
-3
(13 /8”
.7 c
m)
10
-
(26 1/4”
.0 c
m)
.
min on3” ) to nle
6
(15 ”
.2 c
m)
cm tab
(7.6mbus ce
co urfa
s
”
16
-9/cm)
1
3 .2
(80
in.
” m to
24 cm) le
1.0 ab
(6 bust
e
comurfac
s
4”
- 3/
32.2 cm)
(83
Minimum clearances
1. Maintain a min. of 6” (15.2 cm) from
the sides, or a min. of 8” (20.3 cm)
from the right side if there is a
rotisserie motor, and a min. of
24” (61.0 cm) from the back above the
cooking surface to adjacent vertical
combustible construction. Do not
place grill under unprotected
combustible construction.
2. Maintain a min. of 3” (7.6 cm)
clearance from the back of the grill
with a canopy and a min. of
6” (15.2 cm) from the back of the grill
without a canopy to non-combustible
construction to allow the lid to open
fully and for proper ventilation. (The
grill exhausts combustion products
and cooking greases to the back.)
Never place the grill where the
exhaust is directed at a window, less
than 24” (61.0 cm) to combustible
material, or any surface that is difficult
to clean. Allow at least 6” side
clearance to non-combustible
construction above the cooking
surface for counter space. If using the
rotisserie option, the space is essential
for motor and skewer clearance. The
grill can be placed directly adjacent to
combustible and/or non-combustible
construction below the cooking
surface.
3. When determining a suitable location
for the grill, take into account
exposure to wind, proximity to traffic
paths, and keeping gas supply lines as
short as possible. Place the grill only in
a well-ventilated area. Never place the
grill in a building, garage, breezeway,
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM
•
1-888-VIKING1
shed, or other fully enclosed areas.
During heavy use, the grill will
produce a lot of smoke; ensure you
have adequate room for smoke to
dissipate.
4. If using a rear wall, place the electrical
service on the right-hand side for the
rotisserie motor.
IMPORTANT: Gas fittings, regulator, and
installer-supplied shut-off valve must be
easily accessible.
REVISED 8/18/09
© 2 0 0 9 V R C — INFORMATION SUBJECT TO CHANGE
OUTDOOR—COOKING
41”W. Ultra-Premium T-Series/E-Series Gas Grill
Installation Requirements
ACCESS REQUIREMENTS
VGBQ410-3RE1*
T-Series/E-Series
Three-Burner All-Grill
VGBQ412-2RE1*
T-Series/E-Series
Two-Burner Grill
w/Side Burners
VGIQ410-3RT/E1*
T-Series /E-Series
Three-Burner All-Grill
(inc. TruSear™ Burner)
VGIQ412-2RT1*
T-Series Two-Burner Grill
w/Side Burners
(inc. TruSear™ Burner)/
VGIQ411-2RE1*
E-Series Two-Burner Grill
(inc. TruSear™ Side Burner)
” )
5 cm
7
2.
(1
(1 5
2. ”
7
cm
)
Gas inlet and power cord
location area
”
28 cm)
40
(10 -1/4
2.2 ”
cm
)
.1
(71
(7.6 3”
cm
)
o
*S
3
min
.
Electrical connection
for rotisserie motor
(position unit so that
the plug is always
accessible)
lid
(91 6”
.4 c
m)
m
o
tt
o
b
p
p
su
rt
o
**A
cce
10
-
do
or
op
eni
ng
(26 1/4”
.0 c
m)
(1 .
2c
m)
”
/2
1
Electrical connection
for power supply cord on
E-Series to be located
on rear wall with a maximum
distance of 2’ (61.0 cm)
beneath solid bottom
support.
ss
2” )
1/ . 2 c m
(1
Countertop typically requires
1/2” wide by 1/2” deep notch
cutout on each side of grill.
This allows grill CP to sit back
properly in the cutout.
*Cabinet Cutout must have a solid bottom to support the full weight of the unit.
**Access Doors sold seperately
All models
Cutout width
Cutout height
Cutout depth
40-1/4" (102.2 cm)
10-1/4” (26.0 cm)
28” (71.1 cm)
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM
•
1-888-VIKING1
REVISED 8/18/09
© 2 0 0 9 V R C — INFORMATION SUBJECT TO CHANGE
OUTDOOR—COOKING
41”W. Ultra-Premium T-Series/E-Series Gas Grill
Installation Requirements
VGBQ410-3RE1*
T-Series/E-Series
Three-Burner All-Grill
VGBQ412-2RE1*
T-Series/E-Series
Two-Burner Grill
w/Side Burners
VGIQ410-3RT/E1*
T-Series /E-Series
Three-Burner All-Grill
(inc. TruSear™ Burner)
VGIQ412-2RT1*
T-Series Two-Burner Grill
w/Side Burners
(inc. TruSear™ Burner)/
VGIQ411-2RE1*
E-Series Two-Burner Grill
(inc. TruSear™ Side Burner)
UTILITY
REQUIREMENTS
GAS
Fixed piping installations
• Check with local gas utility
company or with local codes
for instructions on installing
gas supply lines. All gas
connections should be made
by a competent technician and
in accordance with local codes
and or ordinances. In the
absence of codes, the
installation must comply with
the National Fuel Gas Code
ANSI Z223.1.
• An installer-supplied gas shutoff valve must be installed in
an easily accessible location.
All installer-supplied parts
must conform to local codes.
• Must be isolated from the gas
supply piping system by
closing its individual manual
shut-off valve during any
pressure testing of that system
at test pressures equal to or
less than 1/2 psi (3.5 kPa).
Natural gas models
• Water column pressure
o Operating pressure—4.0"
WCP
o Supply pressure of 6" – 14"
WCP
o If incoming pressure exceeds
14" WCP, a step-down
regulator is required.
• Accepts standard residential
1/2” (1.3 cm) ID gas service
line; 1/2” (1.3 cm) NPT male
with 7/8” (2.2 cm) flare adapter.
o If using a Viking GSH12
flexible hose, remove the
1/2” (1.3 cm) flare adapter
and attach hose to the 7/8”
(2.2 cm) male flare on the
regulator assembly.
LP/propane models
• Water column pressure
o Operating pressure—10” WCP
o Supply pressure of 11” – 14”
WCP (for fixed piping
installations)
o If incoming pressure exceeds
14” WCP, a step-down
regulator is required.
• Accepts standard residential
1/2” (1.3 cm) ID gas service
line; 1/2” (1.3 cm) NPT male
with 3/8” (0.95) flare adapter.
LP/propane tank installations
• Water column pressure
o Operating pressure—10”
WCP
• Includes high-capacity
hose/regulator assembly for
connection to a standard 5gal./20-lb. (approx. 12”
diameter/18”H.) LP/propane
gas cylinder equipped with a
Type 1, QCC-1 connector
o The cylinder connection
device must be compatible
with the Type 1, QCC-1
connector on the outdoor
cooking appliance.
o The cylinder must be
provided with a shut-off
valve terminating in an
LP/propane gas supply
cylinder valve outlet
specified.
VGBQ410-3RE1
VGBQ412-2RE1
VGIQ410-3RT/E1
o The cylinder supply system
must be arranged for vapor
withdrawal and provided
with a listed OPD (overfilling
prevention device).
ELECTRICAL
• T-Series models
o 9-volt DC battery for
electronic ignition
o 2’ (61.0 cm) power cord
supply cord with 3-prong
grounded plug attached to
rotisserie motor.
• 120 VAC/60 Hz
o Rotisserie motor max. amp
usage—6.0
• E-Series models
o 3’ (91.4 cm) power cord
supply cord with 3-prong
grounded plug attached to
grill
• 120 VAC/60 Hz
o 120 VAC/60 Hz
o Grill max. amp usage
• VGBQ/VGIQ410—2.2
• VGBQ/VGIQ412—2.3
o 2’ (61.0 cm) power cord
supply cord with 3-prong
grounded plug attached to
rotisserie motor.
• 120 VAC/60 Hz
o Rotisserie motor max. amp
usage—6.0
PLUMBING
Not applicable
VGIQ412-2RT1
VGIQ411-2RE1
Burner rating
Standard SS grill burners (each)
25,000 BTU (7.3 kW) Nat./22,500 BTU (6.5 kW) LP (T-Series)
29,000 BTU (7.3 kW) Nat./28,000 BTU (6.5 kW) LP (E-Series)
Smoker burner (split standard)
12,500 BTU (3.7 kW) Nat./10,500 BTU (3.1 kW) LP
GourmetGlo™ rotisserie burner
15,000 BTU (4.4 kW) Nat./13,500 BTU (4.0 kW) LP
Side grill burners (each)
15,000 BTU (4.4 kW) Nat./13,500 BTU (4.0 kW) LP
TruSear infrared burner
30,000 BTU (8.8 kW) Nat./LP
30,000 BTU (8.8 kW) Nat./LP 30,000 BTU (8.8 kW) Nat./LP
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM
•
1-888-VIKING1
REVISED 8/18/09
© 2 0 0 9 V R C — INFORMATION SUBJECT TO CHANGE
(BH458PSLDSS)
WALL MOUNT LINER INSERT SPECIFICATIONS

 
 
 
 
 
 



BPSLD/BHPSLD LINER “H” in part number indicates halogen lighting. This model not available with
heat lamps.






  
  
 
  
   
  
    

   
 



BPSLD/BHPSLD
Connection Diagram (28 3/8” - 52 3/8” Widths)
5 ½”
Wall Side
Recommended
Mounting Height*
5 ¼”
Vent
Holes
1 ¾”
8” Outlet
Electrical
Centerline
of Hood
600 CFM B200 Dual Blower
(Top View)
Connection Diagram (46 3/8” - 58 3/8” Widths)
7 �⁄��”
5 ½”
Wall Side
10” Round
7 �⁄��”
10” Round
1 ¾”
1 �⁄�”
Vent
Holes
17 ½”
Electrical (2)
5 ¼”
Centerline
of Hood
8” Outlet
6” Outlet
8” Round
8” Round
6” Round
2”
900 CFM B200 Dual & B100 Single Blower
(Top View)
*Exceeding recommended
mounting height may
VP562 Transition (Optional) For B300
compromise performance.
(B200 Dual Blower & B100 Single Blower) 10” OR 12”
Round
Connection Diagram (52 3/8” - 64 3/8” Widths)
11”
11”
5 ½”
12” Round
5 ½”
Wall Side
Vent
Holes
1 ¾”
16 ½”
8” Outlet
5 ¼”
8” Outlet
12” Round
Centerline
of Hood
Electrical (2)
8” Round
8” Round
8” Round
3”
1200 CFM Double B200 Dual Blowers
(Top View)
VP563 Transition (Optional) For B400
(Double B200 Dual Blowers)
VP562/VP563
transition
centers outlet
over top of hood
Electrical/Mechanical Specifications For Blower Units
Model
B200 Dual
B200 Dual & B100 Single
Two B200 Duals
Volts
Amps*
Hz
RPM
115
115
115
2.9
4.4
5.8
60
60
60
1550
1550
1550
CFM
CFM
CFM
Minimum Round
• CFM
Sones#
SP@0.0" Equivalent CFM SP@0.1" SP@0.2" SP@0.3"
Duct Size
600
900
531
480
430
8" (50 in.2)
6.5
900
1350
804
725
655
VP562: 10" (79 in.2)
6.3
1200
1800
1062
960
860
VP563: 12" (113 in.2)
6.6
* Add 0.5 amp for each halogen light. Hoods are available with fluorescent light (one for each single or dual blower) or with halogen lights (2 lights: 30" - 41", 3 lights: 42" - 53", 4 lights: 54" - 66").
• Because the Magic Lung® blower uses centrifugal filtration rather than conventional baffle or mesh filters, the Magic Lung® blower can handle cooking equipment with higher cubic feet per minute (CFM) requirements and can deliver equivalent CFM much more
efficiently than other than other filtration systems. When comparing the Magic Lung® with other blower units made by other manufacturers, use the “Equivalent CFM”.
# Ratings in accordance with the Standard Test Code by the Energy Systems Laboratory of the Texas Engineering Experiment Station.
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE Rev. 0210A
C
UL
R
US
Page 1 of 1
15" W. Double Side Burners - VGSB
Outdoor Series
Professional Features
• Double side burners (VGSB152T) may be installed separately from outdoor gas grills
• Two 15,000 BTU burners
• Heavy-duty fully porcelain-coated removable "V" grates provide continuous front-to-rear
surface for easy movement of large pots
• Removable stainless steel grate support with separately removable stainless steel burner bowls
enhances cleanability
• Removable stainless steel cover adds protection from the elements
• Removable stainless steel drip tray with roller-bearing glides, full-length handle, solid
welded/finished end caps, and removable grease pan
• Push-button electronic ignition powered by a 9-volt battery provides a positive, consistent, and
continuous spark for easy lighting
Carts and Cabinetry
• This burner is compatible with the following cabinet: VBBO1601
Model Numbers
• VGSB152TN (for Natural gas)
• VGSB152TL (for LP/Propane)
http://www.vikingrange.com/consumer/products/print_friendly/product_print.jsp?id=prod1... 3/24/2011
OUTDOOR—COOKING
Built-In Gas Side Burner, 24”W. Rangetop,
Wok/Cooker, & TruSear ™ Infrared Grillers
Standard Features & Accessories
All models include
• Push-button electronic ignition
(battery-powered) provides a
positive, consistent, and continuous
spark for easy lighting
• Large, easy-to-read knob(s) with
childproof, push-to-turn safety
feature
• For built-in installation only (can be
installed adjacent to or separately
from grills)
• Heavy-duty commercial-type size,
construction (stainless steel), design,
and styling
o Heavy-duty porcelain-coated grates
or grids (removable) prevent food
sticking and make cleanup easy
• Full-width, pull-out, removable drip
tray with full-length handle, and
removable grease pan
o Stainless steel ball-bearing roller
glides allow drip tray to pull out
•
•
•
•
easily and remain level when fully
extended
Stainless steel landing ledge with
solid, welded, seamless finish
Standard stainless steel island trim
and countertop side trim
Includes protective stainless steel
cover with handle provides protection
from the elements
Must specify fuel type—natural gas or
LP/propane
VGSB152T (Side Burner)
model includes
• Two 15,000 BTU burners
• Removable stainless steel grate
support with separately removable
stainless steel burner bowls for easy
cleanup
• “V” grates provide continuous frontto-rear surface for easy movement of
large stock pots
VGRT244T (Rangetop)
model includes
• Four 15,000 BTU burners
• Removable stainless steel grate
support with separately removable
stainless steel burner bowls for easy
cleanup
• “V” grates provide continuous frontto-rear surface for easy movement of
large stock pots
VGWT241T (24”W.
Wok/Cooker) model includes
• Agency-certified for outdoor use
• 27,500 BTU burner for high-heat/fast
cooking
• Two-piece grate
• Exclusive—agency-approved center
trivet converts burner grate for use
with large stock pots
• 20” steel wok with lid included
Model Options
VGSB152T
Double Side Burner
VGRT244T
24”W. Rangetop
VGWT241T
24”W. Wok/Cooker
FINISH DETAILS FOR VGSB, VGRT, & VGWT
MODELS
• Stainless Steel (SS)
o Black porcelain grate(s) and knob(s).
• Brass Trim Option (BR)—nameplate,
drip tray/pull, and knob bezel(s). Brass
components have a durable protective
coating for maintenance-free normal
use.
ORDERING INSTRUCTIONS
You must specify fuel type (“N” or “L”) following model number (VGSB152TNSS).
If ordering optional brass trim, specify code at end (VGSB152TNSSBR).
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM
•
1-888-VIKING1
RELEASED 12/1/07
© 2 0 0 7 V R C — INFORMATION SUBJECT TO CHANGE
OUTDOOR—COOKING
Built-In Gas Side Burner, 24”W. Rangetop,
Wok/Cooker, & TruSear ™ Infrared Grillers
✪
Dimensions & Specifications
Please see
Installation Notes &
Accessories
PRODUCT DIMENSIONS
for important
information,
including fuel
conversion kits and
bases.
VGSB152T
Double Side Burner
VGRT244T
24”W. Rangetop
15
VGWT241T
24”W. Wok/Cooker
26
-
(385/1
.9 6”
cm
)
(66-1/4
.7 ”
cm
)
10
”
16
-9/ )
310.2cm
(8
8”
-5/ )
32.9 cm
(26-1/2
.7 ”
cm
)
10
”
16
-9/ )
310.2cm
(8
8”
-5/ )
32.9 cm
(82
(26-1/2
.7 ”
cm
)
(82
VGSB152T
VGRT244T
26
(66-1/4
.7 ”
cm
)
11
(29-3/4
.8 ”
cm
)
”
16
-9/cm)
1
3 0.2
(8
8”
-5/ )
32.9 cm
(82
VGWT241T
Overall width
Overall height
To cooking surface
Overall depth
To end of landing ledge
To end of knobs
Approx. ship wt. lbs. (kg)
VGSB152T
VGRT244T
VGWT241T
15-5/16” (38.9 cm)
26-1/4” (66.7 cm)
26-1/4” (66.7 cm)
10-1/2” (26.7 cm)
10-1/2” (26.7 cm)
11-3/4” (29.8 cm)
31-9/16” (80.2 cm)
32-5/8” (82.9 cm)
160 (72.0)
80 (36.3)
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM
•
1-888-VIKING1
145 (66.0)
RELEASED 12/1/07
© 2 0 0 7 V R C — INFORMATION SUBJECT TO CHANGE
OUTDOOR—COOKING
Built-In Gas Side Burner, 24”W. Rangetop,
Wok/Cooker, & TruSear ™ Infrared Grillers
Dimensions & Specifications
CUTOUT DIMENSIONS
Gas inlet
pipe location
Gas inlet
pipe location
5” m)
.7 c
(
.
in )
m m
” c
6 5. 2
1
10
(26-1/4
.0 ”
cm
)
(6 79. 1/
9 2
cm ”
)
(12 5”
.7 c
m)
2
.1
(91
1
(35 4”
.6
cm
)
VGSB152T/VGIB151T
m)
24
(62-3/4
.9 ”
cm
)
VGRT244T/VGWT241T/VGIB242T
15”W. SIDEBURNERS & GRILLERS
1. Maintain a minimum of 6” (15.2 cm)
from the sides of the side burners
(above the cooking surface) to
adjacent vertical combustible
construction. Do not install under
overhead, unprotected combustible
construction.
2. Allow at least 6” side clearance to
non-combustible construction above
the cooking surface for counter space.
3. When choosing a suitable location,
consider factors such as wind
exposure, proximity to traffic paths,
keeping gas supply lines as short as
possible. Install only in a wellventilated area. Never install in a
building, garage, breezeway, shed, or
other such fully enclosed areas.
Cutout width
Cutout height
Cutout depth
”
5 .7 c
(12
”
36 cm)
”
36 cm)
.1
(91
(12 5”
.7 c
m)
2
10
(26-1/4
.0 ”
cm
)
(6 79. 1/
9 2
cm ”
)
(
.
in )
m m
” c
6 5.2
1
(12
24”W. RANGETOP/WOK/GRILLER
PROXIMITY TO CABINET INSTALLATION
The unit may be installed directly
adjacent to the existing base cabinets.
The side trim must be 3/8” (0.95 cm)
above the adjacent base cabinet
countertop. There is a 0” side and rear
clearance to non-combustible surfaces.
The unit cannot be installed directly
adjacent to combustible sidewalls. There
must be a minimum of 6” (15.2 cm) side
and rear clearance from the unit to such
combustible surfaces. This unit cannot be
placed under an overhead which is
unprotected and combustible.
VGSB152T
VGRT244T
14” (35.6 cm)
24-3/4” (62.9 cm)
27-1/2” (69.9 cm)
27-1/2” (69.9 cm)
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM
•
1-888-VIKING1
VGWT241T
24-3/4” (62.9 cm)
10-1/4” (26.0 cm)
27-3/8”(69.5 cm) min. to
27-7/8” (70.8 cm) max.
VGIB151T
VGIB242T
14” (35.6 cm)
24-3/4” (62.9 cm)
27-1/2” (69.9 cm)
27-1/2” (69.9 cm)
RELEASED 12/1/07
© 2 0 0 7 V R C — INFORMATION SUBJECT TO CHANGE
OUTDOOR—COOKING
Built-In Gas Side Burner, 24”W. Rangetop,
Wok/Cooker, & TruSear ™ Infrared Grillers
Installation Requirements
VGSB152T
Double Side Burner
VGRT244T
24”W. Rangetop
VGWT241T
24”W. Wok/Cooker
VGIB151T
15”W. TruSear
Infrared Griller
VGIB242T
24”W. TruSear
Infrared Griller
UTILITY
REQUIREMENTS
GAS
Burner rating
• VGSB152T—Two grated
burners @ 15,000 BTU (4.4 kW)
Nat./13,500 BTU LP (4.0 kW)
• VGRT244T—Four grated
burners @ 15,000 BTU (4.4 kW)
Nat./13,500 BTU LP (4.0 kW)
• VGWT241T—One grated
burner @ 27,500 BTU (8.1 kW)
Nat./LP
• VGIB151T—One infrared grill
burner @ 21,500 BTU (6.3 kW)
Nat./20,000 BTU (5.9 kW) LP
• VGIB242T—Two infrared grill
burners, each @ 21,500 BTU
(6.3 kW) Nat./20,000 BTU (5.9
kW) LP
• Fixed piping installations
o Check with local gas utility
company or with local codes
for instructions on installing
gas supply lines. All gas
connections should be made
by a competent technician
and in accordance with local
codes and or ordinances. In
the absence of codes, the
installation must comply with
the National Fuel Gas Code
ANSI Z223.1.
o An installer-supplied gas
shut-off valve must be
installed in an easily
accessible location. All
installer-supplied parts must
conform to local codes.
o Must be isolated from the
gas supply piping system by
closing its individual manual
shut-off valve during any
pressure testing of that
system at test pressures
equal to or less than 1/2 psi
(3.5 kPa).
• Natural gas models (and
LP/propane, for VGWT only)
o Water column pressure
• Operating pressure—4.0”
WCP
• Supply pressure of 6” –
14” WCP
• If incoming pressure
exceeds 14” WCP, a stepdown regulator is required.
o Accepts standard residential
1/2” (1.3 cm) ID gas service
line; 1/2” (1.3 cm) NPT male
with 7/8” (2.2 cm) flare
adapter.
o If using a Viking GSH12
flexible hose, remove the
1/2” (1.3 cm) flare adapter
and attach hose to the 7/8”
(2.2 cm) male flare on the
regulator assembly.
• LP/propane models
o Water column pressure
• Operating pressure—10”
WCP
• Supply pressure of 11” –
14” WCP (for fixed piping
installations)
• If incoming pressure
exceeds 14” WCP, a stepdown regulator is required.
o Accepts standard residential
1/2” (1.3 cm) ID gas service
line; 1/2” (1.3 cm) NPT male
with 3/8” (0.95) flare adapter.
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM
•
1-888-VIKING1
• LP/propane tank installations
o Water column pressure
• Operating pressure—10”
WCP
o Includes high-capacity
hose/regulator assembly for
connection to a standard 5gal./20-lb. (approx. 12”
diameter/18”H.) LP/propane
gas cylinder equipped with a
Type 1, QCC-1 connector
• The cylinder connection
device must be compatible
with the Type 1, QCC-1
connector on the outdoor
cooking appliance.
• The cylinder must be
provided
with a shutoff valve terminating in an
LP/propane gas supply
cylinder valve outlet
specified.
• The cylinder supply system
must be arranged for
vapor withdrawal and
provided with a listed OPD
(overfilling prevention
device).
ELECTRICAL
• 9-volt DC battery for
electronic ignition (not
included?)
• Max. amp usage
o VGWT—0.08
PLUMBING
Not applicable
RELEASED 12/1/07
© 2 0 0 7 V R C — INFORMATION SUBJECT TO CHANGE
Sub-Zero UC-24RO Outdoor Refrigerator: Sub-Zero Undercounter Refrigeration
Page 1 of 2
UC-24RO Outdoor Refrigerator
Overview
Sub-Zero Undercounter units simplify life at home by bringing refrigeration anywhere
it’s needed — chilled mineral water, soda and snacks outside near your Wolf Outdoor
Grill and Warming Drawer. The Sub-Zero UC-24RO Outdoor Refrigerator is approved
for outdoor use and comes in the classic stainless steel finish.
Model Options
UC-24RO - Classic Stainless Steel
http://www.subzero.com/UndercounterRefrigeration/UC24ROUndercounter
3/23/2011
Sub-Zero UC-24RO Outdoor Refrigerator: Sub-Zero Undercounter Refrigeration
Page 2 of 2
Features
Technical Features
Design Features
Capacity: 5.7 cu ft (161 L)
Easy-access electronic controls with LCD
display
Electrical Requirements: 115 V AC, 60 Hz, 15amp circuit
Annual Energy Usage: 278 kWh/$30 (Based
on 10.65 cents per kilowatt hour)
Shipping Weight (lbs): 130
UL approved for US and Canada
Energy Star qualified
Adjustable, spill-proof cantilever glass shelves
and spill-proof glass floor
Clear utility bin for storage of smaller items
Two-litre bottle storage in the bottom door
shelf
UL approved lock as standard feature
Approved for outdoor use in temperatures from
50 degrees to 110 degrees Fahrenheit
Star-K Kosher certified as Sabbath and
holiday-compliant
Other Features
Exceptional Warranty
Frequently Asked Questions - Planning
How much do Sub-Zero/Wolf products cost?
Where can I purchase Sub-Zero and Wolf products?
Where can I find Sub-Zero/Wolf product specifications?
What is the temperature range of a Sub-Zero?
Options & Accessories
To maintain its approval for outdoor use, the Sub-Zero UC-24RO is available only in the stainless steel design
application and comes complete with a wrapped classic stainless steel door with pro handle.
The Sub-Zero UC-24RO must be built into cabinetry and cannot be used in a free-standing application.
© 2011 Sub-Zero, Inc. and Wolf Appliance, Inc. All rights reserved
Follow us on
http://www.subzero.com/UndercounterRefrigeration/UC24ROUndercounter
3/23/2011
Undercounter Refrigeration
85
subzero.com/specs
Undercounter Refrigeration. Sub-Zero undercounter refrigeration is a helpful addition to a master suite, bar, home
office or media room. In the kitchen, a high-volume ice machine is a must for entertaining. The design flexibility of these
compact yet roomy units makes them all the more welcome in any room or outdoor kitchen. They’re ready to be fitted with
a custom cabinet panel or can be ordered with a stainless steel panel.
UNDERCOUNTER MODELS
23 7/8"
23 7/8"
(606)
23 7/8"
23 7/8"
(606)
34"
34"
34"
34"
(864)
(864)
(864)
(864)
UC-24R
UC-24BG
UC-24C(I)
15"
33 5/8"
(854)
UC-24RO
15"
(381)
(606)
(606)
(381)
33 5/8"
(854)
UC-15I(P)
UC-15I(P)O
KEY FEATURES
• Overlay and stainless steel design applications.
• Handle options coordinate with handles of Wolf
cooking products.
• Models UC-24RO and UC-15I(P)O are UL approved
for outdoor use.
• Energy efficient; many models are ENERGY STAR®
qualified.
• All models are Star-K certified.
Undercounter Refrigeration
86
Overall Dimensions
UNDERCOUNTER MODELS
23 7/8" (606)
14 3/4" (375)
24" (610)
23" (584)
34"
33 5/8"
(864)
(854)
4" (102)
4" (102)
18"
(457)
25 3/8"
(645)
6"
(152)
2 3/8" (60)
MODELS UC-24R, UC-24BG, UC-24C(I) AND UC-24RO
MODELS UC-15I(P) and UC-15I(P)O
Model UC-15I overall dimensions do not include panel or
handle.
Specifications
Capacity / Weight
INTERIOR CAPACITY
UC-24R, UC-24BG and UC-24RO
UC-24C(I)
R CU FT (L)
5.7 (161)
3.6 (102)
ICE STORAGE CAPACITY
UC-15I(P) and UC-15I(P)O
F CU FT (L)
1.1 (31)
LBS (KG)
26 (12)
SHIPPING WEIGHT
LBS (KG)
UC-24R, UC-24BG, UC-24C(I) and UC-24RO
UC-15I(P) and UC-15I(P)O
130 (59)
100 (45)
Undercounter Refrigeration
87
subzero.com/specs
Opening Dimensions
Planning Information
UNDERCOUNTER MODELS
ELECTRICAL REQUIREMENTS
For ice machine models, it is recommended that electrical
supply be placed in an adjacent cabinet. For all other
undercounter models, locate the electrical supply within
the shaded area shown in the illustration below. Follow
the National Electrical Code and local codes and ordinances when installing the receptacle. A separate circuit,
servicing only this appliance, is required.
TOP VIEW
24" (610)
OPENING
DEPTH
IMPORTANT NOTE: Models UC-24RO and UC-15I(P)O are
designed and safe for use in outdoor applications. When
installed outdoors, a ground fault circuit interrupter (GFCI)
is required to reduce the risk of electrical shock. A GFCI is
not recommended for use with other undercounter models
and may cause interruption of operation.
24" (610)
OPENING DEPTH
341/2" (876)
A
OPENING
HEIGHT
OPENING WIDTH
Electrical Requirements
Power Supply
115 V AC, 60 Hz
Circuit Breaker
15 amp
Receptacle
SIDE VIEW
Opening Width
UC-24R, UC-24BG, UC-24C(I) and UC-24RO
UC-15I(P) and UC-15I(P)O
3-prong grounding-type
FRONT VIEW
A
24" (610)
15 1/4" (387)
LEFT SIDE
OF OPENING
2" (51)
15 1/2"
(394)
3" (76)
FRONT VIEW
Location of electrical supply.
Sub-Zero UC-15I Ice Maker: Sub-Zero Undercounter Refrigeration
Page 1 of 3
UC-15I Ice Maker
Overview
Sub-Zero undercounter units simplify life at home by bringing refrigeration anywhere it’s
needed. In the kitchen, a high-volume ice machine is a must for entertaining. The
Model UC-15I ice maker has a storage capacity of up to 25 pounds of ice.
Model Options
UC-15I(P)
UC-15I(P)O
http://www.subzero.com/UndercounterRefrigeration/UC-15I-Ice-Maker
3/24/2011
Sub-Zero UC-15I Ice Maker: Sub-Zero Undercounter Refrigeration
Page 2 of 3
Features
Design Features
Other Features
Can be fitted with a custom overlay or
stainless steel door front panel.
LED Bin Light
Classic stainless steel door panel with tubular
or pro handles available as sales accessories.
Delay Start
Clean Cycle
24" depth design for a complete integrated
look.
Water Filter
Solid core door with gasket and door closer.
Exceptional Warranty
Ice Scoop
Models UC-15I and UC-15IO have a gravity
drain, while Models UC-15IP and UC-15IPO
have a built-in pump to allow greater
installation flexibility.
Automatic ice machine provides high-quality,
clear ice.
Ice storage bin capacity of up to 25 lbs.
Automatic defrost.
Reversible door swing.
Front venting with removable kickplate allows
unit to be serviced from the front.
UL approved for US and Canada.
Frequently Asked Questions - Planning
Where can I find Sub-Zero/Wolf product specifications?
Can the door swing be reversed on the UC-15I ice maker?
How much ice will the UC-15I ice maker hold?
Sub-Zero UC-15I Ice Maker
Filter
Options & Accessories
Classic stainless steel door front panels with tubular or pro handles
Stainless steel tubular or pro handles
http://www.subzero.com/UndercounterRefrigeration/UC-15I-Ice-Maker
3/24/2011
Undercounter Refrigeration
85
subzero.com/specs
Undercounter Refrigeration. Sub-Zero undercounter refrigeration is a helpful addition to a master suite, bar, home
office or media room. In the kitchen, a high-volume ice machine is a must for entertaining. The design flexibility of these
compact yet roomy units makes them all the more welcome in any room or outdoor kitchen. They’re ready to be fitted with
a custom cabinet panel or can be ordered with a stainless steel panel.
UNDERCOUNTER MODELS
23 7/8"
23 7/8"
(606)
23 7/8"
23 7/8"
(606)
34"
34"
34"
34"
(864)
(864)
(864)
(864)
UC-24R
UC-24BG
UC-24C(I)
15"
33 5/8"
(854)
UC-24RO
15"
(381)
(606)
(606)
(381)
33 5/8"
(854)
UC-15I(P)
UC-15I(P)O
KEY FEATURES
• Overlay and stainless steel design applications.
• Handle options coordinate with handles of Wolf
cooking products.
• Models UC-24RO and UC-15I(P)O are UL approved
for outdoor use.
• Energy efficient; many models are ENERGY STAR®
qualified.
• All models are Star-K certified.
Undercounter Refrigeration
86
Overall Dimensions
UNDERCOUNTER MODELS
23 7/8" (606)
14 3/4" (375)
24" (610)
23" (584)
34"
33 5/8"
(864)
(854)
4" (102)
4" (102)
18"
(457)
25 3/8"
(645)
6"
(152)
2 3/8" (60)
MODELS UC-24R, UC-24BG, UC-24C(I) AND UC-24RO
MODELS UC-15I(P) and UC-15I(P)O
Model UC-15I overall dimensions do not include panel or
handle.
Specifications
Capacity / Weight
INTERIOR CAPACITY
UC-24R, UC-24BG and UC-24RO
UC-24C(I)
R CU FT (L)
5.7 (161)
3.6 (102)
ICE STORAGE CAPACITY
UC-15I(P) and UC-15I(P)O
F CU FT (L)
1.1 (31)
LBS (KG)
26 (12)
SHIPPING WEIGHT
LBS (KG)
UC-24R, UC-24BG, UC-24C(I) and UC-24RO
UC-15I(P) and UC-15I(P)O
130 (59)
100 (45)
Undercounter Refrigeration
87
subzero.com/specs
Opening Dimensions
Planning Information
UNDERCOUNTER MODELS
ELECTRICAL REQUIREMENTS
For ice machine models, it is recommended that electrical
supply be placed in an adjacent cabinet. For all other
undercounter models, locate the electrical supply within
the shaded area shown in the illustration below. Follow
the National Electrical Code and local codes and ordinances when installing the receptacle. A separate circuit,
servicing only this appliance, is required.
TOP VIEW
24" (610)
OPENING
DEPTH
IMPORTANT NOTE: Models UC-24RO and UC-15I(P)O are
designed and safe for use in outdoor applications. When
installed outdoors, a ground fault circuit interrupter (GFCI)
is required to reduce the risk of electrical shock. A GFCI is
not recommended for use with other undercounter models
and may cause interruption of operation.
24" (610)
OPENING DEPTH
341/2" (876)
A
OPENING
HEIGHT
OPENING WIDTH
Electrical Requirements
Power Supply
115 V AC, 60 Hz
Circuit Breaker
15 amp
Receptacle
SIDE VIEW
Opening Width
UC-24R, UC-24BG, UC-24C(I) and UC-24RO
UC-15I(P) and UC-15I(P)O
3-prong grounding-type
FRONT VIEW
A
24" (610)
15 1/4" (387)
LEFT SIDE
OF OPENING
2" (51)
15 1/2"
(394)
3" (76)
FRONT VIEW
Location of electrical supply.
Undercounter Refrigeration
88
Planning Information
Drain Pump
PLUMBING REQUIREMENTS
ICE MACHINE MODELS
For model UC-24C(I) and ice machine models, the water
supply line should be located within the shaded area
shown in the illustrations below. The water supply line
should be connected to the house supply with an easily
accessible shut-off valve between the supply and the unit.
Do not use self-piercing valves. A saddle valve kit is available through your authorized Sub-Zero dealer.
Undercounter ice machine models can be ordered with or
without a pump. Models without a drain pump will drain
water from the unit by gravity. A drain must be installed.
The ice maker operates on constant water pressure
between 20 psi (1.4 bar) and 100 psi (6.9 bar).
IMPORTANT NOTE: In some cases, a reverse osmosis
water filter system may not be able to maintain the
minimum pressure consistently.
Plumbing Requirements
1/4"
Water Supply Line
Water Pressure
OD copper line
20–100 psi (1.4–6.9 bar)
Excess Water Line for Connection
SHADED AREA
EXTENDS 1/2" (13)
FROM BACK WALL
26" (660) min
8"
1/2"
(13)
(203)
LOCATION OF
WATER LINE
2" (51)
15 1/2"
(394)
3" (76)
FRONT VIEW
Model UC-24C(I).
TOP VIEW
Ice machine models.
The drain and inlet water tubes must be plumbed before
connecting to the ice machine. For the gravity drain, all
horizontal runs of drain lines must have a 1/4" (6) per 12"
(305) fall. An air gap will likely be required between the unit
and drain receptacle. A stand pipe with a trap below it
would be acceptable for the drain receptacle.
IMPORTANT NOTE: Poor drainage will cause excessive ice
melting in the ice bin.
Seller is unconditionally committed to customer service and satisfaction. Seller's
commitment to helping its customers under the terms of manufacturers' warranties is a
fundamental principle of our customer service philosophy. Filing the claim with the
manufacturer and coordinating the remedies under the manufacturer’s warranty is the role
that Seller as the wholesale distributor assumes.
Extended warranties may be available on certain products for an additional charge from a
third party surety company. Contact your sales associate for more details.
Warranty Disclaimer. Seller disclaims express or implied warranties including, without
limitation, all warranties of merchantability or fitness for a particular purpose. Under no
circumstance shall Seller be liable for any consequential or incidental damages. Buyer’s
sole and exclusive liability against Seller shall be limited to the product’s sales price in
all cases.
Nothing above is intended to limit Buyer’s recovery directly from the manufacturer.
March 23, 2011
DESERT STAR CONSTRUCTION
© 2011 Ferguson
Page 4
Download PDF
