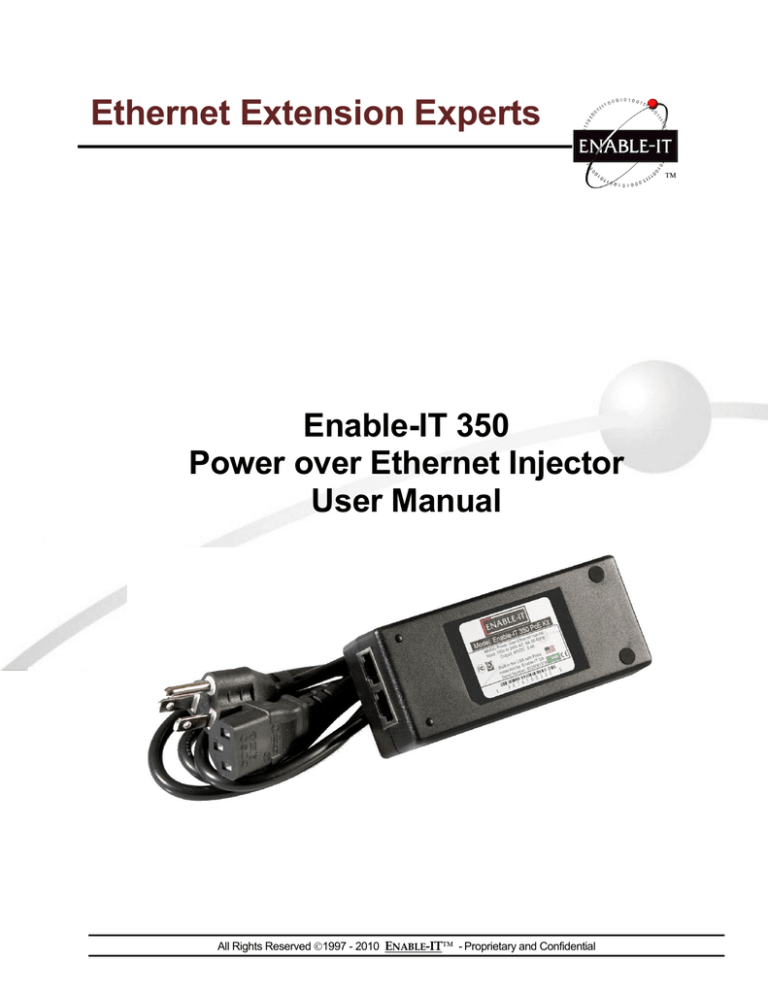

Ethernet Extension Experts

Enable-IT 350
Power over Ethernet Injector
User Manual
All Rights Reserved 1997 - 2010 ENABLE-IT - Proprietary and Confidential
Copyright © 1997- 2010 Enable-IT, Inc. All rights reserved. No part of this documentation
may be reproduced in any form or by any means or used to make any derivative work (such
as translation, transformation, or adaptation) without written permission from Enable-IT, Inc.
Enable-IT, Inc reserves the right to revise this documentation and to make changes in
content from time to time without obligation on the part of Enable-IT, Inc to provide
notification of such revision or change.
Enable-IT, Inc provides this documentation without warranty, term, or condition of any kind,
either implied or expressed, including, but not limited to, the implied warranties, terms or
conditions of merchantability, satisfactory quality, and fitness for a particular purpose.
Enable-IT, Inc may make improvements or changes in the product(s) and/or the
program(s) described in this documentation at any time.
If there is any software on removable media described in this documentation, it is furnished
under a license agreement included with the product as a separate document, in the hard
copy documentation. If you are unable to locate a copy, please contact Enable-IT, Inc and a
copy will be provided to you.
UNITED STATES GOVERNMENT LEGEND
If you are a United States government agency, then this documentation and the software
described herein are provided to you subject to the following:
All technical data and computer software are commercial in nature and developed solely at
private expense. Software is delivered as "Commercial Computer Software" as defined in
DFARS 252.227-7014 (June 1995) or as a "commercial item" as defined in FAR 2.101 (a)
and as such is provided with only such rights as are provided in Enable-IT, Inc's standard
commercial license for the Software.
Technical data is provided with limited rights only as provided in DFAR 252.227-7015 (Nov
1995) or FAR 52.227-14 (June 1987), whichever is applicable. You agree not to remove or
deface any portion of any legend provided on any licensed program or documentation
contained in, or delivered to you in conjunction with, this User Guide.
Unless otherwise indicated, Enable-IT, Inc registered trademarks are registered in the
United States and may or may not be registered in other countries
Page 2 of 12
Ethernet Extension Experts
CONTENTS
ABOUT THIS GUIDE
4
1 INTRODUCING THE ENABLE-IT 350 KIT
5
About the 350 Power Over Ethernet Injector
Key Benefits
Summary of Features
Product Specifications
Typical Applications
2 INSTALLING THE ENABLE-IT 350 KIT
Unpacking the 350 Power Over Ethernet Injector
Performing the On-Site Installation
A TECHNICAL SUPPORT
Online Technical Services
World Wide Web Site
Returning Products for Repair
B Enable-IT Inc. LIMITED WARRANTY
Page 3 of 12
5
6
6
6
7
8
8
8
9
9
9
9
10
Ethernet Extension Experts
ABOUT THIS GUIDE
This guide provides all the information needed to install and use the Enable-IT 350
Power Over Ethernet Injector This guide is intended for use by technicians who are
responsible for installing and setting up network equipment. Consequently, it is
assumed that the installer has a basic working knowledge of LANs (Local Area
Networks) and voice telecom wiring.
If the information in the release notes that are shipped with your product differs from the
information in this guide, follow the instructions in the release notes.
Most user guides and release notes are available in Adobe Acrobat
Reader Portable Document Format (PDF) or HTML on the Enable-IT World Wide Web
site: http://www.ethernetextender.com/manuals/350 manual.pdf
Page 4 of 12
Ethernet Extension Experts
INTRODUCING THE 350 POWER OVER ETHERNET INJECTOR
Congratulations on purchasing the Enable-IT’s 350 Power Over Ethernet Injector — the
simplest to enable your Power Over Ethernet devices.
The 350 Power Over Ethernet Injector offers a low cost single port solution in a simple design
for rapid install using existing Ethernet cabling.
This chapter contains introductory information about The 350 Power Over Ethernet Injector and
how it can be used in your network. It covers the following topics:




About the 350 Power Over Ethernet Injector
Key Benefits
Summary of Features
Typical Applications
About the 350 Power Over Ethernet Injector
The 350 Power Over Ethernet Injector solves the problem of high costs associated with adding
additional electrical outlets in hard to reach places for your LAN equipment such as Wireless
Access points or security cameras.
Power-Over-Ethernet (PoE) Compatible
The 350 is a Compact IEEE 802.3af standard Power Over Ethernet Injector which provides 48
VDC over any wiring and up to unexpected extended distance. The units are fully compatible
with industry-standard IEEE 802.3af Power-over-Ethernet (PoE) devices and 10/100 Base-T
Ethernet networks, providing both Ethernet data pairs as well as the PoE DC power feed.
48 Volts are applied on pins 4, 5, 7 and 8 in separate lines not bridged. The units are compatible
with both normal and inverted polarity voltage PoE equipment.
For maximum distance, PoE travels very very far down any type of wiring. Voltage drops over
distance using wires. At 200M, you lose maybe 4 or 6 volts. At 48VDC, that leaves you with 42
volts. You can determine the amount of voltage drop over a distance by finding the resistance of
the cable for a specific temperature (given in ohms/1000ft) from the cable manufacturer or
electrical wholesaler. If you know the largest amount of current that will flow in the cable, when
use the formula: Vdrop = Current X Distance (Ft) X 2 X Ohms per 1000Ft.
As a rule of thumb you will loose 6V per every 100′ - 200′ of wiring, depending on the gauge.
Lower power also means more amperage means more heat and perhaps issues with the 24
gauge wires in CAT5. You may need to use 18 gauge wiring. For all intensive purposes
anything greater than 400′ use a 48V POE.
Keep in mind that Ethernet data has a limit of 328ft or 100m. You can easily solve this
issue by using the Enable-IT 350 PoE Injector with an Enable-IT 865 PoE Ethernet
Extender kit. Using the 865 kit will drive your PoE and data up to 1,500ft.
Page 5 of 12
Ethernet Extension Experts
Key Benefits
The following list identifies the 350 Power Over Ethernet Injector key benefits.

Provides 48VDC PoE to any IEEE802.3af devices at great distances*.

Rapid installation with small box profile, no programming and no firmware to
upgrade. Maintains existing RJ-45 Ethernet Data.
The Enable-IT™ 350 48VDC Power over Ethernet Injector is single port IEEE 802.3af
compliant Midspan solution that is a compact and easy to install with RJ-45 Ethernet
cabling. This elegant unit is ideal for installing any WiFi Wireless Access Point, Security
camera or other PoE powered equipment. It eliminates the need for external power
supply and its associated AC/DC power cabling, providing a compact, affordable, safe
and reliable power solution over your wiring or existing Ethernet infrastructure.
Summary of Features
The Enable-350 Power Over Ethernet Injector has the following hardware features:







48 VDC Output 802.3af Power Over Ethernet Injector
19W, Cispr 22'B', VCCI 'B', FCC 'B' Compliance.
Rapid installation - no programming required.
Maintains existing RJ-45 Ethernet Data.
Supports VoD (Video on Demand) and MPEG IP channels.
Supports VoIP (Voice over IP).
Network Equipment independence - Transparent to protocols/applications/MAC.
The Enable-IT 350 PoE Injector can be used with the Enable-IT 380 PoE Range Extender/s to drive your
full PoE strength up to 7,200ft.
Product Specifications






Power
48 V, .04A - AC input 90 ~ 264V
Data Rate
100Mbps full-duplex
Interface
Ethernet: RJ-45 Standard
Dimensions
Height 3" (85mm) Depth 1.5" (40 mm) Width 2"(60mm)
Environment
Operational Temperature : 13°-140°F (-25°-60°C)
Humidity: 5%-90%, non-condensing
Enclosure
Square plastic casing with dual RJ-45 Network ports
Page 6 of 12
Ethernet Extension Experts
Typical Applications
Enable-IT 350 Power Over Ethernet Injector unit is very lightweight and compact for most all
applications and use. These units are easy and rapid to install with plug and play RJ-45
Ethernet jacks to quickly insert your wiring and go.
As a 802.3af compliant device, the Enable-IT 350 48VDC Power over Ethernet Injector uses all
8 wires in a category rated wiring bundle, ie. CAT5e run. As will all PoE voltage drops over
distance. As a rule of thumb you will loose 6V per every 100′- 200′ of wiring, depending on the
gauge. Lower power also means more amperage means more heat and perhaps issues with the
24 gauge wires in CAT5. You may need to use 18 gauge wiring. The Enable-IT 350 is a 48V
power injector to maximize your distance and output.
The Enable-350 Power Over Ethernet Injector is suited for the following key environments:







Commercial Buildings (Multi-Tenant Units)
Business Parks (Multi-Tenant Units)
Apartments (Multi-Residential Units)
Hotels (Multi-Hospitality Units)
Business Suites (Multi-Hospitality Units)
School Campuses (University, K-12)
College Housing (Multi-Residential Units)
Figure 1 Enable-IT 350 to a 8424 WiFi PoE Access Point
Page 7 of 12
Ethernet Extension Experts
INSTALLING THE 350 POWER OVER ETHERNET INJECTOR
Unpacking the Enable-IT 350 Power Over Ethernet Injector
Carefully remove the Enable-IT 350 Power Over Ethernet Injector from all packing
materials in the box. Verify that the items listed below are present. Make sure that the
equipment supplied matches what you ordered. If any items are missing or damaged,
please contact your Enable-IT or your distributor for assistance.

(1) The Enable-IT 350 Power Over Ethernet Injector

Enable-IT 350 Power Over Ethernet Injector User Manual (this manual)
Performing the On-Site Installation
 Locate the power source for connecting the supplied power cord and attach this
power cord to Enable-IT 350. You can apply power to the unit.
 Insert a standard Ethernet patch cord to the Data/PoE out port - the other end of the
Ethernet Patch cord is for your PoE equipment or Enable-IT 820 PoE and Ethernet
Extender (Data/PoE in port)
 Insert a standard Ethernet patch cord into the Data In port and connect the other end
of the Ethernet Patch cord to your Local LAN device such as a switch.
Page 8 of 12
Ethernet Extension Experts
Technical Support
Enable-IT OEM Technical Support is available directly to customers and distributors. All support
requests are processed through the online support portal. This allows us to provide assigned support
ticket numbers in order to bring closure to any technical issues.
Online Technical Services
The Enable-IT Support Portal is available 24/7. No password or user account is necessary. Please
use this support website as your first source for help as it contains an on line knowledge base of
articles, documentation, FAQ's and other problem-solving resources. This web-based support
resource provides the quickest solution to the most common technical support issues.
http://www.ethernetextender.com/support/support_overview.php
Returning Products for Warranty Repair
Enable-IT, Inc. warrants to the original purchaser of the Product ("you" or the "End User")
that, for the one (1) year period commencing on the date the Product was purchased (the
"Warranty Period"), the Product will be substantially free from defects in materials and
workmanship under normal use and conditions. Electrical damage is not an item that is
covered under this warranty or extended warranties.
If authorized by Enable-IT to return a Product which does not conform to the warranty set
forth above, the End User must: (1) obtain a return materials authorization (RMA) number
from Enable-IT by contacting the Customer Service Dept. at 888-309-0910 between the
hours of 8:00 a.m. and 5:00 p.m. PST and otherwise fully comply with Enable-IT’s thencurrent RMA policy; (2) return the Product to Enable-IT, Inc. in its original packaging freight
pre-paid; and (3) provide to Enable-IT the original receipt or bill of sale establishing the date
on which the Product was purchased.
Returning Products for Refund
Please ship Authorized RMAs to:
30-Day refund applies to single kit Ethernet
Extenders only and is subject to a 15%
Enable-IT Processing Facility
Restocking Fee.
Shipments without valid /
16600 Harbor Blvd, Ste G
authorized
RMA
number
or sent to our corporate
Fountain Valley, CA 92708
Las Vegas Address can be refused and or billed
for additional shipping.
Page 9 of 12
Ethernet Extension Experts
ENABLE-IT LIMITED WARRANTY
Enable-IT warrants the Enable-IT 350 Power Over Ethernet Injector solely pursuant to the
following terms and conditions.
1. PRODUCT WARRANTY
a. Express Warranty Enable-IT warrants to the original purchaser of the Product ("you" or the
"End User") that, for the one (1) year period commencing on the date the Product was
purchased (the "Warranty Period"), the Product will be substantially free from defects in
materials and workmanship under normal use and conditions. This warranty does not apply
to Products which are resold as used, repaired or reconditioned or consumables (such as
batteries) supplied with the Product. Electrical damage is not an item that is covered
under this warranty or extended warranties. Enable-IT does not make any warranty with
respect to any third party product, software or accessory supplied with or used in connection
with the Product and such third party products, software and accessories, if any, are provided
"AS IS." Warranty claims related to such third party products, software and accessories must
be made to the applicable third party manufacturer.
b. Remedies for Breach of Warranty In the event of a breach of the foregoing warranty,
Enable-IT will, in its sole discretion and at its cost and subject to the terms of the following
paragraph, repair the non-conforming Product, replace the non-conforming Product with a
new or reconditioned Product or refund of the purchase price for the Product. Any new or
reconditioned Product provided pursuant to this paragraph is warranted as provided herein
for the remainder of the original Warranty Period. THE REMEDY SET FORTH IN THIS
PARAGRAPH SHALL BE THE END USER’S SOLE AND EXCLUSIVE REMEDY FOR
BREACH OF THE FOREGOING WARRANTY.
c. Conditions for Warranty Qualification If authorized by Enable-IT to return a Product which
does not conform to the warranty set forth above, the End User must: (1) obtain a return
materials authorization (RMA) number from Enable-IT by contacting the Customer Service
Dept. at 888-309-0910 between the hours of 8:00 a.m. and 5:00 p.m. PST and otherwise fully
comply with Enable-IT’ then-current RMA policy; (2) return the Product to Enable-IT in its
original packaging freight pre-paid; and (3) provide to Enable-IT the original receipt or bill of
sale establishing the date on which the Product was purchased.
Products returned to Enable-IT without an RMA number will be returned to the End User.
Enable-IT shall not be responsible for damage or loss during shipment of the returned
Product to Enable-IT.
d. Voiding of Warranty. The express warranty set forth above shall not apply to failure of the
Product if the Product has been subjected to: (i) physical abuse, misuse, improper
installation, abnormal use, power failure or surge, or use not consistent with the operating
instructions provided by Enable-IT; (ii) modification (including but not limited to opening the
Product housing) or repair by any party in any manner other than as approved by Enable-IT
in writing; (iii) fraud, tampering, unusual physical or electrical stress, unsuitable operating or
physical conditions, negligence or accidents; (iv) removal or alteration of the Product serial
number tag; (v) improper packaging of Product returns; or (vi) damage during shipment (other
than during the original shipment of the Product to the End User from Enable-IT, if
applicable).
Page 10 of 12
Ethernet Extension Experts
e. Warranty Disclaimers THE EXPRESS WARRANTY SET FORTH ABOVE IS IN LIEU OF
ALL OTHER WARRANTIES, WHETHER WRITTEN, ORAL, EXPRESS OR IMPLIED.
ENABLE-IT DISCLAIMS, TO THE MAXIMUM EXTENT PERMITTED BY LAW, THE
IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE OR NONINFRINGEMENT OF THIRD PARTY RIGHTS. NO PERSON
(INCLUDING WITHOUT LIMITATION, ENABLE-IT’ EMPLOYEES, AGENTS, RESELLERS,
OEMS OR DISTRIBUTORS) IS AUTHORIZED TO MAKE ANY OTHER WARRANTY OR
REPRESENTATION CONCERNING THE PRODUCT. IF THE DISCLAIMER OF ANY
IMPLIED WARRANTY IS NOT PERMITTED BY LAW, THE DURATION OF ANY SUCH
IMPLIED WARRANTY IS LIMITED TO ONE (1) YEAR FROM THE DATE OF PURCHASE.
SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES
OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY MAY LAST, SO SUCH
LIMITATIONS OR EXCLUSIONS MAY NOT APPLY. THIS WARRANTY GIVES THE END
USER SPECIFIC LEGAL RIGHTS AND THE END USER MAY ALSO HAVE OTHER
RIGHTS WHICH VARY FROM JURISDICTION TO JURISDICTION. ENABLE-IT DOES
NOT WARRANT THAT THE OPERATION OF THE PRODUCT WILL BE
UNINTERRUPTED OR ERROR FREE.
ENABLE-IT IS NOT RESPONSIBLE FOR ANY DAMAGE TO OR LOSS OF ANY
PROGRAMS, DATA, OR OTHER INFORMATION STORED ON OR TRANSMITTED
USING THE PRODUCT.
2. LIMITATION OF LIABILITY IN NO EVENT SHALL ENABLE-IT BE LIABLE TO THE END
USER OR ANY THIRD PARTY FOR ANY INDIRECT, SPECIAL, PUNITIVE, INCIDENTAL
OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH OR ARISING OUT OF THE
SALE OR USE OF THE PRODUCT (INCLUDING BUT NOT LIMITED TO LOSS OF
PROFIT, USE, DATA, OR OTHER ECONOMIC ADVANTAGE), HOWEVER IT ARISES,
INCLUDING WITHOUT LIMITATION BREACH OF WARRANTY, OR IN CONTRACT OR IN
TORT (INCLUDING NEGLIGENCE), OR STRICT LIABILITY, EVEN IF ENABLE-IT HAS
BEEN PREVIOUSLY ADVISED OF THE POSSIBILITY OF SUCH DAMAGE AND EVEN IF
A LIMITED REMEDY SET FORTH IN THIS AGREEMENT FAILS OF ITS ESSENTIAL
PURPOSE. IN NO EVENT SHALL ENABLE-IT’ LIABILITY TO THE END USER OR ANY
THIRD PARTY EXCEED THE PRICE PAID FOR THE PRODUCT. BECAUSE SOME
JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR
CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATIONS MAY
NOT APPLY TO THE END USER.
3. LICENSE AND LIMITATIONS. The firmware and software embedded in the Product (the
"Embedded Software") are licensed to you. Your use of the Product is your acceptance of the
warranty terms above and the terms below. You may use the Embedded Software solely in
conjunction with your use of the Product. All worldwide right, title and interest in and to the
Product, or any portion thereof (including but not limited to the Embedded Software),
including all copyrights, patent rights, trademarks, trade secrets, and other intellectual
property rights therein and thereto, are and shall remain the exclusive property of Enable-IT
and/or its licensors. You acknowledge and agree that you may not, and may not allow any
third party to, (i) use the Embedded Software in a manner that is inconsistent with the above
express right granted to you or (ii) modify, distribute, reproduce, decompile, disassemble,
reverse engineer or otherwise attempt to discover the source code for the Embedded
Software.
Page 11 of 12
Ethernet Extension Experts
CONTACT US
European Sales:
+44 1 908 560200
+44 1 908 565533 fax
http://www.enable-it.eu
sales@enable-it.eu
North American Sales:
+1 888 309-0910
+1 866 389-8655 fax
http://www.enableit.com
sales@enableit.com
Middle East Sales:
+971-50-435-8310
http://www.enableit.com
sales@enableit.com
Other International:
+1(619) 795-1697
+1 320-215-6907 fax
Page 12 of 12
Asia Pacific Sales:
+61 02 8898-9622
+61 2 9939-0005 fax
http://www.enable-it.com.au
sales@enable-it.com.au
Ethernet Extension Experts
