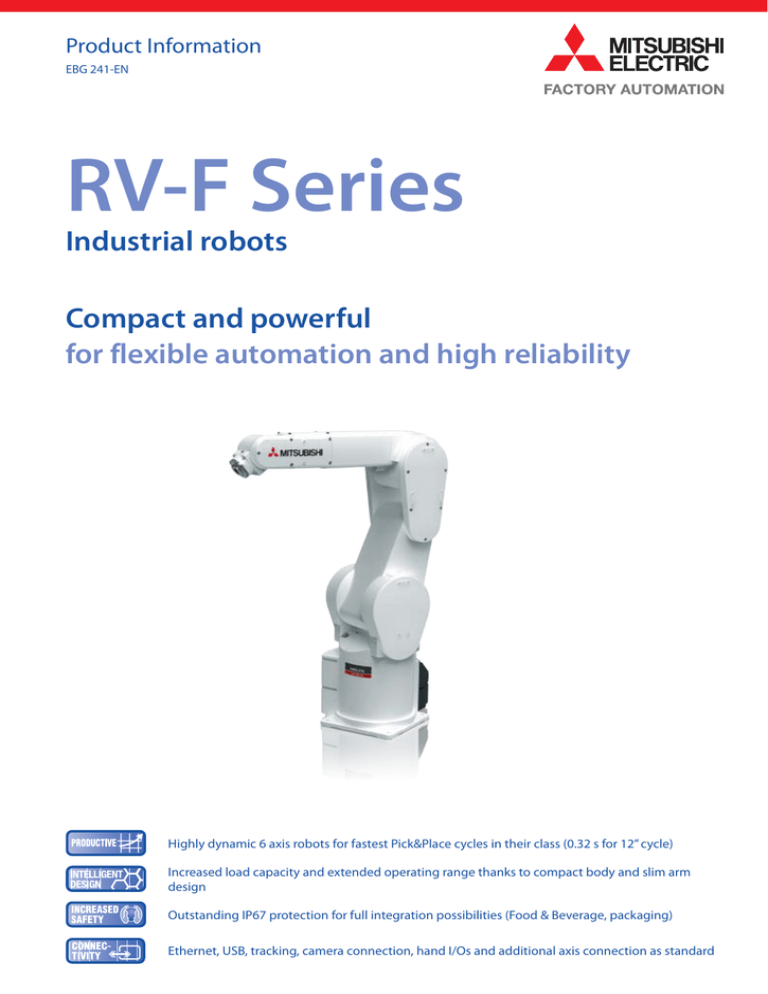

Product Information
EBG 241-EN
RV-F Series
Industrial robots
Compact and powerful
for flexible automation and high reliability
Highly dynamic 6 axis robots for fastest Pick&Place cycles in their class (0.32 s for 12” cycle)
Increased load capacity and extended operating range thanks to compact body and slim arm
design
Outstanding IP67 protection for full integration possibilities (Food & Beverage, packaging)
Ethernet, USB, tracking, camera connection, hand I/Os and additional axis connection as standard
MELFA RV-F Series
Advanced technology
for flexible automation
The extended movement range ensures
more flexibility and thus simplifies system
planning. Effective access to the entire,
almost circular working range has many
advantages: it reduces cycle times by avoiding unnecessary movements and increases
the tasks which the robot can perform in its
working range.
Performance combined
with accuracy
The RV-F series offers many features as
standard, which are usually available as
optional extras. Every model has connections for pneumatic grippers, Ethernet, USB,
tracking functions, camera interface, hand
I/O, additional axis controller and an interface for up to 8 additional axes.
The F series – designed for flexible automation
Setting new benchmark
standards
Vision sensor
Encoder
Conveyor
Processing capability
increased by 15 %
Tracking can be used with multiple conveyors at the
same time
With the RV-F series of the MELFA robots,
Mitsubishi Electric is setting new benchmark standards for speed, flexibility, ease
of integration and simplicity of programming. Combining a wide area of coverage
with the industry’s fastest cycle times, the
F series provides a cost-effective means to
boost productivity on critical production
lines. In addition, with the inclusion of an
entry-level model - the RV-2F - Mitsubishi
Electric is making it possible for many users
to reap the benefits of robotic lifting, positioning and assembling, perhaps for the first
time. The robots of the F series are suitable
for a wide range of industrial applications
and can be deployed in many industries.
Short cycle times
The robots of the RV-F series achieve the
highest speeds in their class thanks to the
high-perfomance Mitsubishi Electric servo
motors and unique driver control technology developed by Mitsubishi Electric. The
resulting reduced cycle time of only 0.32
seconds for a 12“ cycle makes for significantly increased productivity and improved
continuous operation. This enables high
torque output at high rational speed with
shortened acceleration/deceleration time.
Internal routing of cables and air hoses is
enabled through internal channels that
lead up to the end of the robot arm. This
increases the areas of the work envelope
and prevents interferences with cables.
Improved trajectory accuracy and optimal
motor control tuning is achieved by an
operation mode setting function which
matches all customer system requirements.
This is effective for standard operations and
tooling work requiring high accuracy.
The F series naturally fulfils the requirements of the latest safety standards ISO
10218-1 (2011) for robots. UL versions and
Korean safety certification are also available.
MELFA RV-F Series
Safety features
Two encoder interfaces enable the robot
to track two conveyors freely in space and
move with them in absolute synchronism.
This saves additional costs for positioning
units and, above all, time, as the robot is able
to fetch, position and machine workpieces
while the process is running.
Many safety features are added to protect
staff, hardware and programs.
The accuracy of the robot trajectory can
be maintained even when the machine is
shut down using an emergency stop. This
enables the risk of collisions with peripheral devices and other components to be
reduced or even completely avoided.
In addition, up to 8 additional axes can be
connected directly to the controller. Two of
these can be used as additional interpolating axes of the robot. The special feature
compared with other systems is that all
additionally connected axes can be programmed in exactly the same way as the
robot, using the same Teach-Box or the
standard RT ToolBox2 software. This avoids
the additional expense of software, training
and programming.
Intuitive programming
and operation
The robots of the RV-F series allow simple
automatic operation from the teaching box
or direct control via a Mitsubishi GOT. This
enables the robot controller status to be
uploaded and operations to be controlled
directly. Monitoring screens can be set up
individually to match the needs of user
debugging conditions.
Attachment of a hand created in RT ToolBox2
Teach-Box R56TB
Controller
CR750-D
Versatile connection
possibilities
Controlling the robot
The RV-F series includes a number of user
interfaces straight from the factory. These
enable image processing systems to be
connected directly to the controller and
initiated via the standard programming
language. Simple parameter structures
even enable known systems to be set up in
advance with a single mouse click.
Movement range and dimensions
RV-4FLM/7FM/7FLM
RV-2FB
Motion space at
point P
°
Motion space at point P
F
C
P
F
B
F
-240
-240
Motion space at
point P
°
F
F
C
0°
2
-1
D
D
A
A
°
20
+1
P
°
X
I
X
Top view
+2
H
E
H
G
+240
°
40
G
P
I
B
P
RV-4F(M)(C)
View x
F
View x
Side view
E
Motion space at point P
Side view
Top view
All dimensions in mm
Dimensions for type
A
B
C
D
E
F
G
H
I
RV-2FB
623
270
70
799.6
94.6
504.6
139.5
160
160
RV-4FLM
764.9
335
85
998.7
140
648.7
140.4
200
200
RV-7FM
844.4
370
85
1113.4
168.4
713.4
197.4
245
245.7
RV-7FLM
939.4
470
85
1307.7
352.3
907.7
192.8
245.7
245.7
MELFA RV-F Series
Specifications
Robot
RV-2FB
RV-4FLM
Installation
RV-7FM
Position determination
Teaching, manual data input (MDI)
Max. reach radius
Maximum
speed
General-purpose I/O
Dedicated I/O
Absolute encoder
NO1mm
230 + 270
245 + 300
340 + 360
mm
504
649
713
908
300
420
360
288
J2-axisdeg/s
150
336
401
321
J3-axisdeg/s
300
250
450
360
J4-axisdeg/s
450
540
337
337
J5-axisdeg/s
450
623
450
450
J6-axisdeg/s
750
720
720
720
mm/s
4955
9048
11064
10977
s
0.6
0.36
0.32
0.35
Payloadkg
2
4
Cycle time (with 1 kg load)
Position repeatability
Operating temperature
Door closed contact
1 (redundant)
Enabling switch
1 (redundant)
Interfaces
USB
46
1 (Teaching Box)
1 (Teaching Box)
1 (spare)
10BASE-T/100BASE-TX
1 (USB port
for PLC CPU)
1 (Mini-B connector,
Ver. 2.0)
up to 8 (SSCNETIII)
Expansion slot
36
1 (redundant)
1 (Teaching Box)
Conveyor belt tracking encoder
Power
supply
48
Hand: 8 inputs/8 outputs (20 pins total)
Serial signal cable for parallel I/O
(2-pin and 2 pins for power supply)
LAN 100BASE-TX (RJ45)
Tool pneumatic pipes
Ø4x4
Primary: Ø6x2, Secondary: Ø4x8,
Ø4x4 (from base portion to forearm)
Protection class
IP30
IP67 (oil mist), ISO class 3
Compatible robot controller *
1 (redundant)
Additional axis
Hand: 4 I/O
points Signal
cable for the
multi-function hand
Tool wiring
8 inputs
External emergency stop
Ethernet
0–40
19
User-defined
RS422
±0.02
°C
Weightkg
up to 256
Emergency stop additional axes
7
mm
up to 8192
Common I/O for multiple
CPU
Gripper status signal inputs
External
I/O
430 + 465
J1-axisdeg/s
Maximum composite speed CR750-D
6
AC servo motor
Position detection method
CR750-Q
MELFA-BASIC V
Vertical, mutiple-joint type
Drive system
Arm length
Robot controller
Programming language
Degrees of freedom
Design
RV-7FLM
Floor, wall, ceiling
Input voltage
Q173DPX (optional)
2
—
2
Single phase 180 V to 253 V AC a
0.5 – 2.0
Power consumption kVA b
Ambient temperature
°C
Dimensions (WxHxD) mm
0-40 (drive unit)/
0–55 (robot CPU)
0–40
430x425x174
Weightkg
approx. 16
Housing/protection class
Floor mounting/IP20
The supply voltage should not vary by more than 10 %.
Without switch-on current. The power consumption depends on the robot arm model.
1
2
CR750-F-D/Q
* Select the control unit suitable for your application.
