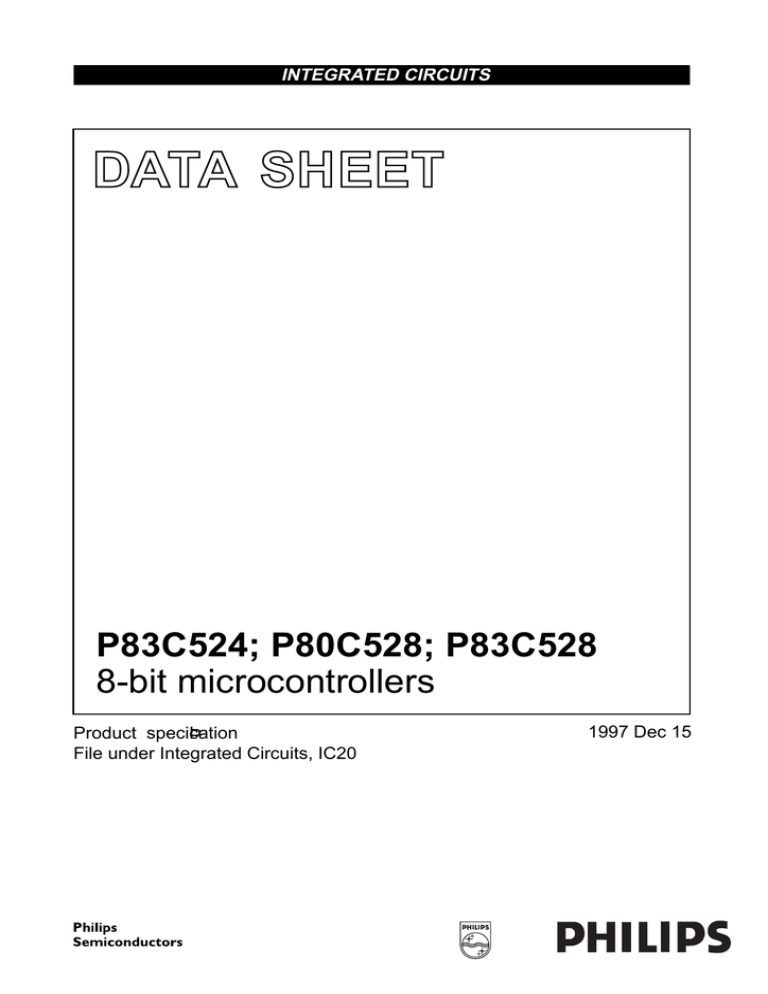

INTEGRATED CIRCUITS
DATA SHEET
P83C524; P80C528; P83C528
8-bit microcontrollers
Product speciÞcation
File under Integrated Circuits, IC20
1997 Dec 15
Philips Semiconductors
Product speciÞcation
P83C524; P80C528;
P83C528
8-bit microcontrollers
CONTENTS
15
IDLE AND POWER-DOWN OPERATION
Power Control Register (PCON)
Idle Mode
Power-down Mode
Wake-up from Power-down Mode
1
FEATURES
2
GENERAL DESCRIPTION
3
QUICK REFERENCE DATA
15.1
15.2
15.3
15.4
4
ORDERING INFORMATION
16
OSCILLATOR CIRCUIT
5
BLOCK DIAGRAM
17
RESET CIRCUIT
6
FUNCTIONAL DIAGRAM
17.1
Power-on reset
7
PINNING INFORMATION
18
INSTRUCTION SET
7.1
7.2
Pinning
Pin description
19
LIMITING VALUES
20
DC CHARACTERISTICS
8
FUNCTIONAL DESCRIPTION
21
AC CHARACTERISTICS
8.1
8.2
General
Instruction Set Execution
21.1
21.2
AC Characteristics 16 MHz version
AC Characteristics 24 MHz version
9
MEMORY ORGANIZATION
22
I2C CHARACTERISTICS (BIT-LEVEL)
9.1
9.2
9.3
Program Memory
Internal Data Memory
Addressing
23
XTAL1 CHARACTERISTICS
24
SERIAL PORT CHARACTERISTICS
10
I/O FACILITIES
25
TIMING DIAGRAMS
11
TIMERS/COUNTERS
25.1
Timing symbol definitions
11.1
11.1.1
11.1.2
11.2
11.2.1
11.2.2
11.2.3
11.2.4
11.3
Timer 0 and Timer 1
Timer/Counter Mode Control register (TMOD)
Timer/Counter Control Register (TCON)
Timer 2
Timer 2 Control Register (T2CON)
Capture Mode
Automatic Reload Mode
Baud Rate Generator Mode
Watchdog Timer T3
26
PACKAGE OUTLINES
27
SOLDERING
12
SERIAL PORT (UART)
27.1
27.2
27.2.1
27.2.2
27.3
27.3.1
27.3.2
27.3.3
Introduction
DIP
Soldering by dipping or by wave
Repairing soldered joints
PLCC and QFP
Reflow soldering
Wave soldering
Repairing soldered joints
12.1
12.2
Serial Port Control Register (SCON)
SM0 and SM1 operating modes (SCON)
28
DEFINITIONS
29
LIFE SUPPORT APPLICATIONS
13
BIT-LEVEL I2C INTERFACE
30
PURCHASE OF PHILIPS I2C COMPONENTS
13.1
13.2
I2C Interrupt Register (S1INT)
Single-bit Data Register with I2C Auto-clock
(S1BIT)
Reading or Writing the S1BIT SFR
Control and Status Register for the I2C-bus
(S1SCS)
13.2.1
13.3
14
INTERRUPT SYSTEM
14.1
14.2
14.3
Interrupt Enable Register (IE)
Interrupt Priority Register (IP)
Interrupt Vectors
1997 Dec 15
2
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
1
P83C524; P80C528; P83C528
FEATURES
·
80C51 CPU
·
32 kbytes on-chip ROM, expandable externally to
64 kbytes Program Memory address space
·
P83C524:
2
The P83C524 and P83C528 single-chip 8-bit
microcontrollers are manufactured in an advanced CMOS
process and are derivatives of the PCB80C51
microcontroller family. These devices provide architectural
enhancements that make them applicable in a variety of
applications in general control systems, especially in those
systems which need a large ROM and RAM capacity on
chip.
— 16 kbytes on-chip ROM, expandable externally from
32 kbytes to 64 kbytes Program Memory address
space (address space 16 k to 32 k not usable)
·
P80C528:
The P83C524 and P83C528 contain a non-volatile
16 k ´ 8 respectively 32 k ´ 8 read-only program memory,
a volatile 512 bytes ´ 8 read/write data memory, four 8-bit
I/O ports, two 16-bit timer/event counters (identical to the
timers of the 80C51), a 16-bit timer (identical to the timer 2
of the 8052), a multi-source, two-priority-level, nested
interrupt structure, two serial interfaces (UART and
bit-level I2C-bus), a watchdog timer (WDT) with a separate
oscillator, an on-chip oscillator and timing circuits. For
systems that require extra capability, the P83C524 and
P83C528 can be expanded using standard TTL
compatible memories and logic.
— ROMless version of P83C528
·
P83C528:
— 32 kbytes on-chip ROM, expandable externally from
32 kbytes to 64 kbytes Program Memory address
space
·
EPROM versions are available: see separate data sheet
P87C524 and P87C528
·
512 bytes on-chip RAM, expandable externally to
64 kbytes Data Memory address space
·
Four 8-bit I/O ports
·
Full-duplex UART compatible with the standard 80C51
and the 8052
·
Two standard 16-bit timer/counters
·
An additional 16-bit timer (functionally equivalent to the
timer 2 of the 8052)
·
On-chip Watchdog Timer (WDT) with an own oscillator
·
Bit-level I2C-bus hardware serial I/O Port
·
7-source and 7-vector interrupt structure with 2 priority
levels
·
Up to 3 external interrupt request inputs
·
Two programmable power reduction modes (Idle and
Power-down)
·
Termination of Idle mode by any interrupt, external or
WDT (watchdog) reset
·
Wake-up from Power-down by external interrupt,
external or WDT reset
·
ROM code protection
·
XTAL frequency range: 3.5 MHz to 16 MHz and
3.5 MHz to 24 MHz
·
All packaging pin-outs fully compatible to the standard
8051/8052.
1997 Dec 15
GENERAL DESCRIPTION
The device also functions as an arithmetic processor
having facilities for both binary and BCD arithmetic plus
bit-handling capabilities. The P83C524 and P83C528
have the same instruction set as the PCB80C51 which
consists of over 100 instructions: 49 one-byte, 46 two-byte
and 16 three-byte. With a 16 MHz crystal, 58% of the
instructions are executed in 750 ns and 40% in 1.5 m s.
Multiply and divide instructions require 3 m s.
3
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
3
P83C524; P80C528; P83C528
QUICK REFERENCE DATA
SYMBOL
PARAMETER
CONDITION
MIN.
MAX.
UNIT
P83C524, P80C528, P83C528 (see characteristics tables for extended temperature range versions)
VDD
supply voltage range
IDD
supply current: operating modes 16 MHz
VDD = 5.5 V, fCLK = 16 MHz
IID
supply current: Idle mode 16 MHz
VDD = 5.5 V, fCLK = 16 MHz
IPD
supply current: Power-down mode
2V £ VPD £ VDD max.
Ptot
total power dissipation
Tstg
Tamb
4
4.5
-
5.5
V
33
mA
6
mA
100
m A
-
1
W
storage temperature range
- 65
+150
°C
operating ambient temperature range
- 40
+85
°C
-
ORDERING INFORMATION
EXTENDED
TYPE NUMBER
PACKAGE
NAME
DESCRIPTION
VERSION
TEMPERATURE
RANGE (°C)
FREQ.
(MHZ)
ROMless
P80C528EBP
DIP40
P80C528EFP
plastic dual in-line package;
40 leads (600 mil)
SOT129-1
0 to +70
- 40 to +85
P80C528IBP
0 to +70
P80C528IFP
- 40 to +85
P80C528EBA
PLCC44 plastic leaded chip carrier; 44 leads
SOT187-2
0 to +70
P80C528EFA
- 40 to +85
P80C528IBA
0 to +70
P80C528IFA
- 40 to +85
P80C528EBB
QFP44
P80C528EFB
P80C528IBB
3.5 to 16
plastic quad ßat package;
44 leads (lead length 1.3 mm);
body 10 ´ 10 ´ 1.75 mm
SOT307-2
0 to +70
3.5 to 24
3.5 to 16
3.5 to 24
3.5 to 16
- 40 to +85
0 to +70
3.5 to 24
- 40 to +85
P80C528IFB
ROM
P83C524EBP
DIP40
P83C524EFP
plastic dual in-line package;
40 leads (600 mil)
SOT129-1
0 to +70
- 40 to +85
P83C524IBP
0 to +70
P83C524IFP
- 40 to +85
P83C524EBA
PLCC44 plastic leaded chip carrier; 44 leads
SOT187-2
0 to +70
P83C524EFA
- 40 to +85
P83C524IBA
0 to +70
P83C524IFA
- 40 to +85
P83C524EBB
P83C524EFB
P83C524IBB
QFP44
plastic quad ßat package;
44 leads (lead length 1.3 mm);
body 10 ´ 10 ´ 1.75 mm
SOT307-2
0 to +70
4
3.5 to 24
3.5 to 16
3.5 to 24
3.5 to 16
- 40 to +85
0 to +70
- 40 to +85
P83C524IFB
1997 Dec 15
3.5 to 16
3.5 to 24
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
EXTENDED
TYPE NUMBER
P83C528EBP
P83C524; P80C528; P83C528
PACKAGE
NAME
DIP40
P83C528EFP
DESCRIPTION
plastic dual in-line package;
40 leads (600 mil)
VERSION
SOT129-1
0 to +70
0 to +70
PLCC44 plastic leaded chip carrier; 44 leads
SOT187-2
0 to +70
P83C528EFA
- 40 to +85
P83C528IBA
0 to +70
P83C528IFA
- 40 to +85
P83C528EFB
P83C528IBB
QFP44
plastic quad ßat package;
44 leads (lead length 1.3 mm);
body 10 ´ 10 ´ 1.75 mm
SOT307-2
0 to +70
3.5 to 24
5
3.5 to 16
3.5 to 24
3.5 to 16
- 40 to +85
0 to +70
- 40 to +85
P83C528IFB
1997 Dec 15
3.5 to 16
- 40 to +85
P83C528IFP
P83C528EBB
FREQ.
(MHZ)
- 40 to +85
P83C528IBP
P83C528EBA
TEMPERATURE
RANGE (°C)
3.5 to 24
This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in
_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in
white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...
T0
XTAL1
OSCILLATOR
AND
TIMING
PROGRAM
PROGRAM
MEMORY
MEMORY
(32 KK xx 88 ROM/
ROM
(32
or 16EPROM)
K x 8 ROM)
RAM
AUX - RAM
DATA
MEMORY
(256 x 8 RAM)
DATA
MEMORY
(256 x 8 RAM)
T1
TWO 16-BIT
TIMER/EVENT
COUNTERS
T2
T2EX
16-BIT
TIMER
RST
8-bit microcontrollers
BLOCK DIAGRAM
XTAL2
counters
Philips Semiconductors
5
1997 Dec 15
frequency
reference
WATCHDOG
TIMER
P83C524
P80C528
P83C528
PROGRAMMABLE
SERIAL PORT
FULL DUPLEX UART
SYNCHRONOUS
SHIFT
PROGRAMMABLE I/O
BIT-LEVEL
I 2C
INTERFACE
MBC455
INT0 INT1
external interrupts
control
serial in
parallel ports,
address/data bus
and I/O pins
serial out
shared with Port 3
SCL
Product speciÞcation
Fig.1 Block diagram.
SDA
P83C524; P80C528; P83C528
internal
interrupts
64K-BYTE BUS
EXPANSION
CONTROL
handbook, full pagewidth
6
CPU
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
6
P83C524; P80C528; P83C528
FUNCTIONAL DIAGRAM
VSS
VDD
RST
handbook, full pagewidth
XTAL1
XTAL2
Port 0
address and
data bus
EA
T2
PSEN
ALE
T2EX
P83C524
P80C528
P83C528
Port 1
P83C528
SCL
SDA
RXD / data
TXD / clock
INT0
alternative
functions
INT1
Port 2
Port 3
T0
T1
WR
RD
MBC454 - 1
Fig.2 Functional diagram.
1997 Dec 15
7
address bus
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
7
7.1
P83C524; P80C528; P83C528
PINNING INFORMATION
Pinning
handbook, halfpage
40 VDD
T2 P1.0 1
T2EX P1.1 2
39 P0.0 AD0
P1.2
3
38 P0.1 AD1
P1.3
4
37 P0.2 AD2
P1.4
5
36 P0.3 AD3
P1.5
6
35 P0.4 AD4
SCL P1.6
7
34 P0.5 AD5
SDA P1.7
8
33 P0.6 AD6
RST
9
32 P0.7 AD7
RXD / data P3.0 10
TXD / clock P3.1 11
P83C524
P80C528
P83C528
P83C528
31 EA
30 ALE
INT0 P3.2 12
29 PSEN
INT1 P3.3 13
28 P2.7 A15
T0 P3.4 14
27 P2.6 A14
T1 P3.5 15
26 P2.5 A13
WR P3.6 16
25 P2.4 A12
RD P3.7 17
24 P2.3 A11
XTAL2 18
23 P2.2 A10
XTAL1 19
22 P2.1 A9
VSS 20
21 P2.0 A8
MBC453
Fig.3 Pin configuration DIP40 (SOT129-1).
1997 Dec 15
8
Philips Semiconductors
Product speciÞcation
P1.5
P1.4
P1.3
P1.2
P1.1 / T2EX
P1.0 / T2
n.c.
5
4
3
2
1
44 V DD
43 P0.0 / AD0
42 P0.1 / AD1
41 P0.2 / AD2
40 P0.3 / AD3
43
42
41
40
39
38
37
36
35
34
handbook, full pagewidth
6
P83C524; P80C528; P83C528
44
8-bit microcontrollers
7
39 P0.4 / AD4
SCL / P1.6 8
1
SDA / P1.7 9
2
RST 10
3
RXD / data / P3.0 4
11
38 P0.5 / AD5
33
37 P0.6 / AD6
32
36 P0.7 / AD7
31
35 EA
30
P83C524
P80C528
P83C528
P83C528
n.c. 12
5
TXD / clock / P3.1 13
6
34 n.c.
29
33 ALE
28
INT0 / P3.2 14
7
32 PSEN
27
INT1 / P3.3 15
8
31 P2.7 / A15
26
T0 / P3.4 16
9
30 P2.6 / A14
25
17
T1 / P3.5 10
29 P2.5 / A13
24
P2.4 / 22
A12 28
P2.3 / 21
A11 27
P2.2 / 20
A10 26
P2.1 19
/ A9 25
P2.0 /18
A8 24
n.c. 23
17
V16
SS 22
XTAL1
15 21
XTAL2
14 20
RD / P3.7
13 19
23
MBC452
WR / P3.6
12 18
11
Fig.4 Pin configuration QFP44 (SOT307-2).
1997 Dec 15
9
Philips Semiconductors
Product speciÞcation
P1.5
n.c.
1
40 P0.3 / AD3
P1.0 / T2
2
41 P0.2 / AD2
P1.1 / T2EX
3
42 P0.1 / AD1
P1.2
4
43 P0.0 / AD0
P1.3
44 V DD
P1.4
handbook, full pagewidth
5
P83C524; P80C528; P83C528
6
8-bit microcontrollers
7
39 P0.4 / AD4
SCL / P1.6 8
38 P0.5 / AD5
SDA / P1.7 9
37 P0.6 / AD6
RST 10
36 P0.7 / AD7
RXD / data / P3.0 11
35 EA
P83C524
P80C528
P83C528
P83C528
n.c. 12
34 n.c.
TXD / clock / P3.1 13
33 ALE
INT0 / P3.2 14
32 PSEN
INT1 / P3.3 15
31 P2.7 / A15
T0 / P3.4 16
30 P2.6 / A14
T1 / P3.5 17
29 P2.5 / A13
P2.4 / A12 28
P2.3 / A11 27
P2.2 / A10 26
P2.1 / A9 25
n.c. 23
P2.0 / A8 24
VSS 22
XTAL1 21
XTAL2 20
RD / P3.7 19
WR / P3.6 18
MBC452
Fig.5 Pin configuration PLCC44 (SOT187-2).
1997 Dec 15
10
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
7.2
P83C524; P80C528; P83C528
Pin description
Table 1
Pin description for P83C524, P80C528 and P83C528; see note 1
PIN
SYMBOL
DESCRIPTION
SOT 129-1 SOT 187-2 SOT 307-2
P1.0- P1.7 1 to 8
2- 9
(1 n.c.)
1- 3,
40- 44
(39 n.c.)
Port 1: 8-bit quasi-bidirectional I/O Port. Port 1 can sink/source
one TTL (= 4 LSTTL) input. It can drive CMOS inputs without
external pull-ups, except P1.6 and P1.7 which have open drain
outputs.
Port 1 alternative functions:
T2
1
2
40
P1.0
Timer/event counter 2 external event counter input
(falling edge triggered)
T2EX
2
3
41
P1.1
Timer/event counter 2 capture/reload trigger or external
interrupt 2 input (falling edge triggered)
SCL
7
8
2
P1.6
I2C-bus Serial Port clock line
SDA
8
9
3
P1.7
I2C-bus Serial Port data line.
RST
9
10
4
RESET: a HIGH level on this pin for two machine cycles while the
oscillator is running, resets the device. An internal pull-down
resistor permits power-on reset using only a capacitor connected
to VDD. After a WDT overßow this pin is pulled HIGH while the
internal reset signal is active.
11, 13- 19
5, 7- 13
Port 3: 8-bit quasi-bidirectional I/O Port with internal pull-ups.
(12 n.c.)
(6 n.c.)
Port 3 can sink/source one TTL (= 4 LSTTL) input. It can drive
CMOS inputs without external pull-ups.
P3.0- P3.7 10- 17
Port 3 alternative functions:
RXD/data
10
11
5
P3.0
Serial Port data input (asynchronous) or data
input/output (synchronous)
TXD/clock 11
13
7
P3.1
Serial Port data output (asynchronous) or clock output
(synchronous)
INT0
12
14
8
P3.2
external interrupt 0 or gate control input for timer/event
counter 0
INT1
13
15
9
P3.3
external interrupt 1 or gate control input for timer/event
counter 1
T0
14
16
10
P3.4
external input for timer/event counter 0
T1
15
17
11
P3.5
external input for timer/event counter 1
WR
16
18
12
P3.6
external data memory write strobe
RD
17
19
13
P3.7
external data memory read strobe.
The generation or use of a Port 3 pin as an alternative function is
carried out automatically by the P83C528 provided the associated
Special Function Register (SFR) bit is set HIGH.
XTAL2
1997 Dec 15
18
20
14
Crystal input 2: output of the inverting ampliÞer that forms the
oscillator. This pin left open-circuit when an external oscillator
clock is used (see Figures 22 and 23).
11
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
P83C524; P80C528; P83C528
PIN
SYMBOL
DESCRIPTION
SOT 129-1 SOT 187-2 SOT 307-2
XTAL1
19
21
15
Crystal input 1: input to the inverting ampliÞer that forms the
oscillator, and input to the internal clock generator. Receives the
external oscillator clock signal when an external oscillator is used
(see Figures 22 and 23).
VSS
20
22
16
Ground: circuit ground potential.
P2.0-P2.7
21- 28
24- 31
18- 25
(23 n.c.)
(17 n.c.)
Port 2: 8-bit quasi-bidirectional I/O Port with internal pull-ups.
During access to external memories (RAM/ROM) that use 16-bit
addresses (MOVX @DPTR) Port 2 emits the high-order address
byte (A8 to A15). Port 2 can sink/source one TTL (= 4 LSTTL)
input. It can drive CMOS inputs without external pull-ups.
PSEN
29
32
26
Program Store Enable output: read strobe to the external
program memory via Port 0 and Port 2. It is activated twice each
machine cycle during fetches from external program memory.
When executing out of external program memory two activations of
PSEN are skipped during each access to external data memory.
PSEN is not activated (remains HIGH) during no fetches from
external program memory. PSEN can sink/source 8 LSTTL inputs.
It can drive CMOS inputs without external pull-ups.
ALE
30
33
27
Address Latch Enable output: latches the LOW byte of the
address during access to external memory in normal operation. It
is activated every six oscillator periods except during an external
data memory access. ALE can sink/source 8 LSTTL inputs. It can
drive CMOS inputs without an external pull-up.
EA
31
35
29
(34 n.c.)
(28 n.c.)
External Access input: when during RESET, EA is held at a TTL
HIGH level, the CPU executes out of the internal program ROM,
provided the program counter is less than 32768. When EA is held
at a TTL LOW level during RESET, the CPU executes out of
external program memory via Port 0 and Port 2. EA is not allowed
to ßoat.
P0.0-P0.7
32- 39
36- 43
30- 37
Port 0: 8-bit open drain bidirectional I/O Port. It is also the
multiplexed low-order address and data bus during accesses to
external memory (AD0 to AD7). During these accesses internal
pull-ups are activated. Port 0 can sink/source 8 LSTTL inputs.
VDD
40
44
38
Power supply: +5 V power supply pin during normal operation,
Idle mode and Power-down mode.
Note
1. To avoid a ’latch-up’ effect at power-on, the voltage on any pin (at any time) must not be higher than VDD +0.5 V or
lower than VSS - 0.5 V respectively.
1997 Dec 15
12
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
8
8.1
P83C524; P80C528; P83C528
FUNCTIONAL DESCRIPTION
9.1
The program memory address space of the P83C528
comprises an internal and an external memory portion.
The P83C528 has 32 kbyte of program memory on-chip.
The program memory can be externally expanded up to 64
kbyte. If the EA pin is held HIGH, the P83C528 executes
out of the internal program memory unless the address
exceeds 7FFFH. Locations 8000H through 0FFFFH are
then fetched from the external program memory. If the EA
pin is held LOW, the P83C528 fetches all instructions from
the external program memory. Fig.6 illustrates the
program memory address space.
General
The P83C524, P80C528 and P83C528 are stand-alone
high-performance microcontrollers designed for use in real
time applications such as instrumentation, industrial
control, medium to high-end consumer applications and
specific automotive control applications.
In addition to the 80C51 standard functions, the devices
provide a number of dedicated hardware functions for
these applications. The P83C524 and P83C528 are
control-oriented CPUs with on-chip program and data
memory. They can be extended with external program
memory up to 64 kbytes. They can also access up to
64 kbytes of external data memory. For systems requiring
extra capability, the P83C524 and P83C528 can be
expanded using standard memories and peripherals.
By setting a mask programmable security bit the ROM
content is protected i.e. it cannot be read out by any test
mode or by any instruction in the external program
memory space. The MOVC instructions are the only ones
which have access to program code in the internal or
external program memory. The EA input is latched during
RESET and is ’don’t care’ after RESET. This
implementation prevents reading from internal program
code by switching from external program memory to
internal program memory during MOVC instruction or an
instruction that handles immediate data. Table 2 lists the
access to the internal and external program memory by the
MOVC instructions when the security bit has been set to a
logical one. If the security bit has been set to a logical 0
there are no restrictions for the MOVC instructions.
The P83C524, P80C528 and P83C528 have two software
selectable modes of reduced activity for further power
reduction: Idle and Power-down. The Idle mode freezes
the CPU while allowing the RAM, timers, serial ports and
interrupt system to continue functioning. The Power-down
mode saves the RAM contents but freezes the oscillator
causing all other chip functions to be inoperative except
the WDT if it is enabled. The Power-down mode can be
terminated by an external reset, a WDT overflow, and in
addition, by either of the two external interrupts.
8.2
Program Memory
Instruction Set Execution
The P83C524, P80C528 and P83C528 use the powerful
instruction set of the 80C51. Additional SFRs are
incorporated to control the on-chip peripherals. The
instruction set consists of 49 single-byte, 46 two-byte and
16 three-byte instructions. When using a 16 MHz
oscillator, 64 instructions execute in 750 ns and 45
instructions execute in 1.5 s. Multiply and divide
instructions execute in 3 m s (see Chapter 18).
64 K
handbook, halfpage
EXTERNAL
32768
9
MEMORY ORGANIZATION
32767
32767
The central processing unit (CPU) manipulates operands
in three memory spaces; these are the 64 kbyte external
data memory (of which the lower 256 bytes reside in the
internal AUX-RAM), 512 byte internal data memory
(consisting of 256 bytes standard RAM and 256 bytes
AUX-RAM) and the 64 kbyte internal and external program
memory.
16383
(1)
EXTERNAL
(EA = 0)
INTERNAL
(EA = 1)
0
(1) Only for P83C524.
0
PROGRAM MEMORY
MBC456 - 1
Fig.6 Program Memory Address Space.
1997 Dec 15
13
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
Table 2
P83C524; P80C528; P83C528
Internal and external program memory access with security bit set
ACCESS TO INTERNAL
PROGRAM MEMORY
ACCESS TO EXTERNAL
PROGRAM MEMORY
MOVC in internal program memory
YES
YES
MOVC in external program memory
NO
YES
INSTRUCTION
9.2
An access to external data memory locations higher than
255 will be performed with the MOVX DPTR instructions in
the same way as in the 80C51 structure, i.e. with P0 and
P2 as data/address bus and P3.6 and P3.7 as write and
read timing signals (see Figures 7, 8, 9 and 10). Note that
the external data memory cannot be accessed with R0 and
R1 as address pointer.
Internal Data Memory
·
The internal data memory is divided into three physically
separated parts: 256 byte of RAM, 256 byte of AUX-RAM,
and a 128 byte special function area (SFR). These parts
can be addressed as follows (see Table 3 and Fig.11):
RAM 0 to 127 can be addressed directly and indirectly
as in the 80C51. Address pointers are R0 and R1 of the
selected register bank.
RAM 128 to 255 can only be addressed indirectly.
Address pointers are R0 and R1 of the selected register
bank.
·
AUX-RAM 0 to 255 is indirectly addressable as the
external data memory locations 0 to 255 with the MOVX
instructions. Address pointers are R0 and R1 of the
selected register bank and DPTR. When executing from
internal program memory, an access to AUX-RAM 0 to
255 will not affect the ports P0, P2, P3.6 and P3.7.
·
·
Fig.11 shows the internal and external data memory
address space. Fig.12 shows the Special Function
Register (SFR) memory map. Four 8-bit register banks
occupy locations 0 through 31 in the lower RAM area. Only
one of these banks may be enabled at a time. The next 16
bytes, locations 32 through 47, contain 128 directly
addressable bit locations.
The stack can be located anywhere in the internal 256 byte
RAM. The stack depth is only limited by the available
internal RAM space of 256 bytes. All registers except the
Program Counter and the four 8-bit register banks reside
in the SFR address space.
the SFRs can only be addressed directly in the address
range from 128 to 255.
Table 3
Internal data memory access
LOCATION
ADDRESSED
RAM 0 to 127
DIRECT and INDIRECT
RAM 128 to 255
INDIRECT only
AUX-RAM 0 to 255
INDIRECT only with MOVX
Special Function Register (SFR) 128 to 255
DIRECT only
1997 Dec 15
14
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
P83C524; P80C528; P83C528
one machine cycle
handbook, full pagewidth
S1
S2
S3
S4
one machine cycle
S5
S6
S1
S2
S3
S4
S5
S6
ALE
PSEN
RD
WR
P2
P2 OUT
P0
P0 OUT
MBC457
a. Without a MOVX.
cycle 1
handbook, full pagewidth
S1
S2
S3
cycle 2
S4
S5
S6
S1
S2
S3
S4
S5
S6
ALE
PSEN
RD
WR
P2
P2 OUT
P0
P0 OUT
MBC458
b. With a MOVX to the AUX-RAM (read and write).
Fig.7 Internal program memory execution.
1997 Dec 15
15
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
P83C524; P80C528; P83C528
cycle 1
handbook, full pagewidth
S1
S2
S3
cycle 2
S4
S5
S6
S1
S2
S3
S4
S5
S6
ALE
PSEN
RD
WR
P2
P2 OUT
P0
P0 OUT
P2 OUT
DPH OUT
DPL
OUT
DATA
IN
MBC459
a. With a MOVX to the External Data Memory (read).
cycle 1
handbook, full pagewidth
S1
S2
S3
cycle 2
S4
S5
S6
S1
S2
S3
S4
S5
S6
ALE
PSEN
RD
WR
P2
P2 OUT
P0
P0 OUT
DPH OUT
DPL
OUT
DATA OUT
MBC460
b. With a MOVX to the External Data Memory (write).
Fig.8 Internal program memory execution (continued).
1997 Dec 15
P2 OUT
16
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
P83C524; P80C528; P83C528
one machine cycle
one machine cycle
handbook, full pagewidth
S1
S2
S3
S4
S5
S6
S1
S2
S3
S4
S5
S6
ALE
PSEN
RD
WR
P2
PCH OUT
INST
IN
P0
PCH OUT
PCL
OUT
PCH OUT
INST
IN
PCL
OUT
PCH OUT
INST
IN
PCL
OUT
PCH OUT
INST
IN
PCL
OUT
MBC461
a. Without a MOVX.
cycle 1
cycle 2
handbook, full pagewidth
S1
S2
S3
S4
S5
S6
S1
S2
S3
S4
S5
S6
ALE
PSEN
RD
WR
P2
PCH OUT
PCH OUT
INST
IN
P0
PCL
OUT
INST
IN
ADDRH OUT
ADDRL
OUT
PCH OUT
PCL
OUT
(read)
P2
PCH OUT
P0
INST
IN
PCH OUT
PCL
OUT
INST
IN
ADDRH OUT
ADDRL
OUT
DATA OUT
(write)
b. With a MOVX to the AUX-RAM (read and write).
Fig.9 External program memory execution.
1997 Dec 15
17
PCH OUT
PCL
OUT
MBC462
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
P83C524; P80C528; P83C528
cycle 1
handbook, full pagewidth
S1
S2
S3
cycle 2
S4
S5
S6
S1
S2
S3
S4
S5
S6
ALE
PSEN
RD
WR
P2
PCH OUT
PCH OUT
P0
INST
IN
PCL
OUT
DPH OUT
INST
IN
DPL
OUT
PCH OUT
DATA
IN
PCL
OUT
MBC463
a. With a MOVX to the External Data Memory (read).
cycle 1
handbook, full pagewidth
S1
S2
S3
cycle 2
S4
S5
S6
S1
S2
S3
S4
S5
S6
ALE
PSEN
RD
WR
P2
P0
PCH OUT
INST
IN
PCH OUT
PCL
OUT
INST
IN
DPH OUT
DPL
OUT
DATA OUT
PCH OUT
PCL
OUT
MBC464
b. With a MOVX to the External Data Memory (write).
Fig.10 External program memory execution (continued).
1997 Dec 15
18
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
P83C524; P80C528; P83C528
SHARED
ADDRESS LOCATION
FF
FF
handbook, full pagewidth
FF
UPPER
128 BYTES
INTERNAL
RAM
AUX - RAM
256 BYTES
FFFF
SPECIAL
FUNCTION
REGISTERS
80
80
EXTERNAL
DATA
MEMORY
7F
LOWER
128 BYTES
INTERNAL
RAM
00
00
0100
DATA MEMORY
register
indirect
addressing
direct byte
addressing
Fig.11 Internal and external data memory address space.
1997 Dec 15
19
MBC466 - 1
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
handbook, full pagewidth
P83C524; P80C528; P83C528
BIT MNEMONIC /
BIT ADDRESS (HEX)
REGISTER
MNEMONIC
DIRECT BYTE
ADDRESS (HEX)
T3
FFH
B
F7
F6
F5
F4
F3
F2
F1
F0
F0H
ACC
E7
E6
E5
E4
E3
E2
E1
E0
E0H
S1INT
DAH
S1BIT
S1SCS
PSW
D9H
SDI/
SDO
DF
SCI/
SCO
DE
CLH
DO
BB
DC
RBF
DB
WBF
DA
STR
D9
ENS
D8
D8H
CY
D7
AC
D6
FO
D5
RSI
D4
RSO
D3
OV
D2
FI
D1
P
D0
D0H
TH2
CDH
TL2
CCH
RCAP2H
CBH
RCAP2L
CAH
T2CON
TF2
CF
EXF2
CE
RCLK
CD
TCLK
CC
EXEN2
CB
TR2
CA
C/T2
C9
CP/RL2
C8
C8H
IP
--BF
PS1
BE
PT2
BD
PS
BC
PT1
BB
PX1
BA
PT0
B9
PX0
B8
B8H
P3
B7
B6
B5
B4
B3
B2
B1
B0
B0H
IE
EA
AF
ES1
AE
ET2
AD
ES
AC
ET1
AB
EX1
AA
ET0
A9
EX0
A8
A8H
WDCON
P2
A5H
A7
A6
A5
A4
A3
A2
A1
A0
SM0
9F
SM1
9E
SM2
9D
REN
9C
TB8
9B
RB8
9A
TI
99
RI
98
98H
97
96
95
94
93
92
91
90
90H
SBUF
SCON
P1
A0H
99H
TH1
8DH
TH0
8CH
TL1
8BH
TL0
8AH
TMOD
TCON
PCON
89H
TF1
8F
TR1
8E
TF0
8D
TR0
8C
IE1
8B
IT1
8A
IE0
89
IT0
88
87H
DPH
DPL
SP
P0
88H
83H
82H
81H
87
86
85
84
83
82
81
80
80H
MBC465 - 1
Fig.12 Special Function Register (SFR) memory map.
1997 Dec 15
20
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
9.3
P83C524; P80C528; P83C528
Addressing
The P83C528 has five modes for addressing:
·
Register
·
Direct
·
Register-Indirect
·
Immediate
·
Base-Register plus Index-Register-Indirect.
The first three methods can be used for addressing
destination operands. Most instructions have a
’destination/source’ field that specifies the data type,
addressing methods and operands involved. For
operations other than MOVs, the destination operand is
also a source operand.
Access to memory addresses is as follows:
·
Register in one of the four 8-bit register banks through
Register, Direct or Register-Indirect addressing.
·
512 bytes of internal RAM through Direct or
Register-Indirect addressing. Bytes 0-127 of internal
RAM may be addressed directly/indirectly. Bytes
128-255 of internal RAM share their address location
with the SFRs and so may only be addressed indirectly
as data RAM. Bytes 0-255 of AUX-RAM can only be
addressed indirectly via MOVX.
·
SFR through Direct addressing at address locations
128-255.
·
External data memory through Register-Indirect
addressing.
·
Program memory look-up tables through Base-Register
plus Index-Register-Indirect addressing.
1997 Dec 15
21
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
P83C524; P80C528; P83C528
·
Port 2: provides the high-order address bus when
expanding the P83C528 with external program memory
and/or external data memory.
·
Port 3: pins can be configured individually to provide:
external interrupt request inputs (external interrupt 0/1);
external inputs for Timer/counter 0 and
Timer/counter 1; Serial Port receiver input and
transmitter output control-signals to read and write
external data memory.
10 I/O FACILITIES
The P83C528 has four 8-bit ports. Ports 0-3 are the same
as in the 80C51, with the exception of the additional
function of Port 1. Port lines P1.0 and P1.1 may be used
as inputs for Timer 2, P1.1 may also be used as an
additional (third) external interrupt request input. Port lines
P1.6 and P1.7 may be selected as the SCL and SDA lines
of Serial Port SIO1 (I2C). Because the I2C-bus may be
active while the device is disconnected from VDD, these
pins are provided with open drain drivers. Pins P1.6 and
P1.7 do not have pull-up devices when used as ports.
Bits which are not used for the alternative functions may be
used as normal bidirectional I/O pins. The generation or
use of a Port 1 or Port 3 pin as an alternative function is
carried out automatically by the P83C528 provided the
associated SFR bit is HIGH. Otherwise the port pin is held
at a logical LOW level.
Ports 0, 1, 2, and 3 perform the following alternative
functions:
·
Port 0: provides the multiplexed low-order address and
data bus used for expanding the P83C528 with standard
memories and peripherals.
·
Port 1: pins can be configured individually to provide:
external interrupt request input (external interrupt 2);
external inputs for Timer/counter 2; SCL and SDA for
the I2C interface.
+5 V
strong pull-up
handbook, full pagewidth
2 oscillator
periods
p2
p3
p1
I/O PIN
PORT
Q
from port latch
n
I1
input data
read port pin
INPUT
BUFFER
MLA513
Fig.13 I/O buffers in the P83C528 (Ports 1, 2 and 3 except P1.6 and P1.7).
1997 Dec 15
22
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
P83C524; P80C528; P83C528
When Timer 0 is in Mode 3, Timer 1 can be programmed
to operate in Modes 0, 1 or 2 but cannot set an interrupt
request flag and generate an interrupt. However, the
overflow from Timer 1 can be used to pulse the Serial Port
transmission-rate generator. With a 16 MHz crystal, the
counting frequency of these timer/counters is as follows:
11 TIMERS/COUNTERS
The P83C528 contains three 16-bit timer/counters, Timer
0, Timer 1 and Timer 2, and one 8-bit timer, the Watchdog
Timer T3. Timer 0, Timer 1 and Timer 2 may be
programmed to carry out the following functions:
·
measure time intervals and pulse durations
·
count events
·
generate interrupt requests.
11.1
Timer 0 and Timer 1
Timers 0 and 1 each have a control bit in TMOD SFR that
selects the timer or counter function of the corresponding
timer. In the timer function, the register is incremented
every machine cycle. Thus, one can think of it as counting
machine cycles. Since a machine cycle consists of 12
oscillator periods, the count rate is 1¤ 12 of the oscillator
frequency.
in the timer function, the timer is incremented at a
frequency of 1.33 MHz (oscillator frequency divided by
12).
·
in the counter function, the frequency handling range for
external inputs is 0 Hz to 0.66 MHz.
Both internal and external inputs can be gated to the timer
by a second external source for directly measuring pulse
duration.
The timers are started and stopped under software control.
Each one sets its interrupt request flag when it overflows
from all logic 1’s to all logic 0’s (respectively, the automatic
reload value), with the exception of Mode 3 as previously
described.
In the counter function, the register is incremented in
response to a HIGH-to-LOW transition at the
corresponding external input pin, T0 or T1. In this function,
the external input is sampled during S5P2 of every
machine cycle. When the samples show a HIGH in one
cycle and a LOW in the next cycle, the counter is
incremented. Thus, it takes two machine cycles (24
oscillator periods) to recognize a HIGH-to-LOW transition.
There are no restrictions on the duty cycle of the external
input signal, but to ensure that a given level is sampled at
least once before it changes, it should be held for at least
one full machine cycle.
Timer 0 and Timer 1 can be programmed independently to
operate in one of four modes:
Mode 0 8-bit timer/counter with divide-by-32 prescaler
Mode 1 16-bit timer/counter
Mode 2 8-bit timer/counter with automatic reload
Mode 3 Timer 0: one 8-bit timer/counter and one 8-bit
timer. Timer 1: stopped.
1997 Dec 15
·
23
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
11.1.1
P83C524; P80C528; P83C528
TIMER/COUNTER MODE CONTROL REGISTER (TMOD)
Table 4
Timer/Counter Mode Control register (address 89H)
7
6
5
4
3
2
TIMER 1
GATE
Table 5
C/T
1
0
M1
M0
TIMER 0
M1
M0
GATE
C/T
Description of the TMOD bits
BIT
SYMBOL
FUNCTION
TIMER 1
7
GATE
Timer 1 gating control: when set, Timer/counter ’1’ is enabled only while ’INT1’ pin is
HIGH and ’TR1’ control bit is set. When cleared, Timer/counter ’1’ is enabled whenever
’TR1’ control bit is set.
6
C/T
Timer or counter selector: cleared for timer operation (input from internal system
clock). Set for counter operation (input from ’T1’ input pin).
5
M1
operating mode: see Table 6.
4
M0
operating mode: see Table 6.
3
GATE
Timer 0 gating control: when set, Timer/counter ’0’ is enabled only while ’INT0’ pin is
HIGH and ’TR0’ control bit is set. When cleared, Timer/counter ’0’ is enabled whenever
’TR0’ control bit is set.
2
C/T
Timer or counter selector: cleared for timer operation (input from internal system
clock). Set for counter operation (input from ’T0’ input pin).
1
M1
operating mode: see Table 6.
0
M0
operating mode: see Table 6.
TIMER 0
Table 6
TMOD M1 and M0 operating modes
M1
M0
0
0
8-bit timer/counter: ’THx’ with 5-bit prescaler.
0
1
16-bit timer/counter: ’THx’ and ’TLx’ are cascaded, there is no prescaler.
1
0
8-bit autoload timer/counter: ’THx’ holds a value which is to be reloaded into ’TLx’
each time it overßows.
1
1
Timer 0: TL0 is an 8-bit timer/counter controlled by the standard Timer 0 control bits.
TH0 is an 8-bit timer controlled by Timer 1 control bits.
1
1
Timer 1: Timer/counter 1 stopped.
1997 Dec 15
FUNCTION
24
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
11.1.2
P83C524; P80C528; P83C528
TIMER/COUNTER CONTROL REGISTER (TCON)
Table 7
Timer/Counter Control register (address 88H)
7
6
5
4
3
2
1
0
TF1
TR1
TF0
TR0
IE1
IT1
IE0
IT0
Table 8
Description of the TCON bits
BIT
SYMBOL
FUNCTION
7
TF1
Timer 1 overßow ßag : set by hardware on timer/counter overßow. Cleared when
interrupt is processed.
6
TR1
Timer 1 run control bit: set/cleared by software to turn timer/counter ON/OFF.
5
TF0
Timer 0 overßow ßag : set by hardware on timer/counter overßow. Cleared when
interrupt is processed.
4
TR0
Timer 0 run control bit: set/cleared by software to turn timer/counter ON/OFF.
3
IE1
Interrupt 1 edge ßag : set by hardware when external interrupt is detected. Cleared
when interrupt is processed.
2
IT1
Interrupt 1 type control bit: set/cleared by software to specify falling edge/LOW level
triggered external interrupt.
1
IE0
Interrupt 0 edge ßag : set by hardware when external interrupt is detected. Cleared
when interrupt is processed.
0
IT0
Interrupt 0 type control bit: set/cleared by software to specify falling edge/LOW level
triggered external interrupt.
1997 Dec 15
25
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
11.2
P83C524; P80C528; P83C528
Timer 2
Timer 2 is functionally similar to the Timer 2 of the 8052AH. Timer 2 is a 16-bit timer/counter which is formed by two
SFRs, TL2 and TH2. Another pair of SFRs, RCAP2L and RCAP2H, form a 16-bit capture register or a 16-bit reload
register. Like Timer 0 and 1, Timer 2 can operate either as timer or as event counter. This is selected by bit C/T2 in the
T2CON SFR. The timer has three operating modes: ’capture’, ’autoload’ and ’baud rate generator’, which are selected
by bits in the T2CON SFR (see Table 9).
Table 9
Timer 2 operating modes
RCLK + TCLK
CP/RL2
TR2
0
0
1
16-bit automatic reload
0
1
1
16-bit capture
1
X
1
baud rate generator
X
X
0
OFF
MODE
TIMER 2 CONTROL REGISTER (T2CON)
11.2.1
Table 10 Timer 2 Control register (address C8H)
7
6
5
4
3
2
1
0
TF2
EXF2
RCLK
TCLK
EXEN2
TR2
C/T2
CP/RL2
Table 11 Description of the T2CON bits
MNEMONIC
POSITION
FUNCTION
TF2
T2CON.7
Timer 2 overßow ßag : set by a Timer 2 overßow and must be cleared by software. TF2
will not be set when either RCLK = 1 or TCLK = 1. When Timer 2 interrupt is enabled,
TF2 = 1 (see EXF2).
EXF2
T2CON.6
Timer 2 external ßag : set when either a capture or reload is caused by a negative
transition on T2EX and EXEN2 = 1. When Timer 2 interrupt is enabled, EXF2 = 1 will
cause the CPU to vector to Timer 2 interrupt routine.
RCLK
T2CON.5
Receive clock ßag : when set, causes the Serial Port to use Timer 2 overßow pulses for
its receive clock in Modes 1 and 3. RCLK = 0 causes Timer 1 overßows to be used for
the receive clock.
TCLK
T2CON.4
Transmit clock ßag : when set, causes the Serial Port to use Timer 2 overßow pulses
for its transmit clock in Modes 1 and 3. TCLK = 0 causes Timer 1 overßows to be used
for the transmit clock.
EXEN2
T2CON.3
Timer 2 external enable ßag : when set, allows a capture or reload to occur as a result
of a negative transition on T2EX if Timer 2 is not being used to clock the Serial Port.
EXEN2 = 0 causes Timer 2 to ignore events at T2EX.
TR2
T2CON.2
Start/stop control: a logic 1 starts Timer 2. A logic 0 stops Timer 2.
C/T2
T2CON.1
Timer/counter select: 0 = internal timer (OSC/12). 1 = external event counter (falling
edge triggered).
CP/RL2
T2CON.0
Capture/reload ßag : when set, capture will occur on negative transitions at T2EX if
EXEN2 = 1. When cleared, reloads will occur upon either Timer 2 overßows or negative
transitions at T2EX if EXEN2 = 1. When either RCLK = 1 or TCLK = 1, this bit is ignored
and the timer is forced to reload upon overßow.
1997 Dec 15
26
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
11.2.2
P83C524; P80C528; P83C528
11.2.4
CAPTURE MODE
BAUD RATE GENERATOR MODE
In the capture mode (see Fig.14) there are two options
which are selected by bit EXEN2 in T2CON. If EXEN2 = 0,
then Timer 2 is a 16-bit timer/counter which on overflow
sets bit TF2 (Timer 2 overflow bit). TF2 can be used to
generate an interrupt. If EXEN2 = 1, Timer 2 operates as
above, with the added feature that a HIGH-to-LOW
transition at the external input T2EX causes the current
value in Timer 2 registers (TL2 and TH2) to be captured
into registers RCAP2L and RCAP2H, respectively. The
HIGH-to-LOW transition of T2EX also causes bit EXF2 in
T2CON to be set. EXF2 can be used to generate an
interrupt.
The baud rate generator mode (see Fig.16) is selected by
RCLK = 1 and/or TCLK = 1 in T2CON. Overflows of either
Timer 2 or Timer 1 can be used independently for
generating baud rates for transmit and receive. The baud
rate generation by Timer 1 and/or Timer 2 is used for the
Serial Port in Mode 1 and Mode 3. The baud rate
generation mode is similar to the automatic reload mode,
in that a rollover in TH2 causes the Timer 2 registers to be
reloaded with the 16-bit value in registers RCAP2L and
RCAP2H, which are preset by software. The baud rate for
the Serial Port in Modes 1 and 3 are determined by
Timer 2’s overflow rate as follows:
11.2.3
Timer 2 overflow rate
Baud Rate = -------------------------------------------------------16
AUTOMATIC RELOAD MODE
In the automatic reload mode (see Fig.15)there are two
options which are selected by bit EXEN2 in T2CON. If
EXEN2 = 0, then a Timer 2 overflow sets TF2 and causes
the Timer 2 registers to be reloaded with the 16-bit value
in registers RCAP2L and RCAP2H, which are preset by
software.
Timer 2 can be configured for either ’timer’ or ’counter’
operation. In timer operation a prescaler divides the
oscillator frequency by 2 (by 12 in the previous modes) and
the baud rate is given by the formula:
If EXEN2 = 1, Timer 2 operates as above, with the added
feature that a HIGH-to-LOW transition at the external input
T2EX triggers the 16-bit reload and sets EXF2.
In this mode an overflow of Timer 2 does not set TF2. If
EXEN2 = 1, a HIGH-to-LOW transition at pin T2EX sets
EXF2 and can be used to generate an interrupt.
handbook, full pagewidth
OSC
12
oscillator frequency
Baud Rate = ------------------------------------------------------------------------------------------------------32 ´ [ 65536 – (RCAP2H,RCAP2L) ]
C/T2 = 0
TL2
(8 BITS)
T2 PIN
C/T2 = 1
TH2
(8 BITS)
TF2
control
TR2
transition
detector
timer 2
interrupt
RCAP2L
RCAP2H
T2EX PIN
EXF2
MBC468 - 1
control
EXEN2
Fig.14 Timer 2 in capture mode.
1997 Dec 15
27
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
handbook, full pagewidth
OSC
12
P83C524; P80C528; P83C528
C/T2 = 0
TL2
(8 BITS)
C/T2 = 1
T2 PIN
TH2
(8 BITS)
TF2
control
TR2
timer 2
interrupt
reload
RCAP2L
transition
detector
RCAP2H
T2EX PIN
EXF2
MBC469 - 1
control
EXEN2
Fig.15 Timer 2 in automatic reload mode.
TIMER 1
overflow
handbook, full pagewidth
2
(note: divided by 2
not by 12)
OSC
2
0
SMOD
C/T2 = 0
TL2
(8 BITS)
T2 PIN
C/T2 = 1
1
TH2
(8 BITS)
1
0
RCLK
control
TR2
16
1
RCAP2L
transition
detector
T2EX PIN
RCAP2H
"TIMER 2"
interrupt
(additional external
interrupt)
EXF2
control
EXEN2
Fig.16 Timer 2 in baud rate generator mode.
1997 Dec 15
28
RX CLOCK
0
TCLK
16
TX CLOCK
MBC470 - 1
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
11.3
P83C524; P80C528; P83C528
inhibited to prevent timing problems due to asynchronous
increments of T3. To prevent an overflow of the WDT, the
user program has to reload T3 within periods that are
shorter than the programmed Watchdog time interval. This
time interval is determined by the 8-bit reload value that is
written into register T3.
[ 256 – ( T3 ) ] ´ 2048
Watchdog time interval = ------------------------------------------------------------------------on-chip oscillator frequency
The advantages of this implementation are:
Watchdog Timer T3
The Watchdog Timer (WDT) see Fig.17, consists of an
11-bit prescaler and an 8-bit timer formed by SFR T3. The
prescaler is incremented by an on-chip oscillator with a
fixed frequency of 1 MHz. The maximum tolerance on this
frequency is - 50% and +100%. The 8-bit timer increments
every 2048 cycles of the on-chip oscillator. When a timer
overflow occurs, the microcontroller is reset and a
reset-output-pulse of 16 x 2048 cycles of the on-chip
oscillator is generated at pin RST. The internal RESET
signal is not inhibited when the external RST pin is kept
LOW by e.g. an external reset circuit. The RESET signal
drives Ports 1, 2 and 3 outputs into the High state and Port
0 into high impedance, no matter if the XTAL-clock is
running or not.
·
Only an internal reset connection to the microcontroller
core
·
The Power-down mode and the Watchdog (WDT)
function can be used concurrently
·
The WDT also monitors the XTAL oscillator. In case of a
failure the port outputs are forced to a defined High state
The WDT is controlled by WDCON SFR with the direct
address location A5H. WDCON can be read and written by
software. A value of A5H in WDCON halts the on-chip
oscillator and clears both the prescaler and Timer T3. After
RESET, WDCON contains A5H. Every value other than
A5H in WDCON enables the WDT. When the WDT is
enabled it runs independent of the XTAL-clock.
·
Interference will not disable the WDT because it is
unlikely that it will force WDCON to A5H
·
Tolerances of the on-chip oscillator can be adjusted by
testing the T3 value and adapting the reload value
·
The WDT can be enabled and disabled under control of
the user software. This gives the possibility to use both
the Watchdog function and the Power-down function
Timer T3 can be read on the fly. Timer T3 can be written
only if WDCON has previously been loaded with 5AH,
otherwise T3 and the prescaler are not affected. A
successful write operation to T3 also clears the prescaler
and clears WDCON. During a read or write operation
addressing T3, the output of the on-chip oscillator is
·
The direct address A5H of WDCON and its disable value
A5H will not unintentionally be present at a random
location in the field of program code, except for
immediate data, because the opcode A5H is not used in
the instruction set.
IBS
handbook, full pagewidth
5AH
(1)
A5H
(1) clear
8 - BIT TIMER
11 - BIT
PRESCALER
WDCON
clear
T3
input
write
read
VDD
VSS
WR - T3
halt
RST
RD - T3
internal
RESET
this signal is active if WDCON
contains this hex value
Fig.17 Watchdog Timer T3.
1997 Dec 15
clear
R RST
ON - CHIP OSCILLATOR
(1)
over-flow
29
MBC471 - 1
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
P83C524; P80C528; P83C528
In all four modes, transmission is initiated by any
instruction that uses SBUF as a destination register. In
Mode 0, reception is initiated by the condition RI = 0 and
REN = 1. Reception is initiated by incoming start bit if
REN = 1 in the other modes.
12 SERIAL PORT (UART)
The Serial Port is functionally similar to the implementation
in the 8052AH, with the possibility of two different baud
rates for receive and transmit with Timer 1 and Timer 2 as
baud rate generators. It is full duplex, meaning it can
receive and transmit simultaneously. It is also
receive-buffered, meaning it can commence reception of a
second byte before a previously received byte has been
read from the receive register. However, if the first byte still
has not been read by the time the reception of the second
byte is complete, one of the bytes will be lost. The Serial
Port receive and transmit registers are both accessed as
SBUF SFR. Writing to SBUF loads the transmit register,
and reading SBUF accesses the physically separate
receive register. The Serial Port can operate in one of four
modes:
Mode 0 serial data enters and exits through RXD. TXD
outputs the shift clock. 8 bits are
transmitted/received: 8 data bits (LSB Þrst). The
baud rate is Þxed at 1/12 the oscillator frequency.
Mode 1 10 bits are transmitted (through TXD) or received
(through RXD): a start bit (0), 8 data bits (LSB
Þrst), and a stop bit (1). On receive, the stop bit
goes into RB8 in SCON SFR. The baud rate is
variable.
Mode 2 11 bits are transmitted (through TXD) or received
(through RXD): a start bit (0), 8 data bits (LSB
Þrst), a programmable 9th data bit, and a stop bit
(1). On transmit, the 9th data bit (TB8 in SCON)
can be assigned the value of 0 or 1. For example,
the parity bit (P, in the PSW) could be moved into
TB8. On receive, the 9th data bit goes into RB8 in
SCON, while the stop bit is ignored. The baud
rate is programmable to either 1/32 or 1/64 the
oscillator frequency.
Mode 3 11 bits are transmitted (through TXD) or received
(through RXD): a start bit (0), 8 data bits (LSB
Þrst), a programmable 9th data bit, and a stop bit
(1). In fact, Mode 3 is the same as Mode 2 in all
respects except the baud rate. The baud rate in
Mode 3 is variable.
1997 Dec 15
30
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
12.1
P83C524; P80C528; P83C528
Serial Port Control Register (SCON)
Table 12 Serial Port Control register (address 98H)
7
6
5
4
3
2
1
0
SM0
SM1
SM2
REN
TB8
RB8
TI
RI
Table 13 Description of the SCON bits
BIT
12.2
SYMBOL
FUNCTION
7
SM0
see Table 14.
6
SM1
see Table 14.
5
SM2
Enables the multiprocessor communication feature in Modes 2 and 3. In these
modes, if SM2 is set to 1 then RI will not be activated if the received 9th data bit (RB8) is
0. In Mode 1, if SM2 = 1, then RI will not be activated if a valid stop bit is not received. In
Mode 0, SM2 should be 0.
4
REN
Enables serial reception. Set and cleared by software as required.
3
TB8
9th data bit that will be transmitted in Modes 2 and 3. Set and cleared by software
as required.
2
RB8
In Modes 2 and 3, RB8 is the 9th data bit that is received. In Mode 1, if SM2 = 0,
RB8 is the stop bit that is received. In Mode 0, RB8 is not used.
1
TI
Transmit interrupt ßag . It is set by hardware at the end of the 8th bit time in Mode 0, or
at the beginning of the stop bit in the other modes. TI must be cleared by software.
0
RI
Receive interrupt ßag . It is set by hardware at the end of the 8th bit time in Mode 0, or
halfway through the stop bit time in the other modes (except: see SM2). RI must be
cleared by software.
SM0 and SM1 operating modes (SCON)
SCON bits SM0 and SM1 can operate in the following modes (see Table 14):
Table 14 SM0 and SM1 operating modes
MODE
SM0
SM1
DESCRIPTION
BAUD RATE
0
0
0
shift register
1¤
1
0
1
8-bit UART
variable
2
1
0
9-bit UART
1¤
3
1
1
9-bit UART
variable
1997 Dec 15
31
12fOSC
32fOSC,
1¤
64fOSC
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
P83C524; P80C528; P83C528
The following functions must be done in software:
13 BIT-LEVEL I2C INTERFACE
·
This bit-level serial I/O interface supports the I2C-bus (see
Fig.18). P1.6/SCL and P1.7/SDA are the serial I/O pins.
These two pins meet the I2C specification concerning the
input levels and output drive capability. Consequently,
these pins have an open drain output configuration. All
four modes of the I2C-bus are supported:
handling the I2C START interrupts
·
converting serial to parallel data when receiving
·
converting parallel to serial data when transmitting
·
comparing the received slave address with its own
·
interpreting the acknowledge information
guarding the I2C status if RBF or WBF = 0.
·
master transmitter
·
·
master receiver
additionally, if acting as master:
·
slave transmitter
·
·
slave receiver.
I2C
The advantages of the bit-level
hardware compared
with a full software I2C implementation are:
·
the hardware can generate the SCL pulse
·
testing a single bit (RBF respectively, WBF) is sufficient
as a check for error free transmission.
filtering the incoming serial data and clock signals
·
recognizing the START condition
·
generating a serial interrupt request SI after reception of
a START condition and the first falling edge of the serial
clock
·
recognizing the STOP condition
·
recognizing a serial clock pulse on the SCL line
·
latching a serial bit on the SDA line (SDI)
·
stretching the SCL LOW period of the serial clock to
suspend the transfer of the next serial data bit
·
setting Read Bit Finished (RBF) when the SCL clock
pulse has finished and Write Bit Finished (WBF) if there
is no arbitration loss detected (i.e. SDA = 0 while
SDO = 1)
·
setting a serial clock LOW-to-HIGH detected (CLH) flag
·
setting a Bus Busy (BB) flag on a START condition and
clearing this flag on a STOP condition
·
releasing the SCL line and clearing the CLH, RBF and
WBF flags to resume transfer of the next serial data bit
·
generating an automatic clock if the single bit data
register S1BIT is used in master mode.
1997 Dec 15
·
handling bus arbitration
·
generating serial clock pulses if S1BIT is not used.
Three SFRs control the bit-level I2C interface: S1INT,
S1BIT and S1SCS.
The bit-level I2C hardware operates on serial bit level and
performs the following functions:
·
generating START and STOP conditions
32
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
P83C524; P80C528; P83C528
RSBIT
RSCS
handbook, full pagewidth
FSDA
SDA
FILTER
D
Q
SDI
FSCL
Q
C QN
IB7
D
SDO
P1.7 / SDA
WSBIT
WSCS
C
DIS
RSCS
P1.7 / SCL
SCL
FILTER
FSCL
Q
IB6
D
SCO
AUTO - CLOCK
GENERATOR
DIS
C
WSCS
RSBIT
WSBIT
RSCS
FSCL
S
WSCS
CLH
IB5
EN
STAQ
R
RSBIT
FSCL
S
STRQ
Q
IB5
Q
WSBIT
ST
FSCL
RSCS
R QN
START
S
STOP
R
IB4
Q
BB
RSBIT
WSBIT
START
FSDA
FSCL
WSINT
SI
EN
S
Q
to
interrupt
logic
STA
IB7
R
RSBIT
WSBIT
CLHQ
STAQN
BBQ
FSCLN
RBF
IB3
WBF
FSDA
RSCS
IB2
SDIQN
SDOQ
STOP
FSCL
RSCS
RSCS
D
STR
IBX : internal data bus
WSCS
RSCS : read
WSCS : write
IB1
Q
C
S1SCS
RSCS
RSBIT : read
WSBIT : write
D
S1BIT (with auto-clock)
IB0
Q
ENS
WSCS
DIS
C
EN
WSINT : write S1INT
PD
Fig.18 Bit level I2C interface block diagram.
1997 Dec 15
33
MBC484
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
P83C524; P80C528; P83C528
I2C Interrupt Register (S1INT)
13.1
Table 15 I2C Interrupt register (address DAH) (1)
7
6
5
4
3
2
1
0
SI
X
X
X
X
X
X
X
Note
1. SI bit: writing a logic 0 clears this bit, writing a logic 1 has no effect.
Table 16 Description of the S1INT bits
BIT
7
SYMBOL
6 to 0
FUNCTION
SI
Serial Interrupt request (SI) ßag : if a START condition occurs the SI ßag in the S1INT
SFR is set on the falling edge of the Þltered serial clock. If SI = 1 is detected during a
transfer this can be a ’spurious START’ error condition. If no transfer is taking place the
SI = 1 is a START from an external master. Provided the bits EA and ES1 in IE SFR are
set, SI then generates an interrupt so that a slave address receive routine can be
started. SI can be cleared by accessing the S1BIT register or by writing ’00’ to S1INT.
Also after reception of a START condition, the LOW period of the clock pulse is
stretched, suspending the serial transfer to allow the software to take action. This clock
stretching is ended by a read or write access to S1BIT.
-
X = undeÞned during read, don’t care during write.
Single-bit Data Register with I2C Auto-clock (S1BIT)
13.2
Table 17 Single-bit Data register with I2C Auto-clock (address D9H)(1)
7
6
5
4
3
2
1
0
0
0
0
0
0
0
0
X
X
X
X
X
X
X
READ
SDI
WRITE
SDO
Note
1. Access of the S1BIT SFR clears SI, CLH, RBF and WBF. It starts the auto-clock if SCO = 0.
Table 18 Description of the S1BIT bits
BIT
7
SYMBOL
6 to 0
1997 Dec 15
-
SDO/SDI
FUNCTION
Serial Data Output (SDO) and the Þltered Serial Data Input (SDI) . SDI data is latched
on the rising edge of the Þltered serial clock. S1BIT.7 accesses the same memory
locations as S1SCS.7. S1BIT SFR is not bit-addressable.
X = don’t care.
34
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
13.2.1
P83C524; P80C528; P83C528
Every bit I/O should be followed by a RBF or WBF bit test.
A bit transfer has been finished successfully if after reading
a bit the RBF flag is 1 or after writing a bit the WBF flag is
1. When after reading a bit the RBF flag is still 0, the bus
status just before the S1SCS status read can be
determined as follows:
READING OR WRITING THE S1BIT SFR
I2C
Reading or writing the S1BIT SFR starts an
bit I/O
sequence: some flags are cleared (SI, CLH, RBF, WBF),
clock stretching is finished and the auto-clock is started.
An auto-clock pulse is ’OR-ed’ with SCO and thus will be
output only if the SCO flag has been set to 0. SCO = 1
inhibits the auto-clock start, so a dummy read or write of
S1BIT SFR can be used to finish clock stretching and clear
SI, CLH, RBF and WBF if the auto-clock is not used.
The auto-clock is an active HIGH SCL pulse that starts 28
XTAL clock periods after the SDI read or SDO write via
S1BIT. The duration of the auto-clock pulse is 100 XTAL
clock periods. If the SCL line is kept LOW by any device
that wants to hold up the bus transfer, the auto-clock
counter waits after 20 XTAL clock periods so that the
auto-clock pulse length will be at least 80 XTAL clock
periods (5 m s at fOSC = 16 MHz).
·
if CLH = 0 then a bus device is still stretching the clock
·
if SCI = 1 while CLH = 1 then the SCL pulse is not
finished
·
if BB = 0 there has been a STOP condition.
When after writing a bit the WBF flag is still 0 and none of
the 3 status conditions mentioned for RBF are found then
a ’bus arbitration lost’ condition will be the cause. This can
be determined also from the states of the received bit and
the last transmitted bit: ’arbitration loss’ if SDO = 1 and
SDI = 0.
Control and Status Register for the I2C-bus (S1SCS)
13.3
Table 19 Control and Status register for the I2C-bus (address D8H)
7
6
5
4
3
2
1
0
SCI(1)
CLH(2)
BB
RBF(3)
WBF(4)
STR
ENS
SCO
CLH(2)
X
X
X
STR
ENS
READ
SDI(1)
WRITE
SDO
Notes
1. SDI and SCI bits: read-modify-write operations like ’SETB bit’ or ’CLR bit’ access SDO and SCO for reading and
writing.
2. CLH bit: writing a logic 0 clears this bit, writing a 1 has no effect.
3. RBF and WBF bits: writing a logic 0 to CLH also clears these bits.
4. X = don’t care.
1997 Dec 15
35
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
P83C524; P80C528; P83C528
Table 20 Description of the S1SCS bits
BIT
SYMBOL
FUNCTION
7
SDO/SDI
Serial Data Output and the Þltered Serial Data Input . SDI data is latched on the rising
edge of the Þltered serial clock. S1SCS.7 accesses the same memory locations as
S1BIT.7. Access of the data bit via S1SCS will not start an auto-clock pulse.
6
SCO/SCI
Serial Clock Output and the Þltered Serial Clock Input . Serial clock output SCO is
’OR-ed’ with the auto-clock. If SCO = 1 the auto-clock output is inhibited. The internal
clock stretching logic and external devices can pull the SCL line LOW. If the auto-clock
is not used, the SCL line has to be controlled by setting SCO = 1, waiting for CLH = 1
and setting SCO = 0 after the speciÞed SCL HIGH time. (Because of the input Þlter,
CLH will be set at least 8 XTAL clock periods after the SCL LOW-to-HIGH transition.)
5
CLH
Serial Clock LOW-to-HIGH transition ßag : set with a rising edge of the Þltered serial
clock. CLH = 1 indicates that, since the last CLH reset, a new valid data bit has been
latched in SDI. CLH can be reset by writing a 0 to S1SCS.5 or by a read/write of S1BIT.
Clearing CLH also clears RBF and WBF.
4
BB
Bus Busy ßag : indicating that there has been a START condition that was not yet
followed by a STOP condition.
3
RBF
Read Bit Finished ßag : indicating a successful bit read.
RBF = 1 implies the following conditions:
CLH = 1: SCL had a rising edge
SCI = 0: the SCL pulse has finished
SI = 0: no START condition occurred
BB = 1: no STOP condition occurred
The RBF ßag can be cleared by clearing the CLH ßag.
2
WBF
Write Bit Finished ßag : indicating a successful bit write. The same conditions as for
RBF are true and also no ’arbitration loss’ condition occurred. Arbitration is lost if a
1 data bit in SDO was over-ruled on SDA by an external device. The WBF ßag can be
cleared by clearing the CLH ßag.
1
STR
STRetch control ßag . STR = 1 enables stretching of all SCL LOW periods. This allows
the processor in I2C slave mode to react on a fast master. The STR ßag remains set
until cleared by writing a 0 to S1SCS.1.
The STretch (ST) ßag (not readable) pulls the serial clock LOW while ST = 1. The ST
ßag is set on the falling edge of the Þltered serial clock if STR = 1. It is also set after
reception of a START condition, regardless of the STR contents. ST is cleared with a
read or write of S1BIT.
0
1997 Dec 15
ENS
ENable Serial I/O ßag . ENS = 1 enables the START detection and clock stretching
logic. ENS = 0 can be used to switch off the I2C-bus hardware. Note that the SDO and
SCO control ßags must be set to 1 before ENS is set to avoid pulling SCL or SDA lines
to 0.
36
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
P83C524; P80C528; P83C528
The I2C interrupt is generated by SI in S1INT. This flag has
to be cleared by software. All of the bits that generate
interrupts can be set or cleared by software, with the same
result as though they had been set or cleared by hardware,
with the exception of the I2C interrupt request flag SI,
which cannot be set by software. That is, interrupts can be
generated or pending interrupts can be cancelled in
software.
14 INTERRUPT SYSTEM
The P83C528 contains the same interrupt structure as the
PCB80C51BH, but with a seven-source interrupt structure
with two priority levels (see Fig.19).
The External Interrupts INT0 and INT1 can each be either
level-activated or transition-activated, depending on bits
IT0 and IT1 in TCON SFR. The flags that actually generate
these interrupts are bits IE0 and IE1 in TCON. When an
external interrupt is generated, the corresponding request
flag is cleared by the hardware when the service routine is
vectored to, only if the interrupt was transition-activated. If
the interrupt was level-activated then the interrupt request
flag remains set until the external interrupt pin INTx goes
high.
handbook, halfpage 0
The Timer 0 and Timer 1 Interrupts are generated by TF0
and TF1, which are set by a rollover in their respective
timer/counter register (except for Timer 0 in Mode 3 of the
serial interface). When a Timer interrupt is generated, the
flag that generated it is cleared by the on-chip hardware
when the service routine is vectored to.
INT0
TF2
EXF2
SI
TF0
The Serial Port Interrupt is generated by the logical ’OR’ of
RI and TI. Neither of these flags is cleared by hardware.
The service routine will normally have to determine
whether it was RI or TI that generated the interrupt, and the
bit will have to be cleared by software.
interrupt
sources
0
IE1
INT1
1
The Timer 2 Interrupt is generated by the logical OR of TF2
and EXF2. Neither of these flags is cleared by hardware.
In fact the service routine may have to determine whether
it was TF2 or EXF2 that generated the interrupt, and the bit
will have to be cleared by software.
TF1
TI
RI
An additional (third) external interrupt is available, if Timer
2 is not used as timer/counter or if Timer 2 is used in baud
rate generator mode. That external interrupt 2 is falling
edge triggered. It shares the Timer 2 interrupt vector,
interrupt enable and interrupt priority bits. If bit
T2CON.3/EXEN2 = 1, a HIGH-to-LOW transition at pin
P1.1/T2EX sets the interrupt request flag T2CON.6/EXF2
and can be used to generate an external interrupt.
1997 Dec 15
IE0
1
MBC481 - 1
Fig.19 P83C528 Interrupt Sources.
37
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
14.1
P83C524; P80C528; P83C528
Interrupt Enable Register (IE)
Table 21 Interrupt Enable register (address A8H)
7
6
5
4
3
2
1
0
EA
ES1
ET2
ES
ET1
EX1
ET0
EX0
Table 22 Description of the IE bits
BIT
7
SYMBOL
EA
FUNCTION
general enable/disable control:
0 = NO interrupt is enabled
1 = ANY individually enabled interrupt will be accepted
6
ES1
enable bit-level I2C I/O interrupt
5
ET2
enable Timer 2 interrupt
4
ES
enable Serial Port interrupt
3
ET1
enable Timer 1 interrupt
2
EX1
enable External interrupt 1
1
ET0
enable Timer 0 interrupt
0
EX0
enable External interrupt 0
14.2
Interrupt Priority Register (IP)
Table 23 Interrupt Priority register (address B8H)
7
6
5
4
3
2
1
0
-
PS1
PT2
PS
PT1
PX1
PT0
PX0
1997 Dec 15
38
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
14.3
P83C524; P80C528; P83C528
Interrupt Vectors
The interrupt vectors are listed in Table 25.
Table 24 Description of the IP bits
BIT
7
SYMBOL
-
FUNCTION
reserved
6
PS1
Bit-level I2C interrupt priority level
5
PT2
Timer 2 interrupt priority level
4
PS
Serial Port interrupt priority level
3
PT1
Timer 1 interrupt priority level
2
PX1
External interrupt 1 priority level
1
PT0
Timer 0 interrupt priority level
0
PX0
External interrupt 0 priority level
Table 25 Interrupt vectors
NUMBER
1
SOURCE
PRIORITY WITHIN LEVEL
VECTOR ADDRESS
IE0
(highest)
0003H
-
002BH
2
TF2+EXF2
3
SI (I2C)
4
TF0
-
0053H
-
000BH
5
IE1
-
0013H
6
TF1
-
001BH
7
RI + TI
1997 Dec 15
(lowest)
39
0023H
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
P83C524; P80C528; P83C528
The Power-down operation freezes the oscillator. The
Power-down mode can only be activated by setting the PD
bit in the PCON register (see Fig.20).
15 IDLE AND POWER-DOWN OPERATION
·
Idle mode operation permits the interrupt, serial ports and
timer blocks to function while the CPU is halted. The
following functions remain active during Idle mode. These
functions may generate an interrupt or reset and thus end
the Idle mode:
·
Timer 0, Timer 1, Timer 2, Watchdog Timer
·
UART, I2C-Interface
External interrupt
handbook, full pagewidth
XTAL2
XTAL1
OSCILLATOR
interrupts
serial ports
timer blocks
CLOCK
GENERATOR
CPU
IDL
PD
MBC477 - 1
Fig.20 Internal Idle and Power-down clock configuration.
1997 Dec 15
40
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
15.1
P83C524; P80C528; P83C528
Power Control Register (PCON)
Special modes are activated by software via the PCON SFR. PCON is not bit addressable. The reset value of PCON is
0XXX0000.
Table 26 Power Control Register (address 87H)
7
6
SMOD
-
5
-
4
-
3
2
1
0
GF1
GF0
PD
IDL
Table 27 Description of the PCON bits
BIT
SYMBOL
FUNCTION
7
SMOD
Double Baud rate bit: when set to logic 1 the baud rate is doubled when Timer 1 is
used to generate baud rate, and the Serial Port is used in modes 1, 2 or 3.
6
-
reserved for future use
5
4
-
reserved for future use
-
reserved for future use
3
GF1
general-purpose ßag bit
2
GF0
general-purpose ßag bit
1
PD
Power-down bit: setting this bit activates Power-down mode
0
IDL
Idle mode bit: setting this bit activates the Idle mode.
Notes
1. If logic 1s are written to PD and IDL at the same time, PD takes precedence.
2. User software should not write 1s to reserved bits. These bits may be used in future 80C51 family products to invoke
new features.
1997 Dec 15
41
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
15.2
P83C524; P80C528; P83C528
·
The second way of terminating the Idle mode is with an
external hardware reset. Since the oscillator is still
running, the hardware reset is required to be active for
two machine cycles (24 oscillator periods) to complete
the reset operation.
·
The third way of terminating the Idle mode is by internal
watchdog reset.
Idle Mode
The instruction that sets PCON.0 is the last instruction
executed in the normal operating mode before Idle mode
is activated. Once in the Idle mode, the CPU status is
preserved in its entirety: the Stack Pointer, Program
Counter, Program Status Word, Accumulator, RAM and all
other registers maintain their data during Idle mode. The
status of external pins during Idle mode is shown in
Table 28.
15.3
The instruction that sets PCON.1 is the last executed prior
to going into the Power-down mode. The oscillator is
stopped. Note that the Power-down mode also can be
entered when the watchdog has been enabled. The
Power-down mode can be terminated by an external
RESET in the same way as in the 80C51 or in addition by
any one of the two external interrupts, IE0 or IE1 (see
Section 15.4). A reset generated by the WDT terminates
the Power-down mode in the same way as an external
RESET.
There are three ways to terminate the Idle mode:
·
Activation of any enabled interrupt will cause PCON.0 to
be cleared by hardware terminating Idle mode. The
interrupt is serviced, and following return from interrupt
instruction RETI, the next instruction to be executed will
be the one which follows the instruction that wrote a
logic 1 to PCON.0.
·
The flag bits GF0 and GF1 may be used to determine
whether the interrupt was received during normal
execution or during the Idle mode. For example, the
instruction that writes to PCON.0 can also set or clear
one or both flag bits. When Idle mode is terminated by
an interrupt, the service routine can examine the status
of the flag bits.
Power-down Mode
The status of the external pins during Power-down mode
is shown in Table 28. If the Power-down mode is activated
while in external program memory, the port data that is
held in the P2 SFR is restored to Port 2. If the data is a
logic 1, the port pin is held HIGH during the Power-down
mode by the strong pull-up transistor p1 (see Fig.13).
Table 28 Status of the external pins during Idle and Power-down modes
MODE
MEMORY
ALE
PSEN
PORT 0
Idle
internal
1
1
port data
Idle
external
1
1
ßoating
Power-down
internal
0
0
port data
Power-down
external
0
0
ßoating
1997 Dec 15
42
PORT 1
port data
port data
port data
port data
PORT 2
port data
address
port data
port data
PORT 3
port data
port data
port data
port data
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
15.4
P83C524; P80C528; P83C528
Wake-up from Power-down Mode
Table 29 Internal registers status after a RESET
The Power-down mode of the P83C528 can also be
terminated by any one of the two external interrupts, IE0 or
IE1. A termination with an external interrupt does not affect
the internal data memory and does not affect the Special
Function Registers (SFRs). This gives the possibility to
exit Power-down without changing the port output levels.
To terminate the Power-down mode with an external
interrupt, IE0 or IE1 must be switched to be level-sensitive
and must be enabled. The external interrupt input signal
INT0 and INT1 must be kept LOW till the oscillator has
restarted and stabilized (see Fig.21).
REGISTER
In order to prevent any interrupt priority problems during
wake-up, the priority of the desired wake-up interrupt
should be higher than the priorities of all other enabled
interrupt sources. The instruction following the one that put
the device into the Power-down mode will be the first one
which will be executed after an interrupt has been
serviced.
internal timing stopped
ACC
00H
B
00H
DPH, DPL
00H
IE
0000 0000B
IP
X000 0000B
PCH, PCL
00H
PCON
0XXX 0000B
PSW
00H
P0 to P3
FFH
SBUF
Indeterminate
SCON
00H
SP
07H
TCON
00H
TMOD
00H
TH0, TL0
00H
TH1, TL1
00H
T2CON
00H
TH2, TL2
00H
RCAP2H, RCAP2L
00H
S1BIT
X000 0000B
S1INT
0XXX XXXXB
S1SCS
XXX0 0000B
T3
00H
WDCON
A5H
C1
power down
oscillator stopped
CONTENTS
C1
IDLE MODE
oscillator start up
min. 20 ms
interrupts are polled
C1
C2
LCALL
interrupt routine
INT0 2 cycles
INT1 1 cycle
INT0 / INT1
set external
interrupt latch
Fig.21 Wake up by external interrupt input.
1997 Dec 15
43
MBC508 - 1
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
P83C524; P80C528; P83C528
16 OSCILLATOR CIRCUIT
17 RESET CIRCUIT
The oscillator circuit of the P83C528 is a single-stage
inverting amplifier in a Pierce oscillator configuration. The
circuitry between the XTAL1 and XTAL2 is basically an
inverter biased to the transfer point. Either a crystal or
ceramic resonator can be used as the feedback element to
complete the oscillator circuitry. Both are operated in
parallel resonance. XTAL1 is the high gain amplifier input,
and XTAL2 is the output (see Fig.22). To drive the
P83C528 externally, XTAL1 is driven from an external
source and XTAL2 left open-circuit (see Fig.23).
The reset circuitry for the P83C528 is connected to the
reset pin RST. A Schmitt trigger is used at the input for
noise rejection. The output of the Schmitt trigger is
sampled by the reset circuitry every machine cycle.
handbook, halfpage
C1
A reset is accomplished by holding the RST pin HIGH for
at least two machine cycles (24 oscillator periods). The
CPU responds by executing an internal reset. During reset
ALE and PSEN output a HIGH level. In order to perform a
correct reset, this level must not be affected by external
elements.
With the P83C528, the RST line can also be pulled HIGH
internally by a pull-up transistor activated by the WDT T3.
The length of the reset pulse from T3 is 16 x 2048 cycles
of the on-chip watchdog oscillator. If the WDT is also used
to reset external devices, the usual capacitor arrangement
should not be connected to RST pin. Instead, an extra
circuit should be used to perform the Power-on Reset
operation. It should be remembered that a Timer T3
overflow, if enabled, will force a reset condition to the
P83C528 by an internal connection, whether the output
RST is tied LOW or not (see Fig.24).
XTAL1
20 pF
C2
XTAL2
20 pF
MBC473
The internal reset is executed during the second cycle in
which RST is pulled HIGH and is repeated every cycle until
RST goes LOW. It leaves the internal registers as shown
by Table 29.
Fig.22 P83C528 oscillator circuit.
VDD
handbook, halfpage
handbook, halfpage
external clock
(not TTL compatible)
overflow
timer T3
XTAL1
SCHMITT
TRIGGER
not connected
RESET
CIRCUITRY
RST
XTAL2
on-chip
resistor
MBC472
Fig.23 Driving the P83C528 from an
external source.
1997 Dec 15
MBC476 - 1
R RST
Fig.24 On-chip reset configuration.
44
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
17.1
P83C524; P80C528; P83C528
Power-on reset
When VDD is turned on, and provided its rise-time does not
exceed 10 ms, an automatic reset can be obtained by
connecting the RST pin to VDD via a 2.2 m F capacitor.
When the power is switched on, the voltage on the RST pin
is equal to VDD minus the capacitor voltage, and
decreases from VDD as the capacitor charges through the
internal resistor (RRST) to ground. The larger the capacitor,
the more slowly VRST decreases. VRST must remain above
the lower threshold of the Schmitt trigger long enough to
effect a complete reset. The time required is the oscillator
start-up time, plus 2 machine cycles, or 16 x 2048 cycles
of the on-chip watchdog oscillator if it is running, whichever
is longer (see Fig.25).
V
DD
handbook, halfpage
VDD
2.2 m F
P83C528
RST
R RST
MBC474
Fig.25 Power-on reset.
1997 Dec 15
45
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
P83C524; P80C528; P83C528
18 INSTRUCTION SET
The instruction set consists of 49 single-byte, 46 two-byte and 16 three-byte instructions. When using a 12 MHz
oscillator, 64 instructions execute in 1 cycle (1 m s) and 45 instructions execute in 2 cycles (2 m s). Multiply and divide
instructions execute in 4 cycles (4 m s).
Table 30 Instruction set description: Arithmetic operations
MNEMONIC
DESCRIPTION
BYTES
CYCLES
OPCODE
(HEX)
Arithmetic operations
ADD
A,Rr
Add register to A
1
1
2*
ADD
A,direct
Add direct byte to A
2
1
25
ADD
A,@Ri
Add indirect RAM to A
1
1
26, 27
ADD
A,#data
Add immediate data to A
2
1
24
ADDC
A,Rr
Add register to A with carry ßag
1
1
3*
ADDC
A,direct
Add direct byte to A with carry ßag
2
1
35
ADDC
A,@Ri
Add indirect RAM to A with carry ßag
1
1
36, 37
ADDC
A,#data
Add immediate data to A with carry ßag
2
1
34
SUBB
A,Rr
Subtract register from A with borrow
SUBB
A,direct
Subtract direct byte from A with borrow
2
1
95
SUBB
A,@Ri
Subtract indirect RAM from A with borrow
1
1
96, 97
SUBB
A,#data
Subtract immediate data from A with borrow
2
1
94
INC
A
Increment A
1
1
04
INC
Rr
Increment register
1
1
0*
INC
direct
Increment direct byte
2
1
05
INC
@Ri
Increment indirect RAM
1
1
06, 07
DEC
A
Decrement A
1
1
14
DEC
Rr
Decrement register
1
1
1*
DEC
direct
Decrement direct byte
2
1
15
DEC
@Ri
Decrement indirect RAM
1
1
16, 17
INC
DPTR
Increment data pointer
1
2
A3
MUL
AB
Multiply A and B
1
4
A4
DIV
AB
Divide A by B
1
4
84
DA
A
Decimal adjust A
1
1
D4
1997 Dec 15
46
1
1
9*
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
P83C524; P80C528; P83C528
Table 31 Instruction set description: Logic operations
MNEMONIC
DESCRIPTION
BYTES
CYCLES
1
1
OPCODE
(HEX)
Logic operations
ANL
A,Rr
AND register to A
ANL
A,direct
AND direct byte to A
2
1
55
ANL
A,@Ri
AND indirect RAM to A
1
1
56, 57
ANL
A,#data
AND immediate data to A
2
1
54
ANL
direct,A
AND A to direct byte
2
1
52
ANL
direct,#data
AND immediate data to direct byte
3
2
53
ORL
A,Rr
OR register to A
1
1
4*
ORL
A,direct
OR direct byte to A
2
1
45
ORL
A,@Ri
OR indirect RAM to A
1
1
46, 47
ORL
A,#data
OR immediate data to A
2
1
44
ORL
direct,A
OR A to direct byte
2
1
42
ORL
direct,#data
OR immediate data to direct byte
3
2
43
XRL
A,Rr
Exclusive-OR register to A
1
1
6*
XRL
A,direct
Exclusive-OR direct byte to A
2
1
65
XRL
A,@Ri
Exclusive-OR indirect RAM to A
1
1
66, 67
XRL
A,#data
Exclusive-OR immediate data to A
2
1
64
XRL
direct,A
Exclusive-OR A to direct byte
2
1
62
XRL
direct,#data
Exclusive-OR immediate data to direct byte
3
2
63
CLR
A
Clear A
1
1
E4
CPL
A
Complement A
1
1
F4
RL
A
Rotate A left
RLC
A
Rotate A left through the carry ßag
RR
A
Rotate A right
RRC
A
Rotate A right through the carry ßag
SWAP
A
Swap nibbles within A
1997 Dec 15
1
1
1
1
1
47
1
1
1
1
1
5*
23
33
03
13
C4
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
P83C524; P80C528; P83C528
Table 32 Instruction set description: Data transfer
MNEMONIC
DESCRIPTION
BYTES
CYCLES
1
1
OPCODE
(HEX)
Data transfer
MOV
A,Rr
Move register to A
MOV
A,direct (note 1)
Move direct byte to A
2
1
E5
MOV
A,@Ri
Move indirect RAM to A
1
1
E6, E7
MOV
A,#data
Move immediate data to A
2
1
74
MOV
Rr,A
Move A to register
1
1
F*
MOV
Rr,direct
Move direct byte to register
2
2
A*
MOV
Rr,#data
Move immediate data to register
2
1
7*
MOV
direct,A
Move A to direct byte
2
1
F5
MOV
direct,Rr
Move register to direct byte
2
2
8*
MOV
direct,direct
Move direct byte to direct
3
2
85
MOV
direct,@Ri
Move indirect RAM to direct byte
2
2
86, 87
MOV
direct,#data
Move immediate data to direct byte
3
2
75
MOV
@RI,A
Move A to indirect RAM
1
1
F6, F7
MOV
@Ri,direct
Move direct byte to indirect RAM
2
2
A6, A7
MOV
@Ri,#data
Move immediate data to indirect RAM
2
1
76, 77
MOV
DPTR,#data 16
Load data pointer with a 16-bit constant
3
2
90
MOVC A,@A+DPTR
Move code byte relative to DPTR to A
1
2
93
MOVC A,@A+PC
Move code byte relative to PC to A
1
2
83
MOVX
A,@Ri
Move external RAM (8-bit address) to A
1
2
E2, E3
MOVX
A,@DPTR
Move external RAM (16-bit address) to A
1
2
E0
MOVX
@Ri,A
Move A to external RAM (8-bit address)
1
2
F2, F3
MOVX
@DPTR,A
Move A to external RAM (16-bit address)
1
2
F0
PUSH
direct
Push direct byte onto stack
2
2
C0
POP
direct
Pop direct byte from stack
2
2
D0
XCH
A,Rr
Exchange register with A
1
1
C*
XCH
A,direct
Exchange direct byte with A
2
1
C5
XCH
A,@Ri
Exchange indirect RAM with A
1
1
C6, C7
XCHD
A,@Ri
Exchange LOW-order digit indirect RAM with A
1
1
D6, D7
Note
1. MOV A,ACC is not permitted.
1997 Dec 15
48
E*
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
P83C524; P80C528; P83C528
Table 33 Instruction set description: Boolean variable manipulation, Program and machine control
MNEMONIC
DESCRIPTION
BYTES
CYCLES
OPCODE
(HEX)
Boolean variable manipulation
CLR
C
Clear carry ßag
1
CLR
bit
Clear direct bit
SETB
C
Set carry ßag
SETB
bit
Set direct bit
CPL
C
Complement carry ßag
CPL
bit
Complement direct bit
ANL
C,bit
AND direct bit to carry ßag
2
2
82
ANL
C,/bit
AND complement of direct bit to carry ßag
2
2
B0
ORL
C,bit
OR direct bit to carry ßag
2
2
72
ORL
C,/bit
OR complement of direct bit to carry ßag
2
2
A0
MOV
C,bit
Move direct bit to carry ßag
2
1
A2
MOV
bit,C
Move carry ßag to direct bit
2
2
92
2
1
2
1
2
1
1
1
1
1
1
C3
C2
D3
D2
B3
B2
Program and machine control
ACALL addr11
Absolute subroutine call
2
2
· 1addr
LCALL addr16
Long subroutine call
3
2
12
RET
Return from subroutine
1
2
22
RETI
Return from interrupt
1
2
32
AJMP
addr11
Absolute jump
2
2
¨ 1addr
LJMP
addr16
Long jump
3
2
02
SJMP
rel
Short jump (relative address)
2
2
80
JMP
@A+DPTR
Jump indirect relative to the DPTR
1
2
73
JZ
rel
Jump if A is zero
2
2
60
JNZ
rel
Jump if A is not zero
2
2
70
JC
rel
Jump if carry ßag is set
2
2
40
JNC
rel
Jump if carry ßag is not set
2
2
50
JB
bit,rel
Jump if direct bit is set
3
2
20
JNB
bit,rel
Jump if direct bit is not set
3
2
30
JBC
bit,rel
Jump if direct bit is set and clear bit
3
2
10
CJNE
A,direct,rel
Compare direct to A and jump if not equal
3
2
B5
CJNE
A,#data,rel
Compare immediate to A and jump if not equal
3
2
B4
CJNE
Rr,#data,rel
Compare immediate to register and jump if not
equal
3
2
B*
CJNE
@Ri,#data,rel
Compare immediate to indirect and jump if not
equal
3
2
B6, B7
DJNZ
Rr,rel
Decrement register and jump if not zero
2
2
D*
DJNZ
direct,rel
Decrement direct and jump if not zero
3
2
D5
No operation
1
1
00
NOP
1997 Dec 15
49
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
P83C524; P80C528; P83C528
Table 34 Description of the mnemonics in the Instruction set
MNEMONIC
DESCRIPTION
Data addressing modes
Rr
working register R0-R7.
direct
128 internal RAM locations and any special function register (SFR).
@Ri
indirect internal RAM location addressed by register R0 or R1 of the actual register bank.
#data
8-bit constant included in instruction.
#data 16
16-bit constant included as bytes 2 and 3 of instruction.
bit
direct addressed bit in internal RAM or SFR.
addr16
16-bit destination address. Used by LCALL and LJMP. The branch will be anywhere within the
64 kbytes program memory address space.
addr11
11-bit destination address. Used by ACALL and AJMP. The branch will be within the same 2 kbytes
page of program memory as the Þrst byte of the following instruction.
rel
Signed (two’s complement) 8-bit offset byte. Used by SJMP and all conditional jumps. Range is
- 128 to +127 bytes relative to Þrst byte of the following instruction.
Hexadecimal opcode cross-reference
*
8, 9, A, B, C, D, E, F.
·
11, 31, 51, 71, 91, B1, D1, F1.
¨
1997 Dec 15
01, 21, 41, 61, 81, A1, C1, E1.
50
This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in
_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in
white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...
1
AJMP
addr11
2
LJMP
addr16
3
RR
A
4
INC
A
5
INC
direct
LCALL
addr16
RRC
A
DEC
A
DEC
direct
ADD
A,#data
ADD
A,direct
51
1
JBC
bit,rel
ACALL
addr11
2
JB
bit,rel
AJMP
addr11
RET
RL
A
3
JNB
bit,rel
ACALL
addr11
RETI
RLC
A
ADDC
A,#data
ADDC
A,direct
4
JC
rel
AJMP
addr11
ORL
direct,A
ORL
direct,#data
ORL
A,#data
ORL
A,direct
5
JNC
rel
ACALL
addr11
ANL
direct,A
ANL
direct,#data
ANL
A,#data
ANL
A,direct
6
JZ
rel
AJMP
addr11
XRL
direct,A
XRL
direct,#data
XRL
A,#data
XRL
A,direct
7
JNZ
rel
ACALL
addr11
ORL
C,bit
JMP
@A+DPTR
MOV
A,#data
MOV
direct,#data
8
SJMP
rel
AJMP
addr11
ANL
C,bit
MOVC
A,@A+PC
DIV
AB
MOV
direct,direct
9
MOV
DTPR,#data16
ACALL
addr11
MOV
bit,C
MOVC
A,@A+DPTR
SUBB
A,#data
SUBB
A,direct
A
ORL
C,/bit
AJMP
addr11
MOV
bit,C
INC
DPTR
MUL
AB
B
ANL
C,/bit
ACALL
addr11
CPL
bit
CPL
C
CJNE
A,#data,rel
CJNE
A,direct,rel
C
PUSH
direct
AJMP
addr11
CLR
bit
CLR
C
SWAP
A
XCH
A,direct
D
POP
direct
ACALL
addr11
DA
A
DJNZ
direct,rel
E
MOVX
A,@DTPR
AJMP
addr11
CLR
A
MOV
A,direct (1)
F
MOVX
@DTPR,A
ACALL
addr11
CPL
A
MOV
direct,A
SETB
SETB
bit
C
MOVX A,@Ri
0
1
MOVX @Ri,A
0
1
Note
1. MOV A, ACC is not a valid instruction.
INC @Ri
0
1
DEC @Ri
0
1
ADD A,@Ri
0
1
ADDC A,@Ri
0
1
ORL A,@Ri
0
1
ANL A,@Ri
0
1
XRL A,@Ri
0
1
MOV @Ri,#data
0
1
MOV direct,@Ri
0
1
SUBB A,@Ri
0
1
MOV @Ri,direct
0
1
CJNE @Ri,#data,rel
0
1
XCH A,@Ri
0
1
XCHD A,@Ri
0
1
MOV A,@Ri
0
1
MOV @Ri,A
0
1
8 9 A B C D E
INC Rr
0 1 2 3 4 5 6
DEC Rr
0 1 2 3 4 5 6
ADD A,Rr
0 1 2 3 4 5 6
ADDC A,Rr
0 1 2 3 4 5 6
ORL A,Rr
0 1 2 3 4 5 6
ANL A,Rr
0 1 2 3 4 5 6
XRL A,Rr
0 1 2 3 4 5 6
MOV Rr,#data
0 1 2 3 4 5 6
MOV direct,Rr
0 1 2 3 4 5 6
SUB A,Rr
0 1 2 3 4 5 6
MOV Rr,direct
0 1 2 3 4 5 6
CJNE Rr,#data,rel
0 1 2 3 4 5 6
XCH A,Rr
0 1 2 3 4 5 6
DJNZ Rr,rel
0 1 2 3 4 5 6
MOV A,Rr
0 1 2 3 4 5 6
MOV Rr,A
0 1 2 3 4 5 6
F
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
Product speciÞcation
NOP
7
P83C524; P80C528; P83C528
0
6
Philips Semiconductors
0
8-bit microcontrollers
¯
Table 35 Instruction map
1997 Dec 15
¬ Second hexadecimal character of opcode ®
First hexadecimal character of opcode
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
P83C524; P80C528; P83C528
19 LIMITING VALUES
In accordance with the Absolute Maximum System (IEC 134)
SYMBOL
PARAMETER
MIN.
MAX.
UNIT
VDD
supply voltage range
- 0.5
+6.0
V
VI
all input voltages
- 0.5
VDD +0.5
V
Ptot
total power dissipation
-
1
W
Tstg
storage temperature range
- 65
+150
°C
Tamb
operating ambient temperature range:
version xBx
0
+70
°C
version xFx
- 40
+85
°C
1997 Dec 15
52
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
P83C524; P80C528; P83C528
20 DC CHARACTERISTICS
VDD = 5 V ± 10%; VSS = 0 V; Tamb = 0 to +70°C; - 40 to +85°C. All voltages with respect to VSS unless otherwise
speciÞed.
SYMBOL
PARAMETER
CONDITIONS
MIN.
MAX.
UNIT
Supply
VDD
supply voltage range
IDD
supply current operating modes,
note 1
IID
supply current Idle mode, note 2
4.5
5.5
V
33
mA
43
mA
6
mA
7.5
mA
100
m A
- 0.5
0.2 VDD- 0.1
V
- 0.5
0.2 VDD- 0.3
V
- 0.5
0.3 VDD
V
0.2 VDD +0.9
VDD +0.5
V
0.7 VDD
VDD +0.5
V
0.7 VDD
5.5
V
-
VDDmax, 16 MHz
VDDmax, 24 MHz
-
VDDmax, 16 MHz
VDDmax, 24MHz
IPD
supply current Power- down mode
2 V £ VDD £ VDDmax; note 3
-
Inputs
VIL
LOW level input voltage
(except EA, P1.6, P1.7)
VIL1
LOW level input voltage EA
VIL2
LOW level input voltage P1.6, P1.7
VIH
HIGH level input voltage
(except RST, XTAL1, P1.6, P1.7)
VIH1
HIGH level input voltage RST, XTAL1
VIH2
HIGH level input voltage P1.6, P1.7
note 6
IIL
LOW level input current
Ports 1, 2 and 3
(except P1.6 and P1.7)
VI = 0.45 V
ITL
input current HIGH-to-LOW transition VI = 2.0 V
Ports 1, 2 and 3
(except P1.6 and P1.7)
ILI1
input leakage current Port 0, EA
0.45 < VI < VDD
ILI2
input leakage current P1.6 and P1.7
0 V < VI < 5.5 V
0 V < VDD < 5.5 V
VOL
LOW level output voltage
Ports 1, 2 and 3
(except P1.6 and P1.7)
IOL = 1.6 mA; notes 6 and 7
-
0.45
V
VOL1
LOW level output voltage
Port 0, ALE, PSEN
IOL = 3.2 mA; notes 4 and 7
-
0.45
V
VOL2
LOW level output voltage
P1.6 and P1.7
IOL = 3.0 mA; note 7
-
0.40
V
VOH
HIGH level output voltage
Ports 1, 2 and 3
(except P1.6 and P1.7)
IOH = - 60 m A;
VDD = 5 V ±10%
2.4
-
0.75 VDD
-
0.9 VDD
-
note 6
-
-
50
m A
-
-
650
m A
-
± 10
m A
± 10
m A
Outputs
IOH = - 25 m A
IOH = - 10 m A
1997 Dec 15
53
V
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
SYMBOL
VOH1
PARAMETER
HIGH level output voltage
Port0in in external bus mode,
ALE, PSEN, RST
P83C524; P80C528; P83C528
CONDITIONS
IOH = - 800 m A;
VDD = 5 V± 10%
MIN.
IOH = - 300 m A;
IOH = - 80 m A; note 5
RRST
RST pull- down resistor
CI/O
I/O pin capacitance
2.4
-
0.75VDD
-
0.9VDD
-
50
test frequency = 1 MHz;
Tamb = 25 °C
MAX.
-
UNIT
V
150
kW
10
pF
Notes to the DC characteristics
1. Conditions for:
a) The operating supply current is measured with all output pins disconnected; XTAL1 driven with tr = tf = 5 ns;
VIL = VSS +0.5 V; VIH = VDD - 0.5 V; XTAL2 not connected; EA = RST = Port 0 = P1.6 = P1.7 = VDD;
the WDT is disabled (by the external RESET).
2. Conditions for:
a) The Idle mode supply current is measured with all output pins disconnected; XTAL1 driven with tr = tf = 5 ns;
VIL = VSS +0.5 V; VIH = VDD - 0.5 V; XTAL2 not connected; the WDT is disabled; EA = RST = VSS;
Port 0 = P1.6 = P1.7 = VDD.
3. Conditions for:
a) The Power-down current is measured with all output pins disconnected; XTAL2 not connected;
WDT is disabled; EA = RST = XTAL1 = VSS; Port 0 = P1.6 = P1.7 = VDD.
4. Capacitive loading on Port 0 and Port 2 may cause spurious noise pulses to be superimposed on the LOW level
output voltage of ALE, Port 1 and Port 3. The noise is due to external bus capacitance discharging into the Port 0
and Port 2 pins when these pins make a HIGH-to-LOW transition during bus operations. In the worst cases
(capacitive loading > 100pF), the noise pulse on the ALE line may exceed 0.8 V. In such cases it may be desirable
to qualify ALE with a Schmitt Trigger, or use an address latch with a Schmitt Trigger STROBE input.
5. Capacitive loading on Port 0 and Port 2 may cause the HIGH level output voltage on ALE and PSEN to momentarily
fall below the 0.9 VDD specification when the address bits are stabilizing.
6. The input threshold voltage of P1.6 and P1.7 (SIO1) meets the I2C specification, so a voltage below 0.3 VDD will be
recognized as a logic 0 while an input above 0.7 VDD will be recognized as a logic 1.
7. Under steady state (non-transient) conditions, IOL must be externally limited as follows:
a) Maximum IOL per port pin:10 mA.
b) Maximum IOL per 8-bit port:- Port 0: 26 mA; Ports 1, 2 and 3: 15 mA.
c) Maximum total IOL for all output pins: 71 mA. If IOL exceeds the test condition,
VOL may exceed the related specification.
d) Pins are not guaranteed to sink current greater than the listed test conditions.
8. IDD max. at other frequencies can be derived from Fig.26 where f is the external oscillator frequency in MHz;
IDD max. is given in mA.
1997 Dec 15
54
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
P83C524; P80C528; P83C528
MBC478
50
handbook, full pagewidth
I DD
(mA)
MAX ACTIVE MODE
40
TYP ACTIVE MODE
30
20
10
MAX IDLE MODE
TYP IDLE MODE
0
0
8
16
f (MHz)
24
Valid only within frequency specifications of device under test.
Fig.26 IDD as a function of frequency.
1997 Dec 15
55
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
P83C524; P80C528; P83C528
21 AC CHARACTERISTICS
21.1 AC Characteristics 16 MHz version
See notes 1, 2 and 3 in Section 21.2; Cl = 100 pF for Port 0, ALE and PSEN; CL = 80 pF for all other outputs unless
otherwise speciÞed.
16 MHZ
SYMBOL
VARIABLE CLOCK
PARAMETER
UNIT
MIN.
MAX.
MIN.
MAX.
External program memory
tLHLL
ALE pulse duration
85
-
2 tCK- 40
tAVLL
address set-up time to ALE
8
-
tCK- 55
-
ns
tLLAX
address hold time after ALE
28
-
tCK- 35
-
ns
tLLIV
time from ALE to valid instruction input
-
4 tCK- 100
ns
tLLPL
time from ALE to control pulse PSEN
23
-
ns
tPLPH
control pulse duration PSEN
143
tPLIV
time from PSEN to valid instruction input
-
-
150
-
-
ns
tCK- 40
-
3 tCK- 45
-
ns
83
-
3 tCK- 105
ns
-
ns
tPXIX
input instruction hold time after PSEN
0
-
0
tPXIZ
input instruction ßoat delay after PSEN
-
38
-
tAVIV
address to valid instruction input
tPLAZ
address ßoat time to PSEN
-
-
208
-
tCK- 25
ns
5 tCK- 105
ns
10
ns
-
10
External data memory
85
-
2 tCK- 40
address set-up time to ALE
8
-
tCK- 55
-
ns
address hold time after ALE
28
-
tCK- 35
-
ns
tRLRH
RD pulse duration
275
-
6 tCK- 100
tWLWH
WR pulse duration
275
-
tRLDV
RD to valid data input
148
tRHDX
data hold time after RD
tRHDZ
data ßoat delay after RD
2 tCK- 70
ns
tLLDZ
time from ALE to valid data input
-
350
-
8 tCK- 150
ns
tAVDV
address to valid data input
-
398
-
9 tCK- 165
ns
tLHLL
ALE pulse duration
tAVLL
tLLAX
-
0
55
ns
6 tCK- 100
-
ns
-
5 tCK- 165
ns
-
tLLWL
time from ALE to RD or WR
138
238
3 tCK- 50
tAVWL
time from address to RD or WR
120
-
4 tCK- 130
tWHLH
time from RD or WR HIGH to ALE HIGH
23
tQVWX
data valid to WR transition
3
tQVWH
data set-up time before WR
288
tWHQX
data hold time after WR
13
tRLAZ
address ßoat delay after RD
1997 Dec 15
-
56
-
ns
3 tCK+50
tCK+ 40
tCK- 60
-
7 tCK- 150
0
ns
ns
tCK- 40
103
-
ns
-
0
-
-
-
ns
ns
-
ns
tCK- 50
-
ns
-
0
ns
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
P83C524; P80C528; P83C528
21.2 AC Characteristics 24 MHz version
See notes 1, 2 and 3.; Cl = 100 pF for Port 0, ALE and PSEN; CL = 80 pF for all other outputs unless otherwise
speciÞed.
24 MHZ
SYMBOL
VARIABLE CLOCK
PARAMETER
UNIT
MIN.
MAX.
MIN.
MAX.
External program memory
tLHLL
ALE pulse duration
43
-
2 tCK- 40
tAVLL
address set-up time to ALE
17
-
tCK- 25
tLLAX
address hold time after ALE
17
-
tLLIV
time from ALE to valid instruction input
102
tLLPL
time from ALE to control pulse PSEN
-
ns
-
ns
tCK- 25
-
ns
-
4 tCK- 65
ns
-
ns
-
17
-
tCK- 25
tPLPH
control pulse duration PSEN
3 tCK- 45
-
ns
tPLIV
time from PSEN to valid instruction input
-
65
-
3 tCK- 60
ns
tPXIX
input instruction hold time after PSEN
0
-
0
-
ns
-
17
tPXIZ
input instruction ßoat delay after PSEN
tAVIV
address to valid instruction input
tPLAZ
address ßoat time to PSEN
-
80
-
-
128
-
tCK- 25
ns
5 tCK- 80
ns
10
ns
-
10
External data memory
tLHLL
ALE pulse duration
43
-
2 tCK- 40
tAVLL
address set-up time to ALE
17
-
tCK- 25
tLLAX
address hold time after ALE
17
-
tCK- 25
tRLRH
RD pulse duration
150
-
6 tCK- 100
-
ns
tWLWH
WR pulse duration
150
-
6 tCK- 100
-
ns
tRLDV
RD to valid data input
tRHDX
data hold time after RD
tRHDZ
data ßoat delay after RD
tLLDZ
time from ALE to valid data input
tAVDV
address to valid data input
-
tLLWL
time from ALE to RD or WR
75
tAVWL
time from address to RD or WR
92
-
4 tCK- 75
-
-
17
data valid to WR transition
12
tQVWH
data set-up time before WR
162
tWHQX
data hold time after WR
tRLAZ
address ßoat delay after RD
17
-
-
ns
ns
-
8 tCK- 150
ns
210
-
9 tCK- 165
ns
175
3 tCK- 50
3 tCK+50
ns
183
time from RD or WR HIGH to ALE HIGH
ns
ns
-
tWHLH
-
2 tCK- 28
55
tQVWX
ns
5 tCK- 90
0
-
ns
-
-
118
-
0
-
ns
tCK- 25
67
-
tCK+ 25
tCK- 30
-
7 tCK- 130
0
-
ns
ns
-
ns
tCK- 25
-
ns
-
0
ns
Notes to the AC Characteristics 16 and 24 MHz versions
1. For the AC Characteristics the following conditions are valid:
a) P83C52x EBx: VDD = 5 V ±10%; VSS = 0 V; Tamb = 0 to +70 °C; tCK min. = 63 ns
b) P83C52x EFx: VDD = 5 V ±10%; VSS = 0 V; Tamb = - 40 to +85 °C; tCK min. = 63 ns.
2. tCK min. = 1/f max. (maximum operating frequency); tCK = clock period (see section for timing symbol deÞnitions).
3. The maximum operating frequency is limited to 16/24 MHz and the minimum to 3.5 MHz (all versions Ixx/Exx).
1997 Dec 15
57
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
P83C524; P80C528; P83C528
22 I2C CHARACTERISTICS (BIT-LEVEL)
SYMBOL
PARAMETER
INPUT
OUTPUT
I2C SPEC
UNIT
SCL timing
tHD;STA
START condition hold time
³ 14 tCK; note 1
note 2
³ 4.0
m s
tLOW
SCL LOW time
³ 16 tCK
note 2
³ 4.7
m s
tHIGH
SCL HIGH time
³ 14 tCK; note 1
³ 80 tCK; note 3
³ 4.0
m s
tRC
SCL RISE time
£ 1; note 4
note 5
£ 1.0
m s
tFC
SCL FALL time
£ 0.3; note 4
£ 0.3; note 6
£ 0.3
m s
SDA timing
tSU;DAT
data set-up time
³ 250 ns
note 2
³ 250
ns
tHD;DAT
data hold time
³ 0 ns
note 2
³ 0
ns
tSU;STA
repeated START set-up time
³ 14 tCK; note 1
note 2
³ 4.7
m s
tSU;STO
STOP condition set- up time
³ 14 tCK; note 1
note 2
³ 4.0
m s
tBUF
bus free time
³ 14 tCK; note 1
note 2
³ 4.7
m s
tRD
SDA RISE time
£ 1; note 4
note 5
£ 1.0
m s
tFD
SDA FALL time
£ 300 ns; note 4
£ 0.3; note 6
£ 0.3
m s
Notes
1. At fCLK = 3.5 MHz, this evaluates to 14 ´ 286 ns = 4 m s, i.e. the bit-level I2C interface can respond to the I2C protocol
for fCLK ³ 3.5 MHz.
2. This parameter is determined by the user software, it has to comply with the I2C specification.
3. This value gives the auto-clock pulse length which meets the I2C specification for the specified XTAL1 clock
frequency range. Alternatively, the SCL pulse may be timed by software.
4. Spikes on SDA and SCL lines with a duration of less than 4 ´ fCLK will be filtered out.
5. The RISE time is determined by the external bus line capacitance and pull-up resistor, it must be £ 1 m s.
6. The maximum capacitance on bus lines SDA and SCL is 400 pF.
1997 Dec 15
58
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
P83C524; P80C528; P83C528
23 XTAL1 CHARACTERISTICS
Oscillator circuitry: crystal capacitors: C1 = C2 = 20 pF (see Fig.31).
Table 36 External clock drive XTAL
VARIABLE CLOCK
SYMBOL
PARAMETER
UNIT
MIN.
MAX.
fCLK
clock frequency
3.5
24
MHz
tCK
clock period
42
286
ns
tHIGH
HIGH time
17
tCK - tLOW
ns
tLOW
LOW time
17
tCK - tHIGH
ns
tr
RISE time
-
5
ns
tf
FALL time
-
5
ns
tCY
cycle time (tCY = 12 tCK)
0.5
3.43
m s
24 SERIAL PORT CHARACTERISTICS
See Table 37 and Fig.32.
Table 37 Serial Port Timing: Shift Register Mode
VDD = 5 V ±10%; VSS = 0 V; Tamb = 0 °C to 70 °C; Load Capacitance = 80 pF
VARIABLE
OSCILLATOR
24 MHZ OSCILLATOR
SYMBOL
PARAMETER
MIN.
MAX.
MIN.
UNIT
MAX.
tXLXL
Serial Port clock cycle time
0.5
-
12 tCK
tQVXH
output data setup to clock rising edge
283
-
10 tCK- 133
tXHQX
output data hold after clock rising edge
23
-
2 tCK- 60
tXHDX
input data hold after clock rising edge
0
-
0
-
ns
tXHDV
clock rising edge to input data valid
283
-
10 tCK- 133
ns
1997 Dec 15
-
59
-
m
-
s
ns
-
ns
This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in
_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in
white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...
Philips Semiconductors
START or repeated START condition
8-bit microcontrollers
25 TIMING DIAGRAMS
1997 Dec 15
repeated START condition
START condition
STOP condition
t SU;STA
t RD
0.7 V DD
SDA
(input / output)
0.3 VDD
60
t FD
t RC
t BUF
t FC
t SU;STO
0.7 VDD
SCL
(input / output)
t LOW
t HIGH
t SU;DAT1
t HD;DAT
Fig.27 I2C interface timing.
t SU;DAT3
t SU;DAT2
MBC482
Product speciÞcation
handbook, full pagewidth
t HD;STA
P83C524; P80C528; P83C528
0.3 VDD
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
handbook, full pagewidth
P83C524; P80C528; P83C528
t LHLL
ALE
t LLPL
t AVLL
t PLPH
t LLIV
t PLIV
PSEN
t LLAX
t PXIZ
t PLAZ
PORT 0
A0 - A7
t PXIX
INSTR IN
A0 - A7
t AVIV
PORT 2
A8 - A15
A8 - A15
MBC483 - 1
Fig.28 External program memory read cycle.
1997 Dec 15
61
This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in
_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in
white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...
t WHLH
Philips Semiconductors
8-bit microcontrollers
1997 Dec 15
ALE
PSEN
t LLDV
t LLWL
t RLRH
RD
t AVLL
t LLAX
t RLDV
t RHDZ
62
t RHDX
PORT 0
A0 - A7
from RI or DPL
DATA IN
A0 - A7 from PCL
INSTR IN
t AVWL
P2.0 - P2.7 or A8 - A15 from DPH
A8 - A15 from PCH
MBC485 - 1
Fig.29 External data memory read cycle.
Product speciÞcation
handbook, full pagewidth
PORT 2
P83C524; P80C528; P83C528
t AVDV
This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in
_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in
white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...
Philips Semiconductors
8-bit microcontrollers
1997 Dec 15
ALE
t WHLH
PSEN
t LLWL
t WLWH
t QVWX
t AVLL
t QVWH
A0 - A7
from RI or DPL
DATA OUT
A0 - A7 from PCL
INSTR IN
t AVWL
PORT 2
P2.0 - P2.7 or A8 - A15 from DPH
A8 - A15 from PCH
MBC486 - 1
Product speciÞcation
Fig.30 External data memory write cycle.
P83C524; P80C528; P83C528
PORT 0
t LLAX
t WHQX
handbook, full pagewidth
63
WR
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
P83C524; P80C528; P83C528
2.0 V
2.0 V
2.4 V
handbook, full pagewidth
test points
0.45 V
0.8 V
0.8 V
(a)
float
2.4 V
2.0 V
2.0 V
0.8 V
0.8 V
2.4 V
0.45 V
0.45 V
(b)
MBC480
AC testing inputs are driven at 2.4 V for a logic 1 and 0.45 V for a logic 0. Timing measurements
are taken at 2.0 V for a logic 1 and 0.8 V for logic 0 see (a). The float state is defined as the point
at which a Port 0 pin sinks 3.2 mA or sources 400 m A at the voltage test levels see (b).
Fig.31 AC testing input, output waveform (a) and float waveform (b).
t HIGH
handbook, full pagewidth
V IH1
0.8 V
tr
V IH1
tf
V IH1
0.8 V
V IH1
0.8 V
0.8 V
t LOW
t CK
See Table 36.
Fig.32 External clock drive XTAL1.
1997 Dec 15
64
MBC479
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
INSTRUCTION
0
P83C524; P80C528; P83C528
1
2
3
4
5
6
7
8
handbook, full pagewidth
ALE
t XLXL
CLOCK
t XHQX
t QVXH
OUTPUT DATA
t XHDX
WRITE TO SBUF
INPUT DATA
t XHDV
VALID
SET TI
VALID
VALID
VALID
VALID
CLEAR RI
VALID
MBC475
See Table 37.
Fig.33 Shift register mode timing waveforms.
1997 Dec 15
VALID
65
VALID
SET RI
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
P83C524; P80C528; P83C528
one machine cycle
one machine cycle
andbook, full pagewidth
S1
P1 P2
S2
P1 P2
S3
P1 P2
S4
P1 P2
S5
P1 P2
S6
P1 P2
S1
P1 P2
S2
P1 P2
S3
P1 P2
S4
P1 P2
S5
P1 P2
S6
P1 P2
XTAL1
INPUT
ALE
dotted lines
are valid when
RD or WR are
active
PSEN
only active
during a read
from external
data memory
RD
only active
during a write
to external
data memory
WR
external
program
memory
fetch
BUS
(PORT 0)
inst.
in
BUS
(PORT 0)
PORT 2
PORT
OUTPUT
inst.
in
address A8 - A15
PORT 2
read or
write of
external data
memory
address
A0 - A7
inst.
in
address
A0 - A7
address
A0 - A7
inst.
in
address
A0 - A7
address A8 - A15
inst.
in
address
A0 - A7
address A8 - A15
inst.
in
address A8 - A15
address A8 - A15
address
A0 - A7
data output or data input
address A8 - A15 or Port 2 out
old data
address
A0 - A7
address A8 - A15
new data
PORT
INPUT
sampling time of I/O port pins during input (including INT0 and INT1)
SERIAL
PORT
CLOCK
MBC487 - 1
Fig.34 Instruction cycle timing.
1997 Dec 15
66
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
25.1
P83C524; P80C528; P83C528
Timing symbol deÞnitions
Oscillator:
fCLK = clock frequency
tCK = clock period
Timing symbols (acronyms):
Each timing symbol has five characters. The first character
is always a ’t’ (= time). the remaining four characters of the
symbol (typed in subscript), depending on their relative
positions, indicate the name of a signal or the logical status
of that signal. the designations are as follows:
A =address
C = clock
D = input data
H = logic level HIGH
I = instruction (program memory contents)
L = Logic level LOW or ALE
P = PSEN
Q = output data
R = RD signal
t = time
V = valid
W = WR signal
X = no longer a valid logic level
Z = float
Examples:
tAVLL = time for address valid to ALE LOW
tLLPL = time for ALE LOW to PSEN LOW
1997 Dec 15
67
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
P83C524; P80C528; P83C528
26 PACKAGE OUTLINES
seating plane
DIP40: plastic dual in-line package; 40 leads (600 mil)
SOT129-1
ME
D
A2
L
A
A1
c
e
Z
w M
b1
(e 1)
b
MH
21
40
pin 1 index
E
1
20
0
5
10 mm
scale
DIMENSIONS (inch dimensions are derived from the original mm dimensions)
UNIT
A
max.
A1
min.
A2
max.
b
b1
c
mm
4.7
0.51
4.0
1.70
1.14
0.53
0.38
0.36
0.23
52.50
51.50
inches
0.19
0.020
0.16
0.067
0.045
0.021
0.015
0.014
0.009
2.067
2.028
D
(1)
e
e1
L
ME
MH
w
Z (1)
max.
14.1
13.7
2.54
15.24
3.60
3.05
15.80
15.24
17.42
15.90
0.254
2.25
0.56
0.54
0.10
0.60
0.14
0.12
0.62
0.60
0.69
0.63
0.01
0.089
E
(1)
Note
1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.
REFERENCES
OUTLINE
VERSION
IEC
JEDEC
SOT129-1
051G08
MO-015AJ
1997 Dec 15
EIAJ
EUROPEAN
PROJECTION
ISSUE DATE
92-11-17
95-01-14
68
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
P83C524; P80C528; P83C528
PLCC44: plastic leaded chip carrier; 44 leads
SOT187-2
eD
eE
y
X
39
A
29
28
40
ZE
bp
b1
w M
44
1
E
HE
pin 1 index
A
A4 A1
e
(A 3)
6
b
18 k 1
Lp
k
7
detail X
17
e
v M A
ZD
D
B
HD
v M B
0
5
10 mm
scale
DIMENSIONS (millimetre dimensions are derived from the original inch dimensions)
UNIT
A
A1
min.
A3
A4
max.
bp
b1
mm
4.57
4.19
0.51
0.25
3.05
0.53
0.33
0.81
0.66
inches
0.180
0.020 0.01
0.165
D (1)
E (1)
e
eD
eE
HD
HE
k
16.66 16.66
16.00 16.00 17.65 17.65 1.22
1.27
16.51 16.51
14.99 14.99 17.40 17.40 1.07
k1
max.
Lp
v
w
y
0.51
1.44
1.02
0.18
0.18
0.10
Z D(1) Z E (1)
max. max.
2.16
b
2.16
45 o
0.630 0.630 0.695 0.695 0.048
0.057
0.021 0.032 0.656 0.656
0.020
0.05
0.007 0.007 0.004 0.085 0.085
0.12
0.590 0.590 0.685 0.685 0.042
0.040
0.013 0.026 0.650 0.650
Note
1. Plastic or metal protrusions of 0.01 inches maximum per side are not included.
REFERENCES
OUTLINE
VERSION
IEC
JEDEC
SOT187-2
112E10
MO-047AC
1997 Dec 15
EIAJ
EUROPEAN
PROJECTION
ISSUE DATE
92-11-17
95-02-25
69
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
P83C524; P80C528; P83C528
QFP44: plastic quad flat package; 44 leads (lead length 1.3 mm); body 10 x 10 x 1.75 mm
SOT307-2
c
y
X
A
33
23
34
22
ZE
e
Q
E HE
A A2
wM
(A 3)
A1
q
bp
Lp
pin 1 index
L
12
44
1
detail X
11
wM
bp
e
ZD
v M A
D
B
HD
v M B
0
2.5
5 mm
scale
DIMENSIONS (mm are the original dimensions)
UNIT
A
max.
A1
A2
A3
bp
c
D (1)
E (1)
e
HD
HE
L
Lp
Q
v
w
y
mm
2.10
0.25
0.05
1.85
1.65
0.25
0.40
0.20
0.25
0.14
10.1
9.9
10.1
9.9
0.8
12.9
12.3
12.9
12.3
1.3
0.95
0.55
0.85
0.75
0.15
0.15
0.1
Z D (1) Z E (1)
1.2
0.8
1.2
0.8
q
Note
1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.
OUTLINE
VERSION
REFERENCES
IEC
JEDEC
EIAJ
ISSUE DATE
92-11-17
95-02-04
SOT307-2
1997 Dec 15
EUROPEAN
PROJECTION
70
o
10
0o
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
P83C524; P80C528; P83C528
Reflow soldering requires solder paste (a suspension of
fine solder particles, flux and binding agent) to be applied
to the printed-circuit board by screen printing, stencilling or
pressure-syringe dispensing before package placement.
27 SOLDERING
27.1
Introduction
There is no soldering method that is ideal for all IC
packages. Wave soldering is often preferred when
through-hole and surface mounted components are mixed
on one printed-circuit board. However, wave soldering is
not always suitable for surface mounted ICs, or for
printed-circuits with high population densities. In these
situations reflow soldering is often used.
Several methods exist for reflowing; for example,
infrared/convection heating in a conveyor type oven.
Throughput times (preheating, soldering and cooling) vary
between 50 and 300 seconds depending on heating
method. Typical reflow peak temperatures range from
215 to 250 °C.
This text gives a very brief insight to a complex technology.
A more in-depth account of soldering ICs can be found in
our ÒIC Package DatabookÓ (order code 9398 652 90011).
27.2
27.2.1
27.3.2
27.3.2.1
SOLDERING BY DIPPING OR BY WAVE
·
A double-wave (a turbulent wave with high upward
pressure followed by a smooth laminar wave) soldering
technique should be used.
·
The longitudinal axis of the package footprint must be
parallel to the solder flow.
·
The package footprint must incorporate solder thieves at
the downstream corners.
The device may be mounted up to the seating plane, but
the temperature of the plastic body must not exceed the
specified maximum storage temperature (Tstg max). If the
printed-circuit board has been pre-heated, forced cooling
may be necessary immediately after soldering to keep the
temperature within the permissible limit.
27.3.2.2
27.3.1
REPAIRING SOLDERED JOINTS
CAUTION
Wave soldering is NOT applicable for all QFP
packages with a pitch (e) equal or less than 0.5 mm.
If wave soldering cannot be avoided, for QFP
packages with a pitch (e) larger than 0.5 mm, the
following conditions must be observed:
PLCC and QFP
·
A double-wave (a turbulent wave with high upward
pressure followed by a smooth laminar wave)
soldering technique should be used.
·
The footprint must be at an angle of 45° to the board
direction and must incorporate solder thieves
downstream and at the side corners.
REFLOW SOLDERING
Reflow soldering techniques are suitable for all PLCC and
QFP packages.
The choice of heating method may be influenced by larger
PLCC or QFP packages (44 leads, or more). If infrared or
vapour phase heating is used and the large packages are
not absolutely dry (less than 0.1% moisture content by
weight), vaporization of the small amount of moisture in
them can cause cracking of the plastic body. For more
information, refer to the Drypack chapter in our ÒQuality
Reference HandbookÓ (order code 9397 750 00192).
1997 Dec 15
QFP
Wave soldering is not recommended for QFP packages.
This is because of the likelihood of solder bridging due to
closely-spaced leads and the possibility of incomplete
solder penetration in multi-lead devices.
Apply a low voltage soldering iron (less than 24 V) to the
lead(s) of the package, below the seating plane or not
more than 2 mm above it. If the temperature of the
soldering iron bit is less than 300 °C it may remain in
contact for up to 10 seconds. If the bit temperature is
between 300 and 400 °C, contact may be up to 5 seconds.
27.3
PLCC
Wave soldering techniques can be used for all PLCC
packages if the following conditions are observed:
DIP
The maximum permissible temperature of the solder is
260 °C; solder at this temperature must not be in contact
with the joint for more than 5 seconds. The total contact
time of successive solder waves must not exceed
5 seconds.
27.2.2
WAVE SOLDERING
71
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
27.3.2.3
P83C524; P80C528; P83C528
A mildly-activated flux will eliminate the need for removal
of corrosive residues in most applications.
Method (PLCC and QFP)
During placement and before soldering, the package must
be fixed with a droplet of adhesive. The adhesive can be
applied by screen printing, pin transfer or syringe
dispensing. The package can be soldered after the
adhesive is cured.
27.3.3
REPAIRING SOLDERED JOINTS
Fix the component by first soldering two diagonallyopposite end leads. Use only a low voltage soldering iron
(less than 24 V) applied to the flat part of the lead. Contact
time must be limited to 10 seconds at up to 300 °C. When
using a dedicated tool, all other leads can be soldered in
one operation within 2 to 5 seconds between
270 and 320 °C.
Maximum permissible solder temperature is 260 °C, and
maximum duration of package immersion in solder is
10 seconds, if cooled to less than 150 °C within
6 seconds. Typical dwell time is 4 seconds at 250 °C.
28 DEFINITIONS
Data sheet status
Objective speciÞcation
This data sheet contains target or goal speciÞcations for product development.
Preliminary speciÞcation
This data sheet contains preliminary data; supplementary data may be published later.
Product speciÞcation
This data sheet contains Þnal product speciÞcations.
Limiting values
Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of this speciÞcation
is not implied. Exposure to limiting values for extended periods may affect device reliability.
Application information
Where application information is given, it is advisory and does not form part of the speciÞcation.
29 LIFE SUPPORT APPLICATIONS
These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.
30 PURCHASE OF PHILIPS I2C COMPONENTS
Purchase of Philips I2C components conveys a license under the PhilipsÕ I 2C patent to use the
components in the I2C system provided the system conforms to the I2C specification defined by
Philips. This specification can be ordered using the code 9398 393 40011.
1997 Dec 15
72
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
P83C524; P80C528; P83C528
NOTES
1997 Dec 15
73
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
P83C524; P80C528; P83C528
NOTES
1997 Dec 15
74
Philips Semiconductors
Product speciÞcation
8-bit microcontrollers
P83C524; P80C528; P83C528
NOTES
1997 Dec 15
75
Philips Semiconductors — a worldwide company
Argentina: see South America
Australia: 34 Waterloo Road, NORTH RYDE, NSW 2113,
Tel. +61 2 9805 4455, Fax. +61 2 9805 4466
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213, Tel. +43 160 1010,
Fax. +43 160 101 1210
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,
220050 MINSK, Tel. +375 172 200 733, Fax. +375 172 200 773
Belgium: see The Netherlands
Brazil: see South America
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15th floor,
51 James Bourchier Blvd., 1407 SOFIA,
Tel. +359 2 689 211, Fax. +359 2 689 102
Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. +1 800 234 7381
China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. +852 2319 7888, Fax. +852 2319 7700
Colombia: see South America
Czech Republic: see Austria
Denmark: Prags Boulevard 80, PB 1919, DK-2300 COPENHAGEN S,
Tel. +45 32 88 2636, Fax. +45 31 57 0044
Finland: Sinikalliontie 3, FIN-02630 ESPOO,
Tel. +358 9 615800, Fax. +358 9 61580920
France: 51 Rue Carnot, BP317, 92156 SURESNES Cedex,
Tel. +33 1 40 99 6161, Fax. +33 1 40 99 6427
Germany: Hammerbrookstra§e 69, D-20097 HAMBURG,
Tel. +49 40 23 53 60, Fax. +49 40 23 536 300
Greece: No. 15, 25th March Street, GR 17778 TAVROS/ATHENS,
Tel. +30 1 4894 339/239, Fax. +30 1 4814 240
Hungary: see Austria
India: Philips INDIA Ltd, Band Box Building, 2nd floor,
254-D, Dr. Annie Besant Road, Worli, MUMBAI 400 025,
Tel. +91 22 493 8541, Fax. +91 22 493 0966
Indonesia: see Singapore
Ireland: Newstead, Clonskeagh, DUBLIN 14,
Tel. +353 1 7640 000, Fax. +353 1 7640 200
Israel: RAPAC Electronics, 7 Kehilat Saloniki St, PO Box 18053,
TEL AVIV 61180, Tel. +972 3 645 0444, Fax. +972 3 649 1007
Italy: PHILIPS SEMICONDUCTORS, Piazza IV Novembre 3,
20124 MILANO, Tel. +39 2 6752 2531, Fax. +39 2 6752 2557
Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku, TOKYO 108,
Tel. +81 3 3740 5130, Fax. +81 3 3740 5077
Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,
Tel. +82 2 709 1412, Fax. +82 2 709 1415
Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,
Tel. +60 3 750 5214, Fax. +60 3 757 4880
Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,
Tel. +9-5 800 234 7381
Middle East: see Italy
Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,
Tel. +31 40 27 82785, Fax. +31 40 27 88399
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,
Tel. +64 9 849 4160, Fax. +64 9 849 7811
Norway: Box 1, Manglerud 0612, OSLO,
Tel. +47 22 74 8000, Fax. +47 22 74 8341
Philippines: Philips Semiconductors Philippines Inc.,
106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. +63 2 816 6380, Fax. +63 2 817 3474
Poland: Ul. Lukiska 10, PL 04-123 WARSZAWA,
Tel. +48 22 612 2831, Fax. +48 22 612 2327
Portugal: see Spain
Romania: see Italy
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,
Tel. +7 095 755 6918, Fax. +7 095 755 6919
Singapore: Lorong 1, Toa Payoh, SINGAPORE 1231,
Tel. +65 350 2538, Fax. +65 251 6500
Slovakia: see Austria
Slovenia: see Italy
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,
2092 JOHANNESBURG, P.O. Box 7430 Johannesburg 2000,
Tel. +27 11 470 5911, Fax. +27 11 470 5494
South America: Al. Vicente Pinzon, 173, 6th floor,
04547-130 SÌO PAULO, SP, Brazil,
Tel. +55 11 821 2333, Fax. +55 11 821 2382
Spain: Balmes 22, 08007 BARCELONA,
Tel. +34 3 301 6312, Fax. +34 3 301 4107
Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. +46 8 632 2000, Fax. +46 8 632 2745
Switzerland: Allmendstrasse 140, CH-8027 ZçRICH,
Tel. +41 1 488 2686, Fax. +41 1 481 7730
Taiwan: Philips Semiconductors, 6F, No. 96, Chien Kuo N. Rd., Sec. 1,
TAIPEI, Taiwan Tel. +886 2 2134 2865, Fax. +886 2 2134 2874
Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,
Tel. +66 2 745 4090, Fax. +66 2 398 0793
Turkey: Talatpasa Cad. No. 5, 80640 GçLTEPE/ISTANBUL,
Tel. +90 212 279 2770, Fax. +90 212 282 6707
Ukraine: PHILIPS UKRAINE, 4 Patrice Lumumba str., Building B, Floor 7,
252042 KIEV, Tel. +380 44 264 2776, Fax. +380 44 268 0461
United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
MIDDLESEX UB3 5BX, Tel. +44 181 730 5000, Fax. +44 181 754 8421
United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. +1 800 234 7381
Uruguay: see South America
Vietnam: see Singapore
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,
Tel. +381 11 625 344, Fax.+381 11 635 777
For all other countries apply to: Philips Semiconductors,
International Marketing & Sales Communications, Building BE-p,
P.O. Box 218, 5600 MD EINDHOVEN, The Netherlands, Fax. +31 40 27 24825
Internet: http://www.semiconductors.philips.com
' Philips Electronics N.V. 1997
SCA56
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.
The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.
Printed in The Netherlands
457047/25/01/pp76
Date of release: 1997 Dec 15
Document order number:
9397 750 02916
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
