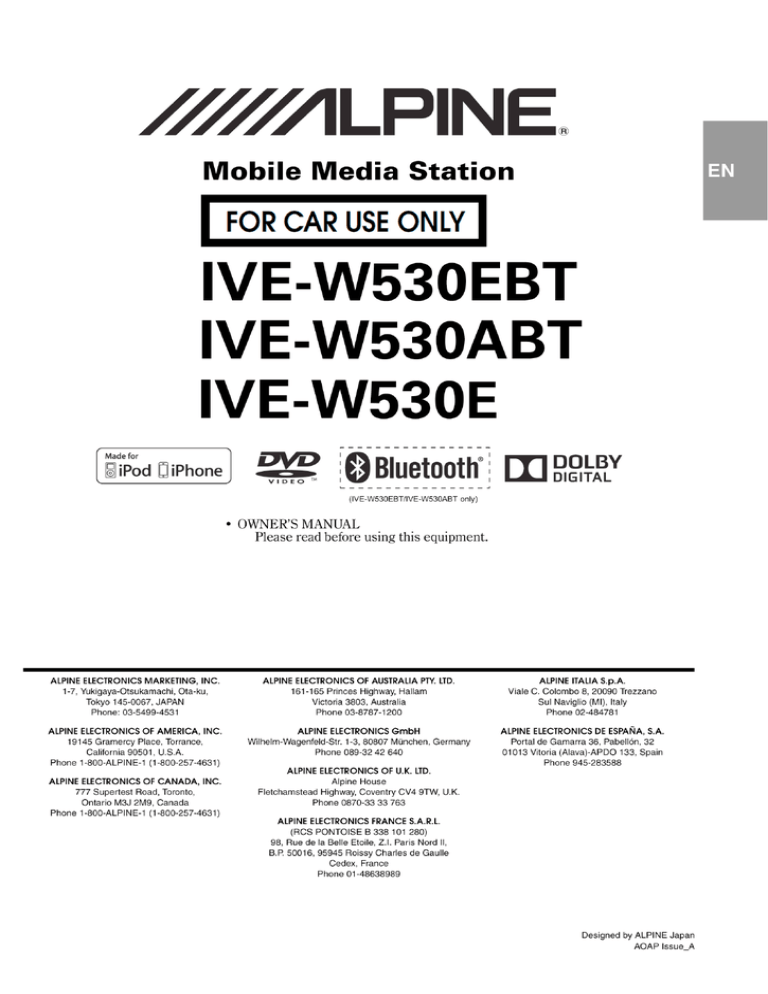

Alpine IVE IVE-W530EBT, IVE-W530ABT, IVE-W530E Owner's manual

Alpine IVE IVE-W530EBT, IVE-W530ABT, IVE-W530E Owner's manual
ENGLISH
Contents
Operating Instructions
WARNING
WARNING ................................................. 4
CAUTION .................................................. 4
PRECAUTIONS ........................................ 5
Discs Playable on This Unit ................... 6
Getting Started
Accessory List .................................................. 9
Location of Controls ........................................ 9
Turning Power On or Off ................................. 9
Adjusting the Volume ....................................... 9
Lowering Volume Quickly ............................... 9
How to view the Display .................................. 9
TOUCH PANEL operation ........................... 9
Recalling the Source ................................... 10
Displaying the Numeric Keypad
Input Screen ............................................. 10
Radio
Listening to the Radio .................................... 11
Presetting Stations Manually .......................... 11
Presetting Stations Automatically .................. 11
Tuning to Preset Stations ................................ 11
CD/MP3/WMA/AAC
Playback ......................................................... 12
Repeat Play ..................................................... 12
M.I.X. (Random Play) .................................... 13
Selecting Folders
(concerning MP3/WMA/AAC) .................. 13
About MP3/WMA/AAC ................................ 13
DVD/Video CD
Playing a Disc ................................................15
To display the DVD mode screen
(IVE-W530EBT/IVE-W530E only) .........15
If a menu screen appears .............................16
Displaying the Top Menu Screen ...............17
Displaying the Menu Screen ......................17
Displaying the Menu Operation
Mode Screen ...........................................17
Numeric Keypad Input Operation ...................17
Select a Track/File/Chapter .........................17
Select a Folder/Title .....................................17
Stopping Playback (Pre Stop)
(IVE-W530EBT/IVE-W530E only) ............17
Stopping Playback
(IVE-W530EBT/IVE-W530E only) ...........18
Fast-forwarding/Fast-reversing
(IVE-W530EBT/IVE-W530E only) ............18
Finding the Beginnings of Chapters/Files
(IVE-W530EBT/IVE-W530E only) ...........18
Playing Still Frames (Pausing)
(IVE-W530EBT/IVE-W530E only) ............18
Slow Motion Playback
(IVE-W530EBT/IVE-W530E only) ............18
Selecting Folders ............................................18
Repeat Playback (IVE-W530EBT/IVE-W530E only) .....18
Searching by Title/Folder Number .................19
Searching Directly by Chapter,
File Number ................................................19
Switching the Angle .......................................19
Switching the Audio Tracks
(IVE-W530EBT/IVE-W530E only) ............19
Switching the Subtitles
(Subtitle Language) ....................................20
Switching from the disc menu .......................20
About DivX .....................................................20
Other Useful Features
Adjusting the Audio ........................................21
Search Function ..............................................22
Rear Selection Function ..................................22
Switching Display Modes ...............................23
Switching the Visual Source Only
(Simultaneous Function) .............................23
Cancelling the Simultaneous Function ........23
Blackout Mode On and Off .............................23
1-EN
Setup
DVD Setup
DVD Setup Operation ..................................... 24
Changing the language setting .................... 24
Setting of the Menu Language .................... 24
Setting of the Audio Language ................... 24
Setting of the Subtitle Language ................. 25
Setting the Downmix Mode ........................ 25
Setting the TV Screen ................................. 25
Setting the DOLBY Dynamic Range .......... 25
Displaying DivX® Disc Information ......... 25
Source Setup
Source Setup Operation .................................. 26
Radio Setup ................................................. 26
Display Setup
Display Setup Operation ................................. 26
Setting the Brightness of the
Backlighting ............................................. 26
Adjusting the Minimum Level of
Backlight .................................................. 27
Turn the Function Guide ON/OFF
(Function Guide Fade) ............................. 27
Switching the Font Background Colour ...... 27
Adjusting the Touch Panel .......................... 27
Setting the VISUAL Button ........................ 27
Visual EQ™
Visual EQ Setting Operation .......................... 27
Selecting the Visual EQ Mode
(Factory’s setting) .................................... 28
Adjusting Brightness ................................... 28
Adjusting Colour of Picture ........................ 28
Adjusting Tint of Picture ............................. 28
Adjusting Image Contrast ........................... 28
Adjusting Picture Quality ............................ 28
Storing Visual EQ ....................................... 28
General Setup
General Setup Operation ................................ 29
Displaying the Time .................................... 29
Setting the Clock Display ............................ 29
Setting the Time .......................................... 29
Setting Summer Time .................................. 29
Demonstration Function .............................. 29
Sound (Beep) Guide Function ..................... 29
Setting the Beep Level ................................ 30
Setting the Scroll ......................................... 30
Changing the Russian Font ......................... 30
Adjusting the Dimmer of Button
Lighting at Night ...................................... 30
2-EN
System Setup
System Setup Operation ................................. 30
Setting the Rear Camera Input .................... 31
Setting the Navigation Mode ...................... 31
Setting the Navigation Interruption ............ 31
Setting the AUX Mode ............................... 32
Setting the AUX Front Mode ...................... 32
Setting the Picture/Sound Output ............... 32
Setting the BLUETOOTH Connection
(BLUETOOTH IN)(IVE-W530EBT/IVE-W530ABT only) ...... 32
BT Hands Free Calling
(IVE-W530EBT/IVE-W530ABT only)
Setup Before Using ........................................ 33
About BLUETOOTH .................................. 33
Before Using Hands-Free Function ............ 33
How to connect to a BLUETOOTH
compatible device (Pairing) ..................... 33
BLUETOOTH Setup ...................................... 33
BLUETOOTH Setup Operation .................. 33
Hands-Free Phone Control ............................. 35
About the Hands-Free Phone ...................... 35
Answering a Call ............................................ 35
Hanging up the Telephone .............................. 35
Adjusting the volume when receiving
a Call ........................................................... 35
Redial Function .............................................. 35
Call waiting function ...................................... 35
Call Switching Operation ............................... 36
Call History .................................................... 36
Redialing a Number in Dialed
Calls History ............................................ 36
Dialing a Number in Received
Calls History ............................................ 36
Dialing a Number in Missed
Calls History ............................................ 36
Dialing a Number In the Phone Book
(Phone Book) ........................................... 37
Dialing a Number Using Direct
Dial Input ................................................. 37
Voice Dial Operation ................................... 38
BLUETOOTH Audio Function ...................... 38
BLUETOOTH Audio Operation ................. 38
Rearview Camera Operation
(Optional)
Switching the Rear Camera Screen
(Optional) .................................................... 38
Displaying the rear view video
while the car is in reverse ........................ 38
Displaying the rear view video
manually .................................................. 38
Navigation System (Optional)
Switching the Navigation Screen
(Optional) .................................................... 39
Installation and
Connections
Warning .................................................. 50
Caution ................................................... 50
Precautions ........................................... 50
Installation ......................................................51
Mounting the Microphone ..............................52
Connections ....................................................54
System Example .............................................56
Auxiliary Device (Optional)
Operating Auxiliary Devices (Optional) ........ 39
TUE-T200DVB Operation (Optional)
Operating the TUE-T200DVB
(Optional) .................................................... 40
Flash Memory (Optional)
BANK Function ............................................. 40
Playback ......................................................... 40
Repeat Play ..................................................... 41
Random Play Shuffle (M.I.X.) ....................... 41
Searching for a desired Song .......................... 41
Searching by Playlist name ......................... 41
Selecting the desired Playlist ......................... 41
Select the desired Folder
(Folder up/down) ........................................ 41
iPod/iPhone (Optional)
Connecting an iPod/iPhone ............................ 42
Setting the iPod Control ................................. 42
Playback ......................................................... 42
Searching for a desired Song .......................... 43
Searching by artist name ............................. 43
Selecting Playlist/Artist/Album/Genre/
Composer/Podcast ...................................... 43
Random Play Shuffle (M.I.X.) ....................... 44
Repeat Play ..................................................... 44
Information
About DVDs ................................................... 44
List of Language Codes ................................. 45
In Case of Difficulty ....................................... 46
Specifications ................................................. 49
3-EN
Operating Instructions
WARNING
USE THE CORRECT AMPERE RATING WHEN REPLACING
FUSES.
Failure to do so may result in fire or electric shock.
WARNING
This symbol means important instructions.
Failure to heed them can result in serious injury
or death.
INSTALL THE PRODUCT CORRECTLY SO THAT THE DRIVER
CANNOT WATCH TV/VIDEO UNLESS THE VEHICLE IS
STOPPED AND THE EMERGENCY BRAKE IS APPLIED.
It is dangerous (and illegal in many states) for the driver to watch
TV/Video while driving a vehicle. Installing this product
incorrectly enables the driver to watch TV/Video while driving.
This may cause a distraction, preventing the driver from looking
ahead, thus causing an accident. The driver or other people could be
severely injured.
DO NOT BLOCK VENTS OR RADIATOR PANELS.
Doing so may cause heat to build up inside and may result in fire.
USE THIS PRODUCT FOR MOBILE 12V APPLICATIONS.
Use for other than its designed application may result in fire,
electric shock or other injury.
DO NOT PLACE HANDS, FINGERS OR FOREIGN OBJECTS IN
INSERTION SLOTS OR GAPS.
Doing so may result in personal injury or damage to the product.
CAUTION
This symbol means important instructions.
Failure to heed them can result in injury or
material property damage.
DO NOT WATCH VIDEO WHILE DRIVING.
Watching the video may distract the driver from looking ahead of
the vehicle and cause an accident.
DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR
ATTENTION AWAY FROM SAFELY DRIVING YOUR VEHICLE.
Any function that requires your prolonged attention should only be
performed after coming to a complete stop. Always stop the vehicle
in a safe location before performing these functions. Failure to do
so may result in an accident.
KEEP THE VOLUME AT A LEVEL WHERE YOU CAN STILL
HEAR OUTSIDE NOISES WHILE DRIVING.
Excessive volume levels that obscure sounds such as emergency
vehicle sirens or road warning signals (train crossings, etc.) can be
dangerous and may result in an accident. LISTENING AT LOUD
VOLUME LEVELS IN A CAR MAY ALSO CAUSE HEARING
DAMAGE.
MINIMIZE DISPLAY VIEWING WHILE DRIVING.
Viewing the display may distract the driver from looking ahead of
the vehicle and cause an accident.
DO NOT DISASSEMBLE OR ALTER.
Doing so may result in an accident, fire or electric shock.
USE ONLY IN CARS WITH A 12 VOLT NEGATIVE GROUND.
(Check with your dealer if you are not sure.) Failure to do so may
result in fire, etc.
KEEP SMALL OBJECTS SUCH AS BATTERIES OUT OF THE
REACH OF CHILDREN.
Swallowing them may result in serious injury. If swallowed,
consult a physician immediately.
4-EN
HALT USE IMMEDIATELY IF A PROBLEM APPEARS.
Failure to do so may cause personal injury or damage to the
product. Return it to your authorized Alpine dealer or the nearest
Alpine Service Centre for repairing.
PRECAUTIONS
Product Cleaning
Use a soft dry cloth for periodic cleaning of the product. For more
severe stains, please dampen the cloth with water only. Anything
else has the chance of dissolving the paint or damaging the plastic.
Temperature
Be sure the temperature inside the vehicle is between +45°C
(+113°F) and 0°C (+32°F) before turning your unit on.
New Discs
To prevent the CD from jamming, “Disc Error” is displayed if discs
with irregular surfaces are inserted or if discs are inserted
incorrectly. When a new disc is ejected immediately after initial
loading, use your finger to feel around the inside of the centre hole
and outside edge of the disc. If you feel any small bumps or
irregularities, this could inhibit proper loading of the disc. To
remove the bumps, rub the inside edge of the hole and outside edge
of the disc with a ballpoint pen or other such instrument, then insert
the disc again.
Centre Hole
Centre Hole
New Disc
Moisture Condensation
You may notice the disc playback sound wavering due to
condensation. If this happens, remove the disc from the player and
wait about an hour for the moisture to evaporate.
Outside
(Bumps)
Bumps
Damaged Disc
Installation Location
Do not attempt to play cracked, warped, or damaged discs. Playing
a bad disc could severely damage the playback mechanism.
Make sure the IVE-W530EBT/IVE-W530ABT/IVE-W530E
will not be installed in a location subjected to:
Maintenance
•
•
•
•
If you have problems, do not attempt to repair the unit yourself.
Return it to your Alpine dealer or the nearest Alpine Service
Station for servicing.
Never Attempt the Following
Do not grip or pull out the disc while it is being pulled back into the
player by the automatic reloading mechanism.
Do not attempt to insert a disc into the unit when the unit power is
off.
Direct sun and heat
High humidity and water
Excessive dust
Excessive vibrations
Correct Handling
Do not drop the disc while handling. Hold the disc so you will not
leave fingerprints on the surface. Do not affix tape, paper, or
gummed labels to the disc. Do not write on the disc.
CORRECT
INCORRECT
CORRECT
Inserting Discs
Your player accepts only one disc at a time for playback. Do not
attempt to load more than one disc.
Make sure the label side is facing up when you insert the disc.
“Disc Error” will be displayed on your player if you insert a disc
incorrectly.
Playing a disc while driving on a very bumpy road may result in
skips, but this will not scratch the disc or damage the player.
Irregular Shaped Discs
Be sure to use round shaped discs only for this unit and never use
any special shaped discs.
Use of special shaped discs may cause damage to the mechanism.
Disc Cleaning
Fingerprints, dust, or soil on the surface of the disc could cause the
DVD player to skip. For routine cleaning, wipe the playing surface
with a clean, soft cloth from the centre of the disc to the outer edge.
If the surface is heavily soiled, dampen a clean, soft cloth in a
solution of mild neutral detergent before cleaning the disc.
5-EN
Disc Accessories
There are various accessories available on the market for protecting
the disc surface and improving sound quality. However, most of
them will influence the thickness and/or diameter of the disc. Using
such accessories can cause the disc to be out of standard
specifications and may create operational problems. We
recommend not using these accessories on discs played in Alpine
DVD players.
Transparent Sheet
Discs Playable on This Unit
Playable discs
The discs listed below can be played on this unit.
Mark (logo)
Recorded content
Disc size
DVD Video
Audio
+
Video
12 cm*
Video CD
Audio
+
Video
12 cm
Music CD
Audio
12 cm
DivX®
Audio
+
Video
12 cm
Disc Stabilizer
Handling the Detachable Front Panel
• Do not expose to rain or water.
• Do not drop or subject to shock.
• After turning the system off, a slight ghost of the image will
remain temporarily. This is an effect peculiar to LCD technology
and is normal.
• In cold temperature conditions, the screen may lose contrast
temporarily. After a short warm-up period, it will return to
normal.
Operation of some of the functions of this unit is very complex.
Because of this, it was deemed necessary to place these functions
into a special screen. This will restrict operation of these functions
to times when the vehicle is parked. This ensures the focus of the
driver’s attention will be on the road and not on the
IVE-W530EBT/IVE-W530ABT/IVE-W530E. This has been done
for the safety of the driver and passengers.
The car must be parked and the parking brake must be engaged for
the procedure described in the Owner’s Manual to be valid. The
warning “Can’t operate while driving”, will be displayed if any
attempts are made to perform these operations while driving.
• The IVE-W530EBT/IVE-W530ABT/IVE-W530E draws minimal
current even when its power switch is turned off. If the switched
power (ignition) lead of the IVE-W530EBT/IVE-W530ABT/
IVE-W530E is connected directly to the positive (+) post of the
vehicle’s battery, the battery may be discharged.
An SPST (Single-Pole, Single-Throw) switch (sold separately)
can be added to simplify this procedure. Then, you can simply
place it in the OFF position when you leave the vehicle. Turn the
SPST switch back ON before using the IVE-W530EBT/
IVE-W530ABT/IVE-W530E. For connecting the SPST switch,
refer to the “Connection Diagram of SPST Switch (sold separately)”
(page 53). If the power (ignition) lead is unswitched, it must be
disconnected from the battery post should the vehicle be left
unused for an extended period of time.
(IVE-W530EBT/
IVE-W530E only)
* Two-layer DVD disc compatible
The formatted discs listed below can be played on this unit.
CD-R/
CD-RW
DVD-R/
DVD-RW
CD Format
MP3 Format (“mp3”)
WMA Format
(“wma”)
AAC Format
(“mp4”, “m4a”)
DVD Video Format
DivX Format
(“avi”, “div”, “divx”)
Video CD Format
(IVE-W530EBT/IVE-W530E only)
Discs that are not finalised cannot be played back
6-EN
DVD+R/
DVD+RW
Discs that cannot be played
DVD-ROMs, DVD-RAMs, CD-ROMs (excluding MP3/WMA/
AAC files), photo CDs, etc.
DualDisc
This unit is not compatible with DualDisc.
Using a DualDisc may cause unit malfunction, and may cause disc
damage when the disc is inserted/ejected.
DVD region number (playable region number)
This DVD player will play back any disc whose region number is 3
(IVE-W530EBT/IVE-W530E only)/4 (IVE-W530ABT only) (or All).
DVDs with a region number other than those listed below, cannot be
played on this DVD player.
3
(IVE-W530EBT/
IVE-W530E only)
4
ALL
(IVE-W530ABT only)
Using compact discs (CD/CD-R/CD-RW)
If you use unspecified compact discs, correct performance cannot
be guaranteed.
You can play CD-Rs (CD-Recordable)/CD-RWs (CD-ReWritable)
which have been recorded only on audio devices. You can also play
CD-Rs/CD-RWs containing MP3/WMA/AAC formatted audio
files.
• Some of the following discs may not play on this unit:
Flawed discs, discs with fingerprints, discs exposed to extreme
temperatures or sunlight (e.g., left in the car or this unit), discs
recorded under unstable conditions, discs on which a recording
failed or a re-recording was attempted, copy-protected CDs
which do not conform to the audio CD industry standard.
• Use discs with MP3/WMA/AAC files written in a format
compliant with this unit. For details, see pages 13 and 14.
To customers using CD-R/CD-RW
• If a CD-R/CD-RW cannot be played back, make sure the last
recording session was closed (finalised).
• Finalise the CD-R/CD-RW if necessary, and attempt playback
again.
Tips for making your own CDs
The IVE-W530EBT/IVE-W530ABT/IVE-W530E plays DVD Video,
Video CD, Audio CD, DivX® and has a built in MP3/WMA/AAC
decoder.
The following information is designed to help you create your own
music CDs (either Audio CD or MP3/WMA/AAC encoded CD-R/
RW files).
What is the difference between an Audio and MP3/WMA/AAC
CD?
An Audio CD is the same format as the commercial CDs you buy
in the store (also known as CD-DA). MP3 (MPEG-1 Audio Layer 3)
/WMA (Windows Media Audio)/AAC (Advanced Audio
Coding) is a data file that uses a compression scheme to reduce the
size of the music file.*
Multi-session CD-R/RW:
Once a recording has been stopped, this is considered one session.
If the disc is not closed (finalised), additional data may be added.
Once this additional data has been recorded, this becomes a “multisession” CD. The IVE-W530EBT/IVE-W530ABT/IVE-W530E can
only read multi-session DATA Formatted discs (MP3/WMA/AAC
files - Not Audio CD files).
Properly formatted MP3/WMA/AAC Discs:
Use ISO9660 formatting to insure proper playback. You may use
standard ISO naming Level 1 (8.3 DOS standard), Level 2 (32
characters) or Joliet (Windows or Macintosh long filenames) file
naming conventions*.
*Please consult the Owner’s manual for additional information.
On handling compact discs (CD/CD-R/CD-RW)
•
•
•
•
•
•
Do not touch the surface.
Do not expose the disc to direct sunlight.
Do not affix stickers or labels.
Clean the disc when it is dusty.
Make sure that the disc is smooth and flat.
Do not use commercially available disc accessories.
Do not leave the disc in the car or the unit for a long time.
Never expose the disc to direct sunlight.
Heat and humidity may damage the disc and you may not be
able to play it again.
Using DVD-Rs/DVD-RWs/DVD+Rs/DVD+RWs
• This unit is compatible with discs recorded in the standard DVDVideo (DVD-R/DVD-RW only) formats.
• Note that discs not finalised (processed to enable to play on
playback-only DVD players) cannot be played on this DVD
player.
• Some discs may not play back, depending on the recording
device and disc format.
• Discs or files utilizing copy protection, may not be playable.
Some recording systems may not properly format copied files to
enable proper playback.
• In the following cases, the disc may not play on this unit:
discs recorded by certain DVD recorders, certain irregular discs,
flawed discs, dirty discs, when the pickup lens of this DVD
player is dirty, or when moisture condensation has occurred
inside the unit.
• Be sure to follow all cautions included with your DVD-Rs/
DVD-RWs/DVD+Rs/DVD+RWs discs.
• Do not put stickers, seals, or tape on the label side of DVD-Rs/
DVD-RWs/DVD+Rs/DVD+RWs.
• Compared to the regular discs, DVD-Rs/DVD-RWs/DVD+Rs/
DVD+RWs are more affected by heat, moisture, and direct
sunlight. If left in a car, etc., damage may occur and it might not
play on this unit.
• The operable temperature range for disc playback is as follows:
DVD-R/DVD-RW: -25 ~ +70°C
DVD+R/DVD+RW: +5 ~ +55°C
Hybrid Audio CD and Data (MP3/WMA/AAC) CD-R/RW
discs:
The IVE-W530EBT/IVE-W530ABT/IVE-W530E can only read
CD-DA sector on the disc.*
7-EN
Disc terminology
Title
If titles are programmed for the DVD, these are the largest units of
division of the information recorded on the disc.
Chapter
Each Title may also be divided into smaller divisions, called
chapters. These can be specific scenes or musical selections.
Protecting the USB connector
• Only an iPod/iPhone or Flash memory can be connected to the
USB connector on this unit. Correct performance using other
USB products cannot be guaranteed.
• If the USB connector is used, be sure to use only the supplied
connector cable with the unit. A USB hub is not supported.
• Depending on the connected Flash memory device, the unit may
not function or some functions may not be performed.
• The audio file format that can be played back on the unit is
MP3/WMA/AAC.
• Artist/song name, etc., can be displayed, however characters
may not be correctly displayed.
CAUTION
Alpine accepts no responsibility for lost data, etc., even if data, etc.,
is lost while using this product.
On Handling Flash Memory
• This unit can control a memory storage device that supports the
USB Mass Storage Class (MSC) protocol. Playable audio file
formats are MP3, WMA and AAC.
• Flash memory function is not guaranteed. Use Flash memory
according to the terms of agreement. Read the Flash memory
Owner’s Manual thoroughly.
• Fix the Flash memory in a location where driver operation will
not be hindered.
• Flash memory may not function correctly at high or low
temperature.
• Use only certified Flash memory. Note that even certified Flash
memory, may not function correctly depending on its type or
state.
• Depending on the settings of the Flash memory type, memory
state or encoding software, the unit may not play back or display
properly.
• Files protected by DRM (Digital Rights Management), cannot be
played back on this unit. These include AAC formatted files
purchased from the iTunes Store and WMA or other files with
some form of copyright protection.
• Flash memory may take time to start playback. If there is a
particular file other than audio in the Flash memory, it may take
considerable time before the file is played back or searched.
• The unit can play back “mp3”, “wma”, “m4a” or “divx” file
extensions.
• Do not add the above extensions to a file other than audio data.
This non-audio data will not be recognised. The resulting
playback may contain noise that can damage speakers and/or
amplifiers.
• It is recommended to back up important data on a personal
computer.
• Do not remove the USB device while playback is in progress.
Change SOURCE to something other than USB, then remove the
USB device to prevent possible damage to its memory.
8-EN
• This item incorporates copy protection technology that is
protected by U.S. patents and other intellectual property rights
of Rovi Corporation. Reverse engineering and disassembly are
prohibited.
• Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby
Laboratories.
• Windows Media and the Windows logo are trademarks, or
registered trademarks of Microsoft Corporation in the United
States and/or other countries.
• iPhone, iPod, iPod classic, iPod nano, and iPod touch are
trademarks of Apple Inc., registered in the U.S. and other
countries.
• “Made for iPod,” and “Made for iPhone,” mean that an
electronic accessory has been designed to connect specifically to
iPod, or iPhone, respectively, and has been certified by the
developer to meet Apple performance standards. Apple is not
responsible for the operation of this device or its compliance
with safety and regulatory standards. Please note that the use of
this accessory with iPod, or iPhone may affect wireless
performance.
• The BLUETOOTH® word mark and logos are registered
trademarks owned by the Bluetooth SIG, Inc. and any use of
such marks by Alpine Electronics, Inc. is under license.
• “MPEG Layer-3 audio coding technology licensed from
Fraunhofer IIS and Thomson”
• “Supply of this product only conveys a license for private, noncommercial use and does not convey a license nor imply any
right to use this product in any commercial (i.e. revenuegeneration) real time broadcasting (terrestrial, satellite, cable
and/or any other media), broadcasting/streaming via internet,
intranets and/or other networks or in other electronic content
distribution systems, such as pay-audio or audio-on-demand
applications. An independent license for such use is required.
For details, please visit http://www.mp3licensing.com”
• DivX®, DivX Certified® and associated logos are trademarks of
Rovi Corporation or its subsidiaries and are used under license.
Remote Sensor/Dimmer Sensor
Getting Started
• Point the optional remote control transmitter towards the
remote sensor within a range of 2 metres.
• Senses the brightness of the car interior.
Front AUX Input Terminal
Accessory List
•
•
•
•
•
•
•
•
•
•
Head unit .............................................................................1
Power Cable ........................................................................1
Mounting Sleeve ..................................................................1
Bracket key..........................................................................2
Flush Head Screw (M5 × 8).................................................6
Screw (M5 × 8) ...................................................................8
Front Frame .........................................................................1
USB extension cable ..........................................................1
Microphone .........................................................................1
Owner’s Manual .............................................................1 set
Connects a portable music player, etc., to the system. For
details, see “Operating Auxiliary Devices (Optional)”
(page 39).
*1 Adjustable only when Defeat is OFF.
*2 Adjustable only when Subwoofer is ON.
• The buttons on the face of this unit are shown in bold
(e.g. SOURCE/ ). The onscreen buttons that appear in the
display are shown in bold enclosed by [ ] (e.g.[BAND]).
Turning Power On or Off
Some of this unit’s functions cannot be performed while the vehicle is in
motion. Be sure to stop your vehicle in a safe location and apply the
parking brake, before attempting these operations.
1
Press SOURCE/
to turn on the unit.
• The unit can be turned on by pressing any button on the unit except
(Eject).
2
Press and hold SOURCE/
turn off the unit.
for at least 3 seconds to
Adjusting the Volume
Connectable to Remote Control Interface Box
Adjust the volume by turning the Rotary encoder.
You can operate this unit from the vehicle’s control unit when
an Alpine Remote Control Interface Box (optional) is
connected. For details, contact your Alpine dealer.
Volume: 0 - 35
Lowering Volume Quickly
Location of Controls
Press Rotary encoder (MUTE).
DISC Slot
The audio level decreases by about 20 dB.
button
Ejects a disc.
(Phone) button (IVE-W530EBT/IVE-W530ABT only)
• Press to display the Telephone Menu screen.
• Press and hold for at least 2 seconds to activate Voice
Dial mode.
(When BLUETOOTH IN is set to HFP or HFP+AUDIO
(page 32).)
Track tune button
Press to select the desired Radio preset station/track/file/
chapter.
SOURCE/
button
• Turns the power on.
• Press and hold for at least 3 seconds to turn the power off.
• Recalls the SOURCE selection screen.
Rotary encoder/MUTE/AUDIO
•
•
•
Activating this function will instantly lower the volume level by 20 dB.
Adjust the volume by turning to the left or right.
Press to activate/deactivate mute mode.
Press and hold for at least 2 seconds to display the
Audio shortcut screen. The Bass level*1, Treble level*1,
and Subwoofer level*2 can be adjusted in this mode.
Pressing Rotary encoder (MUTE) again brings the audio back to
its previous level.
How to view the Display
TOUCH PANEL operation
• To protect the display, touch the onscreen button with the tip of your
finger.
• If you touch a button and there is no reaction, remove your finger
from the display once, and try again.
• If you touch two buttons at the same time, a malfunction may occur.
Onscreen buttons are expressed as follows in this Owner’s
Manual.
• Onscreen buttons are shown in bold, enclosed in [ ] (e.g.
[BAND]).
9-EN
Displays the source name, such as radio band, etc.,
that is selected.
Displays the time, BLUETOOTH indicator
(IVE-W530EBT/IVE-W530ABT only) , etc.
Recalling the Source
Here is an example explanation for the Radio mode display on how to
recall a source.
1
Press SOURCE/
Function Guide:
.
The function guide display varies depending on each
source.
The contents of the function guide change by touching
[P1/2]* or [P1/3]* on the function guide, and many other
operations can be performed.
The SOURCE selection screen is displayed.
Display example for SOURCE selection screen
Displays the image of current source.
* Display may vary depending on the connected devices.
3
Press SOURCE/ to change to another source
screen, and select the desired source from the
SOURCE selection screen.
• The screen can be changed to the SETUP selection screen by
touching [ ].
Displaying the Numeric Keypad Input
Screen
Changes the item of source selection list. (Depending on
the source quantity, this button may not be displayed.)
Displays the source modes that can be selected.
[
] button: Changes to Navigation screen.
(Available only when ON is set in “Setting the Navigation
Mode” (page 31) and “Navi” is set in “Setting the
VISUAL Button” on page 27).
[V.Sel] button: Changes to VISUAL selection screen.
(When V.Sel is set in “Setting the VISUAL Button” on
page 27.)
Changes to SETUP main screen.
Changes to Navigation main screen. (When “ON” is set
in “Setting the Navigation Mode” (page 31).)
Changes to the Telephone Menu screen.
(When “BLUETOOTH IN” is set to other than OFF
(page 32).) (IVE-W530EBT/IVE-W530ABT only)
Displays the rear view video.
(When an optional rearview camera is connected and
Camera IN is set to ON (page 31).)
Turns off the Source Select screen, and returns to
previous source screen.
Changes to the Rear selection screen when “Setting the
Picture/Sound Output” (page 32) is set to ON.
Returns to the previous screen.
The numeric keypad input screen is displayed when the DVD or CD
mode, etc. is selected for searching a title, chapter or track, etc.
1
2
Change select mode (File/Chapter, etc.) or quit numeric
keypad input screen.
Input screen area.
Numeric keypad.
Input number is confirmed.
The numeric keypad input screen closes if the area is
touched while being displayed.
Close numeric keypad input screen.
All input numbers will be deleted.
Touch [Radio].
The screen changes to the Radio mode main display.
Display example for FM Radio main screen
3
10-EN
Touch the desired numeric key.
Display example for numeric keypad (DVD mode)
• The kind of source modes that are displayed varies depending on
connection and setting
2
Touch [10KEY] on the main source screen.
Touch [Enter] to confirm your entry.
Radio
Presetting Stations Manually
1
Display example for FM Radio main screen
2
3
Tune in a desired radio station you wish to store in
the preset memory by manual or automatic seek
tuning.
Touch [P1/2] to change the function guide.
Touch and hold any one of the preset buttons
[P.SET 1] through [P.SET 6] for at least 2 seconds.
The selected station is stored.
4
Repeat the procedure to store up to 5 other stations
onto the same band.
To use this procedure for other bands, simply select the
band desired and repeat the procedure.
A total of 24 stations can be stored in the preset memory (6
stations for each band; FM1, FM2, FM3, or AM).
Displays the preset number/frequency
[DX SEEK]* button: Displays the tuning mode selection
list.
• If a preset memory has already been set in the same preset number, it
will be cleared and the new station will be memorized.
* The button displays the current tuning mode.
Presetting Stations Automatically
Listening to the Radio
The tuner can automatically seek and store 6 strong stations in the
selected band in order of signal strength.
1
Press SOURCE/
.
The SOURCE selection screen is displayed.
2
Touch [Radio].
The radio mode is activated and the display changes to the
Radio Mode screen.
3
Touch [BAND] to select the desired radio band.
Each press changes the bands as follows:
FM-1
4
FM-2
FM-3
AM
The tuner automatically seeks and stores 6 strong stations into
[P.SET 1] to [P.SET 6] in order of signal strength.
When the automatic storing has been completed, the tuner goes
to the station stored in [P.SET 1].
• If no stations are stored, the tuner will return to the original station
you were listening to before the automatic storing procedure began.
FM-1
Tuning to Preset Stations
Touch [DX SEEK] to choose the tuning mode.
DX SEEK
Local SEEK
MANUAL
• There are two modes you can select for auto tuning, DX and Local:
- DX (Distance) mode;
Both strong and weak stations will be tuned in.
- Local mode;
Only strong stations will be tuned in.
The initial setting is DX.
5
After selecting the desired band, touch and hold
[A.MEMO] for at least 2 seconds.
You can tune in the preset stations in memory on each band using the
preset number.
1
2
After selecting the desired band, touch [P1/2] to
change the function guide.
Touch any one of the preset buttons [P.SET 1]
through [P.SET 6] that has a station stored to it.
The preset station is received.
Touch [
], [
] or [
], [
] to change the
radio frequency up or down respectively.
In manual mode, touch and hold to change the frequency
continuously.
11-EN
CD/MP3/WMA/AAC
Display example for MP3/WMA/AAC main screen
Fast forward :
Touch and hold [
].
To pause playback
Touch [ /
Touching [
].
/ ] again will resume playback.
To eject the disc
Press
[ ] button: Refer to page 22
CD:
Displays the Track text*/Disc text*.
• If there is neither Track nor Disc name information, “NO TEXT” will
be displayed.
MP3/WMA/AAC:
After displaying the file name in the upper line, the track
name is displayed if there is ID3 tag information.
After displaying the folder name in the lower line, the album
name/artist name are displayed if there is ID3 tag
information.
CD:
Displays play state/track number/progress bar/elapsed
time/remain time.
MP3/WMA/AAC:
Displays play state/folder number/track number/progress
bar/elapsed playback time/remain time.
* Displayed when a CD text disc is inserted.
.
• If the disc does not eject, press and hold for at least 3 seconds.
• The IVE-W530EBT/IVE-W530ABT/IVE-W530E models include
a built-in MP3/WMA/AAC unit. You can play CD-ROMs, CD-Rs,
and CD-RWs containing MP3/WMA/AAC files on this unit.
Use the format compliant with this unit.
For further information about playing or storing MP3/WMA/AAC
files, refer to pages 13 and 14 before using the unit.
• Any file protected by DRM (Digital Rights Management) copy
protection, cannot be played back on this unit.
• The unit can play discs containing both audio data and MP3/WMA/
AAC data.
• The track display for CD audio data playback is the track numbers
recorded on the disc.
• Three-inch (8cm) CD’s cannot be used.
• If an MP3/WMA/AAC disc with many files and folders is played, it
takes a little longer than normal to start playback.
• Touch [
] to activate the search mode. For operations, refer to
“Search Function” on page 22.
• Touch [10KEY] to activate direct search mode. For operations, refer
to “Numeric Keypad Input Operation” on page 17.
• The playback time may not be correctly displayed when a VBR
(Variable Bit Rate) recorded file is played back.
• If the disc is left in the unit after pressing , the disc is
automatically pulled back into the unit and paused. In this case, start
playback by touching [ / ] or eject again and remove the disc
within 15 seconds.
Repeat Play
Touch [
] to play back repeatedly the track currently
being played.
The track (file) will be played repeatedly.
Touch [
Playback
] again and select OFF to deactivate Repeat play.
CD:
1
Press SOURCE/
.
The SOURCE selection screen is displayed.
2
(off)
(Repeat one)
Touch [Disc].
The display shows the Disc screen.
MP3/WMA/AAC:
1 Touch [P1/2]*1 to change the function guide.
2 Touch [
] and select the desired Repeat play.
When a CD/MP3/WMA/AAC is inserted into the DISC SLOT
of the IVE-W530EBT/IVE-W530ABT/IVE-W530E, with the label
side facing up, the unit starts to play the CD/MP3/WMA/AAC.
3
Touch [
(file).
] or [
] to select the desired track
Returning to the beginning of the current track (file) :
Touch [
].
Fast reverse :
Touch and hold [
].
Advancing to the beginning of the next track (file) :
Touch [
].
12-EN
(Repeat one)
*2
(Repeat folder)
(off)
*1 Display may vary depending on the connected devices.
*2 Only files in a folder are repeatedly played back.
What is WMA?
M.I.X. (Random Play)
Touch [
WMA, or “Windows Media™ Audio,” is compressed audio data.
WMA is similar to MP3 audio data.
] during playback.
The tracks (files) on the disc will be played back in a random
sequence.
To cancel M.I.X. play, touch [
].
What is AAC?
AAC is the abbreviation for “Advanced Audio Coding,” and is a
basic format of audio compression used by MPEG2 or MPEG4.
Method for creating MP3/WMA/AAC files
CD:
(off)
MP3/WMA/AAC:
1 Touch [P1/2]*1 to change the function guide.
2 Touch [
] and select the desired M.I.X. play.
*2
*3
(off)
*2
*1 Display may vary depending on the connected devices.
*2 Only files in a folder are played back in random sequence in the
M.I.X. Folder mode.
*3 All files in a disc are played back in random sequence.
• If the search mode (page 22) is activated, the M.I.X. Play mode will
be cancelled.
Audio data is compressed using software with MP3/WMA/AAC
codecs. For details on creating MP3/WMA/AAC files, refer to the
user’s manual for that software.
MP3/WMA/AAC files that can be played back by this device
have the following file extensions:
MP3: “mp3”
WMA: “wma” (ver. 2, 8, and 9 are supported)
AAC: “m4a”, “mp4”
WMA is not supported for the following files, Windows Media
Audio Professional or Windows Media Audio 9 Pro Lossless.
There are many different versions of the AAC format. Confirm
that the software being used conforms to the acceptable
formats listed above. It’s possible that the format may be
unplayable even though the extension is valid. Playback of AAC
files encoded by iTunes is supported.
Supported playback sampling rates and bit rates
Selecting Folders (concerning MP3/
WMA/AAC)
Touch
MP3
Sampling rates: 48 kHz, 44.1 kHz, 32 kHz, 24 kHz, 22.05 kHz,
16 kHz, 12 kHz, 11.025 kHz, 8 kHz
Bit rates:
32 - 320 kbps
[ ] or [ ] to select the folder.
About MP3/WMA/AAC
WMA
Sampling rates: 48 kHz, 44.1 kHz, 32 kHz
Bit rates:
48 - 320 kbps
AAC
Sampling rates: 48 kHz, 44.1 kHz, 32 kHz
CAUTION
Except for private use, duplicating audio data (including MP3/
WMA/AAC data) or distributing, transferring, or copying it,
whether for free or for a fee, without permission of the copyright
holder is strictly prohibited by the Copyright Act and by
international treaty.
What is MP3?
MP3, whose official name is “MPEG Audio Layer 3,” is a
compression standard prescribed by the ISO, the International
Standardization Organization and MPEG which is a joint activity
institution of the IEC.
MP3 files contain compressed audio data. MP3 encoding is
capable of compressing audio data at extremely high ratios,
reducing the size of music files to as much as one-tenth
their original size. This is achieved while still maintaining
near CD quality. The MP3 format realises such high
compression ratios by eliminating the sounds that are either
inaudible to the human ear or masked by other sounds.
Bit rates:
32 - 192 kbps
This device may not play back correctly depending on sampling
rates.
ID3 tags/WMA tags
This device supports ID3 tag v1 and v2, and WMA tag.
If tag data is in an MP3/WMA/AAC file, this device can display
the title (track title), artist name, and album name ID3 tag/WMA
tag data (maximum 64 characters).
This device can only display single-byte alphanumeric
characters and the underscore. For non-supported characters,
“No Support” is displayed.
The number of characters may be limited, or not correctly
displayed, depending on the tag information.
13-EN
Producing MP3/WMA/AAC discs
MP3/WMA/AAC files are prepared, then written to a CD-R or
CD-RW (DVD-R/DVD-RW) using CD-R writing software. A disc
can hold up to 1,000 files/255 folders (including Root Folders),
and the maximum number of folders is 255.
Playback may not be performed if a disc exceeds the limitations
described above.
Terminology
Bit rate
This is the “sound” compression rate specified for encoding. The
higher the bit rate, the higher the sound quality, but also the larger
the files.
Sampling rate
Media supported
The media that this device can play back are CD-ROMs, CD-Rs,
CD-RWs, DVD-Rs and DVD-RWs.
Corresponding File Systems
This device supports discs formatted with ISO9660 Level 1 or
Level 2.
Under the ISO9660 standard, there are some restrictions to
remember.
The maximum nested folder depth is 8 (including the root
directory). The number of characters for a folder/file name is
limited.
Valid characters for folder/file names are letters A-Z (all caps),
numbers 0-9, and ‘_’ (underscore).
This device also can play back discs in Joliet, etc., and other
standards that conform to ISO9660. However, sometimes the file
names, folder names, etc., are not displayed correctly.
Formats supported
This device can read CD-DA sector from Mixed Mode CD or
Enhanced CD (CD-Extra), (and support CD-ROM XA
(IVE-W530EBT/IVE-W530E only)).
This device cannot correctly play back discs recorded with
Track At Once or packet writing.
Order of files
Files are played back in the order that the writing software writes
them to the disc. Therefore, the playback order may not be
what's expected. Verify the writing order in the software's
documentation. The playback order of the folders and files is as
follows. (The following numbers may differ from actually
displayed numbers.)
Root
Folder
Folder
14-EN
MP3/WMA/AAC File
This value shows how many times per second the data is sampled
(recorded). For example, music CDs use a sampling rate of 44.1 kHz,
so the sound is sampled (recorded) 44,100 times per second. The
higher the sampling rate, the higher the sound quality, but also the
larger the volume of data.
Encoding
Converting music CDs, WAVE (AIFF) files, and other sound files into
the specified audio compression format.
Tag
Song information such as track titles, artist names, album names,
etc., written into MP3/WMA/AAC files.
Root folder
The root folder (or root directory) is found at the top of the file
system. The root folder contains all folders and files. It is created
automatically for all burned discs.
DVD/Video CD
Display example for DVD Video main screen
A
Playing a Disc
IVE-W530EBT/IVE-W530ABT/IVE-W530E has a built-in DVD player.
When an optional Alpine DVD/Video CD/CD player is connected to the
IVE-W530EBT/IVE-W530ABT/IVE-W530E , you can control it from the
IVE-W530EBT/IVE-W530ABT/IVE-W530E (except some operations).
WARNING
It is dangerous for the driver to watch the TV/DVD/
Video while driving the vehicle. The driver may be
distracted from looking ahead and an accident could
occur.
Install the IVE-W530EBT/IVE-W530ABT/IVE-W530E
correctly so that the driver cannot watch TV/DVD/Video
unless the vehicle is stopped and the emergency brake
is applied.
A
[
] button: Changes to Navigation screen.
[ ] button: Displays the SETUP selection screen.
[ ] button: Changes to full screen.
Displays the disc (DVD VIDEO, Video CD
(IVE-W530EBT/IVE-W530E only)) being played back.
Displays tag information for DivX®.
• If [
] on the DivX® mode screen is touched, the search list screen
is displayed. Refer to “Search Function” (page 22).
• Some operations cannot be carried out depending on the disc or
playback screen.
• Displays of the function guide [P1/2], etc., may vary depending on
the connected device(s).
Disc types that can be used for each heading are
represented by the following marks.
DVD Commercial Video discs (used for the
distribution of movies, etc.) or a DVD-R/DVDRW, DVD+R/DVD+RW recorded in a video
mode can be used.
Video-CD discs can be used.
(IVE-W530EBT/IVE-W530E only)
CD-R/CD-RW/DVD-R/DVD-RW/DVD+R/
DVD+RW discs and Flash memory that are
recorded in the DivX® mode can be used.
If the IVE-W530EBT/IVE-W530ABT/IVE-W530E is not
installed correctly, the driver will be able to watch the
TV/DVD/Video while driving the vehicle and may be
distracted from looking ahead causing an accident.
The driver or other people could be severely injured.
To display the DVD mode screen
(
IVE-W530EBT/IVE-W530E only)
• If you try to activate the auxiliary device while driving, the display
will show the warning-Picture off for your safety.
Caution
• Not all functions will operate for every DVD. See the
individual DVD’s instructions for details on the
features supported.
• Fingerprints on a disc may adversely affect
playback. If a problem occurs, remove the disc and
check for fingerprints on the playback side. Clean
the disc if necessary.
• If you switch the power or Ignition Key OFF or
change sources during playback, playback will
continue where you left off when you resume
playback.
• If you try to perform an invalid operation (based on
the type of disc being played), the following mark is
displayed on the monitor screen:
• Play Position Memory Function
Even if you turn power off or switch the Ignition Key
to OFF during playback or change the source,
playback will continue from the point where
playback stopped when the power is turned ON
again.
15-EN
1
Press SOURCE/
.
The SOURCE selection screen is displayed.
2
2 Touch [Key].
The menu operation mode will be displayed.
Touch [Disc]*.
The display shows the DISC mode screen.
Insert a disc with the label side facing up. The unit starts to
play the disc.
When an optical Alpine DVD player is connected, insert a
disc into the DVD/Video CD/CD player, and the player starts
playing.
* When you want to play a DivX file from a USB device, touch [USB].
• The operation screen changes to the visual screen in the DVD mode
for 5 seconds after an operation has been performed. Touch the
display panel to display the operation screen again.
• The display mode can be changed by touching [WIDE].
For operation, see “Switching Display Modes” on page 23.
Touch [
] to return to the previous display.
(Operation may not be possible, depending on the disc.)
To eject the disc
3 Select a desired menu item by touching [ ], [
4 Touch [Enter] to confirm the selected item.
Press
Numeric Keypad Input Operations
.
• The reverse side of a double-sided DVD will not be played
automatically.
Remove the disc, turn it over, and reinsert it.
• If the disc does not eject, press and hold for at least 3 seconds.
• Do not insert discs containing maps for the navigation system. Doing
so could result in damage.
• Be sure that the remote input lead is connected to the remote output
lead of this unit when a DVD player is connected. If not correctly
connected, touching operation cannot be performed.
• Refer also to “DVD Setup” (pages 24 to 25).
• During V CD play, touch [TOP MENU] to return to preview screen.
(IVE-W530EBT/IVE-W530E only)
• If the disc is left in the unit after pressing , the disc is
automatically pulled back into the unit and stopped. In this case,
start playback by touching [ / ] or eject again and remove the
disc within 15 seconds.
• While “Index reading” is displayed by DivX®, the fast-forwarding/
fast-reversing and repeat functions, etc. cannot be used.
], [
] or [
].
1 Touch screen to display the operation keys.
2 Touch [Key].
The menu operation mode appears.
3 Touch [Key] again.
The numeric keypad input mode screen appears.
If a menu screen appears
On DVDs, menu screens may appear automatically. If this happens,
perform the operation described below to start playback.
Direct Menu Operations
1 Touch the DVD menu directly.
• Some operations cannot be performed depending on the disc.
Menu Operations
1 Touch screen to display the operation keys.
The numeric keypad input screen closes when
the area is touched while being displayed.
Touch [
] to close the
numeric keypad input screen.
4 Touch a desired number.
5 Touch [Enter] on the numeric keypad mode screen to confirm
your selection.
16-EN
Numeric Keypad Input Operations
(IVE-W530EBT/IVE-W530E only)
1 Touch [P1/2] in the Video CD mode to change to the function
guide.
2 Touch [10KEY].
The numeric keypad is displayed.
3 Touch and input a desired number.
4 Touch [Enter] to confirm.
• Depending on the V CD disc, this function may not available.
Displaying the Top Menu Screen
When a DVD contains two or more titles, the top menu screen appears.
Numeric Keypad Input Operation
You can quickly find the desired track/file or folder by inputting its’
track/file or folder Number in this mode.
Select a Track/File/Chapter
1
* The display differs, depending on the source (mode).
2
• To perform necessary operations, see “If a menu screen appears” on
page 16.
Touch [10KEY].
The numeric keypad is displayed.
Touch [TOP MENU] on the DVD mode main screen.
The top menu screen appears.
Touch [P1/2]* in the CD/MP3/WMA/AAC/DVD (except
stop) mode to change to the function guide.
3
4
Touch and input a desired number.
Touch [Enter] to confirm.
The selected Track/File/Chapter is selected.
Displaying the Menu Screen
With a DVD having two or more menus, a menu screen will appear for
the programmes available, in addition to the main programmes.
• For CD, during Track select mode, touch [ ], etc. to quit.
• For MP3/WMA/AAC/DVD, during File/Chapter select mode, touch
[ ] again to change to Folder/Title select mode.
Select a Folder/Title
Touch [MENU] on the DVD mode main screen.
The menu screen appears.
• To perform necessary operations, see “If a menu screen appears” on
page 16.
1
Touch [P1/2]* in the MP3/WMA/AAC/DVD stop mode
to change to the function guide.
* The display differs, depending on the source (mode).
Displaying the Menu Operation Mode
Screen
1
Touch [P1/2]* on the DVD mode main screen.
The function guide changes.
* The display differs, depending on the disc (mode).
2
2
The numeric keypad is displayed.
3
4
• For further operation, see “If a menu screen appears” on page 16.
Touch and input a desired number.
Touch [Enter] to confirm.
The first file/chapter in the selected Folder/Title begins to
play back.
Touch [MENU CONT].
The menu operation mode screen appears.
Touch [10KEY].
• During File/Chapter select mode, touch [ ] again to change to
Folder/Title select mode.
• During Folder/Title select mode, touch [ ], etc. to quit.
Stopping Playback (Pre Stop)
(
IVE-W530EBT/IVE-W530E only)
Press the stop button during playback to stop playback. That position is
stored in the memory.
1
Touch [ ] once during playback.
“Pre Stop” is displayed.
2
Touch [
/
] in the Pre Stop mode.
Playback starts from the position at which it was stopped.
• For some discs, the position at which playback was stopped may not
be accurate.
17-EN
Stopping Playback
(
IVE-W530EBT/IVE-W530E only)
“Stop” is displayed, and playback stops.
/
] is touched while
2
Fast-forwarding/Fast-reversing
(
IVE-W530EBT/IVE-W530E only)
During playback, touch and hold [
reverse) or [
] (fast-forward).
] (Fast-
When touched and held for more than 0.5 second, the disc
is forwarded/reversed at double speed. When held for 5
more seconds or longer, the disc is forwarded/reversed at
10 times the normal speed. When held for 10 seconds or
longer, the disc is forwarded/reversed at 20 times the
normal speed.
2
Stop touching [
playback.
IVE-W530EBT/IVE-W530E only)
When [
] is touched and held while in the pause
mode, the 1/3th speed slow motion playback mode is
set.
Stop touching [
play back.
] to pause, and touch [
/
] to
• No sound is played during slow motion playback.
Selecting Folders
DVD-Video, DivX®:
1
(
1
Touch [ ] twice during playback.
• Playback starts from the beginning when [
playback is stopped.
Slow Motion Playback
] or [
] to return to normal
Touch
[
IVE-W530EBT/IVE-W530E only)
Use this function to play the disc’s chapters, tracks, etc. repeatedly.
DVD Video
1
Touch [
During playback, touch [
] or [
].
The chapter/track/file switches each time the button is touched,
and playback of the selected chapter/track/file starts.
].
The repeat mode switches every time the button is touched.
The chapter is played repeatedly.
The playback returns to normal mode.
Finding the Beginnings of Chapters/Files
IVE-W530EBT/IVE-W530E only)
] to select the folder.
Repeat Playback
(
• No sound is played during fast-forwarding/fast-reversing.
• For DVDs, the menu screen may reappear during fast-forwarding/
fast-reversing.
• Operation may not be possible, depending on the disc.
(
] or [
• Display may vary depending on the connected devices.
Video CD (IVE-W530EBT/IVE-W530E only)
1
During playback, touch [
].
The repeat mode switches every time the button is touched.
:Touch this to start playback from the beginning of the
following chapter, track or file.
:Touch this to start playback from the beginning of the
current chapter, track or file.
The track is played repeatedly.
Playback does not repeat.
• Some DVDs do not have chapters.
Supplementary explanation
“Chapters” are divisions of movies or musical selections on
DVDs.
“Tracks” are divisions of movies or musical selections on
Video CD and music CDs.
• Display may vary depending on the connected devices.
• The track/disc repeat modes cannot be used on Video CDs with
playback control (PBC).
• For some discs it is not possible to switch the repeat mode.
DivX®
1
Playing Still Frames (Pausing)
(
1
2
IVE-W530EBT/IVE-W530E only)
Touch [
] after touching [P1/2]*.
The repeat mode switches every time the button is touched.
* Touch [P1/3] while playing a DivX from USB Flash Memory.
The file is played repeatedly.
During playback, touch [
/
].
The folder is played repeatedly.
Touch [
/
] to resume playback.
• No sound is played during the still frame mode.
• The image or sound may stop temporarily when playback starts from
the pause mode. This is not a malfunction.
18-EN
The disc is played repeatedly.
Searching by Title/Folder Number
Use this function to easily find positions on the DVD using the DVD’s
titles.
1
Enter a desired title by touching its title number.
See page 16 for operation of the numeric keypad.
• This function cannot be used on discs on which no title numbers are
recorded.
• Playback starts from the beginning of the chapter/track number in the
state of Pre Stop.
• Some disc may not accept any operation.
Searching Directly by Chapter, File
Number
Use this function to easily move to the beginnings of the chapters or
files on the disc.
Touch [P1/2]*1/*2 in any mode other than stop mode.
The function guide will appear.
*1 The display differs, depending on the disc (mode).
*2 Touch [P1/3] while playing a DivX from USB Flash Memory.
2
Touch [10KEY].
The numeric keypad input mode screen will appear.
3
Touch and enter the chapter or track number you
want to play.
See page 16 for operation of the numeric keypad.
4
The function guide changes.
2
Touch [ANGLE].
The angle switches between the angles recorded on the
disc every time the button is touched.
•
•
-
Some time may be required for the angle to change.
Depending on the disc, the angle may switch in one of two ways.
Seamless: The angle switches smoothly.
Non-seamless: When the angle is switched, a still picture is displayed
first, after which the angle switches.
Confirm your selection by touching [Enter].
Playback will start from the title number selected.
1
During playback, touch [P1/2]*.
* The display differs, depending on the disc (mode).
Touch [10KEY].
The numeric keypad input mode screen appears.
4
1
Touch [P1/2]* * while playback is stopped.
The function guide appears.
3
On DVDs in which scenes have been filmed from multiple angles, the
angle can be switched during playback.
1/ 2
*1 The display differs, depending on the disc (mode).
*2 Touch [P1/3] while playing a DivX from USB Flash Memory.
2
Switching the Angle
Touch [Enter] to confirm your selection.
Playback will start from the selected chapter or track.
• This function is not available for a disc on which chapters or tracks
are not stored.
Switching the Audio Tracks
(
IVE-W530EBT/IVE-W530E only)
DVDs with multiplex audio or audio languages allow switching the
sound during playback.
1
During playback, touch [P1/2]*1/*2.
*1 The display differs, depending on the disc (mode).
*2 Touch [P2/3] while playing a DivX from USB Flash Memory.
2
Touch [AUDIO].
The sound switches between the alternate audio tracks
recorded on the disc every time the button is touched.
• The alternate track selected becomes the default setting every time
the power is turned on or the disc is replaced. If the disc does not
include that track, the disc’s default language is selected instead.
• Not all discs will allow changing the alternate audio tracks during
playback. In these cases, select audio tracks from the DVDs menu.
• There may be a delay before the selected alternate track begins to
play.
Video CDs (IVE-W530EBT/IVE-W530E only)
1
During playback, touch [P1/2].
The function guide changes.
2
Touch [AUDIO].
The left and right channels will be output as shown, each
time the button is touched.
Audio LR
Audio LL
Audio RR
Audio LR
19-EN
Switching the Subtitles (Subtitle
Language)
With DVDs on which multiple subtitle languages are recorded, the
subtitle language can be switched during playback; moreover, subtitles
can be hidden.
1
During playback, touch [P1/2]*1/*2.
The function guide changes.
*1 The display differs, depending on the disc (mode).
*2 Touch [P2/3] while playing a DivX from USB Flash Memory.
2
Touch [SUBT.].
Touching this button repeatedly selects sequentially the
subtitle languages recorded on the disc, and then turns the
subtitles OFF.
• There may be a delay before the selected subtitle appears.
• Not all discs will allow changing the subtitles during playback. In
these cases, select subtitles from the DVDs menu.
• The subtitle language selected becomes the default setting every time
the power is turned on or the disc is replaced. If the disc does not
include that language, the disc’s default language is selected instead.
However, the subtitle language may differ depending on the disc.
• For some discs, the subtitles will be displayed even when this is set to
OFF. However, the subtitle language may differ depending on the
disc.
Switching from the disc menu
For some discs, the audio language, angle and subtitles can be switched
from the disc menu.
1
2
Touch [MENU] or [TOP MENU] to display the
menu.
Select an item to confirm it.
See “If a menu screen appears” on page 16.
20-EN
About DivX
DivX® is a codec (software) programme to compress moving images
while maintaining image quality using a highly advanced encoding.
• Official DivX® Certified product
• Plays all versions of DivX® video (including DivX® 5) with
standard playback of DivX® media files
• DivX®, DivX Certified® and associated logos are trademarks of
Rovi Corporation or its subsidiaries and are used under license.
DivX Certified® to play DivX® video, including premium
content.
The unit can play back CD-R/CD-RW/DVD-R/DVD-RW/DVD+R/
DVD+RW discs and USB Flash Memory that are recorded in the
DivX® mode with extension “avi”, “divx” or “div”.
The optimum size for DivX® disc playback is as follows:
Screen Size:
32 to 720 pixel (horizontal) × 32 to 576 pixel
(vertical)
With an aspect ratio other than 16:9, black bars may be
displayed on the left and right sides, or at the top and bottom of
the screen.
Image bit rate:
“Peak 8 Mbps” Home Theatre Profile
supported
The following audio recording systems are supported.
MPEG1 Layer III
32 to 320 kbps
MPEG2 Layer III
8 to 160 kbps
MPEG2.5 Layer III 8 to 160 kbps
ABOUT DIVX VIDEO:
DivX® is a digital video format created by DivX, LLC, a
subsidiary of Rovi Corporation. This is an official DivX Certified®
device that plays DivX video. Visit divx.com for more information
and software tools to convert your files into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND:
This DivX Certified® device must be registered in order to play
purchased DivX Video-on-Demand (VOD) movies. To obtain
your registration code, locate the DivX VOD section in your
device setup menu. Go to vod.divx.com for more information on
how to complete your registration.
Other Useful
Features
Setting the Treble Control
You can change the Treble Frequency emphasis to create your
own tonal preference.
Touch the title bar of Treble to display the Treble adjusting
screen.
• Adjustment cannot be performed when Defeat is set to ON.
Setting the Treble level
Adjusting the Audio
1
Touch [
].
The SETUP selection screen is displayed.
2
You can emphasise the treble frequency.
Touch [ ] or [ ] of Level to select the desired treble level.
Touch the title bar of Audio Setup.
The display changes to the AUDIO setup screen.
Display Example for Audio Adjustment Screen
Setting range: -7 to +7
• You can adjust this setting by pressing and holding Rotary encoder
(AUDIO) directly.
Setting the Treble Centre Frequency
The displayed treble frequency is emphasised.
Touch [ ] or [ ] of Freq. to select the desired treble centre
frequency.
Setting range:10 kHz, 12.5 kHz, 15 kHz, 17.5 kHz
• The treble level settings will be individually memorized for each
source (FM, AM, CD, etc.) until the setting is changed. The Treble
frequency settings adjusted for one source are effective for all other
sources (FM, AM, CD, etc.).
• The function is inoperable when Defeat is set to ON.
Adjusting Balance/Fader
•
•
•
•
Touching [
] will return to the previous display.
Scroll the list one line at a time by touching [ ] or [ ].
Scroll the list one page at a time by touching [ ] or [ ].
Touching [Exit] will change to the main source screen.
Touch the title bar of Balance/Fader.
The display changes to the Balance/Fader adjusting screen.
Display Example for Balance/Fader Screen
Setting the Bass Control
You can change the Bass Frequency emphasis to create your
own tonal preference. Touch the title bar of Bass to display the
Bass adjusting screen.
• Adjustment cannot be performed when Defeat is set to ON.
Setting the Bass level
You can emphasise or weaken the bass frequency.
Touch [ ] or [ ] of Level to select the desired bass level.
Setting range: -7 to +7
• You can adjust this setting by pressing and holding Rotary encoder
(AUDIO) directly.
Setting the Bass Centre Frequency
The displayed bass frequency is emphasised.
Touch [ ] or [ ] of Freq. to select the desired bass centre
frequency.
Setting range: 60 Hz, 80 Hz, 100 Hz, 200 Hz
Setting the Bass Bandwidth
Changes the boosted bass bandwidth to wide or narrow.
A wider setting will boost a wide range of frequencies above and
below the centre frequency. A narrower setting will boost only
frequencies near the centre frequency.
Touch [ ] or [ ] of Q to select the desired bass band width.
Setting range: 1, 1.25, 1.5, 2
• The bass level settings will be individually memorized for each
source (FM, AM, CD, etc.) until the setting is changed. The bass
frequency and bass band width settings adjusted for one source are
effective for all other sources (FM, AM, CD, etc.).
• The function is inoperable when Defeat is set to ON.
A
Adjusting the Fader
Touch [F] or [R] to adjust the volume of the front and
rear speakers.
Setting range: F15 to R15
B
Adjusting the Balance
Touch [L] or [R] to adjust the sound volume of the left
and right speakers.
Setting range: L15 to R15
C
Adjusting the Balance/Fader Directly
Touch and move [
] to a desired setting.
Or touch a desired setting range, and [ ] will move to that
location.
Touch [L] or [R] of Balance and [F] or [R] of Fader for fine-tuning.
Subwoofer On and Off
Touch [
] or [
OFF:
ON:
] of Subwoofer to set to ON or OFF.
Subwoofer output is off.
Subwoofer output is on.
21-EN
Adjusting the Subwoofer Level
Display Example for Search Screen
When ON is set in “Subwoofer On and Off ”, the item can be
adjusted.
1 Touch the title bar of Subwoofer.
The display changes to the Subwoofer Adjusting screen.
2 Touch [
] or [
] of Level to adjust the subwoofer output.
Setting range: 0 to 15
• You can adjust this setting by pressing and holding Rotary encoder
(AUDIO) directly.
Setting the Subwoofer System
When ON is set in “Subwoofer On and Off”, the item can be
adjusted.
1 Touch the title bar of Subwoofer.
The display changes to the Subwoofer Adjusting screen.
2 Touch [ ] or [ ] of System to select to System 1 or System 2.
Select directly by touching [
], and its track (or
folder/file) is played back.
is displayed if there is a hierarchical list.
Scroll the list one line at a time by touching [ ] or [ ].
Scroll the list one page at a time by touching [ ] or [ ].
Touch [
] to return to the previous list screen.
Touching [Exit] will turn off the search screen, and return
to previous main screen.
System 1: Subwoofer level changes according to the main
volume setting.
System 2: Subwoofer level change is different from the main
volume setting. For example, even at low volume
settings, the subwoofer is still audible.
Adjusting Nav. Mix Level
Touch [ ] or [ ] of Nav. Mix Level to adjust the volume of
navigation interruption.
Setting range: 0 to 15
• This adjustment becomes available when Nav. Mix is turned ON in
“Setting the Navigation Interruption” (page 31).
Adjusting Highpass Filter
When Defeat is set to OFF, touch the title bar of H.P.F. to adjust
screen.
Touch [ ] or [ ] of Front H.P.F. to adjust the front speaker.
Setting range: OFF, 60 Hz, 80 Hz, 100 Hz
Touch [
] or [
] of Rear H.P.F. to adjust the rear speaker.
Setting range: OFF, 60 Hz, 80 Hz, 100 Hz
Internal CD player mode
1 The track list* screen appears.
* If the CD is text compatible only.
2 Touch [
] of a desired track text*.
The selected track will be played back.
• “TRACK” is displayed in the track text list if there is no text on the
disc.
Internal MP3/WMA/AAC/DivX® Player mode
1 The folder list screen appears.
Select a desired folder and then touch the title bar.
(
appears only when a file is present in the selected
folder.)
The file list screen is displayed.
• Select OFF when no adjustment is required.
• Touch [
Turning Defeat ON or OFF
2 Touch [
] of a desired file name.
The selected file will be played back.
Touch [
] or [
] of Defeat to set to ON or OFF.
] to play back the folder directly.
Search Function
Rear Selection Function
1
The rear entertainment function independently routes different sources
to the front and the rear inside a car. For example, while listening to the
radio or other audio source in the front, DVD can be enjoyed in the rear
with the optional rear monitor and headphones.
Touch [ ] on the function guide while in the CD or
MP3/WMA/AAC or DivX® mode.
The search list screen is displayed.
Select a desired track or folder
Touch [
] for direct playback.
When a hierarchical list is prepared,
will be displayed.
Touch the title bar to display the respective hierarchy list
screens.
1
Press SOURCE/
.
The SOURCE selection screen is displayed.
2
Touch [Rear].
Rear Select display appears.
• This function cannot be used when “Setting the Picture/Sound
Output” (page 32) is set to OFF in the System Setup.
• If [Main] on the Rear Select screen is touched, the screen changes to
the main source screen.
22-EN
3
Touch the desired source such as visual (auxiliary
input, built-in DVD, etc.) to select.
• Touch [Off] to cancel the rear entertainment function.
• When the AUX1 IN is set to OFF and AUX2 IN is set to iPod Video,
the AUX source is not displayed. Refer to “Setting the AUX Mode”
(page 32).
• Some sources such as DVB-T (TUE-T250DV), etc. can be displayed
on the rear monitor only when they are the same as the main source.
Switching the Visual Source Only
(Simultaneous Function)
You can watch the video portion of another source while listening to the
current source.
1
Touch [V.Sel].
The VISUAL selection screen appears.
2
Switching Display Modes
Touch desired visual source.
The visual source is switched to the selected one.
While your vehicle is parked, touch [WIDE] on the visual
source screen.
Each touch changes the display modes as follows:
Mode 1
(WIDE)
Mode 2
(CINEMA)
Mode 3
(NORMAL)
Mode 1
(WIDE)
Cancelling the Simultaneous Function
1
2
Touch [V.Sel].
Touch [Normal].
The simultaneous function is cancelled.
In Mode 1 (Wide), the monitor displays a normal picture wider to
fit in a wide-screen monitor by evenly stretching out the picture
horizontally.
• To apply the setting, set to V.Sel in “Setting the VISUAL Button”
(page 27).
• The simultaneous function cannot be used when the Audio source is
in the navigation mode.
When Navi is set in “Setting the VISUAL Button” (page 27), only the
navigation screen can be recalled.
• When the AUX1 IN is set to OFF and AUX2 IN is set to iPod Video,
the AUX source is not displayed. Refer to “Setting the AUX Mode”
(page 32).
Blackout Mode On and Off
When Blackout mode is turned on, the monitor display will turn off to
reduce power consumption.
This additional power enhances the sound quality.
In Mode 2 (Cinema), the monitor displays a normal picture by
stretching out the picture horizontally and vertically. This mode is
good for displaying a cinema type picture at the 16 : 9 ratio.
1
Touch [V.Sel].
The VISUAL selection screen is displayed.
2
Touch [Off].
The backlit-display portion goes out.
3
In Mode 3 (Normal), the monitor displays a normal picture at the
centre of the screen with a vertical black band at each side.
Touch [Off] again to cancel the display backlight.
• To apply the setting, set to V.Sel in “Setting the VISUAL Button”
(page 27).
• If any button on the unit is pressed or main screen is touched during
Blackout mode, the function will be displayed for 5 seconds. This
confirms the operation as well as allowing for additional functions
before returning to Blackout mode.
23-EN
Setup
DVD Setup
DVD Setup Operation
The Parking Brake must be engaged to access the DVD
mode screen. Attempting to access this screen while driving
will display the warning-Can’t operate while driving.
The following steps 1 to 5 are common operations to each
“Setting item” of DVD Setup. Refer to each section for details.
1
2
] on the main screen.
Setting of the Menu Language
Setting item: Menu Language
Setting contents: Auto / EN / JP / DE / ES / FR / IT / SE / RU / CN
Touch the title bar of Source Setup.
• When “Auto” is selected, the primary menu language among the
recorded ones is played.
Touch the title bar of DVD Setup.
Touch [ ] or [ ], etc., of the desired item to change
its setting.
Setting items:
Menu Language / Audio Language / SUBT. Language /
Downmix Mode / TV Screen / DOLBY / DivX Info
Display example for DVD setup screen
Touch [Code] to display the numeric keypad input
screen.
Touch [ ] or [ ] to set a desired language/item.
Touch [ ] or [ ] to scroll a setting item list by one Line.
Touch [ ] or [ ] to scroll a setting item list by one page.
5
• When the settings are changed, the old settings are overwritten.
Make a note of the current settings before making changes. The
settings are cleared when the vehicle’s battery is disconnected.
• To temporarily change the language of the current disc, either do so
from the DVD menu or by using the operation described in the
section “Switching the Audio Tracks” (page 19).
• If the disc does not include the selected language, the disc’s default
language is set.
The SETUP selection screen is displayed.
The DVD setup screen appears.
4
The audio language, subtitle language and menu language can be set
according to your preferences.
Once set, this becomes the default language. This function is convenient
when you always want to listen in English. (The language setting is not
effective on some discs. If not, the default language is set from the
factory.)
Set the language used for the menus (title menu, etc.).
Touch [
The SOURCE SETUP screen appears.
3
Changing the language setting
Touch [
] to return to the previous screen.
• Touching [Exit] will turn off the DVD Setup screen, and return to
previous main screen.
• Immediately after changing the settings of DVD mode (while the
system is writing data automatically) do not turn the ignition key
(engine key) to OFF.
Otherwise, the settings may not be changed.
• Depending on the DVD, the setting is effective after the disc has been
ejected and reinserted.
24-EN
Setting of the Audio Language
Set the audio language produced from the speakers.
Setting item: Audio Language
Setting contents: Auto / EN / JP / DE / ES / FR / IT / SE / RU / CN
• When “Auto” is selected, the primary audio language among the
recorded ones is played.
Setting of the Subtitle Language
Set the language of the subtitles displayed on the screen.
Setting item: SUBT. Language
Setting contents: Auto / EN / JP / DE / ES / FR / IT / SE / RU / CN
4:3 PAN-SCAN:
Select this when connected to a conventional 4:3 size monitor.
The picture will fill the entire TV screen. However, due to the
mismatch in aspect ratio, parts of the movie at the extreme left
and right sides will not be visible (when playing a 16 : 9 size
movie).
• When “Auto” is selected, the primary subtitle language among the
recorded ones is played.
To play in a language other than those displayed
1 Touch [Code].
The numeric keypad screen is displayed.
2 Touch the 4-digit numeral of the language number.
As for the language number, refer to “List of Language
Codes” (page 45).
3 Touch [Enter] to memorize the number.
Setting the Downmix Mode
16:9 WIDE:
Select this when connected to a wide screen TV. This is the
factory setting.
This function applies to Dolby Digital sound.
Setting item: Downmix Mode
Setting contents: Surround / Stereo
Surround:
Stereo:
Surround compatible Downmix
Stereo Downmix
Setting the TV Screen
Use the procedure described below to modify the output screen
according to the type of TV monitor (rear monitor) being used.
This setting can also be applied for the IVE-W530EBT/IVE-W530ABT/
IVE-W530E.If the rear monitor is not connected,
the screen setting is 16:9.
Setting item: TV Screen
Setting contents: 4:3 LB / 4:3 PS / 16:9
• For some discs, the picture may not be set to the selected screen size.
(For details, refer to the explanation on the disc’s jacket.)
4:3 LETTER BOX:
Select this when connected to a conventional 4:3 size (normal
TV aspect ratio) monitor. There may be black stripes visible at
the top and bottom of the screen (when playing a 16 : 9 size
movie). The width of these stripes will depend upon the original
aspect ratio of the theatrical release of the movie.
Setting the DOLBY Dynamic Range
The DOLBY Dynamic Range can be chosen.
Setting item: DOLBY
Setting contents: RF / Line / OFF
Displaying DivX® Disc Information
Setting item: DivX Info.
If the title bar of DivX Info. is touched, a DivX® file registered
code or deactivate code is displayed.
• During DISC/USB/iPod playing mode, the above information will not
be displayed.
25-EN
Source Setup
Display Setup
Source Setup Operation
Display Setup Operation
The Parking Brake must be engaged to access the Source
mode screen. Attempting to access this screen while driving
will display the warning-Can’t operate while driving.
The Parking Brake must be engaged to access the Display mode
screen. Attempting to access this screen while driving will display
the warning-Can’t operate while driving.
The following steps 1 to 5 are common operations to each
“Setting item” of Radio Setup. Refer to each section for details.
The following steps 1 to 4 are common operations to each
“Setting item” of Display Setup. Refer to each section for
details.
1
Touch [
] on the main screen.
The SETUP selection screen is displayed.
2
DVD Setup*1/Radio Setup/BLUETOOTH Setup*2
is set to other than “OFF”
(page 32). (IVE-W530EBT/IVE-W530ABT only)
4
Touch [ ], [ ] or the title bar, etc. of the desired
item to change its setting.
Radio Setup:
FM Level
BLUETOOTH Setup: (IVE-W530EBT/IVE-W530ABT only)
Paired Devices / Device Search / Clear Device / Service Provider /
Visible Mode / Auto Answer / Speaker Select / MIC Input /
Firmware Version / Firmware Update / BT Menu Language /
Shortcut Memory
• For BLUETOOTH Setup details, refer to “BLUETOOTH Setup”
(page 33).
5
2
Touch [
] to return to the previous screen.
Radio Setup
“Radio Setup” is selected on the source setup main menu in step 3.
Adjusting Source Signal Levels
If the difference in volume level between the CD and FM radio is
too great, adjust the FM signal level as follows.
Setting item: FM Level
Setting content: Low / High
] on the main screen.
Touch the title bar of Display Setup.
The Display Setup screen appears.
Touch the title bar of your desired Setup mode.
*1 Refer to “DVD Setup” on page 24.
*2 Displayed when “BLUETOOTH IN”
Touch [
The SETUP selection screen is displayed.
Touch the title bar of Source Setup.
The SOURCE SETUP screen appears.
3
1
3
Touch [ ] or [ ] etc., of the desired item to change
its setting.
Setting items:
Visual EQ*1 / Dimmer / Screen Dimmer Level*2 / Function Guide
Fade / Base Color / Screen Alignment / Visual Key
*1 For details, refer to “Visual EQ Setting Operation” on page 27.
*2 Not displayed when “Dimmer” is set to “OFF”.
4
Touch [
] to return to the previous screen.
• Touching [Exit] will turn off the Display Setup screen, and return to
previous main screen.
• Immediately after changing the settings of Display Mode (While the
system is writing data automatically) do not turn the ignition key
(engine key) to OFF.
Otherwise, the settings may not be changed.
Setting the Brightness of the Backlighting
Backlighting is provided by a fluorescent light built into the liquid
crystal panel. The illumination control adjusts the brightness of the
backlighting based on the car ambient lighting for easier viewing.
Setting item: Dimmer
Setting content: Auto / ON / OFF
Auto:
ON:
OFF:
Adjust the brightness of the background illumination of
the monitor automatically to the brightness of the car
interior.
Keep the background illumination of the monitor dark.
Deactivate Auto Dimmer mode to keep the background
illumination of the monitor bright.
• When ON or Auto is set, the setting is also applied for the button
lighting in “Adjusting the Dimmer of Button Lighting at Night”
(page 30).
26-EN
Adjusting the Minimum Level of Backlight
You can adjust the brightness of the backlight (LOW). This function
could be used, for instance, to change the screen brightness while
travelling at night.
Visual EQ™
Visual EQ Setting Operation
Setting item: Screen Dimmer Level
Setting content: –15 to +15
You can adjust the level between MIN (-15) and MAX (+15).
When it reaches the minimum or maximum point, the display
shows “MIN” or “MAX” respectively.
Turn the Function Guide ON/OFF
(Function Guide Fade)
By setting to ON, the function guide will be hidden if no operation is
performed for 5 seconds in Radio source, USB source, etc. To display
the function guide, touch the screen slightly.
Setting item: Function Guide Fade
Setting contents: OFF/ON
• In DVD play mode, the function guide will be hidden if there is no
operation for 5 seconds even if you set OFF.
Switching the Font Background Colour
You can choose from 4 different colours for the font background.
Setting item: Base Color
Setting contents: Blue/Red/Green/Amber
Adjusting the Touch Panel
The following steps 1 to 4 are common operations to each
“Setting item” of Visual EQ setting. Refer to each section for
details
1
After steps 1 and 2 in “Display Setup Operation”
(page 26) have been performed, touch the title bar of
Visual EQ.
Visual EQ screen appears.
2
Select a desired setting item by touching [ ] or [ ].
Setting items:
Visual EQ*
Bright
Color*
Sharp*
User Memory*
Tint*
Contrast
* The setting is available in the visual source mode (except navigation
screen).
3
4
Change the setting on the selected item by touching
its [ ] or [ ].
Touch [
] to return to the previous screen.
• Touching [Exit] will turn off the Display Setup screen, and return to
previous main screen.
• Only one setting item can be displayed on each page, you can select
the desired brightness, picture tint, etc. through the screen shown.
Adjustment becomes necessary when the display position on the LCD
and the touch position on the touch panel do not match.
Setting item: Screen Alignment
Setting content:
/ Reset
1 Touch the title bar of Screen Alignment.
The adjustment screen appears.
2 Accurately touch the
mark provided in the lower left
corner of the screen.
The screen changes to the adjustment screen.
3 Accurately touch the
mark provided in the upper right
corner of the screen.
This completes adjustment, and returns to the Display
Setup mode screen.
• If you have touched a location other than the
mark, touch [Reset]
to restore the adjustment screen to the initial setting.
• If you touch [
] on the adjustment screen, no adjustment is done
and the Display Setup screen is restored.
Setting the VISUAL Button
Setting item: Visual Key
Setting content: Navi / V.Sel
Navi:
V.Sel:
When Navi is set, [
] will appear on the upper
right screen. Touch [
] to switch to the navigation
screen directly. (Only when an Alpine optional RGB
Navigation is connected.)
When V.Sel is set, [V.Sel] will appear on the upper right
screen. Recalls the VISUAL selection screen by
touching [V.Sel] on the main source screen.
27-EN
Selecting the Visual EQ Mode (Factory’s
setting)
You can select a mode suitable for the subject image.
Setting item: Visual EQ
Setting contents: OFF (FLAT) / Night M. / Soft / Sharp / Contrast /
P-1 / P-2
OFF (FLAT): Initial Setting
Night M.:
Suitable for movies in which dark scenes
frequently appear.
Soft:
Suitable for CGs and animated films.
Sharp:
Suitable for old movies where images are not
clearly shown.
Contrast:
Suitable for recent movies.
P-1:
Recalls the Visual EQ mode being stored on
preset No.P-1 from “Storing Visual EQ” (page 28).
P-2:
Recalls the Visual EQ mode being saved on
preset No.P-2 from “Storing Visual EQ” (page 28).
• To return to the initial setting, after selecting any one of the setting
contents (Night M. to Contrast) and adjusting a desired brightness,
picture tint, etc., set this function to OFF.
• If your desired brightness, picture tint, etc., are adjusted after
selecting any one of the setting contents (Night M. to Contrast),
“Custom” is displayed.
Adjusting Brightness
Setting item: Bright
Setting content: –15 ~ +15
You can adjust the brightness between MIN (–15) and MAX
(+15). When it reaches the minimum or maximum point, the
display shows “MIN” or “MAX” respectively.
• When any Visual EQ Preset is selected, the brightness is
automatically adjusted according to the car’s interior lighting as
long as Auto is set in “Setting the Brightness of the Backlighting”
(page 26).
Adjusting Colour of Picture
Setting item: Color
Setting content: -15 ~ +15
You can adjust the colour between MIN (–15) and MAX (+15).
When it reaches the minimum or maximum point, the display
shows “MIN” or “MAX” respectively.
• Colour adjustment can be made only in the iPod video, DVD, Video
CD, USB Video, AUX modes.
• Colour adjustment cannot be made if a Navigation system with the
RGB feature is connected.
28-EN
Adjusting Tint of Picture
Setting item: Tint
Setting content: G15 ~ R15
Adjust the colour from G15 to R15. “G MAX” or “R MAX” is
displayed at the maximum of each colour.
• Tint adjustment can be made only in the iPod video, DVD, Video CD,
USB Video, AUX modes.
• When the picture from the external input is set to PAL, you cannot
adjust the Tint.
• Tint adjustment cannot be made if a Navigation system with the RGB
feature is connected.
Adjusting Image Contrast
Setting item: Contrast
Setting content: -15 to +15
Adjustment of contrast is done in the range of -15 to +15. “HIGH”
and “LOW” appear as the maximum and minimum values
specified.
Adjusting Picture Quality
Setting item: Sharp
Setting content: -5 to +5
Picture quality adjustment range is -5 to +5. “SOFT” and “HARD”
appear as the minimum and maximum values specified.
• Picture quality adjustment can be made only in the iPod video, DVD,
Video CD, USB Video, AUX modes.
• Picture quality adjustment cannot be made if a Navigation system
with the RGB feature is connected.
Storing Visual EQ
You can store the settings made for “Adjusting Image Brightness, Tint,
Depth, Picture Quality and Contrast.”
Setting item: User Memory
Setting content: P-1 / P-2
1 After completing “Adjusting Brightness, Tint, Colour,
Sharpness, and Contrast” (page 28), touch [ ] or [ ] of
User Memory and then select preset number “P-1” or
“P-2” to which the settings are to be stored.
2 After selecting a preset No., touch [L-Memory].
The adjusted Visual EQ mode is stored by the above
operations.
• You can recall the Visual EQ mode stored here from P-1 or P-2 of
“Selecting the Visual EQ Mode (Factory’s setting)” (page 28).
General Setup
Setting the Clock Display
You can select the clock display type, 12-hour or 24-hour, depending on
your preference.
General Setup Operation
The Parking Brake must be engaged to access the General mode
screen. Attempting to access this screen while driving will display
the warning-Can’t operate while driving.
The following steps 1 to 4 are common operations to each
“Setting item” of General Setup. Refer to each section for
details.
1
Touch [
] on the main screen.
The SETUP selection screen is displayed.
2
Touch the title bar of General Setup.
The General Setup screen appears.
3
Touch [ ], [ ] or the title bar of setting item, etc., of
the desired item to change its setting.
Setting items:
Clock / Clock Mode*1 / Clock Adjust*1 / Summer Time*1 /
Demonstration / Beep / Beep Level*2 / Auto Scroll /
Language Sel. / Dimmer Level*3
*1 Displayed only when “Clock” is set to “ON”.
*2 When Beep is ON, the item is displayed.
*3 Not displayed when “OFF” is set in “Setting the Brightness of the
Backlighting” (page 26).
4
Touch [
] to return to the previous screen.
• Touching [Exit] will turn off the General Setup screen, and return to
previous main screen.
• Immediately after changing the settings of General Mode (While the
system is writing data automatically) do not turn the ignition key
(engine key) to OFF.
Otherwise, the settings may not be changed.
Displaying the Time
The clock indication on the monitor display is turned on or off
respectively.
Setting item: Clock
Setting content: OFF / ON
Setting item: Clock Mode
Setting contents: 24h / 12h
Setting the Time
Setting item: Clock Adjust
Further setting items: Hour / Minute / Time Adjust
Setting content: 0-23 / 0-59 / Reset
Hour:
Minute:
Reset:
Adjust the hour.
Adjust the minute.
If the clock shows less than 30 minutes past, the
minute will be “0”; more than 30, the hour advances.
• The clock-adjusting mode is cancelled when the power is turned off,
when [
] or [Exit] is touched.
Setting Summer Time
Setting item: Summer Time
Setting content: OFF / ON
Place the Summer Time mode ON. The time advances by
one hour.
OFF: Return to the ordinary time.
ON:
Demonstration Function
This unit is equipped with a demonstration function capable of showing
basic operations of respective sources on the monitor display.
Setting item: Demonstration
Setting content: OFF / ON
Turns on the demonstration mode to show the basic
operations.
OFF: Turns off the demonstration mode.
ON:
• The demonstration operation is automatically repeated until the
function is turned off.
Sound (Beep) Guide Function
Setting item: Beep
Setting content: OFF / ON
ON: Activate the Sound Guide mode.
OFF: Deactivate the Sound Guide mode. The sound guide
beep will not be produced when a button is pressed/
touched.
29-EN
Setting the Beep Level
System Setup
After set to ON in “Setting the Beep”, this setting can be performmed.
Setting item: Beep Level
Setting level: 0 to +15
System Setup Operation
Setting the Scroll
Scroll display is available if CD text, folder name, file name or tag
information is entered.
Setting item: Auto Scroll
Setting contents: OFF / ON
OFF: Turns off the AUTO scroll mode. Scroll display is done
once as a track is changed.
ON: Turns on the AUTO scroll mode. Scroll display is
repeated as long as the mode is turned on.
• The display scrolls on the unit when the screen is filled up.
• Song, artist and album name, etc. scrolls when an iPod/iPhone is
connected.
The Parking Brake must be engaged to access the System mode
screen. Attempting to access this screen while driving will display
the warning-Can’t operate while driving.
The following steps 1 to 4 are common operations to each
“Setting item” of System Setup. Refer to each section for details.
1
2
Mode1:
Mode2:
Mode3:
Normal Font Display (ISO8859-1).
Russian Font Display (WINDOWS-1251)
You cannot use this font for display in RDS, Tuner
mode.
European Font Display (WINDOWS-1252)
Adjusting the Dimmer of Button Lighting at
Night
You can adjust the brightness of the button lighting at night with the
dimmer.
Setting item: Dimmer Level
Setting level: -2 to +2
30-EN
Touch the title bar of System Setup.
The System Setup screen appears.
3
Setting item: Language Sel.
Setting contents: Mode1 / Mode2 / Mode3
] on the main screen.
The SETUP selection screen is displayed.
Changing the Russian Font
Three types of font can be selected.
Touch [
Touch [ ] or [ ] of the desired item to change its
setting.
Setting items:
Camera IN / Nav. IN / Nav. Mix* / AUX1 IN / AUX2 IN / AUX Front
/ AUX Out / BLUETOOTH IN (IVE-W530EBT/IVE-W530ABT only)
* When ON is set in “Setting the Navigation Mode” (page 31), the item
is displayed.
4
Touch [
] to return to the previous screen.
• Touching [Exit] will turn off the System Setup screen, and return to
previous main screen.
• Immediately after changing the settings of System Mode (While the
system is writing data automatically) do not turn the ignition key
(engine key) to OFF.
Otherwise, the settings may not be changed.
Camera mute setting
Setting the Rear Camera Input
With an optional rear camera connected, rear view video is output to the
monitor.
Setting item: Camera IN
Setting contents: OFF / ON
OFF:
ON:
The Camera mode is not displayed in the mode
switching screen.
Use when the optional rearview camera is
connected to the CAMERA Input Connector.
• By shifting to reverse (R), the rear pictures are output.
This function is effective when the reverse wire is properly connected.
After setting this item to ON, touch the title bar of Camera IN, the
following further setting items can be adjusted.
Setting the Rear Camera Signal Input
You can set whether to mute the source volume when the
camera video is displayed.
Further Setting item: Camera Mute
Setting Contents: OFF / ON
Setting the Navigation Mode
When you connect an optional navigation equipment, set it to ON.
Setting item: Nav. IN
Setting contents: OFF / ON
ON: Navigation source is displayed.
OFF: Navigation source is not displayed. The settings related
to the navigation can not be changed from this unit.
Setting the Navigation Interruption
The video input signal type can be chosen.
With an Alpine navigation system connected to the IVE-W530EBT/
Further Setting item: Camera Signal
Setting contents: NTSC/PAL / Auto
IVE-W530ABT/IVE-W530E , the voice guidance of the navigation
system will be mixed with the radio or CD play.
NTSC/PAL: Choose the video input signal type manually.
Auto:
The suitable video input signal type will be
automatically chosen between NTSC and PAL.
• When set to Auto, unstable display may occur while playing back
certain black and white video signal. In this case, select NTSC or
PAL mode manually.
Setting item: Nav. Mix
Setting content: OFF / ON
OFF: The navigation interruption mode is turned off.
ON: The navigation interruption mode is on.
See “Adjusting Nav. Mix Level” under “Adjusting the Audio” on
page 22 to set the navigation interruption volume level.
Rear camera guide line display setting
You can set whether the rear camera guide line is displayed or
not.
Further Setting item: Guide Line
Setting contents: OFF / ON
Adjusting the Rear Camera Guide line
You can adjust the rear camera guide line position.
• The volume level for voice prompts during navigation guidance is set
by adjusting its volume while the prompts are announced. When the
announcement finishes, the normal audio volume and the previous
audio screen are restored. The voice prompt volume is always at or
below the current listening volume. If a navigation announcement
cuts in while adjusting the audio level, it always resets to the current
level regardless of the audio level setting.
• This setting is effective when Nav.IN of SYSTEM list screen is ON.
Further Setting item: Guide Line Adjustment
1
Touch the title bar of Guide Line Adjustment.
The guide line adjustment screen is displayed.
2
3
4
When you touch the guide pylon to be adjusted, a
border appears around the pylon.
Drag and drop the selected pylon or centre guide to
adjust its position.
After the adjustment is completed, touch [
].
You can touch [Reset] during adjustment to return to the
default adjustment.
31-EN
Setting the AUX Mode
Setting item: AUX1 IN
Setting contents: OFF / ON
OFF:
ON:
AUX-1 source is not displayed.
AUX-1 source is displayed.
• When OFF is selected, the settings related to AUX-1 cannot be
changed from this unit.
After setting this item to ON, touch the title bar of AUX1 IN, the
following further setting items can be adjusted.
Adjusting the AUX1 name Mode
Further Setting items: Primary / Secondary*1
Setting contents: OFF*2 / AUX*3 / DVD / GAME / DVB-T*3 / NAV.
*1 When TUE-T200DVB (sold separately) is connected, you can use it
to connect one more External Input device. Setting the Secondary
name can change the source name display of this device.
*2 The setting is only available for Secondary.
*3 The setting is only available for Primary.
• You can set Secondary name only when Primary name is set to
DVB-T. And you cannot set the same name as in Primary name.
• When OFF is selected, the settings related to AUX cannot be changed
from this unit.
• The selected name is displayed on the Visual and Rear selection
screen.
• The selected source name is displayed instead of AUX source name.
Select SOURCE to switch to the guide function of each mode.
Setting item: AUX2 IN
Setting contents: iPod Video / AUX
iPod Video: Set when an iPhone or a video compatible iPod is
connected to the iPod (V)/AUX Input Connector.
AUX:
Set when an optional AV/RCA interface cable
(4-pole mini AV plug to 3-RCA) is connected. A DVD
player etc., with RCA audio/video output can be
connected to this unit. In this case, the iPod video
will not be displayed.
• When the current source is iPod video or AUX-2, this setting cannot
be adjusted.
After setting this item to AUX, touch the title bar of AUX2 IN, the
following further setting items can be adjusted.
Adjusting the AUX2 name Mode
Further Setting items: Primary
Setting contents: AUX / DVD / GAME / DVB-T / NAV.
• The selected name is displayed on the Visual and Rear selection
screen.
• The selected source name is displayed instead of AUX source name.
Select SOURCE to switch to the guide function of each mode.
Touch the title bar of AUX1 IN or AUX2 IN, the following further
setting items can be adjusted.
Adjusting the External Input Audio Level
Further Setting item: Level
Setting contents: Low / High
Low:
High:
Decreases the external input audio level.
Increases the external input audio level.
• For AUX1, this setting item is adjustable only when AUX1 IN is set to
ON.
• For AUX2, this setting item is adjustable only when AUX2 IN is set to
AUX.
32-EN
Switching the Visual Input Signal System
Further Setting item: Signal
Setting contents: NTSC/PAL / Auto
• The video input type can be changed.
• When set to Auto, unstable display may occur while playing back
certain black and white video signal. In this case, select NTSC or
PAL mode manually.
• For AUX1, this setting item is adjustable only when AUX1 IN is set to
ON.
• For AUX2, this setting item is adjustable only when AUX2 IN is set to
AUX.
Setting the AUX Front Mode
You can input the audio of an external device (such as a Portable audio
player) to the Front AUX Input Terminal of this unit.
Setting item: AUX Front
Setting contents: ON / OFF
ON: AUX Front source is displayed.
OFF: AUX Front source is not displayed.
• When OFF is selected, the setting related to AUX Front source
cannot be changed from this unit.
After setting this item to ON, touch the title bar of AUX Front, the
following further setting item can be adjusted.
Adjusting the Front AUX Input Audio Level
Further Setting item: Level
Setting contents: Low / High
Low: Decreases the front aux input audio level.
High: Increases the front aux input audio level.
• This setting item is adjustable only when AUX Front is set to ON.
Setting the Picture/Sound Output
Outputs the picture/Sound of the source selected on the IVE-W530EBT/
IVE-W530ABT/IVE-W530E connected to the rear monitor.
Setting item: AUX Out
Setting content: OFF / ON
The “Rear” item is displayed on the Source Selection
screen.
Touch [Rear] to change to the REAR select screen, and
then touch the desired source. The selected source
picture is output on the rear monitor.
OFF: The “Rear” item is not displayed on the SOURCE select
screen.
ON:
Setting the BLUETOOTH Connection
(BLUETOOTH IN) (IVE-W530EBT/IVE-W530ABT only)
Setting item: BLUETOOTH IN
Setting contents: OFF / HFP / HFP+Audio
Select to ignore any external interrupts.
Select when you want to pair your BLUETOOTH
compatible phone with this unit.
HFP+Audio: Select when you want to use BLUETOOTH Audio
function.
OFF:
HFP:
• For details on BLUETOOTH operation, refer to “BT Hands Free
Calling” on page 33.
BT Hands Free
Calling
(IVE-W530EBT/IVE-W530ABT only)
Setup Before Using
About BLUETOOTH
BLUETOOTH is a wireless technology allowing communication
between a mobile device or personal computer over short distances.
This enables a hands-free call or data transmission between
BLUETOOTH compatible devices. BLUETOOTH transmission is
available in the unlicensed 2.4 GHz spectrum if the distance between
devices is within 10 metres. For details, refer to the BLUETOOTH
Home page (http://www.BLUETOOTH.com/).
• Depending on the BLUETOOTH version, a BLUETOOTH
compatible device may not be able to communicate with this unit.
• Proper function of this unit with all BLUETOOTH compatible
devices is not guaranteed. For handling of the BT compatible device,
consult your ALPINE dealer or ALPINE website.
• Depending on the surroundings, BLUETOOTH wireless connection
may be unstable.
• When you place a call, or perform setup operations, be sure to stop
your car in a safe place.
• Depending on the connected BLUETOOTH compatible device(s), the
function may differ. Also refer to the Owner’s Manual of the
connected device(s).
Before Using Hands-Free Function
Before using the hands-free phone/audio function, the following
settings need to be made.
Set “BLUETOOTH IN” to HFP or HFP+Audio (page 32).
• Before using a hands-free phone, it must be paired with this unit.
Refer to “BLUETOOTH Setup” (pages 33-34).
How to connect to a BLUETOOTH
compatible device (Pairing)
For details on the control from a BLUETOOTH compatible device,
refer to the Owner’s Manual of the BLUETOOTH compatible device.
1
2
3
4
Set a BLUETOOTH connection from a BLUETOOTH
compatible device.
The PIN code (“0000”) is displayed on the screen.
Input the PIN code (“0000”) in a BLUETOOTH
compatible device.
If this unit is successfully connected to a
BLUETOOTH compatible device, “Connected/
(Device name)” is displayed, and then the unit
returns to normal mode.
* Depending on the BLUETOOTH compatible device used, the
confirmation prompt may not appear.
• When pairing a BLUETOOTH compatible device with SSP (Secure
Simple Pairing), a message “Connect/(Security Code)/Yes/No” will
be displayed, touch [Yes] to connect.
• Set “Setting the Search Mode” (page 34) to Visible Mode ON to
enable this unit to recognise a mobile phone. For mobile phone
passkey (passcode) input operation, refer to the mobile’s Owner’s
Manual. Additionally, the mobile phone can be searched directly
from this unit. Refer to “Registering the BLUETOOTH Device”
(page 34).
• If a BLUETOOTH compatible device is successfully paired, the next
time when the ignition key of the car is turned to on, the unit will
automatically connect to the previously connected device. However,
the connection may fail. If the auto connection fails, try the
connection manually.
BLUETOOTH Setup
BLUETOOTH Setup Operation
The following steps 1 to 5 are common to the various BLUETOOTH
functions. For details, refer to each individual function.
• While calling, or in the BLUETOOTH Audio source, BLUETOOTH
Setup operation cannot be performed.
• Check that “HFP” or “HFP+Audio” is selected in “Setting the
BLUETOOTH Connection (BLUETOOTH IN)” (page 32), and then
perform BLUETOOTH Setup operation.
1
Touch [
] on the main source screen.
The SETUP main screen is displayed.
2
Touch the title bar of Source Setup.
The Source Setup screen appears.
3
Touch the title bar of BLUETOOTH Setup.
The BLUETOOTH Setup screen appears.
4
Touch [ ], [ ] or the title bar of the desired item to
change its setting.
Setting items:
Paired Devices / Device Search / Clear Device /
Service Provider / Visible Mode / Auto Answer / Speaker Select /
MIC Input / Firmware Version / Firmware Update / BT Menu
Language / Shortcut Memory
5
Touch [
] to return to the previous screen.
Touch [Exit] to return to the main source screen that was
displayed before the setup operation was started.
Setting the BLUETOOTH Device
Select one of 3 connected BLUETOOTH compatible devices that
you previously registered.
Setting item: Paired Devices
Touch a BLUETOOTH compatible device to use (change
connection) from the Paired Device list.
• If the connection is successfully changed, “Connected/(Device
name)” is displayed for 2 seconds, and then the display returns to the
Setup screen.
• If you input the wrong passcode or communications fail, “Failed” is
displayed.
• If you want to connect another BLUETOOTH compatible device,
after disconnecting the current BLUETOOTH compatible device,
connect the BLUETOOTH compatible device you want to change to.
• Up to 3 BLUETOOTH compatible devices can be registered to this
unit. If all 3 positions have been registered, you cannot register a 4th
device. To register another device, you need to delete one of the
devices from position 1 to 3 first.
33-EN
Registering the BLUETOOTH Device
Setting the Received Calls automatically (Auto Answer)
The BLUETOOTH device is used when a connectable
BLUETOOTH compatible device is searched and connected
from this unit, or a new BLUETOOTH compatible device is
registered.
When a call is received, you can set whether to receive it
automatically or not.
Setting item: Auto Answer
When a call is received, it will be taken
automatically after about 5 seconds.
When a call is received, it will not be
received automatically. If a message is
displayed and [
] is touched when a call is
received, you can receive the call.
ON:
Setting item: Device Search
1
2
3
When Device Search is selected, “Now Searching” is
displayed, and searching starts.
Touch the device name to be connected from the
Device Search list.
If this unit is successfully connected to a
BLUETOOTH compatible device, “Connected/
(Device name)” is displayed, and then the unit
returns to normal mode.
• If a mobile phone is registered for the first time:
Input a passcode when the numeric keypad screen is displayed, then
input the same passcode in the BLUETOOTH compatible device to
make the pairing. Or a confirmation prompt (Connect (6-digit code
number)) will appear on this unit, then touch [Yes]. After the pairing
is completed, the unit will automatically connect to the
BLUETOOTH compatible device.
• If you input the wrong passcode or communications fail, “Failed” is
displayed.
• A passcode input on the unit is maximum 4-digit. If a passcode on the
BLUETOOTH compatible device exceeds 4 digits, reset the passcode
and make this setting again.
OFF:
• If the received call setting on the mobile phone is on, the call will be
answered automatically even though this setting is set to OFF.
Selecting the output speaker
You can select the connected speaker in car to output the sound
signal of telephone.
Setting item : Speaker Select
The sound outputs from all of speakers in car.
The sound only outputs from the front left speaker.
The sound only outputs from the front right
speaker.
The sound outputs from the front left and front right
speaker.
All:
F-L:
F-R:
F-LR:
• The setting cannot be adjusted during a phone call. Adjust the setting
before placing a call.
Adjusting the volume for the microphone input
Deleting a BLUETOOTH Device from the list
You can emphasise or weaken the microphone input volume
level.
You can delete the history of a previously connected
BLUETOOTH compatible device.
Setting item : MIC Input
Touch [
] or [
] to select the desired volume level (0 ~15).
Setting item: Clear Device
1
Touch the BLUETOOTH compatible device you want
to delete from the Clear Device list.
A message is displayed.
2
Touch [Yes] if you want to delete.
• The setting cannot be adjusted during a phone call. Adjust the setting
before placing a call.
• The setting can be adjusted only when the BLUETOOTH compatible
device is connected.
Displaying the firmware version
Setting item : Firmware Version
• Touching [No] will cancel the setting.
The current firmware version will be displayed.
Displaying the phone service provider name
Updating the firmware
Setting item: Service Provider
Setting item: Firmware Update
The service provider name of the connected BLUETOOTH
compatible device will be displayed. If a BLUETOOTH
compatible device is not connected, “ID UNSENT” will be
displayed.
• Depending on the character type some phone service provider name
cannot be displayed.
Setting the Search Mode
You can set whether this unit can be recognised or not from a
BLUETOOTH compatible device. Normally set this to Visible
Mode ON.
Setting item: Visible Mode
ON:
OFF:
34-EN
Enables recognition of this unit from the
BLUETOOTH compatible device.
Disables recognition of this unit from the
BLUETOOTH compatible device.
For information to update your BLUETOOTH firmware, please
visit your local Alpine web site or choose your country from
Alpine Asia top page (http://www.alpine-asia.com).
Setting the BLUETOOTH Menu language
The BLUETOOTH Menu can be switched within 8 languages
(EN/DE/ES/FR/IT/NL/RU/TH).
Setting item: BT Menu Language
For example, if you want the BLUETOOTH Menu to be displayed
as German, select DE with above procedure.
Deleting a preset number from the Shortcut Memory
Setting item: Shortcut Memory
Touch [Delete] of the preset number to delete preset shortcut
dial number.
• About how to store the telephone number as shortcut dial, refer to
“Preset a number in the Phone Book (Shortcut Dial)” on page 37.
Hands-Free Phone Control
About the Hands-Free Phone
Hands-free calls are possible when using a HSP (Head Set Profile) and
HFP (Hands-Free Profile) compatible mobile phone with this unit.
• Avoid performing a hands-free call in heavy traffic or on narrow or
winding streets.
• Close the windows while calling to reduce background noise.
• If both calling parties are using hands-free devices, or the call is
made in a noisy location, difficulty hearing the other person’s voice
is normal.
• Depending on telephone line conditions or certain mobile devices
used, voices may sound unnatural.
• When using a microphone, speak as directly as you can into the
microphone to pick up the best sound quality.
• Certain mobile phone features are dependent on the capabilities and
settings of your service provider’s network. Additionally, certain
features may not be activated by your service provider, and/or the
provider’s network settings may limit the feature’s functionality.
Always contact your service provider about feature availability and
functionality.
All features, functionality, and other product specifications, as well
as the information contained in the Owner’s Manual are based upon
the latest available information and are believed to be accurate at
the time of printing.
Alpine reserves the right to change or modify any information or
specifications without notice or obligation.
Turn the Rotary encoder to adjust the volume.
• You may need to increase volume from your regular audio listening
source level. However, increasing the volume excessively may result
in feedback. If feedback is noticed as feedback is directly related to
the volume, turn down the volume as low as acceptable to eliminate
it. Positioning the microphone in a direction away from the main car
speakers (e.g. clipped on sun visor) may also reduce feedback at high
volume.
Redial Function
You can redial the person you have previously called.
After finishing a call, touch [
5 seconds.
] on the screen within
The telephone is redialed.
Call waiting function
If a second call is received during a current call, you can have the first
caller wait momentarily while you take the second call. When you are
finished with one call, you can switch to the other one.
1
If a second call is received during the current call
(caller 1), the number of second caller (caller 2) is
displayed instead of the current caller’s information.
Touch [ ], the call waiting mode is activated.
In this case, caller 1 is on hold, while you take caller 2.
Answering a Call
Display example for the 2nd incoming call screen
Incoming calls are announced by the received call ring tone and a
displayed message (Caller name/PHONE No.).
Touch [
].
The call starts.
• Indicator
(Signal Strength):
While calling, the indicator will display the current signal strength of
your mobile phone. While in a mode other than Calling, the unit
cannot read the signal strength of the mobile phone exactly. In this
case, the indicator displays the signal strength of the last call.
• When “Setting the Received Calls automatically (Auto Answer)”
(page 34) is set to ON, you can receive a call automatically.
• While calling, the source sound on the unit is muted.
After calling, playback will resume.
A
A
Hanging up the Telephone
Touch [
].
The call finishes.
Second call message
Hang up the first call and the second incoming call is
answered.
Hang up the second incoming call.
Display example for the 2nd incoming call screen
Adjusting the volume when receiving a
Call
While calling, you can adjust the volume. The adjusted volume level is
stored.
B
B
Feedback of the connected second call
35-EN
2
By touching [
] on the call waiting screen,
you can switch between the calling person and the
person on hold.
Call Switching Operation
While making a call, this function allows you to initiate the transfer of
the audio between the mobile phone and the speakers in the car.
While calling, touch [
] to switch the call sound
between the unit and mobile phone.
• Depending on the mobile phone, this operation may not be
performed.
Call History
Call History is recorded for the last dialed/received/missed calls. There
are various ways of making calls based on the “Call History”. The
following steps 1 to 2 are common to the various ways of making these
calls. For details, refer to each individual category for making calls.
1
2
Check that “HFP” or “HFP+Audio” is selected in
“Setting the BLUETOOTH Connection (BLUETOOTH
IN)” (page 32).
Press
.
The Telephone Menu screen is displayed.
Display example for Telephone Menu screen
When “BT Menu Language” is set to “IT”, the Telephone Menu is
displayed as:
Chiamate Effettuate / Chiamate Ricevute / Chiamate Perse /
Rubrica / Tastiera / Chiamata Vocale
When “BT Menu Language” is set to “NL”, the Telephone Menu is
displayed as:
Gekozen nummers / Ontvangen oproepen / Gemiste oproepen /
Telefoonboek / Manuele ingave / Voice Dial
When “BT Menu Language” is set to “RU”, the Telephone Menu is
displayed as:
Набранные номера / Принятые вызовы / Пропущенные
вызовы / Телефонная книга / Набор номера / Голосовой
набор
When “BT Menu Language” is set to “TH”, the Telephone Menu is
displayed as:
/
/
/
/
/
• For details, refer to “Setting the BLUETOOTH Menu language” on
page 34.
• It may take some time for the list to be displayed, and also directly
after connection, the list may not be brought up to date.
4
Touch [
] to return to the previous screen.
Touch [Exit] to return to the main source screen that was
displayed before the setup operation was started.
• If you place a call directly from the paired mobile phone, the phone
number is not displayed, you cannot redial from the unit in this case.
Redialing a Number in Dialed Calls History
Previously dialed telephone numbers are stored in dialed calls history.
You can redial a number by searching from dialed calls history.
Setting item: Dialled Numbers
Touch [Call] of the person name or the telephone
number you want to call from the Dialed Calls list.
The call is placed.
Dialing a Number in Received Calls History
Telephone numbers from received calls are stored in the received calls
history. You can redial these numbers by searching here.
Setting item: Received Calls
• During SOURCE selection screen, you can also switch to Telephone
Menu screen by touching [Phone] icon.
3
Touch the title bar of the desired item to place the
call.
Setting items:
When “BT Menu Language” is set to “EN”, the Telephone Menu is
displayed as:
Dialled Numbers / Received Calls / Missed Calls / Phone Book /
Dial Input / Voice Dial
When “BT Menu Language” is set to “DE”, the Telephone Menu is
displayed as:
Gewählte Nummern / Angenommene Anrufe / Verpasste
Anrufe / Telefonbuch / Nummer wählen / Sprachwahl
When “BT Menu Language” is set to “ES”, the Telephone Menu is
displayed as:
Llamadas Realizadas / Llamadas Recibidas / Llamadas
Perdidas / Agenda / Marcación Directa / Marcación por Voz
When “BT Menu Language” is set to “FR”, the Telephone Menu is
displayed as:
Numéros composés / Appels reçus / Appels manqués /
Répertoire / Clavier / Composition vocale
36-EN
Touch [Call] of the person name or the telephone
number you want to call from the Received Calls list.
The call is placed.
Dialing a Number in Missed Calls History
Telephone numbers for received calls that are missed, are stored in the
missed calls history. You can redial these numbers by searching here.
Setting item: Missed Calls
Touch [Call] of the person name or the telephone
number you want to call from the Missed Calls list.
The call is placed.
When Mode2 is set in “Changing the Russian Font”
(page 30), [Cyrillic] button will appear. Touch [Cyrillic] to
change to Russian font keypad screen. Touch [ABC] to
return to normal alphanumeric keypad screen.
Dialing a Number In the Phone Book
(Phone Book)
Up to 1000 telephone numbers are downloadable to the BLUETOOTH
compatible unit from a mobile phone. Dial a call by selecting a person
from the phone book list.
2
The numbers/names stored in phone book which begin with
the selected number/letter are searched.
Setting item: Phone Book
Display example for Phone book screen
Touch the desired number or letter.
• This function is also applicable for iPod/USB search mode.
Preset a number in the Phone Book (Shortcut Dial)
Assign numbers that you dial frequently to presets for quick
recall.
1
2
Touch a name or number you want to preset from the
Phone Book list.
Touch [Preset].
A “Save as Preset (No)” pop-up screen is displayed.
The phone number you selected is stored in presets.
Scroll the list one line at a time by touching [ ] or [ ].
Scroll the list one page at a time by touching [ ] or [ ].
Activate alphabet search function. For details, refer to
“Alphabet Search Function” on page 37.
Touch [Call] of the person name or the telephone
number you want to call from the Phone Book list.
The call is placed.
• If one name has several numbers registered in the telephone book,
choose and touch [Call] of the desired number after touching the
name, the telephone will be called. Touch [Call] of the name directly,
the default number of the name will be called. Depending on the
connected mobile phone, this function may not be performed.
• If a name cannot be obtained via the phone book, only the telephone
number (default number) is displayed. If both name and number
cannot be obtained, “ID UNSENT” will be displayed.
• If the call history or phonebook of the mobile phone is added or
deleted while it is connected to the unit, the list displayed on the unit
may not be brought up to date. If it is not updated, you cannot
correctly place a call.
• You can delete the preset shortcut dial number. For details, refer to
“Deleting a preset number from the Shortcut Memory” on page 34.
• A total of 5 phone numbers can be stored in the preset memory for
each mobile phone in the paired device list. If a mobile phone is
deleted from the paired device list, the stored preset numbers of this
mobile phone are deleted, even when it is paired again.
Dialing the preset number
During Telephone Menu screen, touch any one of preset
buttons (1 through 5) that has had a preset number
stored in the Phone Book mode.
The stored preset number is dialed directly.
Dialing a Number Using Direct Dial Input
You can place a call by inputting the telephone number directly by the
numeric keypad screen on the unit.
Setting item: Dial Input
Display example for the Dial Input screen
Alphabet Search Function
You can search for a desired name in phone book list by its’
initial letter.
1
During Phone Book mode, touch [ALPHABET].
The Alphabet search screen is displayed.
Display example for Alphabet Search screen
The numeric keypad screen is displayed. Touch (input)
the telephone number, and then touch [Call].
The call is placed.
• About the numeric keypad
[
]: closes the numeric keypad input screen.
[Delete All]: deletes all input numbers.
[
]: deletes a previous number.
37-EN
Voice Dial Operation
You can call the telephone by performing voice operation.
Setting item: Voice Dial
1
2
Touch [
] to display the item of Voice Dial.
Touch the title bar of Voice Dial.
A message is displayed.
• You can also activate Voice Dial mode directly by pressing and
holding
for at least 2 seconds.
3
When an optional rearview camera with RCA output connector is
connected, rear view video can be output to the monitor.
• Be sure to set “Camera IN” to “ON” before using the Rearview
Camera, refer to “Setting the Rear Camera Input” on page 31.
Touch [Yes] to activate the voice dial mode.
The voice dial mode is activated.
• Touch [No] will return to the Telephone Menu screen.
4
Rearview Camera
Operation (Optional)
Say the telephone number*, name* you want to call
into the microphone.
* The number and name depend on the voice dial information stored in
the mobile phone.
• If the voice dial fails, the unit will return to normal mode in 30
seconds.
• You can perform this operation only when a voice dial compatible
mobile phone is connected. If the mobile phone is not compatible
with the voice dial, “No Support” is displayed for 2 seconds.
• The Voice Dial function performance depends on the recognition
range of the mobile phone and mounting location of the microphone.
Note when the microphone is mounted.
• Voice dial operation depends on the function of the mobile phone.
For details, refer to the Owner’s Manual of the mobile phone.
BLUETOOTH Audio Function
Switching the Rear Camera Screen
(Optional)
The rear view video will be displayed for the two situations as below.
Displaying the rear view video while the
car is in reverse
1
Shift the gear lever to the reverse (R) position.
The rear view image is displayed while the car remains in
reverse.
2
If you shift the gear lever to a position other than
reverse (R), the monitor returns to the previous
screen.
• Be sure to also check behind the car visually. Use the camera image
to assist in showing conditions behind the car.
• This function is effective when the reverse wire is properly connected.
• No sound output during Camera view display when ON is set in
“Camera mute setting” (page 31).
BLUETOOTH Audio Operation
Audio information of a BLUETOOTH compatible mobile phone, a
portable player, etc., is controllable/playable wirelessly* from this unit.
* To play back audio, a mobile phone or a portable player conforming
to A2DP (Advanced Audio Distribution Profile) or AVRCP (Audio/
Video Remote Control Profile) is required.
Not all functions work with all devices.
• During a call, sound on the BLUETOOTH audio source is muted.
• There are times when it cannot be operated with the device which you
use.
Recalling the BLUETOOTH audio source
1
Press SOURCE/
on the unit.
The SOURCE selection screen is displayed.
2
Touch the [BT Audio] icon.
The BT Audio source is activated and the display changes
to the BT Audio main screen.
Selecting the desired Song
Touch [
].
Returns the beginning of the song being played back.
Touch [
].
Forwards the next song.
Touching and holding [
] or [
forward track continuously.
] will fast backward/fast
Pausing
Touch [ / ].
A playback stops. Touching again will resume a playback.
38-EN
Displaying the rear view video manually
1
Press SOURCE/
on the unit.
The SOURCE selection screen is displayed.
2
Touch [Camera].
The Camera mode is activated and the rear view video is
displayed.
3
4
Touch [Guide ON] or [Guide OFF] to set whether
the rear camera guide line is displayed.
Touch [
] to access to Visual selection screen, and
then touch [Normal] to return to previous main
screen.
Navigation System
(Optional)
Switching the Navigation Screen
(Optional)
If an optional Alpine Navigation System is connected to the
IVE-W530EBT/IVE-W530ABT/IVE-W530E , the Navigation screen
can be displayed on this unit.
1
Press SOURCE/
.
The Source Selection screen is displayed.
2
Touch [Nav.].
The Navigation screen is displayed.
The operation is possible with the supplied navigation
remote control.
For navigation operation, refer to the Owner’s Manual of the
navigator.
• You can touch [V.Sel] to activate the Visual Sel. screen, and then
touch [Nav.]. The navigation mode is activated from the Visual Sel.
mode without interrupting normal audio. For details, refer to
“Switching the Visual Source Only (Simultaneous Function)” on
page 23.
• You can also directly access to Navigation screen by pressing
[
] on main source screen. For details, refer to “Recalling the
Source” on page 10.
• If the Navigation mode menu is not displayed on the main menu
screen, select ON in “Setting the Navigation Mode” (page 31).
• When the Navigation System is on and in guidance mode, the voice
prompts and navigation map interrupts the current audio source.
Auxiliary Device
(Optional)
Operating Auxiliary Devices (Optional)
To operate your devices connected to the AUX1, AUX2 or Front AUX
terminals, follow the procedure described below.
WARNING
It is dangerous for the driver to watch the TV/Video
while driving the vehicle. The driver may be distracted
from looking ahead and an accident could occur.
Install the IVE-W530EBT/IVE-W530ABT/IVE-W530E
correctly so that the driver cannot watch TV/Video
unless the vehicle is stopped and the emergency
brake is applied.
If the IVE-W530EBT/IVE-W530ABT/IVE-W530E is not
installed correctly, the driver will be able to watch the
TV/Video while driving the vehicle and may be
distracted from looking ahead and cause an accident.
The driver or other people could be severely injured.
• If you try to activate the auxiliary device while driving, the display
will show the warning-Picture off for your safety.
1
Press SOURCE/
.
The Source Selection screen is displayed.
2
Touch [Aux-1]*, [Aux-2] or [Front AUX].
The external input screen is displayed.
3
Touch [NTSC/PAL] to change the video input.
This step is not applicable to Front AUX mode.
* The name which is given as the source name in “Setting the AUX
Mode” on page 32 is displayed.
• If the AUX mode is not displayed on the main menu, set AUX1 IN to
ON or AUX2 IN to AUX by following “Setting the AUX Mode”
(page 32). Or set AUX Front to ON by following “Setting the AUX
Front Mode” on page 32.
• The setting of switching NTSC/PAL, which you have set in this
section, can be used in same way in “Setting the AUX Mode” on
page 32.
• The display mode changes by touching [WIDE].
For operation, refer to “Switching Display Modes” on page 23.
39-EN
TUE-T200DVB
Operation (Optional)
Operating the TUE-T200DVB (Optional)
Operable when optional TUE-T200DVB is connected.
When DVB-T is selected in “Setting the AUX Mode” (page 32), the
source is displayed in SOURCE selection screen.
1
While your vehicle is parked, press SOURCE/
A Flash memory can be connected to this unit through the USB
Connector of this unit.
If a Flash memory device is connected to the unit, MP3/WMA/AAC/
DivX files of Flash memory can be played back.
BANK Function
.
The SOURCE selection screen is displayed.
2
Flash Memory
(Optional)
What is a Bank?
A bank is a unit of up to 1,000 songs, which is stored in memory.
“Banking” refers to the grouping of songs available in Flash
Memory, in banks of 1,000 songs each.
Touch [DVB-T].
The DVB-T screen is displayed.
3
Perform the desired operation.
About Banking
While a bank is being built up, “Banking” is displayed. Banking
occurs whenever a Flash Memory device is connected or after
power to the head unit turns on.
It can take anywhere from a few seconds to up to several
minutes for banking to complete. This depends on the number
of files and folders in Flash Memory.
Channel Number UP/Down or Favourite Channel Number
Up/Down
Touch [CH.]* to select changing the Channel or the Favourite
Channel.
Touch CH. [ ] or [ ] to move the Channel number Up/Down.
Touch FAV [ ] or [ ] to move the Favourite Channel number Up/
Down.
* The button displays the current changing mode ([CH.] or [FAV]).
Calling up Main Menu Screen
Touch [MENU] to call up the main menu screen.
Calling up Menu Operation Mode
Touch [MENU CONT] to call up the menu operation mode.
Switching the Source
Touch [A/V].
The source switches with each touch.
Calling up Electronic Programme Guide (EPG)
Available operations while Banking
• Search functions, such as album search or tag information
(artist display, etc.) are available during the banking process.
However, during such time, tag information display changes.
• Regular fast-forwarding and next song selection are
available.
• During Banking, the played back song order may differ from
the song order in Flash memory.
This unit has the BANK function that automatically divides every 1,000
songs stored in Flash memory into individual banks to make searching
and playing back a song easier. A maximum of 1,000 songs for one
bank can be stored according to the order stored in Flash memory. A
maximum of 20 banks (20,000 songs) can be recognised. BANK1
(songs 1 to 1,000) is set as the default. If you want to search beyond
1,000 songs, perform the following operation to select a different bank.
Touch [EPG] to call up the Electronic Programme Guide.
Touch [P1/3].
The function guide appears.
2
Touch [SCAN] to start the auto scan procedure.
1
2
• For detail, refer to the Owner’s Manual of the TUE-T200DVB (sold
separately).
Video Menu Operation of TUE-T200DVB
1
BANK20
19,001~20,000
Touch [P1/2] to change the function guide.
Touch BANK [
BANK.
] or [
] to select the desired
Each operation can be performed in the selected bank.
• Even if the files are contained in the same folder, they may be saved
as different BANK.
Touch [P1/3] twice.
The direct touch mode screen is displayed.
• When the optional TUE-T200DVB is connected, you can control it by
the touch key (except the [Control] key) on the display screen of the
unit.
2
1~1,000
1,001~2,000
...
1
Song number
BANK1
BANK2
...
Scanning Mode
BANK No.
Playback
1
Return to DVB-T main screen.
• If no operation is performed for 5 seconds, the screen will
automatically switch to the full screen mode.
40-EN
Press SOURCE/
.
The SOURCE selection screen is displayed.
Touch [Control].
2
Touch [USB], the USB mode is activated and the
display changes to the USB screen.
3
Touch [
] or [
] to select the desired track
(file) within current Bank.
1
Touch [
Returning to the beginning of the current track (file):
Touch [
].
Fast backward:
Touch and hold [
(off)
(Shuffle Folder)
2
].
Advancing to the beginning of the next track (file):
Touch [
].
Fast forward:
Touch and hold [
/
/
Hierarchy 2
Playlists*
Files
Folders
Files
* Only files with an “m3u” extension pertain to Playlist search.
For example: Searching by Playlist name
The following example explains how a Playlist search is performed.
Another search mode can be used for the same operation, although the
hierarchy differs.
Searching by Playlist name
1
Touch [
].
The search mode is activated, and the search list screen
appears.
2
Touch the title bar of Playlists.
The PLAYLISTS search screen is displayed.
3
Select the desired playlist.
To play back the playlist directly
1 Touch [
] next to the playlist’s name.
All files of the selected playlist are played back.
The Repeat function of the Flash Memory is displayed as
on the
IVE-W530EBT/IVE-W530ABT/IVE-W530E.
Repeat One
: A single song is repeatedly played back.
Repeat Folder
: Only files in a folder are repeatedly played
back.
Touch [P1/2].
To search for the file of a playlist
1 Touch the title bar of the selected playlist.
The Files search screen of the selected playlist is displayed.
2 Touch [
] next to the desired file’s name.
The selected file is played back.
• In the search mode, you can scroll the list one page at a time by
touching [ ] or [ ].
• In the search mode, a search can be made quickly by Alphabet search
function to find the desired playlist or file, etc. For details, refer to
“Alphabet Search Function” on page 37.
The function guide is displayed.
Touch [
Hierarchy 1
] again will resume playback.
Repeat Play
2
].
A Flash memory can contain hundreds of songs. By keeping these songs
organized in playlists, this unit can use these to ease song searches.
Using the search mode’s individual hierarchy, you can narrow down
your search as shown in the table below.
].
• Any file protected by DRM (Digital Rights Management) copy
protection, cannot be played back on this unit.
• The playback time may not be correctly displayed when a VBR
(Variable Bit Rate) recorded file is played back.
• If there is tag information, artist name/album name/track name is
displayed.
• Touch [10KEY] to activate direct search mode. For operations, refer
to “Numeric Keypad Input Operation” on page 17.
• ID3 tag/WMA tag
If an MP3/WMA/AAC file contains ID3 tag/WMA tag information,
the ID3 tag/WMA tag information is displayed (e.g., song name,
artist name, and album name). All other tag data is ignored.
• Nothing will be displayed when text information is not compatible
with this unit.
• This unit plays back DivX files in the Flash Memory with the same
controls and modes as playback of DVD containing DivX. For
details, refer to “DVD/Video CD” on page 15.
1
To cancel M.I.X. play, touch [
].
To pause playback, touch [
Touching [
(Shuffle ALL)
Searching for a desired Song
• If the next/previous file is a video file or during repeat play mode,
fast-forward/fast-backward only applies to current file.
• If the Playlist search mode was used to select a song, fast-forward/
fast-backward only applies to current file.
• Fast-forward/fast-backward is valid in current folder.
4
] after touching [P1/2].
The songs will be played back in random sequence.
].
The file will be played repeatedly.
(off)
(Repeat One)
3
(Repeat Folder)
To cancel repeat play, touch [
Selecting the desired Playlist
].
Random Play Shuffle (M.I.X.)
The Shuffle function of the Flash memory is displayed as
on the
IVE-W530EBT/IVE-W530ABT/IVE-W530E
Shuffle Folder
:
Only files in a folder are played back in random sequence in the
M.I.X. Folder mode.
Shuffle ALL
[
Touch
] or [
] to select the desired Playlist.
Select the desired Folder (Folder up/
down)
If you listen to a file from a selected folder, the folder can be changed.
Touch
[
] or [
] to select the folder.
:
Song shuffle randomly plays back within the selected Bank.
41-EN
iPod/iPhone
(Optional)
Setting the iPod Control
When an iPod/iPhone is connected, operate it from its own controls or
from the head unit.
1
Connecting an iPod/iPhone
An iPod/iPhone can be connected to this unit, by using the USB
connection cable. When this unit is connected by using the cable, the
controls on the iPod are not functional.
• Other applications (Internet function, etc.) of the iPhone or
iPod touch are not controllable from the unit; however, these
functions can be controlled from the iPhone or iPod touch
itself.
• An iPhone connected to this unit operates as an iPod. The
iPhone can be used as a hands-free device using the
integrated Bluetooth module.
• Video is only viewable from a video capable iPhone/iPod. The
AUX2 IN must be set to “iPod Video” (see “Setting the AUX
Mode” page 32), and the Parking Brake must be engaged.
Touch [ App] after touching [P1/2] on the iPod
mode screen.
“App Mode” appears on the upper left corner of the screen.
2
In the App Mode screen, touching [
will switch to the HU mode.
“
iPod” appears on the upper left corner of the screen.
• When using the App Mode, make sure the USB 30P cable is
connected to the iPod(V)/AUX Input Connector correctly by using the
AV extension cable.
For “ iPod”: Operate the iPod/iPhone via this unit.
For “App Mode”: Operate the iPod/iPhone using its own
controls. When App Mode is selected, all function guide except
[
App] and [WIDE] (video mode only) will disappear.
• Depending upon the iPod used, App Mode may not be selectable. Or,
if iPod is selected, operation must still be from the head unit.
• For automatic transmission vehicles, place the transmission lever in
the Park position.
Playback
iPod/iPhone models usable with this unit
1
• Confirmed devices regarding Made for iPod. Correct function
of earlier versions cannot be guaranteed.
iPod touch (4th generation): Ver. 5.1
iPod nano (6th generation): Ver. 1.2
iPod touch (3rd generation): Ver. 5.1
iPod nano (5th generation): Ver. 1.0.2
iPod classic (160 GB) (Late 2009): Ver. 2.0.4
iPod touch (2nd generation): Ver. 4.2.1
iPod nano (4th generation): Ver. 1.0.4
iPod classic (120 GB): Ver. 2.0.1
iPod touch (1st generation): Ver. 3.1.3
iPod nano (3rd generation): Ver. 1.1.3
iPod classic (80 GB, 160 GB): Ver. 1.1.2
iPod nano (2nd generation): Ver. 1.1.3
• Confirmed devices regarding Works with iPhone. Correct
function of earlier versions cannot be guaranteed.
iPhone 4S: Ver. 5.1
iPhone4: Ver. 5.1
iPhone 3GS: Ver. 5.1
iPhone 3G: Ver. 4.2.1
iPhone: Ver. 3.1.3
• For clarity in identifying your model of iPod, please see
Apple’s own document “Identifying iPod models” at
http://support.apple.com/kb/HT1353.
42-EN
App] again
Press SOURCE/
.
The SOURCE selection screen is displayed.
2
Touch [iPod].
The display shows the iPod mode screen.
3
Touch [
] or [
] to select the desired song.
Return to the beginning of the current song:
Touch [
].
Fast backward the current song:
Touch and hold [
].
Advance to the beginning of the next song:
Touch [
].
Fast forward the current song:
Touch and hold [
].
4
To pause playback, touch [
Touching [
/
/
].
] again will resume playback.
• If a song is playing on the iPod/iPhone when it is connected to this
unit, it will continue playing after the connection.
• If the artist, album, genres, composers, titles, created in iTunes, has
too many characters, songs may not be played back when connected
to this unit. Therefore, a maximum of 64 characters is recommended.
The maximum number of characters for the head unit is 66 (64 byte).
• Some characters may not be correctly displayed.
• If an iPhone or a video-compatible iPod is connected, touching
[WIDE] on the function guide will change the display mode. For
operation, refer to “Switching Display Modes” (page 23).
• If you listen to an episode from a selected podcast or audiobook, the
podcast can be changed by pressing [
] (Podcast) [ ] or [ ].
• An episode may have several chapters. The chapter can be changed
by pressing [
] or [
].
To play back the artist directly
Searching for a desired Song
1 Touch [
] next to the artist’s name.
All songs of the selected artist are played back.
An iPod/iPhone can contain hundreds of songs. By keeping these songs
organized in playlists, this unit can use these to ease song searches.
Using the search mode’s individual hierarchy, you can narrow down
your search as shown in the table below.
<MUSIC Search Menu>
Hierarchy 1
Hierarchy 2
Hierarchy 3
Hierarchy 4
Playlists
Songs
—
—
Artists*
Albums*
Songs
—
Albums*
Songs
—
—
Songs
—
—
—
Podcasts
Episodes
—
—
Genres*
Artists*
Albums*
Songs
Composers*
Albums*
Songs
—
Audiobooks
—
—
—
• Video search mode depends on the iPod/iPhone. If the specification
of the iPod/iPhone is changed, the search mode on this unit will also
be changed.
For example: Searching by Artist name
The following example explains how an Artist search is performed.
Another search mode can be used for the same operation, although the
hierarchy differs.
Searching by artist name
1
Touch [
].
The search mode is activated, and the search list screen
appears.
• Touching and holding [
last search mode.
2
] for at least 2 seconds will return to the
Touch the title bar of Music.
The Music search menu screen is displayed.
• If Video mode is selected, the Video playlists/Movies/Music Videos/
TV Shows/Video Podcasts search mode may be used depending on
the connected iPod/iPhone (Only for iPhone or iPod compatible
Video).
• If you want to select Video search mode, set AUX2 IN to iPod Video in
advance. Refer to “Setting the AUX Mode” on page 32.
3
Touch the title bar of Artists.
To search for the album of an artist
1 Touch the title bar of the selected artist.
The Album search screen of the selected artist is displayed.
2 Touch [
] next to the desired album’s name.
All songs of the selected album are played back.
To search for a song in the album of an artist
1 Touch the title bar of the desired album in “To search for the
album of an artist” in step 2.
The Song search screen of the selected album is displayed.
2 Touch [
] next to the desired song’s name.
The selected song is played back.
• Touching [
] of ALL will play back all songs in the list when you
are in a hierarchy with an asterisk* (see table on the left column).
• Touching the title bar of ALL will display the search list in the next
hierarchy.
• If Alphabet search Function is activated in the search mode, a search
can be made quickly by Alphabet search function to find the desired
artist or song, etc. For details, refer to “Alphabet Search Function”
on page 37.
• When search is made during M.I.X. play, the M.I.X. play mode will be
cancelled.
• In search mode, touch [
] to return to the previous menu.
• In search mode, touch [Exit] to return to iPod main screen.
Selecting Playlist/Artist/Album/Genre/
Composer/Podcast
Playlist/Artist/Album/Genre/Composer/Podcast can be easily changed.
For example, if you listen to a song from a selected album, the album
can be changed.
1
Press [ ] or [ ] to select the desired
(Playlist) /
(Artist) /
(Album) /
(Genre) /
(Composer) /
(Podcast).
• If search selection mode is not activated, a Song search is not
possible.
• If Playlist/Artist/Album/Genre/Composer/Podcast are not searched,
this operation is not possible.
The Artist search screen is displayed.
4
Select the desired artist.
43-EN
Random Play Shuffle (M.I.X.)
The Shuffle function of the iPod is displayed as
Information
on the
IVE-W530EBT/IVE-W530ABT/IVE-W530E.
Shuffle Songs
:
Song shuffle randomly plays back certain selected songs. Any
one song plays back just once until all songs have been played
back.
Shuffle Albums
:
Album shuffle playback plays back all songs in order, then
randomly selects the next album. All songs of that album are
played back in order, and so on. Any one album is played just
once.
1
Touch [
About DVDs
Music CDs and DVDs have grooves (tracks) in which the digital
data is recorded. The data is represented as microscopic pits
recorded into the track – these pits are read by a laser beam to
play the disc. On DVDs, the density of the tracks and pits is
twice that of CDs, so DVDs can contain more data in less space.
CDs
] after touching [P1/2].
(off)
(Shuffle Songs)
2
(Shuffle Albums)
To cancel M.I.X. play, touch [
Minimum pit
length 0.9 µm
].
• If a song is selected in the album search mode before selecting
Shuffle (M.I.X.), the songs will not play back randomly even when
Shuffle album is selected.
Repeat Play
The Repeat function of the iPod is displayed as
on the
Track pitch 0.74 µm
A 12 cm disc can contain one movie or about four hours of
music.
In addition, DVDs provide sharp picture quality with vivid colours
thanks to a horizontal resolution of over 500 lines (compared to less
than 300 for VHS tape).
:
The current song is played repeatedly.
Repeat All
Track pitch 1.6 µm
DVDs
Minimum pit
0.6 mm
length 0.6 mm
0.9 µm
IVE-W530EBT/IVE-W530ABT/IVE-W530E.
Repeat One
1.2 mm
ALL:
All songs in the selected list are played repeatedly.
1
In addition, DVDs offer a variety of functions.
Touch [
] after touching [P1/2].
(Repeat One)
2
ALL
(Repeat All)
To cancel repeat play, touch [
(off)
].
• Depending on the connected iPod, track up/down may be not
available during Repeat play.
Multiple audio* (page 19)
Movies can be recorded in up to eight languages. The desired
language can be selected from the unit.
Subtitles function* (page 20)
Movies can include subtitles in up to 32 languages. The desired
subtitle language can be selected from the unit.
Multi angle function* (page 19)
When the DVD contains a movie shot from multiple angles, the
desired angle can be selected from the unit.
Multi story function*
With this function, a single movie includes various story lines.
You can select different story lines to view various versions of the
same movie.
Operation differs from disc to disc. Story line selection screens
including instructions appear during the movie. Just follow the
instructions.
* The functions audio languages, subtitle languages, angles, etc., differ
from disc to disc. For details, refer to the disc’s instructions.
44-EN
List of Language Codes
(For details, see page 25.)
Abbreviation
AA
AB
AF
AM
AR
AS
AY
AZ
BA
BE
BG
BH
BI
BN
BO
BR
CA
CO
CS
CY
DA
DE
DZ
EL
EN
EO
ES
ET
EU
FA
FI
FJ
FO
FR
FY
GA
GD
GL
GN
GU
HA
HI
HR
HU
HY
IA
Code
6565
6566
6570
6577
6582
6583
6589
6590
6665
6669
6671
6672
6673
6678
6679
6682
6765
6779
6783
6789
6865
6869
6890
6976
6978
6979
6983
6984
6985
7065
7073
7074
7079
7082
7089
7165
7168
7176
7178
7185
7265
7273
7282
7285
7289
7365
Language
Afar
Abkhazian
Afrikaans
Amharic
Arabic
Assamese
Aymara
Azerbaijani
Bashkir
Byelorussian
Bulgarian
Bihari
Bislama
Bengali, Bangla
Tibetan
Breton
Catalan
Corsican
Czech
Welsh
Danish
German
Bhutani
Greek
English
Esperanto
Spanish
Estonian
Basque
Persian
Finnish
Fiji
Faroese
French
Frisian
Irish
Scots Gaelic
Galician
Guarani
Gujarati
Hausa
Hindi
Croatian
Hungarian
Armenian
Interlingua
Abbreviation
Code
IK
IN
IS
IT
JA
JI
JW
KA
KK
KL
KM
KN
KO
KS
KU
KY
LA
LN
LO
LT
LV
MG
MI
MK
ML
MN
MO
MR
MS
MT
MY
NA
NE
NL
NO
OR
PA
PL
PS
PT
QU
RM
RO
RU
SA
SD
7375
7378
7383
7384
7465
7473
7487
7565
7575
7576
7577
7578
7579
7583
7585
7589
7665
7678
7679
7684
7686
7771
7773
7775
7776
7778
7779
7782
7783
7784
7789
7865
7869
7876
7879
7982
8065
8076
8083
8084
8185
8277
8279
8285
8365
8368
Language
Inupiak
Indonesian
Icelandic
Italian
Japanese
Yiddish
Javanese
Georgian
Kazakh
Greenlandic
Cambodian
Kannada
Korean
Kashmiri
Kurdish
Kirghiz
Latin
Lingala
Laothian
Lithuanian
Latvian, Lettish
Malagasy
Maori
Macedonian
Malayalam
Mongolian
Moldavian
Marathi
Malay
Maltese
Burmese
Nauru
Nepali
Dutch
Norwegian
Oriya
Punjabi
Polish
Pashto, Pushto
Portuguese
Quechua
Rhaeto-Romance
Romanian
Russian
Sanskrit
Sindhi
Abbreviation
Code
Language
SH
SI
SK
SL
SM
SN
SO
SQ
SR
SU
SV
SW
TA
TE
TG
TH
TI
TK
TL
TO
TR
TT
TW
UK
UR
UZ
VI
VO
WO
XH
YO
ZH
ZU
8372
8373
8375
8376
8377
8378
8379
8381
8382
8385
8386
8387
8465
8469
8471
8472
8473
8475
8476
8479
8482
8484
8487
8575
8582
8590
8673
8679
8779
8872
8979
9072
9085
Serbo-Croatian
Singhalese
Slovak
Slovenian
Samoan
Shona
Somali
Albanian
Serbian
Sundanese
Swedish
Swahili
Tamil
Telugu
Tajik
Thai
Tigrinya
Turkmen
Tagalog
Tonga
Turkish
Tatar
Twi
Ukrainian
Urdu
Uzbek
Vietnamese
Volapuk
Wolof
Xhosa
Yoruba
Chinese
Zulu
45-EN
In Case of Difficulty
If you encounter a problem, please turn the power off, then on again.
If the unit is still not functioning normally, please review the items
in the following checklist. This guide will help you isolate the
problem if the unit is at fault. Otherwise, make sure the rest of your
system is properly connected, or then consult your authorized
Alpine dealer.
Basic
No function or display.
• Vehicle’s ignition is off.
- If connected according to the instructions, the unit will not
operate with the vehicle’s ignition off.
• Improper power lead connections.
- Check power lead connections.
• Blown fuse.
- Check the fuse on the battery lead of the unit; replace with the
proper value if necessary.
• Blackout mode is activated.
- Cancel Blackout mode.
No sound or unnatural sound.
• Incorrect setting of volume/balance/fader controls.
- Readjust the controls.
• Connections are not properly or securely made.
- Check the connections and firmly connect.
Screen not displayed.
• Brightness control is set at the minimum position.
- Adjust the Brightness control.
• Temperature in the vehicle is too low.
- Increase the vehicle’s interior temperature to operation
temperature range.
• Connections to the DVD, CD player, and navigation system are
not securely made.
- Check the connections and firmly connect.
Movement of displayed picture is abnormal.
• Temperature in the vehicle is too high.
- Allow the vehicle’s interior temperature to cool.
Unclear or noisy display.
• Fluorescent plate is worn out.
- Replace the fluorescent plate.
Navigation system inoperative.
• Connections to the navigation system are incorrect.
- Check the connections with the navigation system and connect
the cables correctly and firmly.
Unable to tune stations in the seek mode.
• You are in a weak signal area.
- Make sure the tuner is in DX mode.
• If the area you are in is a primary signal area, the antenna may
not be grounded and connected properly.
- Check your antenna connections; make sure the antenna is
properly grounded at its mounting location.
• The antenna may not be the proper length.
- Make sure the antenna is fully extended; if broken, replace the
antenna with a new one.
Broadcast is noisy.
• The antenna is not the proper length.
- Extend the antenna fully; replace it if it is broken.
• The antenna is poorly grounded.
- Make sure the antenna is grounded properly at its mounting
location.
• The station signal is weak and noisy.
- If above solution does not work, tune in another station.
CD/MP3/WMA/AAC/DVD/Video CD
Disc playback sound is wavering.
• Moisture condensation in the disc Module.
- Allow enough time for the condensation to evaporate (about 1
hour).
Disc insertion not possible.
• A disc is already in the DVD player.
- Eject the disc and remove it.
• The disc is being improperly inserted.
- Make sure the disc is being inserted following the instructions
in the CD/MP3/WMA/AAC, DVD/Video CD Player Operation
section.
Unable to fast forward or reverse the disc.
• The disc has been damaged.
- Eject the disc and discard it; using a damaged disc in your unit
can cause damage to the mechanism.
Disc playback sound skips due to vibration.
• Improper mounting of the unit.
- Securely re-mount the unit.
• Disc is very dirty.
- Clean the disc.
• Disc has scratches.
- Change the disc.
• The pick-up lens is dirty.
- Do not use a commercial available lens cleaner disc. Consult
your nearest ALPINE dealer.
Disc playback sound skips without vibration.
• Dirty or scratched disc.
- Clean the disc; damaged disc should be replaced.
Unclear picture display.
• Fluorescent tube is exhausted.
- Replace the fluorescent tube*.
CD-R/CD-RW playback not possible.
• Close session (finalisation) has not been performed.
- Perform finalisation and attempt playback again.
* The fluorescent tube replacement is not free of charge even within the
warranty period, for the tube is an article of consumption.
Error displays
• Mechanical error
- Press
. After the error indication disappears, insert the disc
again. If the above-mentioned solution does not solve the
problem, consult your nearest ALPINE dealer.
Radio
Unable to receive stations.
• No antenna, or open connection in the antenna cable.
- Make sure the antenna is properly connected; replace the
antenna or cable if necessary.
46-EN
MP3/WMA/AAC is not played back.
• Writing error occurred. The CD format is not compatible.
- Make sure the CD has been written in a supported format.
Refer to “About MP3/WMA/AAC” (pages 13 and 14), then
rewrite in the format supported by this device.
Unit does not operate.
• Monitor’s power is not turned on.
- Turn on the monitor’s power.
• Condensation.
- Wait a while (about 1 hour) for the condensation to dry.
No picture is produced.
• Monitor’s mode is not switched to the mode you want to see.
- Switch to the mode you want to see.
• Monitor’s parking brake lead is not connected.
- Connect the monitor’s parking brake wire and set the parking
brake.
(For details, refer to the monitor’s instructions.)
Playback does not start.
• Disc is loaded upside-down.
- Check the disc and load it with the labelled side facing upward.
• Disc is dirty.
- Clean the disc.
• A disc not able to play back with this unit is loaded.
- Check if the disc is able to be played back.
• Parental lock is set.
- Cancel the parental lock or change the rating level.
Picture is unclear or noisy.
• Disc is being fast-forwarded or fast-reversed.
- The picture may be slightly disturbed, but this is normal.
• Vehicle’s battery power is weak.
- Check the battery power and wiring.
(The unit may malfunction if the battery power is under 11
volts with a load applied.)
• Monitor’s fluorescent tube is worn.
- Replace the monitor’s fluorescent tube.
Image stops sometimes.
• Disc is scratched.
- Replaced with a non-scratched disc.
Playing back a DRM protected DivX® File
Some operations cannot be performed while displaying the
following message.
“Authorization Error This player is not authorized to play
this video.”
• If an unauthorized DRM protected DivX® file is played back,
the following message is displayed for 2 seconds:
“Authorization Error This player is not authorized to play this
video”. This means the file’s registration code does not match
the player’s and cannot be played back. After the message has
been displayed, the beginning of the next file will automatically
begin playing.
“Rental expired”
• A DivX® rental is set for a fixed number of viewings. If viewing
time has counted down to 0, “Rental expired” is displayed for 2
seconds. This indicates that the file can no longer be played.
After the message has been displayed, the beginning of the next
file will automatically begin playing.
“Rental Countdown OK?”
• While playing back a rental file, if B.SKIP or ENTER is selected
in the file selection menu, “Rental Countdown OK?” is
displayed. The rental file playback is interrupted (viewing time
is reduced by 1). To confirm stopping playback, touch [Yes], or
touch [No] to continue playing the file.
“View DivX® VOD Rental
This rental has (remaining times) views left.
Do you want to use one of your (remaining times) views
now?”
• If audio/visual times still remain, the remaining number of
playback times is displayed. To play back, touch [Yes]. If the
next file is to be played back, touch [No].
Indication for CD/MP3/WMA/AAC
• No disc is inserted.
- Insert a disc.
• Although a disc is inserted, “No Disc” is displayed and the unit
does not start to play or eject the disc.
- Remove the disc by following these steps:
Press
for at least 3 seconds.
• Mechanism error.
1) Press
and eject the disc.
If not ejecting, consult your Alpine dealer.
2) When the error indication remains after ejecting, press
again.
If the error indication still does not turn off after pressing
for a few times, consult your Alpine dealer.
• Scratched disc, contaminated disc/poor recording/disc
incompatible with this unit.
- Press
.
- Change the disc.
• A copy-protected WMA file was played back.
- You can only play back non-copy-protected files.
Indication for DVD/Video CD
• No disc is inserted.
- Insert a disc.
• Although a disc is inserted, “No Disc” is displayed and the unit
does not start to play or eject the disc.
- Remove the disc by following these steps:
Press
for at least 3 seconds.
47-EN
• Button operation on the unit or remote control (optional) is not
possible.
- For some discs or playing modes, certain operations are not
possible. This is not a malfunction.
• A sampling rate/bit rate not supported by the unit is used.
- Use a sampling rate/bit rate that is supported by the unit.
• A copy-protected WMA file was played back.
- You can only play back non-copy-protected files.
Indication for iPod Mode
• Mechanism error.
1) Press
and eject the disc.
If not ejecting, consult your Alpine dealer.
2) When the error indication remains after ejecting, press
again.
If the error indication still does not turn off after pressing
for a few times, consult your Alpine dealer.
• Scratched disc, contaminated disc/poor recording/disc
incompatible with this unit.
- Press
.
- Change the disc.
• The iPod/iPhone is not connected.
- Make sure the iPod/iPhone is correctly connected (refer to
“Connections”).
Make sure the cable is not bent excessively.
• There are no songs in the iPod/iPhone.
- Download songs to the iPod/iPhone and connect to the
IVE-W530EBT/IVE-W530ABT/IVE-W530E.
• Abnormal current is run to the USB connector device.
- You can solve the problem by switching the source.
• Disc does not match regional code number.
- Load a disc that matches the regional code number.
Indication for Flash Memory
• Abnormal current is run to the USB connector device.
- You can solve the problem by switching the source.
• A USB device that is not supported by the unit is connected.
- Connect a USB device that is supported by the unit.
• A Flash Memory is not connected.
- Make sure the Flash Memory device is correctly connected and
the cable is not excessively bent.
• No song (file) is stored in the Flash Memory.
- Connect the Flash Memory device after storing songs (files).
48-EN
BLUETOOTH SECTION
Specifications
MONITOR SECTION
Screen Size
6.1"
LCD Type
Transparent type TN LCD
Operation System
TFT active matrix
Number of Picture Elements 1,152,000 pcs. (800 × 3 × 480)
Effective Number of Picture Elements
99.99% or more
Illumination System
LED
BLUETOOTH Specification BLUETOOTH V 3.0
Output Power
+4 dBm Max. (Power class 2)
Profile
HFP (Hands-Free Profile)
HSP (Head Set Profile)
A2DP (Advanced Audio
Distribution Profile)
AVRCP (Audio/Video Remote
Control Profile)
GENERAL
Power Requirement
FM TUNER SECTION
Tuning Range
Mono Usable Sensitivity
50 dB Quieting Sensitivity
Alternate Channel Selectivity
Signal-to-Noise Ratio
Stereo Separation
Capture Ratio
87.5 – 108.0 MHz
8.1 dBf (0.7 µV/75 ohms)
12 dBf (1.1 µV/75 ohms)
80 dB
65 dB
35 dB
2.0 dB
AM TUNER SECTION
Tuning Range
Usable Sensitivity
531 – 1,602 kHz
22.5 µV/27 dBf
USB SECTION
USB requirements
Max. Power Consumption
USB Class
File System
MP3 Decoding
WMA Decoding
AAC Decoding
Number of Channels
Frequency Response*
Total Harmonic Distortion
Dynamic Range
Signal-to-Noise Ratio
Channel Separation
USB 1.1/2.0
1A
USB (Mass Storage Class)
FAT12/16/32
MPEG-1/2 AUDIO Layer-3
Windows Media™ Audio
AAC-LC format “.m4a” file
2-Channel (Stereo)
20 – 20,000 Hz (±1 dB)
0.008% (at 1 kHz)
95 dB (at 1 kHz)
105 dB
85 dB (at 1 kHz)
Operating temperature
Maximum Power Output
Output Voltage
Weight
Audio output level
Preout (Front, Rear):
Preout (Subwoofer):
AUX OUT:
14.4 V DC
(11–16 V allowable)
+32°F to +113°F
(0°C to + 45°C)
50 W × 4
2,000 mV/10k ohms
2.1 kg (4 lbs. 10 oz)
2V/10k ohms (max.)
2V/10k ohms (max.)
1.2V/10k ohms
CHASSIS SIZE
Width
Height
Depth
178 mm (7")
100 mm (3-15/16")
150 mm (5-7/8")
• Due to continuous product improvement, specifications and design
are subject to change without notice.
• The LCD panel is manufactured using an extremely high precision
manufacturing technology. Its effective pixel ratio is over 99.99%.
This means that there is a possibility that 0.01% of the pixels could
be either always ON or OFF.
* Frequency response may differ depending on the encoder software/
bit rate.
CD/DVD SECTION
Frequency Response
Wow & Flutter (% WRMS)
Total Harmonic Distortion
Dynamic Range
Channel Separation
Signal system
Horizontal resolution
Video output level
Video S/N ratio
Audio S/N ratio
20 – 20,000 Hz
Below measurable limits
0.008% (at 1 kHz)
95 dB (at 1 kHz)
85 dB (at 1 kHz)
NTSC/PAL
500 lines or greater
1Vp-p (75 ohms)
DVD: 60 dB
105 dB
49-EN
Installation and Connections
Before installing or connecting the unit, please read the
following and pages 4 to 8 of this manual thoroughly for
proper use.
Caution
HAVE THE WIRING AND INSTALLATION DONE BY EXPERTS.
Warning
MAKE THE CORRECT CONNECTIONS
Failure to make the proper connections may result in fire or product
damage.
USE ONLY IN CARS WITH A 12 VOLT NEGATIVE GROUND.
(Check with your dealer if you are not sure.) Failure to do so may
result in fire, etc.
BEFORE WIRING, DISCONNECT THE CABLE FROM THE
NEGATIVE BATTERY TERMINAL.
Failure to do so may result in electric shock or injury due to
electrical shorts.
DO NOT ALLOW CABLES TO BECOME ENTANGLED IN
SURROUNDING OBJECTS.
Arrange wiring and cables in compliance with the manual to
prevent obstructions when driving. Cables or wiring that obstruct or
hang up on places such as the steering wheel, shift lever, brake
pedals, etc. can be extremely hazardous.
DO NOT SPLICE INTO ELECTRICAL CABLES.
Never cut away cable insulation to supply power to other
equipment. Doing so will exceed the current carrying capacity of
the wire and result in fire or electric shock.
DO NOT DAMAGE PIPE OR WIRING WHEN DRILLING
HOLES.
When drilling holes in the chassis for installation, take precautions
so as not to contact, damage or obstruct pipes, fuel lines, tanks or
electrical wiring. Failure to take such precautions may result in fire.
DO NOT USE BOLTS OR NUTS IN THE BRAKE OR STEERING
SYSTEMS TO MAKE GROUND CONNECTIONS.
Bolts or nuts used for the brake or steering systems (or any other
safety-related system), or tanks should NEVER be used for
installations or ground connections. Using such parts could disable
control of the vehicle and cause fire etc.
KEEP SMALL OBJECTS SUCH AS BOLTS OR SCREWS OUT
OF THE REACH OF CHILDREN.
Swallowing them may result in serious injury. If swallowed,
consult a physician immediately.
DO NOT INSTALL IN LOCATIONS WHICH MIGHT HINDER
VEHICLE OPERATION, SUCH AS THE STEERING WHEEL OR
SHIFT LEVER.
Doing so may obstruct forward vision or hamper movement etc.
and results in serious accident.
IMPORTANT
Please record the serial number of your unit in the space provided
below and keep it as a permanent record. The serial number plate is
located on the bottom of the unit.
50-EN
The wiring and installation of this unit requires special technical
skill and experience. To ensure safety, always contact the dealer
where you purchased this product to have the work done.
USE SPECIFIED ACCESSORY PARTS AND INSTALL THEM
SECURELY.
Be sure to use only the specified accessory parts. Use of other than
designated parts may damage this unit internally or may not
securely install the unit in place. This may cause parts to become
loose resulting in hazards or product failure.
ARRANGE THE WIRING SO IT IS NOT CRIMPED OR
PINCHED BY A SHARP METAL EDGE.
Route the cables and wiring away from moving parts (like the seat
rails) or sharp or pointed edges. This will prevent crimping and
damage to the wiring. If wiring passes through a hole in metal, use
a rubber grommet to prevent the wire’s insulation from being cut by
the metal edge of the hole.
DO NOT INSTALL IN LOCATIONS WITH HIGH MOISTURE OR
DUST.
Avoid installing the unit in locations with high incidence of
moisture or dust. Moisture or dust that penetrates into this unit may
result in product failure.
Precautions
• Be sure to disconnect the cable from the (–) battery post before
installing your IVE-W530EBT/IVE-W530ABT/IVE-W530E
This will reduce any chance of damage to the unit in case of a
short-circuit.
• Be sure to connect the colour coded leads according to the
diagram. Incorrect connections may cause the unit to
malfunction or damage to the vehicle’s electrical system.
• When making connections to the vehicle’s electrical system, be
aware of the factory installed components(e.g. on-board computer).
Do not tap into these leads to provide power for this unit. When
connecting the IVE-W530EBT/IVE-W530ABT/IVE-W530E to
the fuse box, make sure the fuse for the intended circuit of the
IVE-W530EBT/IVE-W530ABT/IVE-W530E has the appropriate
amperage. Failure to do so may result in damage to the unit
and/or the vehicle. When in doubt, consult your ALPINE dealer.
• The IVE-W530EBT/IVE-W530ABT/IVE-W530E uses female
RCA-type jacks for connection to other units (e.g. amplifier)
having RCA connectors. You may need an adapter to connect
other units. If so, please contact your authorized ALPINE dealer
for assistance.
• Be sure to connect the speaker (–) leads to the speaker (–)
terminal. Never connect left and right channel speaker cables to
each other or to the vehicle body.
• The Display must be completely retracted in the casing when
installing. If it is not, problems may occur.
• When installing in automobiles, make sure the Display can open/
close without coming in contact with the shift lever.
SERIAL NUMBER:
INSTALLATION DATE:
INSTALLATION TECHNICIAN:
PLACE OF PURCHASE:
2
Installation
Screw
Caution
Hex Nut (M5)
Do not block the unit’s heat sink, thus preventing air
circulation. If blocked, heat will accumulate inside the
unit and may cause a fire.
*2
Bolt Stud
Heat Sink
Metal
Mounting
Strap
*1
Rear of the Unit
This unit
Ground Lead
Rear of the unit
Chassis
The main unit must be mounted within 30 degrees of the
horizontal plane, back to front.
Reinforce the head unit with the metal mounting strap
(not supplied). Secure the ground lead of the unit to a
clean metal spot using a screw (*1) already attached to
the vehicle’s chassis.
• For the screw marked “*2”, use an appropriate screw for the chosen
mounting location.
Less than 30°
1
Remove the mounting sleeve from the main unit
(Refer to “Removal” on page 51). Slide the mounting
sleeve into the dashboard and fix it with the metal
shackles.
Mounting Sleeve
(Included)
Dashboard
Connect each input lead coming from an amplifier or
equalizer to the corresponding output lead coming from
the left rear of the IVE-W530EBT/IVE-W530ABT/IVE-W530E.
Connect all other leads of the IVE-W530EBT/IVE-W530ABT/
IVE-W530E according to details described in the
CONNECTlONS section.
3
Slide the IVE-W530EBT/IVE-W530ABT/IVE-W530E into
the dashboard until it clicks. This ensures that the unit
is properly locked and will not accidentally come out
from the dashboard.
Removal
This unit
1. Insert the bracket keys into the unit, along the guides
on either side. The unit can now be removed from the
mounting sleeve.
This unit
Bracket keys
(Included)
Face Plate
(Included)
2. Pull the unit out, keeping it unlocked as you do so.
51-EN
<JAPANESE CAR>
Take the face plate off, and secure the ground lead of the unit to
a clean metal spot using a screw (*) already attached to the
car’s chassis.
Attach the Original Mounting Bracket to each side of the
IVE-W530EBT/IVE-W530ABT/IVE-W530E, using the screws
supplied with IVE-W530EBT/IVE-W530ABT/IVE-W530E.
Screws (M5 × 8) (Included)
Ground Lead
*
Mounting
Bracket
Face Plate (Included)
Chassis
Mounting the Microphone
For the sake of safety, mount the microphone in the following location.
• In a stable and secure location.
• In a location that does not inhibit safely driving the vehicle.
• Mount the microphone in a location where the driver’s voice can
easily be picked up.
Requiring the driver to move towards the microphone for audibility
causes a distraction that could be dangerous.
52-EN
Connection Diagram of SPST Switch (sold separately)
(If the ACC power supply is not available)
ACC
(Red)
SPST SW (Optional)
FUSE (5A)
(Optional)
BATTERY
(Yellow)
IVE-W530EBT/
IVE-W530ABT/
IVE-W530E
FUSE (20A)
(Optional)
Battery
• If your vehicle has no ACC power supply, add an SPST (Single-Pole, Single-Throw) switch (sold separately) and fuse (sold separately).
• The diagram and the fuse amperage shown above are in the case when IVE-W530EBT/IVE-W530ABT/IVE-W530E is used individually.
• If the switched power (ignition) lead of the IVE-W530EBT/IVE-W530ABT/IVE-W530E is connected directly to the positive (+) post of the vehicle’s
battery, the IVE-W530EBT/IVE-W530ABT/IVE-W530E draws some current (several hundred milliamperes) even when its switch is placed in the
OFF position and the battery may be discharged.
To prevent external noise from entering the audio system.
Locate the unit and route the leads at least 10 cm away from the car harness.
Keep the battery power leads as far away from other leads as possible.
Connect the ground lead securely to a bare metal spot (remove any paint, dirt or grease if necessary) of the car chassis.
If you add an optional noise suppressor, connect it as far away from the unit as possible. Your Alpine dealer carries various
noise suppressors, contact them for further information.
• Your Alpine dealer knows best about noise prevention measures so consult your dealer for further information.
•
•
•
•
53-EN
Connections
Antenna
(Yellow)
(White)
(Red)
(Yellow)
(White)
(Red)
To Video output
terminal
To Audio output
terminals (R, L)
To Video input
terminal
To Audio input
terminals (R, L)
Front Right
Amplifier
Front Left
Rear Right
Amplifier
Rear Left
Subwoofers
Amplifier
REMOTE TURN-ON
(Blue/White)
POWER ANT
(Blue)
PARKING BRAKE
(Yellow/Blue)
REVERSE
(Orange)
REMOTE OUT
(White/Brown)
IGNITION
(Red)
To amplifier or equalizer
To power antenna
To the parking brake signal lead
To plus side of the back lamp
signal lead of the car
To remote input lead
Ignition key
BATTERY
(Yellow)
GND
Battery
(Black)
(Grey)
Speakers
SPEAKER RIGHT FRONT
(Grey/Black)
Front Right
(Violet/Black)
SPEAKER RIGHT REAR
Rear Right
(Violet)
(Green)
SPEAKER LEFT REAR
(Green/Black)
Rear Left
(White/Black)
SPEAKER LEFT FRONT
Front Left
(White)
Microphone (Included)
(IVE-W530EBT/IVE-W530ABT only)
54-EN
Antenna Receptacle
Ground Lead (Black)
Video Input Connector (AUX IN) (Yellow)
Connect this lead to a good chassis ground on the vehicle.
Make sure the connection is made to bare metal and is
securely fastened using the sheet metal screw provided.
Input the AUX video.
• To use this function, turn on “AUX1 IN” in the “SETUP” menu (see
“Setting the AUX Mode” (page 32)).
Audio Input Connector (AUX IN)
RED is down and WHITE is up input the audio.
Video Output Connector (AUX OUT) (Yellow)
Right Front (+) Speaker Output Lead (Grey)
Right Front (–) Speaker Output Lead (Grey/Black)
Right Rear (–) Speaker Output Lead (Violet/Black)
Right Rear (+) Speaker Output Lead (Violet)
Output the video.
Left Rear (+) Speaker Output Lead (Green)
Audio Output Connectors (AUX OUT)
Left Rear (–) Speaker Output Lead (Green/Black)
RED is down and WHITE is up output the audio.
Left Front (–) Speaker Output Lead (White/Black)
Front Output RCA Connectors
Left Front (+) Speaker Output Lead (White)
RED is left and WHITE is right.
Rear Output RCA Connectors
RGB Input Connector
RED is left and WHITE is right.
Connect this to the RGB output terminal of the Navigation
System.
Subwoofer Output RCA Connectors
USB Connector
RED is left and WHITE is right.
RCA Extension Cable (sold separately)
Fuse Holder (15A)
Power Supply Connector
Remote Turn-On Lead (Blue/White)
Connect this lead to the remote turn-on lead of your
amplifier or signal processor.
Power Antenna Lead (Blue)
Connect this lead to the +B terminal of your power antenna,
if applicable.
• This lead should be used only for controlling the vehicle’s power
antenna. Do not use this lead to turn on an amplifier or a signal
processor, etc.
Parking Brake Lead (Yellow/Blue)
Connect this lead to the power supply side of the parking
brake switch to transmit the parking brake status signals to
the IVE-W530EBT/IVE-W530ABT.
Reverse Lead (Orange)
Use only when a back-up camera is connected. Connect to
the plus side of the car’s reverse lamp. This lamp illuminates
when the transmission is shifted into reverse (R).
With this lead properly wired, the video picture
automatically switches to the back-up camera whenever the
car is put into reverse (R).
Remote Control Output Lead (White/Brown)
Connect this to a Flash Memory device or to an iPod/
iPhone. To use an iPod/iPhone, an iPod interface cable is
required.
• Use the supplied USB cable. If a USB cable other than the supplied is
used, correct performance cannot be guaranteed.
• Route the USB cable away from other cables.
MIC Input Connector (IVE-W530EBT/IVE-W530ABT only)
To Microphone
Steering Remote Control Interface Connector
To steering remote control interface box.
For details about connections, consult your nearest Alpine
dealer.
iPod (V)/AUX Input Connector
Input the iPhone/video compatible iPod audio/video signal
or AUX video/audio signal.
• Set “AUX2 IN” to “iPod Video” in “Setting the AUX Mode”
(page 32) when an iPhone or a video compatible iPod is connected.
• Set “AUX2 IN” to “AUX” in “Setting the AUX Mode” (page 32)
when normal AUX video/audio is input.
CAMERA Input Connector
Use when the optional rearview camera with RCA
Connector is connected.
• Set “ON” in “Setting the Rear Camera Input” (page 31) when
connecting a rearview camera with RCA output connector.
Microphone (Included) (IVE-W530EBT/IVE-W530ABT only)
Connect this lead to the remote control input lead. This lead
outputs the controlling signals from the remote control.
Switched Power Lead (Ignition) (Red)
Connect this lead to an open terminal on the vehicle’s fuse
box or another unused power source which provides (+)
12V only when the ignition is turned on or in the accessory
position.
Battery Lead (Yellow)
Connect this lead to the positive (+) post of the vehicle’s
battery.
55-EN
System Example
Connecting iPhone/Video compatible iPod and Back-up Camera
To Video Output terminal
Rear camera
(Sold Separately)
iPhone/Video compatible
iPod (Sold Separately)
CAMERA Input Connector
Use when the optional rearview camera with RCA connector
is connected.
• Set “ON” in “Setting the Rear Camera Input” (page 31) when
connecting a rearview camera with RCA Output connector.
RCA Extension Cable (Sold Separately)
USB Connector
USB extension cable (Included)
* USB 30P cable (sold separately)
* AV extension cable (sold separately)
* The optional accessory KCU-461iV contains
individually purchase
or
.
56-EN
and
, you cannot
When Connecting External Equipment
To Video Output terminal
TV Tuner or VCR
(Sold Separately)
To Audio Output terminal
To Video Input terminal
Rear monitor
(Sold Separately)
To Audio Input terminal
Use only when back-up camera is connected.
To Video Output terminal
External DVD, etc.
(Sold Separately)
To Audio Output terminal
Video Input Connector (AUX IN) (Yellow)
Input AUX video.
• To use this function, turn on “AUX1 IN” in the “SETUP” menu (see
“Setting the AUX Mode” (page 32)).
Audio Input Connectors (AUX IN)
RED is right and WHITE is left input the audio.
Video Output Connector (AUX OUT) (Yellow)
Output the video.
iPod (V)/AUX Input Connector
Input the iPhone/video compatible iPod audio/video signal
or AUX video/audio signal.
• Set “AUX2 IN” to “AUX” in “Setting the AUX Mode” (page 32)
when normal AUX video/audio is input.
• When you use this connector as normal video/audio input connector
(AUX 2 Input), an optional AV/RCA interface cable should be used.
For details, refer to
.
RED is right and WHITE is left output the audio.
AV/RCA interface cable (4-pole mini AV plug to
3-RCA) (Sold Separately)
RCA Extension Cable (Sold separately)
Usable 4-pole mini AV plug
Power Supply Connector
Wiring convention of this system is as follows:
Audio Output Connectors (AUX OUT)
Remote Control Output Lead (White/Brown)
Audio L (White)
Reverse Lead (Orange)
Audio R (Red)
Use only when a back-up camera is connected. Connect to
the plus side of the car’s reverse lamp. This lamp illuminates
when the transmission is shifted into reverse (R).
With this lead properly wired, the video picture
automatically switches to the back-up camera whenever the
car is put into reverse (R).
Ground
Video (Yellow)
• This configuration is not standardized for commercially available AV
plugs. Please confirm compatibility before purchasing.
Video/Audio Input Connectors
YELLOW is for input video, RED is right and WHITE is left
input the audio.
57-EN
