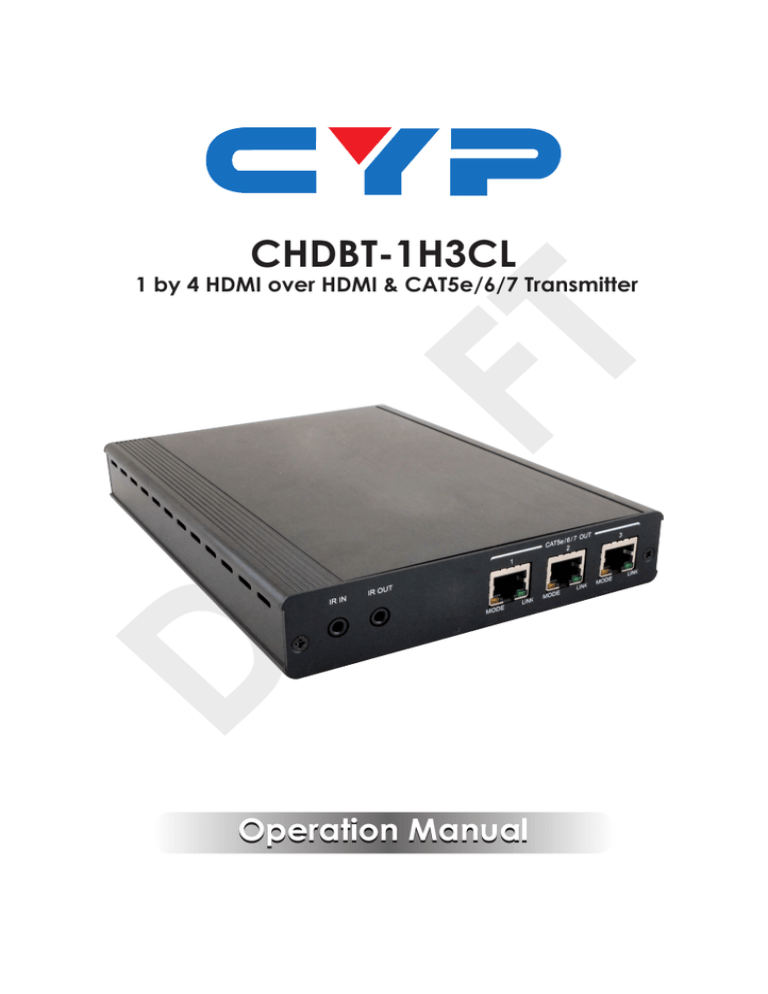

CHDBT-1H3CL
DR
A
FT
1 by 4 HDMI over HDMI & CAT5e/6/7 Transmitter
Operation Manual
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
FT
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
A
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer file, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
DR
Version 1.0 September 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
Always follow basic safety precautions to reduce the risk of fire,
electrical shock and injury to persons.
•
To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
•
Never spill liquid of any kind on or into this product.
•
Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
•
Do not attach the power supply cabling to building surfaces.
•
Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
•
Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
•
To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufficient space for air to circulate around the unit.
DR
A
FT
•
REVISION HISTORY
VERSION NO.
DATE DD/MM/YY SUMMARY OF CHANGE
RDV1
27/02/13
Preliminary Release
RDV2
13/06/13
Package Contents
RDV3
17/06/13
Dimension
RDV4
20/06/13
Add IR Cable Pin Define
RDV5
01/07/13
IR Power
CONTENTS
1. Introduction�������������������������������������������� 1
2. Applications������������������������������������������� 1
3. Package Contents�������������������������������� 1
4. System Requirements���������������������������� 1
5. Features�������������������������������������������������� 2
6. Operation Controls and Functions������� 3
6.1 Front Panel����������������������������������������3
FT
6.2 Rear Panel�����������������������������������������4
6.3 IR Cable Pin Assignment�����������������5
7. Connection Diagram���������������������������� 6
8. Specifications���������������������������������������� 7
8.1 CAT5e/6/7 Cable Specification�����8
DR
A
9. Acronyms����������������������������������������������� 8
1. INTRODUCTION
The HDMI over HDMI and CAT5e/6/7 Transmitter can support
resolutions up to 1080p Full HD, 4Kx2K timing, 3D and multi-channel
digital audio formats to one HDTV and three CAT5e/6/7 outputs.
The HDMI can be connected to HDMI display for instant nearby
display and the CAT5e/6/7 can be connected to CAT5e/6/7 to HDMI
Receivers for distance up to 60 meters.
2. APPLICATIONS
• Household entertainment sharing and control
• Lecture room display and control
FT
• Showroom display and control
• Meeting room presentation and control
• Classroom display and control
3. PACKAGE CONTENTS
A
• HDMI over HDMI & CAT5e/6/7 Transmitter
• IR Receiver x 1
• IR Blaster x 1
• 24V DC Power Adaptor
DR
• Power Cord
• Operation Manual
4. SYSTEM REQUIREMENTS
• Source equipment with HDMI output connector
• Display TV/Monitor with HDMI input connector
• HDMI over CAT5e/6/7 Receivers with industry CAT5e/6/7 cables
1
5. FEATURES
• HDMI with 3D & 4Kx2K supported, HDCP and DVI compliant
• The HDMI and CAT5e/6/7 outputs are playing the same source simultaneously
• Supports data rate from 250Mbps up to 3Gbps
• Supports wide range of PC resolutions from VGA to WUXGA
and HDTV resolutions up to 4Kx2K ([email protected] and
[email protected]).
• Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD
Master Audio transmission (32-192kHz sample rate)
• Supports distances up to 60 meters through CAT5e/6/7 cables
FT
• Can select Standard or TV EDID
• Supports USB service port
• Supports Bi-directional IR control
• The 3D signal display follow by display TV’s EDID
Note:
A
1.This system was tested with CAT6/23AWG cables, results may vary with cables of a different specification.
DR
2.Displaying HDMI 4Kx2K resolution require the standard 4Kx2K HDMI cable and display in order for proper image displaying.
2
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
DC 24V
SYNC
2
3
EDID
STD
HDMI OUT
HDMI IN
1
LINK
4
SERVICE
TV
5
POWER
6
7
8
PS3 player.
FT
1 HDMI IN: Connect with source equipment such as DVD/Blu-ray or
2 SYNC: This LED will illuminate when the HDMI input port connected
to the source.
3 HDMI OUT: Connect to HDMI display for instant image display or
A
cascade with another family type Transmitter.
4 HDMI LINK: This LED will illuminate when HDMI output is connected
to TV or display monitor.
5 EDID STD/TV: The default factory setting is on TV, leave as it is
DR
when the display is properly. The unit will detect the 1st CAT5e/6/7
output’s EDID when it obtain a 4Kx2K EDID and send out the signal
accordingly to other output ports. If the 1st CAT5e/6/7 output is
without a 4Kx2K's EDID the unit will detect all output's EDID and
send out the signal that all outputs can accept.
This device obtain the last memory function therefore, the device
will use the last output port 1's EDID when output port 1 is not
connected to a display after power cycling or switching in
between the EDID setting.
Switch to STD to use build-in EDID if the display has problem.
STD EDID’s video at [email protected] and audio at LPCM 2CH.
6 SERVICE: This slot is reserved for factory service only.
7 POWER LED: Once the power supply is connected the LED will
illuminate
8 DC 24V: Plug the 24V DC power supply into the unit and connect
the adaptor to an AC outlet.
3
6.2 Rear Panel
IR IN
IR OUT
MODE
1
2
CAT5e / 6 / 7 OUT
2
1
LINK
MODE
3
LINK
3
MODE
LINK
4
1 IR IN: Connect with IR Extender to receive IR signal from Transmitter
FT
side and blast out at Receiver side. Ensure that remote controller
being used is within the direct line-of-sight of the IR Extender.
2 IR OUT: Connect with IR Blaster to blast out the IR signal received
from the Receiver side. Place the IR Blaster in direct line-of-sight of
the equipment to be controlled.
3 CAT5e/6/7 OUT 1~3: Connect these ports to CAT5e/6/7 to HDMI
Receivers with CAT5e/6/7 cable to extend the signal up to 60m.
A
4 MODE & LINK 1~3: The Mode LED will illuminate when the device is
DR
connected with power.
The link LED will illuminate when CAT5e/6/7 output(s) has been
connected to the Receiver(s) and the Receiver(s) has connected
with display that shows image on screen.
4
6.3 IR Cable Pin Assignment
IR Blaster
1 Power 3.3 V
2 IR Blaster Signal
FT
3 NC
IR Extender
1 IR Signal
2 Power 3.3 V
DR
A
3 Grounding
5
7. CONNECTION DIAGRAM
3D TV/Display
Blu-ray or PS3 Player
HDMI
FT
HDMI
DC 24V
SYNC
EDID
STD
HDMI OUT
SERVICE
TV
POWER
CAT5e / 6 / 7 OUT
2
A
HDMI IN
LINK
IR IN
IR OUT
1
3
1.5m
MODE
DR
60°
LINK
MODE
LINK
MODE
LINK
IR BLASTER
60°
3m
7m
m
IR2 Blaster
Link
Power
IR1 Extender
CAT5e/6 In
3m
IR RECEIVER
3D TV/Display
6
8. SPECIFICATIONS
300Mbps/10.2Gbps
Input ports
1 x HDMI,
1 x IR IN,
1 x USB (Service only)
Output ports
1 x HDMI,
1 x IR OUT,
3 x CAT5e/6/7
Resolution
Up to 4Kx2K
([email protected]/[email protected])
HDMI Input Cable Distance
N/A
CAT5e/6/7 Output
Cable Distance
Up to 60m
IR Frequency
30~50kHz
24V / 2.7A DC (US/EU standards, CE/FCC/
UL certified)
A
Power Supply
FT
Video Bandwidth
Dimensions
145 mm(W) x 199 mm(D) x 30 mm(H)
Weight
584 g
Metal
Silkscreen Color
Black
ESD Protection
Human body model:
±8kV (air-gap discharge)
±4kV (contact discharge)
DR
Chassis Material
Operating Temperature 0°C ~ 40°C
Storage Temperature
-20˚C ~ 60˚C / -4 ˚F ~ 140 ˚F
Relative Humidity
20 ~ 90% RH (non-condensing)
Power Consumption
33W
7
8.1 CAT5e/6/7 Cable Specification
Cable
Range Pixel clock
Type
Video Data
rate
CAT5e/6/7 60 m
40 m
Supported Video
Rate
<=225 MHz <=5.3 Gbps Up to 1080p, 60 Hz, 36
(HD Video) bits, 3D (data rates
lower than 5.3 Gbps
or below 225MHz
TMDS clock)
>225 MHz
> 5.3 Gbps
(Ultra HD
4K2K, 30Hz video
formats
9. ACRONYMS
FT
Video)
COMPLETE TERM
4Kx2K
3840x2160 / 4096x2160
DTS
Digital Theater System
EDID
HDCP
Extended Display Identification Data
High-bandwidth Digital Content Protection
High-Definition Multimedia Interface
DR
HDMI
A
ACRONYM
HDTV
High-Definition Television
8
FT
A
DR
CYPRESS TECHNOLOGY CO., LTD
Home page: http://www.cypress.com.tw
20130531MPM-CHDBT-1H3CL
