Brocade Communications Systems 425 Technical data

53-1001583-01
21 June 2010

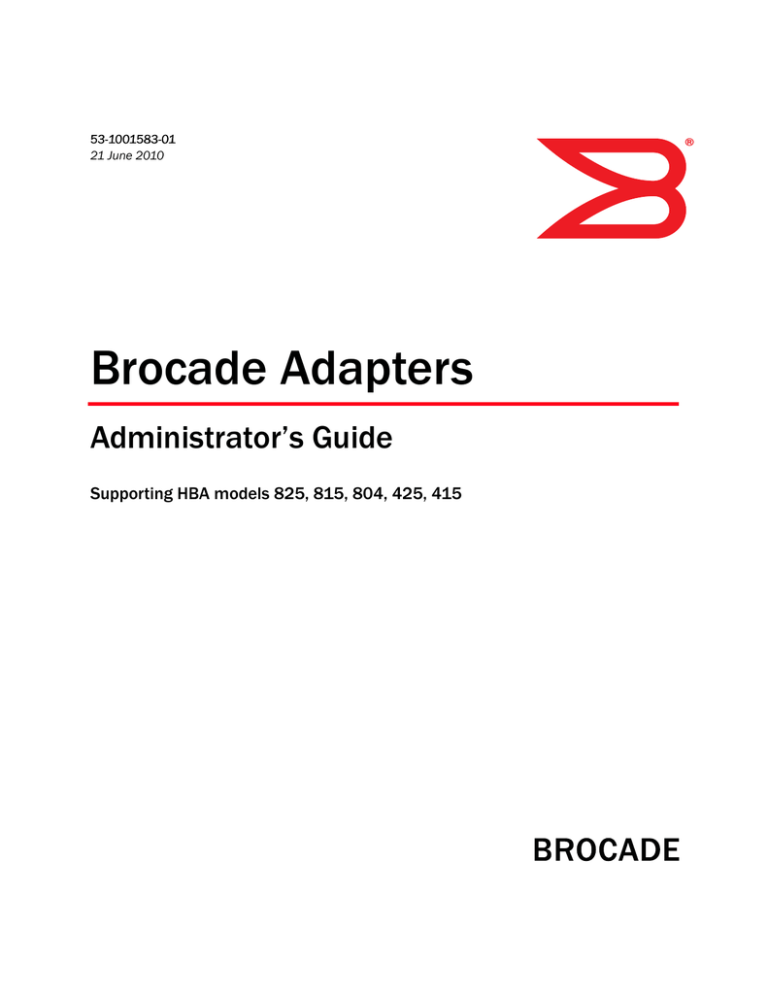

Brocade Adapters
Administrator’s Guide
Supporting HBA models 825, 815, 804, 425, 415
®
Copyright © 2008-2010 Brocade Communications Systems, Inc. All Rights Reserved.
Brocade, the B-wing symbol, BigIron, DCX, Fabric OS, FastIron, IronPoint, IronShield, IronView, IronWare, JetCore, NetIron,
SecureIron, ServerIron, StorageX, and TurboIron are registered trademarks, and DCFM, Extraordinary Networks, and SAN Health
are trademarks of Brocade Communications Systems, Inc., in the United States and/or in other countries. All other brands,
products, or service names are or may be trademarks or service marks of, and are used to identify, products or services of their
respective owners.
Notice: This document is for informational purposes only and does not set forth any warranty, expressed or implied, concerning
any equipment, equipment feature, or service offered or to be offered by Brocade. Brocade reserves the right to make changes to
this document at any time, without notice, and assumes no responsibility for its use. This informational document describes
features that may not be currently available. Contact a Brocade sales office for information on feature and product availability.
Export of technical data contained in this document may require an export license from the United States government.
The authors and Brocade Communications Systems, Inc. shall have no liability or responsibility to any person or entity with
respect to any loss, cost, liability, or damages arising from the information contained in this book or the computer programs that
accompany it.
The product described by this document may contain “open source” software covered by the GNU General Public License or other
open source license agreements. To find out which open source software is included in Brocade products, view the licensing
terms applicable to the open source software, and obtain a copy of the programming source code, please visit
http://www.brocade.com/support/oscd.
Brocade Communications Systems, Incorporated
Corporate and Latin American Headquarters
Brocade Communications Systems, Inc.
1745 Technology Drive
San Jose, CA 95110
Tel: 1-408-333-8000
Fax: 1-408-333-8101
E-mail: info@brocade.com
Asia-Pacific Headquarters
Brocade Communications Systems China HK, Ltd.
No. 1 Guanghua Road
Chao Yang District
Units 2718 and 2818
Beijing 100020, China
Tel: +8610 6588 8888
Fax: +8610 6588 9999
E-mail: china-info@brocade.com
European Headquarters
Brocade Communications Switzerland Sàrl
Centre Swissair
Tour B - 4ème étage
29, Route de l'Aéroport
Case Postale 105
CH-1215 Genève 15
Switzerland
Tel: +41 22 799 5640
Fax: +41 22 799 5641
E-mail: emea-info@brocade.com
Asia-Pacific Headquarters
Brocade Communications Systems Co., Ltd. (Shenzhen WFOE)
Citic Plaza
No. 233 Tian He Road North
Unit 1308 – 13th Floor
Guangzhou, China
Tel: +8620 3891 2000
Fax: +8620 3891 2111
E-mail: china-info@brocade.com
Document History
Title
Publication number Summary of changes
Date
Brocade Adapters Administrator’s Guide
Supporting HBA models 415, 425, 815, 825
53-1000881-01
June 2008
Brocade Adapters Administrator’s Guide
53-1001583-01
Supporting HBA models 825, 815, 804, 425,
415
New document
June 2010
Updates to support the HBA
model 804 (mezzanine card for
the Hewlett Packard Blade
server)
Contents
About This Document
In this section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix
How this document is organized . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix
Document conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x
Text formatting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x
Notes, cautions, and warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . x
Key terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi
Notice to the reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi
Additional information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi
Brocade resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi
Other industry resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
Getting technical help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
Related documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
Document feedback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiii
Chapter 1
Host Management Overview
In this chapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Host bus adapters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
HCM software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
HCM features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Tree node pop-up menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Adapter support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Chapter 2
Getting Started with HCM Software
In this chapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
HCM software launch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Launching the application on Windows platforms. . . . . . . . . . . . 5
Launching the application on Linux platforms. . . . . . . . . . . . . . . 6
Remember password. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Skip login . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Changing an HCM application password . . . . . . . . . . . . . . . . . . . 6
Changing an HCM agent password. . . . . . . . . . . . . . . . . . . . . . . . 7
Brocade Adapters Administrator’s Guide
53-1001583-01
iii
Software downgrade using Adapter Software Installer . . . . . . . . . . . 9
Downgrading HCM and driver or HCM only . . . . . . . . . . . . . . . . . 9
Downgrading driver only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
HCM configuration data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Backing up data after an uninstall . . . . . . . . . . . . . . . . . . . . . . . 10
Data restoration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
HCM main window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Legend Help menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
HCM product icons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Event severity icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Discovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Setting up out-of-band discovery for an adapter . . . . . . . . . . . . 15
Logging off HCM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Chapter 3
Host Configuration
In this chapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Host security authentication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Configuring security authentication using HCM (Host and HBA)17
Configuring security authentication using the BCU . . . . . . . . . . 19
Buffer credits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Basic port configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Opening the Basic Port Configuration dialog box . . . . . . . . . . . 21
Port logging level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Boot over SAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Configuring Boot over SAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Pre-boot configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Boot image update. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Virtual port configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Virtual port restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Creating a virtual port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Deleting a virtual port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
HCM logging levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Configuring the HCM logging level using HCM. . . . . . . . . . . . . . 34
Advanced port configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Opening the Advanced Port Configuration dialog box . . . . . . . . 35
Interrupt Control Coalesce . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Name configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Dual role changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Name validation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Defining a name. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Editing the name fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Adding name entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Removing a name entry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Exporting the properties for a WWN . . . . . . . . . . . . . . . . . . . . . . 40
Importing the properties for a WWN. . . . . . . . . . . . . . . . . . . . . . 41
Importing duplicated names . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
iv
Brocade Adapters Administrator’s Guide
53-1001583-01
NPIV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Chapter 4
Monitoring
In this chapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Performance monitoring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Polling frequency rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Resetting statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Master log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Application log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Syslog support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Opening the Syslog Server Configuration dialog box. . . . . . . . . 51
Registering a host server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Removing a host server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Syslog host configuration using VMware . . . . . . . . . . . . . . . . . . 52
Chapter 5
Diagnostics
In this chapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Diagnostics using the BCU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Diagnostics using HCM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Displaying test log details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Beaconing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
SFP management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Debugging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
supportSave . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Appendix A
HCM Dialog Boxes
In this appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Authentication Statistics dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . 67
Backup dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Base Port Properties panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Change HCM Password dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Change HCM Agent Password dialog box . . . . . . . . . . . . . . . . . . . . . 72
Configure Names dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Define Name dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Duplicated Names dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Event Properties dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Fabric Statistics dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
FCP IM Statistics dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
FCP IM Module Statistics dialog box . . . . . . . . . . . . . . . . . . . . . . . . . 81
Brocade Adapters Administrator’s Guide
53-1001583-01
v
Fibre Channel Security Protocol Configuration dialog box . . . . . . . 83
Hardware Tests Diagnostics dialog box . . . . . . . . . . . . . . . . . . . . . . . 85
HBA Properties panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
IOC Statistics dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Logical Port Statistics dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
LPORT Properties panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Master Log tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Master Log Filter dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Persistent Binding dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Port Properties panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Port Statistics dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101
Protocol Tests dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103
QoS Statistics dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .104
Remote Port Properties panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . .105
Restore dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .106
SFP Properties panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Syslog Server Configuration dialog box . . . . . . . . . . . . . . . . . . . . . .109
Target Statistics dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .110
Test Log Details dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .114
Virtual Port Creation dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . .115
Virtual Port Deletion dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . .116
Virtual Port Properties panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Virtual Port Statistics dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . .118
Appendix B
Brocade Command Utility
In this appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .121
About the BCU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .122
BCU commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .122
adapter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .126
auth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .128
bios. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .131
boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .133
debug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .135
diag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .137
drvconf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .139
fabric . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .140
fcdiag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
vi
Brocade Adapters Administrator’s Guide
53-1001583-01
fcpim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .143
ioc. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .145
log. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
lport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .148
pbind . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .150
port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .151
qos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .155
ratelim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .156
rport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .157
vport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .160
Appendix C
HCM Troubleshooting
In this appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .163
Appendix D
Glossary and Acronyms
Index
Brocade Adapters Administrator’s Guide
53-1001583-01
vii
viii
Brocade Adapters Administrator’s Guide
53-1001583-01
About This Document
In this section
• How this document is organized . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix
• Document conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x
• Notice to the reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi
• Additional information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi
• Getting technical help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
• Related documentation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
• Document feedback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiii
How this document is organized
.
This document is organized to help you find the information that you want as quickly and easily as
possible.
The document contains the following components:
• Chapter 1, “Host Management Overview,” provides a description of the Host Connectivity
Manager (HCM) application software, the graphical user interface (GUI), system requirements,
and supported operating systems.
• Chapter 2, “Getting Started with HCM Software,” explains how to launch the management
software, set security passwords, discover SAN components, and log out.
• Chapter 3, “Host Configuration,” provides the procedures to configure operating parameters
(basic and advanced), security authentication, and persistent binding using the Brocade
Command Line Utility (BCU) or the GUI.
• Chapter 4, “Monitoring,” describes the HCM monitoring features.
• Chapter 5, “Diagnostics,” describes the non-destructive group of diagnostic commands that
can be run from the BCU or the GUI.
• Appendix A, “HCM Dialog Boxes,” lists the fields that are associated with the HCM GUI and
provides a definition for each field.
• Appendix B, “Brocade Command Utility,” provides reference information for the Host
Connectivity Manager (HCM) commands that can be run from the Brocade Command Line
Utility (BCU)
• Appendix C, “HCM Troubleshooting,” provides a summary of HCM navigation problems and
workarounds.
• Appendix D, “Glossary and Acronyms,” provides reference information for common terms and
acronyms.
Brocade Adapters Administrator’s Guide
53-1001583-01
ix
Document conventions
This section describes text formatting conventions and important notice formats used in this
document.
Text formatting
The narrative-text formatting conventions that are used are as follows:
bold text
Identifies command names
Identifies the names of user-manipulated GUI elements
Identifies keywords and operands
Identifies text to enter at the GUI or CLI
italic text
Provides emphasis
Identifies variables
Identifies paths and Internet addresses
Identifies document titles
code text
Identifies CLI output
Identifies command syntax examples
For readability, command names in the narrative portions of this guide are presented in mixed
lettercase: for example, switchShow. In actual examples, command lettercase is often all
lowercase. Otherwise, this manual specifically notes those cases in which a command is case
sensitive.
Notes, cautions, and warnings
The following notices and statements are used in this manual. They are listed below in order of
increasing severity of potential hazards.
NOTE
A note provides a tip, guidance or advice, emphasizes important information, or provides a reference
to related information.
ATTENTION
An Attention statement indicates potential damage to hardware or data.
CAUTION
A Caution statement alerts you to situations that can be potentially hazardous to you or cause
damage to hardware, firmware, software, or data.
DANGER
A Danger statement indicates conditions or situations that can be potentially lethal or extremely
hazardous to you. Safety labels are also attached directly to products to warn of these conditions
or situations.
x
Brocade Adapters Administrator’s Guide
53-1001583-01
Key terms
For definitions specific to Brocade and Fibre Channel, see the Brocade Glossary.
For definitions specific to this document, see “Glossary and Acronyms” on page 165.
For definitions of SAN-specific terms, visit the Storage Networking Industry Association online
dictionary at:
http://www.snia.org/education/dictionary
Notice to the reader
This document may contain references to the trademarks of the following corporations. These
trademarks are the properties of their respective companies and corporations.
These references are made for informational purposes only.
.
Corporation
Referenced Trademarks and Products
Microsoft Corporation
Windows Server, Windows XP, Windows Vista
Sun Microsystems, Inc.
Sun, Solaris
Red Hat, Inc.
Red Hat, Red Hat Network, Maximum RPM, Linux Undercover
Novell, Inc.
SuSE Enterprise Server (SLES), Linux
VMware
VMware, ESX Server
Additional information
This section lists additional Brocade and industry-specific documentation that you might find
helpful.
Brocade resources
To get up-to-the-minute information, go to http://my.brocade.com to register at no cost for a user ID
and password.
For practical discussions about SAN design, implementation, and maintenance, you can obtain
Building SANs with Brocade Fabric Switches through:
http://www.amazon.com
White papers, online demos, and data sheets are available through the Brocade Web site at:
http://www.brocade.com/products-solutions/products/index.page
For additional Brocade documentation, visit the Brocade Web site:
http://www.brocade.com
Brocade Adapters Administrator’s Guide
53-1001583-01
xi
Release notes are available on the MyBrocade website and are also bundled with the Fabric OS
firmware.
Other industry resources
For additional resource information, visit the Technical Committee T11 Web site. This Web site
provides interface standards for high-performance and mass storage applications for Fibre
Channel, storage management, and other applications:
http://www.t11.org
For information about the Fibre Channel industry, visit the Fibre Channel Industry Association Web
site:
http://www.fibrechannel.org
Getting technical help
Contact your adapter support supplier for hardware, firmware, and software support, including
product repairs and part ordering. To expedite your call, have the following information available:
•
•
•
•
•
Adapter model and serial number
Adapter operating system version
Error numbers and messages received
supportSave command output (see “debug” on page 135 for details)
Detailed description of the problem, including the switch or fabric behavior immediately
following the problem, and specific questions
• Description of any troubleshooting steps already performed and the results
• Serial console and Telnet session logs
• syslog message logs
Related documentation
•
•
•
•
•
xii
Brocade Adapters Installation and Reference Manual
Brocade Adapters Troubleshooting Guide
Fabric OS Administrator’s Guide supporting Fabric OS v6.4.0
Fabric OS Troubleshooting and Diagnostics Guide supporting Fabric OS v6.4.0
Data Center Fabric Manager User Manual
Brocade Adapters Administrator’s Guide
53-1001583-01
Document feedback
Quality is our first concern at Brocade and we have made every effort to ensure the accuracy and
completeness of this document. However, if you find an error or an omission, or you think that a
topic needs further development, we want to hear from you. Forward your feedback to:
documentation@brocade.com
Provide the title and version number of the document and as much detail as possible about your
comment, including the topic heading and page number and your suggestions for improvement.
Brocade Adapters Administrator’s Guide
53-1001583-01
xiii
xiv
Brocade Adapters Administrator’s Guide
53-1001583-01
Chapter
1
Host Management Overview
In this chapter
• Host bus adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• HCM software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• HCM features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• Tree node pop-up menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1
2
2
3
Host bus adapters
Brocade offers five models of Fibre Channel Host Bus Adapters (HBAs). These models provide
reliable, high-performance host connectivity for mission-critical SAN environments. The Brocade
HBAs are listed in Table 1.
TABLE 1
Brocade Fibre Channel HBA models
Model Number
Port Speed
415
4 Gbps maximum2
1
425
4 Gbps maximum
2
2
804
8 Gbps maximum
815
825
1
2
Number of Ports
2
8 Gbps maximum
1
1
8 Gbps maximum
1
2
A 4 Gbps SFP installed in Brocade 815 or 825 HBAs allows 4, 2, or 1 Gbps speed only.
An 8 Gbps SFP installed in Brocade 425 or 415 HBAs allows 2 or 4 Gbps speed only.
Using Brocade HBAs, you can connect your server (host system) to devices on the Fibre Channel
SAN. The combined high performance and proven reliability of a single-ASIC design makes these
HBAs ideal for connecting hosts to SAN fabrics based on Brocade Fabric or M-Enterprise operating
systems.
NOTE
Brocade 804 mezzanine cards connect to the embedded switch modules or embedded interconnect
modules on the Blade System chassis by way of an internal backplane and therefore, no optical
modules (SFPs) are involved. With the exception of no SFPs, the Brocade 804 mezzanine FC HBA
card functions the same as the other Brocade HBAs.
Brocade Adapters Administrator’s Guide
53-1001583-01
1
1
HCM software
HCM software
The Host Connectivity Manager (HCM) is a management software application for configuring,
monitoring, and troubleshooting Brocade HBAs, converged network adapters (CNAs) and FC
mezzanine cards in a storage area network (SAN) environment.
The management software has two components:
• The agent, which runs on the host.
• The management console, which is the graphical user interface client used to manage the
adapter.
The information in this guide is intended for OEMs, field service personnel, and customers who are
installing Brocade hardware and HCM software. HCM can be installed in standalone and HP
servers. For instructions about how to install the HCM software, refer to the Brocade Adapters
Installation and Reference Manual.
You can manage the software on the host or remotely from another host. The communication
between the management console and the agent is managed using JSON-RPC over HTTPS.
NOTE
All HCM, utility, SMI-S Provider, boot software, and driver installation packages, as well as the Driver
Update Disk (DUD), are described in the Brocade Adapters Installation and Reference Manual.
HCM features
Common HBA management software features include the following:
• Discovery using the agent software running on the servers attached to the SAN, which enables
you to contact the devices in your SAN.
• Configuration management , which enables you to configure local and remote systems. With
HCM you can configure the following items:
-
Brocade 4 Gbps and 8 Gbps HBAs
HBA ports (including logical ports, base ports, remote ports, and virtual ports) associated
with the local host
• Diagnostics, which enables you to test the adapters and the devices to which they are
connected:
-
Link status of each adapter and its attached devices
-
Read/write buffer test, which tests the link between the adapter and its devices
Loopback test, which is external to the adapter, to evaluate the ports (transmit and receive
transceivers) and the error rate on the adapter
FC protocol tests, including echo, ping, and traceroute
• Monitoring, which provides statistics for the SAN components.
• Security, which enables you to specify a CHAP secret and configure authentication parameters.
• Event notifications, which provide asynchronous notification of various conditions and
problems through a user-defined event filter.
2
Brocade Adapters Administrator’s Guide
53-1001583-01
Tree node pop-up menus
1
Tree node pop-up menus
You can use the HCM GUI main menu or the Brocade Command Line Utility (BCU) to configure,
monitor, and troubleshoot your SAN components. The instructions for using each feature are
detailed in subsequent chapters of this document. For each SAN component, you can optionally
right-click its icon and a pop-up menu displays (see Table 2).
TABLE 2
HCM tree pop-up menus
SAN component
Pop-up menu feature
Host
Refresh All
Start Polling
Update Boot Image
Change Agent Password
Configure Names
Basic Port Configuration
Persistent Binding
Statistics > Port Statistics
Authentication
Support Save
Tree > Copy | Search | Collapse All | Expand All
Brocade HBA
4 Gbps or 8 Gbps
Refresh
Define Name
Update Boot Image
Basic Port Configuration
Persistent Binding
Port Statistics
Diagnostics
Authentication
Enable Adapter
Tree > Copy | Search | Collapse All | Expand All
Port
Refresh
Define Name
Port Configuration > Basic | Advanced
Virtual Port > Create | Delete
Diagnostics
FC-SP
Enable Port
Persistent Binding
Statistics > Port | FCP IM Module | Fabric | IOC | QoS
Tree > Copy | Search | Collapse All | Expand All
Base Port
Refresh
Logical Port Statistics
Tree > Copy | Search | Collapse All | Expand All
Device
Refresh
Define Name
Statistics > Target | FCP IM
Tree > Copy | Search | Collapse All | Expand All
Brocade Adapters Administrator’s Guide
53-1001583-01
3
1
Adapter support
Adapter support
The HBAs are supported on the operating systems listed in Table 3.
TABLE 3
Adapter operating system support
Type of adapter
Description of adapter
Operating systems supported
BR-415
4 Gbps HBA, 1 port
Linux, Windows, VMware, Solaris
BR-425
4 Gbps HBA, 2 port
Linux, Windows, VMware, Solaris
BR-804
8 Gbps HBA mezzanine card, 2 port
Linux, Windows, VMware
BR-815
8 Gbps HBA, 1 port
Linux, Windows, VMware, Solaris
BR-825
8 Gbps HBA, 2 port
Linux, Windows, VMware, Solaris
HBA
For a complete list of supported operating systems, refer to the Brocade Adapters Installation and
Reference Manual.
For the latest support information, refer to the release notes for your adapter software version.
4
Brocade Adapters Administrator’s Guide
53-1001583-01
Chapter
Getting Started with HCM Software
2
In this chapter
• HCM software launch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
• Software downgrade using Adapter Software Installer. . . . . . . . . . . . . . . . . . 9
• HCM main window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
• Legend Help menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
• Discovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
• Logging off HCM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
HCM software launch
The following procedures describe how to launch the HCM application in Windows and Linux.
• “Launching the application on Windows platforms”
• “Launching the application on Linux platforms”
Launching the application on Windows platforms
After installing the HCM software, locate Brocade HCM on the Windows platform by selecting
Start > Programs > Brocade Adapter Software > Host Connectivity Manager.
OR
Click the desktop icon to launch the application.
Figure 1 shows the screen that appears when HCM software is first launched.
FIGURE 1
HCM Login dialog box
The factory default user ID and password are Administrator and password. After you log in for the
first time, you should change the default password to a new one using the HCM GUI.
Brocade Adapters Administrator’s Guide
53-1001583-01
5
2
HCM software launch
Launching the application on Linux platforms
After installing the HCM software, locate Brocade HCM on the Linux platform.
• If using a GNOME shell, double-click the Host_Connectivity_Manager icon to launch the
application.
• If using a KDE shell, click the Host_Connectivity_Manager icon to launch the application.
OR
Start the application from the command prompt using the following commands:
suse116208:~ # cd /opt/brocade/adapter/client
suse116208:<installed directory>/adapter/client #
./Host_Connectivity_Manager
Remember password
The Login dialog has a check box to remember the password. If you check the Remember password
check box, you do not need to enter the password the next time you launch the application.
Skip login
Take one of the following actions to manage the Skip Login feature.
• Enable Skip Login by checking the Skip Login Dialog check box.
If the Skip Login check box is checked, it automatically disables the Remember password
option.
• Disable Skip Login by setting hba-application.skip-login=false in the
/data/HBAApplication.properties file.
• Select the Skip Login check box if you do not want the Login dialog box to appear the next time
the application is started.
Changing an HCM application password
You can change the default password of the application to a different password using the Change
HCM Password dialog box.
Note the following when you change a password:
• You must validate your user identity by supplying your old password before you can change to a
new password. The new password must be different than the old password.
• The password can begin with an alphabetic, numeric, or special character.
• The default minimum and maximum length of the password is 8 and 64 characters. You can
configure the password length in the HBAApplication.properties file:
# min chars for the application password
password_min=8
#max chars for the application password
password_max=64
• The password is encrypted and stored in the noitacitnehtua.properties file.
6
Brocade Adapters Administrator’s Guide
53-1001583-01
HCM software launch
2
1. From the Host Connectivity Manager, select Configure > Change Password > Change Password
for HCM User.
The Change HCM Password dialog box, shown in Figure 2, displays.
FIGURE 2
Change HCM Password dialog box
2. Type the current password for the account. The default user name and password are
Administrator and password.
3. Type the new password of the account.
The new password must have at least one character different from the old password.
4. Retype the new password in the Confirm New password field.
5. Click OK.
NOTE
Both the user name and passwords are case-sensitive.
Changing an HCM agent password
You can change the default password of the agent to a different password using the Change HCM
Agent Password dialog box.
Note the following when you change a password:
• You must validate your user identity by supplying your old password before you can change to a
new password. The new password must be different than the old password.
• The password can begin with an alphabetic, numeric, or special character.
• The default minimum and maximum length of the password is 8 and 64 characters. You can
configure the password length in the HBAApplication.properties file:
# min chars for the application password
password_min=8
#max chars for the application password
password_max=64
• The password is encrypted and stored in the noitacitnehtua.properties file.
Brocade Adapters Administrator’s Guide
53-1001583-01
7
2
HCM software launch
1. From the Host Connectivity Manager, click Configure > Change Password > Change Agent
Password.
The Change HCM Agent Password dialog box, shown in Figure 3, displays.
FIGURE 3
Change HCM Agent Password dialog box
2. Type the current password for the account. The default user name and password are admin
and password.
3. Type the new password of the account.
The new password must have at least one character different from the old password.
4. Retype the new password in the Confirm New password field.
5. Click OK.
NOTE
Both the user name and passwords are case-sensitive.
8
Brocade Adapters Administrator’s Guide
53-1001583-01
Software downgrade using Adapter Software Installer
2
Software downgrade using Adapter Software Installer
Although driver and HCM downgrades are not supported, the following procedures are
recommended for downgrading between versions 2.1, 2.0, and 1.1 of the Brocade adapter
software. If you are not downgrading previous software versions, proceed to HCM software launch.
Downgrading HCM and driver or HCM only
To downgrade HCM and adapter drivers or HCM only, follow these steps, which are detailed in the
following designated sections of the Brocade Adapters Installation and Reference Manual.
1. Uninstall HCM and drivers or HCM only using procedures detailed under "Software removal
using Adapter Software Uninstaller."
2. When a message box displays asking to back up the HCM configuration, click Yes and proceed
with the software removal. Refer to "HCM configuration data."
3. Install the desired version of the software using "Using the Adapter Software Installer."
When the "Found Backed up data" message displays prompting you to restore old
configurations, select restore the data and continue with the installation.
Downgrading driver only
Uninstall existing drivers using procedures under "Software removal using Adapter Software
Uninstaller" in the Brocade Adapters Installation and Reference Manual.
Install new drivers using procedures under "Using the Adapter Software Installer" in the Brocade
Adapters Installation and Reference Manual.
HCM configuration data
HCM configuration data is compatible between version 2.1, 2.0, 1.1, and 1.0 of the Brocade
adapter software. Configuration data that is backed up when prompted during software removal
with the Adapter Software Uninstaller and when using the HCM Backup dialog box includes the
following:
The following application configuration files are backed up in the data directory:
•
•
•
•
•
•
•
HBAApplication.properties
SetupDiscovery.properties
HbaAliasdb.properties
log4j.xml
noitacitnehtua.properties
Syslog.properties
Logging.properties
Brocade Adapters Administrator’s Guide
53-1001583-01
9
2
Software downgrade using Adapter Software Installer
Backing up data after an uninstall
If you uninstall the Brocade HCM software, you are prompted to back up the application
configuration data that was created during installation. Be sure to back up configuration data when
the backup message displays during uninstallation. You can perform a backup on an as-needed
basis.
Following are default locations for HCM configuration data.
• Versions 1.1.0.8 and above - <user home>\HCM\data
• Versions 1.1.0.6 and below - <installation location>\FC HBA\data
To restore the backed-up configuration data when you re-install the HCM, you must manually
overwrite the new data directory contents with the backed-up data. This restores your previous
settings.
Data restoration
You can use the Restore Data dialog box to restore data that has been previously backed up. The
Host Connectivity Manager (HCM) stores the location and version details of the most recently-taken
backed up data and automatically points to the location of the data.
NOTE
Use HCM 2.1 or later to restore backed up data. HCM 2.0 and earlier versions do not support the
Restore Data feature.
The following data is restored:
•
•
•
•
•
•
•
HBA application configuration data (HBAApplication.properties)
HCM user authentication data (noitacitnehtua.properties)
Alias Configuration data (HbaAliasdb.properties)
Setup Discovery data (SetupDiscovery.properties)
Syslog data (Syslog.properties)
HCM Logging data (logging.properties and log4j.xml)
SupportSave
Restoring backed up data
You must use HCM 2.1 or later to restore backed-up data.
1. Select the host, an HBA, or a port from the device tree.
2. Select Tool > Restore Data from the main menu.
The Restore Data dialog box, shown in Figure 4, displays.
10
Brocade Adapters Administrator’s Guide
53-1001583-01
Software downgrade using Adapter Software Installer
FIGURE 4
2
Restore Data dialog box
3. Click the Restore from previous backup data at button, and then click Browse and navigate to
where the last backed up file resides.
OR
Click the Restore default data button. If you click this button, the Browse field is grayed out and
the last restored data file is automatically retrieved.
4. Click Start Restore.
5. Restart the HCM application for the restoration to take effect.
The backed up data that you selected is restored.
Brocade Adapters Administrator’s Guide
53-1001583-01
11
2
HCM main window
HCM main window
From the Host Connectivity Manager main window, shown in Figure 5, you can manage all the
adapters installed in this computer. Alternatively you can manage adapters installed in remote
computers, if the computers are networked. Only one host can be managed at a time; multiple host
management is not supported.
Refer to the Brocade Adapters Installation and Reference Manual for instructions on how to install
both the driver and GUI, the driver only, or the GUI only.
4.
1.
6.
2.
3.
5.
1. Menu bar
2. Device tree window
3. Master Log
4. Online help
5. System information
6. Context view
FIGURE 5
12
Host Connectivity Manager main window
Brocade Adapters Administrator’s Guide
53-1001583-01
Legend Help menu
2
Legend Help menu
To display the HCM product icons and the event severity icons, select Help > Legends from the
Host Connectivity Manager.
HCM product icons
On the left side of the Host Connectivity Manager, there is a navigation tree for representing the
managed host with adapters and ports. Each tree node has an icon to represent the type of node.
If the operational status is offline, link-down, or error, a small red diamond appears on the upper
right corner of the icon.
Table 4 shows the product icons that represent the components that HCM manages.
TABLE 4
HCM product icons
Host (agent up)
Remote Port (Initiator)
online
Host (agent down)
Remote Port (Initiator)
offline
HBA online
Remote Port (Target)
online
HBA offline
Remote Port (Target)
offline
Port (with SFP) link up
Base Port (link up)
Port (with SFP) link
down
Base Port (link down)
Port (without SFP) link
up
Virtual Port (online)
Port (without SFP) link
down
Virtual Port (offline)
Mezzanine card
LUN
Pre-boot configured
device
Beacon Status
Brocade Adapters Administrator’s Guide
53-1001583-01
13
2
Discovery
Event severity icons
Table 5 describes the icons that represent the four event types. Event filtering enables you to block
events based on user-defined criteria (severity or type of log). Events that have been filtered out do
not appear in the Master Log, For information about how to filter events, see “Filtering event log
entries” on page 64.
TABLE 5
Icon
HCM Master Log icons
Description
Critical-level messages indicate that the software has detected serious problems that will
eventually cause a partial or complete failure of a subsystem if not corrected immediately; for
example, a power supply failure or rise in temperature must receive immediate attention.
Major messages represent conditions that do not impact overall system functionality significantly.
For example, timeouts on certain operations, failures of certain operations after retries, invalid
parameters, or failure to perform a requested operation.
Minor messages highlight a current operating condition that should be checked or it might lead to
a failure in the future. For example, a power supply failure in a redundant system relays a warning
that the system is no longer operating in redundant mode and that the failed power supply needs
to be replaced or fixed.
Information-level messages report the current non-error status of the system components; for
example, the online and offline status of a fabric port.
Discovery
Discovery enables you to contact the adapters present in a specified host in your SAN. The setup
discovery profile is saved in the SetupDiscovery.properties file to remember the history of
each host and related attributes of discovered hosts.
When you log in to HCM, the specified host is automatically contacted (discovered) and displayed
on the navigation tree. By default, the local host is automatically contacted (discovered) and
displayed on the navigation tree. When you configure and turn on discovery, the application
discovers Brocade adapters in that host, connected to the SAN.
NOTE
The HCM application enables you to discover Brocade adapters, ports, virtual ports, remote ports,
and LUNs using out-of-band discovery only.
14
Brocade Adapters Administrator’s Guide
53-1001583-01
Discovery
2
Setting up out-of-band discovery for an adapter
When performing out-of-band discovery, you are managing the adapter remotely. The application
connects to the agent running on the host server over the IP network and product information is
copied back from the Brocade adapter to the server. If you do not configure the application to
directly discover the devices, the connections and attached devices may not display correctly.
1. From the Host Connectivity Manager, click Discovery > Setup.
The Setup for Discovery dialog box, shown in Figure 6, displays.
FIGURE 6
Setup for Discovery dialog box
2. From the Host Name list, select the host name from where you will discover the adapter.
For the first time, the Host Name list will contain only the Local host. You must specify the host
name or the IP address for discovering the remote servers. Only previously-discovered servers
are available in the Host Name list.
3. Type the port number in the Port Number text box. The default is 34568.
4. Type in the user ID and password that will authenticate the SAN product with the agent. The
default user ID and password are admin/password.
It is recommended you change the agent password on the host for security reasons.
NOTE
Click the Remember Host check box if you do not want to type it in each time you set up
discovery.
5. In the Polling Frequency (seconds) text box, specify the value for how frequently the application
has to poll for newly discovered devices.
All parameters related to the adapters that are installed in that server are refreshed each time
the poll occurs.
NOTE
If the Keep Polling check box is checked, polling occurs after the specified polling interval. If
the check box is not checked, polling stops.
6. Click OK.
Brocade Adapters Administrator’s Guide
53-1001583-01
15
2
Logging off HCM
Logging off HCM
End the HCM session using one of the following methods:
• From the Host Connectivity Manager, click File > Exit.
• Click the X in the upper-right corner of the HCM window to close it.
16
Brocade Adapters Administrator’s Guide
53-1001583-01
Chapter
3
Host Configuration
In this chapter
• Host security authentication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• Buffer credits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• Basic port configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• Boot over SAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• Virtual port configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• HCM logging levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• Advanced port configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• Name configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• NPIV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17
20
20
28
32
34
35
37
44
Host security authentication
Use the HCM GUI or the Brocade command line utility (BCU) to display the authentication settings
and status. There are five well-known DH groups; however, only DH-CHAP group 0, called NULL DH,
is supported in this release.
NOTE
Security authentication is not supported on Solaris platforms.
Configuring security authentication using HCM (Host and HBA)
You can access the Fibre Channel Security Protocol Configuration dialog box by selecting the Host,
an HBA, or an HBA port from the device tree.
NOTE
Fibre Channel Security Protocol (FC-SP) is not available for Solaris platforms.
1. Select the appropriate device based on how you want to configure security authentication:
• From the host level, select the host from the device tree.
• From the HBA level, select the adapter from the device tree.
• From an HBA port, select a port from the device tree.
Brocade Adapters Administrator’s Guide
53-1001583-01
17
3
Host security authentication
2. Select Configure > Authentication from the main menu, or perform the appropriate following
step to open the security authentication dialog box:
• From the host level, right-click the host and select Authentication from the list.
The Fibre Channel Security Protocol Configuration (host level) dialog box displays, as
shown in Figure 7.
• From the adapter level, right-click the adapter and select Authentication from the list.
The Fibre Channel Security Protocol Configuration (adapter level) dialog box displays. This
dialog box is identical to the Fibre Channel Security Protocol Configuration (host level)
dialog box.
• From the adapter port level, right click a port and select FC-SP > Authentication from the
list.
The Fibre Channel Security Protocol Configuration dialog at the host level displays.
FIGURE 7
18
Fibre Channel Security Protocol Configuration - host-level dialog box
Brocade Adapters Administrator’s Guide
53-1001583-01
Host security authentication
3
3. Configure the following parameters on the Port Security Authentication tab:
a.
Select the Enable Authentication check box to enable or disable the authentication policy.
If authentication is enabled, the port attempts to negotiate with the switch. If the switch
does not participate in the authentication process, the port skips the authentication
process.
b.
Type and retype the secret.
The maximum length of the secret is 63 bytes. The default secret for each interface is its
port world wide name (PWWN) without the colons; for example, 0102030405060708.
Select the algorithm type from the list:
• MD5 - A hashing algorithm that verifies a message’s integrity using Message Digest
version 5.
• SHA1 - A secure hashing algorithm that computes a 160-bit message digest for a data
file that is provided as input.
• MD5SH1 - Similar to the MD5 hashing algorithm, but used for DH-CHAP
authentication.
• SHA1MD5 - Similar to the SHA1 hashing algorithm, but used for DH-CHAP
authentication.
c.
Select DHNULL as the group value (this is the only group that is supported).
4. Click Apply to apply the changes.
5. Click OK to save the changes and close the dialog box.
Configuring security authentication using the BCU
Enter the following commands to display or configure security authentication for the ports:
•
•
•
•
•
•
bcu auth --algo <port_id> <md|sha1|ms|sm>
bcu auth --policy <port_id> {on|off}
bcu auth --secret <port_id> “secret_string”
bcu auth --show <port_id>
bcu auth --stats <port_id>
bcu auth --statsclr <port_id>
Refer to “auth” on page 128 for details about these commands.
Brocade Adapters Administrator’s Guide
53-1001583-01
19
3
Buffer credits
Buffer credits
Buffer-to-buffer credit flow control is implemented to limit the amount of data a port sends, based
on the number and size of the frames sent from that port. This scheme allows Fibre Channel to be
self-throttling, thereby allowing it to establish a reliable connection without the need to
accommodate dropped frames due to congestion. Buffer credit limits between each device and the
fabric are communicated at the time of fabric login. One buffer credit allows a device to send one
frame of data (typically 1 or 2 KB). Buffer credits cannot be configured on an adapter.
The default BB Credit is 1. The baseline for the calculation is one credit per kilometer at 2 Gbps.
This yields the following values for 10 km:
•
•
•
•
5 credits per port at 1 Gbps
10 credits per port at 2 Gbps
20 credits per port at 4 Gbps
40 credits per port at 8 Gbps
Refer to the “Extended Fabrics concepts and planning” section of the Fabric OS Administrator’s
Guide for detailed information about buffer credits.
Basic port configuration
For each port, you can configure the following parameters using the Basic Port Configuration dialog
box, the Brocade Command Line utility (BCU), or both. Table 6 lists the features and configuration
options.
TABLE 6
Basic port configuration options
Configurable using
HCM
Configurable using
the BCU
For more information
Port logging level
Yes
Yes
“Port logging level”
Configure speed
Yes
Yes
“Port speed”
Frame data field size
Yes
Yes
“Frame data field size”
Persistent Binding
Note: The persistent binding option is
available on Windows platforms only.
Yes
Yes
“Persistent binding”
QoS
Yes
Yes
“QoS”
Path Time Out
Note: Path time out value (pathtov) is
valid for firmware versions 2.0 and
higher. It is not supported on the
Solaris operating system.
Yes
Yes
“Path time out”
Target Rate Limiting
Yes
Yes
“Target rate limiting”
Port configuration parameter
20
Brocade Adapters Administrator’s Guide
53-1001583-01
Basic port configuration
3
Opening the Basic Port Configuration dialog box
You can access the Basic Port Configuration dialog box, shown in Figure 8, by selecting the Host,
an HBA, or an HBA port from the device tree.
NOTE
There are slight changes in HCM’s Basic Port Configuration dialog box, depending on the operating
system.
1. Select a device from the device tree.
2. Select Configure > Basic Port Configuration from the main menu.
The Basic Port Configuration dialog box displays.
FIGURE 8
Basic Port Configuration dialog box - Windows, Linux, and VMware
Port logging level
The number of messages logged by the host depends on the predetermined logging level. Although
the adapter might generate many messages, only certain types of messages are logged based on
the specified logging level.
Brocade Adapters Administrator’s Guide
53-1001583-01
21
3
Basic port configuration
Configuring the port logging level using HCM
1. Select Configure > Basic Port Configuration from the Host Connectivity Manager.
The Basic Port Configuration dialog box displays.
2. Select a value from the Port Logging Level list.
Supported values are Log Critical, Log Error, Log Warning, Log Info, and Log Invalid.
3. Click Apply to apply the changes.
4. Click OK to save the changes and close the window.
Configuring the port logging level using the BCU
Enter the following command to set the logging level on the port.
bcu log --level <port_id> [<level>] [-m <fw|ha1|fcs|drv|aen|all>]
Refer to “log” on page 147 for details about this command.
Port speed
Port speed is the maximum amount of data that can pass through the port at a given second. The
unit of measurement is in gigabits per second (Gbps). The available speed options depend on the
HBA’s speed and the port’s SFP. Auto-negotiate is the recommended setting and it is the default.
Speed options for the 4 Gbps HBA (425 and 415) and the mezzanine card (804) are 1 Gbps,
2 Gbps, 4 Gbps, and 8 Gbps. The 8 Gbps HBA supports the 1 Gbps speed at the driver level, but it
does not support 1 Gbps in a BIOS/BOS configuration.
Configuring the port speed using HCM
1. Select Configure > Basic Port Configuration from the Host Connectivity Manager.
The Basic Port Configuration dialog box displays.
2. Select a value from the Configured Speed list.
3. Click Apply to apply the changes.
A port disable/enable configuration dialog box displays, confirming the configured speed,
which will take effect when the port is disabled or enabled.
4. Click Yes to continue, or No to cancel the operation.
5. Click OK to close the window.
22
Brocade Adapters Administrator’s Guide
53-1001583-01
Basic port configuration
3
Configuring the port speed using the BCU
Enter the following command to set the port speed.
bcu port --speed <port_id> [<speed>]
Refer to “port” on page 151 for details about this command.
Frame data field size
Buffer credits determine the maximum amount of frame data. If the number of buffer credits is not
large enough to handle the link distance and speed, performance can be severely limited.
See “Buffer credits” on page 20 for information about buffer credits.
Specifying the maximum frame size using HCM
1. Select Configure > Basic Port Configuration from the Host Connectivity Manager.
The Basic Port Configuration dialog box displays.
2. Select the frame size from the Frame Data Field Size list. Options include 512, 1024, 2048,
2112 Mbps and auto. The default value is 2112.
3. Click Apply to apply the change.
4. Click OK to close the window.
Configuring the frame data field size using the BCU
The dfsize command sets the ports maximum receive data field size. If you do not specify a value,
the driver default receive buffer size displays, which is 2112.
NOTE
The new receive data field size takes effect when the port is re-enabled.
Enter the following command to set the frame data field size.
bcu port --dfsize <port_id> [<dfsize>]
Refer to “port” on page 151 for details about this command.
Brocade Adapters Administrator’s Guide
53-1001583-01
23
3
Basic port configuration
Persistent binding
Persistent binding enables you to permanently assign a system SCSI target ID to a specific FC
device. Persistent binding can be achieved by binding to world wide port name (WWPN), world wide
node name (WWNN), or device ID (DID).
You can access the Persistent Binding dialog box by selecting the Host or an HBA from the device
tree.
Enabling and disabling persistent binding using HCM
Persistent binding can be enabled or disabled from the HCM GUI using the following steps:
1. Launch the Basic Port Configuration dialog box at the port level.
2. Check or uncheck the Persistent Binding check box in the Basic Port Configuration dialog box.
Enabling and disabling persistent binding using the BCU
Target persistent binding enables target port world wide name binding to a persistent target ID for
the OS stack. Using the -list operand, you can query the list of mappings from the persistent binding
module.
Enter the following commands to configure target persistent binding:
• bcu pbind --list <port_id> [<pwwn>]
• bcu pbind --clear <port_id>
Refer to “pbind” on page 150 for details about this command.
24
Brocade Adapters Administrator’s Guide
53-1001583-01
Basic port configuration
3
QoS
Quality of Service (QoS) works in conjunction with the QoS feature on Brocade switch F_Ports. The
Fabric operating system (FOS) provides a mechanism to assign traffic priority (high, medium, or
low) for a given source and destination traffic flow. By default, all flows are marked as medium.
This feature is supported only on 8 Gbps HBA ports installed on specific switch models that use
Fabric OS 6.2 and later. The following licenses need to be installed on the switch connected to each
HBA port (edge switch):
• Adaptive Networking (AN) license
• Server Application Optimization (SAO) license
To determine if these licenses are installed on the connected switch, execute the Fabric OS
licenseshow command. Refer to the Fabric OS Administrator’s Guide for detailed information about
QoS.
Configuring QoS on the switch side using the BCU
On the switch side, you can create QoS zones using the PWWNs that correspond to devices in a
source/destination traffic flow. You need a Server Application Optimization (SAO) license installed
on the switch to enable QoS. In addition, an Adaptive Networking (AN) license is required on the
switch to enable QoS on the switch ports.
You enable or disable QoS settings on ports with the portCfgQos command. Refer to the Fabric OS
Administrator’s Guide for details about this command on the switch side.
Configuring QoS on the HBA side using the BCU
There are three possible QoS states:
• Enabled, online - QoS is established with the switch.
• Enabled, offline - QoS negotiation failed and QoS was not established with the switch. Possible
reasons for failure could be the license is not installed on the switch or QoS is not enabled on
the port.
• Disabled.
NOTE
You must first enter the bcu port --disable <port_id> command, followed by the
bcu port --enable <port_id> command, before the bcu qos --enable or
bcu qos --disable commands take effect.
Brocade Adapters Administrator’s Guide
53-1001583-01
25
3
Basic port configuration
Enter the following commands to enable or disable QoS support on the HBA side:
•
•
•
•
•
bcu qos --enable <port_id>
bcu qos --disable <port_id>
bcu qos --query <port_id>
bcu qos --stats <port_id>
bcu qos --statsclr <port_id>
Refer to “qos” on page 155 for details about this command.
Path time out
With path time out values (TOV), you can either force an immediate failover (by setting the TOV to 0)
or you can specify a delay in seconds (1-60 seconds). The default TOV is 30.
Specifying path time out using HCM
1. Select Configure > Basic Port Configuration from the Host Connectivity Manager.
The Basic Port Configuration dialog box displays.
2. Type a value in the Path Time Out field.
3. Click OK to close the window.
Specifying path time out using the BCU
Enter the following command to specify the optional path time out value in seconds (1 to 60). The
default TOV is 10 seconds. A value of 0 is not allowed from the BCU.
bcu fcpim --pathtov <port_id> tov
Refer to “fcpim” on page 143 for details about this command.
Target rate limiting
The target rate limiting feature is used to minimize congestion at the adapter port caused by a slow
drain device operating in the fabric at a slower speed. A remote port’s operating speed is
determined from the fabric, and then the information is used to throttle the transmitted traffic rate
to that remote port. Traffic destined to the remote port is limited to its current operating speed.
Limiting the data rate to slower targets ensures that there is no buffer-to-buffer credit
back-pressure between the switch due to a slow-draining target.
26
Brocade Adapters Administrator’s Guide
53-1001583-01
Basic port configuration
3
Enabling and disabling rate limiting on the adapter side using HCM
Target rate limiting is supported only when the adapter port is connected to the fabric. Therefore,
target rate limiting is not supported when the port is directly connected with another device.
1. Select Configure > Basic Port Configuration from the Host Connectivity Manager.
The Basic Port Configuration dialog box displays.
2. Enable the Target Rate Limiting feature by clicking the corresponding check box.
3. Select the default rate limit from the list. Options include 1 Gbps, 2 Gbps, and 4 Gbps; the
default is 2 Gbps.
4. Click OK to close the window.
Enabling and disabling rate limiting on the adapter side using the BCU
Enter the following commands to enable or disable rate limiting on the adapter side:
NOTE
You must first enter the bcu port --disable <port_id> command, followed by the
bcu port --enable <port_id> command, before the bcu ratelim --enable or
bcu ratelim --disable commands take effect.
•
•
•
•
bcu ratelim --enable <port_id> ]
bcu ratelim --disable <port_id>
bcu ratelim --query <port_id>
bcu ratelim --defspeed <port_id> [<1|2|4>]
Refer to “ratelim” on page 156 for details about this command.
Brocade Adapters Administrator’s Guide
53-1001583-01
27
3
Boot over SAN
Boot over SAN
Boot over SAN configuration using the Basic Port Configuration dialog box is enabled on all
platforms if the HCM version is 1.1 or higher.
The Boot over SAN feature allows you to target remote boot devices (LUNs on SAN storage arrays)
from which to boot the host system. When the host’s operating system and adapter driver are
installed on the remote device, the adapter BIOS and user-configurable boot instructions stored in
adapter flash memory allow the host to boot from the device.
NOTE
Various operating systems require you to follow specific guidelines to enable servers to boot from a
SAN. Understanding these requirements is key to a successful deployment of a boot over SAN
environment.
Boot LUNs are identified to adapter ports using the BIOS Configuration Utility and BCU commands.
These utilities also allow you to enable or disable BIOS for booting the host system over SAN, set
boot options, and set the port speed. Refer to the Brocade Adapters Installation and Reference
Manual for instructions.
BIOS boot over SAN provides the ability for x86 and x86_64 systems to perform booting of the OS
installed on the SCSI disk connected over the Fibre Channel SAN.
The maximum number of supported adapters is limited to 16 and the maximum targets and LUNs
that are displayed during discovery is limited to 256.
After you have configured boot devices using the BIOS Configuration Utility, you can enable or
disable BIOS for Boot over SAN, set boot options, and set port speed using the HCM GUI. All
configuration information is stored in flash memory.
Configuring Boot over SAN
The boot-LUN table lists the vendor information, LUN capacity, and whether the LUNs are
accessible. These fields are not editable.
You can access the Boot-over-SAN dialog box by selecting the Host, an adapter or a physical port
from the device tree.
1. Select Configure > Basic Port Configuration from the Host Connectivity Manager.
The Basic Port Configuration dialog box displays.
2. Click the Boot-over-SAN tab.
The Boot-over-SAN dialog box, shown in Figure 9, displays.
28
Brocade Adapters Administrator’s Guide
53-1001583-01
Boot over SAN
FIGURE 9
3
Boot-over-SAN dialog box
3. Click the BIOS Enable check box to enable Boot over SAN.
4. From the Boot Option list, select one of the following:
• Auto Discovered from Fabric - Enables Boot over SAN using boot LUN information stored in
the fabric. This is the default setting.
• First Visible LUN - Enables Boot over SAN from the first discovered LUN in the SAN.
• User Configured LUNs - Allows the user to select and prioritize the remote target and LUN
for booting over SAN.
5. Select the Boot Device Port WWN row in the table, then click the up and down arrows to move
the row up or down in the table. The host will attempt to boot from the first LUN in the table,
and then move on to succeeding LUNs.
• You can delete a row using the Delete button under the arrows.
• Click the Boot Device Port WWN and LUN fields to physically enter boot LUNs to the table.
These LUNs must be visible to the adapter to be accessible as boot LUNs.
6. Click OK.
The Vendor Info, LUN Capacity, and Accessible status that correspond to the selected boot
device and LUN display automatically.
Brocade Adapters Administrator’s Guide
53-1001583-01
29
3
Boot over SAN
Pre-boot configuration
Any parameters flagged with pre-boot were configured using a blade system management
application. You cannot use HCM to create or modify a pre-boot configuration. If the port has been
pre-boot enabled:
• The BIOS Enable option is disabled.
• The pre-boot configured LUNs in the LUN column are displayed as <LUN wwn> (Pre-boot), as
shown in Figure 9. The maximum number of user-configured LUNs supported is four, and the
maximum number of pre-boot-configured LUNs is eight.
• The configuration changes take affect after the next reset.
Configuring fabric-based boot LUN discovery
Use the following steps to configure fabric-based boot LUN discovery.
1. Set the adapter’s BIOS configuration to auto-discovery using one of the following interfaces:
• Brocade BIOS Configuration Utility
Adapter Settings > Boot LUN > Auto Discover
• HCM
Refer to “Configuring Boot over SAN” on page 28 for instructions.
• BCU
bios --enable <port_id> -o auto
2. Enter the following BCU command to provide the zone name and zone members to use as
operands in the Fabric OS zonecreate command.
bcu boot --blunZone -c <cfg> -p <port_wwn> -r <rport_wwn> -l <lun_id | lun#>
Refer to “boot” on page 133 for details about this command.
3. Configure the zone on the switch using the Fabric OS zoneCreate command. Refer to the
Brocade Adapters Installation and Reference Manual or the Fabric OS Administrator’s Guide
for more information about creating zones.
30
Brocade Adapters Administrator’s Guide
53-1001583-01
Boot over SAN
3
Boot image update
You can update a boot image at the host level or at the adapter level.
At the host level, if the HCM version is lower than 2.1, the Upload Boot Image menu is enabled only
when one HBA is visible. If the agent version is 2.1 and higher, the Upload Boot Image menu is
always enabled if at least one adapter is visible and will update the image to all visible adapters.
Uploading the boot image using HCM
1. Download the boot code (brocade_adapter_boot_fw_v2-1-1-0) from www.brocade.com/hba to
a folder on your local drive.
2. Launch HCM.
3. Right-click a host or adapter from the device tree and select Upload Boot Image from the list.
• Right-clicking a host downloads the boot image to all adapters that are installed on the
host.
• Right-clicking an adapter downloads the boot image to the selected adapter only.
The Upload Boot Image dialog box displays.
4. Click the Browse button and navigate to the location of the boot image.
5. Select the boot image and click Open.
The selected file downloads. If an error occurs during the downloading process, an error
message displays.
Updating the boot image using the BCU
Enter the following command to update the boot image.
bcu boot --update [adapter_id] <image_file> [-a]
Refer to “boot” on page 133 for details about this command.
Brocade Adapters Administrator’s Guide
53-1001583-01
31
3
Virtual port configuration
Virtual port configuration
Virtual ports (V_Ports) appear to the hosts as physical ports in the data network. One or more
virtual ports are assigned to each host, and a host can access storage at a virtual port only if the
virtual port has been assigned to the host.
Virtual port restrictions
• You cannot create a V_Port that already exists in the Names dialog box. If you need to re-create
a V_Port that has been deleted through an interface other than the currently-managing HCM or
the V_Ports deleted on Linux servers reboot, you must first manually remove the V_Port’s WWN
from the Names dialog box in HCM. If you do not manually remove the V_Port from HCM, an
error message displays that the V_Port already exists. See “Removing a name entry” on
page 40 for instructions on how to manually remove a V_Port.
• The HCM GUI should post an error message for duplicate VPorts (detected in the Vports.db file)
and prompt the user to remove the duplicate, but it does not. Duplicate world wide names are
not restricted when the BCU is used to create V_Ports. Do not use the BCU for virtual port
management, because it does not handle duplicate V_Port world wide names. Instead, use
only the HCM GUI to manage vPorts.
Creating a virtual port
You create virtual ports on HBA ports only; virtual ports are not supported on an adapter. Virtual
ports are not supported for VMware and Solaris agents.
1. Select a physical HBA port from the device tree.
2. Select Configure > Virtual Port > Create from the main menu.
OR
Right-click the physical port and select Virtual Port > Create from the list.
The Virtual Port Creation dialog box, shown in Figure 10, displays. The following fields are
system-generated:
• Physical port world wide name.
• Virtual port world wide name - This WWN must be unique.
• Virtual node world wide name - The system returns the default node WWN, which is the
physical port node WWN.
32
Brocade Adapters Administrator’s Guide
53-1001583-01
Virtual port configuration
3
NOTE
By default, the Use auto-generated check box is selected and the Generate Again button is
enabled. You can still edit the Virtual Port WWN field if Use auto-generated is selected.
FIGURE 10
Virtual Port Creation dialog box
3. (Optional). Provide a symbolic name for the virtual port.
4. (Optional). Provide an alias name for the virtual port. By creating an alias, you can assign a
familiar name to a device or group multiple devices into a single name. This can simplify
cumbersome data entry and allows an intuitive naming structure.
5. (Optional). Enter descriptive information about the virtual port into the Description field.
6. Click OK to apply the changes and close the window.
Deleting a virtual port
If the maximum number of virtual ports have already been created, the option to create virtual
ports using HCM is disabled.
NOTE
Pre-boot-created virtual ports are not labeled. If the virtual port is pre-boot-created, the Delete check
box is disabled.
1. Select a virtual port from the device tree.
2. Select Configure > Virtual Port > Delete from the main menu.
OR
Right-click the virtual port and select Virtual Port > Delete from the list.
A warning message displays, asking for confirmation.
3. Click OK to continue.
The Virtual Port Deletion dialog box displays.
Brocade Adapters Administrator’s Guide
53-1001583-01
33
3
HCM logging levels
FIGURE 11
Virtual Port Deletion dialog box
4. Click the check box that corresponds to one or multiple virtual ports you want to delete, and
click OK.
HCM logging levels
You can set the log level for the following modules:
• Agent communication log, where all messages are exchanged between the HCM GUI
application and the HCM agent.
• HCM debug log, where messages are logged locally.
If you do not set an HCM log level, DEBUG, which is the default, is used.
Configuring the HCM logging level using HCM
1. Select Configure >HCM Logging Levels from the Host Connectivity Manager.
The Configure HCM Logging Levels dialog box, shown in Figure 12, displays.
FIGURE 12
Configure HCM Logging Levels dialog box
2. From both the Agent Communication Log and the HCM Debug Log lists, select one of the
following:
•
•
•
•
•
•
Trace
Debug, the most verbose and the default
Info
Warning
Error
Fatal, which is the least verbose.
3. Click Apply to apply the change.
34
Brocade Adapters Administrator’s Guide
53-1001583-01
Advanced port configuration
3
Advanced port configuration
You can access the Advanced Port Configuration dialog box by selecting an HBA port from the
device tree.
For each port, you can configure the following parameters using the Advanced Port Configuration
dialog box, the Brocade Command Line utility (BCU), or both. Table 7 lists the features and
configuration options.
TABLE 7
Advanced port configuration options
Port configuration parameter
Configurable using HCM
Configurable using the BCU
Interrupt Control Coalesce
Yes
Yes
Interrupt Control Latency
Yes
Yes
Interrupt Control Delay
Yes
Yes
Opening the Advanced Port Configuration dialog box
1. Select an HBA port from the device tree.
2. From the Host Connectivity Manager, select Configure > Port Configuration > Advanced.
The Advanced Port Configuration dialog box, shown in Figure 13, displays.
FIGURE 13
Brocade Adapters Administrator’s Guide
53-1001583-01
Advanced Port Configuration dialog box
35
3
Advanced port configuration
Interrupt Control Coalesce
Interrupt control coalescing allows the system to optimize CPU utilization by varying the number of
interrupts generated. Increasing the latency monitor timeout value should result in a lower
interrupt count and less CPU utilization, which may result in higher throughput.
You can configure the following interrupt control coalescing parameters per port:
• Interrupt delay time - The host interrupt generation is delayed by the specified duration to
coalesce multiple I/O interrupt events into one. Increasing this value results in fewer interrupts
per multiple interrupt events.
• Interrupt latency timer - This value helps to minimize I/O latency by avoiding host interrupt
generation to have to wait until the interrupt delay has expired for an I/O throughput.
Configuring the Interrupt Control Coalesce using HCM
1. Select a port from the device tree.
• From the Host Connectivity Manager, select Configure > Advanced Port Configuration.
The Advanced Port Configuration dialog box displays.
OR
• Right-click a port and select Port Configuration > Advanced.
2. Set the latency and delay values:
• Select On from the Interrupt Control Coalesce list.
NOTE
Interrupt Control Coalesce is On by default.
• Specify the latency monitor timeout value in microseconds, if coalesce is set to on. Latency
timeout values supported are 0-225 microseconds for all HBAs, including the Brocade
804 mezzanine card. Setting the latency timeout value to 0 disables the latency monitor
time out interrupt.
• Specify the delay timeout value in microseconds, if coalesce is set to on. Delay timeout
values supported are 0-1125 microseconds for all HBAs, including the Brocade 804
mezzanine card. Setting the delay timeout value to 0 disables the latency monitor time out
interrupt.
3. Click OK.
36
Brocade Adapters Administrator’s Guide
53-1001583-01
Name configuration
3
Name configuration
The Host Connectivity Manager allows you to configure names as a method of providing familiar,
simple names to world wide names for adapters, ports, virtual ports, and remote ports in the SAN.
(A logical port can be a base port or a virtual port.) Only unique names are allowed.
NOTE
You can access the Define Names dialog box by right-clicking an adapter, port, remote port, or Virtual
Port. You can access the Configure Names dialog box by selecting an HBA, an HBA port, or a Virtual
Port from the device tree.
You can perform the following name tasks using either the Configure Names dialog or the Define
Names dialog:
• Associate a name that represents an adapter, port, virtual port, or remote port. Note the
following points about names:
-
Among all adapters, two cannot have duplicate names.
Among all the ports, two cannot have duplicate names.
A port and adapter can have the same name.
You cannot associate a name for a storage device.
Name changes on remote ports and virtual ports are sent to the *.properties file local to
the HCM application but are not sent to the agent.
• Add a detached WWN and an associated name with Type and operational status as Unknown.
• Remove or disassociate a name from a WWN.
Dual role changes
Dual role types were introduced in HCM release 1.1 for situations where an Initiator WWN acts as a
Target. In HCM release 2.0, the design was changed to use a MAC or WWN + Type combination,
enabling you to set your own name to the port (Initiator) as well as to a remote port (Target).
Since HCM release 2.1, the dual role type has been eliminated, so if you import a data file from an
HCM release 2.0 or earlier which has a Dual Role type, the WWN is imported as an "Unknown" type
and the application log displays "Dual Role" type is not supported.
If the name you imported already exists in the Configure Names dialog box, the Fix Duplicates
dialog box displays, showing the duplicated names. Refer to “Importing duplicated names” on
page 43 for more information.
Name validation
Note the following when you define a name:
• The name cannot begin with a number.
• The name cannot begin with an underscore ( _ ) or hyphen ( - ), however an underscore or
hyphen character is allowed within the name; for example, name1_name-2.
• No special characters are allowed, except for an underscore or hyphen.
• The maximum length of the name is 15 characters.
• The maximum length of the description is 80 characters.
Brocade Adapters Administrator’s Guide
53-1001583-01
37
3
Name configuration
Defining a name
The Define Name dialog box, shown in Figure 14, enables you to assign a name to an existing world
wide name (WWN) or media access control (MAC) address.
1. Select an adapter from the device tree.
2. Select Configure > Define Names from the Host Connectivity Manager.
OR
Right-click a device from the device tree and select Define Names.
The Define Name dialog box displays.
FIGURE 14
Define Name dialog box
3. Enter a meaningful name for the selected adapter or port.
NOTE
Tye type of device is displayed in the Type field. The drop-down list is disabled.
4. Enter a description of the device.
5. Click OK.
Editing the name fields
Only the name, the world wide name (WWN), and the description fields are editable. Depending on
the component, the following occurs when you edit the name fields:
• Name changes on the adapter and ports are sent to the agent and stored in the *.properties
file.
• Name changes on remote ports and virtual ports are sent to the *.properties file local to the
HCM application but are not sent to the agent.
1. Select a host, adapter, or port from the device tree.
2. Select Configure > Names from the Host Connectivity Manager.
OR
Right-click a device from the device tree and select Configure > Names.
38
Brocade Adapters Administrator’s Guide
53-1001583-01
Name configuration
3
The Configure Names dialog box, shown in Figure 15, displays all the discovered and detached
(undiscovered) names.
FIGURE 15
Configure Names dialog box
3. Select a row and edit the name, the WWN, and the description, as needed.
4. Click OK.
Adding name entries
You can add up to 2000 names which are then stored in the HbaAliasdb.properties file.
The entries persist during reboot.
1. Select an HBA, an HBA port, or a Virtual Port from the device tree.
2. Select Configure > Names from the Host Connectivity Manager.
OR
Right-click a device from the device tree and select Configure Names.
3. Type a name that represents an adapter, port, or storage device into the Name field.
4. Type a valid WWN that corresponds to the name. Valid WWW types are as follows:
•
•
•
•
•
Node
Port
Remote Port
V_Port
Unknown
5. Click OK to close the window.
The new component is added to the Name list.
Brocade Adapters Administrator’s Guide
53-1001583-01
39
3
Name configuration
Removing a name entry
The Remove functionality clears the name and description values of a selected detached WWN.
1. Select an HBA, an HBA port, or a Virtual Port from the device tree.
2. Select Configure > Names from the Host Connectivity Manager.
OR
Right-click a device from the device tree and select Configure > Names.
The Configure Names dialog box displays all the names available at the host.
3. Select one of the following from the Display list:
•
•
•
•
•
•
Current Host
All WWNs
Only Nodes
Only Ports
Only V_Ports
Only Remote Ports
A list of names for the devices you selected displays.
4. Select a device to highlight it and click the Remove button to remove the discovered device
from the list.
The Remove button clears the names of the discovered WWN and the entire row of the
detached (undiscovered) WWN.
5. Click OK to close the window.
Exporting the properties for a WWN
You can export the properties for a world wide name in .csv, *.properties, or .txt file format.
1. Select an HBA, an HBA port, or a Virtual Port from the device tree.
2. Select Configure > Names from the Host Connectivity Manager.
OR
Right-click a device from the device tree and select Configure > Names.
The Configure Names dialog box displays.
3. Select one of the following from the Display list:
•
•
•
•
•
•
•
40
Current Host
All WWNs
Only Nodes
Only Ports
Only L_Ports
Only V_Ports
Only Remote Ports
Brocade Adapters Administrator’s Guide
53-1001583-01
Name configuration
3
4. Click the Export button.
The Save dialog box displays. You can save the properties file in .txt, .csv, or .properties format.
5. Name the file, and click Save.
6. Click OK to close the window.
Importing the properties for a WWN
Complete the following steps to import WWN properties.
1. Select Configure > Names from the Host Connectivity Manager.
OR
Right-click a device from the device tree and select Configure Names.
The Configure Names dialog box displays.
2. Select one of the following from the Display list:
•
•
•
•
•
Current Host
All WWNs
Only Nodes
Only Ports
Only Remote Ports
3. Click the Import button.
The Open dialog box displays.
4. Navigate to the location of the *.properties file from which you will import properties for the
selected device.
5. Name the properties file, and click Open.
6. Click OK to close the window.
Brocade Adapters Administrator’s Guide
53-1001583-01
41
3
Name configuration
Importing properties in EFCM format
You can use this procedure to import properties in Enterprise Fabric Connectivity Manager (EFCM)
format.
1. In the Configure Names dialog box, select EFCM Format and then select Import.
2. Navigate to the location of the *.properties file from which you will import properties for the
selected device.
The format appears as follows.
# Names Export File V 1.0 : DO NOT DELETE / MOVE / MODIFY THIS LINE
# For each row in the file the name should be followed by an '='
# Column Format: WWN=Name=Type =Description
# EFCM Names file Format [ Delimiter '=' ]
####################################################################
200000051e536b20=s=Node=
200000051e536b43=bfa0=Node=
100000051e536b20=a=Port=
100000051e536b44=bfa0_port1=Port=
100000051e536b43=bfa0_port0=Port=
3. Click OK.
Importing properties in DCFM or FM format
You can use this procedure to import properties in Data Center Fabric Manager (DCFM) or Fabric
Manager (FM) format.
1. In the Configure Names dialog box, select DCFM/FM Format and then select Import.
2. Navigate to the location of the *.properties file from which you will import properties for the
selected device.
The format appears as follows:
# Names Export File V 1.0 : DO NOT DELETE / MOVE / MODIFY THIS LINE
# For each row in the file the name should be followed by an ','
# Column Format: WWN,Name,Type ,Description
# FM Names file Format [ Delimiter ',' ]
####################################################################
200000051e536b20,s,Node,
200000051e536b43,bfa0,Node,
100000051e536b20,a,Port,
100000051e536b44,bfa0_port1,Port,
100000051e536b43,bfa0_port0,Port,Adding a name and a WWN
3. Click OK.
42
Brocade Adapters Administrator’s Guide
53-1001583-01
Name configuration
3
Importing duplicated names
The Duplicated Names dialog box, shown in Figure 16, displays when you import a file with a
duplicate name.
1. Select Configure > Names from the Host Connectivity Manager.
OR
Right-click a device from the device tree and select Configure Names.
The Configure Names dialog box displays.
2. Import a file with duplicate names in the Configure Names dialog box.
The Duplicated Names dialog box displays.
FIGURE 16
Duplicated Names dialog box
3. Determine which method you will use to fix the name policy violation, and click the appropriate
button.
• Append unique suffix for all repetitive names - Click to instruct the software to add
incremental numbers to fix the duplicated names.
• User Administrator will manually fix - Change duplicate names using the procedure in
“Editing the name fields” on page 38.
4. Click OK.
Brocade Adapters Administrator’s Guide
53-1001583-01
43
3
NPIV
NPIV
N-Port ID Virtualization (NPIV) enables a single Fibre Channel protocol port to appear as multiple,
distinct ports. NPIV provides separate port identification within the fabric for each operating system
image (partition) behind the port, as if each operating system image had its own unique physical
port.
Each NPIV device has a unique virtual port ID (PID), port WWN, and node WWN. The virtual port has
the same properties as an N_Port and is therefore capable of registering with all services of the
fabric. In other words, multiple virtual devices emulated by NPIV appear no different than regular
devices connected to a non-NPIV port. The maximum number of virtual PIDs for an N_Port on a FC
switch is 255.
NPIV is available at the physical port level or at the virtual fabric level. If virtual fabric ports are
detected, then you cannot configure NPIV parameters at the physical port level. If virtual fabric
ports are deleted on the switch port side, the NPIV parameters can then be configured at the
physical port level. No settings are available for V_Ports from basic port configuration.
44
Brocade Adapters Administrator’s Guide
53-1001583-01
Chapter
4
Monitoring
In this chapter
• Performance monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• Master log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• Application log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• Syslog support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
45
47
50
51
Performance monitoring
The Host Connectivity Manager (HCM) Port Statistics window enables you to monitor the
performance of the adapter and the traffic between the adapter and the LUNs. You can use the
information to isolate and troubleshoot areas that impact application performance.
Table 8 lists the port statistics that are monitored by component. Refer to Appendix A, “HCM Dialog
Boxes” for a description of each statistics field.
TABLE 8
Statistics monitored by component
Component
Statistics monitored
Local host
•
Port
HBA
•
Port
HBA port
•
•
•
•
•
Port
FCP IM Module
Fabric
IOC
QoS
Logical port and remote
port
•
Logical port
Virtual port
•
•
Logical port
Virtual port
Device*
•
•
Remote port > Target statistics
Remote port > FCP IM statistics
*No statistics are available
for LUNs
Brocade Adapters Administrator’s Guide
53-1001583-01
45
4
Performance monitoring
Polling frequency rate
The faster the polling rate, the more quickly the HCM GUI receives indications from the host.
However, faster polling rates consume more of your system’s CPU and network resources and can
therefore slow the system.
Controlling the polling frequency rate
To control port statistics polling, do one of the following from any of the Statistics dialog boxes.
1. Click the Start Polling check box to manually poll the port statistics.
2. Type the polling rate in the Polling Frequency in Seconds field. The range is between 5 and
3600 seconds. The default is 5 seconds.
3. Click the Stop Polling check box to stop port statistics polling.
4. Check the Keep Running Data check box to see the trend.
Resetting statistics
1. Click the Reset button on any of the Statistics dialog boxes.
A warning dialog box, shown in Figure 17, displays.
FIGURE 17
Reset statistics warning
2. Click Yes.
All of the statistics are reset to 0.
46
Brocade Adapters Administrator’s Guide
53-1001583-01
Master log
4
Master log
Event monitoring enables early fault detection and isolation on a selected adapter. When
applicable events occur during adapter operation, the adapter driver generates event messages.
These messages are captured in your host system logs. These messages are also captured in an
agtEvent.log file by the HCM agent and displayed in the HCM master log. Note that message display
may differ in your host system log and the HCM master log; however, messages will most likely
contain the following information:
•
•
•
•
•
•
•
Message ID
Description
Severity level
Event category
Cause of event
Recommended action
Date and time event occured
Message details are also contained in HTML files, which load into your system when you install the
adapter driver. You can view these HTML files using any internet browser application. Refer to the
Brocade Adapters Troubleshooting Guide for details of all driver event messages.
NOTE
To avoid processing of older events in first-time event discovery, an event will be considered for
processing if it has occurred within the last 20 seconds, or not greater than the discovery interval.
The agent and the HCM GUI application must be running in the same time zone and at the right time.
Brocade Adapters Administrator’s Guide
53-1001583-01
47
4
Master log
The Master Log Properties dialog box, described in Table 9, displays a list of all events that have
occurred. See Table 5 on page 14 for a description of the event severities.
You can filter the events based on the user-defined criteria shown in Figure 18.
TABLE 9
48
Master Log fields
Field
Description
Filter button
Click to launch the Master Log Filter dialog box.
Clear Filter button
Click to clear the master log filter option set.
Sr No column
Displays a numbering sequence in ascending order.
Severity column
Displays the event severity (informational, minor, major, or critical).
WWN/MAC column
Displays the world wide name (WWN) or the media access control
(MAC) address of the device on which the event occurred.
Category column
Displays the category of event, based on one of the following
categories:
• Adapter
• Port
• LPort
• RPort
• ITNIM
• Audit
• IOC
Subcategory column
Displays the subcategory of the main category.
Description column
Displays a brief description of the event.
Date/Time column
Displays the date and time when the event occurred.
Brocade Adapters Administrator’s Guide
53-1001583-01
Master log
4
Filtering event log entries
Event filtering enables you to block events based on user-defined criteria (severity or type of log).
Events that have been filtered out do not appear in the Master Log
1. Click the Filter button in the Master Log section of the bottom pane.
The Master Log Filter dialog box displays.
2. Filter the events using one or a combination of the criteria shown in Figure 18.
NOTE
The Category is the type of event. The categories are listed in Table 9.
FIGURE 18
Master Log Filter dialog box
3. Click Apply to save your changes, or click Cancel to exit the window.
OR
Click OK to save the changes and exit the window.
Brocade Adapters Administrator’s Guide
53-1001583-01
49
4
Application log
Application log
The HCM application log, shown in Figure 19, displays all application-related informational and
error messages, as well as the following attributes:
•
•
•
•
Date and time the message occurred
Severity of the message
Description of the message
The agent IP address
NOTE
Run-time memory information is logged in the application log whenever a supportSave is triggered
from HCM or when the About dialog box is launched in HCM.
FIGURE 19
50
HCM Application Log
Brocade Adapters Administrator’s Guide
53-1001583-01
Syslog support
4
Syslog support
Syslog forwarding is the process by which you can configure the Host Connectivity Manager (HCM)
agent to send Syslog messages to other computers through port 514. You can configure the HCM
agent to forward events to a maximum of three Syslog destinations. These events will display in the
operating system logs.
The HCM stores all the received events from the driver in the agtEvent.log file. By default, the
location is /opt/hcmagent/log/hbaEvents.log in Linux and Solaris systems.
NOTE
VMware ESX 3.5 and 4.0 blocks the Syslog outgoing port 514 by default. Therefore, you must
configure the firewall if you use VMware ESX 3.5 or 4.0 and plan to use Syslog Host Configuration
feature in DCFM or if you access HCM through DCFM. See “Syslog host configuration using VMware”
on page 52 for more information.
Opening the Syslog Server Configuration dialog box
1. Select the host, an adapter, or a port from the device tree.
2. Select Configure > Syslog from the main menu.
The Syslog Server Configuration dialog box, shown in Figure 20, displays.
FIGURE 20
Syslog Server Configuration dialog box
Registering a host server
You can register up to three Syslog destinations on managed Fabric OS devices.
1. Select Configure > Syslog from the main menu.
The Syslog Server Configuration dialog box displays.
2. Enter the host name or IP address of the destination device into the Host Name/IP Address
field.
3. Click Add to register the host as a Syslog destination.
4. Click OK to close the dialog box.
Brocade Adapters Administrator’s Guide
53-1001583-01
51
4
Syslog support
Removing a host server
1. Select Configure > Syslog from the main menu.
The Syslog Server Configuration dialog box displays.
2. Enter the host name of the destination device into the Hostname field.
3. Enter the IP address of the destination device into the IP Address field.
4. Click Remove to remove the host as a Syslog destination.
5. Click OK to close the dialog box.
Syslog host configuration using VMware
VMware ESX 3.5 and 4.0 blocks the Syslog outbound port 514 by default. Therefore you must
configure the firewall to allow outgoing port 514 for Syslog if you plan to use the Syslog host
configuration feature in DCFM or if you access HCM through DCFM.
Use the following procedure if the outgoing UDP port 514 is blocked by the VMware ESX firewall.
1. Restart the HCM Agent if the firewall settings on port 514 change in VMware.
2. Use the following command to open port 514:
esxcfg-firewall -o 514,udp,out,syslog
3. Use the following command to block outgoing traffic through port 514:
esxcfg-firewall -c 514,udp,out,syslog
52
Brocade Adapters Administrator’s Guide
53-1001583-01
Chapter
5
Diagnostics
In this chapter
• Diagnostics using the BCU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• Diagnostics using HCM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• Displaying test log details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• Beaconing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• SFP management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• Debugging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• supportSave . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
53
55
58
59
60
61
61
Diagnostics using the BCU
The purpose of diagnostic commands is to evaluate the integrity of the system hardware. Be sure to
disable the port before running any type of port diagnostics. In addition, it is advisable that you do
not perform other operations on the adapter while running HCM or BCU diagnostics.
NOTE
You must disable the port prior to executing the loopback test. You must disable the adapter prior to
executing the memtest.
Brocade Adapters Administrator’s Guide
53-1001583-01
53
5
Diagnostics using the BCU
diag commands
The diag commands shown in Table 10 monitor hardware components and can be performed while
the system is running (they are non-disruptive). Refer to “diag” on page 137 for command details.
NOTE
The sfpshow and beacon commands are not applicable for Brocade 804 mezzanine cards.
TABLE 10
Fibre Channel diag commands
Command
Description
beacon
Blinks the appropriate port LED for physical identification. Beaconing can
occur at the port or the link level.
End-to-end (E2E) beaconing is a software feature that can be enabled on
Brocade 8 Gbps HBAs to allow the local HBA to flash (beacon) and also
cause the connected Fibre Channel switch port to uniquely beacon. Refer
to the Brocade Adapters Installation and Reference Guide for details on
E2E beaconing patterns.
loopback
Tests the data path from the IOC to the desired network loopback port
(internal, serdes, external) and back. This is an offline diagnostic test.
memtest
Tests the adapter’s memory blocks.
pciloopback
Checks the communications path between the host and the IO Controller
(IOC).
queuetest
Tests the CPE/RME queue.
sfpshow
Displays small form factor pluggable (SFP) information.
tempshow
Displays the temperature of the adapter.
fcdiag commands
Fibre Channel diagnostics include the tests shown in Table 11. Refer to “fcdiag” on page 141 for
details about this command.
TABLE 11
54
Fibre Channel diagnostic tests
Command
Description
fcping
Determines the basic connectivity between the Fibre Channel
network points and monitors and measures network latency.
fctraceroute
Reports on a SAN path, including node hops and latency data.
fcecho
Sends an FC Echo Extended Link Services (ELS) request to a remote
port.
linkbeacon
Blinks the LED light of the remote port of the link.
scsitest
Tests the SCSI components.
Brocade Adapters Administrator’s Guide
53-1001583-01
Diagnostics using HCM
5
Diagnostics using HCM
The purpose of diagnostic commands is to evaluate the integrity of the system hardware. Be sure to
disable the port(s) before running any type of port diagnostics. In addition, it is advisable that you
do not perform other operations on the adapter while running HCM or BCU diagnostics.
NOTE
When you invoke a test on an adapter, you can run diagnostics for one or both ports within the
selected adapter.
Running a hardware-level test using HCM
1. Select an adapter or an adapter port from the device tree.
2. Select Configure > Diagnostics from the main menu.
OR
Right-click the component and select Diagnostics from the list
The Diagnostics dialog box, shown in Figure 21, is displayed.
FIGURE 21
Brocade Adapters Administrator’s Guide
53-1001583-01
Hardware-level diagnostics tests dialog box
55
5
Diagnostics using HCM
3. Click the check box that corresponds to the port test you are running.
4. Specify the parameters based on parameter information found in Table 12.
NOTE
Click the Stop on Error check box if you want the test to stop running if an error occurs.
5. Click Start to run the test.
Hardware-level test parameters
TABLE 12
Hardware-level test parameters
Hardware-level test
Parameter
Test Options
Memory test
None
You can enable or disable this test.
Regardless of test cycle set value, the
Memory Test will run only once.
Frame Count
Integer from 0 - 4,294,967,295. The
default value is 8192.
Data Pattern
Default value is A5A5A5A5.
Test Cycle
The number of times the test runs. The
default value is 10.
Subtest ID
•
•
•
Link Speed
2, 4, and 8 Gbps
Frame Count
Integer from 0 - 4,294,967,295. The
default value is 8192.
Test Cycle
The number of times the test runs. The
default value is 10.
Data Pattern (hexadecimal)
Default value is A5A5A5A5.
You can enable or disable this
test.
Queue number from 0-3. Because HCM
only allows you to enable or disable the
queue test (and not specify an integer),
all the queues will be tested.
NOTE: During the test, IOC will
be disabled.
PCI loopback test
Port loopback test
NOTE: For an External
Loopback test, you must plug
in the loopback connector.
For a Brocade 804 mezzanine
card, a pass-through module is
required for an External
Loopback test.
Queue test
Sends a health check message
from host to firmware through
message queues memory
mapped over the PCI.
56
Internal
External
Serdes
Brocade Adapters Administrator’s Guide
53-1001583-01
Diagnostics using HCM
5
Running a Fibre Channel protocol-level test using HCM
There are three protocol-level tests:
• Echo test, which sends an FC Echo ELS to a remote port.
• FC ping test, which requests the management server to test the connectivity with a given
remote port (without zoning restrictions). Not supported in Solaris operating systems.
• FC traceroute test, which requests to enumerate the route between two given end points. Not
supported in Solaris operating systems.
To run one of the protocol-level tests, use the following procedure.
1. Select an adapter or port from the device tree.
2. Select Configure > Diagnostics from the main menu.
OR
Right-click the component and select Diagnostics from the list.
The Diagnostics dialog box, shown in Figure 22, displays.
3. Click the FC Protocol Tests tab.
FIGURE 22
Brocade Adapters Administrator’s Guide
53-1001583-01
Protocol-level diagnostic tests dialog box
57
5
Displaying test log details
4. Click the check box that corresponds to the protocol test you are running.
5. Select a port, target, and logical port from the lists, and click Add to add it to the test table.
6. Define how many times the test runs by specifying the test cycle number. The default test cycle
number is 1.
7.
Click Start to run the test.
Displaying test log details
1. Select Configure > Diagnostics from the Host Connectivity Manager.
2. Run any diagnostic test.
3. Select and double-click a row of the test results in the bottom pane.
The Test Log Details dialog box, shown in Figure 23, displays.
FIGURE 23
58
Test Log Details for Echo Test dialog box
Brocade Adapters Administrator’s Guide
53-1001583-01
Beaconing
5
Beaconing
Beaconing is a continuous signaling of error conditions on a LAN. Beaconing can occur either on
the port or on one or both sides of the link (known as end-to-end beaconing). Link end-to-end
beaconing provides a mechanism to start beaconing on both the adapter side and the switch side.
NOTE
Port beaconing is not supported on the Brocade 804 mezzanine card.
Configuring beaconing using HCM
You can configure beaconing from an HBA port.
1. Select an HBA port from the device tree.
2. Select Configure > Beacon from the Host Connectivity Manager.
3. Click either the Port check box or the Link check box to enable the feature.
Configuring beaconing using the BCU
Enter the following command to blink the appropriate port LED for physical identification.
bcu diag --beacon <port_id> {on | off} [-t <secs>]
where:
duration
Blinks the local port for the specified number of seconds. The default is 0,
which means infinite blinking.
Refer to “diag” on page 137 for details about this command.
Enter the following command to blink the appropriate link for physical identification.
bcu fcdiag --linkbeacon <port_id> {on|off}
Refer to “fcdiag” on page 141 for details about this command.
Brocade Adapters Administrator’s Guide
53-1001583-01
59
5
SFP management
SFP management
The Port SFP dialog box enables you to display the properties that are associated with a selected
small form-factor pluggable (SFP) transceiver.
Displaying SFP information using the BCU
Enter the following command to view the SFP information. If the firmware detects a non-Brocade
SFP, the port is disabled.
bcu diag --sfpshow <port_id>
Refer to “diag” on page 137 for details about this command.
Displaying SFP information using HCM
NOTE
Brocade 804 mezzanine cards connect to the embedded switch modules or embedded interconnect
modules on the Blade System chassis by way of an internal backplane and therefore, the SFP
properties do not apply to the Brocade 804 mezzanine card.
1. Select a port in the device tree.
2. Click the SFP tab in the right pane.
The SFP Properties panel, shown in Figure 23, displays.
FIGURE 24
SFP Properties panel
Details about the port technology and extended link are described in “SFP Properties panel” on
page 107.
60
Brocade Adapters Administrator’s Guide
53-1001583-01
Debugging
5
Debugging
The following debug commands capture all the support information needed to diagnose suspected
system issues:
• portlog
Displays the log of FC frames and other main control messages that were sent out and
received.
• portlogclear
Clears the port’s frame log.
• portlogctl
Enables or disables the portlog.
Refer to “debug” on page 135 for details about these commands.
supportSave
The supportSave command collects debug information needed from the driver. You can collect
supportSave information using the bfa_supportsave command or through the Data Center Fabric
Manager (DCFM). HCM supportSave contains driver, agent, and HCM-related information.
NOTE
Before collecting data using the supportSave feature, you may want to disable auto-recovery on the
host system. This is because when adapters are reset after an auto-recovery from a failure, traces
initiated before the failure can be lost or overwritten.
The captured debug information can be saved to the local filesystem and then sent to the supplier
for further investigation. The information that is captured is detailed in Table 13.
TABLE 13
supportSave categories
supportSave level
Captured information
System (or Host)
HCM GUI-related engineering logs
Events
Configuration files
Operating-specific information
Environment information
Data.xml file
Vital CPU, memory, network resources
HCM Agent (logs, configuration)
Driver logs (bfa_supportSave output)
Install logs
Core files
Brocade Adapters Administrator’s Guide
53-1001583-01
61
5
supportSave
The default location to where supportSave output is saved is under the IP address of the host from
which it was collected, relative to the HCM installation directory, as follows:
USER HOME\HCM\data\10.32.116.1\supportsave
For example:
C:\Users\Administrator\HCM\data\10.32.116.1\supportsave
supportSave collection sources
Table 14 lists the sources from which you can gather supportSave information.
TABLE 14
supportSave collection sources
Source of supportSave information
1
supportSave information collected
BFA based supportSave
Driver-related logs and config files
Browser-based supportSave
Driver-related logs and config files
Agent log/config files
HCM-based supportsave
Agent log and config files
HCM GUI log and config files
1
bcu debug does not support the bcu debug --supportsave command. See
“supportSave collection using a command prompt” on page 63 for more information.
Automatic statistics collection
The port statistics log file is collected as part of the supportSave activity.
Port statistics collection occurs every eight hours and will be logged in to a rolling file under the
/log/ directory. There are a maximum of five backup files and each file has a 100 KB size limit. A
new backup file overwrites the oldest file.
62
Brocade Adapters Administrator’s Guide
53-1001583-01
supportSave
5
supportSave collection using HCM
There are two ways to trigger a supportSave collection using the HCM GUI, explained in this section.
You can also gather supportSave information for the adapter using the DCFM application. For
information about supportSave using DCFM, refer to the Data Center Fabric Manager User Manual.
1. Select Tool > Support Save from the Host Connectivity Manager.
OR
Right-click a host from the device tree and select Support Save from the list.
NOTE
If the agent is up, it will use the advanced configuration. If there is no agent, it will use the
basic configuration.
After the supportSave operation completes, the following message is displayed:
Support Save Completed and is located at
<HCM HOME Dir>/data/localhost/supportSave_Basic_<file_name>.zip
2. Click OK to close the dialog box.
supportSave collection on a port crash event
If the port crashes and triggers a port crash event, support save data is collected at a system-wide
level. An application log message is generated with the following message:
Port Crash Support Save Completed
Port crash events have a CRITICAL severity and you can view the details in the Master Log and
Application Log tables in HCM. For more information, refer to “Master log” on page 47 and
“Application log” on page 50.
supportSave collection using a command prompt
The bcu debug command does not support the bcu debug --supportsave command. The
bfa_supportsave command, however, supports the following options:
• bfa_supportsave - To create and save the supportsave at /tmp.
• bfa_supportsave_dir - To create and save the supportsave under <dir>.
• bfa_supportsave <dir> <ss_file_name> - To create and save the supportsave under <dir> as
the file name <ss_file_name>. If <ss_file_name> already exists, it will be overwritten.
Brocade Adapters Administrator’s Guide
53-1001583-01
63
5
supportSave
supportSave collection using a browser
You can use an Internet browser (Internet Explorer 6 or higher or Firefox 2.0 or higher) to collect
and transfer supportSave information for the driver and the HCM agent.
Use a browser if you do not have root access, if you do not have access to file transfer methods
such as FTP and SCP, or you do not have access to the Host Configuration Manager (HCM) or the
Data Center Fabric Manager (DCFM).
1. Open an Internet browser and type the following URL:
https://localhost:34568/JSONRPCServiceApp/SupportSaveController.do
In this URL, localhost is the IP address of the server from which you want to collect the
bfa_supportSave information.
2. Type the agent’s credentials using the factory default settings, admin and password.
The File Download dialog box displays, prompting you to save the
supportSaveController.do file.
3. Click Save and navigate to the location where you want to save the bfa_supportSave file.
4. Rename the supportSaveController.do file as a zip file, using .zip as the extension.
Use IZArc or winzip to unpack the file and analyze the contents.
64
Brocade Adapters Administrator’s Guide
53-1001583-01
Appendix
HCM Dialog Boxes
A
In this appendix
• Authentication Statistics dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
• Backup dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
• Base Port Properties panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
• Change HCM Password dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
• Change HCM Agent Password dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
• Configure Names dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
• Define Name dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
• Duplicated Names dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
• Event Properties dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
• Fabric Statistics dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
• FCP IM Statistics dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
• FCP IM Module Statistics dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
• Fibre Channel Security Protocol Configuration dialog box . . . . . . . . . . . . . . 83
• Hardware Tests Diagnostics dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
• HBA Properties panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
• IOC Statistics dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
• Logical Port Statistics dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
• LPORT Properties panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
• Master Log tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
• Master Log Filter dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
• Persistent Binding dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
• Port Properties panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
• Port Statistics dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
• Protocol Tests dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
• QoS Statistics dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
• Remote Port Properties panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
• Restore dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
• SFP Properties panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
• Syslog Server Configuration dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
• Target Statistics dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
• Test Log Details dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
• Virtual Port Creation dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Brocade Adapters Administrator’s Guide
53-1001583-01
65
A
In this appendix
• Virtual Port Deletion dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
• Virtual Port Properties panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
• Virtual Port Statistics dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
66
Brocade Adapters Administrator’s Guide
53-1001583-01
Authentication Statistics dialog box
A
Authentication Statistics dialog box
The Authentication Statistics dialog box enables you to display statistical information related to
transmitted and received DH-CHAP attempts for a selected port.
Opening the dialog box
1. Select an HBA port from the device tree.
2. Select Configure > FC_SP > Authentication Statistics from the Host Connectivity Manager.
Fields and components
Field
Description
Date
The date the statistics were run.
Failures
The number of times security authentication failed.
Successes
The number of times security authentication succeeded.
Tx Auth Rjts
The number of rejected transmitted Fibre Channel authentication
attempts.
Tx Auth Negs
The number of transmitted Fibre Channel authentication negotiation
attempts.
Tx Auth Dones
The number of completed Fibre Channel authentication negotiation
attempts.
Tx DHCHAP Challenges
The number of transmitted DH-CHAP challenge attempts.
Tx DHCHAP Replies
The number of transmitted DH-CHAP replies.
Tx DHCHAP Successes
The number of times a transmitted Fibre Channel authentication
attempt was successful.
Rx Auth Rjts
The number of rejected received Fibre Channel authentication
attempts.
Rx Auth Negs
The number of received Fibre Channel authentication negotiation
attempts.
Rx Auth Dones
The number of completed received Fibre Channel authentication
attempts.
Rx DHCHAP Challenges
The number of received DH-CHAP challenge attempts.
Rx DHCHAP Replies
The number of received DH-CHAP replies.
Rx DHCHAP Successes
The number of times a received DH-CHAP challenge was successful.
Brocade Adapters Administrator’s Guide
53-1001583-01
67
A
Authentication Statistics dialog box
Using the dialog box
Refer to the following topics for specific procedures using this dialog box:
•
•
•
•
•
68
“Configuring security authentication using HCM (Host and HBA)”
“Port Statistics dialog box”
“Polling frequency rate”
“Resetting statistics”
“Performance monitoring”
Brocade Adapters Administrator’s Guide
53-1001583-01
Backup dialog box
A
Backup dialog box
The Backup dialog box allows you to create a backup of data and configuration files.
Opening the dialog box
Select any device from the device tree and select Tool > Backup Data from the Host Connectivity
Manager.
Fields and components
Field
Description
Output Directory text box
Enter the location of the directory in which you want to back up the
data and configuration files.
Browse button
Click to browse to the location of the backup directory.
Start Backup button
Click to instruct the system to back up the data and configuration
files to the designated location.
Close button
Click to close and exit the Backup dialog box.
Brocade Adapters Administrator’s Guide
53-1001583-01
69
A
Base Port Properties panel
Base Port Properties panel
The Base Port Properties panel enables you to display the properties that are associated with the
base port.
Opening the properties panel
1. From the device tree, select a base port.
2. In the right pane, click the Base Port Properties tab.
Fields and components
70
Field
Description
Base Port
Indicates whether the port is a base port (true or false).
Fabric Name
The name of the Fabric associated with the base port.
FC Address
The Fibre Channel address of the base port.
Node WWN
The world wide name of the device.
Port WWN
The world wide name of the base port.
Roles
The role of the base port; for example, FCP Initiator.
State
Indicates whether the base port is online or offline.
Switch IP Address
The IP address of the switch.
Symbolic Name
The symbolic name associated with the base port.
Brocade Adapters Administrator’s Guide
53-1001583-01
Change HCM Password dialog box
A
Change HCM Password dialog box
The Change HCM Password dialog box enables you to change an existing password for the
application.
Opening the dialog box
Select Configure > Change HCM Password from the Host Connectivity Manager.
Fields and components
Field
Description
User Name
Type your user name.
Old password
Type your existing password.
New password
Type a new password.
Confirm New password
Confirm your new password by retyping it.
Using the dialog box
Refer to the following topic for specific procedures using this dialog box:
• “Changing an HCM application password”
Brocade Adapters Administrator’s Guide
53-1001583-01
71
A
Change HCM Agent Password dialog box
Change HCM Agent Password dialog box
The Change HCM Agent Password dialog box enables you to change an existing password for the
host.
Opening the dialog box
Select Configure > Change Password > Change Agent Password from the Host Connectivity
Manager.
Fields and components
Field
Description
Host Name
Displays the IP address of the host.
User Name
Type your user name.
Old password
Type your existing password.
New password
Type a new password.
Confirm New password
Confirm your new password by retyping it.
Using the dialog box
Refer to the following topic for specific procedures using this dialog box:
• “Changing an HCM application password”
72
Brocade Adapters Administrator’s Guide
53-1001583-01
Configure Names dialog box
A
Configure Names dialog box
The Configure Names dialog box enables you to add a world wide name and an associated name
for an adapter, port, or storage device that is not yet discovered. You can also remove a device from
the Name display list and import from or export properties to a file.
Opening the dialog box
1. Select any device from the device tree.
2. Select Configure > Names from the Host Connectivity Manager.
Fields and components
Field
Description
Display list
Select a discovered host from the list. Current Host is the default.
Name
The name for all configured devices.
NOTE: You can also search for a name by typing the name into
the text box and clicking OK.
Scope list
WWN/MAC
The type of name; options include the Name itself or the WWN. After
you have selected the type of name from the Scope list, type the
name or WWN into the corresponding text box.
The world wide name for all configured devices.
NOTE: You can also search for a name by typing the world wide
name into the text box and clicking OK.
Operational Status
The operational status of the WWN/MAC (for example, Discovered).
Type
The type of device; for example, Node or Port.
Description
Displays a description of the device.
Remove button
Select a device to highlight it, then click the Remove button to
remove the discovered device from the list.
Import
Click to import properties from a properties file for a selected device.
Export
Click to save properties to a properties file for a selected device.
Add button
For undiscovered devices, type in the name of the port’s name or the
WWN and click the Add button to add it to the Display list.
DCFM/FM format list
Select from the list to import properties in DCFM (Data Center Fabric
Manager), FM (Fabric Manager), or EFCM (Enterprise Fabric
Connectivity Manager) format.
Fix Duplicates button
Click to fix any duplicate names.
Brocade Adapters Administrator’s Guide
53-1001583-01
73
A
Configure Names dialog box
Using the dialog box
Refer to the following topics for specific procedures using this dialog box:
•
•
•
•
•
74
“Name configuration”
“Adding name entries”
“Removing a name entry”
“Exporting the properties for a WWN”
“Importing the properties for a WWN”
Brocade Adapters Administrator’s Guide
53-1001583-01
Define Name dialog box
A
Define Name dialog box
The Define Name dialog box enables you to assign a name to an existing world wide name.
Opening the dialog box
1. Right-click on an HBA or a port in the device tree.
2. Type a name that represents the adapter or port.
NOTE
The WWN and the Type are not editable.
3. Click OK to apply the change and close the window.
The new component is added to the Name list.
Fields and components
Field
Description
WWN/MAC
The world wide name for the device.
Name
Enter a meaningful name for the device.
Type
The type of device; for example, Node or Port.
Description
Enter a description of the device.
Using the dialog box
Refer to the following topics for specific procedures using this dialog box:
•
•
•
•
•
“Name configuration”
“Adding name entries”
“Removing a name entry”
“Exporting the properties for a WWN”
“Importing the properties for a WWN”
Brocade Adapters Administrator’s Guide
53-1001583-01
75
A
Duplicated Names dialog box
Duplicated Names dialog box
The Duplicated Names dialog box enables you to display configured names that are redundant.
Opening the dialog box
The Duplicated Names dialog box displays when you import a file with a duplicate name.
1. Select Configure > Names from the Host Connectivity Manager.
OR
Right-click a device from the device tree and select Configure Names.
The Configure Names dialog box displays.
2. Import a file with duplicate names in the Configure Names dialog box.
The Duplicated Names dialog box displays.
Fields and components
Field
Description
Append unique suffix for all repetitive
names button
Click to automatically add an incremental number to a duplicate
name.
User/Administrator will manually fix
button
Click if you want to manually fix a duplicate name.
Name
The port number with which the duplicated name is associated.
WWN/MAC
The world wide name or media access control address with which
the duplicated name is associated.
Operational Status
The operational status of the duplicate WWN (for example,
Discovered).
Type
The type of device; for example, Node or Port.
Description
A description of the duplicate name.
Using the dialog box
Refer to the following topics for specific procedures using this dialog box:
•
•
•
•
•
76
“Name configuration”
“Adding name entries”
“Removing a name entry”
“Exporting the properties for a WWN”
“Importing the properties for a WWN”
Brocade Adapters Administrator’s Guide
53-1001583-01
Event Properties dialog box
A
Event Properties dialog box
The Event Properties dialog box displays the properties associated with a selected event from the
Master Log.
Opening the dialog box
1. Click the Master Log tab, located on the bottom pane of the Host Connectivity Manager.
A master summary of events on all discovered devices is displayed.
2. Double-click an event.
Fields and components
Field
Description
Date/Time
The date when the event occurred.
Time
The time when the event occurred.
Severity
The event severity (informational, minor, major, or critical).
WWN/MAC
The world wide name (WWN) or media access control (MAC) of the
device on which the event occurred.
Event ID
An identifier that corresponds to the event.
Category
The category of event; for example, Rport or ITNIM.
Description
A brief description of the event.
Root Cause
The root cause of the event.
Using the dialog box
Refer to the following topics for specific procedures using this dialog box:
• “Master log”
• “Event severity icons”
• “Filtering event log entries”
Brocade Adapters Administrator’s Guide
53-1001583-01
77
A
Fabric Statistics dialog box
Fabric Statistics dialog box
The Fabric Statistics dialog box enables you to view statistics on a selected Fabric.
Opening the dialog box
1. Select a port from the device list.
2. Select Monitor > Statistics > Fabric Statistics from the Host Connectivity Manager.
Fields and components
Field
Description
Keep Running Data check box
Click to continue running statistical data. This is useful if you want to
see a trend.
Polling Frequency in Seconds text box
Type a number for polling frequency. The range is between five and
3600 seconds and the default is five seconds.
Start Polling button
Click to manually poll the V_Port statistics.
Reset button
Click to reset all of the statistics to 0.
Date
The date the Fabric statistics were run.
Num FLOGIs sent
The number of Fabric logins sent.
FLOGI response errors
The number of Fabric login response errors.
FLOGI accept errors
The number of times Fabric login attempts are accepted.
FLOGI accepts received
The number of times Fabric logins are received.
FLOGI rejects received
The number of times Fabric login attempts are rejected.
Unknown responses for FLOGI
The number of unknown Fabric login responses.
Allocation waits prior to sending
FLOGI
The number of delayed Fabric login allocations.
FLOGIs received
The number of times Fabric logins are received.
Incoming FLOGIs rejected
The number of times Fabric logins are rejected.
Internal fabric online notification sent
to other modules
The number of internal notifications for Fabrics that are online that
are sent to other modules.
Internal fabric offline notification
sent to other modules
The number of internal notifications for Fabrics that are offline that
are sent to other modules.
Using the dialog box
Refer to the following topics for specific procedures using this dialog box:
•
•
•
•
78
“Port Statistics dialog box”
“Polling frequency rate”
“Resetting statistics”
“Performance monitoring”
Brocade Adapters Administrator’s Guide
53-1001583-01
FCP IM Statistics dialog box
A
FCP IM Statistics dialog box
The FCP IM Statistics dialog box enables you to display Fibre Channel Protocol Input Method
(FCP IM) statistical information for initiators and targets.
Opening the dialog box
Select Monitor > Statistics > Remote Port Statistics > FCP IM Statistics from the Host Connectivity
Manager.
OR
Right-click a remote port from the device tree and select FCP IM Statistics.
Fields and components
Field
Description
Date
The date and time of the most recent reset.
RPort Onlines
The number of online R_Ports.
RPort Offlines
The number of offline R_Ports.
PRLI Sent
The number of process login (PRLI) requests sent.
Fcxp Alloc Waits
The number of FCXP allocation waits.
PRLI Rsp Errors
The number of process login (PRLI) response errors.
PRLI Rsp Accepts
The number of process login (PRLI) response accepts.
PRLI Responses Parse Error
The number of process login (PRLI) response parse errors.
PRLI Rejects
The number of process login (PRLI) rejected requests.
Number of Times Timeouts Detected
The number of timeouts detected.
Second Level Error Recovery
The number of errors recovered.
Num Times in Initiator Mode
The number of times the RPort has been in initiator mode.
HAL Online Events
The number of hardware abstraction layer (HAL) online events.
HAL Offline Events
The number of hardware abstraction layer (HAL) offline events.
HAL Create Events
The number of hardware abstraction layer (HAL) create events.
HAL Delete Events
The number of hardware abstraction layer (HAL) delete events.
HAL Create Completions
The number of hardware abstraction layer (HAL) create completions.
HAL Delete Completions
The number of hardware abstraction layer (HAL) delete completions.
HAL SLER Events
The number of hardware abstraction layer (HAL) sequence layer
error recovery (SLER) events.
HAL IOC Down Events
The number of hardware abstraction layer (HAL) IOC Down events.
HAL IO Cleanup Completions
The number of hardware abstraction layer (HAL) I/O cleanup
completions.
HAL Task Management Commands
The number of hardware abstraction layer (HAL) task management
commands.
Brocade Adapters Administrator’s Guide
53-1001583-01
79
A
FCP IM Statistics dialog box
Field
Description
HAL TM Firmware Responses
The number of hardware abstraction layer (HAL) task management
firmware responses.
HAL TM Successes
The number of hardware abstraction layer (HAL) task management
successes.
HAL TM Failures
The number of hardware abstraction layer (HAL) task management
failures.
HAL TM Related IO Cleanups
The number of hardware abstraction layer (HAL) TM-related I/O
cleanups.
HAL TM Firmware Queue Resumed
The number of times the hardware abstraction layer (HAL) task
management firmware queue is resumed.
HAL TM Affected by IOC Down Events
The number of times hardware abstraction layer (HAL) task
management is affected by IOC down events.
HAL TM Affected by ITN Offline
The number of times hardware abstraction layer (HAL) task
management is affected when ITN is offline.
HAL TM Offline Cleanup Completions
The number of hardware abstraction layer (HAL) task management
offline cleanup completions.
HAL IO Requests
The number of hardware abstraction layer (HAL) I/O requests.
HAL IO Completions
The number of hardware abstraction layer (HAL) I/O completions.
Using the dialog box
Refer to the following topics for specific procedures using this dialog box:
•
•
•
•
80
“Port Statistics dialog box”
“Polling frequency rate”
“Resetting statistics”
“Performance monitoring”
Brocade Adapters Administrator’s Guide
53-1001583-01
FCP IM Module Statistics dialog box
A
FCP IM Module Statistics dialog box
The FCP IM Module Statistics dialog box enables you to display statistical information for each
initiator target nexus (ITN).
Opening the dialog box
Select Monitor > Statistics > FCP IM Module Statistics from the Host Connectivity Manager.
OR
Right-click a port from the device tree and select Statistics > FCP IM Module Statistics.
Fields and components
Field
Description
Keep Running Data check box
Click to continue running statistical data. This is useful if you want to
see a trend.
Polling Frequency in Seconds text box
Type a number for polling frequency. The range is between five and
3600 seconds and the default is five seconds.
Start Polling button
Click to manually poll the FCP IM Module statistics.
Reset button
Click to reset all of the statistics to 0.
Date
The date and time of the most recent reset.
Total number of IOs
The total number of I/O operations on the port.
NO IO contexts
Number of I/O context requests.
IO waiting for CQ space
The number of I/Os waiting for circular queue space.
IO abort requests
The number of I/O abort requests.
NO task management contexts
Number of task management I/O context requests.
IO completions with OK status
The number of I/O operations that completed successfully.
IO underrun (good)
The number of successful firmware I/O underrun operations.
IO overrun (good)
The number of successful firmware I/O overrun operations.
Aborted IO requests
The number of aborted I/O requests.
IO selection timeouts
The number of I/O selection timeout occurrences.
IO protocol errors
The number of I/O protocol errors.
IO timeouts
The number of times an I/O timed out.
IO SBC-3 protection errors
Number of SCSI block data protection errors for SBC-3 (SCSI Block
Command 3)
IO aborted by TM requests
The number of I/Os that were aborted because of target mode
requests.
IO retry for SQ error recovery
The number of I/O retries for sequence level error recovery.
Delayed freeing of IO resources
The number of times I/O resource freeing was delayed.
IO with non-good SCSI status
The number of I/Os with SCSI status of non-good.
Host IO abort requests
The number of times the host aborted I/O requests.
Brocade Adapters Administrator’s Guide
53-1001583-01
81
A
FCP IM Module Statistics dialog box
Field
Description
IO comp with unknown tags
The number of I/Os with unknown tags.
IO implicitly aborted
The number of times an I/O was implicitly aborted.
IO aborted due to TM commands
The number of I/Os that were aborted because of target mode
commands.
Using the dialog box
Refer to the following topics for specific procedures using this dialog box:
•
•
•
•
82
“Port Statistics dialog box”
“Polling frequency rate”
“Resetting statistics”
“Performance monitoring”
Brocade Adapters Administrator’s Guide
53-1001583-01
Fibre Channel Security Protocol Configuration dialog box
A
Fibre Channel Security Protocol Configuration dialog box
The Fibre Channel Security Protocol Configuration dialog box enables you to define security
authentication on selected ports.
Opening the dialog box
Select Configure > Authentication from the main menu, or perform the appropriate following step to
open the security authentication dialog box:
• From the host level, right-click the host and select Authentication from the list.
The Fibre Channel Security Protocol Configuration (host level) dialog box displays.
• From the adapter level, right-click the adapter and select Authentication from the list.
The Fibre Channel Security Protocol Configuration (adapter level) dialog box displays. This
dialog box is identical to the Fibre Channel Security Protocol Configuration (host level) dialog
box.
• From the adapter port level, right click a port and select FC-SP > Authentication from the list.
The Fibre Channel Security Protocol Configuration dialog at the host level displays.
Fields and components
Field
Description
Port #
The port number (0 or 1) for which you are configuring security
authentication.
Port WWN
The world wide name of the port for which you are configuring
security authentication.
Port Name
The name of the port (for example, Port 0 or Port 1) for which you are
configuring security authentication.
Authentication
Check to enable port security authentication.
Status
Indicates whether authentication is used.
Algorithm
The configured algorithm. Options include MD5, SHA1, MD5SHA1,
SHAMD5.
Group
Indicates the DH group value. DHNULL (group 0) is the only option.
Enable Authentication check box
Check to enable FC-SP authentication on the selected device.
CHAP Secret
Type the CHAP secret.
Retype Secret
Retype the CHAP secret to confirm.
Algorithm list
Brocade Adapters Administrator’s Guide
53-1001583-01
Select the type of algorithm. Options include the following:
MD5 - A hashing algorithm that verifies a message’s integrity
using Message Digest version 5.
• SHA1 - A secure hashing algorithm that computes a 160-bit
message digest for a data file that is provided as input.
• MD5SH1 - Similar to the MD5 hashing algorithm, but used for
DH-CHAP authentication.
• SHA1MD5 - Similar to the SHA1 hashing algorithm, but used for
DH-CHAP authentication.
•
83
A
Fibre Channel Security Protocol Configuration dialog box
Field
Description
Group list
The DHNULL (group 0) is the only option available in the list.
Apply button
Click to apply the FC-SP settings.
Using the dialog box
Refer to the following topics for specific procedures using this dialog box:
•
•
•
•
•
84
“Configuring security authentication using HCM (Host and HBA)”
“Port Statistics dialog box”
“Polling frequency rate”
“Resetting statistics”
“Performance monitoring”
Brocade Adapters Administrator’s Guide
53-1001583-01
Hardware Tests Diagnostics dialog box
A
Hardware Tests Diagnostics dialog box
The Port Tests diagnostics dialog box enables you to run tests on the port and to configure
parameters such as link speed and frame count.
Opening the dialog box
1. Select an HBA or HBA port from the device tree.
2. Select Configure > Diagnostics from the Host Connectivity Manager.
3. Click the Hardware Tests tab.
Fields and components
Field
Description
Memory Test check box
Check to run a Memory test on the port.
Ports list
Select a port from the list.
PCI Loopback Test check box
Check to run a PCI Loopback test on the port.
Data Pattern
Type a data pattern. The default value is A5A5A5A5.
Test Cycle text box
Specify the number of times the test runs. The default value is 100.
Loopback Test check box
Check to run a Loopback test on the port.
Queue Test check box
Check to run a Queue test on the port.
Subtest ID list
Select a subtest from the list. The default is Internal.
Link Speed list
Select a link speed from the list.
Frame Count
Type a frame count. The default value is 8192.
Stop on Error check box
Check to flag the system to stop running the test if an error occurs.
Test Log table
Displays the time the test was run, the status of the test, and the
result of the test.
Start button
Click to run the selected test.
Stop button
Click to stop all pending tests.
Using the dialog box
Refer to the following topics for specific procedures using this dialog box:
• “Configuring beaconing using HCM”
• “supportSave collection sources”
Brocade Adapters Administrator’s Guide
53-1001583-01
85
A
HBA Properties panel
HBA Properties panel
The HBA Properties panel enables you to display the properties that are associated with a selected
4 Gbps or 8 Gbps Brocade HBA or mezzanine card.
Opening the properties panel
1. Select an HBA in the device tree.
2. Click the Properties tab in the right pane.
Fields and components
Field
Description
HBA Parameters
Node WWN
The adapter node’s world wide name.
Name
The name representing the adapter.
Operating Status
Whether the HBA is enabled or disabled.
Manufacturer
The company that manufactured the HBA.
Model Description
The description of the HBA.
Max Speed Supported
The maximum speed supported on the HBA; for example, 8 Gbps.
# of Ports
The number of ports associated with the HBA.
OEM info
Information about the original equipment manufacturer.
Card Type
The HBA card type; for example, FC.
Chip Revision
The revision level of the chip.
Hardware Path
The hardware path of the HBA.
Serial #
The serial number of the HBA.
Temperature
The temperature of the HBA, displayed in Celsius and Fahrenheit.
Driver Parameters
It is possible to have multiple pairs of driver information, based on the number and types of drivers installed.
Driver Name
The name of the host adapter driver.
Driver Version
The version level of the host adapter driver.
Firmware Parameters
Firmware Version
The version level of the firmware.
BIOS Version
The version level of the BIOS.
PCI Registers
86
Vendor ID
The identifier of the PCI Register’s vendor.
Device ID
The device ID of the PCI Register.
Subsystem ID
The ID of the PCI subsystem.
Subsystem Vendor ID
The ID of the PCI subsystem vendor.
Brocade Adapters Administrator’s Guide
53-1001583-01
HBA Properties panel
Field
Description
Current # of Lanes
The number of PCI lanes, in Gbps, each way between the PCI slot
and the adapter.
Initial Negotiated # of Lanes
The set number of PCI lanes that were initially negotiated.
PCIe Generation
The number of times the PCI Register is generated.
A
OEM Vital Product Data (VPD) Information
OEM
The name of the original equipment manufacturer.
Part #
The OEM part number of the HBA.
EDC
The engineering date code (HP only), displayed as A-YYWW,
where A is the revision, YY is the year minus 1960, and WW is the
week of the release. For example, A-4832 is Revision A, week 32 of
2008.
MDC
The manufacturing date code (HP only), displayed as YYWW, where
YY is the year minus 1960 and WW is the week of manufacturing.
For example, 4915 is the 15th week of 2009.
PW
The power rating (HP only). The value, 10 W, is the same for all
adapters.
EC level
The engineering change level for the card, represented by
alphanumeric characters.
FRU #
The OEM FRU number of the HBA.
Serial #
The OEM serial number of the HBA.
Product Description
The OEM product description of the HBA.
Vendor Data
Displays information that is specific to the HBA vendor.
Brocade Adapters Administrator’s Guide
53-1001583-01
87
A
IOC Statistics dialog box
IOC Statistics dialog box
The IOC Statistics dialog box enables you to view statistics related to the input/output controller
(IOC).
Opening the dialog box
1. Select a physical port of the HBA from the device tree.
2. Select Monitor > Statistics > IOC Statistics from the Host Connectivity Manager.
Fields and components
88
Field
Description
Keep Running Data check box
Click to continue running statistical data. This is useful if you
want to see a trend.
Polling Frequency in Seconds text box
Type a number for polling frequency. The range is between five
and 3600 seconds and the default is five seconds.
Start Polling button
Click to manually poll the IOC statistics.
Reset button
Click to reset all of the statistics to 0.
IOC Driver: Mailbox Interrupt
The number of mailbox interrupts on the IOC driver.
IOC Driver: Start Events
The number of start events on the IOC driver.
IOC Driver: Stop Events
The number of stop events on the IOC driver.
IOC Driver: Enable Events
The number of enable events on the IOC driver.
IOC Driver: Disable Events
The number of disable events on the IOC driver.
IOC Driver: Heartbeat Failures
The number of heartbeat failures on the IOC driver.
IOC Driver: Firmware Boots
The number of firmware boots on the IOC driver.
IOC Driver: Statistics Timeouts
The number of statistics timeouts on the IOC driver.
Firmware IO: host IO aborts
The number of host IO aborts in the firmware.
Firmware IO: host IO Cleanup
The number of host IO cleanup attempts in the firmware.
Firmware IO: IO timeouts in f/w
The number of IO timeouts in the firmware.
Firmware IO: Frames parsed by f/w
The number of frames parsed by the firmware.
Firmware IO: data frames
The number of data frames in the firmware.
Firmware IO: fcp rsp frames
The number of FCP responses on the firmware IO.
Firmware IO: xfer_rdy_frames
The number of transfer ready frames.
Firmware IO: BLS ACC frames
The number of BLS ACC frames on the firmware IO.
Firmware IO: target abort frames
The number of aborted target frames on the firmware IO.
Firmware IO: unknown frames
The number of unknown frames on the firmware IO.
Firmware IO: itn CISC updated on rsp
The number of CISCs updated on response.
Firmware IO: itn CISC updated on data
The number of CISCs updated on data.
Firmware IO: itn CISC updated on xfer ready
The number of updates that occurred on xfer_rdy.
Brocade Adapters Administrator’s Guide
53-1001583-01
IOC Statistics dialog box
A
Field
Description
Firmware IO: data frames DMA’d by f/w
The number of data frames dropped by the firmware.
Firmware IO: frames dropped by f/w
The number of times the firmware dropped frames.
Firmware IO: FCP data frames lost
The number of FCP data frames lost.
Firmware IO: RO set in xfr_rdy
The number of RO set in xfr_rdy events on the firmware IO.
Firmware IO: xfer_rdy_000 error
The number of xfer_rdy_000 errors on the firmware IO.
Firmware IO: xfer_rdy_unknown_error
The number of xfer_rdy_unknown errors on the firmware IO.
Firmware IO: IO ABTS time out
The number of ABTS timeouts on the firmware IO.
Firmware IO: ITN SLER initiated
Firmware IO: REC timeouts
The number of receive timeouts on the firmware IO.
Firmware IO: error REC
The number of errors received on the firmware IO.
Firmware IO: REC rsp invalid
The number of invalid receive responses.
Firmware IO: seqr IO abort
The number of sequential IO aborts.
Firmware IO: seq IO retry
The number of sequential retries on the firmware IO.
Firmware IO: FCP RSP - wrong IO state
The number of times responses were in the wrong IO state.
Firmware IO: wait for seq initiative
The number of sequential initiative waits on the firmware IO.
Firmware IO: FCP RSP_underrun
The number of IO response underruns.
Firmware IO: FCP RSP_underrun for write
The number of IO response underruns during write operations.
Firmware IO: FCP RSP_underrun err
The number of IO response underrun errors.
Firmware IO: FCP RSP_invalid residue
The number of invalid residue responses.
Firmware IO: FCP RSP_overrun
The number of overrun responses on the firmware IO.
Firmware IO: FCP RSP_overrun err
The number of overrun response errors on the firmware IO.
Firmware IO: FCP RSP - protocol err
The number of response protocol errors on the firmware IO.
Firmware IO: FCP RSP_sense data err
The number of response sense data errors on the firmware IO.
Firmware IO: FCP RSP - conf requested
The number of RSP_conf requests on the firmware IO.
Firmware IO: target initiated IO abort
The number of RSP_target initiated IO aborts.
Firmware IO: IOH EDTOV timer event
The number of Error Detect Time Out events.
Firmware IO: IOH FCP RSP excp event
The number of FCP response exception events on the firmware
IO.
Firmware IO: IOH FCP conf event
The number of FCP conf events on the firmware IO.
Firmware IO: IOH multi-frm rsp event
The number of multi-frame response events on the firmware IO.
Firmware IO: IOH hit class2 event
The number of hit class2 events on the firmware IO.
Firmware IO: IOH miss other event
The number of other events missed on the firmware IO.
Firmware IO: IOH Seq count error event
The number of seq count error events on the firmware IO.
Firmware IO: IOH length error event
The number of length error events on the firmware IO.
Firmware IO: IOH seq length error event
The number of IOH seq length error events during firmware IO.
Firmware IO: IOH data oor event
The number of IOH data events that are out of range during
firmware IO.
Brocade Adapters Administrator’s Guide
53-1001583-01
89
A
90
IOC Statistics dialog box
Field
Description
Firmware IO: IOH RO OOO event
The number of IOH RO events that are out of range during
firmware IO.
Firmware IO: IOH CPU owned event
The number of CPU-owned events during firmware IO.
Firmware IO: IOH unex frame event
The number of unexpected frames on the firmware IO.
Firmware IO: IOH Error Interrupt
The number of interrupted errors on the firmware IO.
Firmware Port: Port FPG Interrupt
The number of firmware port FPG interrupts.
Firmware Port: FPG Level 0 Interrupts
The number of firmware port FPG Level 0 interrupts.
Firmware Port: FPG 0 Caused Interrupts
The number of firmware port FPG 0 caused interrupts.
Firmware Port: FPG Interrupts Other
The number of other firmware port FPG interrupts.
Firmware Port: FPG Interrupts Other Ignored
The number of other firmware port FPG interrupts that were
ignored.
Firmware Port: FPG Signal Lost
The number of firmware port FPG lost signals.
Firmware Port: FPG Signal Regained
The number of firmware port FPG regained signals.
Firmware Port: FPG Sync Lost
The number of times loss of sync on the firmware port has
occurred.
Firmware Port: FPG Sync Timeout
The number of times sync timeout on the firmware port has
occurred.
Firmware Port: FPG Sync Regained
The number of synchronizations that were regained on the
firmware port.
Firmware Port: FPG DIV2 Overflow
The number of DIV2 overflow events on the firmware port.
Firmware Port: FPG DIV2 Underflow
The number of DIV2 underflow events on the firmware port.
Firmware Port: FPG EFIFO Overflow
The number of Elastic FIFO (EFIFO) overflow events on the
firmware port.
Firmware Port: FPG EFIFO Underflow
The number of Elastic FIFO (EFIFO) underflow events on the
firmware port.
Firmware Port: FPG IDLE Primitives
The number of IDLE primitive events on the firmware port.
Firmware Port: FPG LRR Primitives
The number of Link Reset Responsive (LRR) primitive events on
the firmware port.
Firmware Port: FPG LR Primitives
The number of Link Reset (LR) primitive events on the firmware
port.
Firmware Port: FPG OLS Primitives
The number of Offline Sequence (OLS) primitive events on the
firmware port.
Firmware Port: FPG NOS Primitives
The number of Not Operational (link has failed) primitive events
on the firmware port.
Firmware Port: FPG LIP Primitives
The number of Loop Initialization (LIP) primitive events on the
firmware port.
Firmware Port: FPG ARBFO Primitives
The number of ARBFO primitive events on the firmware port.
Firmware Port: FPG MRK Primitives
The number of MRK primitive events on the firmware port.
Firmware Port: PHYSM Module Inserts
The number of module inserts in the Physical Port State
Machine (PHYSM).
Firmware Port PHYSM Module Extracts
The number of module extracts in the Physical Port State
Machine (PHYSM).
Brocade Adapters Administrator’s Guide
53-1001583-01
IOC Statistics dialog box
A
Field
Description
Firmware Port PHYSM Module Invalid Events
The number of invalid events in the Physical Port State Machine
(PHYSM).
Firmware Port: FPG Unknown Primitives
The number of unknown primitive events on the firmware port.
Firmware Port: PHYSM Module Validation
Ignored
The number of times Physical Port State Machine (PHYSM)
module validation was ignored.
Firmware Port: PHYSM Laser Faults
The number of laser fault events on the Physical Port State
Machine (PHYSM).
Firmware Port SNSM: HWSM Success
The number of Hardware State Machine (HWSM) successes for
the firmware port speed negotiation state machine (SNSM).
Firmware Port SNSM: HWSM Failures
The number of Hardware State Machine (HWSM) failures for
the firmware port speed negotiation state machine (SNSM).
Firmware Port SNSM: HWSM Timeouts
The number of Hardware State Machine (HWSM) timeouts for
the firmware port speed negotiation state machine (SNSM).
Firmware Port SNSM: SWSM Success
The number of speed negotiation state machine (SNSM)
successes.
Firmware Port SNSM: SWSM Timeouts
The number of speed negotiation state machine (SNSM)
timeouts.
Firmware Port SNSM: Error Resets
The number of error resets on the speed negotiation state
machine (SNSM).
Firmware Port SNSM: Signal Loss Count
The signal loss count on the speed negotiation state machine
(SNSM).
Firmware Port SNSM: Sync Loss Count
The synchronization loss count on the speed negotiation state
machine (SNSM).
Firmware Port LKSM: HWSM Success
The number of LKSM and Hardware State Machine (HWSM)
successes.
Firmware Port LKSM: HWSM Failures
The number of LKSM and Hardware State Machine (HWSM)
failures.
Firmware Port LKSM: HWSM Timeouts
The number of LKSM and Hardware State Machine (HWSM)
timeouts.
Firmware Port LKSM: SWSM Success
The number of LKSM and SWSM successes.
Firmware Port LKSM: SWSM Failures
The number of LKSM and SWSM failures.
Firmware Port: LKSM: Busy Buffer Failures
The number of LKSM failures on the firmware port because of a
busy buffer.
Firmware Port LKSM: SWSM Timeouts
The number of LKSM and SWSM timeouts on the firmware port.
Firmware Port LKSM: Buffer Wait State Entries
The number of buffer wait state entries on the firmware port.
Firmware Port LKSM: Link Failures
The number of link failures on the firmware port.
Firmware Port LKSM: Prim Sequence Protocol
Errors
The number of primitive sequence protocol errors on the
firmware port.
Firmware Port LKSM: LRs Unexpected
The number of unexpected Link Resets (LRs).
Firmware Port LKSM: LRRs Unexpected
The number of unexpected Link Reset Responsive (LRR)
occurrences.
Brocade Adapters Administrator’s Guide
53-1001583-01
91
A
IOC Statistics dialog box
Field
Description
Firmware Port LKSM: LR TX Started
The number of Link Reset (LR) transmissions started on the
firmware port.
Firmware Port LKSM: LRR TX Started
The number of Link Reset Responsive (LRR) transmits started
on the firmware port..
Firmware Port LKSM: NOS TX Started
The number of Not Operational transmissions that were
started.
Firmware Port LKSM: OLS TX Started
The number of Offline Sequence (OLS) transmits started on the
firmware port.
Using the dialog box
Refer to the following topics for specific procedures using this dialog box:
•
•
•
•
92
“Port Statistics dialog box”
“Polling frequency rate”
“Resetting statistics”
“Performance monitoring”
Brocade Adapters Administrator’s Guide
53-1001583-01
Logical Port Statistics dialog box
A
Logical Port Statistics dialog box
The Logical Port Statistics dialog box enables you to display statistics that are related to a selected
logical port.
Opening the dialog box
Select Monitor > Statistics > Logical Port Statistics from the Host Connectivity Manager
OR
Right-click a logical port (LPORT) from the device tree and select Logical Port Statistics.
Fields and components
NS
Field
Description
Date
The date and time of the most recent reset.
ns_plogi_rsp_err
The number of Name Server response errors.
ns_plogi_sent
The number of Name Server port logins sent.
ns_plogi_acc_err
The number of Name Server port login accept errors.
ns_plogi_accepts
The number of times Name Server port logins are accepted.
NS command Rejects
The number of Name Server port login rejects.
ns_plogi_unknown_rsp
The number of unknown Name Server port login response errors.
ns_plogi_alloc_wait
The number of delayed Name Server port login response errors.
NS command retries
The number of name server command retries.
NS command timeouts
The number of name server command timeouts.
ns_rspnid_sent
The number of times the Name Server Register Symbolic Port Name
identifier was sent.
ns_rspnid_accepts
The number of times the Name Server Register Symbolic Port Name
identifier was accepted.
ns_rspnid_rsp_error
The number of Name Server Register Symbolic Port Name identifier
response errors.
ns_rspnid_rejects
The number of Name Server Register Symbolic Port Name identifier
rejects.
ns_rspnid_alloc_wait
The number of Name Server Register Symbolic Port Name identifier
allocations.
ns_rftid_sent
The number of Name Server Register FC4 Type identifier requests
sent.
ns_rftid_accepts
The number of times the system accepted Name Server Register
FC4 Type identifier requests.
ns_rftid_rsp_err
The number of Name Server Register FC4 Type identifier response
errors.
ns_rftid_rejects
The number of times the system rejected Name Server Register FC4
Type identifier requests.
Brocade Adapters Administrator’s Guide
53-1001583-01
93
A
Logical Port Statistics dialog box
Field
Description
ns_rftid_alloc_wait
The number of delayed Name Server Register FC4 Type identifier
allocations.
ns_gidft_sent
The number of times a Name Server Get all Port ID request for a
given FC4 type is sent.
ns_gidft_accepts
The number of times a Name Server Get all Port ID request for a
given FC4 type is accepted.
ns_gidft_rsp_err
The number of response errors associated with a Name Server Get
all Port ID request for a given FC4 type.
ns_gidft_rejects
The number of times a Name Server Get all Port ID request for a
given FC4 type is rejected.
ns_gidft_unknown_rsp
The number of unknown responses associated with a Name Server
Get all Port ID request for a given FC4 type.
ns_gidft_alloc_wait
The number of delayed Name Server Get all Port ID requests for a
given FC4 type allocations.
MS command retries
The number of MS command retries.
MS command timeouts
The number of times an MS command timed out.
ms_plogi_sent
The number of port login requests sent.
ms_plogi_rsp_err
The number of response errors associated with a ms port login.
ms_plogi_acc_err
The number of ms port login accept errors.
ms_plogi_accepts
The number of ms port login accepts.
ms_plogi_unknown_rsp
The number of ms port login unknown responses.
ms_plogi_alloc_wait
The number of delayed ms plogin allocations.
Num of RSCN Received
The number of Registered State Change Notifications received.
Num port id format RSCN
The number of Registered State Change Notifications received by
Port ID.
unsolicited recv frames
The number of received frames that were unsolicited.
dropped received frames
The number of received frames that were dropped.
Using the dialog box
Refer to the following topics for specific procedures using this dialog box:
•
•
•
•
94
“Port Statistics dialog box”
“Polling frequency rate”
“Resetting statistics”
“Performance monitoring”
Brocade Adapters Administrator’s Guide
53-1001583-01
LPORT Properties panel
A
LPORT Properties panel
The LPORT Properties panel enables you to display the properties that are associated with a logical
port.
Opening the properties panel
1. From the device tree, select a physical port.
2. Click the LPORTs Properties tab in the right pane.
Fields and components
Field
Description
Base Port
Indicates whether the logical port is used as the base port.
FC Address
The Fibre Channel address of the logical port.
Node WWN
The adapter’s world wide name.
Port WWN
The port’s world wide name.
Roles
The role of the logical port; for example, FCP Initiator.
State
Displays whether the logical port is online or offline.
Switch IP Addr
The switch’s IP address.
Switch NWWN
The switch node’s world wide name.
Symbolic Name
The symbolic name associated with the logical port.
Brocade Adapters Administrator’s Guide
53-1001583-01
95
A
Master Log tab
Master Log tab
The Master Log enables you to display a list of all events that have occurred.
Opening the Master Log
Click the Master Log tab, located on the bottom pane of the Host Connectivity Manager.
A master summary of events on all discovered devices is displayed.
Fields and components
Field
Description
Filter button
Click to launch the Master Log Filter dialog box.
Sr No column
Displays a numbering sequence in ascending order.
Severity column
The event severity (informational, minor, major, or critical).
WWN/MAC column
The world wide name or the media access control (MAC) address of
the device on which the event occurred.
Category column
The event categories are as follows:
ADAPTER - Events pertaining to the adapter.
IOC - Events pertaining to the IO Controller.
IP over FC - Events pertaining to IP over Fibre Channel.
VLAN - Events pertaining to a virtual LAN.
PORT - Events pertaining to a physical port.
LPORT - Events pertaining to a specific logical port (one logical
port always exists per physical port).
• RPORT - Events pertaining to a specific remote port (could be
an initiator or target).
• ITNIM - Events pertaining to an initiator-target nexus.
• RSVD - Reserved.
• AUDIT - Audit events.
•
•
•
•
•
•
Subcategory column
The subcategory of the main event; for example, offline, online,
disabled, or enabled.
Description column
Displays a brief description of the event.
Date/Time column
The date and time when the event occurred.
Clear Filter button
Click to clear the Master Log filter.
Refresh button
Click to refresh the screen.
Using the Master Log
Refer to the following topics for specific procedures using this dialog box:
• “Master log”
• “Event severity icons”
• “Filtering event log entries”
96
Brocade Adapters Administrator’s Guide
53-1001583-01
Master Log Filter dialog box
A
Master Log Filter dialog box
The Master Log Filter dialog box enables you to filter the events you receive by time, severity,
category, or world wide name.
Opening the dialog box
1. Select the Master Log tab, located at the bottom pane of the Host Connectivity Manager,
2. Click the Filter button.
Fields and components
Field
Description
Event Time
Type in a From and To value to represent the time during which
events will be logged.
Event Severity
Select one or all of the following values: Critical, Major, Minor,
Information.
Category
Select an event category, for example, Rport or ITNIM, from the list.
WWN/MAC
Select a world wide name (WWN) or media access control (MAC)
address from the list.
Using the dialog box
Refer to the following topics for specific procedures using this dialog box:
• “Master log”
• “Event severity icons”
• “Filtering event log entries”
Brocade Adapters Administrator’s Guide
53-1001583-01
97
A
Persistent Binding dialog box
Persistent Binding dialog box
The Persistent Binding dialog box enables target port world wide name binding to a persistent
target ID for the OS stack. You can view the Persistent Binding dialog box at the host level, the
adapter level, or the port level.
Opening the dialog box
1. Select a device that supports persistent binding from the device tree.
Devices that support persistent binding include the local host, the adapter, and the port.
2. Select Configure > Persistent Binding.
Fields and components
Field
Description
At the host or HBA level
Serial Number
The serial number of the host or HBA.
Hardware Path
The hardware path of the host or HBA.
Port #
The port number of the host or HBA.
Port WWN
The port’s world wide name.
Name
The port name; for example, Port 0 or Port 1.
Persistent Type
The type of binding; for example, Port WWN.
Target Name
The SCSI target name.
Remote Port WWN
The world wide name of the remote port.
SCSI Target ID
The SCSI target identifier.
At the port level
HBA Node
The world wide node name of the HBA node (the WWN of the
mezzanine node for the Brocade 804).
HBAport
The world wide name of the HBA port (the WWN of the mezzanine
port for the Brocade 804).
Persistent type
The type of binding; for example, Port WWN.
Target Name
The SCSI target name.
Remote Port WWN
The world wide name of the remote port.
SCSI Target ID
The SCSI target identifier.
Using the dialog box
Refer to the following topic for specific procedures using this dialog box:
• “Basic port configuration”
98
Brocade Adapters Administrator’s Guide
53-1001583-01
Port Properties panel
A
Port Properties panel
The Port Properties panel enables you to display the properties that are associated with a selected
HBA port.
Opening the properties panel
1. Select a port in the device tree.
2. Click the Properties tab in the right pane.
Fields and components
Field
Description
Port Parameters
Port #
The port number: 0 or 1.
Port WWN
The port’s world wide name.
Node WWN
The adapter’s world wide name.
Factory Port WWN
The factory-assigned port world wide name.
Factory Node WWN
The factory-assigned adapter world wide name.
Name
The name that is manually assigned to the port.
FC Address
The port’s Fibre Channel address.
Media
Type of media software; for example, 8G-sw.
Port Type
The port type; for example, N_Port.
Configured Port State
Indicates whether the port is enabled or disabled.
Operating Port State
Indicates whether the link is online or offline.
Supported Classes
The types of classes that are supported on the port; for example,
Class-3.
Configured Speed
The configured port speed.
Operating Speed
The speed at which the port is operating. The unit of measurement
is in gigabits per second (Gbps). The available speed options depend
on the HBA’s speed and the port’s SFP. Auto-negotiate is the recommended setting and it is the default.
For the 4 Gbps HBA (425 and 415) and the mezzanine card (804),
speed options are 1 Gbps, 2 Gbps, 4 Gbps, and 8 Gbps. The 8 Gbps
HBA (825, 815) does not support the 1 Gbps speed.
Max Speed Supported
The maximum speed that is supported on the port, which is 8 Gbps.
Operating Topology
The topology setting at which the port is operating.
Receive BB Credits
The maximum number of receive buffers.
Transmit BB Credits
The maximum number of transmit buffers.
IOC ID
The I/O controller’s identifier.
Hardware Path
The hardware path of the port.
Brocade Adapters Administrator’s Guide
53-1001583-01
99
A
Port Properties panel
Field
Description
Frame Data Field Size
The frame size, in byres, of the port. The default is 2112. Select auto
to set the frame data field size automatically.
# of Lports
The number of logical ports in the configuration.
Port Log
Indicates whether port logging is enabled or disabled.
Operating Parameters
Path Time Out
The value between 0 and 60 that specifies the time out session. The
default value is 30.
Logging Level
The port logging level. Values include Log Critical, Log Error, Log
Warning, Log Info, and Log Invalid.
Target Rate Limit
Indicates whether target rate limiting is on or off.
Default Rate Limit
Select the target rate limit from the list. Options include 1 Gbps (the
default), 2 Gbps, and 4 Gbps.
FC-SP Parameters
Authentication
Indicates whether FC-SP authentication is on or off.
Status
The status of Fibre Channel Security Protocol (FC-SP) authentication.
Algorithm
The configured authentication algorithm.
Group
The DH Group (DH Null, group 0, is the only option).
Error Status
The health status of the Fibre Channel Security Protocol (FC-SP)
parameters.
QoS Parameters
Configured QoS State
Indicates whether QoS is enabled or disabled.
Operating QoS State
Indicates whether QoS is online or offline.
Total BB Credit
The total number of receive buffers.
Priority Levels
QoS priority levels. Values include High, Medium, and Low.
Using the property panel
Refer to the following topics for specific procedures using this dialog box:
•
•
•
•
•
•
100
“Configuring the port speed using HCM”
“Specifying the maximum frame size using HCM”
“Specifying path time out using HCM”
“Configuring the HCM logging level using HCM”
“Enabling and disabling persistent binding using HCM”
“Enabling and disabling rate limiting on the adapter side using HCM”
Brocade Adapters Administrator’s Guide
53-1001583-01
Port Statistics dialog box
A
Port Statistics dialog box
The Port Statistics dialog box enables you to monitor the performance of the adapter and the traffic
between the adapter and the LUNs. You can use the information to isolate and troubleshoot areas
that affect application performance.
Opening the dialog box
Select Monitor > Statistics > Port Statistics from the Host Connectivity Manager.
Fields and components
Field
Description
Keep Running Data check box
Click to continue running statistical data. This is useful if you want to
see a trend.
Polling Frequency in Seconds text box
Type a number for polling frequency. The range is between five and
3600 seconds and the default is five seconds.
Start Polling button
Click to manually poll the V_Port statistics.
Reset button
Click to reset all of the statistics to 0.
Date
The date and time of the most recent reset.
Port WWN
The world wide name of the port about which statistics are
displayed.
Seconds since stats is reset
The number of seconds since the port statistics reset (the counter
returns to 0).
Tx frames
The number of total transmitted Fibre Channel frames across all
protocols and classes.
Tx words
The number of total transmitted Fibre Channel words across all
protocols and classes.
Tx LIP
The number of loop initialization (LIP) transmit events.
Tx NOS
The number of not operational (link has failed) transmit events.
Tx OLS
The number of transmitted Offline Sequence (OLS) events.
Tx LR
The number of link reset (LR) transmit events.
Tx LRR
The number of transmitted Link Reset Response (LRR) events.
Rx frames
The number of total received Fibre Channel frames across all
protocols and classes.
Rx words
The number of total received Fibre Channel words across all
protocols and classes.
Rx LIP
The number of loop initialization (LIP) receive events.
Rx NOS
The number of not operational (link has failed) receive events.
Rx OLS
The number of received Offline Sequence (OLS) events.
Rx LR
The number of link reset (LR) receive events.
Rx LRR
The number of received Link Reset Response (LRR) events.
Brocade Adapters Administrator’s Guide
53-1001583-01
101
A
Port Statistics dialog box
Field
Description
Rx CRC err frames
The number of frames that have been received in error.
Rx CRC err good EOF frames
The number of received frames with good end of frames (EOF)s.
Rx undersized frames
The number of undersized received frames.
Rx oversized frames
The number of oversized received frames.
Rx frames with bad EOF
The number of received frames with end of frame (EOF) errors.
Errored frames
The number of frames received in error.
Dropped frames
The number of frames that were lost due to a lack of host buffers
available.
Link Failure (LF) Count
The number of times a link error has occurred.
Loss Of sync count
The number of times loss of sync has occurred.
Loss Of signal count
The number of times loss of signal has occurred.
Primitive sequence protocol err.
The number of primitive sequence protocol errors.
Invalid ordered sets
The number of ordered sets that are invalid.
Encoding err non frame_8b10b
The encoding non-frame error.
Encoding err frame_8b10b
The number of 8b/10b encoding errors recorded.
Using the dialog box
Refer to the following topics for specific procedures using this dialog box:
•
•
•
•
102
“Port Statistics dialog box”
“Polling frequency rate”
“Resetting statistics”
“Performance monitoring”
Brocade Adapters Administrator’s Guide
53-1001583-01
Protocol Tests dialog box
A
Protocol Tests dialog box
The Protocol Tests dialog box enables you to run diagnostic tests on Fibre Channel components.
Opening the dialog box
1. Select Configure > Diagnostics from the Host Connectivity Manager.
2. Click the FC Protocol Tests tab.
Fields and components
Field
Description
Echo Test check box
Check to run an Echo Test on the selected port.
FC Ping Test check box
Check to run an FC Ping Test on the selected port.
FC Trace Route check box
Check to run an FC Traceroute on the selected port.
Add button
Click to add a selected port, logical port, or target to the test list.
Remove button
Click to remove a selected port, logical port, or target from the test
list.
Remove All button
Click to remove all ports, logical ports, and targets from the test list.
Test Cycle text box
Specify the number of times the test runs. The default value is 100.
Test Log table
Displays the time the test was run, type of test run, status of the test,
configuration, and the results.
Port list
Select a port on which the test will be run from the list.
Target list
Select a target on which the test will be run from the list.
Logical Port list
Select a logical port on which the test will be run from the list.
Stop on Error check box
Check to flag the system to stop running the test if an error occurs.
Start button
Click to run the selected test.
Stop button
Click to stop all pending tests.
Using the dialog box
Refer to the following topics for specific procedures using this dialog box:
• “Configuring beaconing using HCM”
• “supportSave collection sources”
Brocade Adapters Administrator’s Guide
53-1001583-01
103
A
QoS Statistics dialog box
QoS Statistics dialog box
The QoS Statistics dialog box enables you to view statistics related to Quality of Service (QoS).
Opening the dialog box
Select Monitor > Statistics > QoS Statistics from the Host Connectivity Manager.
Fields and components
Field
Description
Date
The date and time of the most recent reset.
QoS Flogi sent
The number of QoS Fabric login (Flogi) requests sent.
QoS Flogi Acc received
The number of QoS Fabric login (Flogi) accept requests received.
QoS Flogi rejects received
The number of QoS Fabric login (Flogi) rejects received.
QoS Flogi retries
The number of QoS Fabric login (Flogi) retries.
QoS ELP received
The number of ELPs successfully received.
QoS ELP Accepted
The number of ELPs (Exchange Link Parameters) accepts sent.
QoS ELP rejected
The number of ELPs rejected.
QoS ELP dropped
The number of ELPs dropped.
QoS RSCN received
The number of Registered State Change Notifications (RSCN)
received.
Using the dialog box
Refer to the following topics for specific procedures using this dialog box:
•
•
•
•
104
“Port Statistics dialog box”
“Polling frequency rate”
“Resetting statistics”
“Performance monitoring”
Brocade Adapters Administrator’s Guide
53-1001583-01
Remote Port Properties panel
A
Remote Port Properties panel
The Remote Port Properties panel enables you to display the properties that are associated with
the remote port.
Opening the properties panel
1. From the device tree, select a remote port (target or initiator).
2. Click the Remote Port Properties tab in the right pane.
NOTE
If it is a target port, there are two tabs in the right pane: Properties and LUNs.
Fields and components
Field
Description
Port WWN
The world wide name of the device’s port.
Node WWN
The world wide name of the device.
Symbolic Name
The symbolic name associated with the remote port.
Name
The name associated with the device.
FC Address
The remote port’s Fibre Channel address.
Device Type
The type of device associated with the remote port; for example,
Disk.
Target Rate Limiting Enforced
Indicates whether target rate limiting is used on the remote device.
QoS Priority
The QoS priority level, which ranges between 0 (best effort) to 7 (the
highest priority).
Bus #
The unique identifying number for each PCI bus, assigned during
system initialization.
Target ID
The identifier of the target device.
Brocade Adapters Administrator’s Guide
53-1001583-01
105
A
Restore dialog box
Restore dialog box
You can use the Restore Data dialog box to restore data that has been previously backed up. The
Host Connectivity Manager (HCM) stores the location and version details of the most recently-taken
backed up data and automatically points to the location of the data.
NOTE
Use HCM 2.1 or later to restore backed up data. HCM 2.0 and earlier versions do not support the
Restore Data feature.
The following data is restored:
•
•
•
•
•
•
•
HBA application configuration data (HBAApplication.properties)
HCM user authentication data (noitacitnehtua.properties)
Alias Configuration data (HbaAliasdb.properties)
Setup Discovery Data (SetupDiscovery.properties)
Syslog Data (Syslog.properties)
HCM Logging Data (logging.properties and log4j.xml)
SupportSave
Opening the dialog box
1. Select a host, an HBA, or a port from the device tree.
2. Select Tool > Restore Data from the main menu.
The Restore Data dialog box displays.
Fields and components
106
Field
Description
Restore from previous backup data
button
Click to enable the Browse button, which enables you to locate the
last backed-up file.
Browse button
Click to navigate to where the last backed-up file resides.
Restore default data button
If you click this button, the Browse text field is grayed out and the
last restored data file is automatically retrieved.
Start Restore button
Click to restore the backed up data that you selected.
Brocade Adapters Administrator’s Guide
53-1001583-01
SFP Properties panel
A
SFP Properties panel
The SFP Properties panel enables you to display the properties that are associated with a selected
small form-factor pluggable (SFP) transceiver.
NOTE
Brocade 804 mezzanine cards connect to the embedded switch modules or embedded interconnect
modules on the Blade System chassis by way of an internal backplane and therefore, no optical
modules (SFPs) are involved. With the exception of no SFPs, the Brocade 804 mezzanine FC HBA
card functions the same as the other Brocade HBAs.
Opening the properties panel
1. Select a port in the device tree.
2. Click the SFP tab in the right pane.
NOTE
Only Brocade-branded SFPs are supported with the 8 Gbps FC HBA.
Fields and components
Field
Description
Port Technology
SFP Supported
The name of the supported SFP.
Connector Type
The type of port connector; for example, LC. SC, or Cu (copper cable).
Transceiver
The type of transceiver; for example, XFP or GBIC.
Media
The type of media for the transceiver; for example, single mode.
Speed
The port speed. Options for the 8 Gbps HBA (825 and 815) are
2 Gbps, 4 Gbps, and 8 Gbps (1 Gbps not supported). Port speed
options for the 4 Gbps HBA (425 and 415) and the mezzanine card
(804) are 1 Gbps, 2 Gbps, 4 Gbps, and 8 Gbps.
Extended Information
Identifier
The identifier for the extended link.
Encoding
Displays how the extended link is encoded, for example, 8B10B.
Baud Rate
The transmission rate, roughly equivalent to the number of bits per
second.
Length 9u
The length of the single-mode fiber optic cable, used in situations
where gigabit performance is not required (for distances greater
than 100 meters).
Length 50u
The length of the fiber optic cable (for distances greater than 10
meters).
Length 62.5u
The length of the fiber optic cable (for distances greater than 10
meters).
Brocade Adapters Administrator’s Guide
53-1001583-01
107
A
108
SFP Properties panel
Field
Description
Length Cu
The length of the copper cable (for distances greater than 1 meter,
where optimum performance is required).
Vendor Name
The vendor of the extended link.
Vendor OUI
The vendor’s organizational unique identifier (OUI).
Vendor Part
The part number of the extended link.
Revision
The revision level of the extended link.
Wavelength
The wavelength translation, which enables longer reach through
lower attenuation.
Options
Displays details about the transceiver; for example, the type of port
connector, type of transceiver, and enable/disable status.
BR Max
The upper bit rate limit at which the SFP transceiver meets its
specifications.
BR Min
The lower bit rate limit at which the SFP transceiver meets its
specifications.
Serial #
The serial number of the SFP.
Date Code
The date the SFP was manufactured.
Refresh button
Click to refresh the screen.
Brocade Adapters Administrator’s Guide
53-1001583-01
Syslog Server Configuration dialog box
A
Syslog Server Configuration dialog box
The Syslog Server Configuration dialog box enables you to configure the host connectivity manager
(HCM) to send Syslog messages to other computers through port 514. You can configure the HCM
agent to forward events to a maximum of three Syslog destinations.
Opening the dialog box
1. Select the host from the device tree.
2. Select Configure > Syslog from the main menu.
Fields and components
Field
Description
Host name / IP Address text box
Enter the host name or IP address of the destination device.
Set this IP in all discovered agents in
future check box
Click to set the device as a Syslog destination in all future discovered
agents.
Add button
Click to register the host as a Syslog destination.
Remove button
Click to remove the host as a Syslog destination.
Using the dialog box
Refer to the following topics for specific procedures using this dialog box:
• “Syslog support”
• “Registering a host server”
• “Removing a host server”
Brocade Adapters Administrator’s Guide
53-1001583-01
109
A
Target Statistics dialog box
Target Statistics dialog box
The Target Statistics dialog box enables you to display statistical information for a selected remote
port (R_Port).
Opening the dialog box
Select Monitor > Statistics > Remote port statistics > Target Statistics from the Host Connectivity
Manager.
OR
Right-click a remote port and select Target Statistics.
Fields and components
110
Field
Description
Date
The date and time of the most recent reset.
offlines
The remote ports that are offline.
onlines
The remote ports that are online.
RSCN
The number of Fibre Channel Registered State Change Notifications
(RSCNs) received.
PLOGI sent
The number of times port logins (when two node ports in the SAN
establish a connection between each other) occur.
PLOGI accepts
The number of times port logins are accepted.
PLOGI timeouts
The number of times port logins time out.
PLOGI failed
The number of times port logins fail.
PLOGI rejects
The number of times port logins are rejected.
PLOGI received
The number of times port logins are received.
PRLI received
The number of times PRLIs are received.
ADISC sent
The number of discover address (ADISC) requests sent.
ADISC accepts
The number of times discover address (ADISC) requests are
accepted.
ADISC failed
The number of times discover address (ADISC) requests fail.
ADISC rejects
The number of times discover address (ADISC) rejects.
ADISC received
The number of times discover address (ADISC) requests are
received.
ADISC rejected
The number of times discover address (ADISC) requests are
rejected.
LOGO sent
The number of times logouts occur.
LOGO accepts
The number of times logouts are accepted.
LOGO failed
The number of times logouts fail.
LOGO rejected
The number of times logouts are rejected.
Brocade Adapters Administrator’s Guide
53-1001583-01
Target Statistics dialog box
Field
Description
LOGO received
The number of times logouts are received.
RPSC received
The number of Report Port Speed Capabilities (RPSC) requests
received.
RPSC rejects
The number of Report Port Speed Capabilities (RPSC) requests
rejected.
RPSC sent
The number of Report Port Speed Capabilities (RPSC) requests sent.
RPSC accepts
The number of Report Port Speed Capabilities (RPSC) requests
accepted.
RPSC failed
The number of failed Report Port Speed Capabilities (RPSC)
requests
uninit: create events
The number of hardware abstraction layer (HAL) uninit create
events.
uninit: exception events
The number of hardware abstraction layer (HAL) uninit exception
events.
created: online events
The number of hardware abstraction layer (HAL)-created online
events.
created: delete events
The number of hardware abstraction layer (HAL)-created delete
events.
created: IOC Down
The number of times hardware abstraction layer (HAL)-created I/O
controllers were down.
created: exception events
The number of hardware abstraction layer (HAL)-created exception
events.
fw create: f/w responses
The number of hardware abstraction layer (HAL) firmware-create
responses.
fw create: delete events
The number of hardware abstraction layer (HAL) firmware-created
delete events.
fw create: offline events
The number of hardware abstraction layer (HAL) firmware created
offline events.
fw create: IOC down
The number of times hardware abstraction layer (HAL) firmwarecreated I/O controllers were down.
fw create: exception events
The number of hardware abstraction layer (HAL) firmware-created
exception events.
online: offline events
The number of hardware abstraction layer (HAL) online and offline
events.
online: delete events
The number of hardware abstraction layer (HAL) online delete
events.
online: IOC down events
The number of hardware abstraction layer (HAL) online IOC down
events.
online: exception events
The number of hardware abstraction layer (HAL) online exception
events.
fw delete: fw responses
The number of hardware abstraction layer (HAL) fw Delete f/w
responses.
fw delete: delete events
The number of hardware abstraction layer (HAL) fw Delete Delete
events.
Brocade Adapters Administrator’s Guide
53-1001583-01
A
111
A
112
Target Statistics dialog box
Field
Description
fw delete: IOC down events
The number of hardware abstraction layer (HAL) fw Delete IOC down
events.
fw delete: exception events
The number of hardware abstraction layer (HAL) fw Delete Exception
events.
offline: delete events
The number of hardware abstraction layer (HAL) Offline Delete
events.
offline: online events
The number of hardware abstraction layer (HAL) Offline Online
events.
offline: IOC down events
The number of hardware abstraction layer (HAL) offline IOC down
events.
offline: exception events
The number of hardware abstraction layer (HAL) offline exception
events.
delete: fw events
The number of hardware abstraction layer (HAL) delete f/w events.
delete: IOC down events
The number of hardware abstraction layer (HAL) Delete IOC down
events.
delete: exception events
The number of hardware abstraction layer (HAL) delete exception
events.
delete pend: fw responses
The number of hardware abstraction layer (HAL) delete pend f/w
responses.
delete pend: IOC downs
The number of hardware abstraction layer (HAL) delete pending IOC
downs.
delete pend: exceptions
The number of hardware abstraction layer (HAL) delete pending
exceptions.
off-pending: fw responses
The number of hardware abstraction layer (HAL) off-pending f/w
responses.
off-pending: deletes
The number of hardware abstraction layer (HAL) off-pending deletes.
off-pending: IOC downs
The number of hardware abstraction layer (HAL) off-pending IOC
downs.
off-pending: exceptions
The number of hardware abstraction layer (HAL) off-pending
exceptions.
IOC down: offline events
The number of hardware abstraction layer (HAL) IOC down offline
events.
IOC down: delete events
The number of hardware abstraction layer (HAL) IOC down delete
events.
IOC down: online events
The number of hardware abstraction layer (HAL) IOC down online
events.
IOC down: exceptions
The number of hardware abstraction layer (HAL) IOC down exception
events.
Brocade Adapters Administrator’s Guide
53-1001583-01
Target Statistics dialog box
A
Using the dialog box
Refer to the following topics for specific procedures using this dialog box:
•
•
•
•
“Port Statistics dialog box”
“Polling frequency rate”
“Resetting statistics”
“Performance monitoring”
Brocade Adapters Administrator’s Guide
53-1001583-01
113
A
Test Log Details dialog box
Test Log Details dialog box
The Test Log Details dialog box enables you to view details about a selected port or protocol test.
Opening the dialog box
1. Select Configure > Diagnostics from the Host Connectivity Manager.
2. Run any diagnostic test.
3. Select and double-click a row of the test results in the bottom pane.
Fields and components
Field
Description
Time
The date and time the test was run.
Test
The name of the test.
Status
The status of the test, for example, executing or pending.
Configuration
The name of the test component and its corresponding value. For
example:
• Adapter world wide name
• Data pattern
• Frame count
• Port world wide name
Result
The test result, for example, test started or test complete.
Using the dialog box
Refer to the following topics for specific procedures using this dialog box:
• “Running a hardware-level test using HCM”
• “Running a Fibre Channel protocol-level test using HCM”
114
Brocade Adapters Administrator’s Guide
53-1001583-01
Virtual Port Creation dialog box
A
Virtual Port Creation dialog box
The Virtual Port Creation dialog box enables you to create a new virtual port from a physical port.
Opening the dialog box
1. Select a physical port from the device tree.
2. Select Configure > Virtual Port > Create from the main menu.
OR
Right-click the physical port and select Virtual Port > Create from the list.
Fields and components
Field
Description
Physical Port WWN
Displays the world wide name for the physical port.
Virtual Port WWN text box
Enter a unique world wide name for the virtual port.
The default node WWN is the physical port node WWN. You must
manually change it to a unique WWN for the virtual port.
Use auto-generated check box
Click to auto-generate the virtual port world wide name. By default,
auto-generate is selected.
Generate Again button
Click to regenerate the virtual port WWN and the virtual node WWN.
Virtual Node WWN text box
Enter a unique world wide name for the virtual node.
The default node WWN is the physical port node WWN. You must
manually change it to a unique WWN for the virtual port.
Symbolic Name text box
Enter the symbolic name associated with the virtual port.
Name text box
Enter the name for the virtual port.
Description text box
Enter a description for the virtual port.
Using the dialog box
Refer to the following topics for specific procedures using this dialog box:
• “Virtual port configuration”
• “Creating a virtual port”
• “Deleting a virtual port”
Brocade Adapters Administrator’s Guide
53-1001583-01
115
A
Virtual Port Deletion dialog box
Virtual Port Deletion dialog box
The Virtual Port Deletion dialog box enables you to delete an existing virtual port.
Opening the dialog box
1. Select a virtual port from the device tree.
2. Select Configure > Virtual Port > Delete from the main menu.
OR
Right-click the virtual port and select Virtual Port > Delete from the list.
A warning message displays, asking for confirmation.
3. Click OK to continue.
NOTE
You cannot delete the base port.
Fields and components
Field
Description
Deletion check box
Check to select the virtual port to be deleted.
WWN
The virtual port’s world wide name.
Node WWN
The virtual node’s world wide name.
Symbolic Name
The symbolic name that is associated with the virtual port.
Delete Selected button
Click to delete the selected virtual port.
Delete All button
Click to delete all virtual ports that are displayed.
Cancel button
Click to abort the operation.
Using the dialog box
Refer to the following topics for specific procedures using this dialog box:
• “Virtual port configuration”
• “Creating a virtual port”
• “Deleting a virtual port”
116
Brocade Adapters Administrator’s Guide
53-1001583-01
Virtual Port Properties panel
A
Virtual Port Properties panel
The Virtual Port Properties panel enables you to display the properties that are associated with a
virtual port.
Opening the properties panel
Select a virtual port from the device tree and click the Properties tab.
Fields and components
Field
Description
Port WWN
The port’s world wide name.
Node WWN
The adapter’s world wide name.
Fabric Name
The name of the Fabric associated with the virtual port.
FC Address
The Fibre Channel address of the virtual port.
State
Indicates whether the virtual port is online or offline.
Roles
The role of the virtual port; for example, FCP Initiator.
Base Port
Indicates whether the virtual port is used as the base port.
Symbolic name
The switch’s symbolic name.
Switch IP address
The switch’s IP address.
Preboot Created
Indicates whether preboot was created on the virtual port (True or
False).
Using the dialog box
Refer to the following topics for specific procedures using this dialog box:
• “Virtual port configuration”
• “Creating a virtual port”
• “Deleting a virtual port”
Brocade Adapters Administrator’s Guide
53-1001583-01
117
A
Virtual Port Statistics dialog box
Virtual Port Statistics dialog box
The Virtual Port Statistics dialog box enables you to view statistical information related to a
selected virtual port.
Opening the dialog box
1. Select a virtual port from the device tree.
2. Select Monitor > Statistics > Virtual Port Statistics from the Host Connectivity Manager.
Fields and components
118
Field
Description
Keep Running Data check box
Click to continue running statistical data. This is useful if you want to
see a trend.
Polling Frequency in Seconds text box
Type a number for polling frequency. The range is between five and
3600 seconds and the default is five seconds.
Start Polling button
Click to manually poll the V_Port statistics.
Reset button
Click to reset all of the statistics to 0.
Date
The date and time of the most recent reset.
FDISCs Sent
The number of Fabric discoveries sent.
FDISCs Accepts
The number of times the system accepts Fabric discoveries.
FDISC Retries
The number of times a Fabric discovery is attempted.
FDISC Req Timeouts
The time that is required for a Fabric discovery.
FDISC RSP Errors
The number of Fabric discovery response errors.
FDISC Bad Accepts
The number of bad accepts.
FDISC Rejects
The number of times the system rejects Fabric discoveries.
FDISC Unknown Rsps
The number of unknown Fabric discovery occurrences.
FDISC Alloc Waits
The number of delayed Fabric discovery allocations.
LOGOs Sent
The number of times logouts occur.
LOGO Accepts
The number of times logouts are accepted.
LOGO Rejects
The number of times logouts are rejected.
LOGO Rsp Errors
The number of logout response errors.
LOGO Unknown RSPs
The number of unknown logout occurrences.
No NPIV Support
Indicates if there is no NPIV support.
Fabric Offlines
The number of fabrics that are offline.
Fabric Onlines
The number of fabrics that are online.
Fabric Cleanups
The number of fabric cleanups.
Brocade Adapters Administrator’s Guide
53-1001583-01
Virtual Port Statistics dialog box
A
Using the dialog box
Refer to the following topics for specific procedures using this dialog box:
•
•
•
•
“Port Statistics dialog box”
“Polling frequency rate”
“Resetting statistics”
“Performance monitoring”
Brocade Adapters Administrator’s Guide
53-1001583-01
119
A
120
Virtual Port Statistics dialog box
Brocade Adapters Administrator’s Guide
53-1001583-01
Appendix
B
Brocade Command Utility
In this appendix
• adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• auth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• bios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• boot. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• debug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• diag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• drvconf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• fabric. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• fcdiag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• fcpim. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• ioc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• lport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• pbind. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• qos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• ratelim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• rport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• vport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brocade Adapters Administrator’s Guide
53-1001583-01
126
128
131
133
135
137
139
140
141
143
145
147
148
150
151
155
156
157
160
121
B
About the BCU
About the BCU
This appendix provides reference documentation for the Brocade Command Line Utility (BCU)
supporting the Brocade Fibre Channel components.
BCU runs in two modes:
• Direct mode, where you type the command at the command prompt. For example:
bcu port --topology <port_id> <auto|p2p>
• Shell mode, accessed using the bcu shell; for example,
bcu> port --topology <port_id> <auto|p2p>.
-
To access the shell mode, type bcu shell.
To exit out of shell mode, type exit.
All the commands in this appendix are shown in the direct mode. For example:
bcu port --topology <port_id> <auto|p2p>
To list all the commands and subcommands, type the following command:
bcu --help
To check the CLI and Driver version number, type the following command:
bcu --version
BCU commands
The following table lists the Brocade Command Line Utility (BCU) commands alphabetically that are
available for configuring the devices in a SAN environment that use a Brocade adapter.
Command
Operands
Synopsis
bcu --help
Lists all available sub-commands.
bcu <sub_command> --help
Lists all details about the specific subcommand.
Adapter commands
bcu adapter
--list
--name
<serial-no> <adapter-name>
--query
<ad_id>
--enable
<ad_id>
--disable
<ad_id>
--show
<port_id>
--policy
<port_id> <on | off>
--reinit
<port_id>
--algo
<port_id> <md5 | sha1 | ms | sm>
--secret
<port_id> “secret string”
--stats
<port_id>
Authentication commands
bcu auth
122
Brocade Adapters Administrator’s Guide
53-1001583-01
BCU commands
--statsclr
<port_id>
--query
<port_id>
--enable
<port_id> [-s speed] [-o auto|flash|firstlun] [-p pos]
{-b pwwn,lun}*
--disable
<port_id>
--blunZone
-c <cfg> -p <port_wwn> -r <rport_wwn> -l <lun_id | lun#>
--update
[adapter_id] <image_file> [-a]
--portlog
<port_id>
--portlogclear
<port_id>
--portlogctl
<port_id> <enable | disable>
B
BIOS commands
bcu bios
Boot commands
bcu boot
Debug commands
bcu debug
Diagnostic commands
Note: The sfpshow and beacon diagnostic tests are not available on the Brocade 804 mezzanine card.
bcu diag
--sfpshow
<port_id>
--tempshow
<ad_id>
--beacon
<port_id> {on | off} [<duration>]
--pciloopback
<port_id> [-p <pattern>] [-c <frame_count>]
--loopback
<port_id> [-t <loopback_type>] [-s <speed>]
[-c <frame_count>] [-p <pattern>]
--memtest
<port_id>
--queuetest
<port_id> [-q <queue_num>]
Driver configuration commands
Note: Driver configuration commands are supported only on Windows operating systems.
bcu drvconf
--key
<key_name>
--val
<value>
Possible key_name and value ranges are:
•
•
•
•
•
key = bfa_ioc_queue_depth, value range [>0] default = 2048
key = bfa_lun_queue_depth, value range [>0] default = 32
key = ioc_auto_recover, value range [0-1] default = 1
key = rport_del_timeout, value range [>0] default = 90
key = msix_disable, value range [0-1] default = 1
FC diagnostic commands
bcu fcdiag
--fcping
<port_id> <rpwwn> [-l lpwwn]
--fctraceroute
<port_id> <rpwwn> [-l lpwwn]
--fcecho
<port_id> <rpwwn> [-l lpwwn]
--linkbeacon
<port_id> {on|off}
--scsitest
<port_id> <rpwwn> [-l lpwwn]
FCP initiator mode commands
Brocade Adapters Administrator’s Guide
53-1001583-01
123
B
BCU commands
bcu fcpim
--query
<port_id> rpwwn [-l <lpwwn>]
--stats
<port_id> <rpwwn. [-l <lpwwn>]
--statsclr
<port_id> <rpwwn. [-l <lpwwn>
--qdepth
<port_id> <q_depth_value>
--modstats
<port_id>
--modstatsclr
<port_id>
I/O Controller (IOC) commands (Storage)
bcu ioc
--stats
<port_id>
--statsclr
<port_id>
--enable
<port_id>
--disable
<port_id>
--query
<port_id>
--intr
<port_id> <-coalesce | c> {on | off} [<-l <usecs>] [-d <usecs>]
I/O Controller (IOC) commands (Networking)
bcu ioceth
bcu ethioc
--stats
<port_id>
--statsclr
<port_id>
--enable
<port_id>
--disable
<port_id>
--query
<port_id>
--level
<port_id> [<Critical|Error|Warning|Info>] [-m
<fw|hal|fcs|drv|aen|all>]
Log commands
bcu log
Logical port (lport) commands
bcu lport
--list
<port_id>
--query
<port_id> [-l <lpwwn>]
--stats
<port_id> [-l <lpwwn>]
--statsclr
<port_id> [-l <lpwwn>]
Port commands (physical port)
bcu port
124
--list
--name
<port_id> [port_name]
--enable
<port_id>
--disable
<port_id>
--stats
<port_id>
--statsclr
<port_id>
--query
<port_id>
--topology
<port_id> {auto | p2p}
--speed
<port_id> <speed>
Brocade Adapters Administrator’s Guide
53-1001583-01
BCU commands
--dfsize
B
<port_id> [dfsize]
Target persistent binding commands
Note: Target persistent binding is available in Windows operating systems only.
bcu pbind
--list
<port_id> [<pwwn>]
--clear
<port_id>
--enable
<port_id>
--disable
<port_id>
--query
<port_id>
--stats
<port_id>
--statsclr
<port_id>
QoS commands
bcu qos
Target rate limiting commands
bcu ratelim
--enable
<port_id>
--disable
<port_id>
--query
<port_id>
--defspeed
<port_id> [<1|2|4>]
Remote port (rport) commands
bcu rport
--list
<port_id> [-l <lpwwn>]
--query
<port_id> <rpwwn> [-l <lpwwn>]
--stats
<port_id> <rpwwn> [-l <lpwwn>]
--statsclr
<port_id> <rpwwn> [-l <lpwwn>]
--osname
<port_id> [-l <lpwwn>]
Virtual port (vport) commands
Note: vport commands are not supported on Solaris platforms.
bcu vport
Brocade Adapters Administrator’s Guide
53-1001583-01
--create
<port_id> <vpwwn> [-n <vnwwn>] [-s <sname>]
--delete
<port_id> <vpwwn>
--query
<port_id> <vpwwn>
--stats
<port_id> <vpwwn>
--statsclr
<port_id> <vpwwn>
125
B
adapter
adapter
Displays and sets adapter parameters. The adapters are HBA models 415, 425, 804, 815, and
825.
NOTE
When trunking is enabled, multiple physical ports are trunked together to form a logical Fibre
Channel port.
Synopsis
bcu adapter --enable <ad_id>
bcu adapter --disable <ad_id>
bcu adapter --list
bcu adapter --name <serial-no> <adapter-name>
bcu adapter --query <ad_id>
Description
Operands
Displays and sets commands that apply to the physical adapter. There can be one or more PCI
functions per adapter, which are referred to as ports. Each port exposes a logical Fibre Channel
port, which typically equates to a physical Fibre Channel port.
When invoked without operands, this command displays the usage.
--enable
ad_id
--disable
ad_id
Enables the adapter.
Specifies the ID of the adapter you want to enable.
Disables the adapter.
Specifies the ID of the adapter you want to disable.
--list
Lists all adapters in the system. For each adapter in the system, a brief
summary line is displayed.
--name
Displays or specifies the name of the adapter. The adapter name can be
identified either by serial number or by adapter index.
Note: Use an empty string (“ “) to clear a previous adapter name. Adapter
names are stored persistently.
serial-no
Specifies the serial number or the ID of the adapter for which you want to
display information.
adapter-name
Specifies the adapter name. The name can include up to 15 characters, must
begin with a letter, can consist of letters, digits, hyphens, and underscore
characters, but must not contain spaces. This operand is optional; if you do
not specify an adapter name, the current adapter name displays.
--query
ad_id
126
Queries or displays adapter information.
Specifies the ID of the adapter for which you want to query.
Brocade Adapters Administrator’s Guide
53-1001583-01
adapter
Example
B
bcu adapter --list
AD # NP
HW-path
Type
Model-Info
Serial-num
Name
1
2
0000:01:00
FC
Brocade-825
ALX0301D062
- -
2
2
0000:09:00
FC
Brocade-825
ALX0411D01K
- -
bcu adapter --query 1
Example:# bcu adapter --query 1
Adapter Information:
card type - FC
model info: Brocade-825
OEM info: N/A
num ports: 2
max speed: 8 Gbps
chip revision: Rev-B
hw path: 16:00
Serial Num: ALX0301D062
name:
PCI Information:
vendor id:
0x1657
device id:
0x0013
ssid:
0x0014
ssvid:
0x1657
PCIe Gen: Gen 1
PCIe lanes:
8 (Initial number of lanes = 8)
Flash Information:
status: good
fw version: FCHBA2.0.0.0
bios version: brocade_adapter_boot_fw_v2-0-0-0
Flash Information:
status: good
fw version: FCHBA2.0
bios version: FCHBA2.0
bcu adapter --name 1 emc-fab3_ad5
adapter BRCD1234567’s name set to emc_fab3_ad5
bcu adapter --name 1
adapter BRCD1234567’s name is emc_fab3_ad5
See Also
“ioc”, “port”
Brocade Adapters Administrator’s Guide
53-1001583-01
127
B
auth
auth
Enables authentication configuration on a per-port basis and the ability to display authentication
status and statistics.
Synopsis
bcu auth --algo <port_id> <md|sha1|ms|sm>
bcu auth --policy <port_id> {on|off}
bcu auth --reinit <port_id>
bcu auth --secret <port_id> “secret_string”
bcu auth --show <port_id>
bcu auth --stats <port_id>
bcu auth --statsclr <port_id>
Description
Operands
Configure and display authentication settings and status.
--algo
port_id
Sets the authentication algorithm.
Specifies the ID of the port for which you want to display information.
md|sha1|ms|sm
• MD5 - A hashing algorithm that verifies a message’s integrity using
•
•
•
--policy
Message Digest version 5. MD5 produces a 128-bit digest and is the
required authentication mechanism for LDAP v3 servers.
SHA1 - A secure hashing algorithm that computes a 160-bit message
digest for a data file that is provided as input.
MD5SH1 - Similar to the MD5 hashing algorithm, but used for DH-CHAP
authentication
SHA1MD5 - Similar to the SHA1 hashing algorithm, but used for DH-CHAP
authentication
Turns authentication on or off. By default, the authentication policy is
disabled. If authentication is enabled, the port attempts to negotiate with the
switch. If the switch side does not participate in the authentication process,
the port skips the authentication process. If the switch participates in the
authentication and authentication fails, the port is placed in a link down
state.
port_id
Specifies the ID of the port for which you want to set the authentication policy.
on|off
Specifies the state of the authentication policy: “policy 2/1 on” means
authentication is turned on, “policy 2/1 off” means authentication is turned
off.
--reinit
port_id
--secret
Restarts the authentication on the port.
Specifies the ID of the port for which you want to restart authentication.
Sets the shared secret.
Note: You cannot clear the secret.
port_id
128
Specifies the ID of the port for which you want to set the shared secret.
Brocade Adapters Administrator’s Guide
53-1001583-01
auth
secret string
--show
Specifies the secret string. The maximum length of the secret is 63 bytes. The
default secret for each interface is its pwwn without the colons; for example,
0102030405060708.
Displays the authentication settings and current status.
port_id
Specifies the ID of the port for which you want to display information.
--stats
Displays the authentication statistics.
port_id
Specifies the ID of the port for which you want to display information.
--statsclr
Clears the authentication statistics.
port_id
Example
B
Specifies the ID of the port for which you want to clear statistical information.
Here is an example of the output when authentication is successful:
bcu auth --show 1/0
port
Port Status
Auth
Hash Type
1/0
Linkdown
success
MD5
Group Type
DH-NULL
Here is an example of the output when authentication failed:
bcu auth --show 1/0
port
Port Status
Auth
Hash Type
1/0
Linkdown
failed
MD5
Group Type
DH-NULL
Here is an example of the output when authentication is not enabled:
bcu auth --show 1/0
port
Port Status
Auth
1/0
Linkup
no_auth
Hash Type
Group Type
bcu auth --policy 2/1 on
Authentication turned on
bcu auth --policy 2/1 off
Authentication turned off
bcu auth --secret 5/0 “mypasswd”
Authentication secret set
bcu auth --stats 4/1
successes: 1
failures: 0
auth_rx_stats:
auth_rjts: 0
auth_negs: 0
auth_dones: 0
dhchap_challenges: 2
dhchap_replies: 0
dhchap_successes: 1
Brocade Adapters Administrator’s Guide
53-1001583-01
129
B
auth
auth_tx_stats:
auth_rjts: 0
auth_negs: 2
auth_dones: 0
dhchap_challenges: 0
dhchap_replies: 2
dhchap_successes: 0
auth --statsclr 4/1
Successfully cleared auth stats
See Also
130
None
Brocade Adapters Administrator’s Guide
53-1001583-01
bios
B
bios
Enables the basic input/output system (BIOS) in preparation for Boot Over SAN. The BIOS is the
firmware code that, when first powered on, is a type of boot loader.
NOTE
Refer to the Brocade Adapters Installation and Reference Manual for more information about
configuring BIOS.
Synopsis
bcu bios --query <port_id>
bcu bios --enable <port_id> [-s speed] [-o auto|flash|firstlun] [-p pos] {-b pwwn,lun}*
bcu bios --disable <port_id>
Description
You must enable BIOS to support boot over SAN for a port. If disabled, the host system cannot boot
from Fibre Channel disk drives. BIOS must be enabled on only one adapter port per host in order to
boot from SAN. The default setting for the boot BIOS is enabled.
The port ID can be any of the following:
•
•
•
•
•
Operands
Adapter ID
Port ID
Port WWN
Port name
Port hardware path
--query
port_id
--enable
Queries the boot-over-SAN configuration.
Specifies the ID of the port for which you want to display information.
Enables the boot over SAN configuration.
port_id
Specifies the ID of the port for which you want to set the port’s boot from SAN
attributes.
s speed
Specifies the port speed as auto-negotiate.
o auto|flash|firstlun
Specifies the following options for obtaining boot LUN information:
• auto - Enables auto-discovery. When enabled, the boot LUN identification
•
•
p pos
Brocade Adapters Administrator’s Guide
53-1001583-01
is provided by the fabric.
flash - The adapter obtains the boot LUN information from flash memory.
Values are saved to flash when you configure them and save them
through the BIOS Configuration Utility, HCM, and BCU.
firstlun - The host boots from the first LUN visible to the adapter that is
discovered in the fabric.
Specifies the position for storing the boot LUN information in the -b pwwn, lun
operand. The range is 0-3. The LUN information specified in position 0 is used
first to boot from SAN, then information specified for positions 1, 2, and 3.
131
B
bios
b pwwn,lun
Specifies the host boots from the LUN information defined by the target port
world wide name (PWWN) and LUN value (lun*). Specify the PWWN as a
colon-separated value and the LUN as a 64-bit decimal value.
The LUN must be the same LUN that you bound to the port using the storage
system’s management or configuration utility.
--disable
port_id
Example
Disables boot over SAN for the specified port, if enabled.
Specifies the ID of the port for which you want to disable the boot over SAN
configuration.
bcu bios --query 1/0
boot over SAN: enabled
port speed: Auto
Boot luns obtained from the flash
boot lun 0:
target wwn: 50:00:1f:e1:50:10:eb:da
lun: 0001-0000-0000-0000
Pre-boot Configuration:
Speed: 2/4/8/Auto for 8G cards
BIOS: Enabled/Disabled
Number of boot luns: 8
Boot LUN 0 : <Target’s WWN>, <LUN>
Boot LUN 1 : <Target’s WWN>, <LUN>
Boot LUN 2 : <Target’s WWN>, <LUN>
Boot LUN 3 : <Target’s WWN>, <LUN>
Boot LUN 4 : <Target’s WWN>, <LUN>
Boot LUN 5 : <Target’s WWN>, <LUN>
Boot LUN 6 : <Target’s WWN>, <LUN>
Boot LUN 7 : <Target’s WWN>, <LUN>
See Also
132
“boot”
Brocade Adapters Administrator’s Guide
53-1001583-01
boot
B
boot
Allows the host’s boot LUN information to be stored in the fabric zone database using a zone name
containing the PWWN of an adapter port and zone members consisting of the storage target
PWWN and LUN WWN. The adapter boot code can query the zone member list for the zone name
that matches the adapter PWWN to determine the boot target and LUN.
NOTE
A system reboot is required for the newly-updated image to be effective.
Fabric OS 6.2 is required on adjacent switches to support fabric-based boot LUN discovery.
Refer to the Brocade Adapters Installation and Reference Manual for information about creating
zones on the switch where the adapter is connected.
NOTE
On Solaris systems, the Download Boot Image menu is disabled if the host does not have a Fibre
Channel HBA card or if the driver version is 1.1.0.7 or lower.
Synopsis
bcu boot --blunZone -c <cfg> -p <port_wwn> -r <rport_wwn> -l <lun_id | lun#>
bcu boot --update [adapter_id] <image_file> [-a]
Description
Operands
Boot commands allows the host’s boot LUN information to be stored in the fabric zone database
using a zone name and to update the boot code in flash.
--blunZone
Generates the zonecreate command to be run on the switch.
-c cfg
Specifies the boot LUN (BLUN) of the boot command.
-p port_wwn
Specifies the world wide name of the port.
-r rport_wwn
Specifies the world wide name of the remote port (rport).
-l lun_id
Specifies the ID of the logical unit. The LUN ID is specified as a hexadecimal
byte; for example, FF.
-l lun#
Specifies the number of the logical unit. The LUN number is specified as a
hexadecimal, eight-byte string; for example, 09AABBCCDDEEFF00.
--update
Updates the boot code in flash.
adapter_id
Specifies the ID of the adapter on which boot code is updated. The adapter id
could be any one of the following: adapter serial number, adapter name, or
adapter hardware path.
image_file
Specifies the name of the boot code image file.
-a
Indicates the boot code is updated to all the Brocade adapters found on the
host. The adapter_id is not specified if -a is specified.
Brocade Adapters Administrator’s Guide
53-1001583-01
133
B
boot
Example
bcu boot --blunZone -c BLUN -p 10:00:00:05:1e:41:9a:cb -r 50:00:00:05:1e:41:9a:ca
-l 09AABBCCDDEEFF00
To create the zone, copy the following line and run this command from the switch command line.
zonecreate “BFA_100000051E419ACB_BLUN”,”00:00:00:00:50:00:00:05;
00:00:00:01:1e:41:9a:ca; 00:00:00:02:09:aa:bb:cc, 00:00:00:03:dd:ee:ff:00”
See Also
134
“bios”
Brocade Adapters Administrator’s Guide
53-1001583-01
debug
B
debug
The debug commands gather support information on Fibre Channel components.
Synopsis
bcu debug --portlog <port_id>
bcu debug --portlogclear <port_id>
bcu debug --portlogctl <port_id> <enable | disable>
Description
Operands
Captures all the support information needed to diagnose suspected system issues.
--portlog
Displays the log of FC frames and other main control messages that were
sent out and received.
If the port log is disabled, the following message displays as the first line:
Refer to the portlogctl command for more information: WARNING: port log is
disabled.
port_id
--portlogclear
port_id
--portlogctl
Example
Specifies the ID of the port for which you want to display the FC frame logs
and other control messages.
Clears the port’s frame log.
Specifies the ID of the port for which you want to clear the port’s frame log.
Enables or disables the portlog.
port_id
Specifies the ID of the port for which you want to enable or disable the
portlog.
enable
Enables the portlogclear command.
disable
Disables the portlogclear command.
bcu debug --portlog 10/0
Total records present = 14
--------------------------------------------------------------------------time
event port code args
--------------------------------------------------------------------------08:35:28.430 fwm
10/0
00
00001234, 00050001
08:35:28.431 mbox
10/0
01
00001234, 00050001
08:35:28.433 ioctl 10/0
90
101d9910,0
08:35:28.433 Tx
10/0
164
02fffffd, 00fffffd, 0005ffff, 10000000
08:35:28.433 Rx
10/0
0
c0fffffd, 00fffffd, 00050006
08:35:28.433 Rx
10/0
164
03fffffd, 00fffffd, 00050006, 02000000
08:35:28.433 Tx
10/0
0
c0fffffd, 00ffffd, 00050006
08:35:28.433 ioctl 10/0
91
103646d8, 0
08:35:28.466 ioctl 10/0
a7
3c, 1
08:35:28.483 Tx
10/0
96
02fffffd, 00fffffd, 0006ffff, 11100060
08:35:28.483 Rx
10/0
0
c0fffffd, 00fffffd, 00060007
08:35:28.483 Rx
10/0
96
03fffffd, 00fffffd, 00060007, 02100060
08:35:28.483 Tx
10/0
0
c0fffffd, 00fffffd, 00060007
08:35:28.483 ioctl 10/0
a1
0,0
--------------------------------------------------------------------------# bcu debug --portlog 1/1
Total records present = 26
---------------------------------------------------------------------------
Brocade Adapters Administrator’s Guide
53-1001583-01
135
B
debug
Time
Module
Event
Len Log info
--------------------------------------------------------------------------13fe083a Driver
drvstrt 0
Driver Attach
14471130 HAL
pstchg
0
Port Linkup
1447135f FCXP
Tx
140 01290000,00000000,00080000,03000000
14471361 FCXP
Tx
32
01290000,00000000,00080000,62000000
14471498 FCXP
Rx
116 01980000,6c000000,051e7609,02000000
1447149c FCXP
Tx
301 20290000,00000000,00080000,01000000
1447150d FCXP
Rx
4
01980000,6d000000,051e7609,02000000
1447190e FCXP
Rx
16
20980000,6e000000,051e7609,01000000
14471910 FCXP
Tx
76
20290000,00000000,00080000,01000000
14471a29 FCXP
Rx
16
20980000,6f000000,051e7609,01000000
14471a2b FCXP
Tx
48
20290000,00000000,00080000,01000000
14471b28 FCXP
Rx
16
20980000,70000000,051e7609,01000000
14471b2a FCXP
Tx
44
20290000,00000000,00080000,01000000
14471b2d FCXP
Tx
140 01290000,00000000,00080000,03000000
14471c11 FCXP
Rx
116 01980000,71000000,051e7609,02000000
14471c18 FCXP
Tx
176 20290000,00000000,00080000,01000000
14471c19 FCXP
Tx
48
20290000,00000000,00080000,01000000
14471d1a FCXP
Rx
16
20980000,72000000,051e7609,01000000
14471e0e FCXP
Rx
16
20980000,73000000,051e7609,01000000
14472027 FCXP
Rx
788 20980000,74000000,051e7609,01000000
14472029 FCXP
Tx
48
20290000,00000000,00080000,01000000
14472144 FCXP
Rx
24
20980000,75000000,051e7609,01000000
14613597 FCXP
Tx
176 20290000,00000000,00080000,01000000
14613745 FCXP
Rx
16
20980000,76000000,051e7609,01000000
147fb9b6 FCXP
Tx
176 20290000,00000000,00080000,01000000
147fbb68 FCXP
Rx
16
20980000,77000000,051e7609,01000000
--------------------------------------------------------------------------bcu debug --portlogclear 1/0
portlog cleared
bcu debug --portlogctl 1/0 enable
portlog enabled
bcu debug --portlogctl 1/0 disable
portlog disabled
bcu debug --portlogctl 1/0 disable
portlog disabled
See Also
136
None
Brocade Adapters Administrator’s Guide
53-1001583-01
diag
B
diag
Lists the non-destructive group of diagnostic commands. The port can be identified using the
adapter index, the port index, the port name, or the port world wide name.
NOTE
The sfpshow and beacon diag commands are not supported on the Brocade 804 mezzanine card.
Synopsis
bcu diag --sfpshow <port_id>
bcu diag --tempshow [ad_id]
bcu diag --beacon <port_id> {on | off} [<secs>]
bcu diag --pciloopback <port_id> <-p <pattern> [-c <frame_count>]
bcu diag --loopback <port_id> [-t <loopback_type>] [-s <speed>] [-c <frame_count>]
[-p <pattern>]
bcu diag --memtest <port_id>
bcu diag --queuetest <port_id> [-q <queue_num>]
Description
Displays the group of diagnostic commands that are non-destructive and indicates when the
adapter is running at a normal operation state.
NOTE
You must disable the port prior to executing the loopback test. You must disable the adapter prior to
executing the memtest.
Operands
--sfpshow
Monitors the attributes of the SFP. This is an online diagnostic test.
Note: A notification occurs for any parameter that is not within the configured
power, temperature, voltage, and current specification or policy.
port_id
Specifies the ID of the port on which you want to monitor the SFP attributes.
--tempshow
Reads the adapter’s temperature sensor registers of the adapter. This is an
online diagnostic test.
ad_id
--beacon
Specifies the ID of the adapter for which you want to display temperature
sensor registers.
Controls the port and link end-to-end beaconing. This is an online diagnostic
test.
port_id
Specifies the ID of the port for which you want to beacon.
on | off
Turns end-to-end beaconing on or off.
secs
Displays the beacon time duration in seconds. Beaconing is automatically
turned off after the specified duration. If the duration is set to 0, beaconing
continues until it is explicitly turned off.
Brocade Adapters Administrator’s Guide
53-1001583-01
137
B
diag
--pciloopback
Checks the communications path between the host and the IO Controller
(IOC).
port_id
Specifies the ID of the port for which you want to send a health check
message.
-p pattern
Displays the data pattern.
-c frame_count Specifies the frame count.
--loopback
port_id
Tests the data path from the IOC to the desired network loopback point
(internal, serdes, external) and back. This is an offline diagnostic test.
Specifies the ID of the port on which you want to run a loopback test.
-t loopback_type Specifies the loopback test type. Possible values include the following test
types:
• int - Internal loopback, the default
• serdes - SerDes loopback
• ext - External loopback).
If the loopback type is not specified, all loopback tests run.
-s speed
Specifies the link speed as 8, 4, 2, or 1 Gbps. This is an optional parameter. If
not specified, then 8, 4, and 2 Gbps speeds are tested on the 8 Gbps adapter
and 4, 2, and 1 Gbps speeds are tested on the 4 Gbps adapter.
-c frame count
Specifies the frame count.
-p pattern
Specifies the pattern (must be one hex word).
--memtest
port_id
--queuetest
Example
Performs a generic memory test using different algorithms.
Specifies the ID of the port on which you want to run a memory test.
Sends a health check message from the host to the firmware through
message queues memory mapped over the PCI.
port_id
Specifies the ID of the port on which you want to run a queuetest.
-q queue_num
Specifies the CPE/RME queue number from 0 to 3. If the queue number is
not specified, all queues are tested.
To display detailed information about a specific port:
# bcu diag --tempshow
temperature: 44.348787 C
# bcu diag --beacon 1/1 on
Port beacon turned on
# bcu diag --beacon 1/1 on
Link end-to-end beacon turned on
See Also
138
“fcdiag”
Brocade Adapters Administrator’s Guide
53-1001583-01
drvconf
B
drvconf
Sets the basic parameters for the driver to function properly.
Note: The drvconf commands are supported on Windows platforms only.
Synopsis
Description
bcu --drvconf [-key <key_name>] [--val <value>]
Changes the values for basic Windows registry entry parameters.
NOTE
You can directly change these values by editing the Windows registry entries for these values, or you
can use the drvconf commands for the same purpose.
Operands
--key key_name
The name of the bfa key.
--val value
Sets the value of the bfa key. See below for possible values and default
settings.
Possible key name and value ranges are as follows:
•
•
•
•
•
•
See Also
key = bfa_ioc_queue_depth, value range [0-2048] default = 2048
key = bfa_lun_queue_depth, value range [0- 32] default = 32
key = ioc_auto_recover, value range [0-1] default = 1
key = rport_del_timeout, value range [0-90] default = 90
key = msix_disable, value range [0-1] default = 1
key = pbind_enable, value range [0-1] default = 0
None
Brocade Adapters Administrator’s Guide
53-1001583-01
139
B
fabric
fabric
Prints and resets Fabric statistics.
Synopsis
bcu fabric --stats <port_id>
bcu fabric --statsclr <port_id>
Description
Operands
Displays or clears Fabric statistics.
--stats
port_id
--statsclr
port_id
140
Prints the fabric statistics.
Specifies the ID of the fabric port for which you will print the statistics.
Resets the fabric statistics.
Specifies the ID of the fabric port for which you will reset the statistics.
Example
bcu fabric --stats 1/0
Fabric Stats:
FLOGI sent: 114
FLOGI rsp errors: 0
FLOGI accept errors: 0
FLOGI accepts: 58
FLOGI rejects: 0
FLOGI unknown rsp: 0
FLOGI alloc wait: 0
FLOGI received: 0
FLOGI rejected: 0
fabric offlines: 57
fabric onlines: 58
See Also
None
Brocade Adapters Administrator’s Guide
53-1001583-01
fcdiag
B
fcdiag
Runs diagnostic tests on Fibre Channel components.
NOTE
The fcdiag --linkbeacon command is not supported on the Brocade 804 HBA.
Synopsis
bcu fcdiag --fcping <port_id> <rpwwn> [-l lpwwn]
bcu fcdiag --fctraceroute <port_id> <rpwwn> [-l lpwwn]
bcu fcdiag --fcecho <port_id> <rpwwn> [-l lpwwn]
bcu fcdiag --linkbeacon <port_id> {on|off}
bcu fcdiag --scsitest <port_id> <rpwwn> [-l lpwwn]
Description
Operands
Fibre Channel diagnostic tests evaluate the integrity of Fibre Channel components.
--fcping
Determines the basic connectivity between two Fibre Channel network points
and monitors and measures network latency.
port_id
Specifies the ID of the port to which you want to issue a ping command.
rpwwn
Specifies the remote port world wide name to which you want to issue a ping
command.
-l lpwwn
Specifies the logical port world wide name. This is an optional argument. The
base port is specified as 0; otherwise, the port is a virtual port.
--fctraceroute
Reports on a SAN path, including node hops and latency data.
port_id
Specifies the ID of the port on which you want to run the fctraceroute
command.
rpwwn
Specifies the remote port world wide name.
-l lpwwn
Specifies the logical port world wide name. This is an optional argument. The
base port is specified as 0; otherwise, the port is a virtual port.
--fcecho
Sends an FC Echo Extended Link Services (ELS) request to a remote port.
port_id
Specifies the ID of the port from which you want to run the fcecho command.
rpwwn
Specifies the remote port world wide name on which you want to run the
fcecho diagnostic test.
-l lpwwn
Specifies the logical port world wide name. This is an optional argument. The
base port is specified as 0; otherwise, the port is a virtual port.
--linkbeacon
Blinks (toggles) the link beacon.
port_id
Specifies the ID of the port for which you want to run the linkbeacon
command.
on | off
Specifies if the linkbeacon test is on or off.
Brocade Adapters Administrator’s Guide
53-1001583-01
141
B
fcdiag
--scsitest
Example
Tests the SCSI components.
port_id
Specifies the ID of the port for which you want to run the scsitest command.
rpwwn
Specifies the remote port world wide name.
-l lpwwn
Specifies the logical port world wide name. This is an optional argument. The
base port is specified as 0; otherwise, the port is a virtual port.
bcu fcdiag --fctraceroute 2/0 50:05:07:63:04:13:46:eb
Error: Reject from attached fabric
bcu fcdiag --fctraceroute 2/0 50:05:07:63:04:13:46:eb
FC Traceroute completed successfully. Path Info:
Switch WWN
Switch Domain ID
Ingress Port #
Egress Port #
10:00:08:00:88:03:31:8b
127
5
11
10:00:08:00:88:03:31:8b
127
11
5
bcu fcdiag --fctraceroute 2/0 50:05:07:63:04:13:46:e1
FC Traceroute Failed. Reason : Destination Port not in Fabric
bcu fcdiag --fcecho 2/0 50:05:07:63:04:13:46:eb
FC ECHO completed successfully
See Also
142
“diag”
Brocade Adapters Administrator’s Guide
53-1001583-01
fcpim
B
fcpim
Enables or disables fast failover of initiator mode I/O. The default setting is off.
Synopsis
bcu fcpim --stats <port_id> <rpwwn> [-l <lpwwn>]
bcu fcpim --statclr <port_id> <rpwwn> [-l <lpwwn>]
bcu fcpim --pathtov <port_id> <tov>
bcu fcpim --query <port_id> rpwwn [-l <lpwwn>]
bcu fcpim --modstats <port_id>
bcu fcipim --modstatsclr <port_id>
Description
Operands
Enables or disables fast failover of the Fibre Channel Port (FCP) initiator mode I/O and displays or
clears statistics.
--stats
Displays statistics related to the Fibre Channel port initiator mode.
port_id
Specifies the ID of the port for which you want to display statistical
information.
rpwwn
Specifies the world wide name of the remote port for which you want to
display statistics.
-l lpwwn
Specifies the world wide name of the logical port for which you want to display
statistics.
--statclr
Clears statistics related to the Fibre Channel port initiator mode.
port_id
Specifies the ID of the port for which you want to clear statistical information.
rpwwn
Specifies the world wide name of the remote port for which you want to clear
statistics.
-l lpwwn
Specifies the world wide name of the logical port for which you want to clear
statistics.
--pathtov
Controls the fast failover initiator mode.
port_id
Specifies the ID of the port for which you want to query.
-tov
Specifies the optional path time out value in seconds (1 to 60). A value of 0
triggers the default timeout value. The default TOV is 30 seconds.
--query
Queries the fcpim attributes.
port_id
Specifies the ID of the port for which you want to query.
rpwwn
Specifies the world wide name of the remote port for which you want to query.
-l lpwwn
Specifies the world wide name of the logical port for which you want to query.
--modstats
port_id
Brocade Adapters Administrator’s Guide
53-1001583-01
Displays statistics related to the Fibre Channel port initiator mode.
Specifies the ID of the module for which you want to display statistical
information.
143
B
fcpim
--modstatsclr
port_id
Example
Clears statistics related to the Fibre Channel port initiator mode.
Specifies the ID of the module for which you want to clear statistical
information.
bcu fcpim --stats 1/0 50:00:1f:e1:50:0d:da:a9
rport onlines:
4
rport offlines:
3
PRLI sent:
4
PRLI Accepts:
4
PRLI error responses:
0
PRLI responses parse err:
0
fcxp alloc waits:
0
Second level err recovery:
0
Num times in initiator mode:
0
HAL fcpim statistics
online events:
offline events:
create events:
delete events:
create completions:
delete completions:
SLER events:
IOC down events:
IO cleanup completions:
task management commands:
TM firmware responses:
TM successes:
TM failures:
TM related IO cleanups:
TM firmware queue resumed:
TM affected by IOC down events:
TM affected by ITN offline:
TM offline cleanup completions:
IO requests:
IO completions:
See Also
144
4
3
1
0
4
2
0
1
3
0
0
0
0
0
0
0
0
0
456026
456026
“ioc”
“vport”
Brocade Adapters Administrator’s Guide
53-1001583-01
ioc
B
ioc
Enables or disables the I/O Controller (IOC), which refers to the combination of port and the
firmware controlling it.
The port can be identified using the adapter index, the port index, the port world wide name or the
port name.
Synopsis
bcu ioc --stats <port_id>
bcu ioc --statsclr <port_id>
bcu ioc --enable <port_id>
bcu ioc --disable <port_id>
bcu ioc --query <ioc_id>
bcu ioc --intr <port_id> <-coalesce | -c> {on|off} [<Latency><Delay>]
Description
The IOC commands allow you to set the interrupt attributes for the port.
CAUTION
Disabling the IOC is a destructive operation.
Operands
--stats
port_id
--statsclr
port_id
--enable
port_id
--disable
port_id
--query
ioc_id
--intr
Displays the IOC level statistics on the specified port.
Specifies the ID of the port for which you want to display information.
Clears the IOC level statistics on the specified port.
Specifies the ID of the port for which you want to clear statistical information.
Enables the IO Controller (IOC). If the IOC is already enabled, the command is
ignored.
Specifies the port of the IO Controller (IOC) you want to enable.
Caution: Disabling the IOC is a destructive operation. Disables the port of the
IO Controller (IOC). If the IOC is already disabled, the command is ignored.
Specifies the ID of the port you want to disable.
Queries the attributes of the Storage IOC with the IOC ID.
Specifies the port of the IO Controller (IOC) you want to enable.
Sets the interrupt attributes for the port.
port_id
Specifies the ID of the port on which you want to set interrupt attributes.
coalesce | c
Sets the coalesce flag.
on|off
Sets the interrupt attributes for the port to on or off.
-Latency
Sets the latency monitor timeout value. Latency can be between 0 to 225
microseconds. A latency value of 0 disables latency monitor timeout
interrupt. The default latency value is 5 for an HBA.
Brocade Adapters Administrator’s Guide
53-1001583-01
145
B
ioc
-Delay
Example
Sets the delay timeout interrupt value. A delay can be between 0 to 1125
microseconds. A delay value of 0 disables the delay timeout interrupt. The
default delay value is 25 for an HBA.
#bcu ioc --query 1/0
chip rev:
manufacturer:
serial#:
model_descr:
pwwn:
nwwn:
f/w ver:
bios ver:
port count:
status is:
ssid:
vendor id:
device id:
pci function:
IOC type:
interrupt coalescing:
interrupt delay:
interrupt latency:
Rev-B
Brocade
ARZ0351D00B
BR-1020
10:00:00:05:1e:55:1d:3c
20:00:00:05:1e:55:1d:3c
pvt_bld03 05/05/2009 15.12.12
2
operational
0x0014
0x1657
0x0014
0
on
25 us
0 us
# bcu ioc --stats 1/0
Num suspends: 7
bcu ioc --statsclr 1/0
ioc stats cleared.
bcu ioc --enable 1/0
ioc is enabled
bcu ioc --enable ad1_p0
ioc is already enabled
bcu ioc --disable 1/0
ioc is disabled
bcu ioc --disable ad1_p0
ioc is already disabled
bcu --intr 1/0 --coalesce off
interrupt coalescing has been turned off
bcu ioc --intr 1/0 --coalesce on
The intr settings have been configured with value(s):
Coalesce: on
bcu ioc --intr 1/0 --coalesce on 12 19
The intr settings have been configured with value(s):
Coalesce: on
Delay: 19 (micro-seconds)
Latency: 12 (micro-seconds)
See Also
146
“adapter”
“lport”
Brocade Adapters Administrator’s Guide
53-1001583-01
log
B
log
Sets the log level for each module. If no log level is specified, the current level is used.
Synopsis
Description
Operands
bcu log --level <port_id> [<Critical|Error|Warning|Info>] [-m <fw|hal|fcs|drv|aen|all>]
The number of messages logged by the host depends on the predetermined logging level. Although
the adapter might generate many messages, only certain types of messages are logged based on
the specified logging level.
--level
port_id
Specifies the number of messages logged by the host, which depends on the
predetermined logging level.
Specifies the ID of the port for which you want to set the log level.
Critical|Error|Warning|Info
Specifies the severity level. Supported log levels include Critical, Error,
Warning, or Info. If no level is set, the default setting is used, which is
Warning.
-m fw|hal|fcs|drv|aen|all
Example
#bcu log --level 2/0
FW log level is Warning
HAL log level is Warning
FCS log level is Warning
DRV log level is Warning
AEN log level is Warning
#bcu log --level 2/0 info
Log level set to Info
#bcu log --level 2/0
FW log level is Info
HAL log level is Info
FCS log level is Info
DRV log level is Info
AEN log level is Info
See Also
None
Brocade Adapters Administrator’s Guide
53-1001583-01
147
B
lport
lport
Lists the logical port (lport) commands.
Synopsis
bcu lport --list <port_id>
bcu lport --query <port_id> [-l lpwwn]
bcu lport --stats <port_id> [-l lpwwn]
bcu lport --statsclr <port_id> [-l lpwwn]
Description
Lists all the logical ports (lports) under a given port ID. A logical port is a port that is logged into a
fabric. Possible logical port type values are the following:
•
•
•
•
•
Base port
Virtual port
Logical port PWWN - logical port’s port world wide name
Logical port NWWN - logical port’s port node world wide name
FC addr - FC address of the logical port
Possible roles supported by the logical port are FCP initiator mode (IM), FCP target mode (FCPTM),
and IP over FC support (IP).
Operands
--list
Lists all the lports for a specified port.
port_id
--query
Specifies the ID of the port for which you want to display information.
-l lpwwn
Specifies the logical port’s world wide name for which you want to display
information. If the lpwwn is not specified, the base port is used.
Displays the logical port’s statistics.
port_id
Specifies the ID of the port for which you want to display statistical
information.
-l lpwwn
Specifies the logical port’s world wide name for which you want to display
statistical information. If the lpwwn is not specified, the base port is used.
--statsclr
148
Lists the attributes of the logical port.
port_id
--stats
Example
Specifies the ID of the port for which you want to display information.
Clears the logical port’s statistics.
port_id
Specifies the ID of the port for which you want to clear statistical information.
-l lpwwn
Specifies the logical port’s port world wide name for which you want to clear
statistical information. If the lpwwn is not specified, the base port is used.
bcu lport --list 1/0
Port ID: 1/0
Port Name:
Port PWWN: 10:00:00:05:1e:ae:e3:a4
Port NWWN: 20:00:00:05:1e:ae:e3:a4
HW Path: 0000.06:00.0
Num LPORTs: 5
Brocade Adapters Administrator’s Guide
53-1001583-01
lport
B
# bcu lport --query hba5_port0
State:
Online
FC address:
0c0100
Port wwn:
aa:bb:cc:dd:ee:ff:aa:bb
Node wwn:
cc:dd:cc:aa:ff:cc:aa:ff
Symbolic name:
FC4 Role:
fcpim ipfc
# bcu lport --query hba5_port0 - 1 01:bb:cc:dd:ee:ff:00:01
State:
Online
FC address:
0c0101
Port wwn:
01:bb:cc:dd:ee:ff:00:01
Node wwn:
01:bb:cc:dd:ee:ff:00:00
# bcu lport --statsclr hba5_port0
lport stats cleared
The following are examples of a Brocade 1020 expansion card versus a Brocade 825 adapter:
1020 bcu lport --query
[root@HB081222-RH4u7x86 ~]# bcu lport --query 1/0
Port FC Addr:
860e01
Port Type:
Base Port (State: Linkup)
Port PWWN:
10:00:00:05:1e:8e:b6:02
Port NWWN:
20:00:00:05:1e:8e:b6:02
Symbolic name: BR-1020 | 2.1.0.0 | HB081222-RH4u7x86 | Red Hat Enterprise Linux
AS release 4 (Nahant Update 7) |
Role:
FCP Initiator
Fabric Name:
10:00:00:05:1e:90:13:98
Switch IP Addr: 10.32.82.134
FPMA MAC Addr: 0e:fc:00:86:0e:01
825 bcu lport --query
[root@HB081222-RH4u7x86 ~]# bcu lport --query 2/0
Port FC Addr:
8a0600
Port Type:
Base Port (State: Linkup)
Port PWWN:
10:00:00:05:1e:0f:1a:b1
Port NWWN:
20:00:00:05:1e:0f:1a:b1
Symbolic name: Brocade-425 | 2.1.0.0 | HB081222-RH4u7x86 | Red Hat Enterprise
Linux AS release 4 (Nahant Update 7) |
Role:
FCP Initiator
Fabric Name:
10:00:00:05:1e:05:09:29
Switch IP Addr: 10.32.82.138
See Also
None
Brocade Adapters Administrator’s Guide
53-1001583-01
149
B
pbind
pbind
Enables target port world wide name (WWN) binding to a persistent target ID for an operating
system (OS) stack.
Synopsis
bcu pbind --list <port_id> [<pwwn>]
bcu pbind --clear <port_id>
Description
Queries the list of mappings or clears existing persistent binding settings.
NOTE
The pbind command is only supported on the Windows platform.
Operands
--list
Queries the list of mappings from the persistent binding module.
port_id
Specifies the ID of the port for which you want to display information.
pwwn
Specifies the world wide name of the port.
--clear
port_id
See Also
150
Clears existing persistent binding settings.
Specifies the ID of the port on which you want to clear existing persistent
binding settings.
None
Brocade Adapters Administrator’s Guide
53-1001583-01
port
B
port
Lists the port commands (the physical ports on the adaoter). The port can be identified by the
adapter index, the port index, the port name, or the port world wide name.
NOTE
1 Gbps speed is not valid for an 8 Gbps HBA; 4 Gbps speed is not valid for a 4 Gbps HBA.
Synopsis
bcu port --list
bcu port --name <port_id> [port_name]
bcu port --enable <port_id>
bcu port --disable <port_id>
bcu port --stats <port_id>
bcu port --statsclr <port_id>
bcu port --query <port_id>
bcu port --topology <port_id> [{auto|p2p}]
bcu port --speed <port_id> <1|2|4|8|auto>
bcu port --dfsize <port_id> [<dfsize>]
Description
Lists all the physical ports for a given port identifier. Possible port identifiers could be any one of
the following:
•
•
•
•
•
Operands
Adapter ID
Port ID
Port WWN
Port name (user assigned)
Port hardware path
--list
Lists all the physical ports along with their basic attributes.
--name
Queries or sets the port name. You can clear the port name using an empty
string (“ “).
port_id
Specifies the ID of the port for which you want to display information.
port_name
Specifies a new name for the port. The name can include up to 15
characters, must begin with an alphabetic letter, can consist of letters, digits,
hyphens, and underscore characters, but no spaces. Naming a port is
optional; if you do not specify a port name, the current port name displays.
--enable
port_id
Brocade Adapters Administrator’s Guide
53-1001583-01
Enables the physical port if it is disabled.
Specifies the ID of the port you want to enable.
151
B
port
--disable
port_id
--stats
port_id
--statsclr
port_id
--query
port_id
--speed
port_id
Disables the physical port, if currently enabled. This is a destructive operation
and affects normal operation of the port. The port is taken offline, all remote
FCP sessions are logged out, and all outstanding I/Os are terminated. You are
prompted before disabling occurs.
Specifies the ID of the port you want to disable.
Displays the physical port-level statistics.
Specifies the ID of the port for which you want to display statistical
information.
Clears port-level statistics.
Specifies the ID of the port for which you want to clear statistical information.
Queries and displays port-related details for a port.
Specifies the ID of the port for which you want to display information.
Queries or sets the port speed. The port speed can be changed dynamically
(when the port is enabled). If the port is disabled, the new port speed setting
takes effect when the port is re-enabled.
Specifies the ID of the port for which you want to set the port speed.
1|2|4|8|auto Specifies the port speed. Possible values are auto (to auto-negotiate the
speed) and 1, 2, 4, 8 speeds.
Note: The 1 Gbps speed is not valid for an 8 Gbps HBA (825, 815) and the 8
Gbps speed is not valid for a 4 Gbps HBA (425, 415). All speeds are valid for a
mezzanine card (804).
--dfsize
Queries or sets the port’s maximum receive data field size. If you do not
specify a value, the current receive buffer size displays.
Note: The new receive data field size takes effect when the port is re-enabled.
port_id
Specifies the ID of the port for which you want to set the data field size.
df_size
Indicates the maximum supported receive data field size, in decimal value. If
set to auto, the driver default value displays. Possible values are 512, 1024,
2048, and 2112. If set to ‘auto,’ the default value is used, which is 2112.
--topology
Queries or sets the port topology. The port topology can be changed
dynamically (when the port is enabled). If the port is disabled, the new
topology setting takes effect when the port is re-enabled.
port_id
Specifies the ID of the port for which you want to display or set the topology.
auto|p2p
Specifies the topology type. Supported topology modes are as follows:
• auto - auto-discovers the topology
• p2p - point-to-point
• loop - loop mode
Note: The topology setting will take effect after the port --disable and
port --enable commands are executed.
152
Brocade Adapters Administrator’s Guide
53-1001583-01
port
Example
B
# bcu port --list
-----------------------------------------------------------------------Port# Type PWWN/MAC
FC Addr/ Media State
Spd
Eth dev
-----------------------------------------------------------------------1/0 fc
10:00:00:05:1e:ae:e3:a4 dd0500 mz Linkup 4G
1/1 fc
10:00:00:05:1e:ae:e3:a5 dd0500 mz Linkup 8G
1/1 fc
10:00:00:05:1e:ae:e3:a6 -- mz Disabled -1/1 fc
10:00:00:05:1e:ae:e3:a7 -- mz Disabled ------------------------------------------------------------------------# bcu port --name 1/0 emc_fab3_ad5_p0
Port 1/0’s name set to emc_fab3_ad5_p0
# bcu port --name 1/0
Port 1/0’s name is emc_fab3_ad5_p0
# bcu port --enable 2/1
port enabled
# bcu port --enable 2/1
port is already enabled
# bcu port --disable 2/1
port disabled
# bcu port --disable 2/1
port is already disabled
# bcu port --stats 4/0
tx_frames: 4096
tx_words: 202448224
rx_frames: 1024
rx_words: 10224844
lip_count: 2096
nos_count: 64
error_frames: 2
dropped_frames: 12
link_failures: 6
loss_of_syncs: 2
loss_of_signals: 8
primseq_errs: 2
invalid orrdered set: 0
nonframe coding err: 0
invalid_tx_words: 4
invalid_crcs_frames: 32
undersized frames: 0
oversized frames: 0
bad EOF frames: 0
# bcu port --statsclr dell_s1_ad0_p1
port stats cleared
Brocade Adapters Administrator’s Guide
53-1001583-01
153
B
port
# bcu port --query 1/0
port id:
1/0
port type:
FC
port instance:
0
port name:
Media: mz
pwwn: 10:00:00:05:1e:ae:e3:a4
nwwn: 20:00:00:05:1e:ae:e3:a4
Factory pwwn: 10:00:00:05:1e:ae:e3:a4
Factory nwwn: 20:00:00:05:1e:ae:e3:a4
state:
Disabled
Speed:
current:
4G
configured:
Auto
Topology:
current:
P2P
configured:
P2P
SNIA port type:
N
supported classes:
Class-3
symbolic name:
Brocade-804 | 2.1.0.0 | BL490-2 | SUSE Linux
Enterprise Server 10 (i586) | PATCHLEVEL = 2
maximum frame size:
2112
receive bb credits:
48
transmit bb credits:
8
QOS:
Disabled
TRL:
Disabled
TRL default speed:
1G
Path TOV:
30 seconds
Beacon status:
Off
pbind status:
Enabled
Portlog:
Enabled
# bcu port --topology 1/1
Current topology: auto
# bcu port --topology 1/1 p2p
Topology set to p2p
# bcu port --topology 1/1 auto
Topology set to auto
# bcu port --speed 1/1 auto
Port speed set
# bcu port --dfsize 1/0 2112
Setting will be enforced after port --disable and port--enable
# bcu port --dfsize 1/0 auto
Setting will be enforced after port --disable and port--enable
See Also
154
“adapter”
“ioc”
Brocade Adapters Administrator’s Guide
53-1001583-01
qos
B
qos
Quality of Service (QoS) works in conjunction with the QoS feature on Brocade switch F_ports. The
Fabric operating system (FOS) provides a mechanism to assign traffic priority (high, medium, or
low) for a given source and destination traffic flow. By default, all flows are marked as medium.
Synopsis
bcu qos --enable <port_id>
bcu qos --disable <port_id>
bcu qos --query <port_id>
bcu qos --stats <port_id>
bcu qos --statsclr <port_id>
Description
Operands
Enables or disables Quality of Service (QoS).
--enable
port_id
--disable
port_id
--query
port_id
--stats
port_id
--statsclr
port_id
Enables Quality of Service (QoS).
Specifies the ID of the port on which QoS is enabled.
Disables Quality of Service (QoS).
Specifies the ID of the port on which QoS is disabled.
Queries the QoS details.
Specifies the ID of the port for which you want to display information.
Displays the QoS statistics.
Specifies the ID of the port for which you want to display statistical
information.
Clears the QoS statistics.
Specifies the ID of the port for which you want to clear statistical information.
Example
bcu qos --query 1/0
See Also
None
Brocade Adapters Administrator’s Guide
53-1001583-01
155
B
ratelim
ratelim
Enables or disables target rate limiting support on the HBA side.
Synopsis
bcu ratelim --enable <port_id>
bcu ratelim --disable <port_id>
bcu ratelim --query <port_id>
bcu ratelim --defspeed <port_id> [<1|2|4>]
Description
The target rate limiting feature is used to minimize congestion at the HBA port due to a slow drain
device operating in the fabric at a slower speed. A remote port’s operating speed is determined
from the fabric. Traffic destined to the remote port is limited to its current operating speed.
The default rate limit is 1 Gbps. Target rate limiting (TRL) is supported only when the HBA port is
connected to the fabric. Therefore, TRL is not supported when the port is directly connected with
another device.
Possible port identifiers could be any one of the following:
•
•
•
•
•
Adapter ID
Port ID
Port WWN
Port name (user assigned)
Port hardware path
NOTE
You must first enter the bcu port --disable <port_id> command, followed by the port --enable
command, before the ratelim --enable or ratelim --disable commands take effect.
Operands
--enable
port_id
--disable
port_id
--query
port_id
--defspeed
See Also
156
Enables target rate limiting, if currently disabled.
Specifies the ID of the port you want to enable.
Disables target rate limiting on the HBA, if currently enabled.
Specifies the ID of the port you want to disable.
Queries the target rate limiting details.
Specifies the ID of the port for which you want to display information.
Sets the default target rate limiting speed. The default TRL speed must be
supported and less than the maximum speed at which the card can operate.
port_id
Specifies the ID of the port on which you want to set the speed.
1|2|4
Sets the default target rate limiting speed on the HBA. Options are 1 Gbps, 2
Gbps, and 4 Gbps
None
Brocade Adapters Administrator’s Guide
53-1001583-01
rport
B
rport
Lists the commands that apply to a remote port in a fabric. A remote port is a port that is physically
separated from the adapter.
Synopsis
bcu rport --list <port_id> [-l <lpwwn>]
bcu rport --osname <port_id> [-l <lpwwn>]
bcu rport --query <port_id> <rpwwn> [-l <lpwwn>]
bcu rport --stats <port_id> <rpwwn> [-l <lpwwn>]
bcu rport --statsclr <port_id> <rpwwn> [-l <lpwwn>]
Description
Operands
Lists all the remote ports (rports) under a given port ID.
--list
Lists all remote ports accessible for a given logical port.
port_id
Specifies the ID of the port for which you want to display rport information.
lpwwn
Specifies the logical port world wide name. This is an optional argument.
Note: If the -l lpwwn argument is not specified, the base port is used.
--osname
Lists all the osnames of the remote ports that are visible through the local
port.
port_id
Specifies the ID of the port for which you want to display osnames.
lpwwn
Specifies the logical port world wide name. This is an optional argument.
--query
Displays detailed attributes of a remote port.
port_id
Specifies the ID of the port for which you want to query attributes of a remote
port.
rpwwn
Specifies the remote port world wide name for which you want to query
attributes.
lpwwn
Specifies the logical port world wide name for which you want to query
attributes of a remote port. This is an optional argument.
Note: If the -l lpwwn argument is not specified, the base port is used.
--stats
Displays remote port statistics.
port_id
Specifies the ID of the port for which you want to display information.
rpwwn
Displays the remote port’s port world wide name.
lpwwn
Displays the logical port world wide name. This is an optional argument.
Note: If the -l lpwwn argument is not specified, the base port is used.
--statsclr
Clears the remote port statistics.
port_id
Specifies the ID of the port for which you want to clear remote port statistics.
rpwwn
Specifies the remote port’s port world wide name for which you want to clear
remote port statistics
lpwwn
Displays the logical port world wide name. This is an optional argument.
Brocade Adapters Administrator’s Guide
53-1001583-01
157
B
rport
Example
bcu rport --list 2/0
--------------------------------------------------------------------------FC Addr Remote Port PWWN
QOS-P/F
SPD
State
F df_sz
--------------------------------------------------------------------------01fd01
50:00:1f:e1:50:10:09:48
U/0
--online
T 2048
01f701
50:06:01:60:41:e0:68:c0
U/0
--online
T 2048
01f202
50:06:0e:80:03:75:5e:05
U/0
--online
T 2048
01f002
20:02:00:0e:11:10:fc:25
U/0
--online
T 2048
01ff01
50:05:07:63:0e:04:12:ef
U/0
--online
T 2048
01fe01
50:06:01:60:3c:e0:0c:a3
U/0
--online
T 2048
01fc01
50:01:43:80:01:3b:fb:38
U/0
--online
T 2048
01f601
20:16:00:a0:b8:42:20:ac
U/0
--online
T 2048
--------------------------------------------------------------------------bcu rport --query 1/0 21:00:00:04:cf:75:6a:04
RPORT FC Address:
01f701
RPORT port wwn:
50:06:01:68:41:e0:68:c0
RPORT node wwn:
50:06:01:60:c1:e0:68:c0
Status:
online
Class of Service:
Class-3
Function:
Target
Data Field size:
2048
Cont.Incr.seq_cnt(CISC):
Not Supported
Current Speed:
--symbolic name:
DGC
LUNZ
0324
Vendor:
DGC
Product ID:
DISK
Product Rev:
0324
QOS priority:
Unknown
QOS flow id:
0
TRL enforced:
No
bcu rport --stats 1/0 aa:bb:cc:dd:ee:ff:00:01
offlines:
1
onlines:
2
RSCN :
0
PLOGI sent:
2
PLOGI accepts : 2
PLOGI timeouts: 0
PLOGI failed:
0
PLOGI rejects : 0
PLOGI received: 0
PRLI received: 0
ADISC sent:
0
ADISC received: 0
ADISC rejects : 0
ADISC accepts : 0
ADISC failed:
0
ADISC rejected: 0
LOGO sent:
0
LOGO accepts:
0
LOGO failed:
0
LOGO rejected: 0
LOGO received: 0
RPSC received: 0
RPSC rejects:
0
RPSC sent:
8
RPSC accepts:
0
RPSC failed:
8
158
Brocade Adapters Administrator’s Guide
53-1001583-01
rport
RPSC rejected:
B
0
HAL rport statistics:
uninit: create events:
uninit: exception events:
created: online events:
created: delete events:
created: IOC down:
created: exception events:
fw create: f/w responses:
fw create: delete events:
fw create: offline events:
fw create: IOC down:
fw create: exception events:
online: offline events:
online: delete events:
online: IOC down events:
online: exception events:
fw delete: fw responses:
fw delete: delete events:
fw delete: IOC down events:
fw delete: exception events:
offline: delete events:
offline: online events:
offline: IOC down events:
offline: exception events:
delete: fw responses:
delete: IOC down events:
delete: exception events:
delete pend: fw responses:
delete pend: IOC downs:
delete pend: exceptions:
off-pending: fw responses:
off-pending: deletes:
off-pending: IOC downs:
off-pending: exceptions:
IOC down: offline events:
IOC down: delete events:
IOC down: online events:
IOC down: exceptions:
1
0
1
0
0
0
2
0
0
0
0
1
0
0
0
1
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
bcu rport --statsclr 1/0 aa:bb:cc:dd:ee:ff:00:01
Successfully reset the rport level stats
See Also
None
Brocade Adapters Administrator’s Guide
53-1001583-01
159
B
vport
vport
Lists the commands that apply to a virtual port.
Synopsis
bcu vport --create <port_id> <vpwwn> [-n <vnwwn>] [-s <sname>]
bcu vport --delete <port_id> <vpwwn>
bcu vport --query <port_id> <vpwwn>
bcu vport --stats <port_id> <vpwwn>
bcu vport --statsclr <port_id> <vpwwn>
Description
The vport commands enable you to create and delete vports and display statistics about them.
NOTE
The vport commands are not supported on Solaris platforms.
Operands
--create
port_id
Specifies the ID of the port for which you want to add a new V_Port.
vpwwn
Adds the virtual port by its world wide name. The V_Port WWN is a required
argument.
n vnwwn
Adds the virtual port by the node’s world wide name for the V_Port. This is an
optional argument. If not specified, the base port node’s world wide name is
used.
s sname
Adds the symbolic name for the virtual port. This is an optional argument.
--delete
Deletes the specified V_Port. This deletes all associated objects, such as any
associated login sessions and active I/O requests.
port_id
Specifies the ID of the port for which you want to delete a V_Port.
vpwwn
Deletes the virtual port by its world wide name. The V_Port WWN is a required
argument.
--query
Queries information about the V_Port. This provides the V_Port’s status and
information associated with FC-4s. If no port WWN is specified, the
information provided is for the base V_Port.
port_id
Specifies the ID of the port for which you want to query V_Port information.
vpwwn
Queries the virtual port by its world wide name. The V_Port WWN is a required
argument.
--stats
160
Adds a new V_Port in the base fabric. If the virtual fabric ID is not specified,
the V_Port is created in the base fabric. FCP initiator mode is supported.
Displays the statistics that are associated with the V_Port. If you do not
specify the port’s world wide name, the statistics listed are for the base
V_Port.
port_id
Specifies the ID of the port for which you want to display statistical
information.
vpwwn
Displays the statistics for the virtual port by its world wide name. The V_Port
WWN is a required argument.
Brocade Adapters Administrator’s Guide
53-1001583-01
vport
--statsclr
Example
B
Clears the statistics that are associated with the V_Port. If you do not specify
the port’s world wide name, the statistics listed are for the base V_Port.
port_id
Specifies the ID of the port for which you want to clear statistical information.
vpwwn
Clears the statistics for the virtual port by its world wide name. The V_Port
WWN is a required argument.
bcu vport --query 1/0 10:00:00:05:1e:ae:e3:03
Port wwn: 10:00:00:05:1e:ae:e3:03
Node wwn: 20:00:00:05:1e:ae:e3:a4
FC Addr: dd0504
State: online
Role: FCP initiator
bcu vport --stats hba5_port0
fdisc sent: 15
fdisc accepts: 7
fdisc retries: 8
fdisc timeouts: 2
fdisc rsp err: 18
fdisc acc bad: 9
fdisc rejects: 3
fdisc unknown: 0
fdisc alloc waits: 6
logo sent: 12
logo accepts: 8
logo rejects: 4
logo rsp err: 4
logo unknown rsp: 6
logo alloc waits: 6
no npiv: 7
fab offline: 5
fab online: 8
fab cleanup: 9
bcu vport --statsclr hba5_port0
vport stats cleared
See Also
None
Brocade Adapters Administrator’s Guide
53-1001583-01
161
B
162
vport
Brocade Adapters Administrator’s Guide
53-1001583-01
Appendix
HCM Troubleshooting
C
In this appendix
This section discusses known problems with HCM usability features and the workaround.
HCM tab navigation
Problem
There are various places within the Host Connectivity Manager (HCM) where you cannot navigate
without using the mouse on the KDE GUI on the Linux operating system. If you use the tab key to
enter any of the fields listed below, you cannot exit the field without using the mouse.
The problem includes any of the following right pane properties:
Host > Properties fields
Host > Adapter fields
Adapter > Properties fields
Adapter > Ports fields
Port > Properties fields
Port > LPORT fields
Port > SFP fields
Port > POM fields
Base Port > Properties
Base Port > Remote Properties
Target > Properties
Target > LUNs
LUN > Properties
Master Log Details
Application Log Details
Workaround
The Ctrl + Tab combination is the default in KDE GUI on Linux platforms. Therefore, the Ctrl + Tab
combination is intercepted by the KDE shell. To navigate HCM using the keyboard, you must
manually disable the Ctrl+ Tab shortcut.
Brocade Adapters Administrator’s Guide
53-1001583-01
163
C
In this appendix
HCM does not restrict duplicate WWNs if BCU is used to create V_Ports
Problem
Workaround
The HCM GUI should post an error message for duplicate V_Ports (detected in the Vports.db file)
and prompt the user to remove the duplicate when it detects duplicate world wide names (WWNs),
but it does not. The HCM does not restrict duplicate WWNs when the BCU is used to create V_Ports.
Do not use the BCU for virtual port management, because it does not handle duplicate V_Port
world wide names. Instead, use only the HCM GUI to manage V_Ports.
RHEL4 U7 x86/x64 OS crashes after invalid operand from hcmagent
Problem
Workaround
164
With HCM open, the RHEL4 U7 x86/x64 operating system hangs within five to ten minutes of
sitting idle. This happens only on RHEL4 U7 x86 kernel version (2.6.9-78). The error message in
the /var/log/messages file indicates an illegal operand in the HCM agent.
Upgrade the kernel to the latest patch release: from 2.6.9-78 to 2.6.9-78.0.5.
Brocade Adapters Administrator’s Guide
53-1001583-01
DRAFT: BROCADE CONFIDENTIAL
Appendix
Glossary and Acronyms
D
Available BB_Credit
A value used by a transmitter to determine permission to transmit frames
and, if so, how many. The transmitter may transmit a frame when the
available BB_Credit is greater than zero.
Available_receive_buffers
The current number of buffers in a receiving port that are available for
receiving frames at link rate.
Bandwidth
The maximum information-carrying capacity of a system.
Baud
The encoded bit rate per second.
BCU
Brocade Command Line Utility (BCU).
Beaconing
A continuous signaling of error conditions on a LAN. Beaconing can occur
either on the port or on one or both sides of the link (known as end-to-end
beaconing).
Byte
A group of eight data bits.
Class of service
A frame delivery scheme exhibiting a specified set of delivery characteristics
and attributes.
Credit
Permission given by a receiving port to a sending port to send a specified
number of frames.
DCFM
Data Center Fabric Manager
Domain_ID
An eight-bit value that identifies a domain.
FCP
The Fibre Channel Protocol for mapping SCSI-3 operations to Fibre Channel.
FLOGI
FC Fabric Login request.
FL_Port
A switch port that is capable of arbitrated loop operations and is connected to
one or more NL_Ports in an arbitrated loop topology.
FOS
Fabric Operating System.
FPMA
Fabric Provided MAC Address.
F_Port
Fabric Port. A port on a switch to which an N_Port connects.
HBA
The host bus adapter is a hardware facility in a node that provides an
interface attachment.
HCM
Host Connectivity Manager.
IOC
I/O Controller.
ITL
Initiator-Target-LUN. An Initiator Port (HBA controller) talks to one Target Port
addressing one LUN.
Brocade Adapters Administrator’s Guide
53-1001587-01
165
DRAFT: BROCADE CONFIDENTIAL
D
Glossary and Acronyms
LLDP
Link Layer Discovery Protocol.
Lossless Ethernet MAC
A full duplex Ethernet MAC supporting at least 2.5KB jumbo frames and
implementing extensions to avoid Ethernet frame loss resulting from
congestion.
LUN
Logical unit number. An address for an individual disk drive or virtual partition
(volume) within a storage device.
LUN mapping
A process that makes a LUN available to some hosts and unavailable to other
hosts.
MAC
Media Access Control.
MIB
Management Information Base.
MTU
Maximum Transfer Unit.
N_Port
A node port (a Fibre Channel host or storage port in a fabric or point-to-point
connection) that is assumed to be incapable of arbitrated loop operations.
NPIV
N_Port ID Virtualization (NPIV) enables a single Fibre Channel protocol port to
appear as multiple, distinct ports, providing separate port identification
within the fabric for each operating system image behind the port (as if each
operating system image had its own unique physical port).
Persistent binding
A Fibre Channel (FC) host bus adapter (HBA) feature that enables you to
permanently assign a system SCSI target ID to a specific FC device, even
though the device’s ID on the FC loop may be different each time the FC loop
initializes.
PFC
Priority Flow Control.
Port
A generic reference to an N_Port, NL_Port, F_Port, FL_Port, E_Port, or other
type of Fibre Channel port.
Port name
A 64-bit unique identifier assigned to each Fibre Channel port. The port name
is communicated during the login and port discovery processes.
R_Port
Remote port in a fabric. A remote port is a port that is physically separated
from the adapter.
SNMP
Simple network management protocol, defined for providing network
management and monitoring functions.
SAN
A storage area network configuration allowing multiple systems and storage
devices to be interconnected using storage command protocols.
Switch_Name
A 64-bit unique Fibre Channel name assigned to a switch.
TLV
Type Length Value, where:
• Type is a numeric code that indicates the kind of field this part of the
message represents.
• Length is the size of the value field, typically measured in bytes.
• Value is a variable-sized set of bytes that contain data for this part of the
message.
166
Brocade Adapters Administrator’s Guide
53-1001587-01
DRAFT: BROCADE CONFIDENTIAL
Glossary and Acronyms
D
Topology
An interconnection scheme that allows multiple Fibre Channel ports to
communicate. For example, point-to-point and arbitrated loop are Fibre
Channel topologies.
VF
Virtual Fabric.
VLAN
Virtual Local Area Network.
WWNN
World Wide Node Name. The unique name for any particular node in the
fabric; for example, an HBA.
WWPN
World Wide Port Name. The unique name for any particular port in the fabric.
A WWNN can have multiple associated WWPNs.
Brocade Adapters Administrator’s Guide
53-1001587-01
167
DRAFT: BROCADE CONFIDENTIAL
D
168
Glossary and Acronyms
Brocade Adapters Administrator’s Guide
53-1001587-01
Index
A
adapter command, 126
advanced port configuration options, 35
application log, 50
auth command, 128
Authentication Configuration dialog box, 83
authentication, security, 19
configuring
HCM logging level, 34
NPIV, 44
persistent binding, 24
port speed, 22
QoS using the BCU, 25
queue depth, 31
rate limiting using the CLI, 26
security authentication using the GUI, 17
B
D
base port properties panel, 70
beaconing
configuring using the BCU, 59
configuring using the GUI, 59
boot groups, 28
boot over SAN
description of, 28
buffer credits, 20
debug command, 61, 135
Define Name dialog box, 75
diag command, 137
diagnostics
running port-level test, 55, 57
types of tests, 2
dialog box
Authentication Configuration, 83
Configure Names, 73
Define Master Log Filter, 97
Define Name, 75
Event Properties, 77
Persistent Binding, 98
Protocol Tests diagnostics, 103
Security Authentication, 83
Test Log Details, 114
discovery
description of, 2
setting up, 14
setting up out-of-band, 15
C
command
adapter, 126
auth, 128
debug, 61, 135
diag, 54, 137
fabric, 140
fcdiag, 54, 141
fcpim, 143
IOC, 145
log, 34, 147
lport, 148
port, 151
portlog, 61
portlogclear, 61
portlogct, 61
rport, 157
vport, 160
Configure Names dialog box, 73
Brocade Adapters Administrator’s Guide
53-1001583-01
E
event categories, 96
event logs, how to filter, 49
Event Properties dialog box, 77
event severities, 14
events, master log, 47
169
F
fabric command, 140
fcdiag command, 141
fcpim command, 143
filtering event log entries, 49
frame data field size
specifying using the BCU, 23
H
HBA Properties panel, 86
HCM
authentication, 6, 7
change password dialog box, 71
logging level configuration, 34
main window, 12
master log icons, 14
product icons, 13
software overview, 2
statistics monitoring, 2
host management, remote, 2
I
IOC command, 145
L
launching HCM
on Linux, 6
on Windows, 5
Linux, launching HCM, 6
log
application, 50
master log, 48
test, 58
log command, 34, 147
log off, 16
login, how to skip, 6
lport command, 148
M
management software components, 2
170
Master Log Filter dialog box, 97
Master Log properties, 48
Master Log Properties tab, 96
monitoring statistics, 2
N
name configuration, 37
NPIV configuration, 44
P
panel
HBA Properties, 86
Port SFP, 107
Port Statistics, 101
remote port properties, 95, 105
password
how to change, 6, 7
path time out
