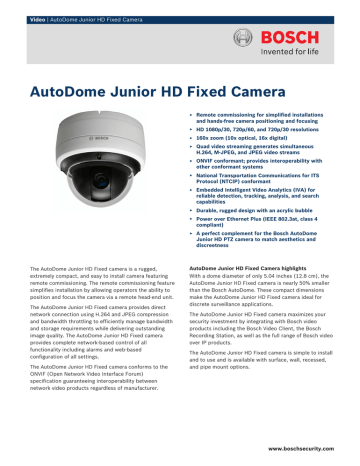

VJR-F801-IWTV
Video | AutoDome Junior HD Fixed Camera
AutoDome Junior HD Fixed Camera
▶ Remote commissioning for simplified installations
and hands-free camera positioning and focusing
▶ HD 1080p/30, 720p/60, and 720p/30 resolutions
▶ 160x zoom (10x optical, 16x digital)
▶ Quad video streaming generates simultaneous
H.264, M-JPEG, and JPEG video streams
▶ ONVIF conformant; provides interoperability with
other conformant systems
▶ National Transportation Communications for ITS
Protocol (NTCIP) conformant
▶ Embedded Intelligent Video Analytics (IVA) for
reliable detection, tracking, analysis, and search
capabilities
▶ Durable, rugged design with an acrylic bubble
▶ Power over Ethernet Plus (IEEE 802.3at, class 4
compliant)
▶ A perfect complement for the Bosch AutoDome
Junior HD PTZ camera to match aesthetics and
discreetness
The AutoDome Junior HD Fixed camera is a rugged,
extremely compact, and easy to install camera featuring
remote commissioning. The remote commissioning feature
simplifies installation by allowing operators the ability to
position and focus the camera via a remote head-end unit.
The AutoDome Junior HD Fixed camera provides direct
network connection using H.264 and JPEG compression
and bandwidth throttling to efficiently manage bandwidth
and storage requirements while delivering outstanding
image quality. The AutoDome Junior HD Fixed camera
provides complete network-based control of all
functionality including alarms and web-based
configuration of all settings.
The AutoDome Junior HD Fixed camera conforms to the
ONVIF (Open Network Video Interface Forum)
specification guaranteeing interoperability between
network video products regardless of manufacturer.
AutoDome Junior HD Fixed Camera highlights
With a dome diameter of only 5.04 inches (12.8 cm), the
AutoDome Junior HD Fixed camera is nearly 50% smaller
than the Bosch AutoDome. These compact dimensions
make the AutoDome Junior HD Fixed camera ideal for
discrete surveillance applications.
The AutoDome Junior HD Fixed camera maximizes your
security investment by integrating with Bosch video
products including the Bosch Video Client, the Bosch
Recording Station, as well as the full range of Bosch video
over IP products.
The AutoDome Junior HD Fixed camera is simple to install
and to use and is available with surface, wall, recessed,
and pipe mount options.
www.boschsecurity.com
2 | AutoDome Junior HD Fixed Camera
System Overview
Remote commissioning
The AutoDome Junior HD Fixed camera allows an operator
to commission the camera from a remote head-end unit,
eliminating the need for hands-on camera positioning and
focusing. Once mounted, the operator can use the built-in
Web interface to remotely position the camera and fix its
location without removing the bubble or connecting a
monitor directly to the camera.
High-performance 160x day/night camera
The AutoDome Junior HD Fixed camera has a 1/2.5-inch
progressive scan CMOS sensor. With up to 1080p
resolution and sensitivity to below 1.0 lux, the AutoDome
Junior HD Fixed camera offers exceptional performance at
a very affordable price.
Ultra-efficient H.264 encoding
The AutoDome Junior HD Fixed camera uses an advanced
H.264 encoder to create DVD-quality streaming video at
ultra-low bit rates. Use of H.264 encoding, bandwidth
throttling, and multicasting capabilities, minimizes
bandwidth and storage usage to significantly reduce
costs. The AutoDome Junior HD Fixed camera supports
1080p30, 720p60, 720p30, 480p30 (WVGA), and 240p30
(WQVGA) resolutions for 50 Hz and 60 Hz models at 16:9
aspect ratio.
Intelligence
With built-in video content analysis, the standard
AutoDome Junior HD Fixed camera reinforces the
Intelligence-at-the-Edge concept where edge devices
become increasingly intelligent. This camera comes with
built-in MOTION+ video motion detection. This motion
detection algorithm is based on pixel change and includes
object size filtering capabilities and sophisticated tamper
detection capabilities.
The AutoDome Junior HD Fixed camera also features
Bosch’s Intelligent Video Analysis (IVA). IVA is state-of-theart intelligent video analysis that reliably detects, tracks,
and analyzes moving objects while suppressing unwanted
alarms from spurious sources in the image.
Rugged reliability
A heavy-duty, tamper-resistant aluminum housing protects
the camera from vandalism and theft, ensuring the
AutoDome Junior HD Fixed camera continues to deliver
critical images even in the toughest environments.
As with all Bosch products, the AutoDome Junior HD
Fixed camera has been subjected to the industry’s most
comprehensive and demanding battery of endurance tests
such as HALT (highly accelerated life testing) to make
sure it will hold up through years of use. And of course, it
comes with Bosch’s industry-leading 3-year warranty.
Multiple video streams
Bosch’s innovative Quad-streaming feature enables the
AutoDome Junior HD Fixed camera to deliver three H.264
streams together with an M-JPEG stream in full and
reduced bandwidth modes. During full bandwidth
operation (full HD 1080p30 or high frame rate 720p60)
the second stream is an exact copy of the first stream. In
reduced band-width mode (720p30), the second stream is
an independently configurable, downscaled-resolution
stream. In both modes the third H.264 stream consists of
HD I-frames only. These streams facilitate bandwidthefficient viewing and recording options as well as
integration with third-party video management systems.
ONVIF conformant
The AutoDome Junior HD Fixed camera conforms to the
ONVIF (Open Network Video Interface Forum)
specification guaranteeing interoperability between
network video products regardless of manufacturer.
ONVIF conformant devices are able to exchange live video,
audio, metadata and control information and ensure that
they are automatically discovered and connected to
network applications such as video management systems.
Functions
The following are some of the features that make the
AutoDome Junior HD Fixed camera the perfect fit for a
variety of indoor surveillance applications.
Ease of installation and servicing
The AutoDome Junior HD Fixed camera has been designed
for quick and easy installation; a key feature from Bosch
CCTV products. The dome comes fully assembled and
ready for surface mount applications. Also available are
wall, recessed, and pipe mounting kits which allow the
AutoDome Junior HD Fixed camera to be easily adapted
for the individual site requirements. Available in white or
charcoal.
The AutoDome Junior HD Fixed camera allows an operator
to commission the camera from a remote head-end unit,
eliminating the need for hands-on camera positioning and
focusing, and the need for special equipment at the
camera site.
AutoDome Junior HD Fixed Camera | 3
iSCSI device support
Built-in iSCSI support allows the AutoDome Junior HD
Fixed camera to stream video directly to an iSCSI RAID
array. This enables local video storage just like a
conventional DVR without streaming high bandwidth video
across the network. Local recording, or Recording at the
Edge, minimizes bandwidth usage and makes system
recording performance totally independent from network
performance.
Network-based control and configuration
The AutoDome Junior HD Fixed camera enables full
camera control and configuration capabilities over the
network. Operators or technicians can configure alarm
management functions virtually anywhere without need
for additional wiring.
The embedded web server lets the installer access all the
user settings, make camera adjustments, and update
firmware via a standard web browser.
- Frame rate: 25 and 30 frames/s
Complies with the 296M-2001 Standard in:
-
Resolution: 1280x720
Scan: Progressive
Color representation: complies with ITU-R BT.709
Aspect ratio: 16:9
Frame rate: 25, 30, 50 and 60 frames/s
Electromagnetic Com- Complies with FCC Part 15, ICES-003, and CE
patibility (EMC)
regulations
Product Safety
Complies with CE regulations, UL, CSA, EN, and
IEC Standards
Environmental
IP54
(excluding VJR-A3-IC mounting option)
Installation/Configuration Notes
Device management
Simple Network Management Protocol (SNMP) support
facilitates the remote monitoring and management. The
AutoDome Junior HD Fixed camera provides full support
for SNMP v3.
166.9
(6.57)
Superior privacy masking
The AutoDome Junior HD Fixed camera allows for a total
of 15 individual, easy to configure privacy masks, with up
to 15 displayed in the same scene. As the camera is
zoomed each mask changes size smoothly and quickly
ensuring that the covered object cannot be seen. You also
have a choice of black, gray, or white masking
characteristics.
Power over Ethernet
Power for indoor camera models may be supplied via a
Power over Ethernet Plus (PoE+, IEEE 802.3at, class 4)
compliant network cable connection. With this
configuration, only a single cable connection is required to
power and to control the camera while also viewing
images from the camera.
128.4
(5.06)
mm
(in.)
175.0
(6.89)
AutoDome Junior HD Fixed Camera Dimensions
Viewing
View the video on a PC using a Web browser or via the
Bosch Video Client, the Bosch Recording Station, the
Bosch Video Management System, or integrate it into a
third party video management system.
Certifications and Approvals
HD standards
Complies with the SMPTE 274M-2008 Standard in:
-
Resolution: 1920x1080
Scan: Progressive
Color representation: complies with ITU-R BT.709
Aspect ratio: 16:9
www.boschsecurity.com
4 | AutoDome Junior HD Fixed Camera
112.6
(4.43)
46.0
(1.81)
768.2
(30.24)
14.8
(0.58)
83.0
(3.27)
88.8
(3.5)
561.2
(22.09)
366.0
(14.41)
88.8
(3.5)
3/4-14 NP
SM Threads
461.2
(18.16)
Ø11.2 (4x)
(0.44)
mm
(in.)
mm
(in.)
Pipe Mount Dimensions
Wall Mount Dimensions
291.0
(11.46)
104.9
(4.13)
112.6
(4.43)
71.6
(2.82)
mm
(in.)
220.4
(8.68)
mm
(in.)
AutoDome Junior HD Fixed Camera | 5
R114.4
(4.50)
Day Mode
SensUP Off
1.2 lx
2.0 lx
0.038 lx
0.063 lx
0.06 lx
0.1 lx
0.0018 lx
0.0031 lx
SensUP On (64x)
Night Mode
SensUP Off
SensUP On (64x)
Electronic Shutter Speed
(AES)
1x to 64x; 1/50 (1/60) to 1/10000
Signal to Noise Ratio
> 50 dB (AGC off)
Backlight Compensation
On/Off
White Balance
ATW, Indoor, Outdoor, AWB Hold,
Extended ATW, Manual
(adjustable R and B signals in Manual
mode)
Day/Night
Monochrome, Color, Auto
mm
(in.)
In-Ceiling / Recessed Mount Dimensions
1. F1.8, 1/30 (1/25) shutter, maximum AGC.
2. Tinted bubble adds 0.8 f-stop loss.
Software Control
207.2
(8.16)
Camera Setup/Control
Via Internet Explorer Web browser version 7.0
version or later, Bosch Configuration Manager, or BVMS
Software Update
Firmware upload
Network
mm
(in.)
Surface Mount Dimensions
Standards
H.264 (ISO/IEC 14496‑10), M‑JPEG, JPEG
Streaming
Individually configurable streams in H.264 and
M‑JPEG, configurable frame rate and bandwidth;
•
1080p30
One (1) H.264 1080p30 stream plus one (1) M‑JPEG
and one (1) I-frame stream
•
720p60
One (1) H.264 720p60 stream plus one (1) M‑JPEG
and one (1) I-frame stream
•
720p30
Two (2) independently configurable H.264 streams:
One (1) H.264 720p30 stream,
One (1) H.264 BP+ or H.264 MP SD stream,
plus one (1) M‑JPEG and one (1) I-frame stream
Technical Specifications
10x HD Day/Night Camera
GOP Structure
IP, IBP, IBBP
Imager
1/2.5 inch progressive scan CMOS
Data Rate
9.6 kbps to 6 Mbps
Number of Pixels
2.1 Megapixels
Overall IP Delay
240 ms
Aspect Ratio
16:9
Resolutions (H x V) and Frame Rates
Lens
10x optical zoom (6.3 to 63 mm)
(F1.8/F2.5 to close)
Stream 1
Focus
Single-shot autofocus
Iris
Automatic with manual override
Field of View
Horizontal: 5.5° to 50.6°
Vertical: 3.1° to 29.3°
Automatic Gain Control
Normal, Medium, High, Fixed
Synchronization
Internal
Aperture Correction
On/Off
Digital Zoom
16x
Sensitivity(typical)1
30 IRE2
•
•
•
Full HD/1080p
1920 x 1080, 30 ips
HD/720p
1280 x 720, 60 ips
HD/720p
1280 x 720, 30 ips
Stream 23
•
•
SD/480p (WVGA)4
854 x 480, 30 ips
SD/240p (WQVGA)4
432 x 240, 30 ips
3. Stream 1 must be set to 720p at 30 ips.
4. Images displayed in 16:9 aspect ratio.
50 IRE2
www.boschsecurity.com
6 | AutoDome Junior HD Fixed Camera
Construction
Network
Protocols
RTP, Telnet, UDP, TCP, IP, HTTP, HTTPS, FTP,
DHCP, IGMP V2/V3, ICMP, ARP, SMTP, SNTP,
SNMP, RTSP, 802.1x, iSCSI, DynDNS, UPnP
NTCIP Protocols
•
CCTV Camera
Control
•
Application Lay- SNMP per NTCIP 1101:1996 & NTCIP 2301
er
NTCIP 1205
•
Transport/Network Layers
TCP/IP per NTCIP 2202:2001
•
Sub-network
Layer
PMPP (Point to Multi-Point Protocol) per NTCIP
2101:2001 & NTCIP 2102:2003
Ethernet
10-Base T/100 Base-TX, auto-sensing, half/full
duplex, RJ45
PoE+
IEEE 802.3at, class 4
Electrical
Rated Voltage
24 VAC ± 10%, 50/60 Hz or
PoE+ (IEEE 802.3at, class 4)
Power Draw
14 W typical
Environmental
Operating Temperature
–10°C to 40°C (14°F to 104°F)
Storage Temperature
–20°C to 60°C (–4°F to 140°F)
Operating Humidity
0% to 90% relative, non-condensing
Water/Dust Protection
IP54
(excluding VJR-A3-IC mounting option)
Miscellaneous
Masking
Fifteen (15) individually configurable privacy
masks
Protocol Support
Bosch (OSRD), ONVIF
Supported Languages
English, German, Dutch, French, Italian, Spanish, Portuguese, Polish, Russian, Chinese, and
Japanese
Size (Diameter x Height)
153.0 x 133.0 mm
(6.02 x 4.61 in.)
Bubble Size
128.0 mm (5.04 in.)
Weight
1.92 kg (4.24 lb)
Material
•
•
Housing
Cast aluminum
Bubble
Acrylic
Color
White or Charcoal
Ordering Information
VJR-F801-ICCV Fixed Indoor 10x
AutoDome Junior HD with IVA, Charcoal,
Clear Bubble
Indoor AutoDome Junior HD Fixed camera
with IVA, charcoal, 10x day/night camera
with clear bubble
VJR-F801-ICCV
VJR-F801-IWCV Fixed Indoor 10x
AutoDome Junior HD with IVA, White,
Clear Bubble
Indoor AutoDome Junior HD Fixed camera
with IVA, white, 10x day/night camera with
clear bubble
VJR-F801-IWCV
VJR-F801-ICTV Fixed Indoor 10x
AutoDome Junior HD with IVA, Charcoal,
Tinted Bubble
Indoor AutoDome Junior HD Fixed camera
with IVA, charcoal, 10x day/night camera
with tinted bubble
VJR-F801-ICTV
VJR-F801-IWTV Fixed Indoor 10x
AutoDome Junior HD with IVA, White,
Tinted Bubble
Indoor AutoDome Junior HD Fixed camera
with IVA, white, 10x day/night camera with
tinted bubble
VJR-F801-IWTV
Accessories
User Connections
Power
•
PoE+, Indoor Models RJ-45 100 Base-TX Ethernet PoE+ IEEE
802.3at, class 4
•
Camera, All Models
24 VAC, 50/60 Hz
Video and Control
RJ-45 100 Base-TX Ethernet
Alarm Input (2)
NC/NO
Alarm Output
Open collector NPN
32 VDC @ 150 mA max
Audio
9 K Ohm typical 5.5 Vp-p max
UPA-2450-60 Power Supply
120 VAC, 60 Hz, 24 VAC, 50 VA Out
UPA-2450-60
UPA-2450-50 Power Supply
220 VAC, 50 Hz, 24 VAC, 50 VA Out
For use with certain 24 VAC camera models.
UPA-2450-50
VJR-A3-IC AutoDome Junior HD Indoor Inceiling Mount
VJR-A3-IC
VJR-A3-SP AutoDome Junior HD In-ceiling
Support Kit
VJR-A3-SP
VEZ-A2-JC Surface Mount Adapter
Charcoal adapter for AutoDome Junior surface installations
VEZ-A2-JC
VEZ-A2-JW Surface Mount Adapter
White adapter for AutoDome Junior surface
installations
VEZ-A2-JW
AutoDome Junior HD Fixed Camera | 7
Ordering Information
VEZ-A2-PC AutoDome Junior Pipe Mount
Charcoal
VEZ-A2-PC
VEZ-A2-PW AutoDome Junior Pipe Mount
White
VEZ-A2-PW
VEZ-A2-WC AutoDome Junior Wall Mount
Charcoal
VEZ-A2-WC
VEZ-A2-WW AutoDome Junior Wall Mount
White
VEZ-A2-WW
VJR-SBUB2-CL AutoDome Junior HD Clear
Bubble
VJR-SBUB2-CL
VJR-SBUB2-TI AutoDome Junior HD Tinted
Bubble
VJR-SBUB2-TI
VJR-A3-IC54 AutoDome Junior HD
Plenum-rated In-ceiling Mount
VJR-A3-IC54
Software Options
MVC-FENC-AES BVIP AES 128 Bit
Encryption
BVIP AES 128‑bit encryption site license.
This license is required only once per installation. It enables encrypted communication between BVIP devices and management stations.
MVC-FENC-AES
www.boschsecurity.com
8 | AutoDome Junior HD Fixed Camera
Americas:
Bosch Security Systems, Inc.
130 Perinton Parkway
Fairport, New York, 14450, USA
Phone: +1 800 289 0096
Fax: +1 585 223 9180
[email protected]
www.boschsecurity.us
Europe, Middle East, Africa:
Bosch Security Systems B.V.
P.O. Box 80002
5600 JB Eindhoven, The Netherlands
Phone: + 31 40 2577 284
Fax: +31 40 2577 330
[email protected]
www.boschsecurity.com
© Bosch Security Systems 2011 | Data subject to change without notice
T7276841867 | Cur: en-US, V9, 27 Jun 2011
Asia-Pacific:
Robert Bosch (SEA) Pte Ltd, Security Systems
11 Bishan Street 21
Singapore 573943
Phone: +65 6258 5511
Fax: +65 6571 2698
[email protected]
www.boschsecurity.asia
Represented by
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
